North Central Conservation District
North Branch Park River
Green Infrastructure Design & Watershed Plan Update
Project Advisory Committee Meeting #2
August 24, 2023
Meeting Agenda 2:00 – 3:00 PM • Welcome and Introductions 5 min • Consultant Team Update 20 min • River Corridor Revitalization Vision 20 min • Project Schedule & Next Steps 5 min • Questions & Discussion 10 min
Introductions
Project Team
• North Central Conservation District
− Joanna Shapiro, Fiscal Agent/Project Oversight
• Fuss & O’Neill
− Erik Mas, PE, Technical Lead/Project Manager
− Akta Patel, GI Design Engineer
− Support Team (Landscape Architecture, Urban Design, Engineering, Ecology)
• Meri LLC with Park Watershed
− Mary Rickel Pelletier, Project Coordinator
• Trust for Public Land
− Walker Holmes, Engagement Advisor
− Cally Guasti-O'Donoghue, Communications
− Brian Martin, Community Engagement
North Central Conservation District
Project Partners, Funding, & Goals
Project Funding
− Long Island Sound Futures Fund
Project Goals
− Advance Green Infrastructure Implementation
− Update 2010 Watershed Management Plan
Introductions
•
•
Introductions
Project Advisory Committee
Matt Hart* CRCOG
Caitlin Palmer* CRCOG
Denise Savageau
Alicea Charamut Rivers Alliance of CT
David Mann
David MacDonald Asylum Hill Neighborhood Assoc.
Kyle Bergquist West End Civic Association
Marion Griffin Hartford NEXT
Evelyn Green Resident
Phil Wright-Rigueur Resident
Janice Castle City of Hartford
Randal Davis* City of Hartford
Owen Deutsch* City of Hartford
Nick Casparino* City of Hartford
Frank Dellaripa* City of Hartford
Mike McGarry Hartford Flood Commission
Jonathan Thiesse Town of Bloomfield
Greg Sommer
Town of West Hartford
Duane Martin Town of West Hartford
Yaw Darko CT Land Conservation Council
Amy Patterson CT Land Conservation Council
Alex Dahlem Aide to House Speaker Ritter
Kellie Guilbert Aide to Senator McCrory
Marilyn Bantz CT DAS Property Manager
Ashley Stewart CT Green Bank
Marlene Krajewski* CT DEEP
Erik Bedan* CT DEEP
Christopher Bellucci* CT DEEP
Jason Waterbury* MDC
Jeremy Galeota* MDC
Zbigniew Grabowski UConn CLEAR
* Project Partners
Green Infrastructure Design Development (Task 3)
• Compile GIS mapping
• Inventory public and institutional properties
• Identify existing GI
• Identify planned capital improvements
& Selection
• Desktop screening
• Property owner interviews
• Field inventories (20 to 40 sites)
• Green infrastructure concepts (up to 15)
• Technical Memo
• 5 projects
• Field survey
• Test pits & infiltration testing
• Wetland delineation
• Preliminary layout
• Opinion of cost
• Technical Memo
• 3 projects
• Level of detail to support local/state permitting
1. Data Gathering & Review
2. Project Screening
3. Preliminary Design
3. Permit Level Design
Consultant Team Update
Task 3 – Design Development
• GIS Data Gathering and Review (80% complete)
−
Existing watershed characteristics & conditions
− Support desktop screening of GI opportunities and watershed plan update
−
Outstanding GIS data and information requests
• Awaiting Bloomfield storm system data. Currently using 2010 data.
• Requested information on observed flooding locations (MDC, Hartford, Bloomfield, West Hartford)
• Requested existing GSI and planned capital improvements (retrofit opportunities). Partners to review and confirm.

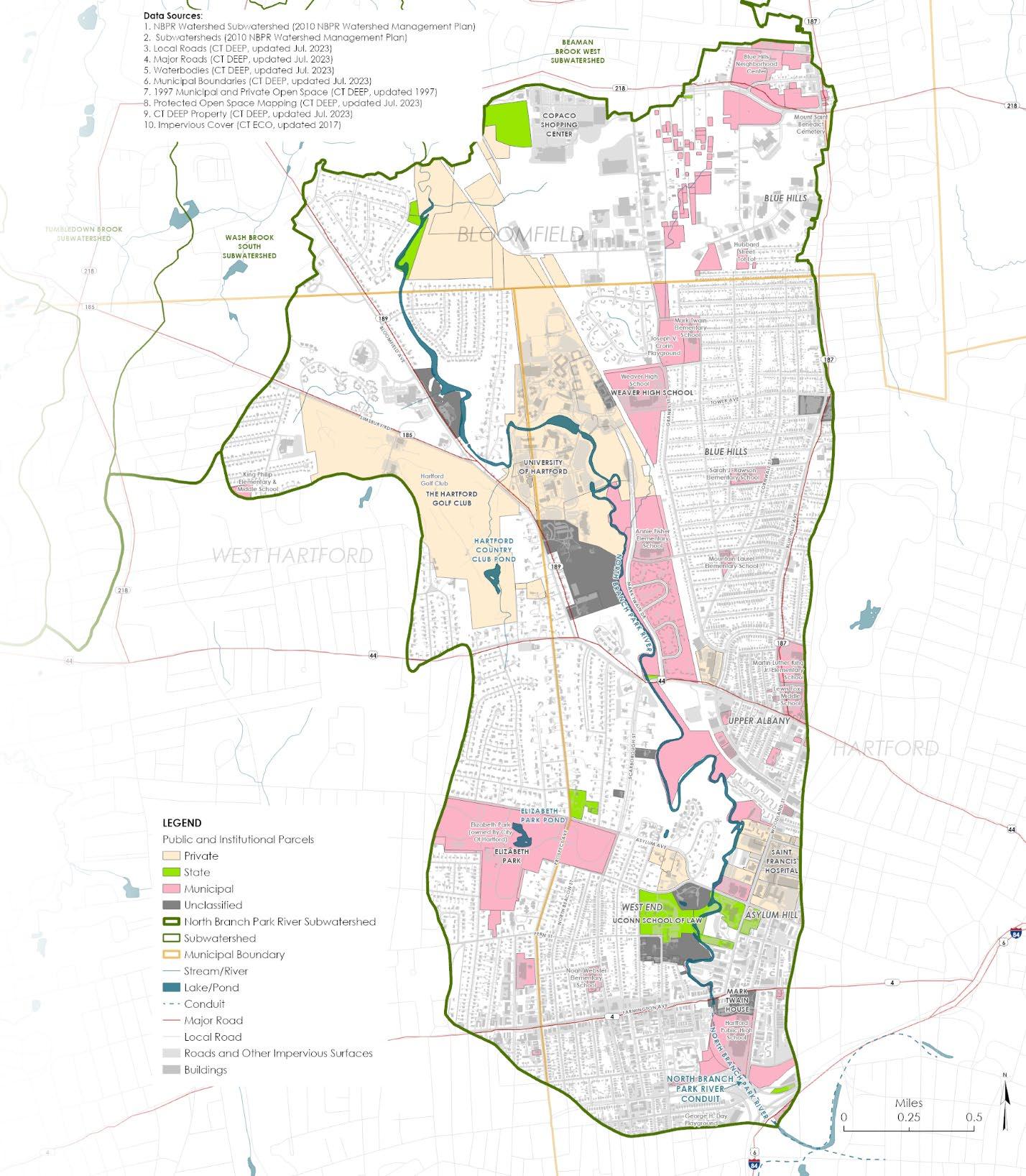

• Draft inventory of public (municipal and state) and institutional properties Parcel Owner Parcel Address University of Hartford 200 Bloomfield Ave, West Hartford, CT Watkinson School 180 Bloomfield Ave, Hartford, CT City of Hartford Board of Education 415 Granby St, Hartford, CT State of Connecticut 61 Woodland St, Hartford, CT University of Connecticut School of Law 55 Elizabeth St, Hartford, CT Town of Bloomfield 800 Bloomfield Ave, Bloomfield, CT St. Francis Hospital 113 Woodland Street, Hartford, CT Hartford Seminary Foundation 77 Sherman Street, Hartford, CT
Consultant Team Update Task 3 – Design Development
Consultant Team Update
Task 3 – Design Development
Desktop screening criteria
− Impervious cover
− Soils
−
Proximity to & condition of river/riparian corridor
− Storm drainage and combined sewer systems
− Parcel size
− Existing flooding
•
Consultant Team Update
Task 3 – Design Development
GI Property Owner
Interviews

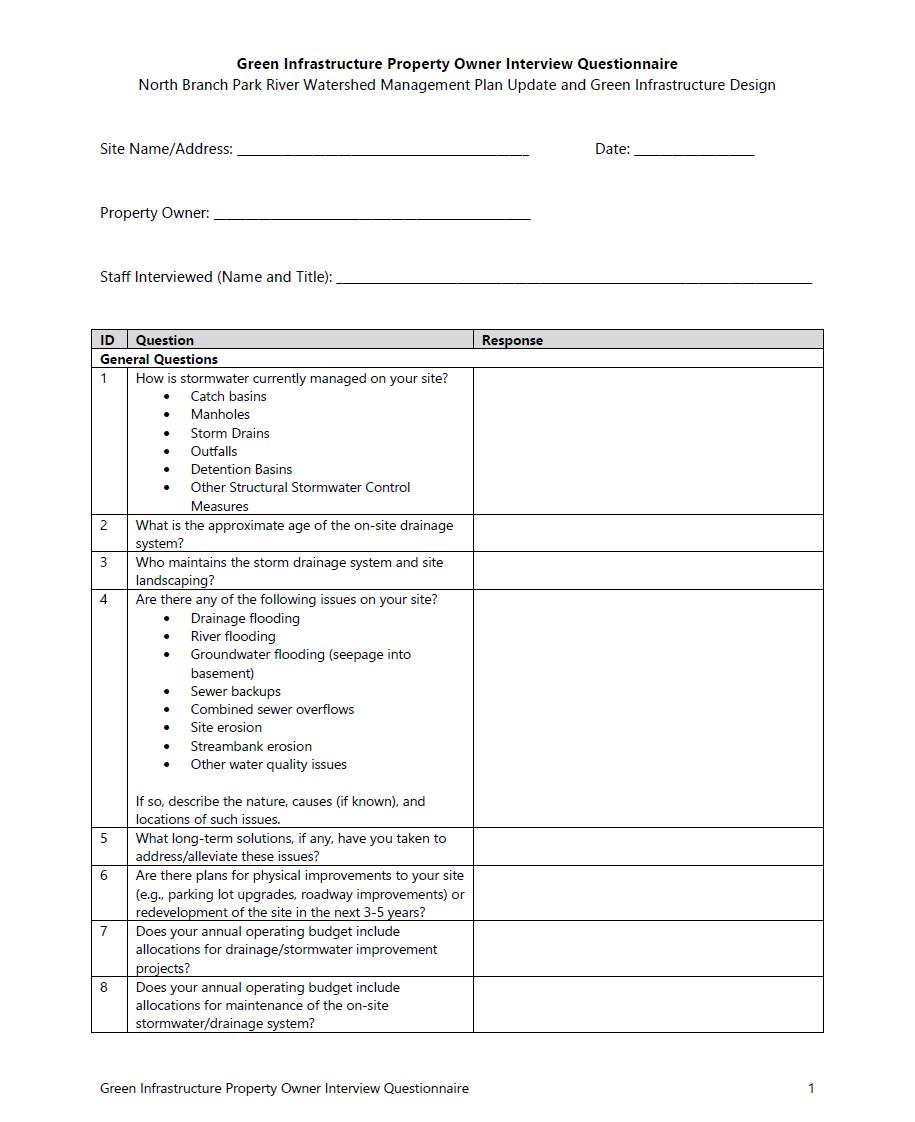

Draft Questionnaire
•
−
Consultant Team Update
Task 3 – Design Development (Next Steps)
Finish compiling project GIS database
Complete inventory of public and institutional properties
Identify and map locations of existing and planned stormwater retrofits (MS4 and other projects)
Complete research of ongoing and planned projects & capital improvements • Desktop screening (select sites) • Property owner interviews • Field inventories (20-40 sites)
•
•
•
•
Consultant Team Update Task 4 – Watershed Plan Update
Preliminary existing conditions watershed maps
•
WATERSHED MANAGEMENT PLAN
WATERSHED OVERVIEW
48,000 WATERSHED POPULATION
HOW MUCH OF THE WATERSHED DOES EACH MUNICIPALITY COMPRISE? 74% BLOOMFIELD 22%
WHAT PERCENTAGE OF EACH MUNICIPALITY IS WITHIN THE NBPR WATERSHED?
BLOOMFIELD 68% WEST HARTFORD 17% HARTFORD 12% AVON 1% SIMSBURY 1% WINDSOR 1%
WEST HARTFORD 18% HARTFORD
WATERSHED MANAGEMENT PLAN

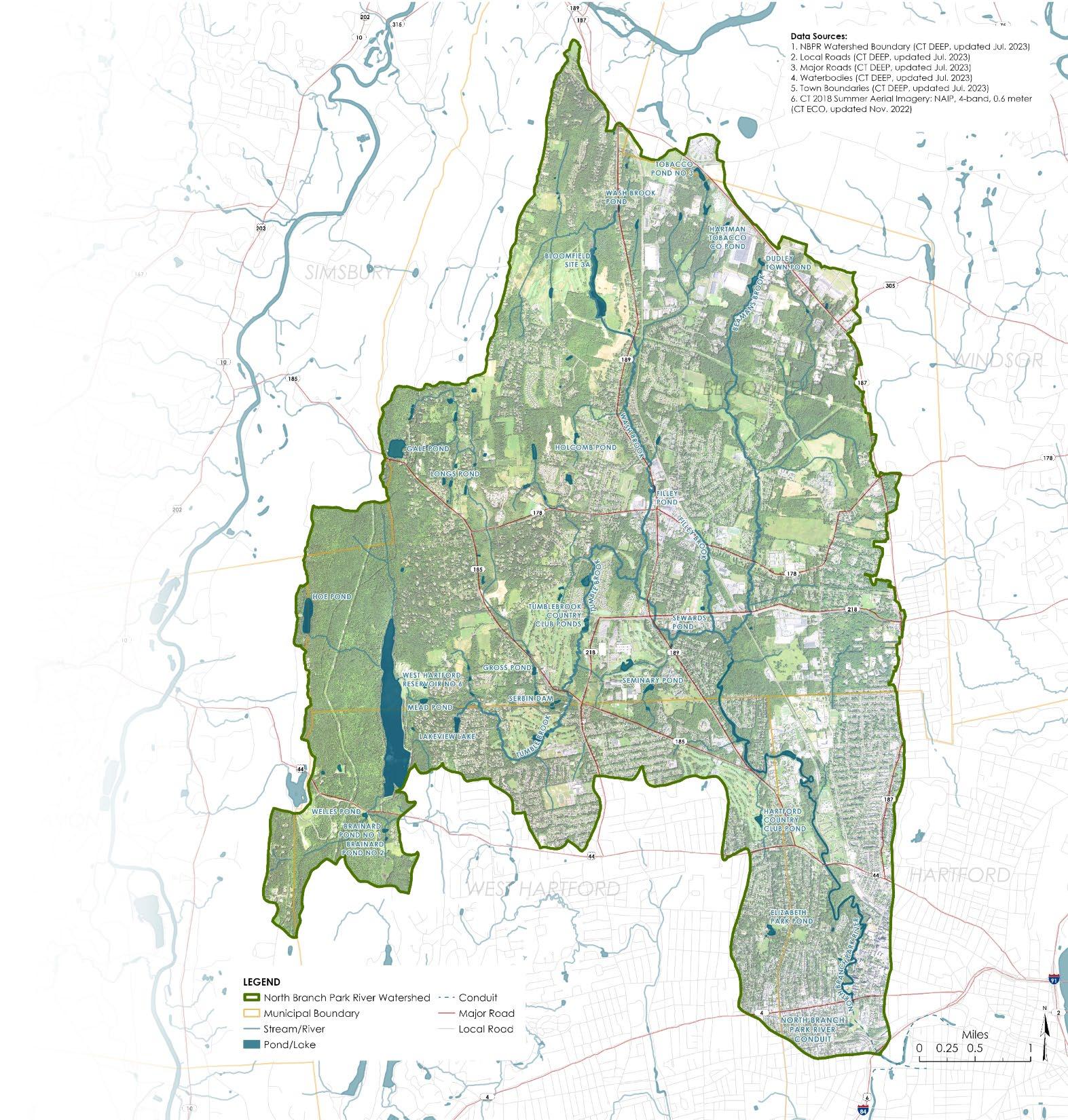

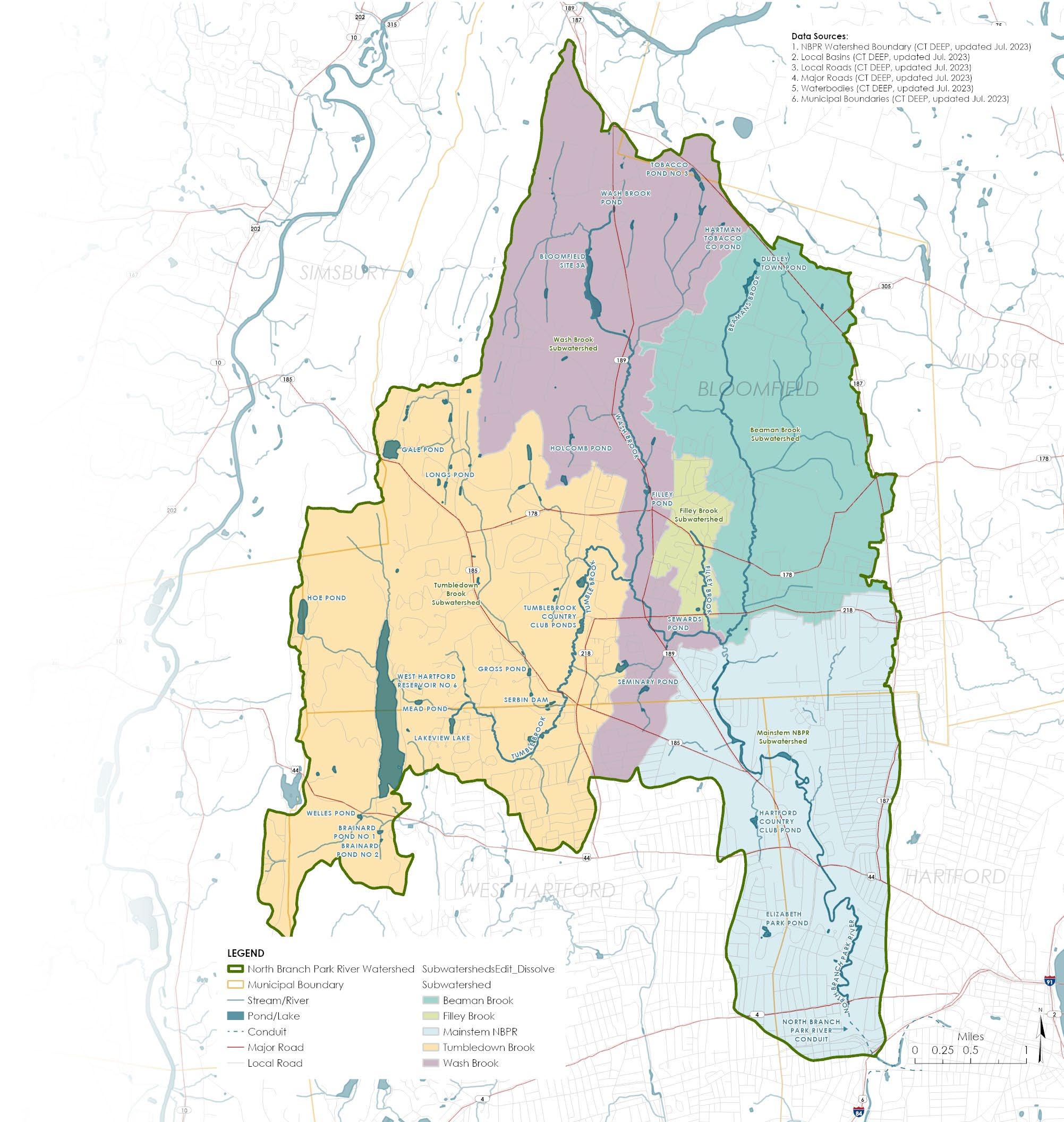

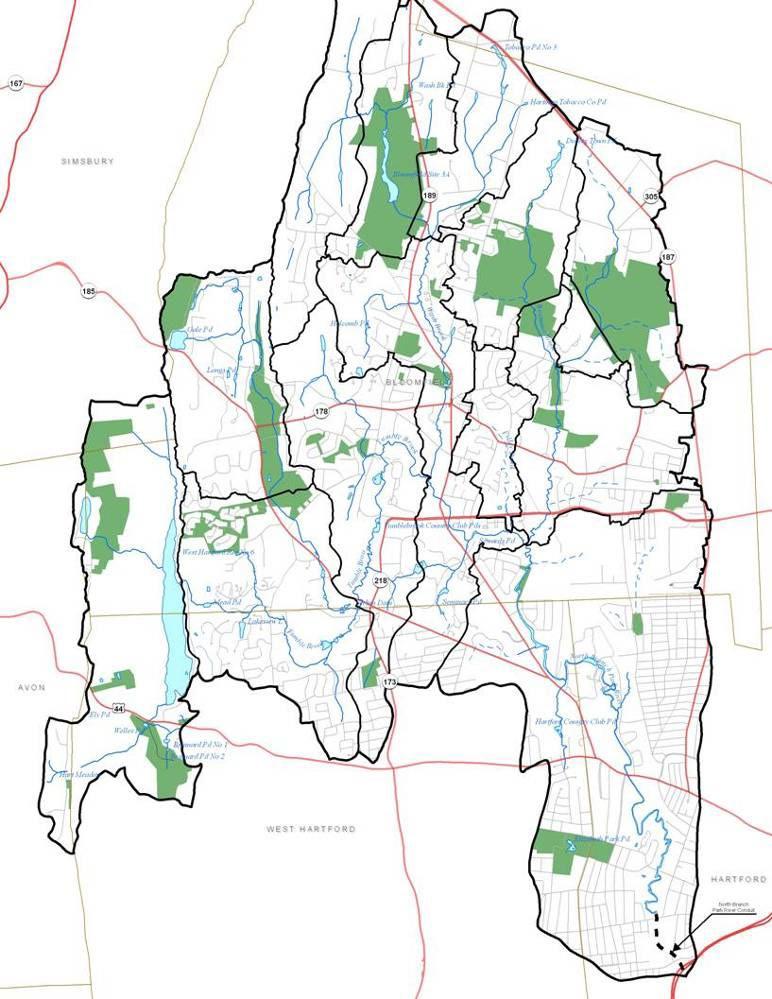

SUBWATERSHED & MAJOR STREAMS
28.6 SQUARE MILES TOTAL WATERSHED AREA
14 MAPPED SUBWATERSHEDS
4 MAJOR TRIBUTARIES
5.4 MILES NORTH BRANCH MAINSTEM (ABOVE GROUND)
0.5 MILES NORTH BRANCH MAINSTEM (BURIED)
WATERSHED MANAGEMENT PLAN

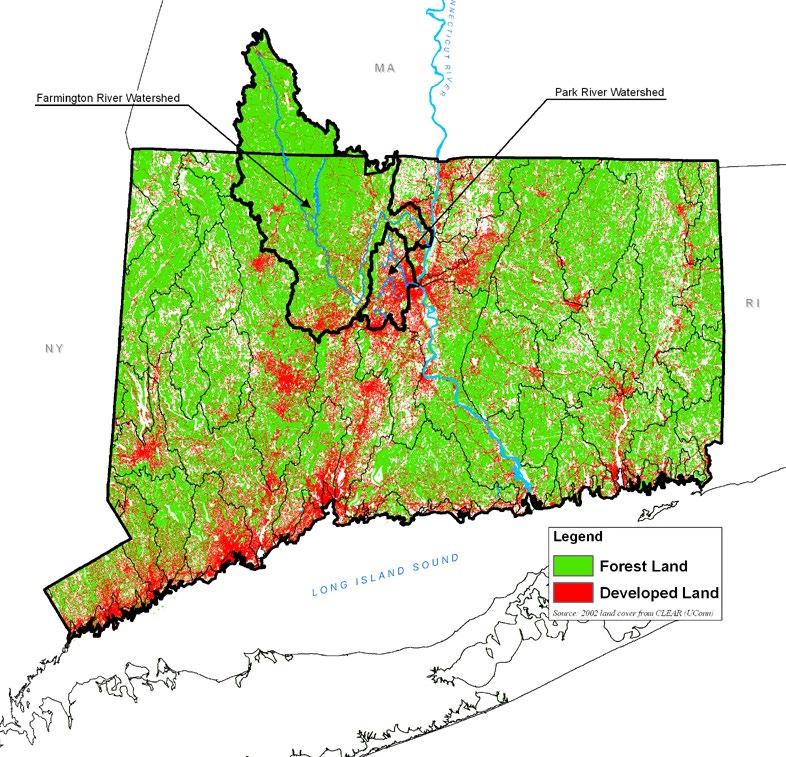

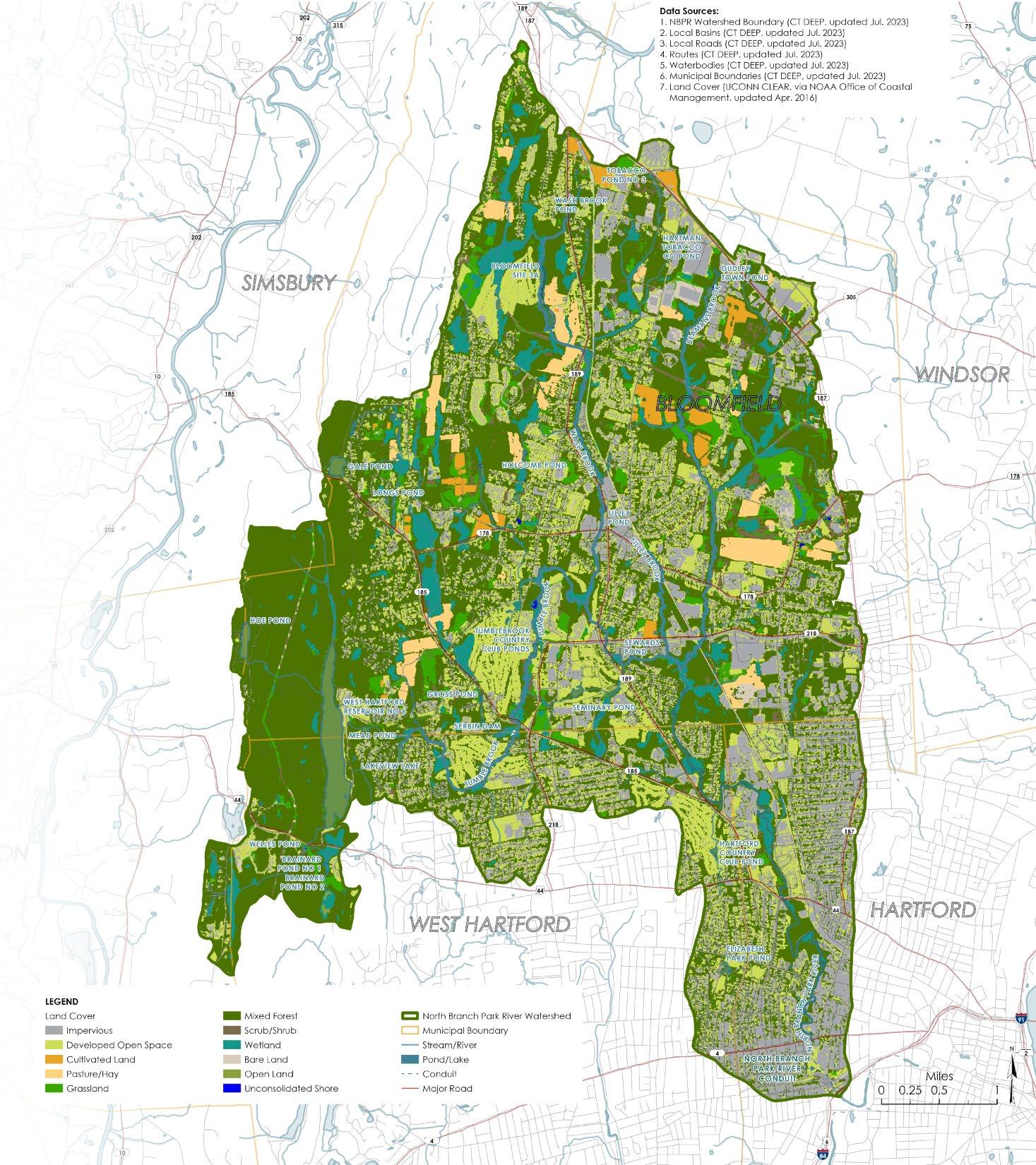

LAND COVER
UConn CLEAR – NOAA High Resolution Land Cover for Connecticut (2016)
• 1 meter resolution
• 3 categories of land cover
WATERSHED MANAGEMENT PLAN

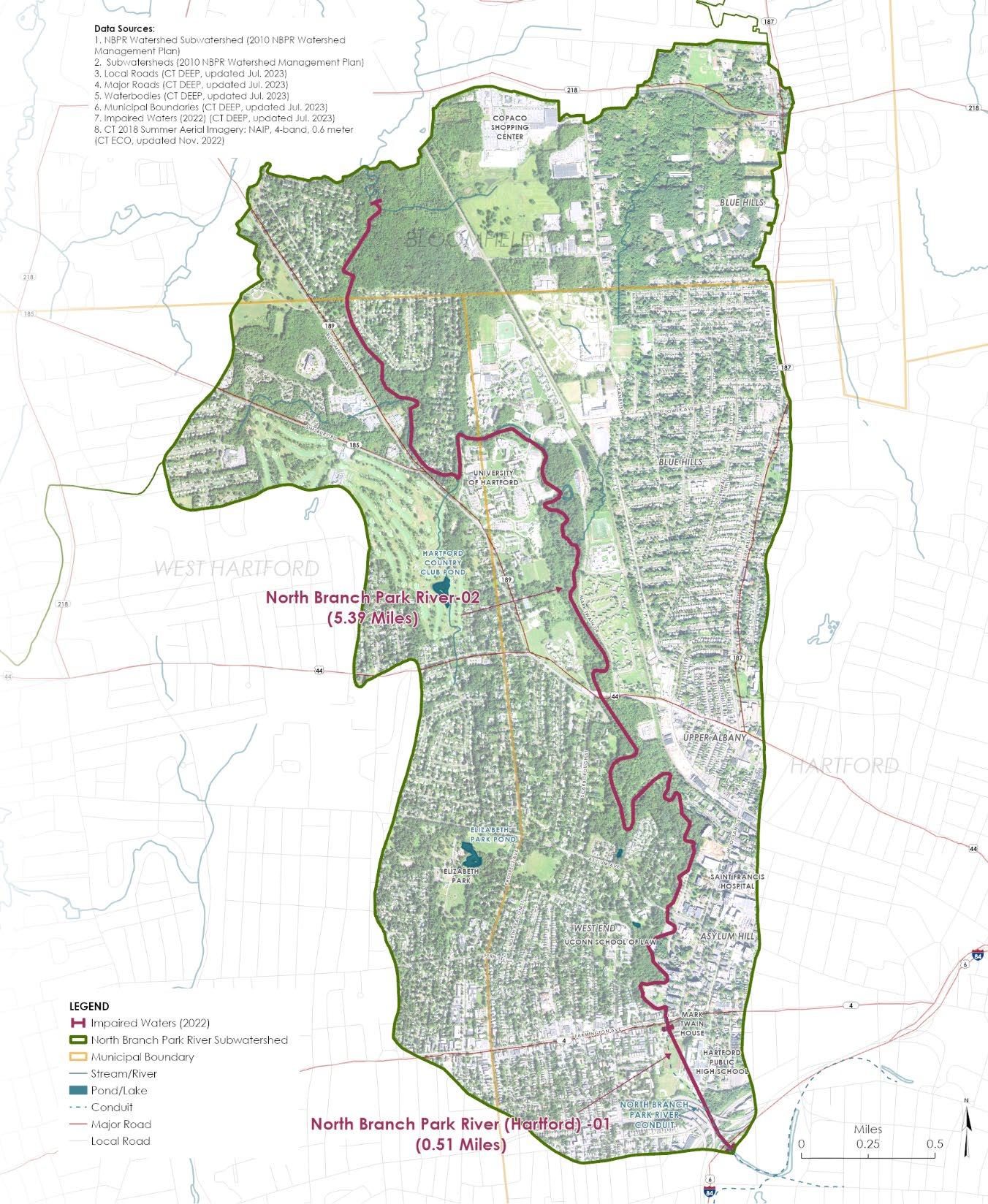

WATER QUALITY IMPAIRMENTS
North Branch Park River-02
• Recreation (E. coli)
• Habitat for Fish, Other Aquatic Life and Wildlife (Cause Unknown)
North Branch Park River-01 (Conduit)
• Recreation and Habitat for Fish, Other Aquatic Life and Wildlife (Physical Substrate Habitat Alterations)
WATERSHED MANAGEMENT PLAN

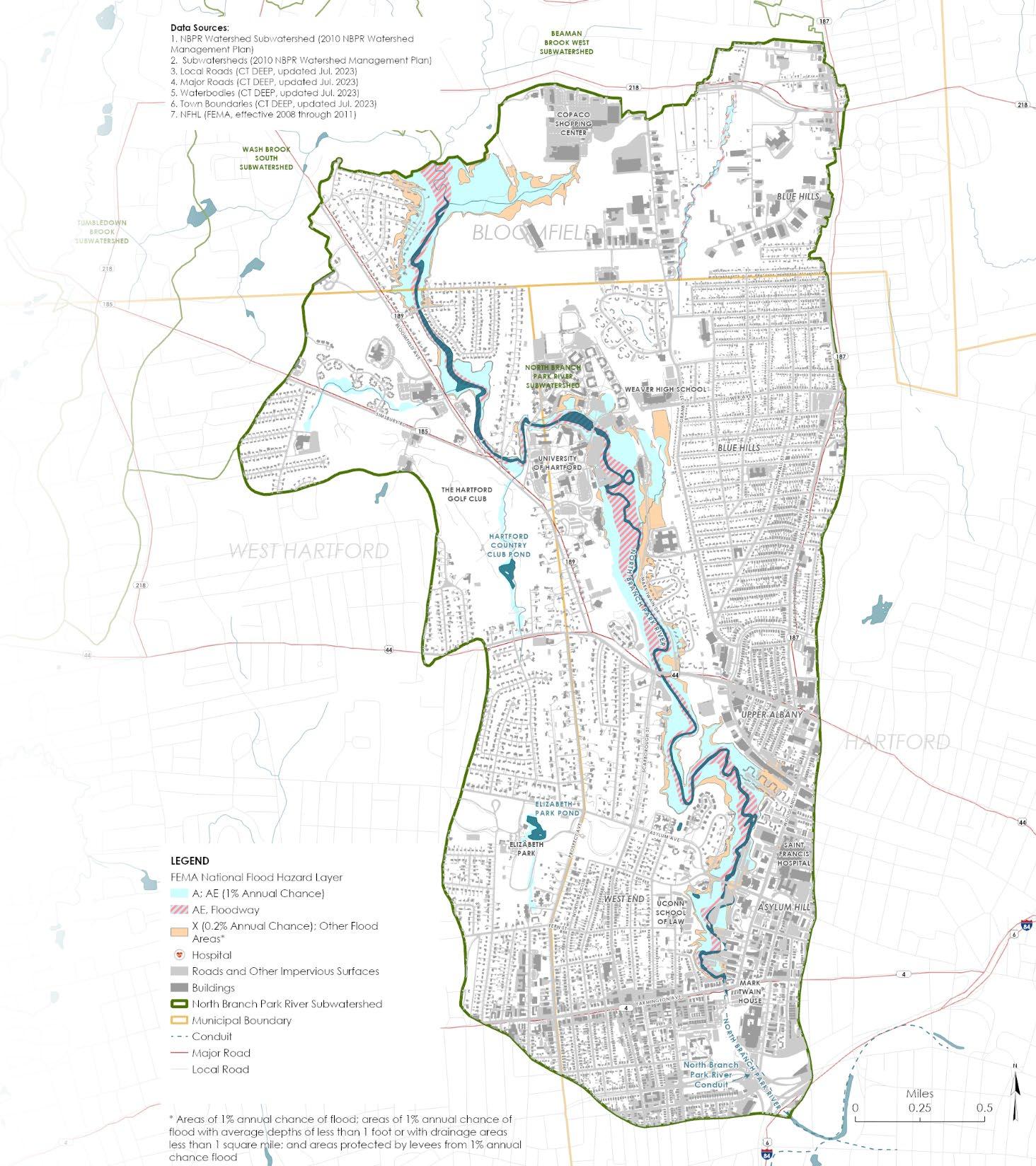

FLOOD PRONE AREAS
FFEMA Mapped Flood Zones
Riverine/Overbank Flooding
Regulatory Floodplain
Other Documented or Observed Flooding Locations
Drainage Related or Riverine Flooding
• Streets/Intersections
• Neighborhoods
• Buildings (Basement Flooding)
• Parcels (Sites & Parking Lots)
• Culverts/Stream Crossings
Looking to add information to this map to inform GI site selection and concept development
Consultant Team Update
Task 4 – Watershed Plan Update
• Watershed Based Plan
Format
− Modified approach based on feedback from CT DEEP and EPA
−

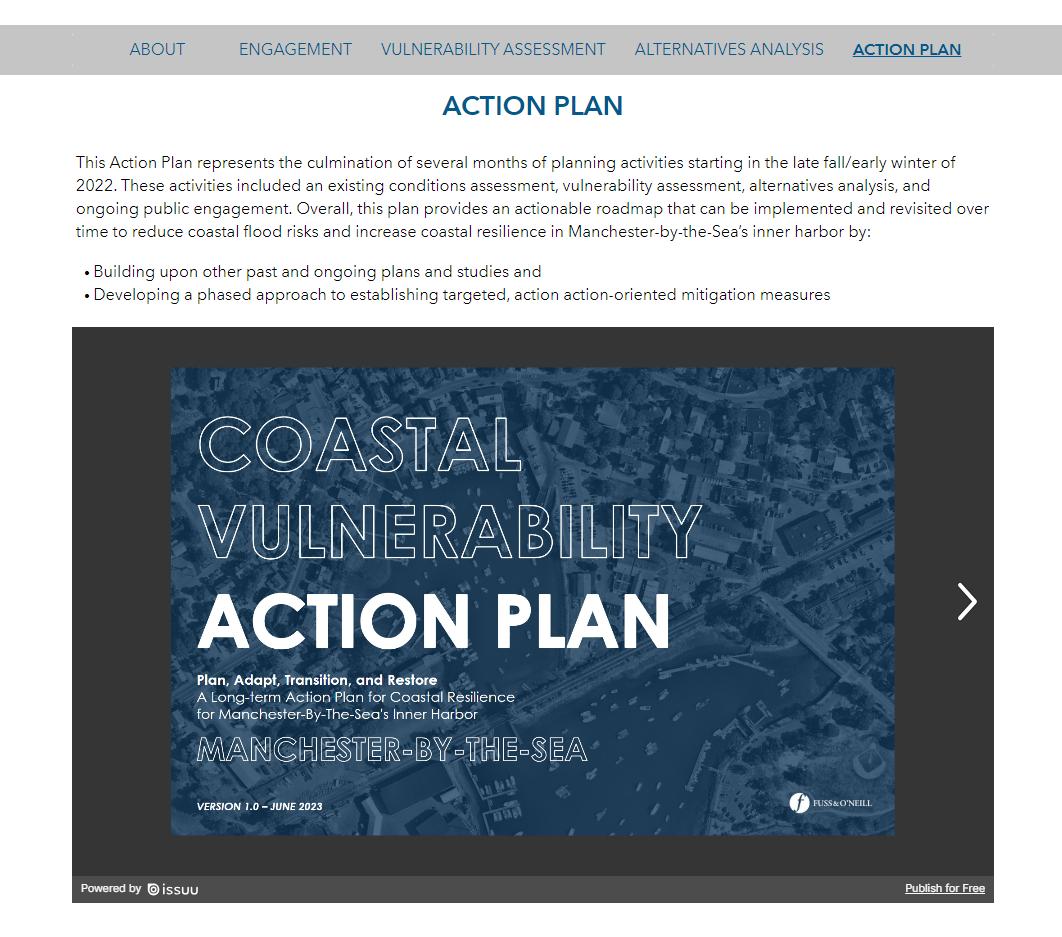

Web-based deliverable
• Project web app with interactive map (ArcGIS Experience Builder) (in progress)
• PDF format watershed management plan
− EPA Nine Elements
− Graphical format
Consultant Team Update
Task 5 –
Public Outreach & Community Engagement
Community Engagement Strategy
• Team Communications with Multiple Stakeholder groups
− Neighborhood Networks: NRZs and Farmers Market
− Faith Organizations, such as Immanuel Congregational Church
July 15th Walkshop
− Volunteer Service, Youth Employment, with Our Piece of the Pie
July 24th maintenance green infrastructure; August 21st bridge sidewalks and
July 25th Walkshop of Classical Magnet green infrastructure features
−
Institutional Property Managers
− K-12 Schools: Hartford Board of Education
−
Elected Officials and municipal staff
Consultant Team Update
Task 5 –
Public Outreach & Community Engagement
Community Engagement Strategy
• Distinct Team Tasks
− Fuss & O’Neill seeking site specific information
− Mary Pelletier (NCCD and Park Watershed) coordinate activities
− Brian Martin (Trust for Public Land)
• expand team understanding of community experiences
• Surveys and Questionnaires
• Other Strategies such as Walkshops and Meetings
Task 5 – Public Outreach & Community Engagement
Task 5 – Public Outreach & Community Engagement

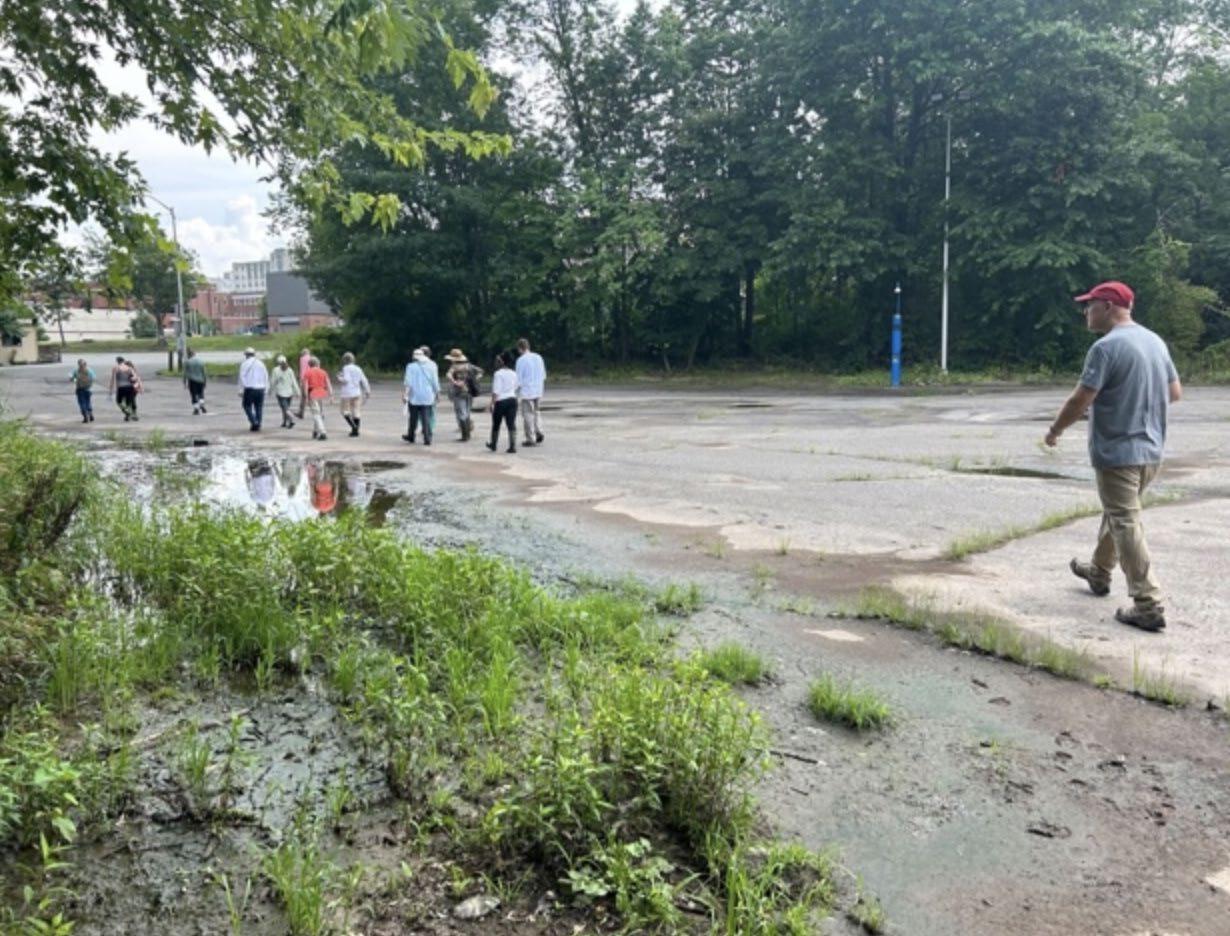

July 15th Walkshop with Immanuel Congregational Church and Asylum Hill Neighborhood Association Green Committee, Park Watershed, NCCD, Trust for Public Land, and West End Civic Association
Consultant Team Update
Task 5 –
Public Outreach & Community Engagement
• Completed Public Outreach and Community Engagement Events
−
July 15th Walkshop with Immanuel Congregational Church and Asylum Hill Neighborhood Association Green Committee, and West End Civic Association
− Volunteer Service and Walkshop Asylum Hill Neighborhood Association Green Committee, Our Piece of the Pie Youth, City of Hartford and Ct Museum
−

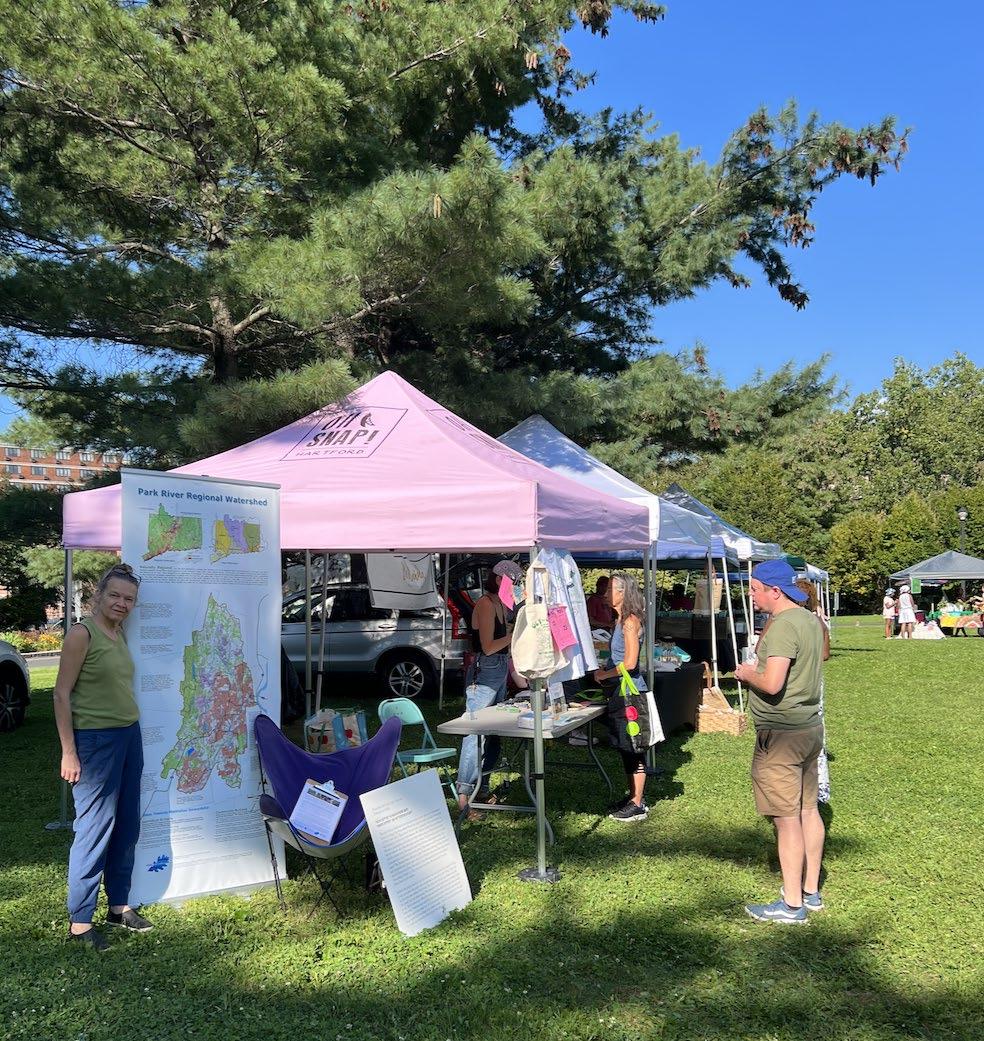

August 22nd (Farmers Market) Park Watershed
Upcoming Public Outreach and Community Engagement Events
− West End Farmers Market: Clemens Green on Farmington Avenue
• September 19th Tuesday 4 – 6:30pm
• October 24th Tuesday 3 – 6pm
−
North Branch Cleanup: HIU 9-12noon Saturday, September 23rd
•
Vision for the North Branch Park River
Healthy Urban/Suburban Riparian Corridor
• Landscape scale green infrastructure that improves water quality
• Scenic riparian landscape offering healthy neighborhood amenities
• Increased ecosystem connectivity benefiting migratory and recreational paths
• Shared regional natural resource, a focus of urban/suburban collaboration
floodplain
parkland or parking lots

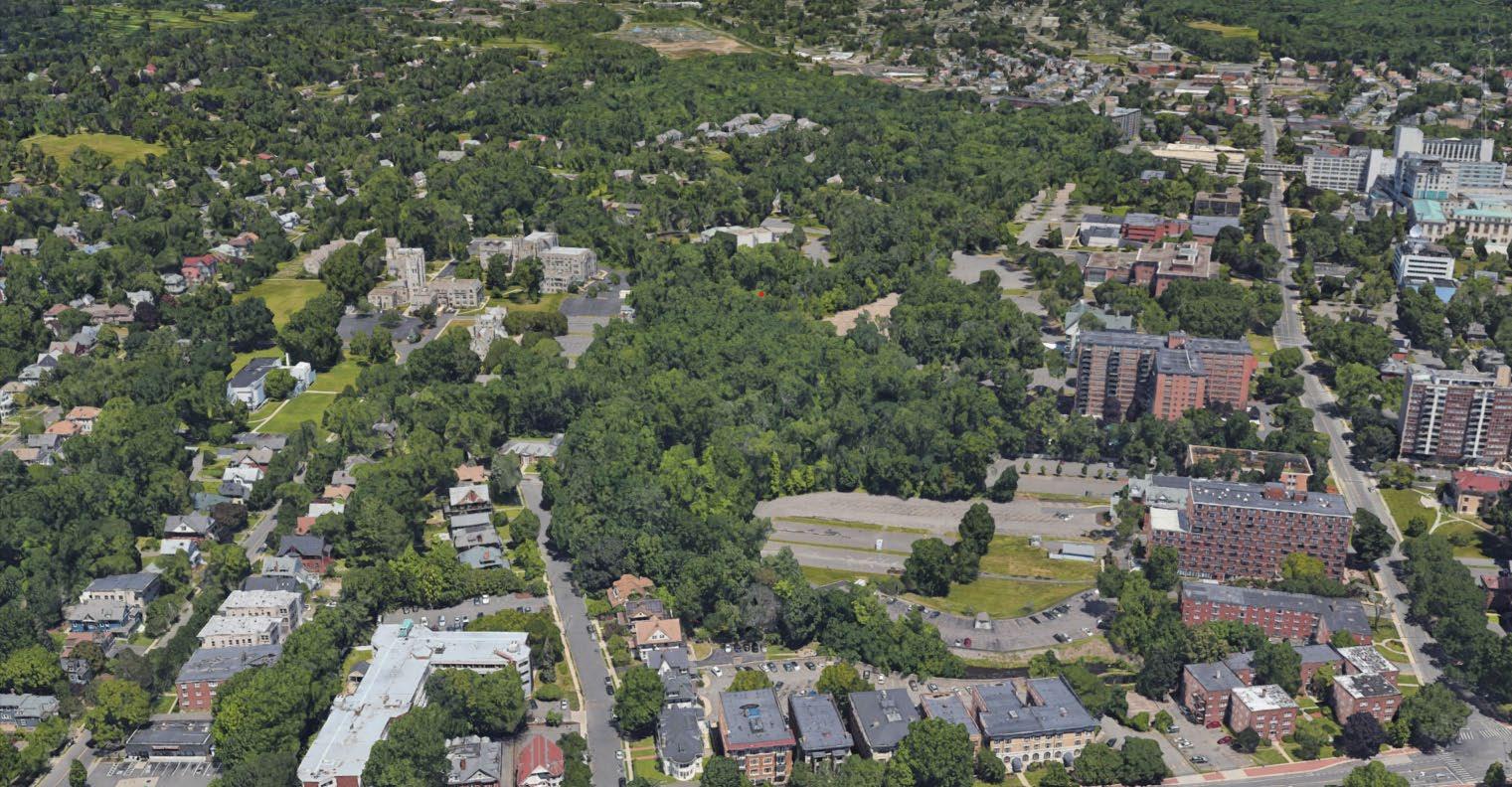

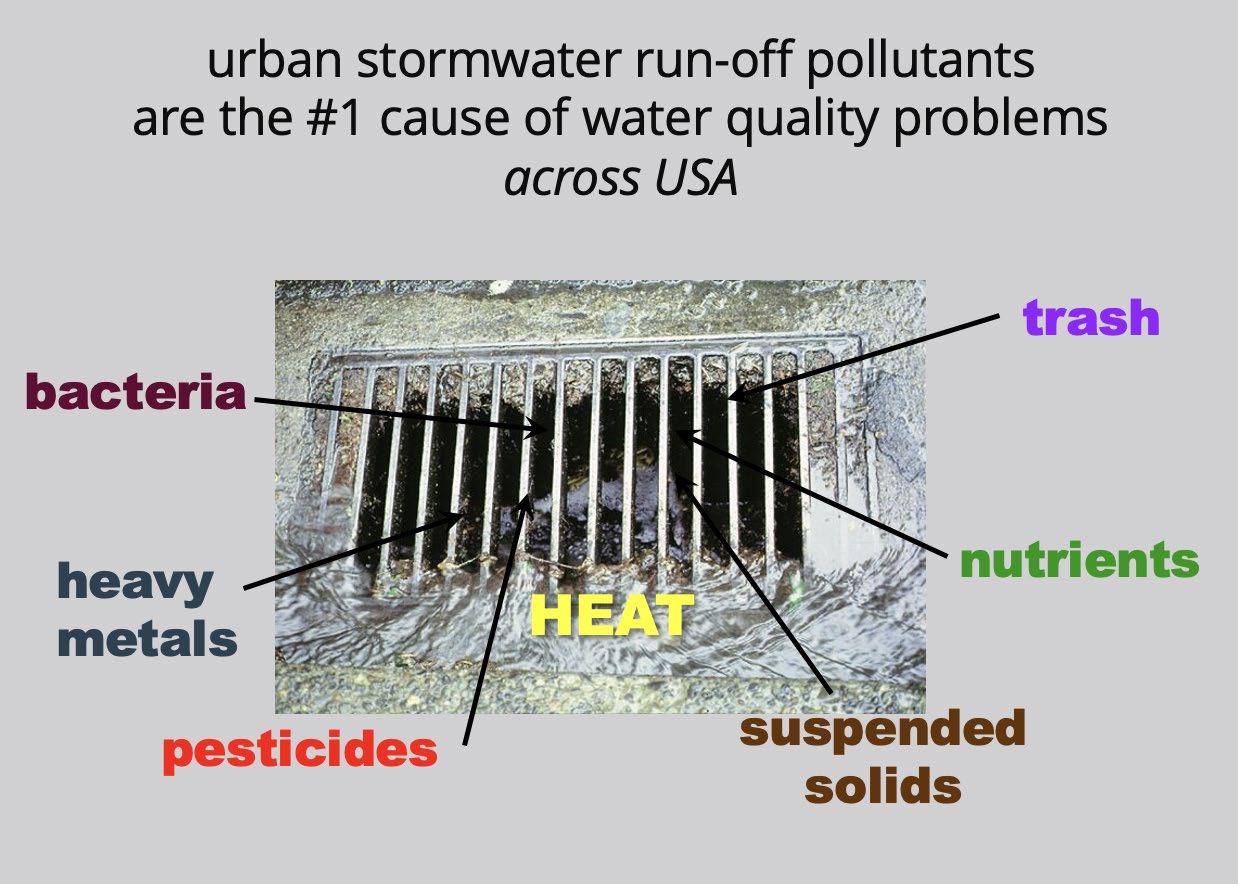

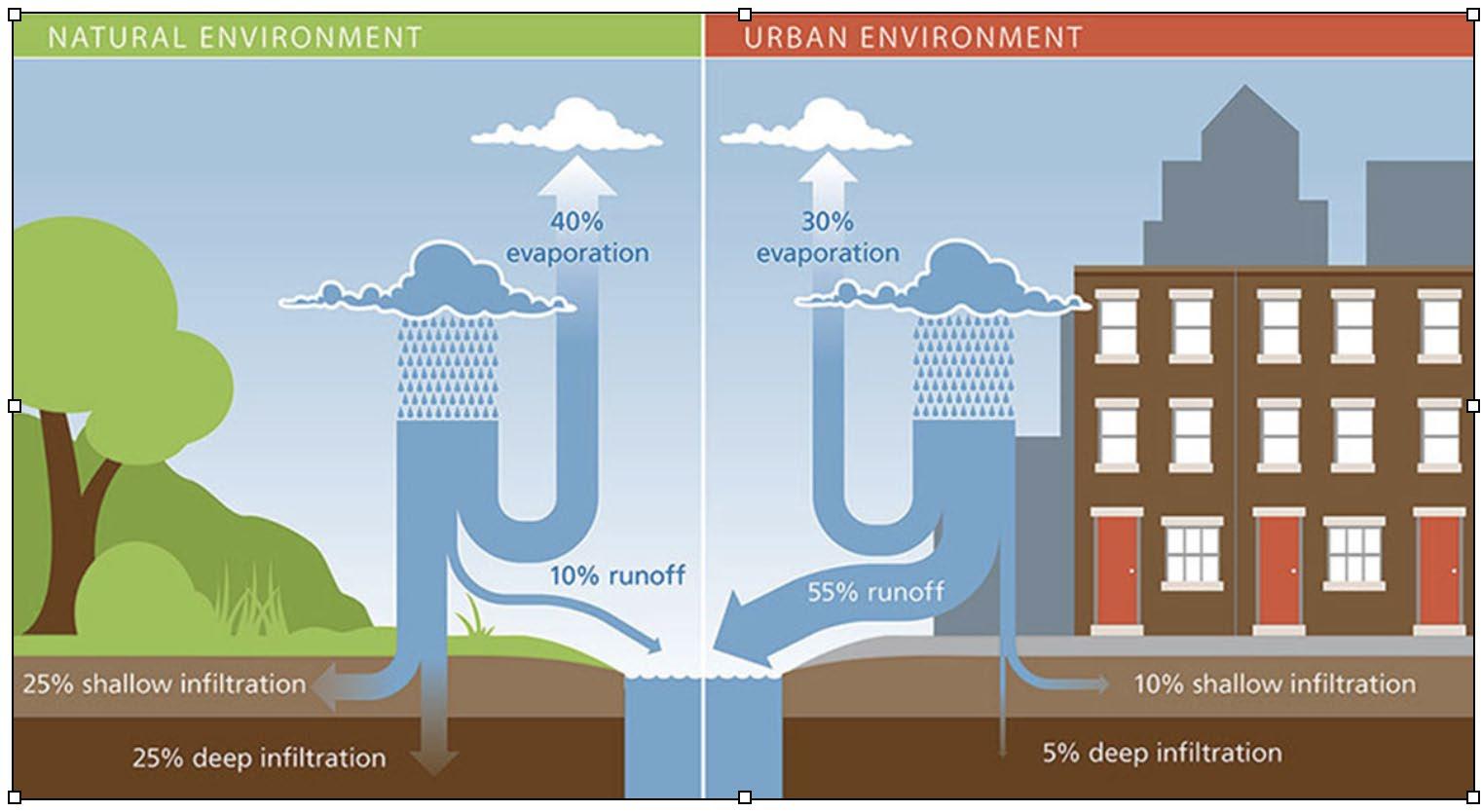

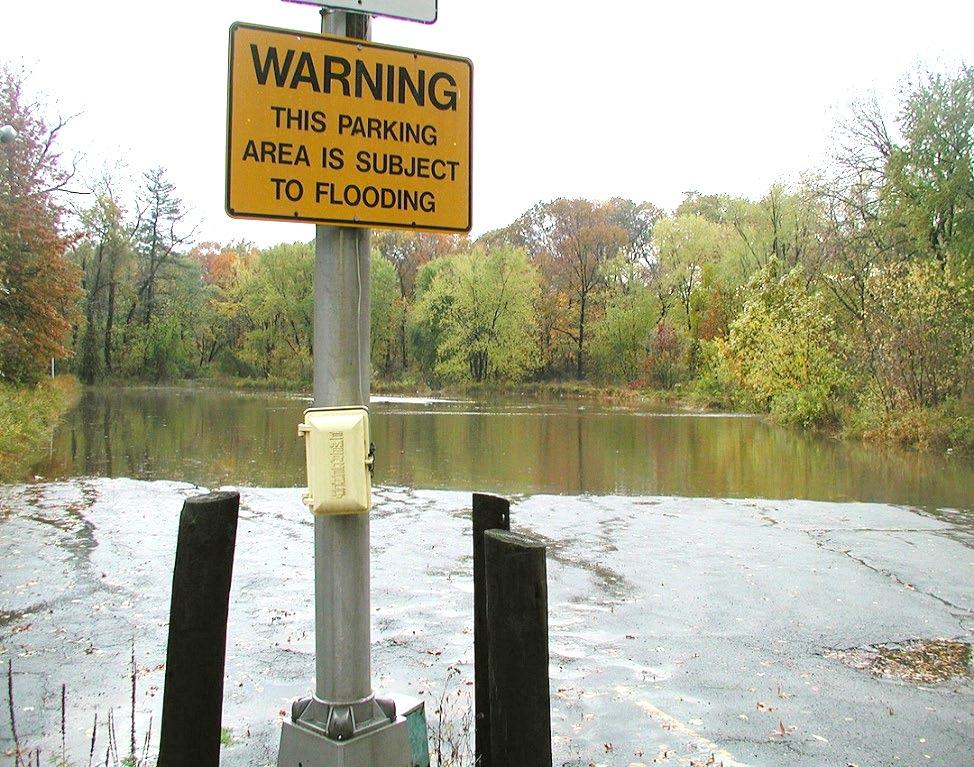

Challenging Conditions: North Branch Park River
Challenging Conditions: North Branch Park River
Restoring Ecosystem Functionality
Muddy River 1920
as the Emerald
Necklace

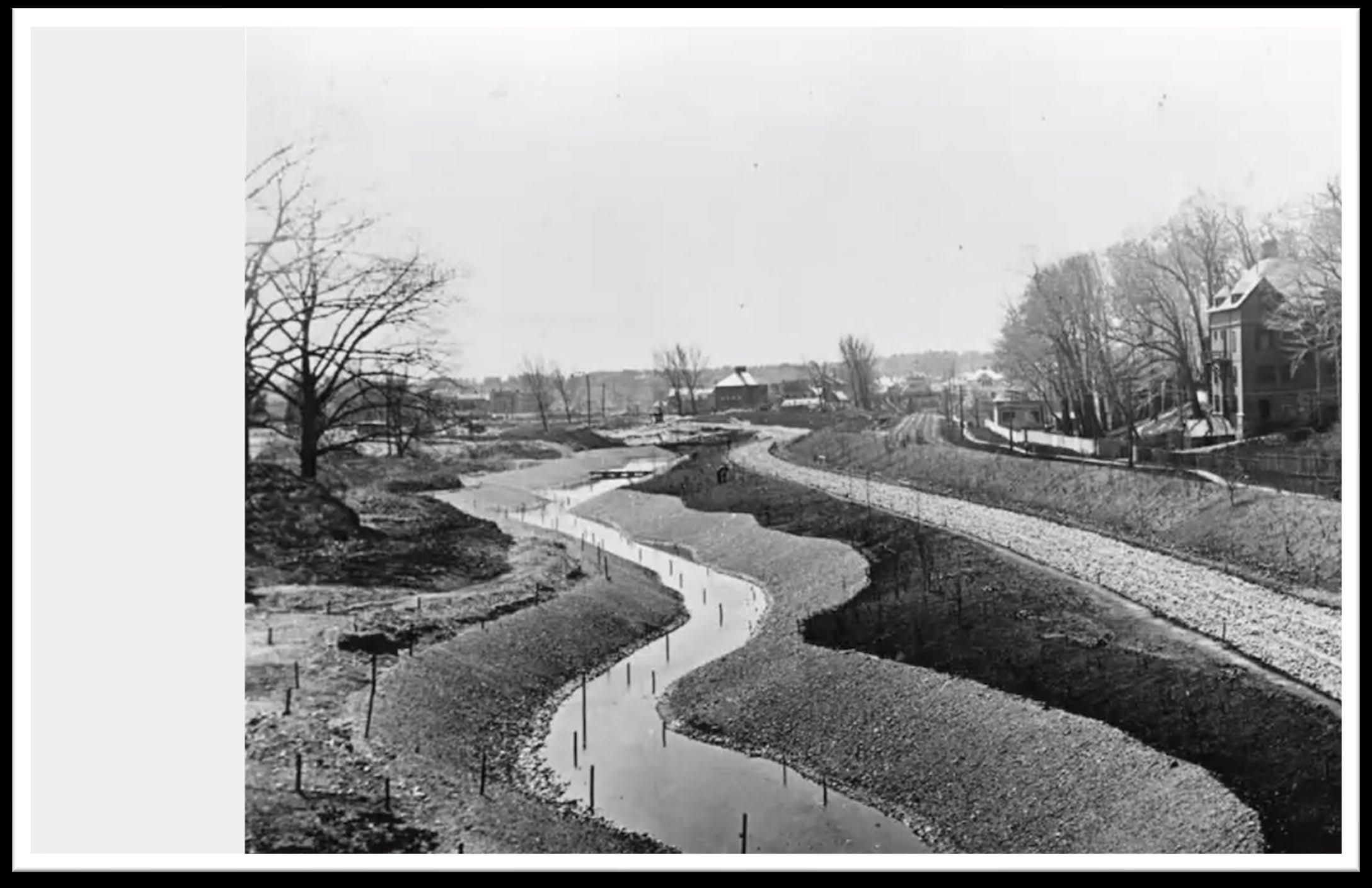

During construction
Muddy River 1892
Restoring Ecosystem Functionality

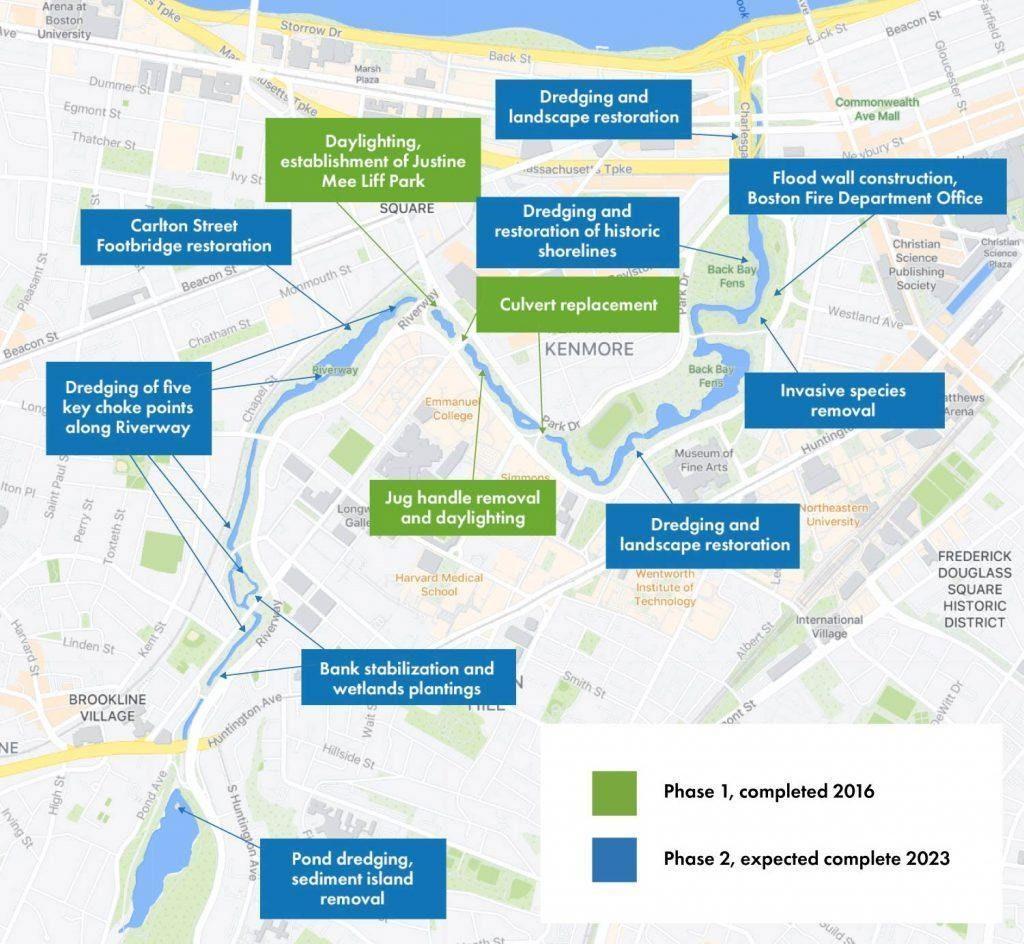

Muddy River Restoration
• Targeted dredging of choke points (flooding)
• Bank stabilization and plantings • Habitat improvements • Historic landscape restoration • Stream daylighting
• Stormwater improvements & GSI
Tree stewardship
•

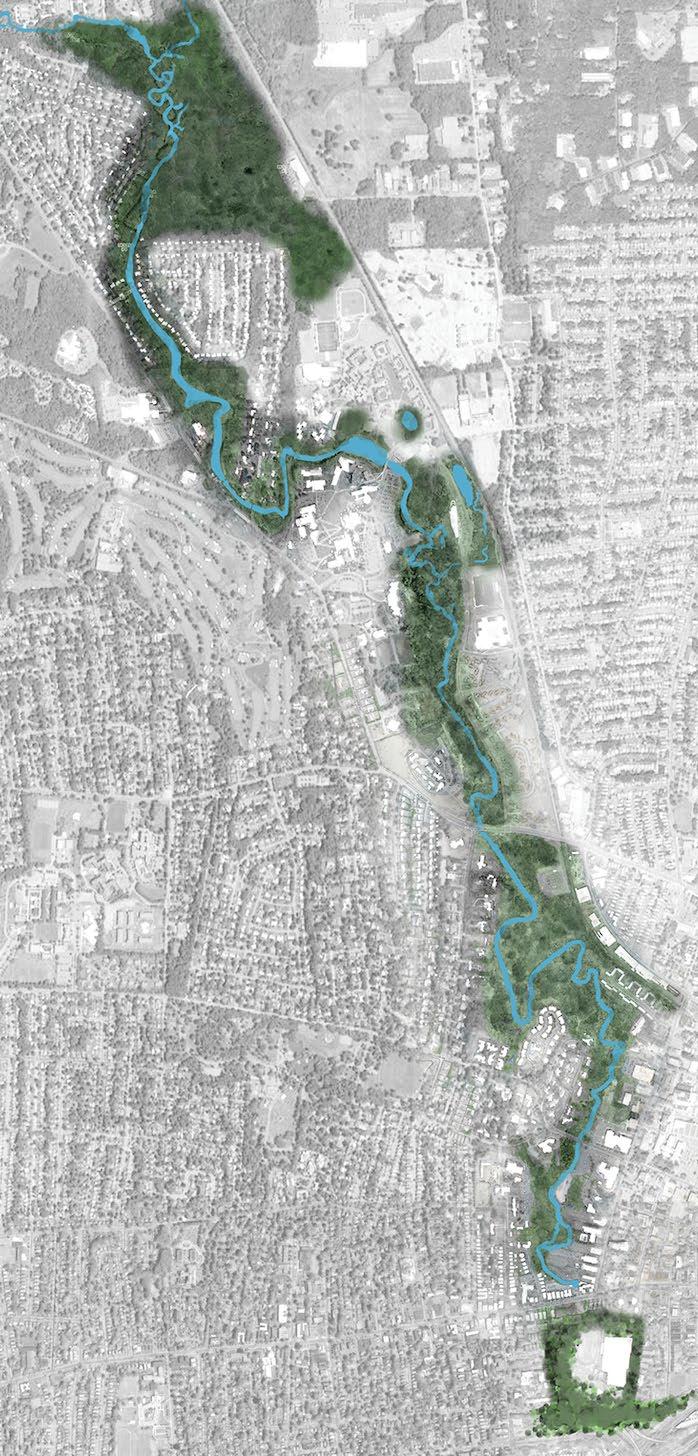

Vision for the North Branch Park River

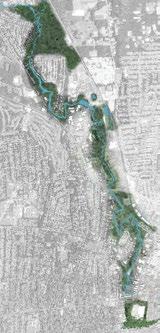

Healthy Urban/Suburban Riparian Corridor

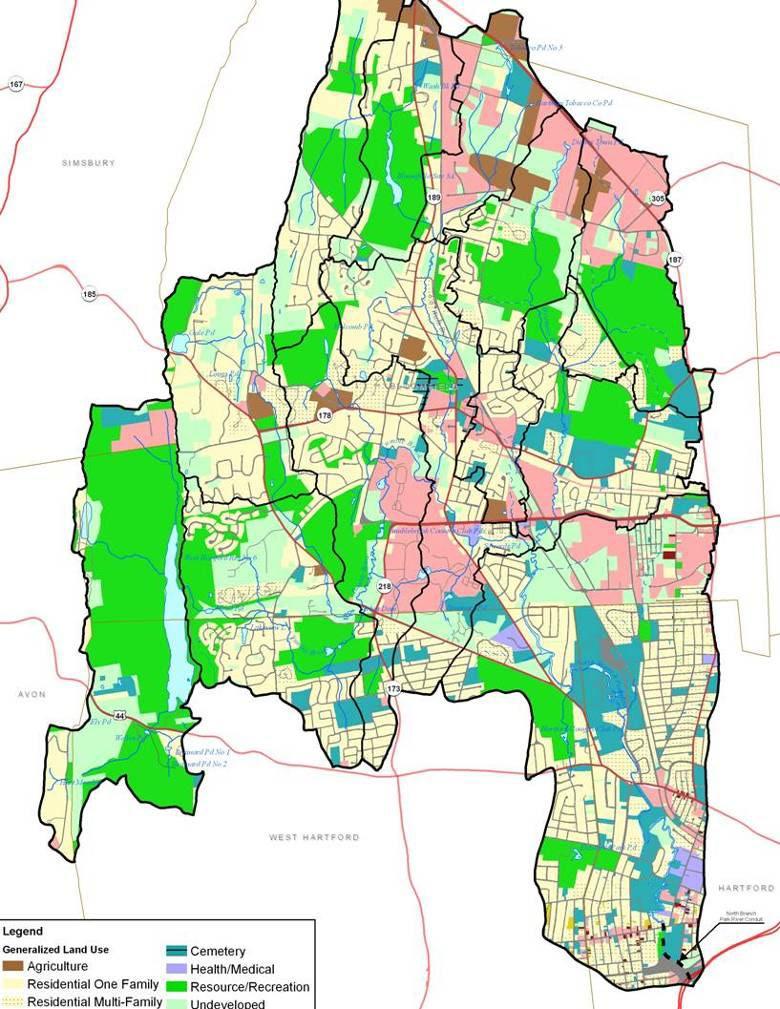

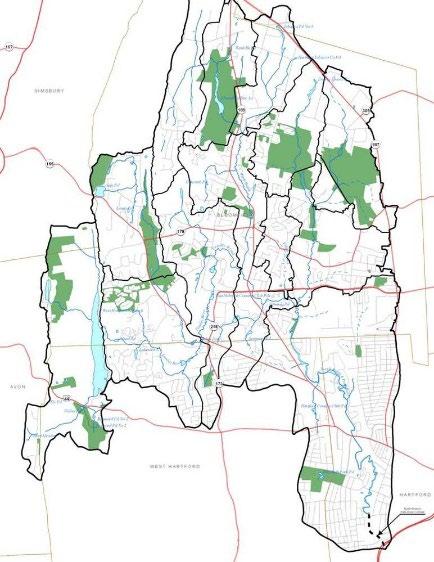

North Branch Park River Watershed Land Use Protected Open Space

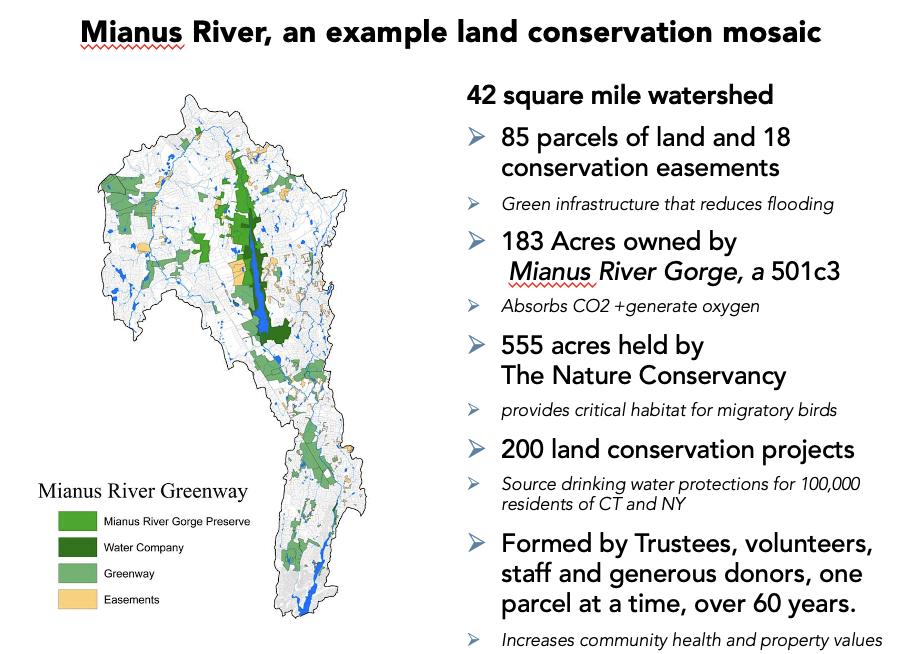

Precedent for North Branch Park River Revival

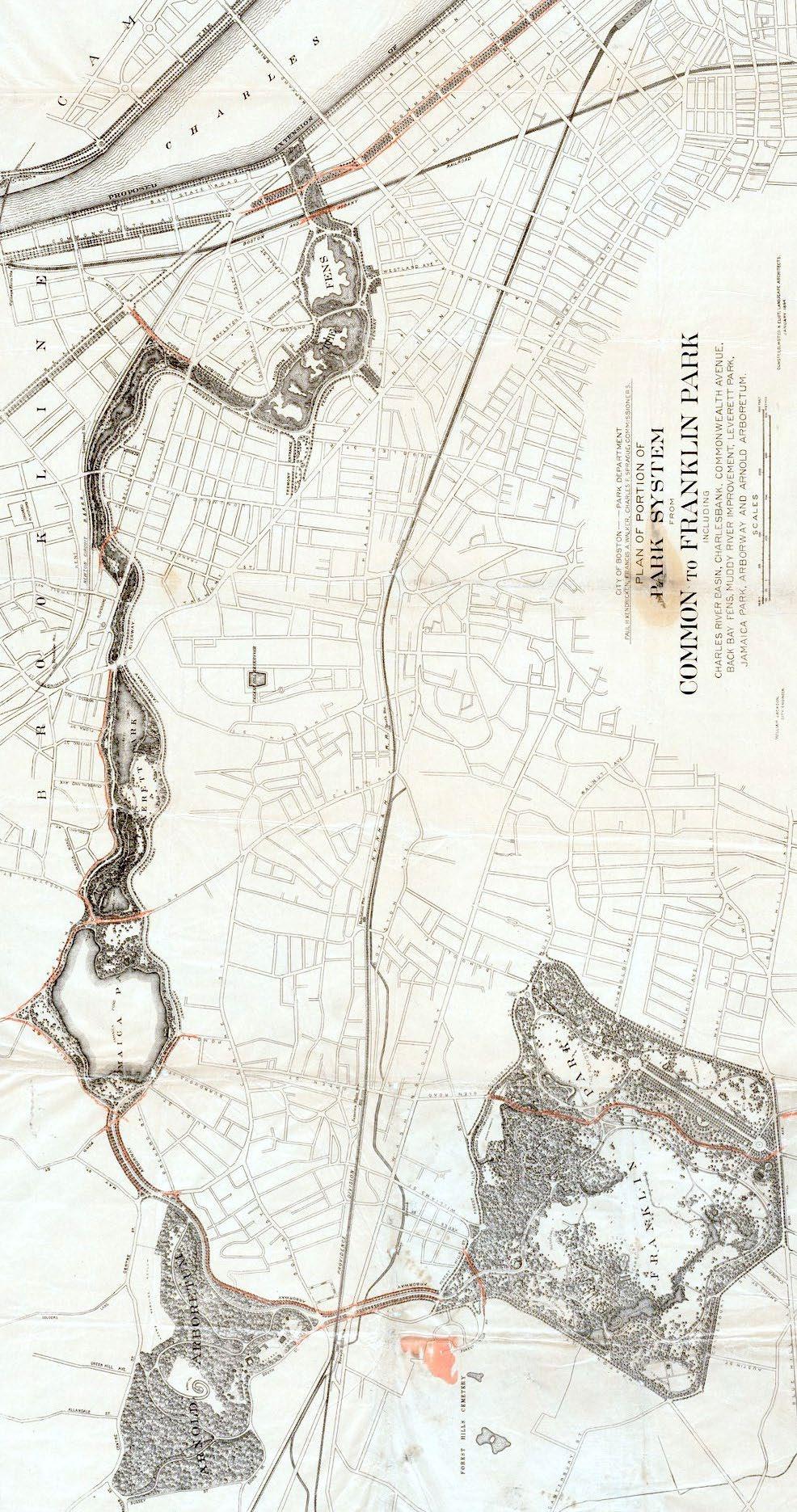

Frederick Law Olmsted Park Designs

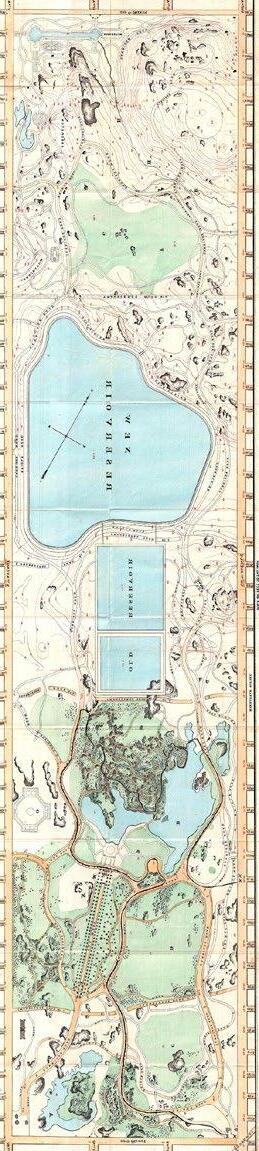

• 1857 Central Park
778 acres
New York City
• 1871 recommendation
letter to Charles Pond
North Branch, Hartford

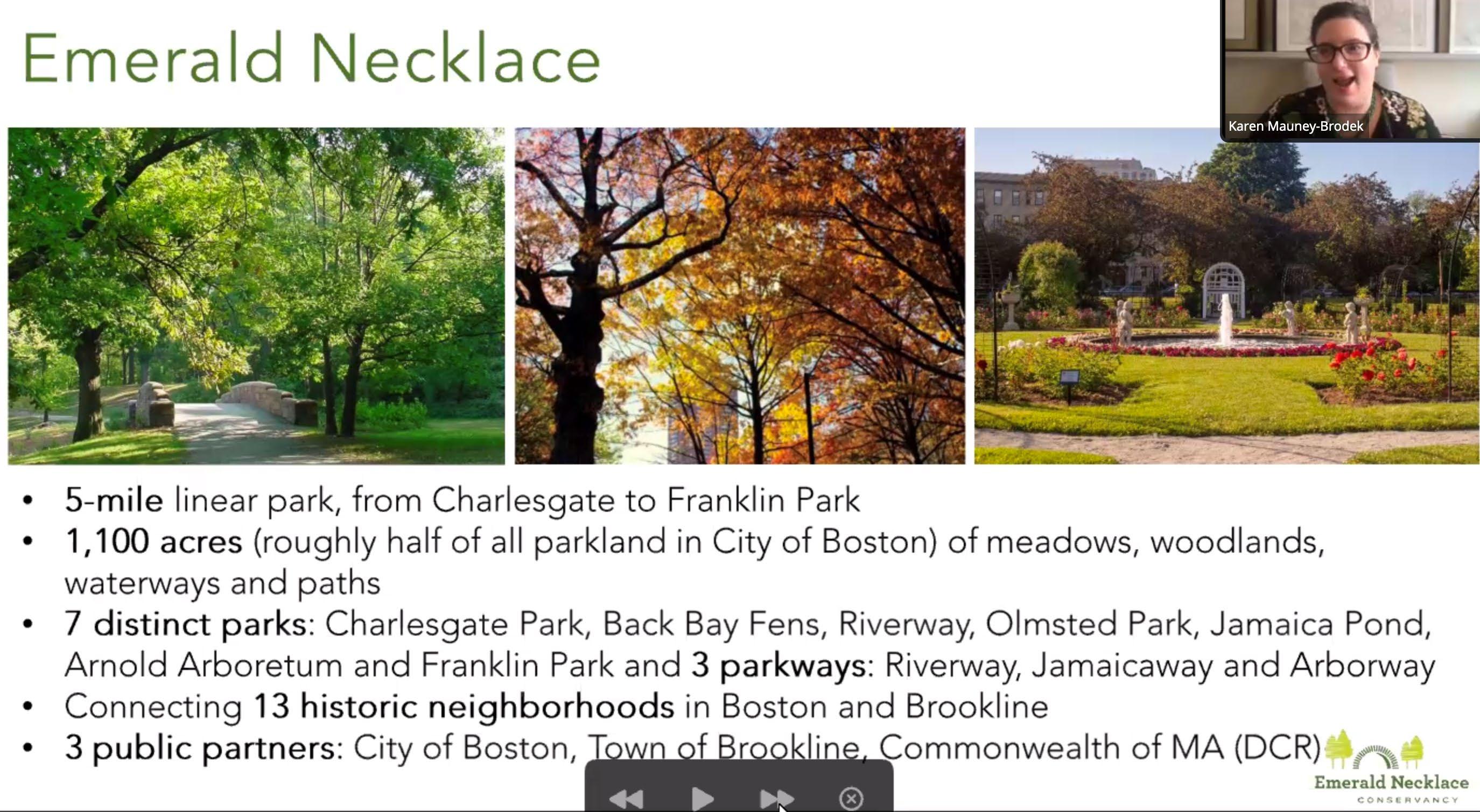

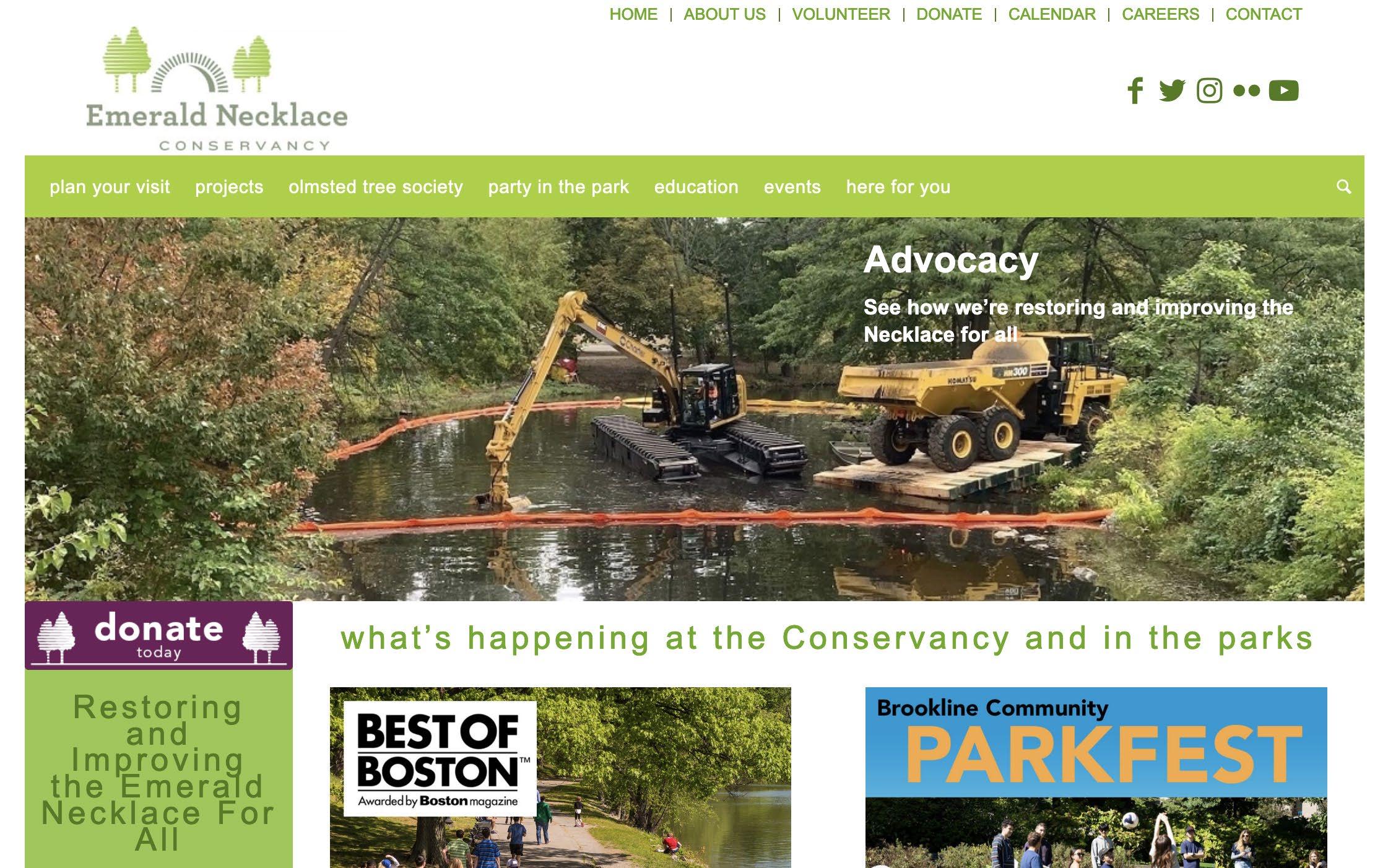

• 1880 Emerald Necklace
1,100 acres
Boston
Central Park
Emerald Necklace
North Branch

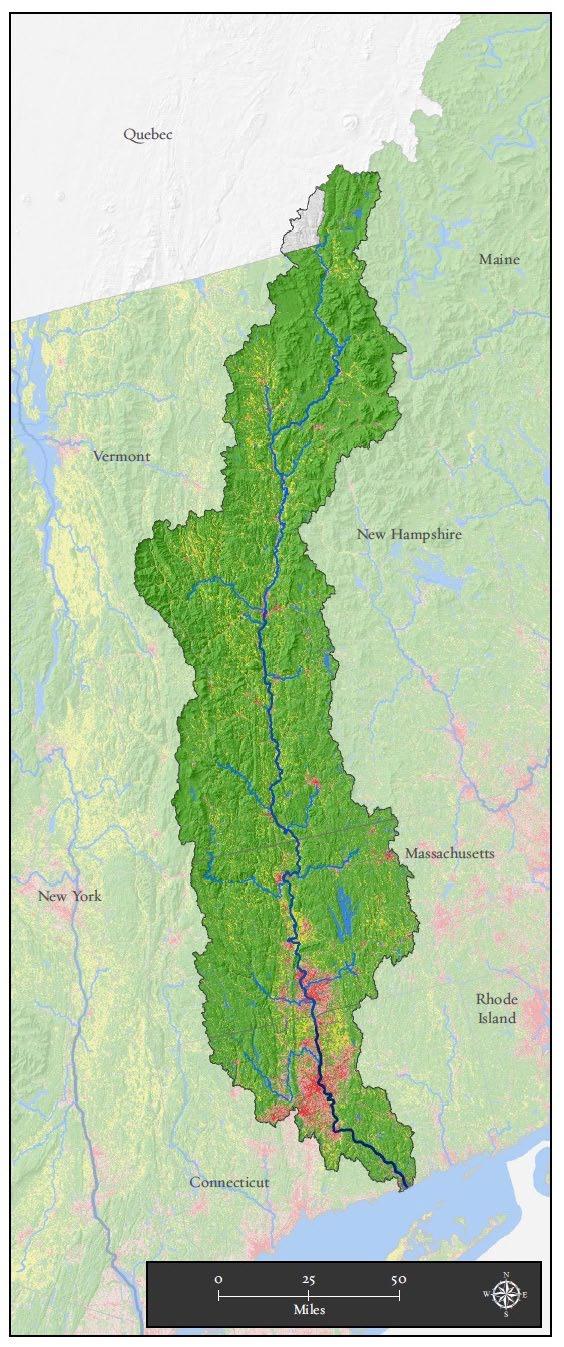

urban-suburban streams are easily overlooked within the state and regional watershed context
Precedent for North Branch Park River
North Branch watershed
Project Schedule
2023 2024 Task Apr May Jun Jul Aug Sep Oct Nov Dec Jan Feb Mar Apr May 1. Quality Assurance Project Plan QAPP Approved - Task Completed 2. Project Advisory Committee Meetings 3. Design Development of Priority GI Projects 4. Watershed Plan Update 5. Public Outreach & Community Engagement 6. Project Meetings and Management 12 Months 6 Months 1 2 3 4 5 6 1 2 3 4 5 6 7 11 Months Advisory Committee Project Partners 8 9 Data Gathering & Review Project Screening & Selection Preliminary Design Permit Level Design
Upcoming Advisory Committee Meetings
• Meeting Schedule (Thursday, 2-3 PM)
− October 12th
• GI site screening
−
December 7th
• Field work results and GI project concepts
−
2 additional meetings in 2024 (date and times to be determined)
• Project designs and watershed management plan
Next Steps
GI Design Development
− Incorporate observed flooding and GSI locations from partners and stakeholders into GI screening and watershed mapping
− Finalize desktop GI screening for review by Project Partners
− Interface with MDC project (NBPR field work and modeling)
− Conduct field inventories of potential GI sites
Watershed Plan Update
−
Finalize updated watershed mapping
− Submit watershed maps for review by Project Partners
−
Finalize and roll out project web app
Stakeholder Engagement
−
Continue public outreach and community engagement
•
•
•
North Central Conservation District
Questions and Discussion
