BYWARD MARKET Cinematheque & Ottawa School of Art

RHINO > PHOTOSHOP > ILLUSTRATOR > INDESIGN

The current site, a central parking plaza in the heart of Byward Market, is set to be a destination attraction in the upcoming years as proposed by the City of Ottawa. This proposal aims to use a state-of-the-art construction technique, the CLT (cross-laminated timber), to construct a cinematheque as well as become the new location for the Ottawa School of Art.

SITE PLAN 1:1000

RECEPTION

EXISITING SHOPS

AMPHITHEARTE

FEMALE WASHROOMS

MALE WASHROOMS

RENTABLE

GROUND FLOOR PLAN 1:200

This hosts shops and rentable spaces for public events. There is also the ticket area as well as areas for storage and access to the amphitheatre from the outside.

THEATRES

CRUSH SPACE

MINI MART 2nd FLOOR PLAN

FEMALE WASHROOMS

MALE WASHROOMS

This hosts a cinematheque as well as crush spaces. On the contrast there is an outdoor sitting patio. The patio allows for refreshing views of the city for the Patrons of the building. The Patio becomes a public balcony, given its size and location.

MEETING SPACE

FEMALE WASHROOMS

AMPHITHEATRE

MALE WASHROOMS

GIFT SHOP

ADMIN CAFE

CINEMA STAGE STAFF ROOMS

1st FLOOR PLAN 1:200

This hosts areas for staff gatherings and meetings as wells as public areas such as a cafe, a gift shop and entry/exits to the cinemas and amphitheatre

A2

OSA STUDIOS

OSA ADMIN

MALE WASHROOMS

LOCKER ROOM 3rd FLOOR PLAN

The Third Floor Exclusively Hosts the Ottawa school of Art. This separation from the other parts of the building allows for privacy to the students from the public. The placement of the OSA Studio’s has been done to maximize good views of the city to inspire the students.

SECTION 1:200 A1

SECTION 1:200 A2

STRUCTURAL AXO 1:200

264 MARIER AVENUE Community Engagement Project

Vanier HUB is an innititive by the vanier community center that currently focuses on a mix of activities in the summer for children, so as to let Parents in the locale have a place to have a social place other than a school to let their children engage in activities.

Vanier community service center

Current Vanier HUB

New Vanier HUB Proposal site

The real world is difficult and Vanier has been a disadvantaged neighbourhood. The area has low income earning populations and immigrant population.

With a proposed constraint budget of approximately 25K- 30K CAD, we were given a site, a parking lot next to the community center to develop as a community gathering/ event space.

Community stage performance area

Play ground

Velo Vanier

Velo vanier bike rental

SITE SECTION WEST 1:500

SITE SECTION SOUTH 1:500

1:250

BREWER PARK Community Recreation Center

1:5000

An existing arena, from the cenntenial building stock of Ottawa is renovated to include newer programs within the same footprint while adding an extra half of the square footage of the already exiting building. This was done by adding an external structure to empty space within the lobby space to create more visual space inside the space which was congested before. The building maintains the aesthetic of the old brewer park arena while adding more space and upto date programs.

GROUND FLOOR PLAN 1:200

1st FLOOR PLAN

PICKLEBALL COURTS

PUBLIC WASHROOMS BASKETBALL COURTS

YOGA ROOM WASHROOMS

GYM LOUNGE

FEMALE CHANGEROOMS/WASHROOMS RECEPTION

MALE CHANGEROOMS/WASHROOMS CRUSH SPACE/WAITING AREA CAFE

TRANSVERSE ELEVATION

TRANSVERSE. SECTION

155 ECCLES STREET Residence & Community Kitchen

SITE SECTION NORTH WEST 1:500

The project was designed to accomodate two programs, a living space for the owners and a soup kitchen for neighbourhood patrons. There is an emphasis on creating a safe space for both the owners and the patrons of the space by carefully seperating the two spaces while also creating a connection between the private and the public.

Starting with the top, there are the living spaces, with a floor to ceiling skylight for letting light pass through between all the floors. The light pours down on the sitting area for patrons below. There are recessed spaces, inspired by my own pashtun culture of sitting down and eating together.

The basement, with a seperate entrance acts as a place for bathing and storage for patrons of the city who have been disadvantaged. This creates a place of dignity and respect before joining the common space on the ground floor.

INTERIOR VIGNETTE GROUND FLOOR “COMMUNITY DINING”

INTERIOR VIGNETTE PRIVATE RESIDENCE

FRONT ELEVATION 1:50

EAST ELEVATION 1:50

WEST SECTION 1:50

GROUND FLOOR PLAN

2ND FLOOR PLAN

3RD FLOOR PLAN

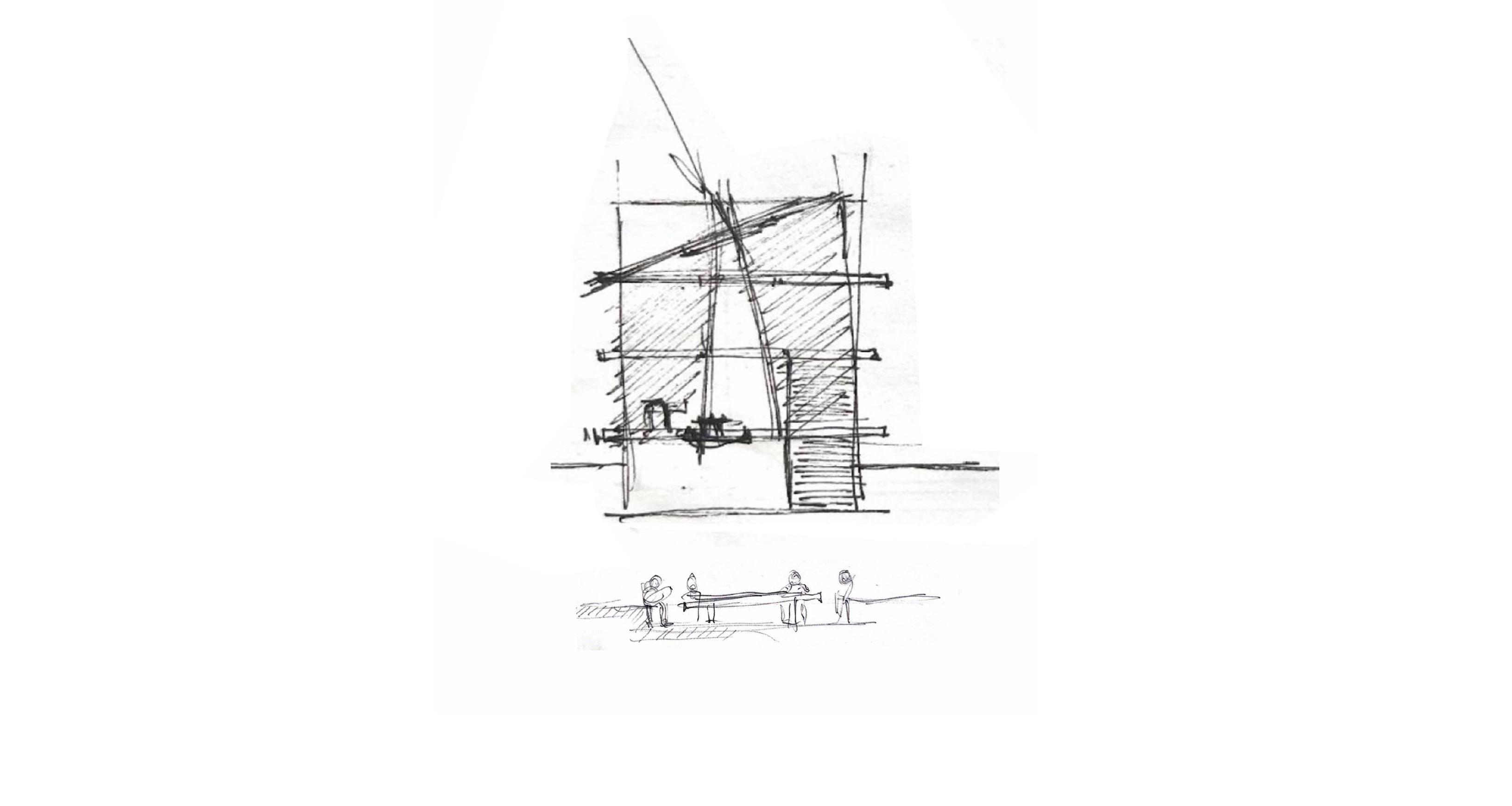

Parti/ Ideation

Core ideas of design are emphisized in these two partis. The left one shows the flow of light coming from the top, to the the bottom, in the common area.

The right parti shows the choice of pattern used for the exterior, which was a play on the appearance of the building and its internal function. The facade is truly a facade in the sense that it is a visual illusion.

The space inside is protected by the visual illusion by having places that open,, black panels on the exterior, and places that are permanently closed of white panels. This is primarily to ensure privacy of the residents above.

624 SOMERSET Permit Application

This document set was created in collaboration for a by law approval project in Ottawa for a 3 storey multi residential building.

The HVAC system is designed independently and follows code guidelines and also designed for healhty flow of air thoughout the building including spaces such as the basement where occupants are susceptible to health issues with breathing polluted air.

96 EMPRESS AVENUE Curtain Wall Detailing

AUTOCAD> RHINO>ILLUSTRATOR> INDESIGN

This document set was created in collaboration for a typical curtain wall detailing for a part of a historic building extension. The requirements were completed with focus on the designing of a reliable, resilient and energy efficeint curtain wall with respect to the cold climate of Ottawa.

Technical Skills profile

Hand sketching

AutoCAD

RHINO

REVIT

PHOTOSHOP

ILLUSTRATOR

INDESIGN

EDUCATION:

BACHELORS OF ARCHITECURE DESIGN STREAM co-op (3RD YEAR STANDING)
