FAHAD SALIM SHAIKH

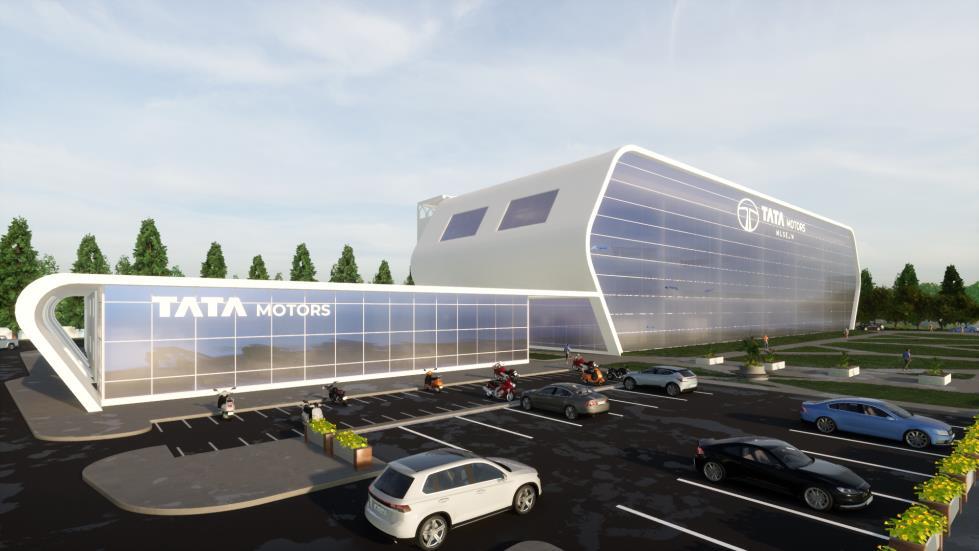

AUTOMOBILE MUSEUM Thesis| 5th Year 01 BUNGALOW Architecturaldesignstudio| 2ND Year 02 HOUSING SOCIETY Architecturaldesignstudio| 4TH Year 03 COMMERCIAL COMPLEX Architecturaldesignstudio| 3RD Year 04 ARTIST STUDIO Architecturaldesignstudio| 2nd Year 05 PROFESSIONAL PRACTICE WorkExperience 06 MISCELLANEOUS WORK 3D Visualizations| GraphicIllustrations| Photography 07

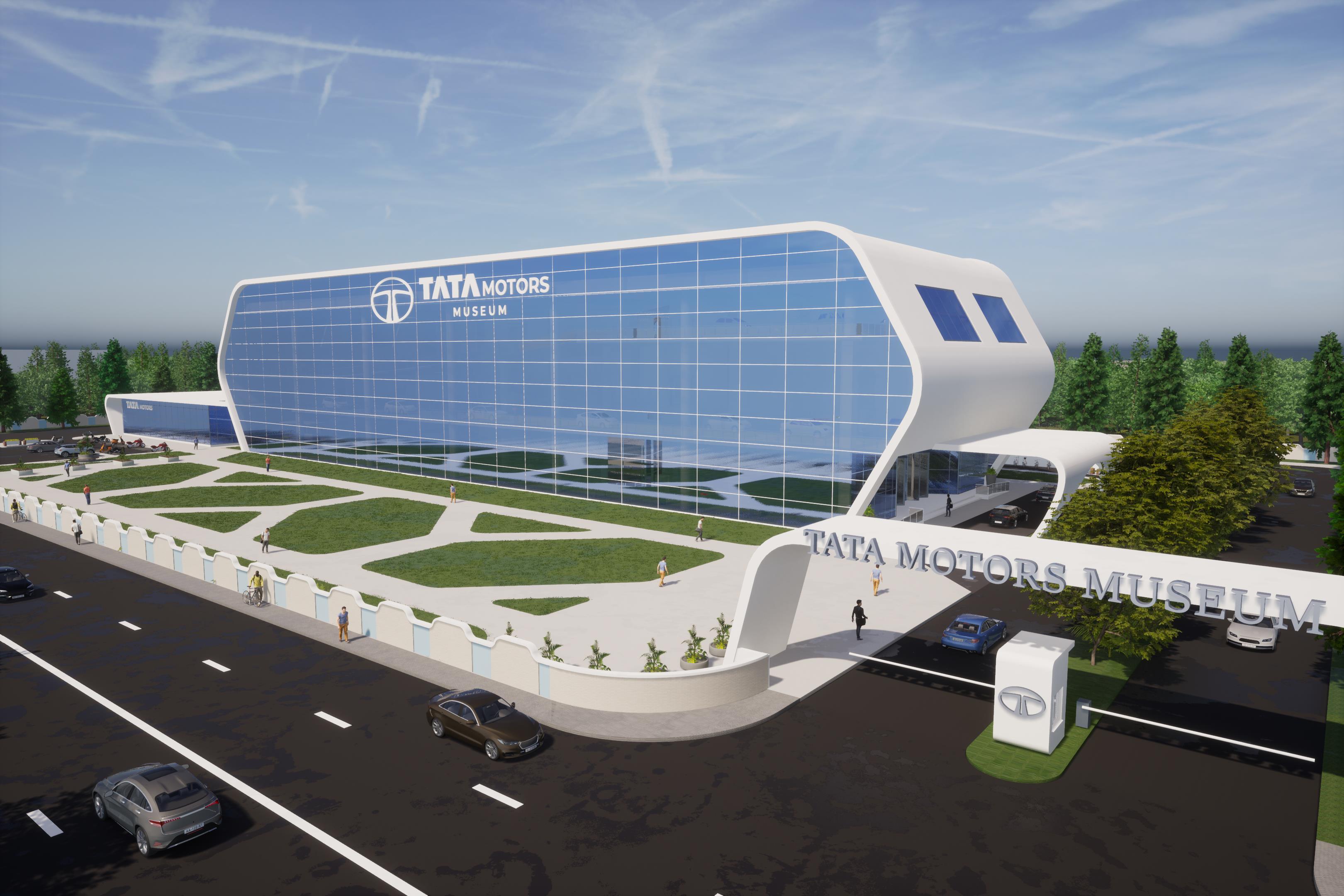

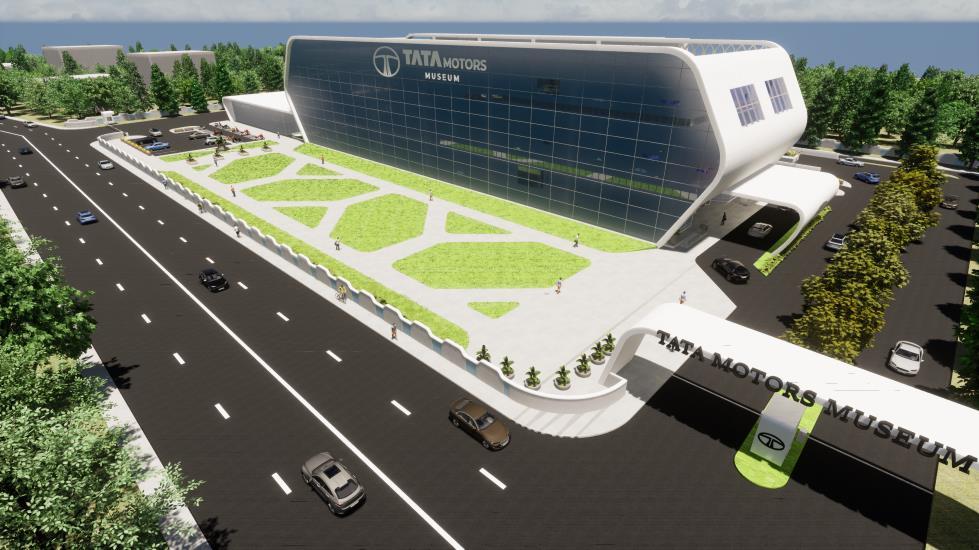

AUTOMOBILE MUSEUM
THESIS PROJECT THE LEGACY OF TATA MOTORS
In India, the automobile industry is continually evolving, with new brands entering the market and battling for market position. Vehicle design language advances in response to new trends, technologies,andsafety regulations. The vehicles that were notable benchmarks in the evolution of engineering have been guarded by science museums in most nations, while several manufacturers, recognizing and proud of the accomplishments of the early veteran cars, have created collections of their own marques.
INDUSTRY SCENARIO

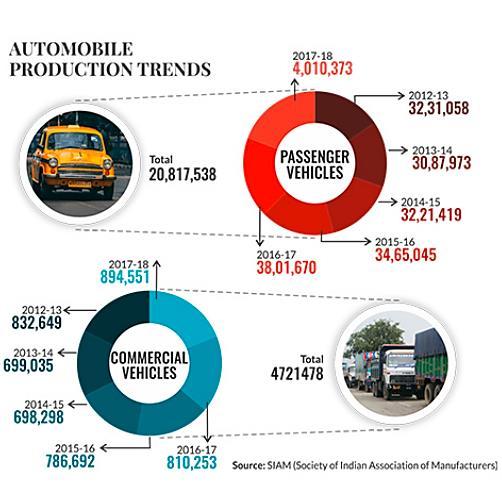

The $118 bn Automobile industry is expected to reach$300bnby 2026. India’s annual production in FY 2020 was 26.36 Mn vehicles.
In the Automobile market in India, Two-wheelers and passenger cars accounted for 80.8% and 12.9% market share, respectively, accounting for a combined sale of over 20.1 Mn vehicles in FY20. Passenger car sales are dominated by smallandmidsizedcars.
Tata Motors Group (Tata Motors) a leading global automobile manufacturing portfolio includes an extensive vehicles, trucks, busesand defence India's largest OEMs offering an smart ande mobilitysolutions
ACHEIVEMENTS OFTATA
Amongstvariousachievement ▪
TataMotors amongIndia’smost ▪ Tata Motors bags National Management. ▪
TataMotors'TRAKIT bagssilver ▪ ‘CarMaker ofthe Year' Awardfor ▪ TataMotors is'CommercialVehicle ▪ Best Valuefor MoneyCar ofthe Tata Motors Limited is an Indian multinational automotive manufacturing company, headquartered in the city of Mumbai, India which is part of Tata Group. The company produces passenger cars, trucks, vans, coaches, buses, luxury cars, sports cars,constructionequipment.
WHY TATA?
Tata Motors entered the passenger vehicle market in 1988 with the launch of the TataMobile followed by the Tata Sierra in 1991, becoming the first Indian manufacturer to achieve the capability ofdevelopingacompetitiveindigenousautomobile.
▪
Motors) is a $34 billion organisation. It is manufacturing company. Its diverse extensive range of cars, sports utility defencevehicles. Tata Motors is one of an extensive range of integrated,
VISION
Thus in today's time a museum for the company would be a home to hundreds of models that tell the story of how this brand’s manufacturing evolved over the years. The museum would showcase the evolution of transportation in India and sets a benchmark in interpretation, exhibition and in communication.
As the first private museum of its scale in India, it is conceived as a didactive space that engages visitor participation in learning whileremaininga family experience.
TATAMOTORS
achievementof TATAmotors,some are mostTrusted Brandincars. Award for Excellence in Cost
silver awardfor 'ExcellenceinDesign’. for Tata Motors. VehicleManufacturerof the Year’. the Year.
WHY PUNE?
Tata Motors’ Pune facility is located in the Pimpri Chinchwad industrial belt of Maharashtra. It is the most versatile manufacturing plant of the company. The plant supplies both commercial and passenger vehicles with a daily capacity of producing 730 commercial and 1000 passenger vehicles in two shifts.The rangeofdefencevehiclesis alsoproducedhere.

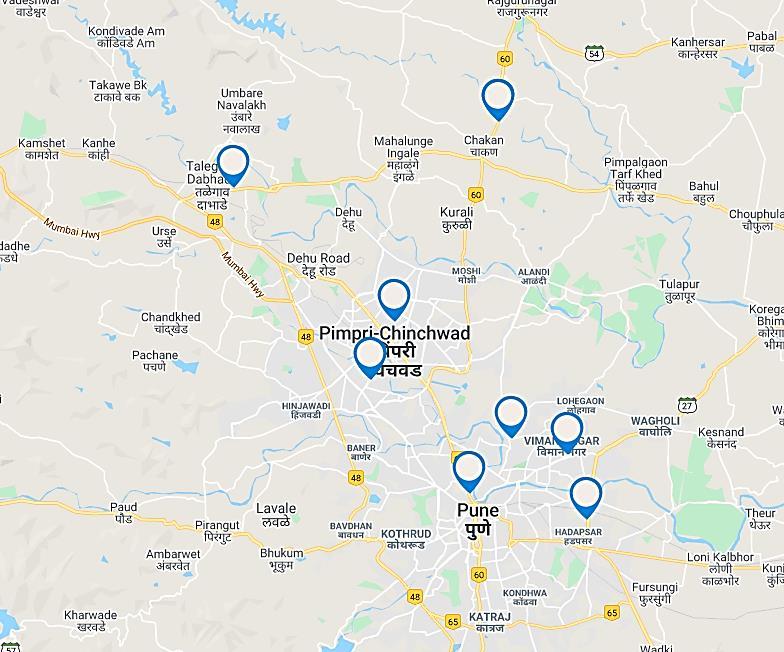

Tata MotorsPlant Locations
The flowcharts below helps in understanding movement of the users from space to space. It is done to ensure that the visitor andstaff circulationdoesnotintersectunnecessarily.
CONTEMPORARY
PLAY OF LEVELS
The concept is based on TATA Aspirations’. This is interpreted in forms andmassing.
The concept of form is a sharper, of the now recognizable Tata Motors’ capturesthe attentionofthe viewer
CIRCULATIONFLOWCHART
counter Cafe Lounge
Souvenir
CIRCULATIONFLOWCHART
Service Access
counter
kitchen Administration office Vehicle maintenance Souvenirshop & Store
Amenities
USER ANALYSIS VISITOR
Lobby Ticket
Topfloor(Exhibits displayareas) AVhall/ Simulators/VR space
shop Movetolower floors (Exhibitsdisplay areas) STAFF
Lobby
Ticket
Café
Staff
CONCEPT STORY MOVEMENT

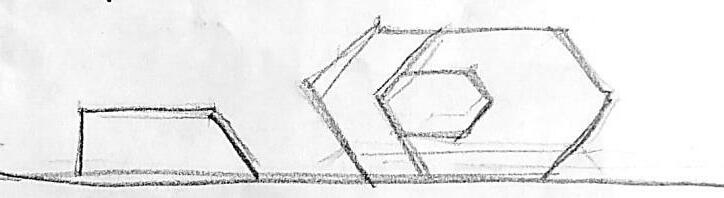

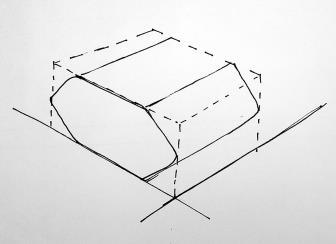

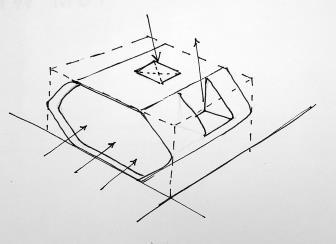

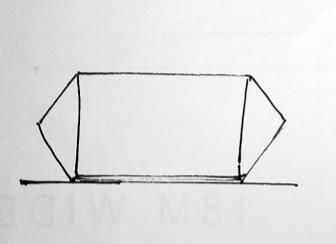

CONCEPTUALSKETCHES
DEVELOPMENT
CONNECTIVITY
CONTEMPORARY LEVELS
BALANCE GEOMETRY
TATA motor’s tagline ‘Connecting in design language in the spaces,
DESIGN APPROACH
The design will start with the zoning of the Museum, Showroom, and internal circulation roadways. The design of the automobile museum will be approached from three angles. The importance of each feature in that sequence is given to circulation, exhibition galleries, and the outward form of the structure. The museum's circulation must be simplistic. Visitors should not be confused about how to tour the museum, and they should be driven to exploremore galleries.

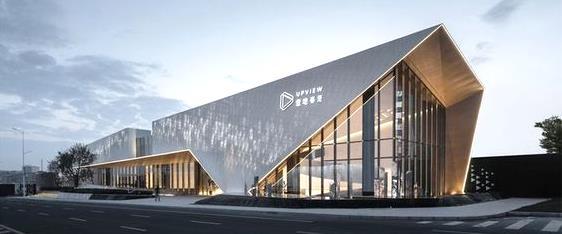

IMAGE IMAGINE
OF THEFORM
sharper, more contemporary expression Motors’ Design language, which viewer inthe first few seconds

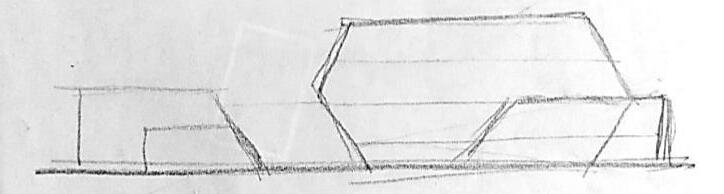

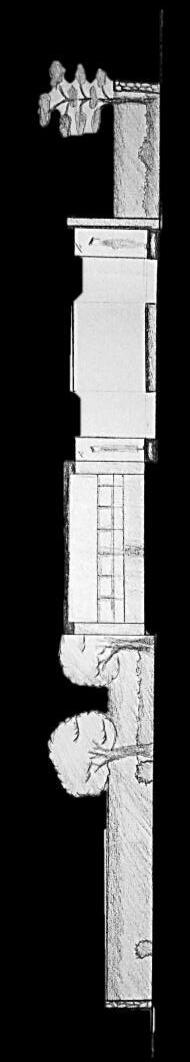

SKETCHESOF ELEVATION
The conceptualimagesaidinenhancingthe abilitytovisualise the design
DEVELOPMENT
Pune is a sprawling city in the western Indian state of Maharashtra. It is widely regarded as the second major "IT hub of India" and the top "automobile and manufacturing hub of India“. Pune is a major manufacturing and industrial hub. Automotive companies such as Bajaj Auto, Tata Motors, Mahindra & Mahindra, Skoda cars, Mercedes Benz, Land Rover, Renault, Volkswagen, and Fiat have set up greenfield facilities in Chakan. Pune is knownasIndia's"MotorCity".
SWOT ANALYSIS
STRENGTH
Centrally located and good connectivity from majorareas ofPune.
Well developed access roads and good connectivityfrom airport.
WEAKNESS
May get crowded due to narrow access roadsandhasaccessroadfrom only1 side.
OPPORTUNITY
Create a unique dealership for TATA motors.
Would compliment upcoming commercials plazaonadjacentsite.
THREAT
SiteLocation
VimanNagar,Pune, Maharashtra,India.
CONNECTIVITY
0.5 kilometers South off the Pune InternationalAirport.
8 kilometers North off the Pune RailwayStation
The Pune Ahmednagar Highway (Maharashtra State Highway 27/MH SH-27)passesthroughVimanNagar.
PuneInternationalAirport
VimanNagarJoggers'Park,Pune
AgaKhanPalace
Fly IndiaParamotorClub(Paragliding)
PhoenixMarket City
UdaanBio DiversityPark
Residential building and Educational institute close to site which may add to traffic atpeakhours.
Sky Belvedere
Noise from close by junction

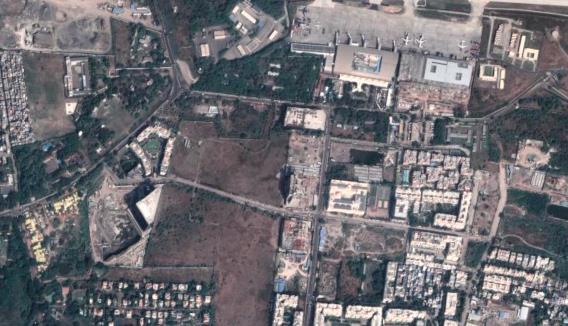

Satellite Imageof Site withsurroundings
AIRPORT
Symbiosis Law School
▪
▪
▪
▪
▪
▪
SITE ▪
▪
▪
▪
▪
▪
NEARBY LANDMARKS

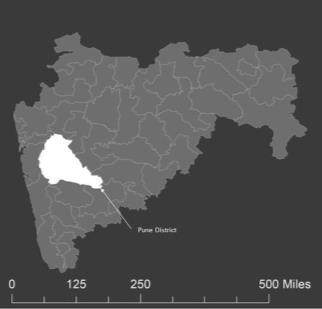

Mapof MaharashtraState
VisitorsAccess
The visitorshave aseparate entranceandexit for their vehicles or cabstowardsthe westside,adding to the museumtour experience.
Accessroad
The site hasa front18m wide access road.
SecondaryAccess
The secondaryaccesscatersto the showroomcustomersandservice vehicles suchas trucksfor loading& unloadingat the showroomand museum.

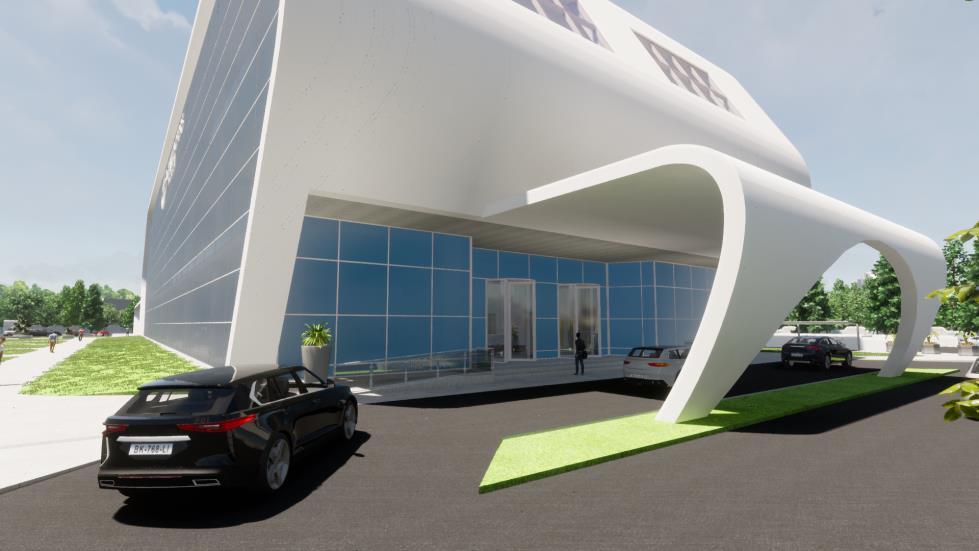

MuseumEntry&Exit
Specially designedentranceandexit to the museumwith pick up/ drop off point.

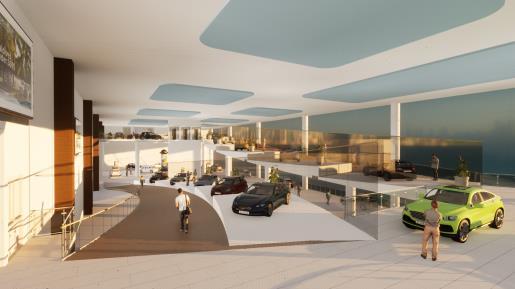

MUSEUM
SHOWROOM
Basementparking
The basementparkingis designed for museumvisitors with 4wheeler vehicles.It is also equippedwith EV chargingstations.
Carlifts
Here is the accessto car lifts from which display vehiclesare takento abovelevels of the museum.
2 WHEELER PARKING BASEMENT ENTRANCE BASEMENT EXIT INTERNAL
SUNSET BLVD. ROAD 18M WIDE 4 WHEELER PARKING (SHOWROOM) 2 WHEELER PARKING (SHOWROOM)
ROAD

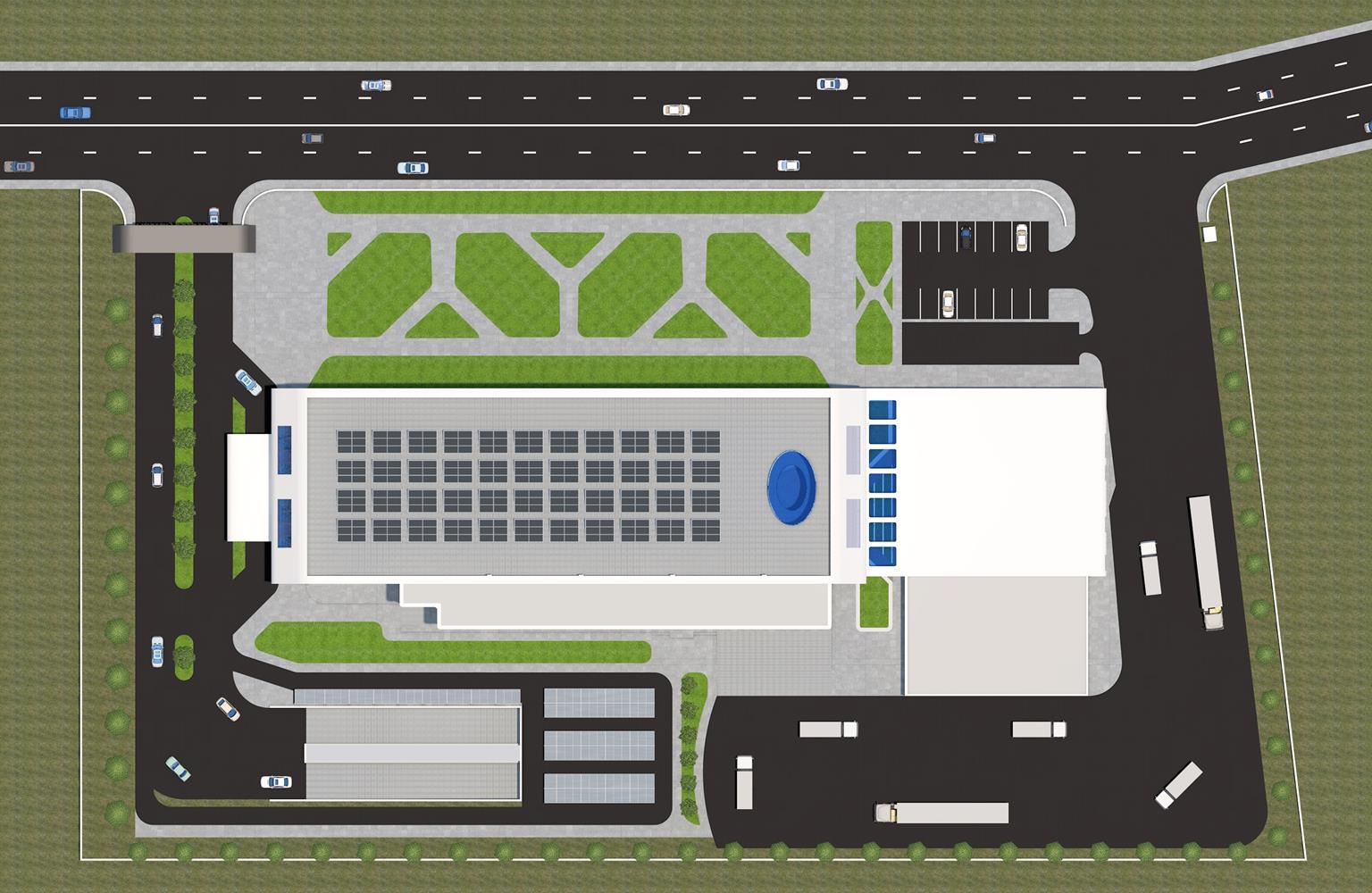

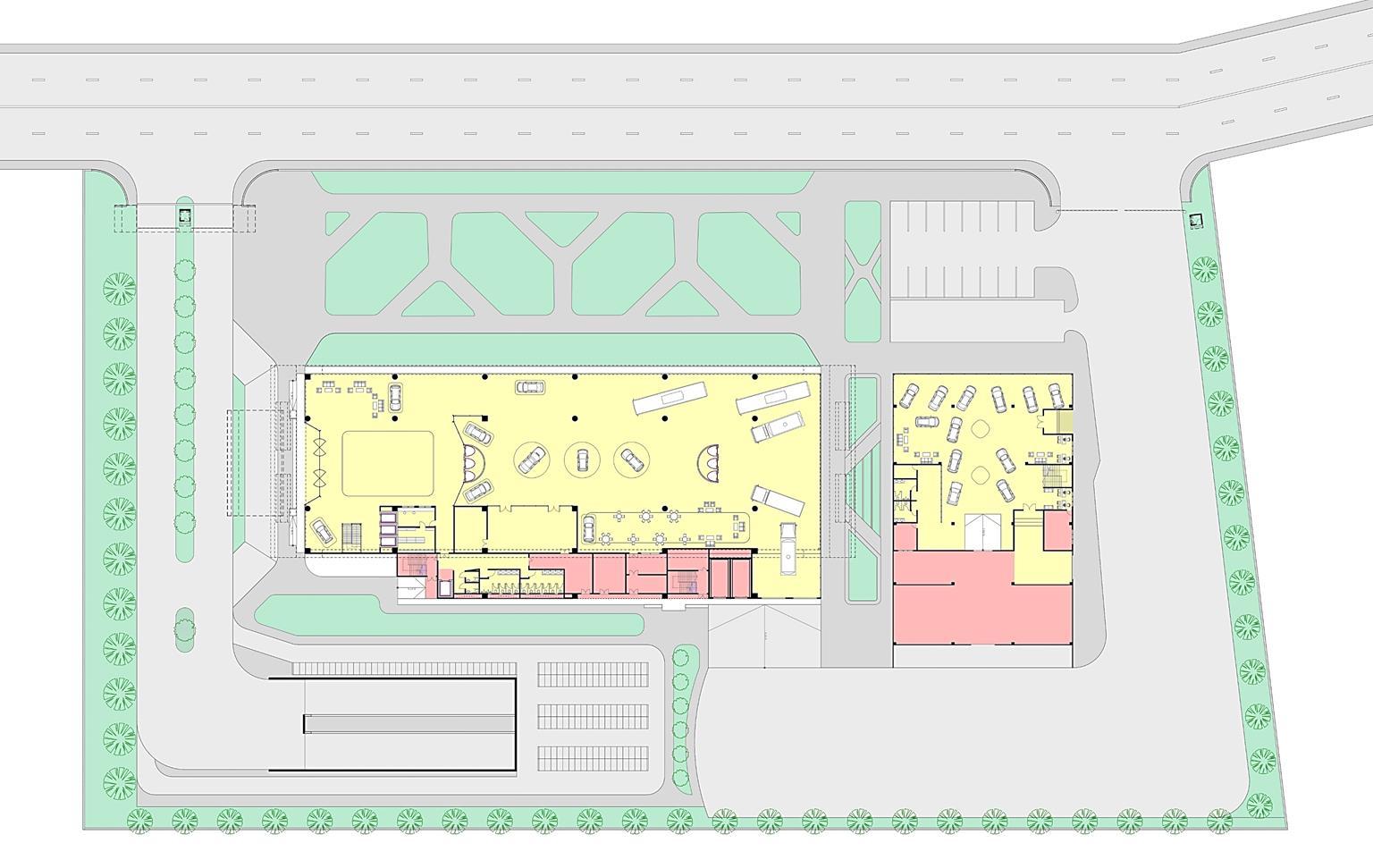

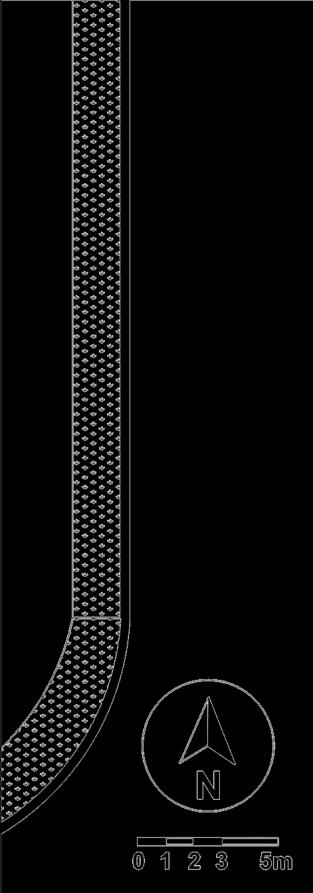

MASTERPLAN
1 2 5 7 9 4 6 8 10 11 3 12 15 17 1 MUSEUM ENTRANCE 2 MAINLOBBY 3 BASEMENT LOBBY 4 TICKET AND LOCKER 5 SOUVENIR SHOP 6 WASHROOMS 7 CAFE 8 STORE 9 COMMERCIAL LIFTS LIFTS BASEMENTENTRANCE BASEMENTEXIT INTERNAL ROAD SUNSETBLVD.ROAD18MWIDE INTERNAL ROAD
12 18 16 14 13 ENTRANCE LOBBY LOCKERCOUNTER SHOP WASHROOMS COMMERCIALVEHICLES DISPLAY 10 CARLIFTS 11 ACCESSFORDISPLAY VEHICLES 12 CARSHOWROOM 13 SALES 14 SPARE PARTS 15 CARSERVICE 16 CARHANDOVER 17 CARSTORAGE 18 PREDELIVERY INSPECTION GROUNDFLOORPLANWITH SITE SC 1:800 ENTRANCEPORCHOFMUSEUM SHOWROOM AERIALVIEW

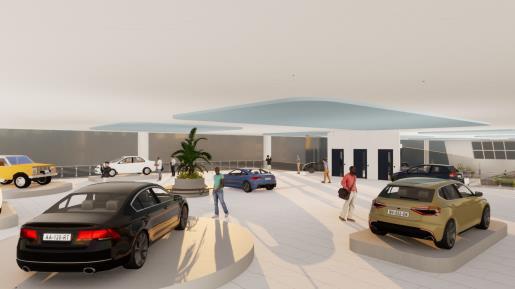

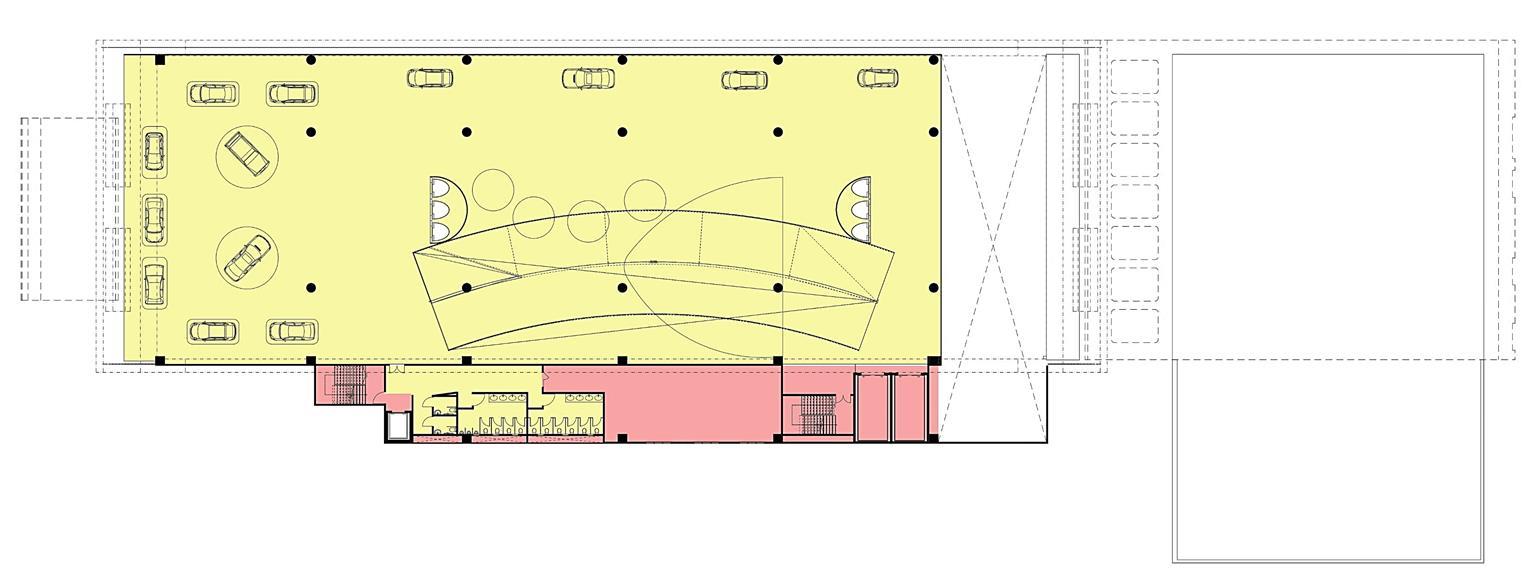

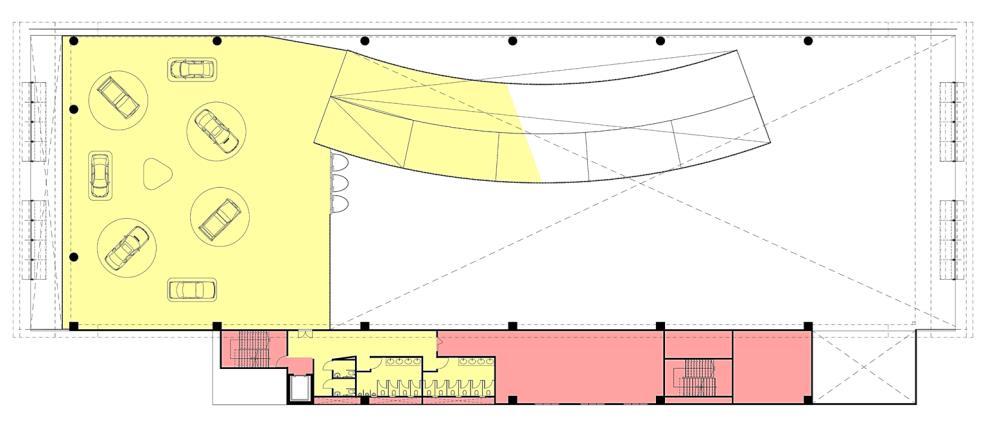

1 1 DISPLAY 2 VR&AR 3 AVHALL 4 WASHROOMS 5 SERVICE 6 CARLIFTS LEVEL1 PLAN SC 1:800 2 5 4 6 3 1 DISPLAYGALLERYA 2 DISPLAYRAMPTOWARDSLEVEL2 3 WASHROOMS 4 STORE LEVEL3 PLAN SC 1:800 1 2 3 4 1. VINTAGEWORLD(DISPLAYGALLERYA) 2. GROWTH&DEVELOPMENT(DISPLAYRAMP TOWARDSLEVEL2) 3. TOPCREATIONS(DISPLAYGALLERYB) 4. DESIGNINNOVATION TATA2.0(DISPLAYRAMP TOWARDSLEVEL1) 5. STEPINTOTHEEV(ELECTRICVEHICLE)WORLD(DISPLAYGALLERYC) CHRONOLOGY OF MUSEUM DISPLAYS VISITOR CIRCULATION STAFFCIRCULATION VISITOR CIRCULATION STAFFCIRCULATION M M N N DISPLAY GALLERYB

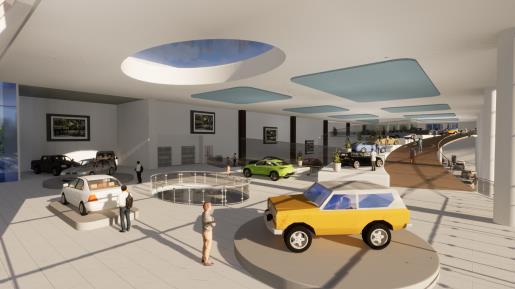

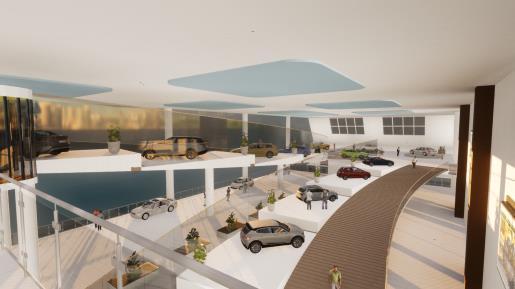

DISPLAYGALLERYC ARSTUDIO HALL WASHROOMS SERVICE&STAFFROOM LIFTS 1:800 1 DISPLAYRAMPFROMLEVEL3 2 DISPLAYGALLERYB 3 DISPLAYRAMPTOWARDSLEVEL1 4 MANAGEMENTOFFICE 5 ADMIN.DEPT. 6 CARLIFTS LEVEL2 PLAN SC 1:800 1 2 4 5 3 6 1 SOLARPANELS 2 HVACROOM1 3 HVACROOM2 4 MACHINEROOMFORLIFT 5 SKYLIGHT TERRACELEVELPLAN SC 1:800 2 3 4 1 5 VISITOR CIRCULATION STAFFCIRCULATION VISITOR CIRCULATION STAFFCIRCULATION INTERIOR VIEW DISPLAY GALLERYA DISPLAY RAMPSVIEW
PrecastconcretePanels(PCP)
They are constructed by casting concrete in a reusable wall mold or form which is then cured in a controlled environment, transported to the construction site and lifted into place.

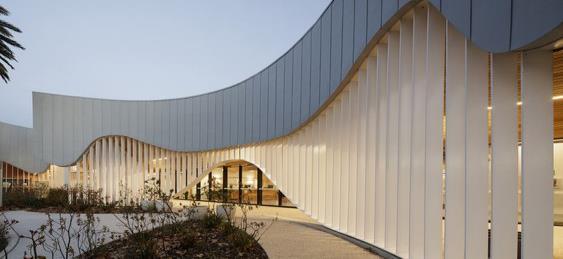

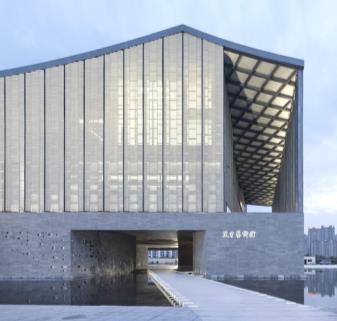

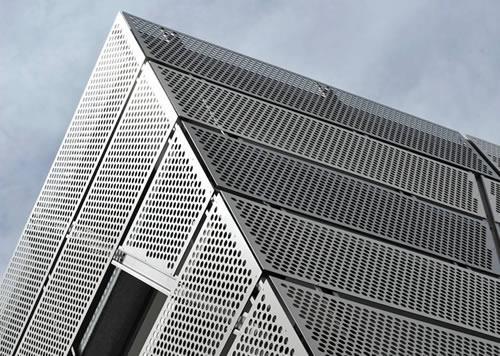

Perforatedmetalpanels(PMP)
Perforating can reduce the weight the panels while not significantly reducing its strength. Choosing perforated metal to meet your standard material selection, you find that it is malleable, attractive, dynamicandenduring.
MOTORS
weight of significantly Choosing high you will attractive,

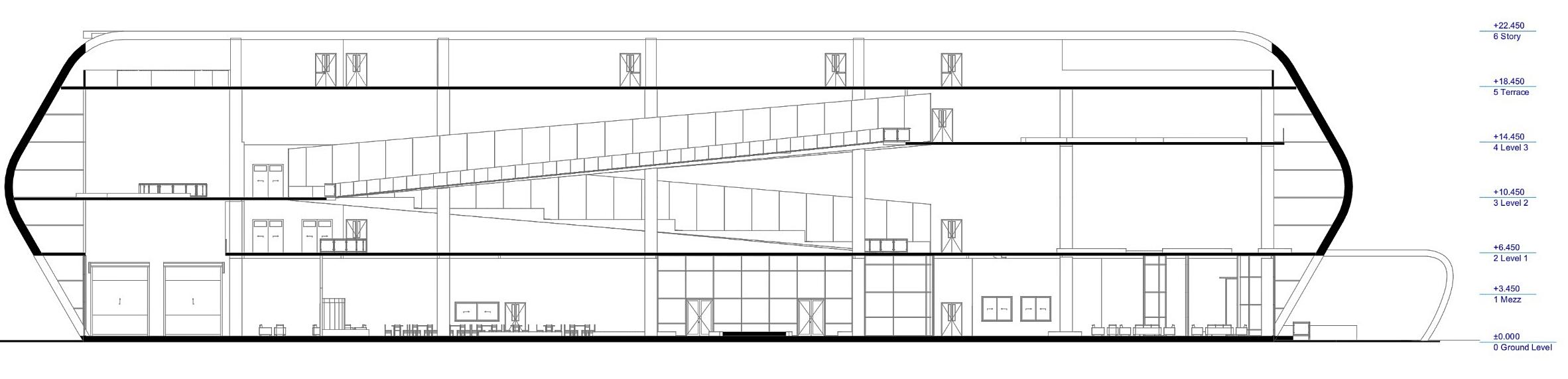

SECTIONMM
SECTIONNN
Doubleskinfaçades(DSF)
Almost a self-explanatory name for façade systems consisting of two layers, usually glass, wherein air flows through the intermediate cavity. This space acts as insulation against extreme temperatures, winds, and sound, improving the building's thermalefficiency.

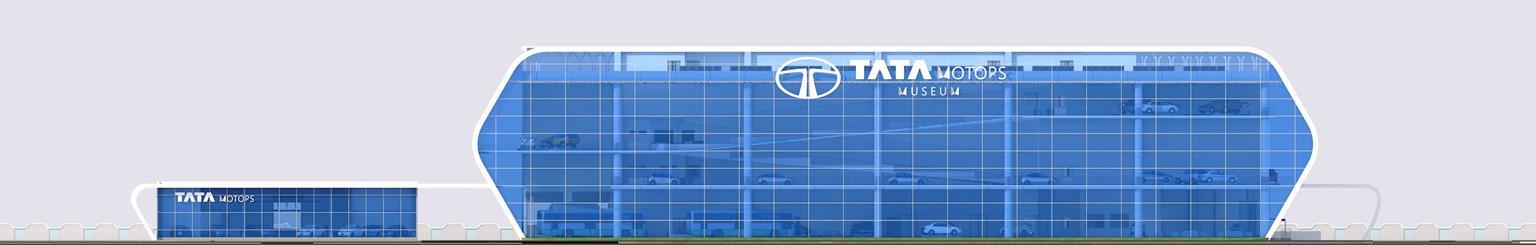

NORTHELEVATION
MUSEUM
PCP DSF PMP
MOTORS

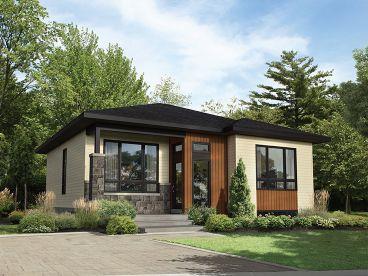

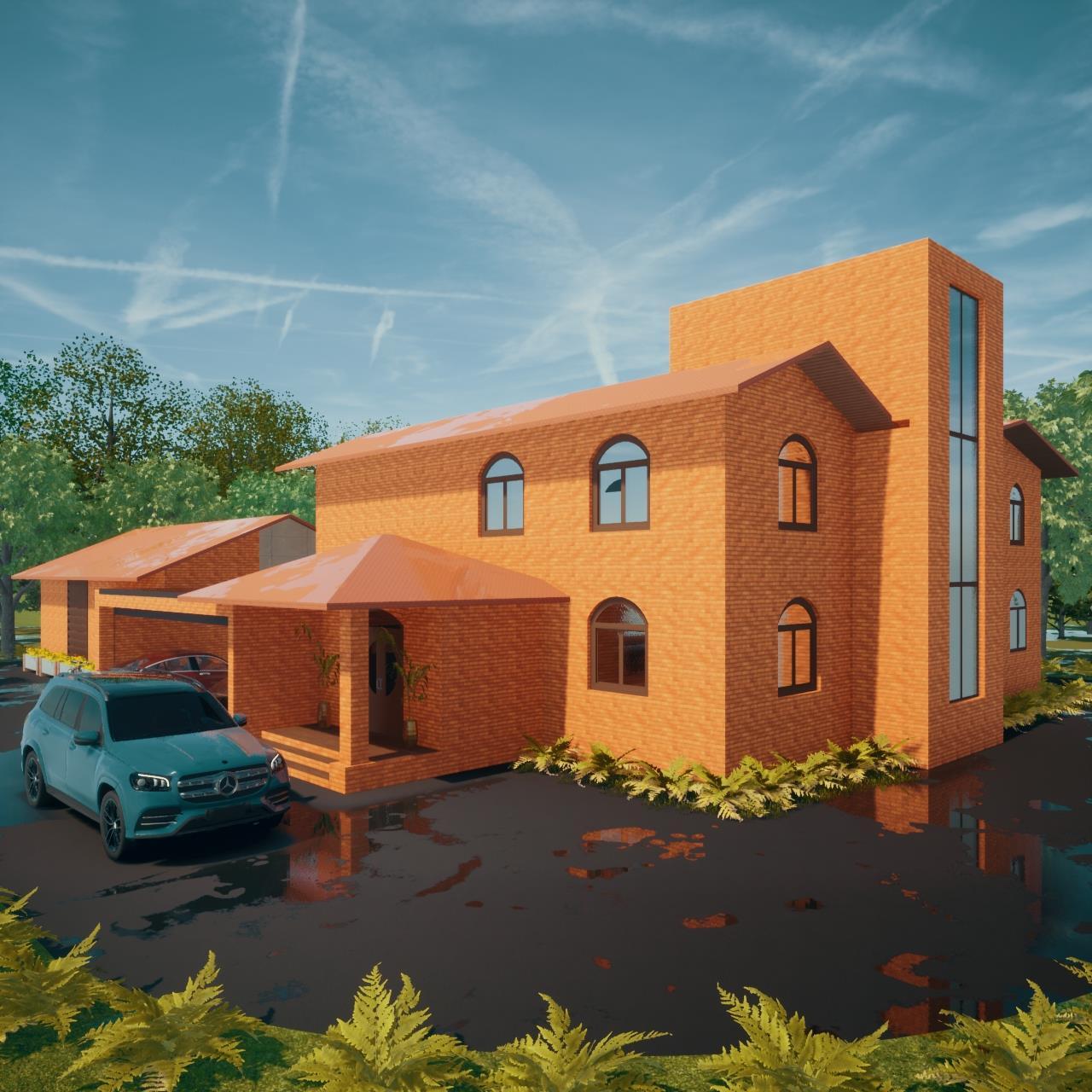

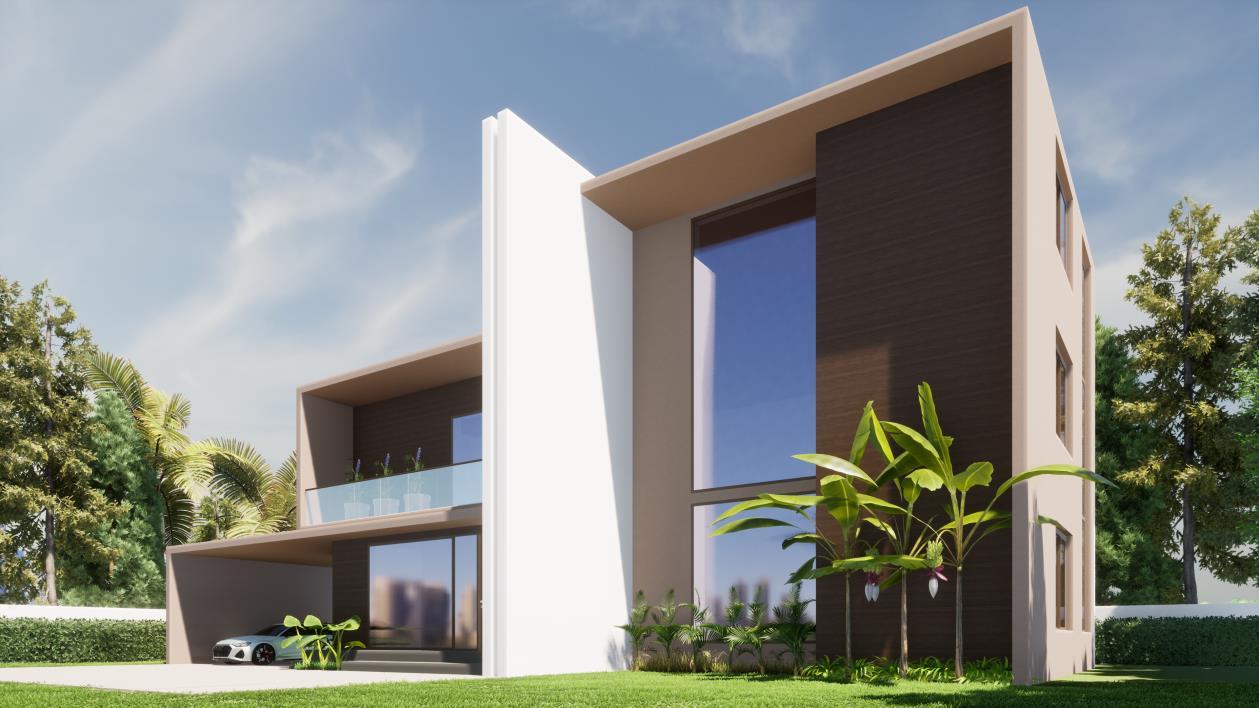

BUNGALOW
ARCHITECTURAL DESIGN STUDIO
2ND YEAR | SEM III
Designing a bungalow for a client (classmate considered as client) where she would stay with her family of four members. The site for the proposed bungalow is located in Camp area, Pune. It is a residential area and has accessroadsontwo sides.
CONCEPT

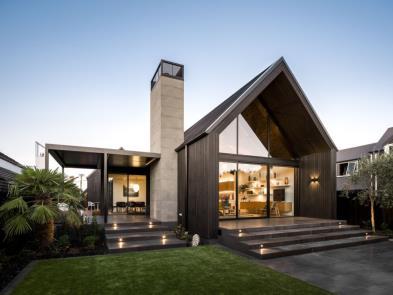

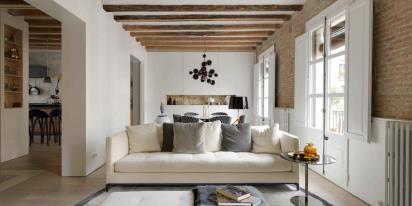

MOOD BOARD
The concept for the design is harmony and balance in the form. Also to design a bungalow suiting the nature of the client and her family that is calm,peaceful,simpleandjoyful. The aspect of being simple yet pleasing was used in the form of designing the elevations and also planning of interior spaces. The joyful and social nature meant creating more of spaces where the clientcouldenjoyandinteract withher friends.
The mood board helps in choices even better, from wantsto the style of interior
Private Semi private Public
Screen forblockingtraffic noiseandprivacy
Dense foliage trees to be planted on east and south side which will act as noise blockage and visual privacyfor the bungalow.
understanding the clients from the various spaces she interior.
SITE
10M
ADJACENT PLOT
PLAN 13M WIDE ROAD
WIDE ROAD
SITE
ZONING
ExposedBrick | Wood| Stone Cladding| RoofShingles| Plastered wall
MATERIAL PALETTE

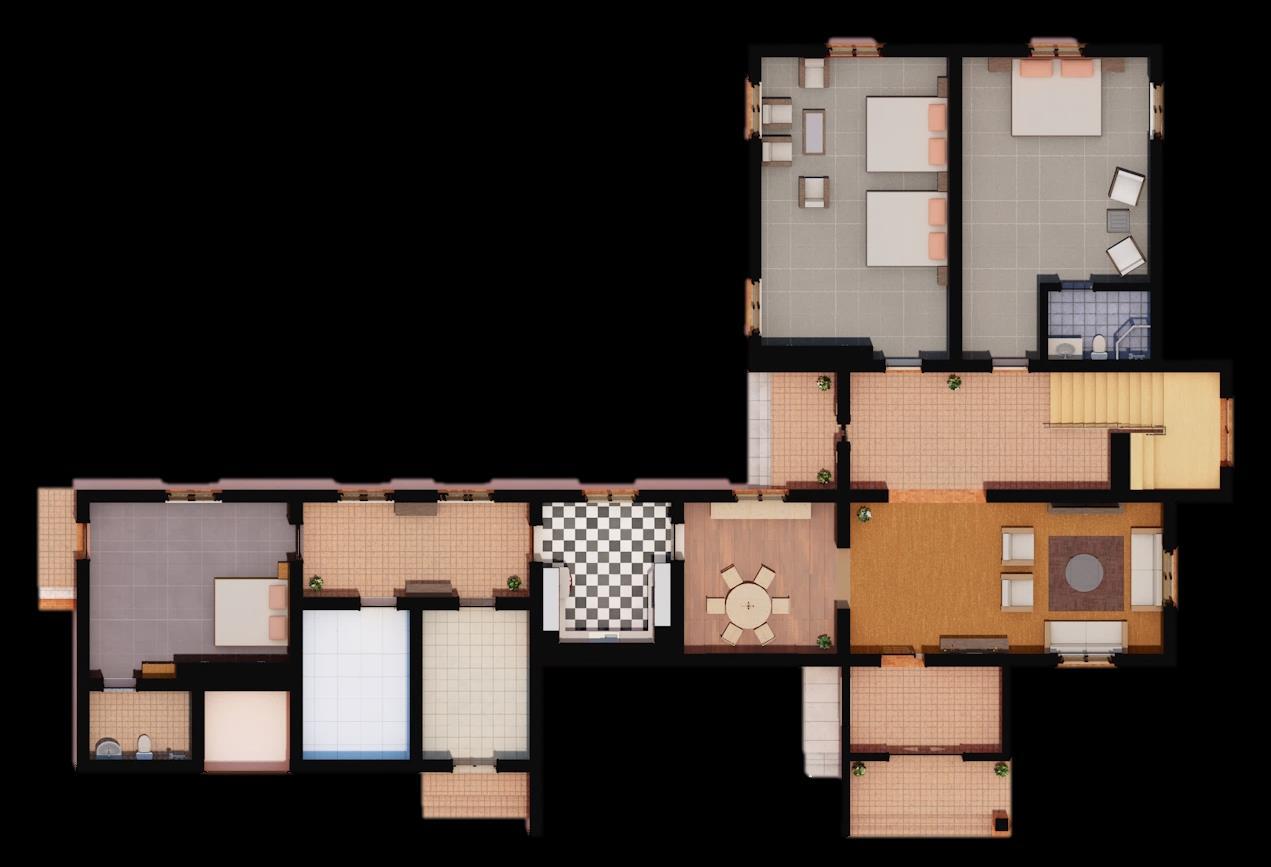

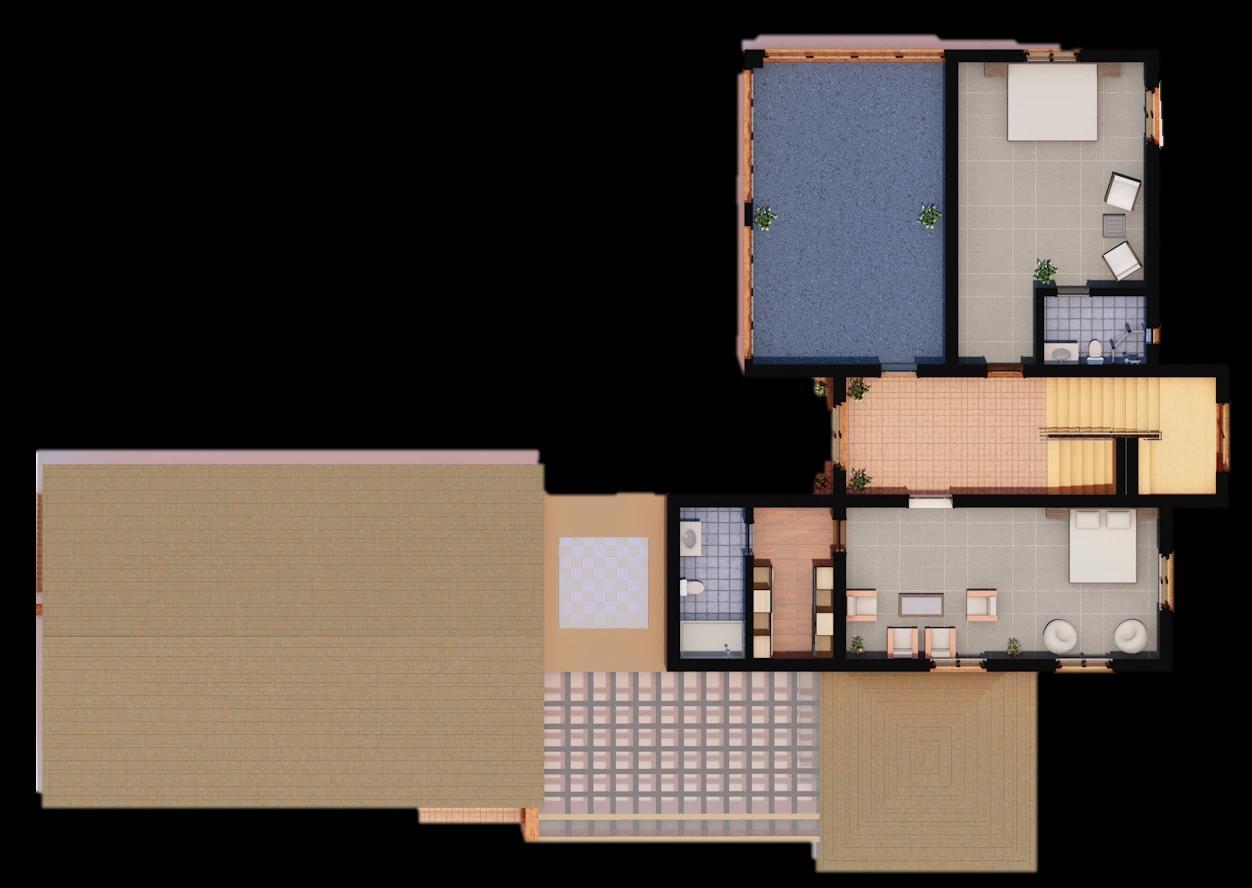

1 2 3 5 7 6 4 9 8 SWIMMINGPOOL ENTRANCE B< B‘< > > A A’ MASTER GARAGE 13M WIDE ROAD ADJACENT PLOT ADJACENT PLOT
1–LOBBY 2–LIVINGROOM 3–DINING 4–KITCHEN 5–STORE 6–UTILITY 7–SERVANTSROOM 8–GUESTBEDROOM 9–BEDROOM1 10–MASTERBEDROOM 11–BEDROOM2 12–WALK INWARDROBE 13–YOGASPACE 10 12 13 11 FIRST FLOORPLAN B< B‘< > > A A’ YogaSpace on firstfloor with view to back garden andswimmingpool MASTER PLAN 10M WIDE ROAD

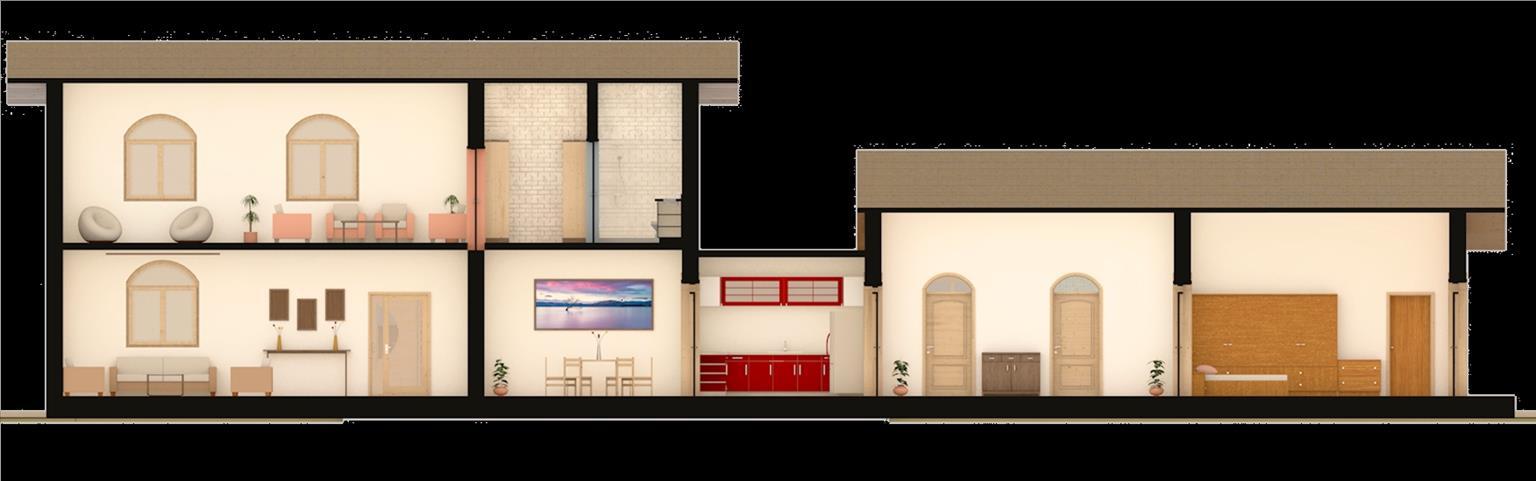

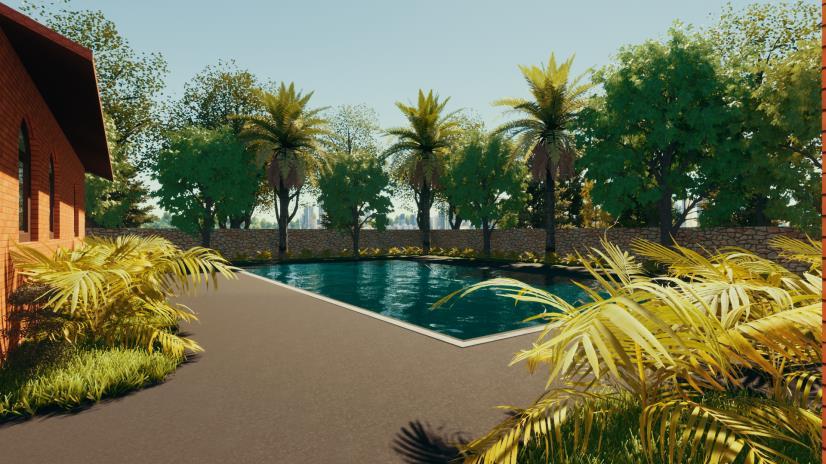

SECTIONBB’ SECTIONAA’ BACKYARDVIEW SWIMMINGPOOLVIEW
AA’
EASTELEVATIONVIEW NORTHELEVATIONVIEW BB’
HOUSING DEVELOPMENT
ARCHITECTURAL
DESIGN | 4TH YEAR | SEM VII
The vision of this housing development in Bhawani peth is to create a harmonious, peaceful and improved quality of lifestyle for the residents. It would offer a range of units thatcouldservedifferent kindsof families.
SITE DETAIL & ANALYSIS
Location: BhawaniPeth, Pune,India.
PLOT AREA= 18300sq.m.
OpenSpace= 1830 sq.m.
AmenitySpace= 915sq.m. Setbackonall side= 7.5m
STRENGTH
▪
The site is in the middle of the pune city and is well connectedtothe majorparts ofthe city.
▪ Publicopenspacesare available.
▪ Corporationwater is available24/7.
▪ The climateis moderate andfavourable.
▪ There are manytrees plantedin theresidential area.
WEAKNESS
▪ There are no gardens available in the site or surroundingthe site within walkingdistance.
▪ The site has the largest slum in pune. Puddles are generatedonroadsduringrainyseason.
OPPORTUNITIES
▪
The site could be developed well as its well connected to the rest of the city.
THREATS
▪ During festival times the roads get blocked due to rallies andinstallationson roads.
▪ The area may get congested due to increase in populationandmigration.
Wind Direction
Site for Housing Development

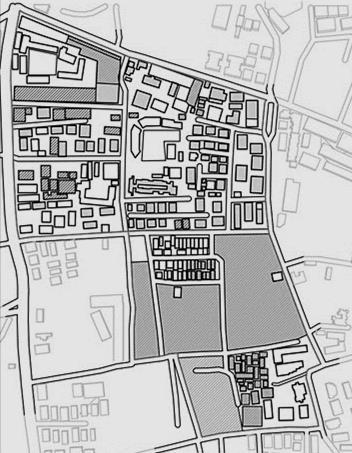

NSITE PLANWITH SURROUNDINGAREA
CONCEPT
To create InteractiveSpacesin various forms.

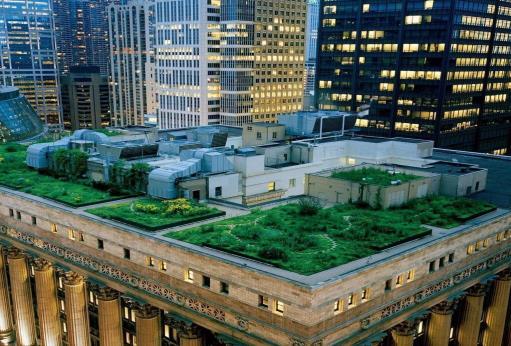

Based on the contextual study of site it is observed that due to increase in population, buildings are being built taller to accommodate more people. Thus it is necessary to provide interactivespacesathigherlevelstoofor easy accessandconvenience. Due to increase in population, pollution is also to be taken care of. Thus Plantation at higher levels are encouragedfor ahealthyenvironment. Terrace and balcony are interesting spaces to create interactive spaces for the community mainlythe MIG.

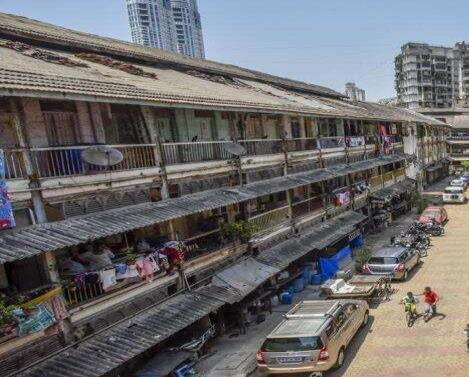

The essence of community living is strongly seen in chawls which can be created for the EWS society.
EWS LIG-A LIG-B MIG Net Plot Area Open Space Amenity Space SR.NO. BLOCK UNITS PER FLOOR AREA OF 1 UNIT (SQ.M) NO. OF FLOORS TOTAL NO. OF UNITS TOTAL AREA OF UNITS 1 EWS 28
2 LIG A 20
3 LIG –B 15
4 MIG 12
STATEMENT LAND USE PLANNING ▪ EWS –
▪ LIG–
▪ MIG

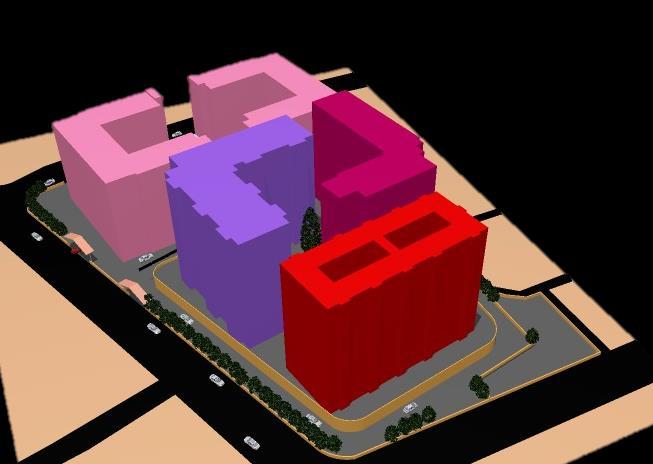

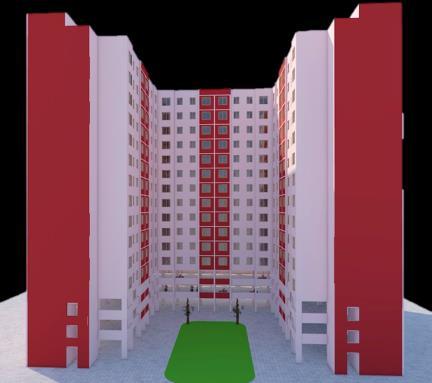

EWS BLOCK LIG-ABLOCK LIG-BBLOCK MIG BLOCK MASSINGMODEL
27 13 720 19440 sq.m.
38 10 198 7524 sq.m.
60 14 209 12540 sq.m.
70 7 83 5810 sq.m. The buildings have been designed giving good inside as well as outdoor spaces. All units haveaview towardstoexterior ortowardsthe centralopenspace. AREA
Economically weaker section
Lowerincome group
Middle incomegroup
MIGBlock
The duplexMIG units are placedon the north side providinga peaceful surroundingandalso being connectedto the centralopenspace for a senseof communityliving.
AmenitySpace
There is space allotted for Amenities as per rules.
LIGBlock
The LIG blockshave been plannedaround the centralareaof the site which wouldbe complete residential zone.
LIG&MIGParking
Parkingfor LIG & MIG blocksis spreadover 3 levels Basement, Groundandpartially on Podium level.
EWSParking
Parkingfor EWS block is spreadover 3 levels below the building Ground,Podium 1 and Podium 2.
SC 1:2500
Clubhouse&Garden
Podium level with central clubhouseandGarden towardsit’s centralarea.It also accommodates parkingbelow it.
Access
Accessto podium level of LIG &MIG block.
EWSBlock
The EWS block is planned onsouthside whichwill also have commercial shopsbelowwith direct accessto road.

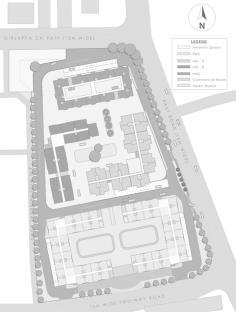

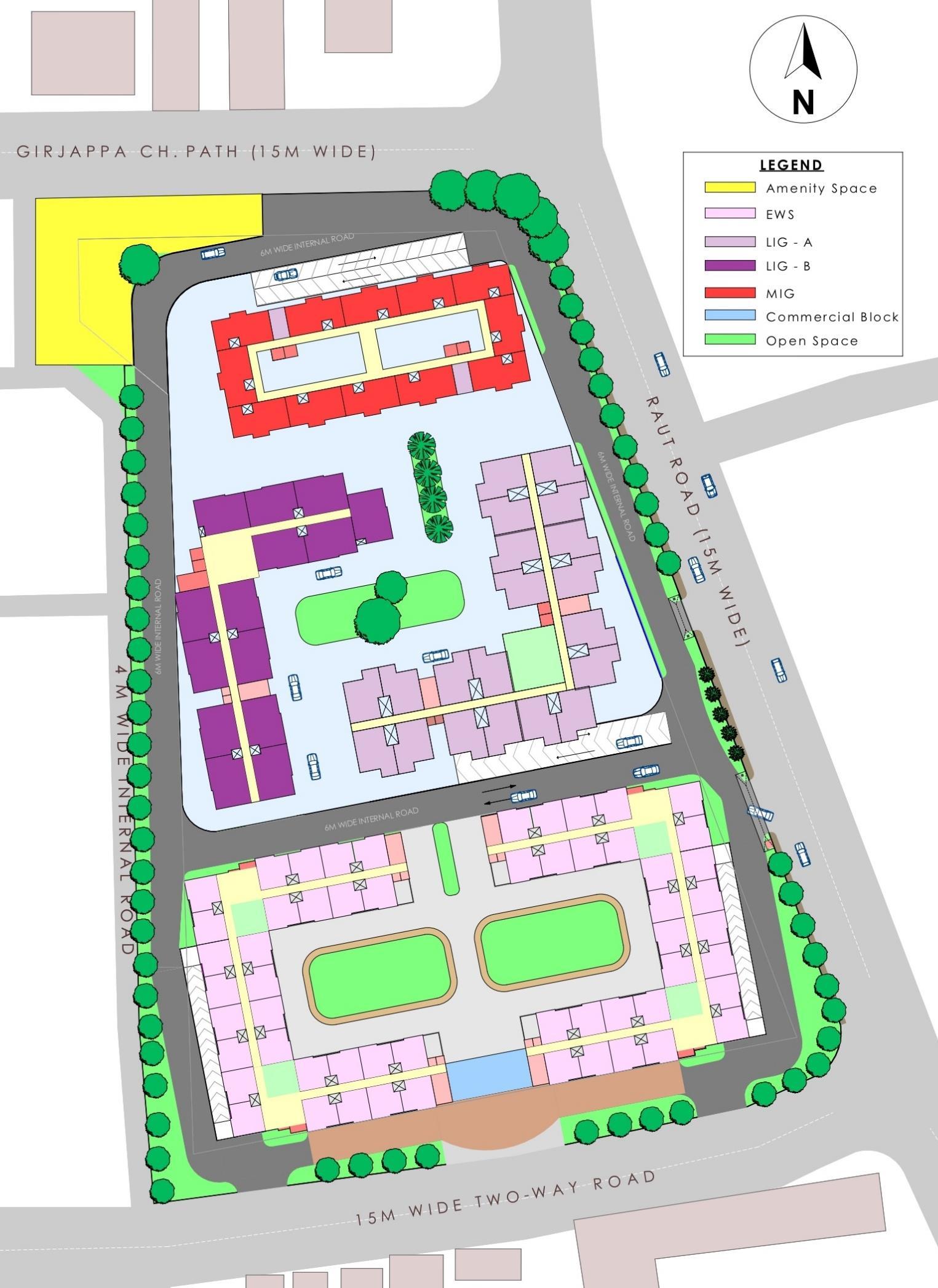

MASTERPLAN
KEY PLAN EWS Block

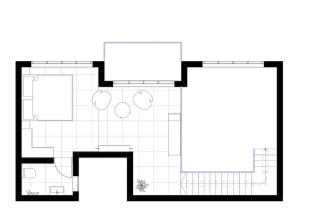

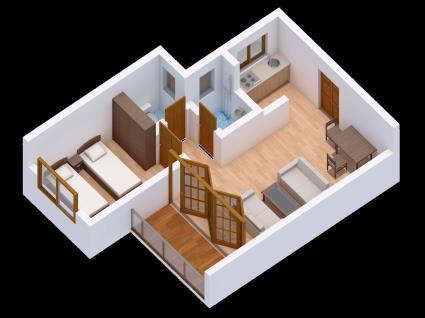

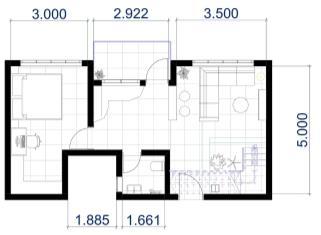

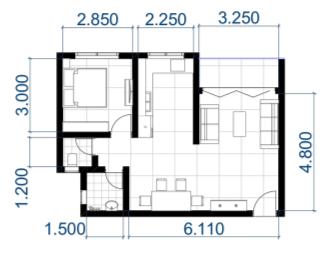

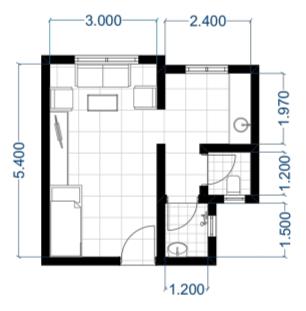

UNITPLAN

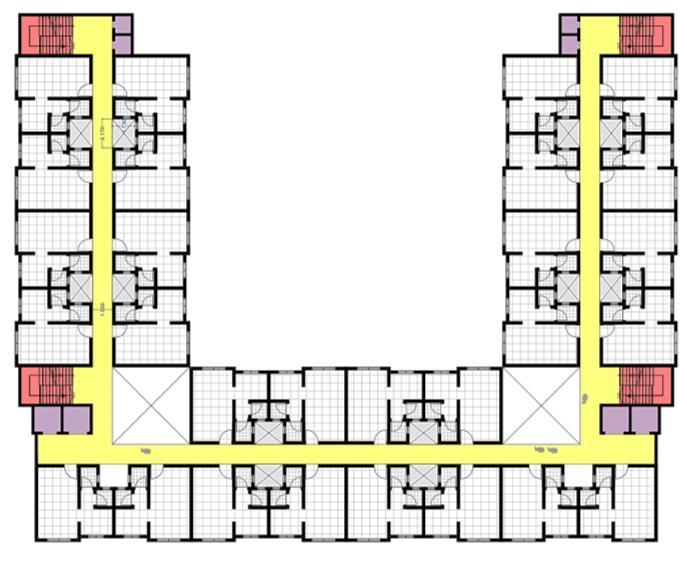

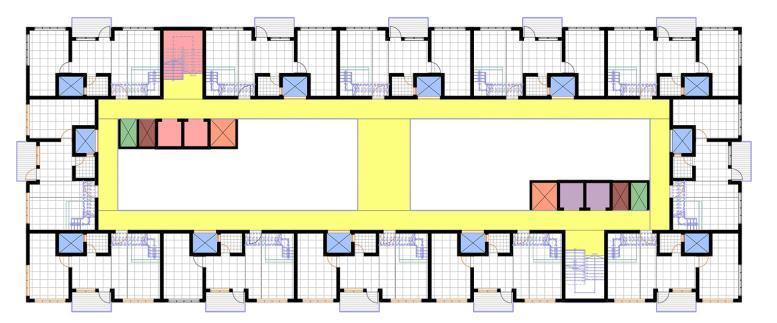

FLOORPLAN > > A A’
unit) 27 sq.m. Floortofloorheight 3m TotalBuilding Height 47.7m SC 1:600

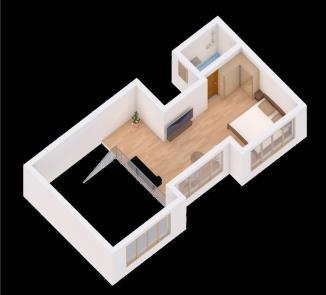

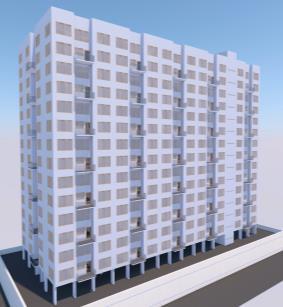

UNITVIEW EWS BLOCKVIEW G.L.
TYPICAL

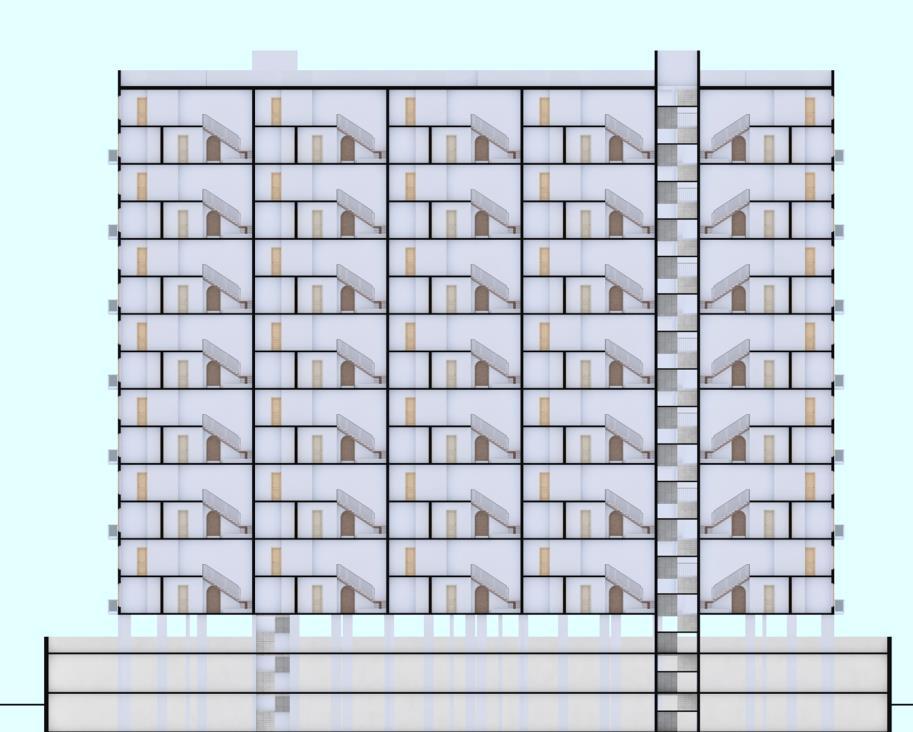

SECTIONAA’
Area(1
TYPICAL
Commoninteractive spacewith plantations and seating
Large windowswith low sill level for better spaceutility
Use of color combinationto makecostefficient yetaesthetically pleasingfaçade
KEY PLAN LIG-A Block SECTIONBB’ FLOORPLAN LIGA BLOCKVIEW < < B B’ Area(1unit) 38 sq.m. Floortofloorheight 3m TotalBuilding Height 39.9m SC 1:600 TYPICALUNITPLAN TYPICALUNITVIEW G.L. Commonterrace areawith plantations and seating Additional individual balconies for all units in LIG Bblock Façadedesign elements SHADES OF BEIGE CONTRASTING DARK SHADE FOR BALCONY
KEY PLAN LIG-B Block
UNITPLAN
CC’ FLOORPLAN LIGB BLOCK VIEW > > C C’ Area 60 sq.m. Floortofloorheight 3m TotalBuilding Height 49.8m SC 1:600
UNITVIEW
for every unit
interactive spaces
floors
seating
G.L.
TYPICAL

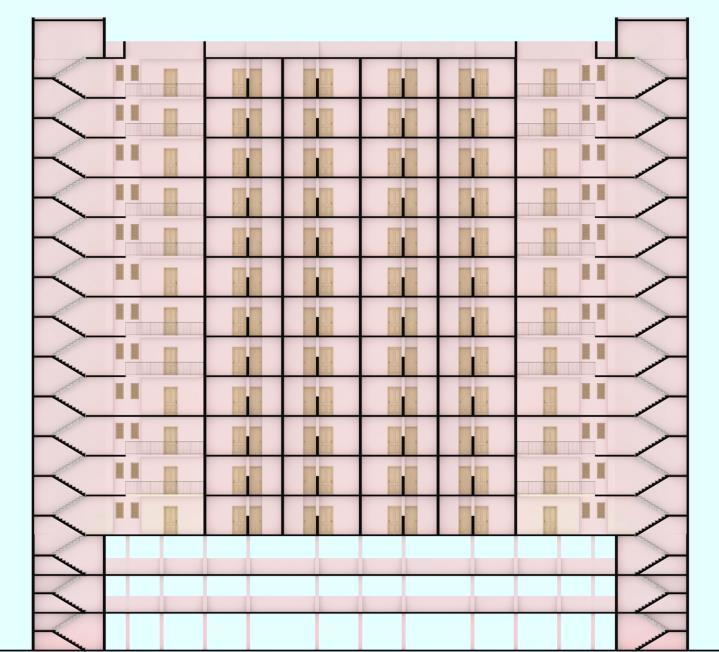

SECTION
TYPICAL
Balcony
Common
on several
with
andplantation Windowsand balconyintegrated in façadefor a contemporary elevation design

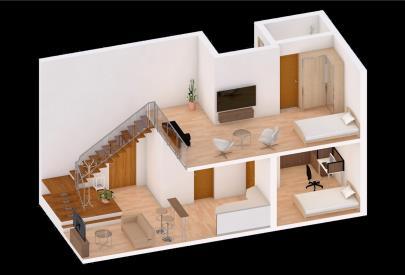

MIG Block Duplex Unit SECTIONDD’ FLOORPLAN < < D D’ KEY PLAN Area 70 sq.m. Floortofloorheight 5.7m Parkingheight 3m TotalBuilding Height 49.65m SC 1:600 TYPICALUNITPLAN (LOWERLEVEL) TYPICALUNITPLAN (UPPERLEVEL) TYPICALUNITVIEW MIG BLOCK VIEW Bigger windows& Minimal design staircaseinside Duplex unitgive a spaciousambiance Special central area in MIG block for all agesto interact Façadedesign elements MINIMAL DESIGN RAILING BOXY FENESTRATIONS G.L. CUTSECTION VIEW
COMMERCIAL BUILDING
ARCHITECTURAL DESIGN STUDIO
3RD YEAR | SEM VI
Designing a commercial building in the central area of Pune city, which accommodates shopping complex, offices and a fine dining rooftop restaurant.
CONCEPT
The concept is to create alternate stacking of spaces in a vertical manner, to create interesting spacesamongstit.

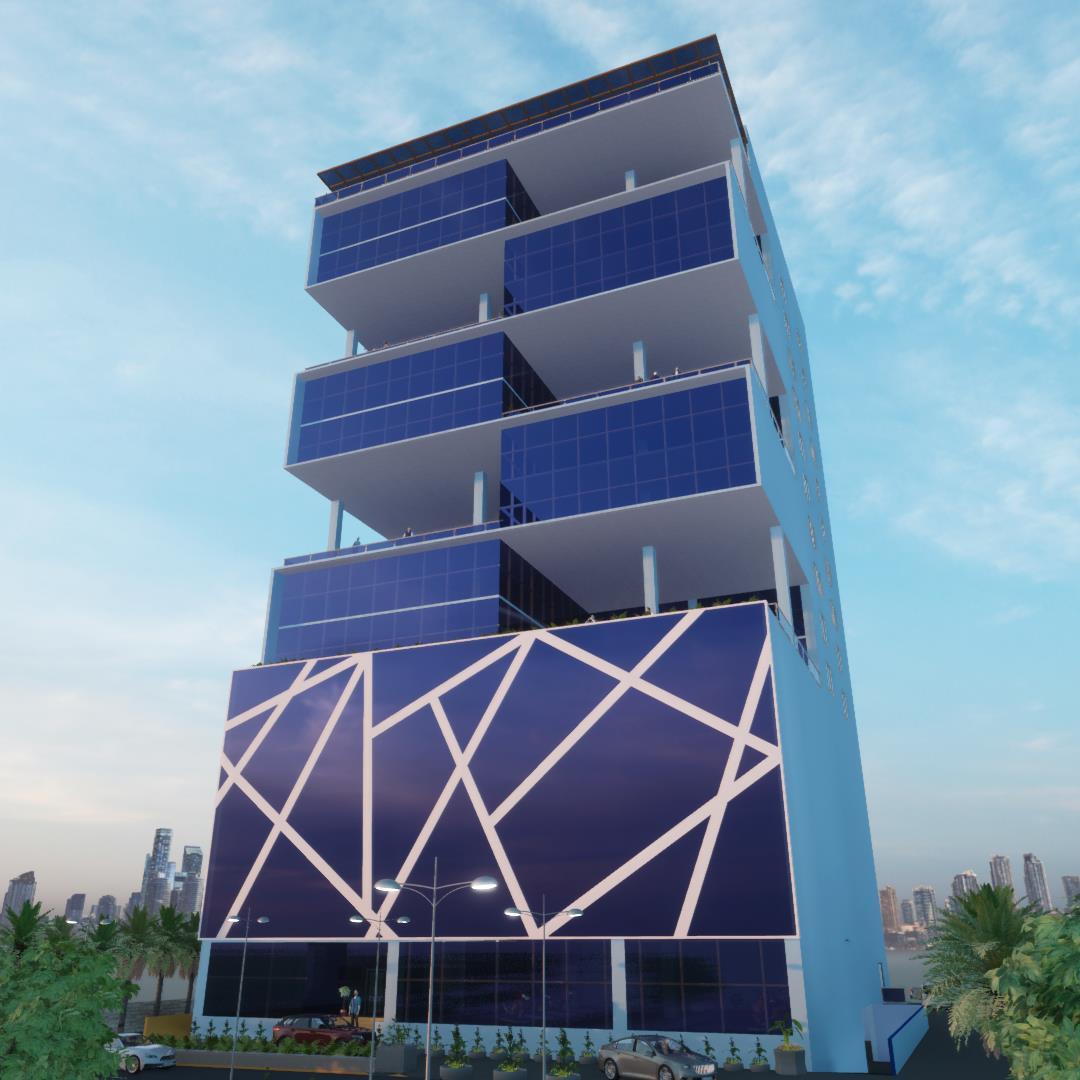

The views of the building show how the concept is incorporated in designing the building by creating large terrace like spaces at several floors which act as an informal gathering space for the office users creatinga healthierwork environment.
HANDMADECONCEPTMODEL
ABOUT SITE
Pune also known as Poona, is the seventh most populous city in India and the second largest city in the state of Maharashtra. It exemplifies an indigenous Marathi culture and ethos, in which education, arts and crafts, and theatres are givendueprominence. The culture of every city portrays the essence of the place through its historical background, its values, ethics and its scopetowardsacceptinginnovativeandfresh ideologies.

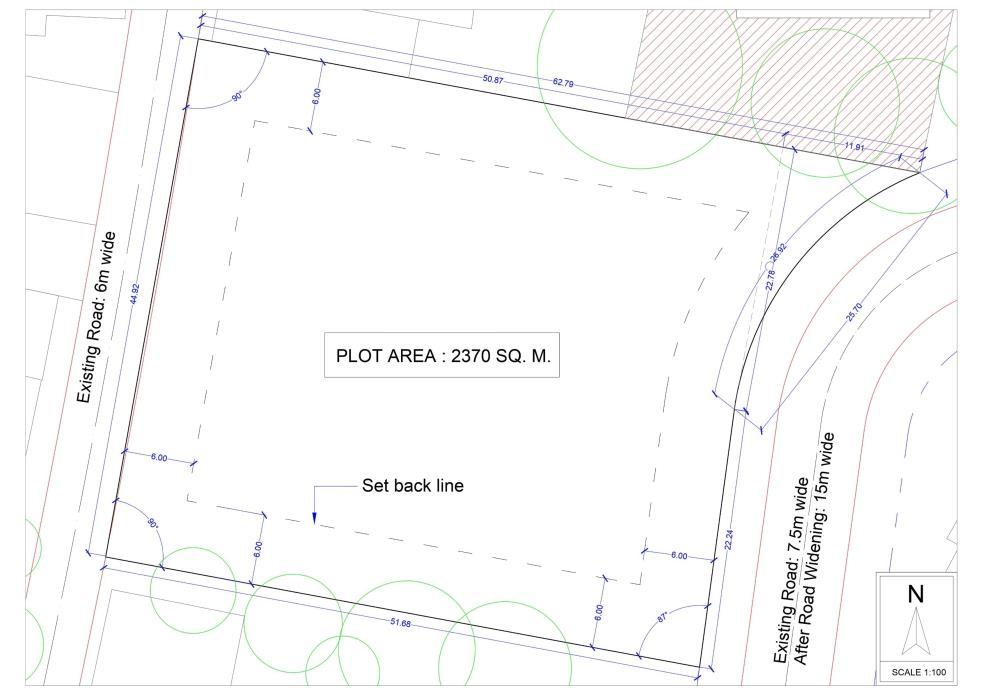

SITE PLAN
The site is located near camp area of Pune. It has access roads on front and rear sides. The area is a mixed use area comprising of commercial, residential and institutional buildings. It has scope for a commercial complex and office spaces to be built due to its location and good connectivity from severalplacesof Pune.
6 M WIDE
ADJACENT > A
Office
NTS
ROAD
Service Entry from rear side
AccessLobby
7.5 M WIDE ROAD ADJACENT PLOT > A’ MASTER PLAN Drop offpoint to shoppingcomplex Rooftoprestaurant AccessLobby Entrance to basement Exit from basement ADJACENT PLOT Entrance to commercialbuilding 7.5mwide Accessroadto site Semi open Informal meetingspaces Outdoordining spacefor fine dine restaurant

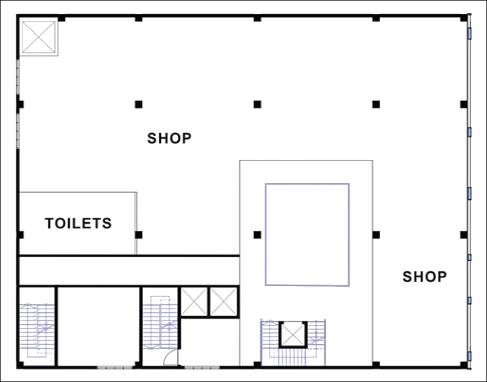

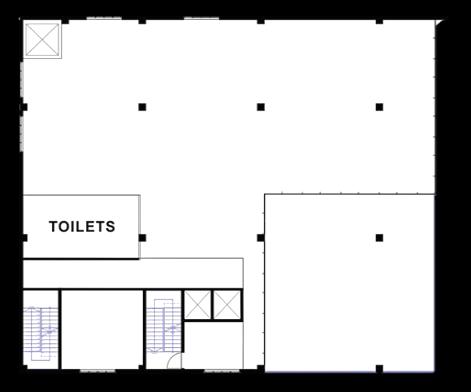

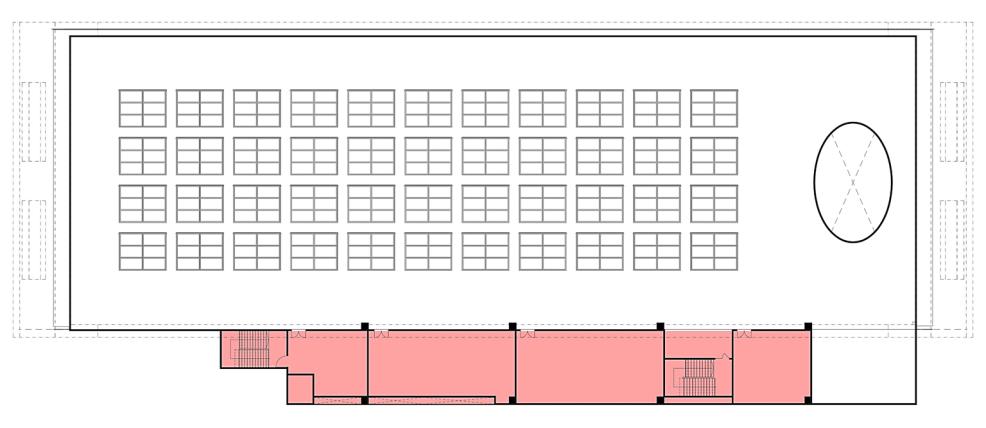

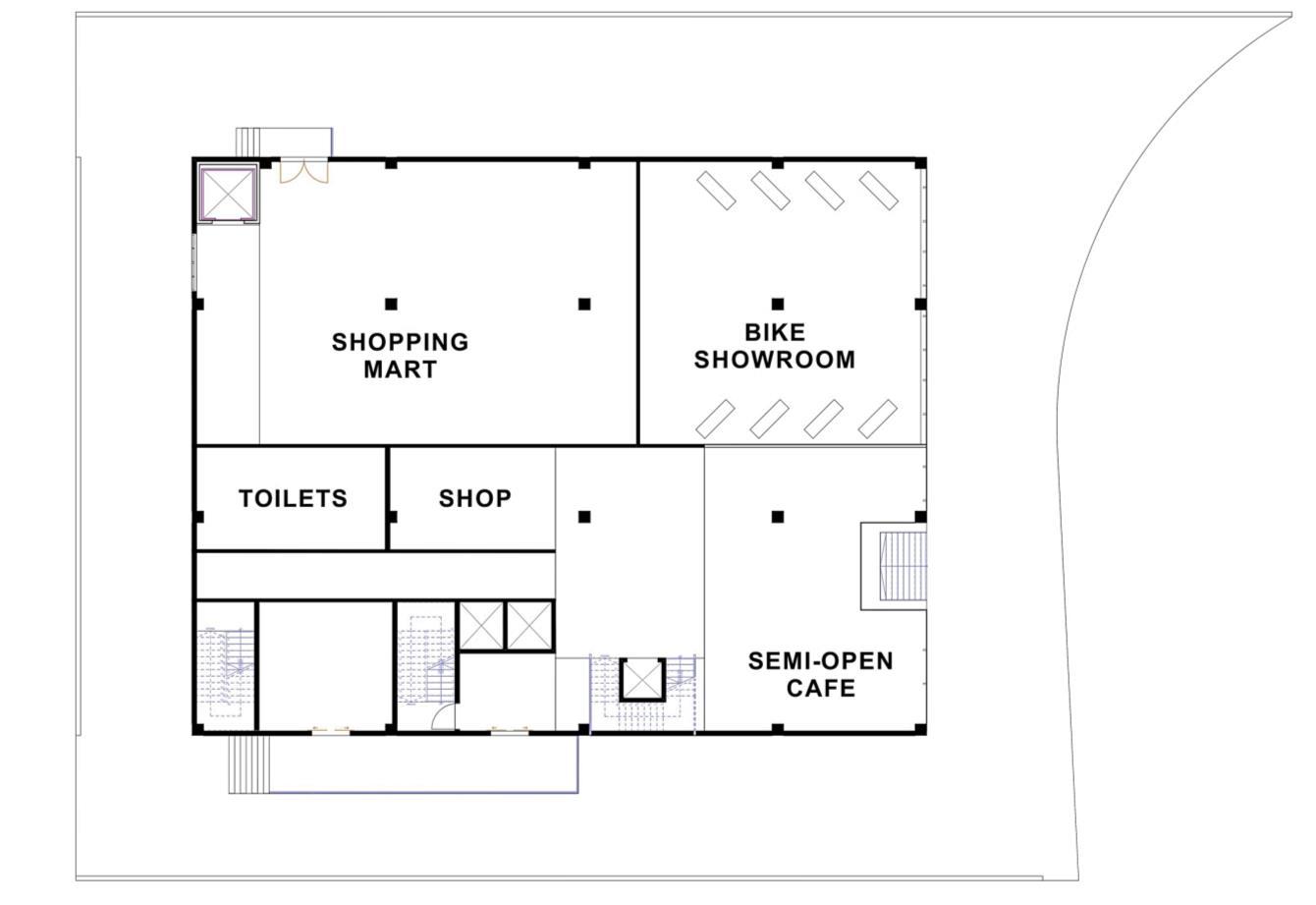

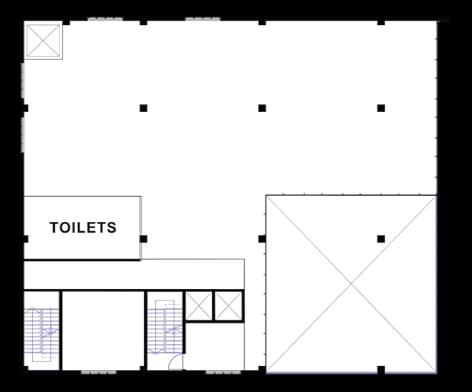

FLOORPLAN (LEVEL1-4)
FLOORPLAN (LEVEL5,9,13)
FLOORPLAN (LEVEL6,10,14)
FLOORPLAN (LEVEL7,11)
FLOORPLAN (LEVEL8,12)
FLOORPLAN (LEVEL15)

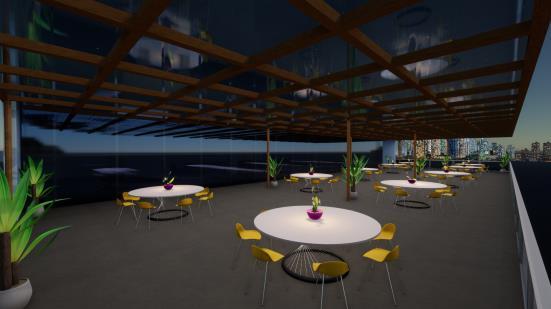

Outdoor seatingarea for restaurant
Informal meeting spacefor employees
Semi open cafeteriafor offices
CentralAtrium in shopping complex

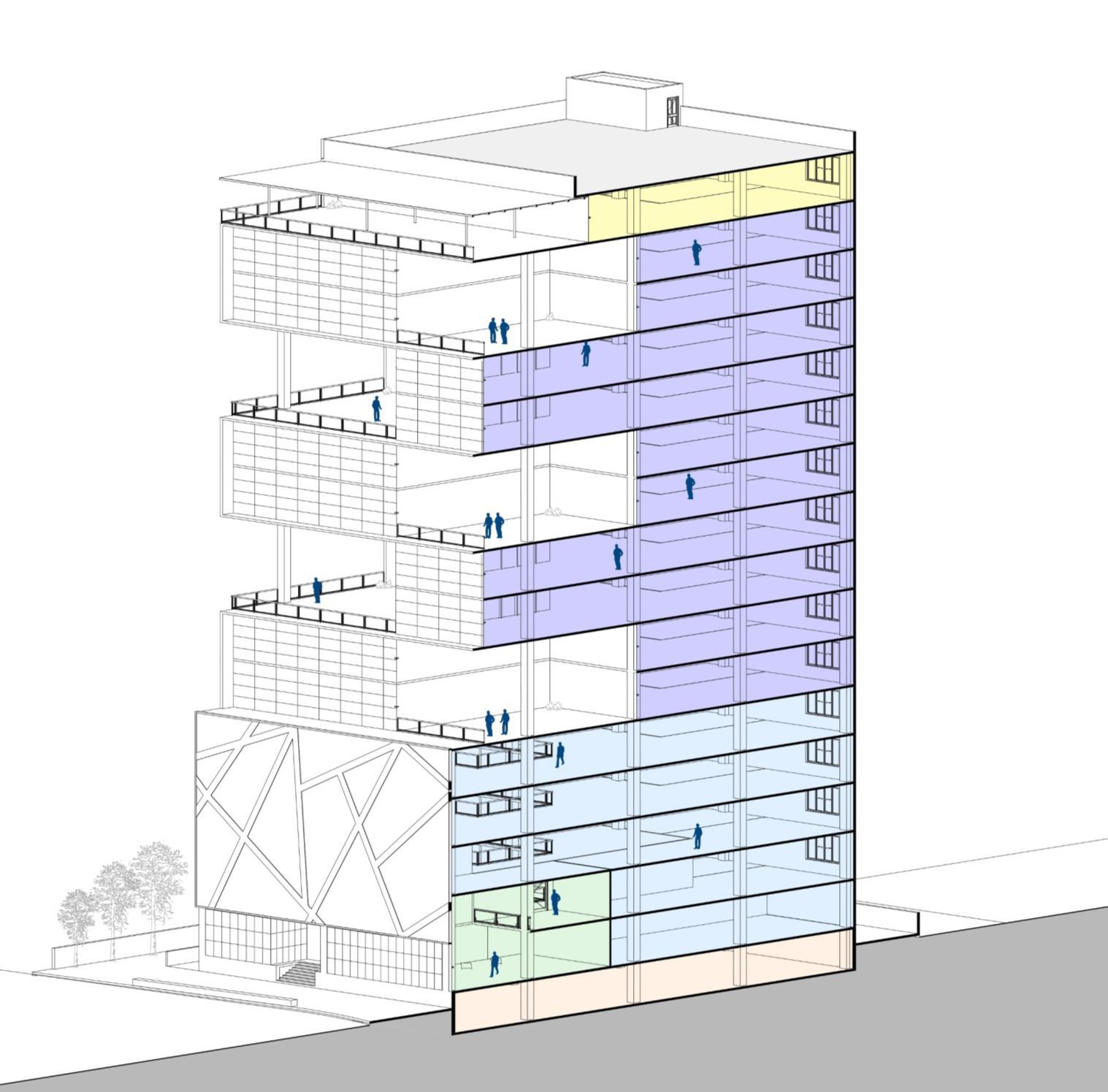

SECTIONALVIEW BASEMENTPARKING TWOWHEELERSSHOWROOM SHOPPINGCOMPLEX OFFICES FINE-DINERESTAURANT GLASS FACADE WOODEN PERGOLA
ALUMINIUM CLADDING MATERIAL PALLETE ▪
▪
▪
▪
▪
STUCCO WALL
TOTAL HEIGHT +60.2M
PLINTH +1.2M
BASEMENT 1.8M
BASEMENT HEIGHT 3M
FLR TO FLR HEIGHT 3.5M
ARCHITECTURAL DESIGN STUDIO | 2ND YEAR ARTIST STUDIO
DESIGN OBJECTIVE
▪
To design an artist studio along with a spaceto exhibitandsell the work.
▪
The studio is for Zari work which is handmade on dresses such as Sherwani, Lehengaetc.
▪
The site is located in Mohammadwadi, Pune, India. It has a 6M wide access road abuttingit.
CONCEPT
The concept is based on the inter weaving of threads by which the patterns and designs in Zari work is done. It is used in the planning of spaces. This created interesting forms of spaces for the studio and the showroom.

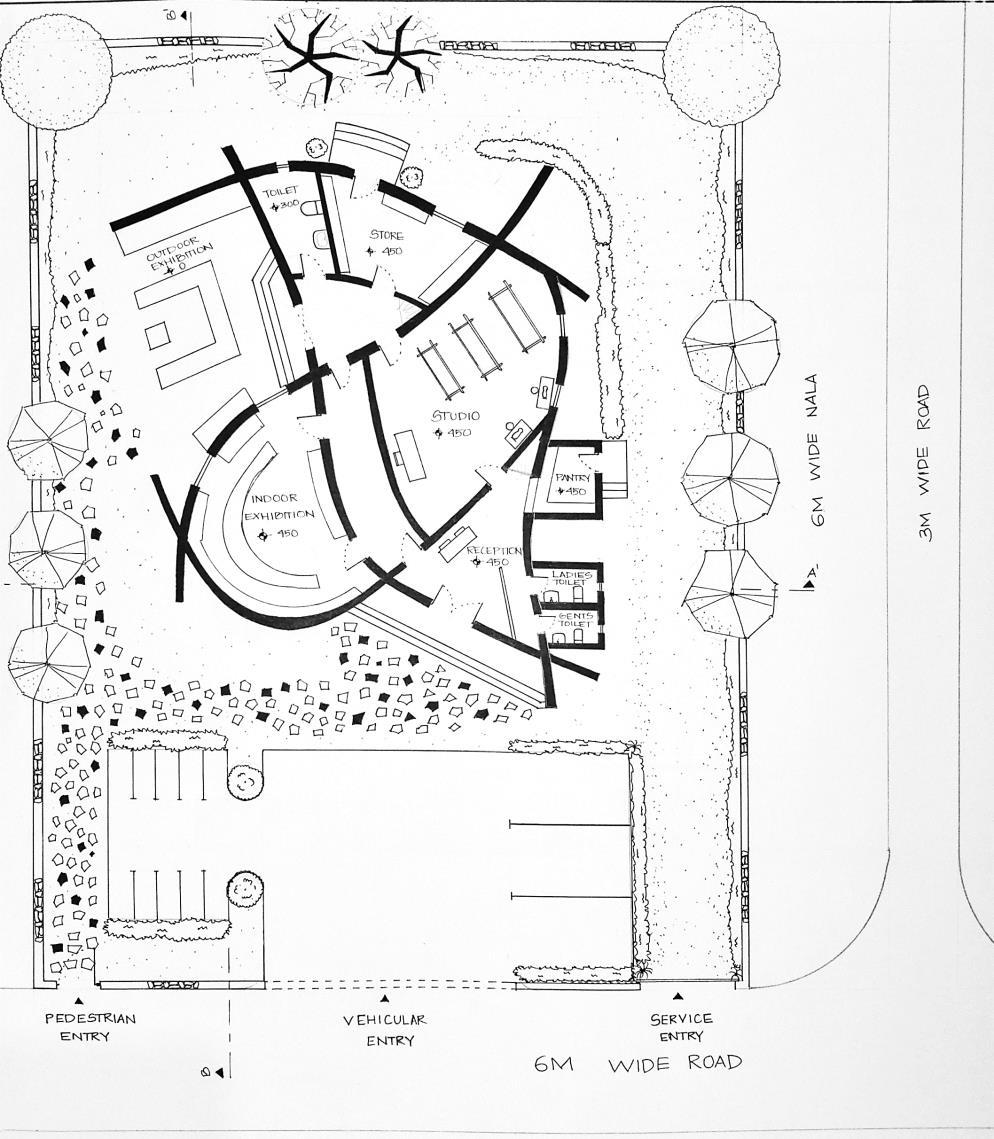

MASTER PLAN

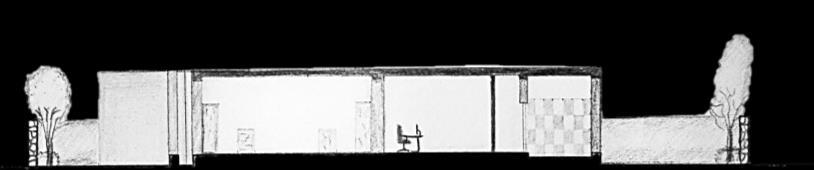

SECTION
SECTION BB’
AA’
2 3 1 4 6 7 8 PEDESTRIAN ENTRY VEHICULAR ENTRY 6M WIDE ROAD

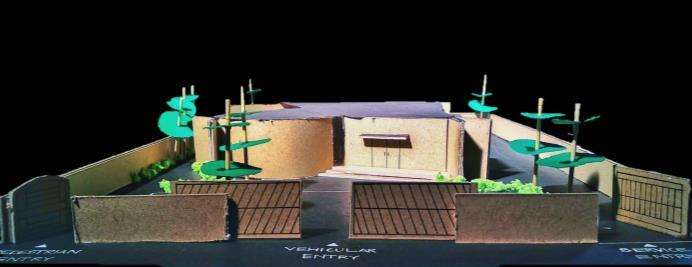

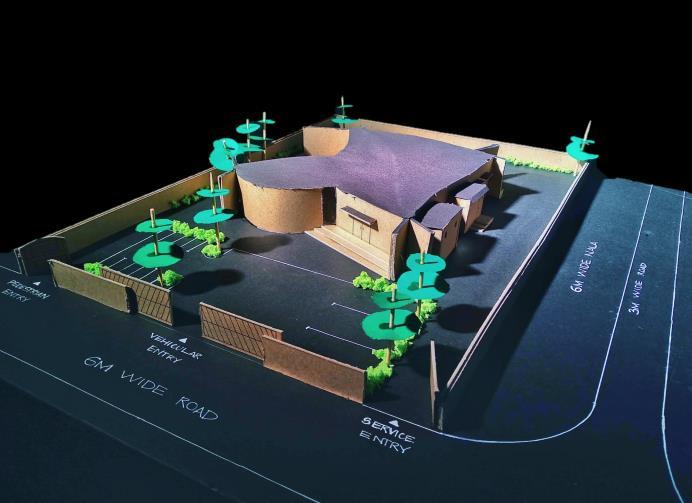

HANDMADE MODEL PLAN | SEM III LEGEND 1 Reception 2 Studio 3 Indoor Exhibition 4 Store 5 Pantry 6 Toilet 7 Outside Exhibition 8 Parking 5 6 6 SERVICE ENTRY ROAD 3M WIDE ROAD 6M WIDE NALA
PROFESSIONAL PRACTICE

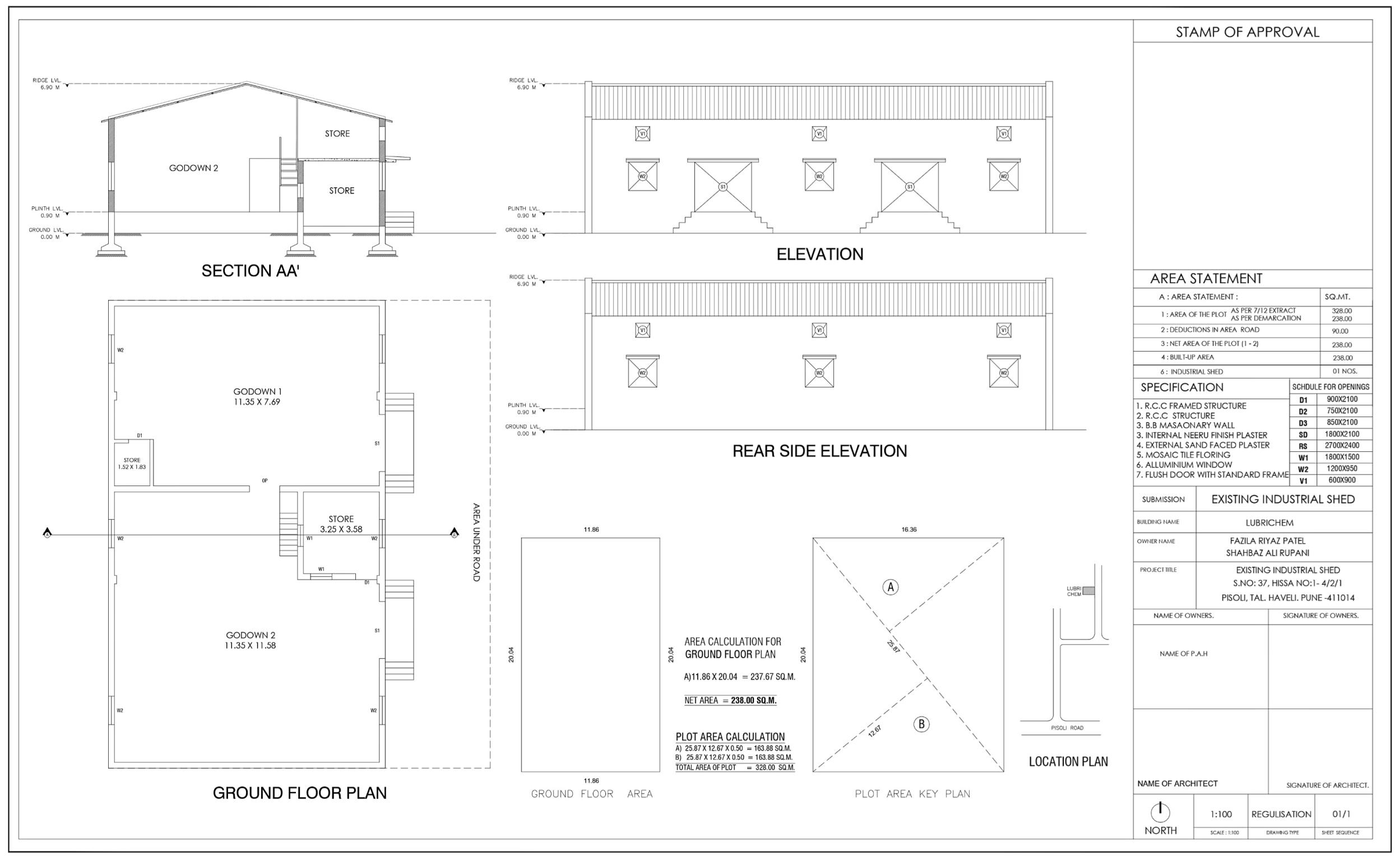

WORKING DRAWING
Location
Pisoli,Pune,India Type Commercial
WORK INPUT –
▪ Visitingsite tomeasure completestructure.
▪ Draft drawingsofstructure for submissionin MunicipalCorporation.
Aesthete DesignLab
WORKING DRAWING
Location
Wanowire,Pune,India
Type
Residential
WORK INPUT
▪ Workingonfloor plansasper client requirements.

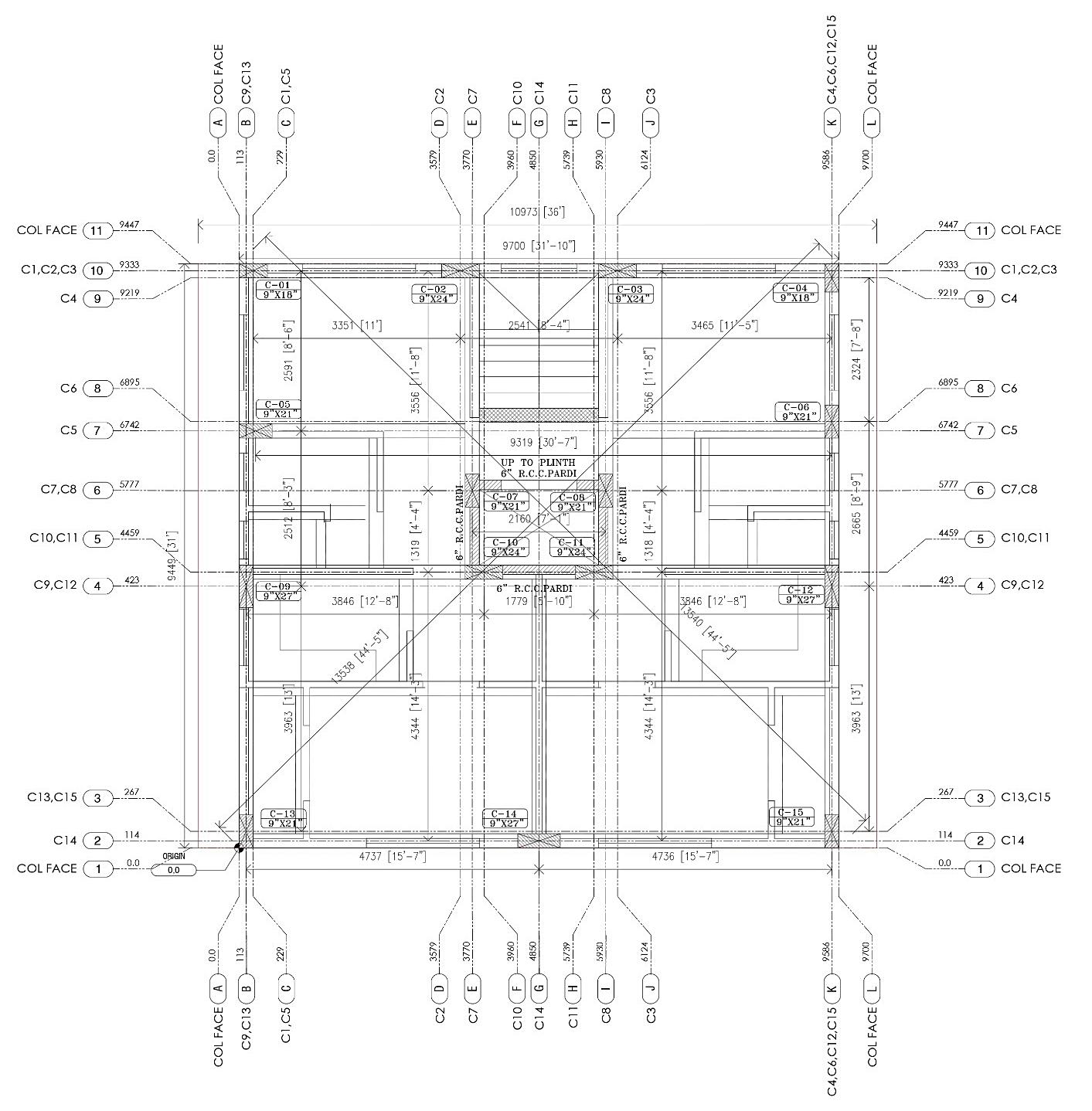

▪ Draftingcenterline planbasedonRCC consultant’scolumn layout.

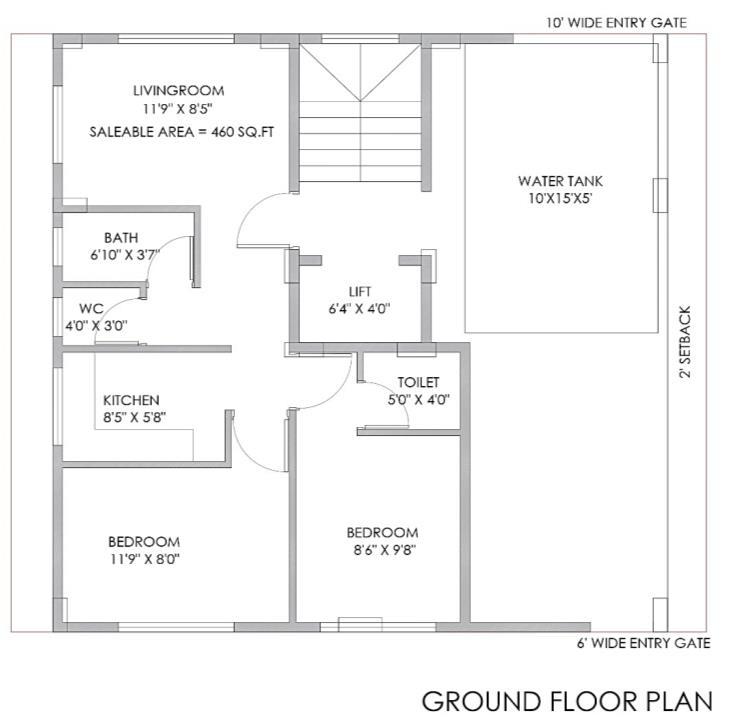

FLOORPLANS
CENTERLINEPLAN Aesthete DesignLab

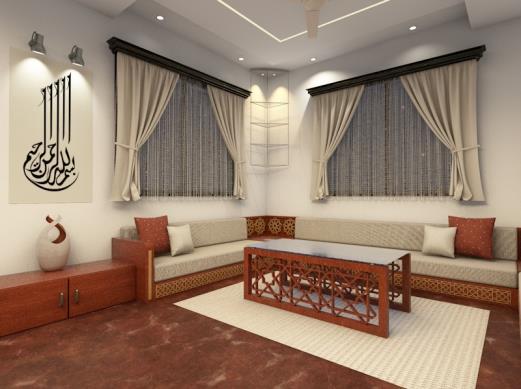

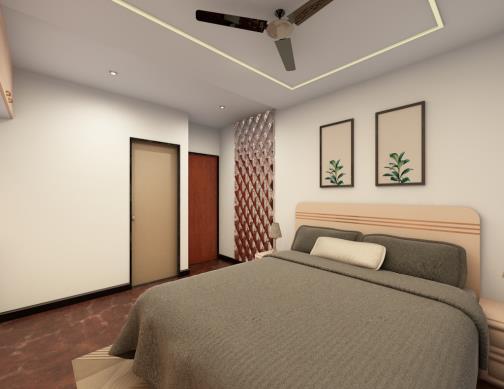

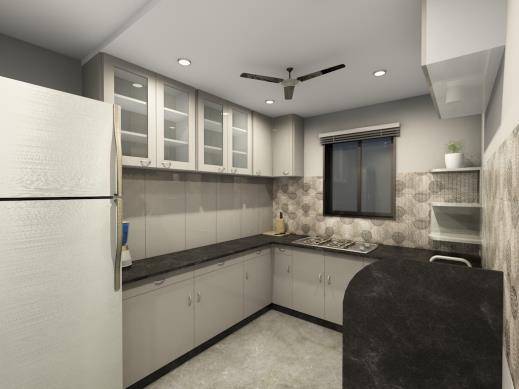

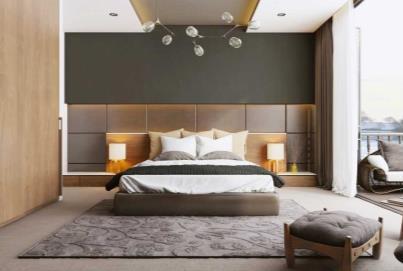

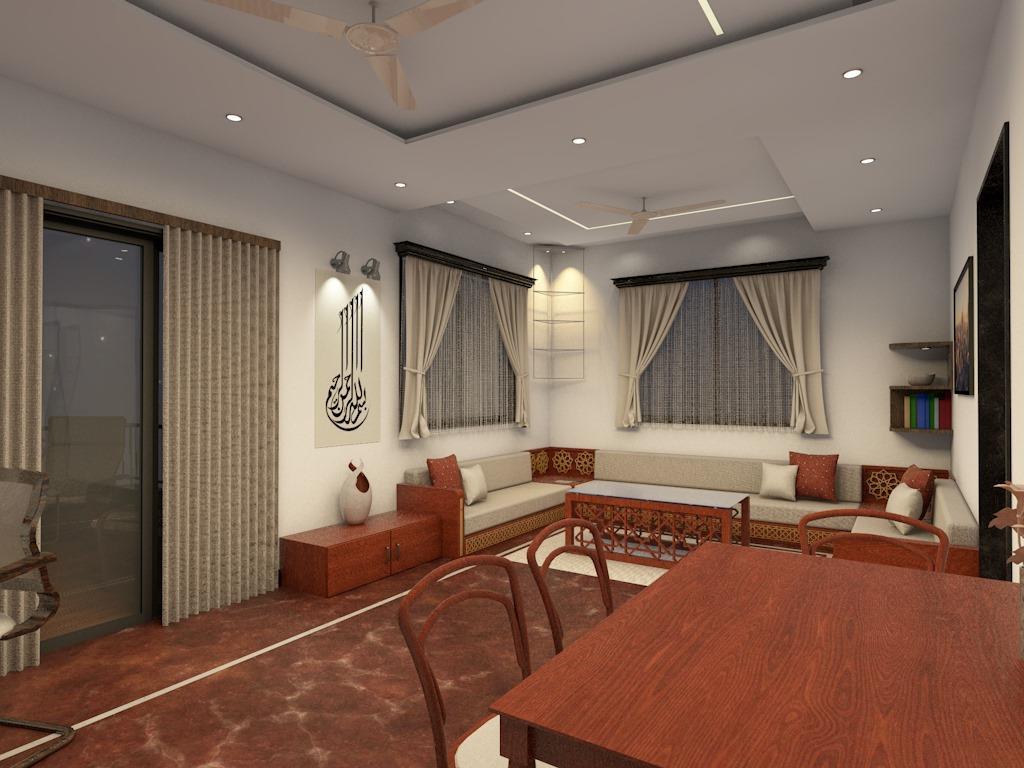

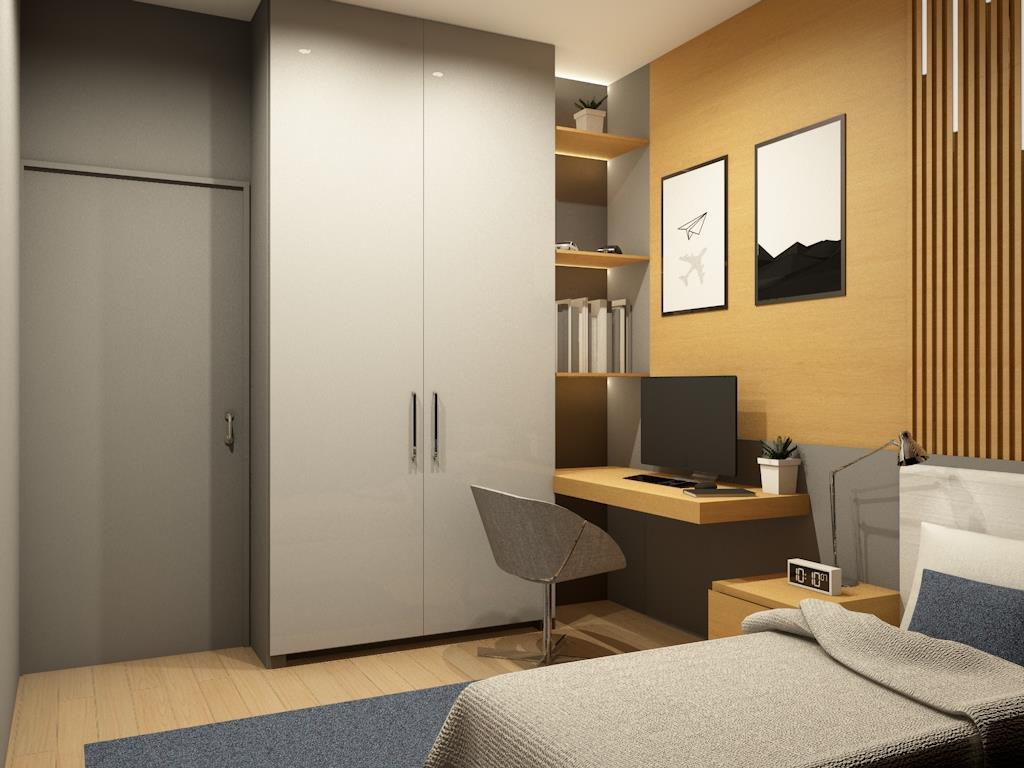

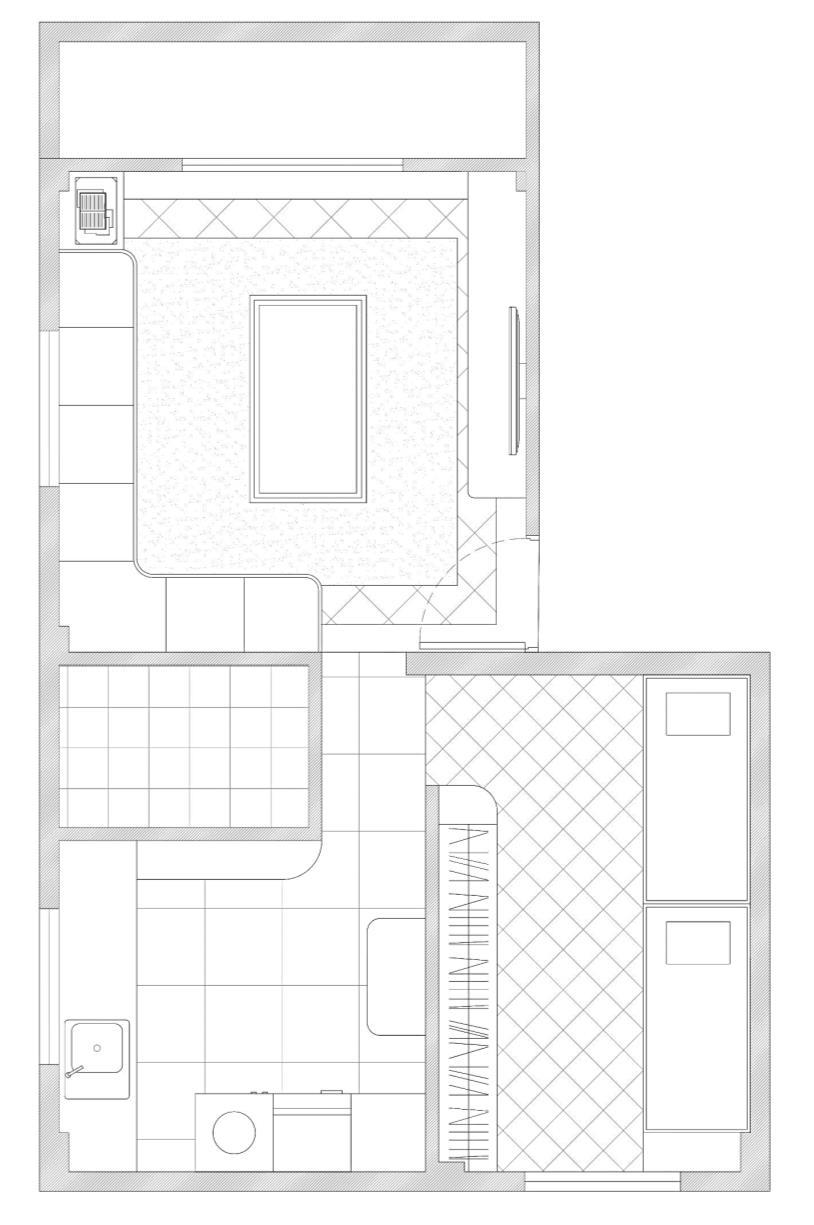

INTERIOR DESIGN PROJECT
Location
Lullanagar,Pune,India
Type
Residential
WORK INPUT
–▪ Designing

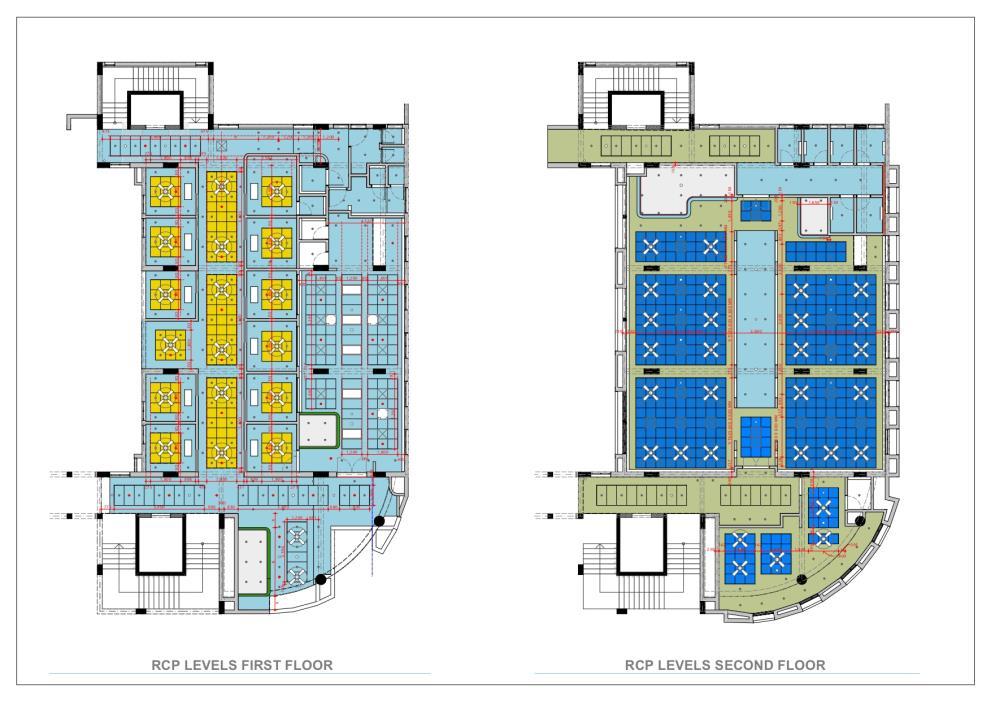

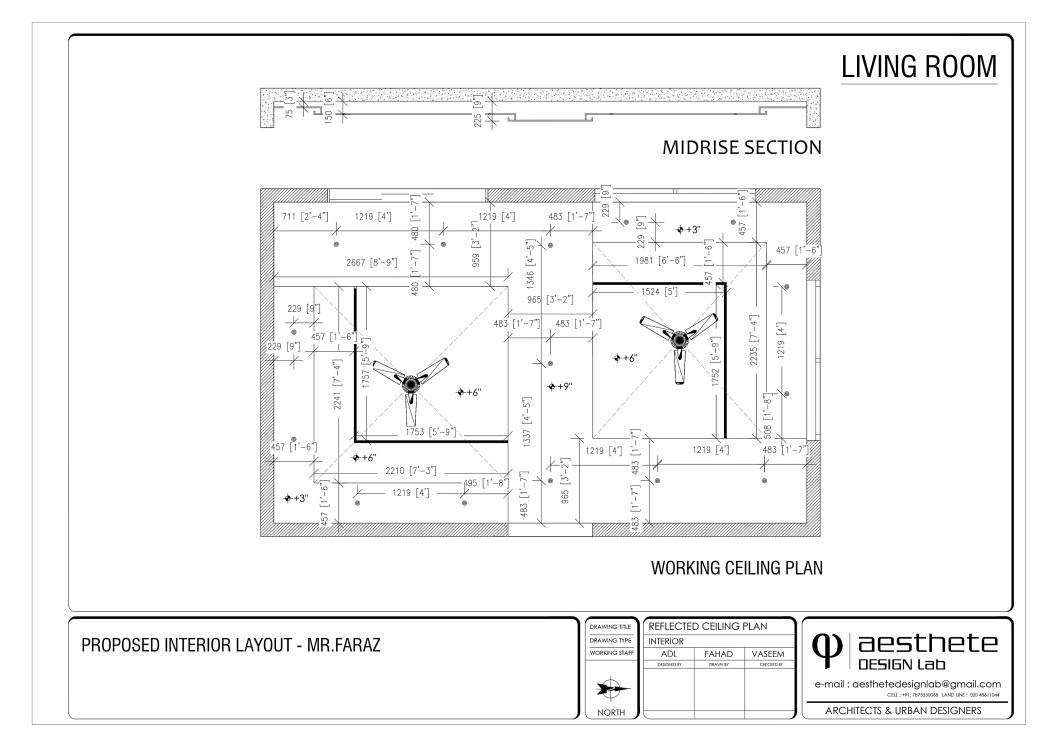

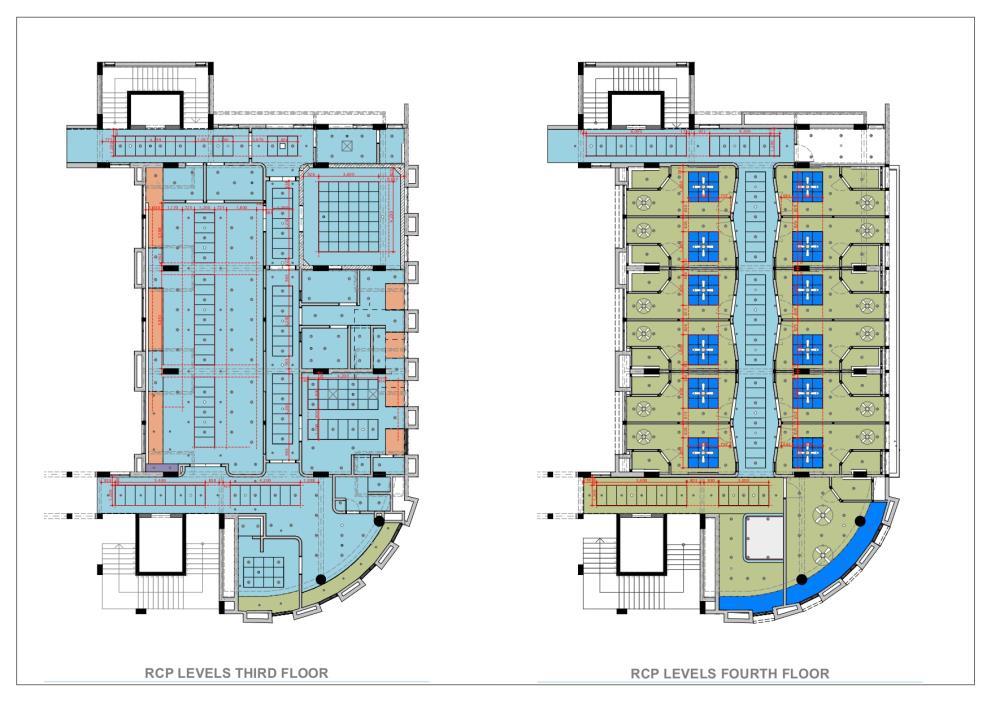

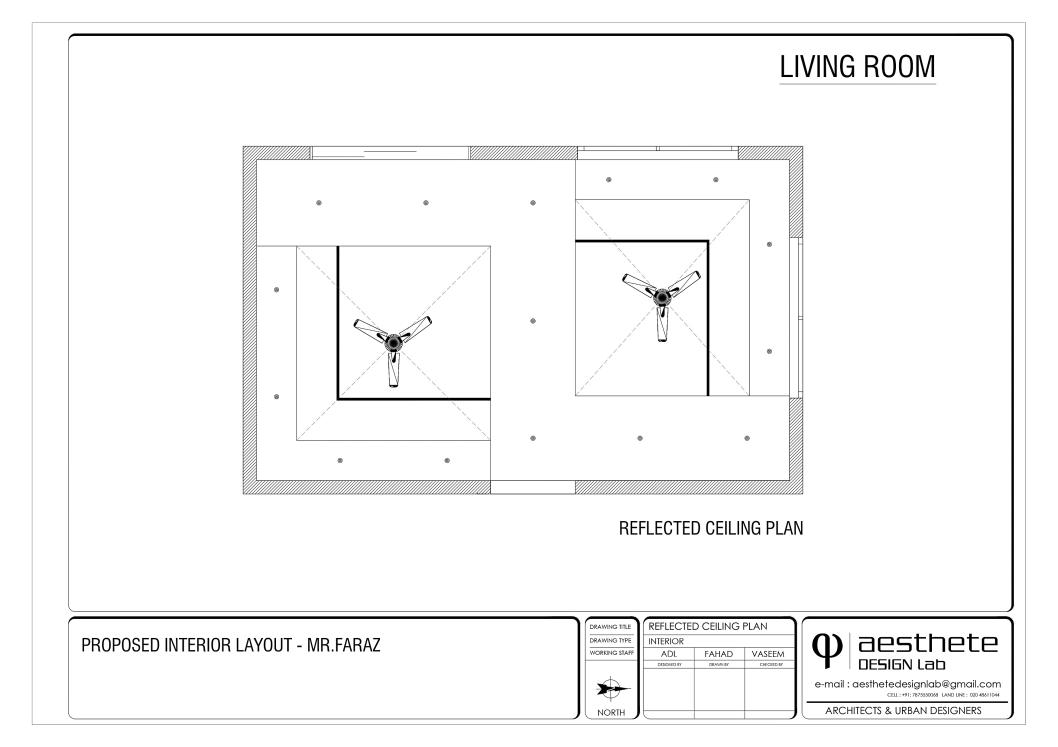

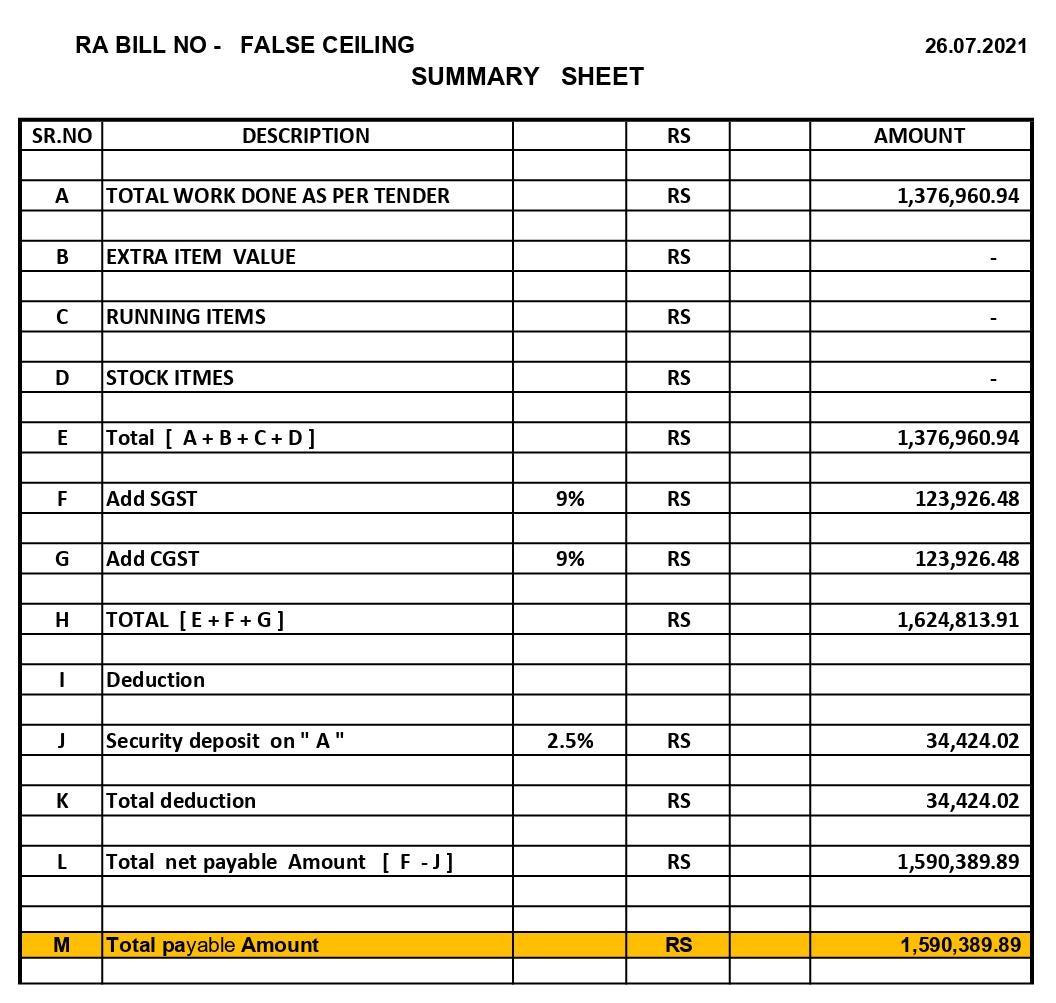

Falseceiling for all rooms. ▪ Making working drawingfor on site execution.
INTERIOR DESIGN PROJECT
Location
Pune,India Type
Commercial
PROPOSED INTERIORLAYOUT
WORK INPUT
▪
Planninginterior layoutfor the Homeopathyclinicas per client’s requirements.
Aesthete DesignLab
INTERIOR DESIGN PROJECT
Location Fursungi,Pune,India Type Residential
WORK
INPUT
–
Planningfurniturelayout.
WorkingonBOQ for interior design.
WORK
PROPOSED FURNITURELAYOUTPLAN BEDROOM
KITCHEN TOILET LIVING ROOM BALCONY
▪
▪
▪ Conceptual ▪ Colour
PROPOSED B.O.Q.
ORK INPUT

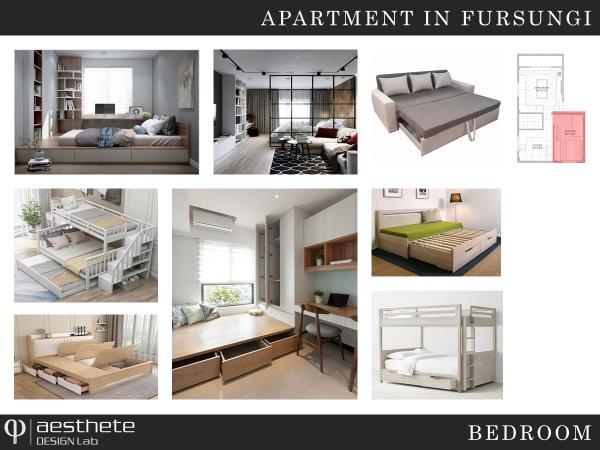

Conceptualpresentationfor interior design. Colourandmaterial palleteoptions.
Lab
Aesthete Design
INTERIOR DESIGN PROJECT
Location
Lullanagar,Pune,India Type
Residential
WORK INPUT
▪ Planningfurniture layout.
▪ Interior designing for complete apartment.
▪ Creating3D renderingsfor better understandingof designand presentationfor client.

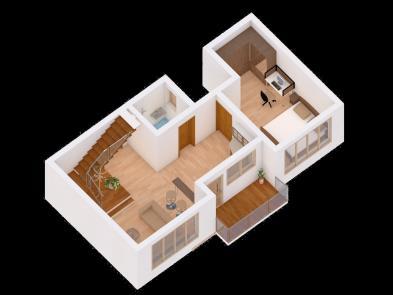

FURNITURELAYOUTPLAN
LIVINGROOM
LIVINGROOM LIVING

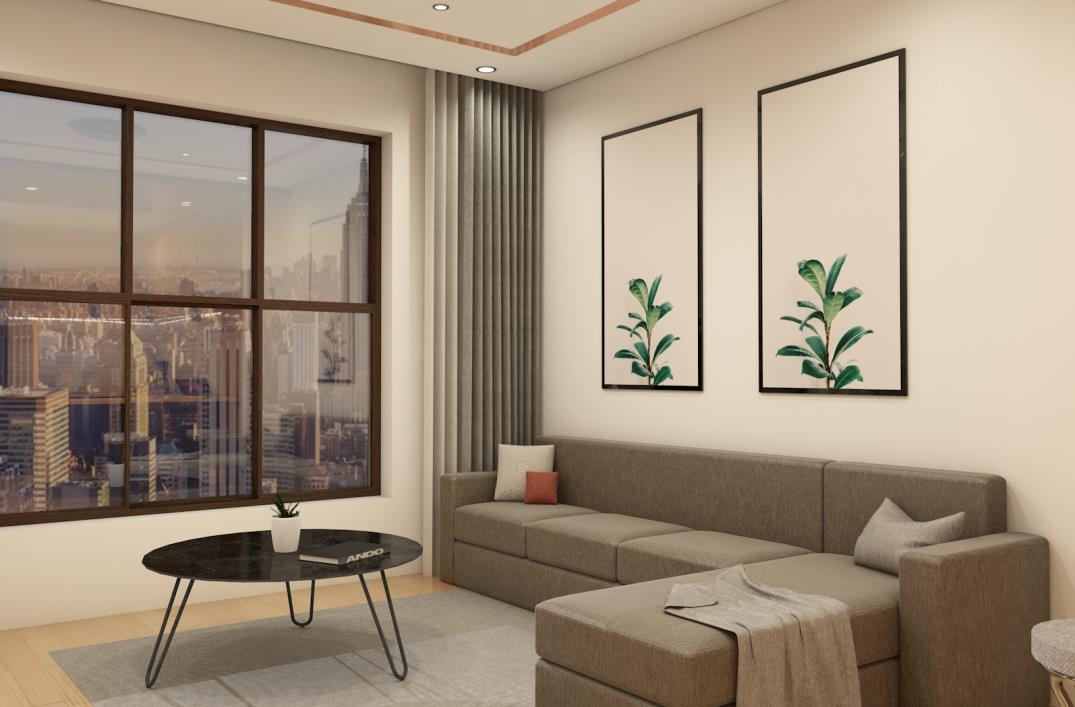

INTERIOR VIEWS

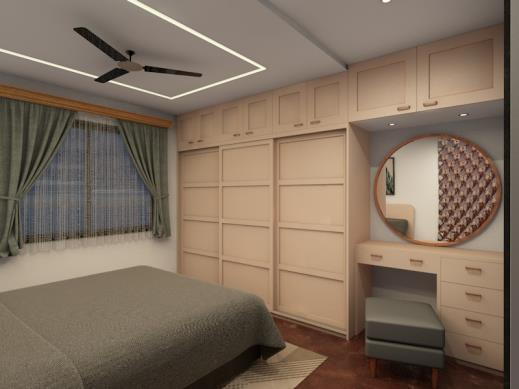

LIVINGROOM MASTERBEDROOM MASTERBEDROOM

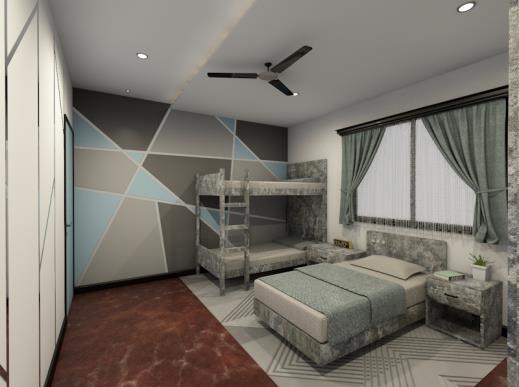

BEDROOM
Aesthete DesignLab
BEDROOM KITCHEN

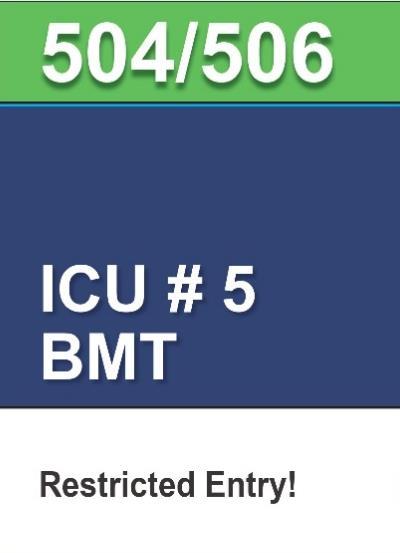

WORK INPUT ▪ Creatingsignagesfor MultispecialtyHospital,Dhankawdi ▪ The spacesare givenauniquezoneIDandsignages ▪ Accordingtothe placementthe signagesare designed. ZONEID ROOM NAME SPECIAL REMARKS/NAME OF DOCTOR MULTISPECIALTY HOSPITAL SIGNAGESFOR FIFTH FLOOR Location Dhankawdi,Pune,India Type Commercial HOSPITALSIGNAGES
DhankawdiinInDesignsoftware. signagesare createdfor them. designed.

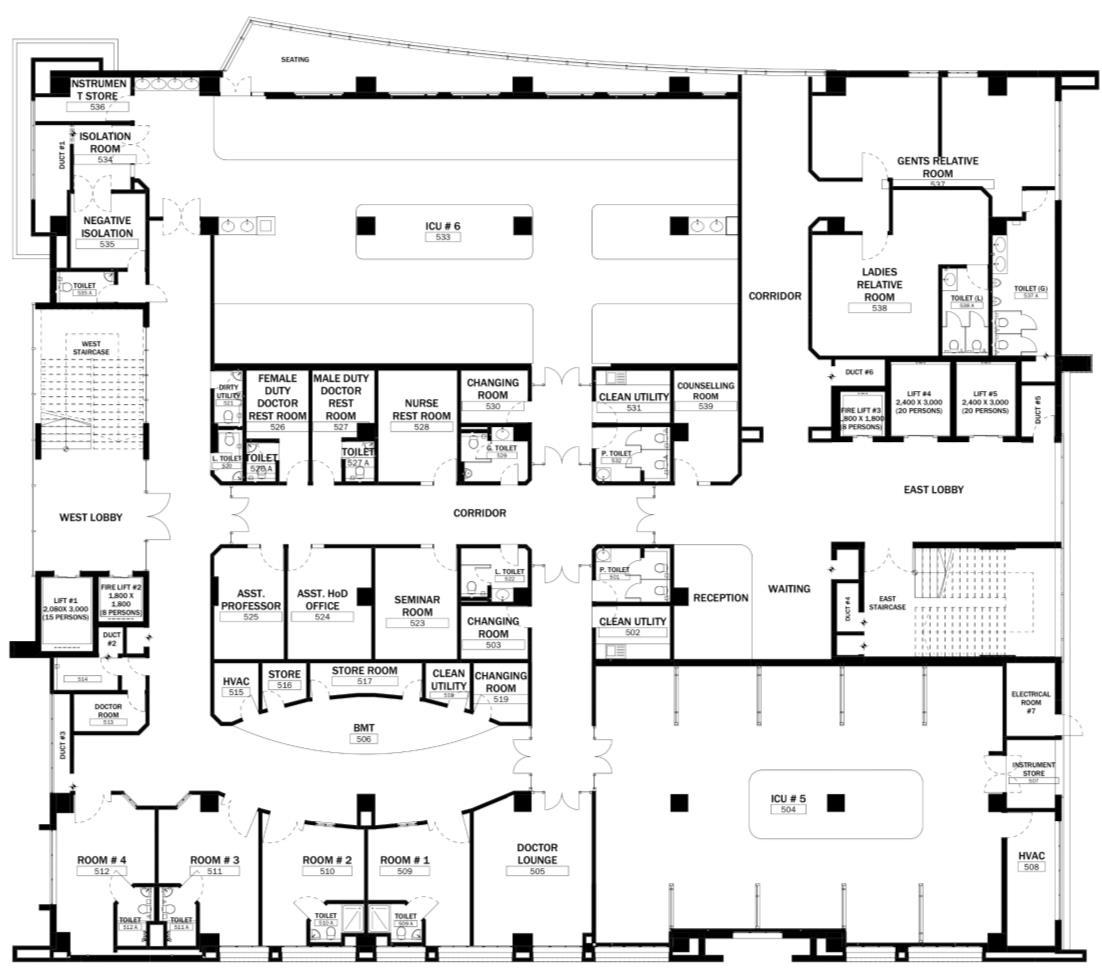

FIFTH FLOORPLAN
The floor plan shows the various room with their unique zone ID.
FLOOR SwapnilPatil andPartners
HOSPITAL
RA BILLSCALCULATIONS
Location
Ratnagiri,India Type
Commercial
WORK INPUT

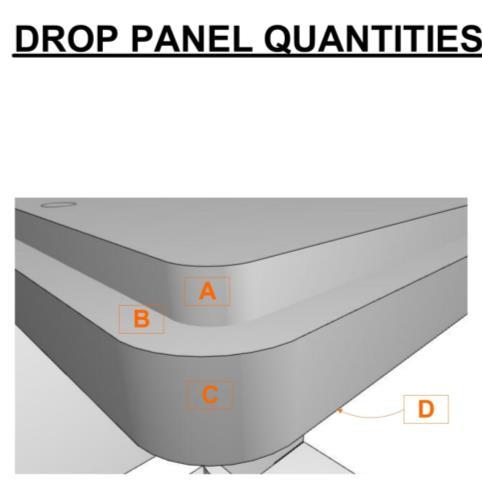

▪ Tallyingof RA billsof False ceiling.
▪ Doneby calculating area quantitiesof ceilingand conforming vendors quantity.

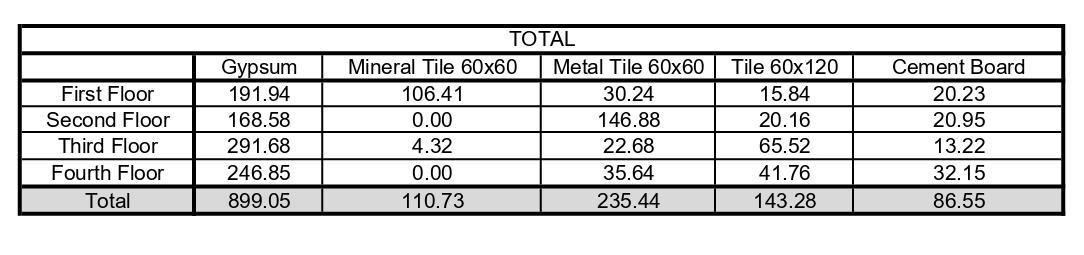

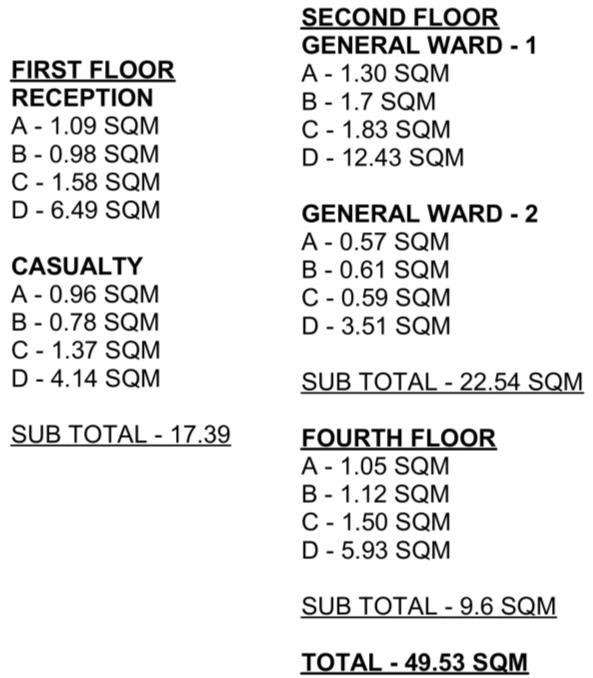

FLOORPLANS AREACALCULATIONS
CALCULATIONS
VENDORSBILL
SwapnilPatil andPartners
MISCELLANEOUS WORK
3D VISUALISATIONS | ILLUSTRATIONS | PHOTOGRAPHY

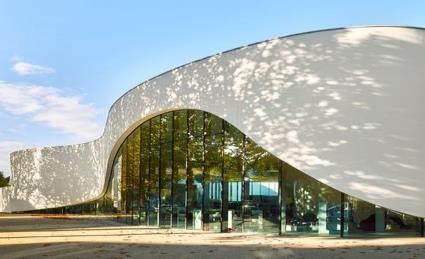

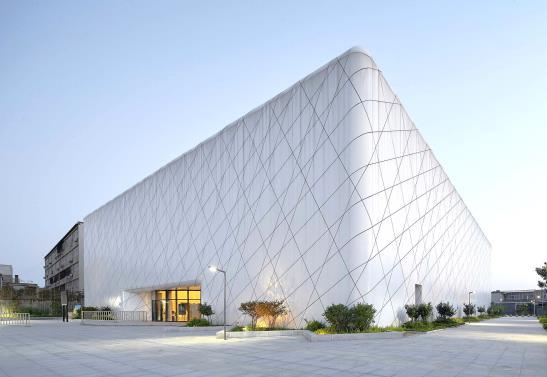

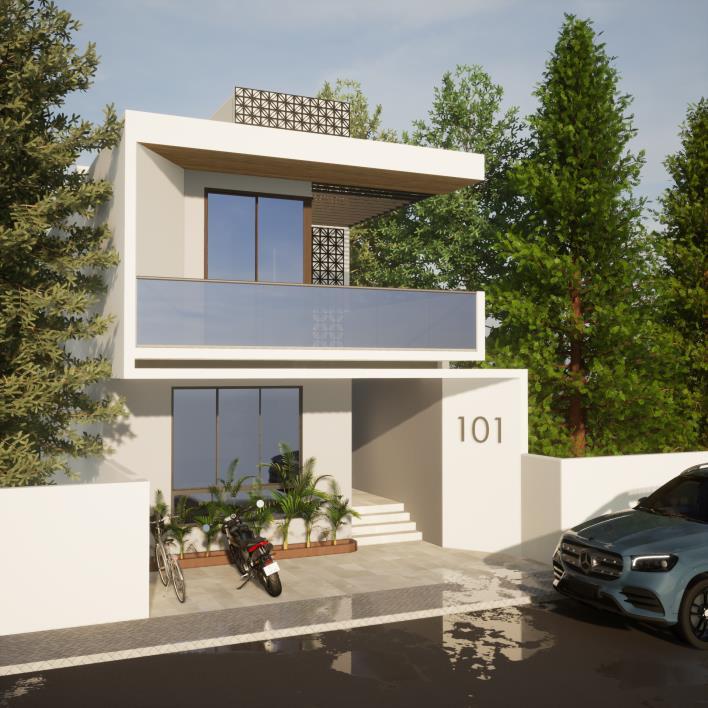

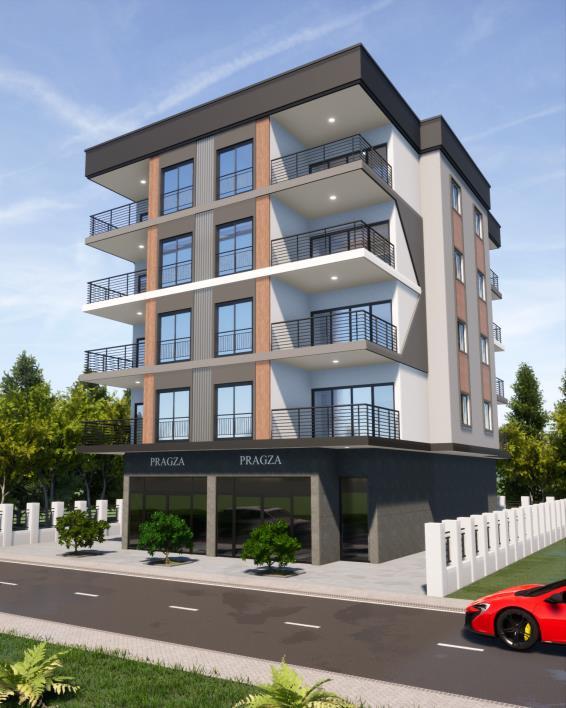

ARCHITECTURAL

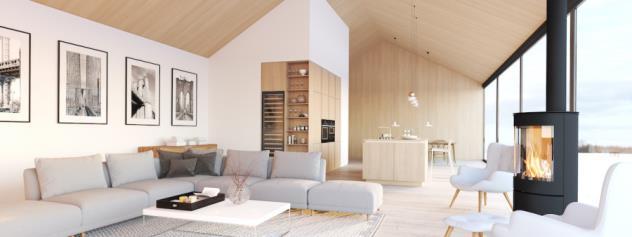

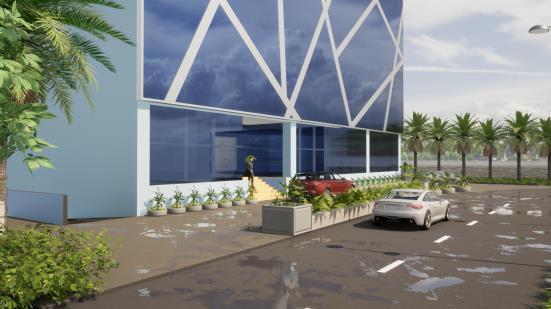

VISUALISATIONS

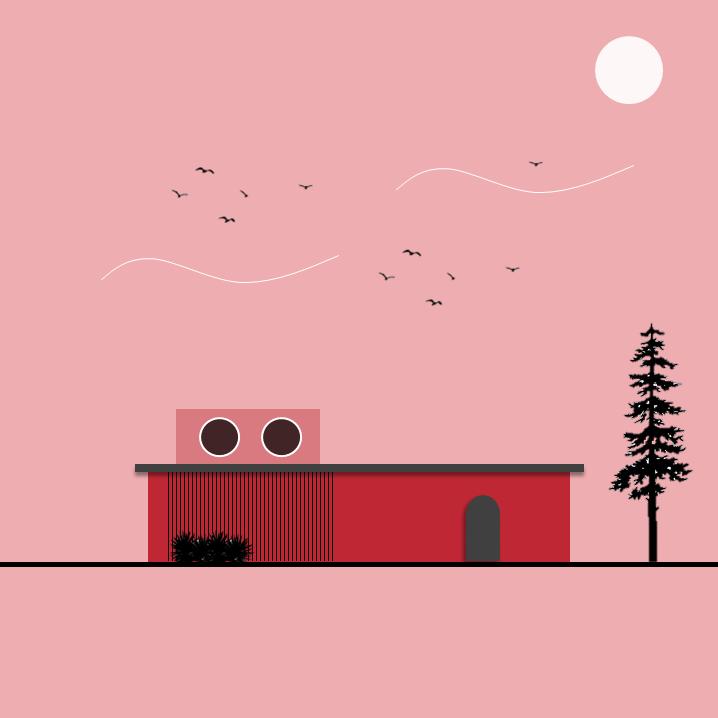

ILLUSTRATIONS
ILLUSTRATIONS
Y

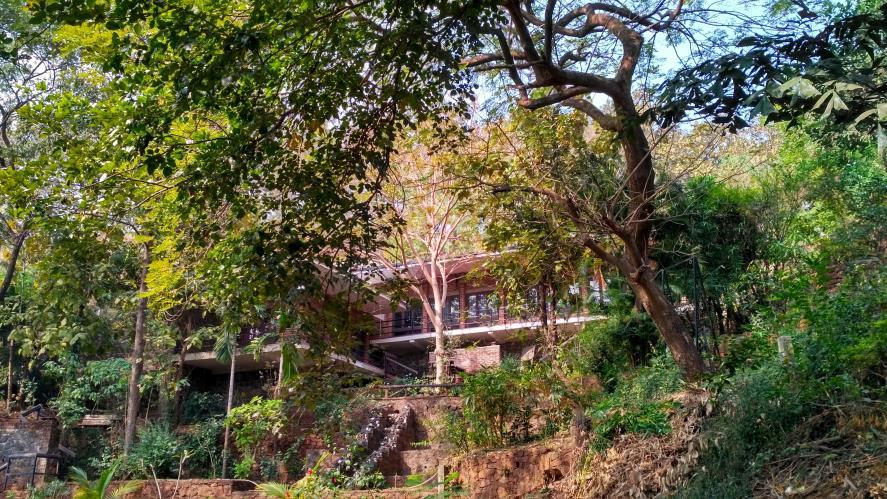

P H O T O G R A P H
FAHAD SALIM SHAIKH
fahadshaikh.2705@gmail.com | +971556817274
