Fadlan Hamizan Ekantoro Bachelor of Architecture - Universitas Indonesia 2020-2024

This portfolio showcases my journey as an architectural design student, highlighting my passion for designing thoughtful and purposeful spaces.

Each project shows a balance of creativity and practicality, emphasizing functionality, sustainability, and the human experience. From conceptual ideas to detailed solutions, this collection represents my evolving approach to design and my commitment to meaningful architecture.

Fadlan Hamizan Ekantoro Born in Jakarta, 2002, I am a recent graduate of architecture Universitas Indonesia. Throughout my academic tenure, I have developed a foundation in architectural design and theory. My courseworks has provided me with a solid understanding of design principles and construction techniques. In addition to my formal education, I have also volunteered in various creative-related fields, which has further fueled my passion for architecture and design.

During my time as a student, I have worked on numerous projects that required a keen eye for detail, strong problem-solving skills, and the ability to work collaboratively with a team. These experiences have honed my ability to think creatively and develop innovative solutions to design challenges.

Place of Birth

Jakarta, Indonesia

Date of Birth

3 July 2002

2D Drafting

AutoCAD

3D Modelling

Rhino 3D SketchUp

Aug 2020 Aug 2024

Bachelor of Architecture

3D Rendering

VRay Enscape

Feb 2023 Jun 2023

Queensland University of Technology

Graphic Design

Adobe Illustrator Adobe Photoshop

Video Editing

Adobe Premiere Pro

Jul 2017 - Apr 2020

Universitas Indonesia

Bachelor of Architecture (Study Abroad Programme)

SMA Negeri 81 Jakarta

Senior High School

IG: @fadlanhmzn fadham3@gmail.com linkedin.com/in/fadlan-hamizan link.tree/fadlanhamizan

English - Fluent Indonesian - Native

Contents 1

3

2

2500

4850

3500

A' 4000

A

B 2150

Semester 4 - 2022 Architectural Design 2 (Studio)

15000

B 3850

B'

C

5000

D

E

0

FIRST FLOOR PLAN

4

2

8 METER

1:100

1:100 SCALE

1 Project: LITERATE! 2

By The Bay 3 Halal Center Point 4 5 Alois Home

5

4

14500 3650

A

Semester 4 - 2022 Architectural Design 2 (Studio)

1

2

6700

3

6700

4

6700

4

6700

5

6700

6

6700

7

6700

8

9

6700

10

11

6700

6700

6700

12

6700

6700

A

6700

B

6700

C

6700

D

6700

D

6700

E

F

6700

PROJECT/TASK

6700

G

TECHNOLOGY REPORT

BY THE BAY

6700

H

6700

I

DRAWING BY:

FADLAN HAMIZAN EKANTORO

DRAWING TITLE:

FIRST FLOOR PLAN

DRAWING DATE:

25 DECEMBER 2022

6700

J

6700

K

NUMBER OF PAGES

PAGE NUMBER

09

01

SCALE

L

SCORE:

0

FIRST FLOOR PLAN

8

4

2

16

1:500

METER

1:500 SCALE

1

2

20000

A 14500

B 18500

C 14500

D E

7200

7000

F G

7400

6000

H 13600

I 15000

J

5000

K

THIRD FLOOR PLAN 1:1500 SCALE

3

20000

4

20000

5

20000

6

20500

7

19500

8

8000

1:500

Semester 5 - 2022 Architectural Design 3 (Studio)

Semester 7 - 2023 Architectural Design 5 (Studio)

1

5

9

13

Vibrancy in Mixed-Use District: A Case Study of Transit- 17 Oriented Development Area in Dukuh Atas, Jakarta Semester 8 - 2024 Undergraduate Thesis

1

Alois Home

ALOIS HOME, named after the first founder of dementia or Alzheimer’s Disease, Alois Alzheimer, is a home made for a family of three with a father that suffers from dementia and has no one to take care of him besides his wife and daughter.

This project aimed for its students to design a dwelling for a small family with special needs or requirements.

Semester 4 - 2022 Architectural Design 2 (Studio) Individual

Site - Semarang, Central Java, Indonesia Tools - AutoCAD; SketchUp; Enscape; Manual

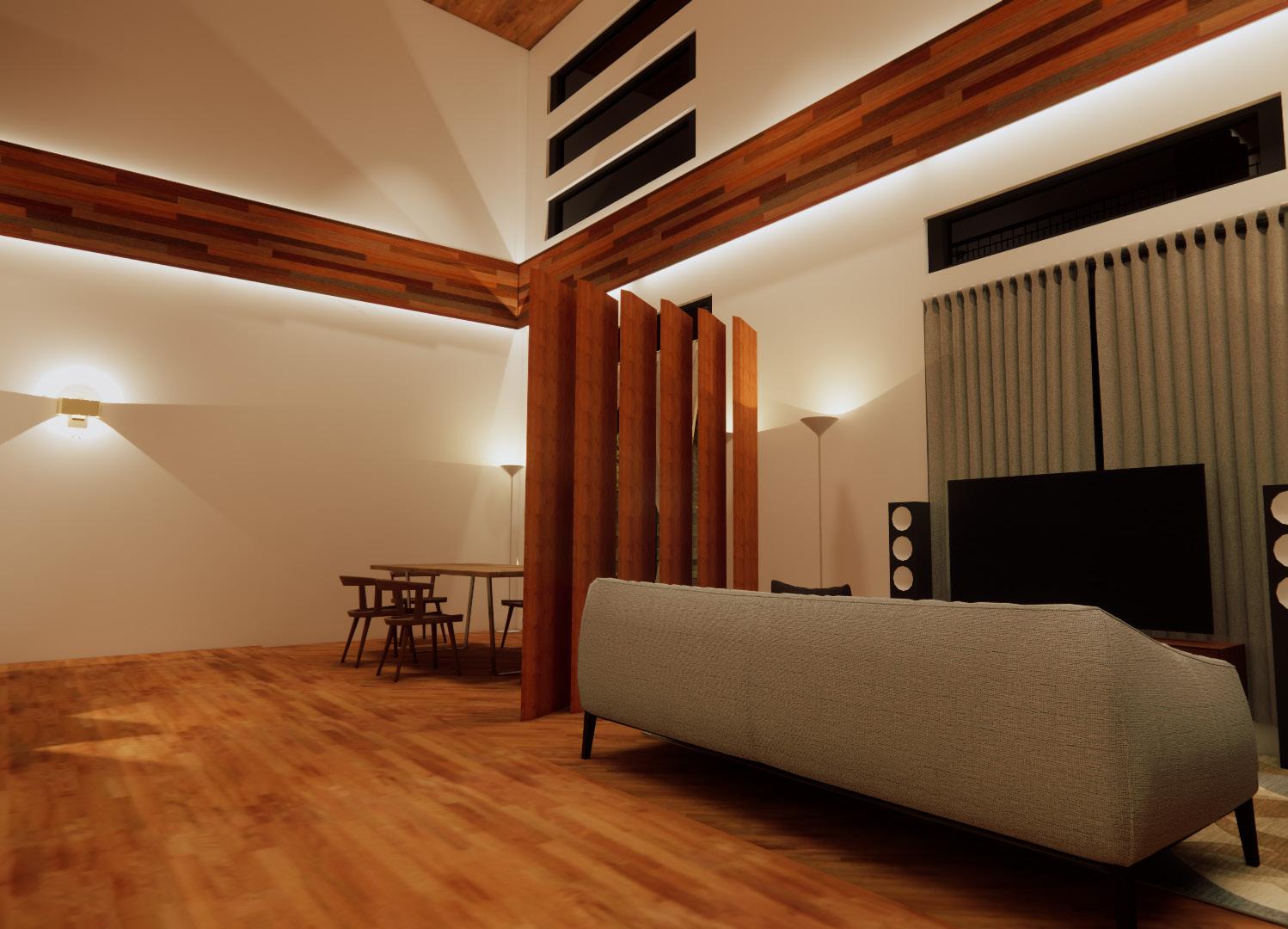

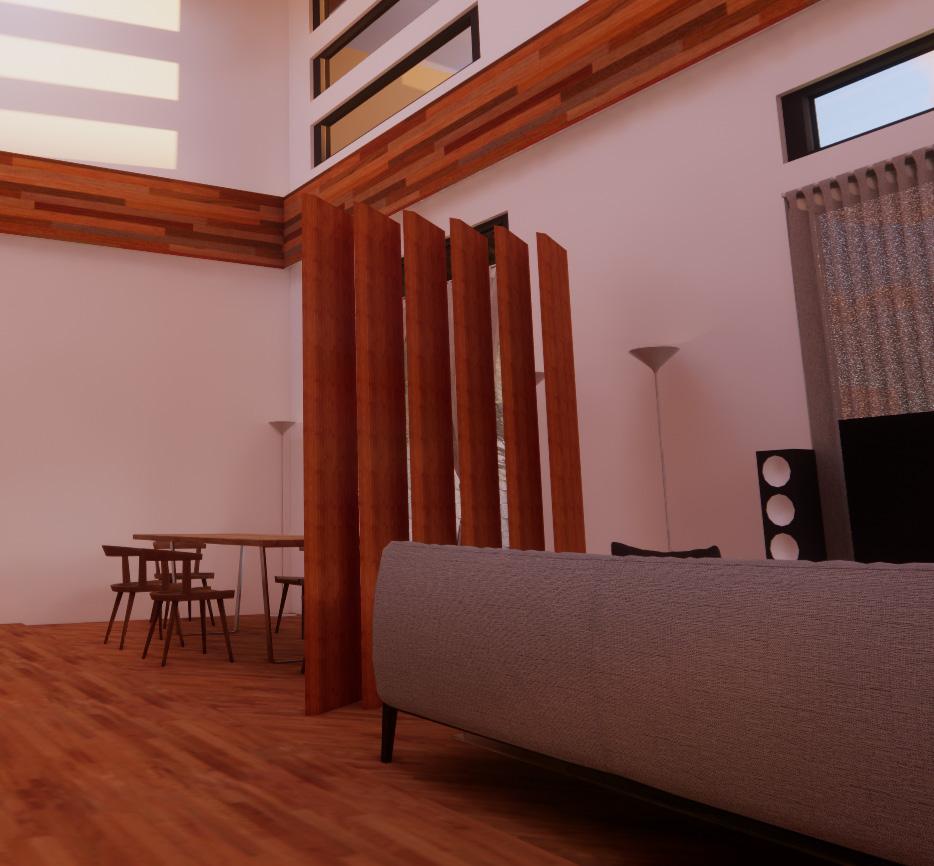

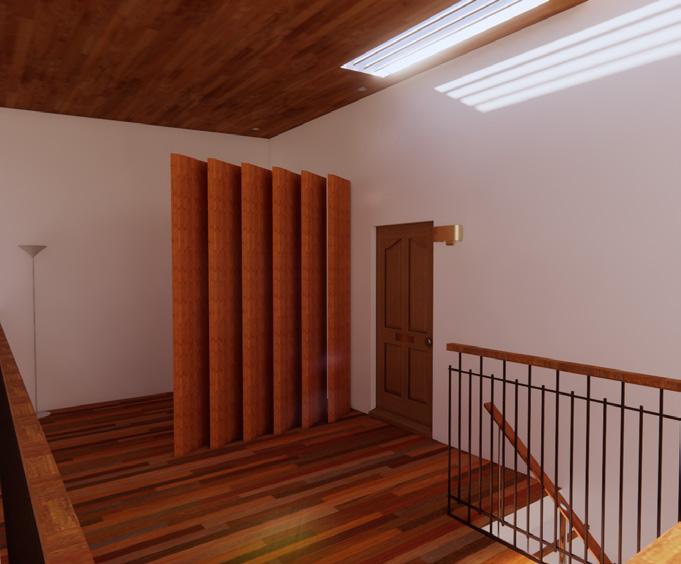

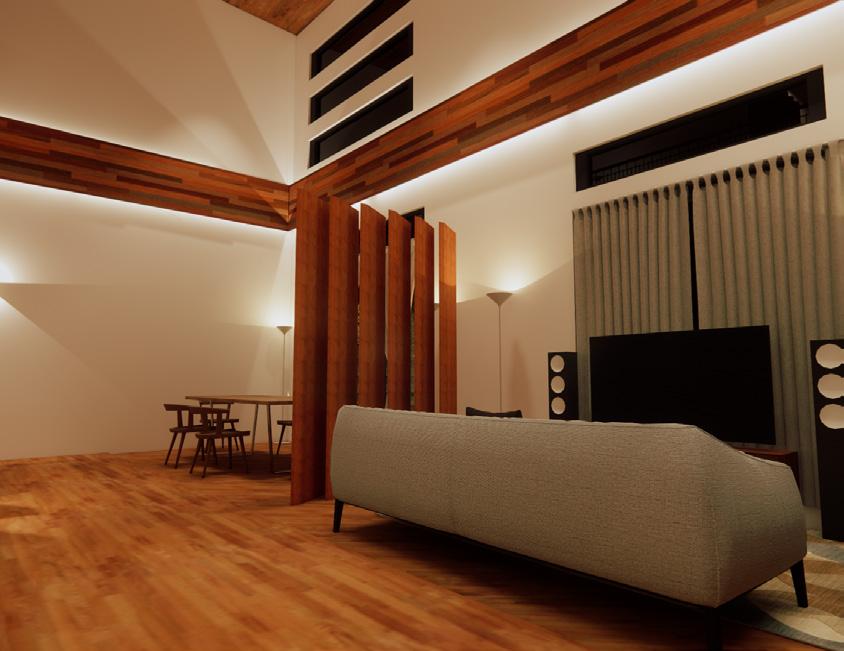

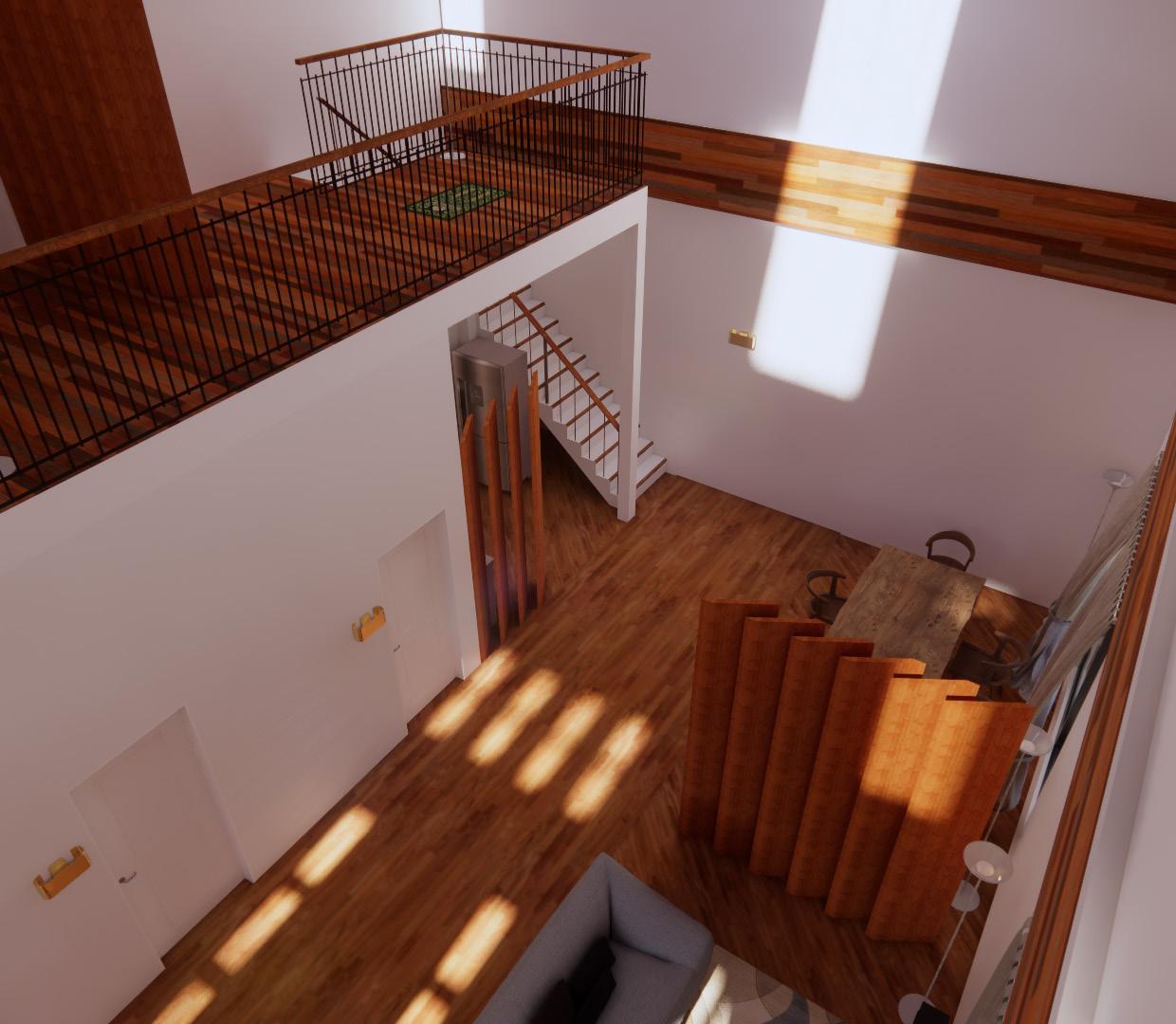

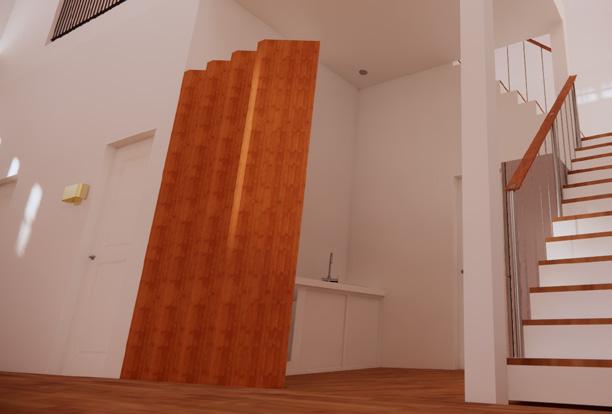

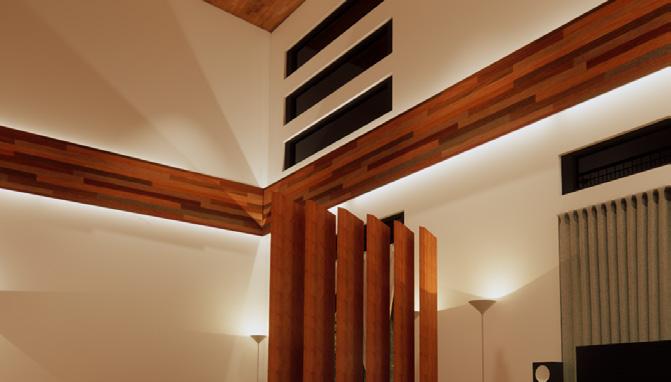

Main Area Interior Rendering

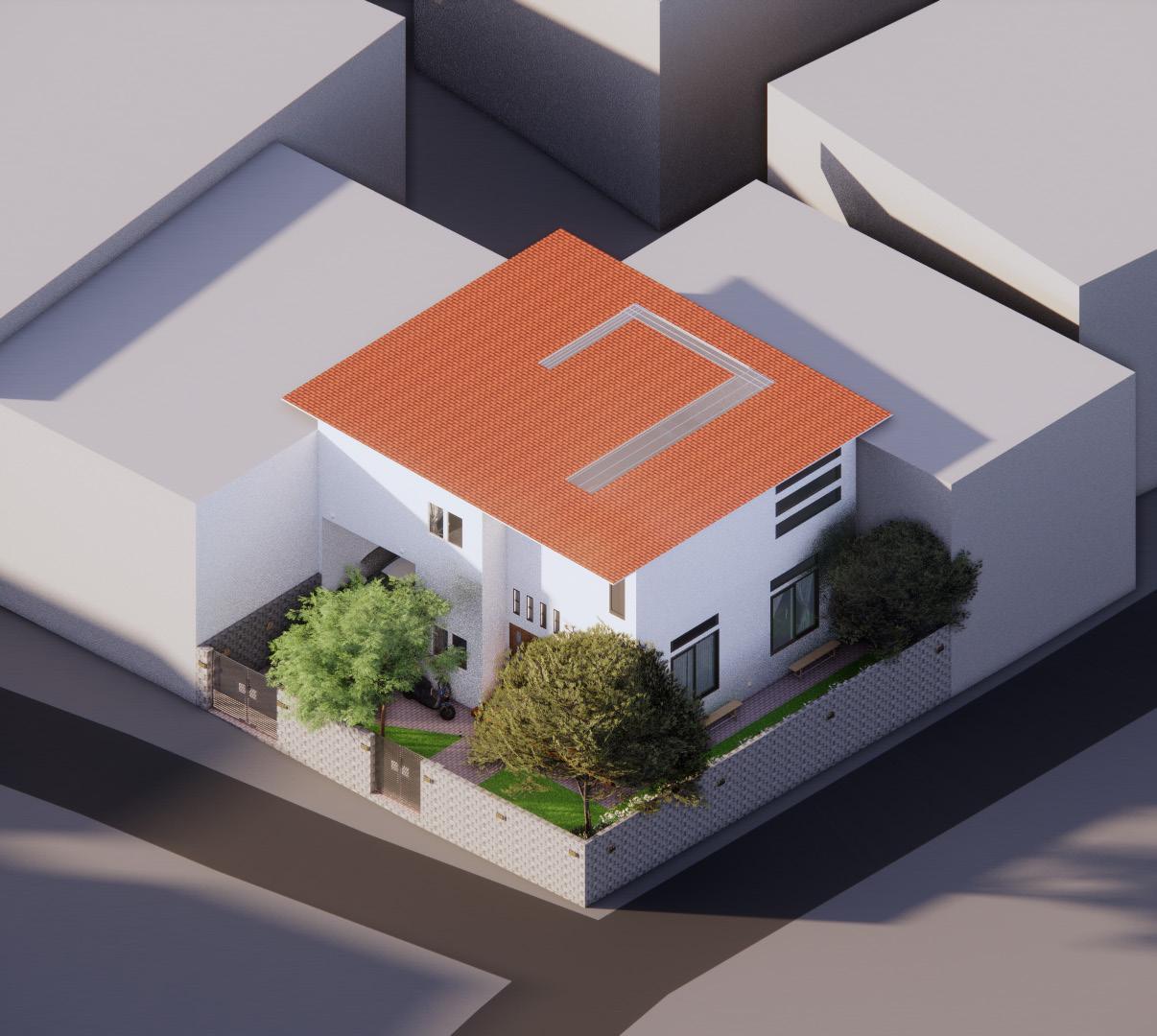

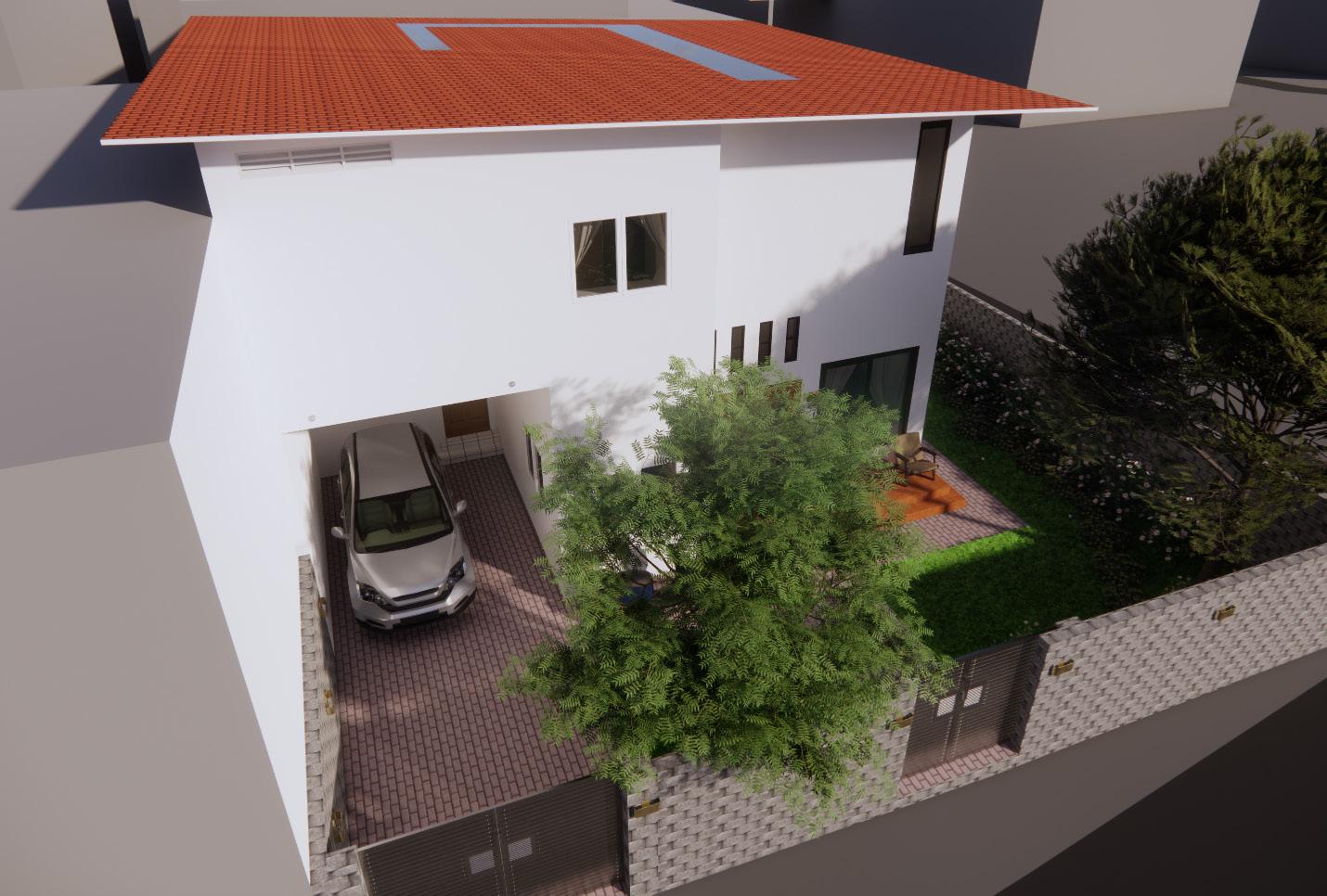

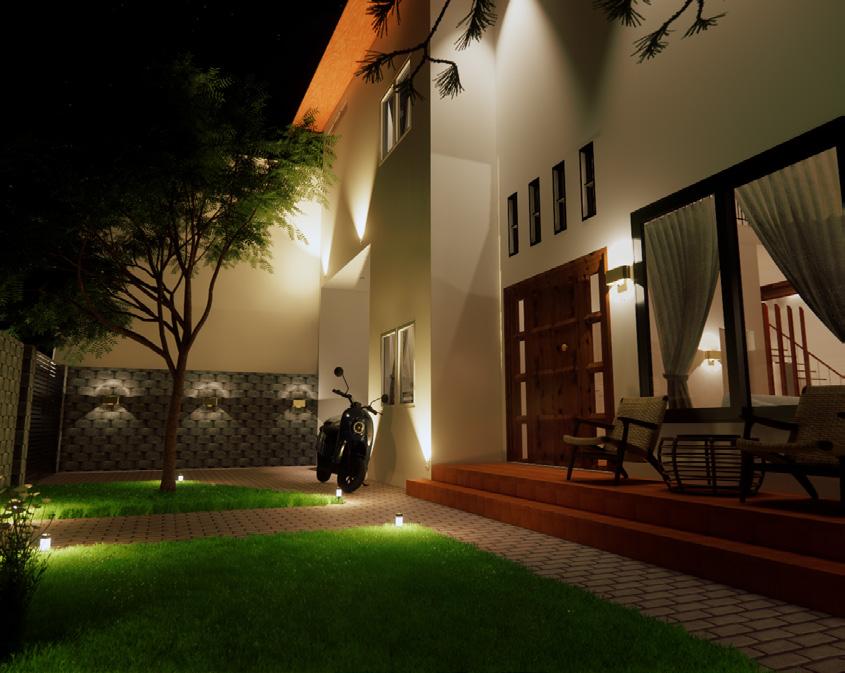

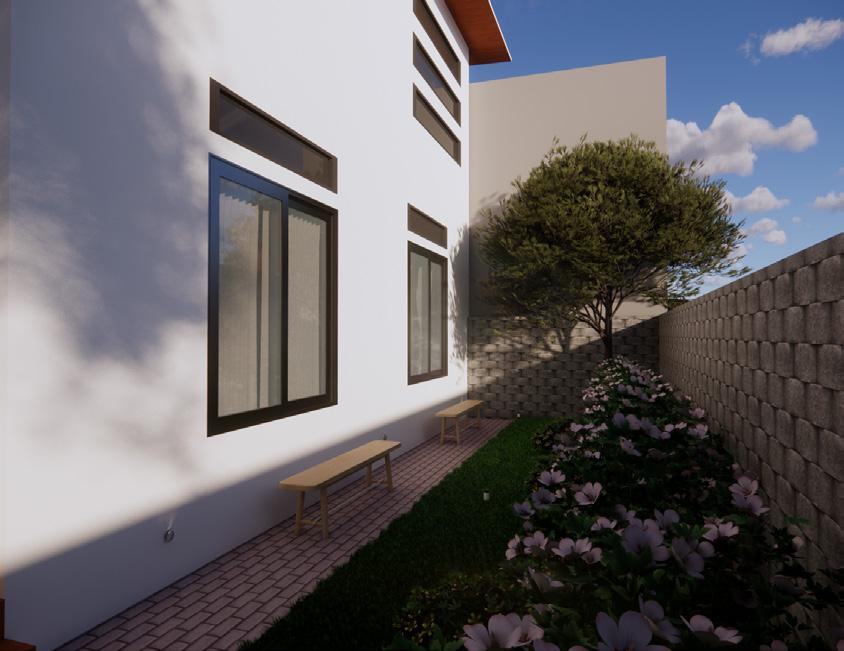

Bird’s Eye Exterior Rendering

Main Area Interior Rendering

1

Users

Programmatic Idea A dwelling that accommodates the symptoms of someone with dementia and creating a safe & comfortable space for him and his family

The father’s needs are the primary concern, requiring a safe environment where he can move freely without getting lost while receiving proper care.

Daughter (24) Occupation Needs Daily Activities

: Civil servant : Personal work space : Work, hangout, help mother preparing sold products

Living Room

l

Guest Bedroom

Kitchen Daughter’s Bedroom

Keywords

Garden

Intuitive Circulation

na

To achieve balance, the house should have clear boundaries to define private zones, an intuitive layout to help the father navigate safely, and open spaces to create a welcoming and functional environment for all family members.

Dining Room

mu

: Online Clothing Merchant Occupation : Storage space for her products and packaging Needs Daily Activities : Manage her online store, cleanup the house, cook food

Daughter’s Work Space

Co m

However, the mother’s need for storage and the daughter’s need for a workspace must also be addressed. These areas should ensure privacy and be inaccessible to the father.

va te

:Occupation Current Conditions : Diagnosed with dementia : Drinking Coffee, Smoking, Wandering Daily Activities

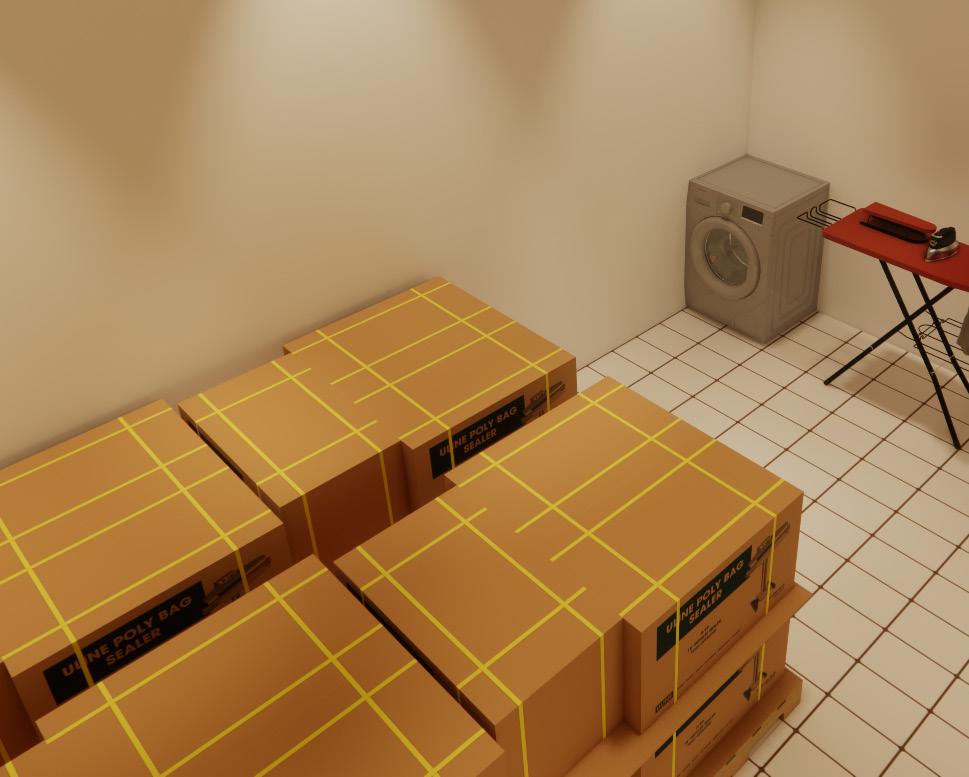

Storage and Packaging Space

Pri

Father (53)

Mother (53)

Master Bedroom

Inaccessible by father Accessible by father

Secure & Clear Boundaries Open spaces

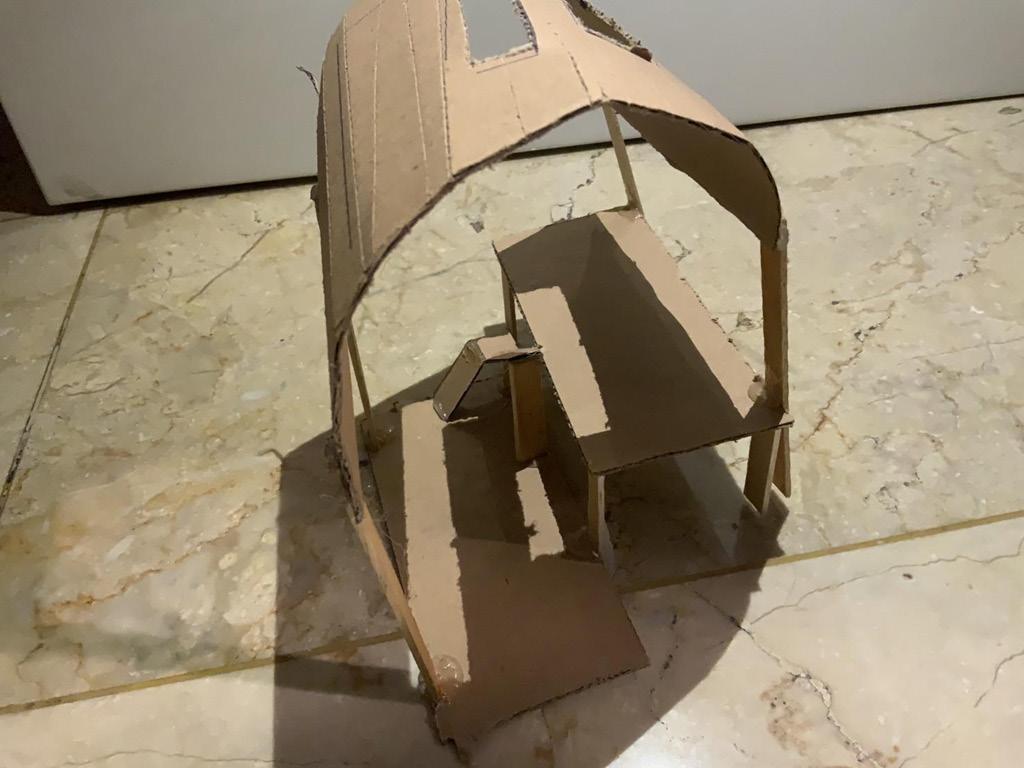

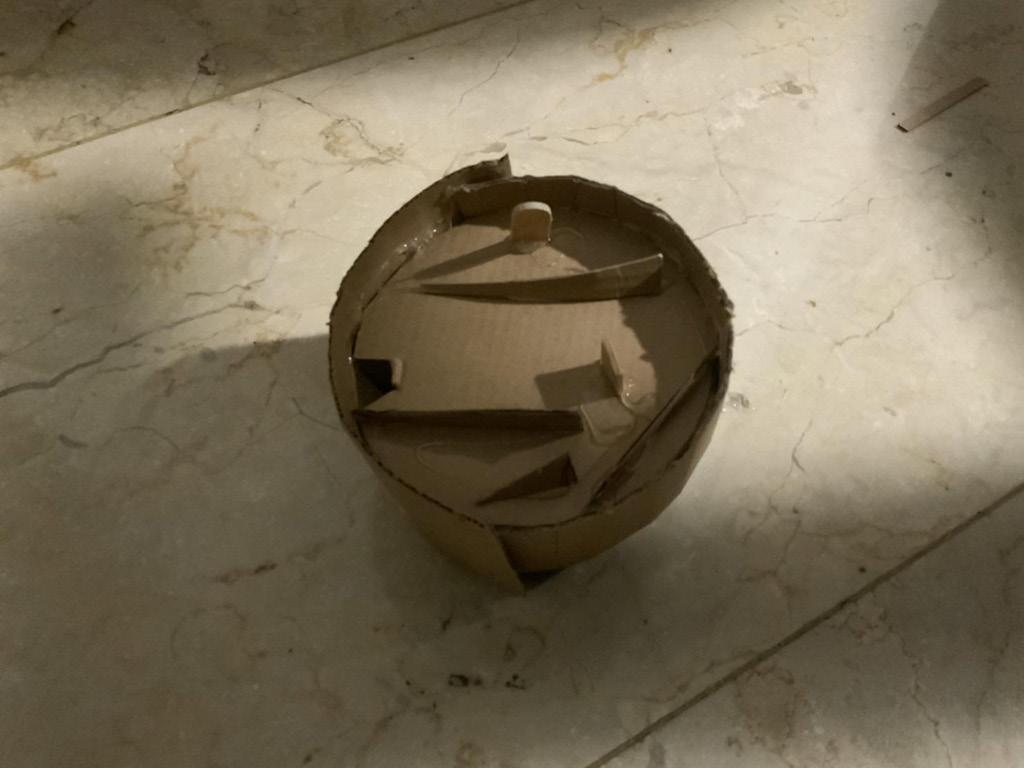

Model explorations

Boundaries exploration

2

Sight lines exploration

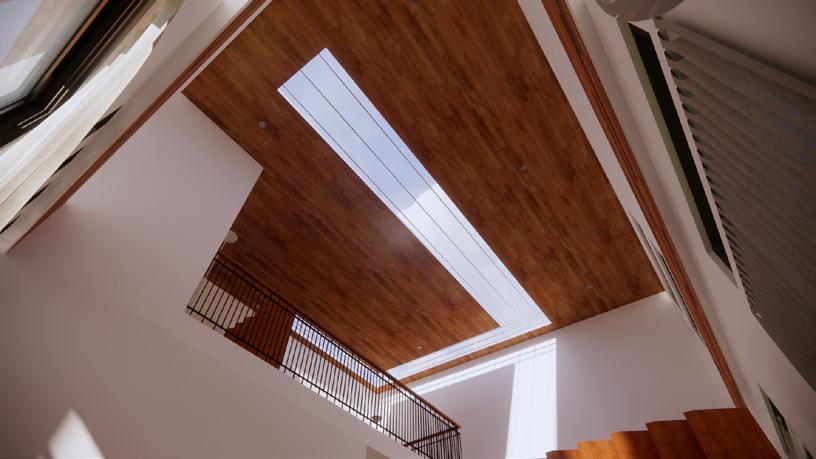

Lighting guide exploration

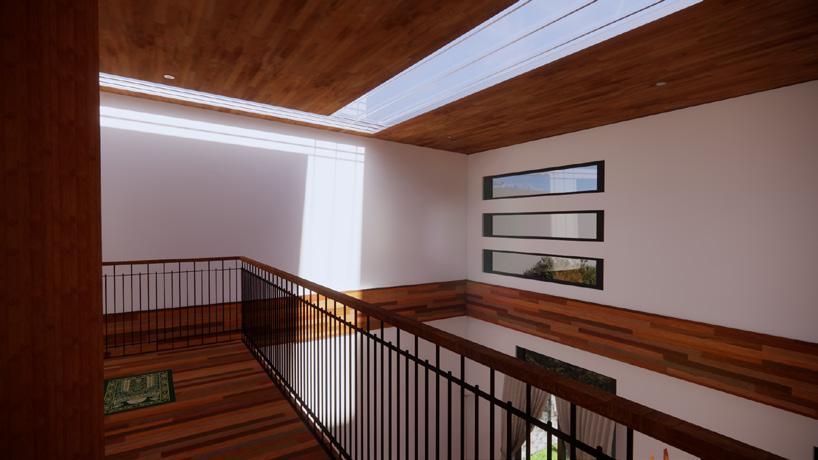

Sky Light

Circulation guide

Instinctive Circulation

Master Bedroom

Partitions

Clear Boundaries

Daughter’s Bedroom and Work Space

Clear Path

Storage and Packaging Space Guest Bedroom

Garden

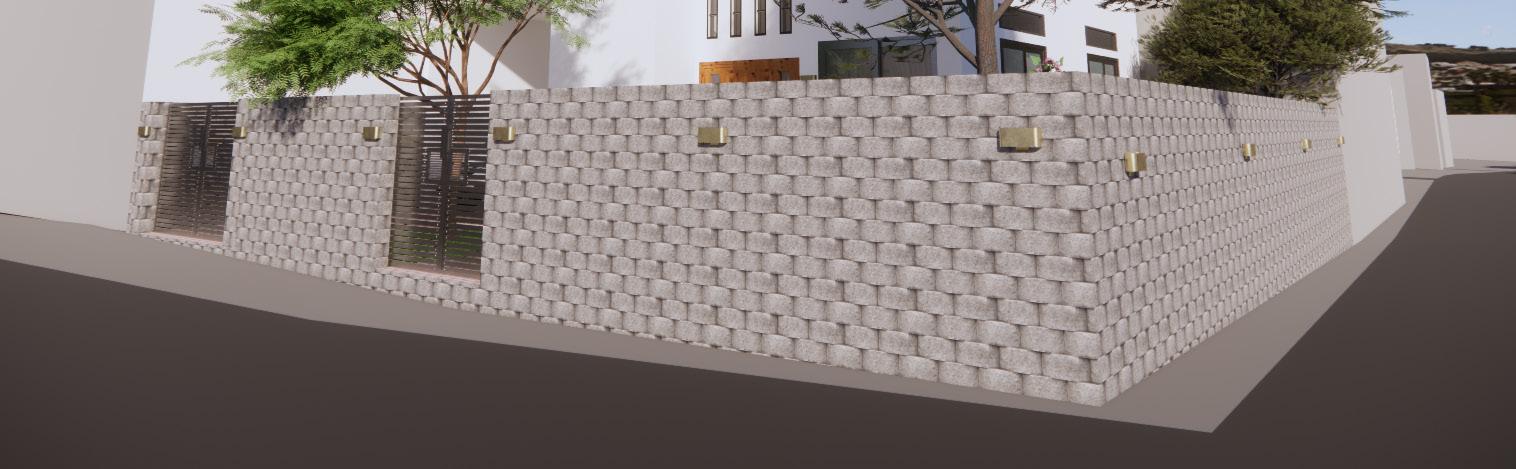

Secure Gate

Simple path

Instinctive Circulation Bathroom

Kitchen

Patterns on wall and flooring Living Room

Dining Room

Circulation guide Instinctive Circulation

Secure Boundaries

Inaccessible by father Accessible by father

3

Main Area

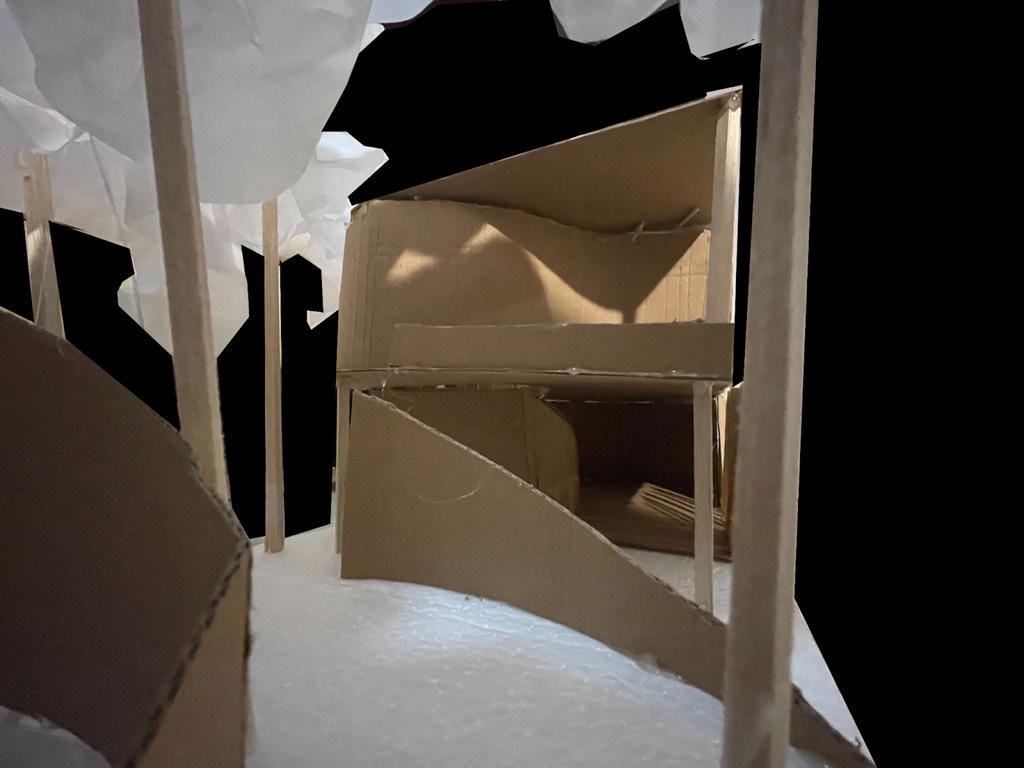

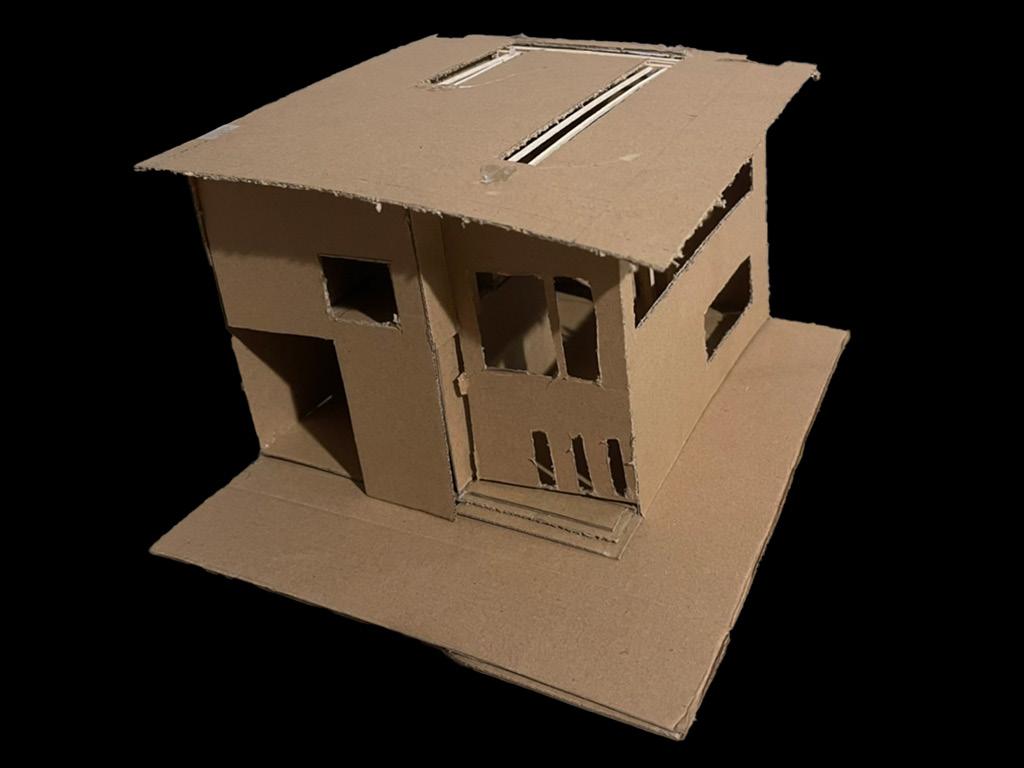

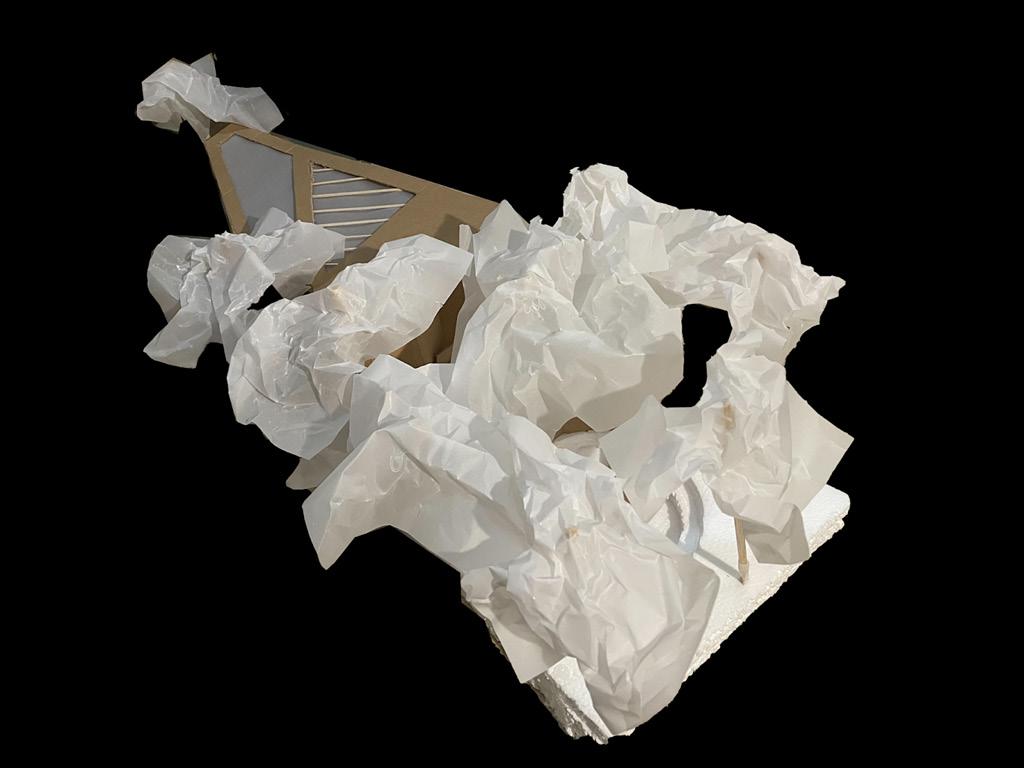

Physical Model 1

Orthographic View

Second floor

3

2

5

4

3650

2

1

14500 2500

4850

3

5

4

3500

14500 3650

A

2500

4850

3500

ROOF 7500) (+

A' 4000

A

SECOND FLOOR 4100) (+

15000

2150

B

B 3850

B'

FIRST FLOOR 350) (+ GROUND 0) (+

C

5000

D

Front Yard

Master Bedroom

Storage and Packaging Room

E

0

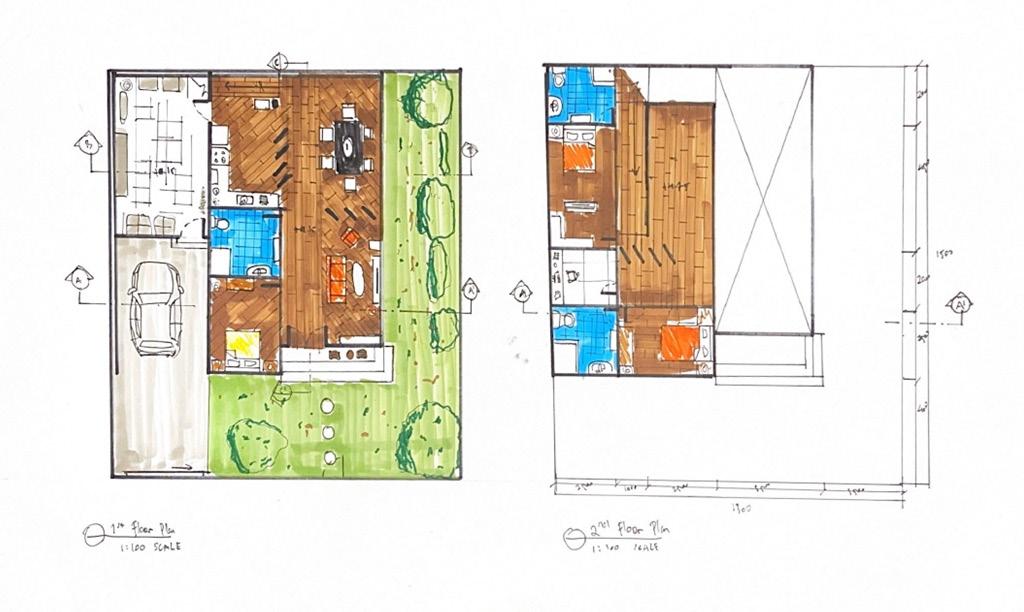

FIRST FLOOR PLAN

4

2

8 METER

1:100

1:100 SCALE 1

3

2

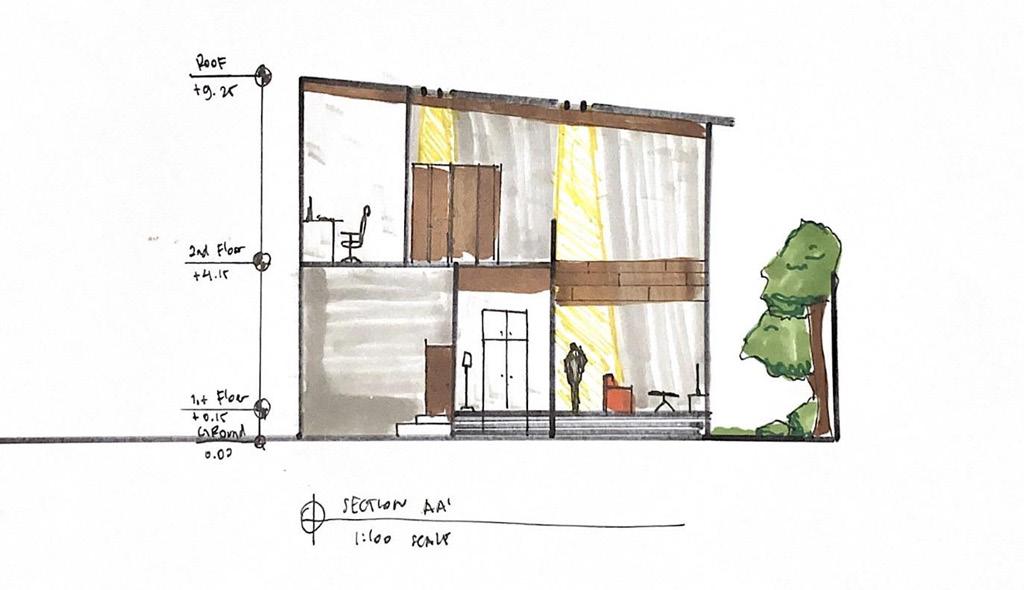

SECTION A-A' 11000 2900

3250

0

5

4

3

2

1

1:100 SCALE

4850

A

4

4

2

1:100

5

14500 2500

4850

3500

1150

3650

ROOF (+ 7500)

A'

1500

A

SECOND FLOOR (+ 4100)

B'

1800

B

4550

10000

B

FIRST FLOOR (+ 350) GROUND (+ 0) 1000

C

D

Garden

Daughter’s Bedroom and Work Space

Living Room and Dining Room E

4

SECOND FLOOR PLAN 1:100 SCALE

0 1:100

2

4

8 METER

SECTION B-B' 1:100 SCALE

Architectural Drawings 0 1:100

2

4

8

2

Project: LITERATE!

Project: LITERATE! is a community space dedicated to promoting literacy among youth, addressing the declining interest in reading in Jakarta. Inspired by SDG Target 4.6, it features an amphitheater for literary performances, mural walls with literacy-themed artwork, and a mini library of donated fictional books. Located in the quieter northernmost part of the RPTRA, the site ensures a peaceful atmosphere, enhanced by noise-dampening mural walls. LITERATE! aims to inspire a love for learning and storytelling while fostering youth engagement and strengthening community bonds.

Semester 4 - 2022 Architectural Design 2 (Studio) Individual

Site -Cipete, Jakarta, Indonesia Tools - Manual

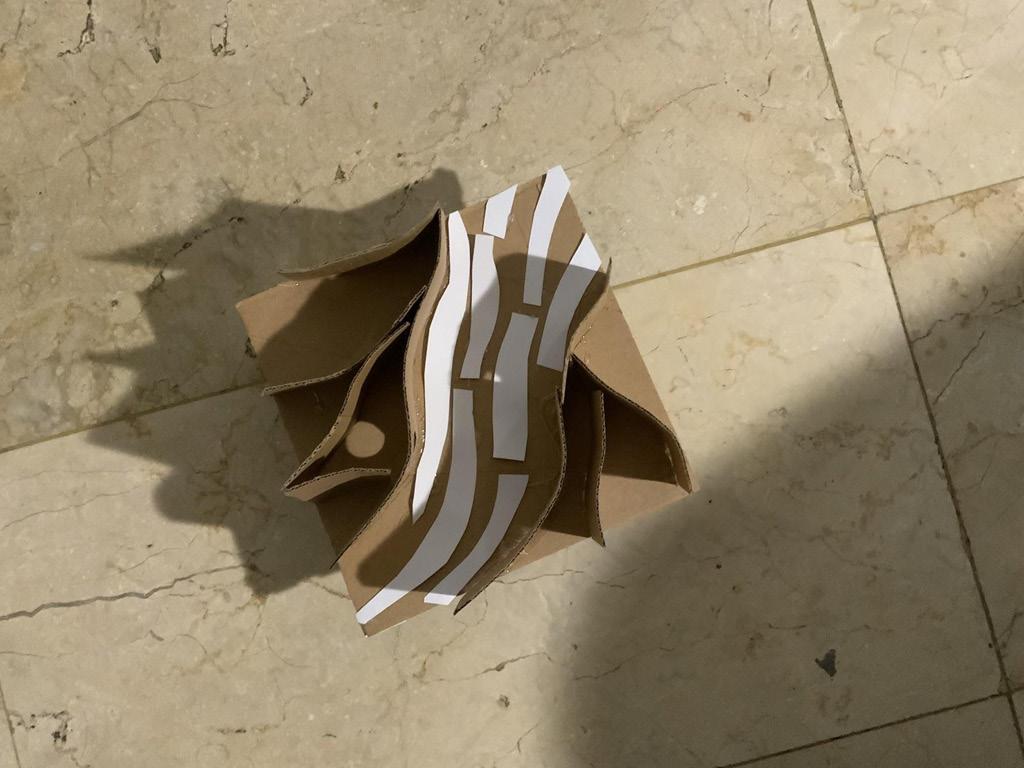

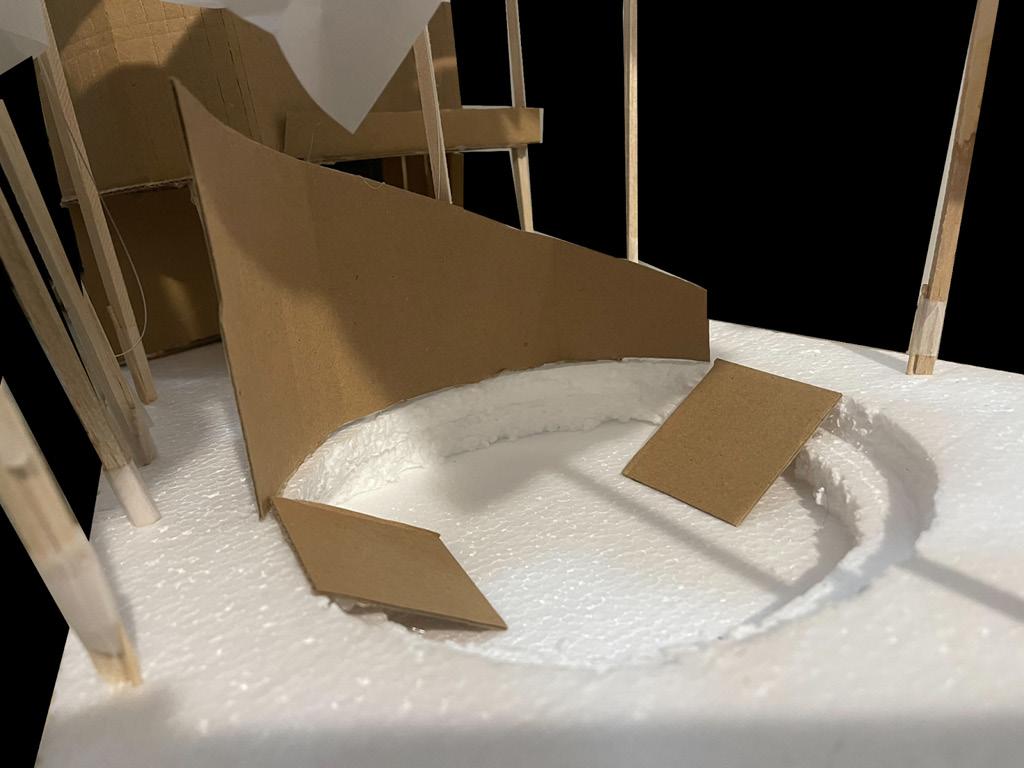

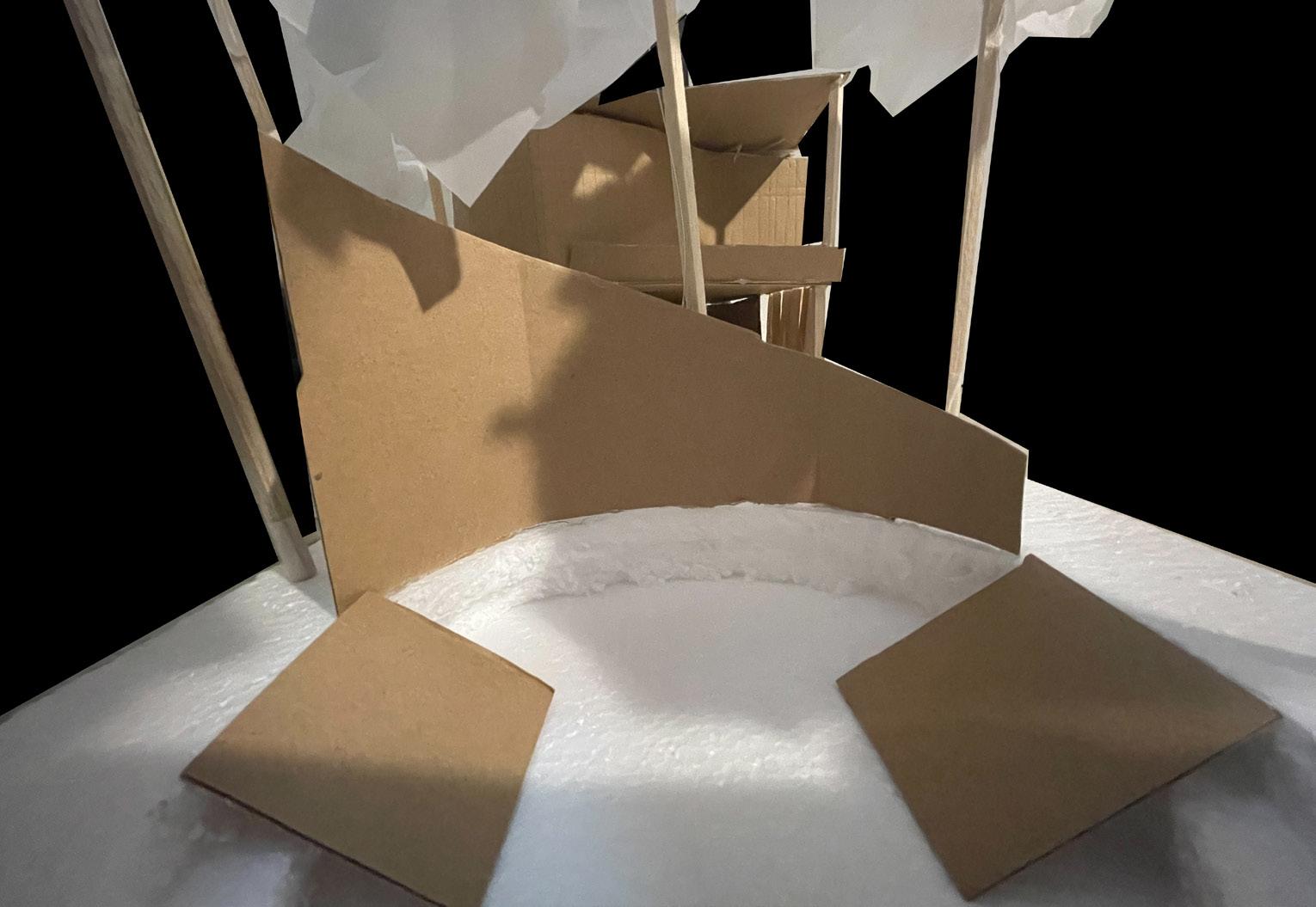

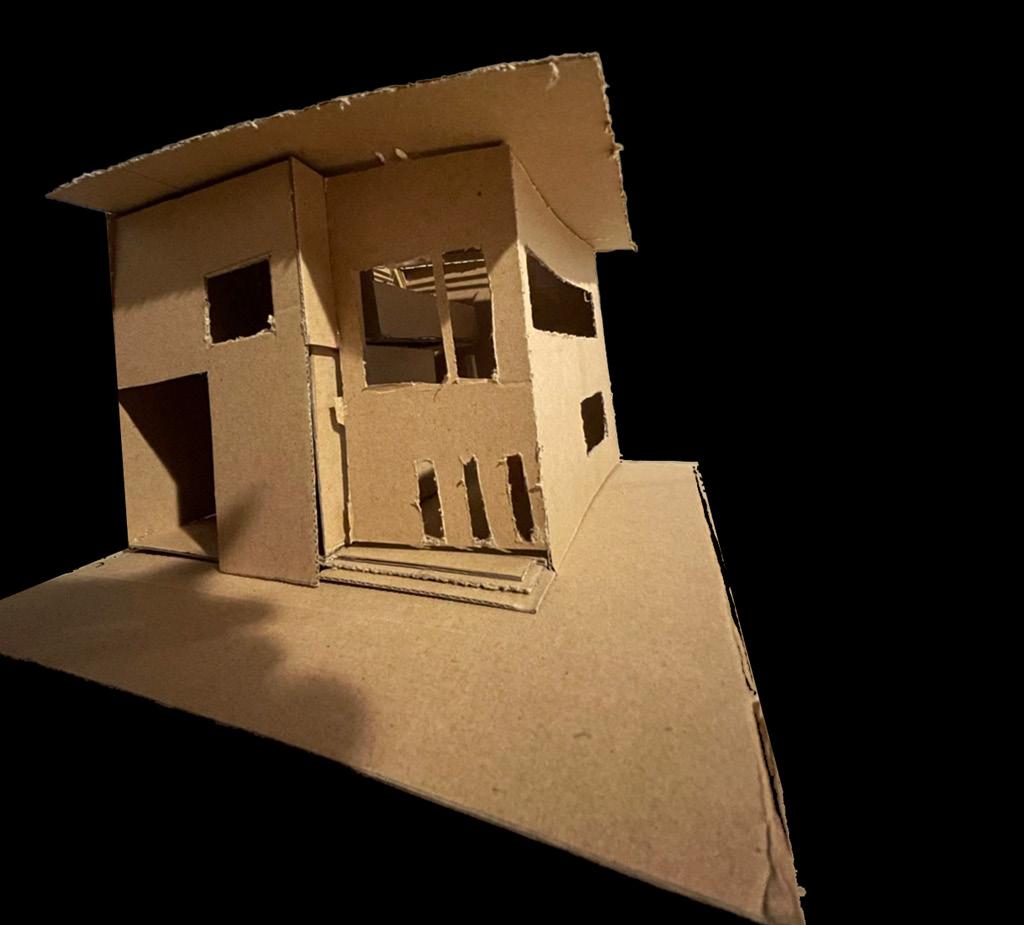

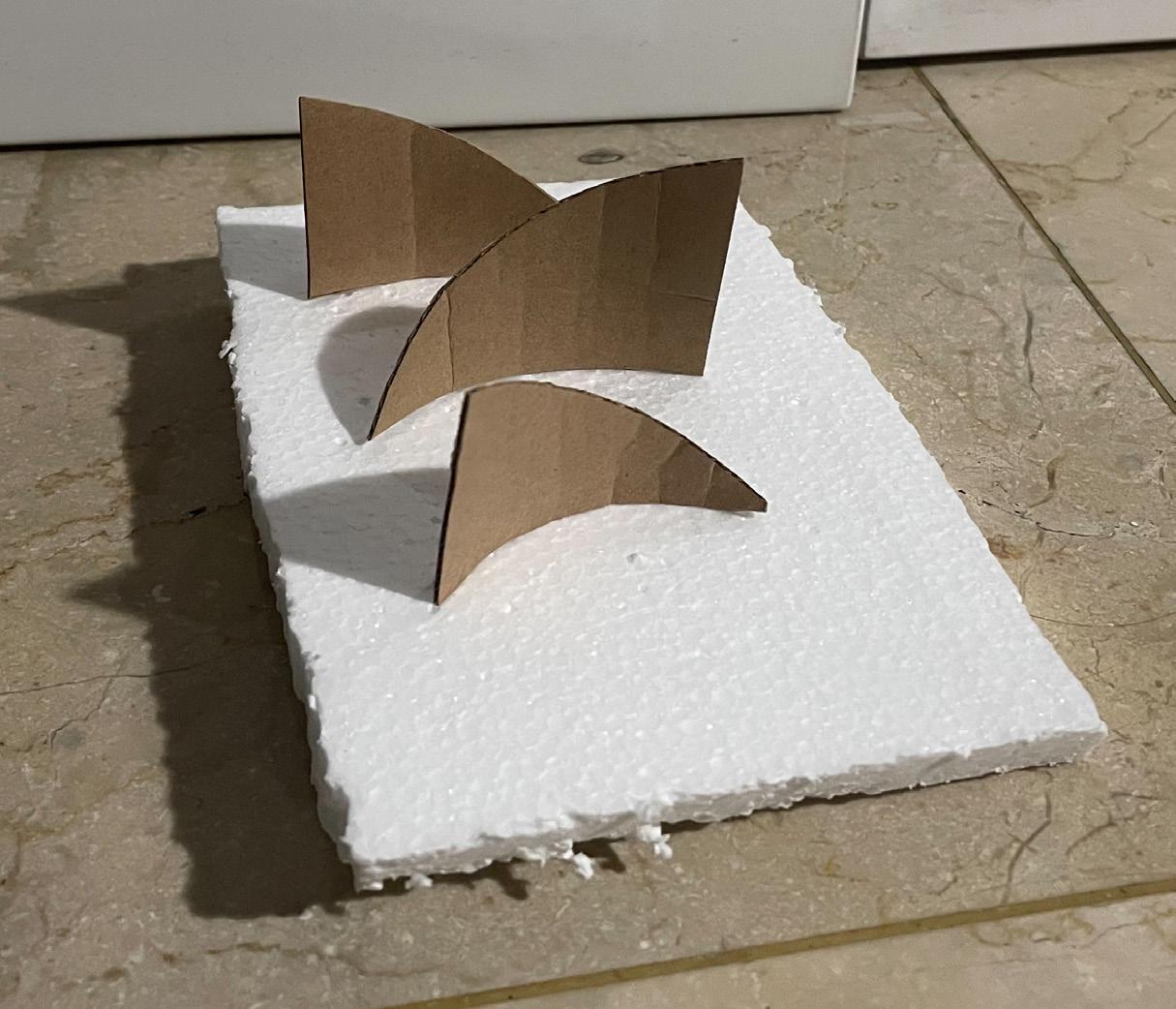

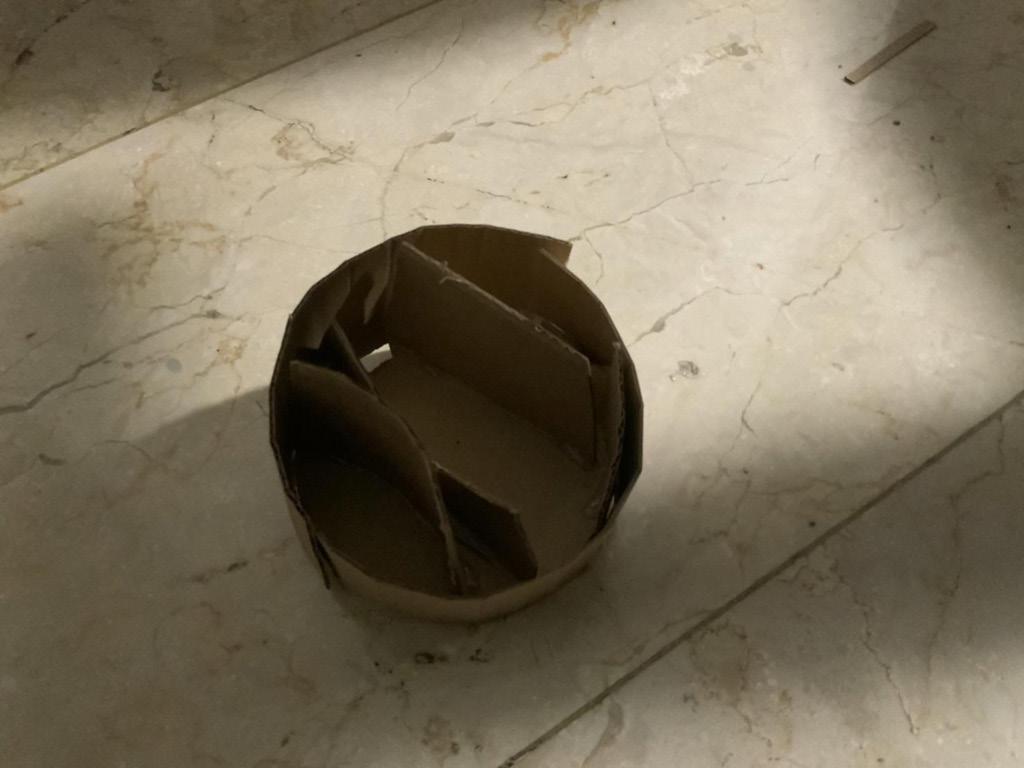

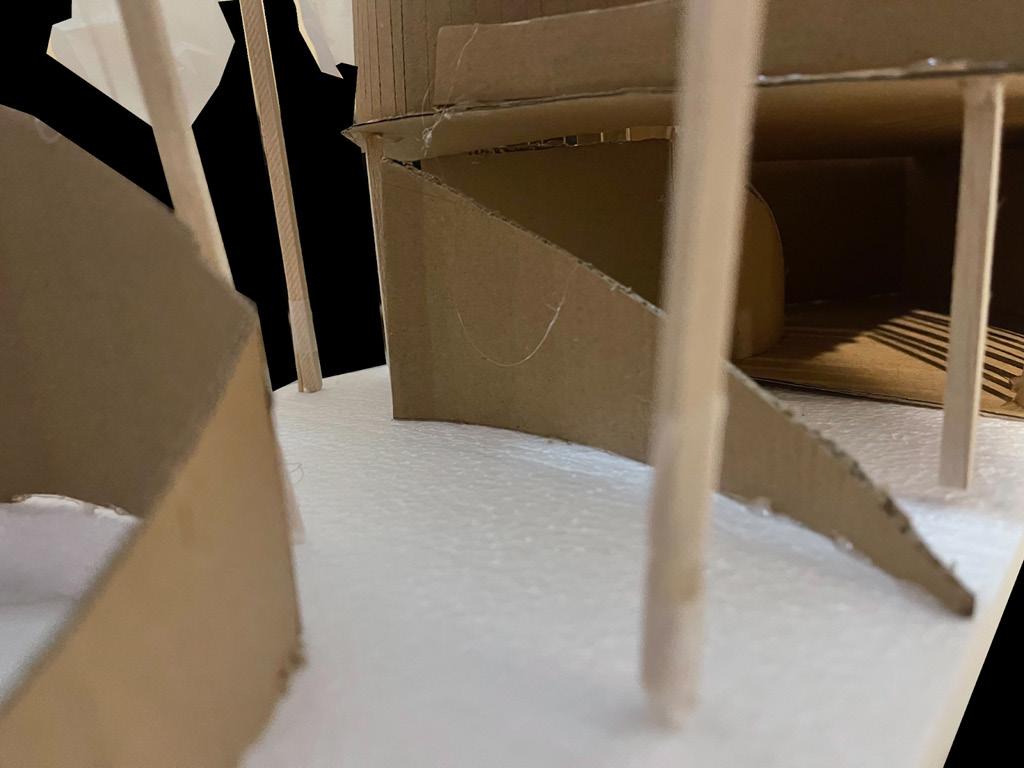

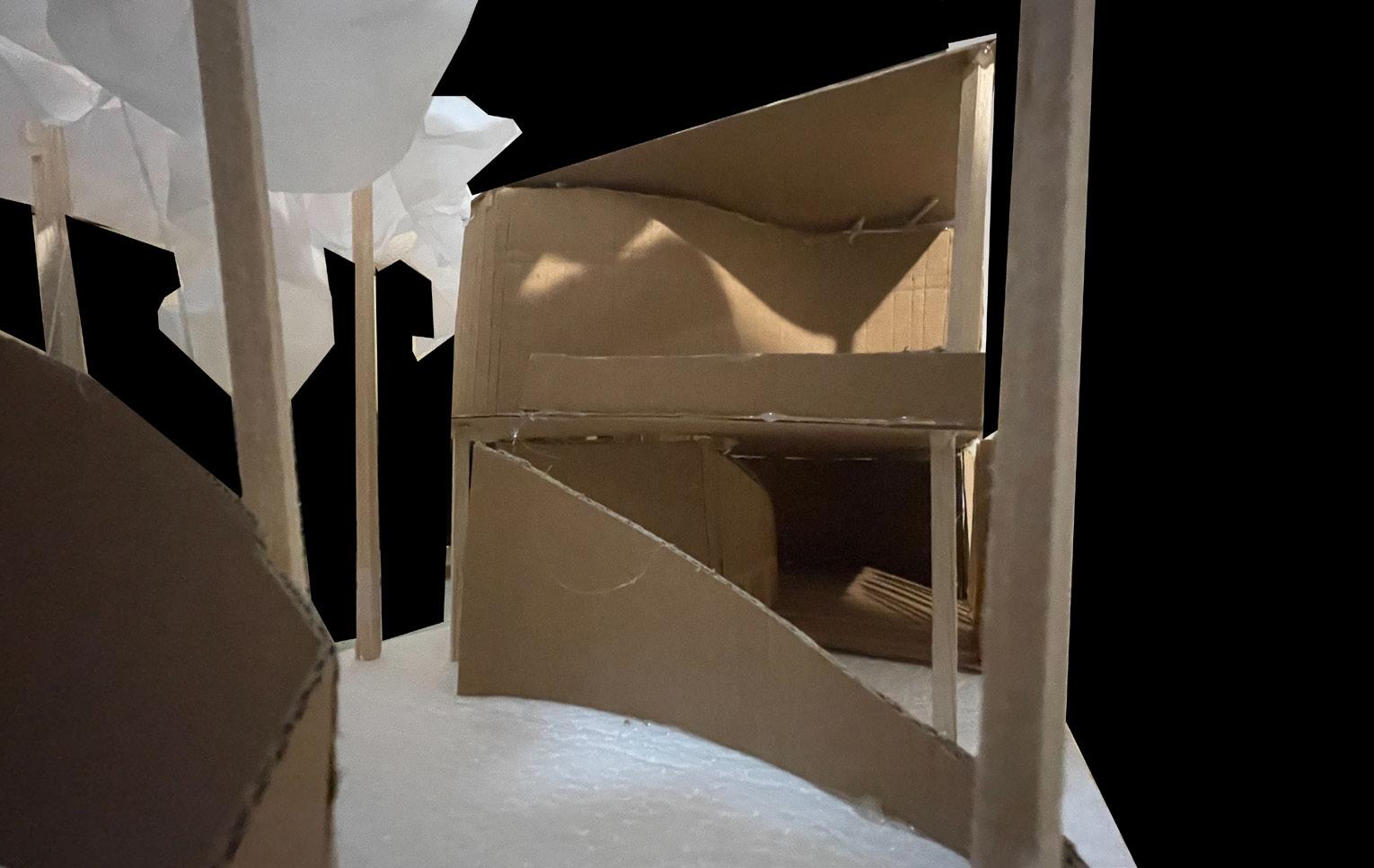

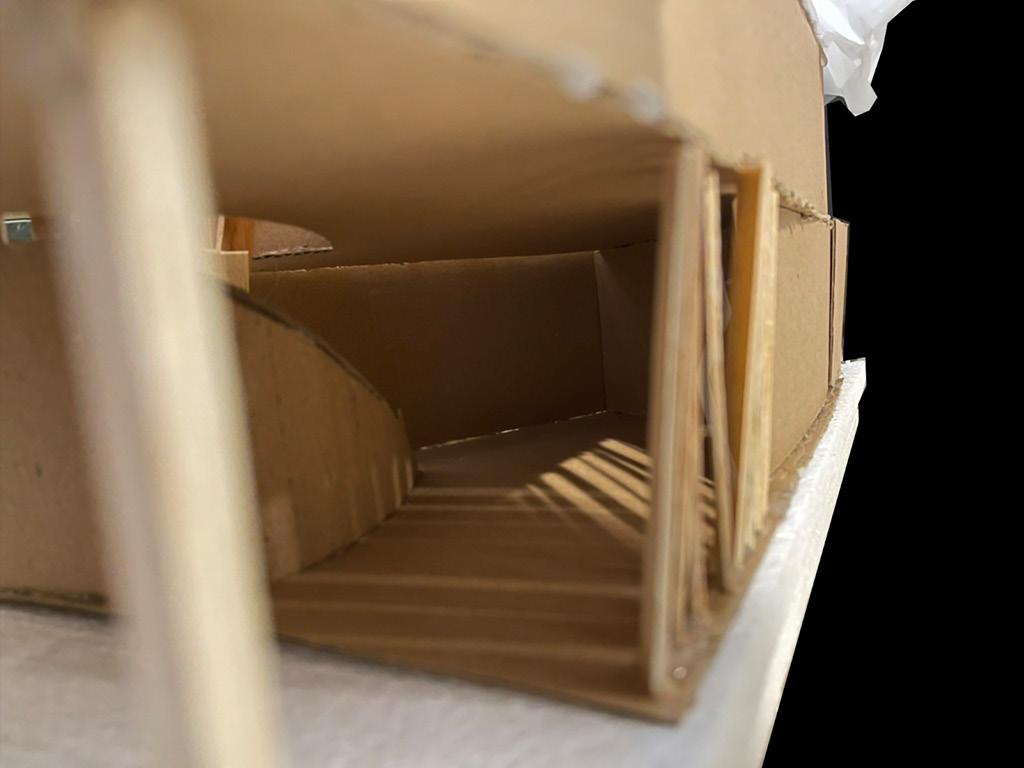

1:50 Physical Model

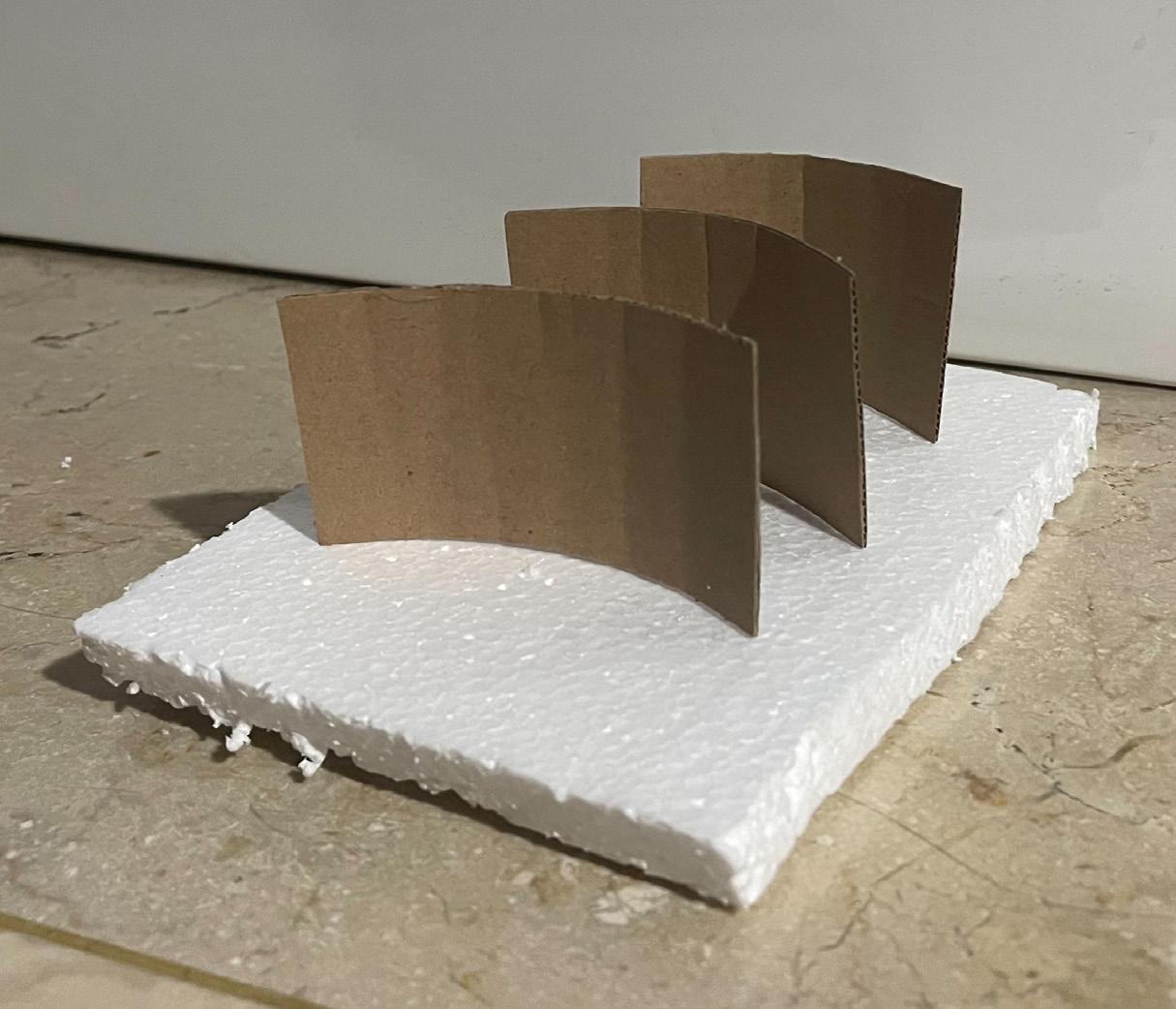

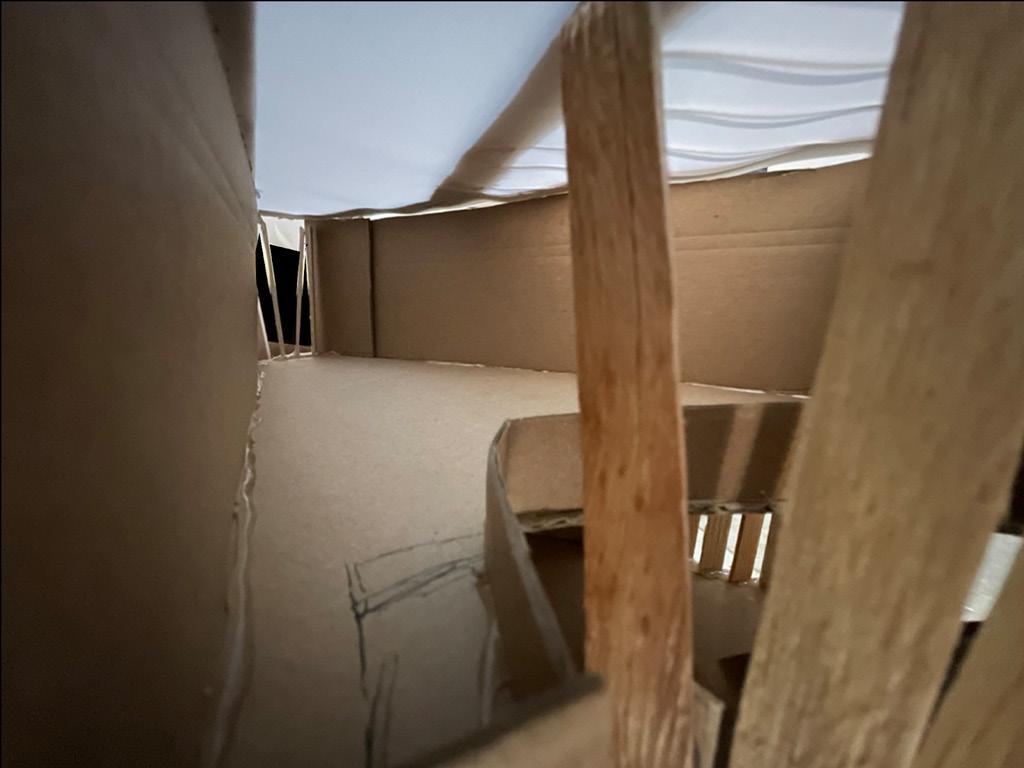

1:50 Physical Model

1:50 Physical Model

5

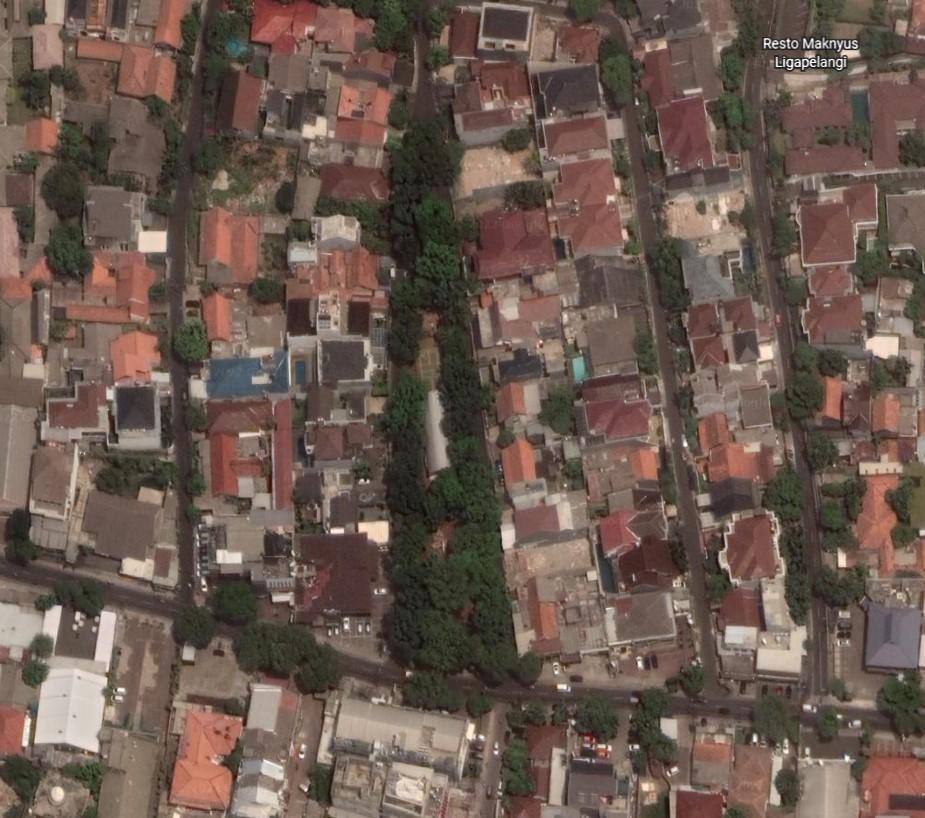

Location:

RPTRA Taman Gajah, Jl. Cipete III No.4, Cipete Sel., Kec. Cilandak, Kota Jakarta Selatan, Daerah Khusus Ibukota Jakarta 12410

After analyzing the site, I noticed a lack of libraries in the area despite being home to many children and surrounded by schools. Additionally, literacy interest among Jakarta’s youth continues to decline. This led me to adopt SDG Goal No. 4, more specifically target 4.6.

Ensure inclusive and equitable quality education and promote lifelong learning opportunities for all

Programme Statement: “A space dedicated to fostering literacy, with a focus on increasing interest among the youth.”

Program Elements: Amphitheater: A space for literary performances, such as book readings, poetry recitals, and small-scale theater productions.

Mural Walls: Featuring literacy-themed murals and infographics to engage and inspire the youth.

Mini Library: A collection of primarily fictional books donated by the local community.

6

Target 4.6 By 2030, ensure that all youth and a substantial proportion of adults, both men and women, achieve literacy and numeracy

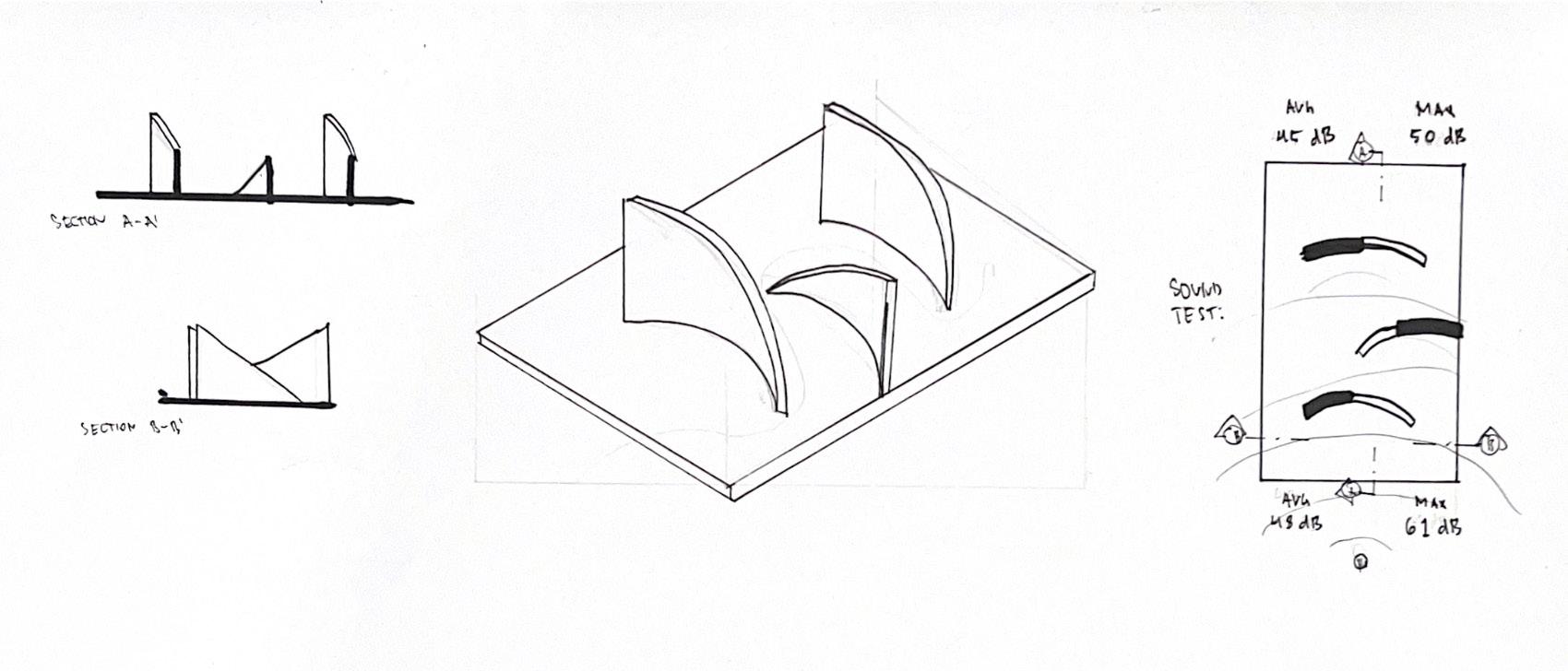

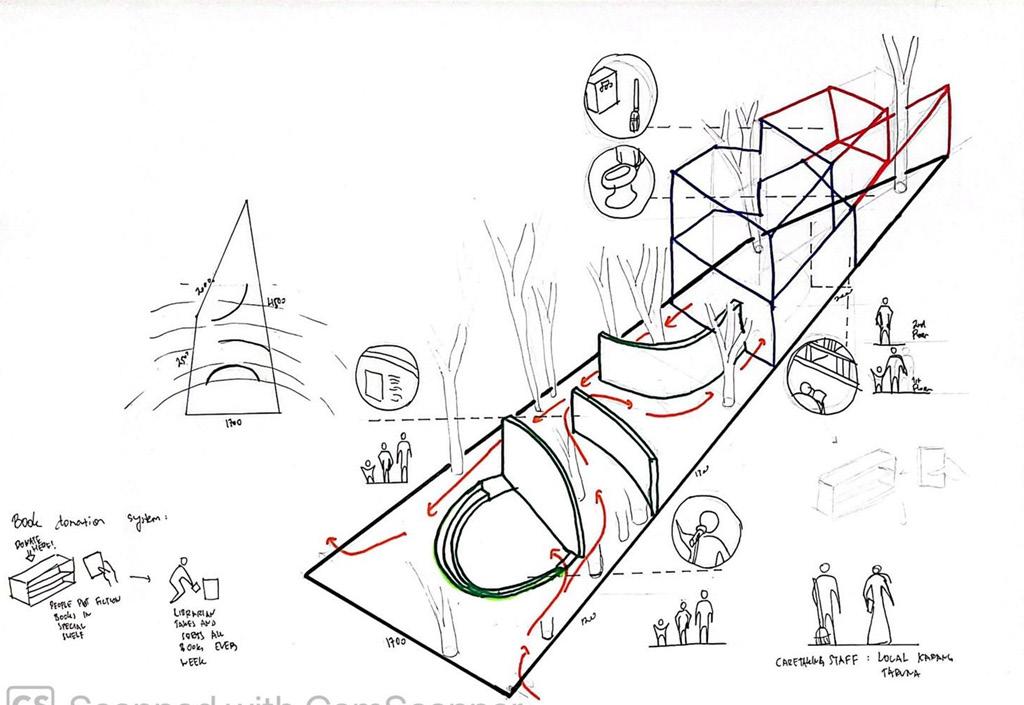

As previously mentioned, a quieter environment is essential for fostering reading and literacy. To achieve this, I focused on designing the mural walls to function as noise-dampening or noisecanceling features.

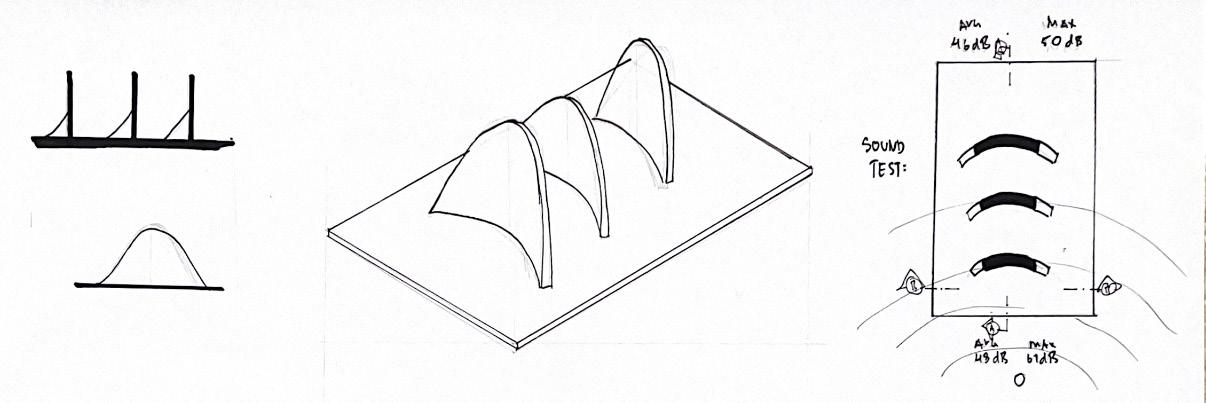

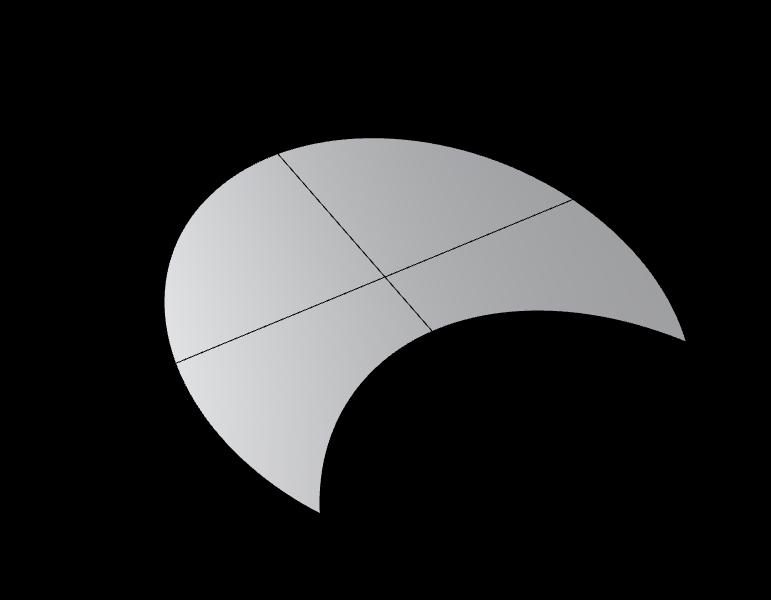

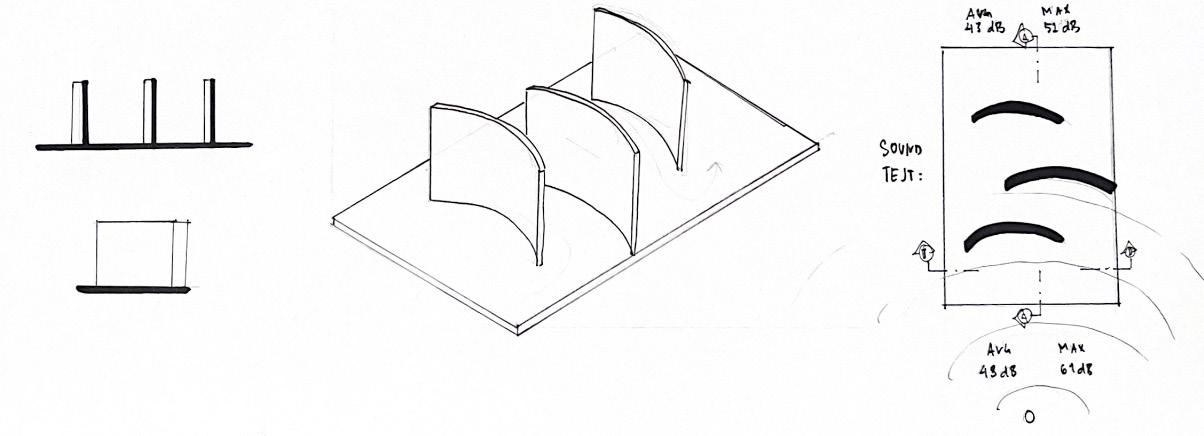

I experimented with various shapes and analyzed their effectiveness in reducing noise, comparing their performance to determine the most suitable solution.

7

Amphitheater

Library Exterior Noise Barrier

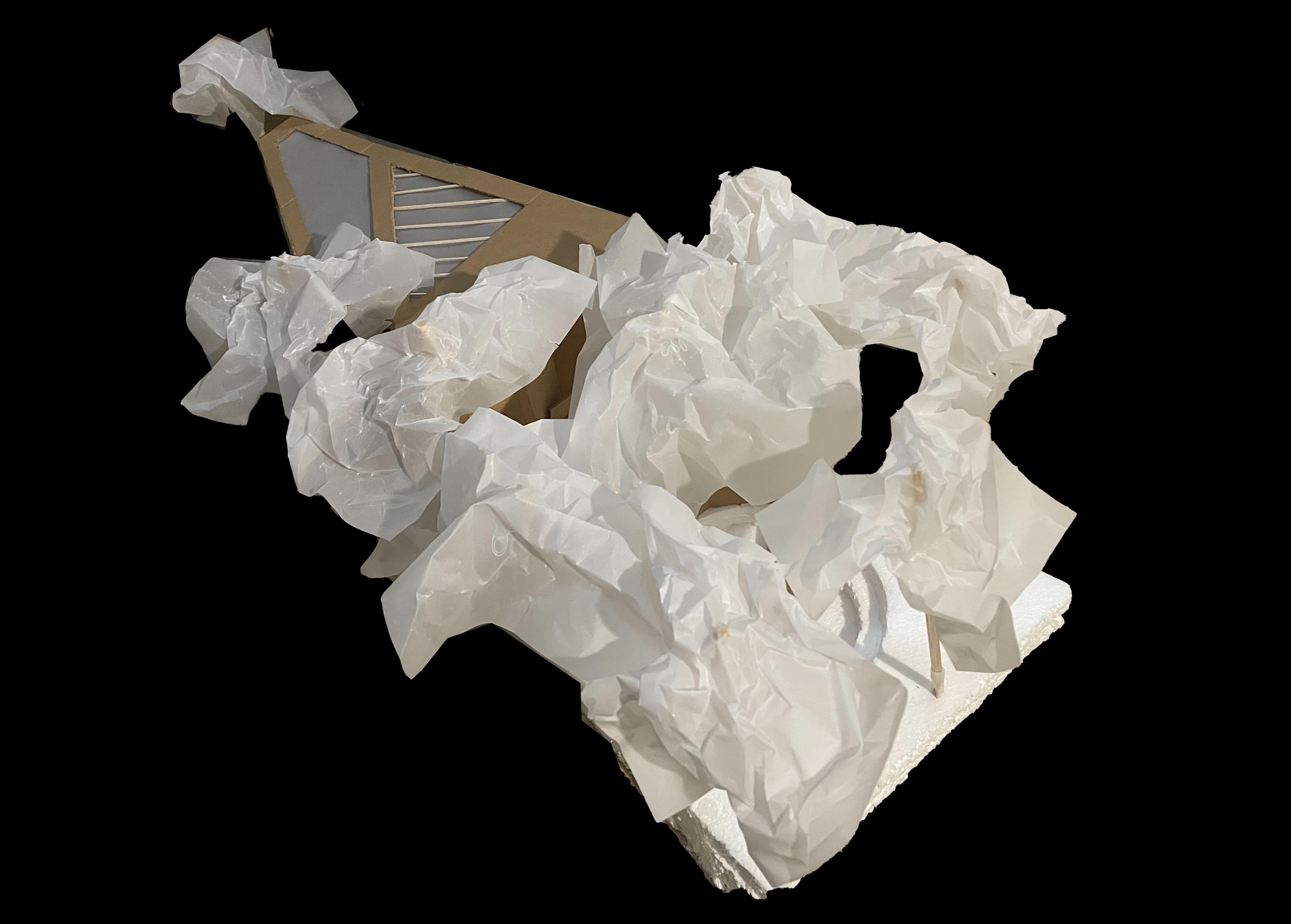

1:50 Physical Model

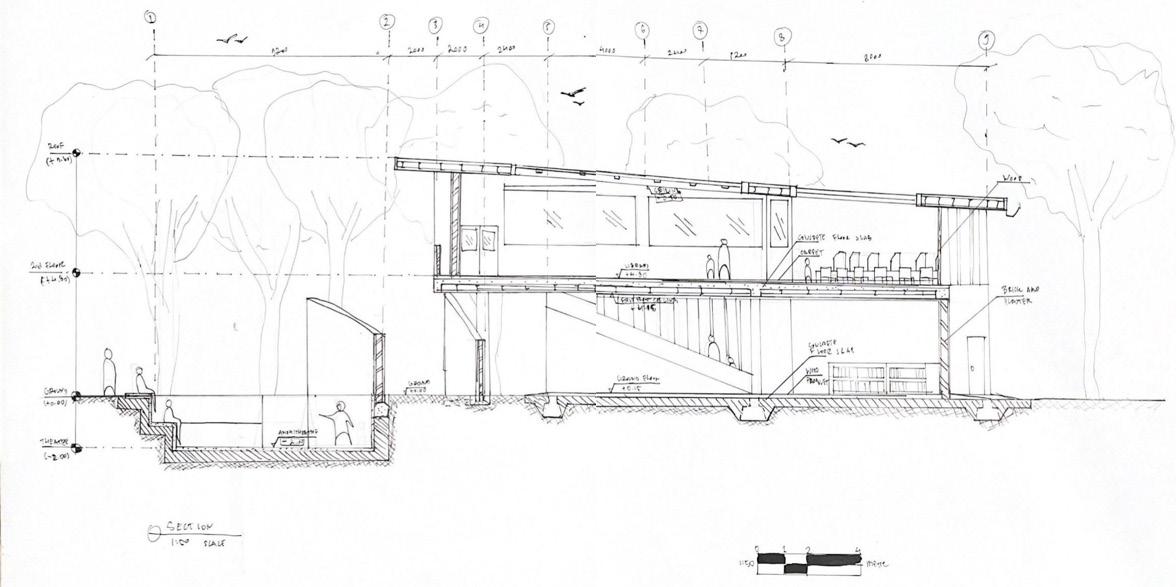

Section

8

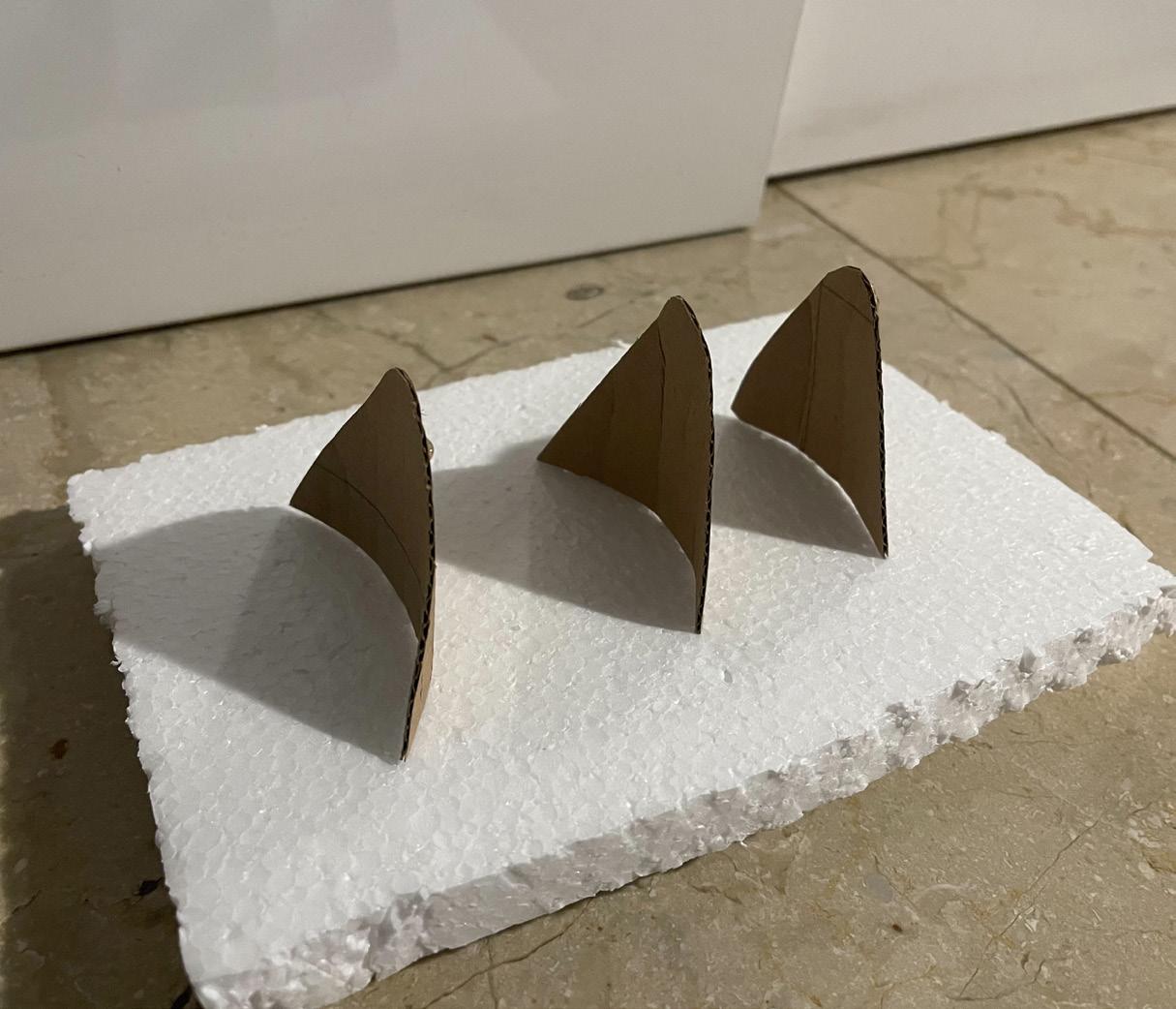

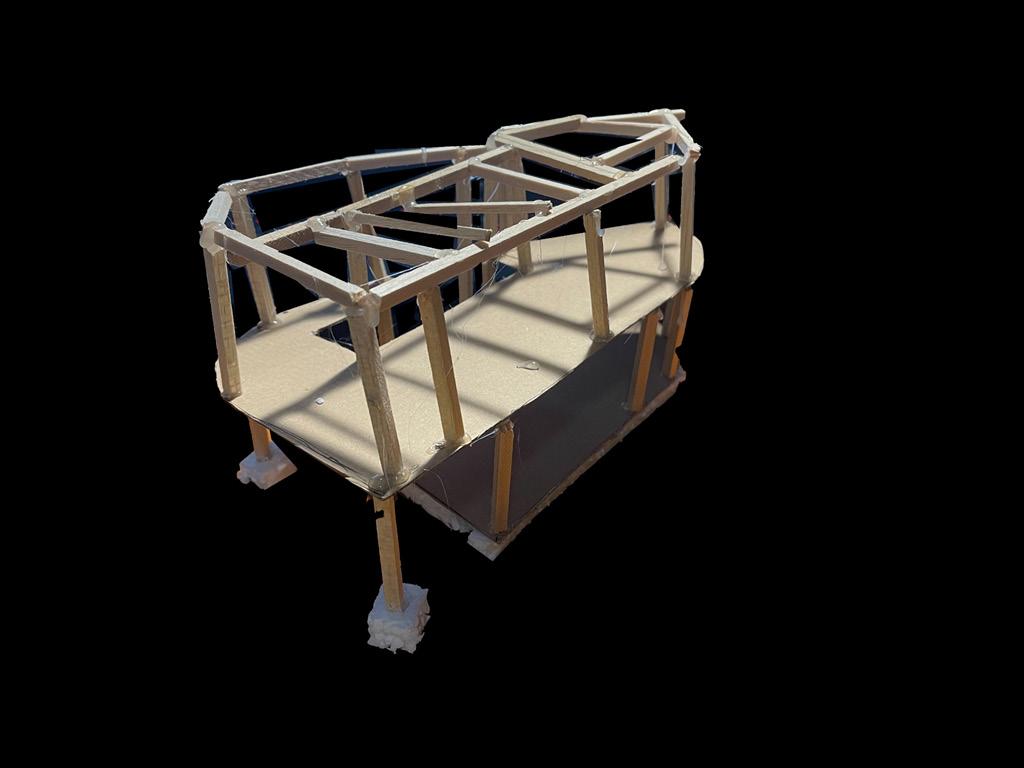

Structural Model

Library Level 1

Library Level 2

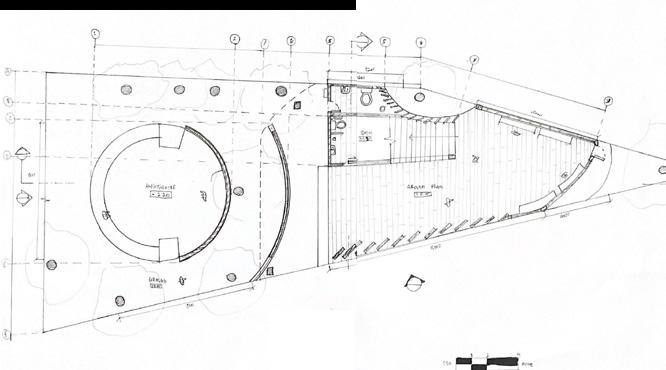

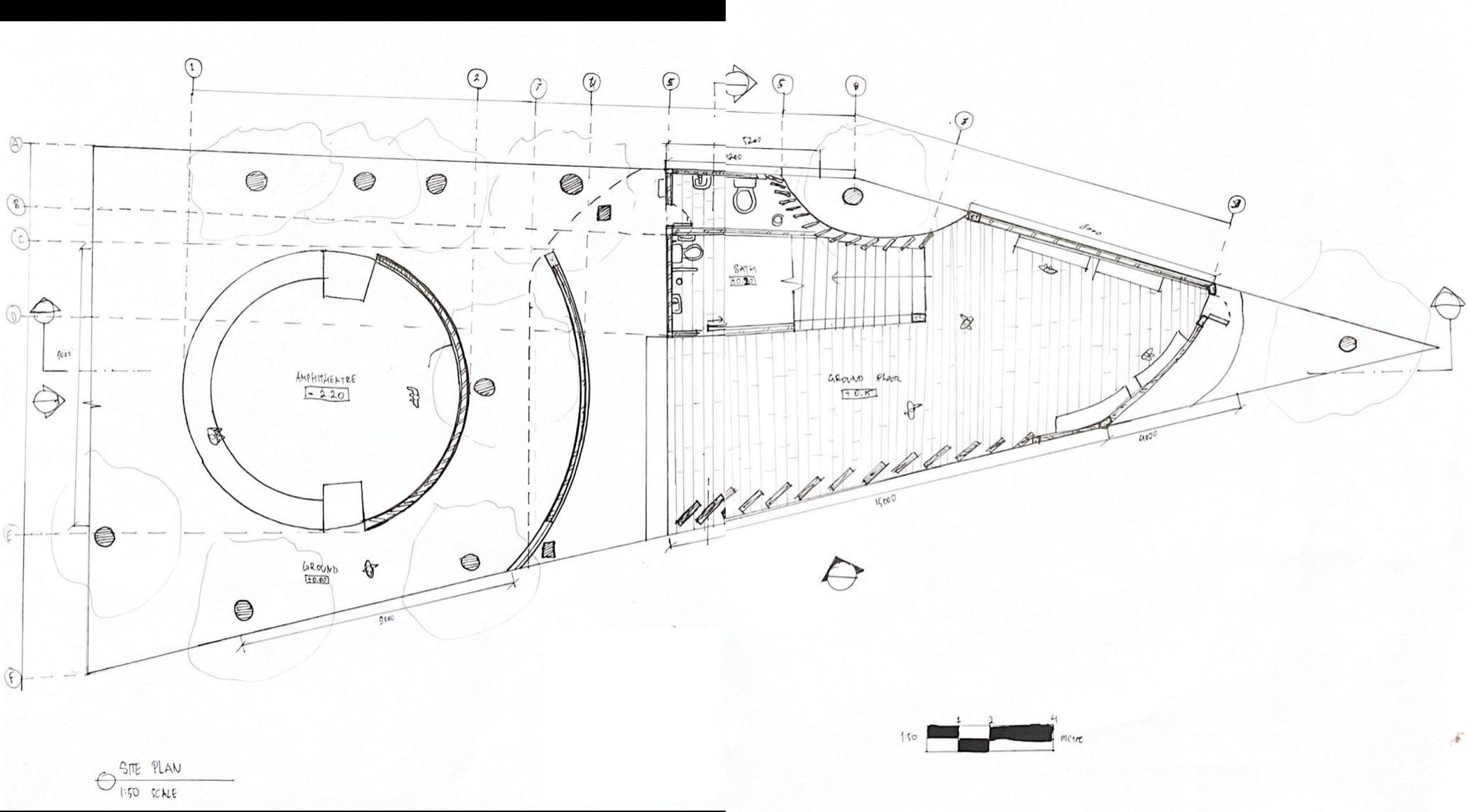

Floor Plan

3

By The Bay

Man-made structures inevitably disrupt nature by consuming resources. This project’s manifesto emphasizes “borrowing” from nature—utilizing resources responsibly, preserving their value, and giving back in some way. It also aims to foster a mutually beneficial relationship between users and the environment.

By The Bay, a shopping center on Jakarta Bay’s shoreline, addresses site challenges like limited shading, ground subsidence, and strong winds through innovative design solutions.

Semester 5 - 2022 Architectural Design 3 (Studio) Individual

Site - Jl. Pulau Untung, North Jakarta, Indonesia Tools - AutoCAD; Rhino 3D; VRay for Rhino; Adobe Illustrator

Conditions on Site.

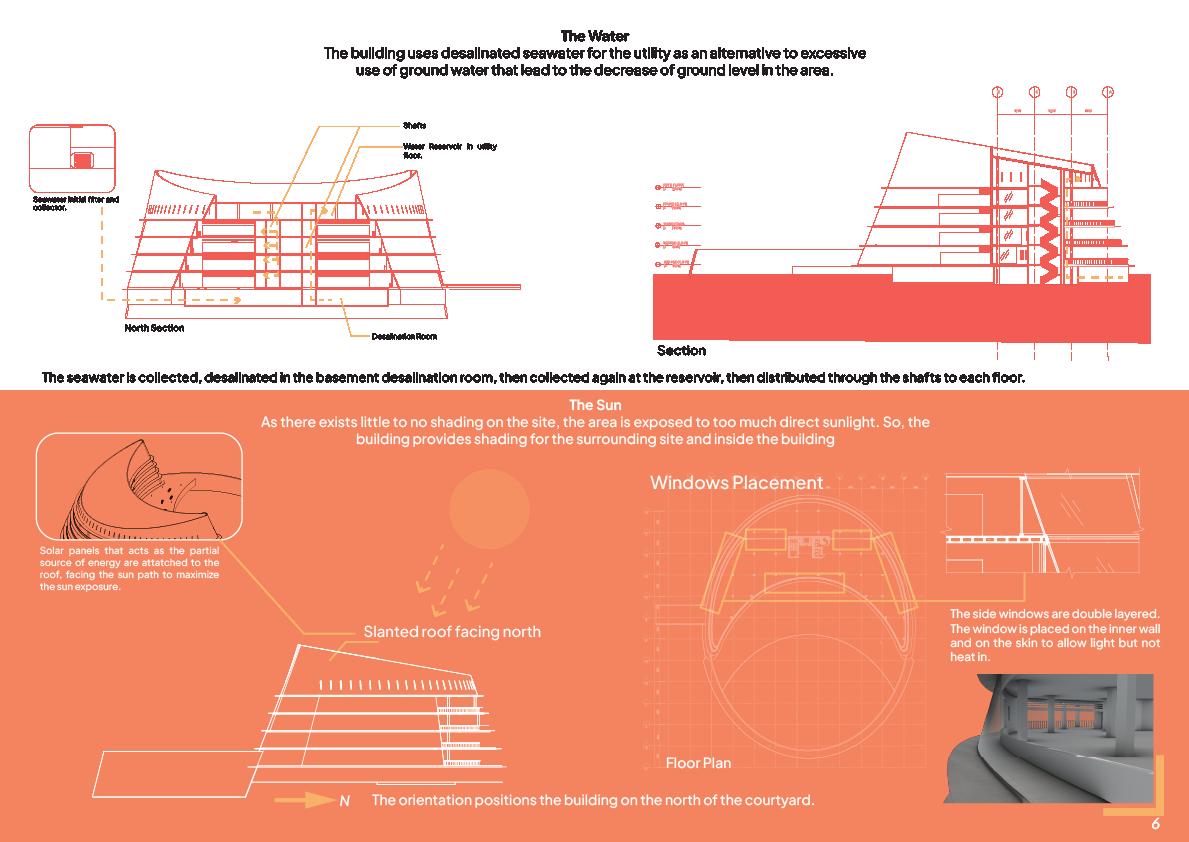

Excessive use of ground water, leads to land height decreasing.

Little to n o shading which m akes i t exposed to too much direct sunlight.

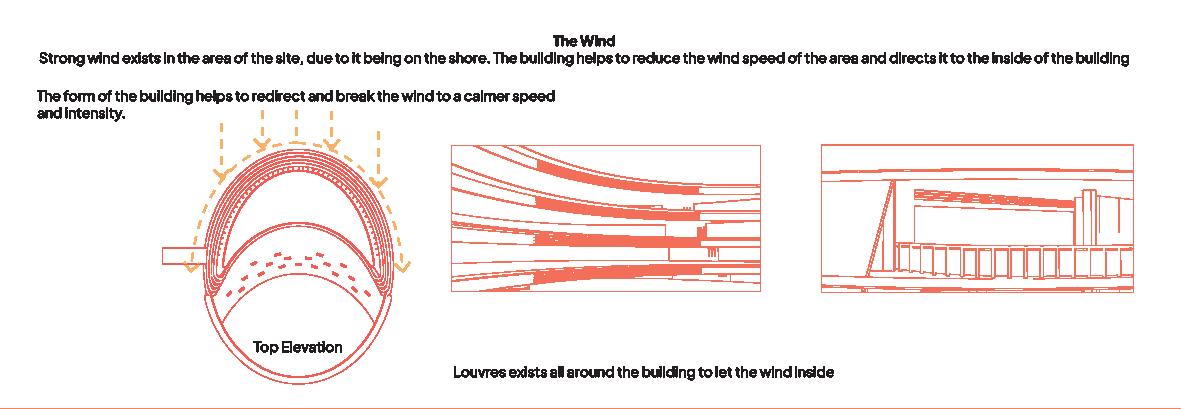

High speed of wind (up to 14 knots every day)

9

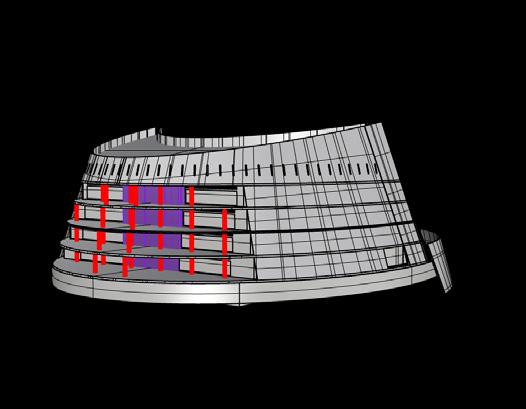

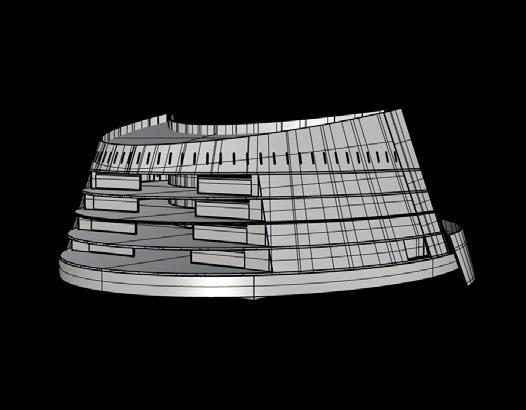

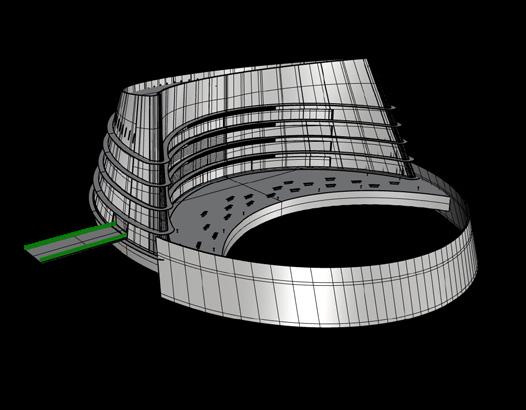

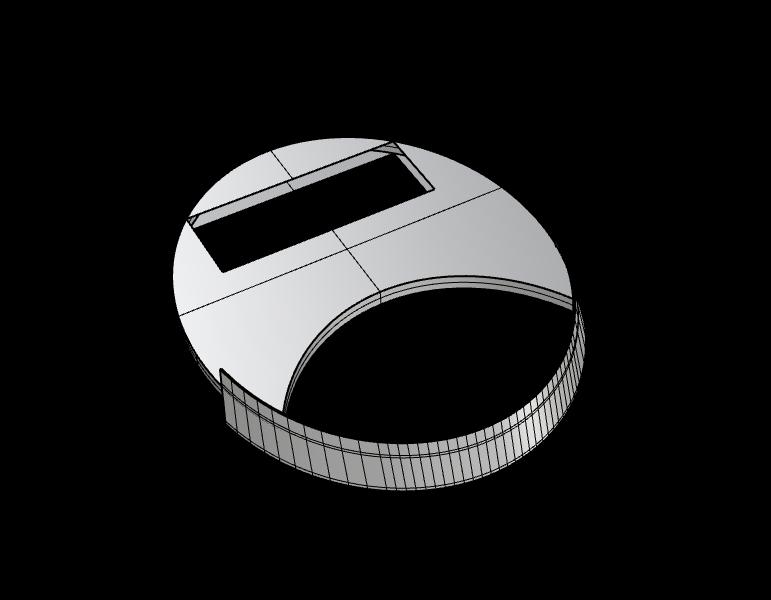

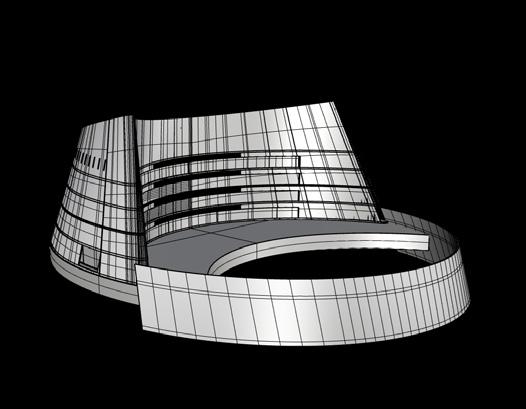

Form Development

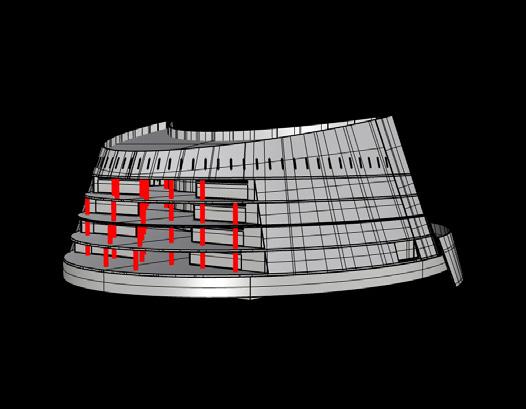

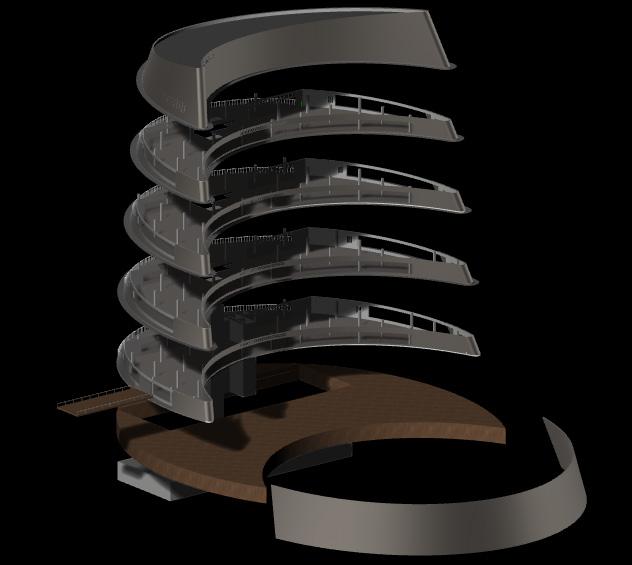

Structural Layers

Core Desalination -> Reservoir

Reservoir -> Bathrooms

Electrical Shaft Clean Water Shaft

Base Form Idea

Extrude, substract, and add

Design the skin and overall form

Grey Water Shaft

Clean Water Shaft

Skin Inner Wall Columns Floor

Fin

Design interior wall

Design the beams and columns

Add core

Wa

Core Plan C

Ceiling

Elevator Stairs/Fire Escape

Bathroom Disiability Bathroom

Add details

Programming Restaurant on the third and fourth floor.

Solar Panels Utility Room

Desalination Room

10

Department store on first and second floor.

11

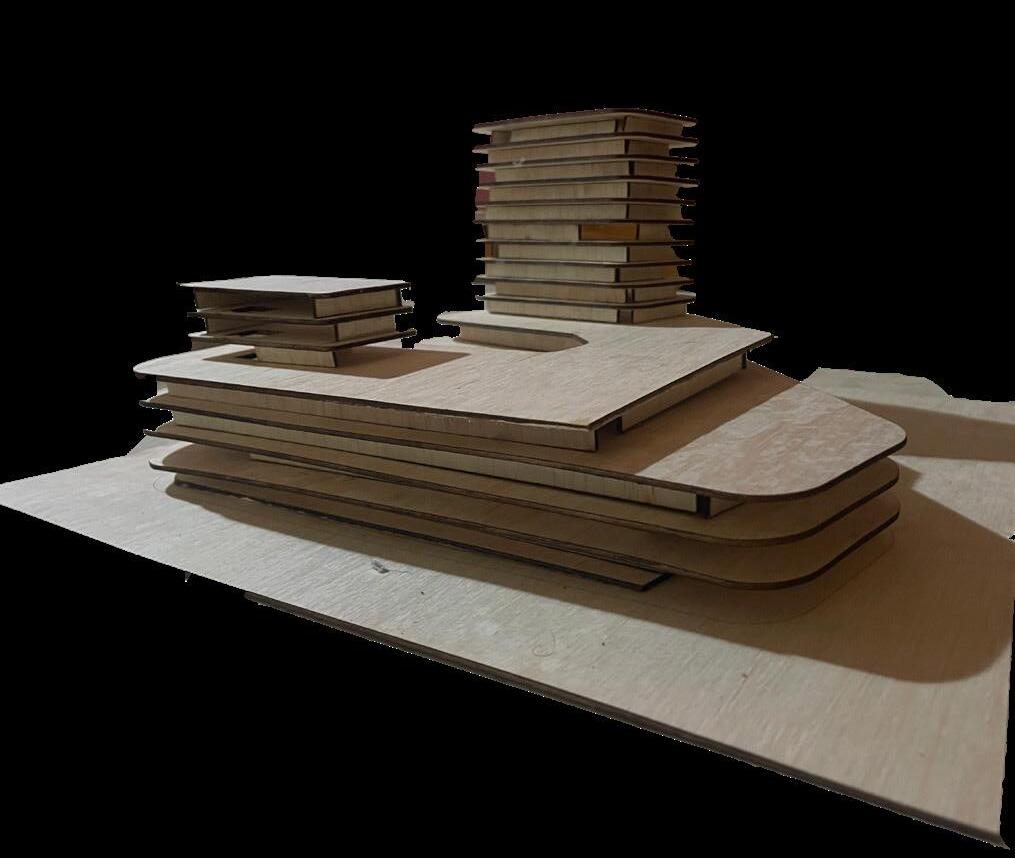

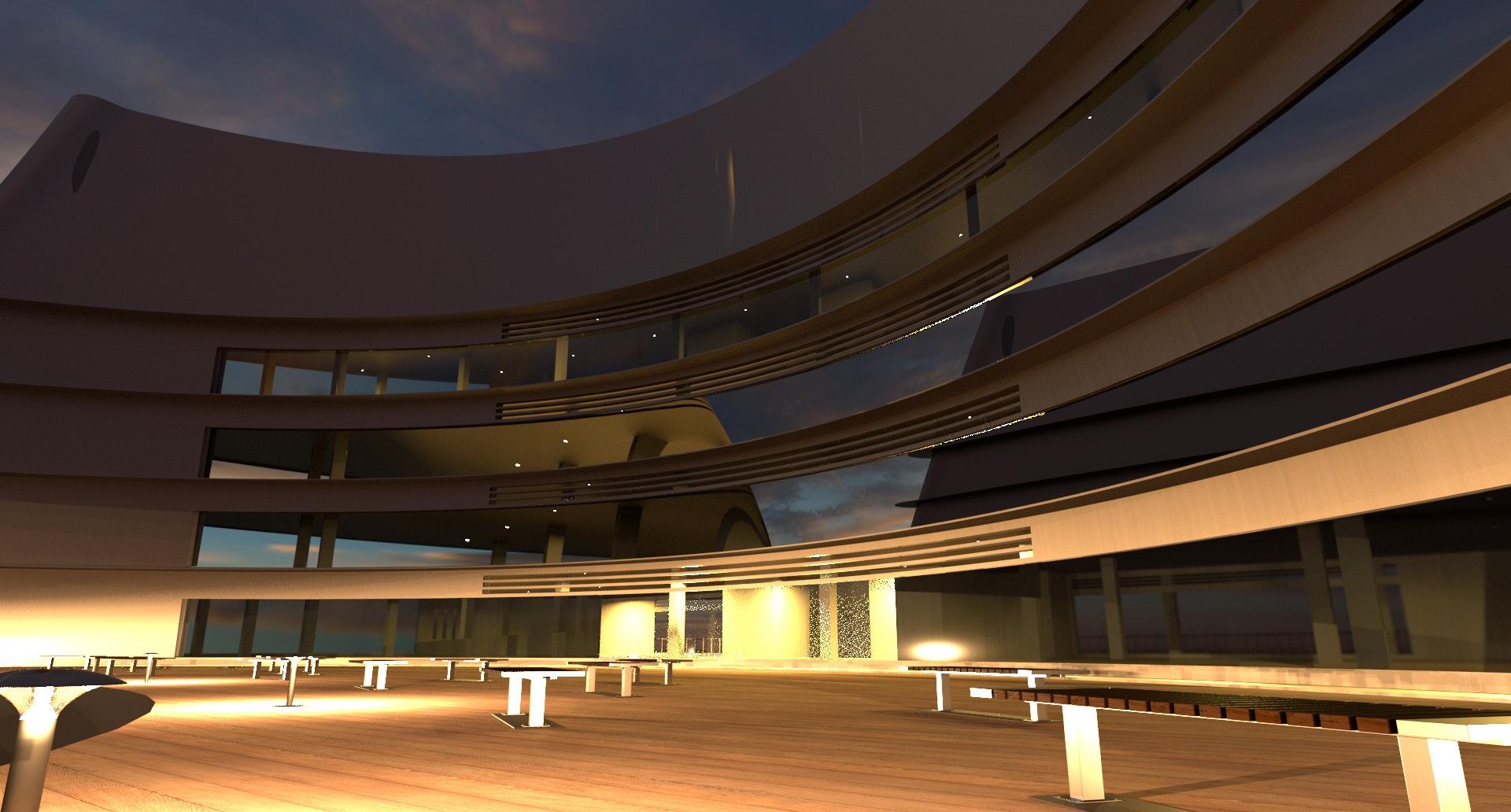

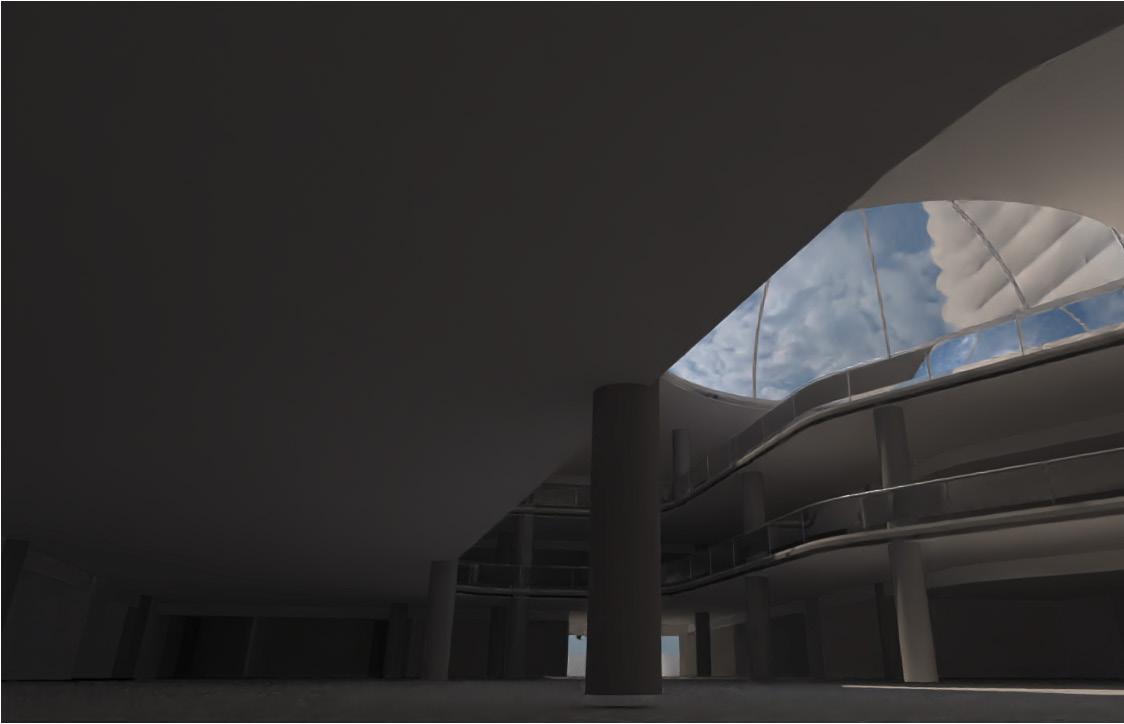

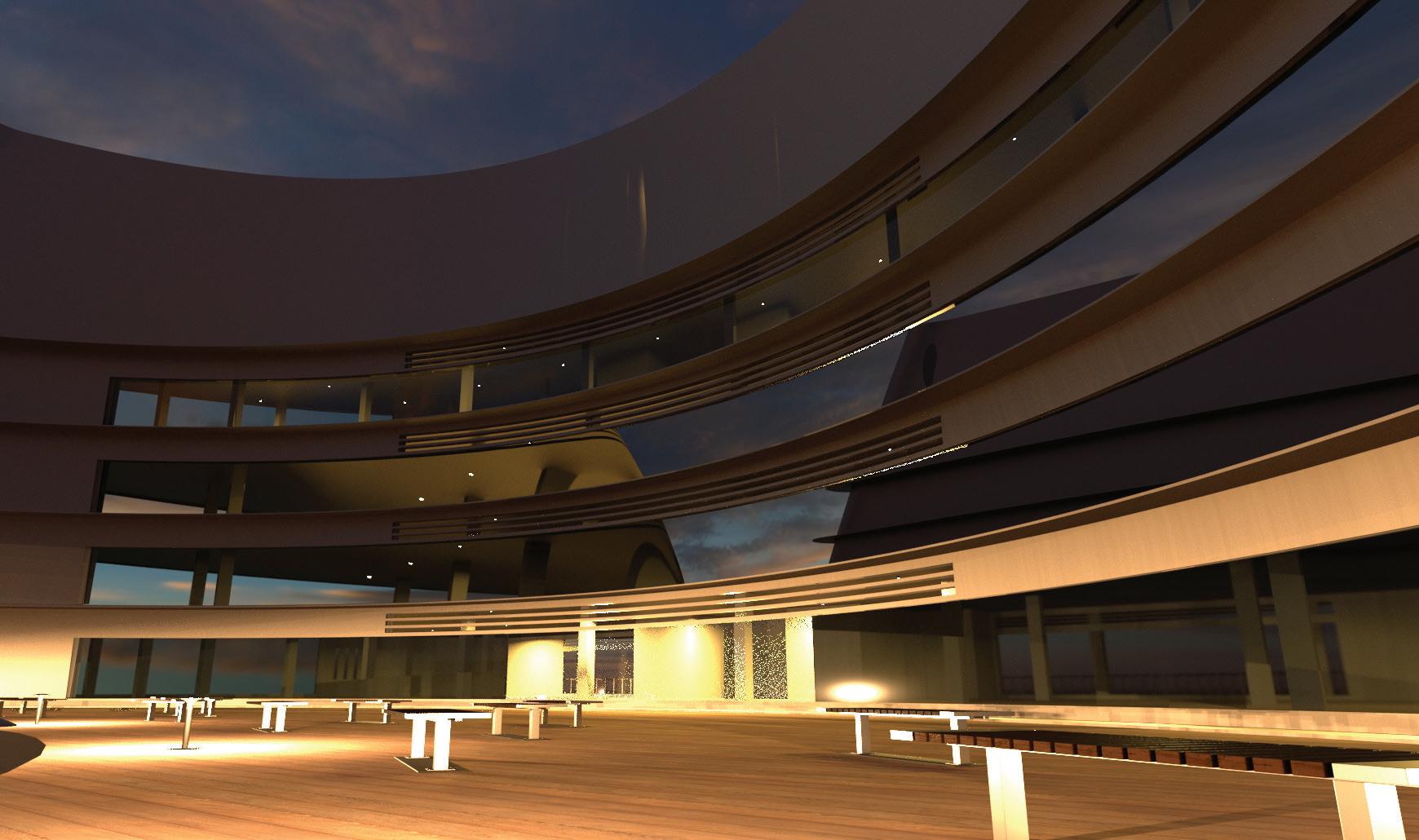

Central Courtyard View

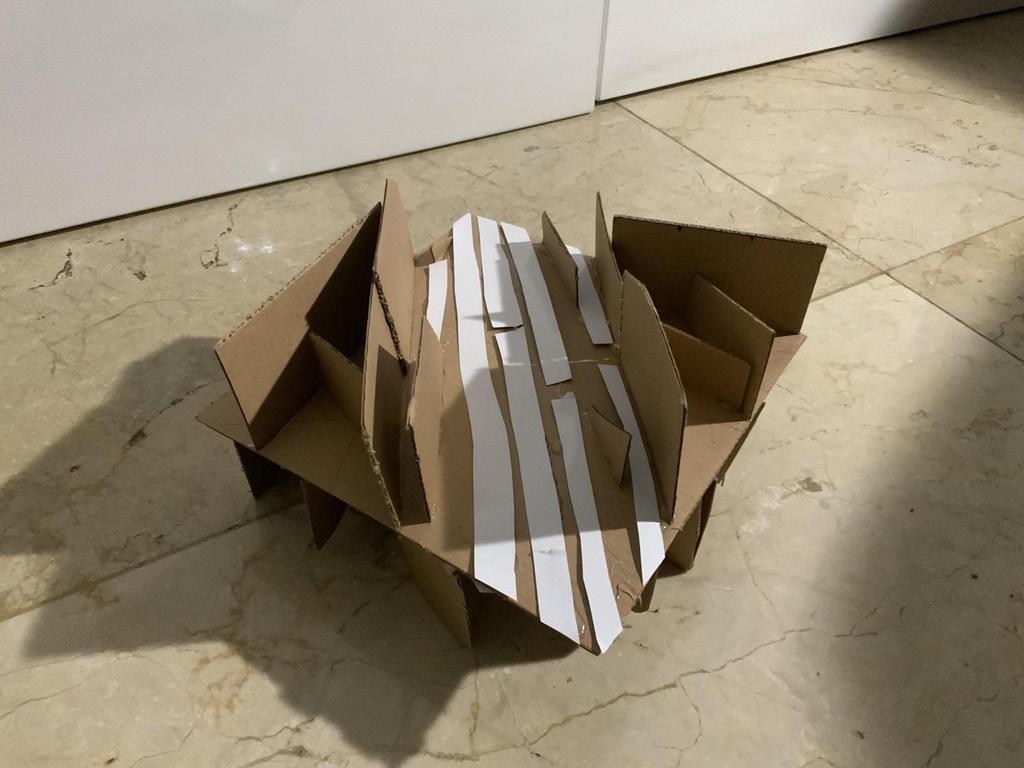

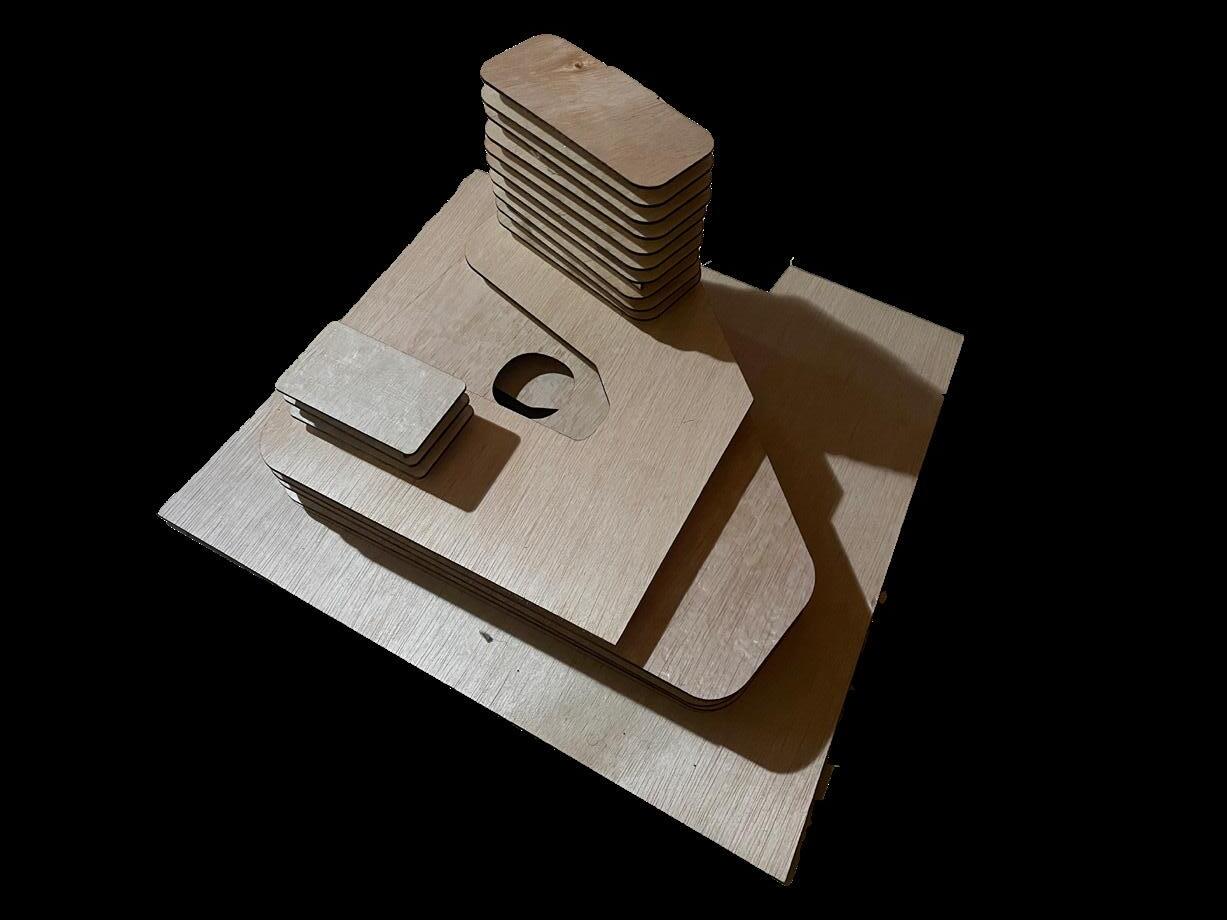

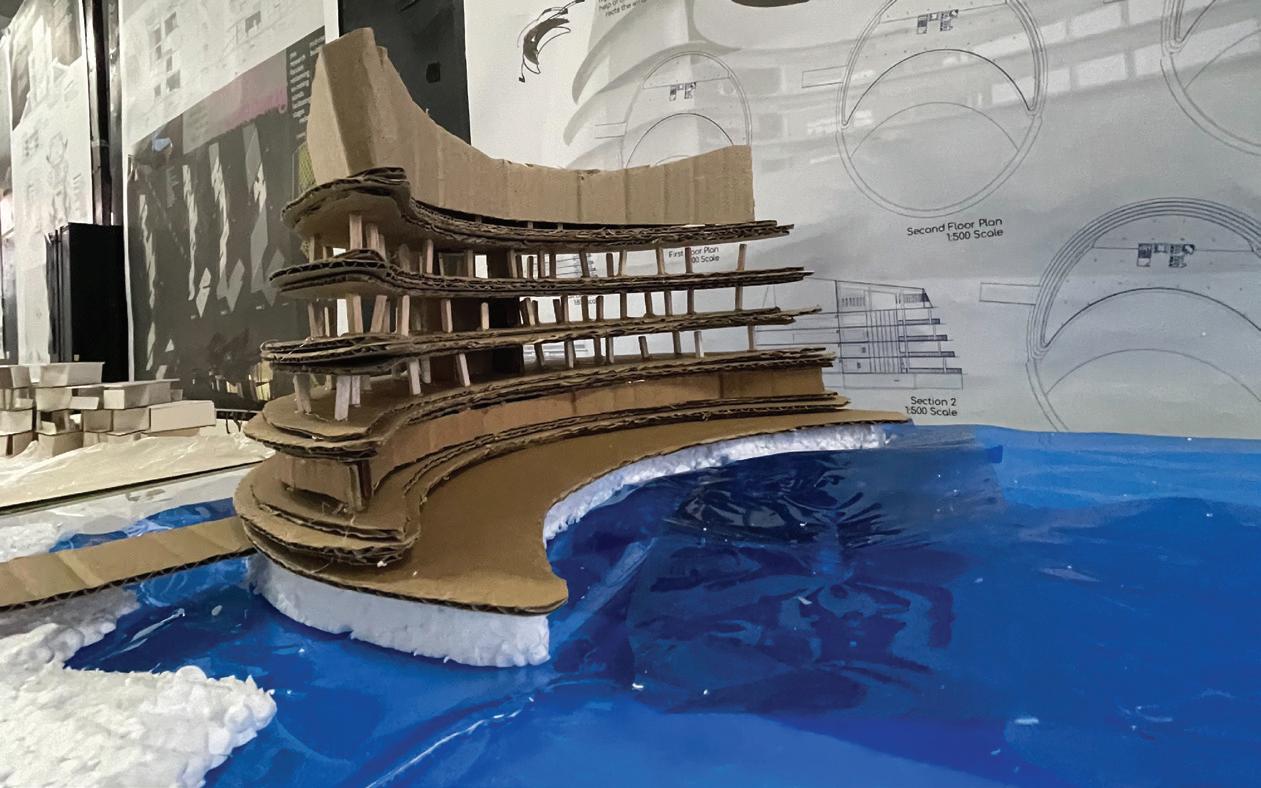

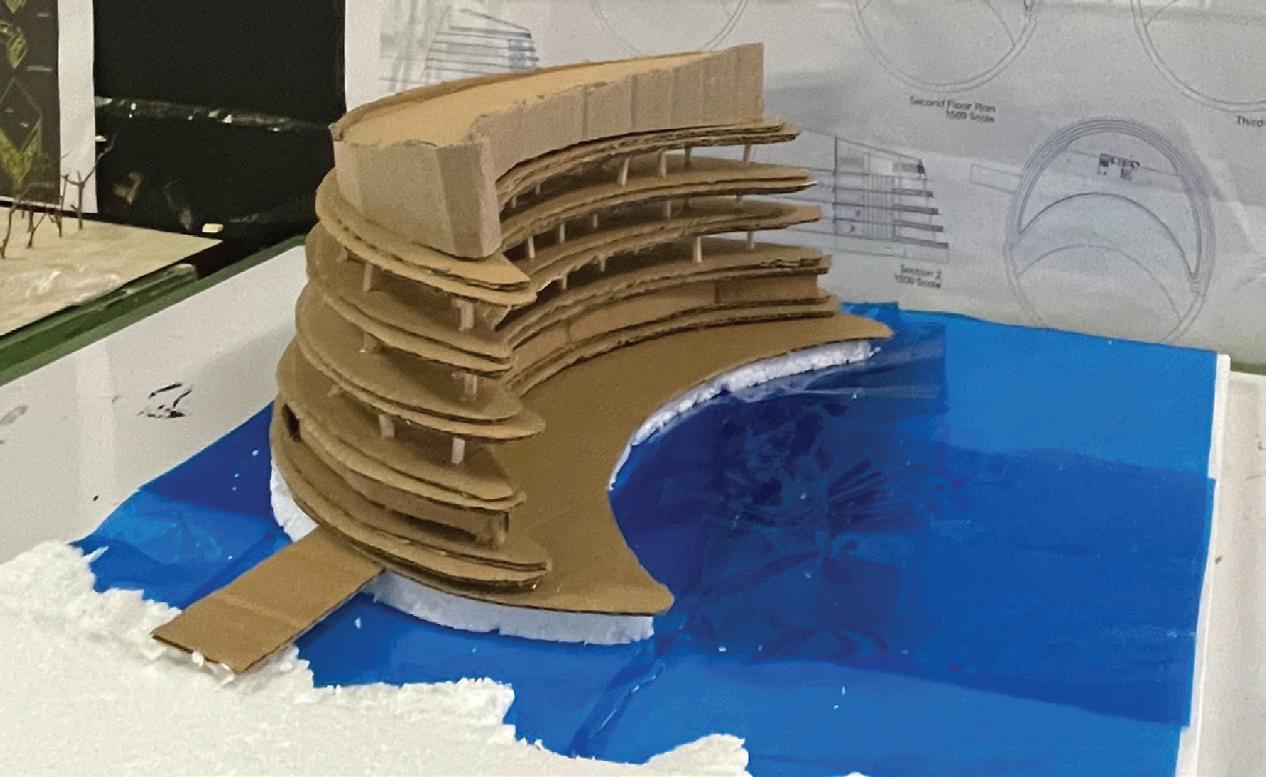

Physical Structural Model

12

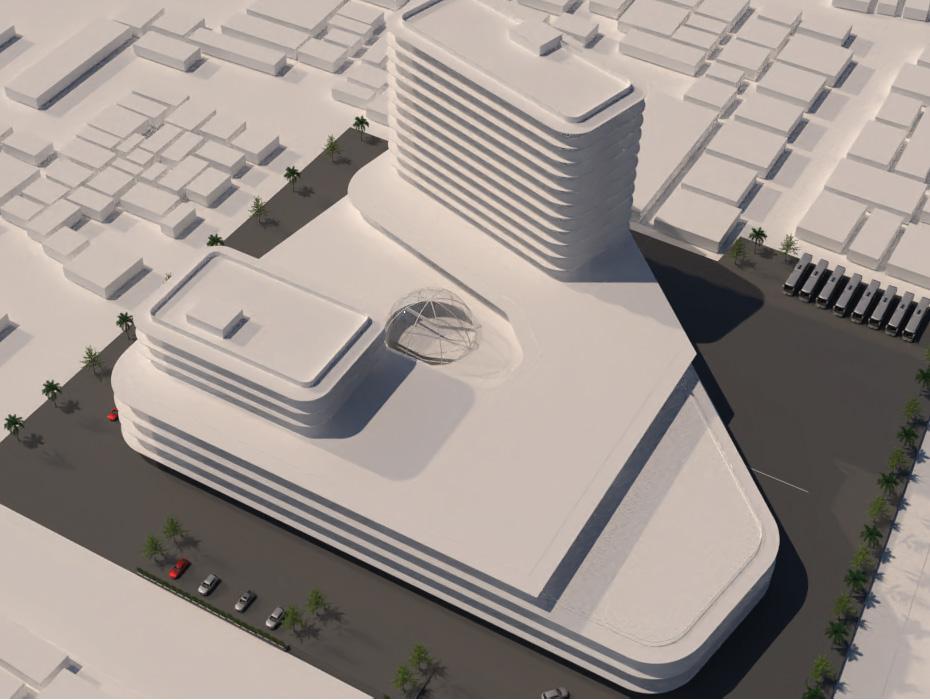

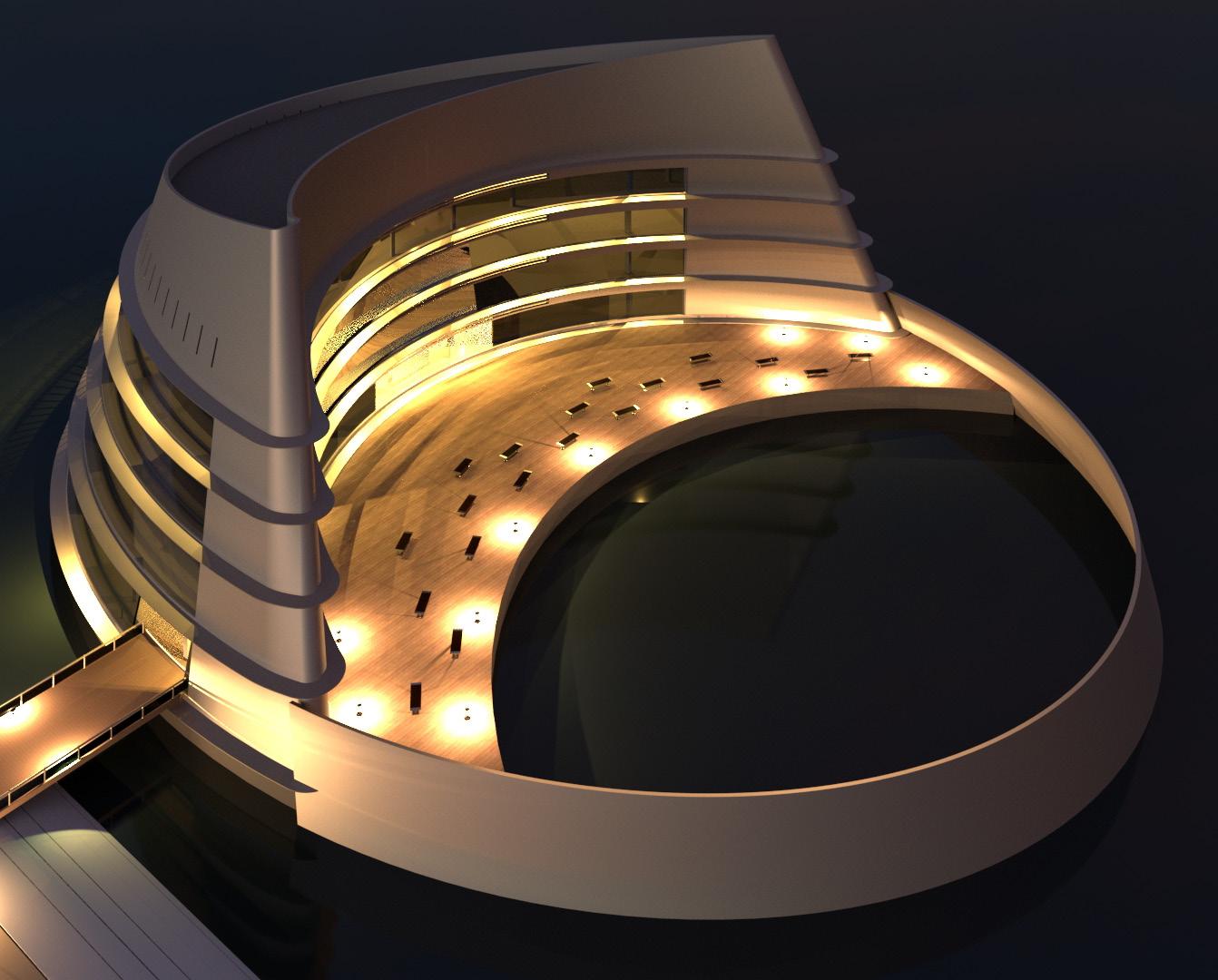

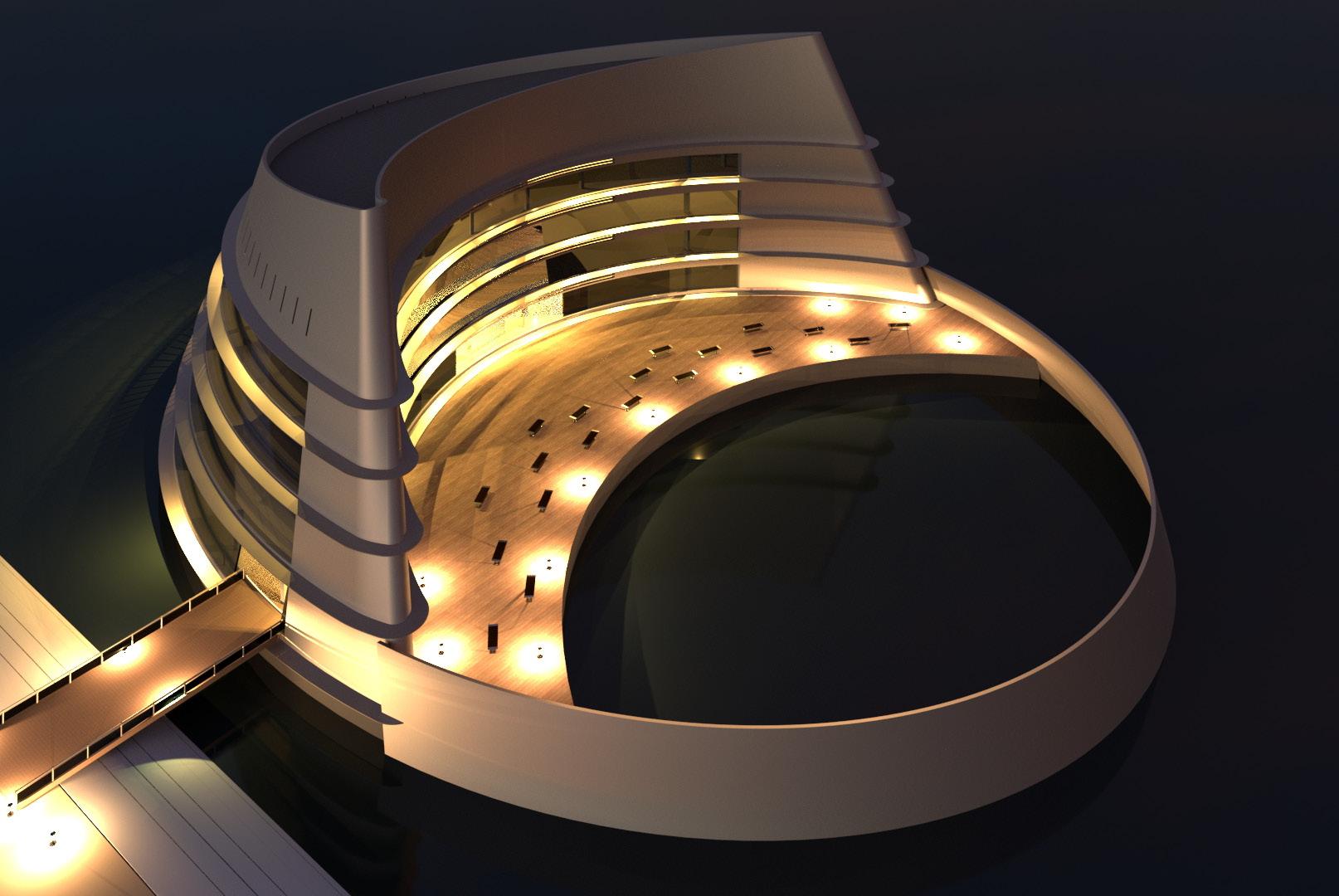

Bird’s Eye Render

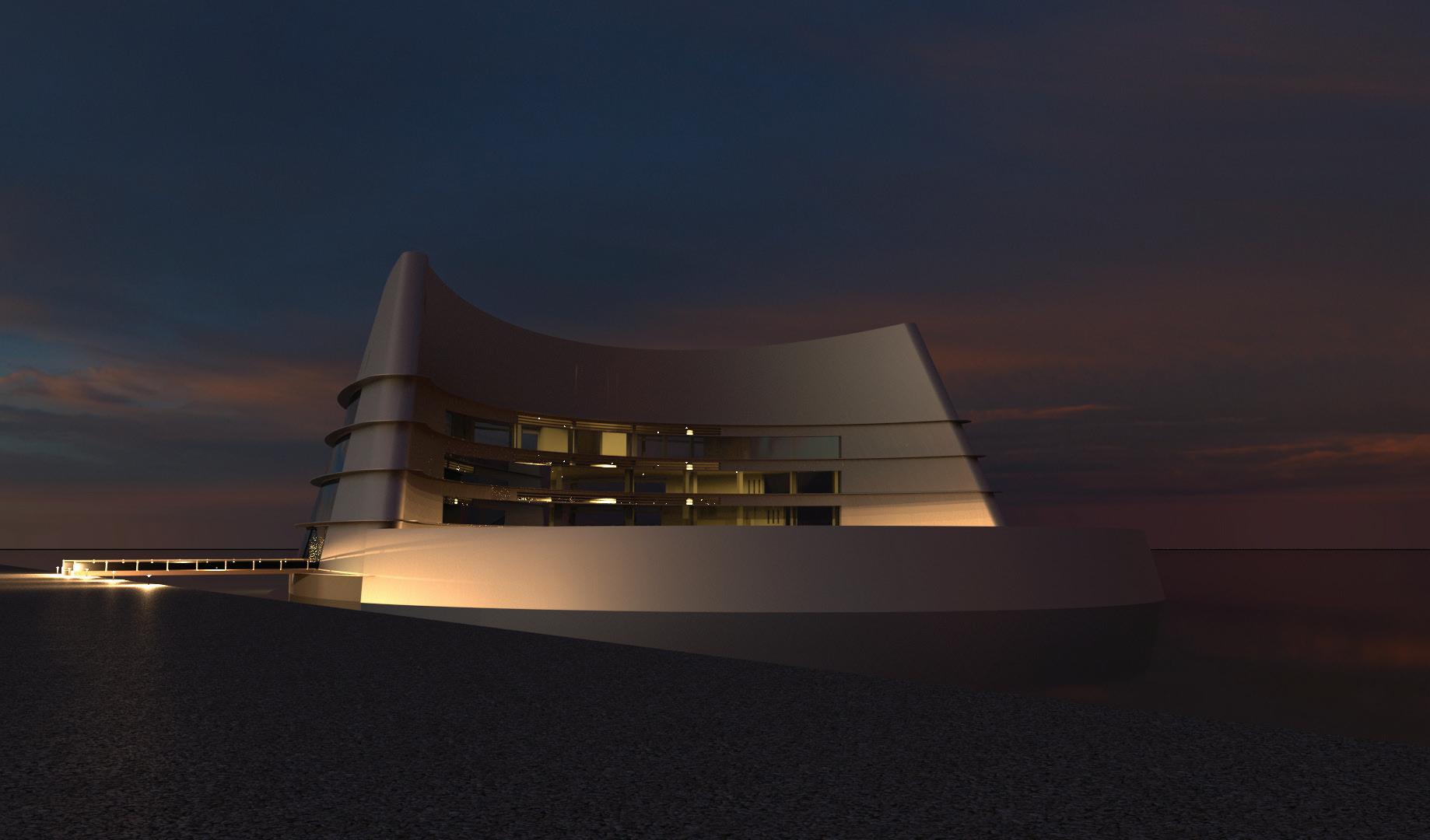

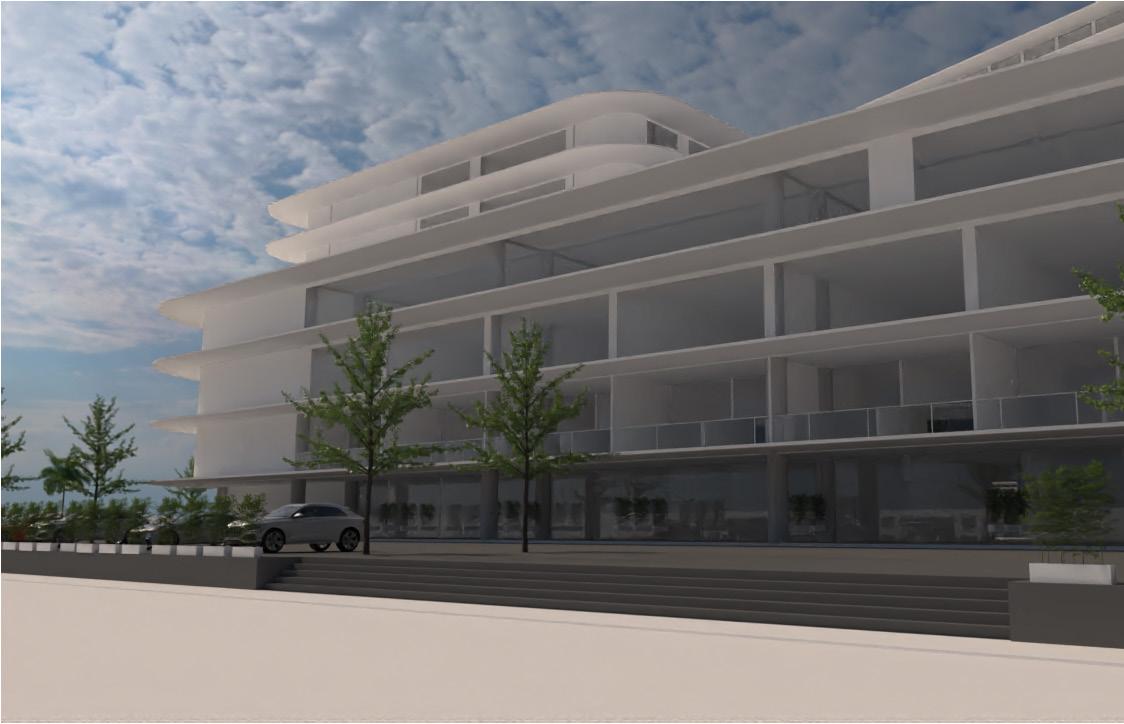

Exterior View

4

Halal Center Point

Halal Center Point in Cipulir, South Jakarta—an inclusive mixeduse building merging halal living principles with modern design.

The project includes a mall, hotel, and office space, fostering a harmonious environment for diverse communities.

Semester 7 - 2023 Architectural Design 5 (Studio) Individual Tools - AutoCAD, Rhino 3D, VRay for Rhino, Adobe Illustrator

Mall - Modern, halal-certified shopping area with diverse options.

Hotel - Luxurious, halal-certified accommodation for Hajj and Umrah participants.

Office - State-of-the-art workspace for local businesses.

13

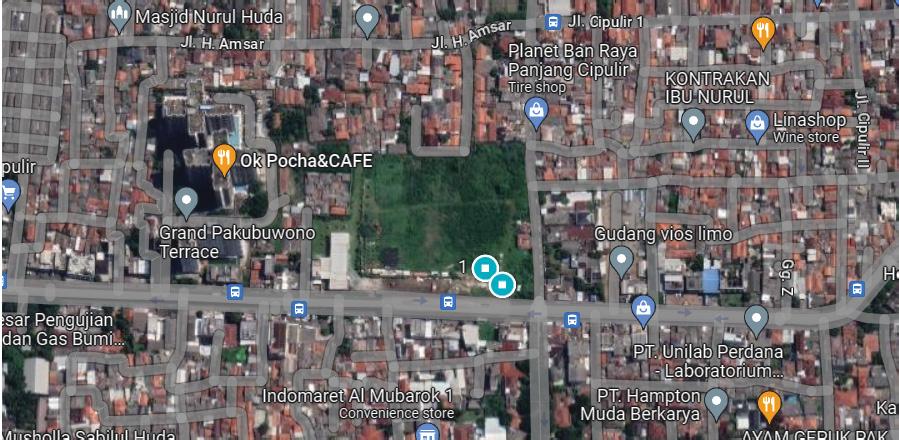

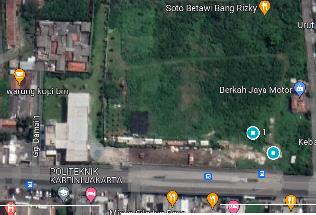

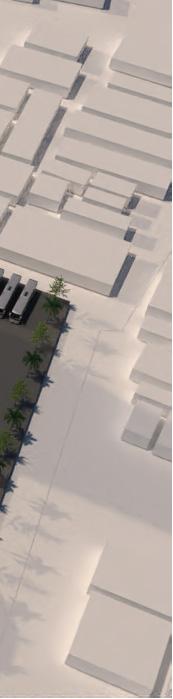

Site

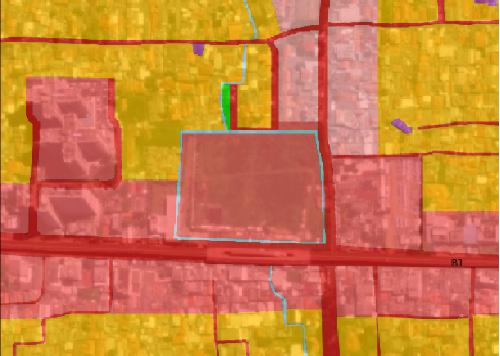

Zoning Area

Location

Jl. Ciledug Raya No.15C, RT.1/RW.5, Cipulir, Kec. Kby. Lama, South Jakarta, Daerah Khusus Ibukota Jakarta 12230

Land Area

22.200 m²

Zoning (RDTR)

K.1 (Sub zone designated as a place for office activities and services and facilities.)

Commercial

Body of Water

Residential

Open Green Spaces

Access

Public Transport Terminal Transjakarta Terminal

14

Public Transport Lane Transjakarta Lane

Main Road Cars, Motorbikes, Buses, Trucks

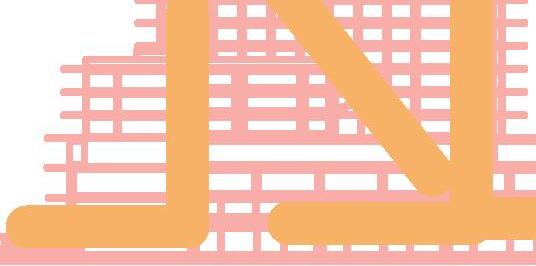

Taking inspiration from the Halal script written in arabic.

Taking inspiration mosque features.

Minarets

Base

Dome

Hotel Lobby

Anchor (Halal Bus Parking Supermarket)

Anchor (Halal Supermarket)

Retail Area (Fashion)

Retail Area (F&B) Department Store

Anchor (Halal Supermarket) Retail Area (Fashion & Jewelry)

Meeting/Conference Room

Hotel Restaurant Rooftop Outdoor Restaurant Area

Department Store

Main Atrium Lobby

Retail Area (FnB)

Retail Area (Fashion & Jewelry)

Mosque

Retail Area (FnB)

Level 1

Level 2

Level 3

Level 4 15

1

3

2

20000

5

4

20000

20000

6

20000

8

7

20500

19500

1

3

2

5

4

6

8

7

1

3

2

5

4

6

8

7

8000 20000

A

20000

20000

20000

20500

19500

8000

20000

A

20000

20000

20000

20500

19500

8000

A

14500 14500

B

14500

B

B

18500 18500

C

18500

C

14500

C 14500

D

D

7200

E F

F

H

G

6000

H 13600

I

13600

I

15000

I 15000

J

5000

J

K

2

20000

3

20000

4

20000

5

20000

6

20500

7

19500

5000

K

Ground Floor Plan

1:1500 SCALE

1

15000

J

5000

K

Basement Floor Plan BASEMENT (B1-B3 FLOOR PLAN

7400

6000

H

13600

7200

7000

F

7400

G

6000

E

7000

7400

G

14500

D

7200

E

7000

Second Floor Plan

FIRST FLOOR PLAN

SECOND FLOOR PLAN

1:1500 SCALE

1:1500 SCALE

8

1

2

3

5

4

6

7

8

8000 20000

20000

20000

20000

20500

19500

8000

9500 4700 4700

4700

Fifth-Fifteenth Floor Plan

4700

2700

4700 4700

5500

4700 9500

A

2700

A

5500

14500

2700

14500

B

B 18500 18500

C

C 14500 14500

D E

D

7200

F G

7200

E

7000

7000

F

7400

5000

H

12000

8000

9500

5000

7400

G

6000

6000

5000

H

8000

13600 13600

I

7000

I

3000

15000 15000

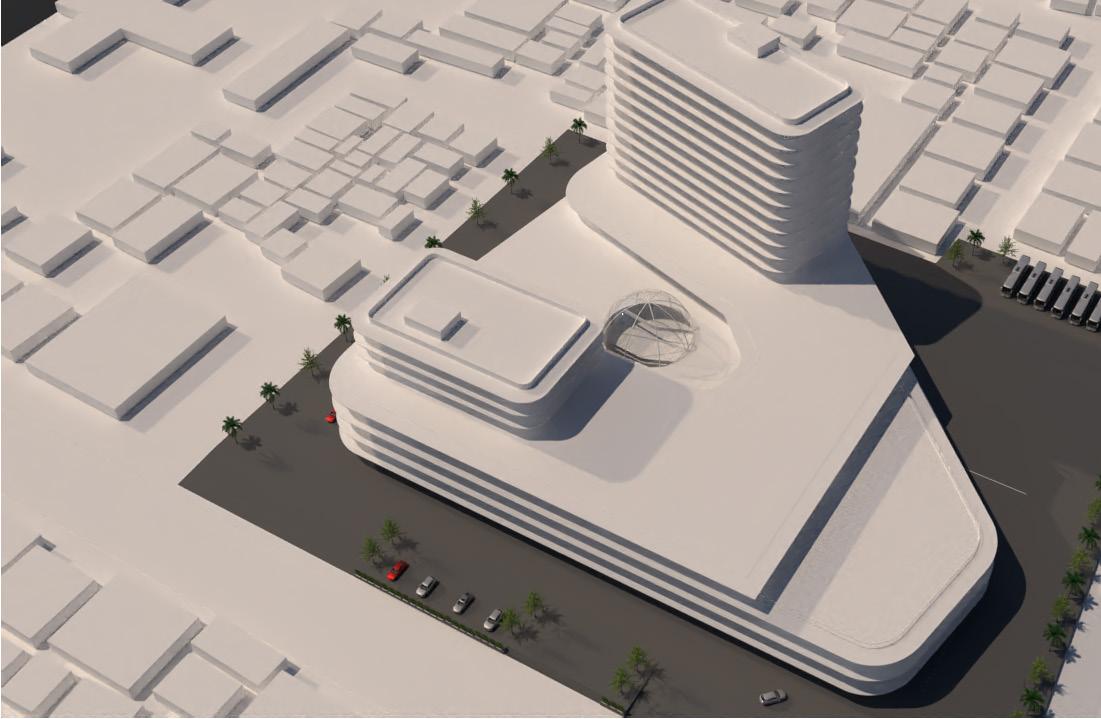

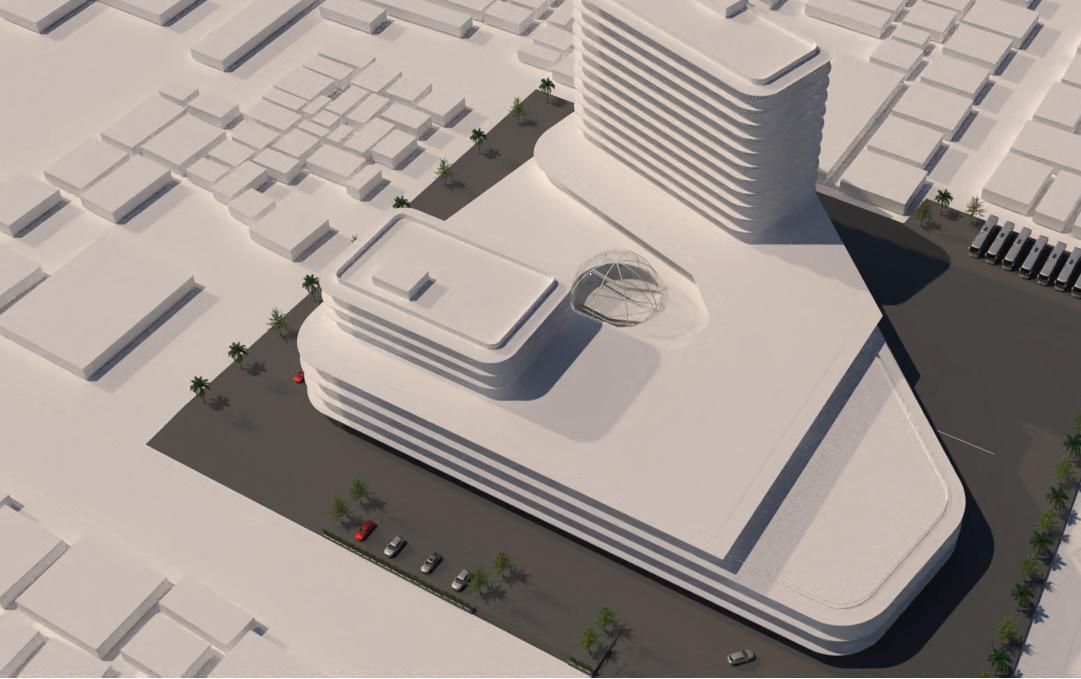

Bird’s Eye View

J

J

5000

K

5000

K

Third Floor Plan THIRD FLOOR PLAN

Fourth Floor Plan FOURTH FLOOR PLAN

Fifth-Seventh Floor Plan

1:1500 SCALE

1:1500 SCALE

HOTEL (5TH-15TH) AND OFFICE (5TH-7TH) FLOOR PLAN 1:1500 SCALE

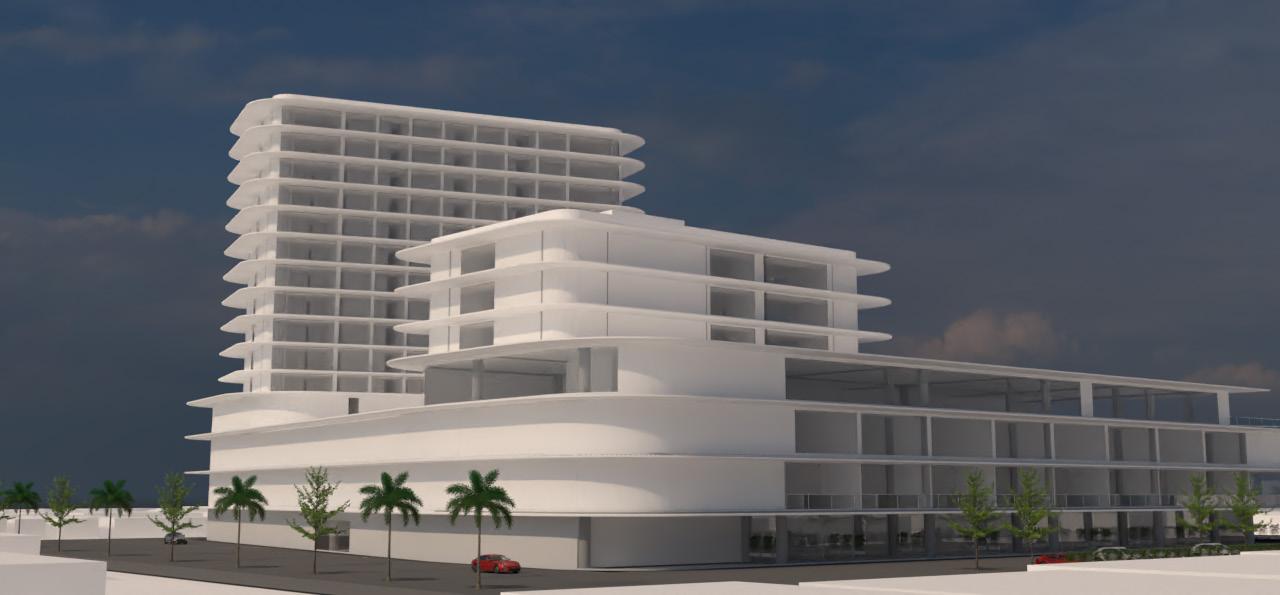

Front Elevation Exterior Lobby

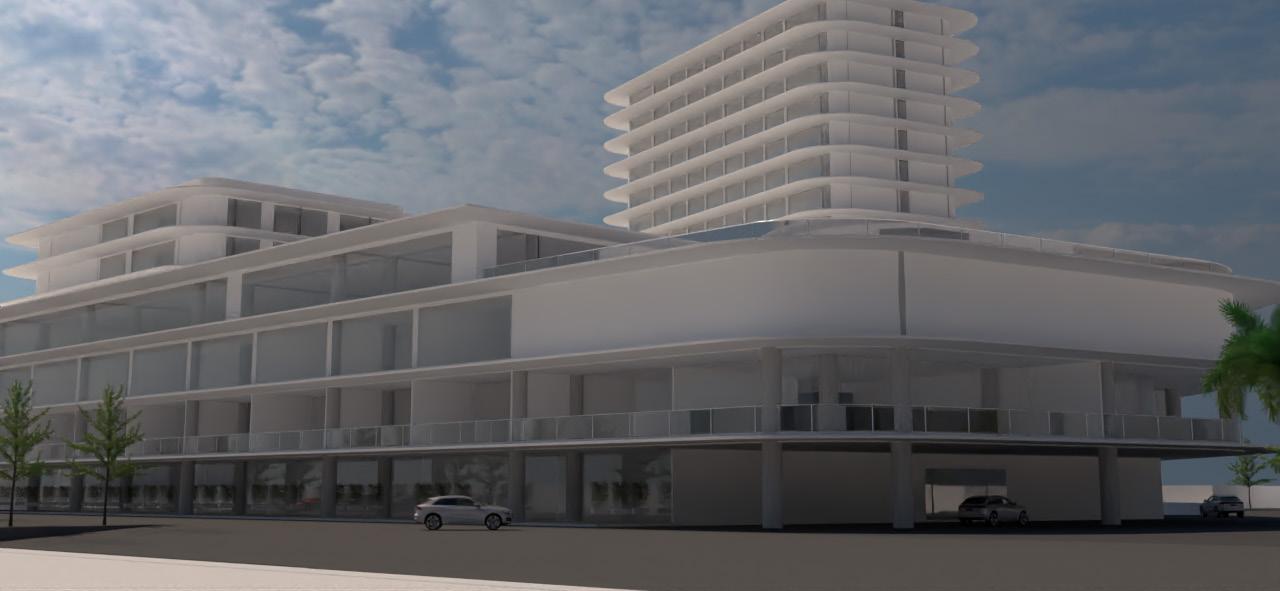

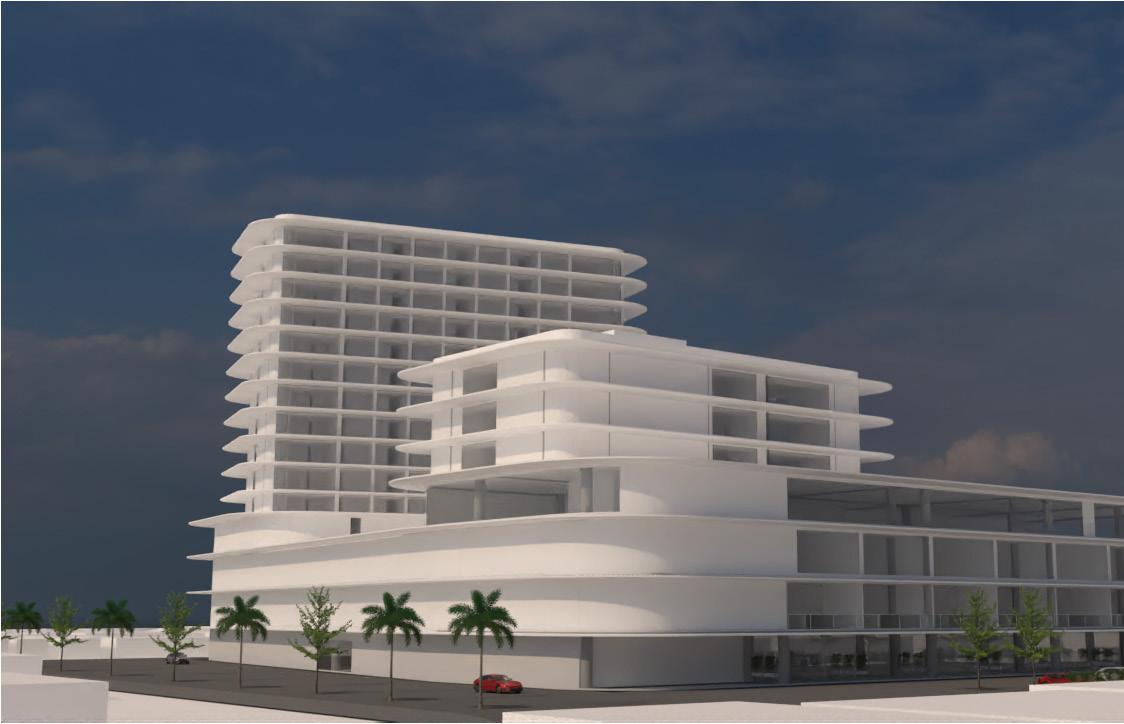

Exterior

Right Elevation

FRONT ELEVATION

RIGHT ELEVATION

1:1000 SCALE

1:1000 SCALE

Top Elevation TOP ELEVATION

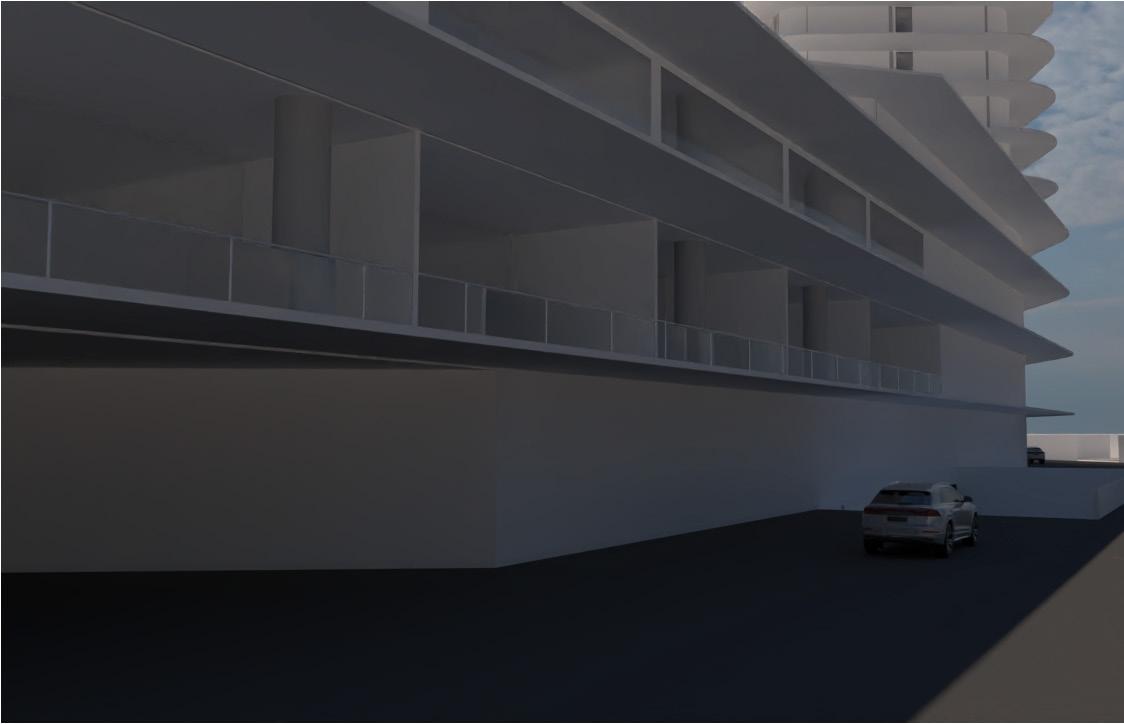

Basement Parking Entrance

Pedestrian Entry

1:1500 SCALE

Total Height: 61,25 m Site Area: 18.545 m2 Floor Area (Level 1): 9.698 m2 Floor Area (Level 4): 8.035 m2 KDB: 9.698/18.545 = 52,4%

16

Interior

Physical Model

5

Vibrancy in Mixed-Use District: A Case Study of TransitOriented Development Area in Dukuh Atas, Jakarta

Jakarta’s rapid population growth has caused severe traffic congestion and poor air quality, leading to the implementation of Transit-Oriented Development (TOD) strategies to enhance public transport and reduce car dependency. The Dukuh Atas TOD Project aims to create a sustainable urban environment by integrating transit stations with commercial and residential areas through mixed-use development.

Weekend Mornings - CFD

Weekend Evenings

Semester 8 - 2024 Undergraduate Thesis Individual Counsellor - Dr. Ir. Achmad Hery Fuad, M.Eng.

Weekday Evenings

Least Social Interaction

Topic Cluster - Urban

Weekend Afternoons Most Social Interaction

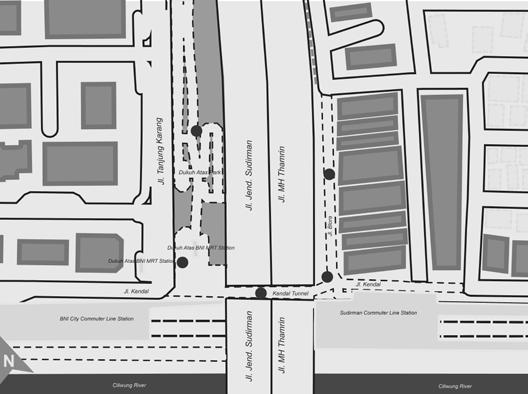

Buildings

Public Transport Station

Residential Buildings

Street

Green Spaces

Point of Observation

Pedestrian Only

Body of Water

Row of Street Vendors

Commuter Rail

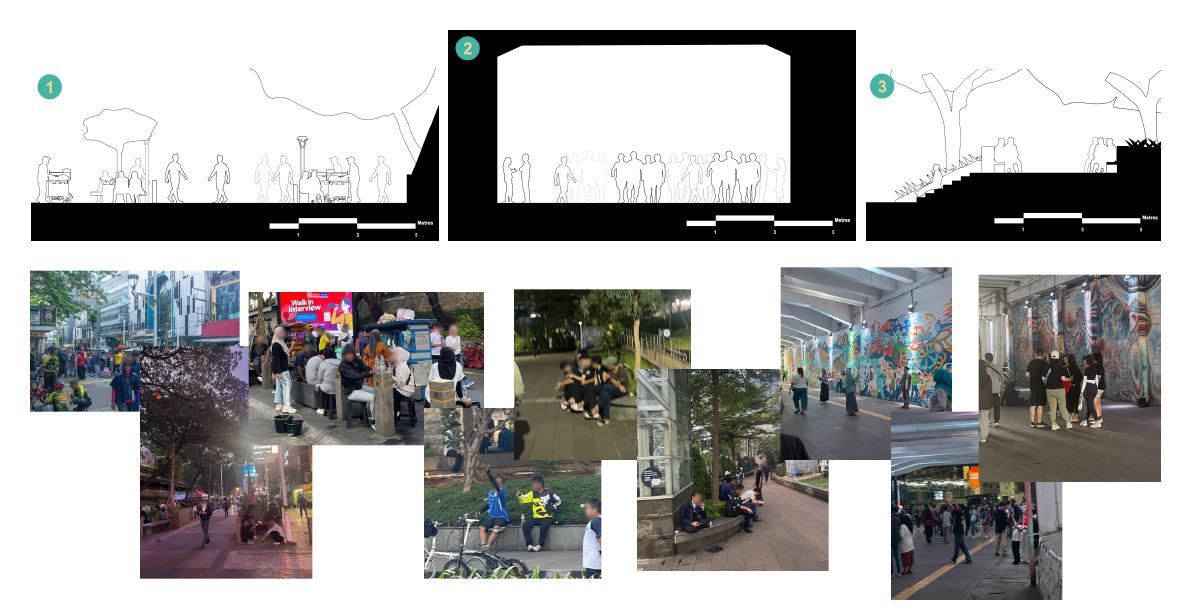

This study explores the vibrancy of Dukuh Atas, focusing on social interactions and gathering places, influenced by street furniture, accessibility, green spaces, and community engagement.

17

Using qualitative methods, this study concludes the evidence of vibrancy through dynamic levels of interactions and gathering places in areas like Jl. Blora, Dukuh Atas Park, and the Kendal Tunnel. Findings indicate that both spatial (atmosphere, proximity to public transport stations, and seating availability) and non-spatial factors (the presence of street vendors, human activity patterns, and the existence of organised events) contribute to it, which leads to vibrancy, thereby supporting TOD’s role in reducing car dependency, alleviating congestion, and improving air quality, thereby fostering a sustainable urban environment in Jakarta.

18

As I wrap up this portfolio, I look back on the journey that has shaped my approach to architecture. Each project here shows my dedication to creative design, attention to detail, and understanding how buildings interact with their surroundings. This portfolio highlights my technical skills and ability to solve problems creatively, as well as my commitment to designing spaces that enhance people’s lives. I am excited to continue this journey, tackling new challenges, and contributing to the built environment in meaningful ways.

IG: @fadlanhmzn fadham3@gmail.com linkedin.com/in/fadlan-hamizan link.tree/fadlanhamizan

Fadlan Hamizan Ekantoro Bachelor of Architecture - Universitas Indonesia 2020-2024

Selected Works

academic architectural design portfolio
