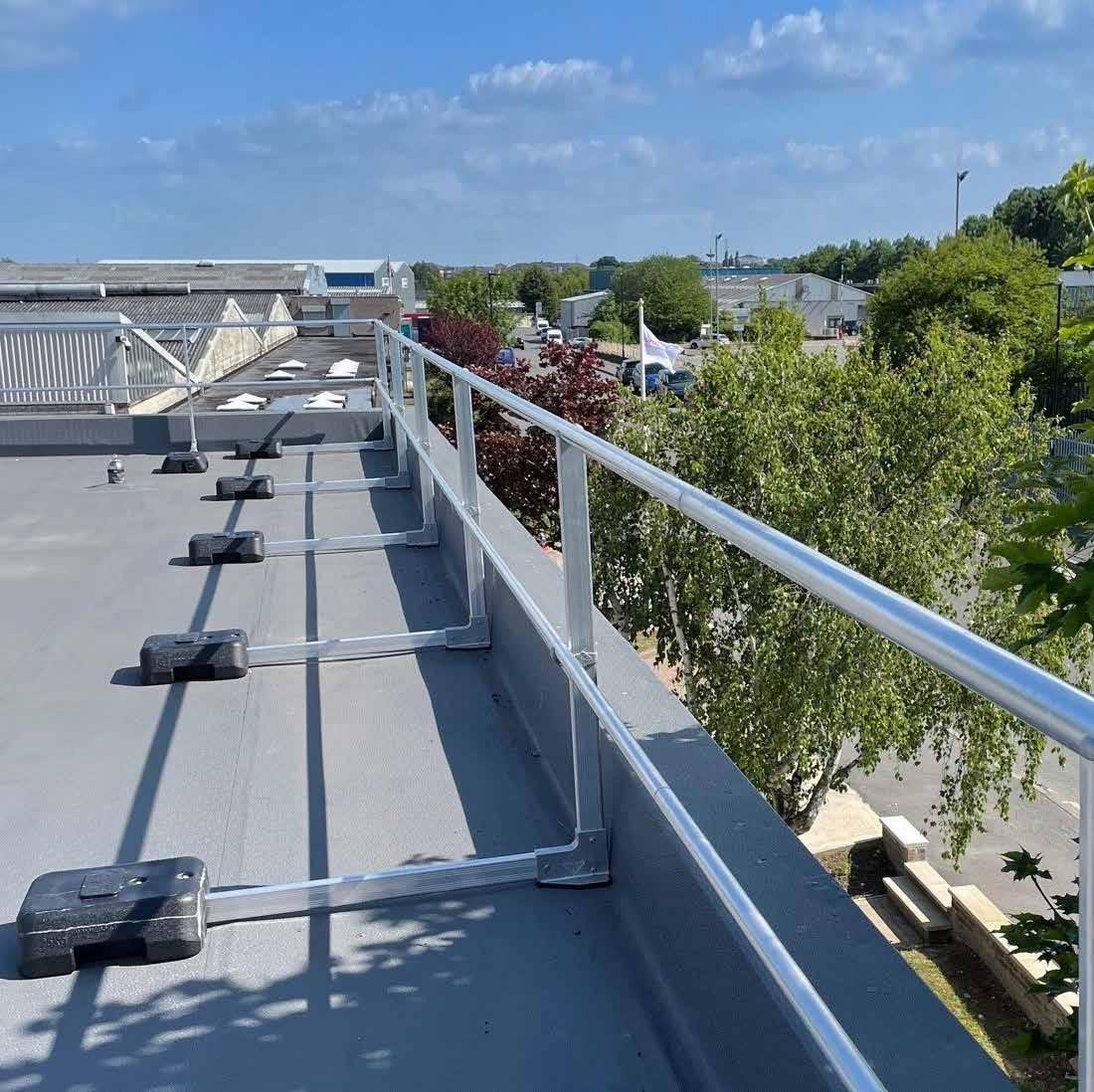

SolidRail® is a cost-effective modular edge protection system suitable for flat roofs with a slope of up to 5º. Made of aluminium, it is on average 30% lighter than steel guardrails, reducing the loads applied to the building.
SolidRail®:
• Can be installed completely freestanding without any damage to the roof; wall mounting is also possible
• Can be used as permanent (BS 13700:2021) or temporary (BS EN 13374:2013+A1:2018) edge protection
• Various configurations possible thanks to the modular construction
• Wind calculation provided for each installation
• System can be installed with a spacing of up to 2.5m between stanchions
• Additional toeboard is available if required
• Available in all RAL colours on request
System Components:
A: Uprights with rail holders
B: Freestanding foot, pre-assembled
C: Hand and knee railing
D: Corner connector
E: Hand and knee rail closure
F: Wall mounting
G: Lockable gate
H: Concrete counterweight with plastic housing
