Polyhedral Timber Structure Center

Multi-function Community Center

The project is driven by innovative form-finding techniques known as Polyhedral Graphic Statics. It employs a polyhedral system to generate forms, serving as the basis for the building design. This methodology is applied to create a landscape floor system within a mid-rise timber community center.

The building features two key structural systems: the landscape floor slabs, which interconnect floor by floor to transmit lateral forces to the ground, and the columns, responsible for carrying vertical loads. These systems collaborate to ensure the building’s structural stability.

Regarding spatial experience, the design prioritizes openness and flexibility. It offers a welcoming atmosphere, with an absence of defined circulation paths. Users can freely navigate the space, engage in activities, and promote interaction and exploration.

ARCH 602: Innovative Mid-rise Timber

Location: W 30th St, New York, NY

Instructed by Masoud Akbarzadeh

Collaborators: Jianqing Shou; Spring 2023

Role:Computational Design(100%), Concept Design(50%), Structural Analysis(100%) Digital & Physical Modeling (80%), Rendering (100%), Plan Drawing (100%)

This project utilizes PolyFrame, a computational framework for form finding software, to create force diagrams represented as a collection of polyhedral cells and to explore unconventional spatial funicular structural configurations. Through the subdivision of polyhedron and the adjustment of face intersections, a terracing slope form is generated, serving as the fundamental basis for the design.

Force-Form Diagram

designed force diagram(left) / resulting structural form(right)

elevation(1st row) / plan(2nd row) / isometric(3rd row)

Structural Module Study Matrix(left)

Program Diagram(above)

development(up) / aggregation (down)

Exhibition Room View interior render | 1:100

Dining Room View interior render | 1:100

Highline Level Floor Plan line drawing | 1:250

Longitudinal Section line drawing | 1:250

ASSEMBLY & FACADE SYSTEM

The primary building material, chosen for its environmental considerations, is CLT (cross-laminated timber). The floor slab consists of three layers, with CLT beams situated in the middle. These beams are also exposed under the slab to showcase the polyframe system.

The facade system employs polycarbonate material to create a translucent effect, balancing privacy with an open ambiance. Transparent glass is also utilized to invite natural light into the building, fostering a welcoming atmosphere and connecting people within the structure and with the surrounding street.

glass-fiber insulation board

plumbing window mullion

CLT beam

wood slat finish

ceiling light

CLT panel

acoustical underlayment

Structure Skeleton

Facade System

Assembly Diagram physical model(left) floor slab system | 1:250

render(middle) / line drawing(right) | 1:150

Roof to glass fin facade connection

Glass fin to polycarbonate facade connection

Glass fin facade to foundation connection

Skylight View physical model | 1:50

This close-up shot highlights the seamless coordination between the exposed polyframe structure in the ceiling and the underlying floor landscape, resulting in a captivating corridor spatial experience.

1:50

This close-up shot illustrates how the polyframe structure naturally shapes the entrance and reveals the intricate interplay between the transparent and translucent facade systems.

Main Entrance View physical model |

Gallery Promenade View physical model | 1:50

02

Oasis NY

Adaptive Reuse Housing

Although NYC has plenty of green space, those who are prioritized as worthy of having access to these valuable resources and locations tend to be the city’s rich residents. The adaptive reuse of the Corbin Building attempts to find a schema that helps reduce this discrepancy. By using the strategy of clustering, three oasis cluster areas are created and embedded inside the existing building. The structure of the new façade is parasitized while growing from the center of clusters and flowing along the old building façade. Through the flow, new balconies and window glazing are naturally formed, enriching visual dialogues, and bringing sunlight into the oasis.

Unlike typical green spaces, the oases not only bring nature but also create a hydrological ecosystem that allows residents to plant and enjoy organic food. In addition, one of the oases is also open to the public. It creates a connection to the Fulton Center’s green rooftop park that brings benefits to everyone in NYC.

ARCH 601: Shifting Hybrids: Adaptive Reuse of the Corbin Building

Location: Financial District, Manhattan, NY

Instructed by Hina Jamelle

Individual Work; Fall 2022

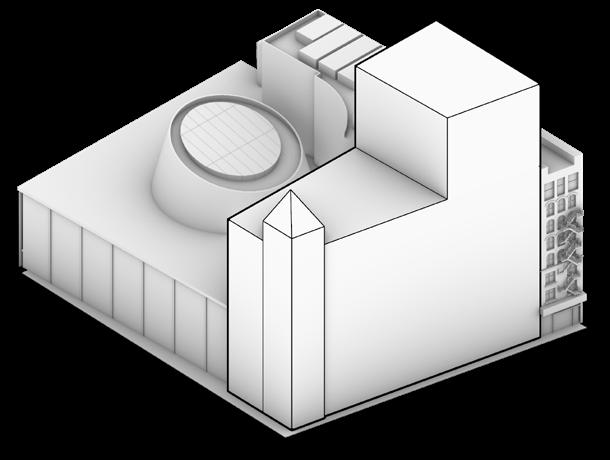

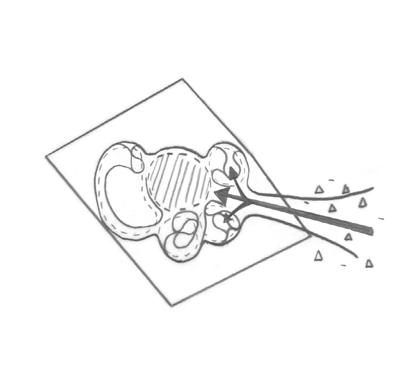

STUDY OF LICHEN (ABOVE) / MASSING DIAGRAM (BELOW)

Through the study of natural maritime sunburst lichen, the techniques of “folding”, “bifurcation” and “clustering” are extracted. The interrelations of “pushing“, “overlapping“, “merging“, “interlocking“ and “stacking“ are developed. The language of clustering is mainly applied into the reuse of Corbin Building in a way that three oasis clusters are formed. The massing facing Broadway is carved to give public space. Therefore, partial massing is extended vertically to compensate space.

1. Original Building

3.

2. Extension 4.

3

UNITS INTERRELATIONSHIP - PLAN

Informed by the study of lichens, the integration of interrelated design concepts, such as overlapping and interlocking, finds its way into the structure of unit plans. The fusion of studio and one-bedroom units through overlapping facilitates the creation of shared balconies, thereby expanding available space and infusing both units with additional natural light. Similarly, the strategic interlocking of bathroom areas within two-bedroom units contributes to a more organized and efficient layout.

A detailed depiction of these design principles can be observed in the floor plans for the sixth level, featured below. Following the pattern of lichen growth, the arrangement places larger units at the center, radiating outwards into smaller units along the periphery. This approach not only optimizes spatial utilization but also ensures a harmonious distribution of living spaces throughout the floor.

Medium Unit Plans | (S/M)

| Overlapping (Shared balcony)

Large Unit Plan | (L)

Interrelationship | Interlocking

1 - studio

2 - one bedroom

3 - two bedroom

4 - corridor

SECTION

DRAWING (BELOW) / CHUNK MODEL (RIGHT)

line drawing | 1:350 render | 1:350

Three oases are strategically positioned within the building, each forming a cluster. The largest of these oases seamlessly links with the rooftop of the Fulton Center, establishing a second pathway and enhancing the convenience for residents of the Corbin Building.

PhillyNFT Mural Fusion

An NFT Marketplace in Philadelphia

A market is a place where two parties, usually buyers and sellers, can gather to facilitate the exchange of goods and services. The primary driving force behind consumption today is Generation Z. They seek detailed service experiences, cutting-edge fashion, and personalized customization. Physical stores should recognize the importance of adapting to the needs of this generation, offering exclusive customization to enhance customer loyalty. Additionally, stores can set themselves apart through scenario-based design, innovative product selections, diversification, and extending the product chain.

NFTs (Non-Fungible Tokens) bring a groundbreaking concept to the market, akin to options and futures in finance. They enable the trade of digital artworks, redefining the art-buying experience. Additionally, the building evolves into a vibrant platform for artists to promote their work within Philadelphia’s thriving art scene, fostering creativity and cultural enrichment.

ARCH 502: Hyperobjects - Cyber Material Hybrids

Location: N. 10th St and Buttonwood St, Callowhill, Philadelphia

Instructed by Ezio Blasetti

Individual Work; Spring 2022

Nestled in the heart of Philadelphia’s mural-rich Callowhill district, this project derives its inspiration from the city’s vibrant street art scene. The wealth of murals in this area serves as a rich dataset, enabling the creation of projected images on the building’s facade, imbuing it with artistic dynamism.

The design journey commences with the exploration of Penrose Tiling geometry. Two units are extracted, appearing similar from specific angles but differing subtly in width. Through creative rearrangement, these units converge to shape the building’s distinctive form. Embracing Penrose Tiling’s non-periodic aesthetics and Philadelphia’s evolving street art, this design redefines Callowhill’s character, honoring the city’s culture. It delivers a dynamic and aesthetic addition to the landscape.

SITE ANALYSIS & GEOMETRIC EXPERIMENTS

Mapping of Mural Distribution in Philadelphia

Penrose Tiling

INPUTS - Mural Arts in Philadelphia

OUTPUTS - Mural Paintings Generated by RunwayML

Machine Learning Process

Python Scripting in Rhino

IMPLEMENTATION - Apply Murals Datasets into Building’s Facade

North-East Elevation View render | 1:500

South-West Elevation View render | 1:500

Utilizing a subdividing technique, units serve as the parent elements, generating four parametrically-derived generations. This computational tool spatially divides and crafts distinct user experiences. The conceptual section, entirely driven by computation, is depicted below.

Building upon the conceptual model, adjustments were made to align it with the site, program requirements, and enhance its overall coherence. The circulation path seamlessly weaves through the structure, facilitating internal connectivity while also establishing interactions with the surrounding environment.

Conceptual Section collage drawing | 1:500 grasshopper | python

Longitudinal Section

circulation path art gallery and trading bridge path work studio small theatre

N. 10th St.

Nectarine St.

Buttonwood St.

04 Tiling System

Exploration in Tiling and Iterative Design

Intrigue surrounds the process of translating 2D images into 3D representations. Research from New Scientist underscores how the human visual system adeptly compensates for the inherently 2D nature of retinal images by deploying an array of depth cues. These cues are distinctly shaped by individual cognitive systems, derived from personal experiences, ultimately shaping perception of the world.

The chosen pattern, an orderly array of rhombuses, skillfully conjures 3D optical illusions for viewers, often resembling cubes owing to the rhombus-square association. This project deliberately departs from this convention by harnessing the power of curvature to craft a 3D curvilinear tile module. Extensive experimentation led to the discovery of an optimal module that offers versatility in generating a spectrum of outcomes. By manipulating this module through rotations and shifts, a range of spatial configurations emerges, thus giving rise to private, semi-private, and public spaces within the system.

A4856-1: Transitional Geometries, GSAPP

Location: 505 Avery, New York

Instructed by Joshua Jordan

Individual Work; Fall 2019

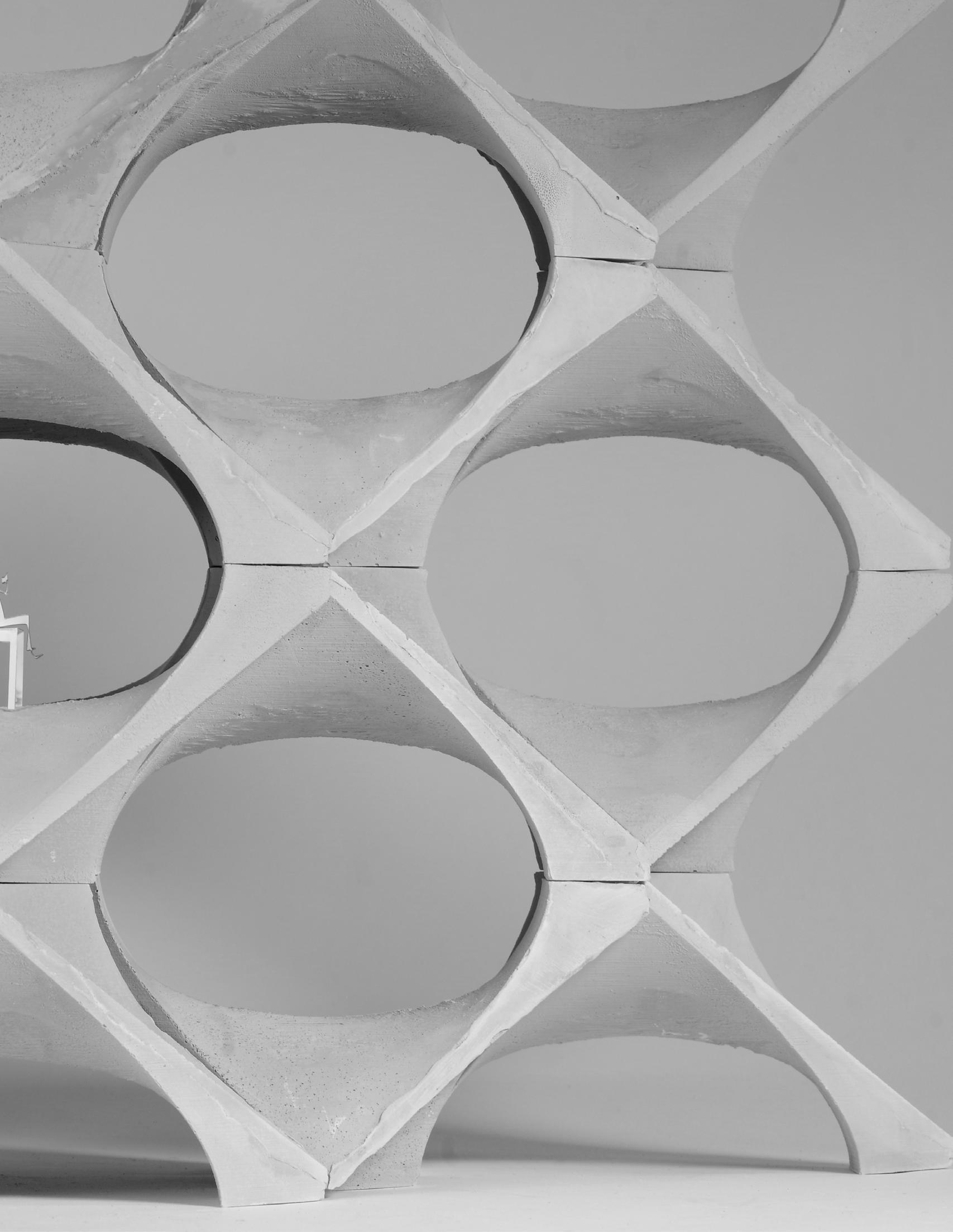

CLOSE SHOT OF PHYSICAL MODEL

Step 1: Initiated by bending the edges of the 2D rhombus, it undergoes a remarkable transformation into a 3D entity, marked by curvature and depth.

Step 2: Building upon the previous step, the curvature and contour from Step 1 are ingeniously integrated into a unit rhombus, which is then meticulously halved, harnessing the full potential of the curvature to create a complex geometric design.

Step 3: In the final phase, the entire pattern comes into focus, as the cutting technique applied in the previous step is systematically extended across the design. This comprehensive approach transforms the initial 2D concept into its fully realized, intricate 3D form, resulting in a captivating and architecturally engaging final version.

glue gun

liquid silicone

stir sticks

sidewall material

rockite cement

clay tools

base material

packing tape

measure cup clay

rice olfa

tool desk

by testing three ways of making mold, the optimal way is the final one

Flow

Reconstruct a Warehouse in South Boston

The universe operates dynamically, with flexible, ever-changing relationships between humans and objects, whether physical or metaphysical. Immutable boundaries rarely exist, and even small changes can have profound, often imperceptible effects. This suggests that absolute solutions remain elusive, but temporary optimal solutions can be found in the moment.

In supply chains, a network synthesis approach blurs boundaries and disrupts hierarchies, allowing materials, finances, and information to flow strategically across regions and nations, infusing vitality to adapt to the dynamic external environment. Architectural boundaries, when rendered fluid and dynamic, enable adaptable spatial scales and circulation, accommodating diverse scenarios. Moreover, breaking down barriers between a building and its surroundings creates a harmonious synthesis, infusing vitality and flexibility throughout the environment, acknowledging the fluidity of interactions in our universe and the need to respond to ever-shifting challenges and opportunities.

Harvard GSD Career Discovery

Location: Roxbury, Massachusetts

Instructed by Kate Cahill

Individual Work; Revised in Summer 2020

FLOW DIAGRAM

The site is situated within a bustling logistics hub in the New England region. Here, a variety of lumber containers from different brands find temporary storage. Lumber represents one category of cargo in this bustling cluster, with steel and food comprising the other two.

Given the inherent logistics nature, there’s a strategic flow of information, cargo, and financial resources within this dynamic synthesis. The traffic in close proximity to the site is notably dense, but unfortunately, it poses challenges and inconveniences for the local residents and students.

low efficiency in transporting three kinds of cargoes

Current Issues

safety issue for pedestrian caused by heavy traffic

lack of education resources compared with downtown

poor level of revenue in Roxbury district

Cross-docking Education Connection Tourism

pooling the transit way to decrease cost

DYNAMIC WORLD

current optimal solution + leave rooms for adjusting

connecting destinations to avoid crossing roads

Endow

acting as a library to provide study resources

the Site with 4 Functions to Solve Issues

Is it enough?

acting as a logistics museum to attract visitors

In supply chain studies, the world is viewed as dynamic. In supply chain design, the approach involves analyzing the current situation and providing the best current solution while allowing room for adjustments to accommodate future changes.

This philosophy has also influenced building design. Instead of static concrete structures, the concept revolves around creating a “temporary and adaptable warehouse.” This envisions an architectural framework that flexibly adapts to evolving needs and environmental shifts, ensuring relevance in a constantly changing world.

raw materials

manufacturer

customer retailer warehouse distributor Concept collage

Containers stored on site 3m and 6m lumbers or Lumber could be the inventory in warehouse

Lumber could be the component of wall

What if I keep the original function of the site (lumbers stored on site as inventory) but also design a building (lumbers become materials for construction) to provide more functions?

Movable walls: with tracks, lumbers which consist of walls can move freely in the building

Comb Stomach Whistle Jellyfish Kangaroo Clover

Helmet Ribbon

SPACE ANALYSIS - Utilizing tracks, depicted as lines below, lumbers can easily travel along these designated pathways, opening up possibilities for the creation of diverse spatial configurations.

steel lumber food resident tourist tourist student

: truck sound

: car sound

: human sound

: natural sound

Step 1: determine the main directions of each flow.

L-1: mainly for logistics

L1: easy for tourists to enter

L2

L3 lumber mall playwork steel tourist loudest quietest resident student food

L2: elevated as a natural overpass flow diagram

L-1: indoor theatre & admin

L1: museum area for tourists

Playwork Mall Mall Mall Mall

L1: track added

L2: public square & exhibition food food food

Step 2: expand the site into three levels in order to separate gateway of each cargo truck. Divide flows into three groups; assign each group into different levels.

L-1 ground lumber lumber lumber playwork playwork playwork

L-1: track added resident resident resident student student student

Step 3: add one more level to create quiet space and use it as learning area. Based on varied needs of different kinds of flow, functional space with scale are generated.

L3: add level for study (quiet space) steel steel steel tourist tourist tourist tourist tourist tourist

L2: track added

L3: track added

Step 4: trace the outline of each functional areas. The shapes of each level are naturally formed by enclose all the outlines. Tentacles are generated to transmit flows.

BUILDING FUNCTIONS

circulation hub | pedestrian & logistic

Viewing Platform

Study Room

Reading Room

Library Storage

Exhibition

Digital Workshop

Public Square

Cloak Room

Gift Shop

Public Market

Restroom Cafe

Gallery A, B, C, D

Indoor Theatre

Canteen

Explosive diagram

Conservation Department

Administration office

Van Student Resident

Tourist

Study Space

The site provides a natural demonstration of the logistics in action, offering tourists an immediate opportunity to observe the process as soon as they step into the building’s hall.

The uppermost level, isolated from the bustling logistics activities, creates a serene environment ideal for undisturbed study and contemplation.

logistic museum | render | 1:80 library | render | 1:200 logistics center | render | 1:80

Lumber, along with steel and food containers, converges at this site to help facilitate the reorganization of cargo inventory.

Lobby View

Street View

Top View

- section diagram

Ryerson, CA

POSSIBLE SCENARIOS

The depiction of various scenarios, each with their spatial divisions, carefully caters to diverse user sizes and functions, aligning with current needs. Crucially, the flexible space design doesn’t adhere to fixed functional allocation. Function rooms have the capacity to dynamically merge or separate to effectively meet evolving requirements and user demands.

Combination

Consecutive corridor

Wall -> Inventory

Cargo Rearrange

Exhibition Hall

Private unit

Gallery

Gathering

Study Room

Hong Kong

Cafe

Restroom Gallery D

PROFESSIONAL WORK: GUIYANG GRAND BAY HOTEL (Kengo Kuma & Associates)

Skyscraper Hotel // 2023 // Architectural Intern // Commission // Area: 962,455 sft

Tool Used: Rhino | AutoCAD | Vray | Enscape | Photoshop | Illustrator | Laser Cut | 3D Printing

This eco-conscious skyscraper hotel seamlessly merges nature and culture, offering guests a verdant journey from ground to sky. Positioned to capture panoramic views of the natural landscape to the west.

Section A-A’

Standard Room | Interior Render

Roof Garden

Exterior Render

Section B-B’

Gym | Interior Render

Drop off Lobby

Exterior Render

Living Your Best Life - Designing for Mental Health in High-Density Sprawl

The design integrates the “Luoshu” concept into a central cubic volume. Yang areas are void spaces filled with sunlight, while Yin areas are solid floors representing the earth. The building is divided into upper residential and lower nature/public space.

Yin Yang

SCENE 1

Square “Chinese city-state”It acts as a buffer in the bustling city, and has become a rare space for walking and vegetation.

SCENE 2

In high-density residential areas, these blocks akin to “Chinese city-states” integrate seamlessly as part of the community.

SCENE 3

In certain underdeveloped urban villages, these blocks can stimulate the growth of local industries.

SCENE 4

In certain barren locales, these blocks function as self-contained communities.

Concept Diagram(left)

Scenario Analysis(right)

OTHER WORK: REVIT PRACTICE

ARCH 532: Construction II // Instructor: Franca Trubiano

ROBOTIC FABRICATION

ARCH 636: Material and Formation // Instructor: Robert Stuart-Smith, Ezio Blasetti

ROBOTIC

fail scenario success scenario

Elevation View physical model | 1:12

This photograph displays a 6-foottall physical model meticulously crafted using laser-cut MDF and wood glue. When viewed from different angles, the patterns vary, yet they visually flow seamlessly, forming intricate designs.

Chambers

Instructor: Ryan Palider

Projecting View physical model | 1:1

A temporary installation for children. The patterns drawn by children are processed by AI to develop conceptual model for playgrounds. This model is then realized in the shape of a sail, allowing the projection and display children’s hand-drawn artwork.

Instructor: Danielle Willems & Ezio Blasetti
