01 PERFORMANCE ARTS CENTER
Boston, MA
Studio 04 Spring 2024
Professor: William Mcllroy Eric Pineda
At the heart of the creative pulse lies the Flowing Arts Theatre, a dynamic architectural hub where the essence of the Performance Arts Center thrives. Designed to embody versatility, its fluid spaces serve as a transformative canvas, echoing the rhythm and spirit of performance. Here, the boundaries between performer and audience blur as the architecture itself becomes an integral part of the artistic expression. Flexibility is key, offering a stage where innovation flourishes and imagination knows no bounds. With every reverberation, the theatre breathes life into the community, igniting a passion for the arts that flows seamlessly through its veins.
First Floor Plan
Second Floor Plan
Collages
Hand-Crafted Model
Perspective: Outdoor Performance Space
02 SANDI SIMON DANCE CENTER - PRECEDENT
Orange, CA
STUDY
Studio 04 Spring 2024
Professor: William Mcilroy
Eric Pineda & Lara Akyuz
Lorcan O’Herlihy Architects
Located within Chapman University, the Sandi Simon center for dance transcends the boundaries of a typical building. Originally an Orange-packing factory, this adaptive re-use project seamlessly blends history and innovation. The exterior stands as a testament to the past, its original identity preserved. Stepping inside, however, the ground opens up. The original floor has been sliced, creating dynamic new spaces connected by a fluid circulation system. The structure hints at its old language, aided by contemporary elements that keep the building standing. The building’s centerpiece is the performance area. organic in shape, it embraces dancers with the warmth of wood, standing in stark contrast to the surrounding white canvas. This deliberate design choice is more than just aesthetics; it’s a symbolic stage, where tradition meets the bold strokes of artistic expression.
Collage
Thirst Floor Plan
Second Floor Plan
First Floor Plan
Collage
Hand-Crafted Model
03
COMMUNITY CENTER FOR THE DEAF & HARD OF HEARING
Orange, CA
Studio 03
Fall 2023
Professor: Kevin Lee
Eric Pineda
Drawing inspiration from the fluidity of circulation within and around the site while prioritizing accessibility for all, the concept unfolds as an architectural testament to inclusivity. Divided into three distinct volumes oriented towards recreational zones, the design carves out visually striking entrances intended to be inherently welcoming, especially to those who are deaf or hard of hearing. By harmonizing form and function, the spaces transcend mere physical structures, embracing a narrative of connectivity and belonging. Each entrance becomes a gateway to a realm where barriers dissolve, fostering a vibrant exchange of ideas and experiences, enriching the fabric of the community it
First Floor Plan
Second Floor Plan

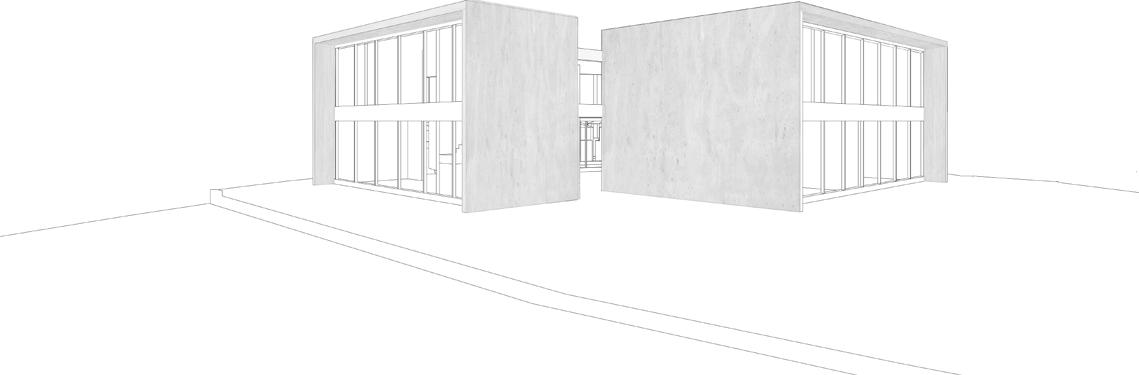

Perspectives
BUILDING AREA
DIRECT VIEWS
COMFORTABLE ACCESSIBILITY
GATHERING SPACE Diagrams
04 HUNTERS VIEW BLOCK 5 & 6 - PRECEDENT STUDY
San Francisco, CA
Studio 03
Fall 2024
Professor: Cadence Bayley Paulett Taggart Architects
This existing site is located in Bayview-Hunters Point which was a 267-unit public housing development constructed as temporary workforce housing in 1956. This original site faced challenges such as deteriorating buildings, steep terrain, a street grid that cut the neighborhood off from the rest of the city, undefined open space, and no resident service. It was known to be isolated and dangerous, crime ridden public housing. Design integrations included connected streets, buildings with frequent steps that step up with hills (reflect scale, rhythm, and texture of SF) , integrated stormwater management, renewable energy, and healthy resources. The apartment buildings are designed to look like individual houses, each with private or shared entry stoops
Collage
First & Second Floor Plan
Site Plan
Unit 110
Unit 210
Unit 110 Entry from Street
Unit 210 Entry from Courtyard
05 BOAT BUILDING SCHOOL
Brooklin, ME
Studio 03 Fall 2023
Professor: Kevin Lee
Craftsman’s Harbor, a Boat Building School, epitomizes a dynamic blend of craftsmanship and community engagement. Designed as an exhibition-like space, it fosters an immersive environment where students, visitors, and boat builders intertwine seamlessly. Through thoughtful architectural orchestration, the school encourages perpetual physical and visual connections, enriching the educational experience and celebrating the art of boat building. From the rhythmic clinking of tools to the captivating displays of maritime heritage, Craftsman’s Harbor invites all to embark on a journey where learning transcends boundaries and tradition meets innovation.
Skylights Flat Roof
Exterior Cladding
Exterior Windows
Concrete Flooring
Concrete Foundation
Glass Folding Garage Door
Interior Windows
Dry Wall
Mass Timber Vierendeel Truss
Concrete Beams
Foam Insulation
Section
Unconditioned Space
Unconditioned Space
Circulation Outdoor vs Indoor
Circulation Inside/Outside
Aluminum Cover
Waterproof Membrane
Substrate
Substrate
Cavity Insulation
2x12 Joist
Sheathing
12x12 Heavy Mass Timber
Drainage Plane
Rigid Insulation
Air Cavity
Vertical Wooden Cladding
2x6 Joist
Wall Board
Insulation Cavity
Rigid Foam Insulation
Concrete Wall
Drainage Pipe Earth
Drainage Rock
Concret Footing
Concrete Control Joint
Rigid Insulation
Concrete Flooring
Protective Covering Structure
