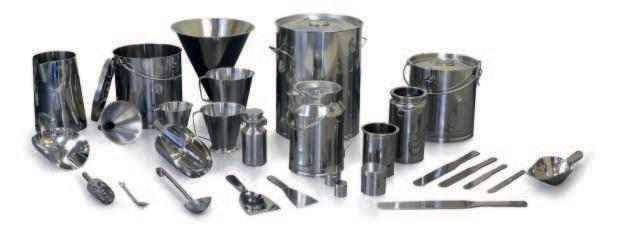

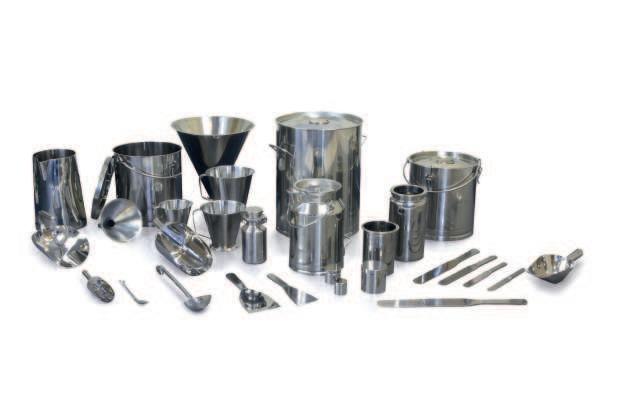

Welcome to the latest edition of our Stainless Ware Brochure
Since our last brochure we have been working hard to bring you an even larger range of high quality stainless steel products. As you look through the brochure you will see that we have introduced many new exciting ranges as well as adding new products to our existing ranges.
We would like to say “Thank You!” to the many customers who have contacted us with requests and ideas for new products. We are always happy to receive customer feedback about any of the products in our range.
We have well over one million items in stock and so we offer same-day-shipping on the vast majority of the products in our range.
If you have any questions please contact our highly trained sales team by telephone, email or webchat.
JonathanFenner SimonFenner
EVERY TIME
StainlessWare

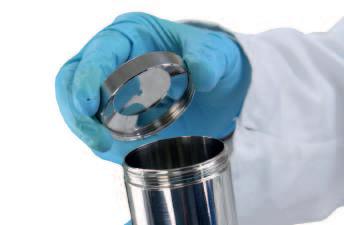

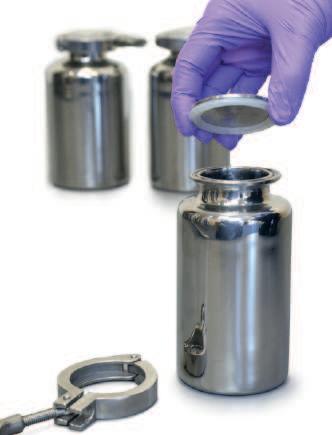

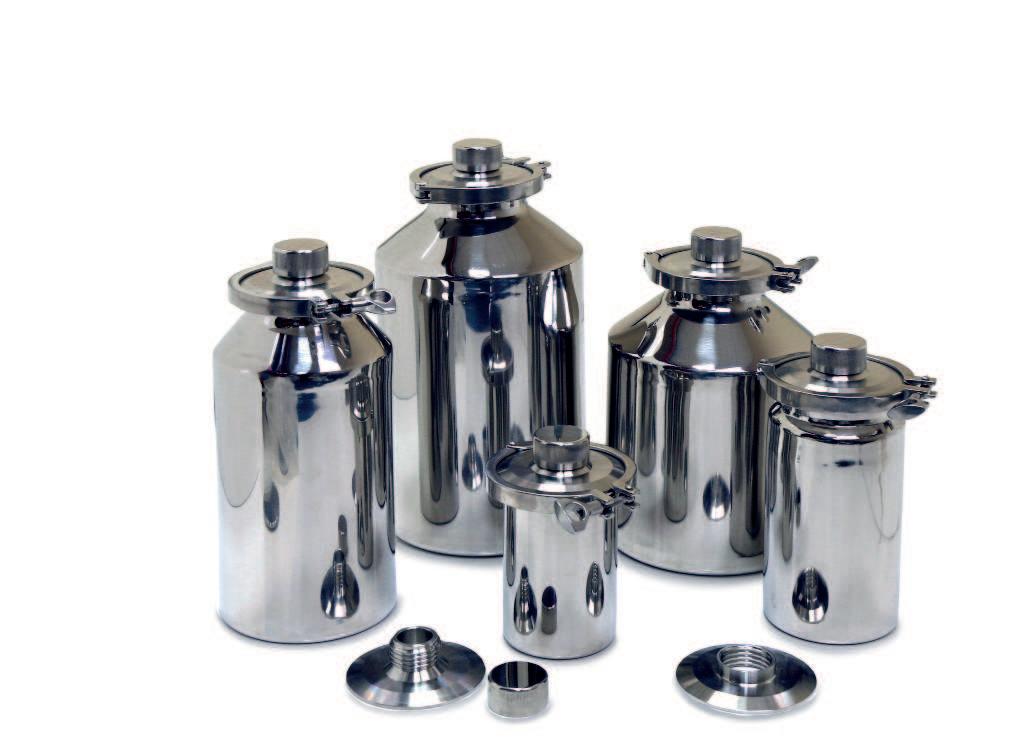

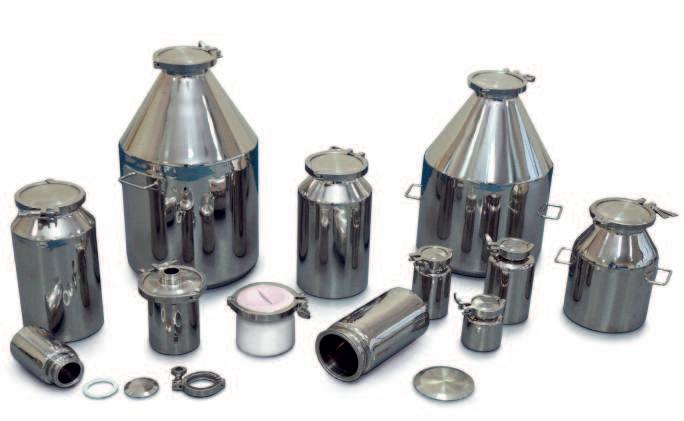

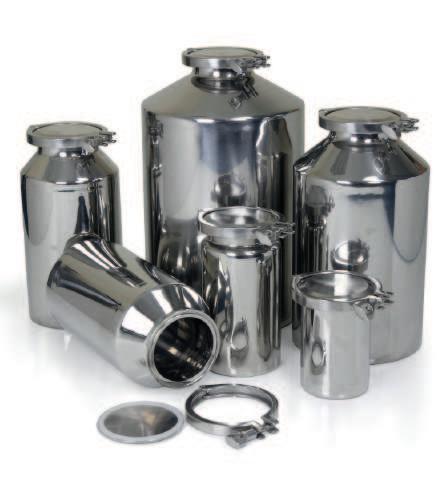

CONTAINERS With Tri Ferrule Clamped Lids
The Sampling Systems range of Stainless Containers with Tri-Ferrule Lids are a very popular range in the pharmaceutical, chemical and food industries. The high quality finish and 316L stainless steel construction make them ideal for most applications. The Stainless Containers are available in 3 lid sizes (2", 4" and 6").

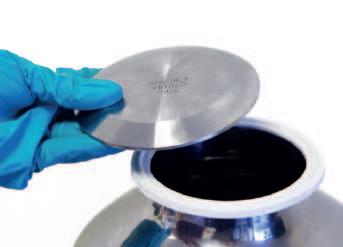

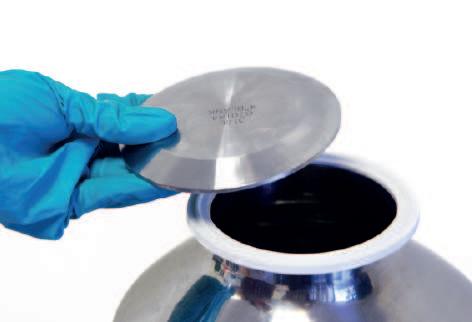

The Tri-Ferrule lid (BS4825-3) ensures that the containers are both powder-tight and watertight. The Tri-Ferrule system enables the containers to be clamped directly on to other items of processing equipment.
• Multi purpose containers
• 316L stainless steel body and lid
• Robust construction
• Crevice free interior
• Tri-Ferrule style Lids BS 4825-3
• All welds ground and polished
• Complete with lid, silicone gasket (FDA compliant) and clampband
• Leak-proof
Stainless Containers (2” Lid)
A836-250250ml83mm97mm2”316L ss
A836-500500ml83mm148mm2”316L ss
A836-10001000ml102mm178mm2”316L ss
Spares
K201-2Spare 2” Silicone Gasket - FDA acceptable grade
K202-2Spare 2” EPDM Gasket - FDA acceptable grade
K203-2Spare 2” Viton Gasket - FDA acceptable grade
K204-2Spare 2” PTFE Gasket - FDA acceptable grade
Stainless Containers (4” Lid)
New sizes
A416-11L102mm152mm4”316L
A416-22L122mm228mm4”316L ss A416-55L162mm313mm4”316L ss A416-88L212mm283mm4”316L ss A416-1010L212mm363mm4”316L ss
A416-1515L272mm361mm4”316L ss A416-2020L272mm443mm4”316L ss A416-2525L302mm460mm4”316L ss A416-3030L302mm602mm4”316L ss
Spares
K201-4Spare 4” Silicone Gasket - FDA acceptable grade
K202-4Spare 4” EPDM Gasket - FDA acceptable grade
K203-4Spare 4” Viton Gasket - FDA acceptable grade
K204-4Spare 4” PTFE Gasket - FDA acceptable grade
Stainless Containers (6” Lid)
A856-5050L400mm550mm6”316L ss
A856-7575L450mm650mm6”316L ss
A856-100100L500mm670mm6”316L ss Spares
K201-6Spare 6” Silicone Gasket - FDA acceptable grade
K202-6Spare 6” EPDM Gasket - FDA acceptable grade
K203-6Spare 6” Viton Gasket - FDA acceptable grade
K204-6Spare 6” PTFE Gasket - FDA acceptable grade
StainlessWare

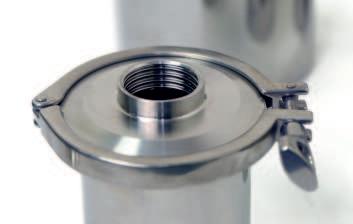

Containers with GL45 Threads (316Lss)
Our range of GL45 containers have the advantage that the
The containers are available in a variety of sizes and are highly polished as
• Multi purpose containers
• Heavy duty construction
• Crevice free interior
• 316L stainless steel construction
• Lid can be completely removed for full cleaning
External GL45 Thread (with screw on Cap and silicone seal)
Internal GL45 Thread (not supplied with a Cap)

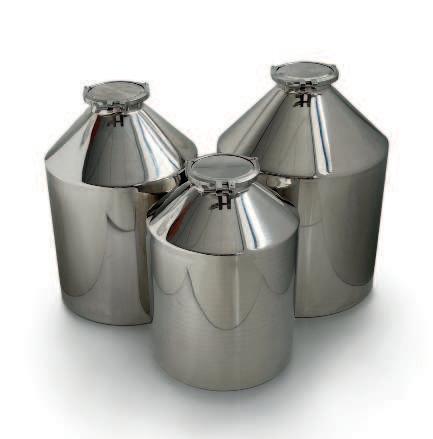

Clamp Containers (316L ss)
• Multi purpose containers
• 316L stainless steel
• Crevice free interior
• Supplied with lid, clamp and silicone seal (FDA acceptable grade)
• Wide 4” (100mm) diameter tri-clamp lid BS 4825-3
• Satin finish
• Side handles (excluding 1 and 2 litre sizes)
• Neck has a 60° angle to promote powder discharge
See Page 5 for spare 4” seals

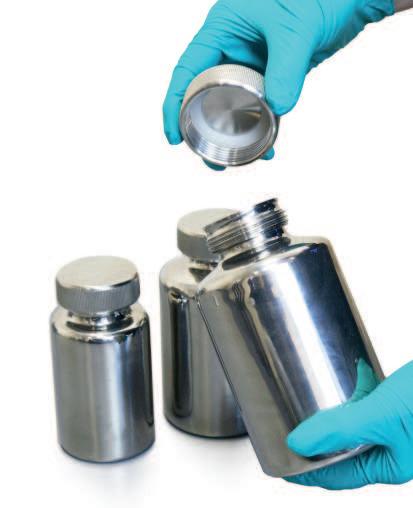

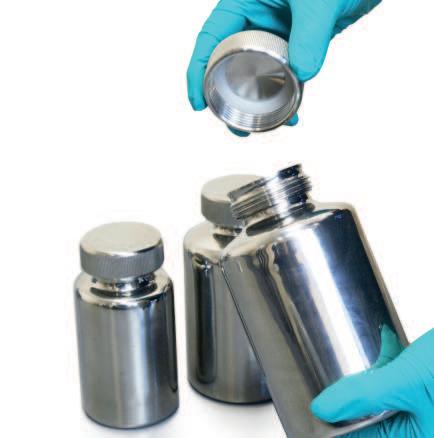

PharmaBottles® (316L ss)
Stainless PharmaBottles® are ideal for use with powders and liquids. Each container has a high polish finish and a watertight screw on lid.
Stainless PharmaBottles® are supplied with an FDA acceptable silicone gasket in the lid.
• Multi purpose containers
• 316L stainless steel body and lid
• Robust construction
• Crevice free interior
• All welds ground and polished
• Complete with screw on lid
• Silicone (FDA acceptable) gasket in lid
StainlessWare

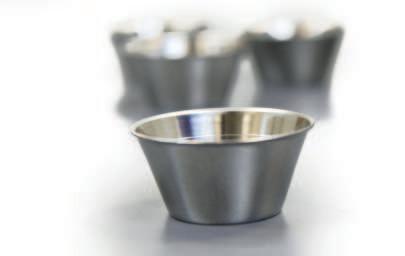

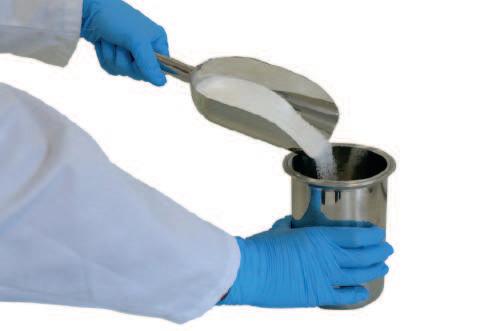

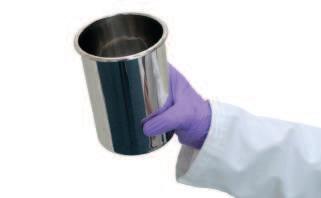

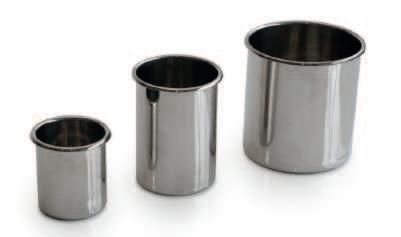

Stainless Beakers (316Lss)
New

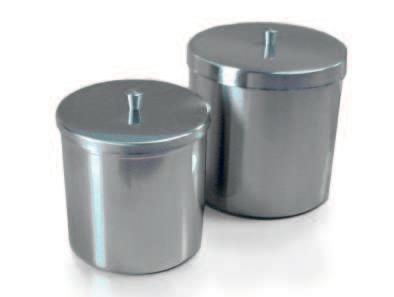

Pots with Lids
Our range of stainless steel beakers are made from high grade 316L stainless steel. They have a highly polished finish which makes them ideal for use in the laboratory or production environment. These multi-purpose stainless steel beakers are ideal for the collection and storage of powders and liquids.
• Multi purpose containers
• 316L stainless steel
• Crevice free interior
• Available from stock
• Polished finish
PartNo.Nominal
A736-200200ml72mm60mm316L ss
A736-500500ml82mm100mm316L ss
A736-10001000ml99mm150mm316L ss
A736-20002000ml140mm155mm316L ss
A736-30003000ml203mm100mm316L ss
• 304 stainless steel
• Crevice free
• Simple drop on lid
• Satin finish
PartNo.Nominal
A284-400400ml85mm85mm304 ss
A284-650650ml100mm100mm304 ss
A284-12501250ml120mm120mm304 ss
A284-25002500ml150mm150mm304 ss
A284-50005000ml200mm200mm304 ss

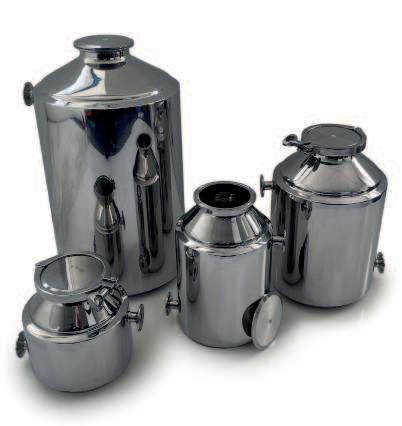

Jacketed Vessels (316Lss)
New
Volume 3L to 50L
Jacketed Vessels are perfect for controlling the temperature of the product. A warming or cooling liquid can be passed through the jacket. The containers have a tri-ferrule lid.
• 316L stainless steel body & lid
• Silicone Gasket (FDA acceptable)
• 2 x 1” ferrules on the side (BS4825-3)
PartNo.Nominal Volume
A746-33L4”207mm316L ss
A746-55L4”313mm316L ss
A746-1010L4”363mm316L ss
A746-1515L4”361mm316L ss
A746-2525L4”533mm316L ss
A746-5050L6 5/8”550mm316L ss

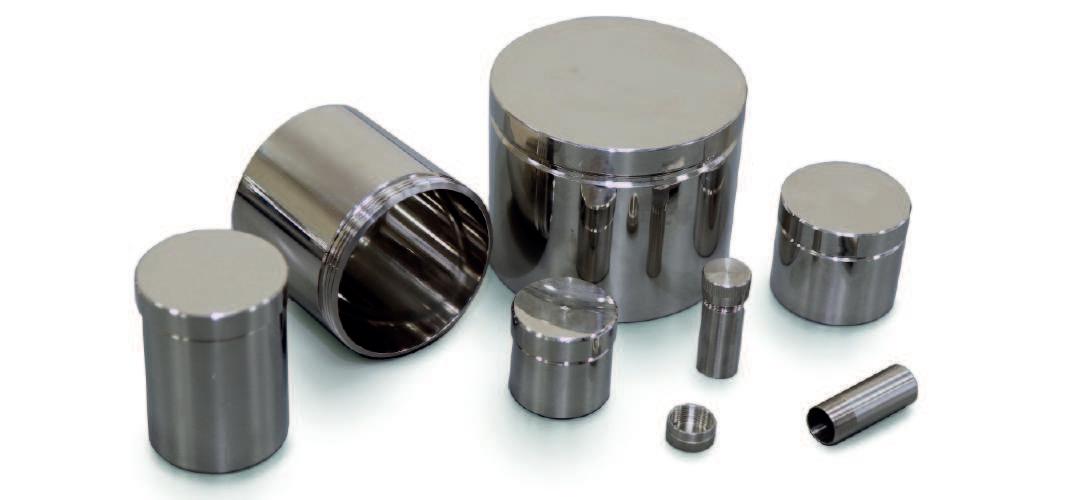

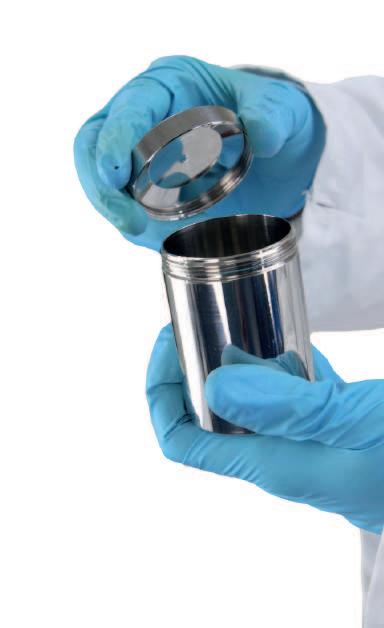

Mini-Pots (316L ss)
Volume 7ml to 1000ml

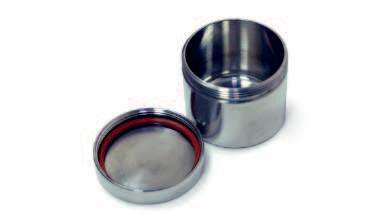

Mini-Pots can be fitted with a silicone O ring. This makes the sealing more robust. The silicone is FDA compliant to 21 CFR 177.2600.
Mini-Pots are a range of high quality screw top containers that are made from 316L stainless steel. Mini-Pots have a crevice free interior and widely used in pharmaceutical and chemical laboratories around the world.
Available in a wide range of sizes.
• Screw on lid
• Bright Polish
• Multi purpose small volume containers
• 316L stainless steel
• Crevice free interior
• O-ring available for improved sealing
PartNo.Nominal
A426-77ml19mm45mm316L ss
A426-2525ml41mm36mm316L ss
A426-5050ml53mm42mm316L ss
A426-100100ml52mm73mm316L ss
A426-250250ml77mm73mm316L ss
A426-500500ml102mm78mm316L ss
A426-750750ml102mm116mm316L ss
A426-10001000ml102mm154mm316L ss
PartNo.SuitNominalVolumeMaterial
A426-25SO-ring for 25ml (A426-25)Silicone
A426-50SO-ring for 50ml (A426-50)Silicone
A426-100SO-ring for 100ml (A426-100)Silicone
A426-250SO-ring for 250ml (A426-250)Silicone
A426-500SO-ring for 500ml (A426-500)Silicone
A426-750SO-ring for 1000ml (A426-750)Silicone
A426-1000SO-ring for 50ml (A426-1000)Silicone
StainlessWare

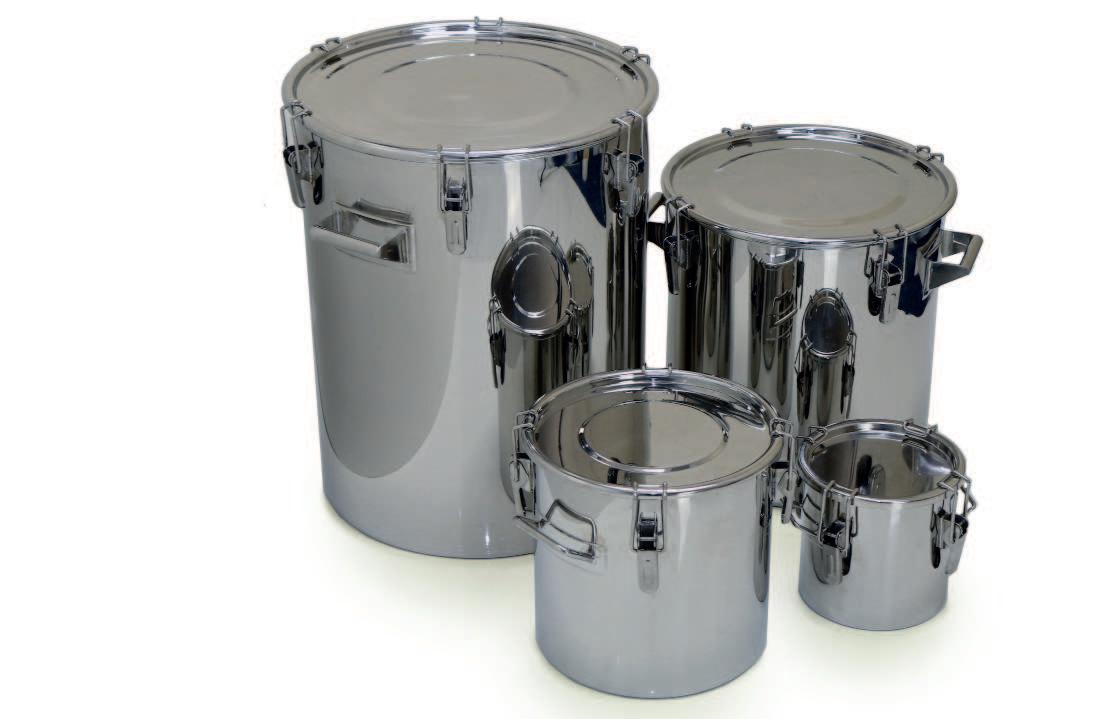

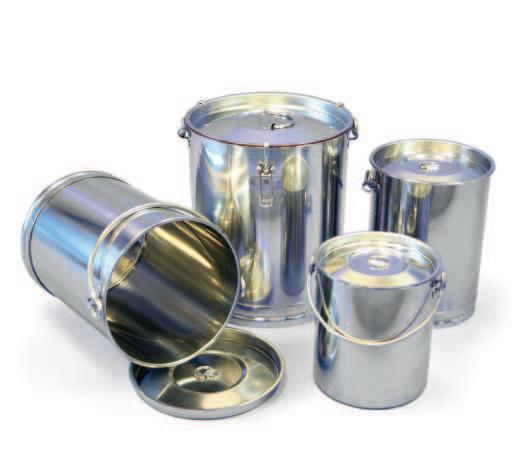

Toggle Drums (316Lss)
New sizes
The Sampling Systems range of heavy duty toggle drums are ideal for storage and production. Each Toggle Drum is supplied with a fully welded handle, silicone seal (FDA grade) and lid. The lid is secured by using the pull down latches (toggle clamps). They are manufactured from high grade 316L stainless steel which makes the containers suitable for most applications.
The toggle drums have a high quality, polished finish which aids complete and thorough cleaning. Large stocks are kept for quick delivery.
• Multi purpose open top drums
• Heavy duty construction
• Crevice free interior
• 316L stainless steel body and lid
• Silicone gasket (food grade, FDA acceptable)
• Lid can be completely removed for full cleaning
A926-22L2140mm160mm316L
ssSilicone - FDA acceptable
A926-55L4196mm200mm316L
ssSilicone - FDA acceptable
A926-88L4196mm300mm316L
ssSilicone - FDA acceptable
A926-1010L4230mm270mm316L
ssSilicone - FDA acceptable
A926-1515L4230mm380mm316L ssSilicone - FDA acceptable
A926-2020L4300mm300mm316L ssSilicone - FDA acceptable
A926-2525L4300mm380mm316L
ssSilicone - FDA acceptable
A926-3030L4300mm450mm316L
ssSilicone - FDA acceptable
A926-5050L4395mm430mm316L
ssSilicone - FDA acceptable
A926-100100L6470mm610mm316L ssSilicone - FDA acceptable
A926-200200L6570mm800mm316L ssSilicone - FDA acceptable
A926-300300L6710mm800mm316L ssSilicone - FDA acceptable
Volume 2L to 300L

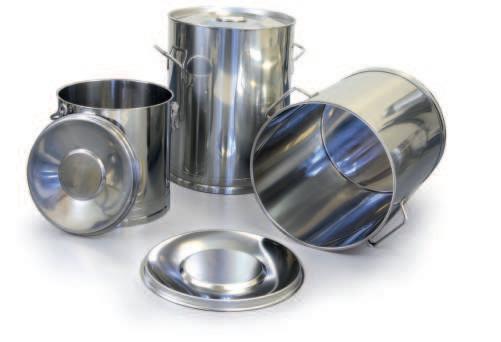

Stainless Storage Drums (316Lss)
New sizes
Volume 1L to 200L
Stainless Storage Drums are a range of high quality, open top stainless steel drums. These drums have a highly polished finish and are supplied with sturdy side handles, lid, gasket and clampband.
The robust, hygienic design means they are suitable for the most demanding of applications. PartNo.Nominal
• Open top pharmaceutical and chemical grade drums with lids
• From 5L to 200L (larger sizes on request)
• High quality, heavy duty construction
• Product contact parts 316L stainless steel
• Crevice free interior
• Lid secured with clampband (304 stainless steel)
• Lid gasket - FDA acceptable silicone rubber
• Hygienic top rim
• Supplied with side handles
• Fully welded GMP correct construction
A126-011L140mm90mm316L ssSilicone - FDA acceptable
A126-022L140mm160mm316L ssSilicone - FDA acceptable
A126-033L178mm150mm316L ssSilicone - FDA acceptable
A126-055L196mm200mm316L ssSilicone - FDA acceptable
A126-1010L230mm270mm316L ssSilicone - FDA acceptable
A126-1515L230mm380mm316L ssSilicone - FDA acceptable
A126-2020L300mm300mm316L ssSilicone - FDA acceptable
A126-2525L300mm380mm316L ssSilicone - FDA acceptable
A126-3030L300mm450mm316L ssSilicone - FDA acceptable
A126-5050L394mm430mm316L ssSilicone - FDA acceptable
A126-7575L394mm630mm316L ssSilicone - FDA acceptable
A126-100100L470mm610mm316L ssSilicone - FDA acceptable
A126-150150L570mm610mm316L ssSilicone - FDA acceptable
A126-200200L570mm800mm316L ssSilicone - FDA acceptable
Tel: 514-326-8852

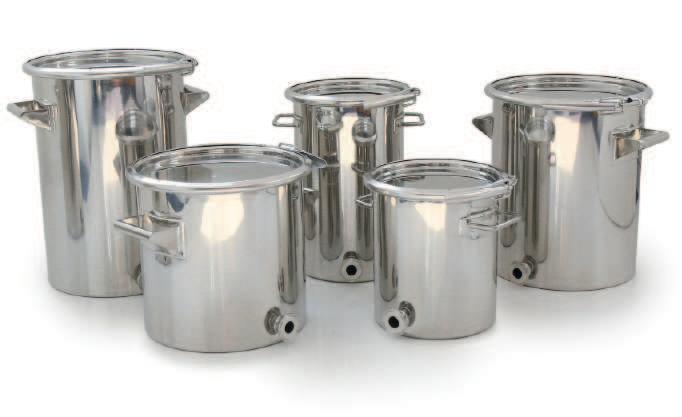

Draining Drums (316L ss)
PartNo.Nominal
Volume 5L to 200L
Draining Drums are ideal for use with liquids and suspensions. The addition of a 1” ferrule close to the bottom of the drum makes it easy to discharge almost all the contents of the drum.
Valve Kits are available to control the flow of the liquid.
• 316L stainless steel body & lid
• 1” Ferrule welded to side (BS4825-3)
• Available from stock
Valve Kit90° Bend (fits to valve in place of 1” ferrule)
A196-055L196mm200mm1”316L
ssSilicone - FDA acceptable
A196-1010L230mm270mm1”316L
ssSilicone - FDA acceptable
A196-1515L230mm380mm1”316L
ssSilicone - FDA acceptable
A196-2020L300mm310mm1”316L
ssSilicone - FDA acceptable
A196-2525L300mm380mm1”316L
ssSilicone - FDA acceptable
A196-3030L300mm450mm1”316L
ssSilicone - FDA acceptable
A196-5050L394mm431mm1”316L
ssSilicone - FDA acceptable
A196-7575L394mm630mm1”316L
ssSilicone - FDA acceptable
A196-100100L470mm610mm1”316L
ssSilicone - FDA acceptable
A196-150150L570mm610mm1”316L
ssSilicone - FDA acceptable
A196-200200L570mm800mm1”316L
ssSilicone - FDA acceptable Options

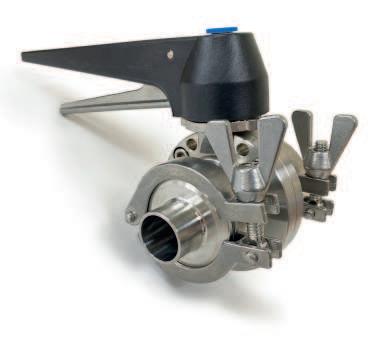

A136-01SValve Kit - SiliconeKit Includes: 1 x Butterfly Valve 1” with Silicone Seals 1 x Ferrule 1” 2 x EPDM Gasket 1” 2 x Clamp 1”
A136-01AValve Kit - EPDMKit Includes: 1 x Butterfly Valve 1” with EPDM Seals 1 x Ferrule 1” 2 x EPDM Gasket 1” 2 x Clamp 1”

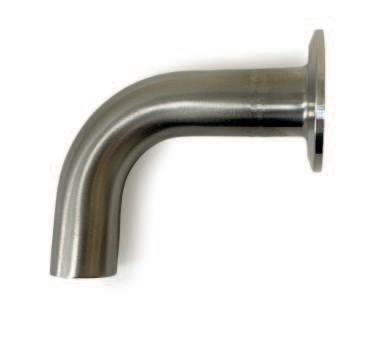

A136-10B90° BendMade from 316L stainless steel
Contact us if you need a drum with complete discharge

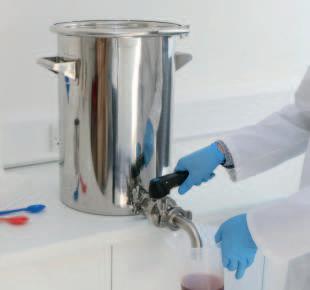

15L Drum with optional Valve Kit and 90° Bend

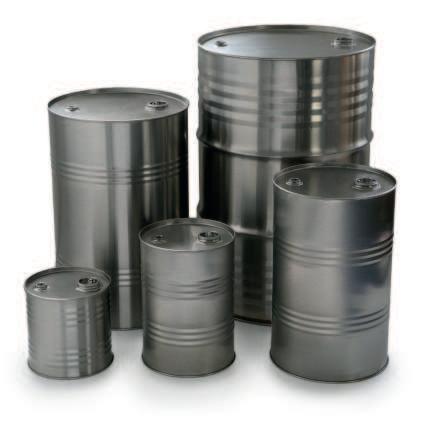

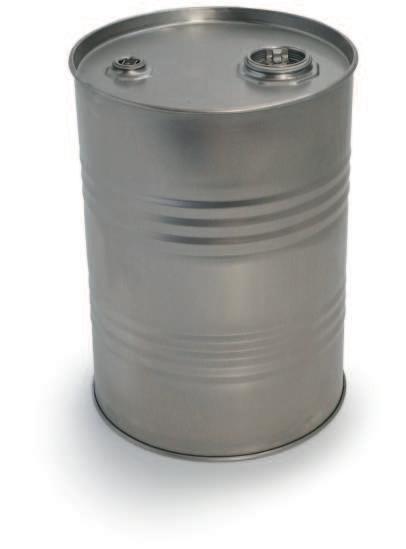

Tight Head Drums (316L ss)
New
Tight Head Drums are perfect for the storage and processing of food products and chemicals. They are made from 316L stainless steel and are commonly used in chemical, pharmaceutical and cosmetic manufacturing. These drums are available in a wide range of sizes from stock with the 200L size (45 UK gallon/55 US gallon) being the most popular.
Tight Head Drums are fitted with a 2” and ¾” tri sure bung. There is also an EPDM seal (FDA 177.2600). The drums have swaged sides for added strength when being handled. Please see our trolley range if you want to move the drums.
• 316L stainless steel
• 2” Bung and 3/4” Bungs
• EPDM seal on Bungs
• Available from stock
Trolley
PartNo.Nominal Volume Diameter Height Material
A266-1010L260mm255mm316L ss
A266-2020L289mm401mm316L ss
A266-5050L362mm568mm316L ss
A266-100100L458mm700mm316L ss
A266-200200L581mm886mm316L ss

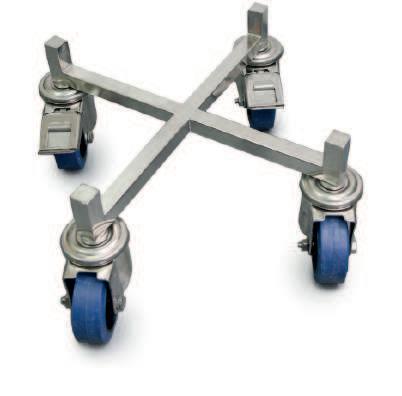

Stainless steel Drum Trolleys are ideal for moving drums and equipment around the factory. The trolleys have a robust stainless steel frame and four non-marking wheels.
• 304 stainless steel frame
• Includes 4 castors (2 lockable)
• Available from stock for fast delivery
PartNo. MaxDiameterDrumDeckHeight
A384-320320mm135mm
A384-420420mm135mm
A384-500500mm135mm
A384-600600mm135mm
A384-740740mm160mm
Mini-Drums (304 & 316L ss)
•
•
Without
O-Ring Seals
•
•
Storage Containers (304 & 316L ss)
•
•
•
•
•
•
Toggle Clamps
Toggle
Storage Containers Without Toggle Clamps
Storage Containers With Toggle Clamps and Silicone Seal
Volume 20L to 100L
StainlessWare

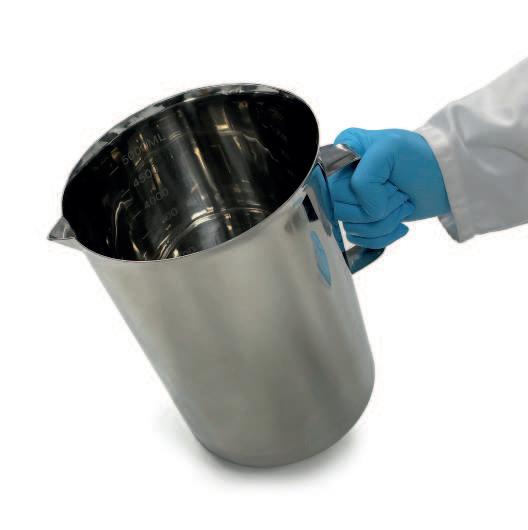

316 Stainless Jugs (316Lss)
Stainless Jugs

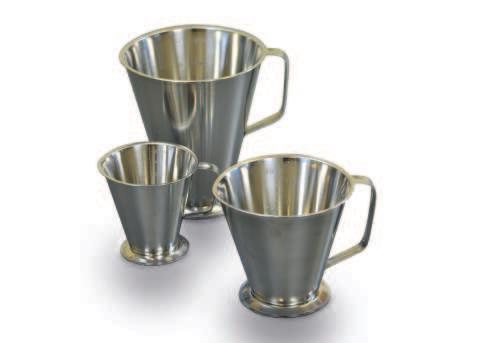

Conical Jugs
The 316 Stainless Steel Jugs are very robust and have a heavy duty design. These GMP correct jugs have straight sides, a pouring lip and a fully welded handle.
Each jug is highly polished and has a crevice-free interior. Graduation marks are etched onto the interior wall.
PartNo.Nominal Volume GraduatedDiameterHeightMaterial
A406-500500mlYes87mm122mm316L ss
A406-10001000mlYes105mm161mm316L ss
A406-20002000mlYes150mm171mm316L ss
A406-30003000mlYes147mm223mm316L ss
A406-50005000mlYes175mm245mm316L ss
• Straight sided jugs with side handles
• 304 stainless steel construction
• Most sizes are graduated
A204-500500mlYes75mm135mm304 ss
A204-10001000mlYes100mm135mm304 ss
A204-20002000mlYes135mm170mm304 ss
A204-30003000mlNo120mm230mm304 ss
A204-50005000mlNo140mm265mm304 ss
• Made from 304 stainless steel
• Crevice free design
• Polished finish
• Graduated
A154-500500mlYes115mm115mm304 ss
A154-10001000mlYes150mm140mm304 ss
A154-20002000mlYes171mm200mm304 ss

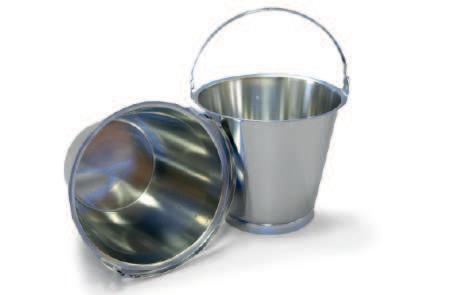

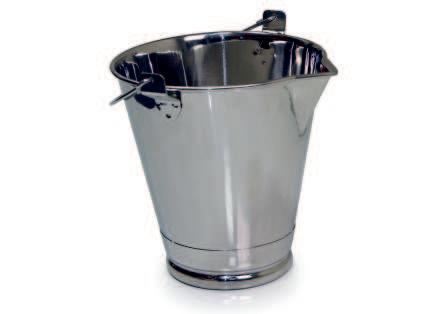

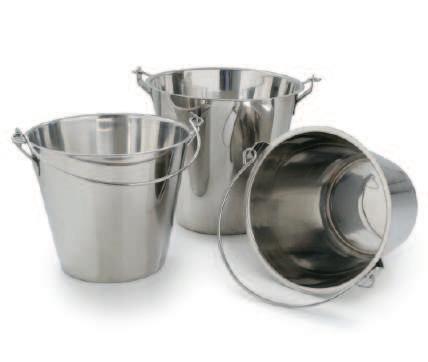

Buckets (316Lss)
Buckets (316Lss)
Buckets
• Made from 316L stainless steel
• Crevice free interior
• Swing handle
• Flat base
• Non graduated
PartNo.Nominal Volume Top Diameter HeightMaterial
A586-1010L300mm233mm316L ss
A586-1212L310mm262mm316L ss
A586-1515L330mm305mm316L ss
Lids
Suitable for use with A586 buckets only
PartNo.TosuitBucketVolumeMaterial
A586-10L10L316L ss
A586-12L12L316L ss
A586-15L15L316L ss
• Crevice free interior
• Graduated
• Supplied with skirt band
• Robust design
• 316L stainless steel
PartNo.Nominal Volume Top Diameter HeightMaterial
A826-1212L310mm285mm316L ss
• Crevice free interior
• Graduated
• Supplied with skirt band
• Robust design
• 304 stainless steel
PartNo.Nominal Volume Top Diameter HeightMaterial
A264-66L280mm190mm304 ss
A264-1010L300mm295mm304 ss
A264-1212.5L330mm315mm304 ss
A264-1515L350mm360mm304 ss
Bucket with Spout (316Lss)
• Bucket with pouring spout
• Made from 316L stainless steel
• Crevice free interior
• Non graduated
• Swing handle
• Supplied with skirt band
PartNo.Nominal Volume Overall Diameter HeightMaterial
A686-1515L310mm333mm316L ss
A686-2020L330mm387mm316L ss

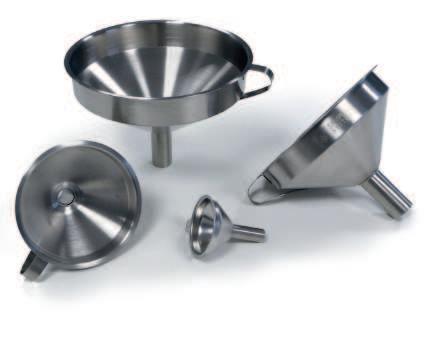

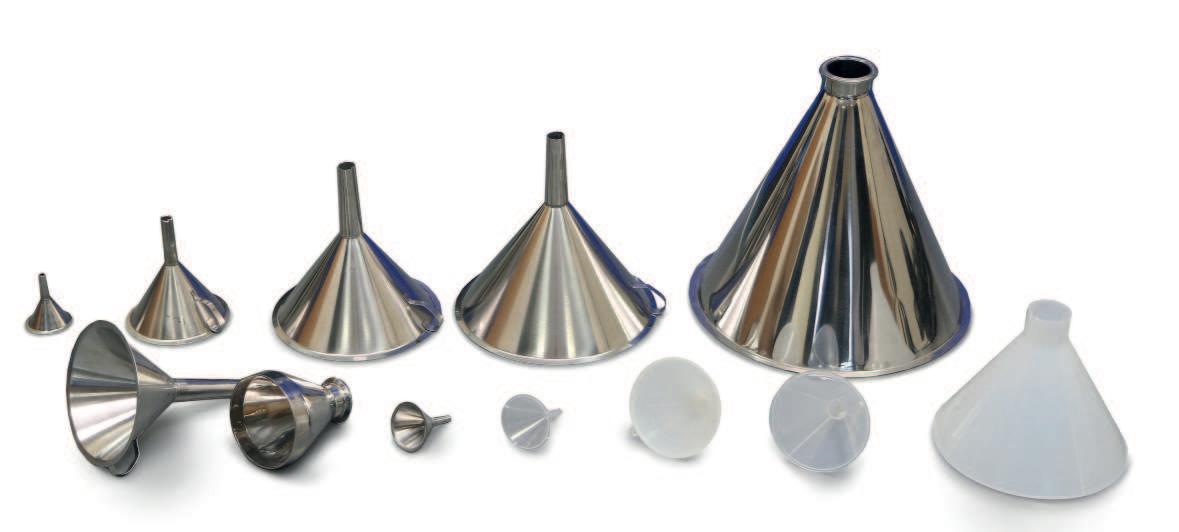

Funnels Disposable & reusable

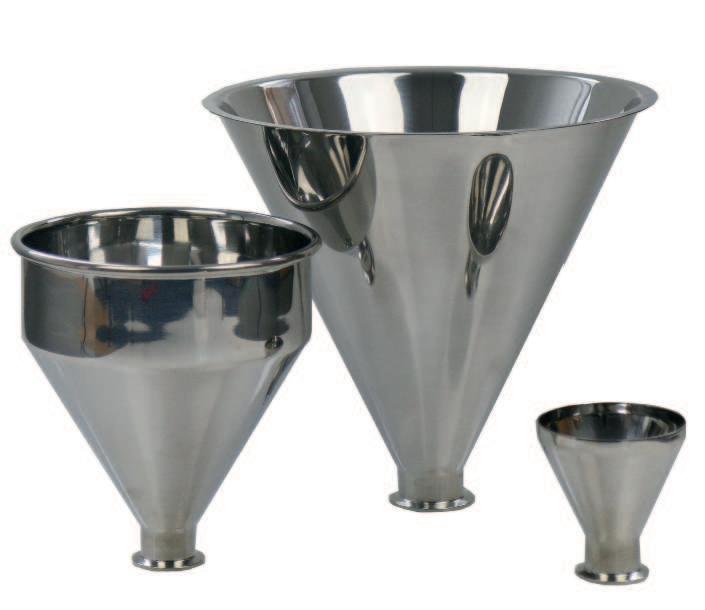

Powder Funnels (316Lss)
Powder Funnels are made from 316L stainless steel and have excellent chemical resistance. The funnels all have steeply angled sides and wide diameter outlets to encourage powder flow.
Powder Funnels have a Tri-Ferrule flange (BS4825-3) at the outlet.

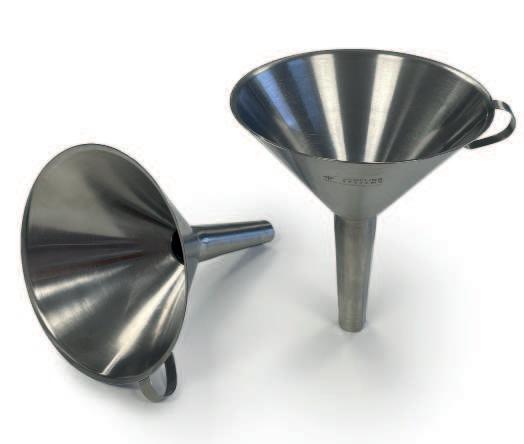

Liquid Funnel (316Lss)
New
Liquid Funnels
A986-150150mm20mm171mm316L ss • 316L stainless steel • Satin finish • Fluted spout to aid product discharge
PartNo.TopDiameter
• 304 stainless steel • Satin finish • Fluted spout to aid product discharge
PartNo.TopDiameterSpout
A244-50*50mm8mm*65mm304ss
A244-100100mm12mm120mm304ss
A244-120120mm12mm140mm304ss
A244-150150mm12mm160mm304ss
A244-200200mm20mm200mm304ss
A244-250250mm20mm325mm304ss
A244-310310mm20mm325mm304ss
* A244-50 does not have a fluted spout.

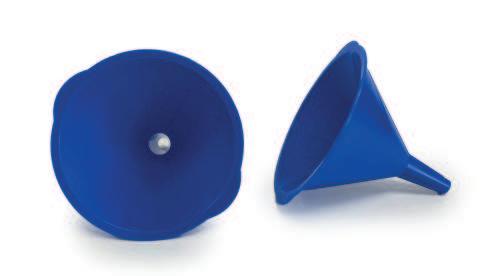

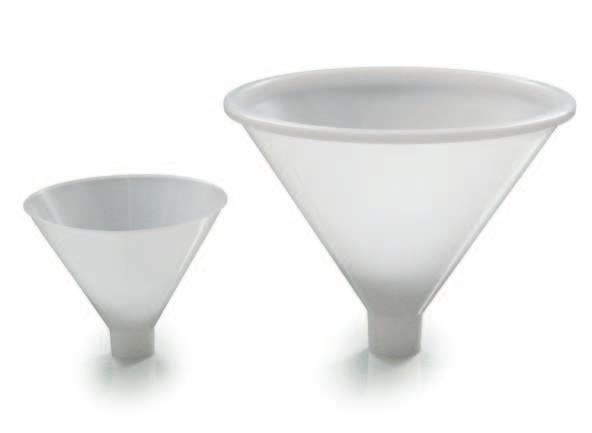

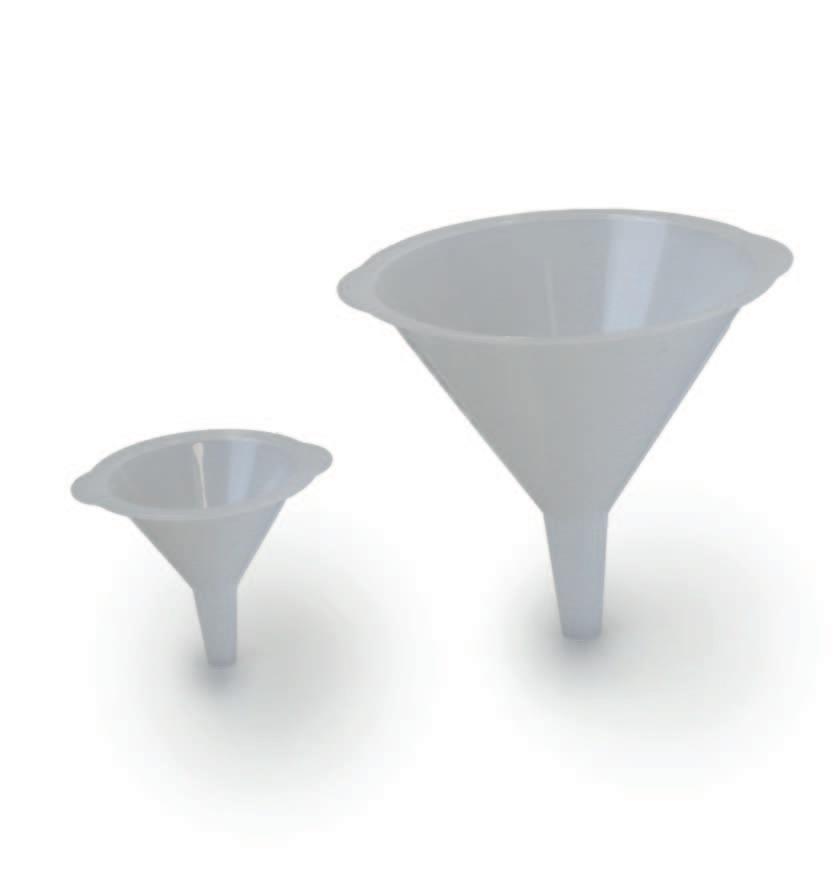

SteriWare Liquid Funnel
• Single use, disposable liquid funnel
• Moulded & Packed in a Cleanroom
• Individually Bagged
• FDA & EU 10/2011 Conforming Materials
• BSE/TSE Free
• Full Batch Traceability
• Available Sterile (gamma irradiated)

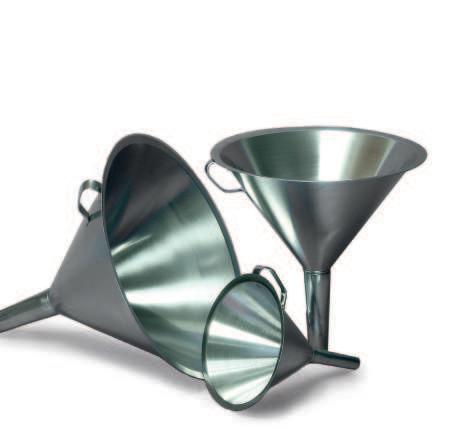

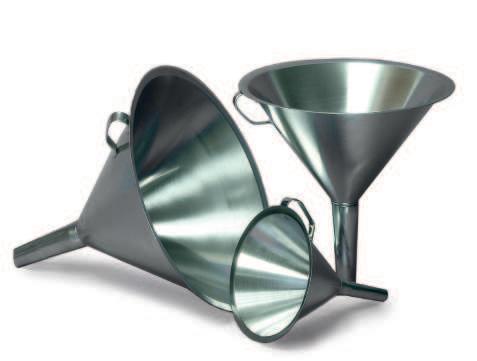

Industrial Funnel with Straight Spout.
Industrial Funnels are made from 304 stainless steel and are available in a wide range of sizes. They are ideal for heavy duty use in pharmaceutical, chemical and food companies. The funnels have a satin polish making them easy to clean in line with GMP guidelines.
• 304 stainless steel • Polished PartNo.TopDiameter
A164-6060mm12mm304 ss
A164-110110mm16mm304 ss
A164-150150mm22mm304 ss
A164-180180mm22mm304 ss New

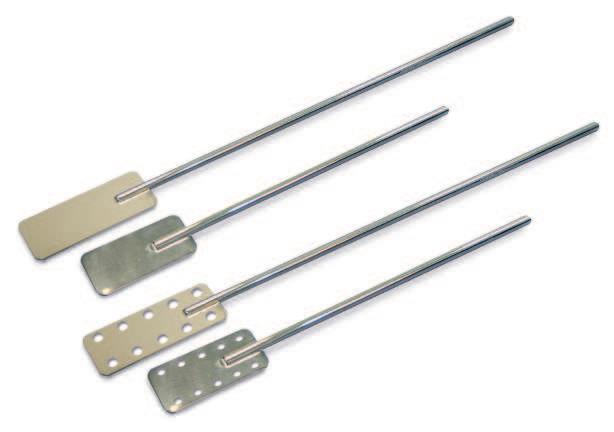

Stirring Paddles (316Lss)
• 304 stainless steel • Polished
• 316L stainless steel • Crevice free construction • Bright Polish • Available with holes for improved stirring
A344-10001000mm125mm240mmPlain316L ss
A344-15001500mm150mm300mmPlain316L ss
A916-10001000mm125mm240mmWith Holes316L ss
A916-15001500mm150mm300mmWith Holes316L ss

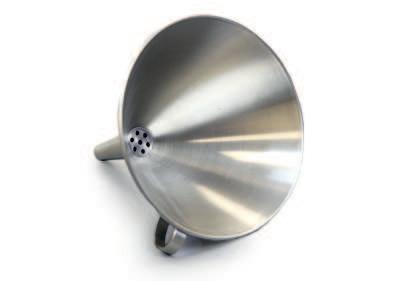

Funnel With Strainer

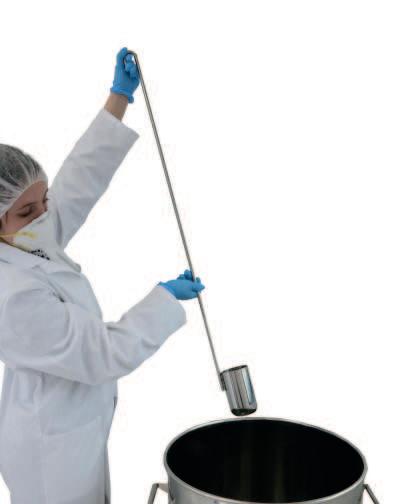

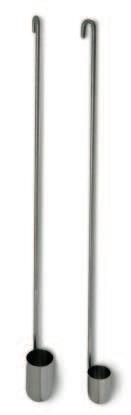

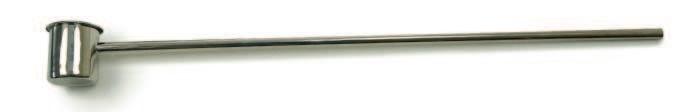

Stainless Dipper (316Lss)
• 316L stainless steel construction • Fully welded • Bright Polish PartNo.Nominal
5005A-5050ml600mm32mm316L ss
5005A-100100ml600mm39mm316L ss
5005A-250250ml600mm64mm316L ss
5005A-500500ml600mm90mm316L ss
5005B-5050ml1000mm32mm316L ss
5005B-100100ml1000mm39mm316L ss
5005B-250250ml1000mm64mm316L ss
5005B-500500ml1000mm90mm316L ss
5005C-5050ml1500mm32mm316L ss
5005C-100100ml1500mm39mm316L ss
5005C-250250ml1500mm64mm316L ss
5005C-500500ml1500mm90mm316L ss

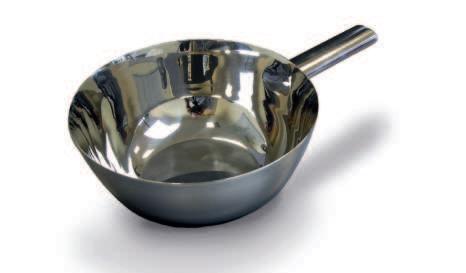

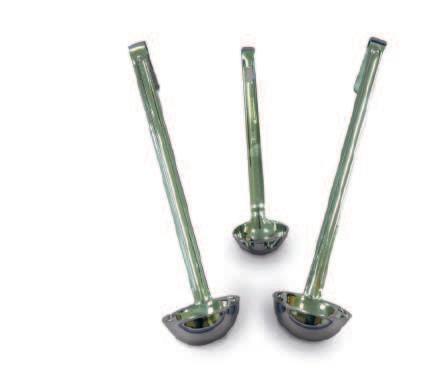

Stainless Ladle (304 or 316Lss)
• Bright Polish
PartNo.Nominal
A326-5050ml62mm300mm316L ss
A326-150150ml88mm325mm316L ss
A324-5050ml62mm215mm304 ss
A324-120120ml82mm270mm304 ss
A324-150150ml92mm270mm304 ss
A324-200200ml101mm270mm304 ss

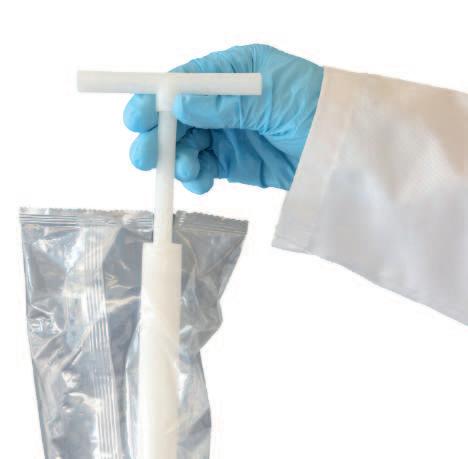

Sampler (316Lss)

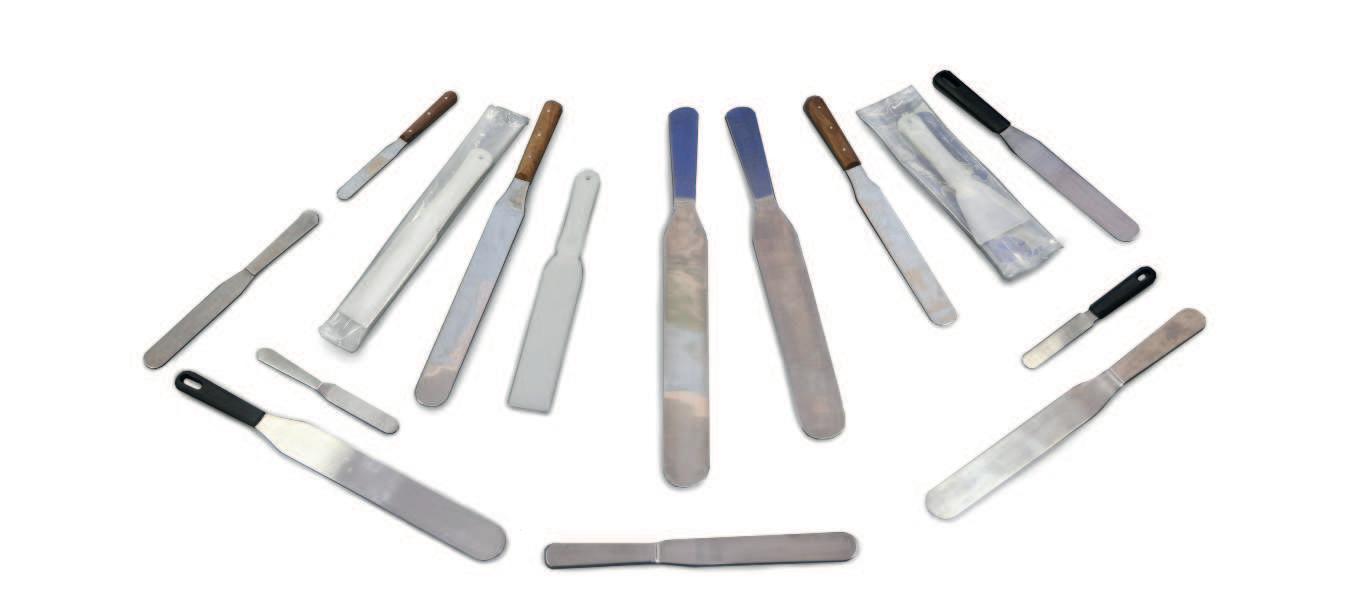

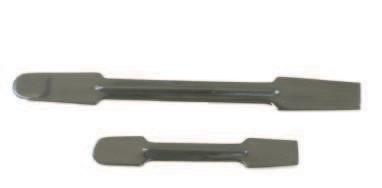

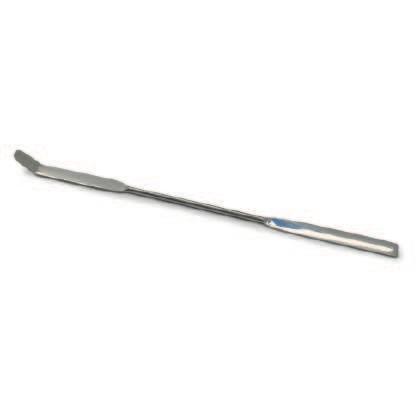

Pallet Knives and Scrapers

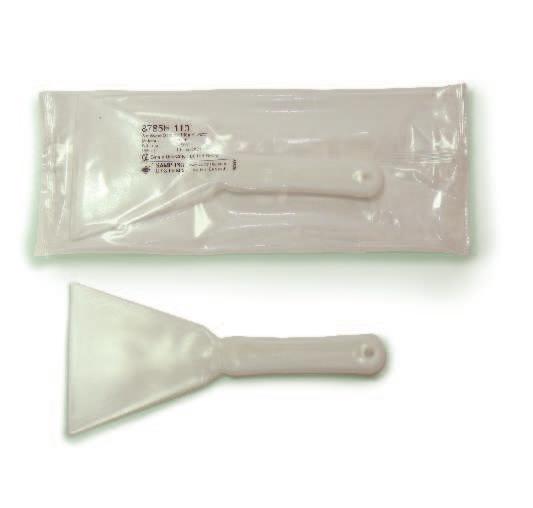

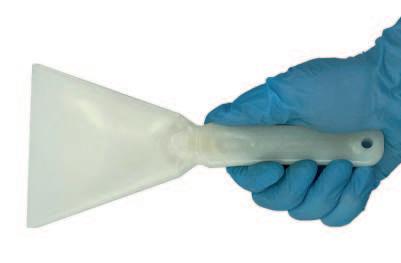

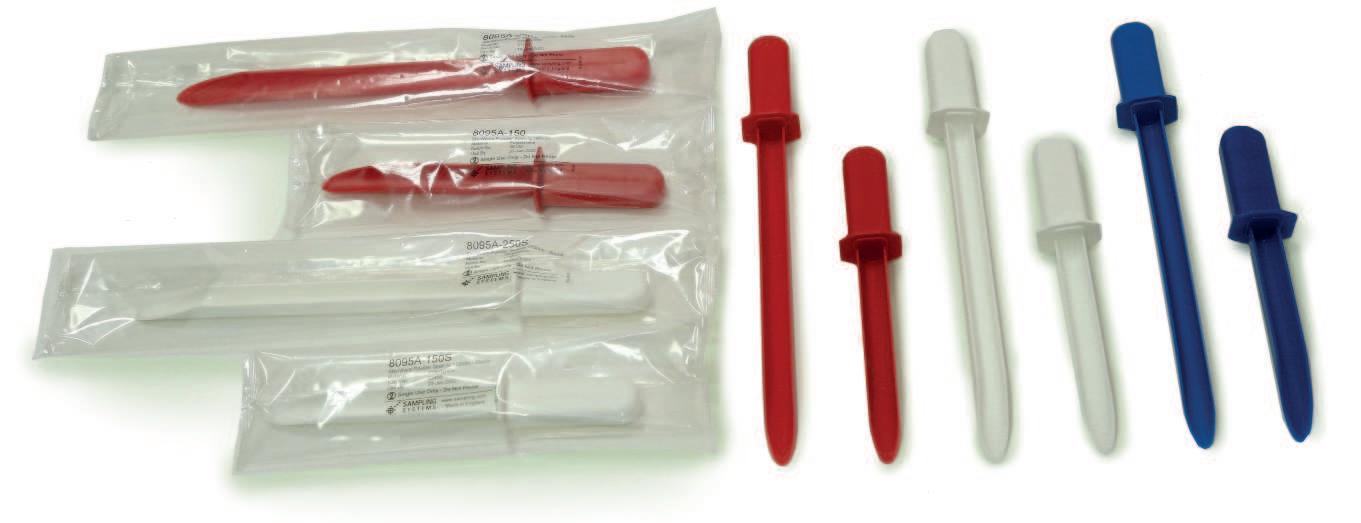

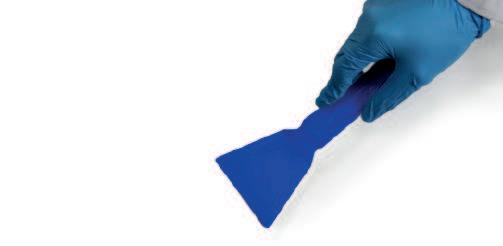

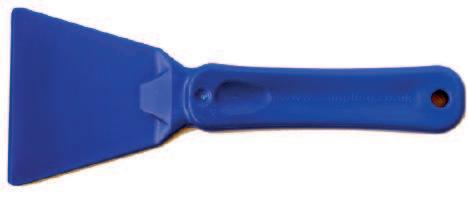

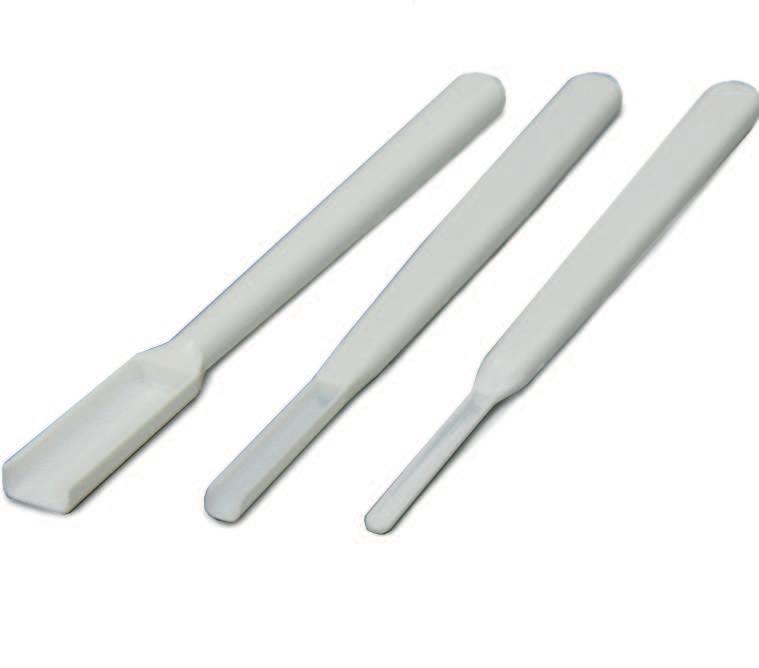

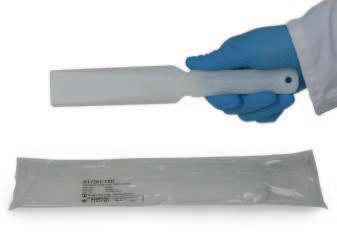

Disposable Scraper

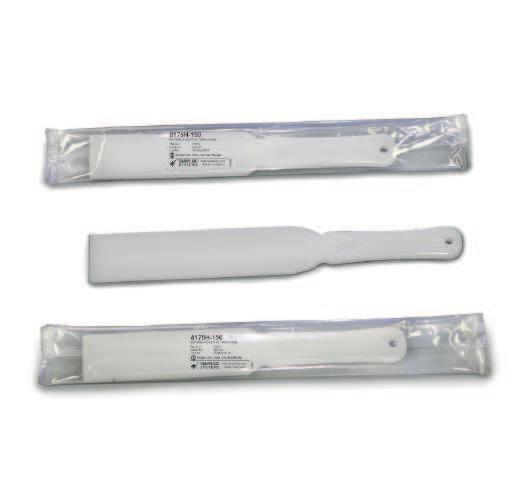

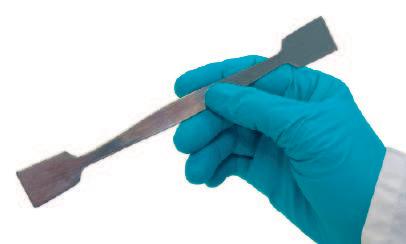

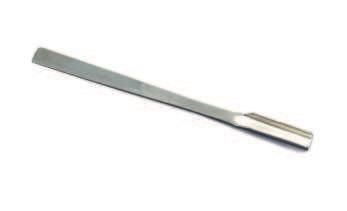

SteriWare Pallet Knife

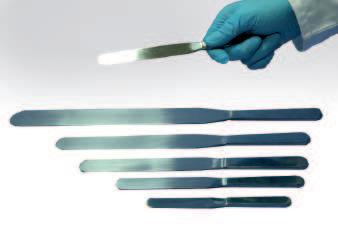

Pallet Knives
• Crevice free, all stainless steel construction
• Satin finish
PartNo.BladeLengthBladeWidthOverallLength
A330-100100mm25mm185mm
A330-130130mm20mm225mm
A330-150150mm25mm255mm
A330-200200mm32mm325mm
A330-250250mm38mm380mm
A330-300300mm45mm440mm
A330-350350mm50mm495mm

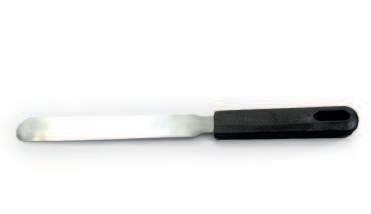

Pallet
Knife with Plastic Handle
• Stainless steel blade with plastic handle
• Satin finish
PartNo.BladeLengthBladeWidthOverallLength
A200-100100mm20mm190mm
A200-200200mm30mm310mm
A200-300300mm35mm415mm

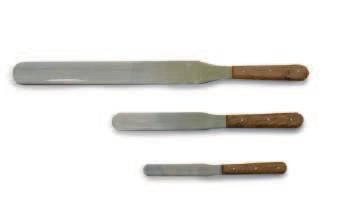

Pallet
Knife with Wooden Handle
New sizes
• Stainless steel blade with wooden handle
• Satin finish
PartNo.BladeLengthBladeWidthOverallLength
A201-100100mm20mm190mm
A201-150150mm23mm252mm
A201-200200mm30mm310mm
A201-300300mm35mm415mm

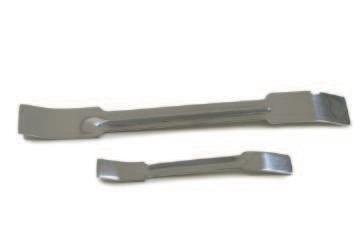

Stainless Steel Scrapers (420 and 316L ss)
• Crevice free, stainless steel construction
• Satin finish
PartNo.BladeWidthOverallLengthMaterial
A350-7575mm232mm420
StainlessWare

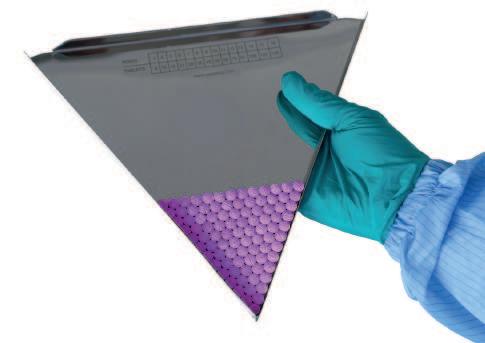

Tablet Counting Triangle (316L ss)
• Quick and easy way to count round tablets
• Suitable for all sizes of round tablets

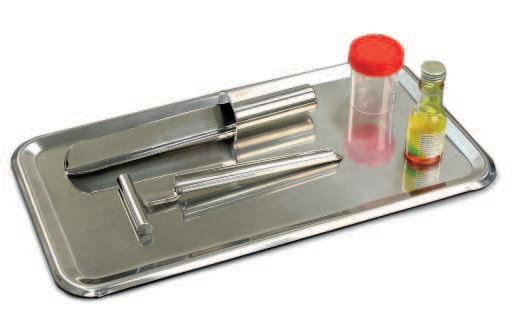

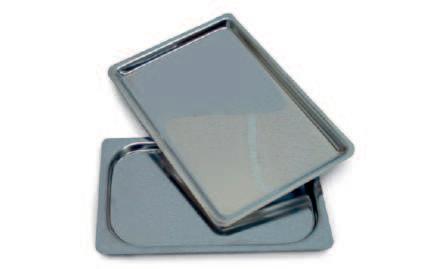

Instrument Trays
• Range of low profile stainless steel trays
• Available from stock
• Crevice free design
• High quality polished finish
PartNo.LengthWidthDepthMaterial
A674-215215mm160mm18mm304 ss
A674-295295mm197mm18mm304 ss
A674-395395mm275mm11mm304 ss
A674-490490mm320mm15mm304 ss New sizes
Over 1 Million Stock Items

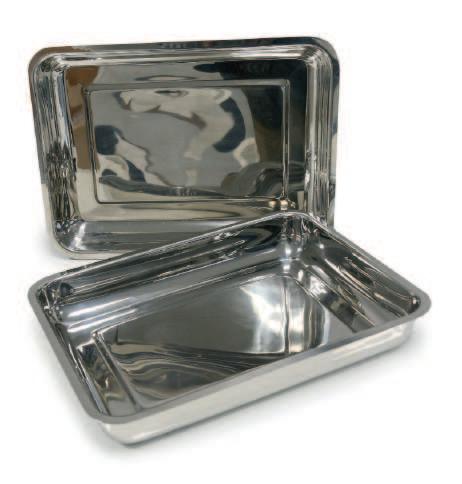

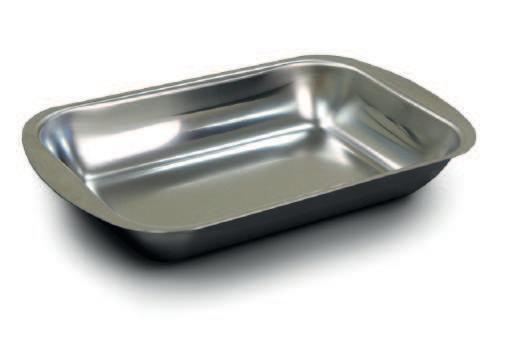

Deep Trays (316L ss)
New
Deep Trays
Shallow Trays
Stainless steel Deep Trays are a durable and hygienic alternative to plastic trays. They are made from high quality 316L stainless steel and are designed for heavy duty use.
Deep Trays (316L ss) are used in pharmaceutical, chemical and food companies around the world.
• 316L stainless steel
• Highly polished
• Rounded corners for easy cleaning
PartNo.LengthWidth Height Material
A236-250252mm177mm50mm316L ss
A236-350380mm280mm54mm316L ss
A236-400434mm327mm66mm316L ss
A236-500535mm330mm95mm316L ss
Deep Trays made from 304 stainless steel are an excellent general purpose range of trays. They are ideal for everything from mixing formulations to carrying waste.
• Range of sizes
• Available from stock
• Crevice free design
• High quality polished finish
• Durable
PartNo.LengthWidthDepthMaterial
A684-223223mm155mm43mm304 ss
A684-240240mm160mm50mm304 ss
A684-310310mm197mm47mm304 ss
A684-340340mm210mm62mm304 ss
• All purpose shallow tray
• Crevice free
• 304 stainless steel construction
• Bright Polish
PartNo.LengthWidthDepthMaterial
A224-220220mm150mm10mm304 ss
A224-290290mm210mm10mm304 ss
Stainless Steel Beaker Tongs
New
Stainless Steel Beaker Tongs are ideal for picking up beakers, bottles etc. They are made from 304 stainless steel and have the option of a PVC grip. Beaker Tongs can be used to pick up both hot or cold items. They are suitable for production and laboratory work.
PartNo.DescriptionLength Material
A621-260Beaker Tongs260mm304 ss
A622-310Non-slip Beaker Tongs310mm304 ss & PVC

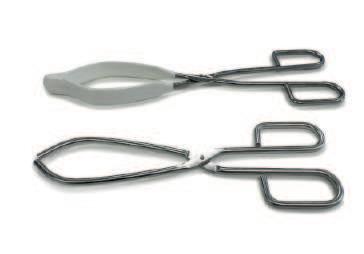

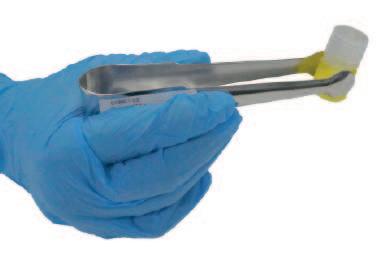

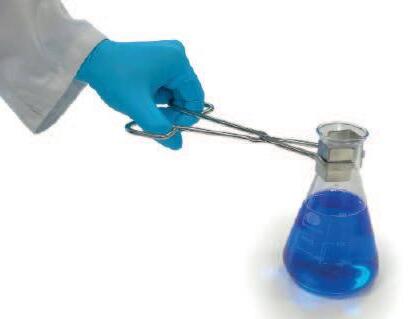

Stainless Steel Flask Tongs
New Stainless Steel Tongs
New

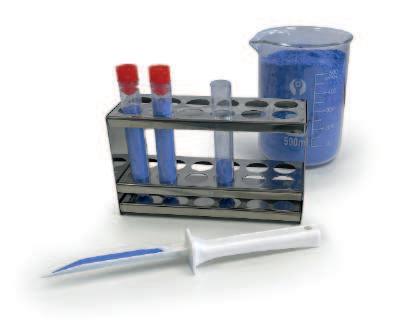

Test Tube Rack
New
Tel: 514-326-8852
The Sampling Systems Flask Tongs are ideal for picking up glass and plastic flasks. The special grip securely fits around the neck of the flask allowing it to be safely lifted. They can be used to pick up hot or cold items. Ideal for production and laboratory work.
PartNo.LengthMaterial
A623-220220mm304 ss
Effortlessly pickup and manoeuvre items with our hygienic tongs. The all 304 stainless steel construction means they are suitable for hygienic applications.
PartNo.LengthMaterial
A144-160160mm304 ss
A144-230230mm304 ss
A144-390390mm304 ss
Test Tube Racks are made from corrosion stainless steel. They are ideal for use in laboratories and production.
The racks are finished to a mirror polish and can be easily cleaned. The stainless steel design means they are ideal for GMP applications.
• All stainless steel construction • 2 sizes available
PartNo.CapacityLengthWidthHole Diameter Material
A645-1212 Test Tubes152mm58mm19mmStainless steel
A645-4848 Test Tubes302mm100mm19mmStainless steel

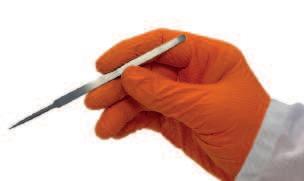

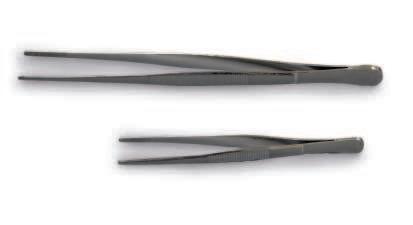

Straight Forceps (316L ss)
New
Tweezers (Forceps)
Straight Forceps (tweezers) are designed to make it easy to pick up intricate items such as samples, tissue, vials etc. They are manufactured from top grade 316L stainless steel. They come in a range of sizes from 100mm to 300mm and are available from stock.
Our forceps are designed to be used in laboratory, production and industrial environments.
PartNo.LengthBladeLengthMaterial
A596-100100mm90mm316L ss
A596-200200mm180mm316L ss
A596-300300mm240mm316L ss
A596-400400mm340mm316L ss
• Polished finish
Range of sizes
304 stainless steel
PartNo.LengthBladeLengthMaterial
A394-100100mm70mm304 ss
A394-200200mm155mm304 ss
A394-300300mm240mm304 ss

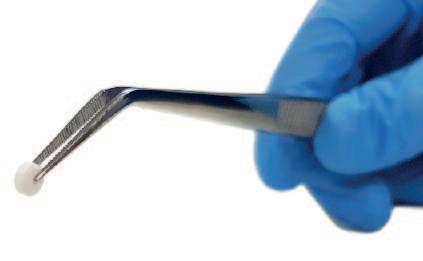

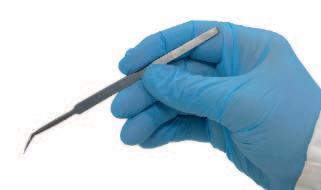

Angled Forceps (316L ss)
New
Sieving Tool (316L ss)
Angled Forceps (Tweezers) make it easy to pick up small items such as tablets, tissue samples, vials etc. They are manufactured from stainless steel and they come in a range of sizes from 100mm to 300mm.
Our forceps are designed to be used in laboratory, production and industrial environments.
PartNo.LengthMaterial
A976-100100mm316L ss
A976-200200mm316L ss
A976-300300mm316L ss
A854-100100mmStainless Steel
A854-150150mmStainless Steel
A854-200200mmStainless Steel
• Ideal for pushing powders through mesh screens
• 316L stainless steel • Rounded corners • Crevice free construction • Bright Polish
PartNo.DiscDiameterHandleLengthMaterial
A516-120120mm160mm316L ss

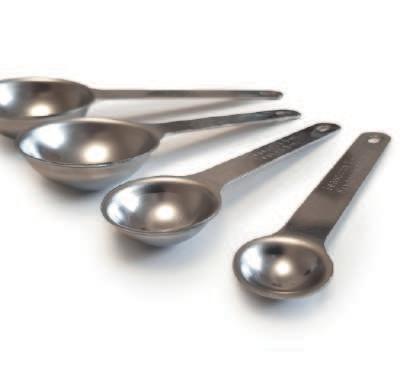

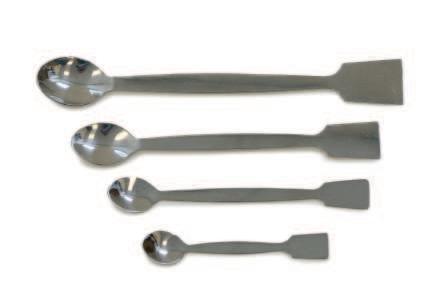

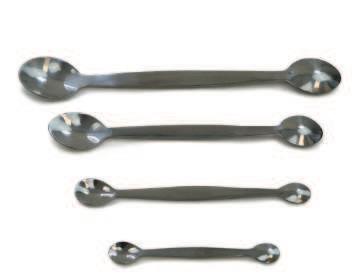

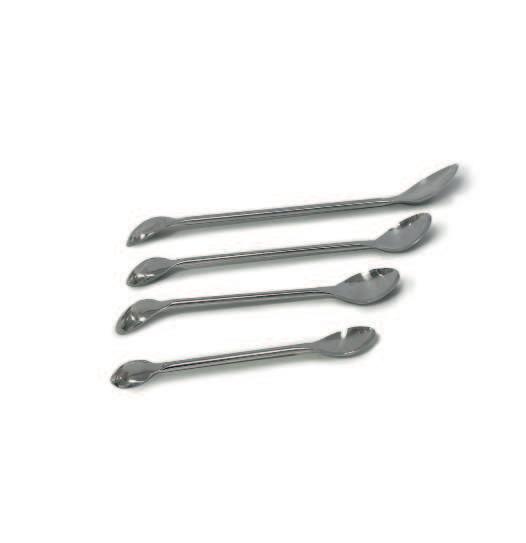

Dosing and Volumetric Spoon
Volume 1.25ml to 100ml
Dosing and Volumetric Spoons are ideal for measuring powders and liquids. The range is available in a variety of sizes 1,25ml, 5ml, 15ml, 20ml and 100ml. The 5ml spoon is the same size as 1 teaspoon.
The spoons are made from high quality 304 stainless steel which means they have good chemical resistance.
PartNo.VolumeBowl
A335-0121.25ml23mm106mm304 ss
A335-0505ml33mm112mm304 ss
A335-15015ml47mm119mm304 ss
A335-20020ml51mm141mm304 ss
A335-1000100ml79mm127mm304 ss New
Volumetric Spoon Set
Measuring Scoop (316Lss)
• Crevice free
• Satin finish
• Supplied as a set
• Each spoon is engraved with volume
PartNo.Volume
A335-11.25ml
Note: Volumetric Spoons are not certified measuring devices
Accurately Measure Powders with our high quality Stainless Steel Measuring Scoops
The Sampling Systems Measuring scoop is ideal for scooping out fixed volumes of powder and liquid. These Measuring Scoops are made from high quality 316L stainless steel. The scoop bowls are accurately machined from solid stainless steel so there are no unhygienic crevices. Measuring Scoops are highly polished and are available in a range of sizes.
PartNo.VolumeLengthDiameterMaterial
1900A-011ml186mm9mm316L ss 1900A-033ml186mm17mm316L ss 1900A-055ml193mm22mm316L ss
1900A-1010ml193mm22mm316L ss 1900A-2525ml185mm40mm316L ss

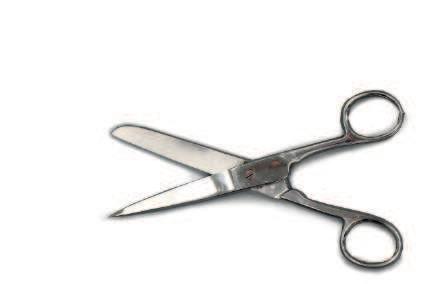

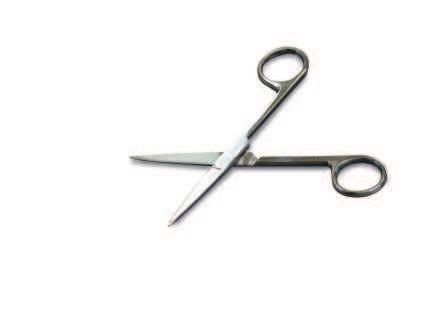

Rounded Scissors

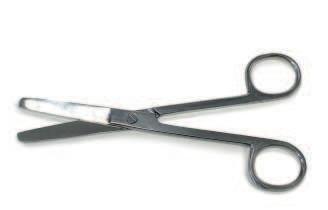

Double Rounded Scissors
• Two pointed blades
• Polished finish
• Range of sizes
• 420 stainless steel
PartNo.OverallLengthBladeLengthMaterial
A364-150150mm45mm420 ss A364-200200mm100mm420 ss A364-300300mm200mm420 ss
• One rounded blade and one pointed blade
• Polished finish
• 420 stainless steel
PartNo.OverallLengthBladeLengthMaterial
A555-150150mm70mm420 ss
PartNo.OverallLengthBladeLengthMaterial
A552-150150mm55mmStainless steel

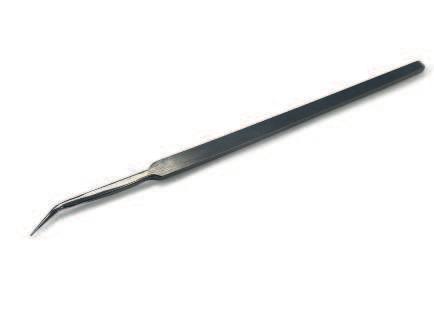

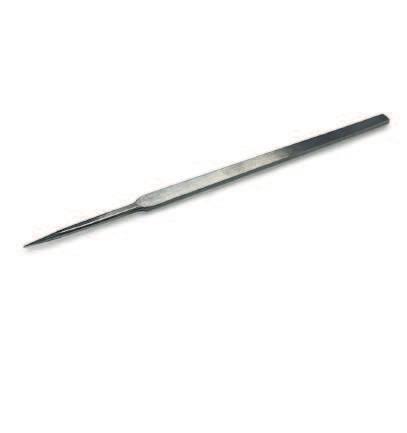

• Available with straight or curved needles • Crevice free construction
• Made from 304 stainless steel PartNo.NeedleTypeOverall
A638-140Straight147mm40mm304 ss A640-140Curved145mm40mm304 ss
Open PharmaScoops® (316L ss)
Open PharmaScoops are a popular alternative to our best selling PharmaScoops. Open PharmaScoops are designed to be easy to clean due to their crevice free design. They have a broad ergonomic handle which makes them comfortable to use even when wearing gloves.
Huge stocks for fast worldwide delivery.
• Heavy duty construction
• 316L stainless steel
• Crevice free
• Bright Polish
• Rounded corners for easy cleaning
• GMP correct PartNo.NominalCapacityWidthBodyLengthOverallLengthMaterial

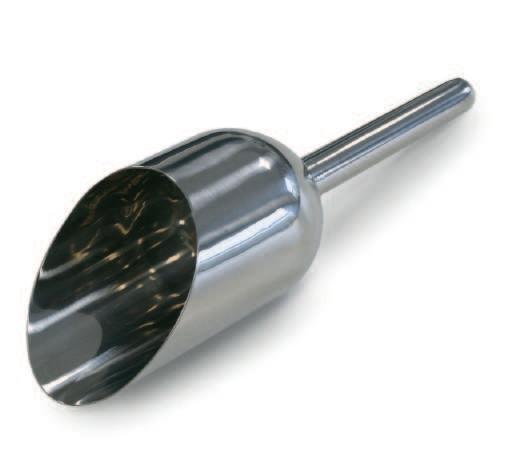

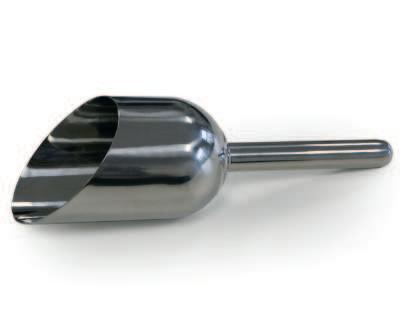

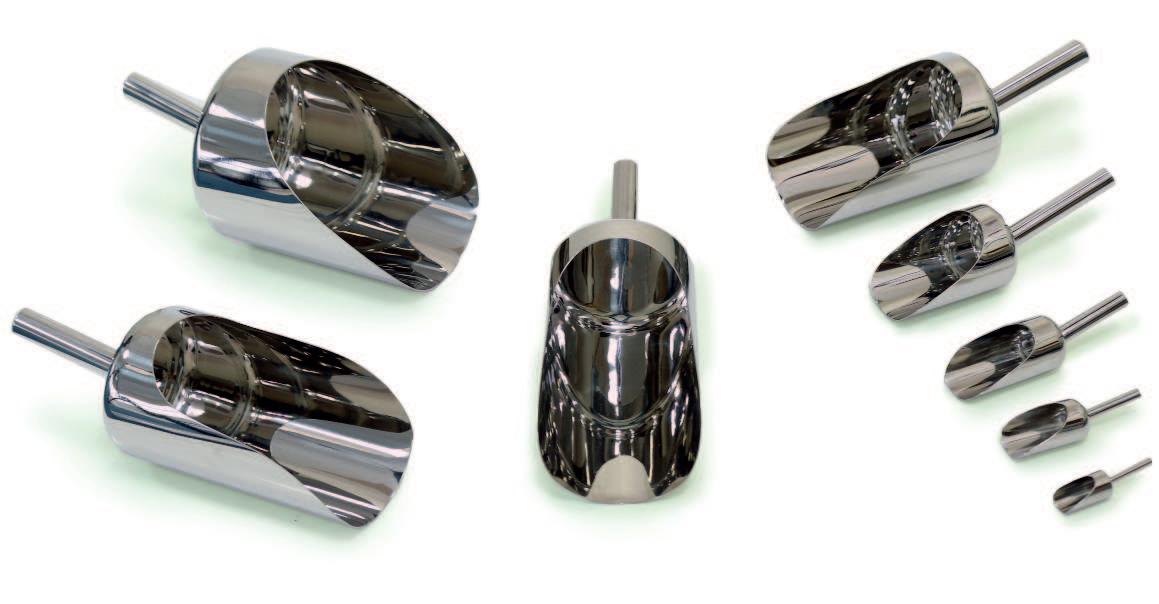

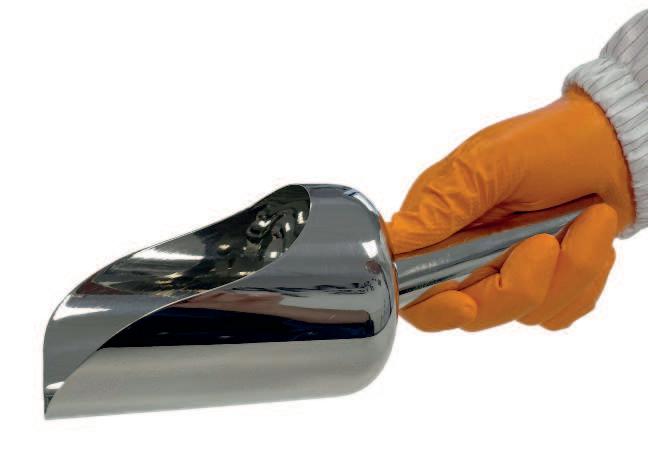

PharmaScoops are high quality stainless steel scoops. They are ideal for dispensing and for sampling.
• High quality scoops
• Heavy duty construction
• 316L stainless steel
• Crevice free
• Bright Polish
• Rounded corners for easy cleaning
• GMP correct
Scorpion PharmaScoops® (316L ss)

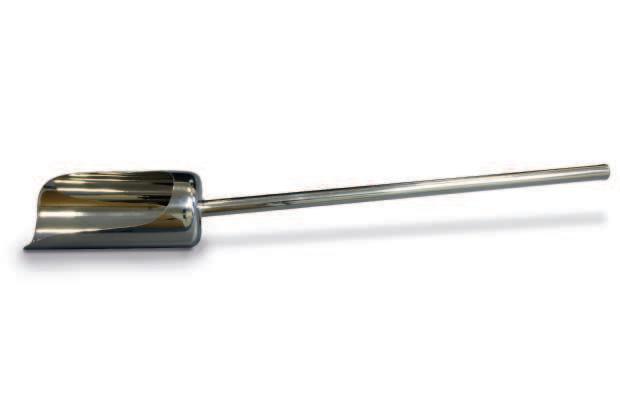

Long Handled PharmaScoops® (316L ss)
Weighing PharmaScoops
(316L ss)

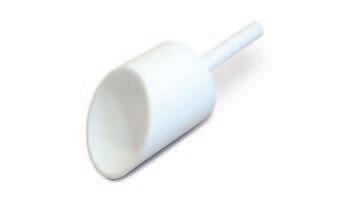

PTFE Scoops

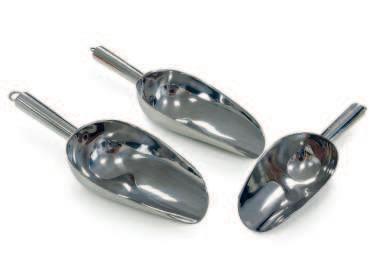

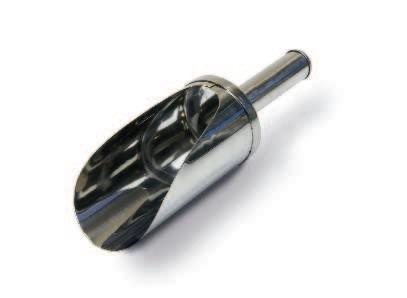

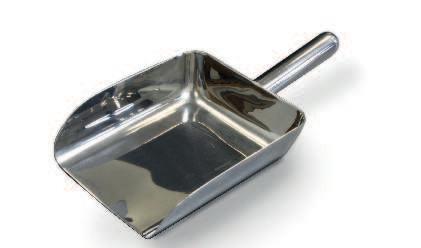

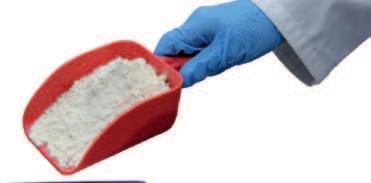

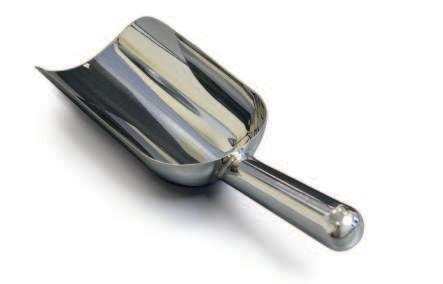

Industrial Scoops
PTFE construction (FDA acceptable and USP Class VI)
Rounded corners for easy cleaning
A333-500500ml100mm140mm265mm • Crevice free
A333-100100ml65mm95mm195mm
A643-100100ml65mm117mm205mm
A643-200200ml85mm140mm225mm
A643-300300ml90mm170mm275mm
A643-500500ml105mm185mm290mm
A643-10001000ml125mm200mm302mm
Ice Scoops
A304-120120ml50mm195mm
A304-450450ml75mm255mm
A304-10001000ml120mm315mm
A304-15001500ml120mm345mm
A304-20002000ml150mm365mm
A314-100100ml50mm100mm180mm
A334-10001000ml120mm230mm200mm

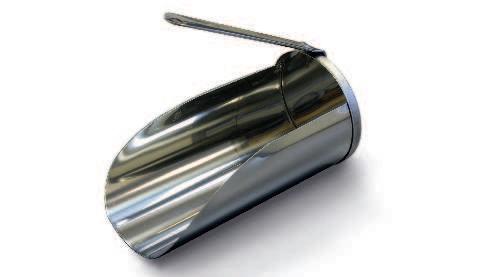

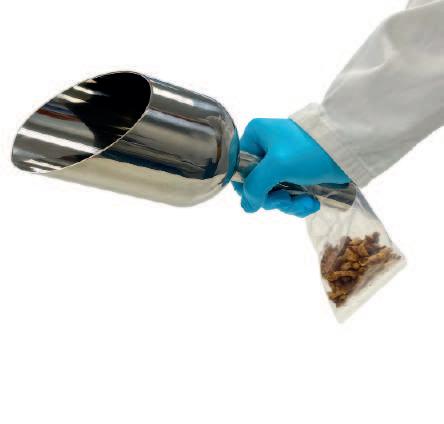

Filling Scoop (316L ss)
The Filling Scoop can be used to fill bags and bottles directly through the handle of the scoop. The scoop has a special rounded funnel shape to help the material flow through the handle. This Filling Scoop is suitable for use with most free flowing powders and granules.
• Empty scoop through the handle
• Heavy duty construction
• 316L stainless steel
• Hygienic crevice free construction
• Bright Polish
• Rounded corners for easy cleaning

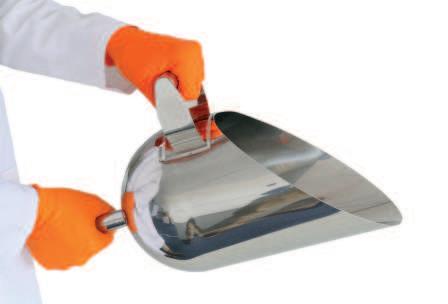

GMP PharmaScoop® (316L ss)
GMP PharmaScoops are suitable for the most demanding of applications. The fully radiused body ensures they are easy to clean and minimises the risk of cross contamination.
For extra heavy duty work the GMP PharmaScoop is available with an optional Top Handle to improve the ergonomics.
• Heavy duty construction
• 316L stainless steel
• Hygienic crevice free construction
• Bright Polish
• Optional Top Handle
• Rounded corners for easy cleaning
A776-30003000mlYes160mm270mm420mm316L
A776-50005000mlYes195mm350mm500mm316L

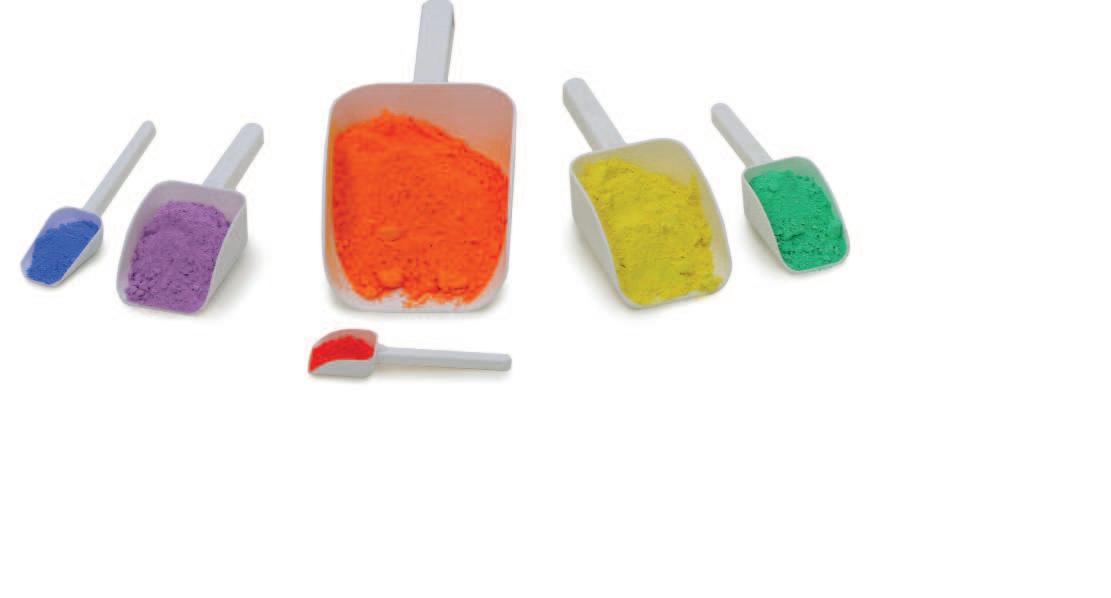

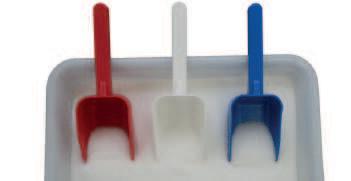

SteriWare PharmaScoops®
SteriWare PharmaScoops are high quality, single use, disposable plastic scoops. All SteriWare PharmaScoops are manufactured and packed in a cleanroom. They are widely used in the pharmaceutical and food industries all over the world.
SteriWare PharmaScoops are ideal for use with potent drugs as well as highly coloured or perfumed products.
• Manufactured and packed in a medical cleanroom to ensure cleanliness
• Individually wrapped
• Made from tough, virgin polymers (FDA acceptable, EU 10/2011 and EC 1935/2004)
• Available non-sterile or sterile (validated procedure using gamma irradiation)
• Ergonomic design
• GMP correct
• Available from stock

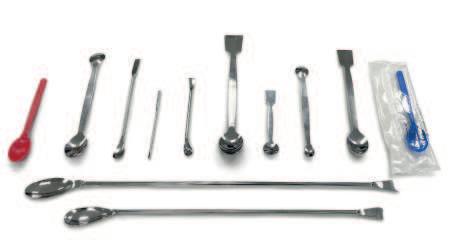

Spoons & Spatulas Disposable &
reusable

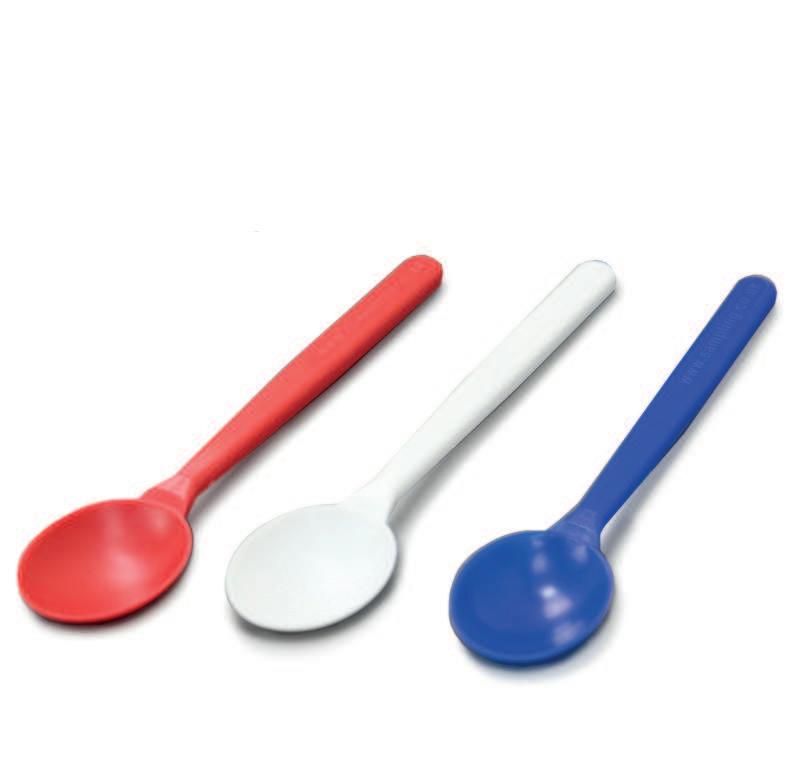

SteriWare Sample Spoons
• Single use spoons for sampling and dispensing small quantities
• Moulded & Packed in a Cleanroom
• Individually Bagged, 100 per Box
• Made from FDA & EU 10/2011 Conforming Materials
• BSE/TSE Free
• Full Batch Traceability
PartNo.Nominal Volume ColourSterileBox Quantity
8088A-033mlWhiteNo100
8088A-03S3mlWhiteYes100
8088A-1010mlWhiteNo100
8088A-10S10mlWhite Yes100
8088B-1010mlBlueNo100
8088B-10S10mlBlueYes100
8088R-10S10mlRedYes100
• Ergonomic spoon
Crevice free construction • Made from 304 stainless steel
PartNo.Length BowlWidthMaterial
A634-150150mm5mm304 ss
A634-200210mm5mm304 ss

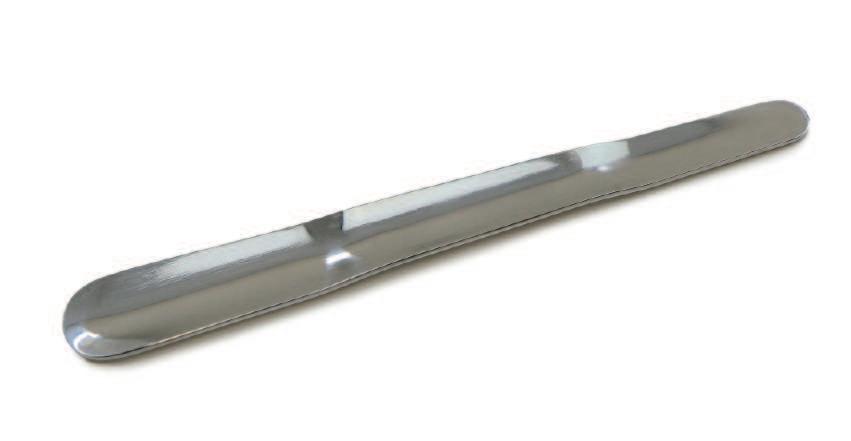

• Single ended stainless steel spoon
• Pouring lip on end of bowl • Crevice free construction
• Made from 304 stainless steel
PartNo.Length Max.Width
A620-200200mm25mm304 ss
(304 or 316L ss)
• Available in both 304 and 316L stainless steel
• Crevice free Bowl & flat ends
• Bright Polish
PartNo.NominalBowl Volume
2ml to 10ml
A506-30010ml300mm316L ss
A506-60010ml600mm316L ss
A506-100010ml1000mm316L ss
A504-12ml155mm304 ss
A504-210ml210mm304 ss
A504-32ml300mm304 ss
A504-410ml305mm304 ss
A504-510ml500mm304 ss
Laboratory Spoon
• Crevice free construction
• Made from 304 stainless steel
PartNo.Length
A611-150150mm2ml304 ss
A611-210212mm3ml304 ss
A611-250253mm6ml304 ss
A611-300303mm12ml304 ss

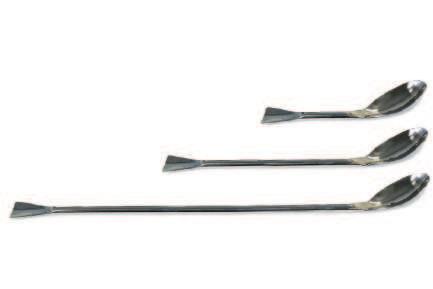

Double Ended Laboratory Spoon
• Double ended stainless steel spoon (different volume at each end)
• Flat handle
• Crevice free construction
• Made from 304 stainless steel
PartNo.Length Nominal Volume Material
A612-150150mm1ml & 2ml304 ss
A612-210212mm1ml & 3ml304 ss
A612-250253mm4ml & 7ml304 ss
A612-300303mm7ml & 12ml304 ss
• Double ended stainless steel spoon (different volume at each end)
• Round handle
• Crevice free construction
• Made from stainless steel
PartNo.Length
A104-150150mm0.5ml & 2mlStainless steel
A104-180180mm0.8ml & 2.8mlStainless steel
A104-210210mm1.6ml & 3mlStainless steel
A104-250250mm1.8ml & 5mlStainless steel
A104-300300mm2ml & 8mlStainless steel
Ergonomic spatula
Crevice free construction
Made from 304 stainless steel PartNo.Length
A627-100100mm9mm304
Ergonomic spatula
Crevice free construction

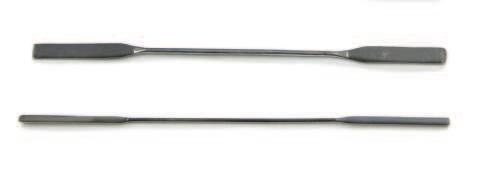

Micro-Spatulas (304 & 316L ss)
• 304 or 316L stainless steel
• Range of sizes
New
Nuffield Spatula
New

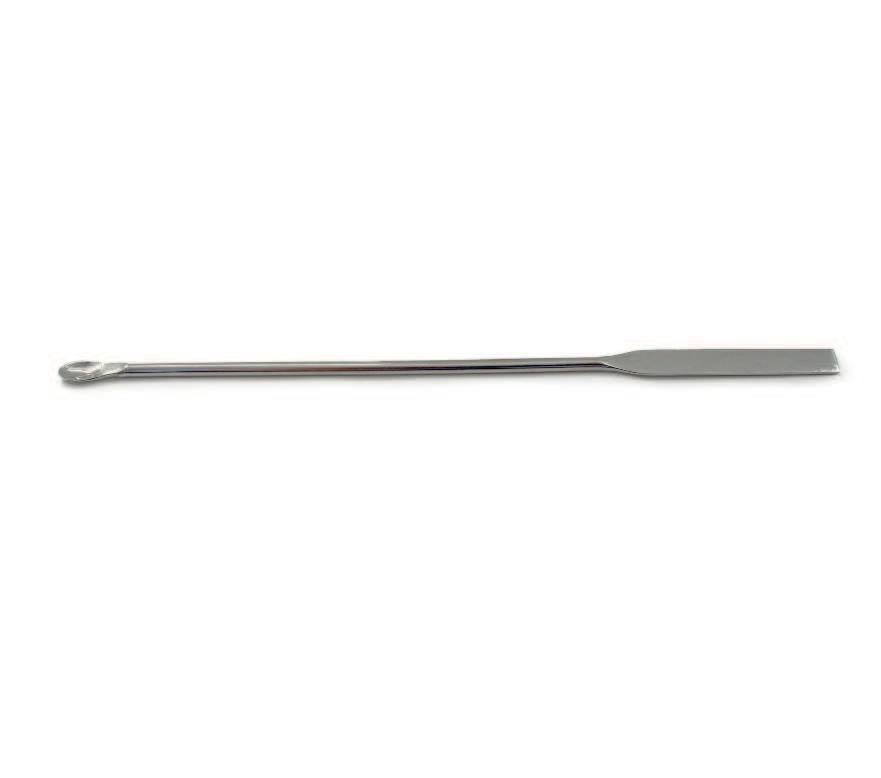

SteriWare Micro-Spatula
• Crevice free
• Bright polish finish
New sizes
PartNo.BladeWidthBladeLengthOverall Length Material
A100-19mm50mm210mm304 ss
A100-25mm45mm210mm304 ss
A100-32.5mm35mm150mm304 ss
*A100-2012mm40mm175mm304 ss
*A106-2012mm40mm175mm316L ss
• Special curved spatula
• Crevice free construction
• Made from 304 stainless steel
PartNo.Length Max.Widthof Ends Material
A614-175177mm23mm304 ss
• Ergonomic spatula
• Crevice free construction
• Made from 304 stainless steel
PartNo.Length Max.Widthof Ends Material
A615-140147mm13mm304 ss
• Moulded & Packed in a Cleanroom
• Individually Bagged, 100 per Box
• Made from FDA & EU 10/2011 Conforming Materials
• BSE/TSE Free
• Full Batch Traceability
• Available Sterile (gamma irradiated)
PartNo.Nominal
8015V-1700.3mlNo4 x 40mm100
8015V-170S0.3mlYes4 x 40mm100
8015N-1700.5mlNo6 x 40mm100
8015N-170S0.5mlYes6 x 40mm100
8015A-1702mlNo13 x 40mm100
8015A-170S2mlYes13 x 40mm100
See the full range of SteriWare products at www.sampling.com
StainlessWare
Flat Spatula
Laboratory Spatula
A631-120120mm21mm304
Pro Whisk Stainless Steel
The stainless steel Pro Whisks are ideal for mixing liquids and creams. They come in a wide variety of sizes from 280mm to 550mm long. The whisks have an additional loop design that makes the mixing action more efficient. A hook on the end allows them to be hung up after use.
Bailers (316Lss)
Bowls
Medicine Cups
• Crevice free
• Bright Polish
• Flat cut rim on bowl
• 316L Stainless Steel
PartNo.Nominal Volume Max.Bowl Diameter Overall Length Material
A296-11L170mm285mm316L ss
A296-22L215mm340mm316L ss
A296-44L270mm415mm316L ss
• Crevice free design
• Polished finish
• Range of sizes
• 304 Stainless Steel
PartNo.Nominal Volume DiameterHeightMaterial
A534-10001L170mm86mm304 ss
A534-20002L217mm112mm304 ss
A534-40004L271mm130mm304 ss
Medicine Cups are ideal for putting small amounts of tablets, granules or powder into. The flat base design means they are ideal for weigh scales.
• 304 stainless steel
• Crevice free
• Polished
PartNo.Nominal Volume DiameterHeightMaterial
A764-3030ml50mm25mm304 ss

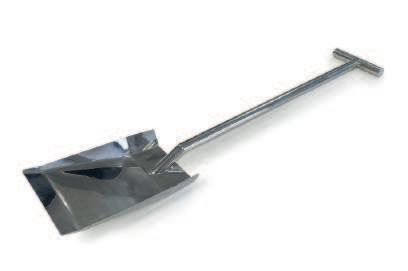

Our stainless steel Shovels have a robust strong design. The sturdy handle is fully welded for added strength.
• 316L stainless steel
• Crevice free
• Polished
PartNo.Overall Length BladeWidthBlade Length Material
A246-101155mm235mm355mm316L ss
Shovel (316L ss)
SteriWare ULTRA is the new premium range from Sampling Systems. All of the products in the SteriWare ULTRA range are made from HDPE that conforms to USP Class VI and USP 661. All SteriWare ULTRA products are double bagged as standard.
All SteriWare ULTRA products are Cleanroom manufactured, sterilised by gamma, have a 5 year shelf life and come with full documentation.
ProductDescription Page Bailers41 Bowls41 Buckets17 Containers (7ml to 100L)4-9 Dippers21 Drums (1L to 300L)10-15 Forceps27 Funnels18-20 Jacketed Containers (3L to 50L)8 Jugs16 Ladles21 Measuring Scoops28 Medicine Cups41 Needles29 Paddles20 Pallet Knives23 Scissors29 Scoops30-35 Scrapers23 Sieving Tool27 Shovel41 Spatulas38-40 Spoons36-37 Tablet Counting Trays24 Test Tube Rack26 Tongs26 Trays24-25 Trolleys13 Tweezers27 Volumetric Scoops28 Whisk40
PartNumber Page 190028 500521 801539 804535 806624 808836 811118 817522 837019 878522 A10039 A10437 A10639 A12611 A13440 A13612 A14426 A15416 A16420 A19612 A20023 A20123 A20416 A22425 A23625 A24419 A24641 A26417 A26613 A2848 A29641 A30433 A31433 A31631 A32421 A32621 A33023 A33333 A33420 A33528 A33630 A34420 A34632 A35023 A35624 A36429 A36632 A37632 A38413 A39427 A39632 A40616 A4165 A4176 A4186 A4269 A43414 A43634
PartNumber Page A44614 A45415 A46615 A50437 A50637 A51627 A53441 A55229 A55529 A5667 A58617 A59627 A60634 A61137 A61237 A61340 A61439 A61539 A61838 A62036 A62126 A62226 A62326 A62414 A62538 A62614 A62738 A62838 A63038 A63140 A63436 A63829 A64029 A64333 A64526 A65623 A67424 A68425 A68617 A69415 A69615 A71618 A7368 A7468 A76441 A77634 A82617 A8365 A8467 A85427 A8565 A90420 A91620 A92610 A97627 A98619 A99621
