FEATU RES OF OFFLINE TEST FIXTURES WWW. EQU IP - TEST. COM
TECH N ICAL

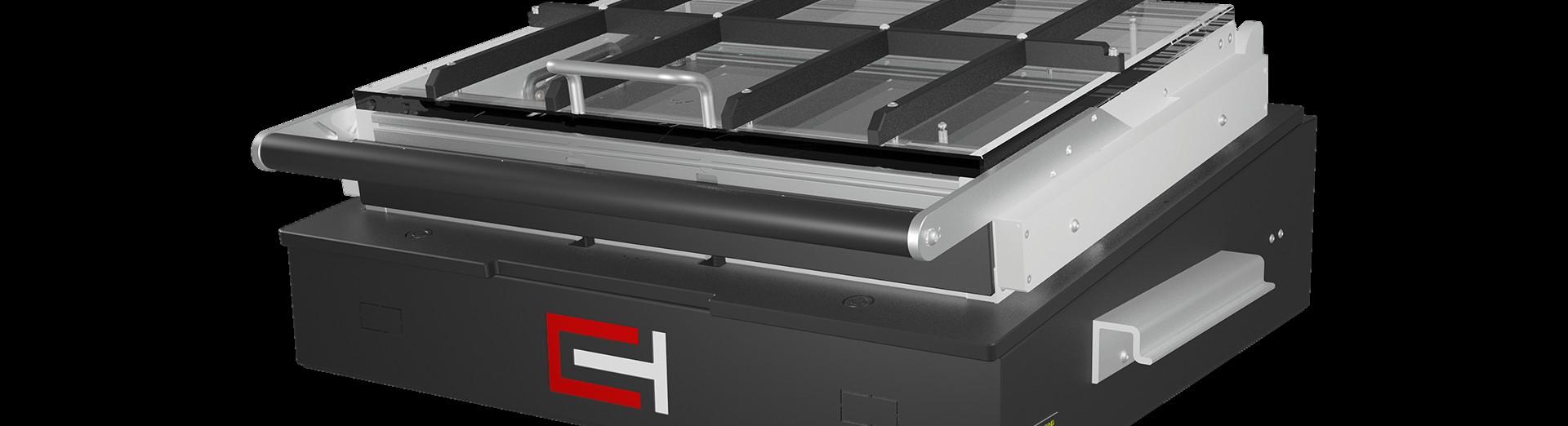

TECHNICAL FEATURES OF HLMFS- NED4 433 mm x 288 mm USABLE AREA 3000 N MAXIMUM FORCE 729 mm x 635 mm x 295 mm EXTERNAL DIMENSION

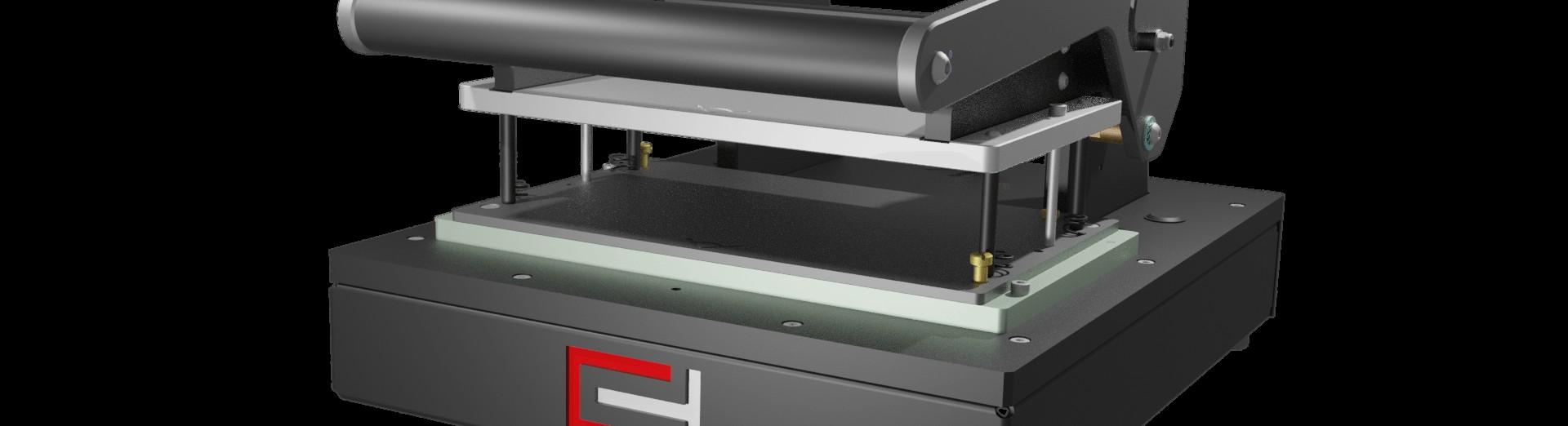

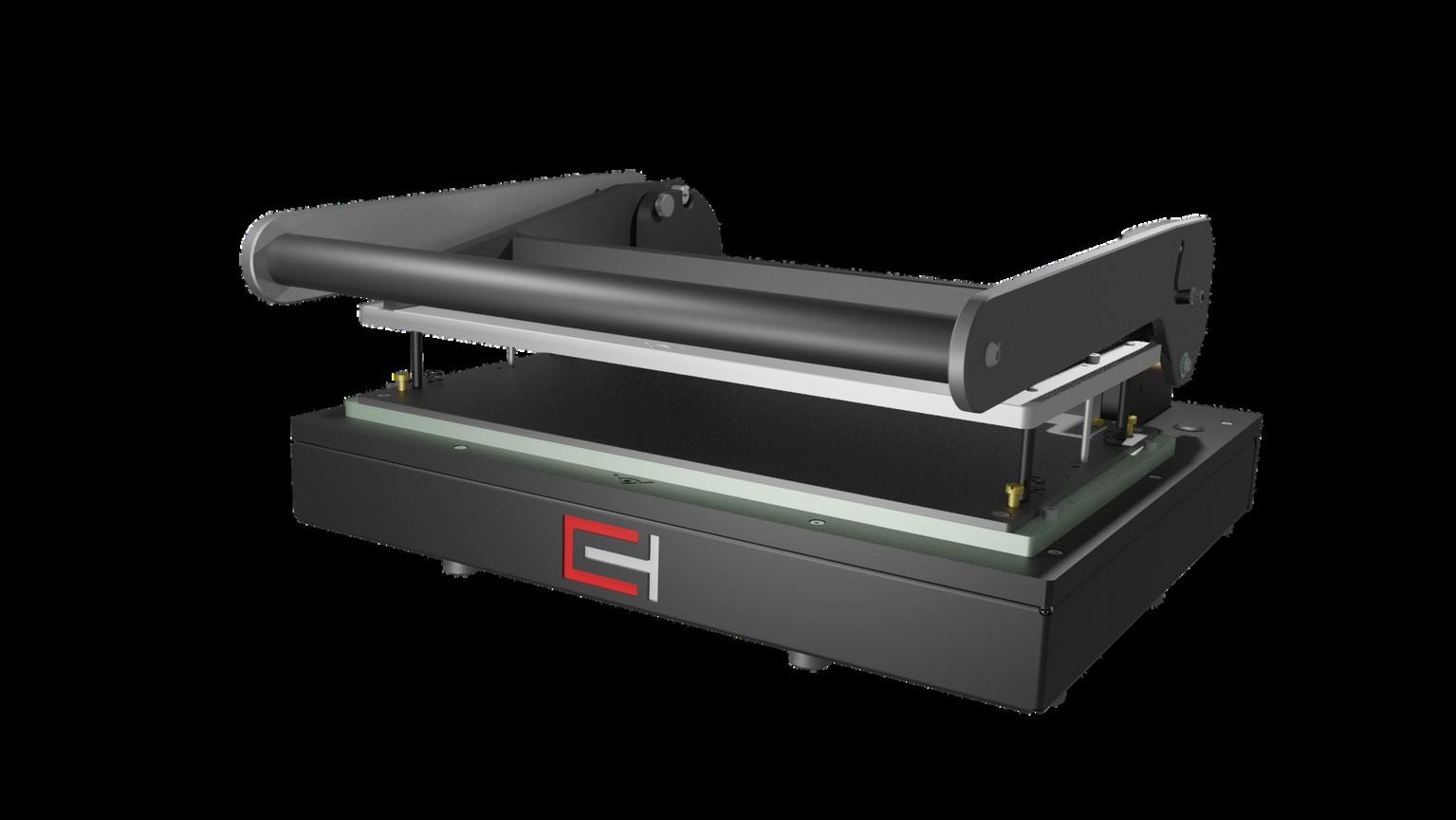

TECHNICAL FEATURES OF ND- MFS-D3-PYL-DUAL STAGE 224 mm x 178 mm USABLE AREA 800 N MAXIMUM FORCE 549 mm x 587 mm x 326 mm EXTERNAL DIMENSION

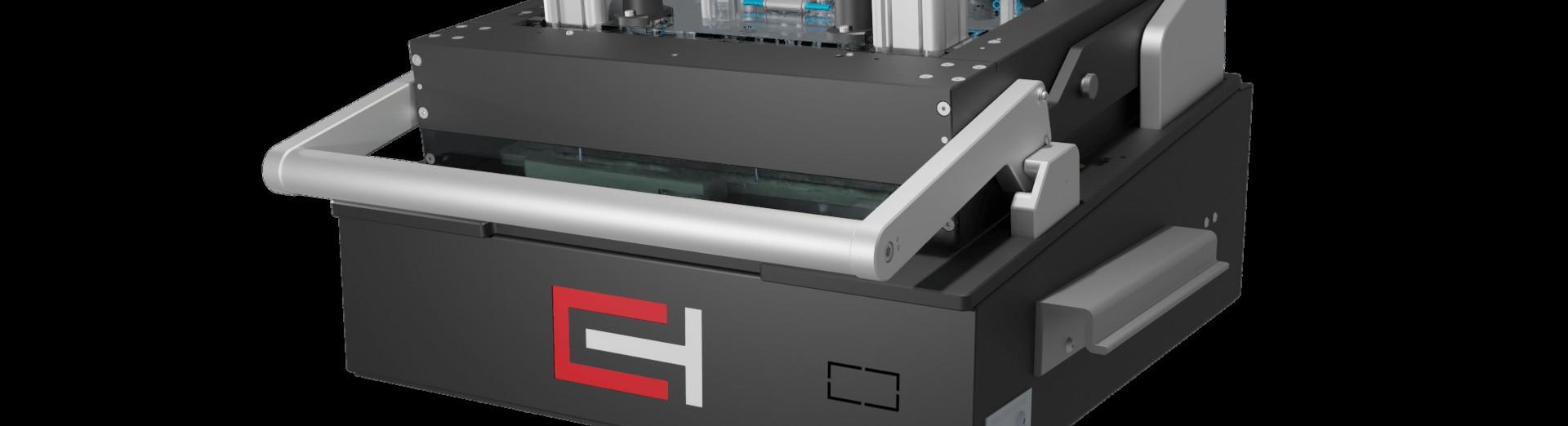

TECHNICAL FEATURES OF HPS-25 6.4 mm PARALELL CONTACT STROKE: 30 mm COMPONENT HEIGHT 200 mm x 125 m MAXIMAL USABLE AREA:

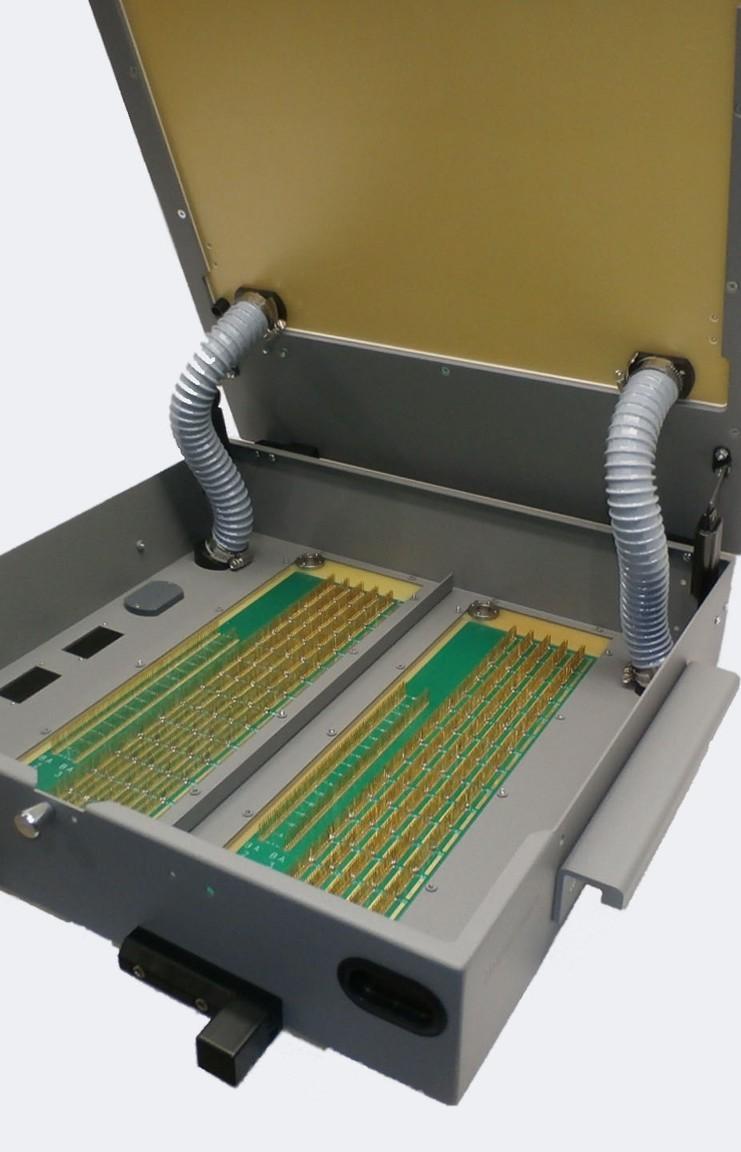

OPERATED FIXTURE KITS Manual operated Fixture is Suitable for PCB or final product testing, Manual or pneumatical press down, Various dimensions in the portfolio and Optional removeable needlebed.
MANUALLY
