DJ

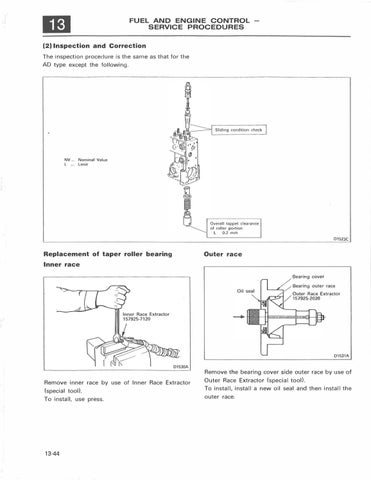

FUEL AND ENGINE CONTROL SERVICE PROCEDURES
(2) Inspection and Correction The inspection procedure is the same as that for the AD type except the following.
Sliding condition check
NV... L ...
Nominal Value Limit
Overall tappet clearance of roller portion 0.2 mm L
D1523C
Replacement of taper roller bearing
Outer race
Inner race Bearing cover Bearing outer race Outer Race Extractor 157925-2020
01531A
Remove the bearing cover side outer race by use of Remove inner race by use of Inner Race Extractor (special tooll. To install, use press.
13-44
Outer Race Extractor (special tool). To install, install a new oil seal and then install the outer race.
