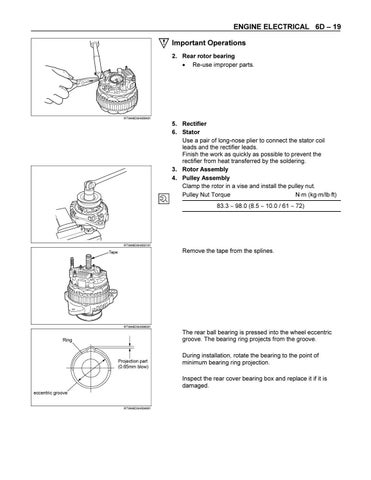

ENGINE ELECTRICAL 6D – 19 Important Operations 2. Rear rotor bearing · Re-use improper parts.
RTW46DSH000401
5. Rectifier 6. Stator Use a pair of long-nose plier to connect the stator coil leads and the rectifier leads. Finish the work as quickly as possible to prevent the rectifier from heat transferred by the soldering. 3. Rotor Assembly 4. Pulley Assembly Clamp the rotor in a vise and install the pulley nut. Pulley Nut Torque N×m (kg×m/lb×ft) 83.3 ~ 98.0 (8.5 ~ 10.0 / 61 ~ 72)
RTW46DSH002101
Remove the tape from the splines.
RTW46DSH006001
The rear ball bearing is pressed into the wheel eccentric groove. The bearing ring projects from the groove. During installation, rotate the bearing to the point of minimum bearing ring projection. Inspect the rear cover bearing box and replace it if it is damaged.
RTW46DSH004901
