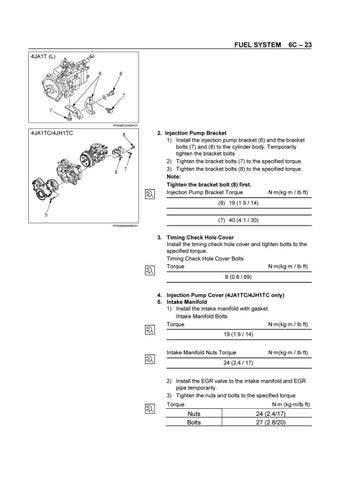

FUEL SYSTEM
6C – 23
4JA1T (L)
RTW46CSH000101
4JA1TC/4JH1TC
2. Injection Pump Bracket 1) Install the injection pump bracket (6) and the bracket bolts (7) and (8) to the cylinder body. Temporarily tighten the bracket bolts. 2) Tighten the bracket bolts (7) to the specified torque. 3) Tighten the bracket bolts (8) to the specified torque. Note: Tighten the bracket bolt (8) first. Injection Pump Bracket Torque N·m(kg·m / lb ft) (8) 19 (1.9 / 14) (7) 40 (4.1 / 30) RTW36AMH000101
3. Timing Check Hole Cover Install the timing check hole cover and tighten bolts to the specified torque. Timing Check Hole Cover Bolts Torque N·m(kg·m / lb ft) 8 (0.8 / 69) 4. Injection Pump Cover (4JA1TC/4JH1TC only) 5. Intake Manifold 1) Install the intake manifold with gasket. Intake Manifold Bolts Torque N·m(kg·m / lb ft) 19 (1.9 / 14) Intake Manifold Nuts Torque
N·m(kg·m / lb ft)
24 (2.4 / 17) 2) Install the EGR valve to the intake manifold and EGR pipe temporarily. 3) Tighten the nuts and bolts to the specified torque
Torque
N×m (kg×m/lb ft)
Nuts Bolts
24 (2.4/17) 27 (2.8/20)
