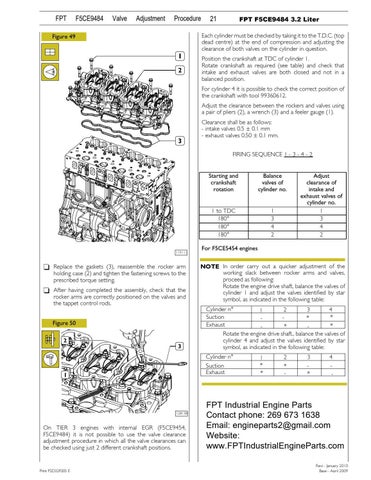

FPT F5CE9484 3.2 Liter
Each cylinder must be checked by taking it to the T.D.C. (top dead centre) at the end of compression and adjusting the clearance of both valves on the cylinder in question.
Figure 49
Position the crankshaft at TDC of cylinder 1. Rotate crankshaft as required (see table) and check that intake and exhaust valves are both closed and not in a balanced position. For cylinder 4 it is possible to check the correct position of the crankshaft with tool 99360612. Adjust the clearance between the rockers and valves using a pair of pliers (2), a wrench (3) and a feeler gauge (1). Clearance shall be as follows: - intake valves 0.5 ± 0.1 mm - exhaust valves 0.50 ± 0.1 mm. FIRING SEQUENCE 1 - 3 - 4 - 2
119111
- Replace the gaskets (3), reassemble the rocker arm holding case (2) and tighten the fastening screws to the prescribed torque setting. - After having completed the assembly, check that the rocker arms are correctly positioned on the valves and the tappet control rods.
Starting and crankshaft rotation
Balance valves of cylinder no.
1 to TDC 180° 180° 180°
1 3 4 2
For F5CE5454 engines NOTE In order carry out a quicker adjustment of the working slack between rocker arms and valves, proceed as following: Rotate the engine drive shaft, balance the valves of cylinder 1 and adjust the valves identified by star symbol, as indicated in the following table: Cylinder n° 2 3 4 1 Suction * * Exhaust * * Rotate the engine drive shaft., balance the valves of cylinder 4 and adjust the valves identified by star symbol, as indicated in the following table:
Figure 50
Cylinder n° Suction Exhaust
128138
On TIER 3 engines with internal EGR (F5CE9454, F5CE9484) it is not possible to use the valve clearance adjustment procedure in which all the valve clearances can be checked using just 2 different crankshaft positions.
Print P2D32F005 E
Adjust clearance of intake and exhaust valves of cylinder no. 1 3 4 2
1 * *
2 * -
3 *
4 -
