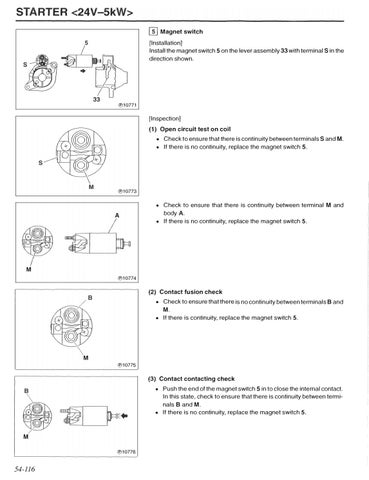

RTER <24V-5k > [I] Magnet switch [Installation] Install the magnet switch 5 on the lever assembly 33 with terminal Sin the direction shown.
®10771
[Inspection]
(1) Open circuit test on coil • Check to ensure that there is continuity between terminals Sand M. • If there is no continuity, replace the magnet switch 5.
®10773
A
• Check to ensure that there is continuity between terminal M and body A. • If there is no continuity, replace the magnet switch 5.
M ®10774
(2) Contact fusion check • Check to ensure that there is no continuity between terminals Band M. • If there is continuity, replace the magnet switch 5.
M ®10775
(3) Contact contacting check • Push the end of the magnet switch 5 in to close the internal contact. In this state, check to ensure that there is continuity between termi nals Band M. • If there is no continuity, replace the magnet switch 5.
M ®10776
