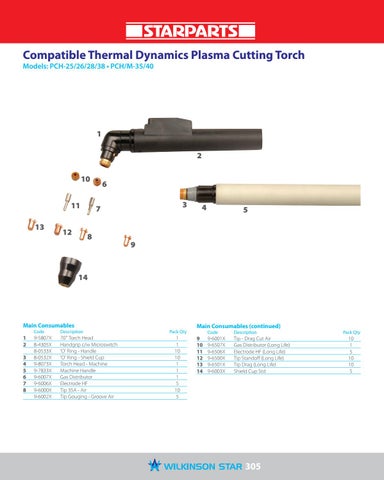

Compatible Thermal Dynamics Plasma Cutting Torch Models: PCH-25/26/28/38 • PCH/M-35/40
1 2 10 11 13
12
6 3
7 8
4
5
9
14
Main Consumables
Code
Description
1 2 3 4 5 6 7 8
9-5807X 8-4305X 8-0533X 8-0532X 9-8073X 9-7833X 9-6007X 9-6006X 9-6000X 9-6002X
70˚ Torch Head Handgrip c/w Microswitch 'O' Ring - Handle 'O' Ring - Shield Cup Torch Head - Machine Machine Handle Gas Distributor Electrode HF Tip 35A - Air Tip Gouging - Groove Air
Pack Qty
1 1 10 10 1 1 1 5 10 5
Main Consumables (continued)
Code
Description
9 10 11 12 13 14
9-6001X 9-6507X 9-6506X 9-6500X 9-6501X 9-6003X
Tip - Drag Cut Air Gas Distributor (Long Life) Electrode HF (Long Life) Tip Standoff (Long Life) Tip Drag (Long Life) Shield Cup Std
305
Pack Qty
10 1 5 10 10 5
