Church of Oak
Co. Antrim

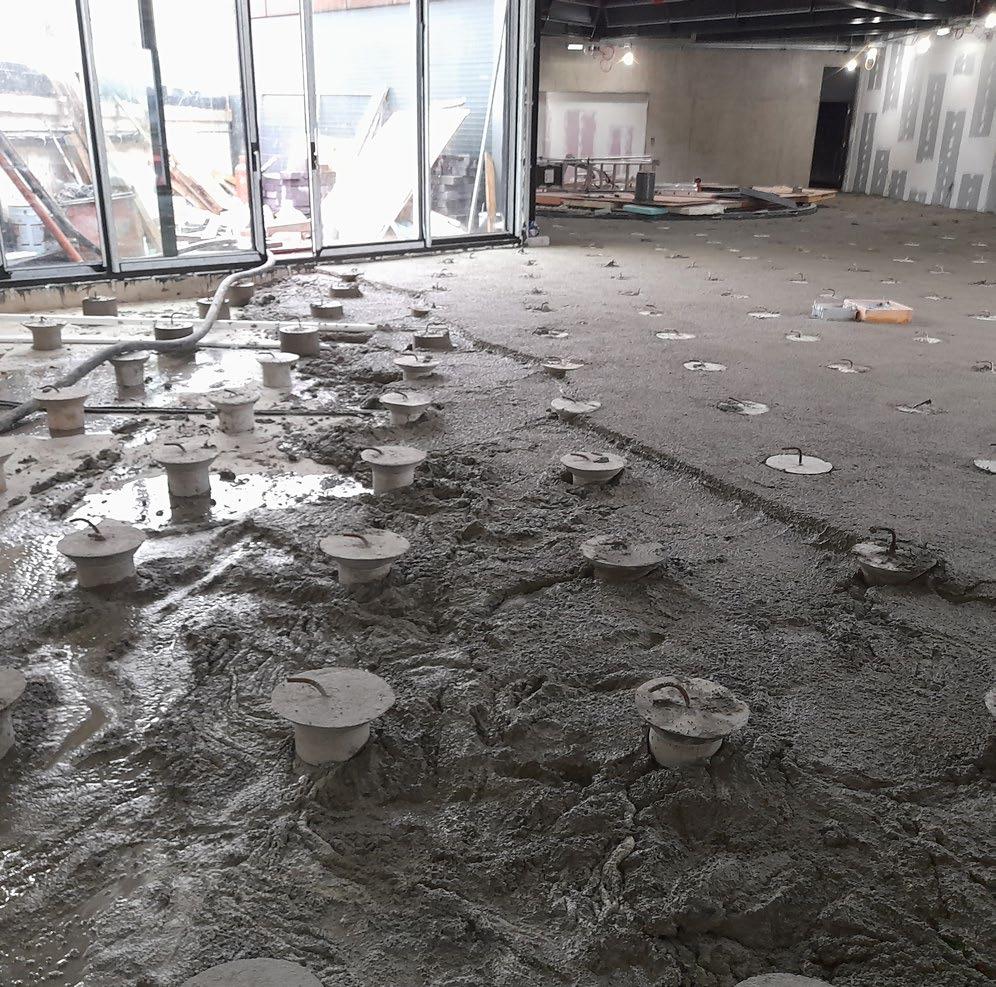

Church of Oak Distillery is situated on the canal just outside Monasterevin, Co. Kildare. The distillery was a refurbishment that added an additional floor to the existing grain mill. The second floor added consists of gallery floors, exhibition spaces and a terrace. The structural floor (shown in the picture below) would have proved a challenge with other insulation products. The free-flowing qualities of energystore TLA® made it an ideal solution for this project.
Project Details
Project Size 630m2
Main Contractor Ormonde Construction Ltd
Installer Superior Floor Screed
Grade TLA110
“Our project was unique in that the 2nd floor finished floor screed was to be structural, so to achieve this, the project engineers devised a solution of introducing 180mm high mini stub columns at 1.0 metre centres in each direction to carry the structural floor. An insulation infill was then required within the 180mm void between all the mini pillars. With standard sheet insulation, wastage would have been a huge factor here, as well as time consuming exercise, in cutting accurately around all the mini pillars. Once approved for this area, it was used in all other areas. We will use TLA on future works, due to its cost effectiveness and efficiency.”
Seán Cannon Site Project Manager | Ormonde Construction Limited
Cost effective
Reduced wastage
Quick drying times
Minimal lead time
Faster installation
*Compared to traditional methods
Technical Characteristics
Cement Dosage (kg/m3)
Density after 28 days (kg/m3)
Thermal Conductivity (W/mK)
Compressive Strength (kPa)
Flexural Strength (N/mm2)
Permeability to Water Vapour (μ)
Shrinkage (NBN) (mm/m)
contact us about your
This unique poured insulation offers a
alternative for use in floor and roof construction as a high strength void former or insulation.
No on-site TLA storage or waste.
<0.5% drying shrinkage.
No gaps or breaks in insulation layer that may cause performance issues.
High strength poured insulation
Suitable for flat and sloping roofs
Suitable to apply underfloor heating systems (UFH) directly on top
Suitable for ground bearing and suspended floors
Faster installation compared to traditional methods
A2 Fire Rated Insulation Solution
