PORTFOLIO A Student’s Collection of Architectural Designs

Emma Eitzen 2020

2024

04

12

MIDTOWN INFILL HOUSING

NURTURE HUB

Rendering

COTE

Structure

Form Finding

Modular Unit Design

Revit & Endscape

20

28

B R EE ZE B LOCK A PA RT M EN T S

E Q U I N E THERAPY CENTER

Revit

ADA Accessibility

Technical Skills

Site Analysis Model Craft

EMMA EITZEN

INFILL HOUSING RENDERING, STRUCTURE, & MODULAR UNIT DESIGN

4

SELECTED WORKS

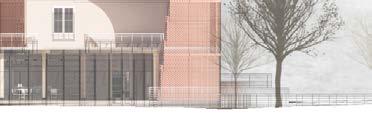

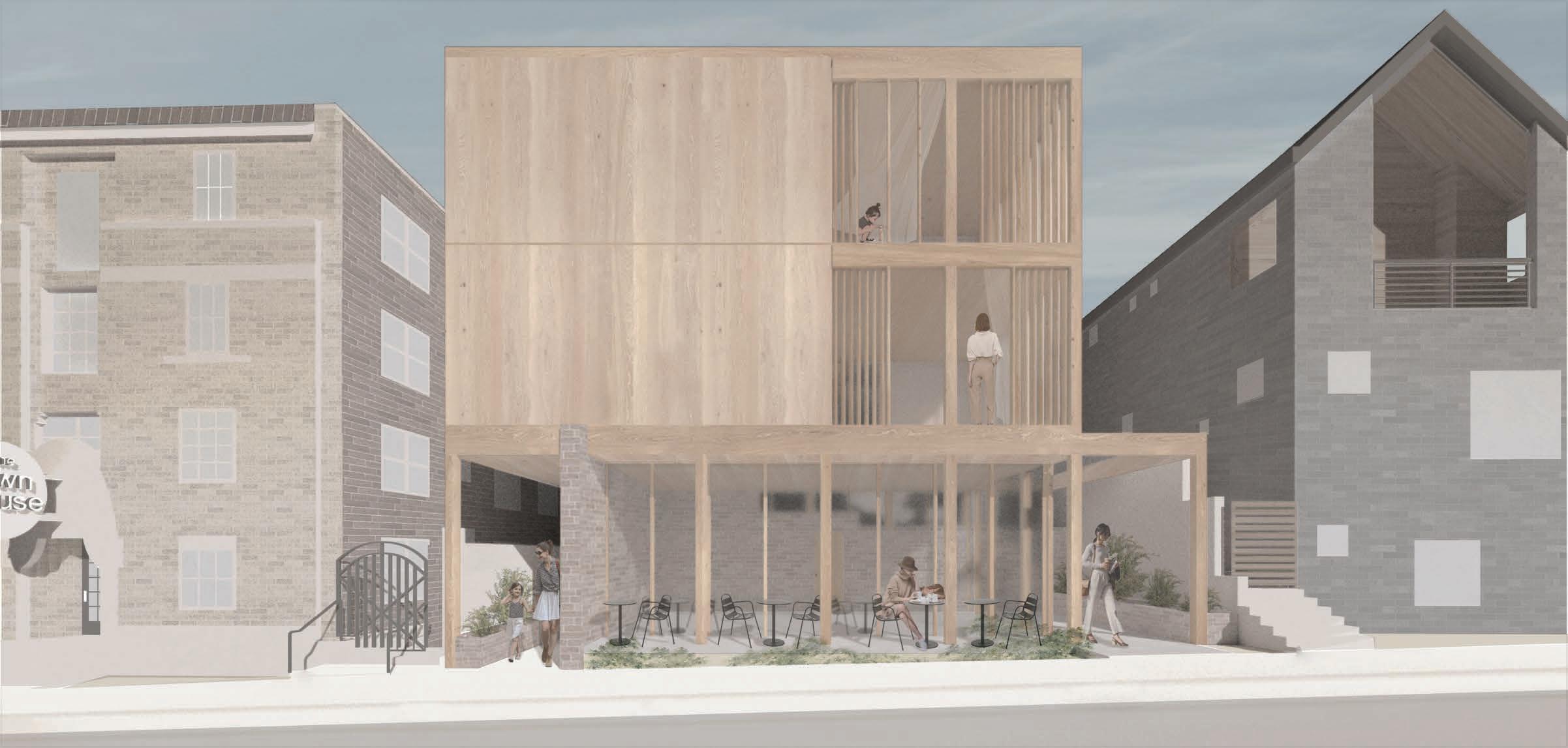

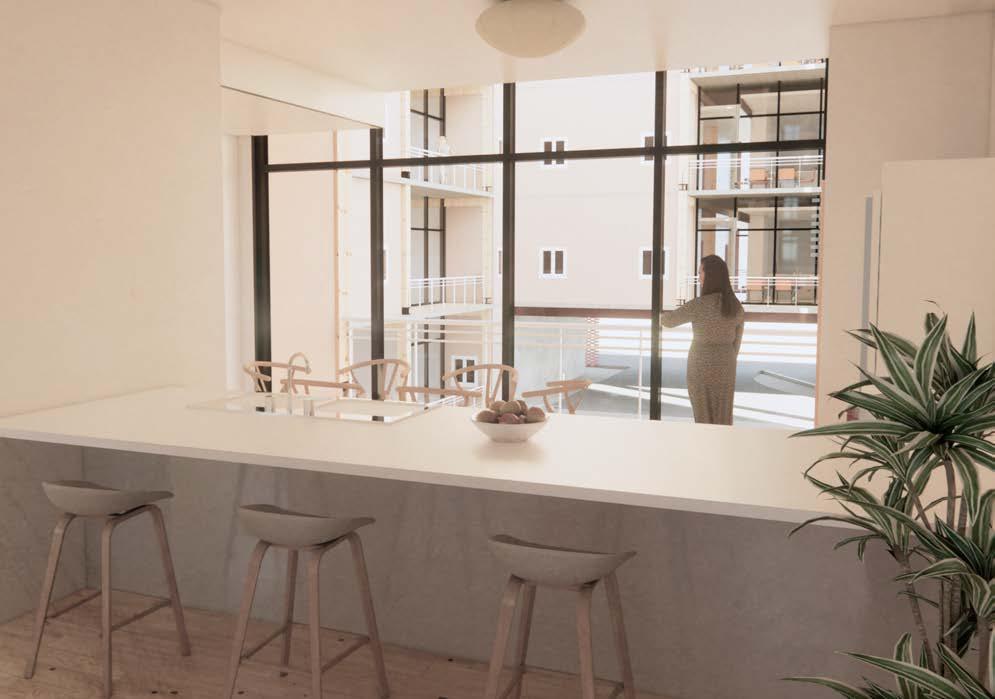

This mixed-use infill project in Midtown, OKC fills a physical gap along an historic building and a new residence.

of the lot to the back, and finally to reconcile with having public and private space within mixed use housing.

Design Problem: Needs to meet the urban context of the site, creating a bridged space between the 15’ height difference of the front

Design Solution: A mixed-use infill project containing 8 apartments, a coffee shop, community garden and green courtyard.

5

EMMA EITZEN

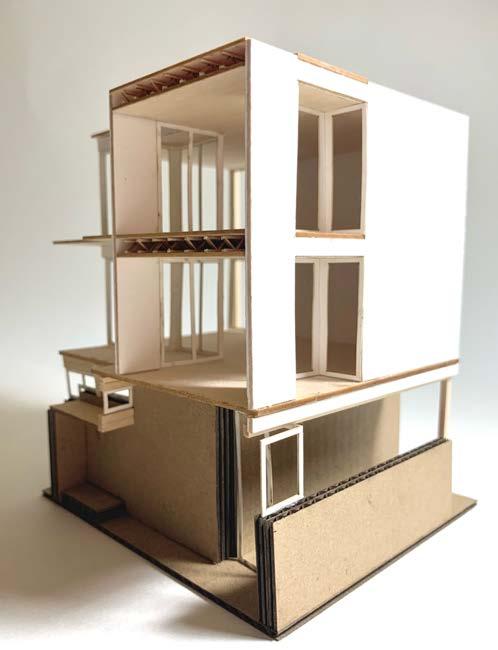

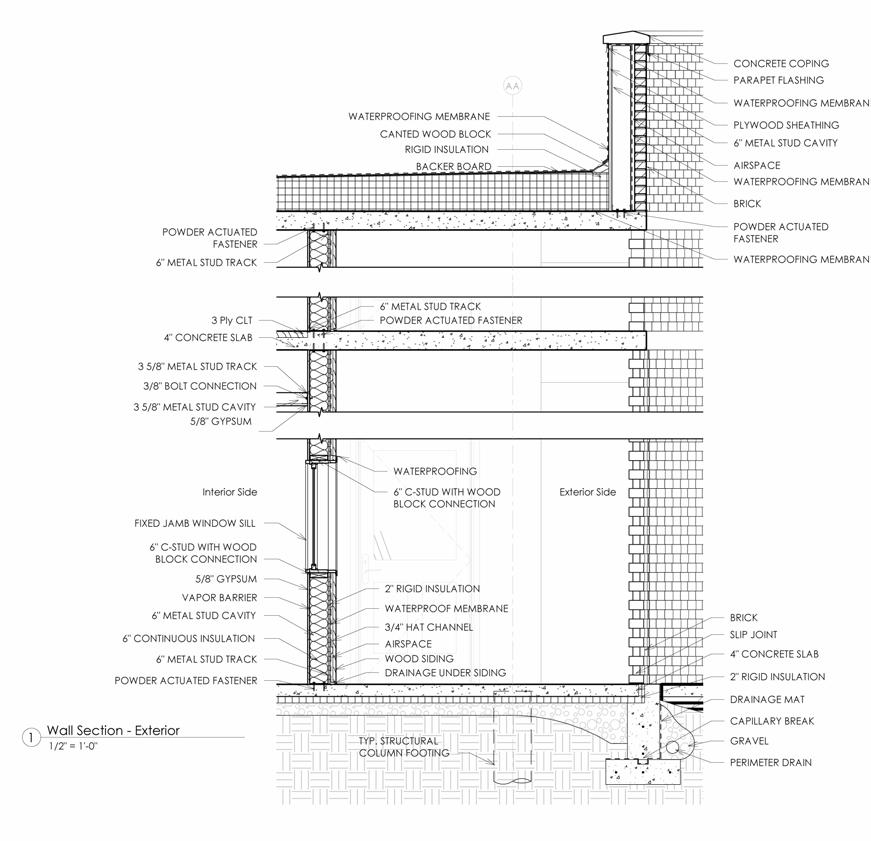

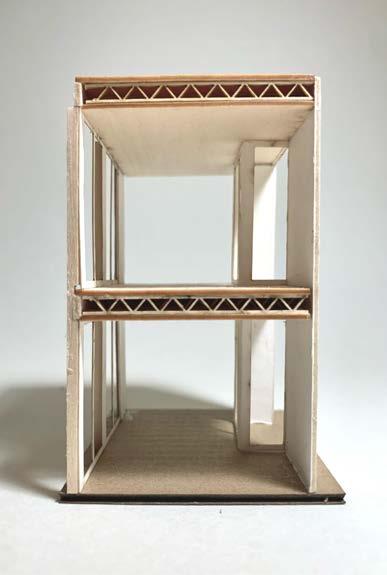

Engineered Wood Joist Heavy Timber Beam Deck Ledger

Structural Solutions: Prominent contextual brick retaining walls capture westward foot traffic, pulling people into a public coffee shop.

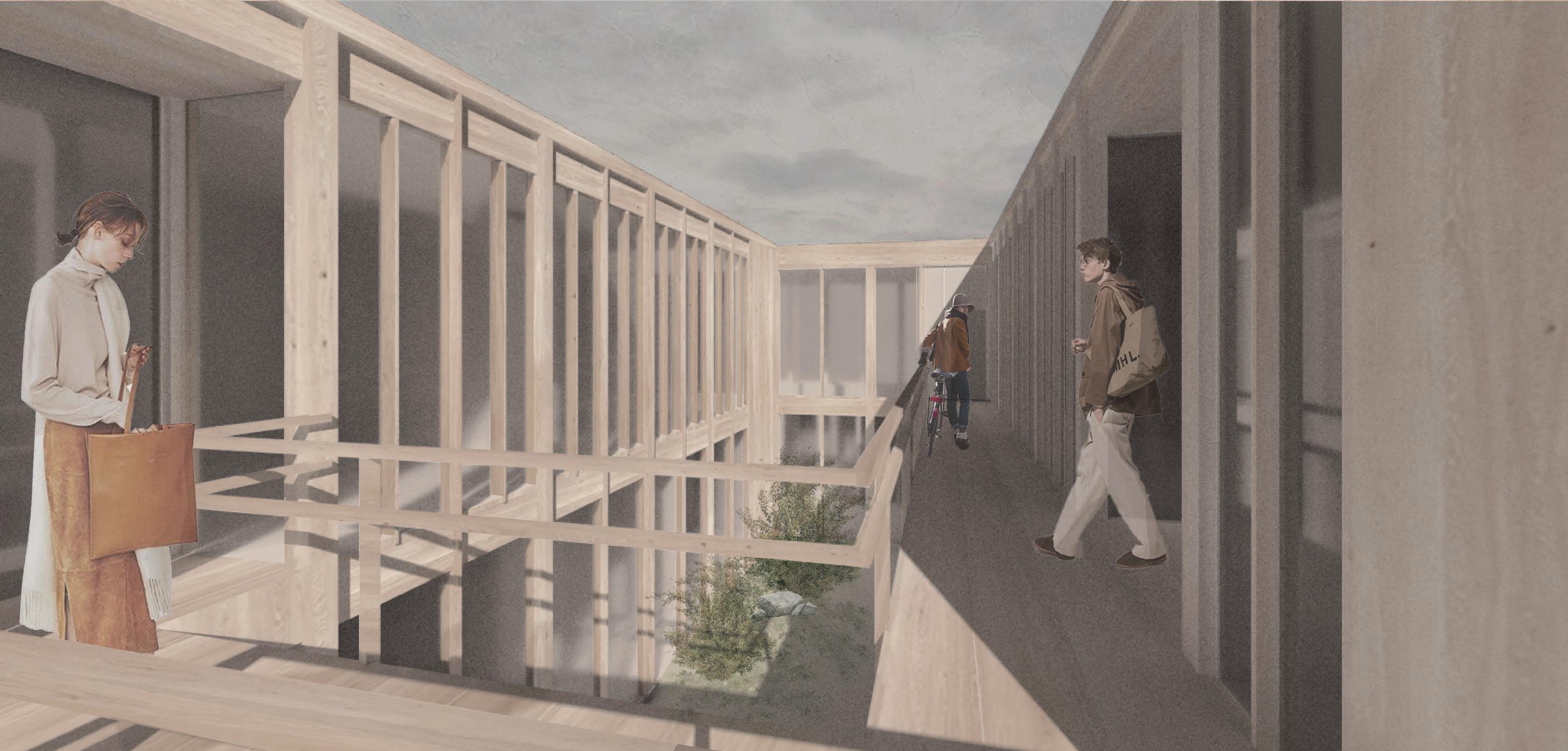

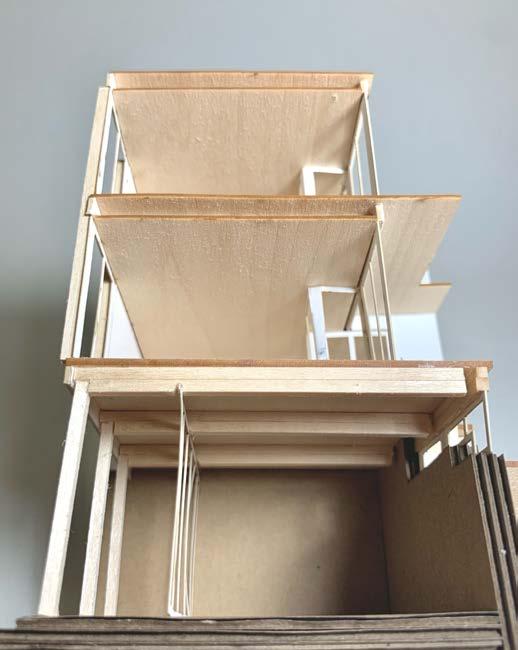

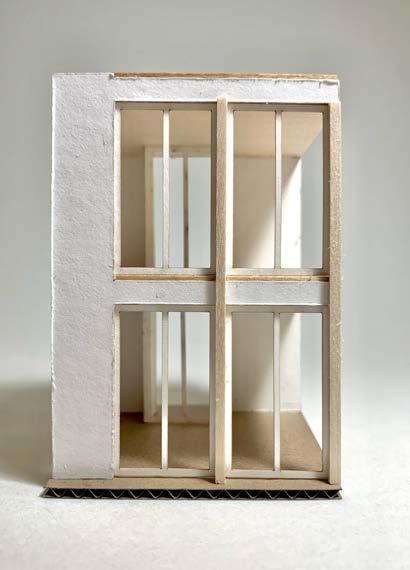

Light wood framing and engineered wood systems are the main component of the housing aspect of this design.

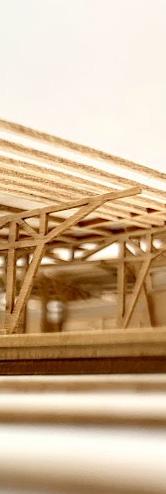

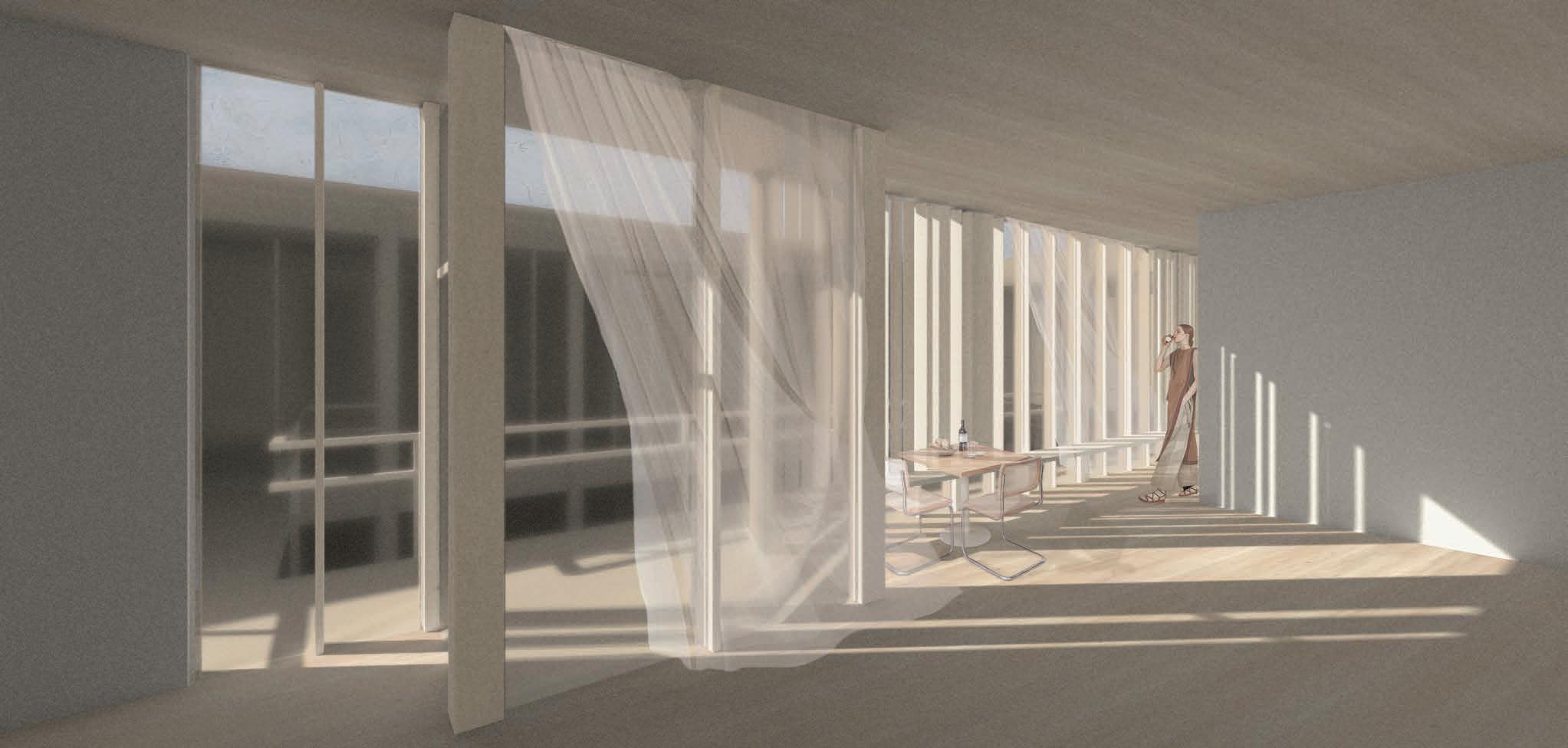

The commercial space utilizes heavy timber. The language of heavy timber is continued in the rest of the design at moments with larger spans of glazing.

6

SELECTED WORKS

7

EMMA EITZEN

8

SELECTED WORKS

9

EMMA EITZEN

10

SELECTED WORKS

11

EMMA EITZEN

NURTURE HUB COTE, FORM FINDING, REVIT & ENDSCAPE A resilient educational center, focusing on Early Childhood, located on the University of Oklahoma’s campus that incorporates spaces designed to be used by people of all ages.

Design Problem: The existing site pulls away from the street. Significant grade changes occur between the street level and the pond that is a large attraction of the site, making the pond inaccessible.

12

Design Solution: Pedestrian oriented sidewalk and boardwalk space. Stepping amphitheaters that frame the Duck Pond and ramping paths that create an accessible route.

SELECTED WORKS

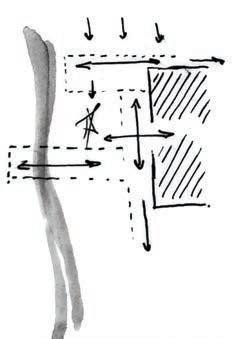

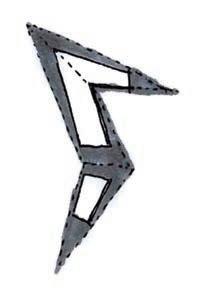

street presence

hides substation + orient towards pond

connection to existing bridge + orient towards pond

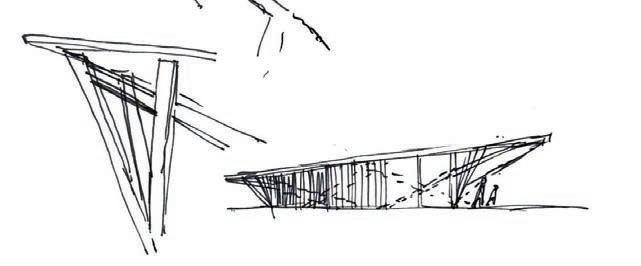

pull masses to create nodes within form

exagerate nodes with connecting roof

13

SECTION A

0

1/8" = 1'-0"

0 1/8" = 1'-0"

1 EMMA EITZEN

2

4'

SECTION B

0

1/16" = 1'-0"

0 1/16" = 1'-0"

8'

8'

16' 2"

16'

32' 2"

1/8

storage "/

1/8

0"

2' - 0"

1'-

2-3 year olds

teacher's lounge

obse

2' - 0"

childcare pavilion space

1' - 0"

3-4 year olds

0' - 0"

0' - 0"

rentable pavilion

0' - 0"

4-5 year olds

storage

observation

observation 1' - 0"

DN DN

DN

0' - 0" DN

storm shelter

conference

0' - 0"

0 0 1" = 20'-0"

14

2' - 0"

DN

rentable pavilion

2' - 0"

10'

20'

40' 2"

SELECTED WORKS

mother's room mother's room

8" / 1'-0"

4' - 0"

0-1 year olds

3' - 0"

1-2 year olds

Meeting the Street:

4' - 0"

The existing site pulls away from the street, with no sidewalks or pedestrian space on what is otherwise a walkable campus.

cafeteria / lounge

observation 4' - 0"

observation

4' - 0"

DN

ervation

lobby kitchen

3' - 0"

DN

conference

family bathroom

The proposed streetscape incorporates wider sidewalks, proposed greenspace with tree canopy coverage, and bike lanes on either side of the street.

utilities bathroom

offices

0-1 year old spaces

3-4 year old spaces

1-2 year old spaces

4-5 year old spaces

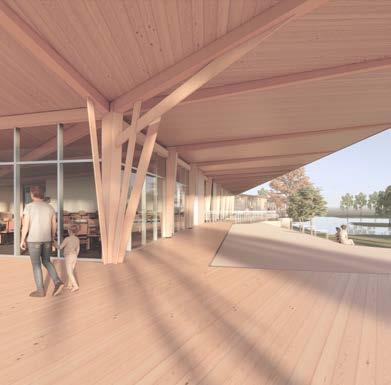

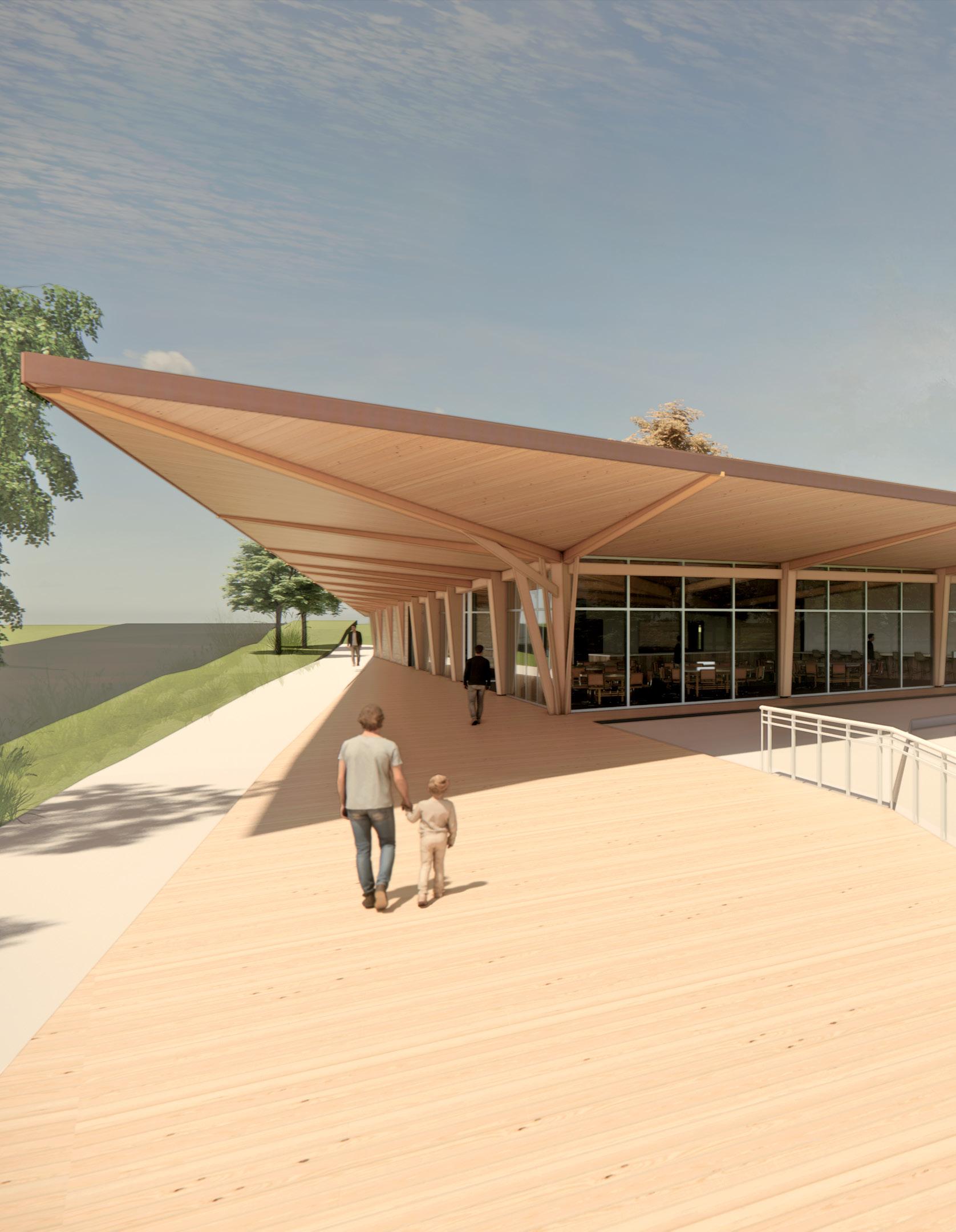

The Nurture Hub also includes an overhang that reaches out to the sidewalk, and a boardwalk of varying width that pulls pedestrians away from the street and towards the Duck Pond view.

2-3 year old spaces

15

EMMA EITZEN

Early Childhood Programming: Indoor/Outdoor education spaces are designed to act as pre-elementary daycare spaces utilized by the university for students and staff.

Accompanying study spaces for parents are designed in tandem with the care spaces, to provide visibility between both the children and the parents.

Brooks st. Entry:

Communal gathering space reaches out towards foot traffic on Brooks st.

16

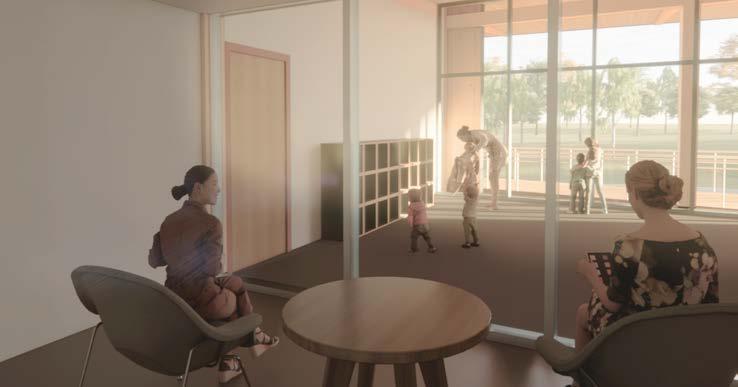

Childcare Educational & Observational Spaces:

Care spaces for children between ages 0-5 include observation spaces for parents and instructors of employed student teachers.

SELECTED WORKS

8’

16’

32’ 4”

Outbound Pathway & Indoor/Outdoor Classrooms:

An outbound path from the classroom spaces works to encapsulate greenspaces for the classrooms, while also creating an accessable route to the center of the park.

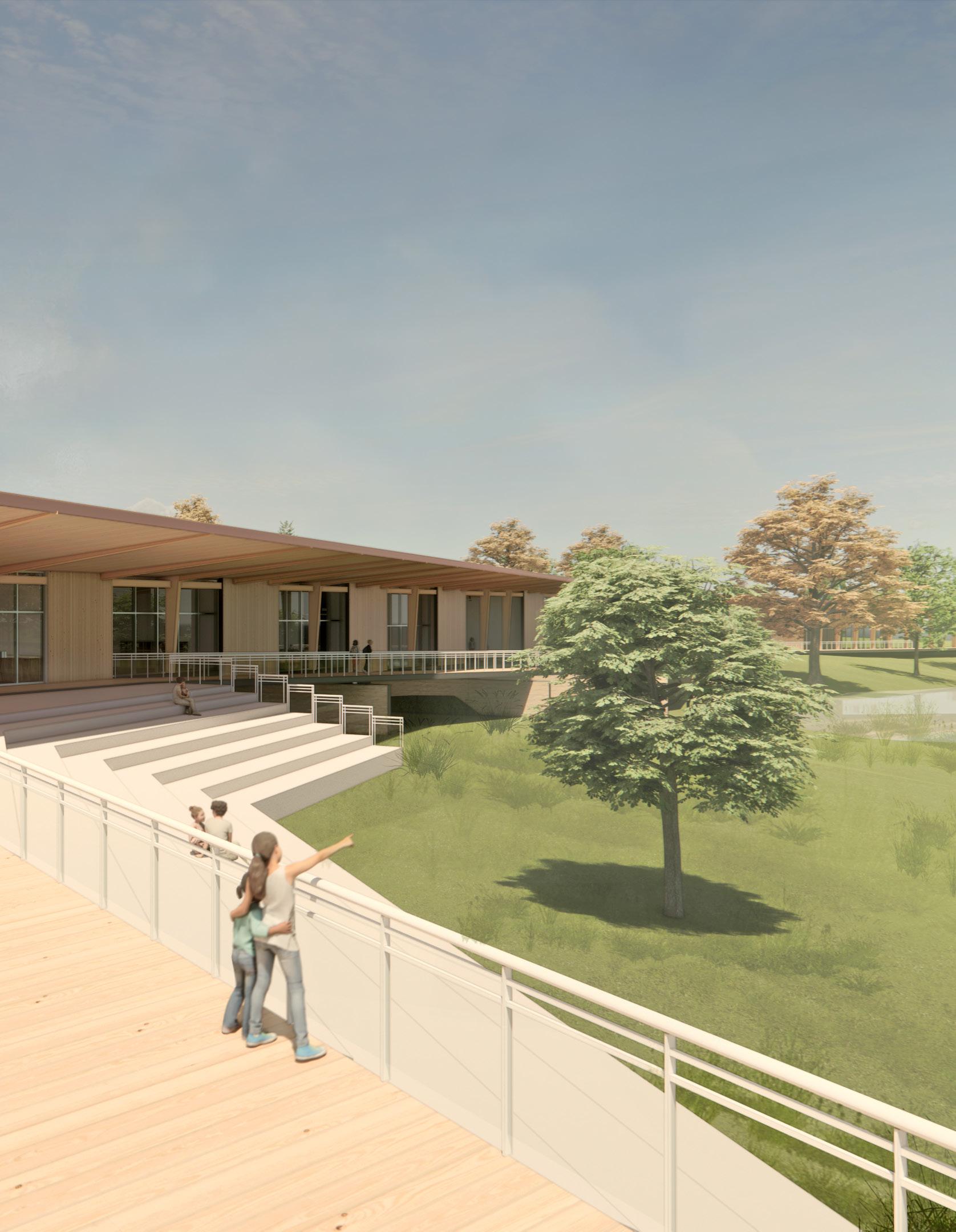

Amphitheater Connection:

Amphitheater spaces and rentable pavilions create spaces that could be used by anybody.

17

EMMA EITZEN

Design for Economy: Minimize need for heating and cooling. Create multifunctional spaces that can be rented, both within the college and outside to the community.

Design for Integration: This design aims to create spaces that open up toward nature. The program fills a need in the university's culture.

Design for Equitable Communities: Design spaces that serve the Norman community. Design creates a walkable human scale along Brooks St.

2030 BASELINE

65.63

2030 TARGET

operable windows for natural ventilation in combination with forced ventilation

13.13 0

thin-film solar cell

DESIGN EUI

-21.89 ff

o water run

on s passive ventilati

-

biosw ale with native vegetation horizontal geothermal energy

water cistern

up to 710,000 gallons per year

18

NTS: depth - 12’ 65° F

Design for Energy: Geothermal wells are implemented to help with heating and cooling spaces. Deep overhangs on the west facade minimize excessive solar gain.

SELECTED WORKS

Design for Resource: Utilizes rammed earth, from dirt harvested on site, and wood harvested semi-locally for mass timber.

133%

Design for Change: Open multifunctional spaces work to create a program that could transition with change.

18

LEED points EAc2 credit

-21.9

kBTU/ft2/yr EUI demand

Design for Discovery: Contact with nature and resilient architecture in an educational setting.

S

56°

w 18°

CO2 reduction

+

altitude at 4pm @ summer and winter solstice

system

n

Design for Water: Green swale under the building redirects water toward the pond. Water cistern catches most of the runoff, and overflow is directed to the pond.

Design for Well-Being: Biophilic connections, including the visuals of vegetation and the sound of a running stream, create a space optimal for educational spaces.

Design for Ecosystems: Pond remains fully intact, with a bioswale full of native species redirecting water runoff from building back to pond.

19

EMMA EITZEN

BREEZE BLOCK A PA RTMENTS REVIT & TECHNICAL SKILLS

20

SELECTED WORKS

Design Problem: This existing site located in Dallas, Texas sits next to notably successful library, and calls for a connection that could benefit the appartment tenants.

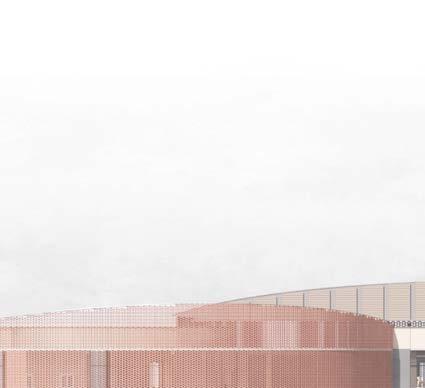

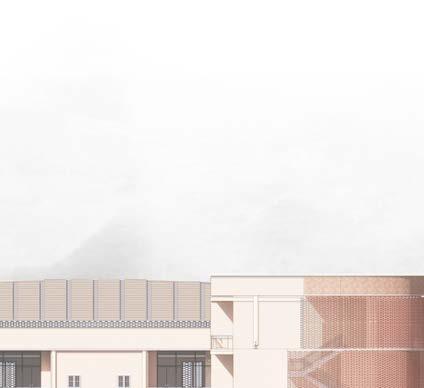

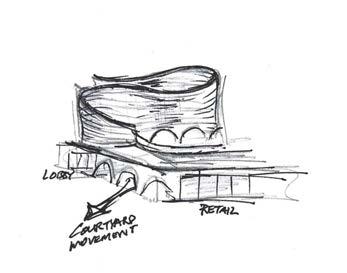

Design Solution: Modularity of linear apartments, meeting the existing curvilinear architectural context creates an exploration of outbound brick facades that wrap around the structure.

21

EMMA EITZEN

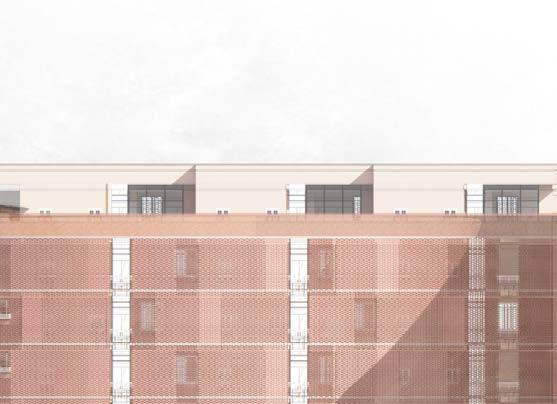

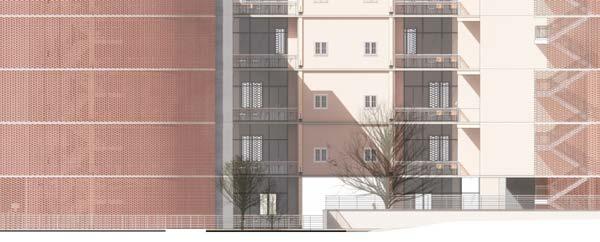

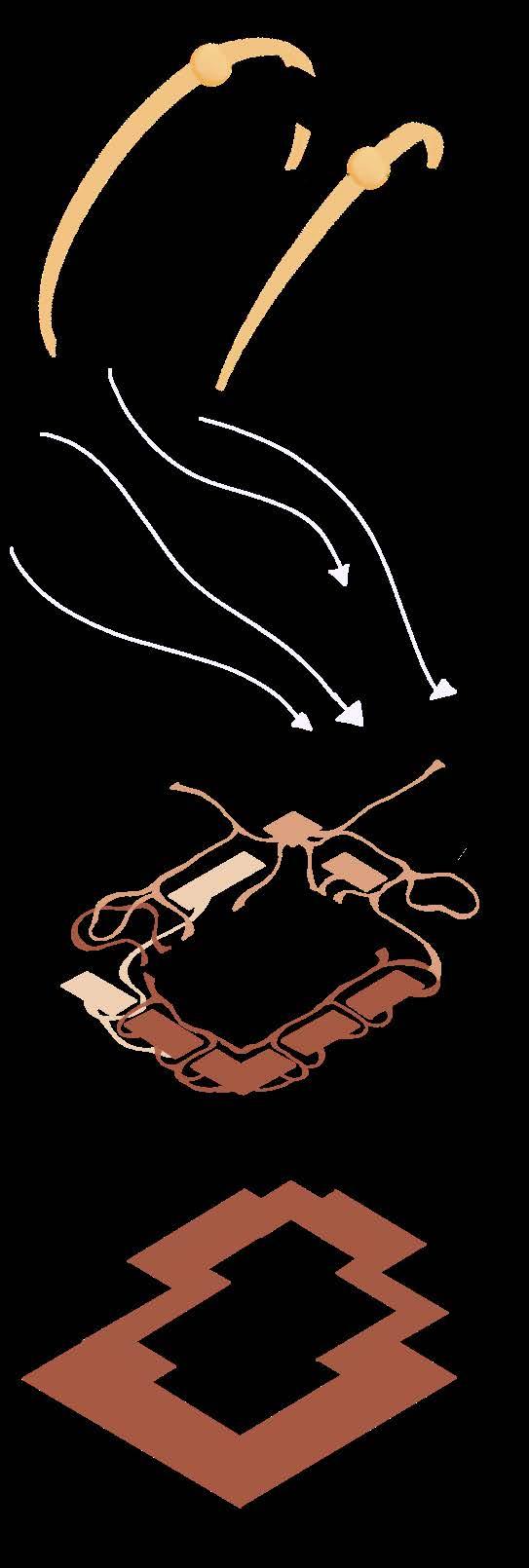

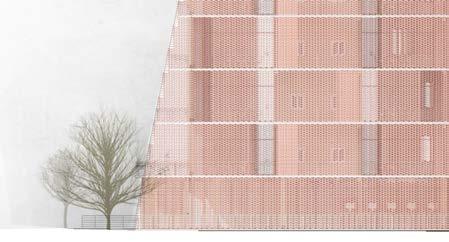

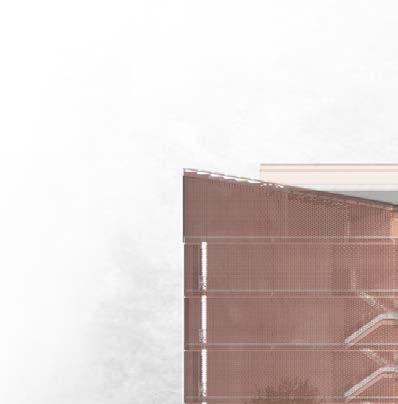

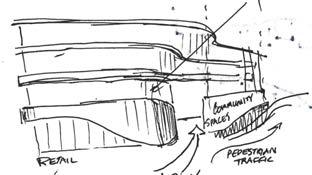

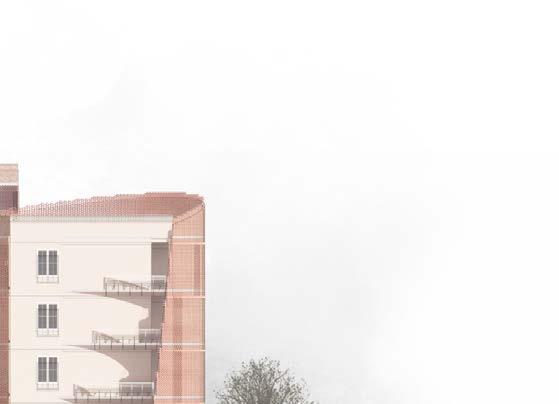

Form Finding & Climate Consideration: A permeable brick facade conforms with the linear shifting of the apartment units, wrapping around community spaces. Outbound brick facades provide breezeways and shade throughout the building.

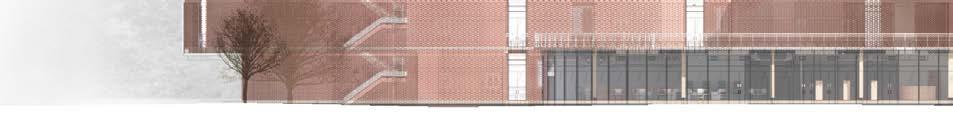

The ground floor program works to act as a place of rest or transition towards the adjacent library and school. The residential aspect of this project opens the views inward of the building, towards a central and green courtyard space that belongs to residents.

­

­

22

SELECTED WORKS

Comm. Space 964 SF

Storage 76 SF Data

Fire Supp.

Restroom 1

Restroom 2

178 SF

170 SF

170 SF

77 SF

Lobby Office

Room Name

147 SF

148 SF

1107 SF

Hallway 376 SF

Comm. Space Retail 1

Retail 2

23

EMMA EITZEN

24

SELECTED WORKS

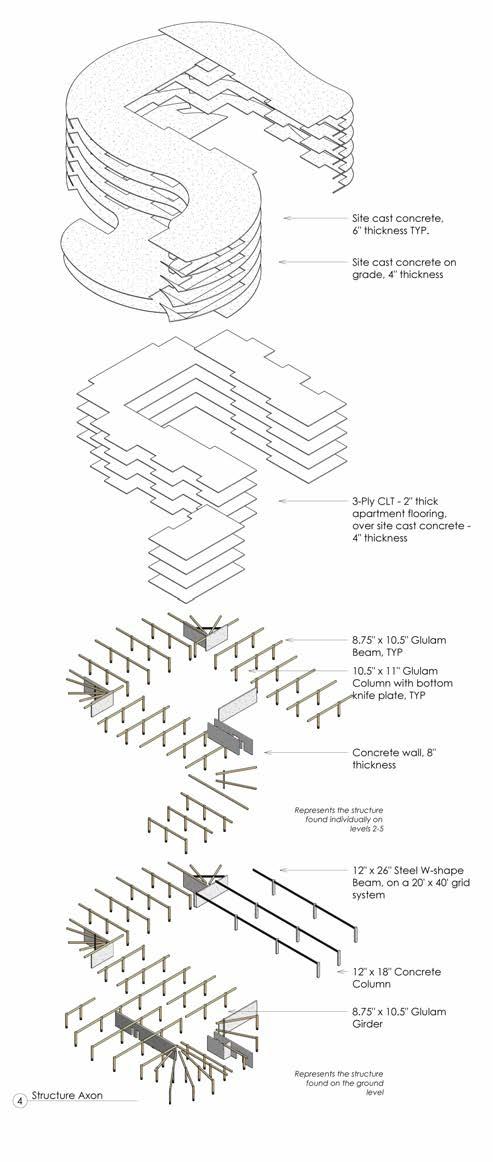

Structural Solutions: Breeze Block Apartments are designed to include site-cast concrete floor slabs, with glulam beams and columns.

Site-cast concrete lends itself to the curvilinear nature of the design.

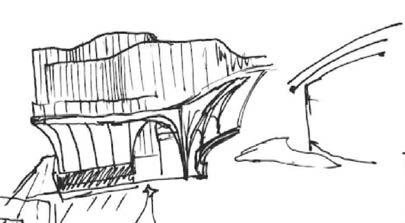

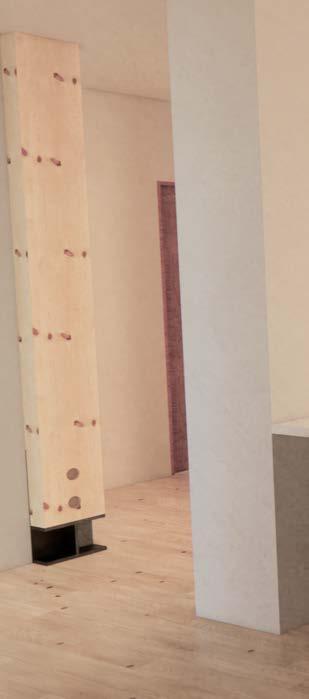

The glulam columns and beams are linear and consistent throughout the apartments, but become expressive and splaying at nodes that act as moments of gathering and primary circulation.

25

EMMA EITZEN

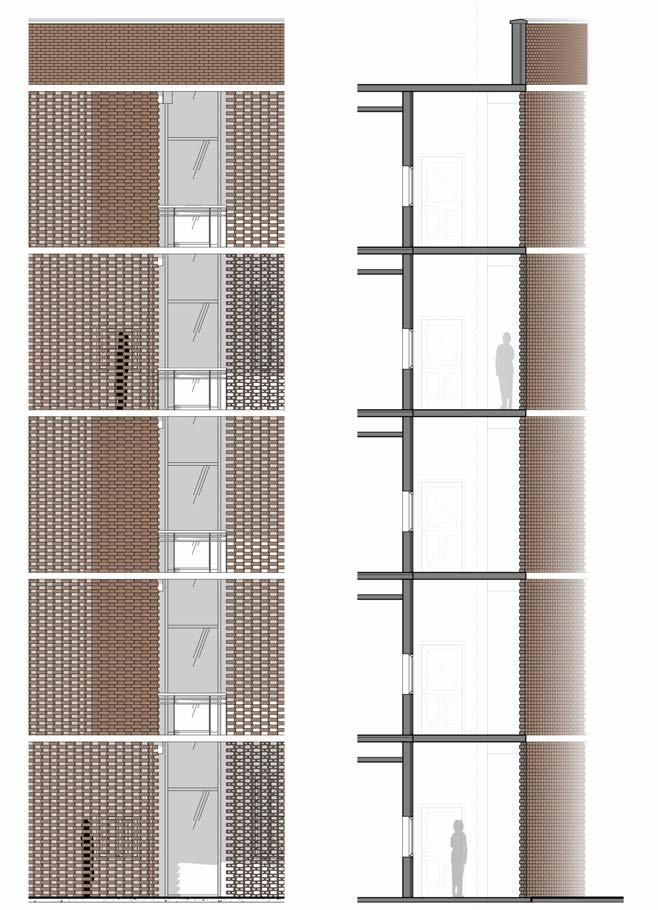

Modularity in Design: The design concept roots in the idea of modularity. Modularity is found in the smaller scale of the brick on the facade and is reflected in the repeating language of the linear apartment units.

26

SELECTED WORKS

27

EMMA EITZEN

13 8.1 8.2 6.2 6.1

8.3 8.4 8.5

1

1 - Reception 2 - Office 3 - Kitchen 4 - Archive 5 - Office Storage 6 - Bathrooms 7 - Riding Area 8 - Stables 9 - Washing Area 10 - Tacking Area 11 - Brushing Area 12 - Horse Storage 13 - Greenspace: Human 14 - Greenspace: Horses

7

9 8.6

2 3 4

10

5 11

12.1 14

12.2

0

28

6.25

12.5

25

50ft

SELECTED WORKS

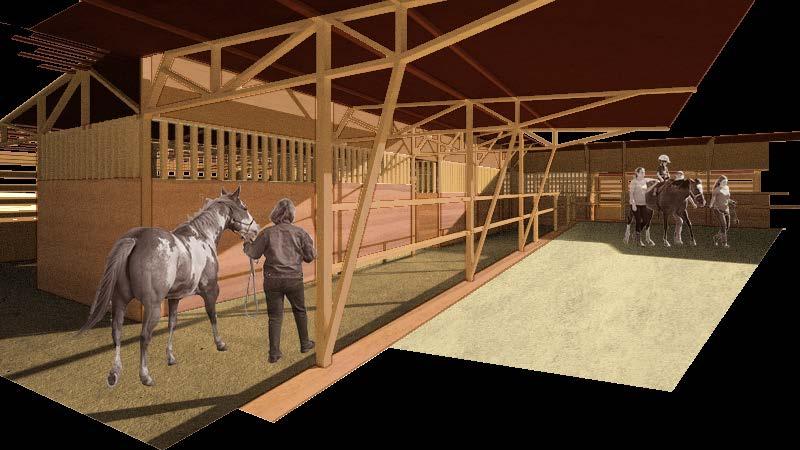

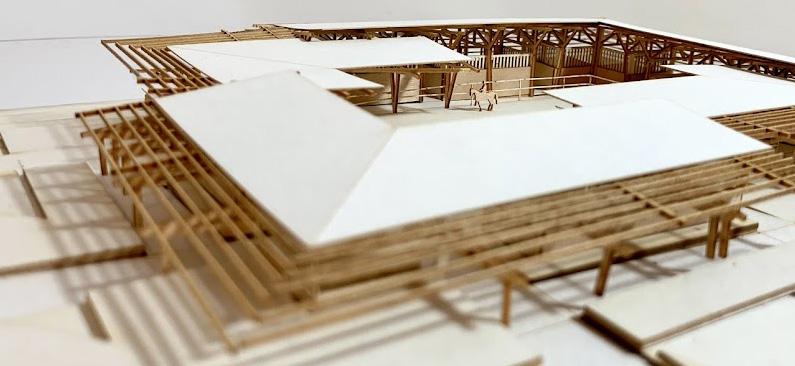

EQUINE THERAPY CENTER ADA Accessiblity & Site Analysis

Design Problem: A space currently being used seasonally for children with mental and physical disabilities to ride horses during a camp. Now, the Norman EAT center wants to move forward with the space by creating spaces that can be used all year round, and for people of all ages.

Design Solution: A central grid design that utilizes the existing slope condition to create a dynamic ramping system throughout the space. Creating strong, tectonic base walls made out of rammed earth and concrete, juxtaposed with a delicate skin and roofing system.

29

EMMA EITZEN

Existing Elements & Proposed Footprint

0

37.5

75

150ft

Vegetation & Waterline

Site Elevation

30

SELECTED WORKS

Sun Path

Site Drainage

Water High and Low Points

Sound Analysis

31

EMMA EITZEN

32

SELECTED WORKS Summer Solstice

Winter Solstice

Wind Diagram

Staff Guests Horses

Level of Closure

33

EMMA EITZEN Architecture Student

ABOUT ME Emma Jane Eitzen Oklahoma City, OK

CO N TA C T Email - ejeitzen@ou.edu -ejeitzen@gmail.com

34

E D U C AT I O N

Current Student at University of Oklahoma Gibbs College of Architecture Masters of Architecture

“To create one’s world in any of the arts takes courage.”

- Georgia O’Keeffe.

u o y k n Tha
