THE BEST TOOL FOR YOUR REQUIREMENTS EVERY

TIME

Radial pressing tools

series

Radial pressing tools series

jaws and dies

KLAUKE COMPETENCE: OPTIMISED

QUALITY FOR ADDED CUSTOMER BENEFITS

We take your needs seriously. For us, “Made by Klauke” means that all products are manufactured to the highest quality.

CUSTOMIZED

We are market leaders: Our battery-powered hydraulic tools for the plumbing, heating and ventilation sector are at the forefront of the pressed connections market. But we don’t just stop there: In the Customized Tools sector, our tool experts together with our customers are continuously developing new prototypes, no matter whether for the cutting, pressing or punching segment. We support you through the development process to the finished product including the After Sales service. We are at your service.

Klauke and Greenlee are your strong team –innovative, reliable and cost-effective.

Together they form a connection that has been established for professional service providers worldwide in the energy supply and panel building industries.

Electrical Distribution – Strong partner worldwide

Decades of experience go into the development and manufacture of our products for the automotive sector. From standard to custom and nonstandard cable lugs – our solutions are used in any vehicle electrical systems.

We are at our customers’ service. Klauke offers highly-flexible solutions for your specific requirements for small production runs in the industrial commodity sector. This includes punched parts, wiring harnesses and preassembled cables and connectors. For your custom products, we rely on our in-house development and production expertise. Customers from sectors such as automotive, heating, air-conditioning, white goods, renewable energies or e-mobility rely on our quality.

Klauke is a specialist for top-quality, hydraulic tools. Innovation has always taken top priority. We continuously develop new products in collaboration with our customers. We advise, develop and manufacture. Product design and fabrication are rounded out by the development and manufacture of matching processing tools. Perfectly adapted to the customer’s manufacturing process and to meeting the exacting requirements of a quality management system. The proprietary CAD design allows customised solutions to be developed to the highest possible level and brought to production maturity.

Assembly solutions –Special type of quality
Customized tools - matched specifically to your requirements
Automotive Connector Solutions – Know-how for extraordinary solutions

KLAUKE TOOLS: HIGHER QUALITY, HIGHER RELIABILITY, INTELLIGENT FUNCTIONS

YOUR FULL-SERVICE PARTNER FOR CUSTOMIZED TOOLS: FROM THE IDEA TO AFTER-SALES SERVICE FROM A SINGLE SOURCE

For decades now, customers from various industrial sectors have relied on our development expertise. Our experience and creativity support you from the outset. We offer all of our services, from advice to development to applications engineering, to prototyping and production, testing and after sales, from a single source. So you benefit from our knowledge of the latest trends, innovative concepts from in-house research and our comprehensive expertise for approval and testing procedures.

■ We offer you the best possible support with an expert team of technical advisers, product managers and applications engineers.

■ Thanks to Klauke’s global network, we are able to guarantee there is a point of contact near you at all times.

■ We take on board your questions and requirements and develop the best solutions for you.

■ We offer you a global network of more than 60 authorised service centres and partners.

■ Our broad range of services, comprising advice, inspection and maintenance, offers genuine added value for you.

■ In addition to our standard service package, we also offer our product lifecycle management system.

After Sales Management
Advice

■ We use state-of-the-art computer-aided design technology and manufacture our products on modern systems.

■ We consistently apply the optimised vertical integration principle – and even have our own printing centre for creating and laying out the technical documents.

■ We guarantee the best possible product quality and reliability, cost-efficiency and flexibility over the long term by investing in the latest manufacturing and logistics equipment.

■ Our broad-based development activities include design, software development, standardisation and certification, including in-house prototyping and test laboratories.

■ This is how we offer you the best possible flexibility, quality and innovation.

■ Numerous international patents are testimony to our outstanding expertise.

■ Our broad product range in various industries helps us to achieve unparalleled innovative strength.

■ We assist you with developing solutions tailored to your applications. We offer support for hardware and software solutions, and help you with the relevant certification and approval procedures.

■ We are your reliable full-service partner: from the very first product idea through to the market launch.

Tailored solutions
Development and design

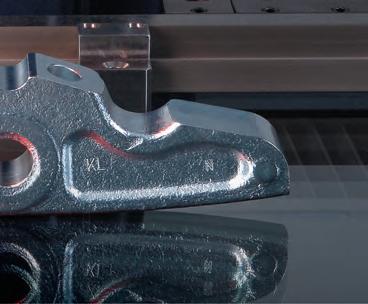

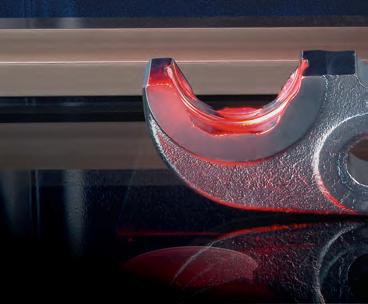

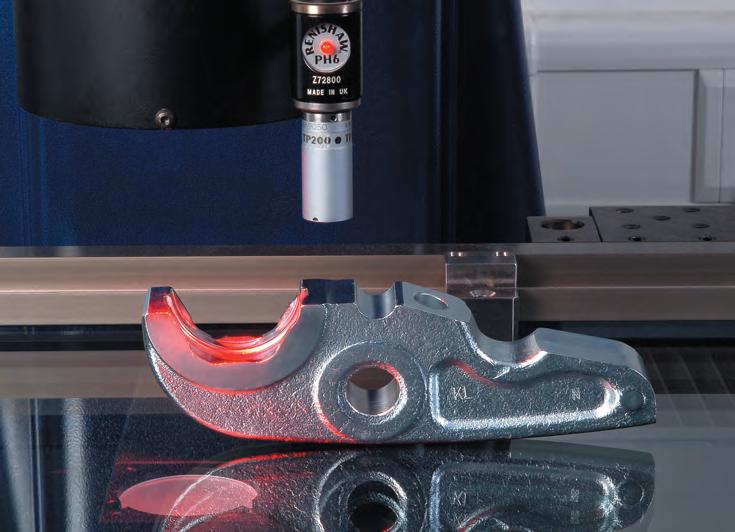

Cutting edge technology for optimised quality

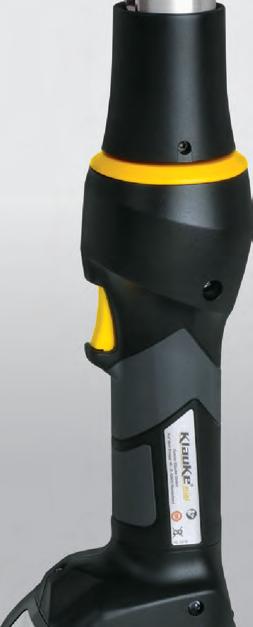

NEXT GENERATION THE NEXT GENERATION OF

BATTERY-POWERED HYDRAULIC

PRESSING TOOLS

Autostop

The automatic switch-off function tells the user that the pressing function has finished

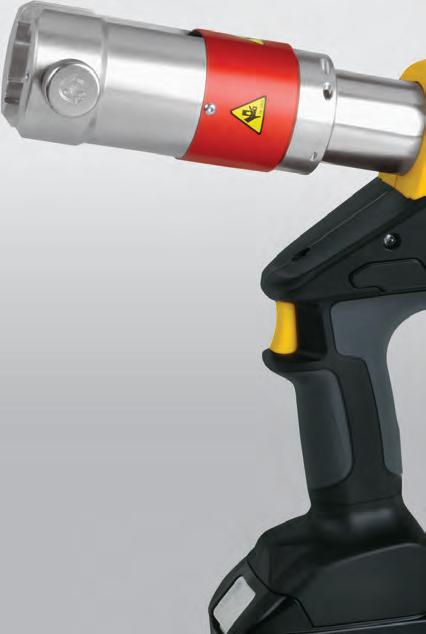

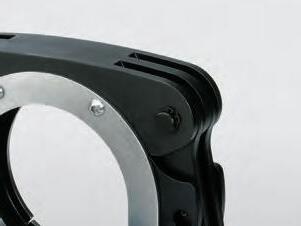

Patented safety lock

With locking function to prevent accidental opening

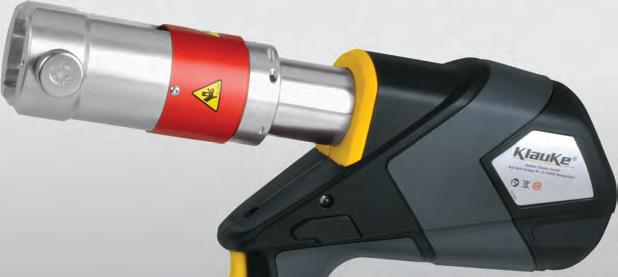

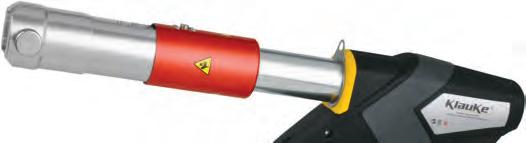

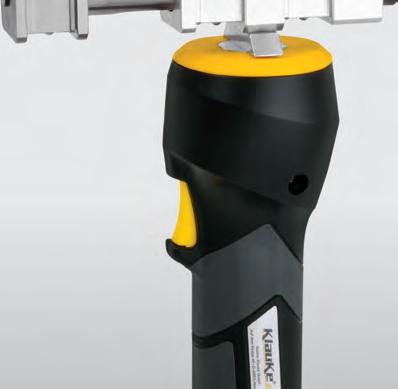

350° rotating pressing jaw holder

Optimum access to different pressing positions

Integrated work area illumination For safe operations

Start button with integrated motor stop

Releasing the start button stops the device instantly

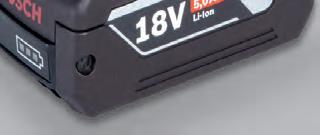

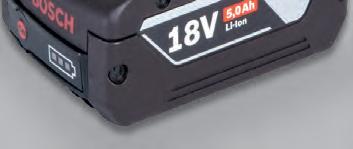

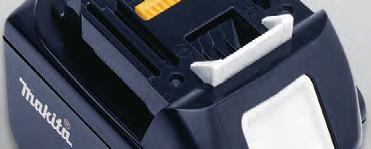

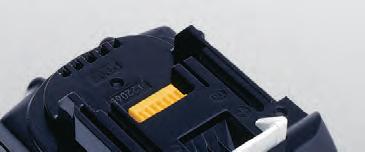

Battery platform 18 V Li-Ion technology from Makita or Bosch

Your tool transmits all data in realtime to the i-press® software on your desktop or to the i-press® app via the Bluetooth interface. You can create logs at the touch of a button and export your pressing and tool data in the usual way.

At the same time, the innovative OLED display helps you to keep track of your tool data. You can see, at a glance, the pressure applied for the pressing, the active user profile and the next due maintenance interval.

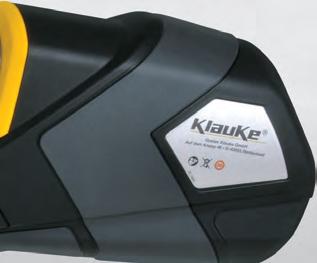

The tool sits very comfortably in the hand thanks to improved ergonomics, selected materials and optimised centre of gravity.

Pressing data memory

Records each and every pressing

OLED display

Tool data at a glance

Bluetooth

Tool data exported via Bluetooth to guarantee the quality of operations

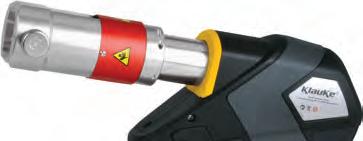

Hydraulic drive unit

Robust, reliable and incredibly powerful –low weight thanks to compact dimensions

HPC – Hydraulic

Pressure check

Pressure sensor for uniform linear thrust

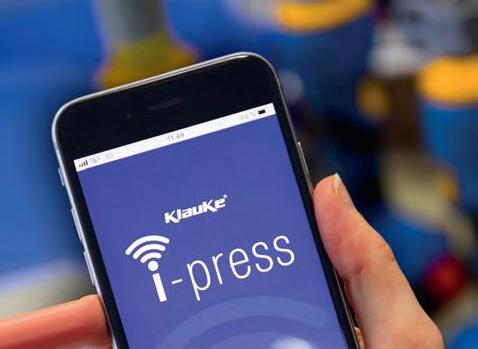

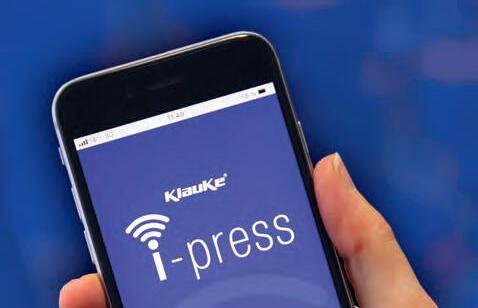

THE I-PRESS® APP AT A GLANCE

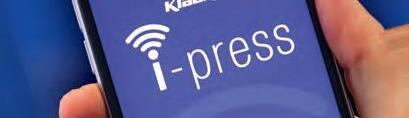

Compact and available at all times: Your smartphone becomes the tool’s control centre, simplifying your daily work routine – free-of-charge, guaranteed.

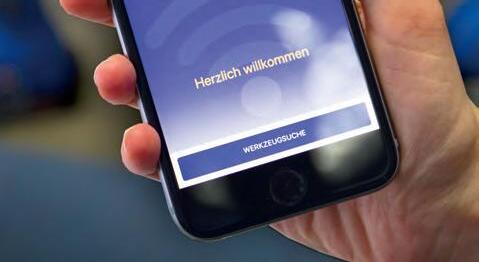

Made easy: Your Next Generation tool connects to the i-press Bluetooth – you can now use the broad range of functions.

Read the important tool information from the display and start new projects. All the information about your pressing operations is saved from now on. When the project is complete, an overview can be printed out, saved or submitted in the form of a log.

TIP: When you register as a user, subscribe to the Klauke Newsletter – so you always stay informed.

Keep an overview of all your tool data even while on the go. And personalise your tool settings via the app.

EASY TO OPERATE

The last 5 pressure values, the device temperature or the remaining operations – all important information can be easily read off.

CREATING AND TRACKING PROJECTS

Menu guidance function is easy and quick to understand thanks to the cascade function. You can start immediately, personalise your tool and use all the other functions.

DOCUMENTING AND ARCHIVING

When a project is closed, an overview containing all the pressing values is generated. You can use this as documentary proof and for archiving purposes.

Use the new functions to make your operations more effective, more ergonomic and more innovative.

■ You get an overview of all your tool data

■ You can better plan your maintenance runs

■ Downtimes are reduced to a minimum

■ Regular maintenance and inspection increases availability and service life

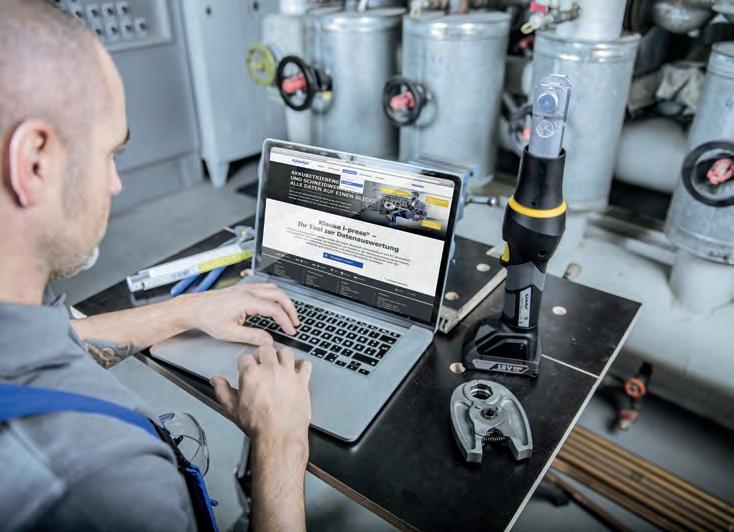

i-press® software

■ You can better organise your work

■ You can create projects using installation and building plans

■ Each and every pressing can be documented in a log and archived

■ The logs act as proof of your day-to-day operations

Exports all tool data, so you can check the tool status. i-press® also gives you proof of quality in the form of a project report. i-press® is a Desktop application which you can download free-of-charge from the Klauke website. The new software can be found at www.klauke.com/en/service/

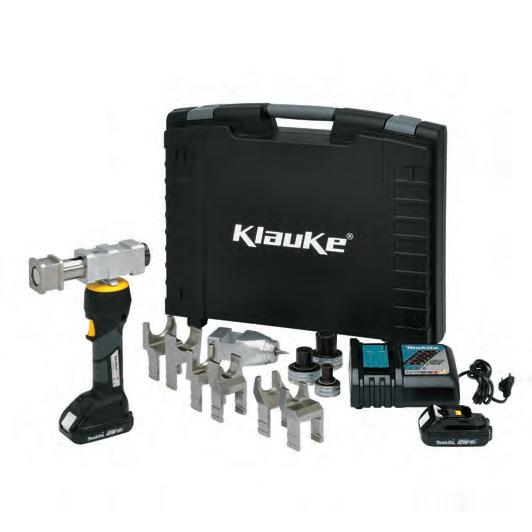

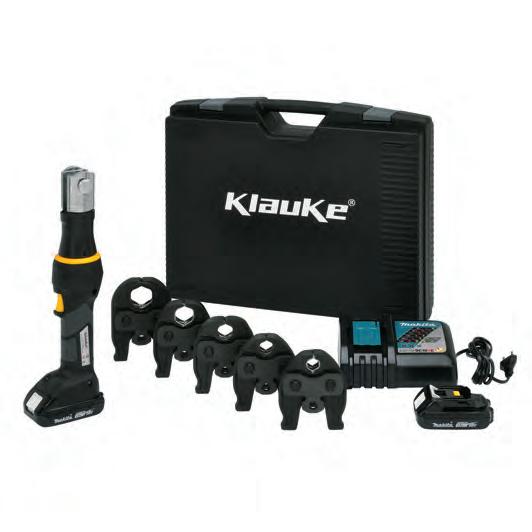

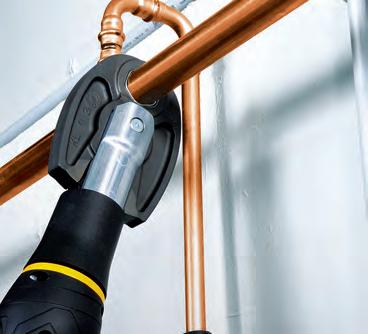

LIGHTWEIGHT FOR TOUGH REQUIREMENTS: RADIAL PRESSING TOOLS SERIES MAP

Our lightweight and slender MAP radial pressing tools make your work easier. They offer tangible benefits, especially when working in tight spots and overhead.

■ Incredibly lightweight, slender and compact Klauke mini pressing tools

■ Linear force to suit your applications, either 15 kN or 19 kN

■ Small, flat battery shape

■ Fast, flexible operations, especially in tight spots

■ Reliable and effective thanks to the latest technology

■ Designed for use with extra-small Klauke System jaws

Technical data

Linear

Dimensions 404 x 80 x 118 mm

Ambient temperature -10 °C up to 40 °C

Battery 18 V, Li-Ion

Battery charger 230 V (110 V on request)

Number of pressings

Approx. 150 (NS 20 / 1.5 Ah battery)

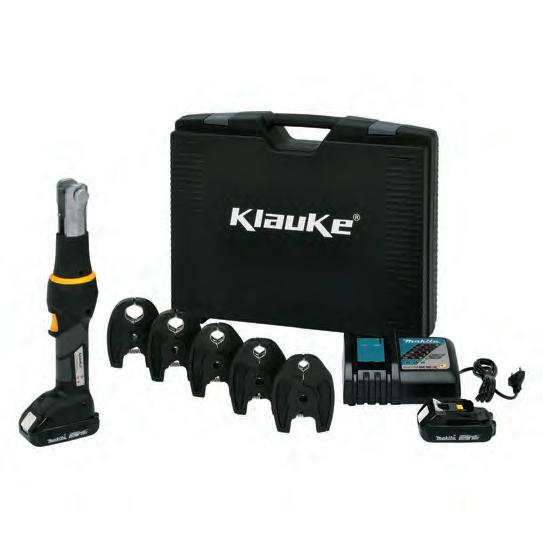

Pressing jaw holder rotates 350°

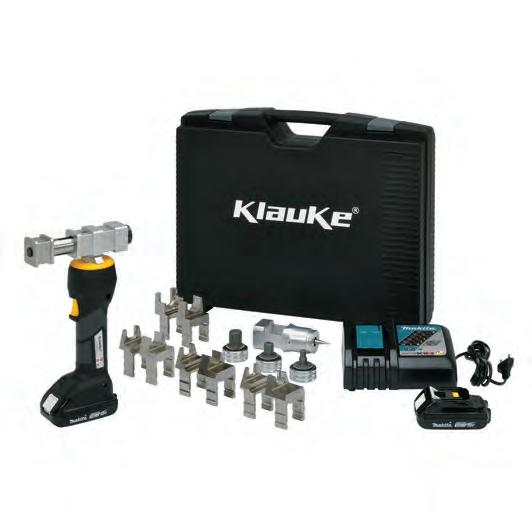

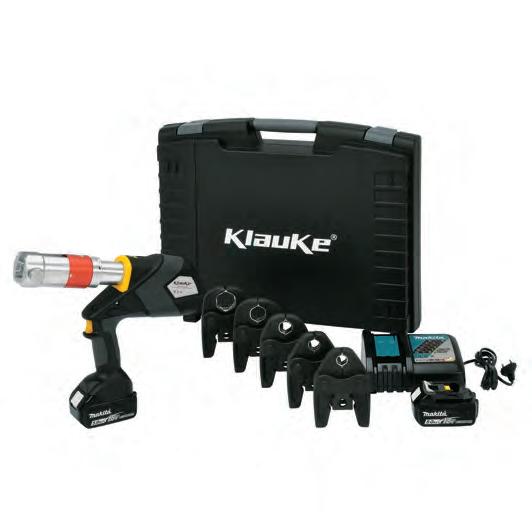

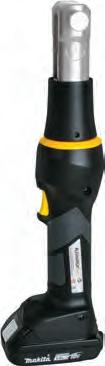

Battery-powered pressing tool with Makita battery

Battery-powered pressing tool with Bosch battery

suitable for

SBM pressing jaw Mini 15 kN

▪ Stainless steel, steel: max. NS 22 mm (NS 28 mm on request) / 3/4”

▪ Copper, copper alloys: max. NS 28 / 1”

▪ Multilayer pipe / PEX pipe: max. NS 32 mm / 1-1/4”

▪ The stated information is system-dependent.

Page 30

UWM Universal interchangeable jaw Mini 15 kN Page 30

▪ Stainless steel, steel: max. NS 22 mm / 3/4”

▪ Copper, copper alloys: max. NS 28 mm / 1”

▪ Multi-layer pipe / PEX pipe: max. NS 32 mm / 1”

▪ The stated information is system-dependent.

Technical data

Linear force

Dimensions 395 x 80 x 118 mm

Ambient temperature -10 °C up to 40 °C

Battery 18 V, Li-Ion

Battery charger 230 V (110 V on request)

Number of pressings

Approx. 150 (NS 20 / 1.5 Ah battery)

Pressing jaw holder rotates 350°

Battery-powered pressing tool with Makita

Battery-powered pressing tool with Bosch battery

suitable for

SBMX pressing jaw Mini Extra 19 kN

▪ Stainless steel, steel: max. NS 35 mm / 1-1/4”

▪ Copper, copper alloys: max. NS 35 mm / 1-1/4”

▪ Multilayer pipe / PEX pipe: max. NS 40 mm / 1-1/2”

▪ The stated information is system-dependent.

Page 31

UWMX Universal interchangeable jaw Mini 19 kN Page 31

▪ Stainless steel, steel: max. NS 22 mm / 3/4”

▪ Copper, copper alloys: max. NS 28 mm / 1”

▪ Multi-layer pipe / PEX pipe: max. NS 32mm / 1”

▪ The stated information is system-dependent.

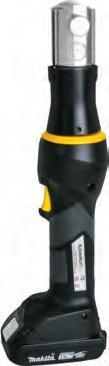

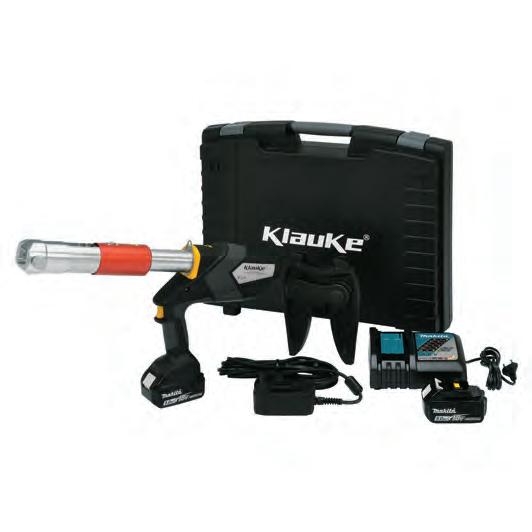

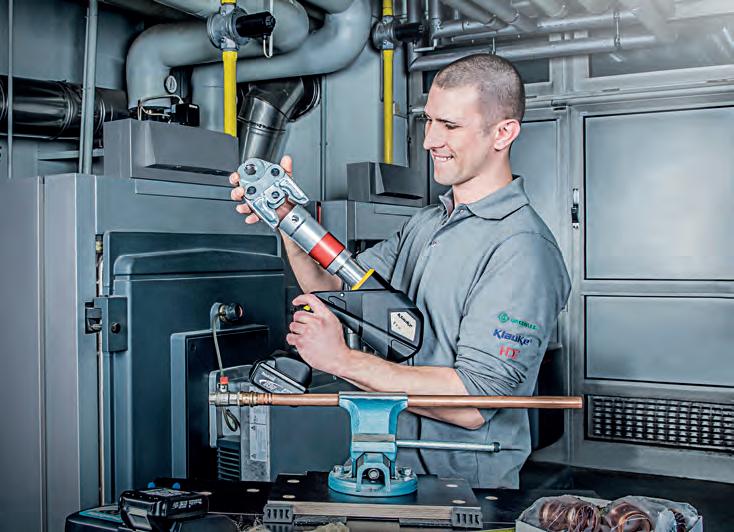

POWER PACKS FOR UNIVERSAL USE: RADIAL PRESSING TOOLS SERIES UAP

The powerful UAP pressing tools cover a broad range of applications. Their high material quality makes them the ideal solution for extreme environmental conditions.

■ Powerful battery-powered tools for universal applications

■ Press extremely small dimensions up to the XL range

■ Linear force to suit your applications, either 32 kN or 120 kN

■ Short and compact drive unit with high performance output

■ Optimised weight distribution – also with pressing jaw

■ Able to meet even the toughest safety pipe connection requirements (industry, sprinkler systems, shipbuilding, etc.)

Dimensions 359 x 76 x 325 mm

Ambient temperature -10 °C up to 40 °C

Battery 18 V, Li-Ion

Battery charger 230 V (110 V on request)

Number of pressings

Approx. 400 (NS 20 / 4.0 Ah battery)

Pressing jaw holder rotates 350°

clock

Battery-powered pressing tool with Makita

Battery-powered pressing tool with Bosch battery

SB pressing jaw Standard 32 kN

suitable for Possible

Page 32

▪ Stainless steel, steel: max. NS 54 mm / 2”

▪ Copper, copper alloys: max. NS 54 mm / 2”

▪ Multi-layer pipe / PEX pipe: max. NS 50 mm / 2”

▪ The stated information is system-dependent

UW Universal interchangeable jaw Standard 32 kN

▪ Stainless steel, steel: max. NS 22 mm / 3/4“

▪ Copper, copper alloys: max. NS 28 mm / 1”

▪ Multi-layer pipe / PEX pipe: max. NS 32 mm / 1”

▪ The stated information is system-dependent.

QC pressing chain Quick-Click 32 kN

Page 32

Page 36

▪ Can be used only in connection with adapter jaw SBKQC (not included in scope of supply)

▪ Stainless steel, steel: max. NS 54 mm / 108 mm / 4”

▪ Copper, copper alloys: NS 54 mm / 108 mm / 4”

▪ Multi-layer pipe / PEX pipe: max. NS 110 / 4”

▪ The stated information is system-dependent.

SSK 4-segment pressing chain 32 kN

Page 36

▪ Can be used only in connection with adapter jaw SBKQC (not included in scope of supply)

▪ Stainless steel, steel: max. NS 54 mm / 2”

▪ Copper, copper alloys: max. NS 54 mm / 2”

▪ The stated information is system-dependent.

Technical data

Linear

Dimensions

Battery 18 V, Li-Ion

Battery charger 230 V (110 V on request)

Number of pressings Approx. 400 (NS 20 / 4.0 Ah battery)

Pressing jaw holder rotates 350°

suitable for

SB pressing jaw Standard 32 kN

▪ Stainless steel, steel: max. NS 54 mm / 2”

▪ Copper, copper alloys: max. NS 54 mm / 2”

▪ Multi-layer pipe / PEX pipe: max. NS 50 mm / 2”

▪ The stated information is system-dependent

UW Universal interchangeable jaw Standard 32 kN

▪ Stainless steel, steel: max. NS 22 mm / 3/4”

▪ Copper, copper alloys: max. NS 28 mm / 1”

▪ Multi-layer pipe / PEX pipe: max. NS 32 mm / 1”

▪ The stated information is system-dependent.

QC pressing chain Quick-Click 32 kN

Page 30

Page 32

Page 36

▪ Can be used only in connection with adapter jaw SBKQC (not included in scope of supply)

▪ Stainless steel, steel: max. NS 54 mm / 108 mm / 4”

▪ Copper, copper alloys: NS 54 mm / 108 mm / 4”

▪ Multi-layer pipe / PEX pipe: max. NS 110 / 4”

▪ The stated information is system-dependent.

SSK 4-segment pressing chain 32 kN

Page 36

▪ Can be used only in connection with adapter jaw SBKQC (not included in scope of supply)

▪ Stainless steel, steel: max. NS 54 mm / 3/4”

▪ Copper, copper alloys: max. NS 54 mm / 2”

▪ The stated information is system-dependent.

BP pressing chain LP (low pressure) 32 kN

Page 37

▪ Can be used only in connection with adapter jaw SBKUAP4 (not included in scope of supply)

▪ Stainless steel, steel: max. NS 108 mm / 4”

▪ Copper, copper alloys: NS 108 mm / 4”

▪ Multi-layer pipe / PEX pipe: max. NS 110 / 4”

▪ The stated information is system-dependent.

Technical data

Linear

Battery 18 V, Li-Ion

Battery charger 230 V (110 V on request)

Number of pressings Approx. 26 (NS 108 / 4.0 Ah battery)

Pressing jaw holder rotates 350°

suitable for

BP pressing chain HP (high pressure) 120 kN

▪ Stainless steel, steel: max. NS 108 mm / 4”

▪ Copper, copper alloys: max. NS 108 mm / 4”

▪ The stated information is system-dependent.

Page 37

FOR ALL STANDARD PRESS-FITTING SYSTEMS: KLAUKE SYSTEM

PRESSING JAWS

With approvals from more than 150 system suppliers for the corresponding applications in the plumbing, heating and air-conditioning sector, and also for numerous industrial special applications.

■ Klauke system pressing jaws available with diverse profiles and dimensions for a broad range of applications

■ More than 50 customer-specific system pressing profiles KSP

■ Top quality materials and leading edge manufacturing methods for meeting the toughest safety and quality requirements

■ Extra safety and minimal wear thanks to additional inductively hardened zones on the pressing profile

■ Optimised force transmission for more operating cycles

■ Special surface finish for long-lasting corrosion protection

Pressing tools

Pressing jaws

SBM pressing jaw Mini 15 kN

Characteristics

▪ Patented lightweight system pressing jaw with single bolt bearing

▪ Suitable for use with Klauke series MAP1 and MAP2 Mini pressing machines suitable for

▪ Stainless steel, steel: max. NS 22 mm (NS 28 mm on request) / 3/4”

▪ Copper, copper alloys: max. NS 28 mm / 1”

▪ Multi-layer pipe / PEX pipe: max. NS 32 mm / 1-1/4”

▪ The stated information is system-dependent.

Technical data

Force 15 kN

CompatibilityMAP215, MAP115, MAP2, MAP1, HPU32, PKMAP2

Item Description Part No.

Press jaw MiniM (KSP3)12 – 22 mm SBM … M

Press jaw MiniV (KSP4)12 – 28 mm SBM … V

Press jaw MiniU (KSP5)12 – 32 mm SBM … U

Press jaw MiniTH (KSP11)12 – 32 mm SBM … TH

For further profiles, see Pressing profiles on Page 40 or send a request

UWM Universal interchangeable jaw Mini 15 kN

Characteristics

▪ Patented lightweight system interchangeable jaw with single bolt bearing

▪ Standardised and anti-twist mounting for Klauke WE- interchangeable dies

▪ Interchangeable inserts fixed by stop bolts suitable for

▪ Stainless steel, steel: max. NS 22 mm / 3/4”

▪ Copper, copper alloys: max. NS 28 mm / 1”

▪ Multi-layer pipe / PEX pipe: max. NS 32 mm / 1”

▪ The stated information is system-dependent.

Technical data

Force 15 kN

CompatibilityMAP215, MAP115,

Accessories

Interchangeable inserts U (KSP5)12 – 32 mm WE … U

Interchangeable inserts H (KSP7)12 – 32 mm WE … H

Interchangeable inserts TH (KSP11)12 – 32 mm WE … TH

Interchangeable inserts RF (KSP20C)12 – 32 mm WE … RFX

For further profiles, see Pressing profiles on Page 40 or send a request

SBMX pressing jaw Mini Extra 19

kN

Characteristics

▪ Tried and proven Mini design for tight pressing positions

▪ Lightweight pressing jaw Mini for maximum pressing performance suitable for

▪ Stainless steel, steel: max. NS 35 mm / 1-1/4”

▪ Copper, copper alloys: max. NS 35 mm / 1-1/4”

▪ Multi-layer pipe / PEX pipe: max. NS 40mm / 1-1/2”

▪ The stated information is system-dependent.

Technical data

Force

For further profiles, see Pressing profiles on Page 40 or send a request

19 kN

Compatibility MAP219, MAP2L19

Item Description Part No.

Press jaw Mini ExtraM (KSP3)12 – 35 mm SBMX … M

Press jaw Mini ExtraV (KSP4)12 – 35 mm SBMX … V

Press jaw Mini ExtraU (KSP5)12 – 40 mm SBMX … U

Press jaw Mini ExtraTH (KSP11)12 – 40 mm SBMX … TH

Accessories Part No. Page

Mini battery-powered hydraulic pressing tool 19 kN MAP219 18

UWMX Universal interchangeable jaw Mini 19 kN

Characteristics

▪ Tried and proven design for tight pressing positions

▪ Standardised and anti-twist mounting for Klauke WE- interchangeable dies

▪ Interchangeable inserts fixed by stop bolts suitable for

▪ Stainless steel, steel: max. NS 22mm / 3/4”

▪ Copper, copper alloys: max. NS 28mm / 1”

▪ Multi-layer pipe / PEX pipe: max. NS 32 mm / 1”

▪ The stated information is system-dependent.

Technical data

Force 19 kN

Compatibility MAP219, MAP2L19

Item Description

No.

Universal interchangeable jaw Mini Extra UWMX32

Accessories

For further profiles, see Pressing profiles on Page 40 or send a request

No. Page

Interchangeable inserts U (KSP5)12 – 32 mm WE … U

Interchangeable inserts H (KSP7)12 – 32 mm WE … H

Interchangeable inserts TH (KSP11)12 – 32 mm WE … TH

Interchangeable inserts RF (KSP20C)12 – 32 mm WE … RFX

Mini battery-powered hydraulic pressing tool 19 kN MAP219 18

Pressing tools

Pressing jaws

SB pressing jaw Standard 32 kN

Characteristics

▪ Proven pressing jaw for universal applications

▪ Standard pressing jaw for maximum pressing performance suitable for

▪ Stainless steel, steel: max. NS 54 mm / 2”

▪ Copper, copper alloys: max. NS 54 mm / 2”

▪ Multi-layer pipe / PEX pipe: max. NS 50 mm / 2”

▪ The stated information is system-dependent.

Technical data

Force 32 kN

Compatibility UAP332, UAP432, UAP4, UAP3, UAP2/UNP2, HPU2, PKUAP2

Pressing jawStandard M (KSP3)12 – 54 mm

Pressing jawStandard V (KSP4)12 – 54 mm

Pressing jawStandard U (KSP5)12 – 50 mm

Pressing jawStandard TH (KSP11)12 – 50 mm

For further profiles, see Pressing profiles on Page 40 or send a request

UW Universal interchangeable jaw Standard 32 kN

Characteristics

▪ Tried and proven interchangeable jaw

▪ Standardised and anti-twist mounting for Klauke WE- interchangeable dies

▪ Interchangeable inserts fixed by stop bolts suitable for

▪ Stainless, steel: max. NS 22 mm / 3/4”

▪ Copper, copper alloys: max. NS 28 mm / 1”

▪ Multi-layer pipe / PEX pipe: max. NS 32 mm / 1”

▪ The stated information is system-dependent.

Technical data

Force

32 kN

Compatibility UAP332, UAP432, UAP4, UAP3, UAP2/UNP2, HPU2, PKUAP2

For further profiles, see Pressing profiles on Page 40 or send a request

inserts RF (KSP20C)12 –

SBKQC Adapter jaw 32 kN

Characteristics

▪ GO-NOGO colour coding for reliable adaptation to the pressing chain suitable for

▪ Can be used only in connection with pressing chains QC and SSK (not included in scope of supply)

▪ Stainless steel, steel: max. NS 54 mm (108 mm / 4” only in connection with VXL/VXLR)

▪ Copper, copper alloys: max. NS 54 mm (108 mm / 4” only in connection with VXL/VXLR)

▪ Multi-layer pipe / PEX pipe: max. NS 110 mm / 4”

▪ The stated information is system-dependent.

Technical data

Force 32 kN

CompatibilityUAP332, UAP432, UAP4, UAP3, UAP2/UNP2, HPU2, PKUAP2

Item

SBKQC Adapter jaw

AccessoriesDescription

For further profiles, see Pressing profiles on Page 40 or send a request

SBKQC Adapter jaw LP 32 kN

For further profiles, see Pressing profiles on Page 40 or send a request

Characteristics

▪ GO-NOGO colour coding for reliable adaptation to the pressing chain suitable for

▪ Can be used only in connection with BP pressing chain LP (not included in scope of supply)

▪ Stainless steel, steel: max. NS 108 mm / 4”

▪ Copper, copper alloys: max. NS 108 mm / 4”

▪ Multi-layer pipe / PEX pipe: max. NS 110 mm / 4”

▪ The stated information is system-dependent.

Technical data

Force 32 kN

CompatibilityUAP432, UAP4, PKUAP4

Item

Adapter jaw LP

AccessoriesDescription

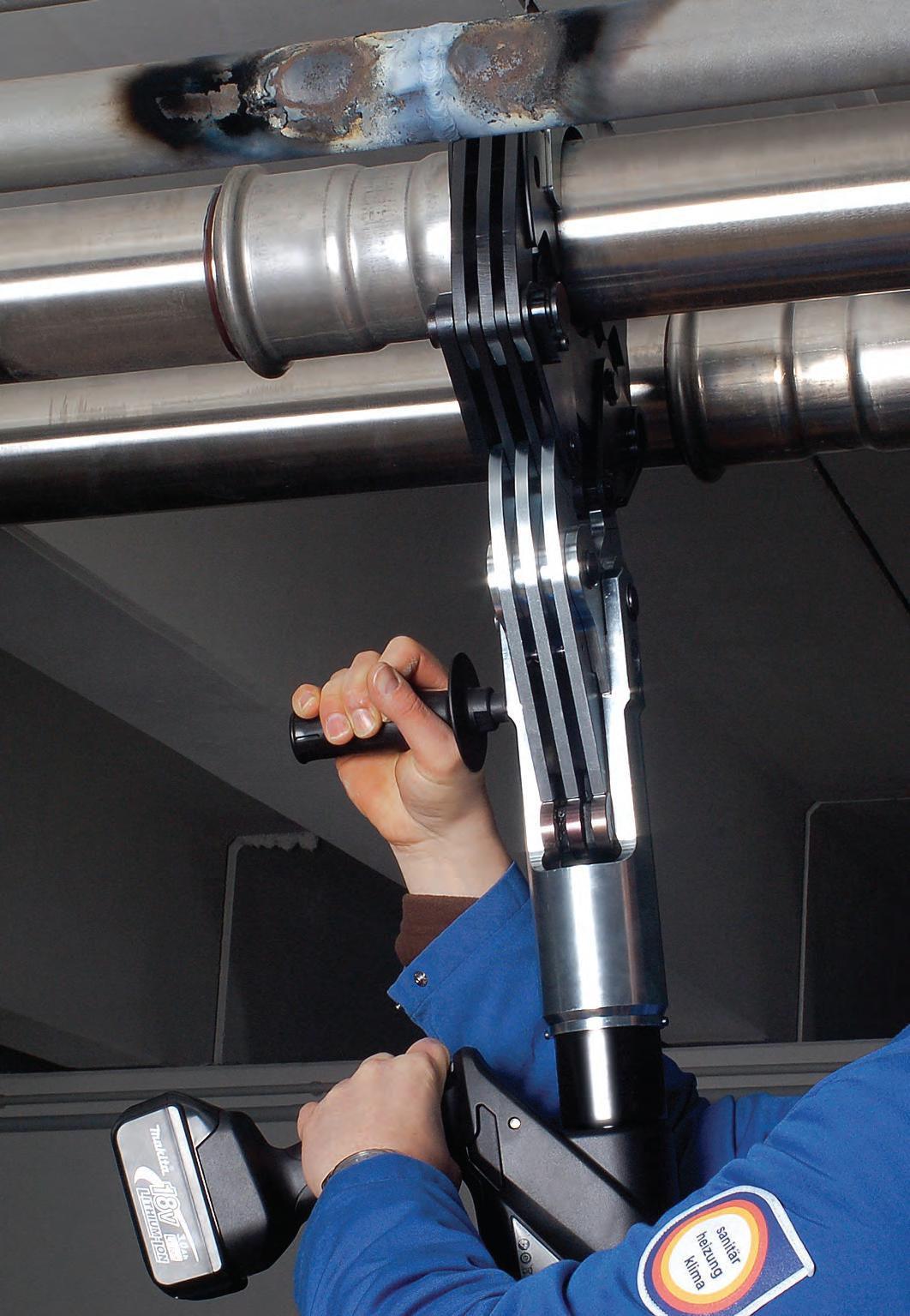

SIMPLY RELIABLE PRESSINGS ALSO IN XL: KLAUKE SYSTEM PRESSING

CHAINS

Multi-segment technology guarantees synchronous pressing. You get optimal results even with large diameters and the most diverse materials.

■ Klauke system pressing chains with various profiles and dimensions for a broad range of applications

■ Also suitable for XL applications

■ Top quality materials and leading edge manufacturing methods for meeting the toughest safety and quality requirements

■ Uniform pressing with special multi-segment technology creates a perfect material flow

■ Reliable pressing with clamping function on the fitting for locking before and after the pressing process

■ Weight-optimised design coordinated with the pressing performance

QC pressing chain Quick-Click 32 kN

Characteristics

■ Reliable pressing with clamping function on the fitting before and after the pressing process suitable for

▪ Can be used only in connection with adapter jaw SBKQC (not included in scope of supply)

▪ Stainless steel, steel: max. NS 54 mm / 108 mm / 4”

▪ Copper, copper alloys: NS 54 mm / 108 mm / 4”

▪ Multi-layer pipe / PEX pipe: max. NS 110 / 4”

▪ The stated information is system-dependent.

Technical data

Force

Compatibility

32 kN

UAP332, UAP432, UAP4, UAP3, UAP2/UNP2, HPU2, PKUAP2

Pressing chain Quick-Click M (KSP3)42 – 54 mm QC … M

Pressing chain Quick-Click V (KSP4)42 – 54 mm QC … V

Pressing chain Quick-Click U (KSP5)40-110 mm QC U

Pressing chain Quick-Click TH (KSP11)40 – 63 mm QC TH

For further profiles, see Pressing profiles on Page 40 or send a request

SSK 4-segment pressing chain 32 kN

Synchronized pressing thanks to 4-segment technolog y

For further profiles, see Pressing profiles on Page 40 or send a request

Characteristics

▪ 4-segment pressing technology for optimum pressing

■ Reliable pressing with clamping function on the fitting before and after the pressing process suitable for

▪ Can be used only in connection with adapter jaw SBKQC (not included in scope of supply)

▪ Stainless steel, steel: max. NS 54 mm / 2”

▪ Copper, copper alloys: NS 54 mm / 2”

▪ The stated information is system-dependent.

Technical data

Force

Compatibility

32 kN

UAP332, UAP432, UAP4, UAP3, UAP2/UNP2, HPU2, PKUAP2

Pressing chain M (KSP3)42 mm SSK42M

Pressing chain M (KSP3)54 mm SSK54M

Pressing chain V (KSP4)42 mm SSK42V

Pressing chain V (KSP4)54 mm SSK54V

BP pressing chain LP (low pressure) 32 kN

Characteristics

▪ 4-segment pressing technology for optimum pressing

▪ Building installation

▪ Reliable pressing with clamping function on the fitting before and after the pressing process

▪ Sturdy chain lock absorbs high clamping forces suitable for

▪ Can be used only in connection with adapter jaw SBKUAP4 (not included in scope of supply)

▪ Stainless steel, steel: max. NS 108 mm / 4”

▪ Copper, copper alloys: NS 108 mm / 4”

▪ Multi-layer pipe / PEX pipe: max. NS 110 / 4”

▪ The stated information is system-dependent.

Technical data

Force

Synchronized pressing thanks to 4-segment technolog y

For further profiles, see Pressing profiles on Page 40 or send a request

32 kN

Compatibility UAP432, UAP4L, UAP4, PKUAP4

Item Description Part No.

Pressing chain M (KSP3)76.1 mm BP761LP

Pressing chain M (KSP3)88.9 mm BP889LP

Pressing chain M (KSP3)108 mm BP108LP

BP pressing chain HP (high pressure) 120 kN

Synchronized pressing thanks to 4-segment technolog y

For further profiles, see Pressing profiles on Page 40 or send a request

Characteristics

▪ 4-segment pressing technology for optimum pressing

▪ for meeting special requirements for reliable pipe connections (industrial, sprinkler, shipbuilding applications, etc.)

▪ Reliable pressing with clamping function on the fitting before and after the pressing process

▪ Sturdy chain lock absorbs high clamping forces suitable for

▪ Can be used only in connection with pressing machine UAP100120 (not included in scope of supply)

▪ Stainless steel, steel: max. NS 108 mm / 4”

▪ Copper, copper alloys: NS 108 mm / 4”

▪ The stated information is system-dependent.

Technical data

Force

120 kN

Compatibility UAP100120, UAP100L, UAP100, PK100

Item

Pressing chain M (KSP3)76.1 mm BP761M

Pressing chain M (KSP3)88.9 mm BP889M

Pressing chain M (KSP3)108 mm BP108M

24

Pressing chains

Can be combined with pressing machine with pressing jaws and pressing chains

MAP215

MAP115ML MAP2L MAP1

MAP219 MAP2L19

UAP332 UAP3L UAP2 UNP2

UAP432 UAP4L UAP4

UAP100120 UAP100L UAP100

RELIABILITY –TESTED AND APPROVED: PRESSINGS WITH KLAUKE

PRESSING PROFILES

Our more than 50 customer-specific system pressing profiles in various dimensions cover a broad range of uses.

■ System approvals from more than 150 providers for use in the plumbing, heating and air conditioning sector for various industrial custom applications

■ Additional functionality tests with selected pressing profiles by the German Material Test Institute (MPA)

■ Long service life through optimised manufacturing processes combined with a high degree of dimensional accuracy and resistance to wear

■ Constant processing results thanks to consistently high manufacturing quality

■ Klauke expertise and many years of experience ensure additional benefits and higher levels of reliability

■ Support for system development under a partnership with Klauke

Pressing

The applications based on dimensions, profile and machine type are set out in the Application and Assembly Instructions from the system supplier.

KSP 0 Uponor

Dimension-related for Pressing jaws  Interchangeable inserts  Pressing chains 

Machine and system-related for Uponor UNIPIPE

KSP 1 B

Dimension-related for Pressing jaws 

Interchangeable inserts  Pressing chains 

Machine and system-related for Ivar

KSP 3 M

Dimension-related for Pressing jaws 

Interchangeable inserts  Pressing chains 

Machine and system-related for Eurotubi Europa

Airbel Sertinox / Pressclim

Megaro

Oteraccordi

Filtube Instalpres Pegler Yorkshire

AMCO HI-TECH INTERNATIONALHEBEI GUANGDE STAINLESSPipelife Austria

Aschl

Inoxpres

Raccorderie Metalliche InoxPres Bonfix Isotubi

CaroScheibe GmbH

Chibro

KAN

Sabelita

Seppelfricke GmbH

Kohler InoxPres Simplex

Comisa LK Systems

Dahl Sverige AB

Dw Verbundrohr GmbH

Emcal PRESSO NOX

Esta Simplesta

Starsin Trading Pte Ltd

Lombarda Raccordi InoxPresStirlings Australia

Maincor

Vimoter

MARINE EQUIPMENT INT.VSH

M-Press Fittings

W&O Supply

The applications based on dimensions, profile and machine type are set out in the Application and Assembly Instructions from the system supplier.

KSP 4 V

Dimension-related for Pressing jaws 

Interchangeable inserts  Pressing chains 

Machine and system-related for AMCO HI-TECH INTERNATIONALEmmeti

Bun Kee (International) LimitedFrabo

Comap Sudopress CU

Comisa

Dahl Sverige AB

IBP B-Press

JSL Lifestyle Ltd.

LK Systems B-Press

KSP 5 U

Dimension-related for Pressing jaws 

Interchangeable inserts  Pressing chains 

Megaro

Metallwerke Möllersdorf B-Press

Nibco

Seppelfricke GmbH

Tzanos B-Press

Machine and system-related for Aquatecnic

BRASS FORM

CO.E.S Coesclima

Dw Verbundrohr GmbH

Grupo Plásticos Ferro

KE KELIT

KISAN

Maincor

FAR mfh systems GmbH

Fränkische Rohrwerke

Global Piping

MT Business Key

Multec

Nikkai KMO

Nupi

Polytherm Española

Rifeng

SPK INDUSTRIES

TWEETOP

Wavin Tigris K1 + M1

The applications based on dimensions, profile and machine type are set out in the Application and Assembly Instructions from the system supplier.

KSP 7 H

Dimension-related for Pressing jaws  Interchangeable inserts  Pressing chains 

Machine and system-related for Haka HAKAPRESS Simplex BRASS FORM Mair M-Press /Gomafix Tzanos FAR Prandelli Multyrama

KSP 7(A) HR

Dimension-related for Pressing jaws  Interchangeable inserts  Pressing chains 

Machine and system-related for Roth

KSP 8 BE

Dimension-related for Pressing jaws  Interchangeable inserts  Pressing chains 

Machine and system-related for HENCO NS32-40

The applications based on dimensions, profile and machine type are set out in the Application and Assembly Instructions from the system supplier.

KSP 11

TH

Dimension-related for Pressing jaws 

Interchangeable inserts  Pressing chains 

Machine and system-related for

APE

General Fittings ONDA MFG. Auspex Duopex Giacomini

PB Tub

Becker Plastics Global Piping Pedotherm BRASS FORM Golan Pinto & Cruz

Canes AS Grupo Plásticos Ferro Pipelife Austria Comap SudoPress Multiskin Henco Polysan

COMFORTPRO SYSTEMS

Comisa

Herz IPANAPRESS Polytherm Heating Systems

Industrielle du Plastique & Accessoires

Purmo

Dahl Sverige AB IPA IPANAPRESS Rifeng Dalpex ITULA

Diwa Rohrsysteme Kermi X-Press

Egoplast KISAN

Emcal PRESSO Klimit

Emmeti Gerpex

FAR

LK Systems PressPex

MA.S.TER SYSTEM

Fränkische Ibérica Megaro

Fränkische Rohrwerke Nicoll

F.I.V. Fivpress

Nikkai KMO

KSP 12 HO

Dimension-related for Pressing jaws 

Interchangeable inserts  Pressing chains 

Machine and system-related for Oventrop Cofit-P

Rofix

Schlösser EuroPressSystem

Schütz EHT

Seppelfricke SD Sistemi Italia

Seppelfricke GmbH

Stelbi

Tiba abit

Tiemme Racorderie Cobrapress

VIESSMANN

Polytherm Polyfix / Polyfix MT

The applications based on dimensions, profile and machine type are set out in the Application and Assembly Instructions from the system supplier.

KSP 13 ME

Dimension-related for Pressing jaws  Interchangeable inserts  Pressing chains 

Machine and system-related for Metzerplas

KSP 15 ME

Dimension-related for Pressing jaws  Interchangeable inserts  Pressing chains 

Machine and system-related for Filpres Jäger Systemvertrieb FG Inox Filtube

KSP 16 RRB

Dimension-related for Pressing jaws  Interchangeable inserts 

Pressing chains 

Machine and system-related for Rehau Raubasic

KSP 17(A) ME

Dimension-related for Pressing jaws  Interchangeable inserts  Pressing chains 

Machine and system-related for GALVINS PLUMBING PLUS KSP17AIplex Ken‘s Plumbing

KSP 19 VAL

Dimension-related for Pressing jaws 

Interchangeable inserts  Pressing chains 

Machine and system-related for BENTONS PLUMBTEC Valsir Pexal

The applications based on dimensions, profile and machine type are set out in the Application and Assembly Instructions from the system supplier.

KSP 20 RF

Dimension-related for Pressing jaws  Interchangeable inserts  Pressing chains 

Machine and system-related for Global Piping System AC-FIXPB Tub Blansol / Barbi MT Business Key

KSP 28(ABC) multi-layer pipe / Pex pipe

Dimension-related for Pressing jaws  Interchangeable inserts  Pressing chains 

Machine and system-related for DITRON BUTELINE KSP28CPHILMAC KSP28C Auspex KSP28 Nibco KSP28B

KSP 33 THA

Dimension-related for Pressing jaws  Interchangeable inserts  Pressing chains 

Machine and system-related for Benkan Hebei Guangde Stainless/JSLSamyong EQJOINT

KSP 36 DB

Dimension-related for Pressing jaws  Interchangeable inserts  Pressing chains 

Machine and system-related for DASUNG TECH SEOWON TECHNOLOGY

SAFE AND EASY TO USE: AXIAL PRESSING TOOLS

SERIES MAPAX

Use our MAPAX axial pressing tools to create reliable multi-layer and PEX pipe connections. They can also be used for metal pipe connections. Certain types in the series also permit quick expansion ahead of the pressing.

■ Axial force suitable for your applications, either with 16 kN, 25 kN or 45 kN

■ Simple operations by combining expansion and pushing actions into one tool

■ Optional adapter for mounting pipe expanders for simple expansion of the pipe ends

■ Quick and convenient operations in any assembly situation

■ System sliding forks for connections to allow rapid changeover between the dimensions

■ Codes on the mounting prevents the forks being mis-connected

Technical data

Battery

x

V, Li-Ion

Battery charger 230 V (110 V on request)

Number of pressings

Battery-powered sliding tool with Makita battery

Battery-powered sliding tool with Bosch battery

Approx. 150 (NS 20 / 1.5 Ah battery)

suitable for

SGL sliding forks 16 kN

▪ Multi-layer pipe / PEX pipe: max. NS 32 mm / 1”

▪ The stated information is system-dependent.

▪ On request

AWA expansion adapter

▪ For connecting to MAPAX216 pressing tool

▪ For mounting AWK expansion crowns

▪ On request

AWK expansion crown

▪ For expanding pipe ends

▪ Adaptable to AWA expansion adapter

▪ On request

Technical data

Dimensions

Battery 18 V, Li-Ion

Battery charger 230 V (110 V on request)

Number of pressings

Approx. 150 (NS 20 / 1.5 Ah battery) Bluetooth

Battery-powered sliding tool with Makita battery

Battery-powered sliding tool with Bosch battery

suitable for

SGL sliding forks 25 kN

▪ Multi-layer pipe / PEX pipe: max. NS 50 mm / 2”

▪ The stated information is system-dependent.

▪ On request

AWA expansion adapter

▪ For connecting to MAPAX325 pressing tool

▪ For mounting AWK expansion crowns

▪ On request

AWK expansion crown

▪ For expanding pipe ends

▪ Adaptable to AWA expansion adapter

▪ On request

Technical data Linear

Dimensions

x 80 x 155 mm

Battery 18 V, Li-Ion

Battery charger 230 V (110 V on request)

Number of pressings

Approx. 150 (NS 20 / 1.5 Ah battery) Bluetooth

Battery-powered sliding tool with Makita battery

Battery-powered sliding tool with Bosch battery

suitable for

SGL sliding forks 45 kN

▪ Multi-layer pipe / PEX pipe: max. NS 63 mm / 2.5”

▪ The stated information is system-dependent.

▪ On request

Possible scope of supply

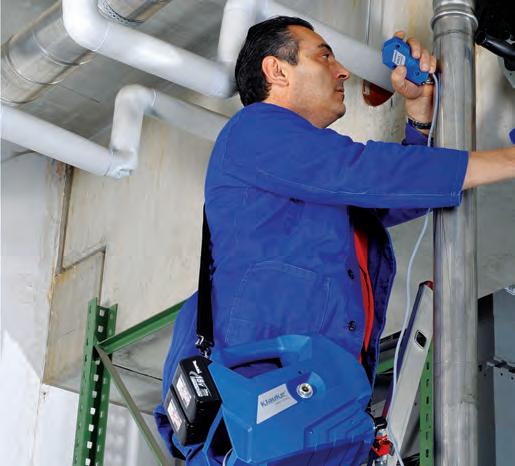

THE MATCHING DRIVE –HYDRAULIC PUMPS AND DRIVE UNITS

The system concept is being consistently implemented at Klauke. Our hydraulic pumps provide every Klauke pressing, cutting and multi head with the required force. All pumps are matched to the various heads. They deliver 700 bar of pressure to guarantee full performance every time.

■ Compact battery-powered hydraulic drive unit with automatic pressure shut-off

■ Battery-operation and closed hydraulic circuit for offline mobile use in any working position

■ Can also be operated with a 230 V mains adapter

■ Socket for spare battery

■ Also available with cabled remote control

■ Broad range of adapters for the most diverse applications

■ The ideal solution for all applications in industry and the craft trades that have to meet special mobility and safety requirements

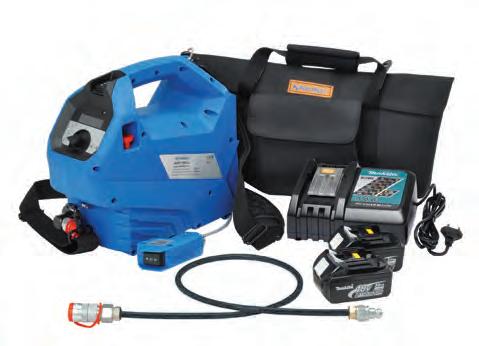

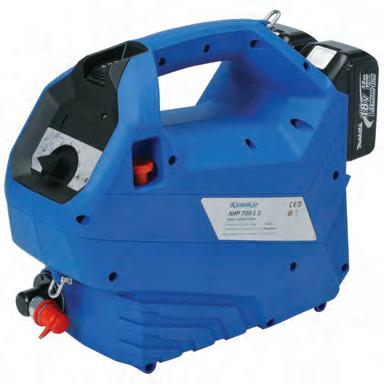

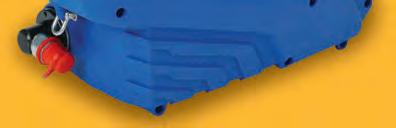

AHP700LS

Battery-powered drive unit 700 bar

Technical data

Max. operating pressure

x 160 x 280 mm

Ambient temperature -10 °C up to 40 °C

Battery 18 V, Li-Ion

Battery charger 230 V (110 V on request)

Number of pressings

OLED display

Hydraulic Pressure Control

Battery-drive drive unit with Makita battery

Scope of supply

Makita battery 18 V / 4.0 Ah, Li-Ion

Makita quick-charger for 18 V Li-Ion batteries

Carrying bag

Remote control with 1.5 m cable

Hydraulic hose, 2 m, oil filled

Carrying strap with shoulder padding

battery 18 V / 5.0 Ah, Li-Ion

Mains adapter 18 V / 230 V (compatible

with Makita /110 V on request)

Approx. 400 (NS 20 / 4.0 Ah battery)

suitable for

PKMAP2 Pressing head 15 kN, (pressing jaws SBM, UWM)

▪ Stainless steel, steel, NS 22 mm (NS 28 mm on request) / 3/4”

▪ Copper, copper alloys: max. NS 28 mm / 1”

▪ Multilayer pipe / PEX pipe: max. NS 32 mm / 1-1/4”

▪ The stated information is system-dependent.

PKUAP3 Pressing head 32 kN, (pressing jaws SB, UW, SBKQC and pressing chains SSK, QC)

▪ Stainless steel, steel: max. NS 54 mm / 108 mm / 4”

▪ Copper, copper alloys: max. NS 108 mm / 4”

▪ Multi-layer pipe / PEX pipe: max. NS 110 mm / 4”

▪ The stated information is system-dependent.

PKUAP4 Pressing head 32 kN, (pressing jaws SB, UW, SBKQC, SBKUAP4 and pressing chains SSK, QC, BP…LP)

▪ Stainless steel, steel: max. NS 54 mm / 108 mm / 4”

▪ Copper, copper alloys: max. NS 54 mm / 108 mm / 4”

▪ Multi-layer pipe / PEX pipe: max. NS 110 mm / 4”

▪ The stated information is system-dependent.

PKUAP100 Pressing head 120 kN, (pressing chains BP…HP)

▪ Stainless steel, steel: max. NS 108 mm / 4”

▪ Copper, copper alloys: max. NS 108 mm / 4”

▪ The stated information is system-dependent.

PKMAPAX pressing head axial 16 kN, (sliding forks SGL, expansion adapter AWA)

▪ Multilayer pipe / PEX pipe: max. NS 32mm / 1-1/4”

▪ The stated information is system-dependent.

▪ On request.

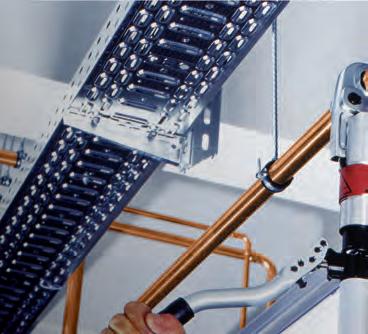

MECHANICAL PRESSING TOOL FOR SPECIAL

APPLICATIONS –ALSO WITH EX APPROVAL

In certain working environments, only mechanical tools will do. Our hydraulic mechanical pressing tools are also available with EX approval.

■ Hydraulic pressing tool with automatic piston retraction

■ Comfortable working with 2-stage hydraulic system offering fast feed and power stroke in one movement

■ 350° rotating pressing jaw holder for optimised results even in tight spots

■ Same pressing force as battery-powered pressing tools – with either 15 kN or 32 kN linear thrust

■ Can be combined with Klauke System pressing jaws and system pressing chains

■ Suitable for use in potentially explosive areas in accordance with the ATEX Directive and Equipment Category II 2GD c IIB T4 T120

Mechanical pressing tools with and without EX approval

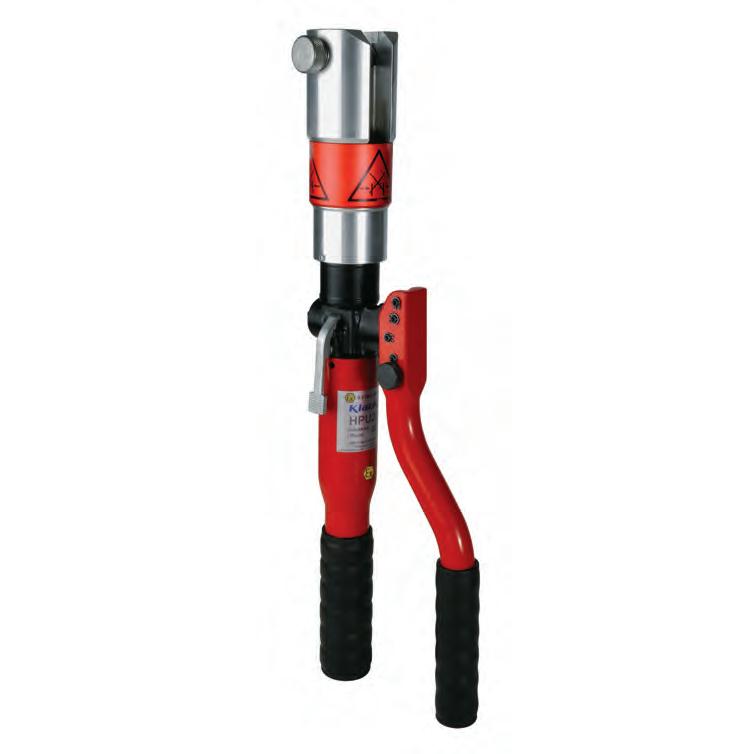

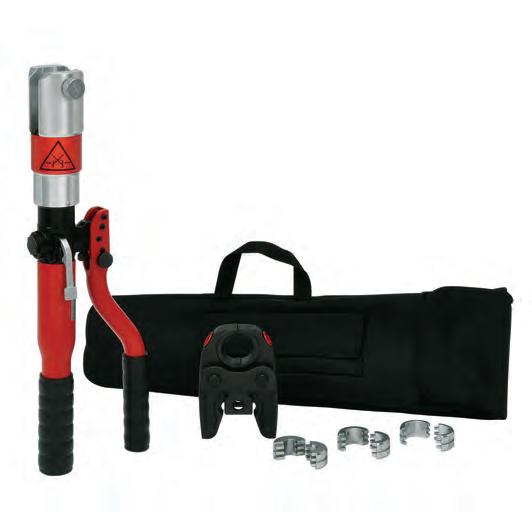

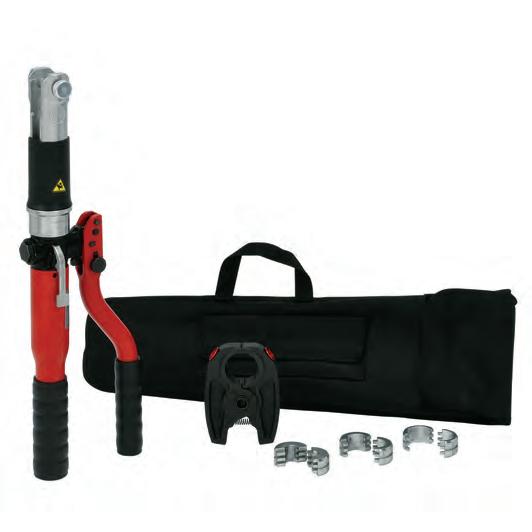

HPU32 Hydraulic mechanical pressing tool 15 kN

II 2GD c IIB T4 T120

(also available as non ex-version)

Technical data

Linear force 15 kN

Weight 2.7 kg

Dimensions 510 x 60 x 150 mm

Ambient temperature -10 °C up to 40 °C

Pressing jaw holder rotates 350°

2-stage hydraulic system •

Hydraulic mechanical pressing tool EX version

Hydraulic mechanical tool (Standard)

Scope of supply

Fabric bag

suitable for

SBM pressing jaw Mini 15 kN

▪ Stainless steel, steel: max. NS 22 mm (NS 28 mm on request) / 3/4”

▪ Copper, copper alloys: max. NS 28 mm / 1”

▪ Multilayer pipe / PEX pipe: max. NS 32 mm / 1-1/4”

▪ The stated information is system-dependent.

UWM Universal interchangeable jaw Mini 15 kN

▪ Stainless steel, steel: max. NS 22 mm / 3/4”

▪ Copper, copper alloys: max. NS 28 mm / 1”

▪ Multi-layer pipe / PEX pipe: max. NS 32 mm / 1”

▪ The stated information is system-dependent.

Page 30

Page 30

Mechanical pressing tools with and without EX approval

HPU2 Hydraulic mechanical pressing tool 32 kN

II 2GD c IIB T4 T120

(also available as non ex-version)

Technical data

Linear force 32 kN

Weight 2.7 kg

Dimensions

510 x 60 x 150 mm

Ambient temperature -10 °C up to 40 °C

Pressing jaw holder rotates 350°

2-stage hydraulic system •

Item

Hydraulic mechanical pressing tool EX version

Hydraulic mechanical tool (Standard) HPU2

Scope of supply

Fabric bag

suitable for

SB pressing jaw Standard 32 kN

▪ Stainless steel, steel: max. NS 54 mm / 2”

▪ Copper, copper alloys: max. NS 54 mm / 2”

▪ Multi-layer pipe / PEX pipe: max. NS 50 mm / 2”

▪ The stated information is system-dependent

UW Universal interchangeable jaw Standard 32 kN

▪ Stainless steel, steel: max. NS 22 mm / 3/4”

▪ Copper, copper alloys: max. NS 28 mm / 1”

▪ Multi-layer pipe / PEX pipe: max. NS 32 mm / 1”

▪ The stated information is system-dependent.

QC pressing chain Quick-Click 32 kN

Page 32

Page 32

Page 36

▪ Can only be used in connection with adapter jaw SBKQC (not included in scope of supply)

▪ Stainless steel, steel: max. NS 54mm / 108 mm / 4”

▪ Copper, copper alloys: NS 54 mm / 108 mm / 4”

▪ Multi-layer pipe / PEX pipe: max. NS 110 / 4”

▪ The stated information is system-dependent.

SSK 4-segment pressing chain 32 kN

Page 36

▪ Can only be used in connection with adapter jaw SBKQC (not included in scope of supply)

▪ Stainless steel, steel: max. NS 54 mm / 2”

▪ Copper, copper alloys: max. NS 54 mm / 2”

▪ The stated information is system-dependent.

PROFESSIONAL BATTERY PLATFORM FOR LEAD EDGE TECHNOLOGY

Our battery platform lets you choose the leading battery technology to work with: Makita or Bosch. The battery technology system is available for all battery-powered hydraulic tools in the Klauke series.

■ Klauke battery platform for flexible and productive operations with the least possible dependence on site conditions

■ 18 V battery system with the latest Li-Ion technology

■ Safer to use thanks to high battery capacity and cable-free design

■ Extremely short charging times of less than 15 min. at 1.5 Ah and less than 22 min at 3 Ah

■ Low weight for comfortable handling and balanced operations

■ Cost benefit from multiple use of existing batteries

Battery platform Batteries and mains adapter

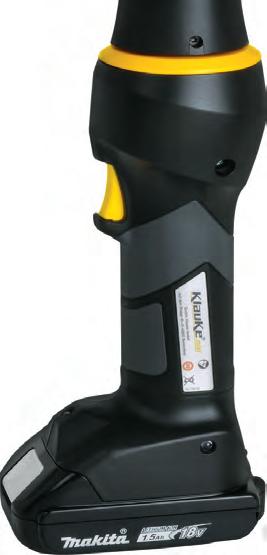

RAL 1 Makita battery 18 V / 1.5 Ah, Li-Ion (27 Wh)

Characteristics

▪ No memory effect

▪ Extremely low self-discharge

▪ Low weight suitable for

▪ Battery-powered hydraulic MAP tools with Makita batteries

Technical data

Battery voltage (V)18 V

Battery capacity 1.5 Ah

Charging timewith LGL1: 15 min.

Cell technologyLi-Ion

Weight 0.4 kg

Item

Makita battery 18 V / 1.5 Ah, Li-Ion RAL1

RAL 2 Makita battery 18 V / 3.0 Ah, Li-Ion (54 Wh)

Characteristics

▪ No memory effect

▪ Extremely low self-discharge

▪ Low weight suitable for

▪ Next Generation battery-powered hydraulic tools with Makita batteries

Technical data

Battery voltage (V)18 V

Battery capacity 3.0 Ah

Charging timewith LGL1: 22 min.

Cell technologyLi-Ion

Weight 0.6 kg

Item

Makita battery 18 V / 3.0 Ah, Li-Ion (54 Wh) RAL2

Other country-specific chargers and batteries on request

RAL 40 Makita battery 18

V / 4.0 Ah, Li-Ion

(72 Wh)

Characteristics

▪ No memory effect

▪ Extremely low self-discharge

▪ Lightweight - same weight as Makita 3.0 Ah battery suitable for

▪ Next Generation battery-powered hydraulic tools with Makita batteries

Technical data

Battery voltage (V)18 V

Battery capacity 4.0 Ah

Charging timewith LGL1: 36 min.

Cell technologyLi-Ion

Weight 0.6 kg

Item

Makita battery 18 V / 4 Ah, Li-Ion

RAL 4 Makita battery 18 V / 5.0 Ah, Li-Ion (90 Wh)

Characteristics

▪ No memory effect

▪ Extremely low self-discharge

▪ Lightweight - same weight as Makita 3.0 Ah battery suitable for

▪ Next Generation battery-powered hydraulic tools with Makita batteries

Technical data

Battery voltage (V)18 V

Battery capacity 5.0 Ah

Charging timewith LGL1: 45 min.

Cell technologyLi-Ion

Makita battery 18 V / 5.0 Ah, Li-Ion (90 Wh)

Other country-specific chargers and batteries on request

Battery platform

Batteries and mains adapter

RAL B1 EU Bosch battery 18 V / 2.0 Ah, Li-Ion

Technical data

Battery voltage (V)18 V

Battery capacity 2.0 Ah

Charging timeRALB1EU: 15 min.

Cell technologyLi-Ion Weight 0.4 kg

Item Part No.

Bosch battery 18 V / 2.0 Ah, Li-Ion

RAL B2 EU Bosch battery 18 V / 5.0 Ah, Li-Ion

Technical data

Battery voltage (V) 18 V

Battery capacity 5.0 Ah, Li-Ion

Charging timeWith LGLB1EU: 45 min.

Cell technologyLi-Ion Weight 0.69 kg

Item

Bosch battery 18 V / 5.0 Ah, Li-Ion

RALB1EU

Part No.

RALB2EU

NG2 mains adapter 18 V for 120 V or 230 V mains voltage

Characteristics

▪ Overtemperature protection

▪ Current limiter

▪ Overvoltage protection 250 V

▪ Cable length: 5 m suitable for

▪ All Klauke tools with 18 V batteries – Makita version

Technical data

Mains connection 120 V / 230 V

Voltage range 18 V

Weight 0.8 kg

Item

Item No.

18 V mains adapter for 120 V mains voltage NG2115

18 V mains adapter for 230 V mains voltage NG2230

Other country-specific chargers and batteries on request

Battery platform Battery chargers

LGL

1 Makita quick-charger for 18 V Li-Ion batteries

suitable for ▪ Klauke Li-Ion Makita 18 V batteries

Technical data

Charging timewith RAL1: 15 min., with RAL2: 22 min.

Mains connection 230 V Voltage range 18 V

1.0 kg

Item Part No.

Makita quick-charger for 18 V Li-Ion batteries LGL1

LGL B1 EU Bosch charger for 18 V Li-Ion batteries

suitable for ▪ Klauke Li-Ion Bosch 18 V batteries

Technical data

Charging timewith RALB1EU: 15 min, with RALB2EU: 45 min.

Mains connection 230 V Voltage range 18 V

0.65 kg

Item Part No.

Bosch quick-charger for 18 V Li-Ion batteries LGLB1EU

WE LIVE THE SYSTEM CONCEPTS –TOGETHER WITH OUR PARTNERS

Our customers trust Klauke as a system partner.

■ We have system approvals from more than 150 system partners for use in the plumbing, heating and air conditioning sector as well as for various industrial applications.

■ Klauke pressing tools, pressing jaws and pressing chains are tested and approved by our system partners.

■ We draw on our vast industry knowledge to efficiently and reliable meet the high standards set by our system partners.

■ Contact your system supplier for other approved systems or information about the latest pressing dimensions for specific systems.

■ Klauke system components can be obtained from our partners below.

TRUSTING IN KLAUKE: OUR SYSTEM PARTNERS

✔ Klauke pressing tools and jaws are tested and approved for specific systems by all the system suppliers listed below.

✔ Contact your system supplier for other approved systems or information on potential pressing dimensions for specific systems.

✔ Klauke system components can be obtained from our partners below.

A&O Johansen www.ao.dk

Adrien Riquier www.riquier.fr

Airbel www.airbel.fr

Air Energy www.airenergy.com.au

Allmach Pneumatic www.allmach.com.au

AMCO HI-TECH INTERNATIONAL www.amcopress.com

APE www.ape-raccorderie.com

Aquatech. Distribution www.aquatech.ie

Aquatherm GmbH www.aquatherm.de

Aschl www.aschl-edelstahl.com

Auspex www.auspex.com.au

Australian Hydronics Supply www.hydronicsupplies.com.au

Becker Plastics www.becker-plastics.de

Benkan Corporation www.benkan.com

BENTONS PLUMBTEC www.bentons.com.au

Blansol www.blansol.es

Blucher Australia www.blucher.com.au

Bonfix B.V. www.bonfix.nl

Brass Form www.brassform.gr

BROEN A/S www.broen.dk

Bun Kee (International) Limited www.bunkee.com

Buteline www.buteline.com

Byr Pex Corporation www.byrpex.com

Canes AS www.canes.no

CaroScheibe GmbH www.caroscheibe.de

Central Heating www.centralheating.co.nz

Cerro Flow Products LLC www.cerroflow.com

Chibro

Ilta Inox S.p.A. www.chibro.it

CO.E.S www.coescompany.com

Comap www.comap-group.com

Comisa www.comisagroup.it

Compipe www.compipe.ru

Dahl Sverige AB www.dahl.se

Dasung www.spjoint.com

Diwa www.diwaflex.de

Dw Verbundrohr GmbHwww.multitubo.eu

Elson Australasia www.bushpex.com

Emcal www.emcal.de

Emmeti www.emmeti.com

Esta www.esta-rohr.de

Eurotubi www.eurotubieuropa.it

F.I.V. www.fiv.it

FAR www.far.eu

FG Inox www.fginox.com

Filpres www.tubinox.pt

Filtube www.inoxidables.com

Fittings Estándar www.fittingsestandar.com

Fittings Specialisten www.fittings.dk

Fra.Bo www.frabo.com

Galpro www.galprostylex.co.nz

GALVINS PLUMBING PLUS www.galvins.com.au

Gasokol www.gasokol.at

Geberit www.geberit.de

General Fittings www.generalfittings.it

Georg Fischer www.georgfischer.it

Georg Fischer JRG AG www.gfps.com

Giacomini www.giacomini.com

Global Piping www.ac-fix.com

GMICOU Thermal Technology www.gmicou.com

Golan www.pexgol.com

Grupo Plásticos Ferro www.grupoplasticosferro.com

H. Albert GmbH www.albert-gmbh.de

Haka www.hakagerodur.ch

Heatlink Group inc. www.heatlink.com

HEBEI GUANGDE STAINLESS www.gdpressfitting.com

Henco www.henco.be

Herotec www.herotec.de

Herz www.herz-armaturen.com

Hidrotec www.coescompany.com

IBP www.conexbanninger.com

IFT Groupe Omerin www.groupe-omerin.com

Industrie du Plastique et Accessoires www.ipalpex.com

Inox www.inox.dk

Inoxpres www.inoxpres.com

ITULA www.itula.fi

IPA www.ipa-fitting.com

Iplex www.iplex.com.au

Isotubi www.isotubi.com

Ivar www.ivar-group.com

IVT Würth www.ivt-group.com

Jäger www.jaeger-aquatec.at

JSL Lifestyle Ltd. www.jindalstainless.com

KAN www.kan.com.pl

Kekelit www.kekelit.com

Ken‘s Plumbing www.kens.com.au

Kermi www.kermi.de

KISAN www.kisan.pl

Klimit www.herzitalia.it

Kohler www.kohler.ch

LK Systems www.lksystems.se

Loex Srl www.loex.it

Logstor www.logstor.com

Lombarda Raccordi www.lombardaraccordi.it

Lowatec www.lowatec-online.de

Mair Heiztechnik www.mair-heiztechnik.de

Marine Equipment Intern. www.meiaust.com.au

Mark www.mark-kg.de

MA.S.TER SYSTEM www.master-system.it

Megaro www.megaro.de

Metallwerke Möllersdorf www.wieland.com/de/wieland-moellersdorf

Metzerplas www.metzer-group.com

MGF SRL www.mgftools.com

M-Press Fittings www.mpressfittings.co.uk

MT Business Key www.mtspain.net

NEOTHERM www.neotherm.dk

Nibco www.nibco.com

Nicoll www.nicoll.it

NIKKAI KMO www.nikkai-kmo.com

Nupi www.nupiindustrieitaliane.com

ONDA MFG www.onda.co.jp

Oteraccordi www.oterspa.it

Oventrop www.oventrop.de

PB Tub www.pbtub.fr

Pedotherm www.pedotherm.de

Pegler Yorkshire www.pegleryorkshire.co.uk

Philmac www.philmac.com.au

Pinto & Cruz www.pintocruz.pt

Pipelife www.pipelife.com

Polysan www.polysan.at

Polytherm Espaňola www.polytherm.es

Polytherm Heating Systems Ltd www.polytherm.ie

Prandelli www.prandelli.com

Pro Aqua www.egoing.ru

Purmo www.purmo.de

R.B.M. www.rbm.eu

Raccorderie Metalliche www.racmet.com

Raccords Afy www.afy.fr

Redi www.redi.it

Rehau www.rehau.com

Rettig Heating www.purmo.com/pl

Rifeng www.rifeng.com

Rofix www.rofix.com

Rotex www.rotex.de

Roth www.roth-industries.com

Sabelita Engineering Pte. Ltd. www.sabelita.com.sg

Samyong www.eqjoint.com

Schlösser www.schloesser-armaturen.de

Schuetz EHT www.schuetz.net

SEOWON TECHNOLOGY www.srjoint.co.kr

Seppelfricke GmbH www.seppelfricke.de

Seppelfricke SD

Sistemi Italia www.seppelfricke.it

Simplex www.simplex-armaturen.de

SPK INDUSTRIES www.spk.co.nz

Starsin Trading Pte Ltd www.starsin.com.sg

Stelbi www.stelbi.com

Stirlings www.stirlingsps.com

TECE www.tece.fr

Termostal Imex S.R.L. www.termostal.md

Tersia www.tersia.nl

The Couta Group www.coutagroup.com.au

Thermtec www.thermtec.de

Tiba www.tiba.pt

Tiemme Raccorderie www.tiemme.com

Tufflok www.tufflok.com

Tweetop www.tweetop.pl

Tzanos www.tzanos.gr

Unidelta www.unidelta.it

Uponor www.uponor.com

Valsir www.valsir.com

Valsir France www.valsir.fr

Victaulic www.victaulic.com

Viega www.viega.com

VIESSMANN SP. Z.O.O. www.viessmann.pl

Vimoter www.vimoter.it

VSH www.vsh.eu

Vulkan Lokring www.vulkan.com

W & O Supply www.wosupply.com

Wavin www.wavin.com

Winkler www.winkler-heizung.at

Witzenmann www.witzenmann.com

KLAUKE AFTER SALES SERVICE –PERFECTLY TAILORED FOR YOUR DAY-TO-DAY WORK

We encourage direct communication and close collaboration with our customers. This allows us to help our customers achieve success in their day-to-day work in the best way we can.

■ Global repair and maintenance service in more than 50 authorised Service Centers (Klauke ASC)

■ Expert service with annual inspection and maintenance for a fixed cost.

■ Free Hotline for all questions about the tool service in Germany.

Gustav Klauke GmbH

Auf dem Knapp 46

D – 42855 Remscheid

P.O. Box 10 05 22

D - 42805 Remscheid

Tel: +49 (0) 2191 / 907 – 222

Fax: +49 (0) 2191 / 907 – 243

E-Mail: klauke-service@ emerson.com

Web: www.klauke.com

■ Regular expert maintenance guarantees optimum performance

■ Permanently lower costs by preventing unnecessary damage and downtimes

■ Quality, safety and reliability for day-to-day work

■ Reduced wear effects

■ Proof of maintenance for construction projects

■ Simple maintenance planning thanks to tool status query via the Klauke app

■ We can inspect your device and prepare a cost estimate on request

▪ AUSTRALIA

The Energy Network PTY LT

Banyo, QLD 4014 (Australia)

Tel.: 0061-732128999

Fax: 0061-732128998 workshopgld@tengroup.com.au

The Energy Network PTY LT

Canning Vale, WA 6155 (Australia)

Tel.: 0061-894555574

Fax: 0061-892564075 workshopwa@tengroup.com.au

Parks Hydraulic Service

Abbotsford, Vic 3067 (Australia)

Tel.: 0061-3-94292072

Fax: 0061-3-94297199 parkshyd@bigpond.net.au

▪ AUSTRIA

Klauke Handelsgesellschaft mbH

2544 Leobersdorf (Austria)

Tel.: 0043-2256-62925

Fax: 0043-2256-62930 atoffice@emerson.com

▪ BELGIUM

NBR Nussbaumer & Cie

1500 Halle (Belgium)

Tel.: 0032-23570940

Fax: 0032-23549679 atelier@nussbaumer.be

▪ BOSNIA + HERZEGOWINA

Kabeltech D.O.O. 71000 J`Sarajevo (Bosnia-Herzegovina)

Tel.: 00387-33-713060

Fax: 00387-33-713063 info@kabeltech.co.ba

▪ BRAZIL

lndustria e Comercio Leal Ltda.

Butanta - Sao Paulo - SP

CEP 05501 - 010 (Brazil)

Tel.: 0011-98346-8935

Fax: 0011-2189-5309 wanderson.oliveira@leal.com.br

▪ CANADA

Western Utility Equipment Ltd. Calgary, AB Canada T2C 0B4 (Canada)

Tel.: 001-403-291-1121

Fax: 001-403-250-1136 danny@westernlineman.com

▪ CROATIA

Konekt d.o.o.

10000 Zagreb (Croatia)

Tel.: 00385-12361890

Fax: 00385-12361882 konekt@konekt.hr

▪ CZECH REPUBLIC / SLOVAKIA

Klauke Slovakia s.r.o. 02601 Dolny Kubin (Slovakia)

Tel.: 00421-43-58323-11

Fax: 00421-43-58323-34

ASC-SK@Klauke.textron.com

▪ DENMARK

Scherer’s Elektro ApS

2610 Rødovre (Denmark)

Tel.: 0045 - 4484-3738

Fax: 0045 - 4484-3708 steffen@scel.dk

▪ FINLAND

CableX oy 20360 Turku (Finland)

Tel.: 00358-2-8800020

Fax: 00358-2-8800021 reijo.karlsson@cablex.fi

▪ FRANCE

Klauke France

57150 Creutzwald (France)

Tel.: 0033-3-87298470

Fax: 0033-3-87298479 daniel.berrar@emerson.com

▪ GREECE

Kalamarakis Sapounas SA

13671 Chamomilos - Acharnes, Athens (Greece)

Tel.: 0030-210-240-6000

Fax: 0030-210-240-6007 mapetrou@ksa.gr

▪ GREAT BRITAIN

Klauke UK Ltd.

Suffolk, NR35 1JX (UK)

Tel.: 0044-1986-891508

Fax: 0044-1986-896132 klauke-serviceuk@emerson.com

▪ HUNGARY

Trend Elektro

2049 Diósd (Hungary)

Tel.: 0036-23545-140

Fax: 0036-23545-141 info@trendelektro.hu

▪ INDIA

Emerson Climate Technologies (India) Pvt. Ltd.

Bangalore 560064 (India)

Tel.: 0091-9738464980

Fax: 0091-9902322466

Mail: kiran.manjunath@emerson.com

▪ INDONESIA

PT. Aura Sinarindo Abadi

Kelapa Gading, Jakarta 14240 (Indonesia)

Tel.: 0062-214534237

Fax: 0062-214534238 rifkiyadi@aurasinarindo.com

PT. Great Dynamic Indonesia

Riau Island (Indonesia)

Tel.: 0062-778-455514

Fax: 0062-778-430275

gdi@greatdynamic.com

▪ IRELAND

PHL Hydraulics Ltd

Rathcoole, Co, Dublin (Ireland)

Tel.: 0044-07764569582

Fax: 00353-1-4588940 mevans@phlhydraulics.com

▪ ISLAND

Reykjafell hf. Pressure Hydraulic Ltd

105 Reykjavik (lceland)

Tel.: 00354-5886000

Fax: 00354-5886012 otto@reykjafell.is

▪ ISRAEL

Shay A.U., Ltd.

49222 Petach Tikva (Israel)

Tel.: 00972-3-9233601 Fax: 00972-3-9234601 ilans@uriel-shay.com

▪ ITALY

MGF s.r.l.

43055 Mezzani PR (Italy)

Tel.: 0039-0521-818301

Fax: 0039-0521-818202 assistenza@mgftools.com

▪ JAPAN

Marutaka Denki Co., Ltd. Ichinomiya-city

Aichi, 49-0827 (Japan)

Tel.: 0081-586-755151

Fax: 0081-586-769292 takahashi@mrtk.co.jp

▪ LEBANON

Al-Bonian Group

6470 Beirut-Lebanon (Lebanon)

Tel.: 00961-1-385 708

Fax: 00961-1-385 714 houssam.sleiman@al-boniangroup.com

▪ LITHUANIA

Technikos Meistrai

Vilnius LT-03151 (Lithuania)

Tel.: 00370-5-2311564

Fax: 00370-5-2311564 info@technikosm.com

▪ MALAYSIA

Jasama Engineering (M) SDN BHD

40150 Shah Alam, Selangor (Malaysia)

Tel.: 00603-78322220

Fax: 00603-77341457 jasama2013@unifi.my

▪ MEXICO

Tecnoherramientas Hidraulicas

C.P. 11850, Mexico, D.F. (Mexico)

Tel.: 0052-55-52719765

Fax: 0052-55-52120413 alvarob@tecnohidraulicas.com.mx

▪ The NETHERLANDS

H.K. Electric B.V.

5321 JZ Hedel (Netherlands)

Tel.: 0031-73-5997599

Fax: 0031-73-5997590 Service@hkelectric.nl

▪ NEW ZEALAND

Jonel Hydraulics Ltd.

East Tamaki Aukland (New Zealand)

Tel.: 0064-9-2749294

Fax: 0064-9-27308231 enerpac@jonel.co.nz

▪ NORWAY

Gronvold Maskinservice

0582 Oslo (Norway)

Tel.: 0047 2305 0640

Fax: 0047 2305 0650

Terje@gronvoldmaskin.no

▪ PEOPLE’S REPUBLIC OF CHINA

Chengdu Taidi Trading Co. Ltd

Chengdu Schuan, 100028 (China)

Tel.: 0086-28-85592749 824625620@qq.com

Dalian Luode Construction Co., Ltd.

Dalian, Liaoning 116000 (China)

Tel.: 0086-411-84623377 ye.han@dlrode.com

Emerson Professional Tools Co., LTd

Shanghai 201613 (China)

Tel.: 0086-21-57078151 amychen@emerson.com

Guangzhou Ji yong Trading Co. LTD

Guangzhou (China)

Tel.: 0086-20-87323770 381541320@qq.com

Shanghai Shuoheng industrial Co. Ltd

Shanghai 200233 (China)

Tel.: 0086-21-60515991 18601708666@QQ.com

Suzhou baiheng hardware Col., LTD

Suzhou (China)

Tel.: 0086-512-66912033 bhtools@163.com

Yangzhou Wangi Power Tech. Co., Ltd

Yangzhou City, Jiangsu, 225000 (China)

Tel.: 0086-514-80983152 360818309@qq.com

▪ POLAND

Despol Techniki Montażowe Sp. z o.o. 02-921 Warsaw (Poland)

Tel.: 0048-22-6428570

Fax: 0048-22-6420505 m.jaworski@despoltm.pl

▪ PORTUGAL

Palissy Galvani Electricidade S.A. Granja-2625-607 Vialonga (Portugal)

Tel.: 00351-21-3223400

Fax: 00351-21-3223410

ana.pereira@palissygalvani.pt

▪ ROMANIA

Gerkon Electro S.R.L. 530211 Miercurea Ciuc (Romania)

Tel.: 0040-266-372108

Fax: 0040-266-312238 office@gerkonelectro.ro

▪ RUSSIA

Unit Mark Pro 109147 Moscow (Russia)

Tel.: 007-495-7480747

Fax: 007-495-7483735 tarasov@umpgroup.ru

▪ SERBIA

Nidas d.o.o. 11000 Belgrade (Serbia)

Tel.: 00381-2417-714

Fax: 00381-2417-715 predrag.misailovic@nidas.co.rs

▪ SINGAPORE

AHT Singapore PTE. LTD. Singapore 639509 (Singapore)

Tel.: 0065-6862 3789

Fax: 0065-6862 3789 alexchew@aht-sgp.com

▪ SLOVENIA

Isaria d. o.o. 1420 Trbovlje (Slovenia)

Tel.: 00386-356-31800

Fax: 00386-356-31802 isaria.trbovlje@siol.net

▪ SOUTH AFRICA

Eberhardt Martin CC

Newlands, Johannesburg (South Africa)

Post point Delarey 2114

Tel.: 0027-11-2880000

Fax: 0027-11-6732043 ebm@ebm.co.za

▪ SOUTH KOREA

KESCO Co. Ltd

Seoul 07299 (South Korea)

Tel.: 0082-2-261409-89

Fax: 0082-2-261409-66 tsoh@ikesco.com

▪ SPAIN / ANDORRA

Klauke Iberia S.L.

28500 Arganda del Rey Madrid (Spain)

Tel.: 0034-917518203

Fax: 0034-917518195 klauke-serviceiberia@emerson.com

▪ SWEDEN

AGB Service AB

39241 Kalmar (Sweden)

Tel.: 0046-480-28174

Fax: 0046-480-28165 anders@agbservice.se

AGB Service AB

169 53 Solna (Sweden)

Tel.: 0046-8202245

Fax: 0046-707550145 anders@agbservice.se

▪ SWITZERLAND

Ferratec AG

8964 Rudolfstetten (Switzerland)

Tel.: 0041-56-6492121

Fax: 0041-56-6492141 info@ferratec.ch

▪ TAIWAN

Po Charng Co.Ltd

Sun Yi Dist, Taipei 110 (Taiwan)

Tel.: 0084-886227631623

Fax: 0084-886227667492 vincent.cn@msa.hinet.net

▪ THAILAND

Summit Engineering + Service Co., LTD.

BKK 10400 (Thailand)

Tel.: 00662-6422478-9 Fax: 00662-6423085 sudsuda@greennovation.in.th

▪ TURKEY

Safak Elektrik Malz. Tic. Ltd.Sti. Ümraniye- Istanbul (Turkey)

Tel.: 0090-216-4447735 (ext. 4102)

Fax: 0090-216-4669676 ryagcioglu@safakelektrik.com.tr

▪ USA

Greenlee

Rockford, IL 61109-2932 (USA)

Tel.: 001-800-435-0786

Fax: 001-800-451-2632 nicklos.knapp@emerson.com

A & A Hydraulic & Equipment

Berea, OH 44017 (USA)

Tel.: 001-800-992-9899

Fax: 001-440-826-3980 dan@hydraulicparts.com

Craneworks Southwest Inc

San Marcos, CA 92078 (USA)

Tel.: 001-760-735-9793

Fax: 001-760-735-9694 jmwilliams@mhicranes.com

QUEST Inc

Brighton, CO 80601 (USA)

Tel.: 001-720-685-9091

Fax: 001-303-655-8143 bobquest@prodigy.net

▪ VIETNAM

MP Co., Ltd

Hung Phuoc 4, Dist. 7, HCM City (Vietnam)

Tel: 0084 28 5410-8888 (ext 205)

Fax: 0084 28 5410-0167

Mail: duc.tm@mpcovn.com

Turn static files into dynamic content formats.

Create a flipbook
Issuu converts static files into: digital portfolios, online yearbooks, online catalogs, digital photo albums and more. Sign up and create your flipbook.
