ARCH 1101 | Critic: Alan Plattus and Liz Galvez
Santa Fe, New Mexico
Fall 2022

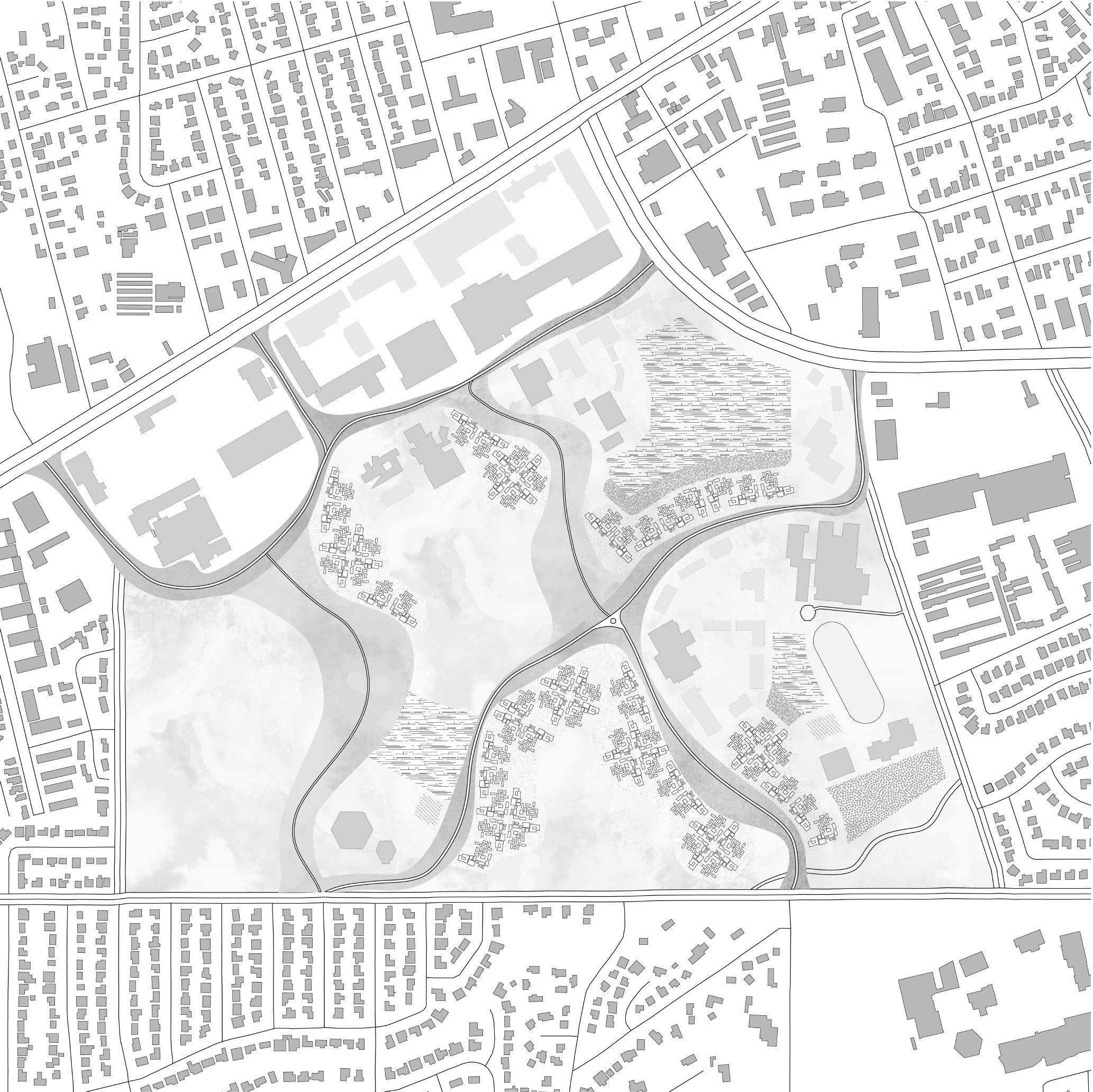

Elizabeth CornfeldProject Objective: This studio builds on the work begun by the Santa Fe Art Institute in the redevelopment of a 64 acre plot of abandoned land in the Midtown area of Santa Fe, New Mexico. We will add our ideas to the dialogue about the potential of turning a crucial but chaotic superblock in the midst of diverse neighborhoods in the Midtown area into a new kind of shared space that centers issues of land tenure, climate and environmental justice, story-telling, indigenous culture and knowledge, housing, and the role of arts in building community. Through a focus on material, climate and infrastructure, architectural proposals will experiment with new cultures, lifestyles and building technologies that grapple with the precise ecologies of desert environments engaging both their ancestral and contemporary cultures to materialize alternative futures.

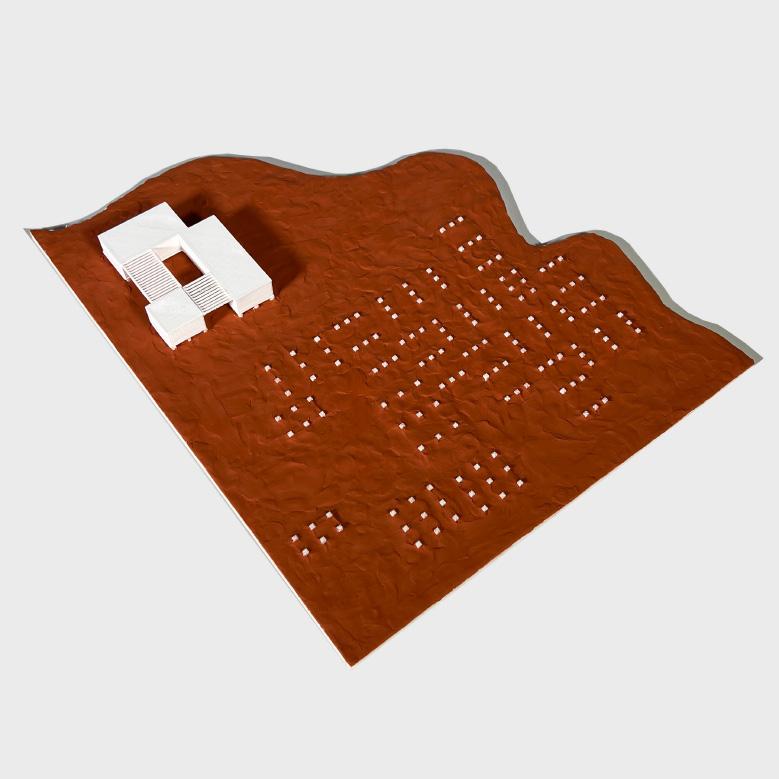

Beginning with research on olla irrigation, I started to look at moments of plant, people, and architectures relationship with the ground. Through the arrangement of separate but adjacent individual units, my project proposes a mode of communal living, building a new sociality between its inhabitants and connecting the inside and outside. My design breaks the overall structure of a house into “units”. These separate parts serve as a single function, such as a living room, kitchen, and dining room but are used communally by the neighborhood. These programs can take place inside of a single building or outside in one of the plaza spaces. These micro-neighborhoods are made up of a series of quadrants and using a method of copying and mirroring, these quadrants can be duplicated to expand the neighborhood.
Elizabeth Cornfeld

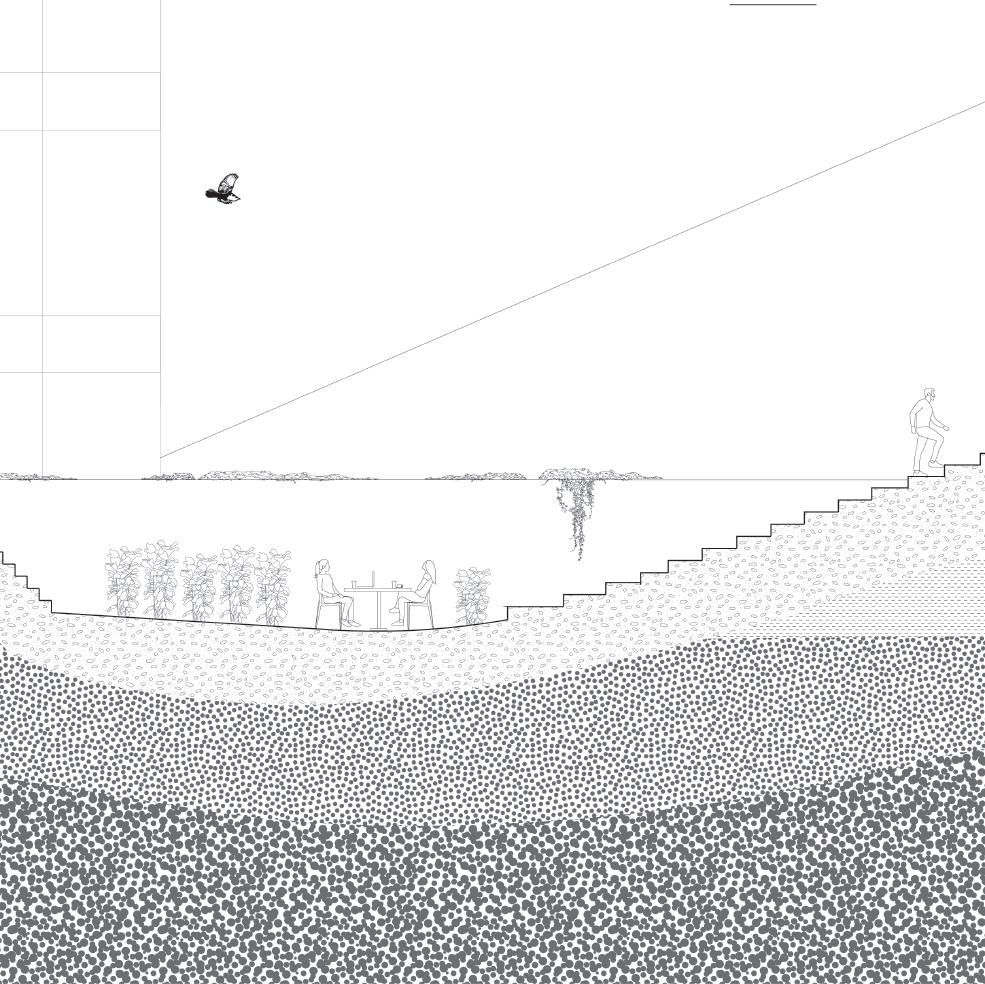

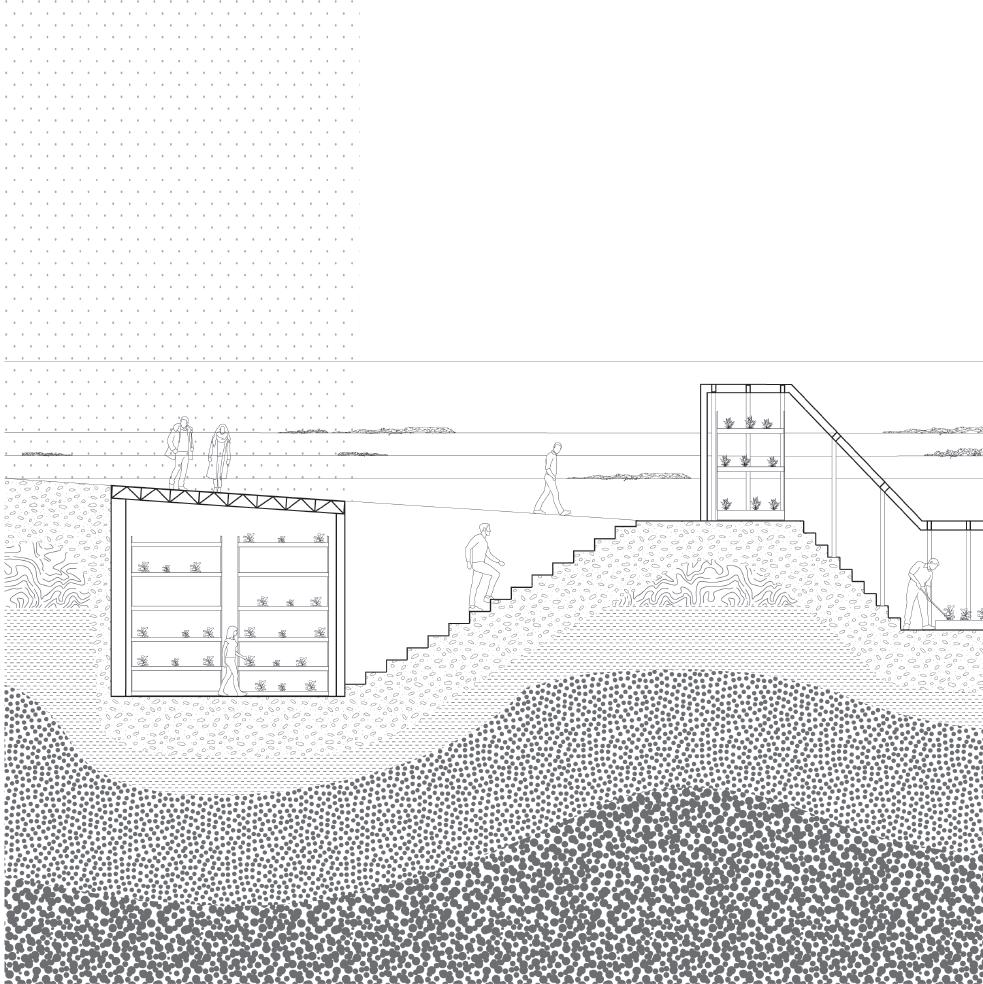

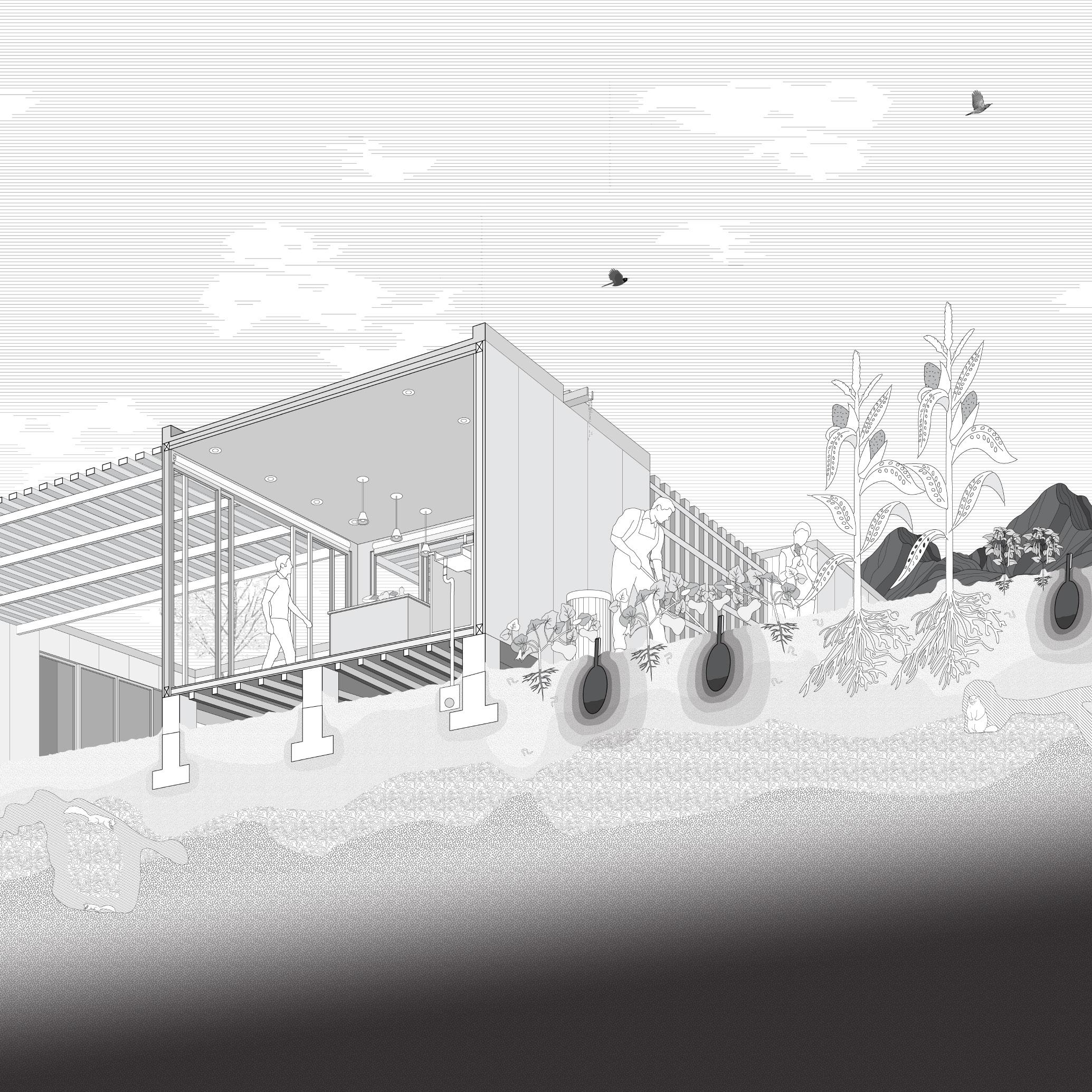

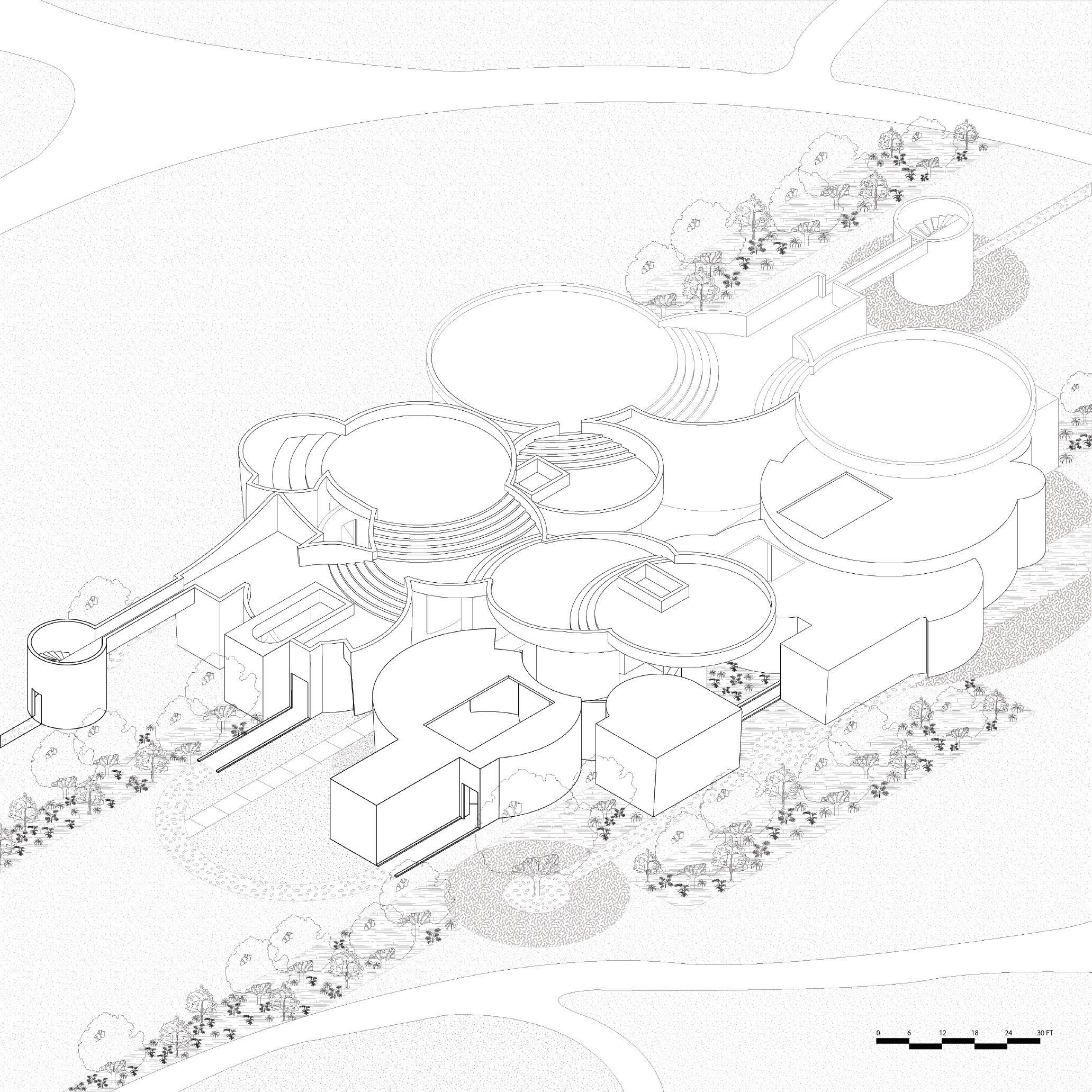

Olla Unseen Cycles Perspective Drawing

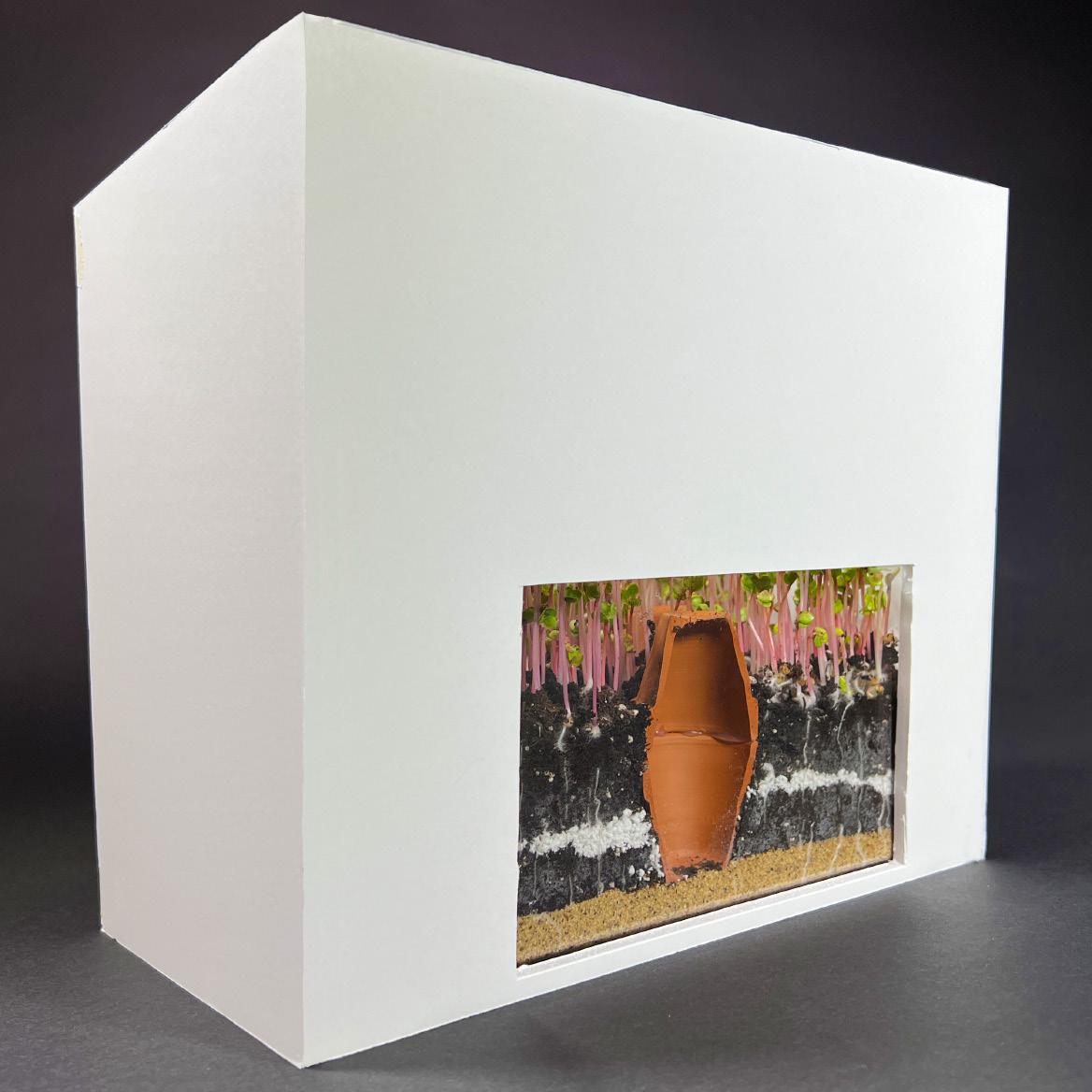

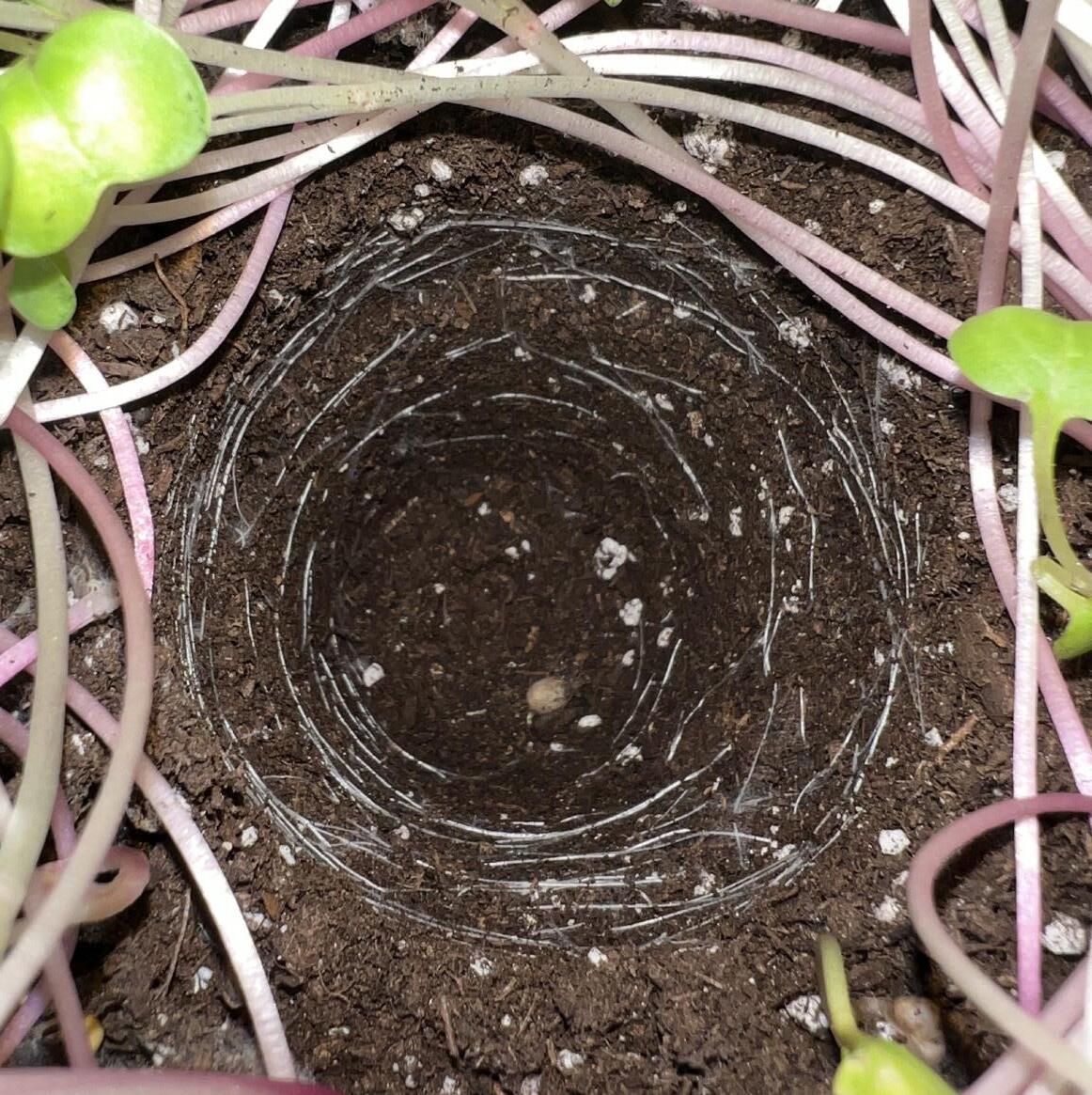

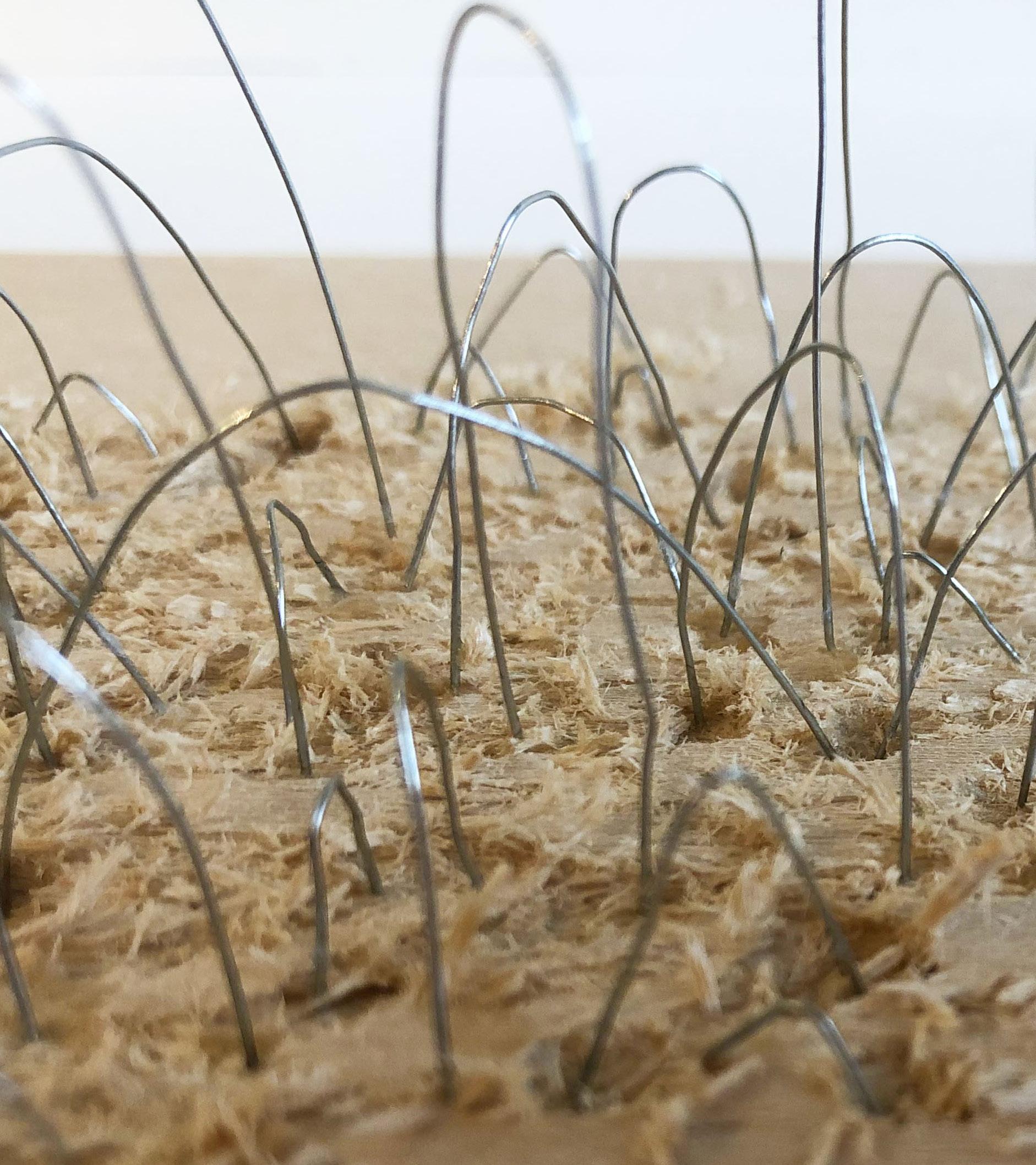

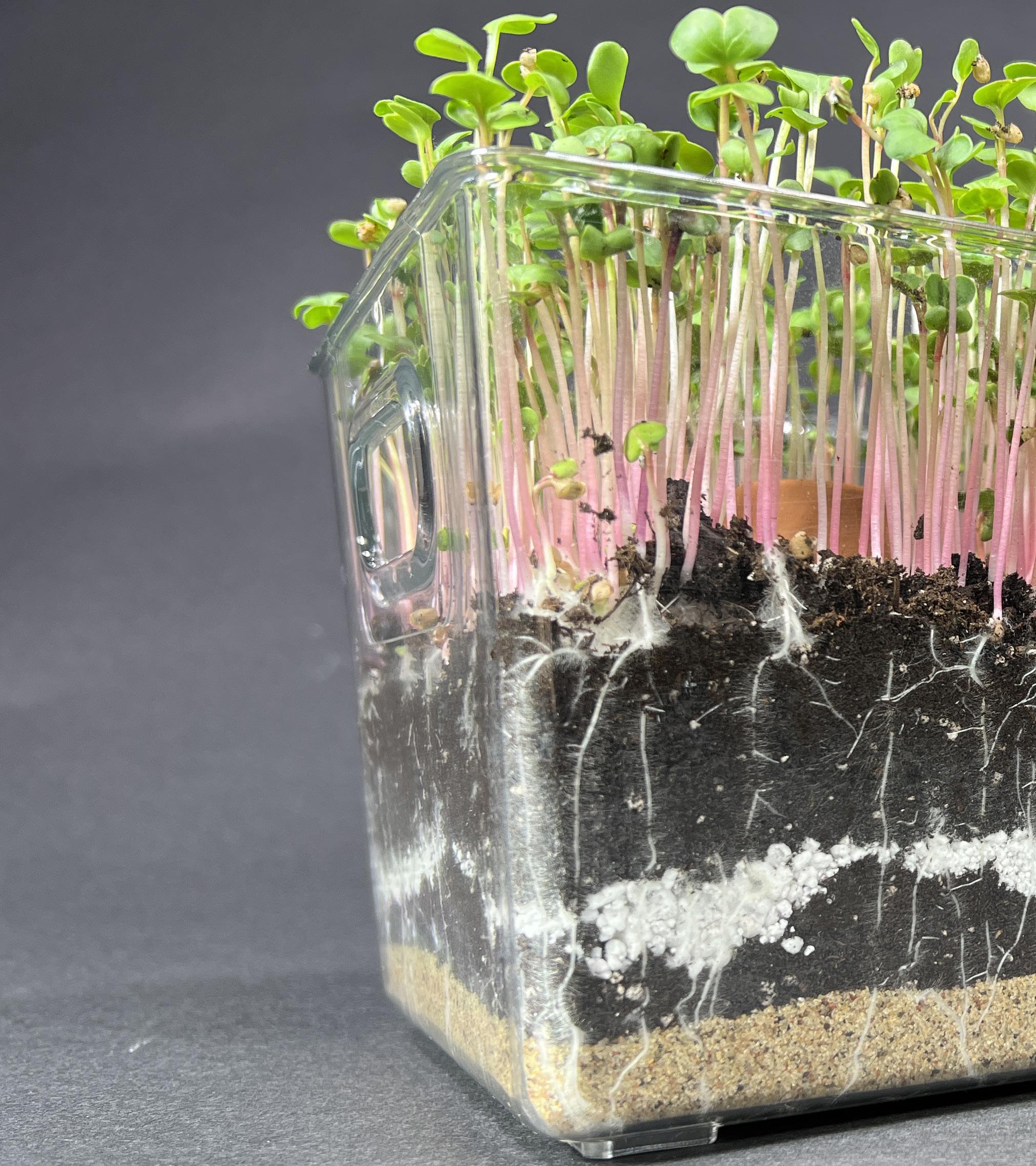

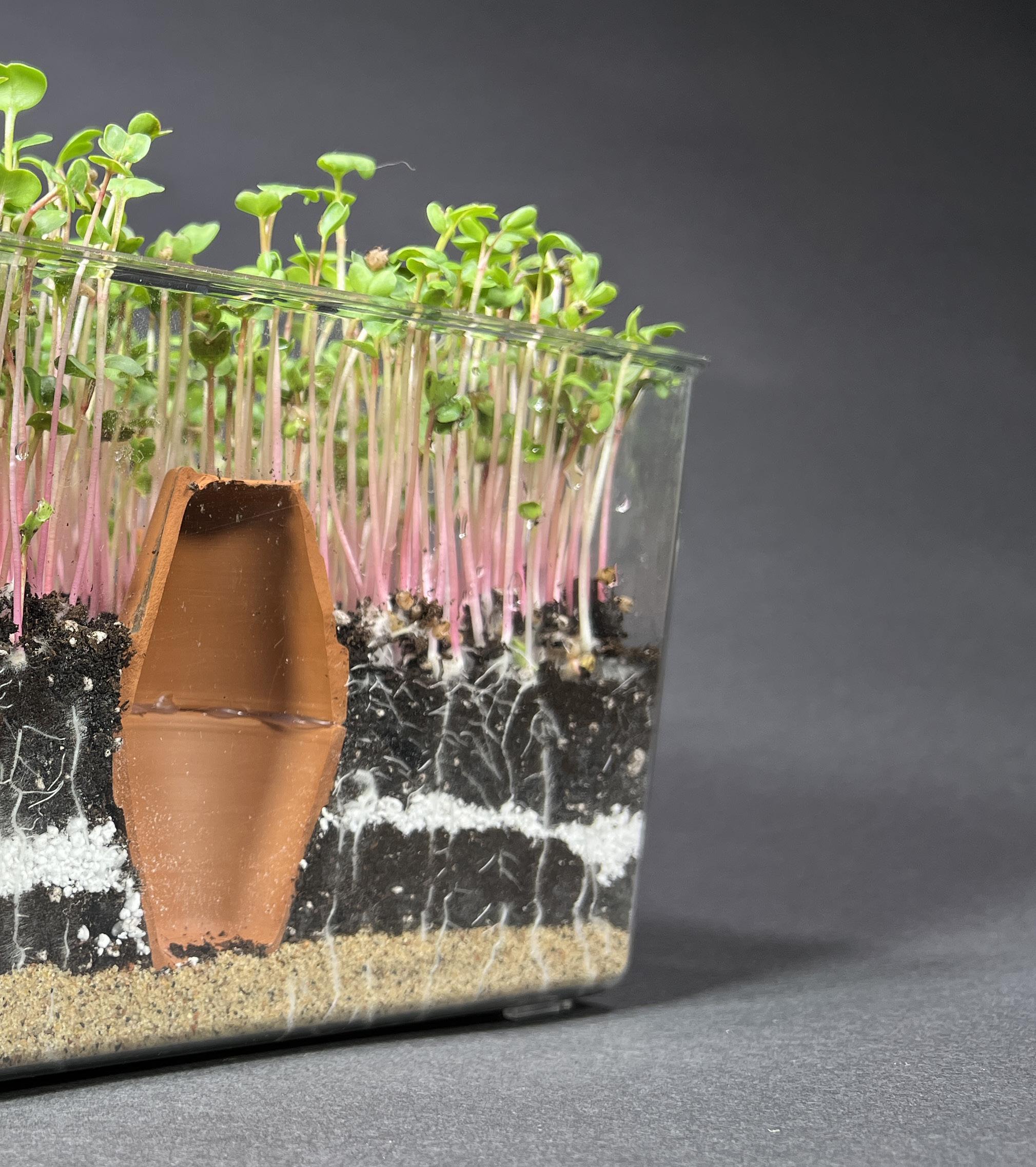

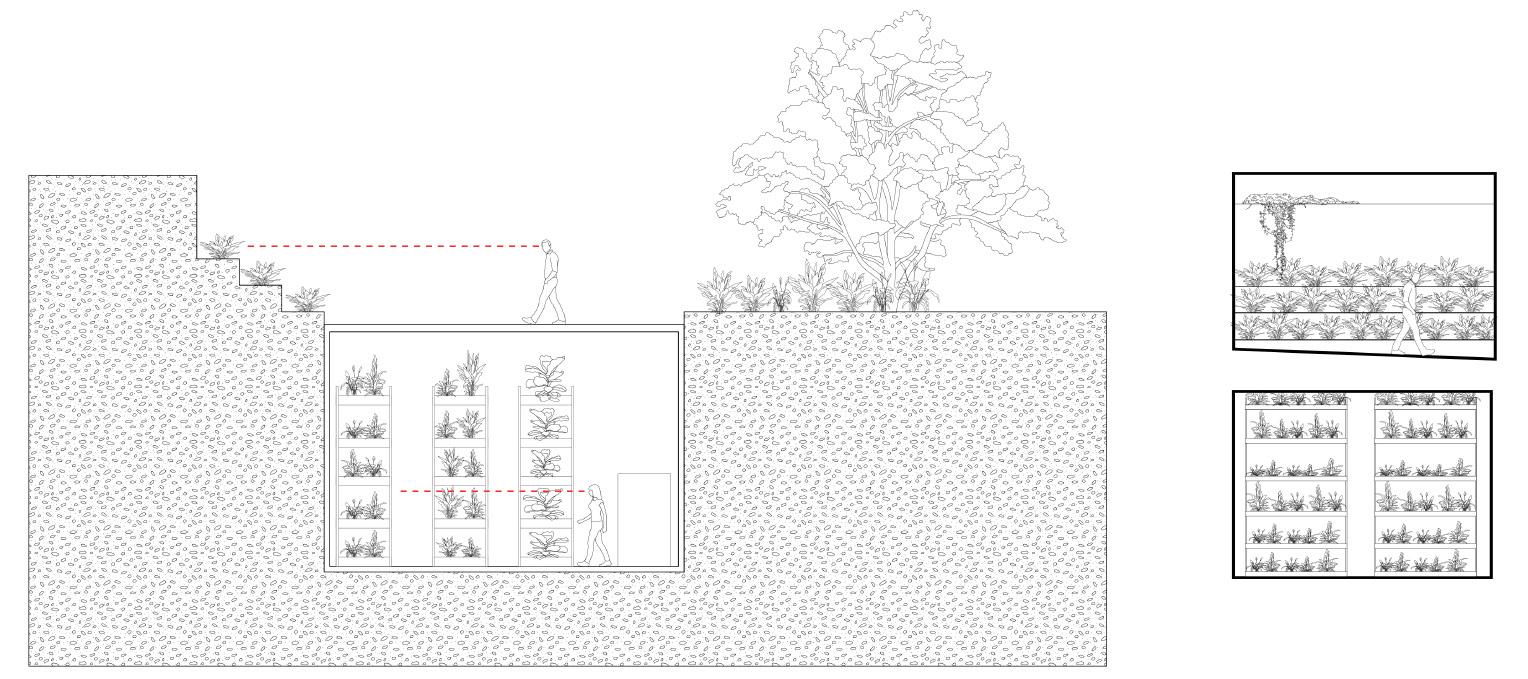

Ollas are a traditional water irrigation technique used by indigenous tribes in New Mexico. Research began by focusing on key moments of plants relationships with the ground and zooming in on unseen cycles, such as the root structure, that aren’t typically depicted in architectural representations or seen with your eye.

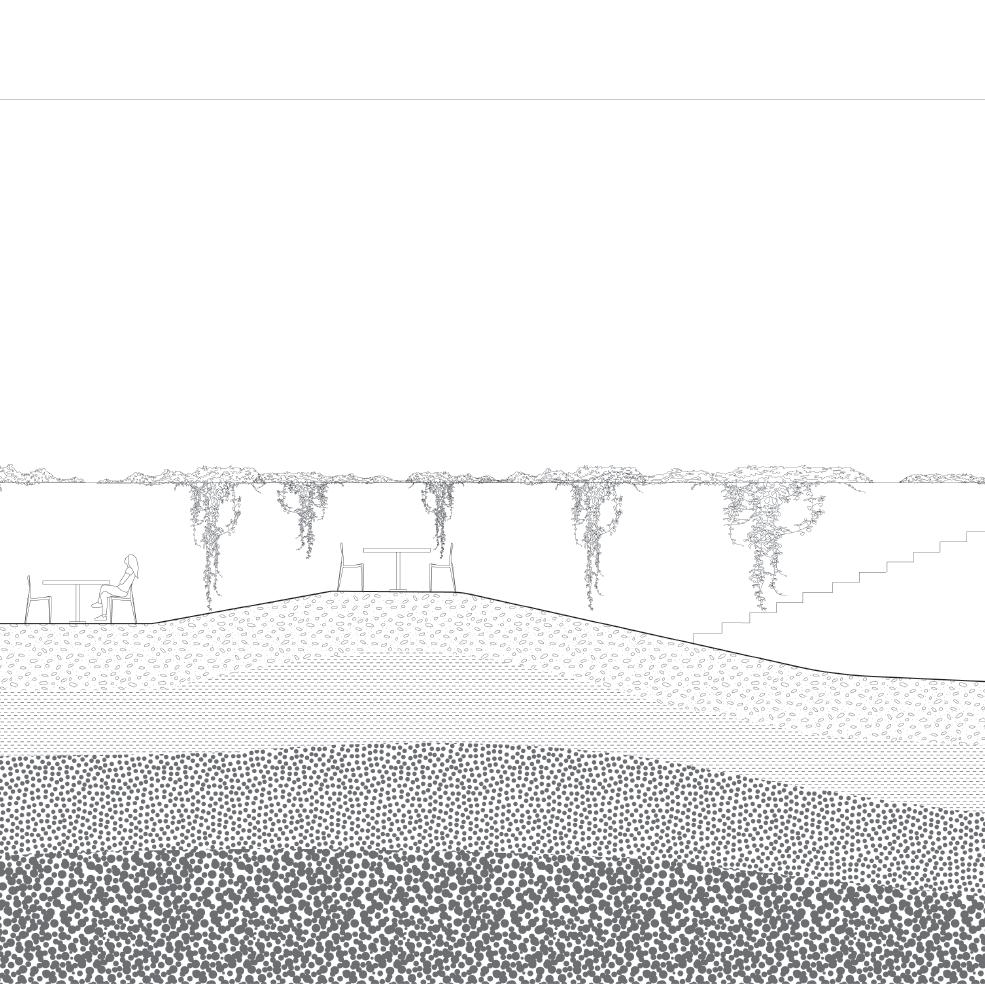

As opposed to ollas relationship with the ground, housing tried to touch the ground as lightly as possible and be non-invasive. Typically unseen cycles, such as water, structure, and plumbing are highlighted that exist in and around the building, people, and agriculture.
Elizabeth Cornfeld

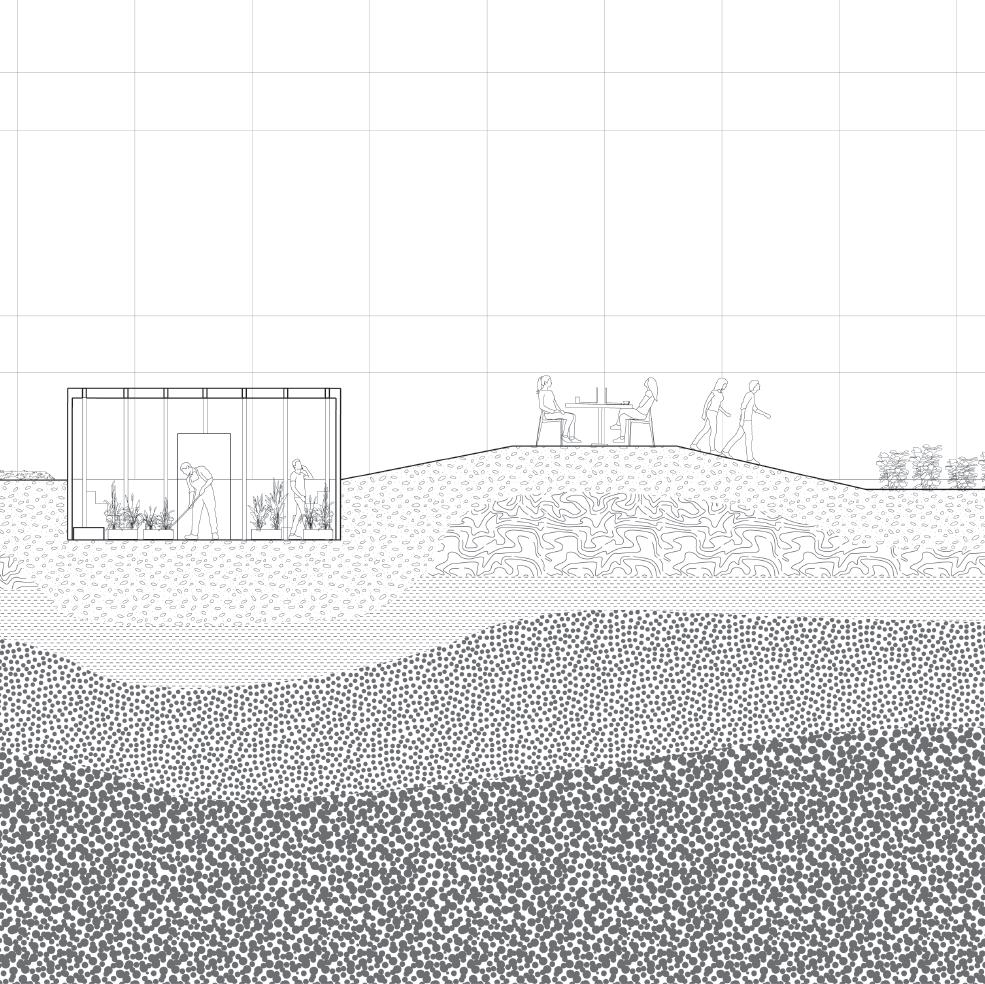

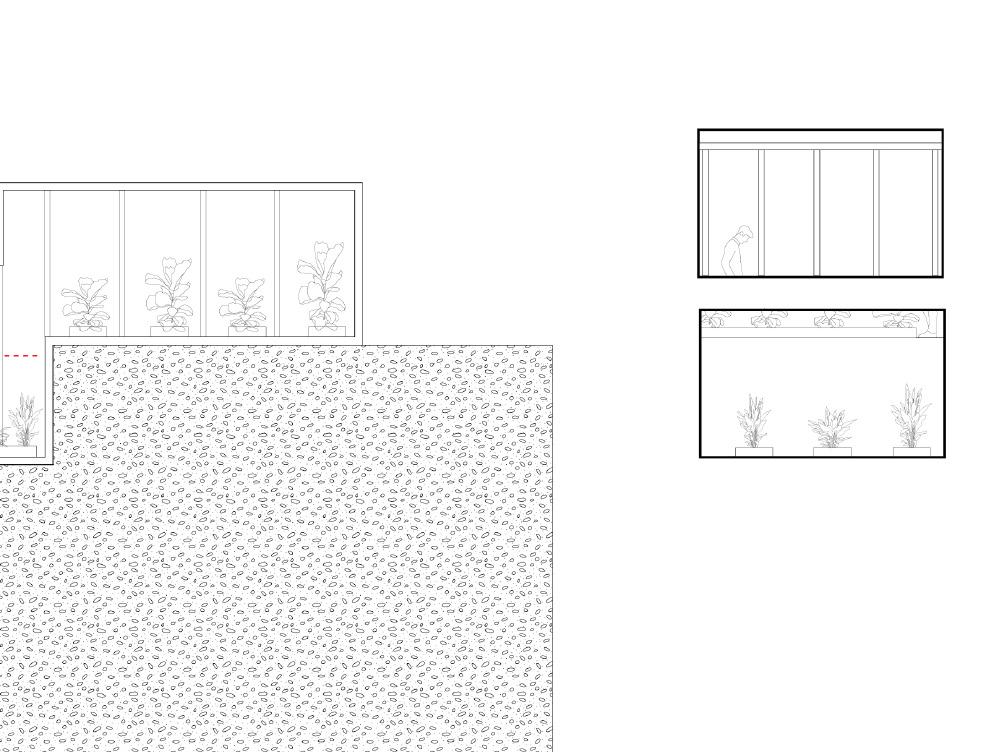

Architecture and these unseen cycles work at a larger scale. Nature is not only present on the exterior through roof gardens and agricultural felds, but it’s also present on the interior through greenhouses and houseplants. This layout of space allows for interactions between different communities.

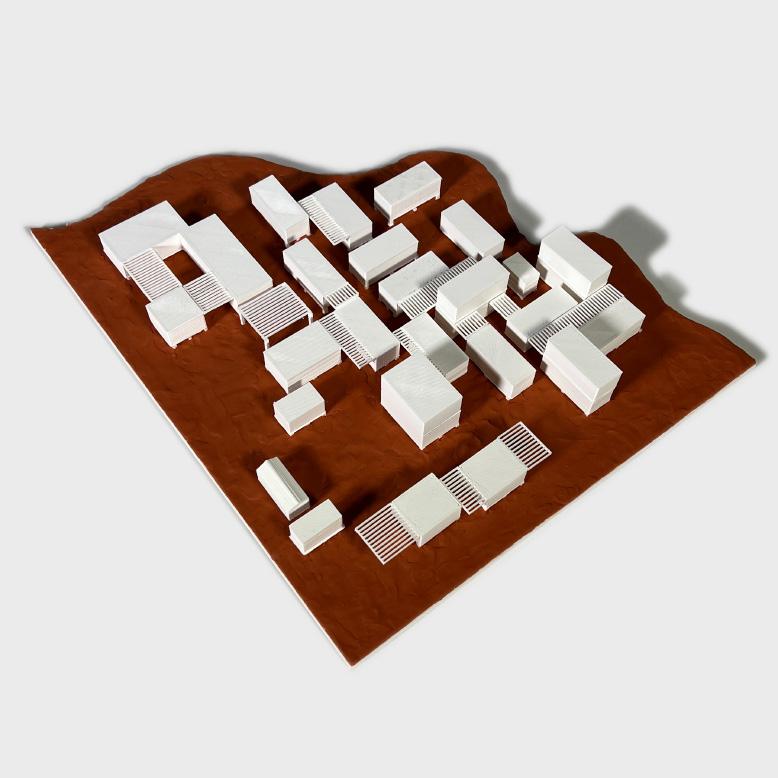

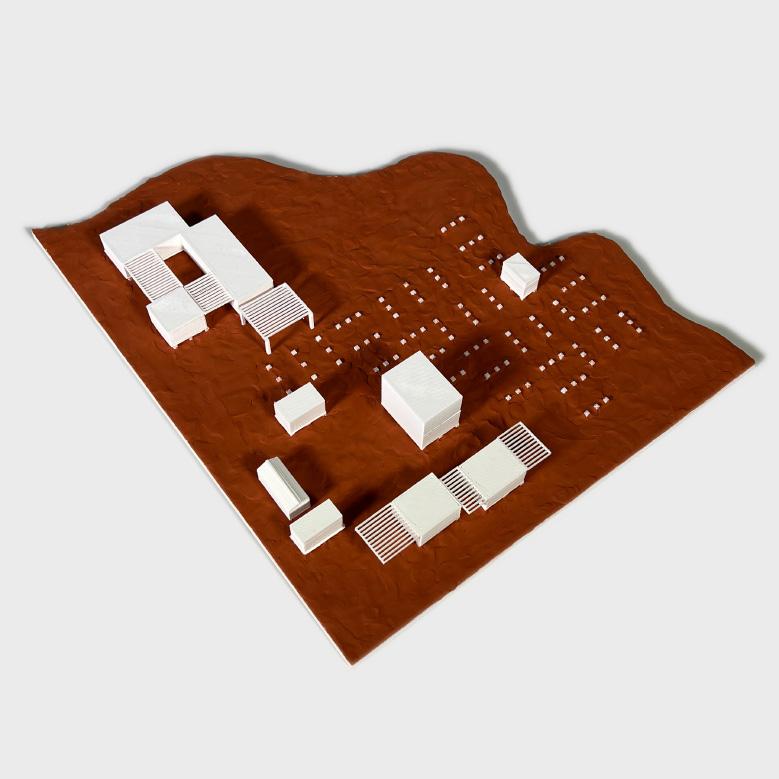

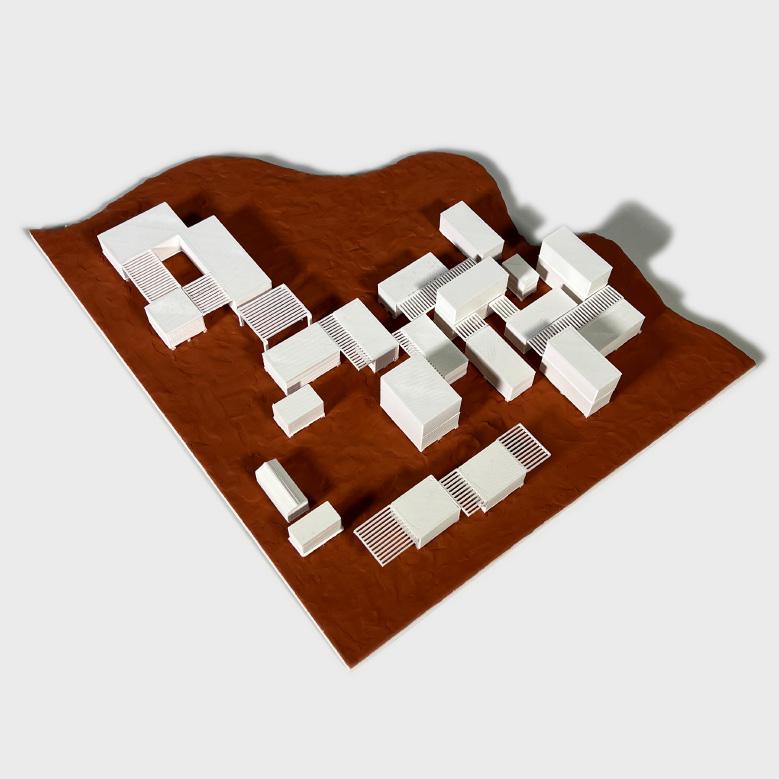

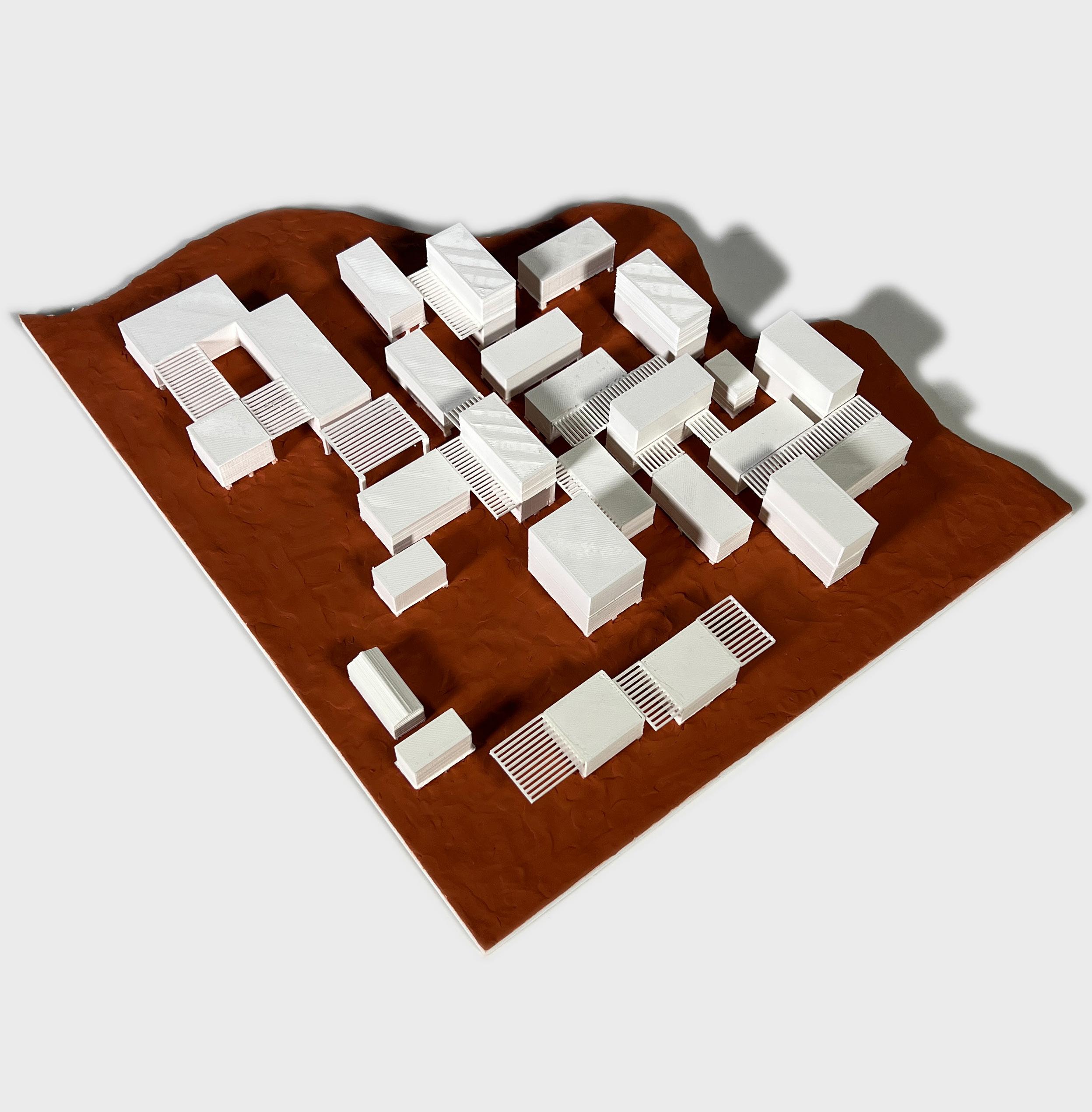

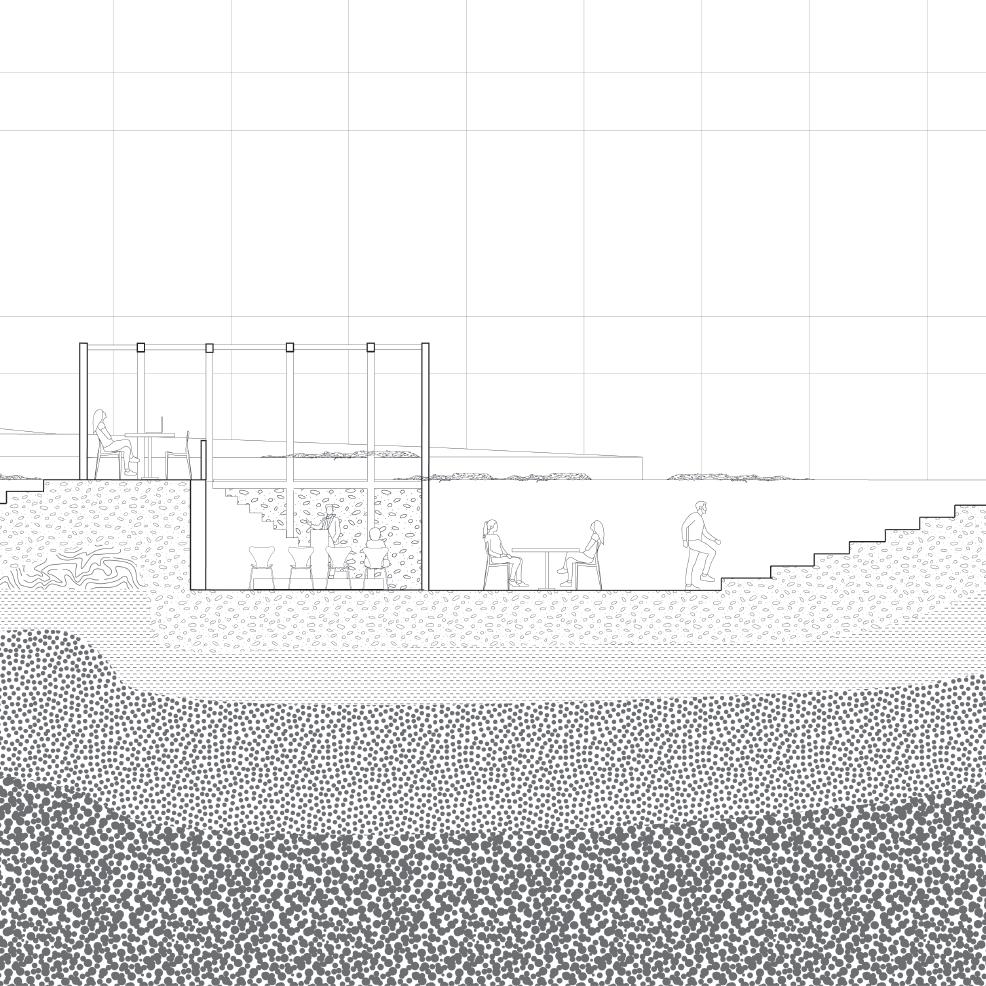

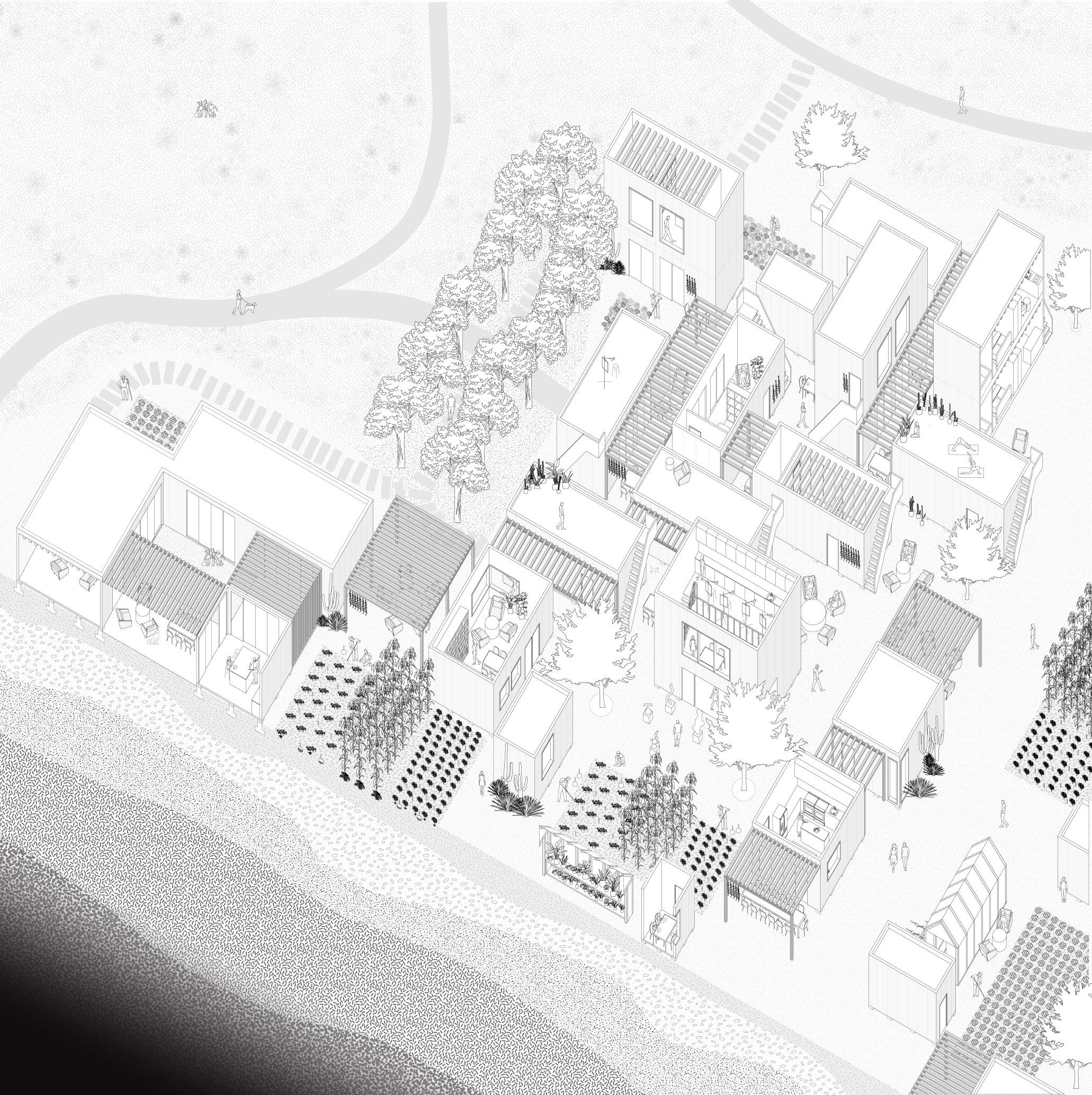

The in between spacing and misalignment of buildings allows for public and private moments to occur between residents. There is a gradient of plaza spaces ranging from public to private. The most public spaces, defned by larger plazas, in the center and most private spaces, defned by smaller plazas, at the edges.
Elizabeth Cornfeld
1. CARETAKER HOME
2. KITCHEN
3. DINING
4. LIVING ROOM
5. ART STUDIO
6. MICRO HOMES
7. FARMING
Elizabeth Cornfeld
ARCH 1022 | Critic: Caitlin Taylor
Harlem, New York
Spring 2022 | Partner: Katherine Salata
Elizabeth CornfeldProject Objective: Based off of HPD’s “Big Ideas for Small Lots NYC” design competition, select small lots, under 1000 SF, around the city and defne how these lots create a system to strengthen the surrounding neighborhoods. Create a relationship between the architectural and the urban.
In our project, we questioned how stabilization and nourishment of the unique food culture within the Harlem neighborhood can act as a form of future facing preservation. Using the premise that food preparation is a tradition that gets passed down across all cultures and communities, we are proposing a network of kitchen, community, and education spaces. Food preparation and artwork allow for remembrance of the community’s historic culture while still enabling adaptation, exploration and growth. The Harlem Collective system would engage with the local community by integrating into the existing network of community gardens and small lots, while providing the support spaces to allow the community to share their food knowledge and traditions. Our project proposed that architecture is simply the canvas for local neighborhood artwork, whether that be physical painting or digital projection. This idea is explored through two building designs located at two sites in Harlem.
We are ultimately designing for the rejuvenation of Sunday brunch, the site’s peak activation, as a place for community engagement and interaction. This space of activation will allow for the cross collaboration of culinary knowledge, ideas, and experiences, allowing Harlem to grow while simultaneously staying rooted in its cultural history and community.
Elizabeth Cornfeld
Primary Sites
Secondary Sites
Community Gardens
Parks

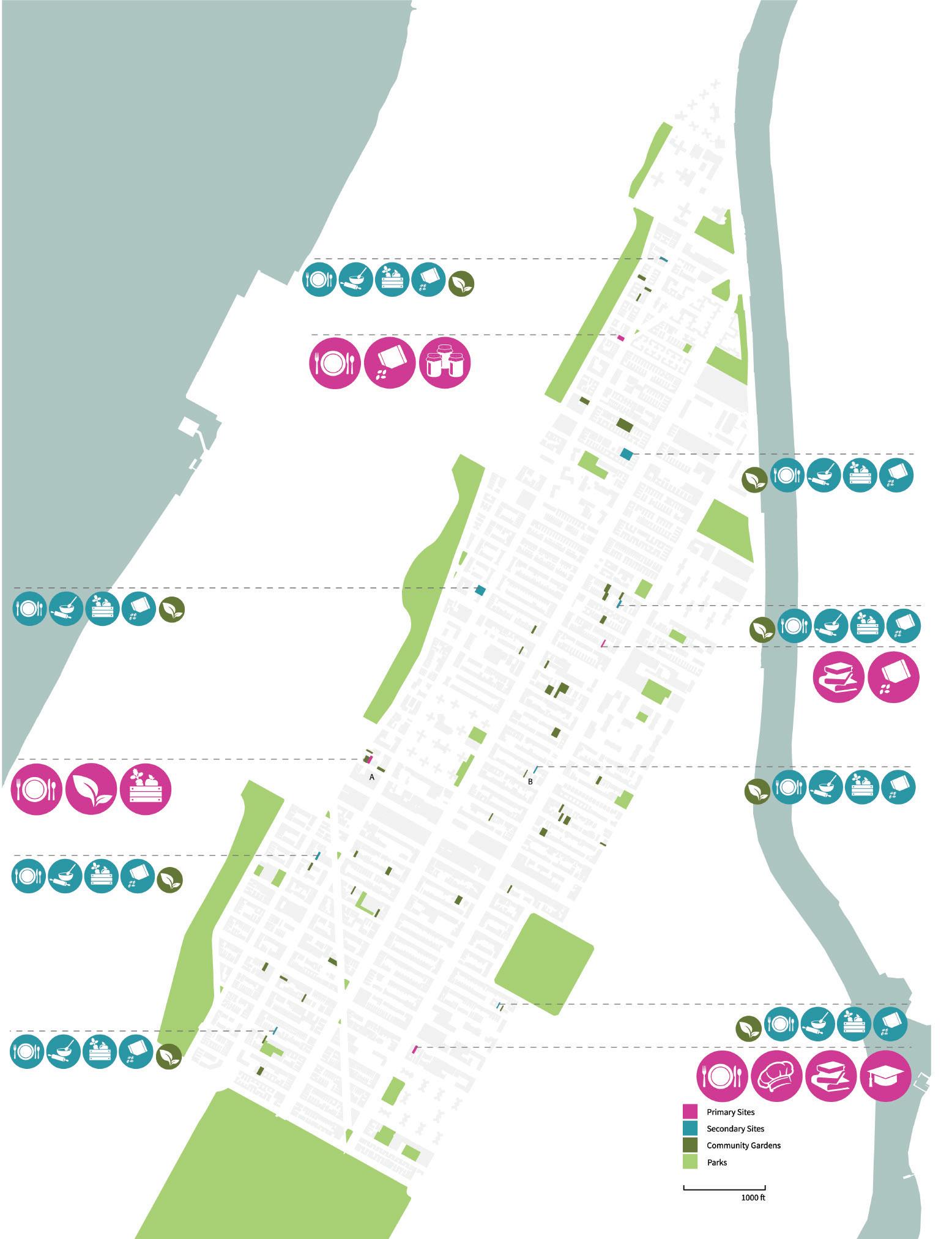

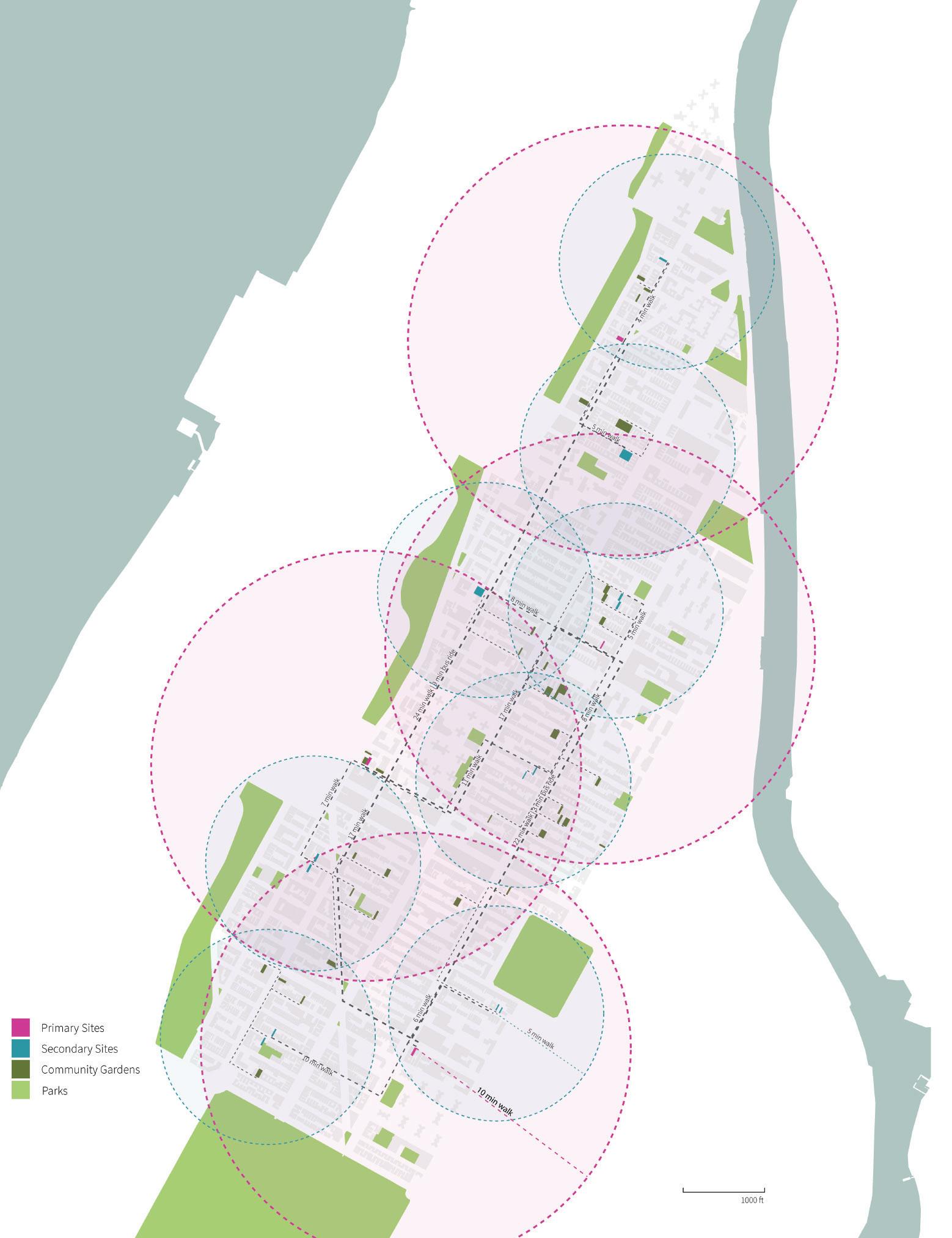

Site Selection
Primary Sites
Secondary Sites
Community Gardens
Parks
Site Programmatic Typology
Our project proposed that architecture is simply the canvas for local neighborhood artwork, whether that be physical painting or digital projection. The buildings are the framework onto which layers of culture, history, and meaning get applied over time, becoming a part of this new era of preservation in Harlem.
Elizabeth Cornfeld
Harlem Street Art
A community is actively involved in art production from a commissioned wall mural, moments of activism through graffti, and playful messages. Layers of painted artwork build up over time on our architecture proposals.

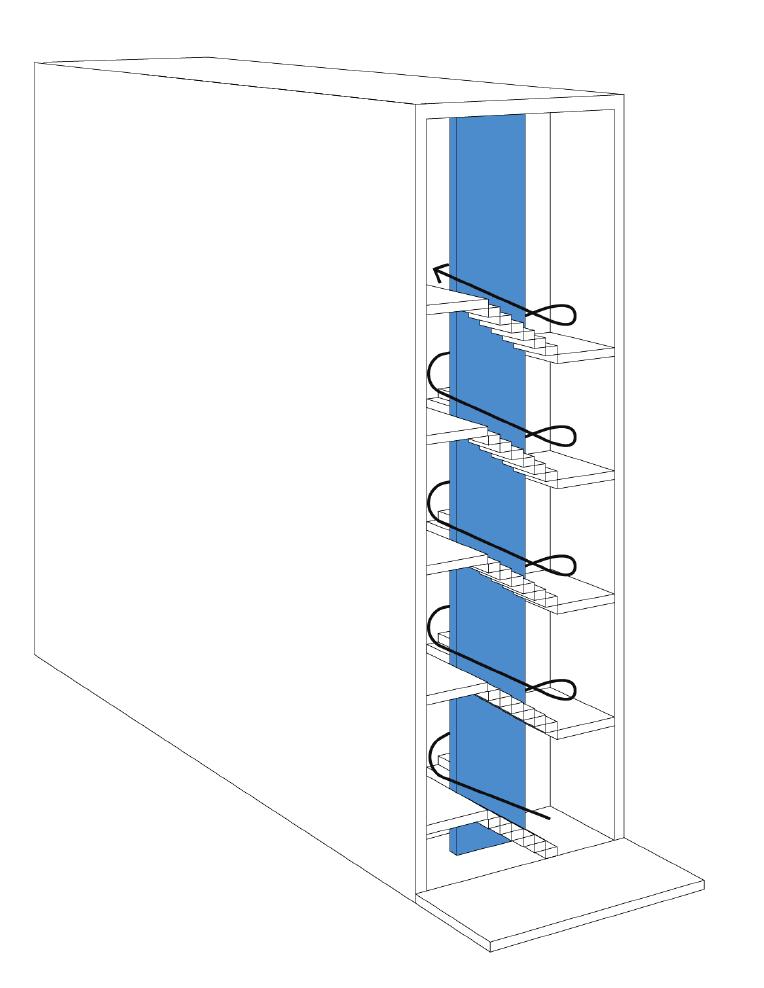

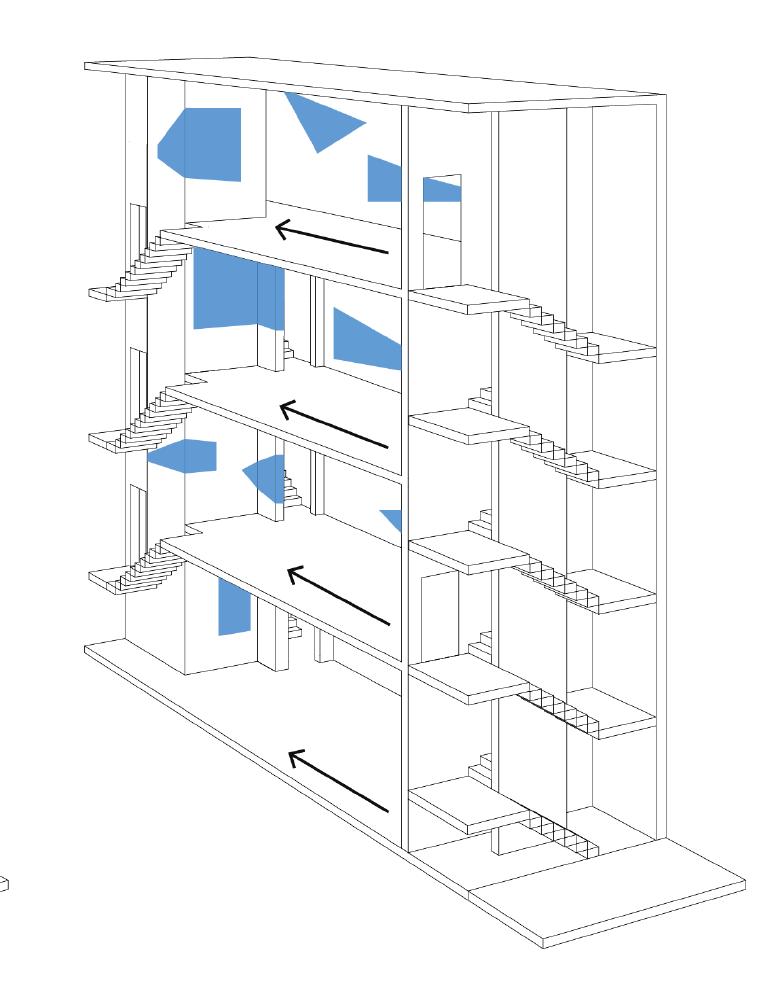

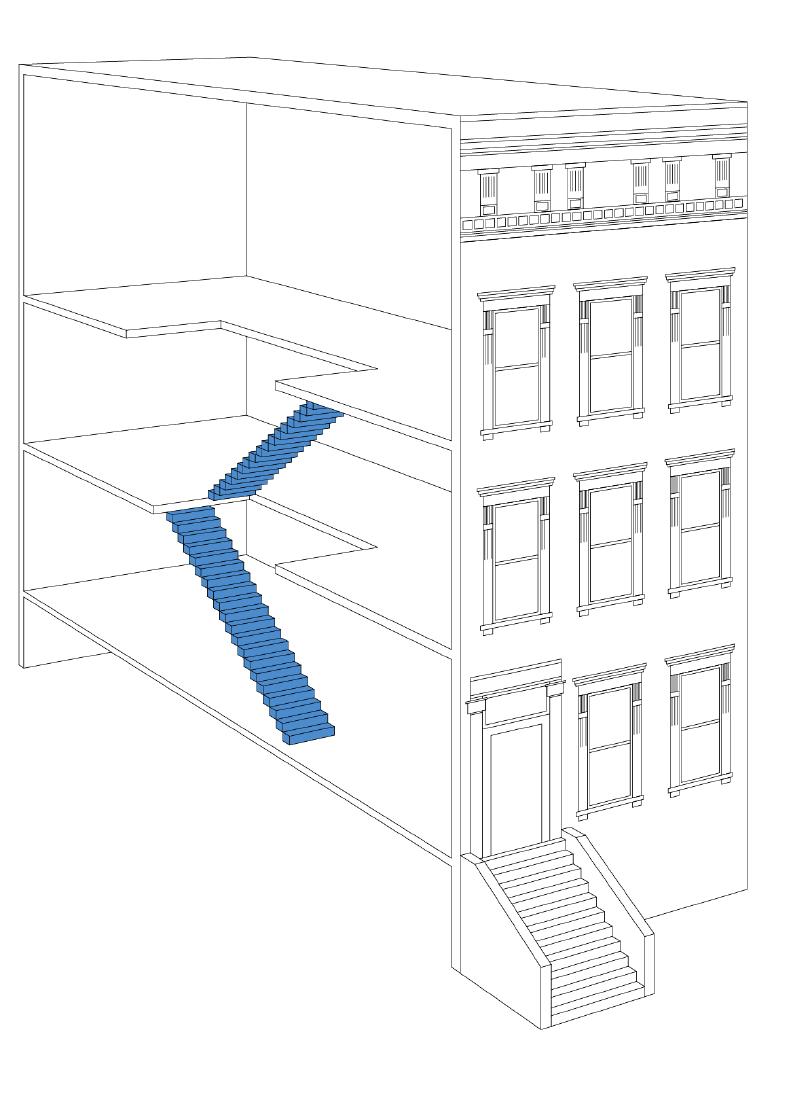

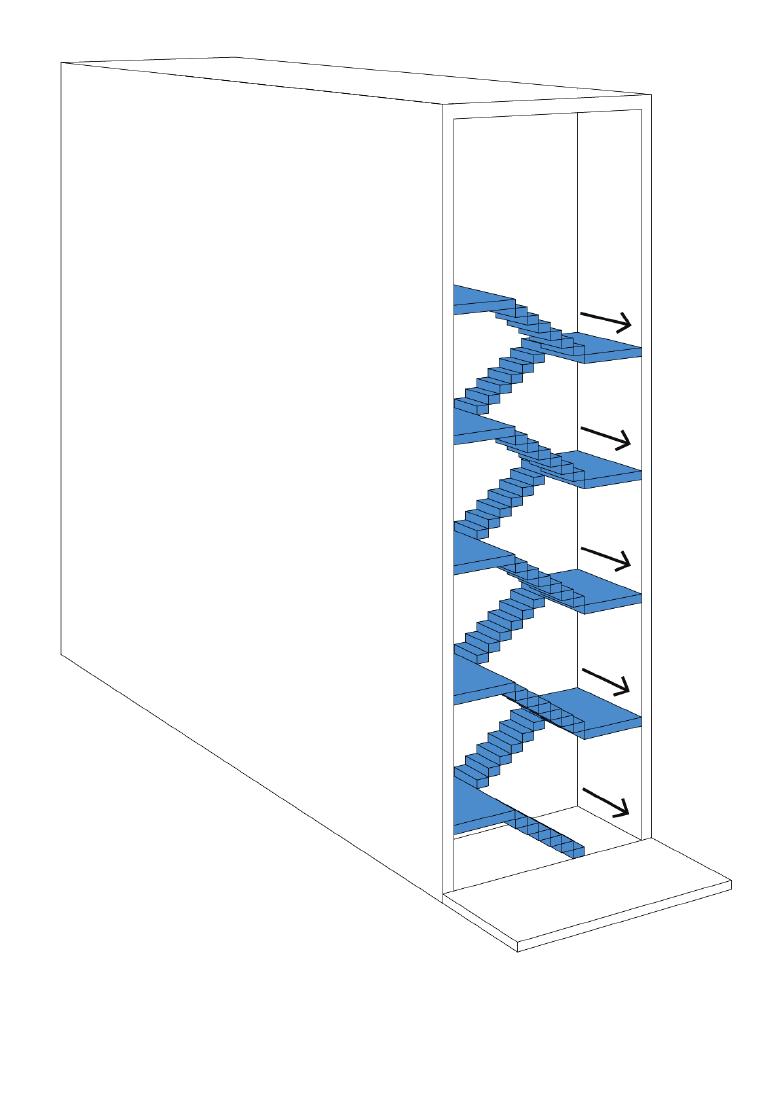

Circulation is pushed to the front of the building, to celebrate vertical movement, and wraps around a mural wall. This invites the community to contribute their artwork and add their own piece of history to the building. Forced perspective wall murals continue through the interior of the space again inviting people to enter and explore how the art changes throughout the building.
Elizabeth Cornfeld

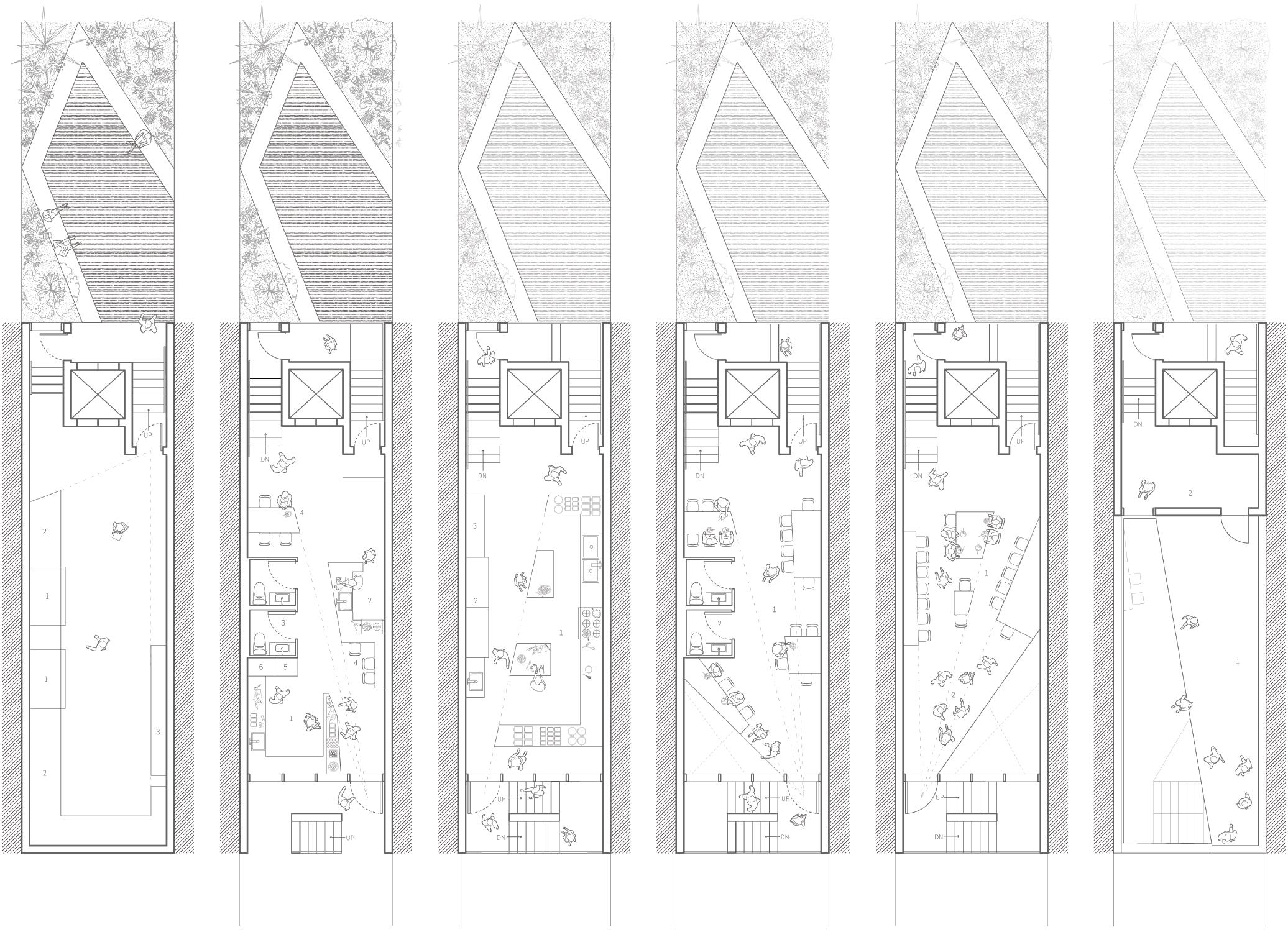

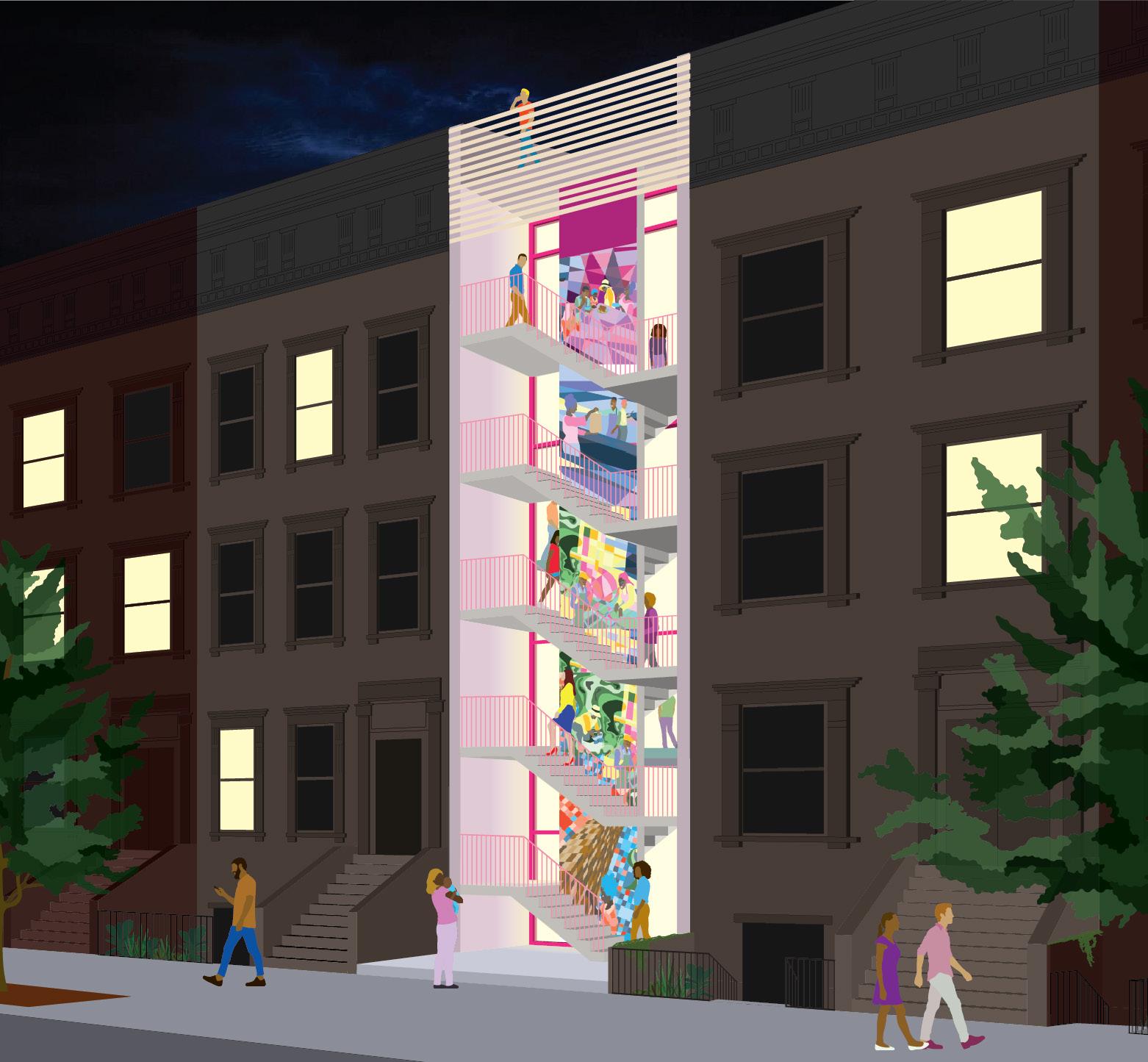

Site A: W 130th St.

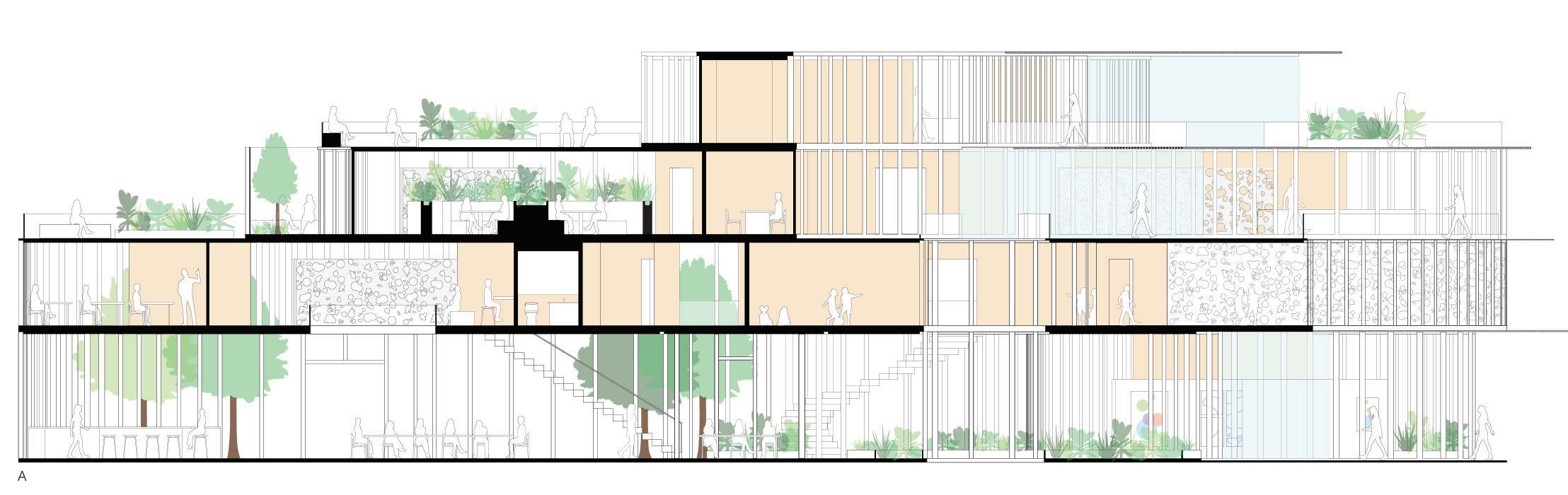

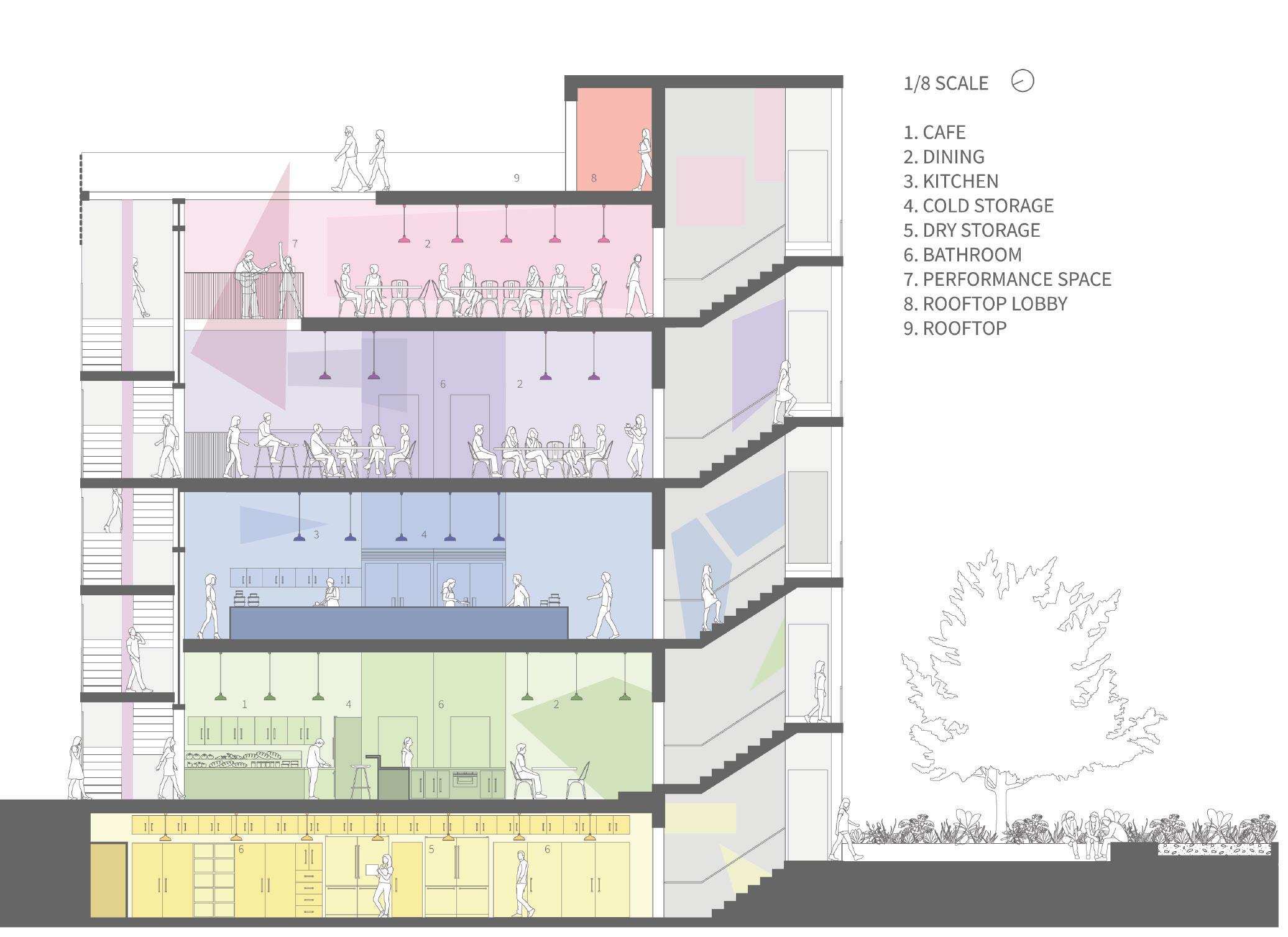

Section Drawing: Site A

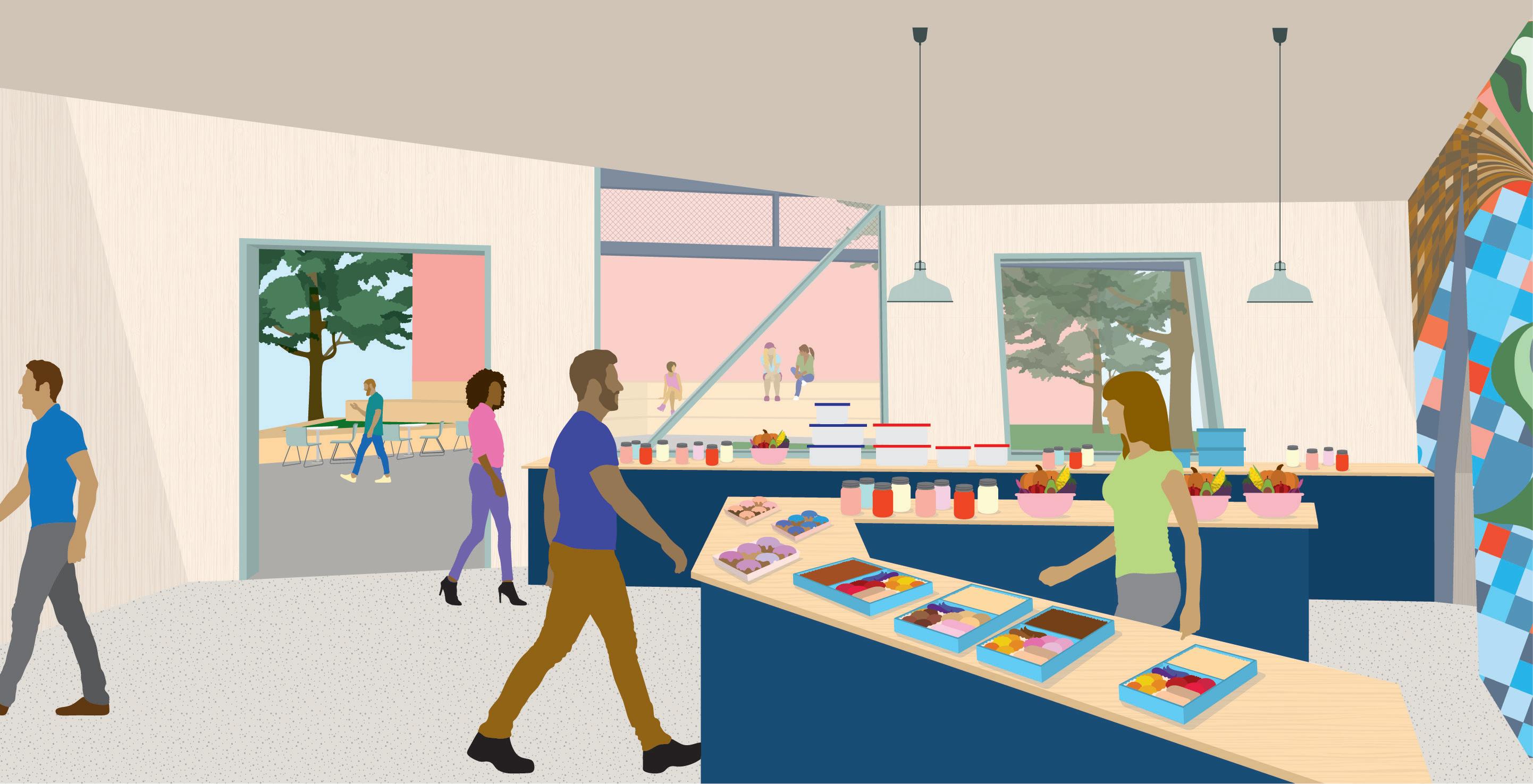

The “back of house” of a cafe that is typically hidden from customers is fully exposed and celebrated on the frst foor. The open concept kitchen allows for people to pass by and watch meals get made or pick up ready made meals.
1. CAFE
2. DINING
3. KITCHEN
4. COLD STORAGE
5. DRY STORAGE
6. BATHROOM
7. PERFORMANCE SPACE
8. ROOFTOP LOBBY
9. ACCESSIBLE ROOFTOP
Elizabeth Cornfeld
Elizabeth Cornfeld
Artwork continues into the interior space through forced perspective wall murals, inviting the viewer to go further into the space to explore the full extent of the mural.

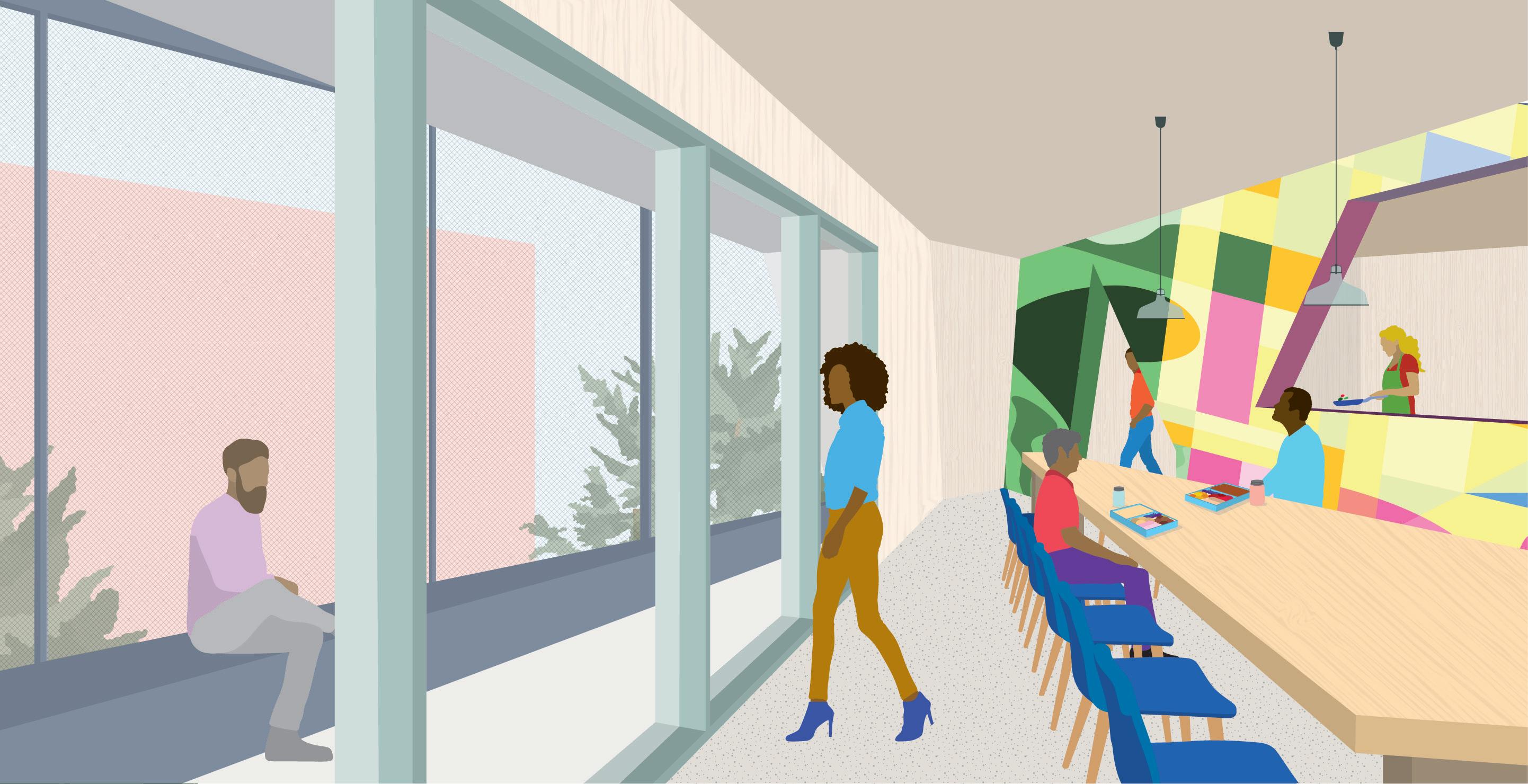

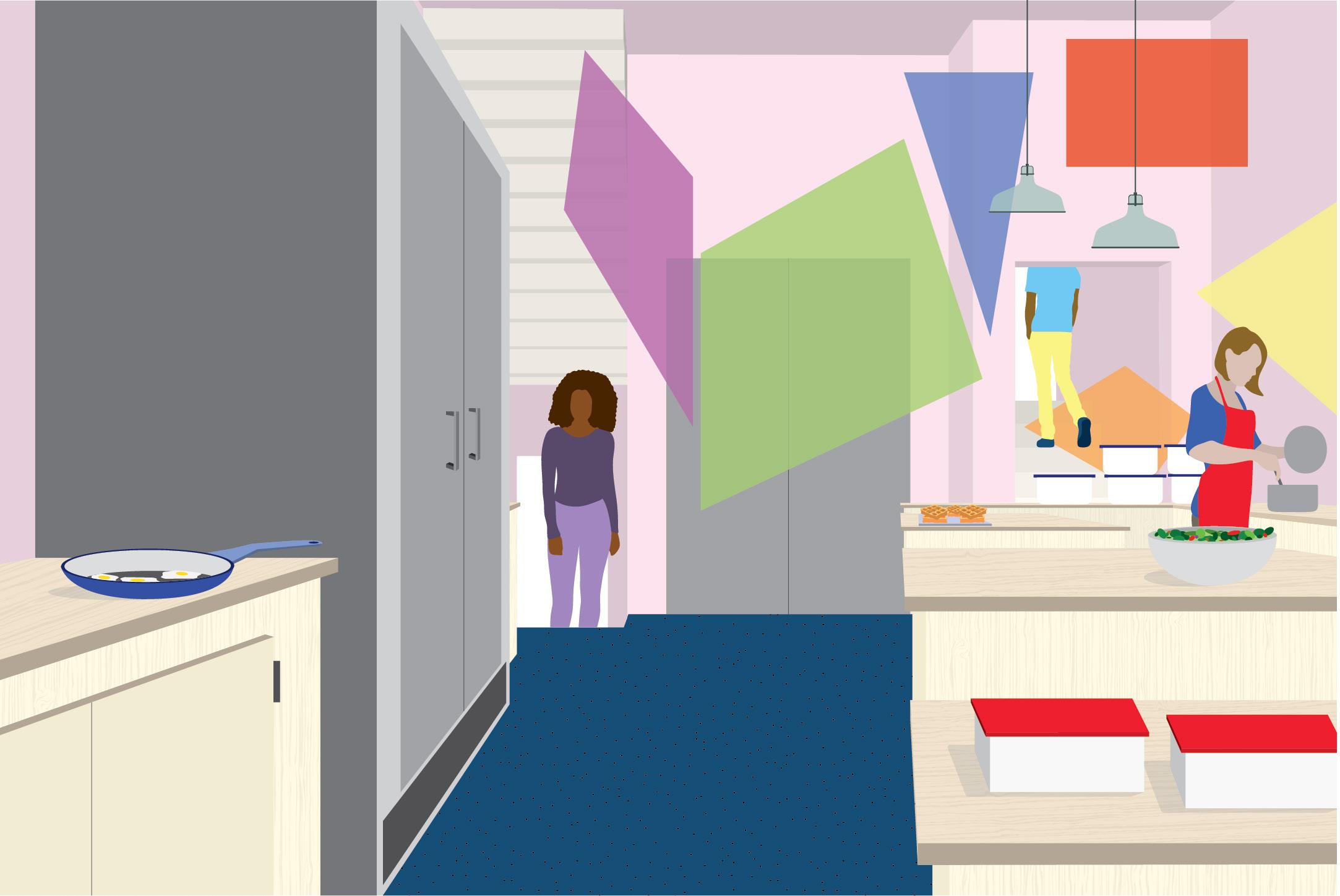

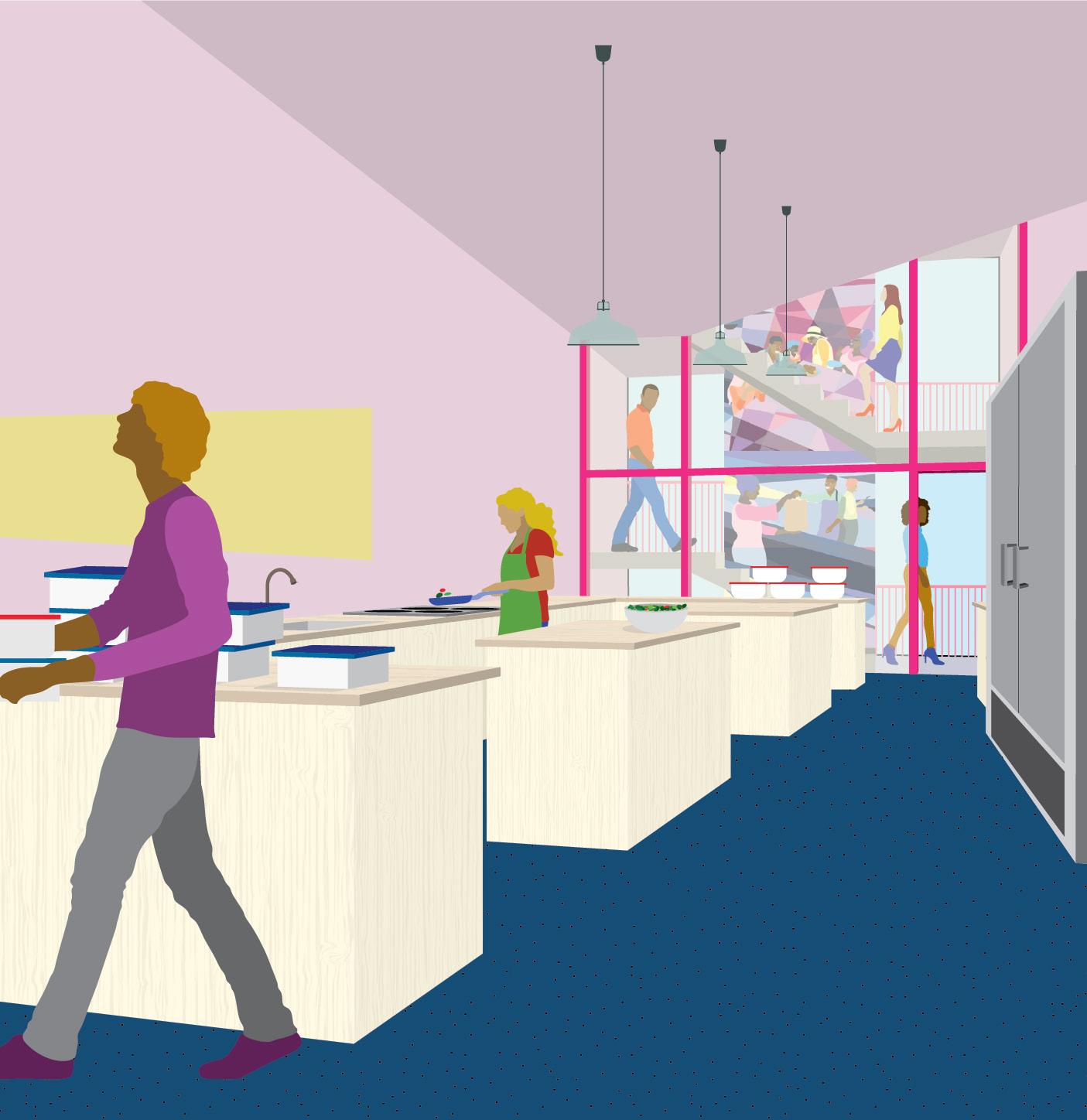

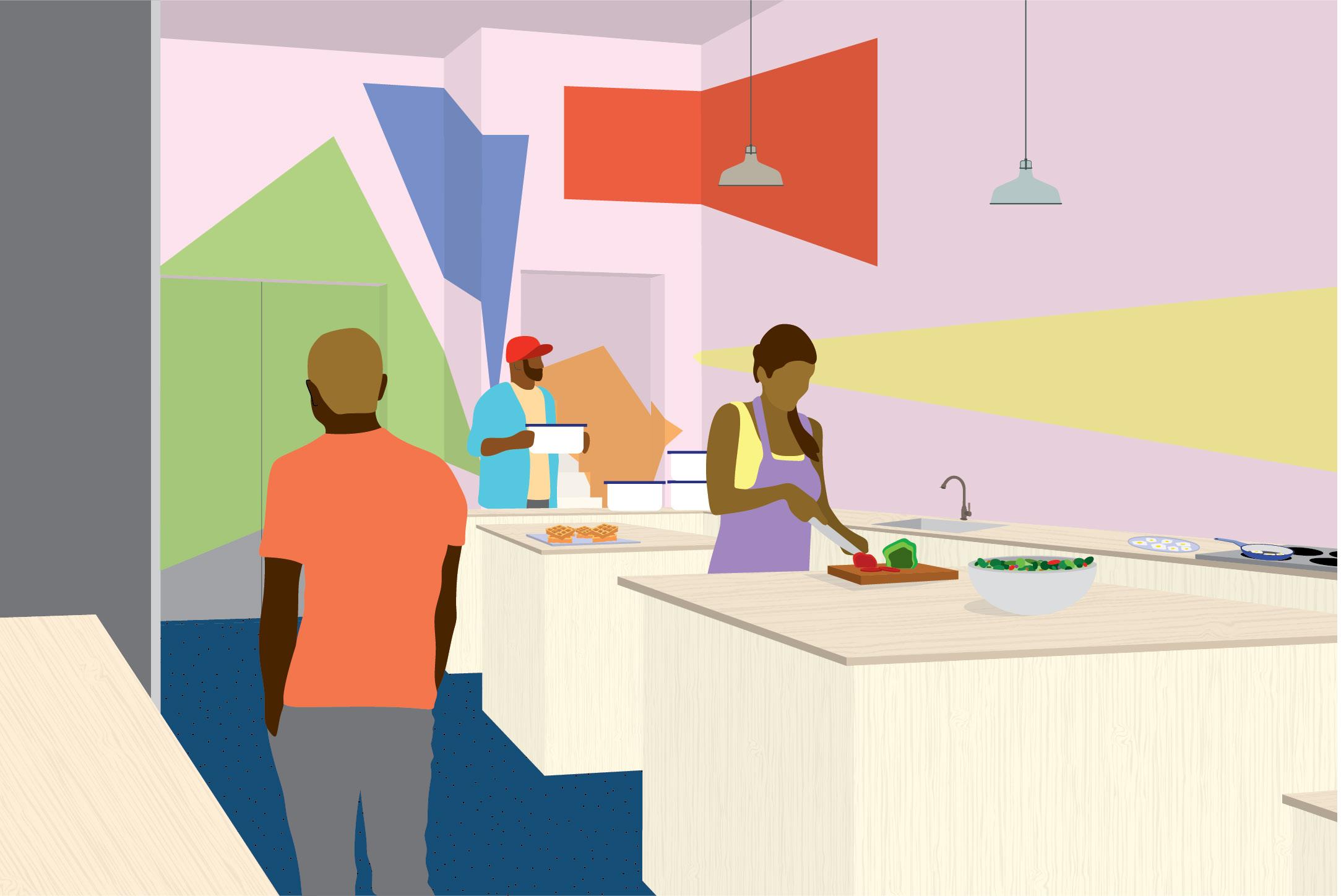

Interior Kitchen Perspectives
Much like forced perspective projection of art of the previous building invites visitors into the space, the exterior of this design begins to blur the threshold between site and building. Using the vantage points of pedestrians as they round the corner onto our block, site lines begin to carve away at this buildings footprint, leaving a faceted facade.
Elizabeth Cornfeld

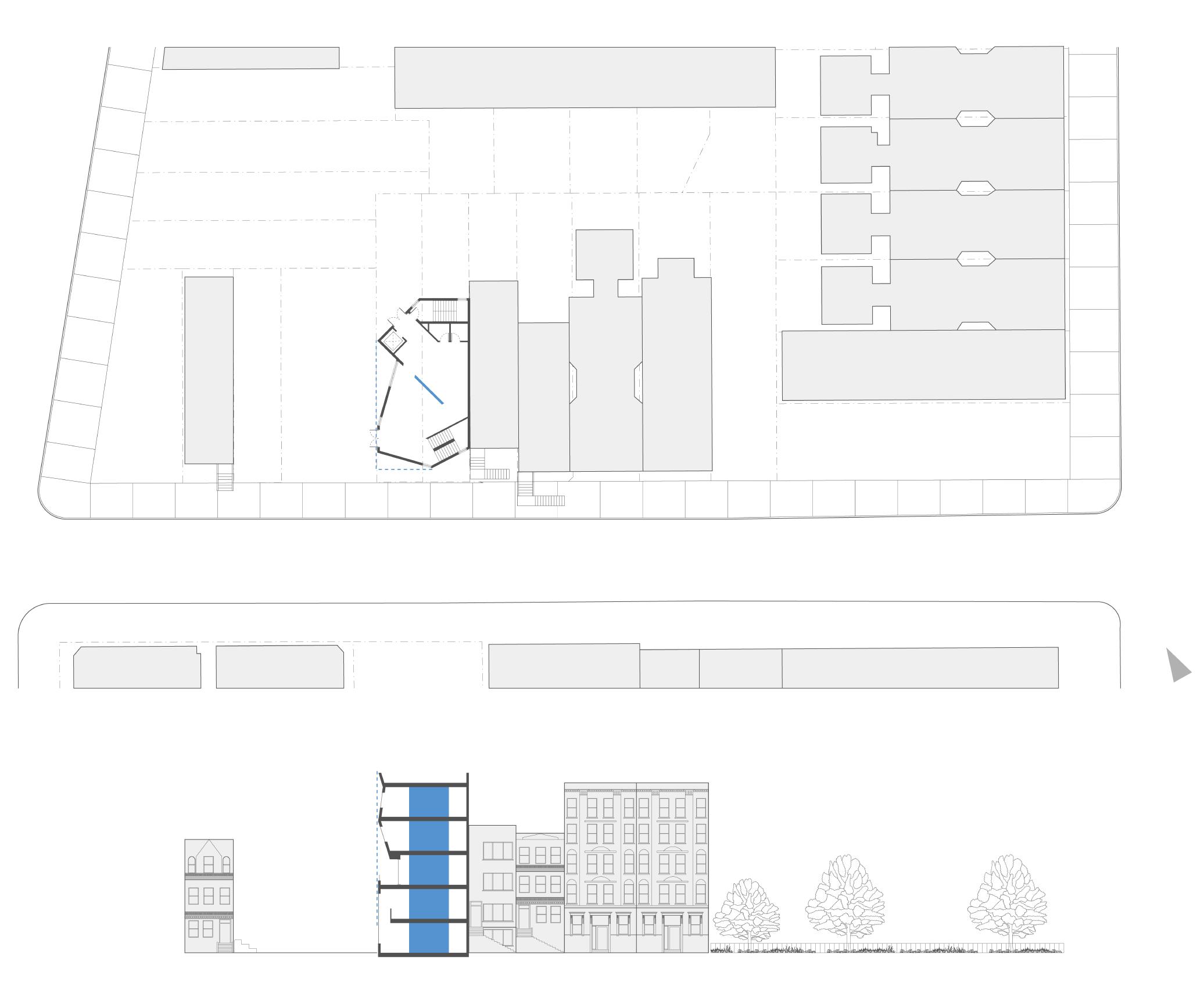

Site
A rectangular translucent screen covers this faceted exterior. This screen, as well as an interior wall which runs consistently up each foor, acts as the canvases onto which art can either be painted or digitally projected.
Elizabeth Cornfeld

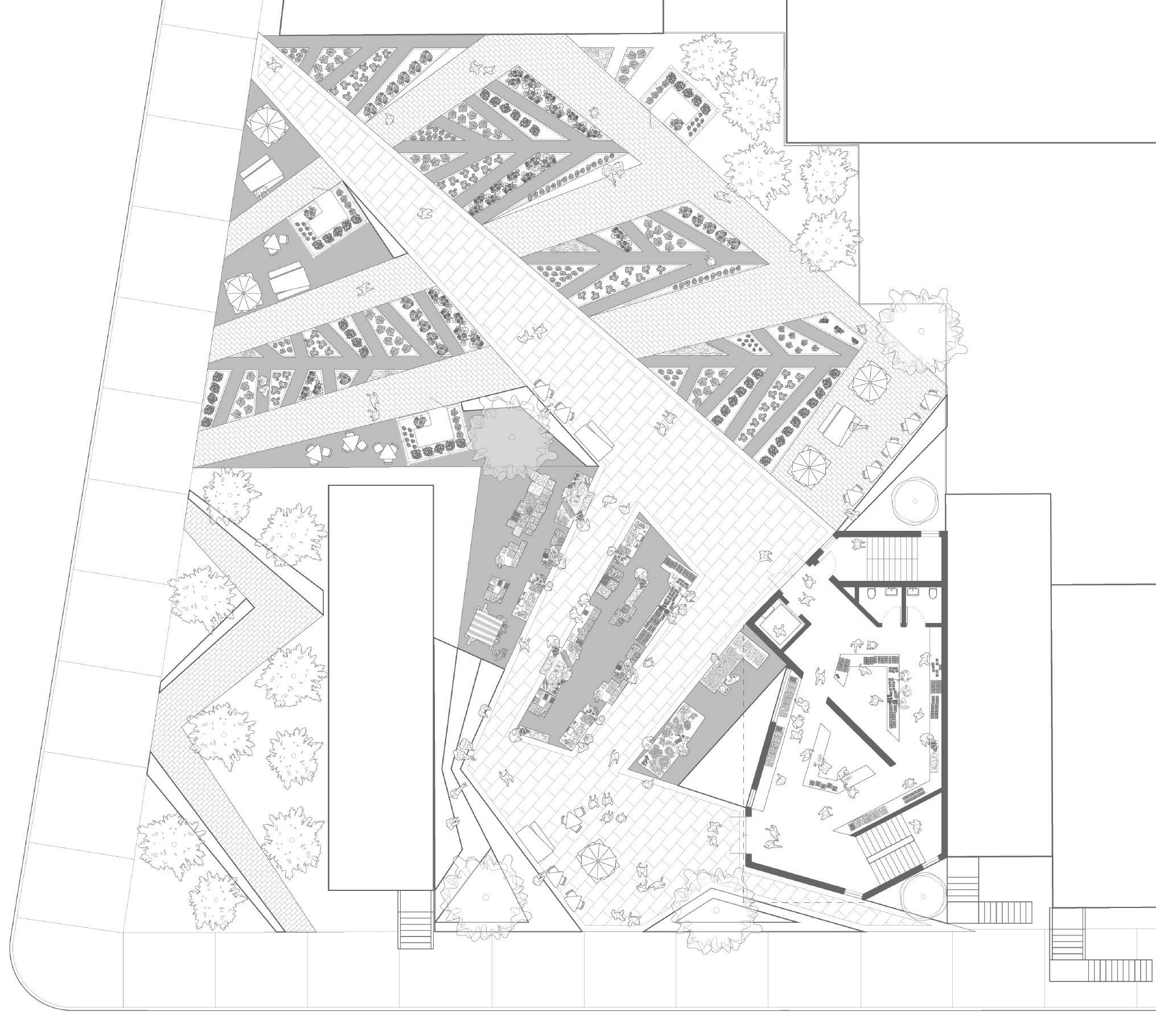

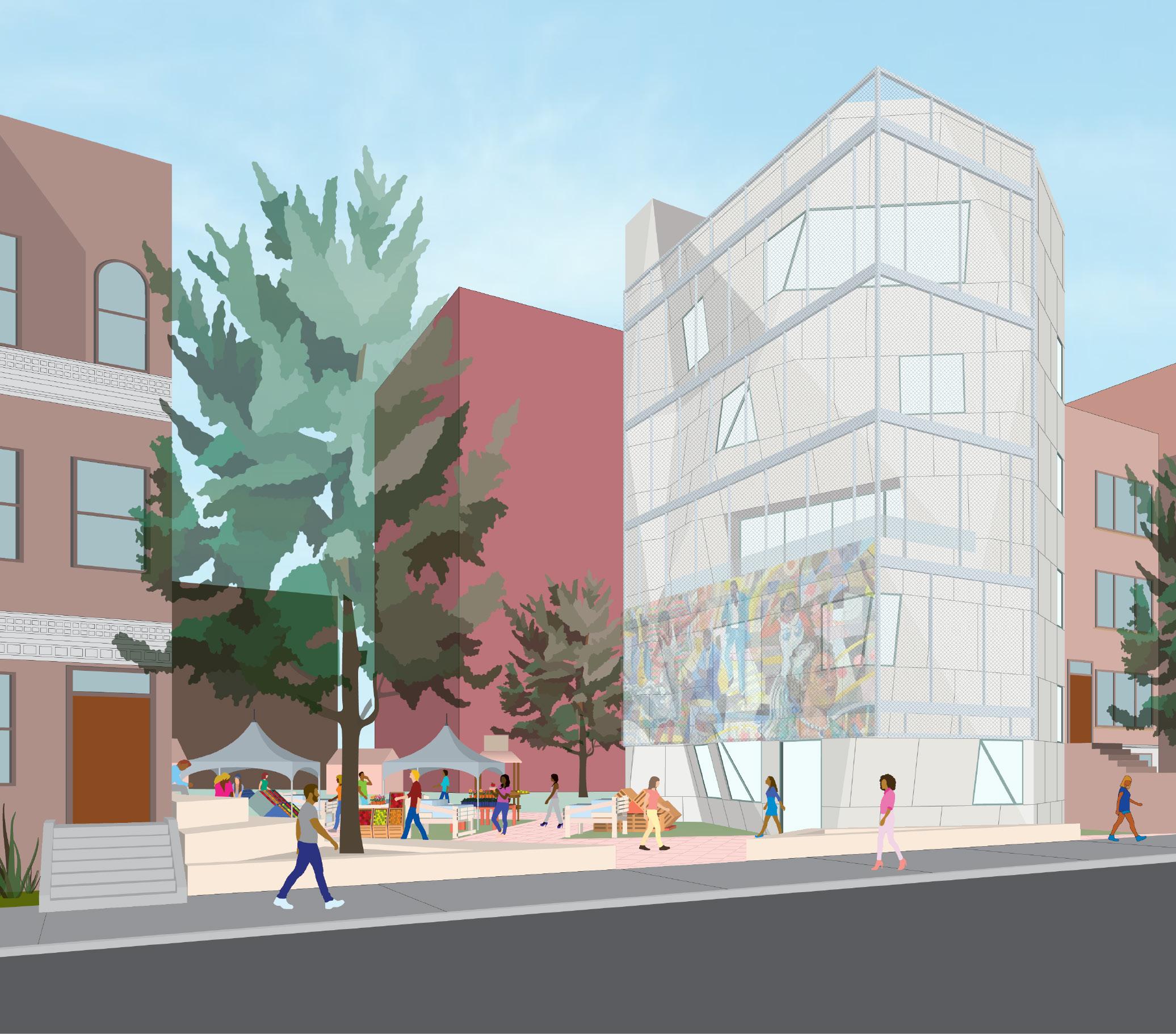

The ground foor continues as an extension of the redesigned community garden and farmers market.
Elizabeth Cornfeld

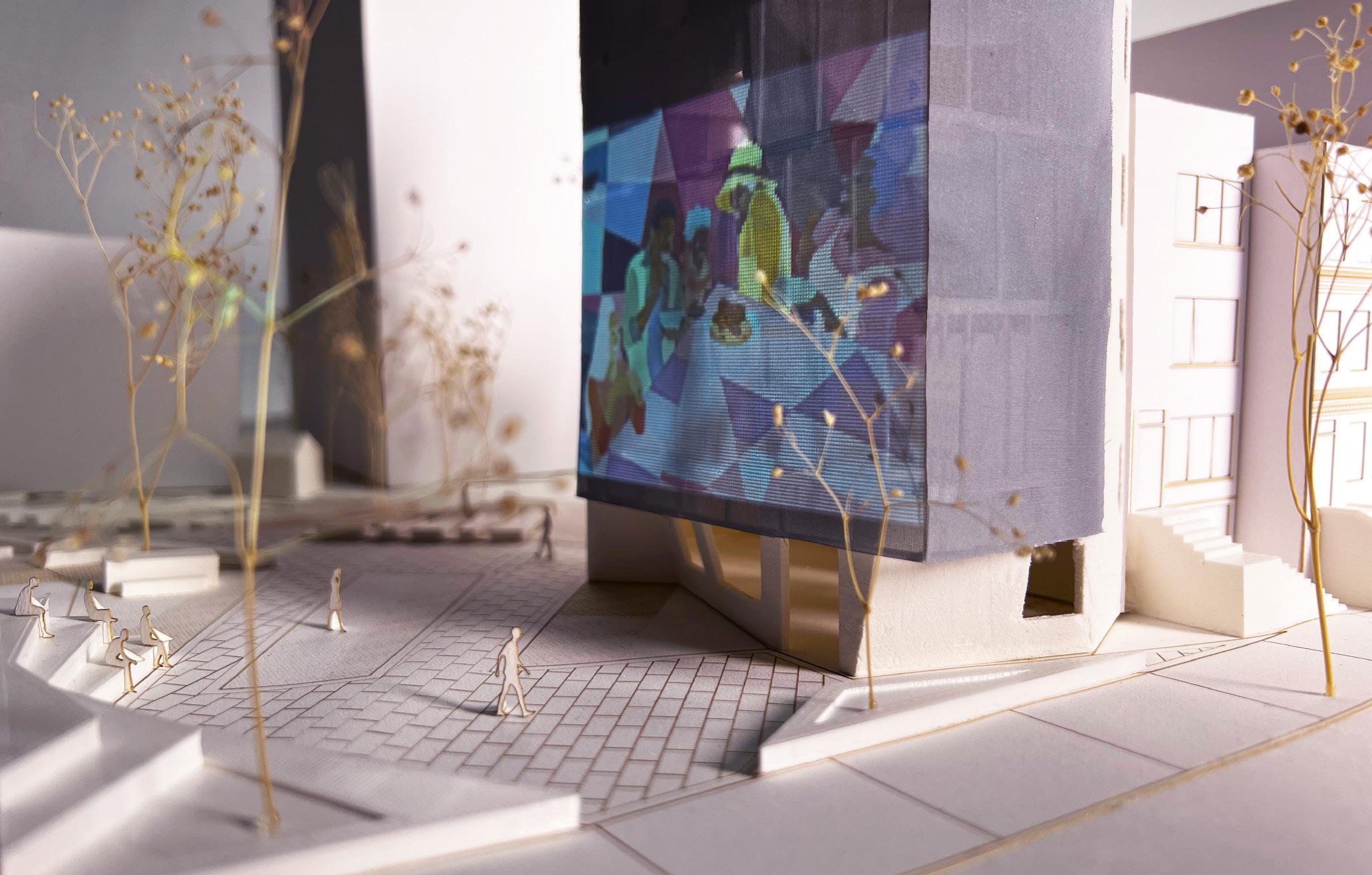

Digital projection onto the facade creates a dynamic visual and circulatory experience for visitors of both the community garden and building.

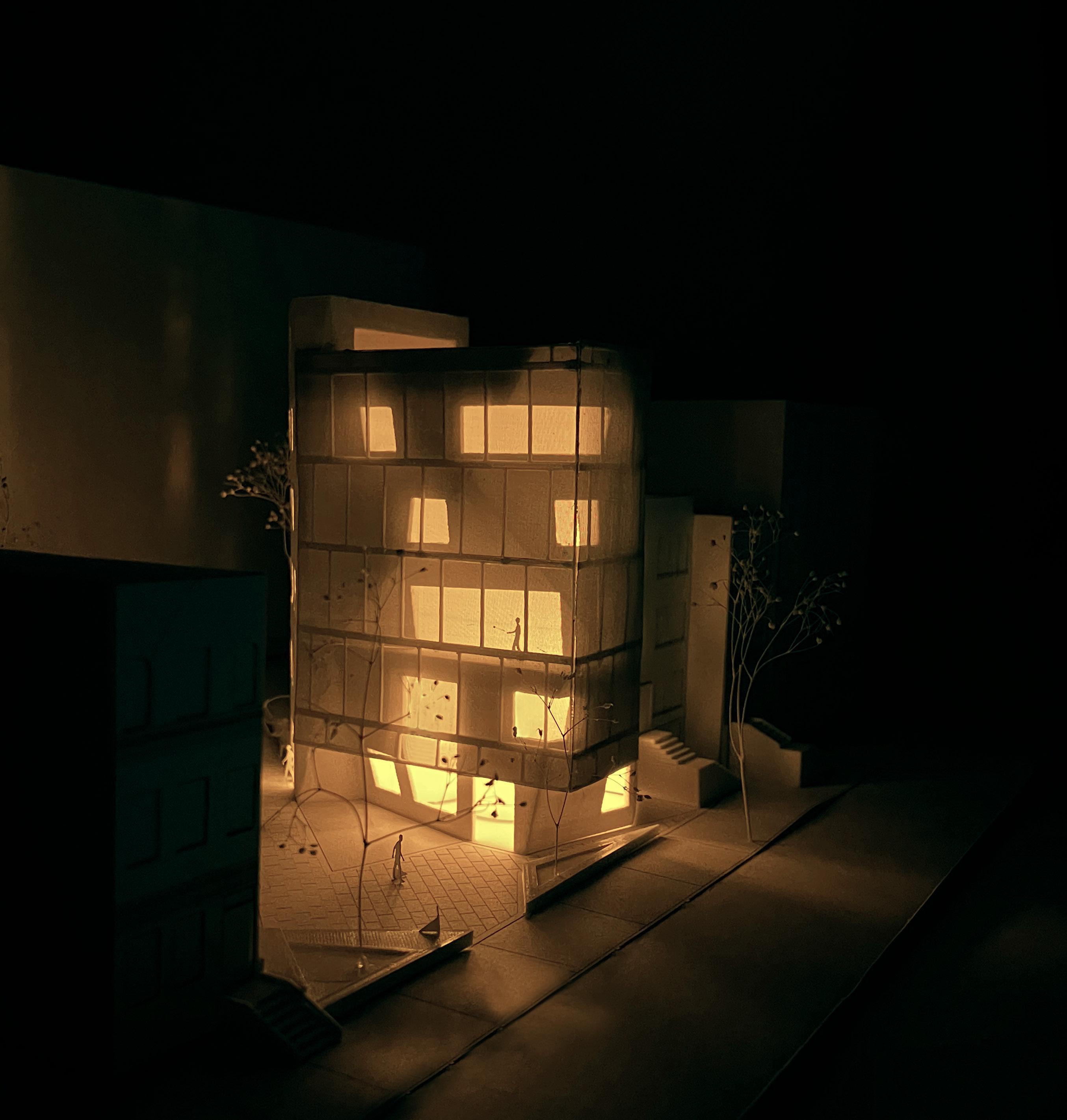

At night, people are projected out into the surrounding site.
ARCH 1021 | Critic: Emily Abruzzo
New Haven, Connecticut
Fall 2021
Elizabeth CornfeldProject Objective: Design a new type of mental health center, specifcally for the services provided by the Program for Specialized Treatment Early in Psychosis (STEP), which serves young adults in the State of Connecticut.

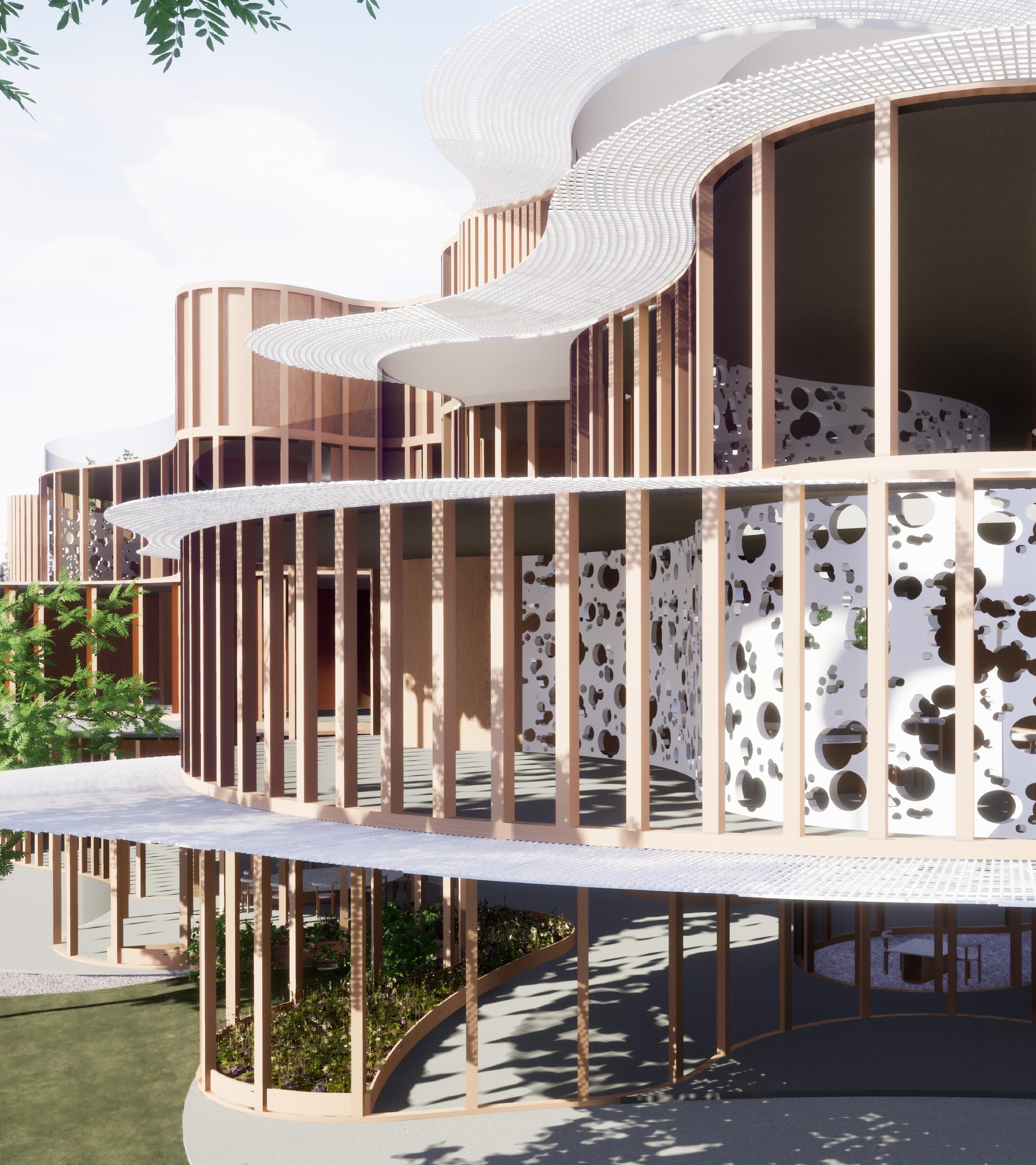

This 30,000 square foot STEP Center explores the buildings connection to the surrounding landscape in relation to its ability to provide healing and wellness. The building consists of spaces made up of a series of layers where patients and community members can come together for community building while still having private space for quiet contemplation. Varied sized green spaces are integrated throughout the building and natural light is let inside as a part of the healing process.
CURTAIN WALL INTERIOR WALL
GLASS WALL PERFORATED WALL
OUTDOOR TERRACE OVERHANG
PLANTERS
Elizabeth Cornfeld

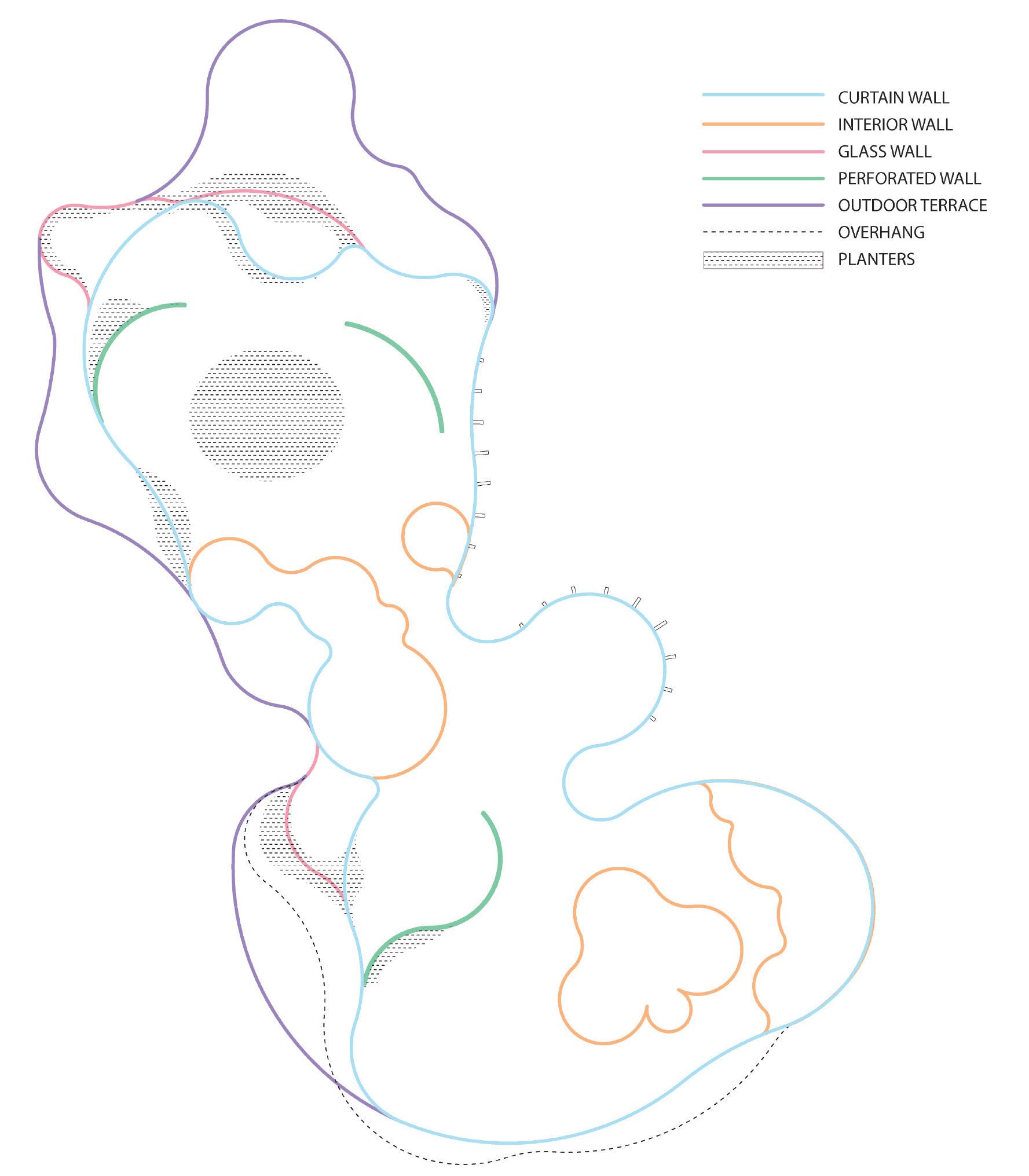

Building Layers Concept Drawing

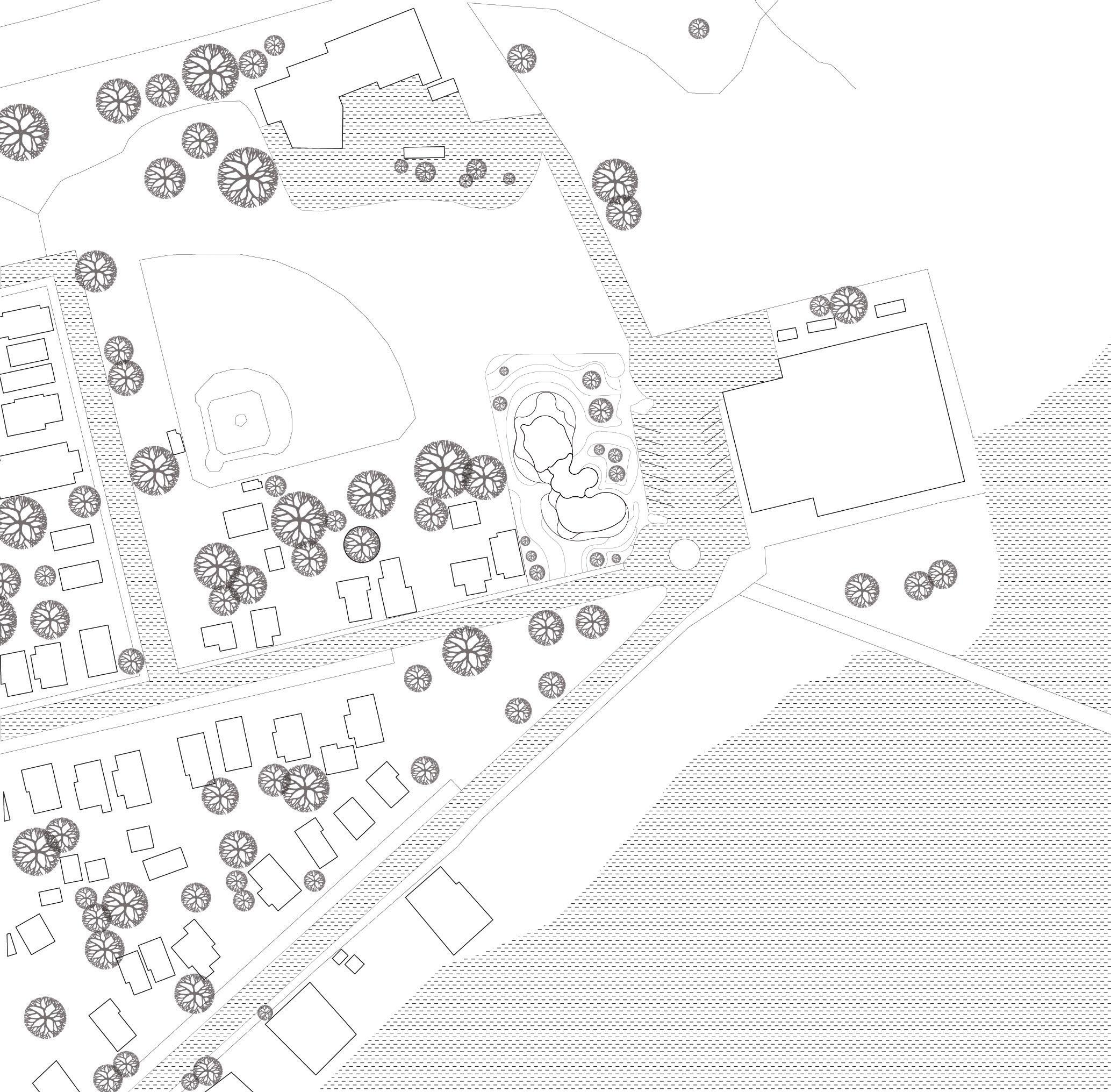

Site Plan: 21 Sea St, New Haven
Elizabeth Cornfeld
GROUND FLOOR
1. GALLERY
2. ENTRY
3. WAITING AREA
4. AUDITORIUM
5. COMMUNAL KITCHEN
6. BATHROOM
7. STORAGE
8. INTERIOR GARDEN
9. OUTDOOR SPACE
10. MEETING ROOM
Elizabeth Cornfeld

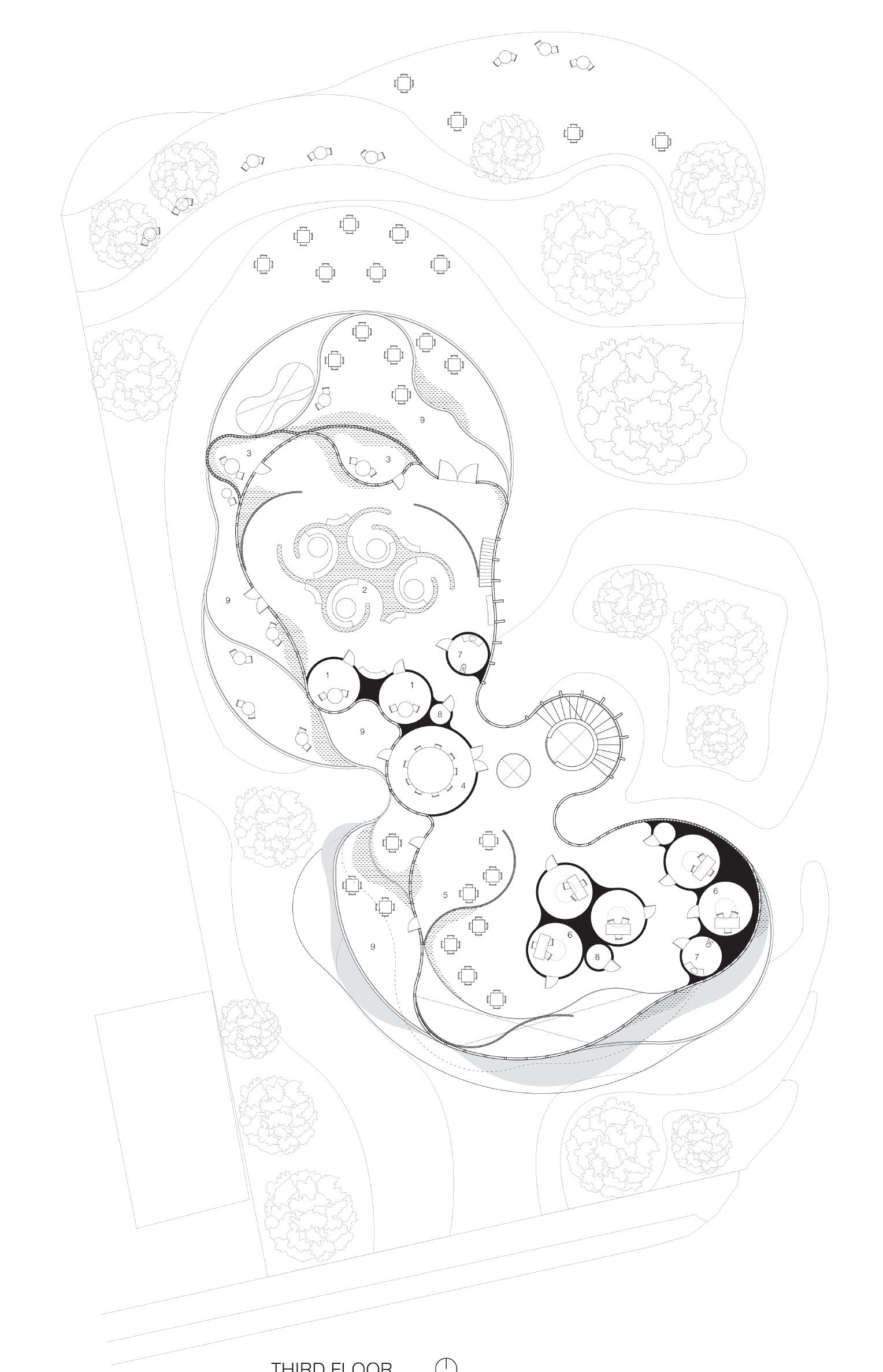

THIRD FLOOR
1. SMALL PATIENT ROOMS
2. PLANTER PATIENT ROOMS
3. GARDEN PATIENT ROOMS
4. COMMUNAL PATIENT ROOM
5. SHARED OFFICE SPACE
6. PRIVATE OFFICES
7. BATHROOM
8. STORAGE
9. OUTDOOR TERRACE
Elizabeth Cornfeld

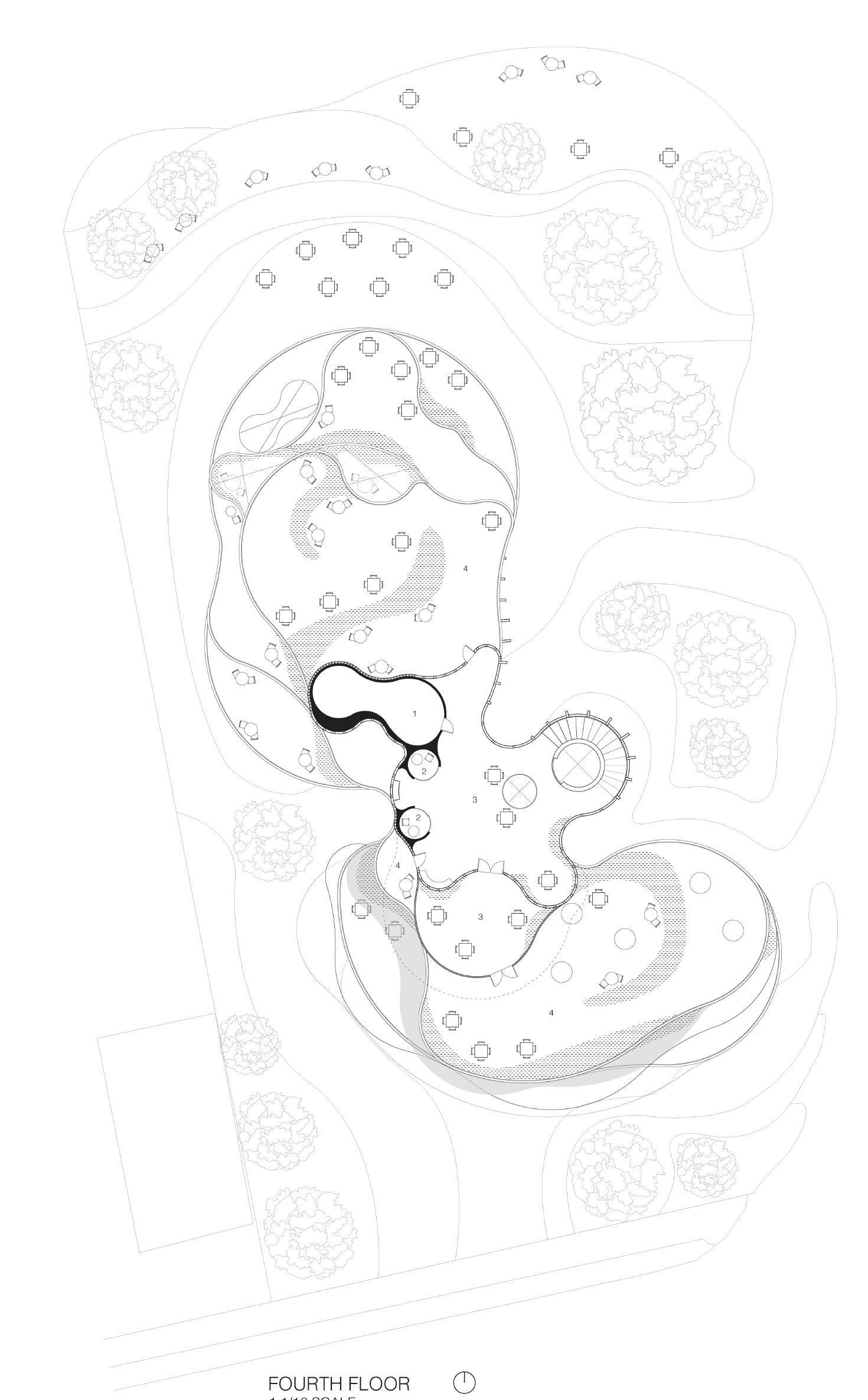

FOURTH FLOOR
1. MECHANICAL SPACE
2. ISOLATION SPACE
3. COMMON SPACE
Elizabeth Cornfeld

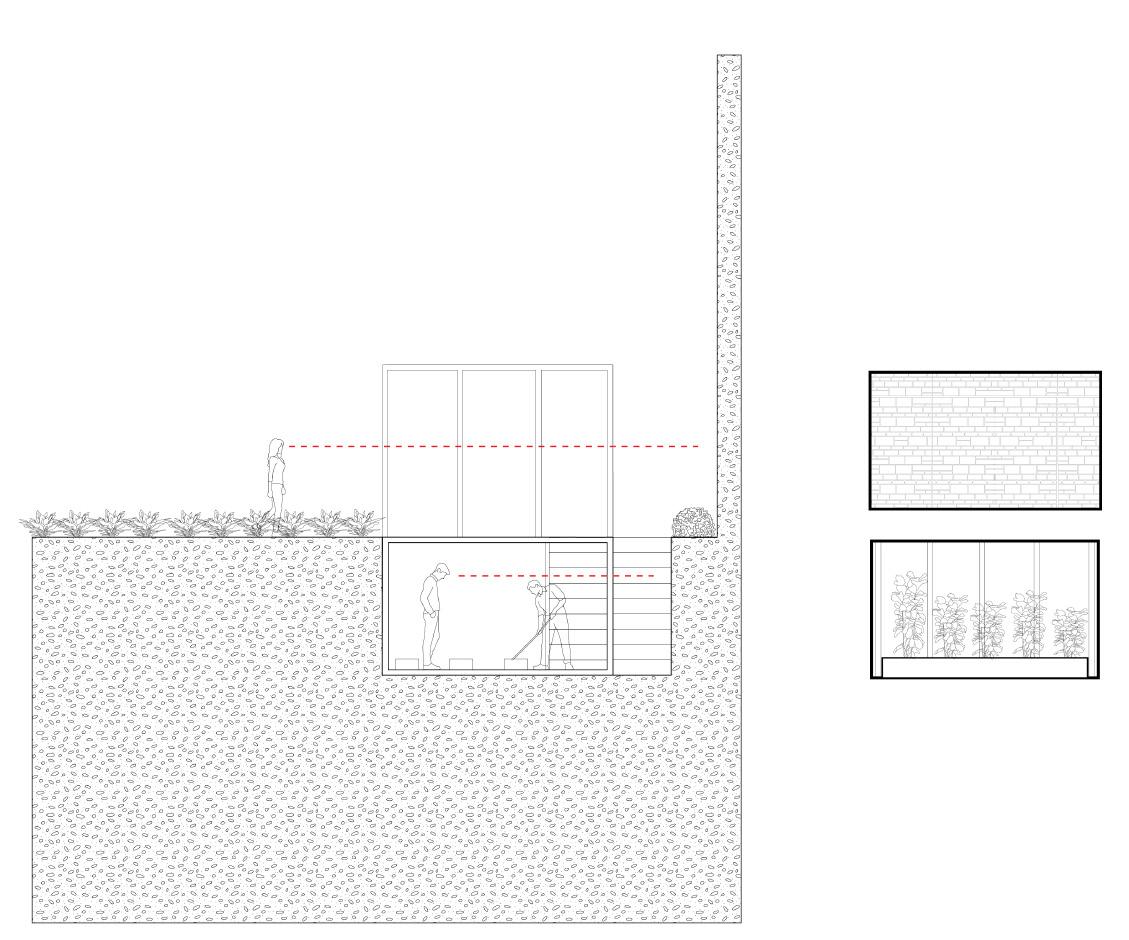

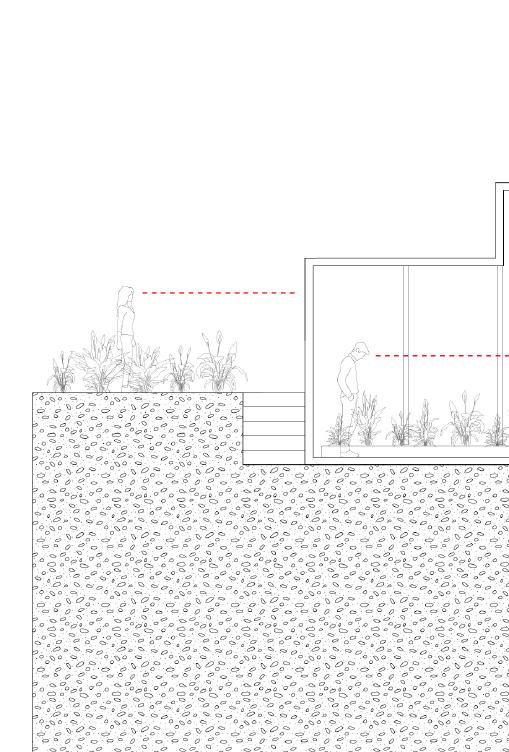

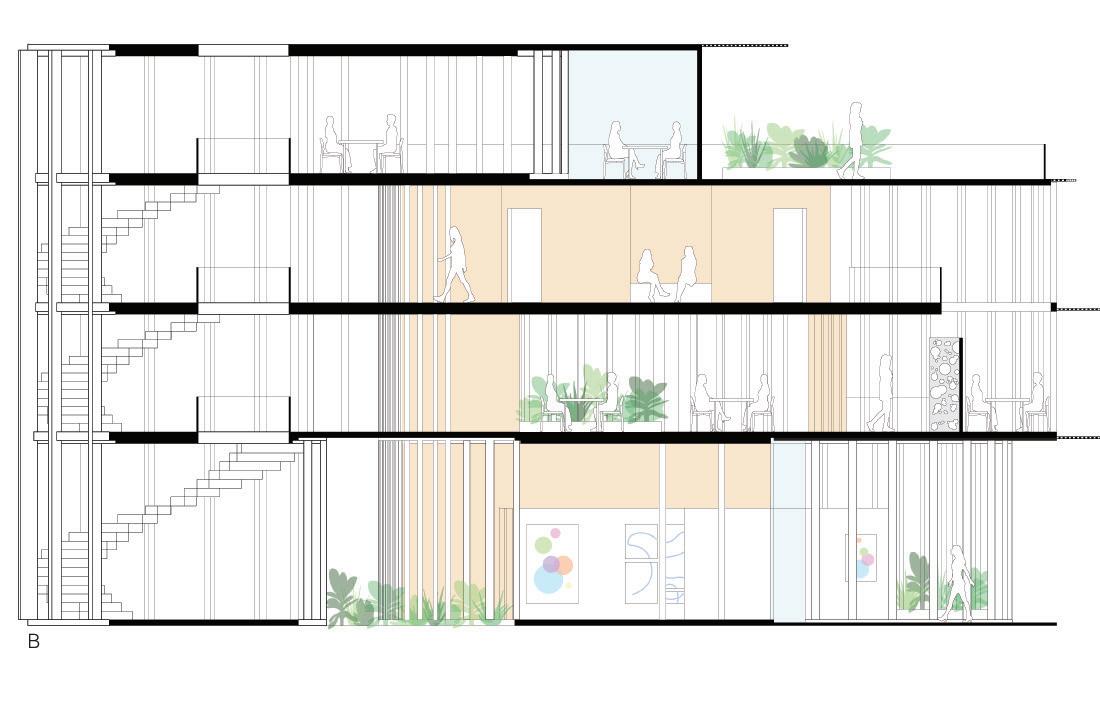

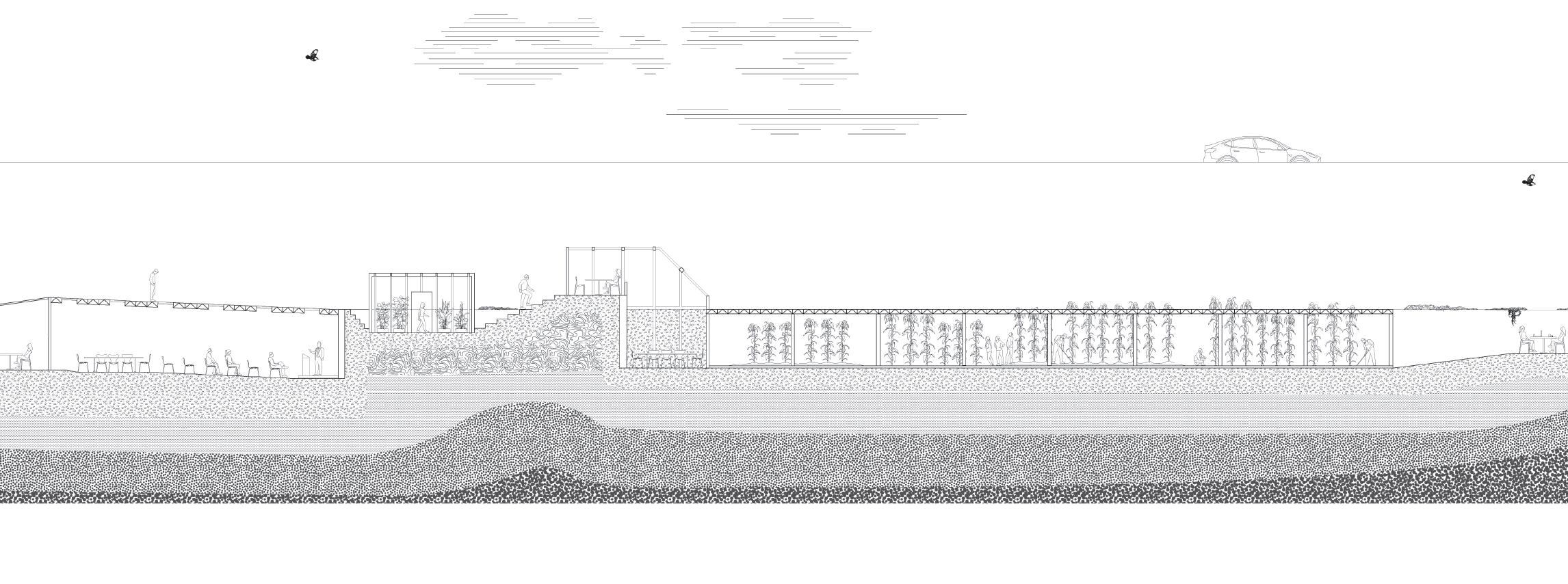

Section Drawing

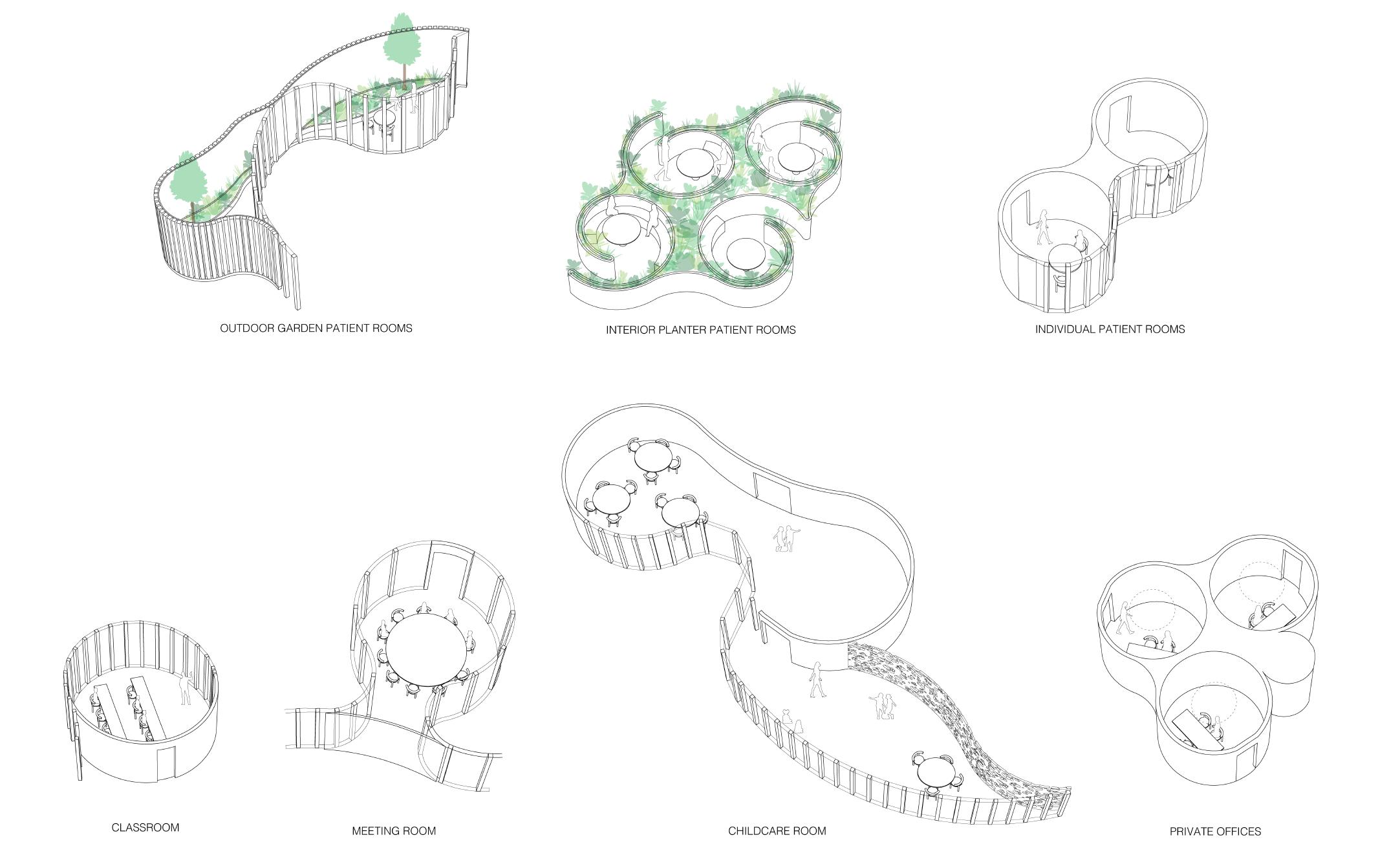

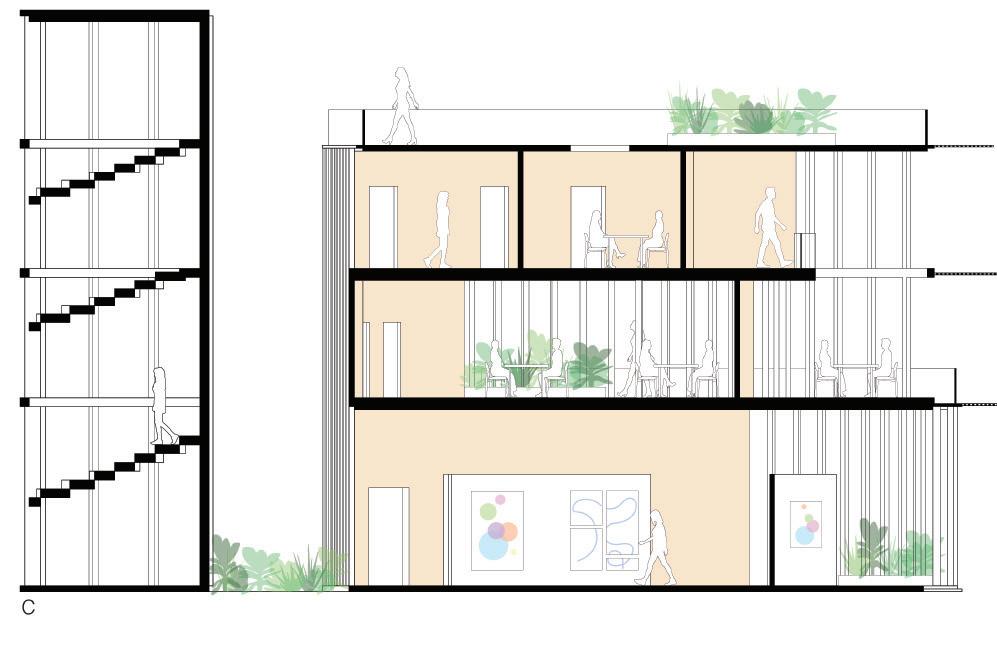

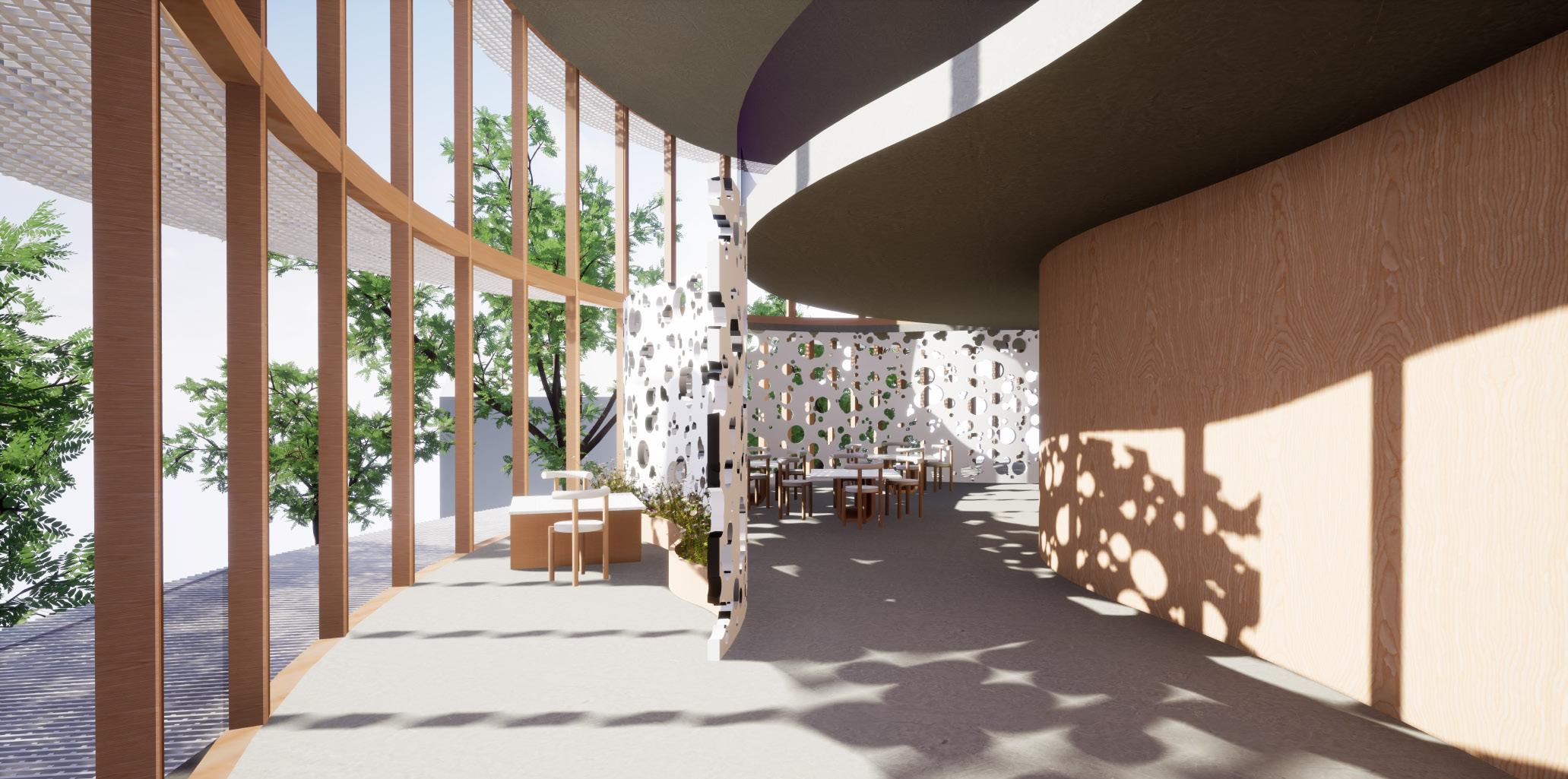

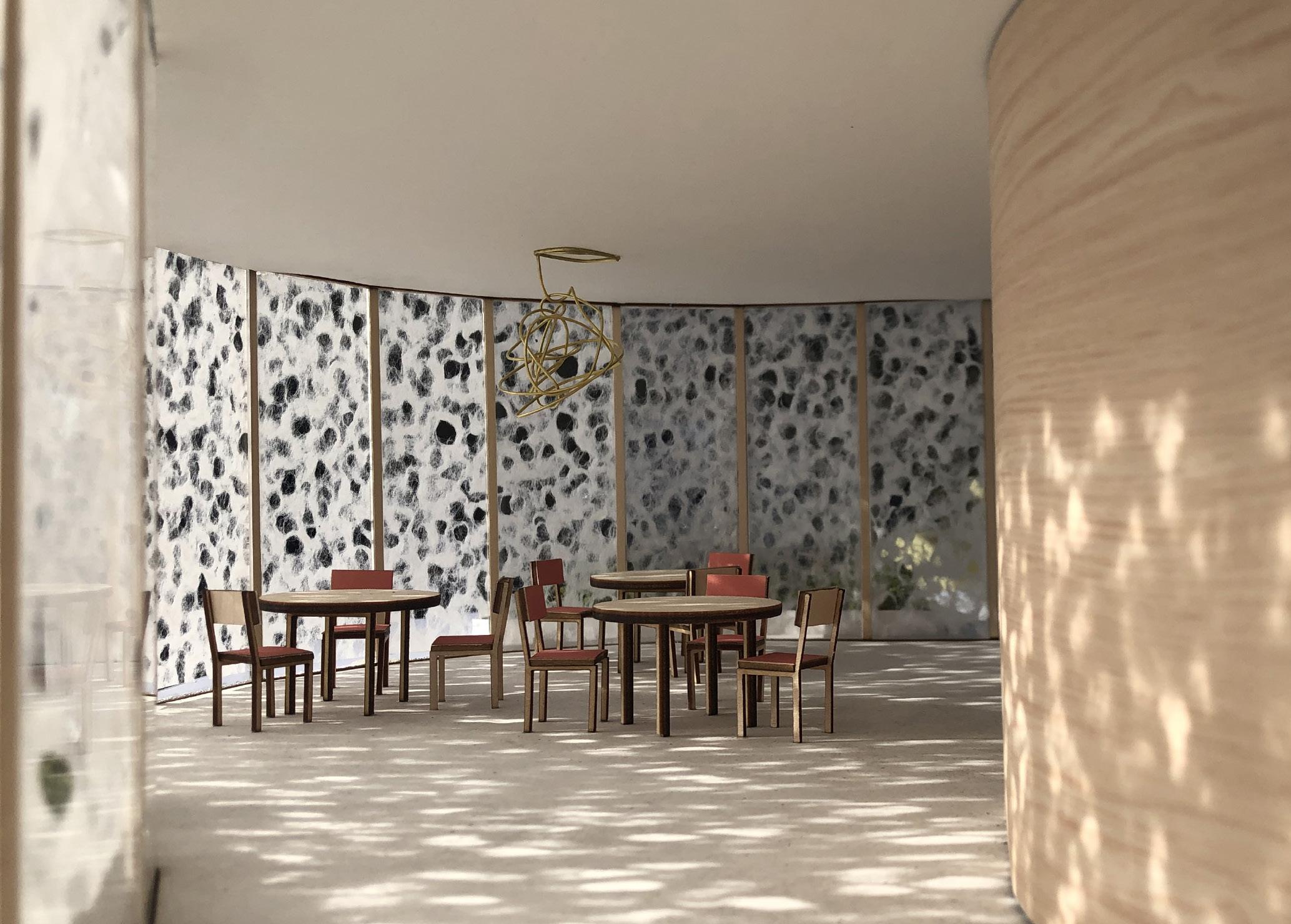

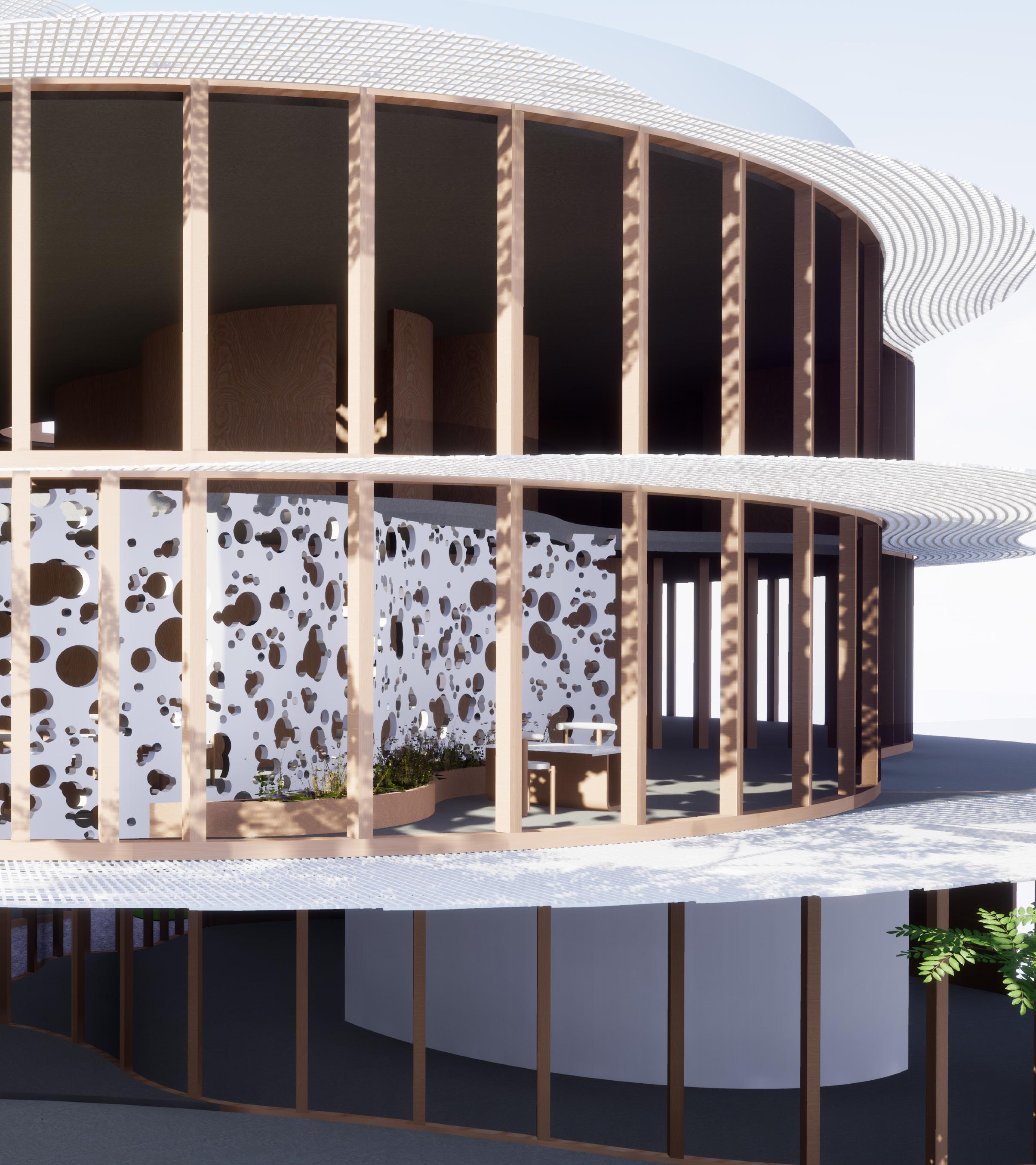

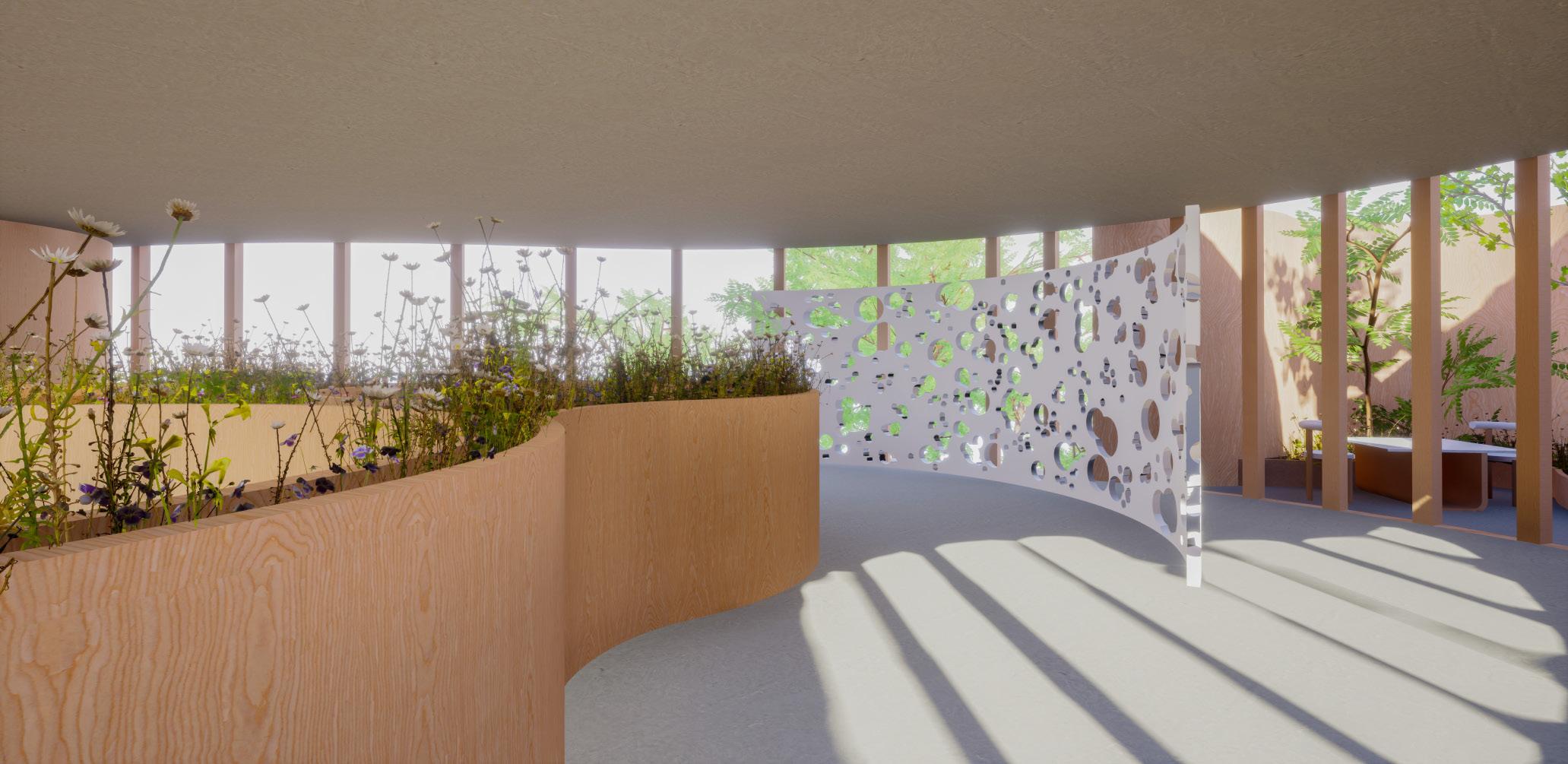

Different layers of the building, such as the perforated walls, mullions, plants, and solid interior walls, come together to form different types of rooms depending on the program and amount of light and privacy needed.
Elizabeth Cornfeld
OUTDOOR PATIENT ROOMS INTERIOR PLANTER PATIENT ROOMS INDIVIDUAL PATIENT ROOMS
CLASSROOM MEETING ROOM CHILDCARE ROOM PRIVATE OFFICES
Project Objective: Identify a relevant conception of utopia and explore possible architectural outcomes integrating change, evolution, and time into foundational thinking. Considering the past, present and future over an expanded period of time.

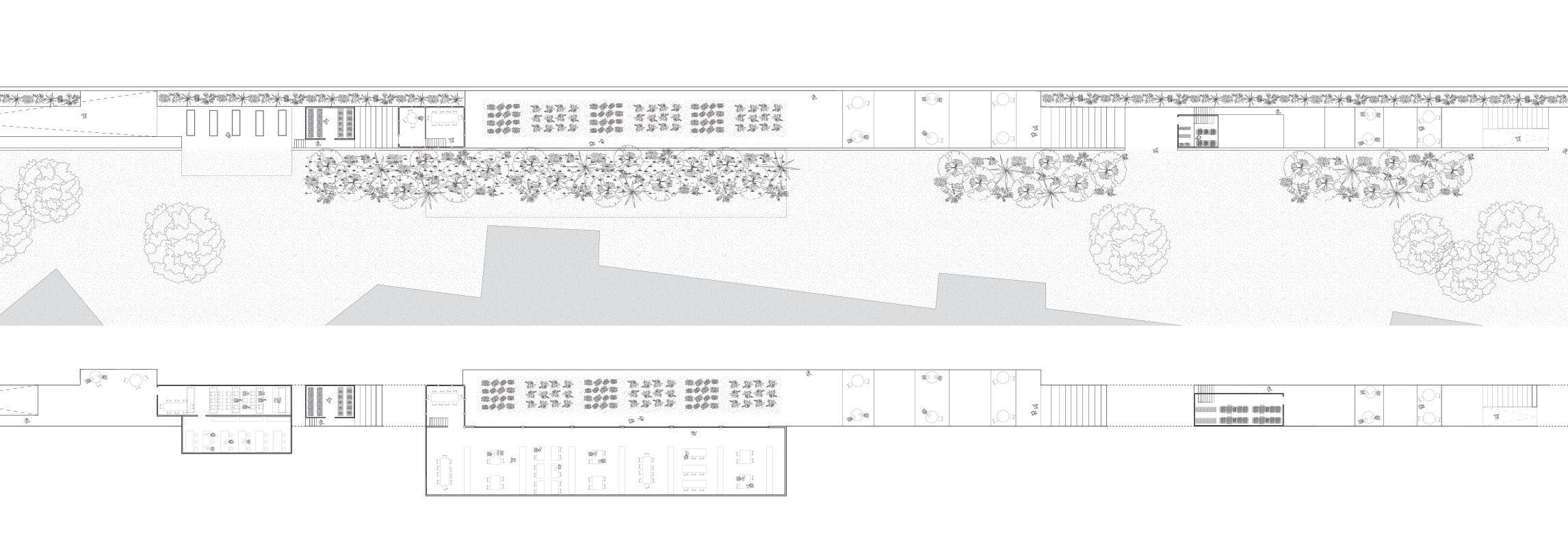

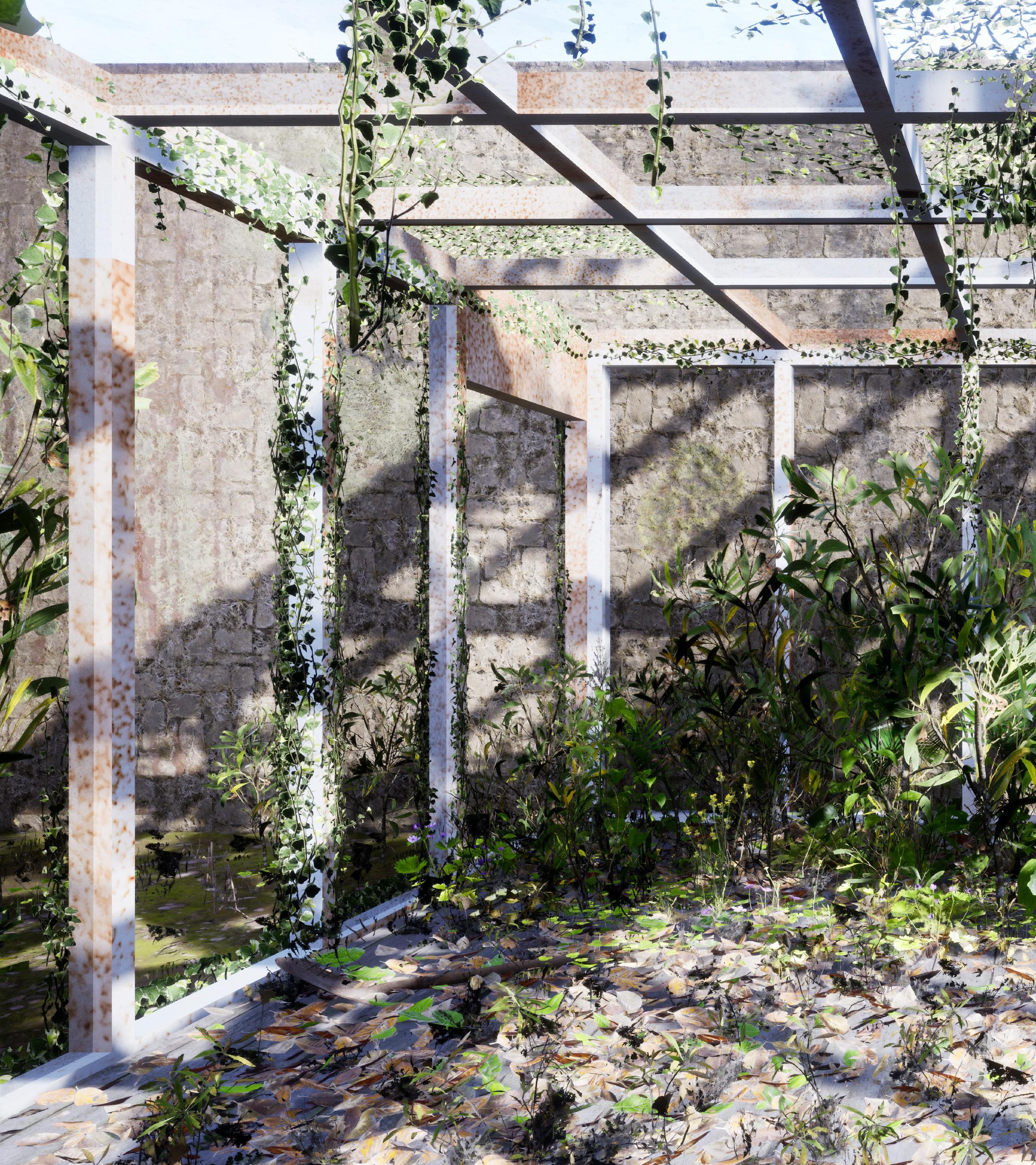

This material utopia focuses on the productive relationship between scars and growth in the Farmington Canal. The buildings placed along the Farmington Canal function as a farming school. The utopia is a concealed space where the Yale community can utilize a scarred site for its growth. This can be growth of the physical site, plant growth, and educational growth. This utopia also has a non-linear horizon with growth happening in the air and below its surface with a network connecting everything. The utopia is designed to easily carve, fll, and mend the Farmington Canal and continually grow in either direction.

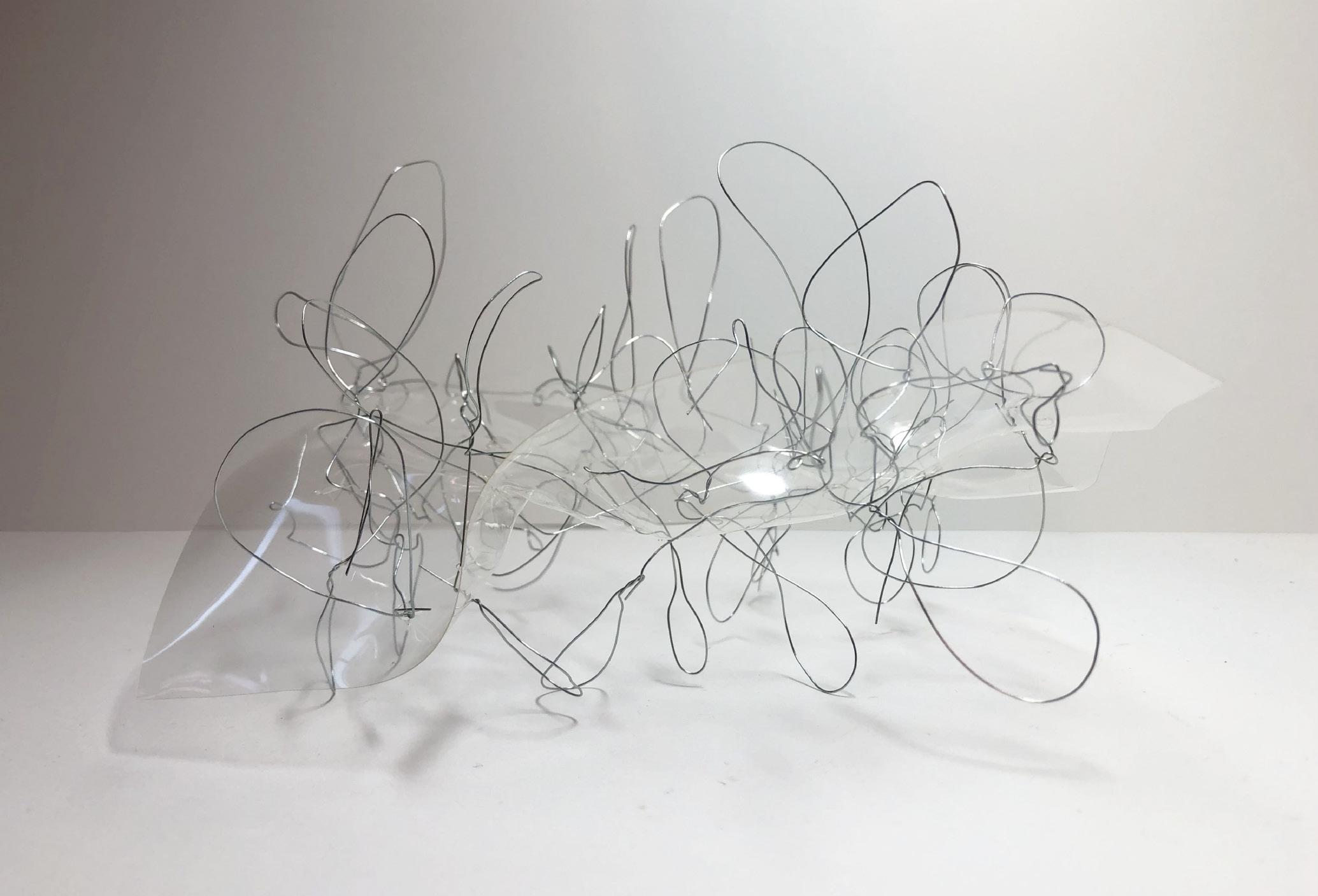

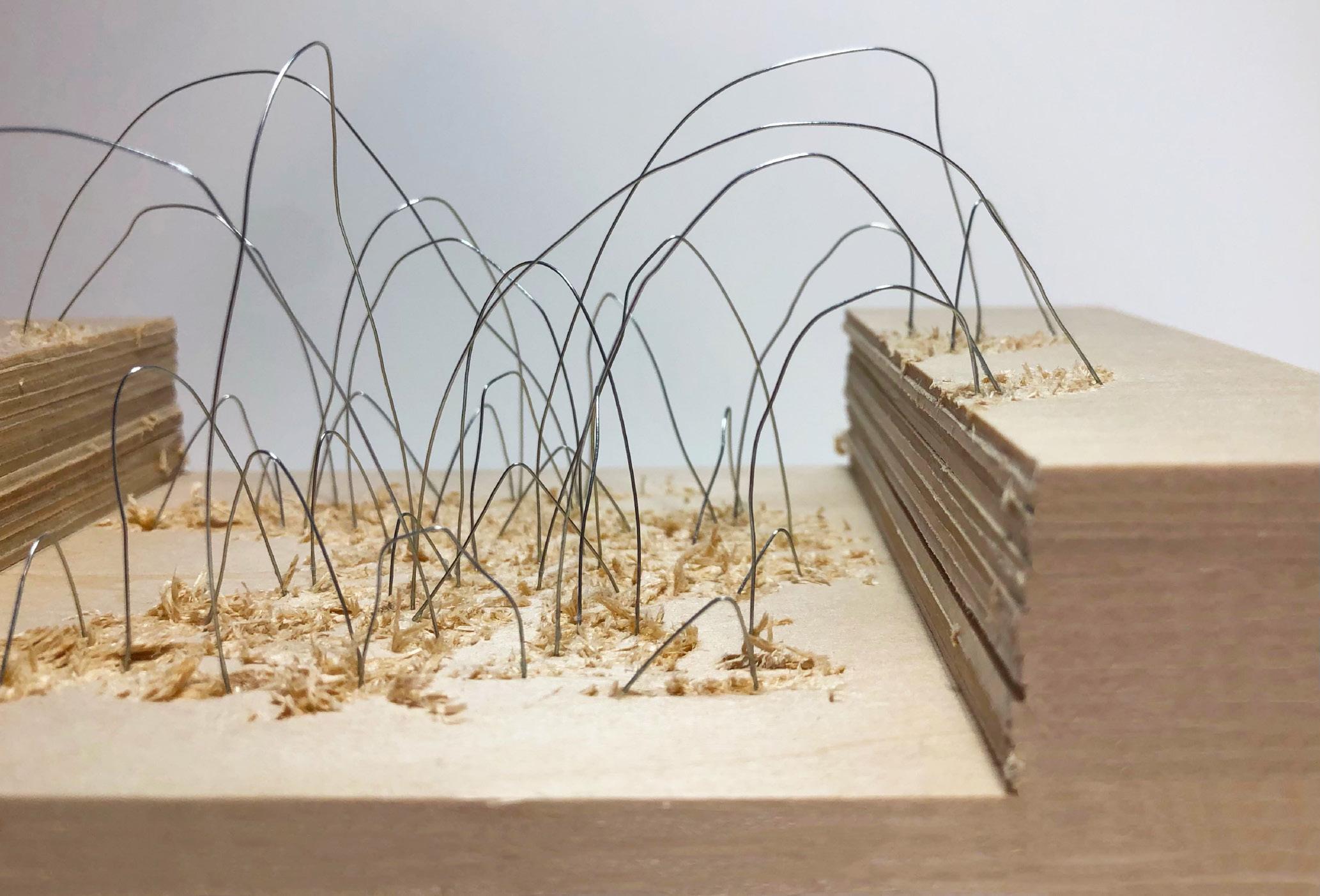

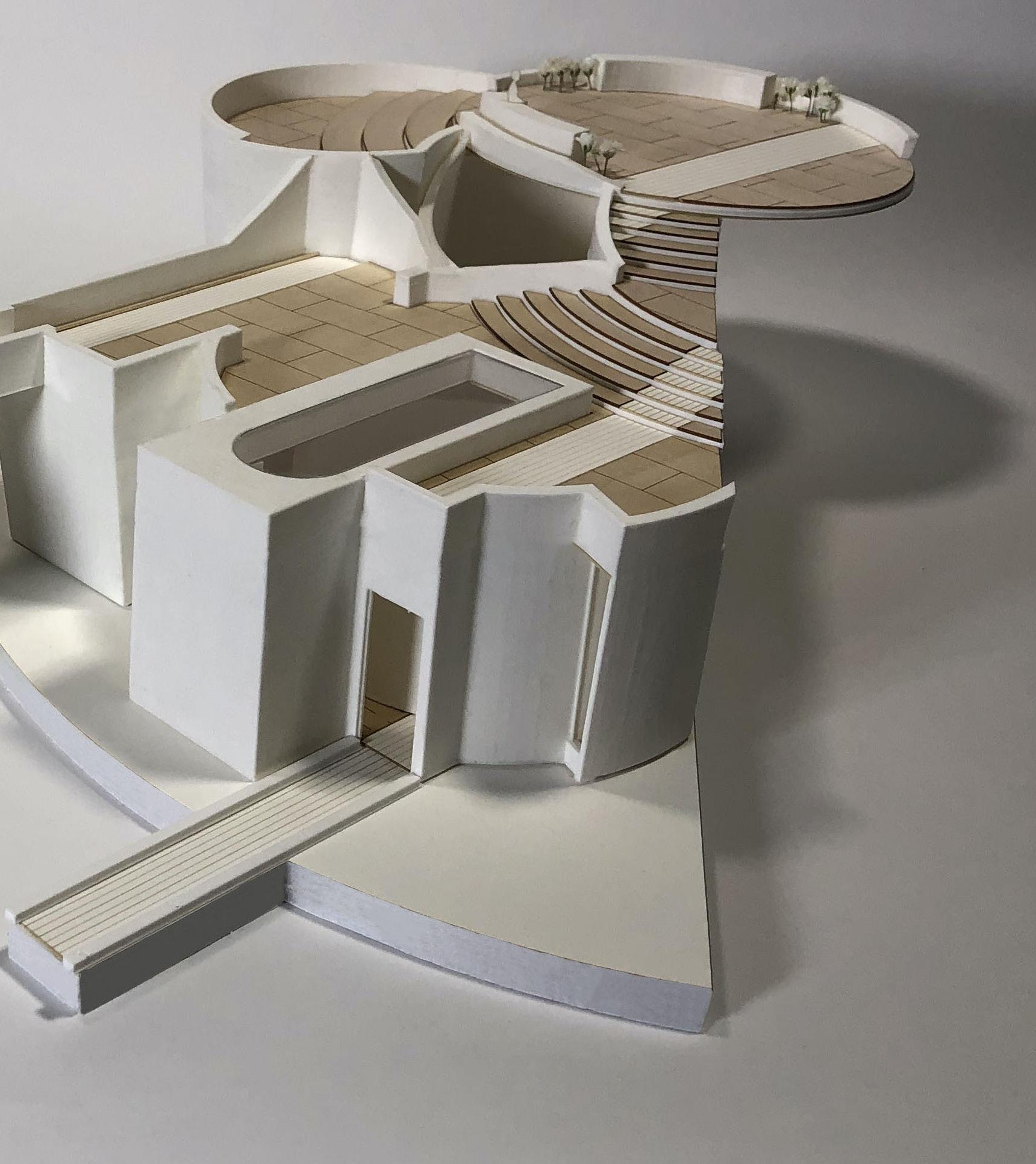

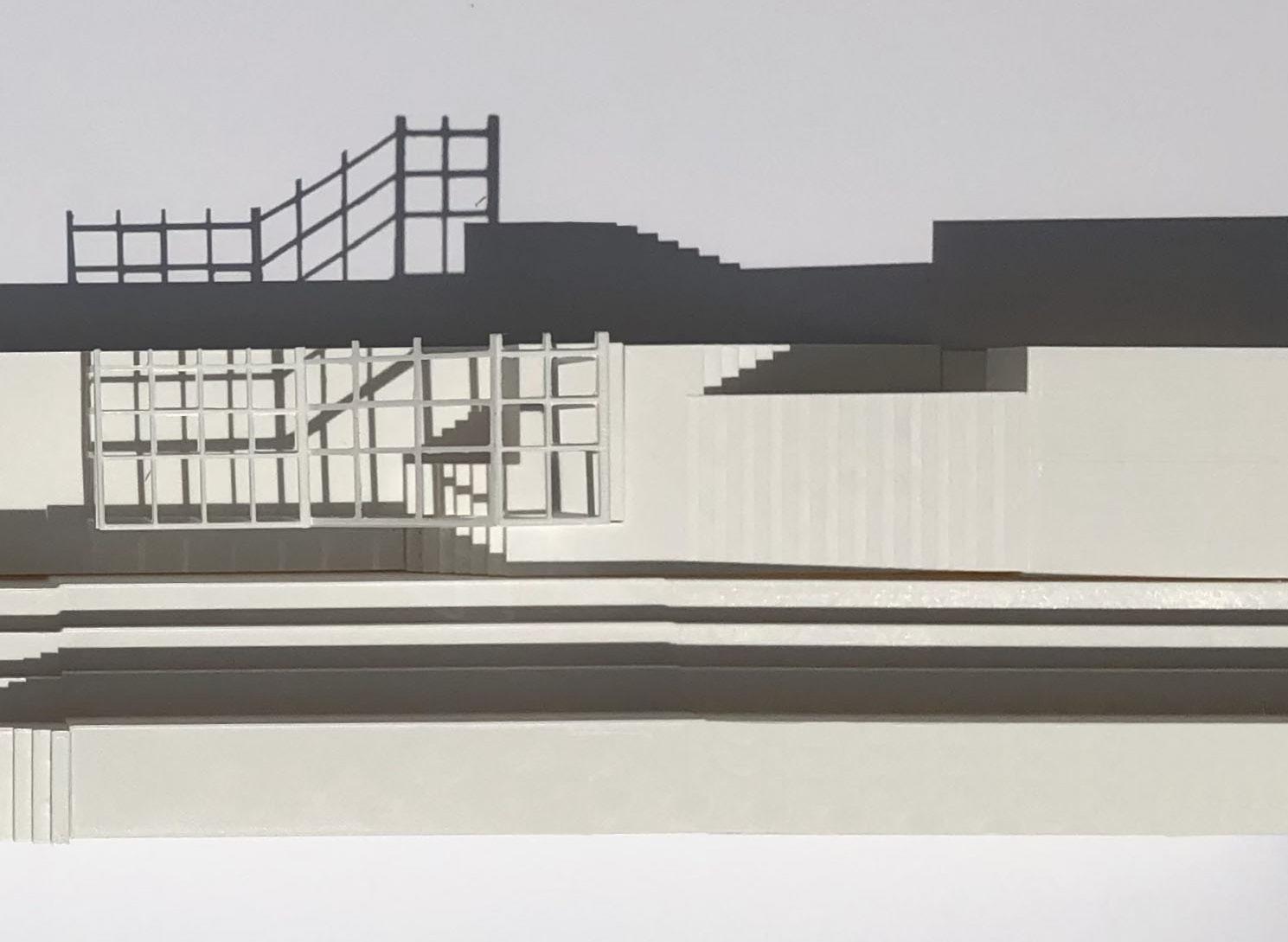

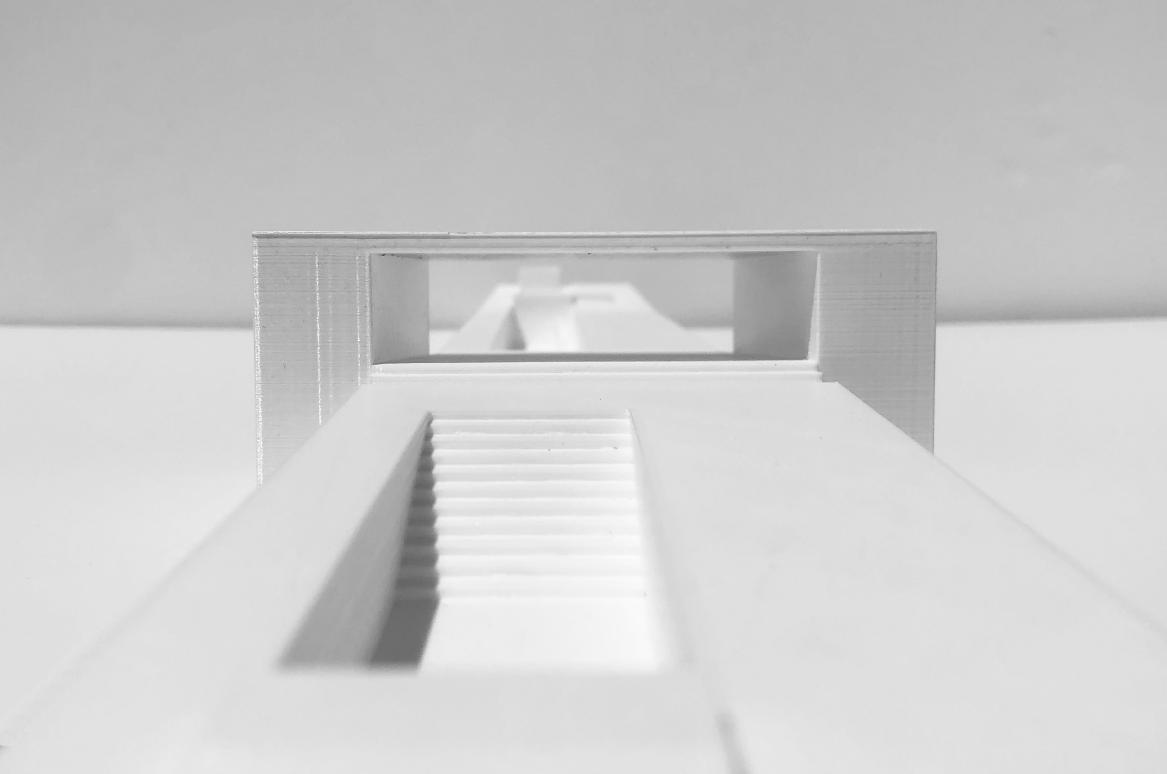

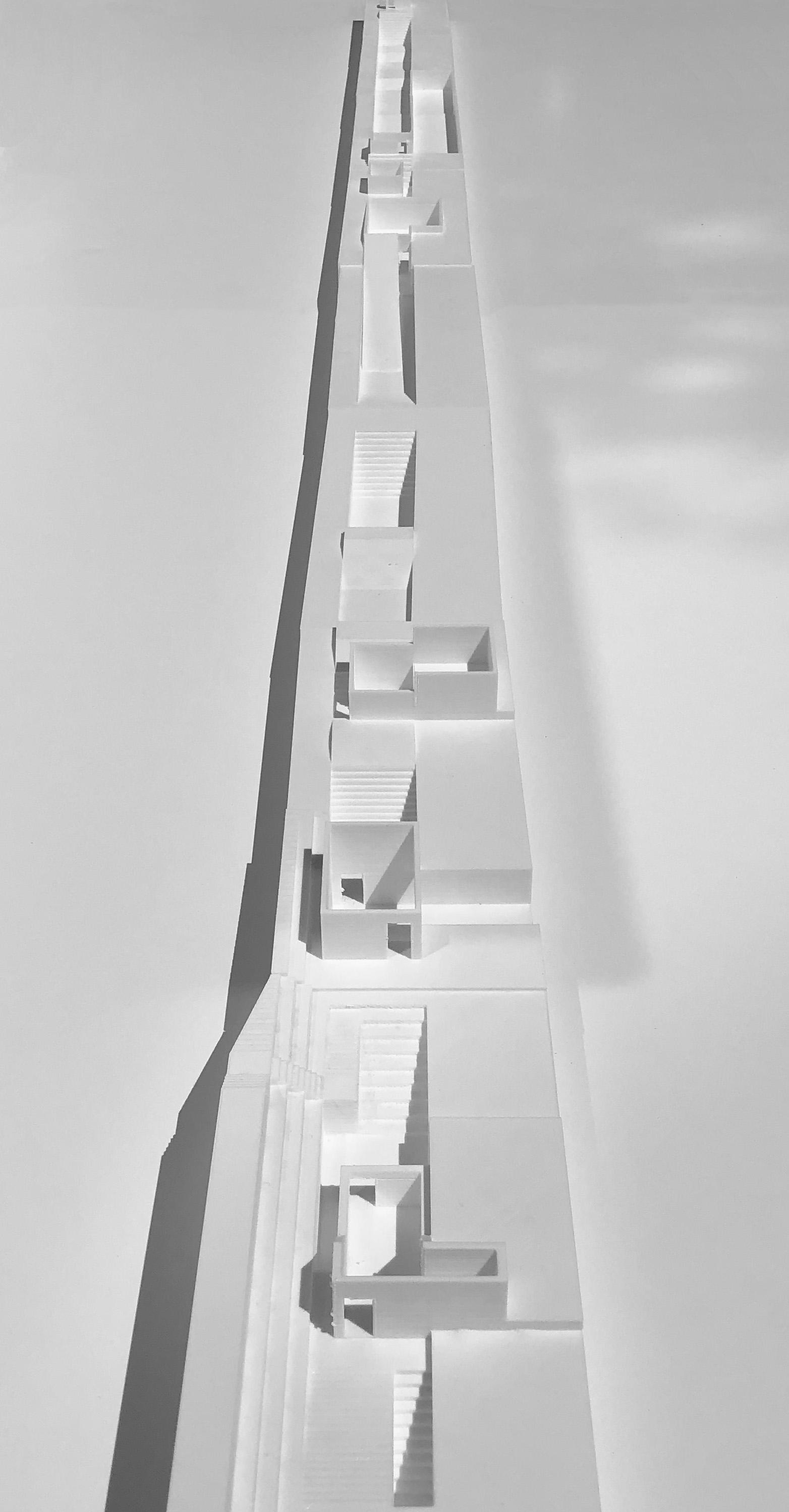

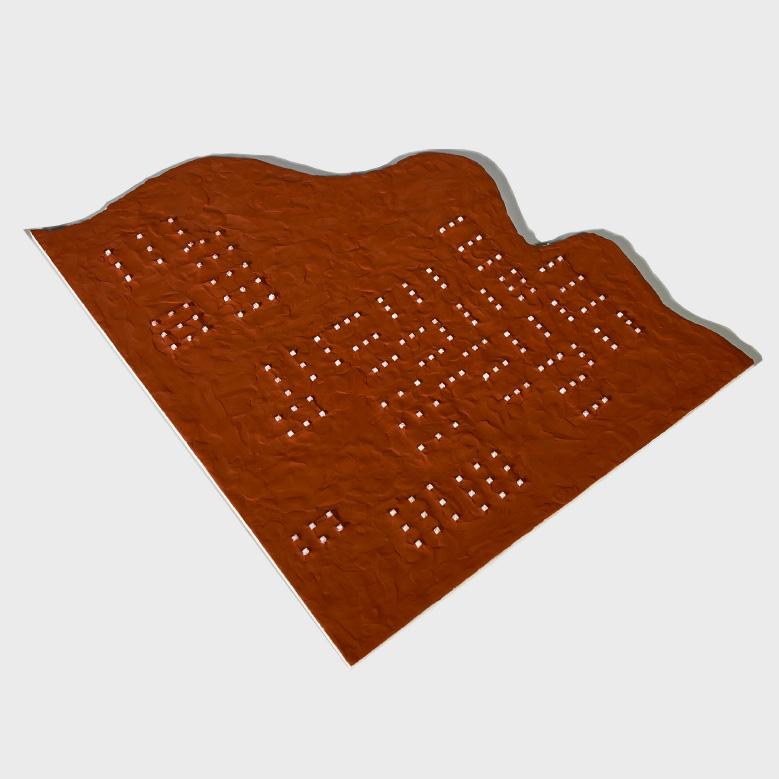

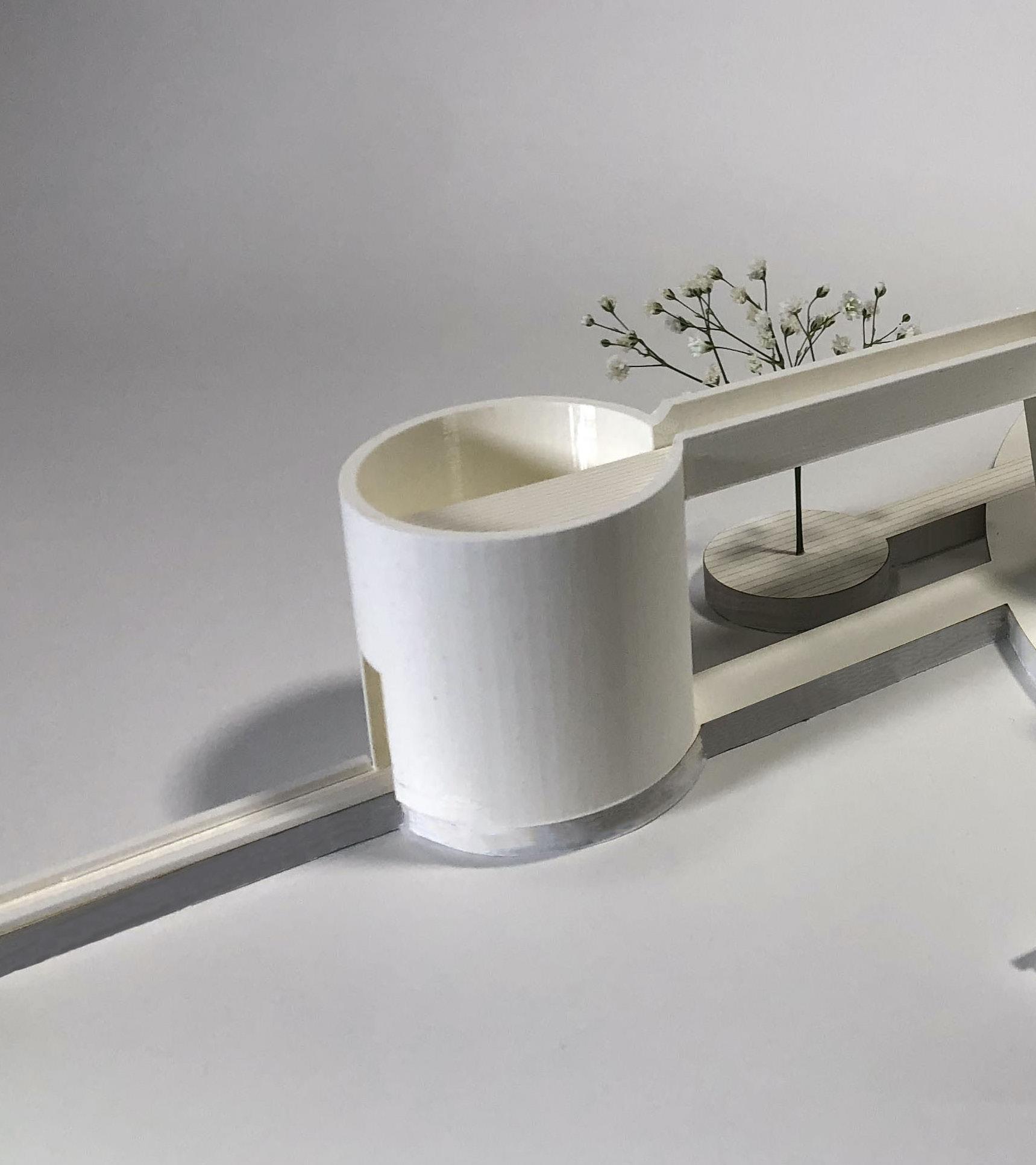

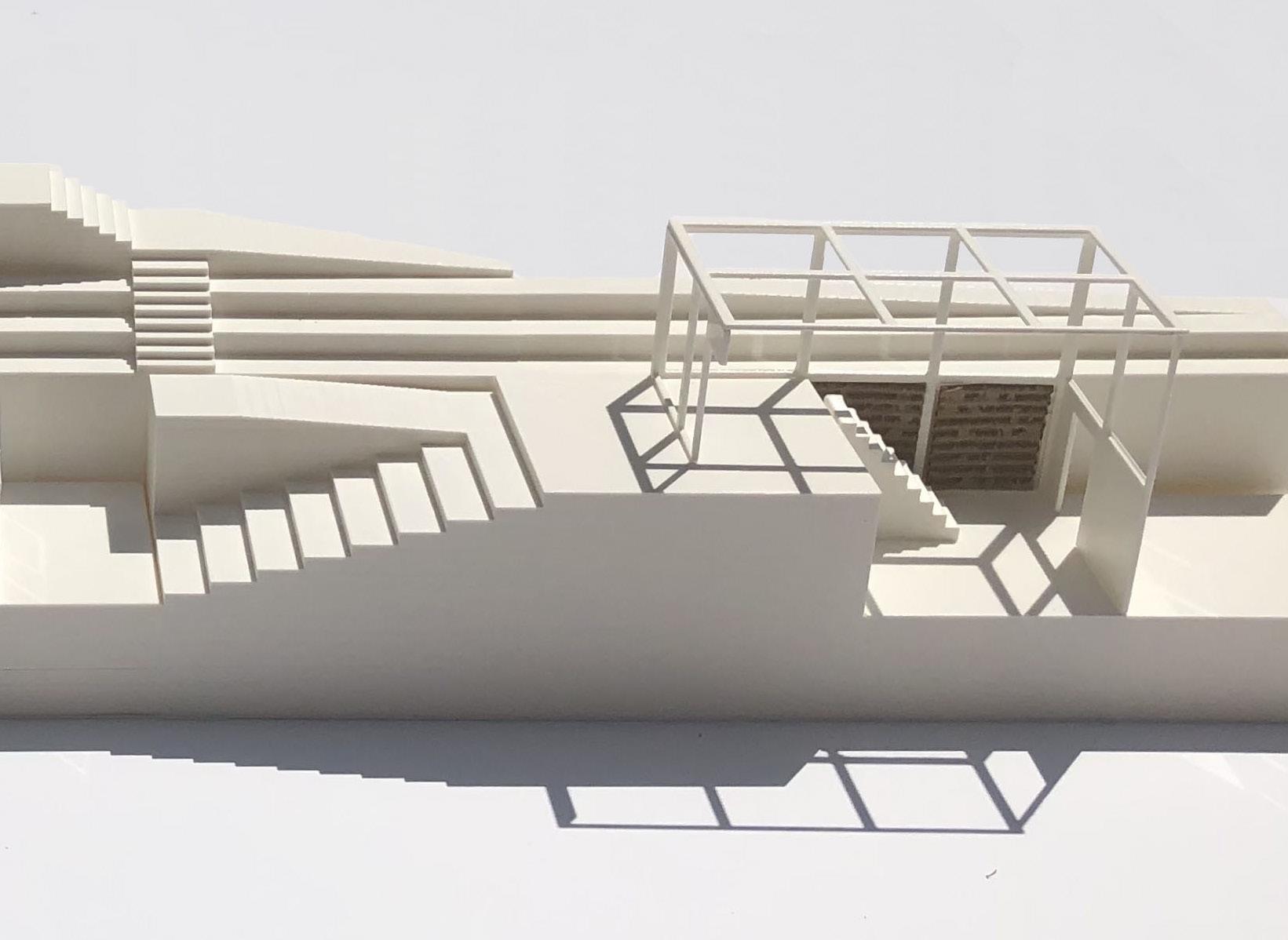

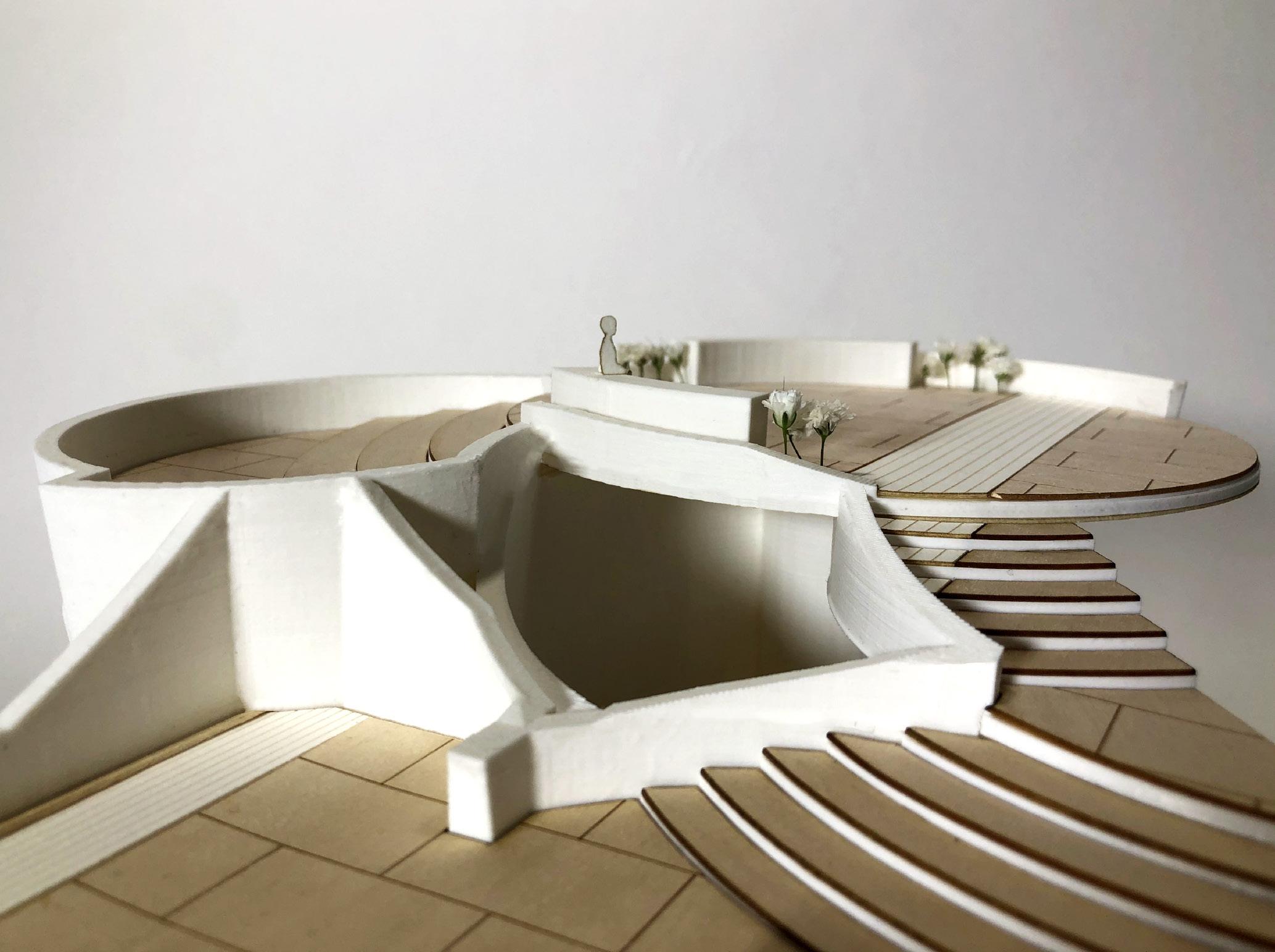

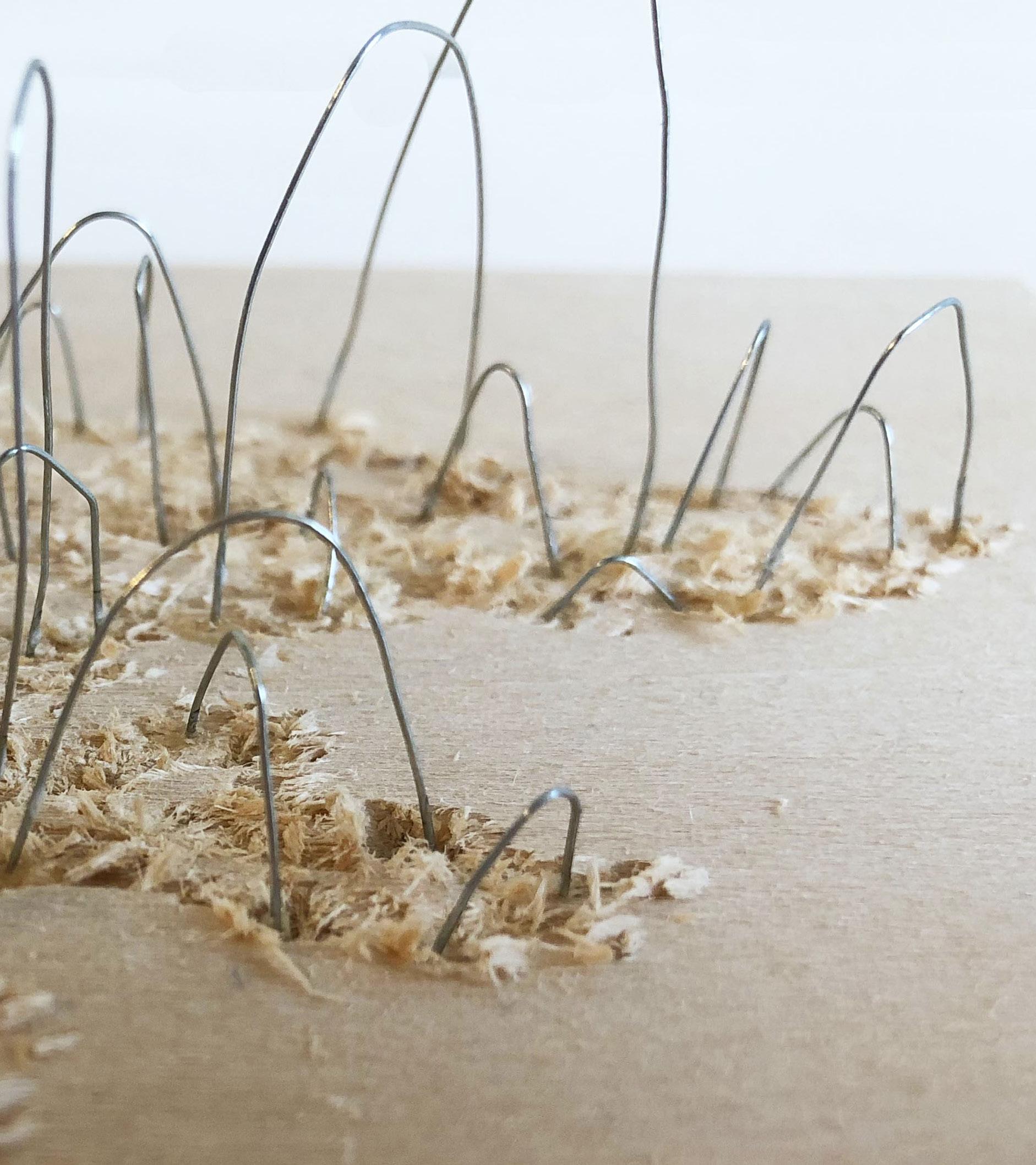

Concept models show how a new community can utilize a concealed space for its own growth. This material utopia has a non-linear horizon with growth happening in the air and below its surface with a network connecting everything.
Elizabeth Cornfeld
Elizabeth Cornfeld
Shadow Study
Elizabeth Cornfeld

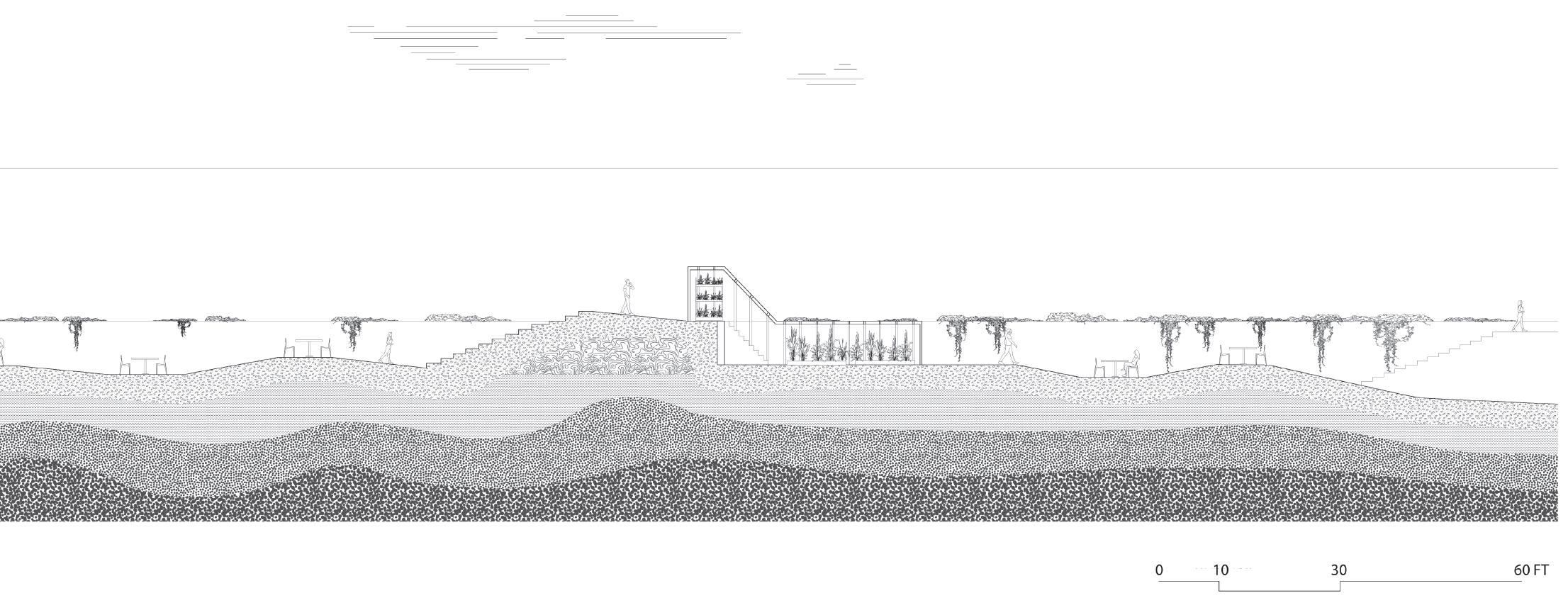

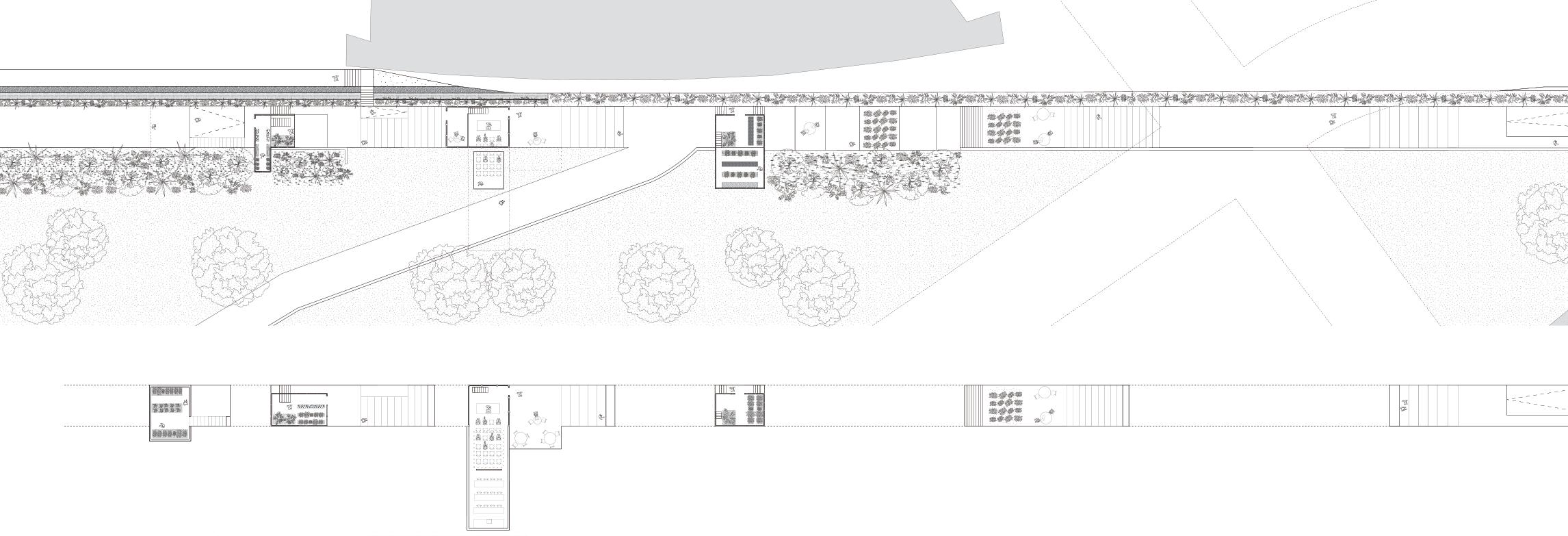

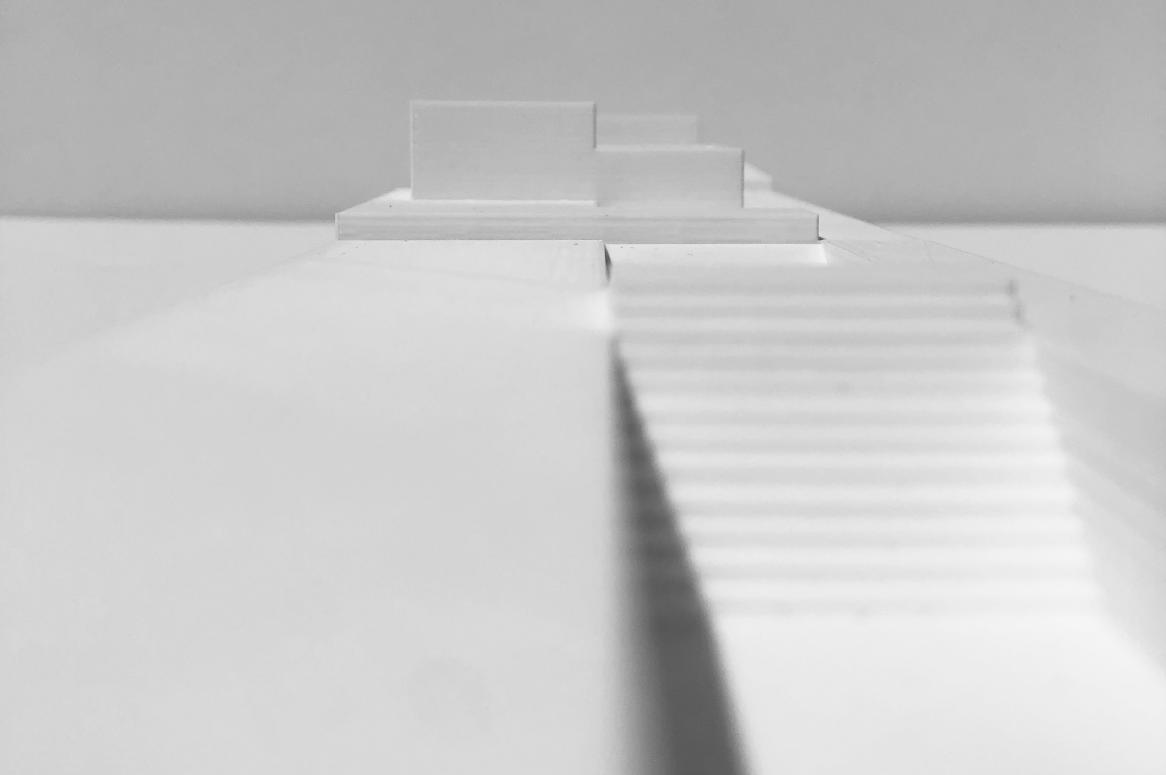

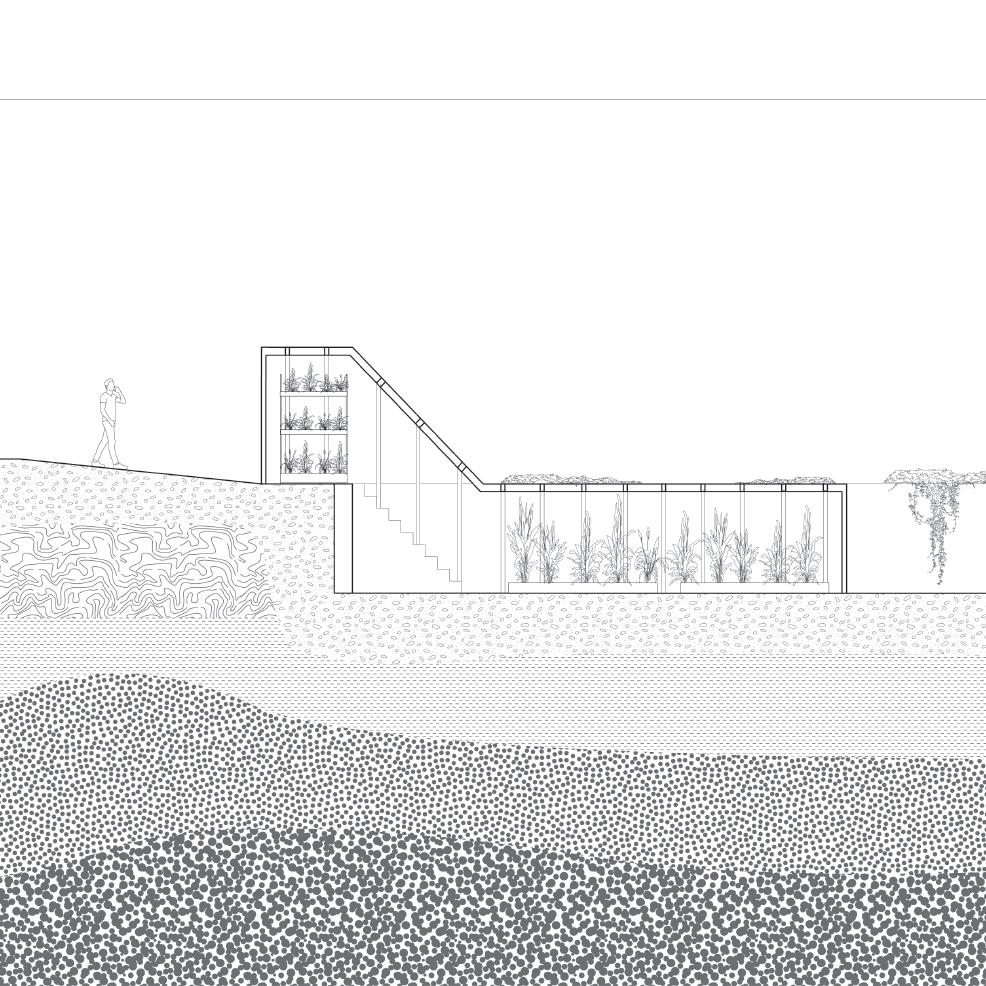

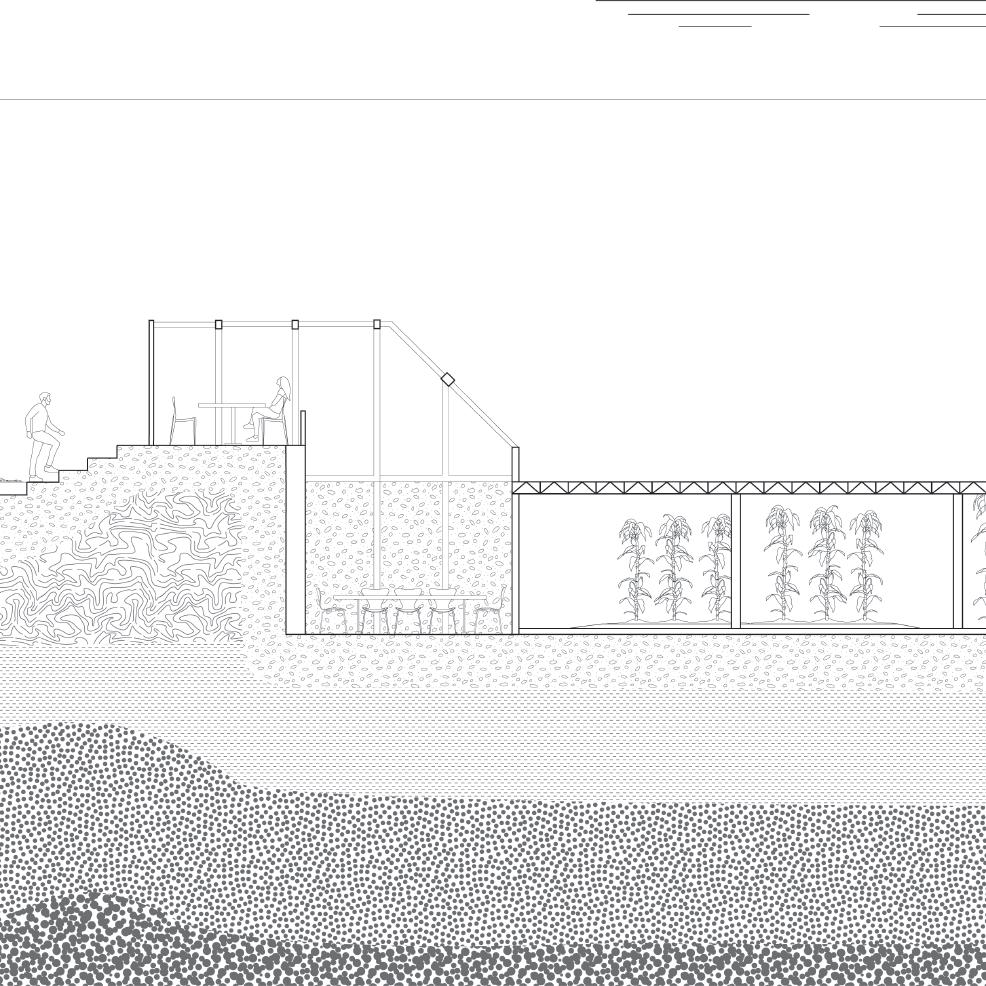

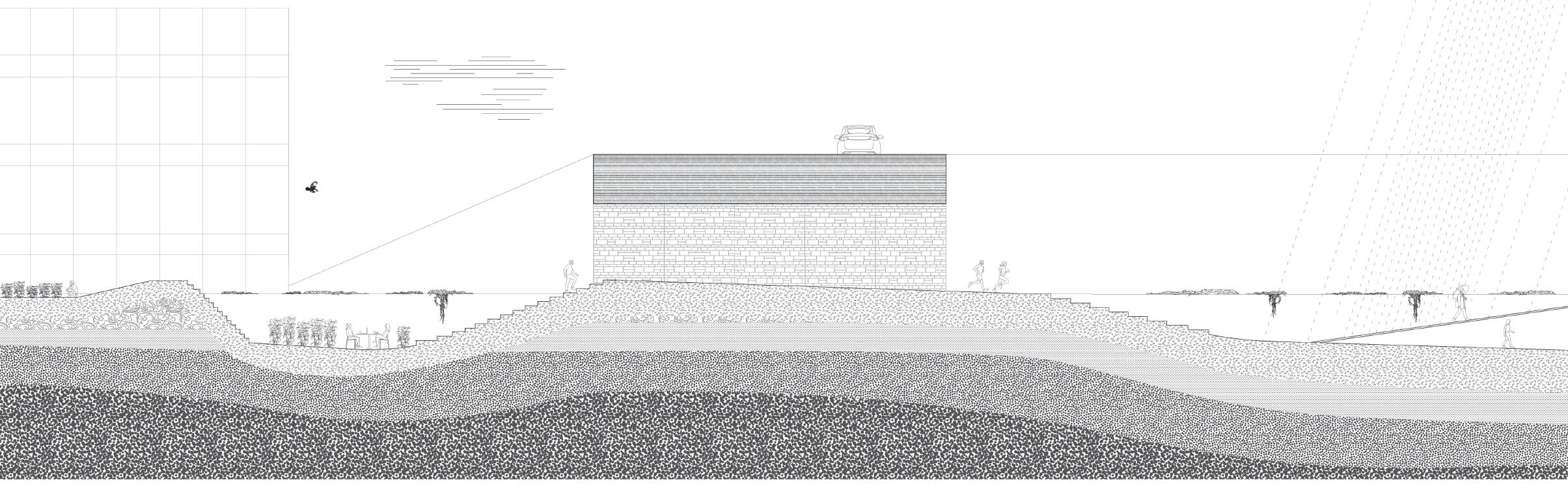

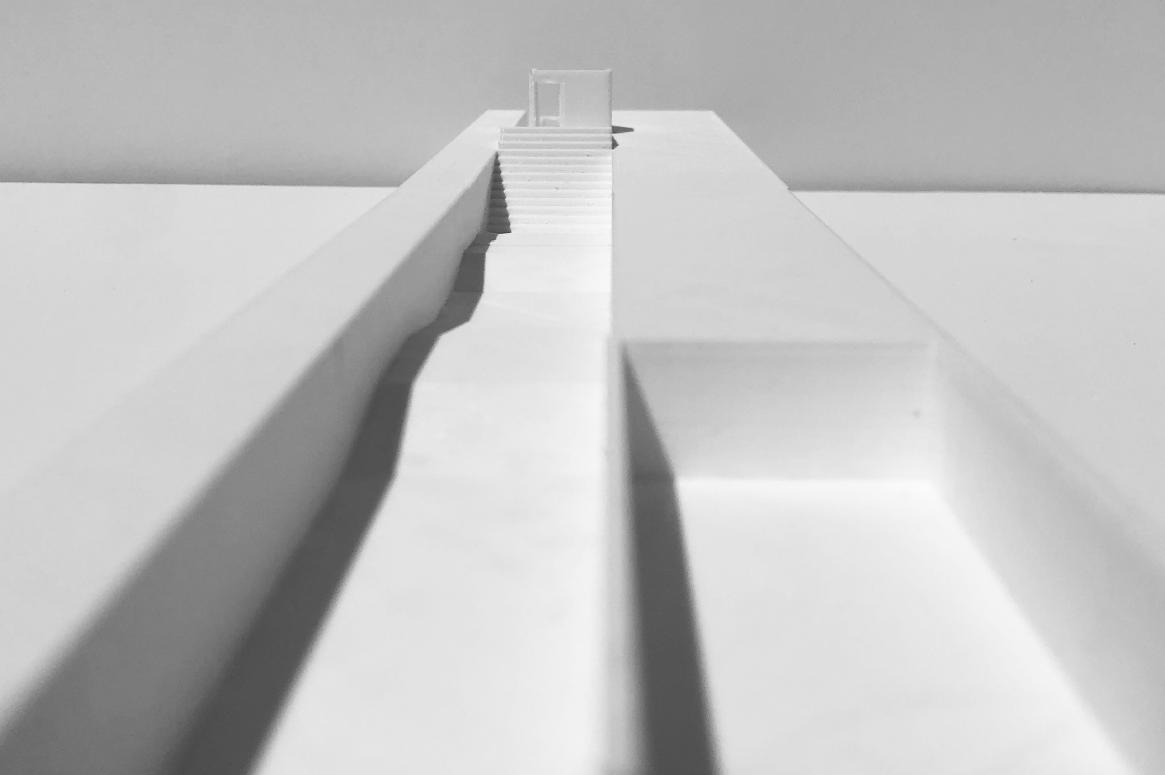

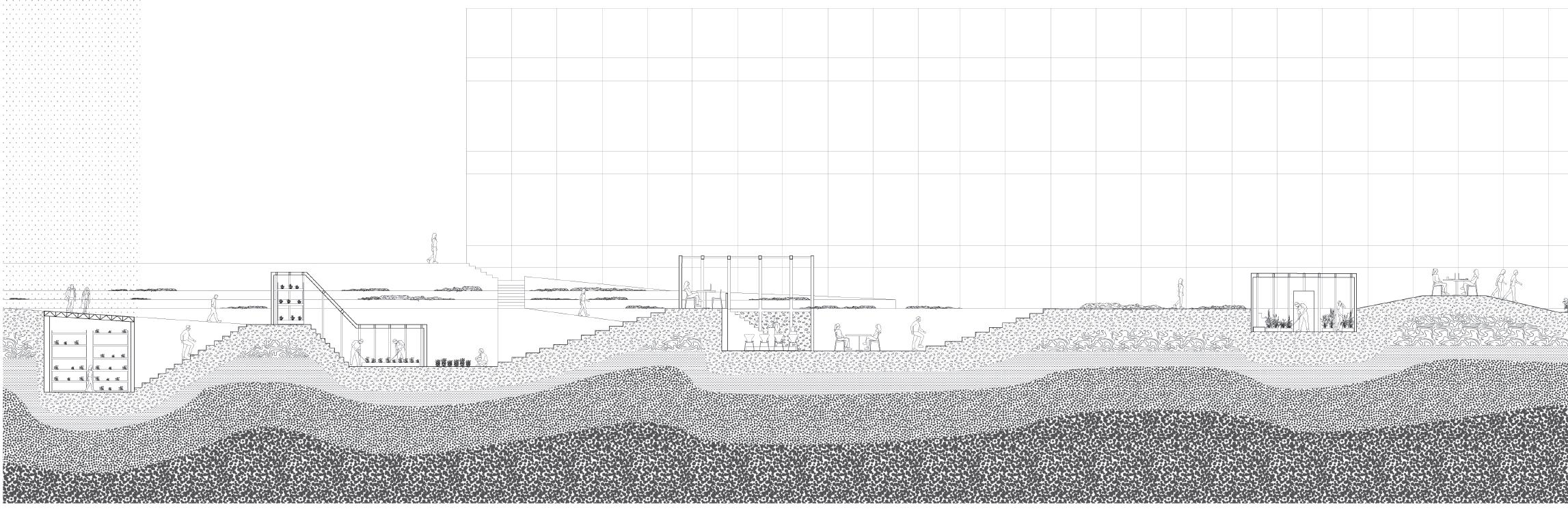

The site is situated along a straight path, but the path itself can move up and down at any point.
Elizabeth Cornfeld

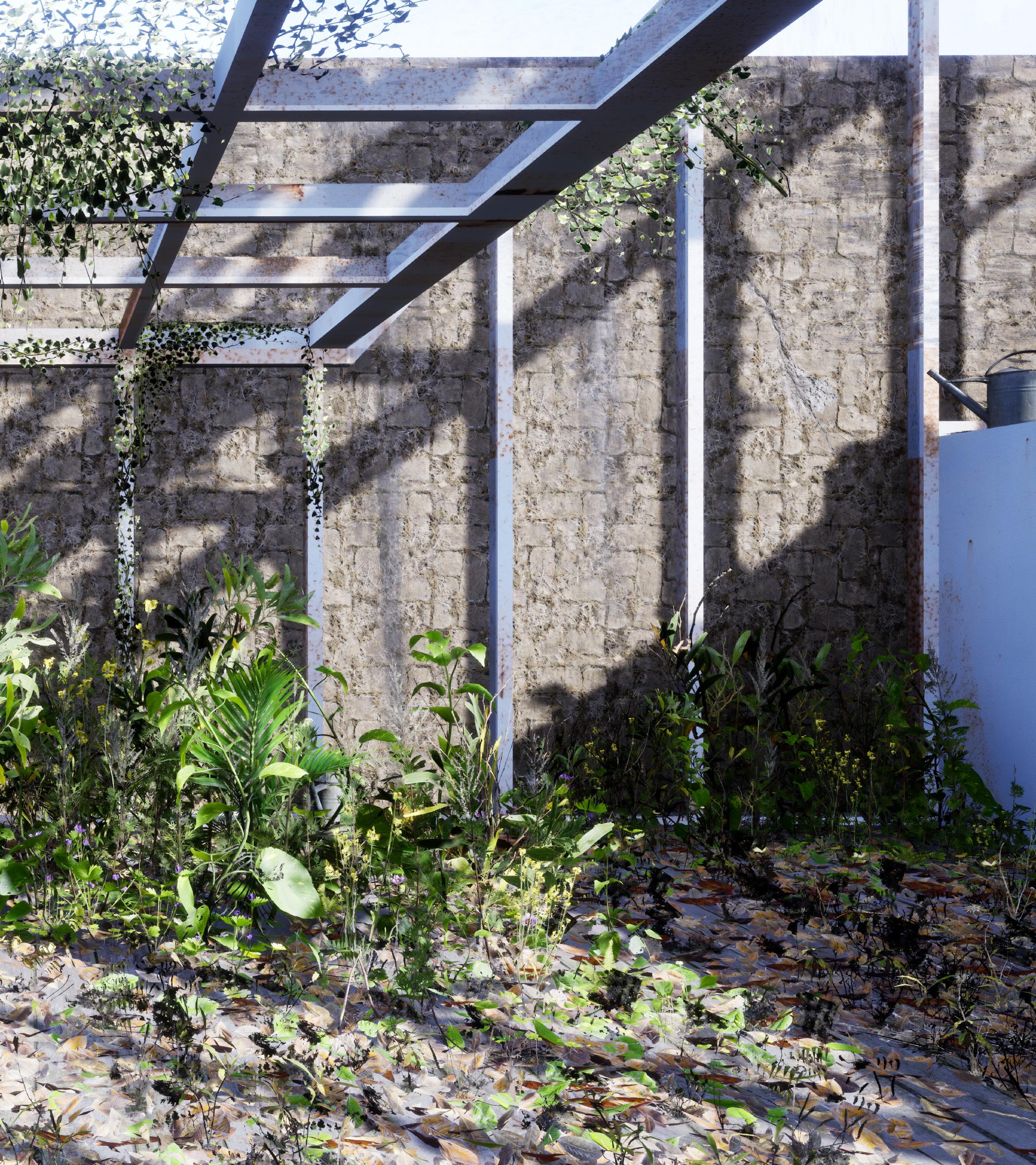

Vertical Garden Classroom and Lecture Hall
Elizabeth Cornfeld
Classroom and Lecture Hall
Library and Farming Space
Elizabeth Cornfeld
Shadow Study

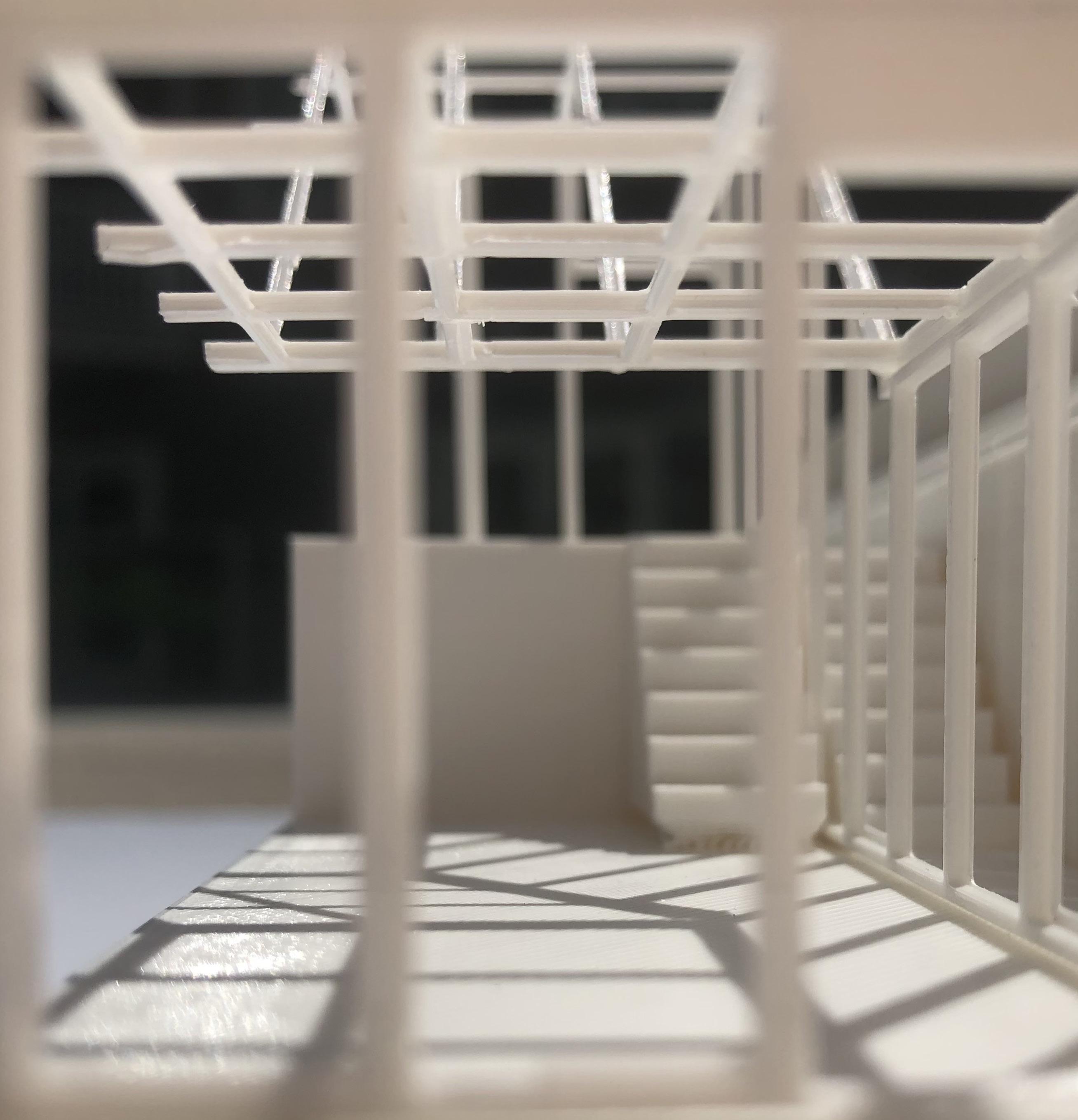

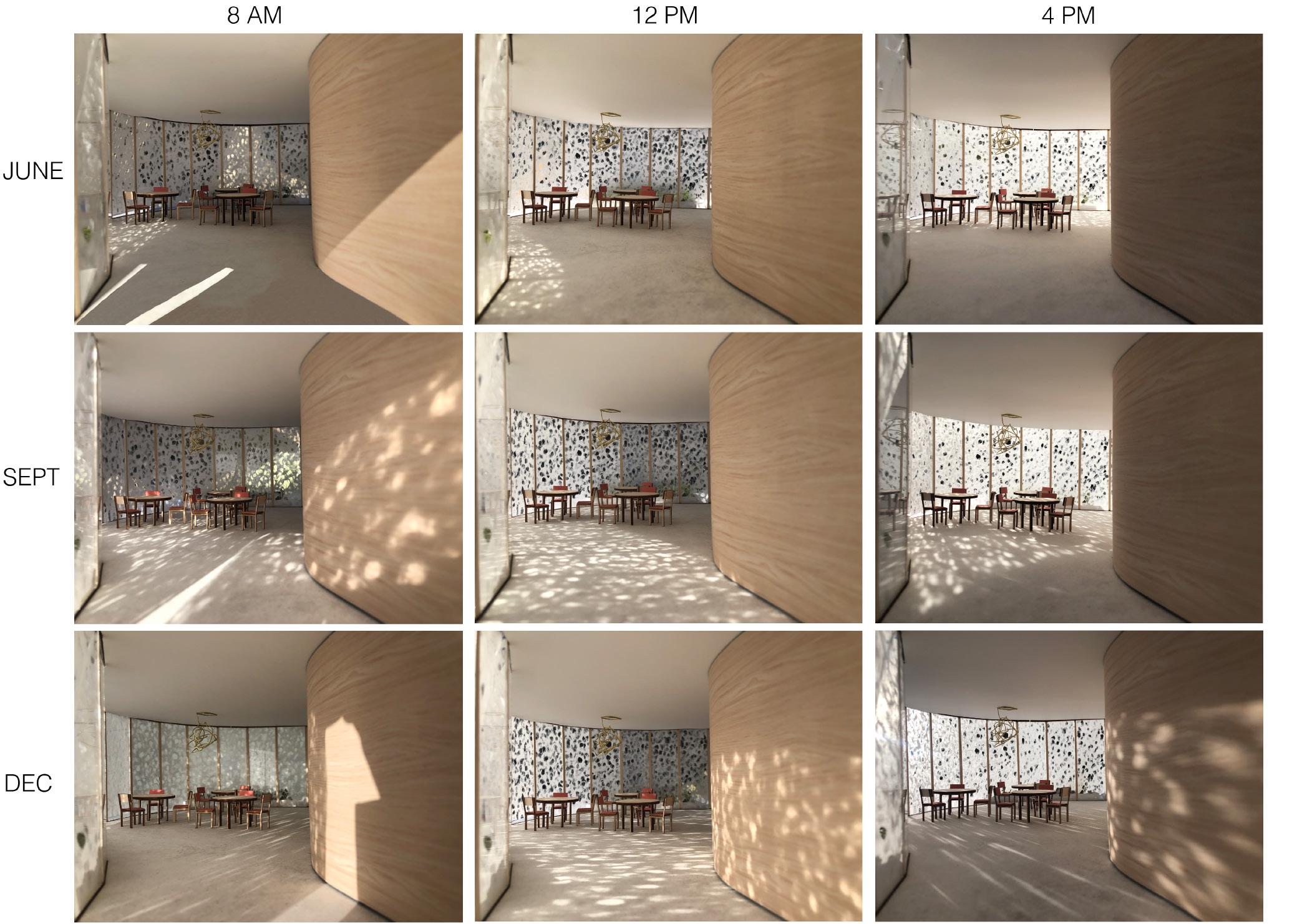

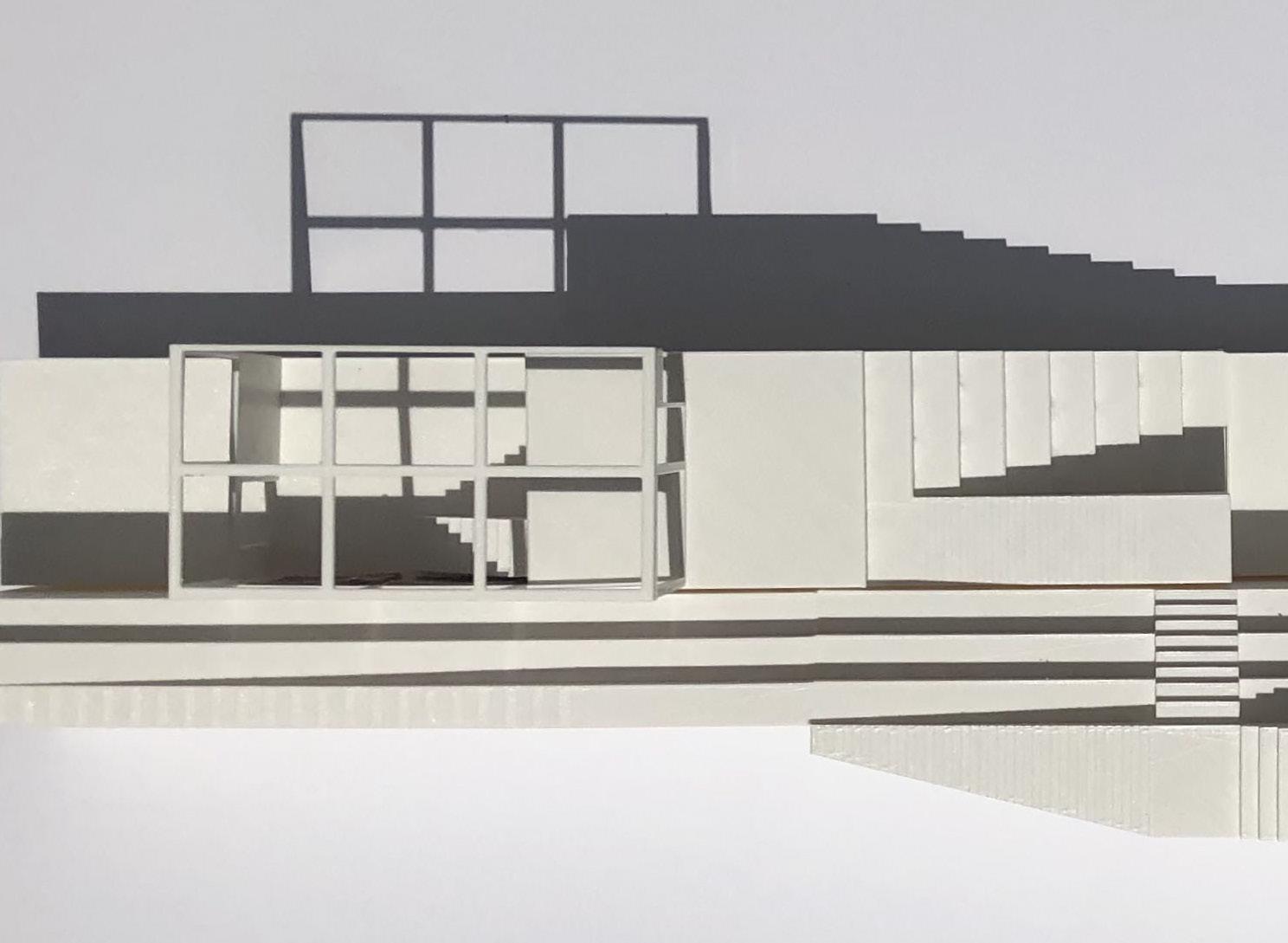

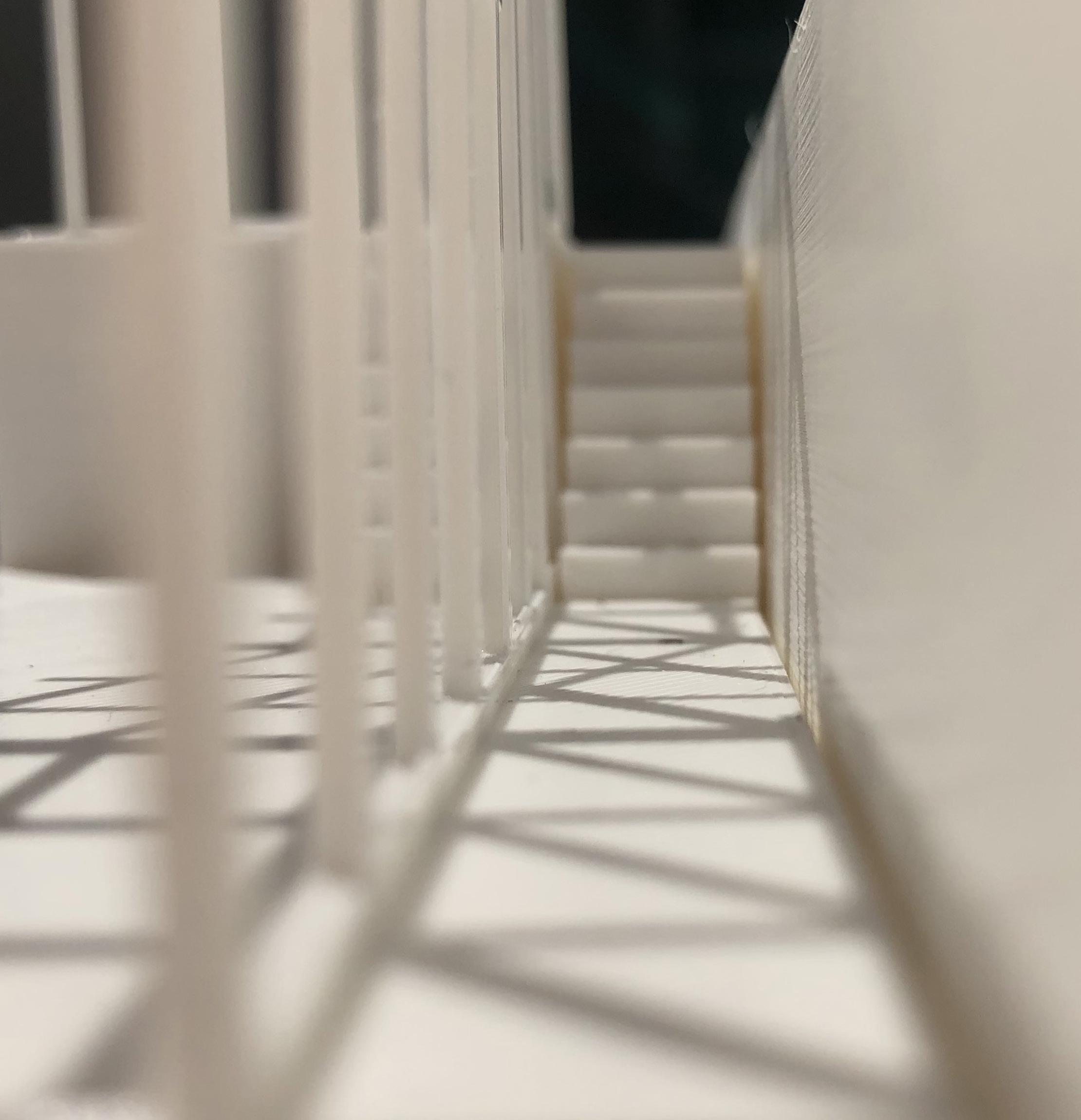

The buildings cast beautiful shadows that continue to articulate the non-linear horizon line of the overall design. Through the cast shadows, inhabitant’s still feel like they are within and apart of the building without having to physically go inside.
Elizabeth Cornfeld
Change Over Time
ARCH 1011 | Critic: Miroslava Brooks
Cupertino, California
Fall 2020
Elizabeth CornfeldProject Objective: Begin with a pattern and read it organizationally, as confgurations of volumes and objects and potential activities and relationships. Speculate on the spatial and organizational potential of the plan while given an assigned program.

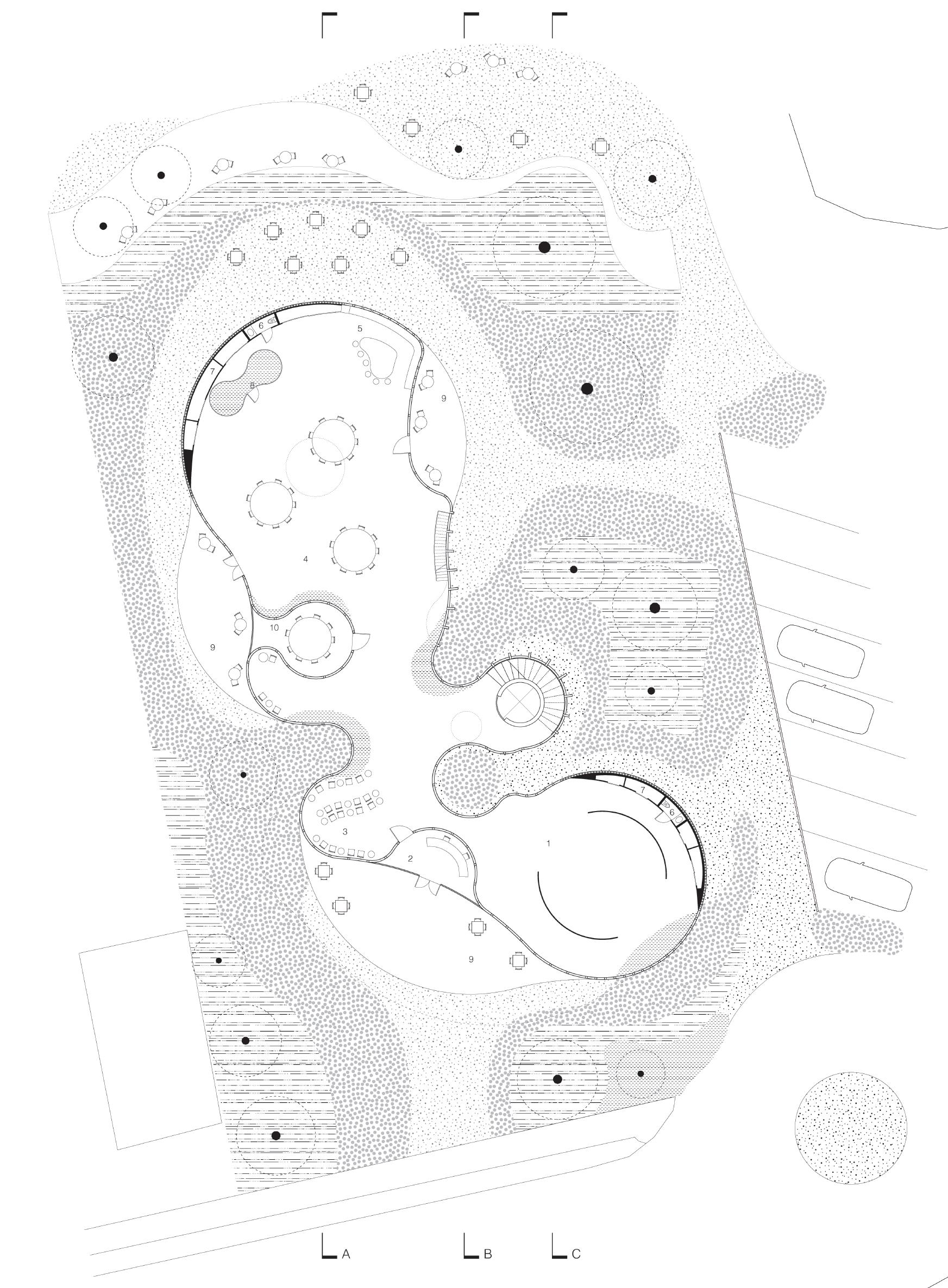

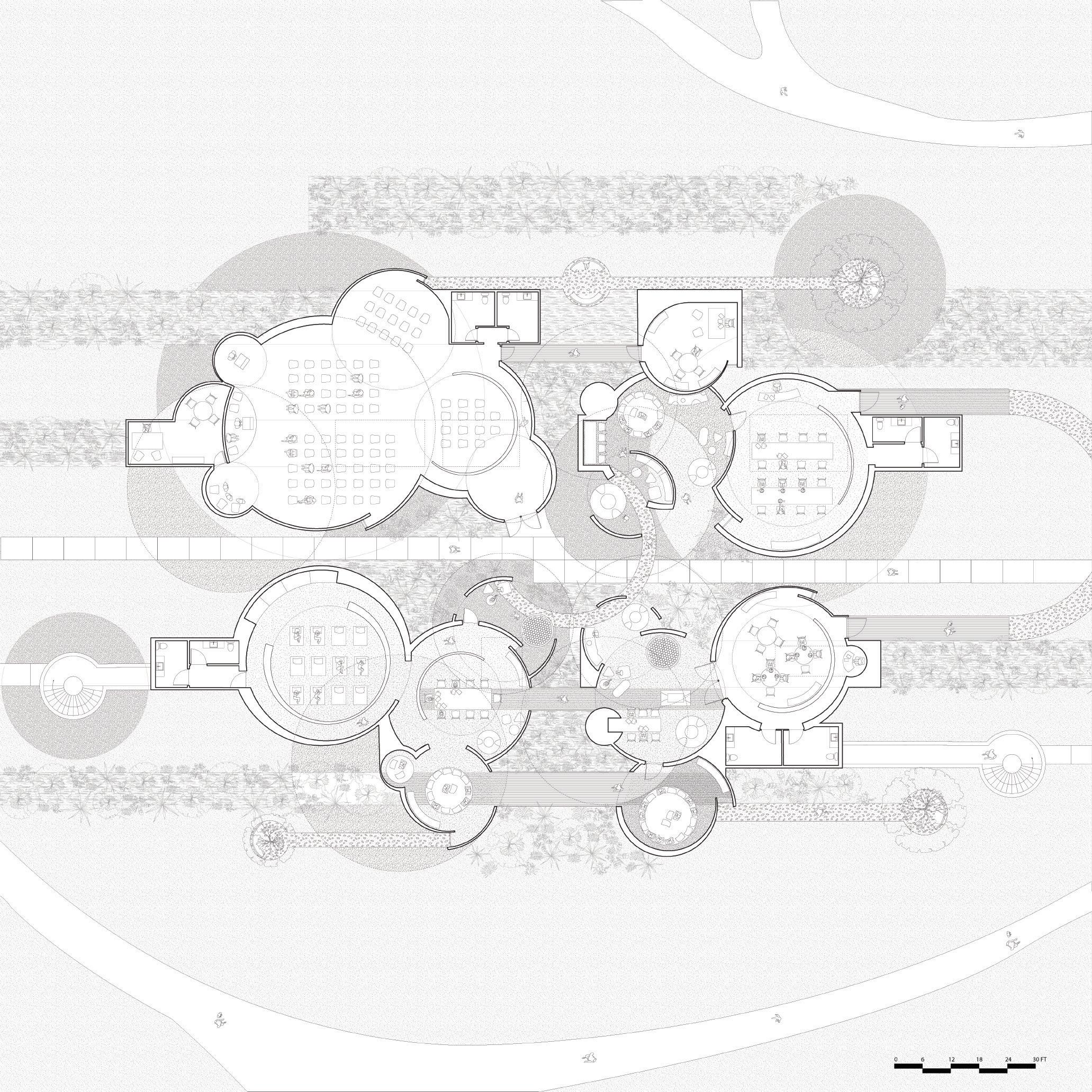

This 10,000 SF daycare and synagogue proposal, located in California, takes its inspiration from overlapping circles and strong horizontality. Four buildings are created around a center point to make a defned exterior space that can be utilized for a specifed program. The roof creates a unique relationship to the space by offering shade and protection from the elements. While the pathways act as a connection between the buildings, the roofscape also acts as the connection between all four buildings.
Elizabeth Cornfeld
The design is inspired by the use of overlapping circles and strong horizontality in “Mariorola” by Beatriz Milhazes

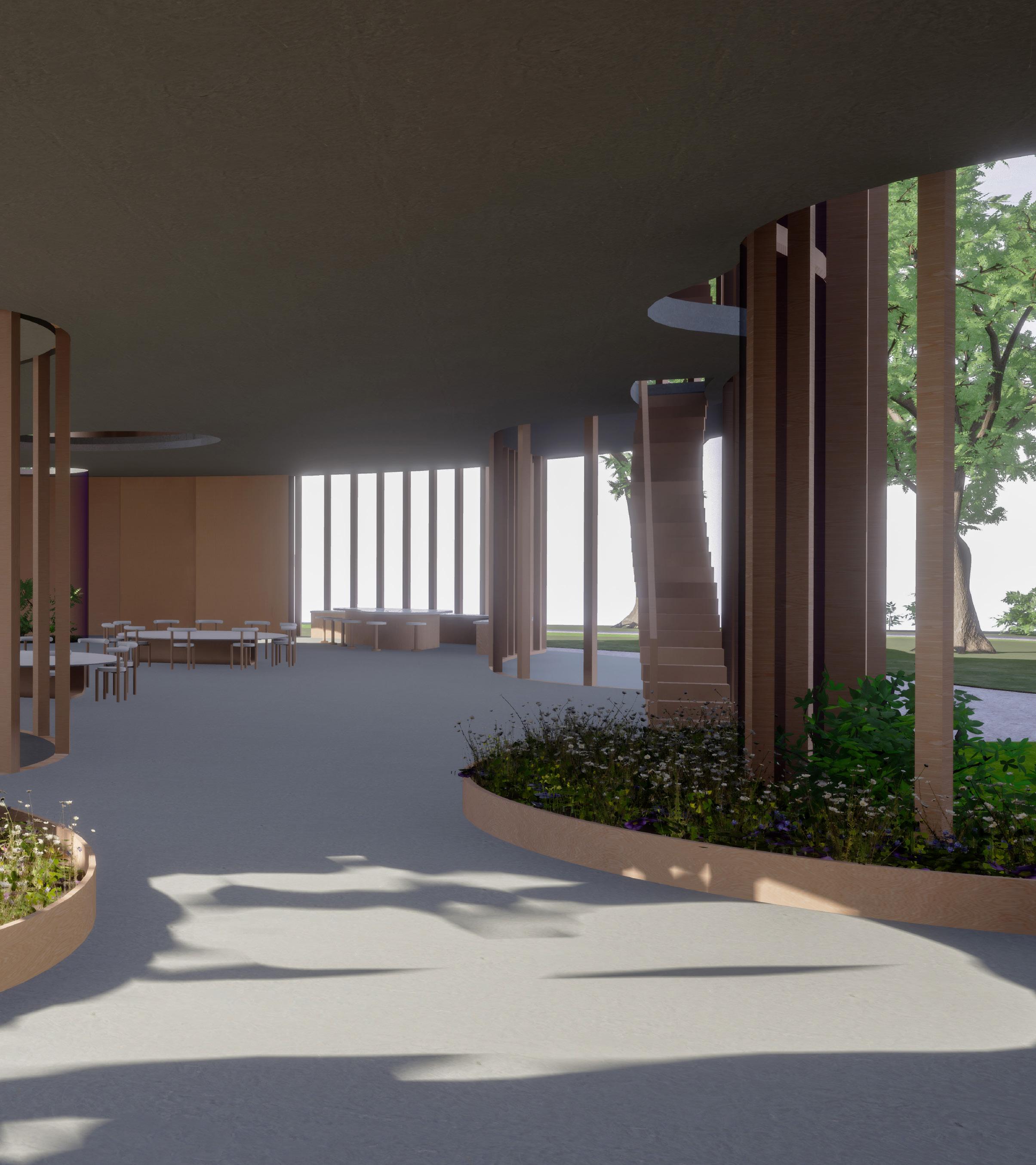

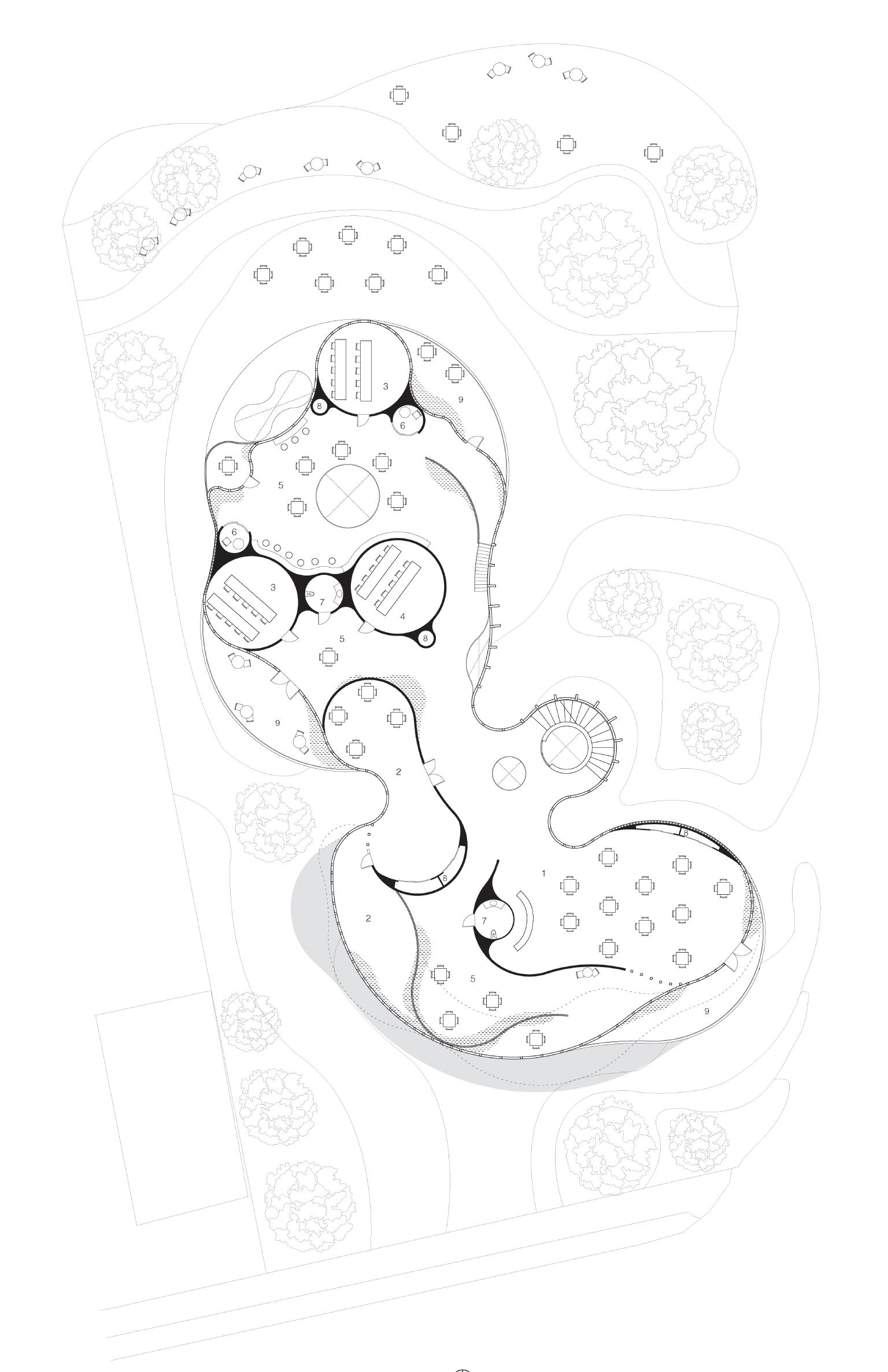

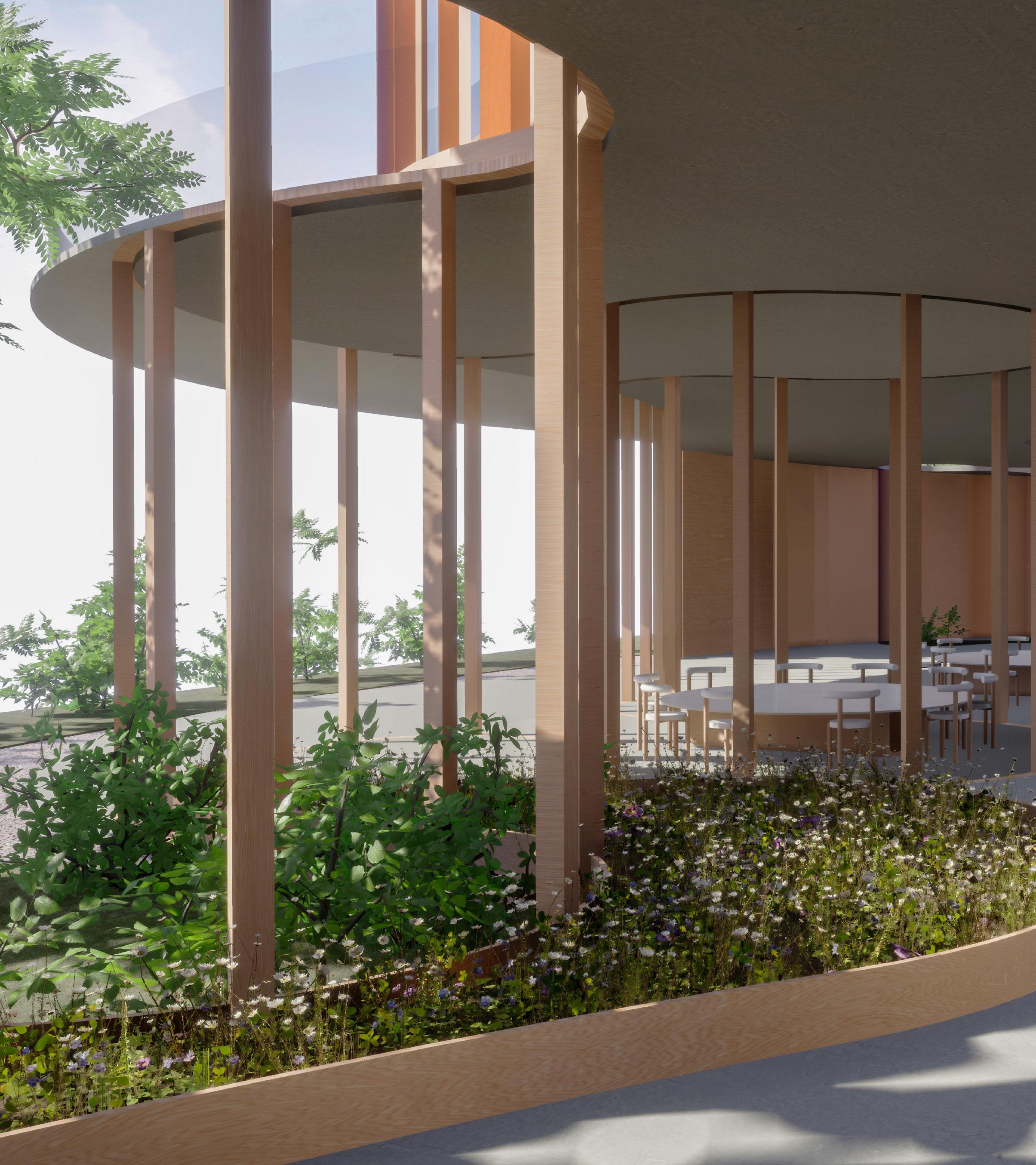

The roof creates a unique relationship to the space by offering shade and protection from the elements. While some portions of the roof match the shape of the foor plan below it, other parts of the roof are circular and expand outward over neighboring spaces.
Elizabeth Cornfeld

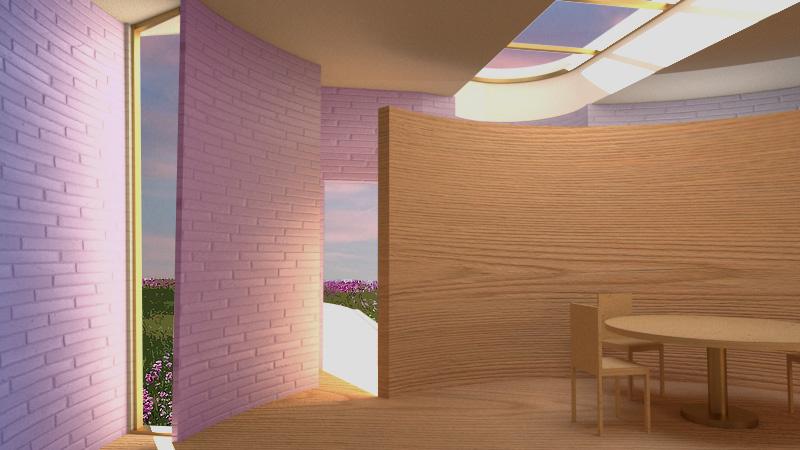

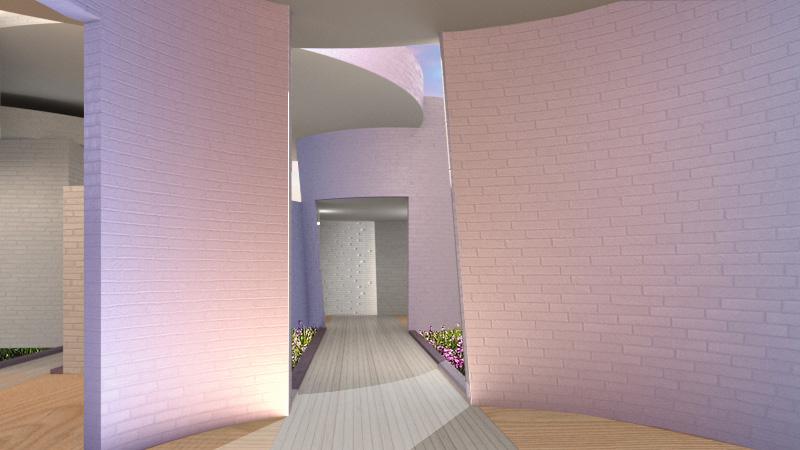

Light is fooded into the space through skylights and open passages. Floor to ceiling windows are also nested in between the wall, forcing the wall to peel back its circular form.
Elizabeth Cornfeld
