Wall external

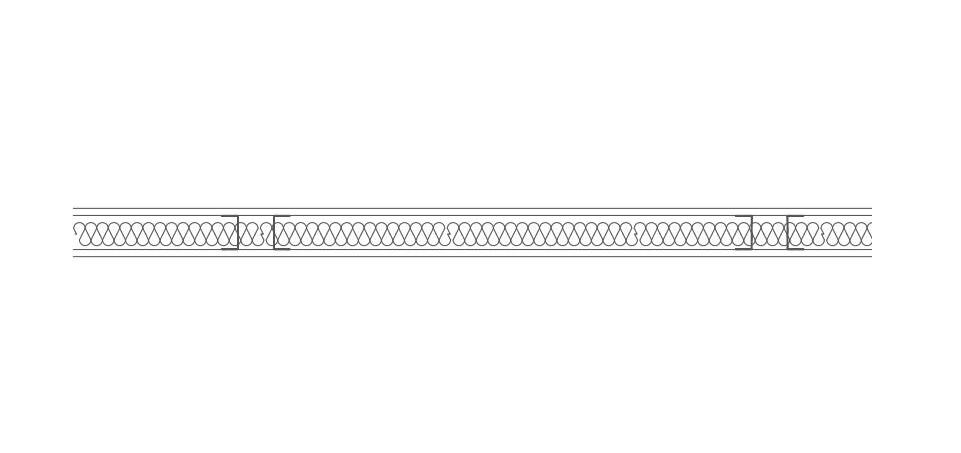

-Gypsum Fibreboard 12.5mm -Rockwool Insulation 12.5mm -Gypsum Fibreboard 12.5mm
U-Value : 0.16W/(m²K)
Construction Materials d Thickness m λ W/mK R W/m²K
Wall External Gypsum Fibreboard Rockwool Insulation Gypsum Fibreboard
0.0125 0.0125 0.0125
U VALUE CALCULATION : EXTERNAL WALL

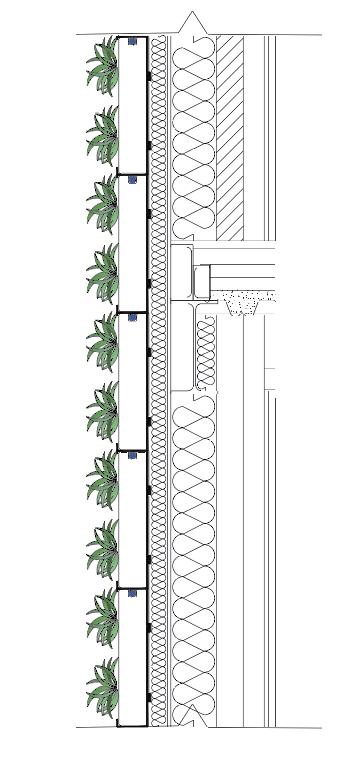

Perimeter wall
-vegetation layer -coultivation land 60mm -hydro-windproof membrane 10mm -EPS insulation 40mm -plaster 10mm -XPS thermal insulation 90mm -gasbeton blocks 70mm -plaster 10mm
Construction Materials d Thickness m λ W/mK R W/m²K
Basement vegetation layer coultivation land hydro-windproof membrane EPS insulation plaster XPS thermal insulation gasbeton blocks plaster
0.06 0.01 0.04 0.01 0.09 0.07 0.01
U-Value : 0.214W/(m²K)
0.053 0.035 0.800 0.035 0.120 0.800
0.189 1.143 0.013 2.571 0.583 0.013

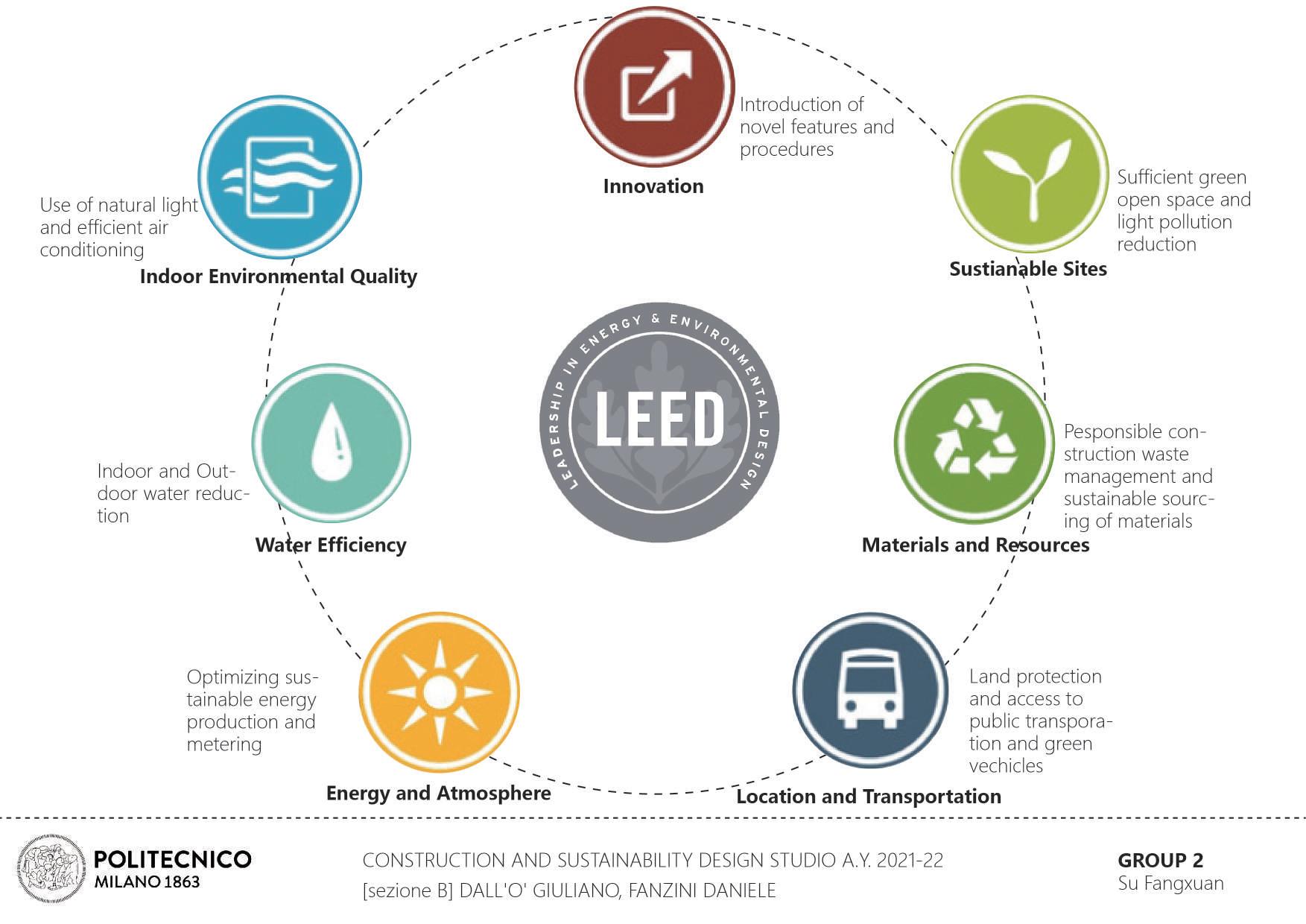

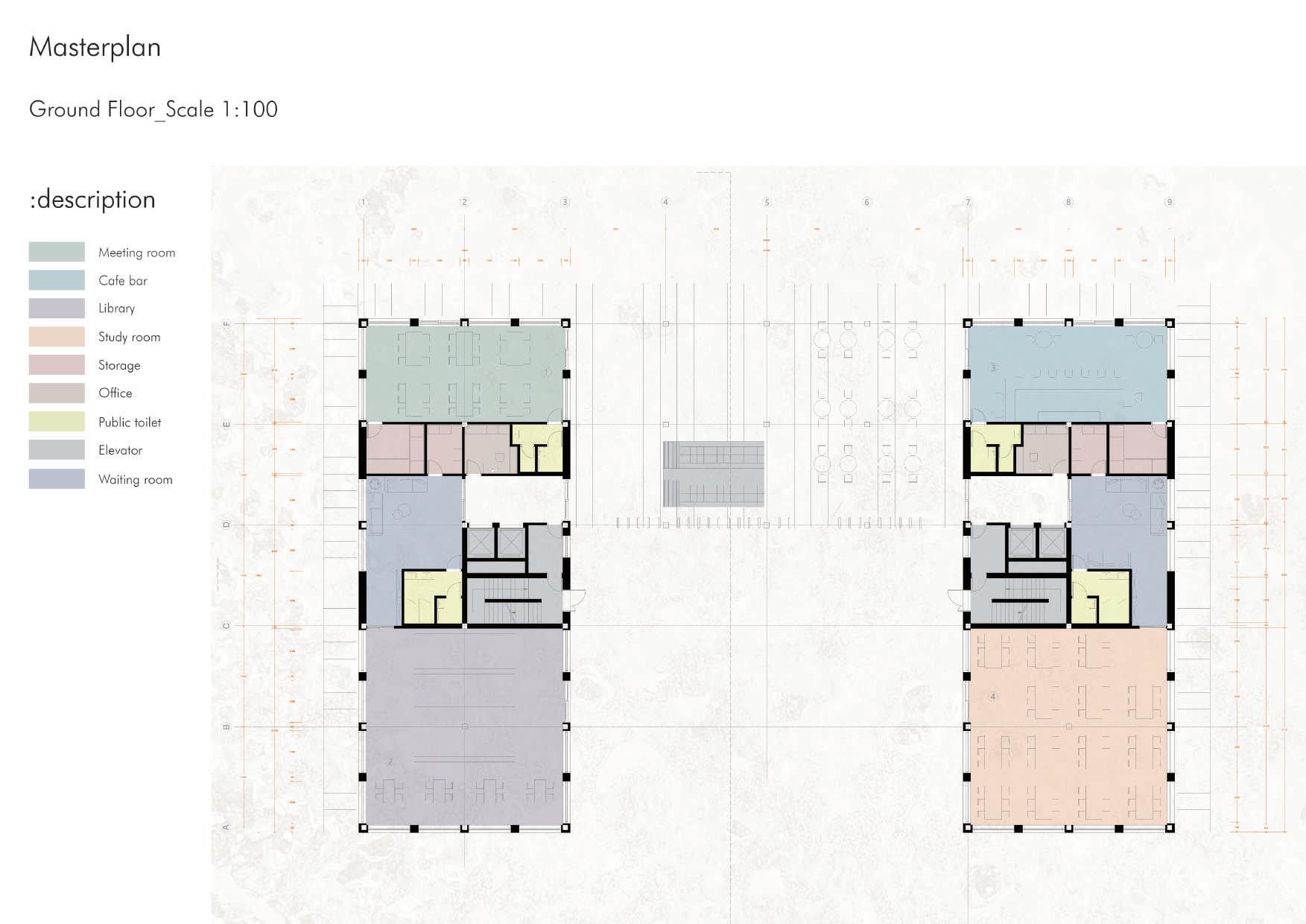

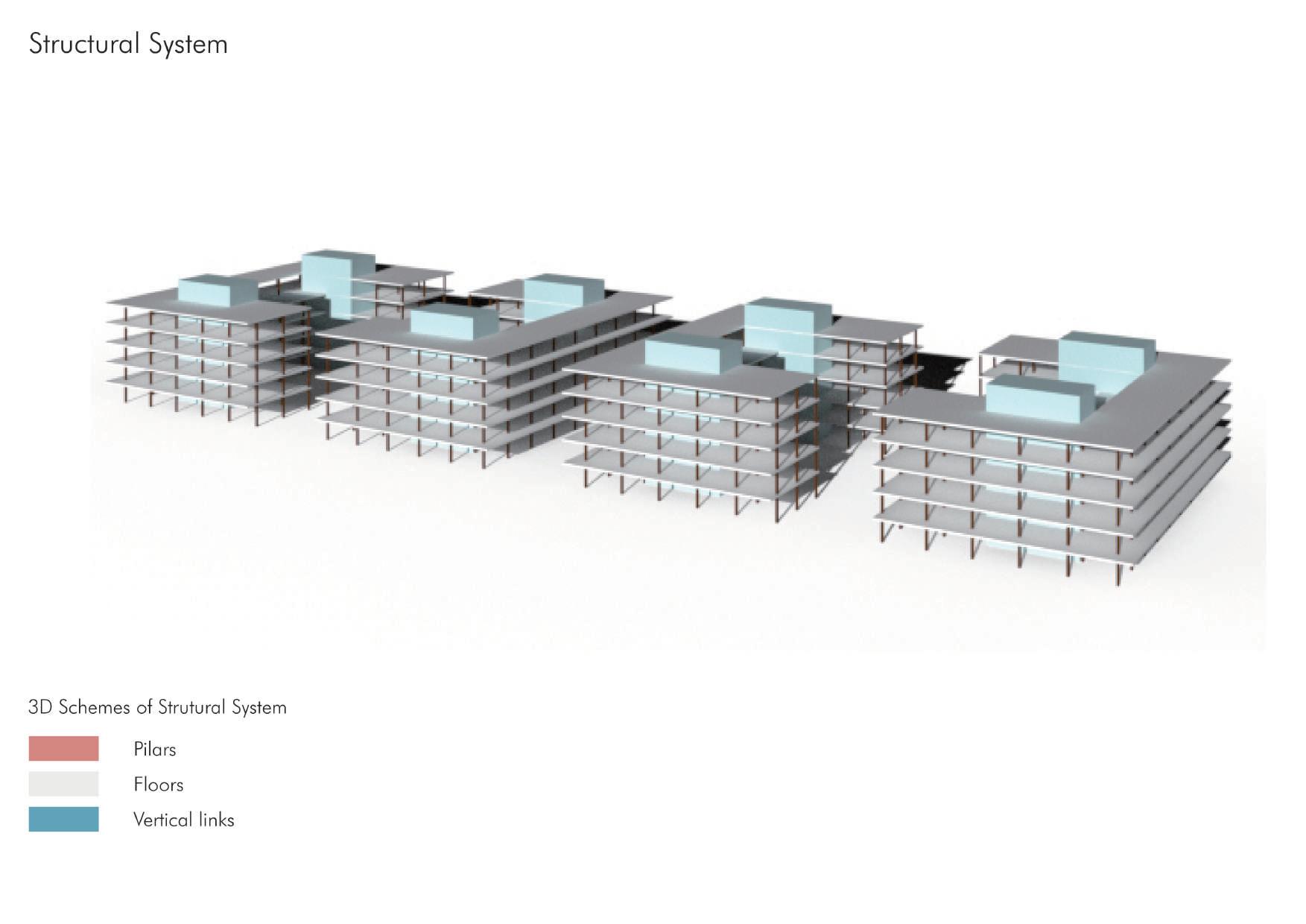

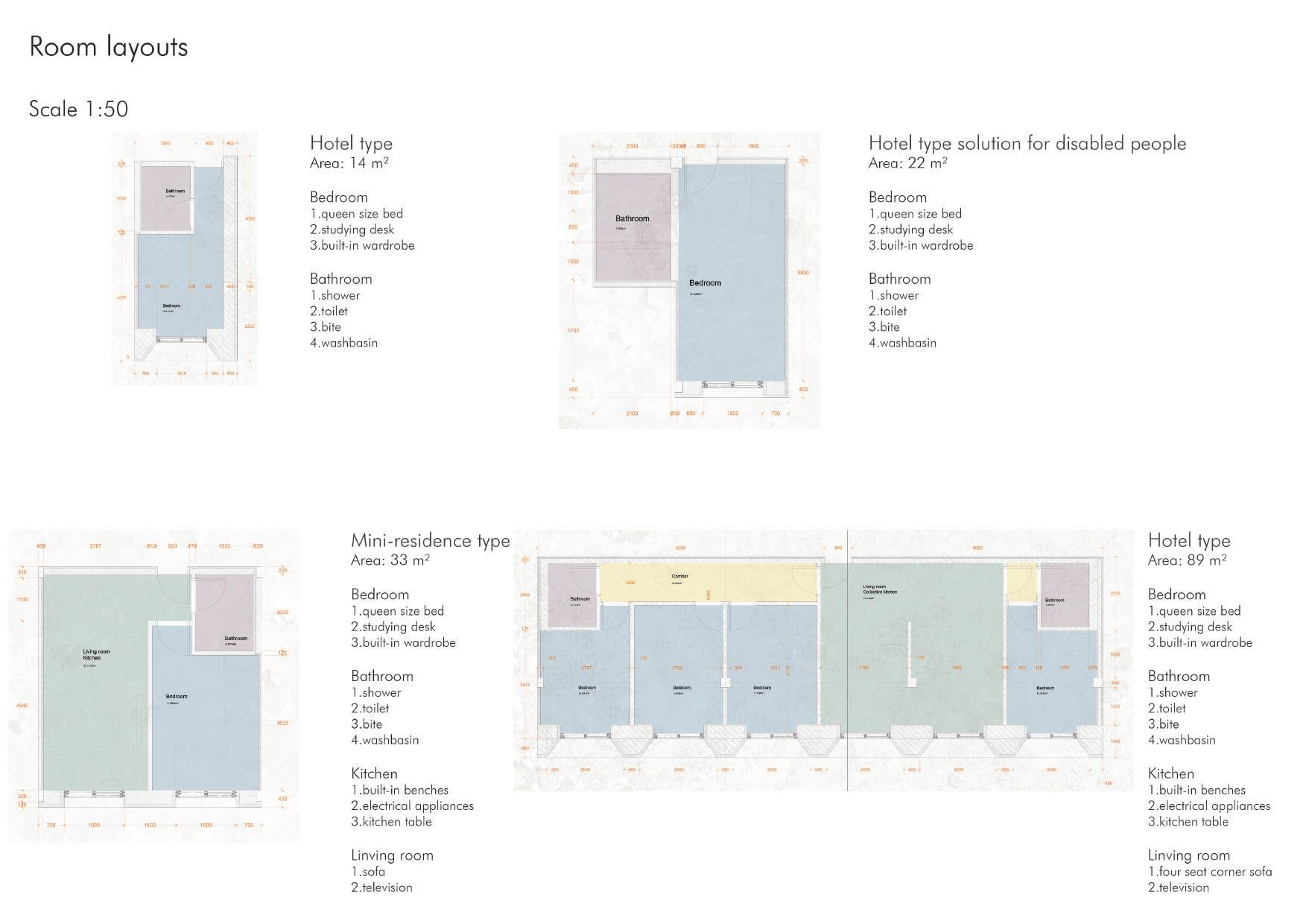

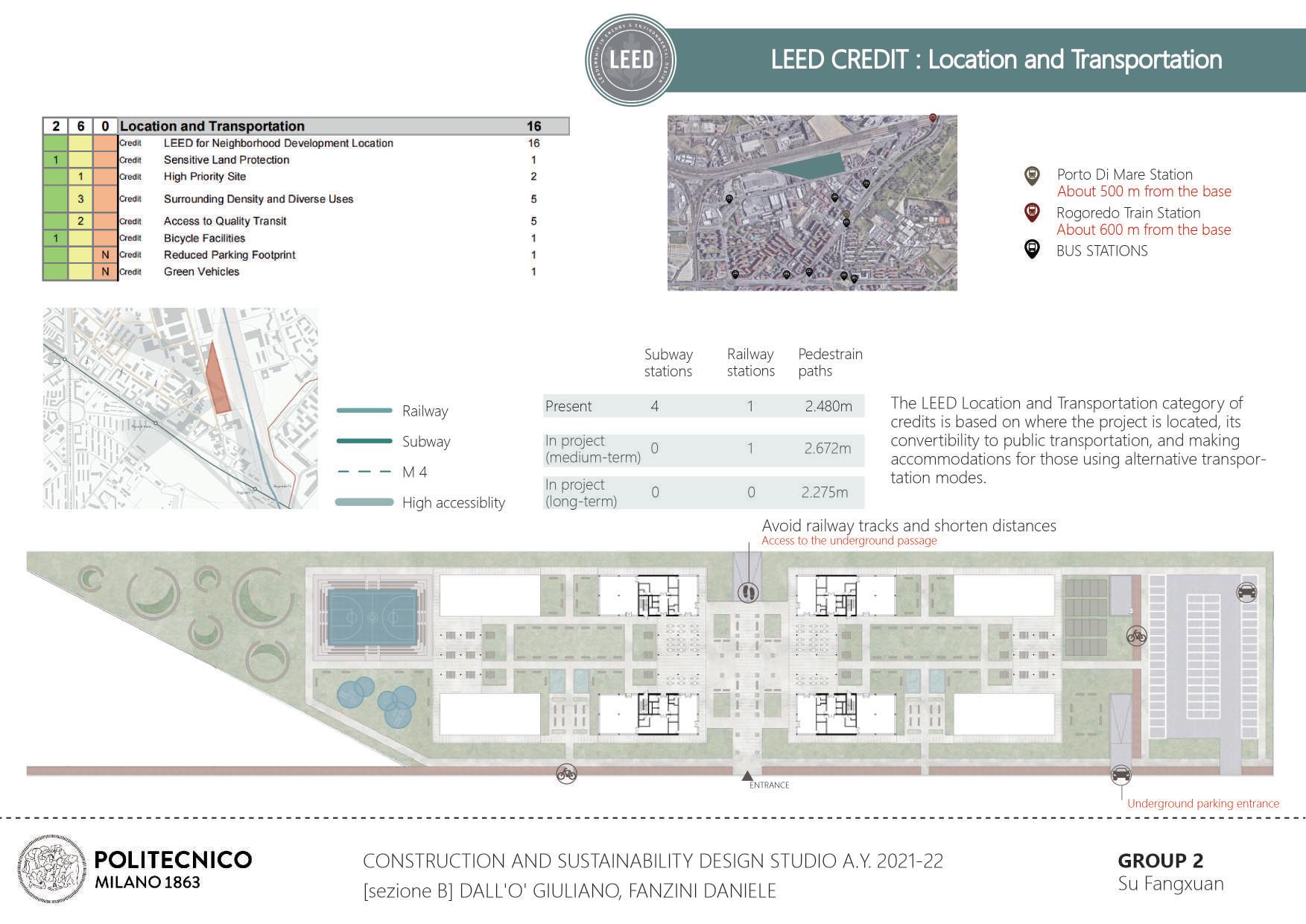

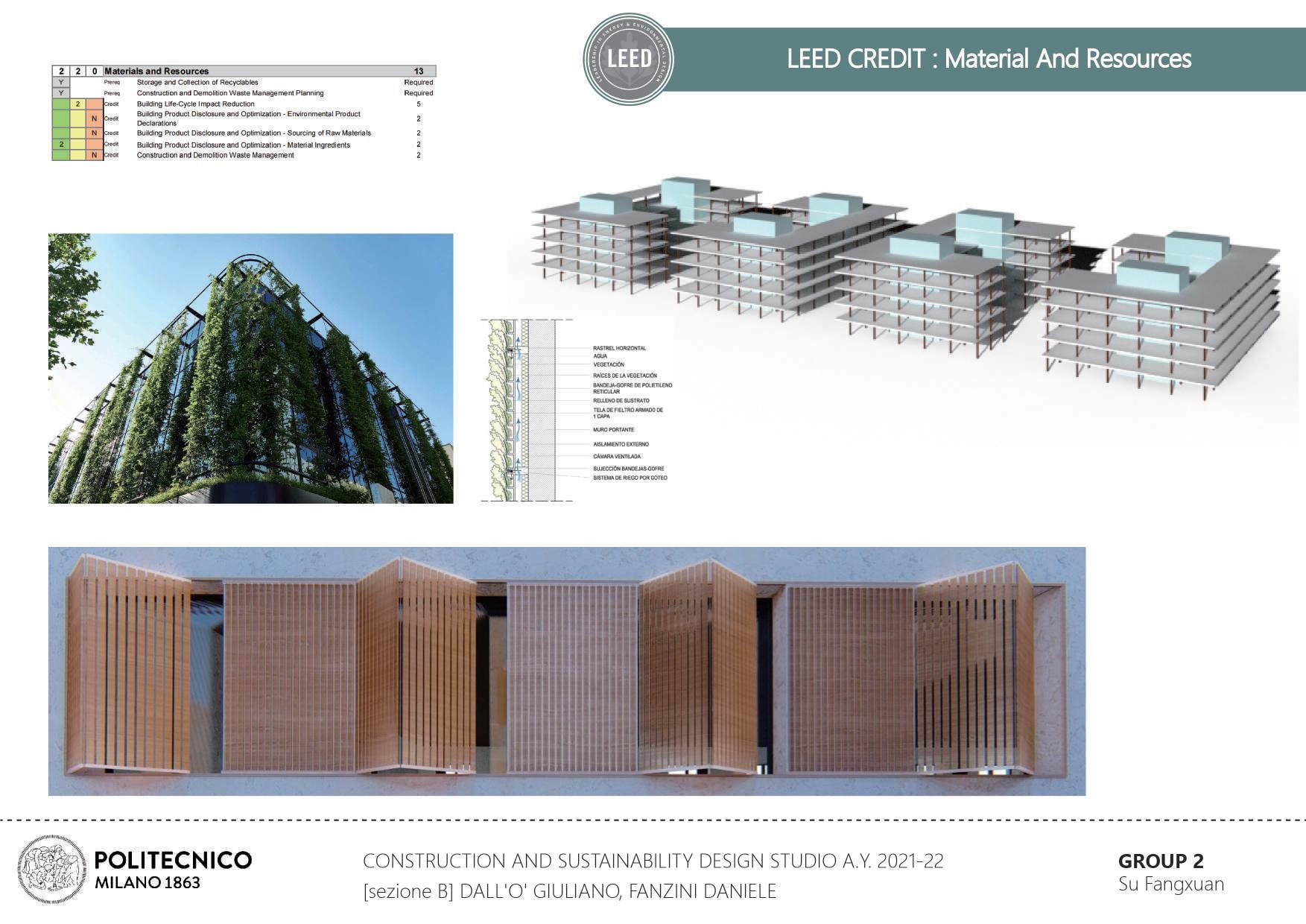

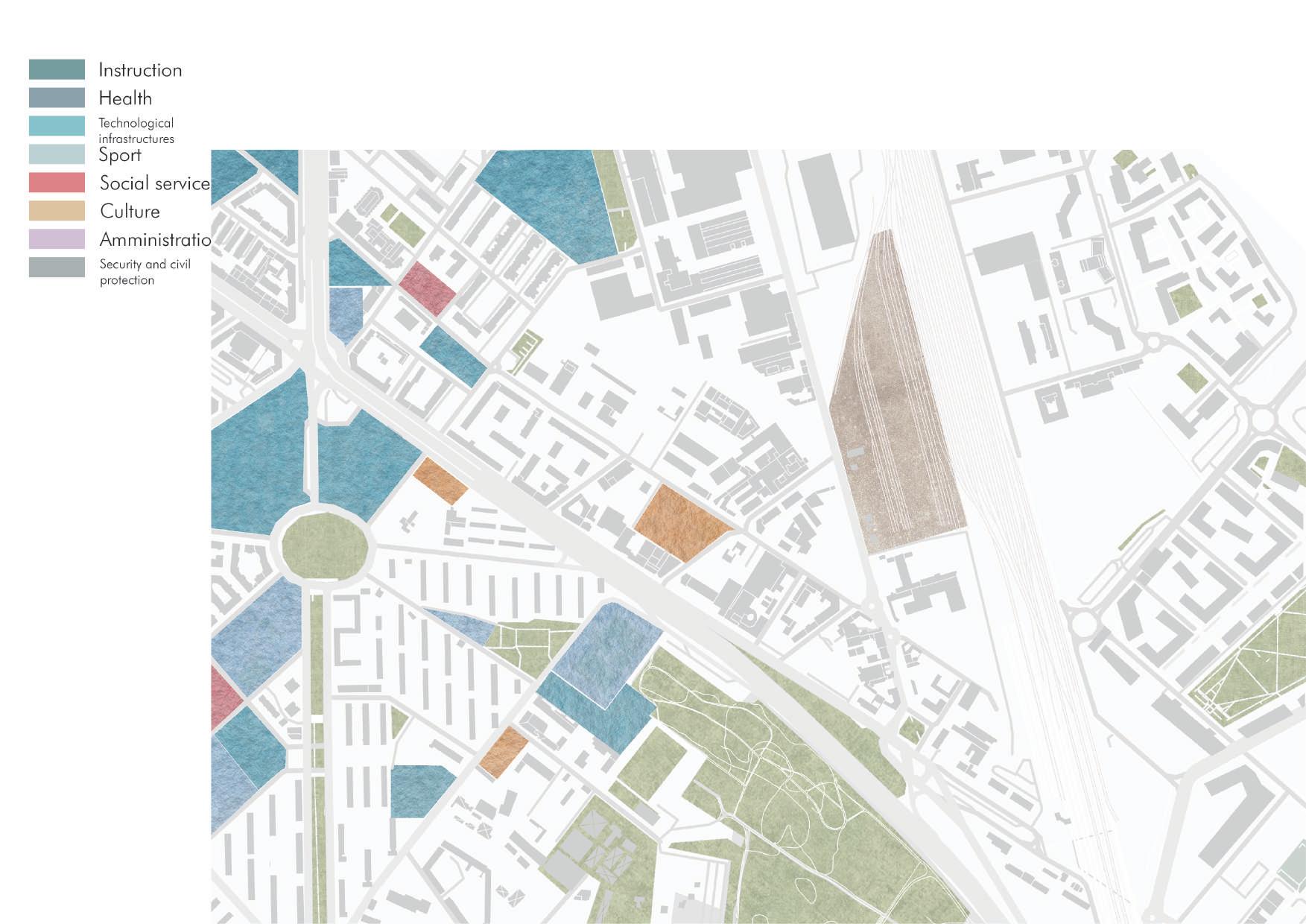

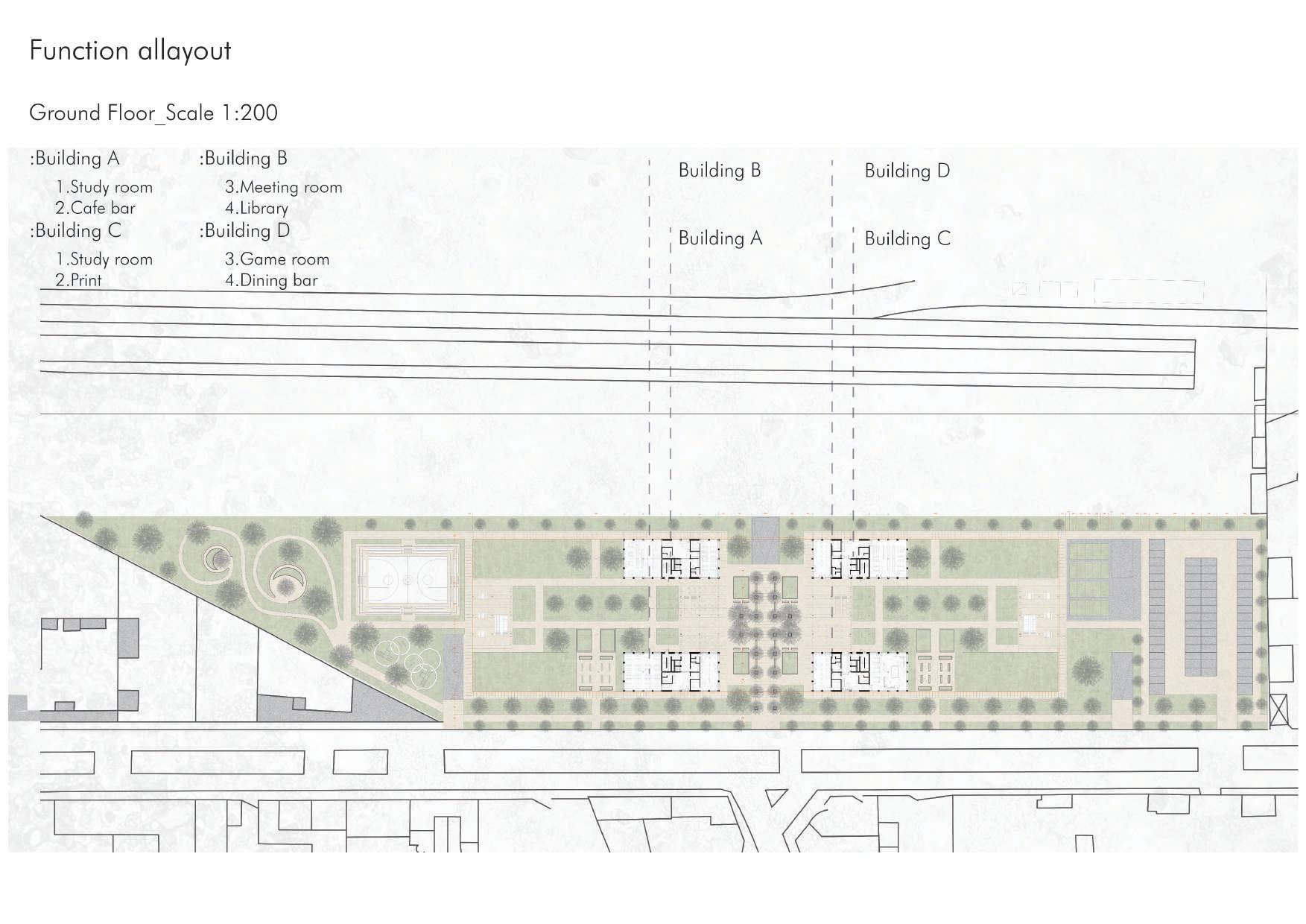

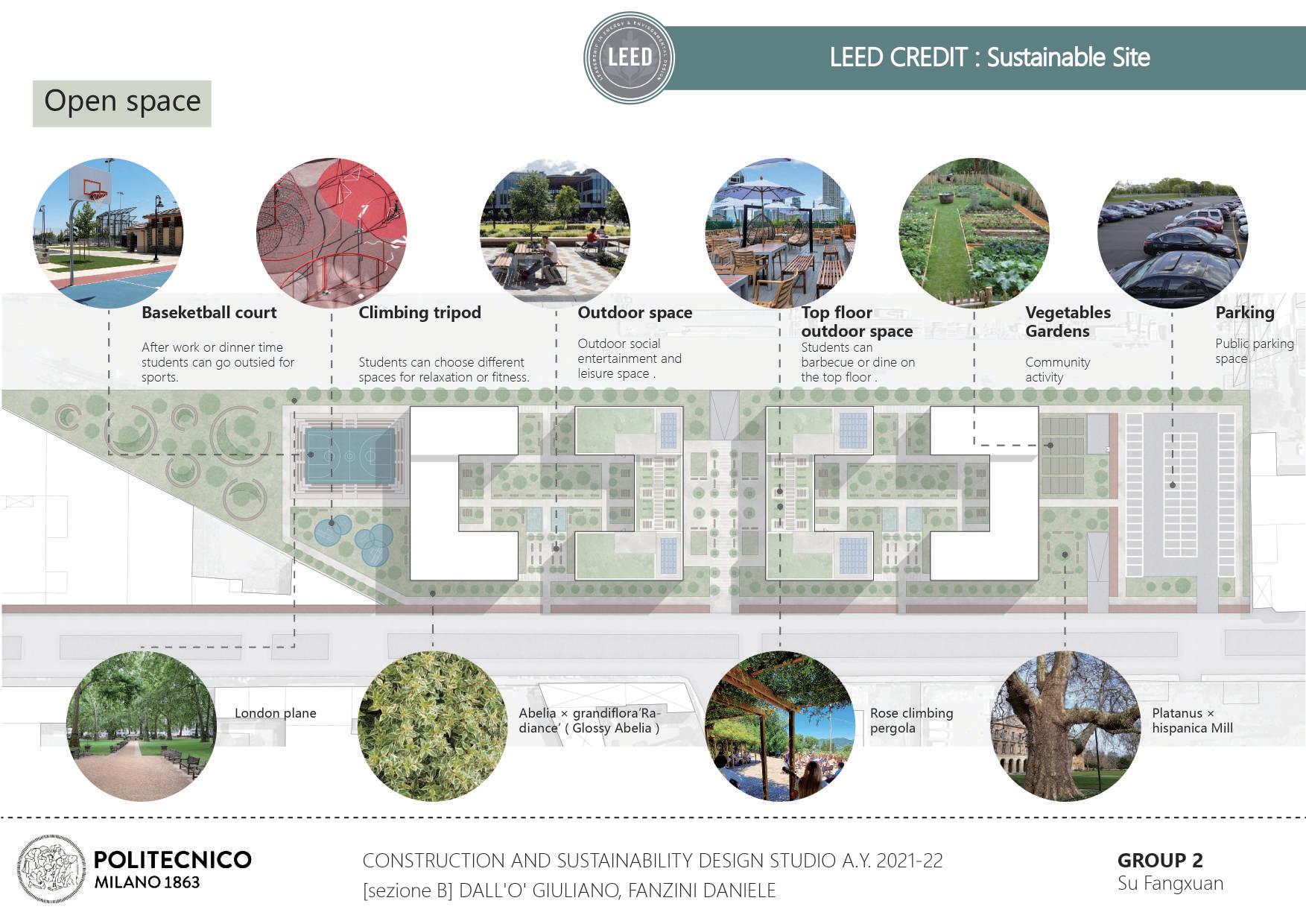

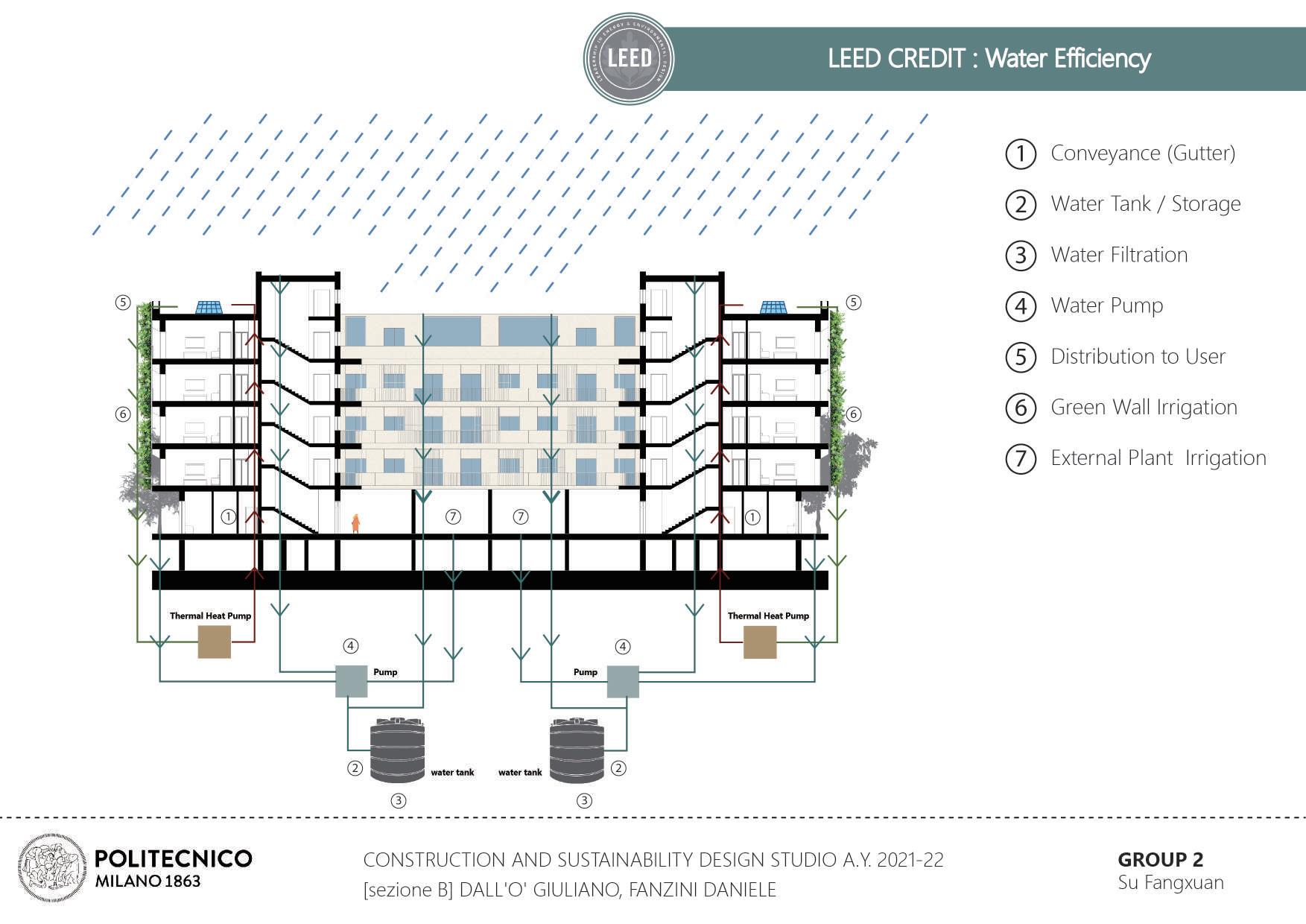

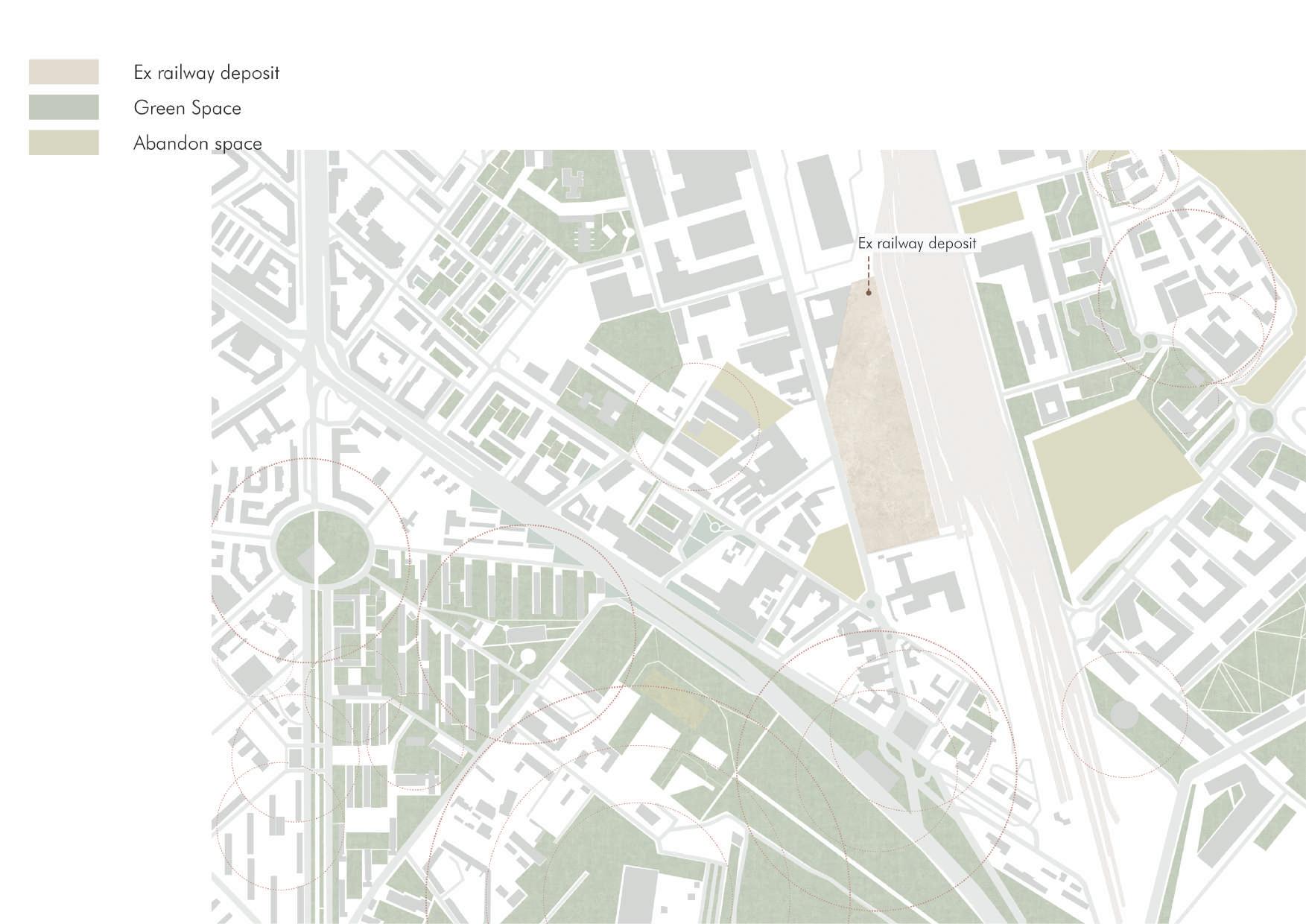

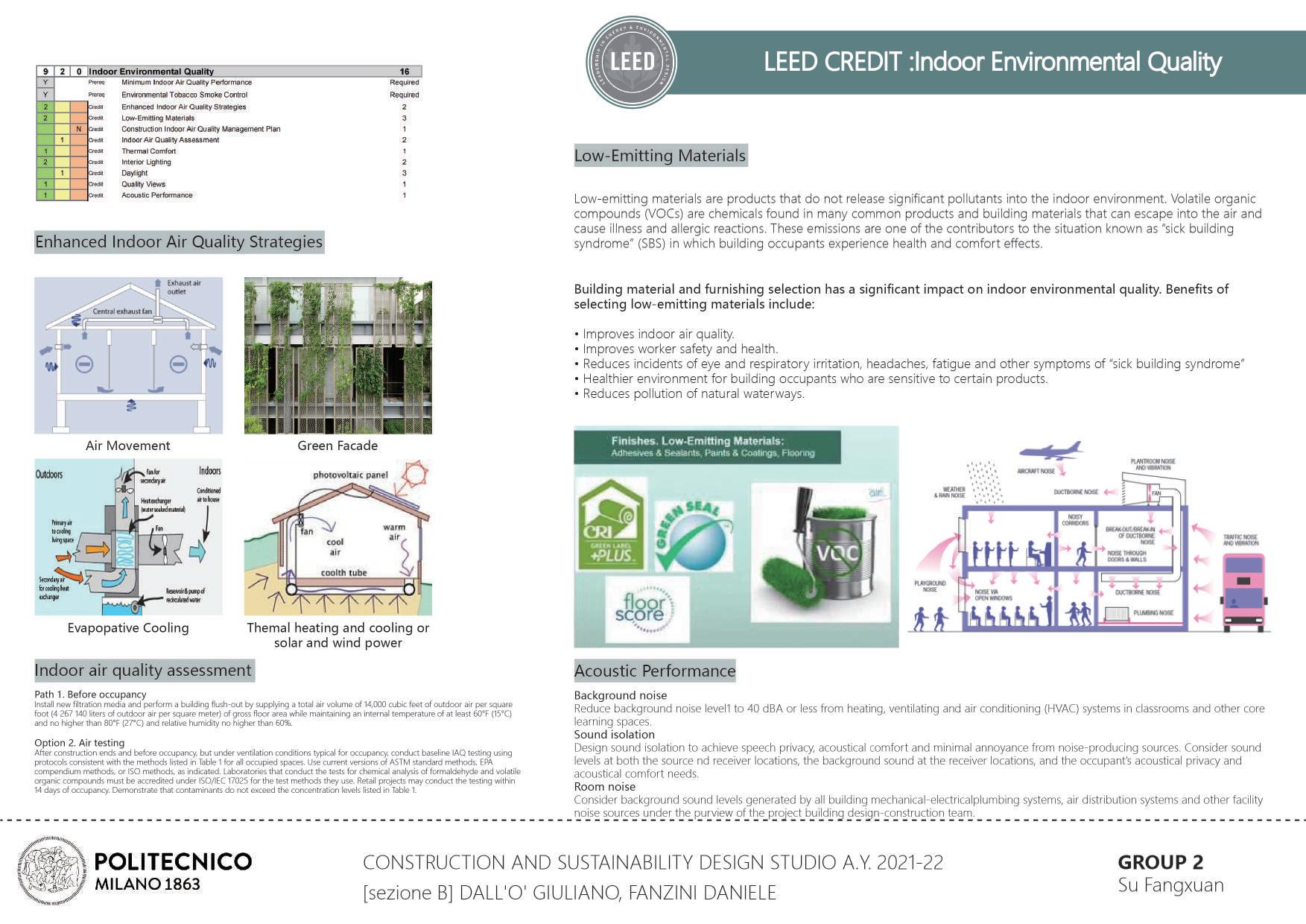

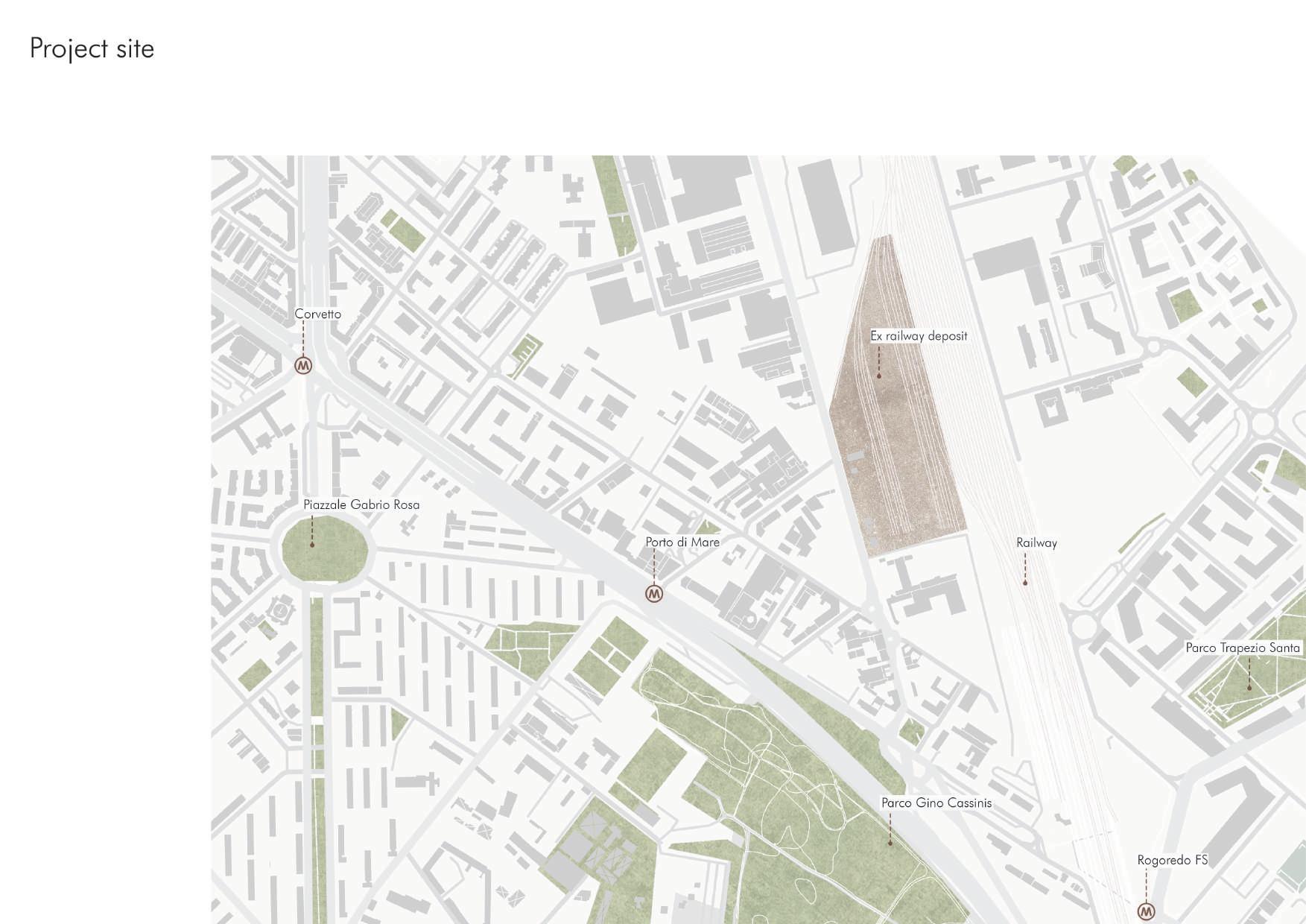

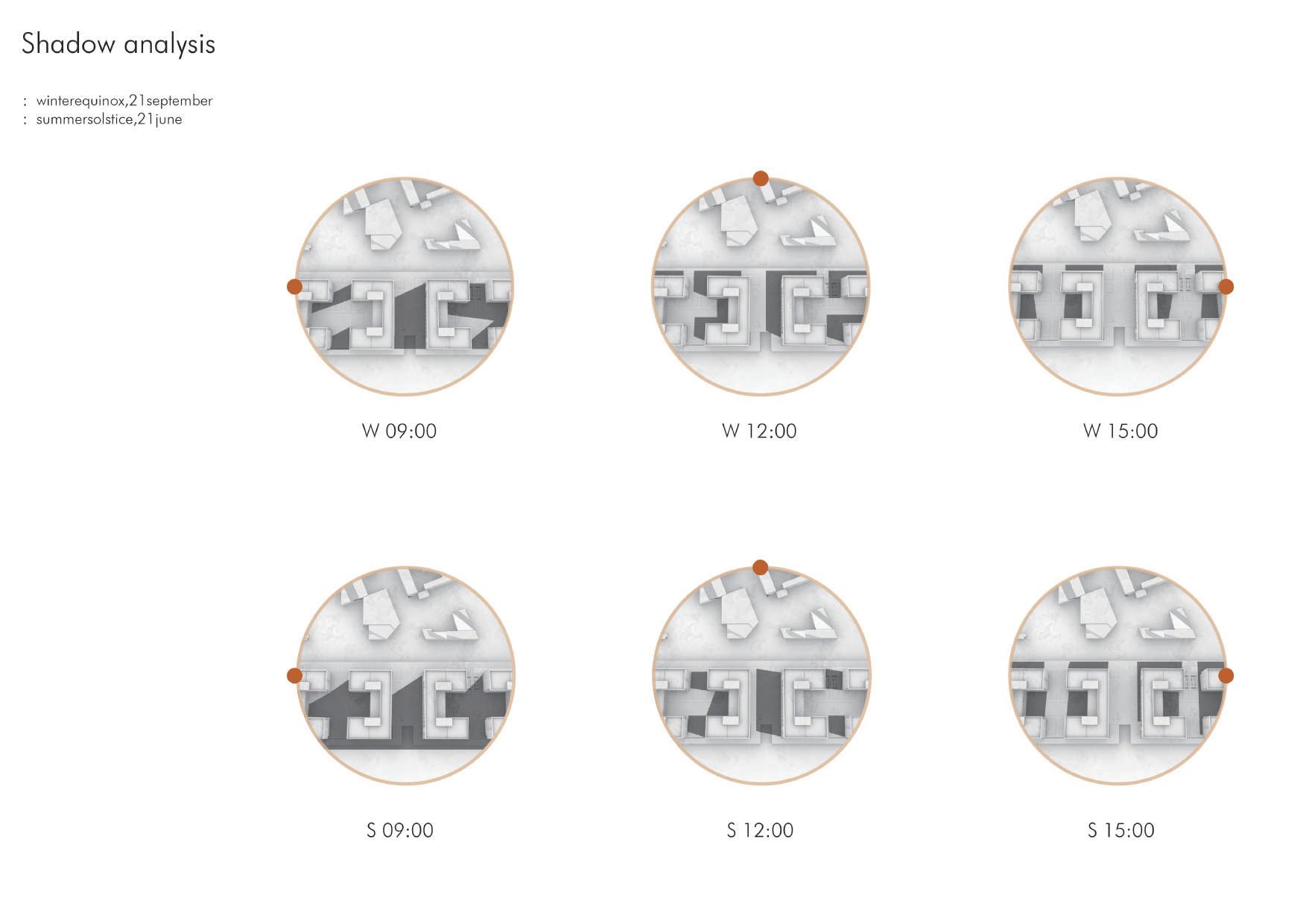

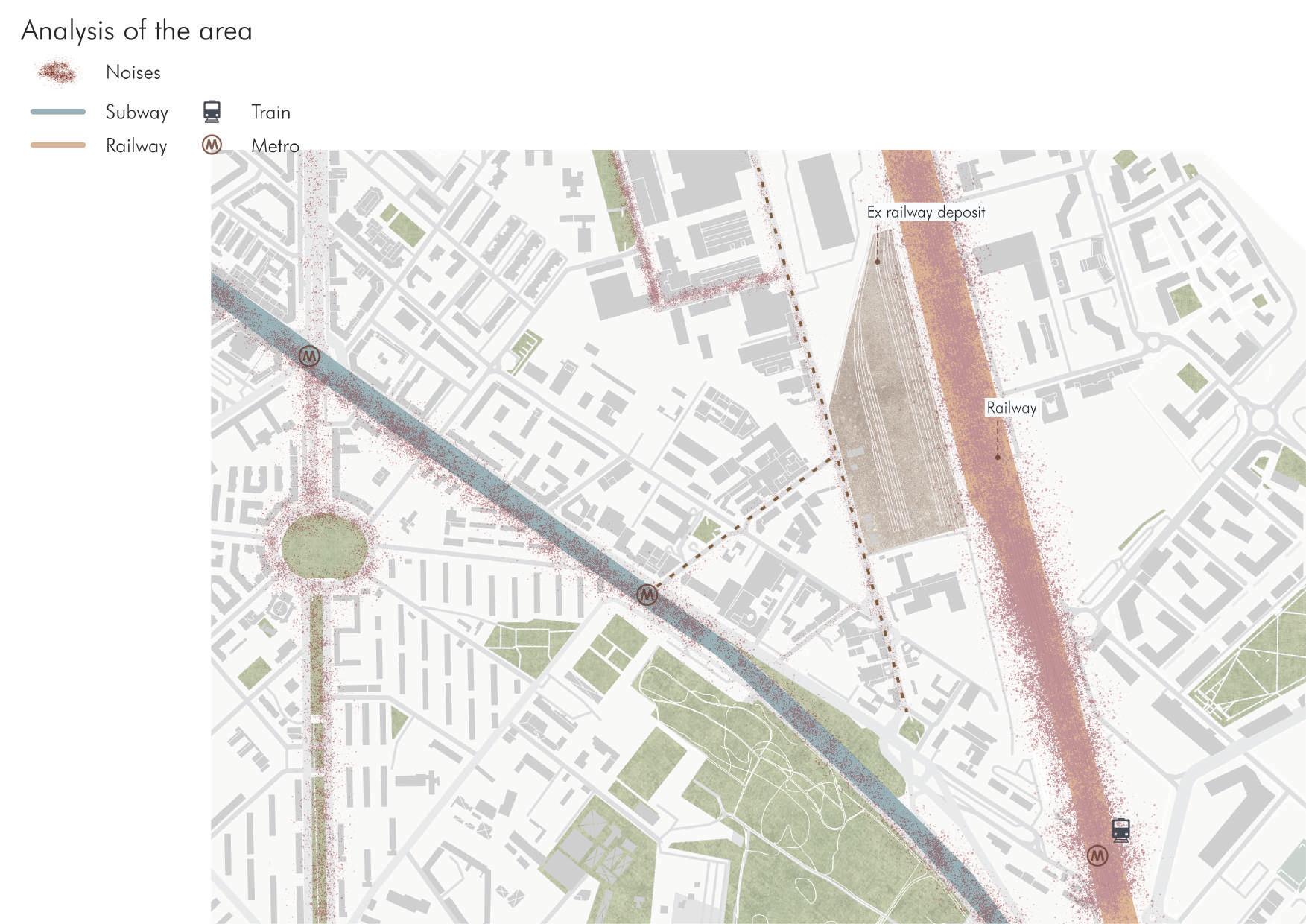

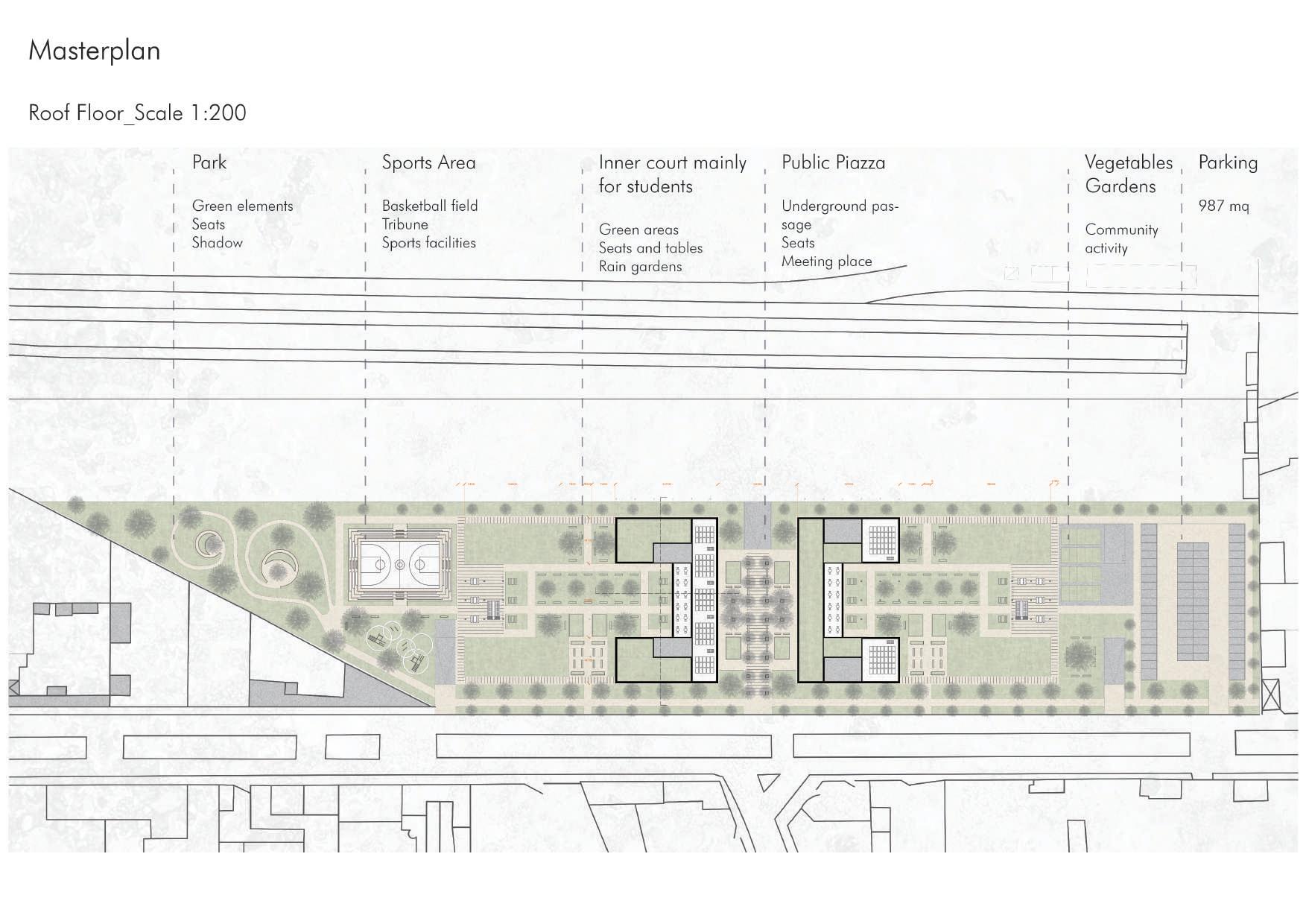

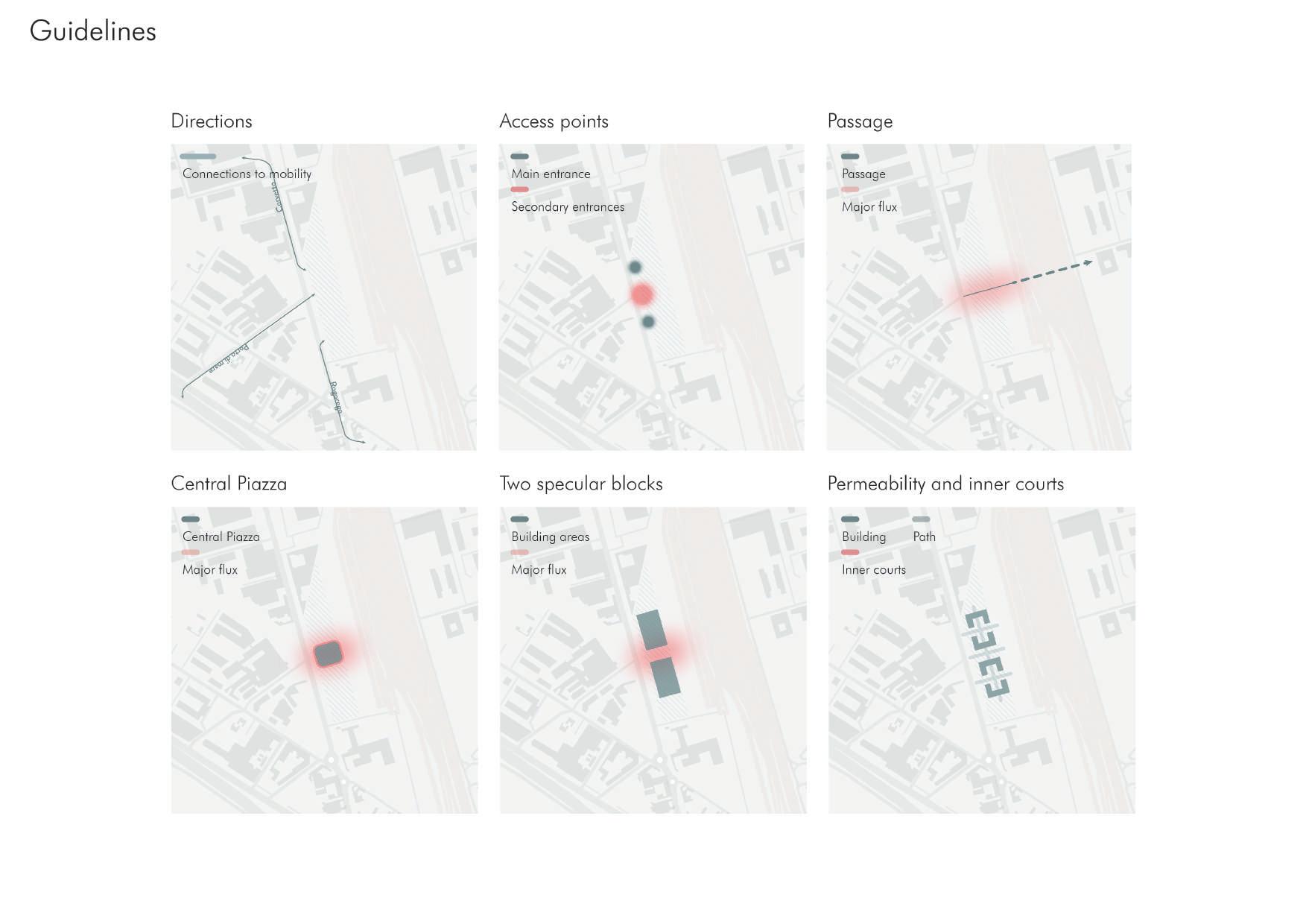

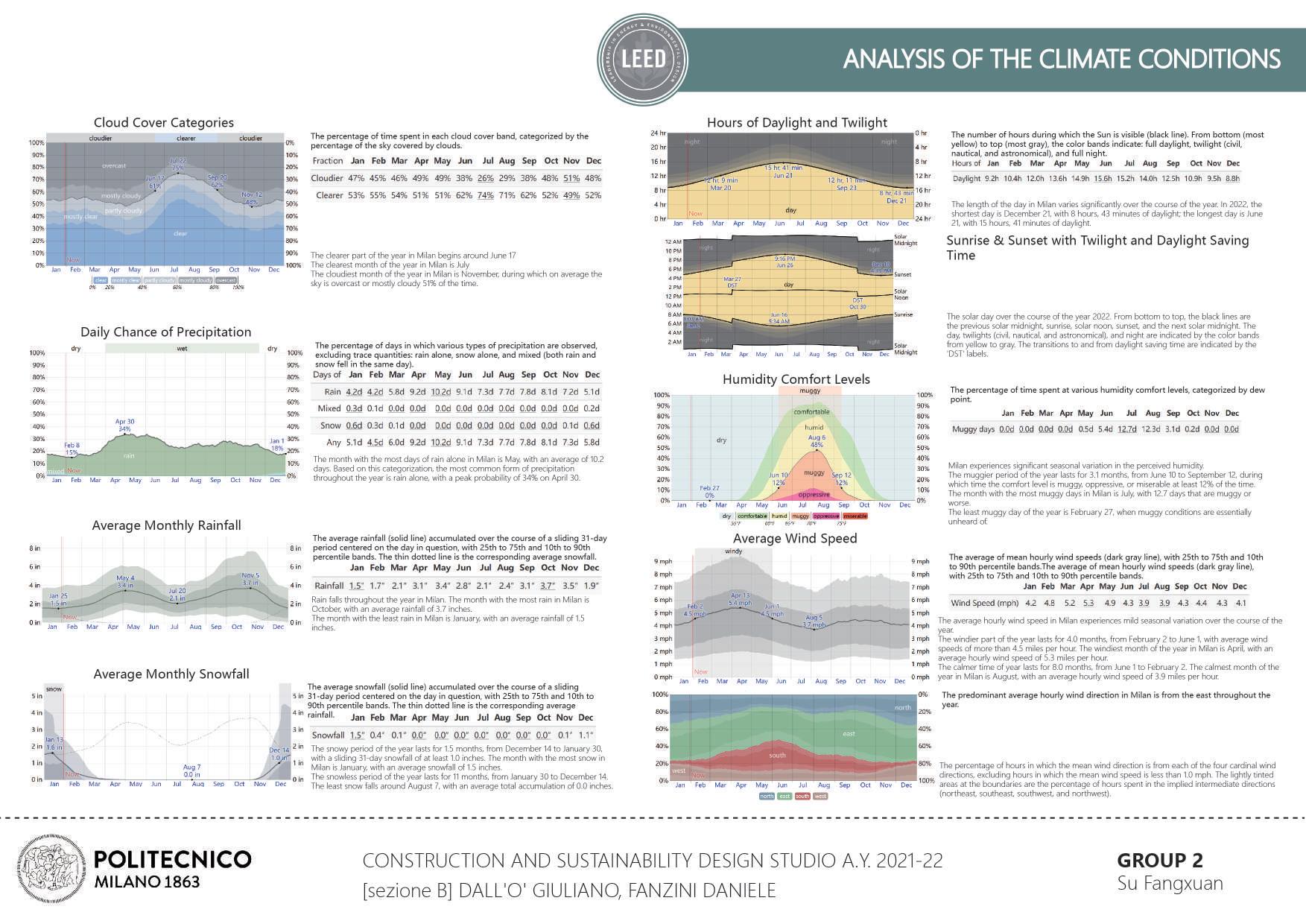

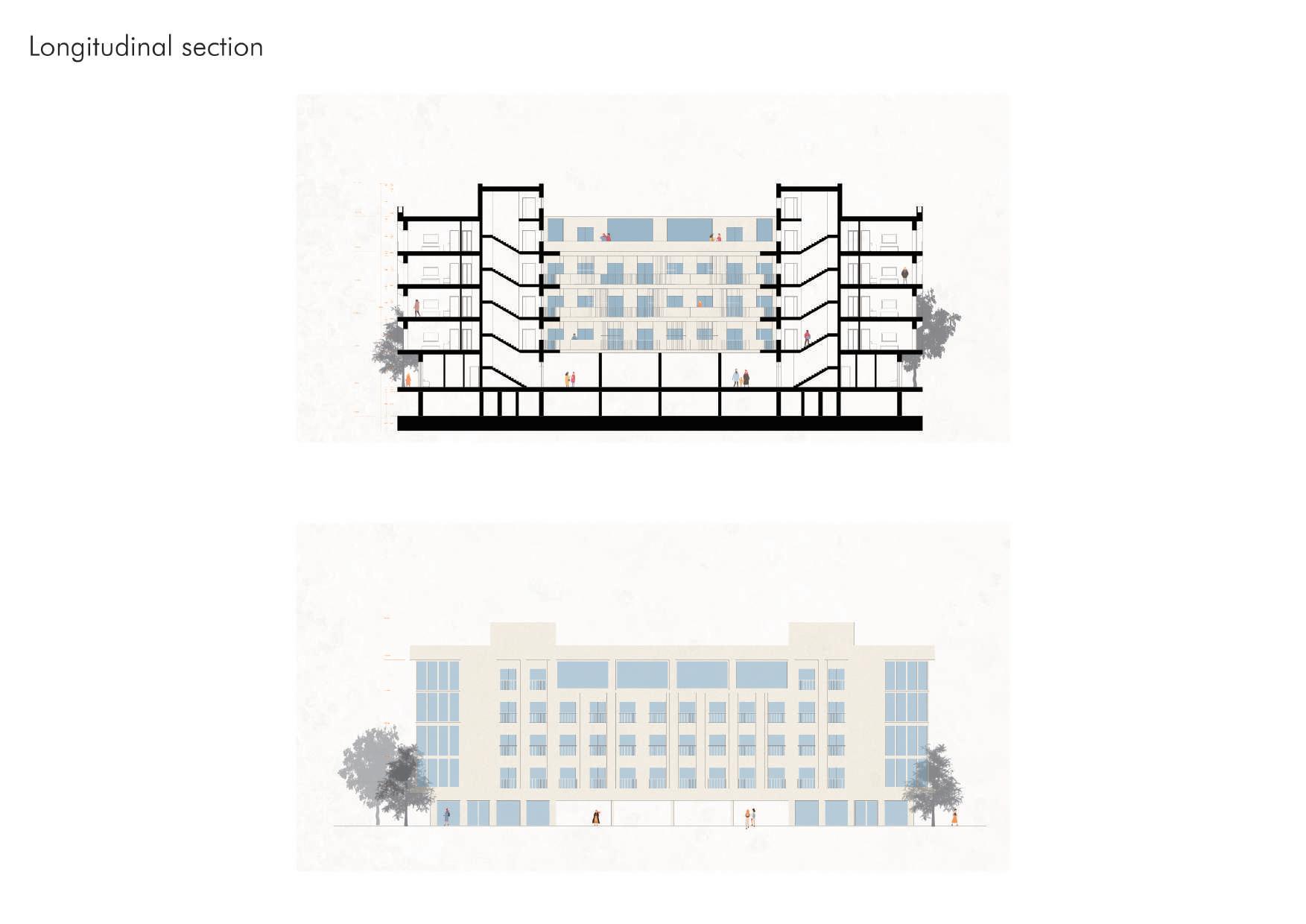

CONSTRUCTION AND SUSTAINABILITY DESIGN STUDIO A.Y. 2021-22 GROUP 2
Fangxuan[sezione B] DALL'O' GIULIANO, FANZINI DANIELE

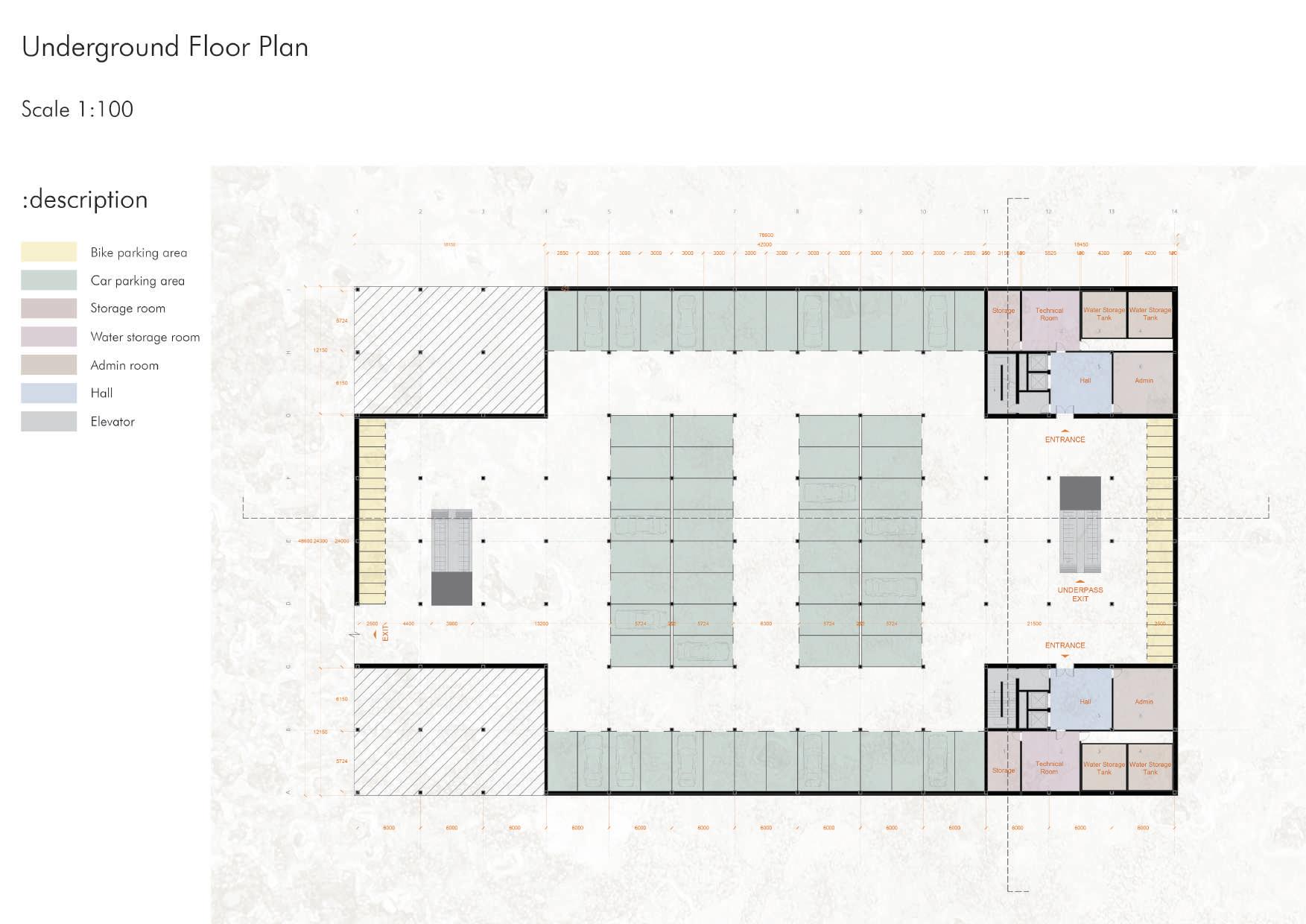

BASEMENT
-epoxy 30mm -cement screed 30mm -PVC foil-thermal -insulation -reinforced concrete foundation 1000mm -hydro insulation 5mm -gravel 100mm
U-Value : 0.16W/(m²K)
U VALUE CALCULATION : EXTERNAL WALL
Construction Materials d Thickness m λ W/mK R W/m²K
Basement epoxy cement screed PVC foil-thermal insulation reinforced concrete foundation hydro insulation gravel
0.03 0.03 0.1 1 0.5 0.1
0.21 0.1 0.05 0.002 0.08 4.5 2.8
U-Value : 0.24W/(m²K)SLAB -gress tiles 15mm -mortar 10mm -insulation 1mm -XPS thermal insulation 60mm -screed for implants 100mm -concrete panel 15mm -internal plaster 100mm
Construction Materials d Thickness m λ W/mK R W/m²K SLAB gress tiles mortar insulation XPS thermal insulation screed for implants concrete panel internal plaster
0.015 0.010 0.001 0.060 0.100 0.015 0.100
1.000 1.400 0.030 0.035 1.400 0.055 1.400
0.015 0.007 0.030 1.714 0.071 2.000 0.007
CONSTRUCTION AND SUSTAINABILITY DESIGN STUDIO A.Y. 2021-22 GROUP 2
Su Fangxuan[sezione B] DALL'O' GIULIANO, FANZINI DANIELE
U VALUE CALCULATION : EXTERNAL WALL
SLAB
-vegetation layer -coultivation land 60mm -filter layer 20mm -drainage layer 20mm -fireproof of sheath 15mm -XPS Thermal insulation 50mm -concrete and steel slab 160mm -thermal insulation 40mm -Plaster 10mm
U-Value : 0.349W/(m²K)
Construction Materials d Thickness m λ W/mK R W/m²K
Basement vegetation layer coultivation land filter layer drainage layer fireproof of sheath
XPS Thermal insulation concrete and steel slab
thermal insulation Plaster
0.060 0.020 0.020 0.015 0.050 0.160 0.040 0.010
0.350 0.600 0.160 0.035 2.300 0.037 0.550
0.057 0.033 0.009 1.429 0.070 1.081 0.018
