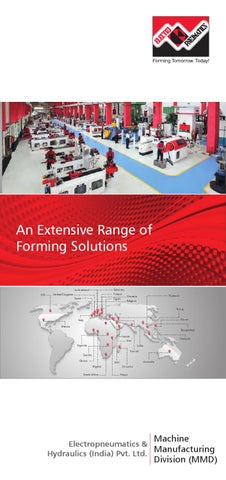

MMD Flyer

An Extensive Range of Forming Solutions Germany

Switzerland USA

Poland

United Kingdom Spain

Egypt

Thailand

Slovenia Belgium

Turkey

Taiwan

Italy Mexico

Bangladesh Yemen

Malaysia

Iran Uganda

India Kuwait

Zambia Ghana

Australia

UAE Nigeria

South Africa

Sri Lanka Kenya

Machine

Electropneumatics & Manufacturing Hydraulics (India) Pvt. Ltd.

Division (MMD)

Electropneumatics Introduction Electropneumatics has been providing innovative solutions for forming applications since 1972. The extensive range of indigenous products and technologies can shape/form metals, engineering plastics and composites, ceramics, etc. in solid, sheet, tube or powder form through stamping, cold extrusion, powder compaction, honing, bending, shearing/cutting, moulding, hydroforming and other methods.

• Pioneers in India in tube bending, powder compacting, hydroforming, hot forming, AC servo drives and others • More than 5000 machines installed in India and 25 countries of the world • Total indigenous technology • End-to-end metal forming solutions • Specialists in customised applications • Strong focus on R&D • ISO 9001 certified, CE certified • Catering to automotive, auto component, furniture, white goods, electronics, electrical, process, HVAC, chemical, fabrication, construction, aerospace, railways, ship building and power transmission sectors

Hydraulic Metal Forming Presses

• For deep drawing, stamping, trimming, cold extrusion, coining, hemming, blanking, press fitting, etc.

• Special presses for powder compacting, hot moulding, die spotting and honing • Tonnages up to 15000T, bed sizes as required • Single, double, triple action • Can be configured with moving bolsters, loaders/ unloaders, transfer and QDC systems

Power and Transmission Tower Line Equipment

• Processes angles, channels, beams and plates • For operations such as marking, punching, cropping, forming, trimming, drilling etc.

• Fully automated, most suitable for continuous high-volume production

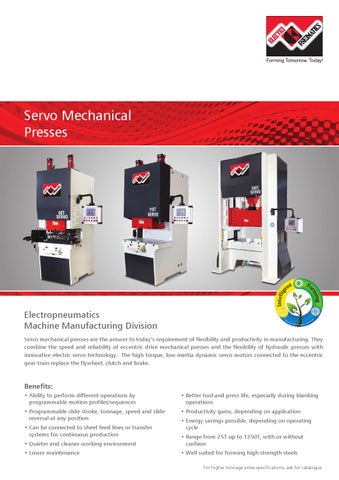

Servo Mechanical Presses

• Drive by AC servo motors through eccentric links • Flexibility through slide/cushion speed and motion profile programmability • Tonnages up to 1200T, bed sizes as required • Highly productive, low on maintenance and noise • Suitable for difficult materials

Special Purpose Machines

• Designed to meet the part, production and accuracy requirements for almost any metal forming application • Leveraging our 40+ years forming and machine building experience to provide the latest solutions

NC Tube Benders

• From OD 6 to 219mm in round, rectangular, square and other sections • Produce multiple bends in a single or in 8 pre-settable planes • Independent pressure die assist • Counter-clockwise, extended arm, auto mandrel lubrication as options • Tools to suit including split, heated, specials

CNC Boost Benders • Meets stringent ovality / thinning boiler norms • Min. CLR= 1D with D/t < 9 • From OD 50.8 to 114mm with extra long mandrel lengths • Unlimited tube length and capability of serpentine bends • Mandrel-less, tie rod-less operation possible

Tube Processing Machines

• For end forming, swaging, cutting and punching of tubular parts • From OD 16 up to 114mm for carbon steel, SS, Al, Cu, brass, etc.

• Form one or both ends simultaneously in single or multiple stages • Tooling to suit application

CNC Multi-Axes Tube Benders

• From OD 6 to 419mm and thickness up to 21mm • Up to 10 CNC programmable axes in hydraulic, electric and electric hybrid versions • Multi-stacks available for multi-radii bending • High productivity and and repeatability • Several advanced control features and user-friendly interface • Tooling for almost any bending application • Can be custom designed as per application • For different materials, sections, thin-walled, thick-walled, tight-radius bends • Section benders for square, rectangular, oval, furniture, luggage and other profiles • Section coilers for condenser and evaporator coils • Hot benders for solid stabiliser bars and torsion rods Electropneumatics & Hydraulics (India) Pvt. Ltd. Gat No. 254/255, Kharabe Wadi, Chakan-Talegaon Road, Chakan, Pune 410501, India.

Tel. : +91 2135 667500 Fax. : +91 2135 667502 www.electropneumatics.com To find out how we can help you, email us at epcsales@electropneumatics.com
