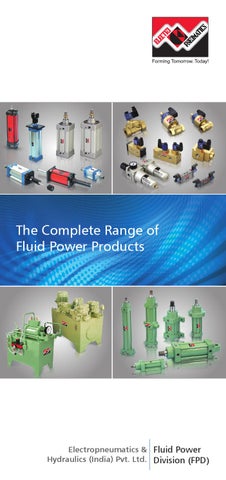

The Complete Range of Fluid Power Products

Electropneumatics & Fluid Power Hydraulics (India) Pvt. Ltd. Division (FPD)


2-Way Pneumatic Valves • Direct acting/pilot operated design • Suitable for air, water and low pressure oil media • Maximum working pressure 10 bar • Port sizes- G1/8, 1/4, 1/2, 3/4, 1, 1 1/4, 1 1/2, 2 • Bubble tight shut off and quick response to actuation • Specials: High pressure valves up to 28 bar • Application: Drain and dispensing • Options: 2/2 NC and NO versions

3-Way, 4-Way Pneumatic Valves • Sturdy and reliable poppet design • Maximum working pressure 10 bar • Port sizes- G1/4, 3/8, 1/2, 3/4, 1, 1 1/4, 1 1/2 • Low power solenoid with a range of AC/DC voltages • Speed up to 600 cycles/min, Life up to 10 million cycles • Fast response time and high flow rate • Application: Single-acting, double-acting cylinders/actuator • Solenoid and pilot versions in 3/2 NO, NC and 5/2 valve. Also, 3/2 NC dual sensing valve

3-Way, 4-Way Pneumatic Stackable Valves • Internal/external pilot operated poppet design • Streamlined construction for gang manifold • Compact size with high flow improves system appearance and performance • Maximum working pressure 10 bar • Port sizes- G1/8, 1/4, 3/8, 1/2 • Manual override as a standard feature • PHN and PRN versions are available

Valve types 2/2 NC Solenoid

1

2/2 NO External Pilot

2

2

1

1

1

1

5/2 Single Pilot

4

2

2/2 NC External Pilot

2

5/2 Single Solenoid

3

2/2 NO Solenoid

2

5

2

3

5/2 Double Solenoid

4

1

5

2

3

5/2 Double Pilot

4

1

5

2

3

4

1

5


Manual Pneumatic Valves • Robust design with proven performance • Maximum working pressure 10 bar • Mounting provision for individual unit • Very light operating forces • Normally open and normally closed models • Options: 2/2 NC and NO versions

Air Preparation Units • Modular style, pre-assembled, ready to install • Bronze type filtering element • Relieving type diaphragm operated regulator • Good flow and regulating charactersitics • Fine adjustment of lubrication • Quick release bayonet bowl • Maximum working pressure 10 bar • Sizes- G1/4, 3/8, 1/2, 3/4, 1

Air-Line Accessories • Rugged and durable designup to 10 bar pressure • Used to perform supportive pneumatic functions • Fine regulated air flow control valve • Increase the speed of the cylinder with quick exhaust valve • Rotor seal coupling in various sizes up to 1500 rpm • High pressure of 20 bar inline check valve • Sizes- G1/4, 3/8, 1/2, 3/4, 1, 1 1/4, 1 1/2

Accessory types Filter

Regulator

4/3 Hand Rotary

Lubricator

3/2 Roller Operated

3

1

2

3

Needle Valve Quick Exhaust Valve

Hand Slide Valve

2

2 4

1

FCV

1

3

NRV

Rotor Seal


Standard Pneumatic Cylinders • Extremely rugged and heavy duty • C.I. end covers and M.S. seamless tube honed and hard chrome plated • Bore sizes: 25, 40, 50, 65, 75, 100, 125, 150, 200, 250, 300, 350 mm • Stroke length offered up to 3000 mm • From -10 °C to 60 °C, up to 150 °C with viton seals • Specials: Single-acting, stroke adjustable double ended, duplex and large port

ISO Pneumatic Cylinders, Series M • Light weight with high strength • Nylon end covers and ‘Mickey Mouse’ profile aluminium semi-hard anodised tube • Bore sizes: 32, 40, 50, 63, 80,100, 125 mm • Dimensions as per ISO 6431 • Stroke length offered up to 2500 mm • Specials: Reed switch, single acting, stroke adjustable, double ended and duplex

ISO Pneumatic Cylinders, Series S • High performance cylinders for modern demands • Aluminium casting end covers and aluminium ‘Square’ profile semi-hard anodised tube • Dimensions as per ISO 15552, VDMA 24562 • Polyurethane rod seal ensures long life and speed • Minimum pressure to move cylinder is 3 psi • Specials: Reed switch, single acting, stroke adjustable, double ended and duplex

Specifications

(For all Pneumatic Cylinders) Medium

Compressed air (filtered and lubricated)

Design

Piston cylinder with cushion/ non-cushioned version

Pressure range

7 to 150 psi (0.5 to 10 bar)

Temperature -10 °C to 60 °C, up to 150 °C with range viton seals Mounting

Basic, front flange, rear flange, rear eye, rear clevis, intermediate trunnion centre trunnion, foot, stud and neck

Cylinder types Non-Cushion

Cushion

Stroke Adjustment

Double-Ended


Standard Hydraulic Cylinders • Long established design, proven reliability • M.S. covers and M.S. seamless honed tube • PTFE seals and bearing strips ensure perfect sealing and smooth movement • Bore sizes: 40, 50, 65, 75, 100, 125, 150, 200, 250, 300 mm • Stroke length offered up to 3500 mm • Pressures up to 200 bar • Specials: Bore above dia. 300 mm, LVDT, double-ended, stroke adjustable, large ports, working pressure up to 345 bar

Speciality Products

Hydraulic jacks used in construction industry

Servo cylinders for precision control in industrial testing equipment and SPMs

Swing clamp cylinders with locking arrangement and valve stand for machine tools, SPMs, high temperature furnaces, etc. Large bore single-acting cylinders used in big hydraulic presses

Miniature ISO pneumatic cylinders in bore sizes 10, 12, 16, 20, 25 mm as per ISO 6432

Compact, lightweight pneumatic cylinders in bore sizes 32, 40, 50, 63, 80, 100 mm

Stainless steel cylinders used in chemical plants, food and pharmaceutical industry

Pneumatic rotary actuators suitable for 90° actuation with a torque of 4 kgm


Pneumo-Hydraulic Booster Pumps • Design of pressure intensification up to 1000 bar • Suitable for oil, water and various other fluids • Available in various bore area ratios • Options: Double acting booster pumps with higher displacement per stroke, higher hydraulic tank capacity • Application: Pressure testing of valves, pressure vessels, fittings, hoses and pipes, power clamp heads and hydraulic actuators

Hydraulic Power Packs and Systems • Ready for immediate use, complete with electric motor, pump, reservoir and safety relief valve • Robust modular construction reduces maintenance cost • Uniquely designed with minimum pressure drop and cooling facility to maintain oil temperature • NAS Class 6 cleanliness level maintained • Electric servo pump driven system for superior energy efficiency available • Options: Electrical interlock for oil level, temperature and clogging filter

Electropneumatics & Hydraulics (India) Pvt. Ltd. Gat No. 254/255, Kharabe Wadi, Chakan-Talegaon Road, Chakan, Pune 410501, India. Tel. : +91 2135 667500 Fax. : +91 2135 667502 www.electropneumatics.com To find out how we can help you, email us at pneumatics@electropneumatics.com
