RE-CAPITALISATION PLAN - PHASE 1 SALE OF SURPLUS MACHINERY & EQUIPMENT

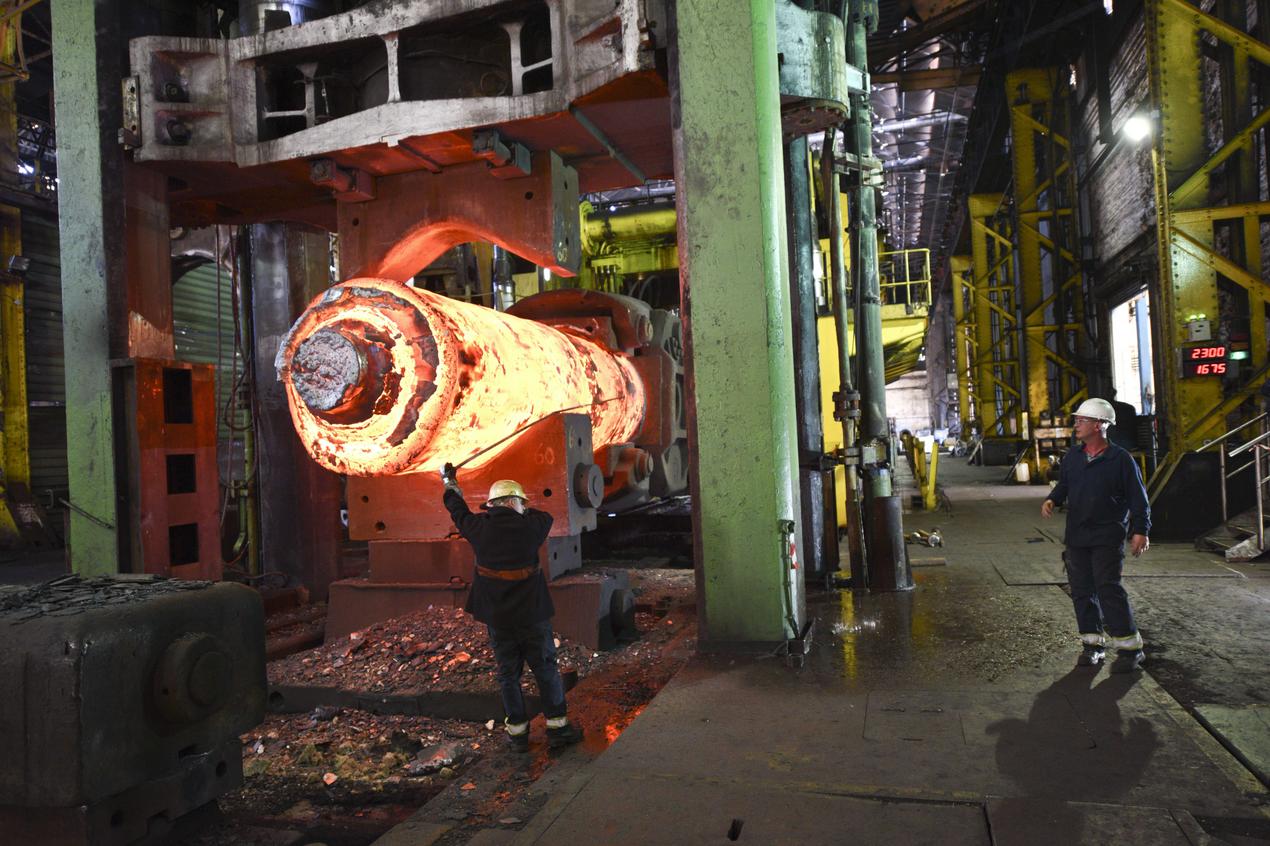

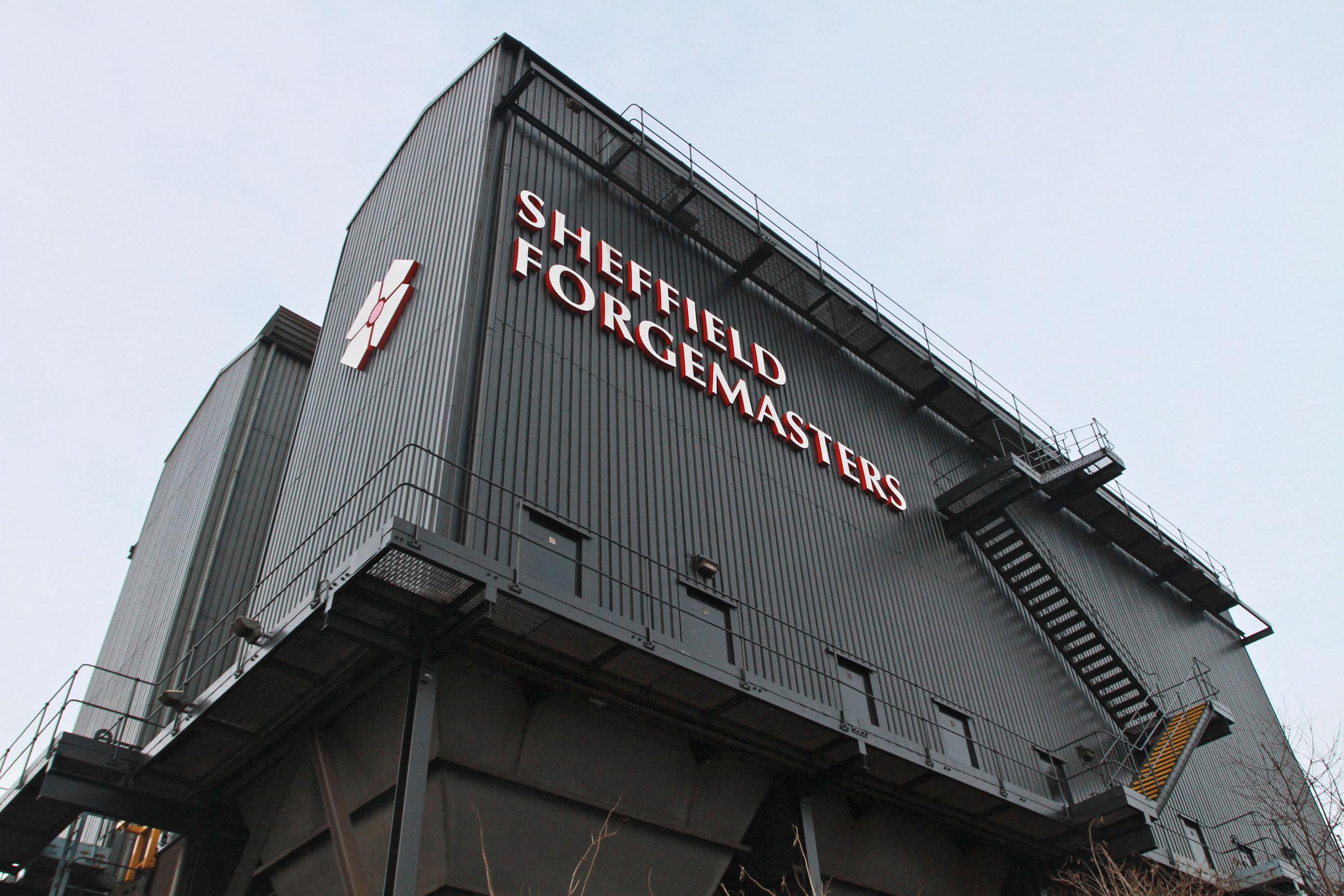

ABOUT THE PROJECT We are excited to partner with Sheffield Forgemasters for their major recapitalisation program, replacing plant and equipment for new defence-critical facilities.

As a global asset management specialist, Apex is committed to providing expert used equipment management services, ensuring the optimal business benefits through strategic and responsible disposal of surplus industrial assets.

Don’t miss this extraordinary opportunity. View details here.

FOR SALE CRAVEN 24" CTRS Double Ended Boring Machine with Fagor Dro CRAVEN HBF 6 Horizontal Borer with Digipac 5 3 Axis Dro HOESCH MFD CNC Heavy Duty Lathe with Siemens Control

“These assets are some of the largest machines of their kind in Europe. [...] Consideration of the circular economy through this disposal process will be a priority, ensuring that precious resources are re-utilised where possible.”

Steve Marshall Manufacturing Transformation Director Sheffield Forgemasters

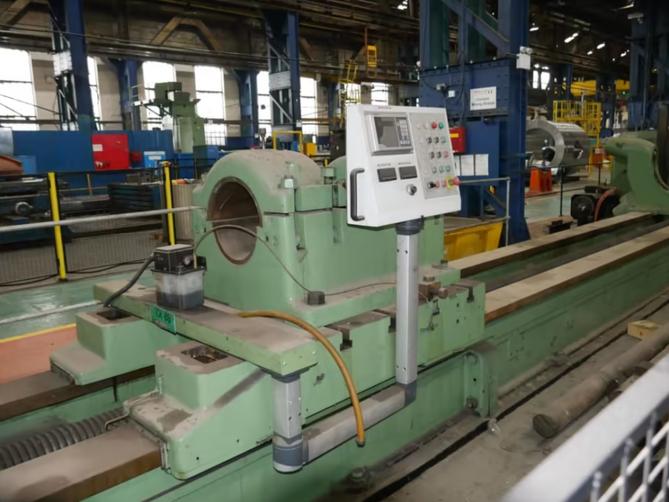

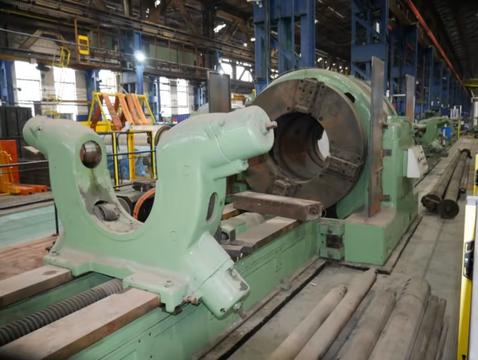

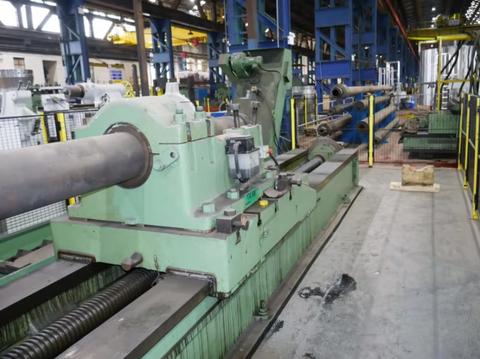

CRAVEN 24" CTRS DOUBLE ENDED BORING MACHINE WITH FAGOR DRO

Centre height 610mm.

Maximum swing over bed Ø1,220mm.

Maximum boring length 25,603mm.

Spindle bore Ø838mm.

Maximum bore of bar pedestals Ø711mm.

Low speed range 0.8-2.4rpm, 2.4-7.2rpm, 6.8-20rpm, 20-60rpm.

High speed range 2-6rpm, 6-18rpm, 17-50rpm, 50-150rpm. Motor 75hp.

Feed range 0.016-5.32 "/rev (12 feed range).

Chuck capacity Ø305-1,219mm. 4 point roller capacity Ø254-711mm.

Through type rolls max. capacity Ø1,511mm.

Minimum workpiece length 965mm.

Can taper bore pipe moulds up to Ø700mm (inc.) approx. Ø762mm min. length (1 stay).

Maximum workpiece weight 30 ton.

S/No. 14122.

REGISTER & BID

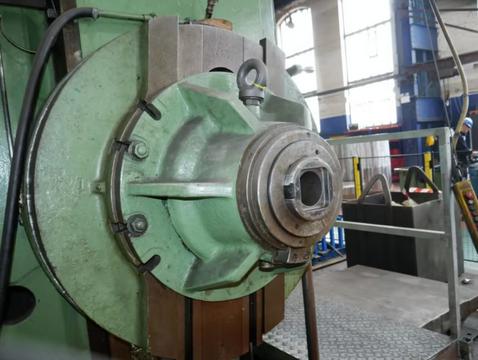

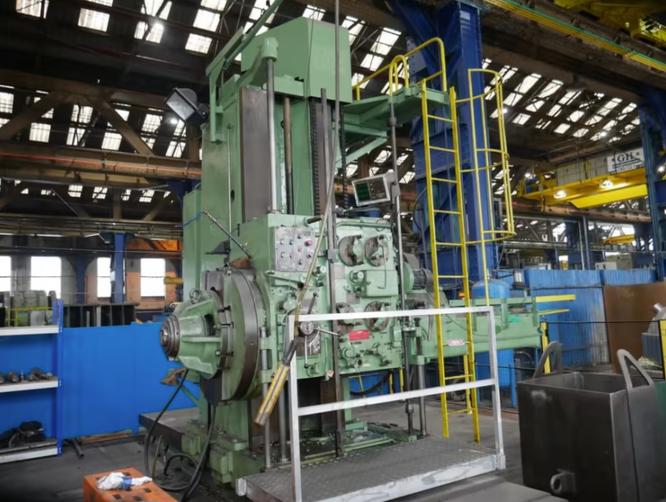

CRAVEN HBF 6

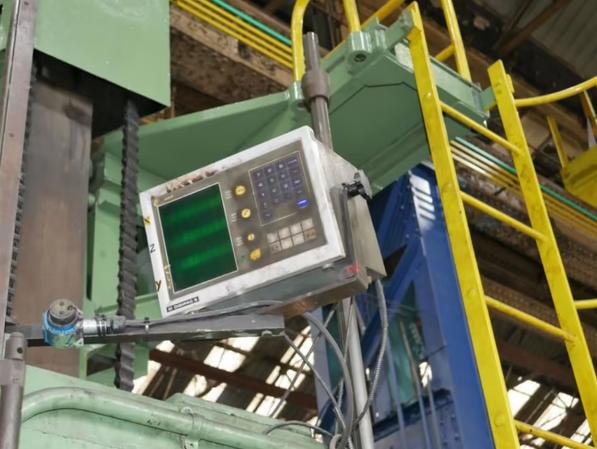

HORIZONTAL BORER WITH DIGIPAC 5 3 AXIS DRO

Spindle Ø152mm.

Maximum facing Ø1,524mm.

Horizontal spindle travel 1,219mm.

Vertical travel of boring bar 1,829mm.

16 faceplate speed range 2.8-37.5rpm.

28 spindle speed range 2.8-300rpm.

18 boring feeds 0.0009-0.25"/min, 12 milling feeds 0.56-25"/min, 18 facing feeds 0.0010.4"/min.

Screw cutting thread per inch 2, 3, 3.5, 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22, 24, 28, 32, 36, 40, 44. Main motor 20hp. Milling feed motor 4hp. Quick traverse motor 7.5kW. Boring bar support adjusting motor 2hp.

Spindle bore taper MT6.

Spindle distance from face plate 2,648mm.

S/No.17476.

REGISTER & BID

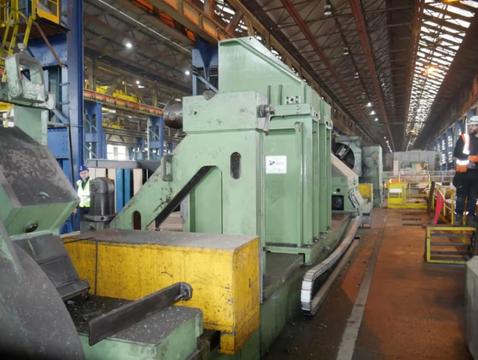

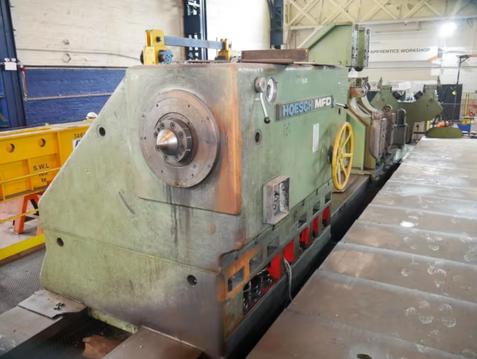

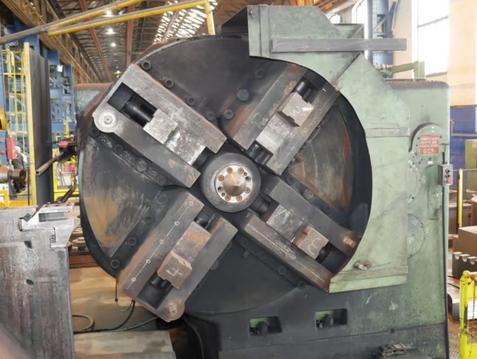

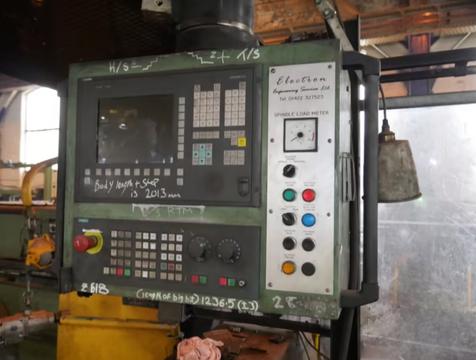

HOESCH MFD

CNC HEAVY DUTY LATHE WITH SIEMENS CONTROL

Faceplate Ø2,006mm.

Centre height 1,499mm.

Swing over saddle Ø2,235mm.

Swing over bed Ø2,997mm.

Turning length 12,192mm.

Min./max. workpiece held in chuck Ø457/1,600mm.

Maximum workpiece weight 110 ton.

Speed range 0.5-140rpm (300hp motor).

Feed range 0.0118-7.08"/Rev. Steady capacity Ø356-902mm.

Copying depth 508mm inductive.

Maximum cutting force 30,000Nm. Twin barrel steady capacity Ø356-902mm, 50 ton capacity, roller type.

NOTE: All buyers to use the only approved contractor for this auction (McDowell Machine Tools Ltd).

REGISTER & BID

INTERESTED? Please see the sale information section for any additional fees that may be applicable upon purchasing a lot. Vendor to approve all offer and/or closing bids prior to Apex invoicing.
