M&J formerly known as Metso, is crushingly reliable when it comes to the supply of stationary and mobile shredding equipment. M&J shredders offer a unique, patented cutting-table and knife designs that has made the company a leading producer of pre-shredders and shredders for recycling and incineration plants, transfer stations, landfills and RDF and chemical waste production.

Known for their pre-shredding, shredding, crushing and grinding abilities, M&J machines can be found in many plastic recycling and incineration plants, hazardous waste processing facilities, transfer stations, C&D recycling plants, landfills, RDF/SRF/PEF production facilities and many more processes. These rugged units can be found in over 500 installations around the globe. www.mjrecycling.com

6

K160 & K210

M&J K-series – Improved capacity with a longer lifetime and lower cost The unique bi-directional shredding system (both synchronous and asynchronous) with two shafts provides superior performance with all waste, resulting in unbeatable uptime The proven knives geometry reduces the risk of wrapping on the shafts, resulting in less bridging and fewer cleaning stops to improve capacity The modularity ensures that only relevant components need to be maintained, ensuring a longer lifetime with lower operating costs The M&J K-series pre-shredders have a robust and proven construction and are easy to access, making maintenance fast and service costs low

7

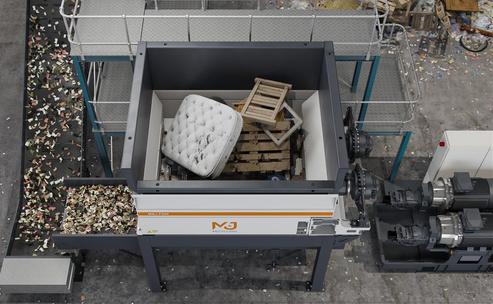

M&J is expanding its waste recycling product range with the launch of the new M&J K-series preshredders. The first two models will be M&J K160 and M&J K210. These new models provide a low cost-per-ton with high reliability, ease of operation and great flexibility for various waste types, and with a design optimized especially for sites with a 5 to 45 tons per hour production requirement.

The shredders come with the wide variety of proven knives developed by M&J to accommodate clients’ specific needs. With the open cutting table design, operators do not need to pre-sort the waste being loaded into the shredder; this translates to higher capacity with less manpower and fewer breakdowns.

MODEL

M&J K160-2HS

M&J K210-2HS

Undercarriage Length* Width* Height*

Stationary

Stationary

5 682 mm (224”) 2 131 mm (84”) 4 500 mm (177”) 9.4 - 9.8 tonne (10.4 - 10.8 US ton)

5 682 mm (224”) 2 131 mm (84”) 4 500 mm (177”) 10.5 - 11.4 tonne (11.6 - 12.6 US ton)

Electric

Electric

2x55 kW (2x74 hp), 2x75 kW (2x101 hp)

2x75 kW (2x101 hp), 2x110 kW (2x148 hp)

or 2x110 kW (2x148 hp) PLC Double hydrostatic transmission

or 2x132 kW (2x177hp) PLC Double hydrostatic transmission

5 000 mm (197”)

5 000 mm (197”)

1 200 mm (47”) 1 030 mm (41”)

1 200 mm (47”) 1 030 mm (41”)

1 200 mm (47”) 1.8 tonne (1.0 tonne), 2 US ton (1.1 US ton)

2.0 tonne (1.1 tonne), 2.2 US ton (1.2 US ton)

2 62 rpm 5, 6, 7 or 8 10, 12, 14 or 16 1 552 mm (61”) 1 600 mm (63”) 6.8 - 7.2 tonne

62 rpm 7, 8, 9 or 11 14, 16, 18 or 22 2 062 mm (81”) 1 600 mm (63”) 7.7 - 8.7 tonne

(7.5 - 7.9 US ton)

(8.5 - 9.6 US ton)

35 tonnes per hour (39 US ton / h)

45 tonnes per hour (50 US ton / h)

25 tonnes per hour (28 US ton / h) 15 tonnes per hour (17 US ton / h) 20 tonnes per hour (22 stph)

40 tonnes per hour (44 US ton / h) 20 tonnes per hour (22 US ton / h) 25 tonnes per hour (28 US ton / h)

Weight Motor Motor type Power Electric control unit Drive principle Chassis Belt conveyor length Belt conveyor width Discharge height Discharge width Chassis weight (without conveyor) Cutting table Number of shafts Rotating speed** Number of knives Number of counter knives Cutting area length Cutting area width Cutting table weight Capacity Household waste** Demolition waste** Industrial waste** Bulky waste**

1 200 mm (47”)

2

8

2000S

9

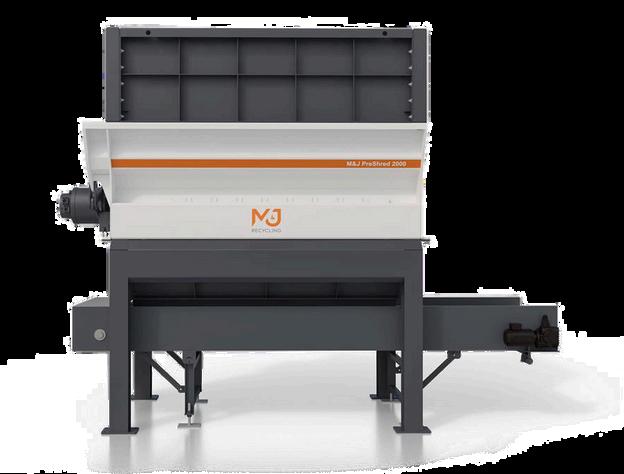

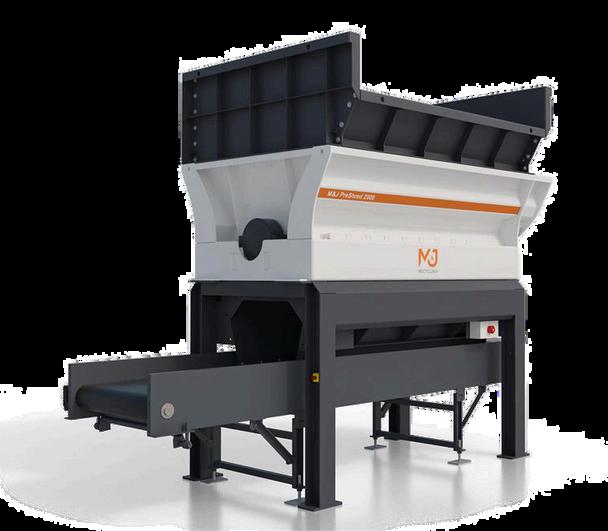

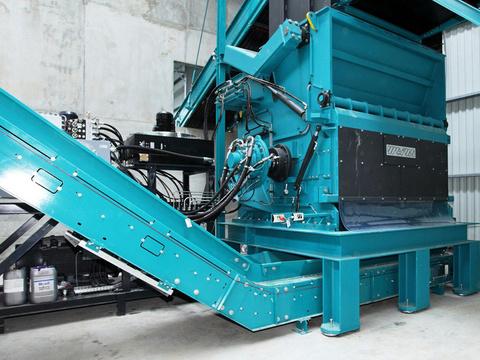

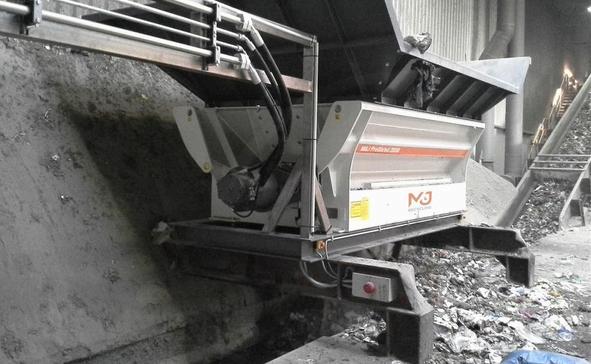

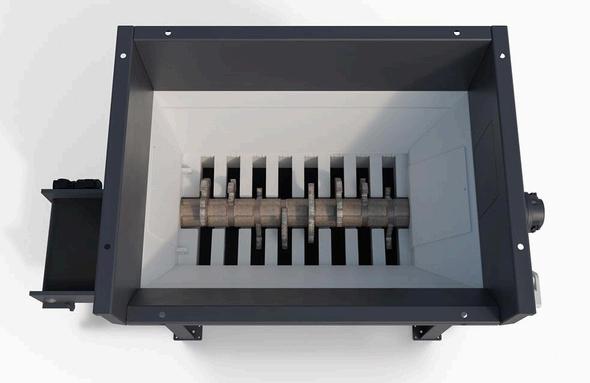

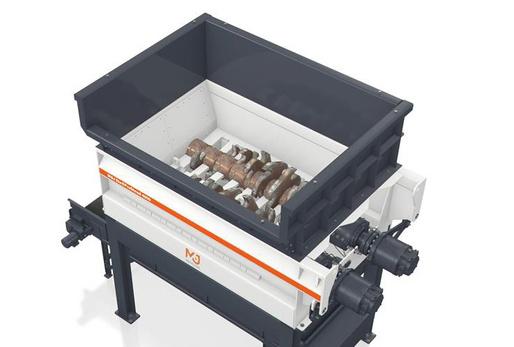

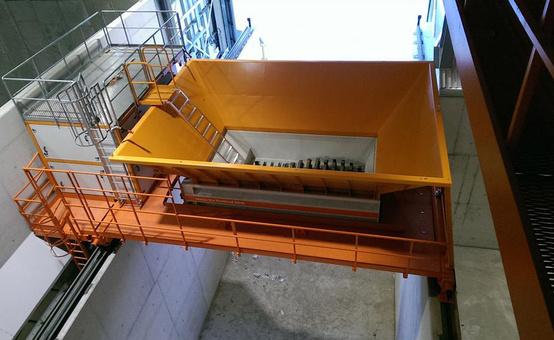

The M&J 2000S is a single-shaft stationary shredder that features PLC controlled automatic reversal and shredding in both directions. This innovative feature prevents material wrapping around the shaft, helping eliminate bridging issues and preventing breakdowns. This machine uses the same main components and shredding power as its big brother the 4000-S. An open cutting table and a shredding zone that is both long and wide make this mid-size model ideal for processing inputs such as MSW, bulky waste, industrial waste, C&D waste, etc. Depending on the type of waste the cutting table specified and the feed set-up, throughputs of 5 to 70 tons/hour are within easy reach.

MODEL

M&J PRESHRED 2000S

Undercarriage

Stationary

Length*

5 536 mm (218”)

Width*

2 300 mm (91”)

Height*

3 350 mm (132”)

Weight

14.3 - 16.4 tonne

Motor Motor type Power

(15.8 - 18 US ton) Electric 1x110 kW (1x148 hp), 1x132 kW (1x177 hp) or 1x200 kW (1x268 hp)

Electric control unit

PLC

Drive principle

Hydrostatic transmission

Chassis Belt conveyor length Belt conveyor width Discharge height Discharge width Chassis weight (without conveyor)

4 500 mm (177”) 1 200 mm (47”) 1 145 mm (45”) 1 200 mm (47”) 2.6 tonne (1.6 tonne), 2.9 US ton (1.8 US ton)

Cutting table Number of shafts

1

Rotating speed**

59 rpm

Number of knives

6, 8, 9 or 10

Number of counter knives

12, 16, 18 or 20

Cutting area length

2 420 mm (95”)

Cutting area width Cutting table weight Capacity

1 273 mm (50”) 8.7 - 10.2 tonne (9.6 - 11.2 US ton)

Household waste**

70 tonnes per hour (77 US ton / h)

Demolition waste**

40 tonnes per hour (44 US ton / h)

Industrial waste**

20 tonnes per hour (22 US ton / h)

Bulky waste**

25 tonnes per hour (28 US ton / h)

10

P250

M&J Recycling has a long tradition of building world-class pre-shredders. The M&J P250 is no exception. It is based on thoroughly tested technologies and, at the same time, sets the course for the next generation of pre-shredders with its modular design that makes service and maintenance easier and cheaper than ever. With the M&J P250, you get a highly efficient pre-shredder that can be matched to your specific needs. And should your waste types change in the future, our service staff can quickly change the configuration. When we promise you unparalleled production uptime and hefty savings on your operating budget, we really mean it. All vital parts of the M&J P250 can be quickly disassembled. This provides significant time and cost savings when it comes to service and maintenance as well. The P250 is available with an E-drive or a hydraulic drive.

GREAT ADVANTAGES OF MODULAR DESIGN All vital parts of the M&J P250 can be quickly disassembled. This provides significant time and cost savings when it comes to service and maintenance.

Better welding access for hardfacing on cutting table No need to disconnect hydraulic system during maintenance Targeted replacement of the parts that are worn (and only those) No need to disconnect the high-pressure hoses Drive module is easily disconnected via nuts and bolts Easy to adapt the machine to future needs 11

P250 WITH HYDRAULIC DRIVE The M&J P250 is the mid-sized model of the M&J PreShred stationary pre-shredder family. It can process various waste types such as bulky waste, commercial and industrial waste, municipal solid waste, construction and demolition waste, biomass, wood, as well as baled materials. The preshredder is generally used in refuse-derived fuel (RDF) production, biomass processing, waste-toenergy plants (WtE) and in mechanical biological treatment plants (MBT).

The M&J P250 features an open cutting table that allows stones and other hard particles like metals to fall through the cutting area. The open cutting table design and bi-directional shredding system increases safety and reduces the risk of malfunctions that may hinder operations.

All knives and parts exposed to wear on the M&J P250 are made from wear-resistant steel, ensuring continuous and long-lasting performance. Bolts and bearings are conveniently mounted away from the cutting area, allowing for easy access and maintenance to reduce costly downtime.

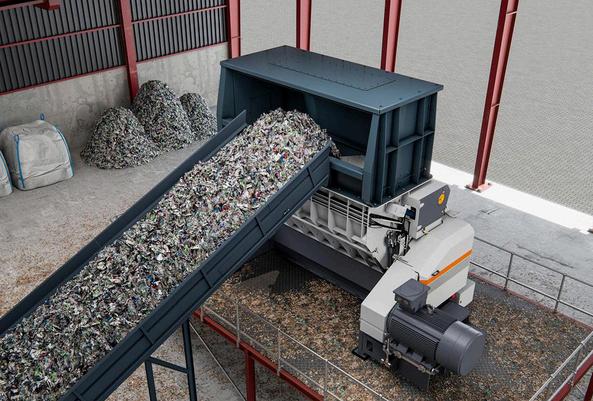

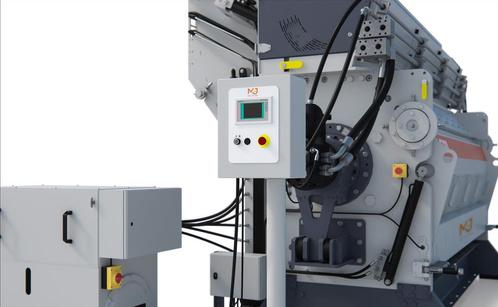

P250 WITH E-DRIVE Go green with E-drive For certain waste types you should consider the many benefits of choosing the E-drive solution for your M&J P250. E-drive handles the task of shredding MSW, light C&I and waste wood as efficiently as a hydraulic drive. Only, it has the added advantage that it is far more energy-efficient and thus provides you with even bigger savings on your operating budget.

E-drive consumes up to 50% less energy during operations compared to hydraulic drive and enables you to execute the green transformation.

E-drive makes significantly less noise than a hydraulic drive* and therefore results in a pronounced improvement of the working environment for your employees. This can help retain employees – and attract new ones.

12

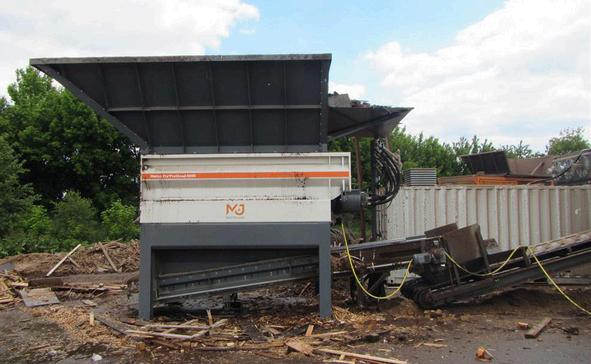

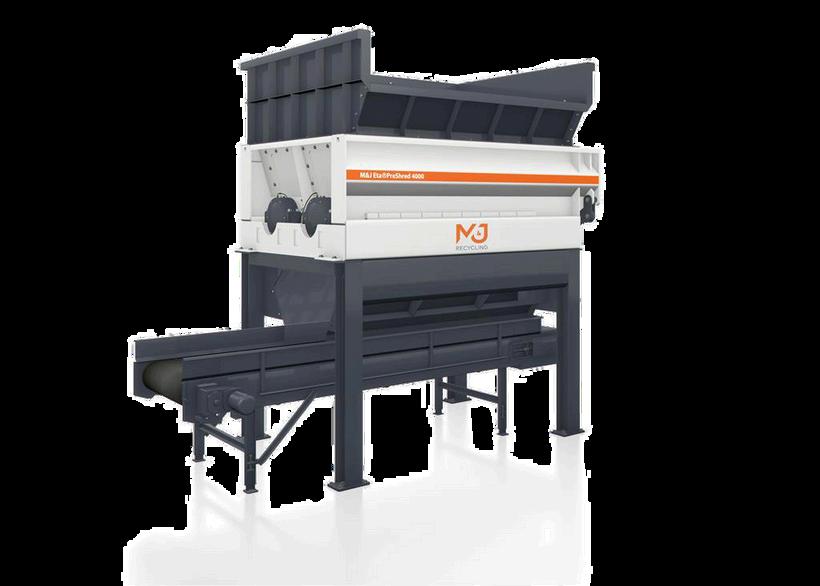

4000S

13

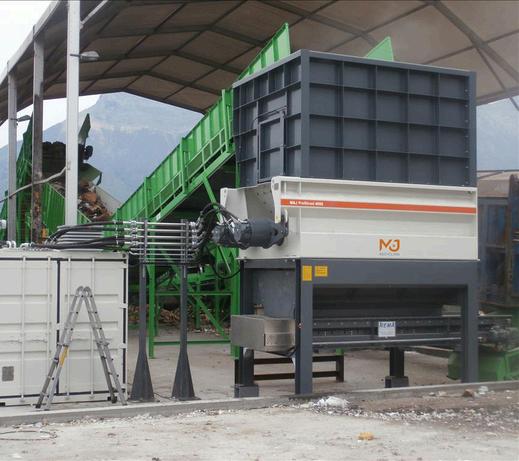

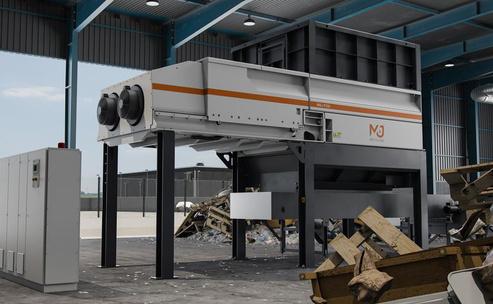

The M&J 4000S stationary shredder is designed to meet the special needs of plants in which the incoming material is extremely varied in both size and composition, and may also contain unpredictable components. The combination of a large cutting table and a twin-shaft shedding system makes it possible to shred almost any kind of material and that there are no problems with bridging.

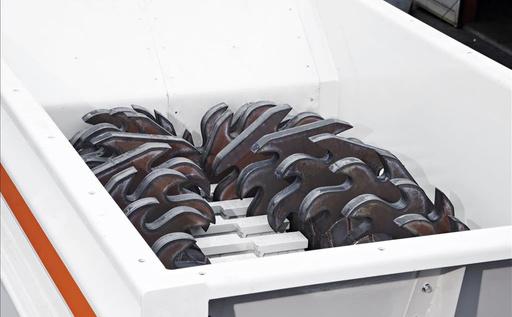

The two extremely powerful shafts run asynchronously and in both directions. The power is transmitted via a double hydrostatic transmission that makes sure the machine provides full power right from startup, and takes full advantage of all the power for shredding. Depending on the machine configuration capacities of 10 to 100 tons/hours are achievable.

MODEL

M&J PRESHRED 4000S

Undercarriage

Stationary

Length*

5 536 mm (218”)

Width*

2 300 mm (91”)

Height*

3 500 mm (138”)

Weight

20.5 - 23.5 tonne (22.6 - 25.9 US ton)

Motor Motor type Power

Electric 2x132 kW (2x177 hp), 2x160 kW (2x215 hp) or 2x200 kW (2x268 hp)

Electric control unit

PLC

Drive principle

Double hydrostatic transmission

Chassis Belt conveyor length

5 000 mm (197”)

Belt conveyor width

1 200 mm (47”)

Discharge height

1 030 mm (41”)

Discharge width

1 200 mm (47”)

Chassis weight (without conveyor)

2.8 tonne (1.8 tonne), 3.1 US ton (2.0 US ton)

Cutting table Number of shafts

2

Rotating speed**

59 rpm

Number of knives

6, 8, 9, 10 or 12

Number of counter knives

12, 16, 18, 20 or 24

Cutting area length

2 420 mm (95”)

Cutting area width

2 000 mm (79”) 12.5 - 14.9 tonne

Cutting table weight Capacity

(13.8 - 16.4 US ton)

Household waste**

100 tonnes per hour (110 US ton / h)

Demolition waste**

70 tonnes per hour (77 US ton / h)

Industrial waste**

35 tonnes per hour (39 US ton / h)

Bulky waste**

50 tonnes per hour (55 US ton / h)

14

6000S

15

The M&J 6000S is one of the largest stationary shredders currently available in the world. This giant shredder is equipped with two 4 meter long shafts and an exceptionally large shredding zone that is approximately 7 m3 m in size. Together, these features make this top-size unit ideal for shredding unusually bulky or very heavy inputs in large volumes.

Depending on the machine configuration and the waste material capacities of 20 to 200 tons/hours are achievable.

MODEL

M&J PRESHRED 6000S

Undercarriage

Stationary

Length*

7 740 mm (305”)

Width*

2 700 mm (106”)

Height*

4 150 mm (163”)

Weight

34.3 - 39.2 tonne (37.8 - 43.2 US ton)

Motor Motor type Power Electric control unit Drive principle Chassis

Electric 2x200 kW (2x268 hp) or 2x250 kW (2x335 hp) PLC Double hydrostatic transmission

Belt conveyor length

6 250 mm (246”)

Belt conveyor width

1 200 mm (47”)

Discharge height

1 235 mm (49”)

Discharge width

1 200 mm (47”)

Chassis weight (without conveyor)

4.5 tonne (3.3 tonne), 5.0 US ton (3.6 US ton)

Cutting table Number of shafts

2

Rotating speed**

32 rpm

Number of knives

9, 12, 14 or 16

Number of counter knives

18, 24, 28 or 32

Cutting area length

3 461 mm (136”)

Cutting area width

2 400 mm (94”)

Cutting table weight

24.5 - 27.7 tonne (27.0 - 30.5 US ton)

Capacity Household waste**

200 tonnes per hour (220 US ton / h)

Demolition waste**

100 tonnes per hour (110 US ton / h)

Industrial waste**

50 tonnes per hour (55 US ton / h)

Bulky waste**

70 tonnes per hour (77 US ton / h)

16

4000M Trailer

4000M Crawler

4000M

17

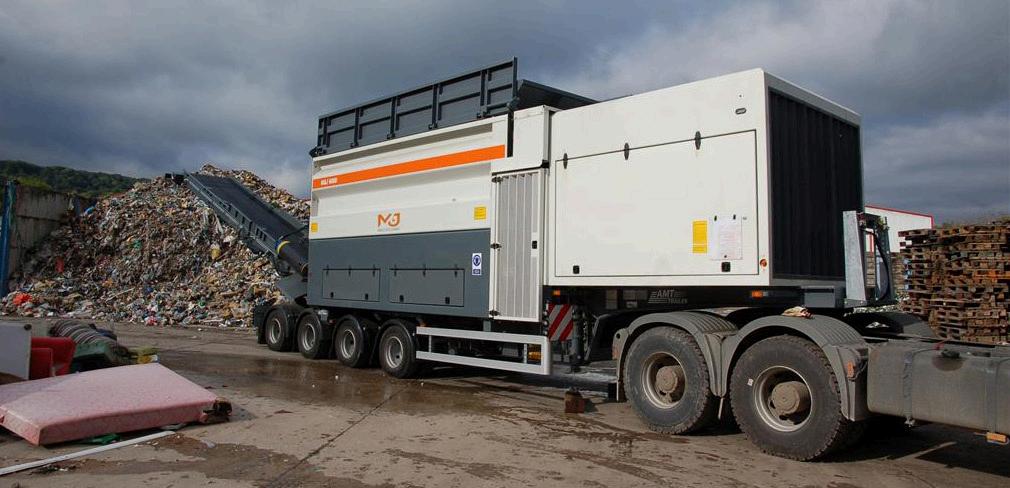

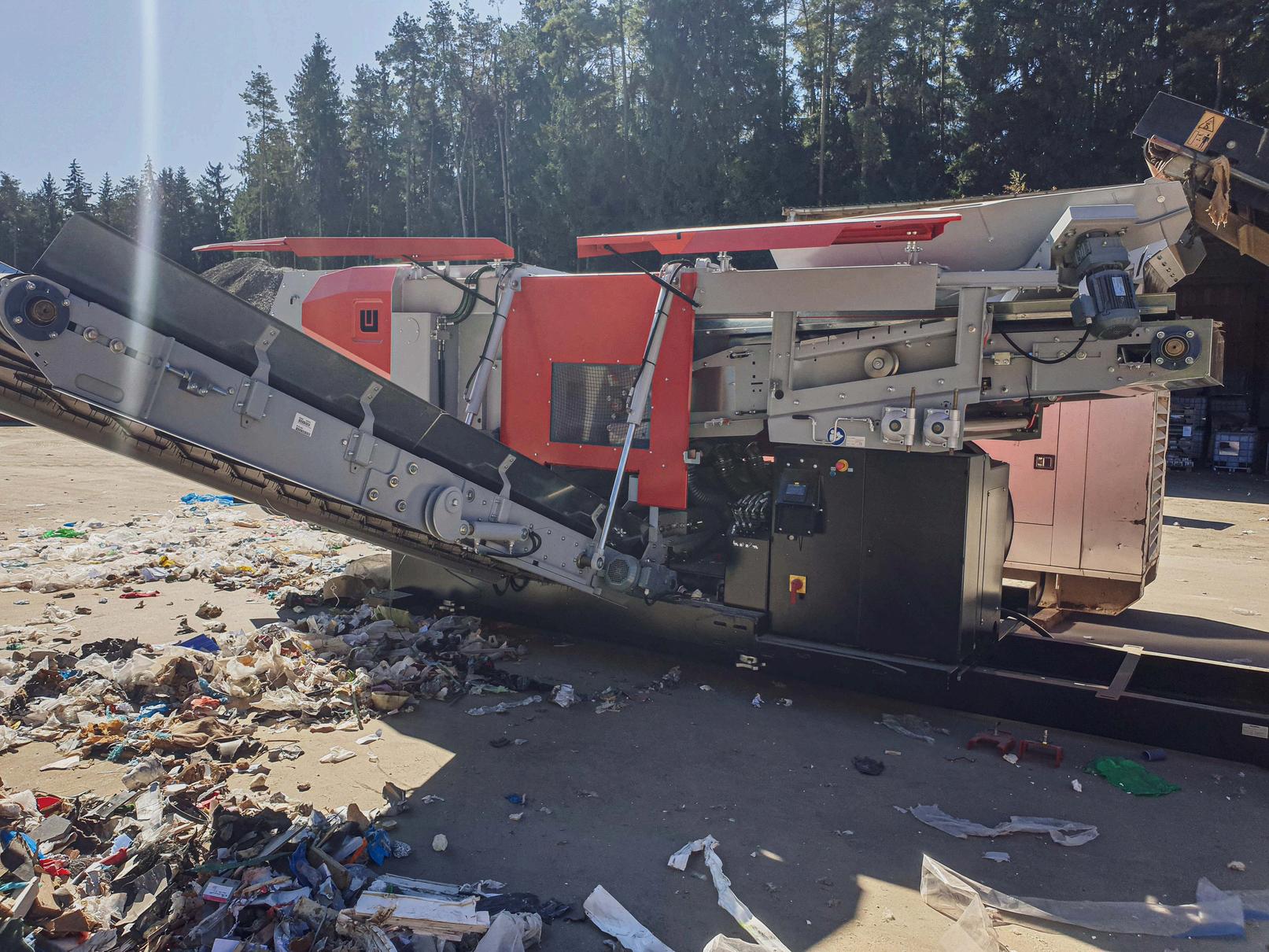

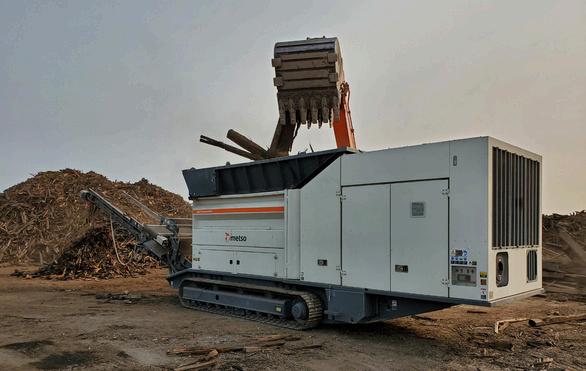

The M&J 4000M is a large mobile shredder capable of effectively and reliably shredding virtually any type of material. This includes particularly challenging inputs such as MSW, C&D Waste, bulky waste, chemical waste, industrial waste, tree stumps, carpets, mattresses, railroad ties, appliances as well as baled PET Bottles, or large paper rolls.

The capacity of the 4000-M series ranges from 30 to 100 tons/hour depending on the type of input material and shredder configuration.

The 390 kW diesel-hydraulic power unit makes the M&J 4000M independent of any power supply.

Because you can move it easily from one place to another, it makes an exceptionally versatile shredder solution that is ideal for many varying needs. The 4000M is the workhorse of the mobile shredders that M&J manufactures and it is offered in a trailed mounted version or as a track mounted version for agility in landfills.

MODEL

M&J PRESHRED 4000M

M&J PRESHRED 4000M

Undercarriage

Trailer

Crawler

Length*

9 796 mm (386”)

9 392 mm (370”)

Width*

2 525 mm (99”)

2 950 mm (116”)

Height*

3 991 mm (157”)

3 505 mm (138”)

31.6 - 32.7 tonne

34.0 - 35.1 tonne

(34.8 - 36.0 US ton)

(37.4 - 38.6 US ton)

Weight Motor Motor type

Diesel

Diesel

Power

403 kW

403 kW

Electric control unit

Danfoss PLUS+1

Danfoss PLUS+1

Drive principle

Double hydrostatic transmission

Double hydrostatic transmission

Belt conveyor length

10 250 mm (404”)

10 250 mm (404”)

Belt conveyor width

1 200 mm (47”)

1 200 mm (47”)

Discharge height

3 942 mm (155”)

3 457 mm (136”)

Discharge width

1 200 mm (47”)

1 200 mm (47”)

2

2

Chassis

Cutting table Number of shafts Rotating speed**

56 rpm

56 rpm

Number of knives

6, 8, 9, 10 or 12

6, 8, 9, 10 or 12

Number of counter knives

12, 16, 18, 20 or 24

12, 16, 18, 20 or 24

Cutting area length

2 420 mm (95”)

2 420 mm (95”)

Cutting area width

2 000 mm (79”)

2 000 mm (79”)

12.5 - 14.9 tonne

12.5 - 14.9 tonne

(13.8 - 16.4 US ton)

(13.8 - 16.4 US ton)

Household waste**

100 tonnes per hour (110 US ton / h)

100 tonnes per hour (110 US ton / h)

Demolition waste**

70 tonnes per hour (77 US ton / h)

70 tonnes per hour (77 US ton / h)

Industrial waste**

35 tonnes per hour (39 US ton / h)

35 tonnes per hour (39 US ton / h)

Bulky waste**

50 tonnes per hour (55 US ton / h)

50 tonnes per hour (55 US ton / h)

Cutting table weight Capacity

18

6000M

19

The M&J 6000M is the largest mobile shredder that M&J manufactures. It is capable of effectively and reliably shredding virtually any type of material. This includes particularly challenging inputs such as MSW, C&D Waste, bulky waste, chemical waste, industrial waste, tree stumps, carpets, mattresses, railroad ties, appliances as well as baled PET Bottles, or large paper rolls.

The capacity of the 6000-M series ranges from 50 to 200 tons/hour depending on the type of input material and shredder configuration.

The 390 kW diesel-hydraulic power unit makes the M&J 6000M independent of any power supply.

Because you can move it easily from one place to another, it makes an exceptionally versatile shredder solution that is ideal for many varying needs. This gigantic shredder is offered in a trailed mounted version or as a track-mounted version for agility in landfills.

MODEL

M&J PRESHRED 6000M

M&J PRESHRED 6000M

Undercarriage

Trailer

Crawler

Length*

11 410 mm (449”) 2

10 880 mm (428”)

Width*

710 mm (107”)

3 830 mm (151”)

Height*

4 060 mm (160”)

3 994 mm (157”)

50.0 - 52.5 tonne

60.0 - 62.0 tonne

(55.1 - 57.9 US ton)

(66.1 - 68.3 US ton)

Weight Motor Motor type

Diesel

Diesel

Power

403 kW

403 kW

Electric control unit

PLC

PLC

Drive principle

Double hydrostatic transmission

Double hydrostatic transmission

13 100 mm (516”)

13 100 mm (516”)

Chassis Belt conveyor length Belt conveyor width

1 200 mm (47”)

1 200 mm (47”)

Discharge height

4 203 mm (165”)

3 457 mm (136”)

Discharge width

1 200 mm (47”)

1 200 mm (47”)

2

2

Cutting table Number of shafts Rotating speed**

32 rpm

32 rpm

Number of knives

9, 12, 14 or 16

9, 12, 14 or 16

Number of counter knives

18, 24, 28 or 32

18, 24, 28 or 32

Cutting area length

3 461 mm (136”)

3 461 mm (136”)

2 400 mm (94”) 24.5 - 27.7 tonne

24.5 - 27.7 tonne

(27.0 - 30.5 US ton)

(27.0 - 30.5 US ton)

Cutting area width Cutting table weight

2 400 mm (94”)

Capacity Household waste**

200 tonnes per hour (220 US ton / h)

200 tonnes per hour (220 US ton / h)

Demolition waste**

100 tonnes per hour (110 US ton / h)

100 tonnes per hour (110 US ton / h)

Industrial waste**

50 tonnes per hour (55 US ton / h)

50 tonnes per hour (55 US ton / h)

Bulky waste**

70 tonnes per hour (77 US ton / h)

70 tonnes per hour (77 US ton / h)

20

F140

F210

21

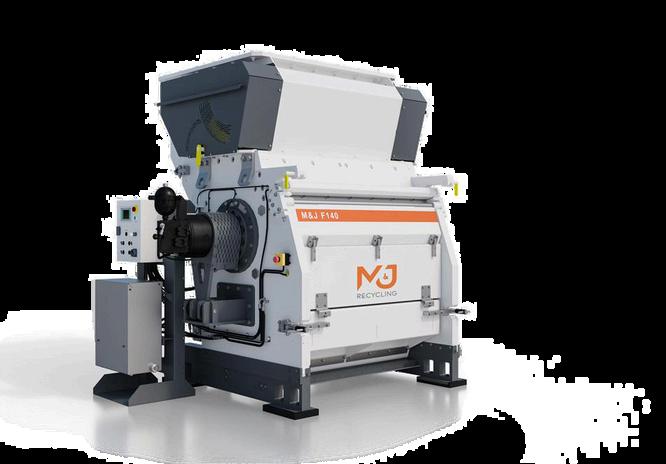

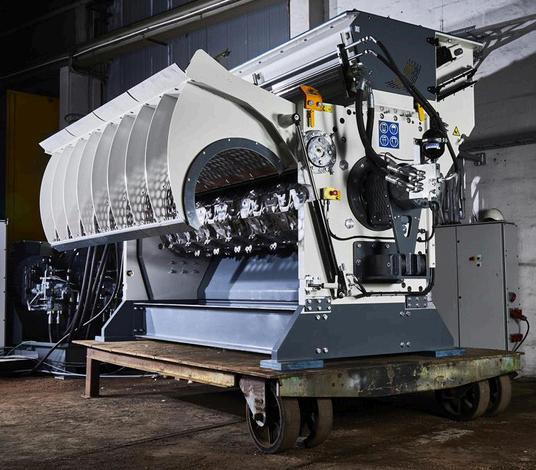

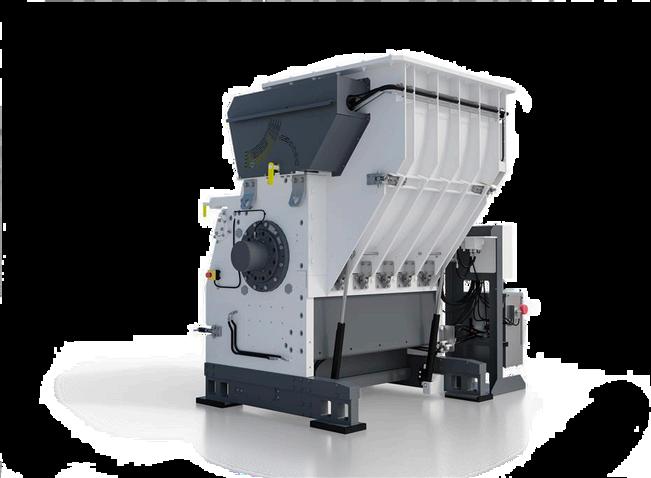

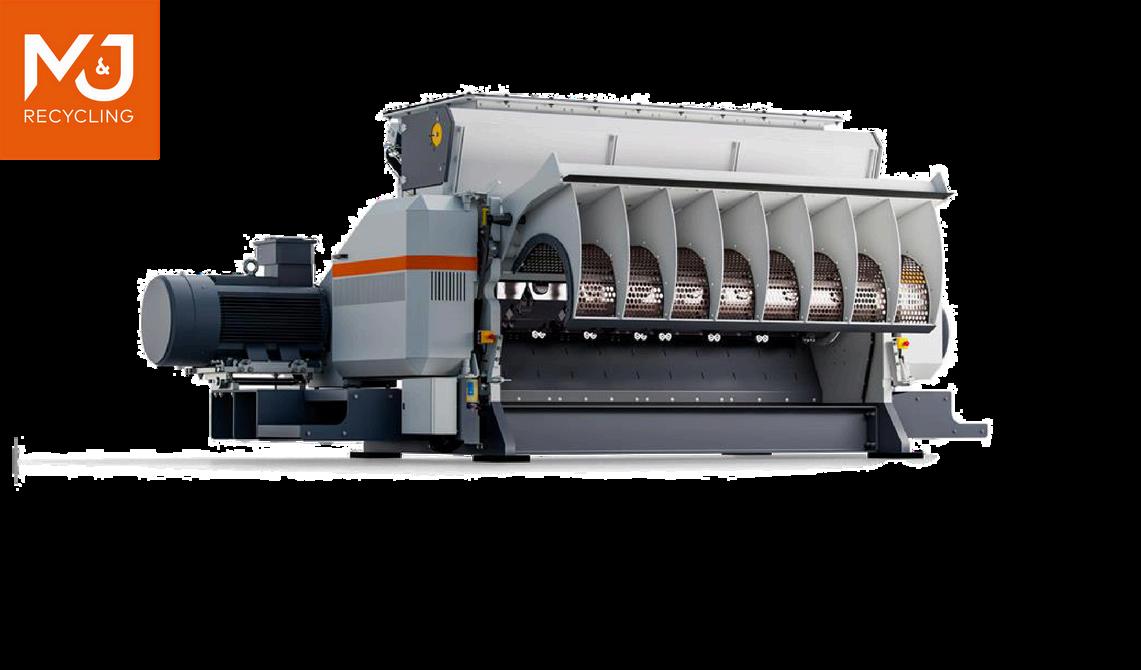

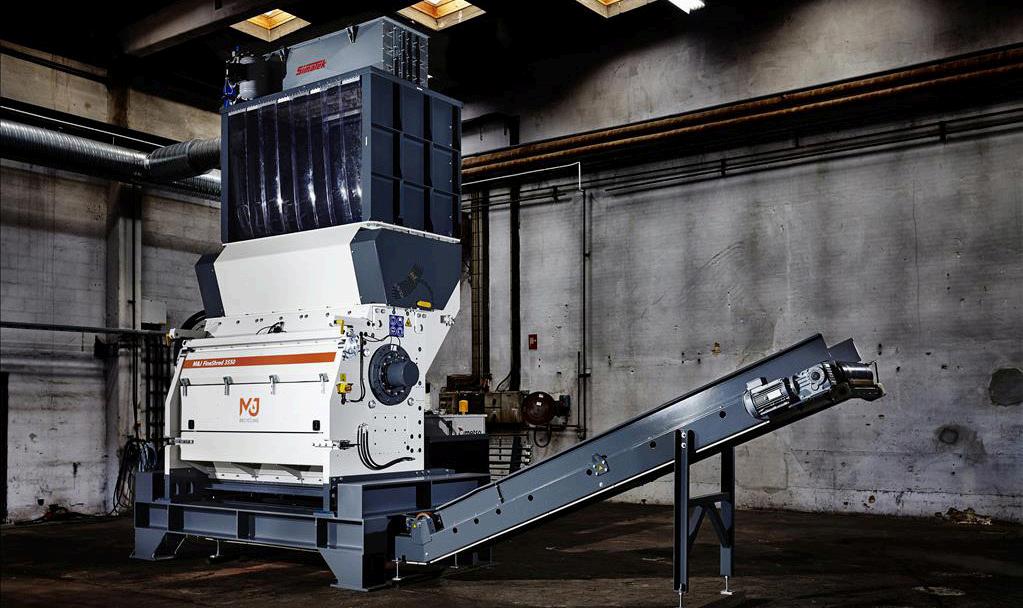

F140 Superior single-rotor fine-shredder for high performance The M&J F140 is a well-designed industrial shredder useful in waste recycling applications, especially in refuse-derived fuel (RDF/SRF) production. The M&J F140 features a unique knife system fitted on a multi-edged rotor for optimal shredding performance. Material is fed onto the rotor by a sensitive pusher that ensures the feed is not forced, meaning that heat generated is kept to a minimum. It is capable of producing an output of consistently sized material from 10 to 100 mm.

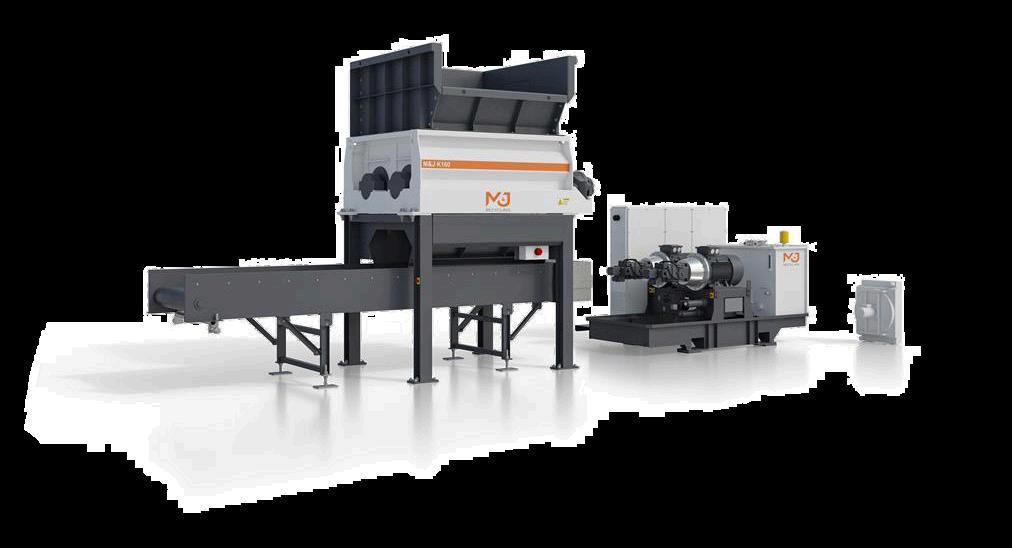

F210 High capacity fine-shredder with a long rotor The M&J F210 differs from the smaller M&J F140 model in that it has a longer rotor, is fitted with more knives and has higher motor power. This means high-efficiency fine-shredding of qualified materials. The M&J F210 features a unique knife system fitted on a multi-edged rotor for optimal shredding performance. Material is fed into the rotor by a sensitive pusher that ensures the feed is not forced, meaning that heat generated is kept to a minimum. It is capable of producing an output of consistently sized material from 10 to 100 mm.

SPECIFICATIONS

F-140

F-210

Overall dimensions without hopper (LxWxH)

2207 x 2799 x 2750 MM

2207 x 3469 x 2750 MM

Weight total

14 Tons

16 Tons

Assembly of knives on the knife holder

Bolted

Bolted

Knife Info Number per shaft

72/144

108/216

WSC 40

40 x 40 x 12 MM

40 x 40 x 12 MM

Capacity per hour

Up to 11 tons (90% below 50 mm)

Up to 16 tons (90% below 50 mm)

Number of shafts pcs 1

1

1

Length rotor

1350 MM

2020 MM

Shafts

Diameter rotor

665 MM

665 MM

Standard rotating speed

100-280 RPM

100-280 RPM

3331 x 1470 x 1488 MM

3331 x 1470 x 1488 MM

Power pack Overall dimensions (LxWxH) Weight total (incl oil and main cabinet)

3.8 Tons

5.5 Tons

Service area minimum recommended

1000 MM

1000 MM

Cooling capacity

60 kW

60 kW

200 kW

200 kW

Hydrostatic

Hydrostatic

Effect Drive principle

22

F320

23

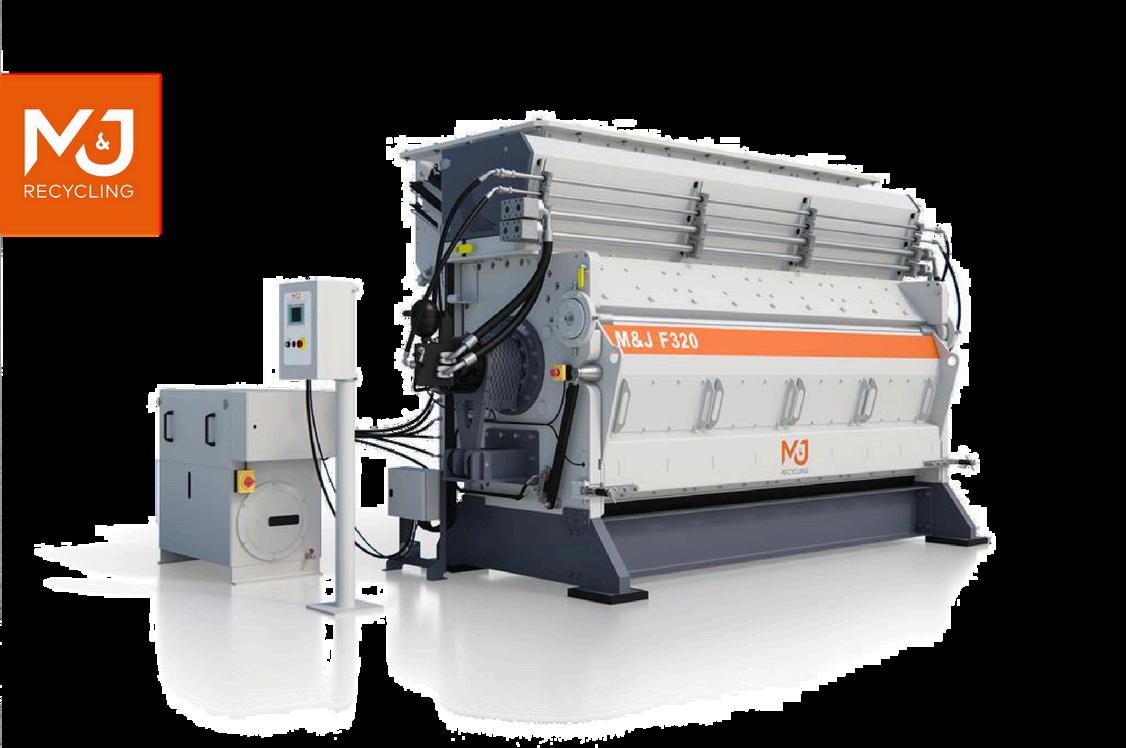

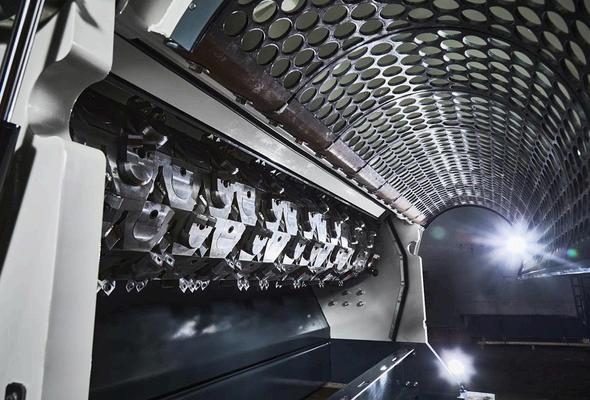

F320 Heavy-duty fine-shredder for production of RDF/SRF material The M&J F320 is a powerful flagship in our strong fine-shredder series, targeting the production of Alternative Fuels like RDF/SRF. Created from scratch, it can deliver an impressive 28 tonnes per hour (or 23 ton 90% below 50 mm). The low operating costs can be attributed to its innovative design. The M&J F320 has a unique cutting system that requires minimal daily maintenance. Unlike its competitors, once the rotor knives and static knives have been set in the initial setup, or after the knife holders have been changed, it does not require routine adjustment.

The M&J F320 also generates a limited amount of heat, so you can avoid frustrating downtime due to, for example, molten plastic. Stable and flexible production are key words for the M&J F320. You can just set the output size, adjust the pusher to meet your needs and off you go.

SPECIFICATIONS

F-320

Overall dimensions without hopper (LxWxH)

5237 x 2250 x 2737 MM

Weight total

18 Tons

Assembly of knives on the knife holder

Bolted

Knife Info Number per shaft

168/336

WSC 40

40 x 40 x 12 MM

Capacity per hour

Up to 23 tons (90% below 50 mm)

– Shafts Number of shafts pcs 1

1

Length rotor

3140 MM

Diameter rotor

665 MM

Standard rotating speed

100-290 RPM

Power pack Overall dimensions (LxWxH)

723 x 1572 x 2103 MM

Weight total (incl oil and main cabinet)

6.6 Tons

Service area minimum recommended

1000 MM

Cooling capacity

60 kW

Effect

2 x 200 kW

Drive principle

Hydrostatic

24

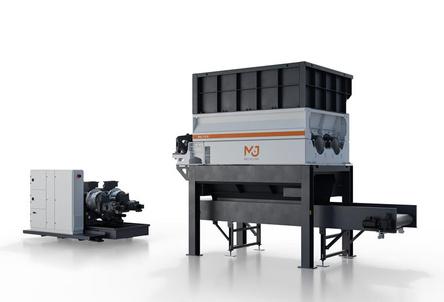

F320 E-drive

25

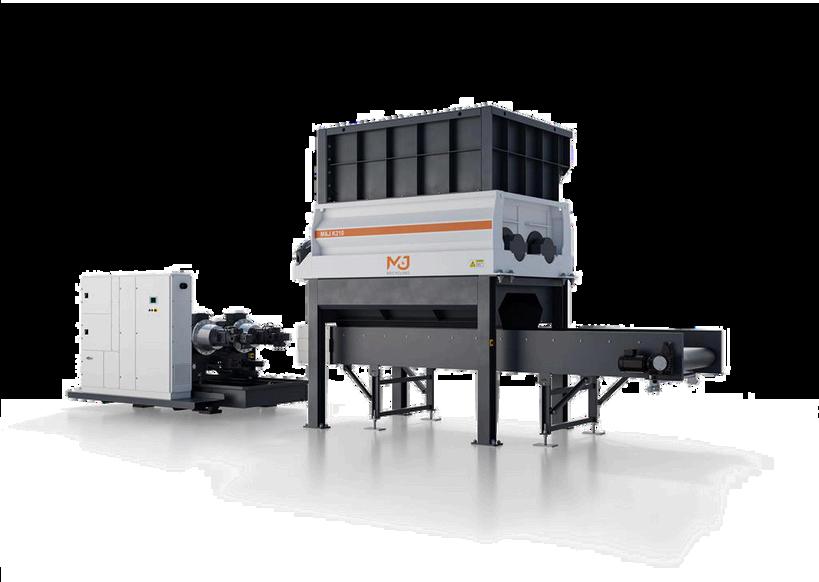

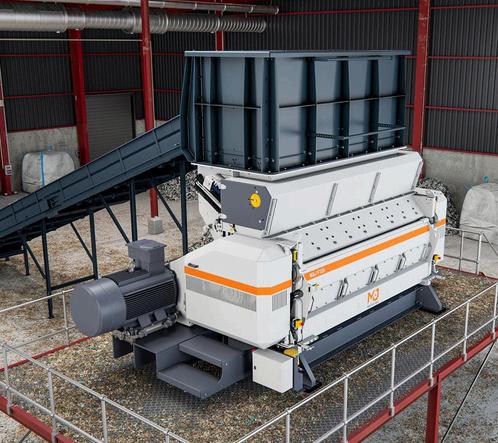

F320 E-drive The strongest electric member in the M&J family of superior Fine-Shredders for high-capacity production of alternative fuels like RDF and SRF. Tired of limitations?

The M&J F320 E-drive is created to break them down!

The M&J F320 E-drive is targeted high production of alternative fuels like RDF and SRF. It is reliable, easy to monitor and delivers up to 28 tons/h. It is power in its purest form. It comes with an intelligent electric solution based on market proven technology. It gives you the same output as always but with less energy consumption and less maintenance.

No need to compromise: The M&J F320 E-drive is the powerful flagship in M&J’s strong fine-shredder series. It is sharper and stronger than ever – simply built to deliver a stable, high-quality output of RDF/SRF at a minimal operating expense.

SPECIFICATIONS

F-320 E-drive

Overall dimensions standard delivery (LxWxH)

283.5 x 108.3 x 107.8 inches

Weight total

26.4 Tons

Standard Color

9002, 7011 RAL

Assembly of knives on the knife holder

Bolted

Knife Info Number per shaft

168 pcs

WSC 40

1.6 x 1.6 x 0.5 inches

Capacity per hour –

Up to 24.2 US ton (90% below 2 inches)

Rotor Number of rotor

1 pcs

Length / diameter of rotor

124 / 26 inches

Number of knives

168 pcs

Standard rotating speed

200 - 300 RPM

Motor Type Installed

2 x 217 horsepower

Power Voltage

3 x 400 + PE V

Drive Principle

Double Eletrical Belt Drive

Frequency

60 Hz

26

Westeria® is a German Manufacturer of conveying and wind sifting technology that has been specifically designed for the Waste to Energy and Recycling Industry. The patented wind-sifting solution from Westeria® – the technological leader, allows the separation of the heavy fraction (contaminates) from the light fraction (High BTU Material) in one easy step. www.westeria.de

27

28

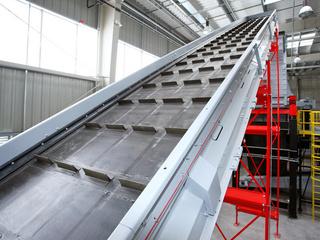

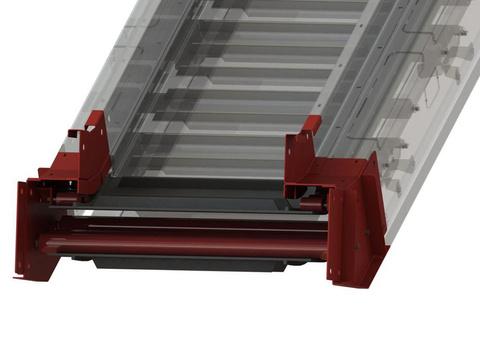

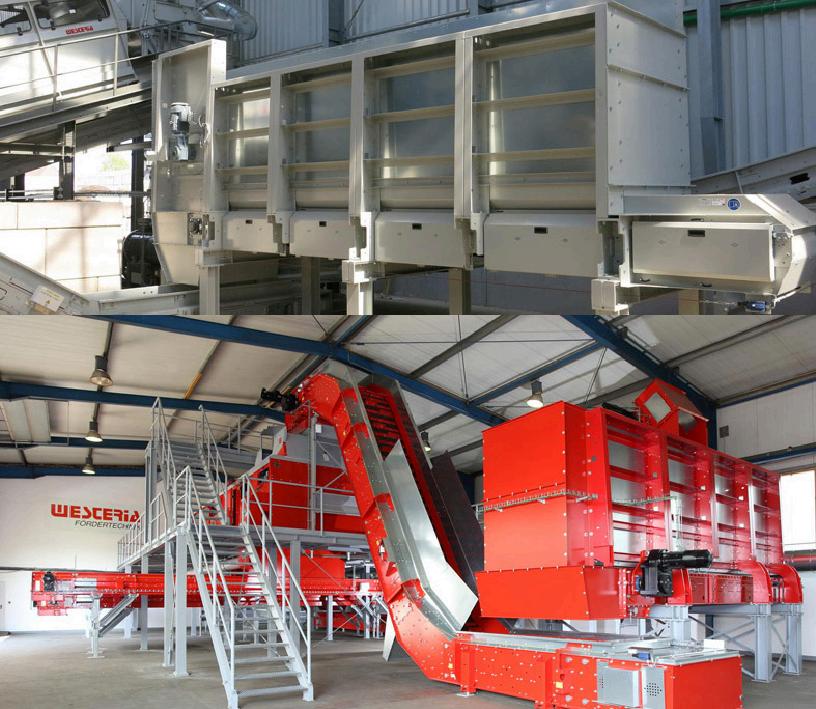

Westeria Conveying Equipment

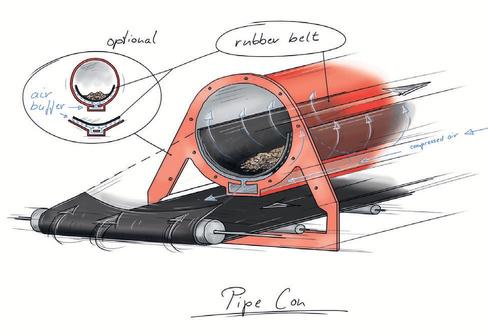

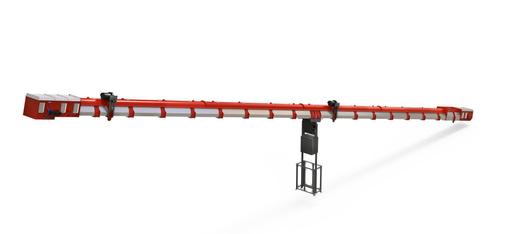

PipeCon® The PipeCon® is a logical extension to, and expansion of, Westeria® Fördertechnik’s product range.

The PipeCon® is a conveyor unit for all types of bulk goods, with clearly defined grain sizes and a high conveying capacity of up to 500 tons per hour. The PipeCon®’s conveyor belt in the upper run is pneumatically powered. Air nozzles positioned beneath the conveyor belt every 50 meters provide 2.2 kW blasts, therefore powering the belt. As a result, the entire system is extremely efficient and low maintenance, because hardly any wear occurs. Thanks to its design and special construction, large distances can be economically bridged thanks to a support spacing distance of up to 60 meters. The Westeria® PipeCon® is ideal for the widest variety of applications, because the extremely high degree of sealing means that no separating agents can escape. ThePipeCon® has proved itself in the wood processing and cement industries.

ChainCon® The tried and proven Westeria® modular system was developed to be flexibly and react quickly to customer requirements. The unique chain belt conveyor system is geared towards every conceivable demand on the market. The chain belt conveyor is equipped with steel carriers, transporting every kind of feeding material easily. Westeria® chain belt conveyors combine the highest “Made in Germany” – product quality with an extremely attractive price. Yet at the same time it provides sufficient space to be able to integrate special wishes and requirements into the existing system – in a flexible way and without any complications.

29

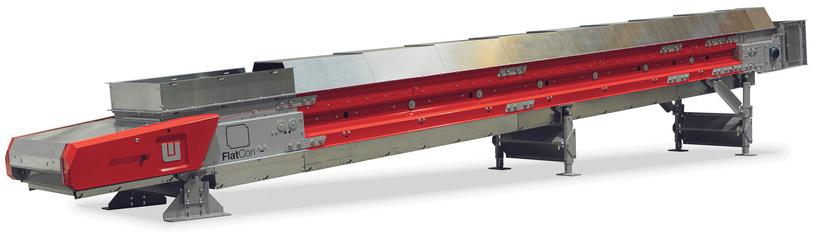

FlatCon® Wherever large quantities need to be processed such as in waste processing plants, the Westeria® standard system has been proving itself for years. The flat FlatCon belt conveyor system which comes standard with a side seal is perfectly oriented on extremely tough everyday work. A rugged design and the use of low-wear materials have turned the Westeria® belt conveyor system FlatCon into a classic. Its modular construction naturally means the flat belt conveyor FlatCon can be expanded at any time.

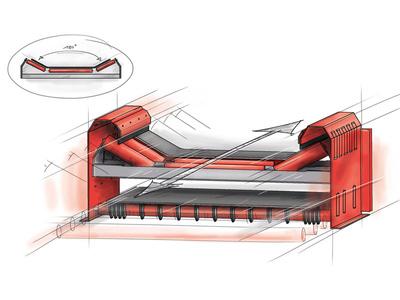

BendCon® With the Folding Conveyor system BendCon, Westeria® provides you with a rolling supported folding conveyor belt as the ideal solution for all “conveyor tasks” with an upward bend.

The angle of the folding conveyor belt is aligned or adapted to your specific circumstances. The Westeria® BendCon conveyor system has proven itself as a draw-off feeder for shredders, for instance.

The sophisticated and rugged roller system and the corresponding belt leave no wishes unfulfilled and easily transport the feed material.

30

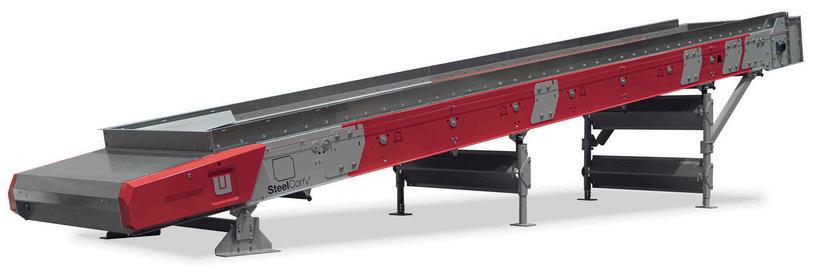

SteelCon® The SteelCon, designed for the toughest applications, is a true powerhouse. Its weight alone of over 1/2 ton per 3 m segment is proof that it can handle the most demanding tasks in conveying scrap and other heavy or aggressive material flows for a long time. Standard galvanized steel side guides can be equipped with optional additional wear plates. Numerous technical innovations are integrated as standard.

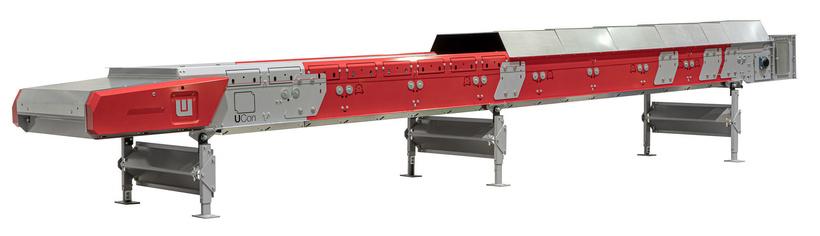

UCon® The UCon is Westeria’s solution for all types of bulk materials. It can be equipped with additional side seals along any length. Furthermore, its design has been perfected so that, in contrast to conventional conveyors, the idlers can be reached and replaced very easily for maintenance purposes. Large volumes are no problem for the UCon: With additional side elevations, a particularly large loading height can still be achieved even with top belt covers.

31

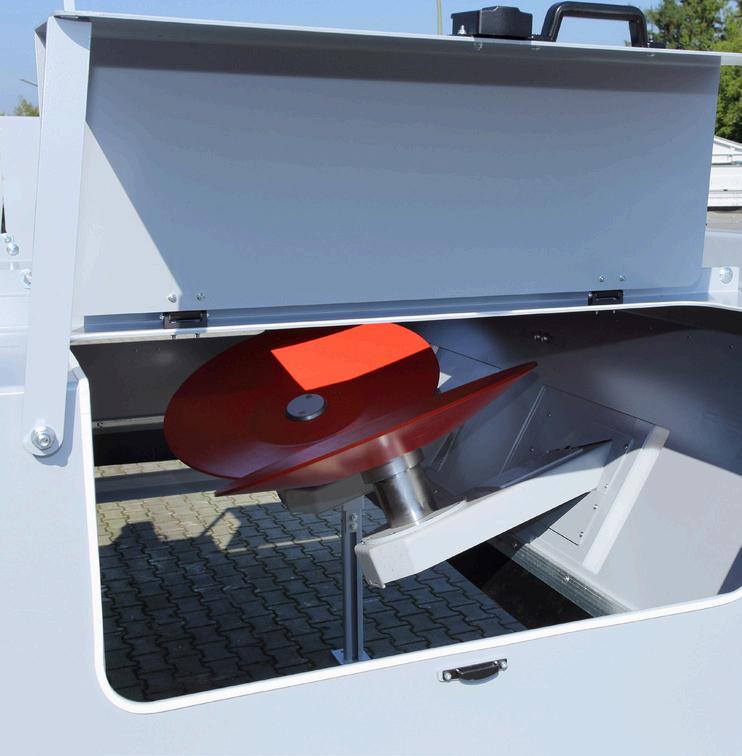

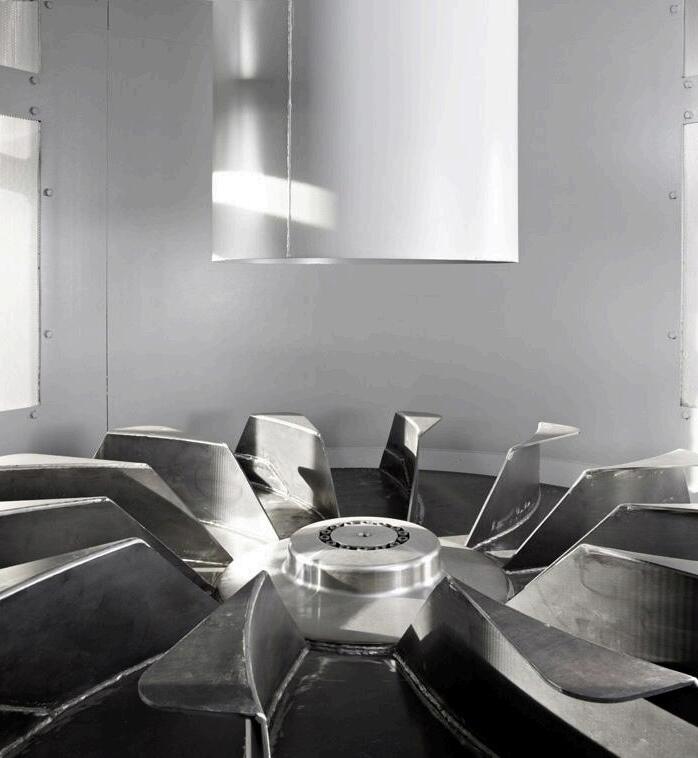

DiscSpreader

32

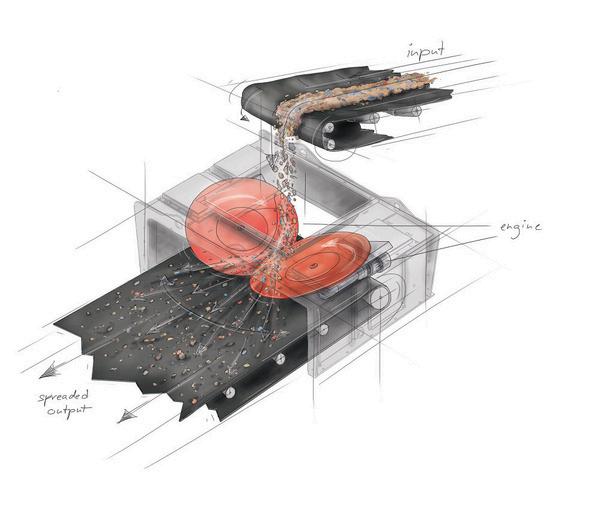

Ingeniously simple and simply ingenious is the best way to describe the new DiscSpreader® material distribution system from Westeria®.

Although the construction may appear to be simple, at a closer look it impresses with industry leading technology. As is so often the case, the ingenuity lies in the details. Even during non-linear material feeding, the Westeria Disc Spreader ensures perfect, reliable material distribution of glass, wood, compost, scrap, residual sludge, commercial waste and domestic waste for all separation processes.

Whether NIR, eddy current or windsifting, the Westeria® DiscSpreader® is the perfect system for distributing the flow of material across a uniform width. With its exceedingly compact design, the DiscSpreader® material distribution system has a small footprint with simultaneously huge efficiency.

33

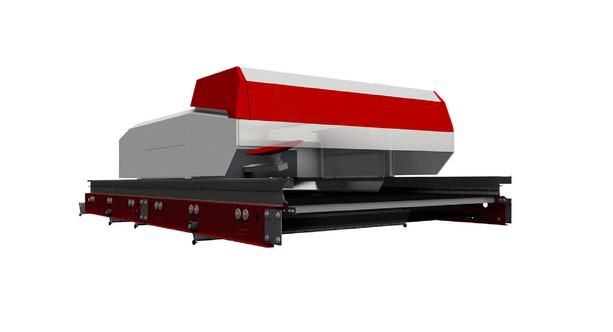

DiscSpreader® automove Permanently optimal material distribution thanks to artificial intelligence. Together with leading AI experts, Westeria provides ideal material distribution for every material.

Westeria’s DiscSpreaders are known for their perfect material distribution of glass, wood, compost, scrap, slag, waste or any other type of bulk material.

Their space-saving disc distributor has been popular for years. The latest development offers you numerous additional advantages. There is no longer any need for staff to re-align the distribution disc if the distribution quality is no longer optimal. Together with leading AI developers from the Technical University of Cologne, Westeria has developed a solution that automatically aligns the discs with the help of artificial intelligence. Cameras above the conveyor belt permanently monitor how the material is distributed.

The self-learning algorithm permanently collects new data and can thus adjust to any change in the material flow at lightning speed. The patented system is mounted directly on the accelerator belt and thus ensures maximum efficiency of subsequent sorting units.

KEY ADVANTAGES Permanent monitoring of the distribution quality AI controlled disc alignment Highest effectiveness for subsequent separation

34

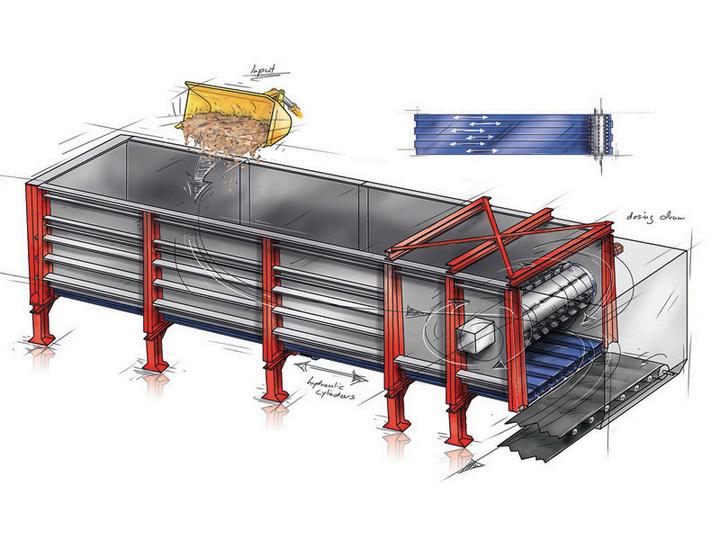

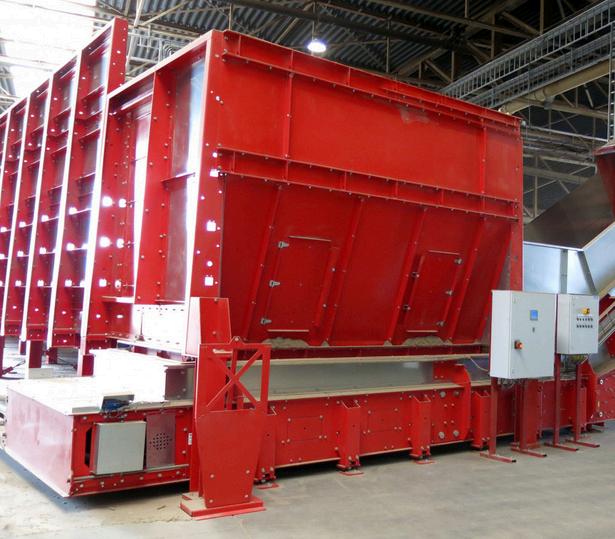

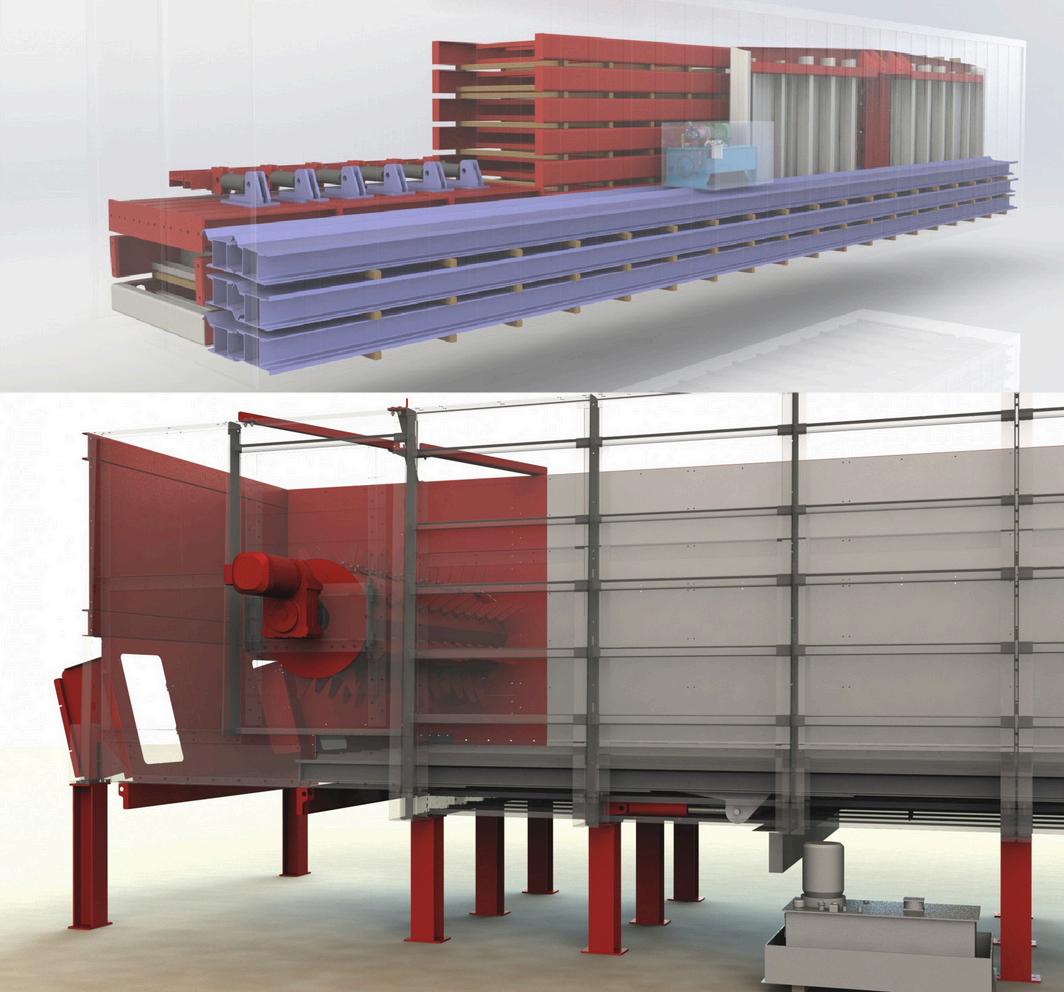

Static MovingFloor

35

Perfect down to the last detail – that’s the best way to describe the Westeria® MovingFloor® Bunker with its sophisticated modular principle.

The intelligent and cost-effective structured series of these bunker systems provides the greatest possible flexibility within the standard product range. The bunker system is designed so that the Moving Floor Bunker can be expanded or upgraded at any time. The prefabricated modules enable delivery times within 5 weeks.

The application areas of the MovingFloor® Bunker bunker systems are also extremely flexible. From processing substitute fuels through compost up to building waste, everything is possible.

36

MultiFeeder Bunker System

37

This latest bunker system innovation from Westeria® is now an even better fit for companies that require a bunker system that can meet their individual needs. With its sophisticated modular principle it satisfies the various different bunker system requirements which exist. The main highlight of the new MultiFeeder bunker system is its linear transfer of the feed material. As a result, this bunker system takes up incredibly little space and can be easily integrated into existing systems. The bunker system comes in 4 designs. Depending on the material to be processed, Westeria® can offer you the MultiFeeder bunker as a chain conveyor, slat conveyor, belt conveyor or with pusher plates. Across all bunker designs, you choose between a 1,200 mm, 1,600 mm or 2,000 mm operating width, with a maximum bunker length of 12 meters. Regardless of whether you wish to process light materials such as film/PET bottles, dry piece goods such as paper/cardboard packaging or sharp-edged or hot materials – you cannot go wrong with the MultiFeeder bunker system from Westeria®!

38

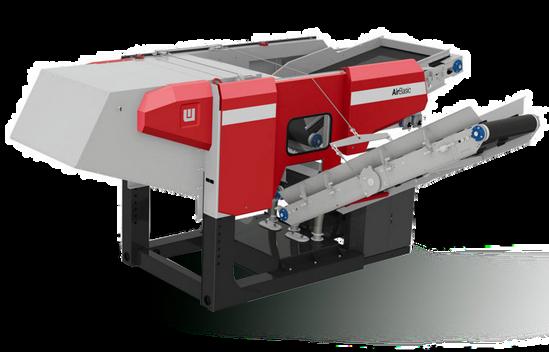

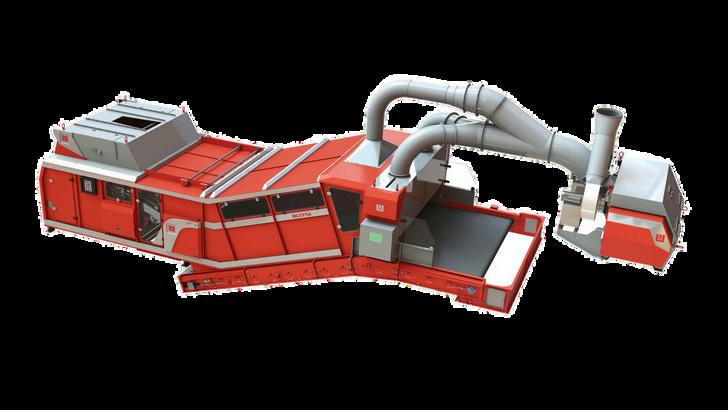

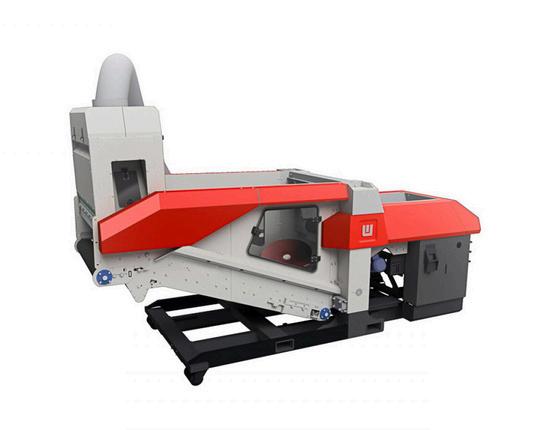

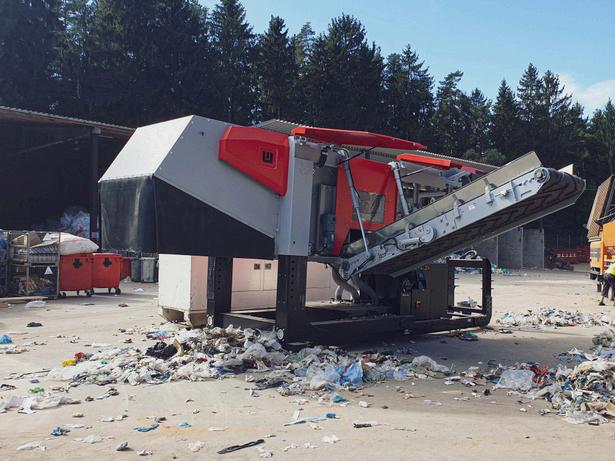

Windsifter AirBasic

39

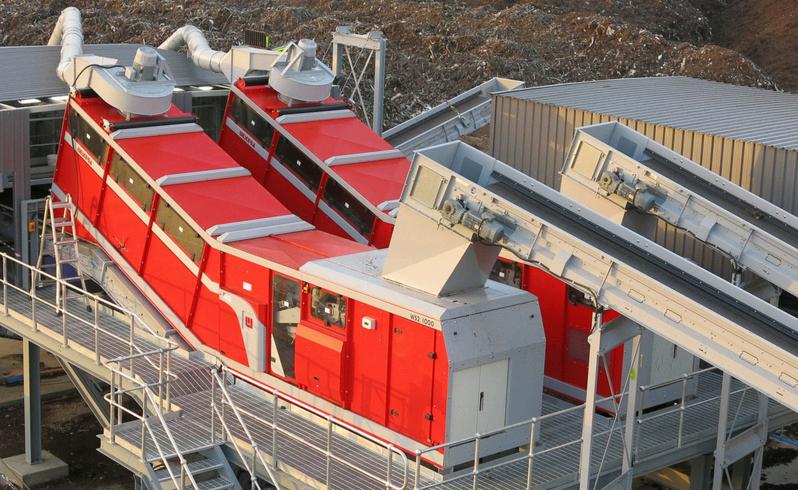

The Windsifter AirBasic® is part of the latest generation of mobile windsifter technology from Westeria®. It is the result of the innovative continuous development of the patented Westeria® windsifter technology that provides superior separation and contaminant removal. The AirBasic® windsifter shows all its skills and advantages when you have to separate various types of waste such as construction waste, compost, household waste, slags or scrap material. Hundreds of improved details and new ideas have resulted in a persuasive next step in mobile windsifter technology.

With the AirBasic®, the worldwide proven Westeria® air separation technology fits into just one 40 foot high cube container. Due to the robust construction made of solid steel, even the hardest applications such as construction waste are no problem to handle.

40

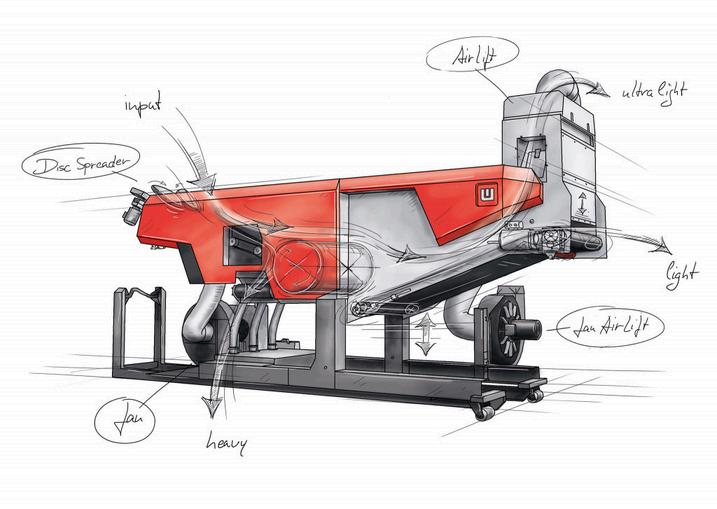

Windsifter AirLift

41

Operators of composting plants know the problem all too well: Organic household waste is often contaminated with foil and packaging waste. With the AirLift, Westeria®’s technicians and engineers have developed a unit that can be seamlessly integrated into existing systems. The AirLift system comprises three segments: The high speed transport belt, which feeds in the material at a speed of up to 4 meters per second. This is in turn connected to the AirWheel. Westeria® has rigorously built upon their years of experience in the wind sifter field in order to achieve clean separation of materials of virtually the same weight. And in conjunction with the AirWheel, the AirLift also perfectly demonstrates its abilities when processing PET bottles. Light plastics and label paper are perfectly separated. Wherever materials with a very similar, specific density need to be separated precisely, the AirLift is your ideal choice!

42

Windsifter AirStar

43

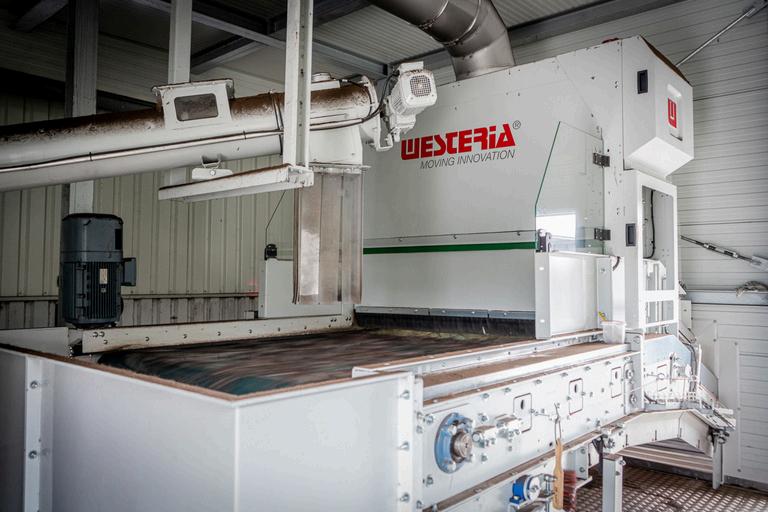

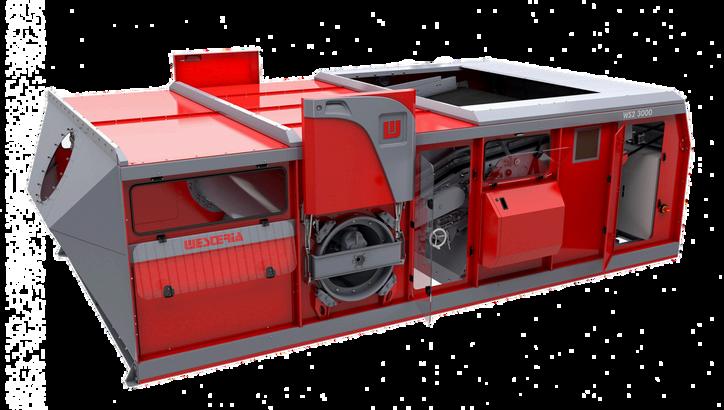

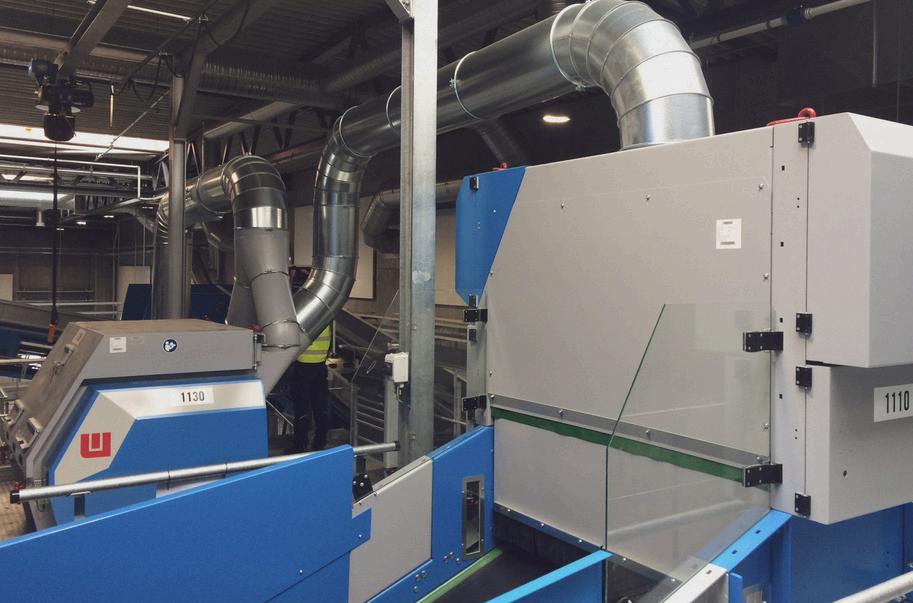

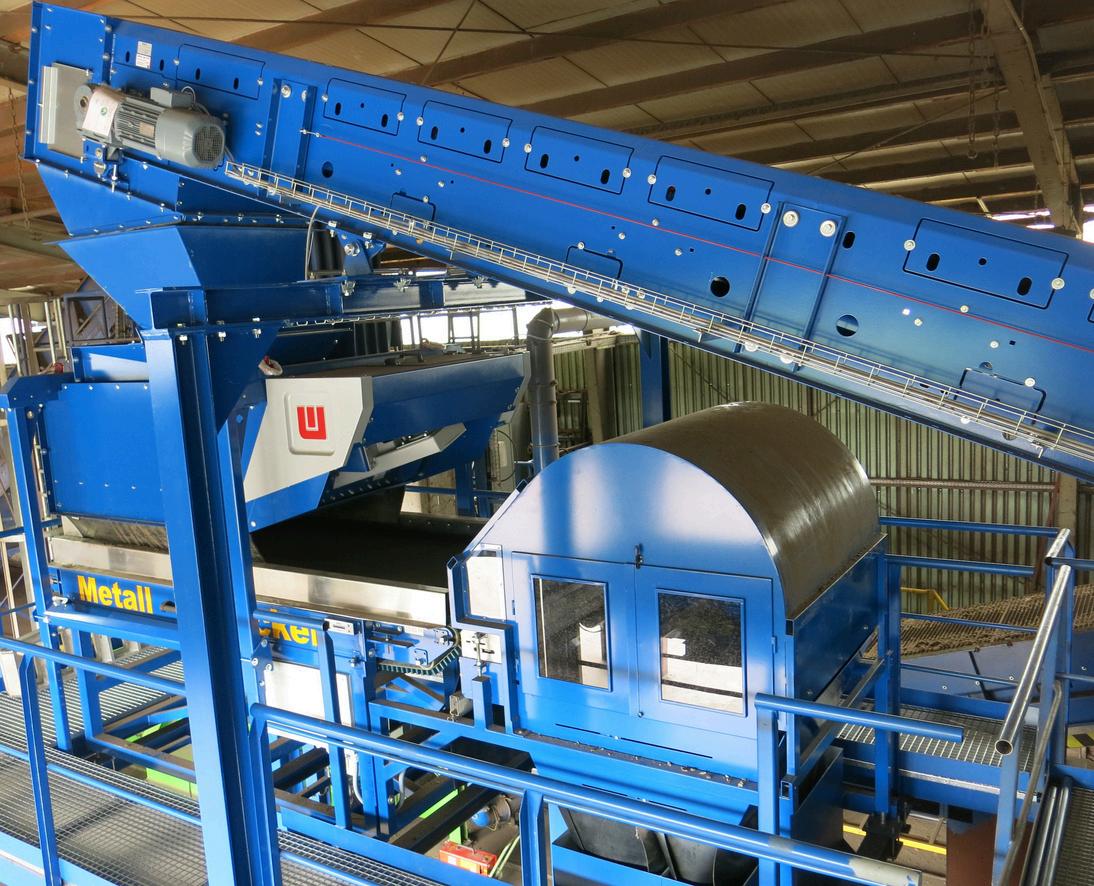

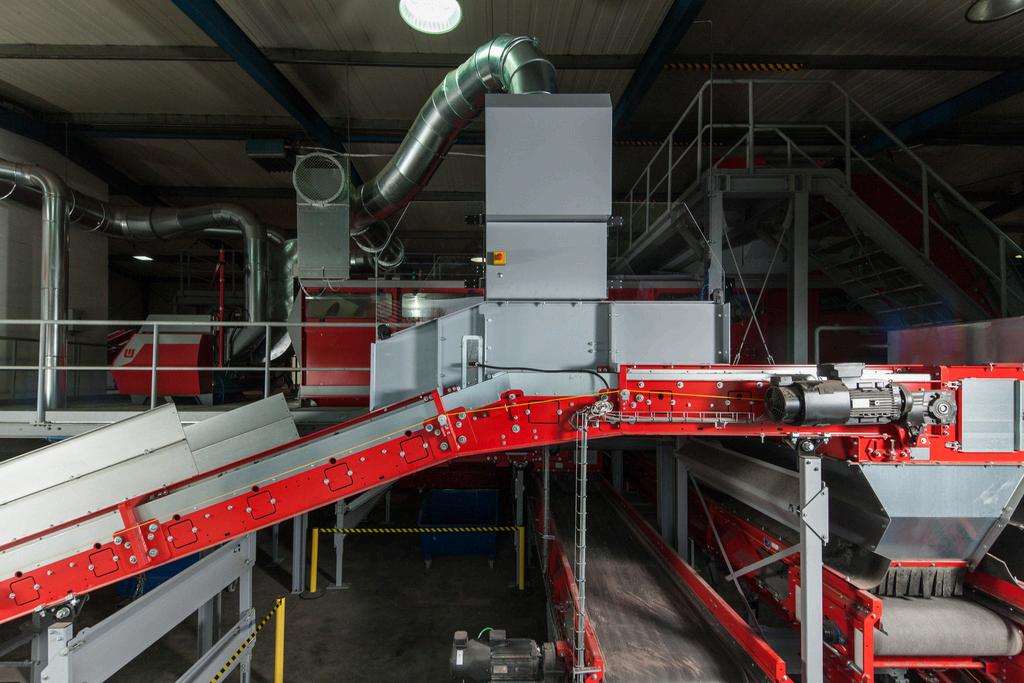

The windsifters from Westeria® are designed to be rugged, powerful and energy-efficient. A powerful method to separate heavy and light materials is what sets the patented Westeria® windsifter technology apart.

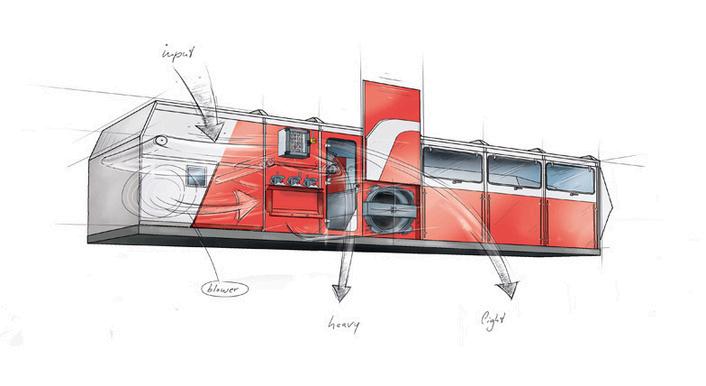

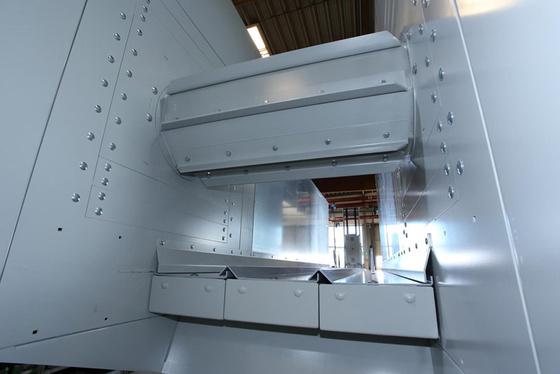

In the windsifter, the materials are separated by a process that is divided into three main components: the acceleration belt, the air jet and the windsifter separation drum.

With its uniform and single-layer distribution of the input material, which is distributed homogeneously across the entire width of the windsifter and fed to the feeding belt, the windsifter achieves excellent separating results.

The material in the windsifter is accelerated to an adapted speed here and transported to the ejection edge. The materials falling from above get into an upcurrent that is generated through an adjustable air jet that is attached in the windsifter underneath the feeding belt.

The airstream meets the upper area of the rotation drum in the windsifter and is fed through it into the expansion chamber with the laminar flow.

The material in the windsifter meets the air flow and is separated into light and heavy materials.

The light materials are transported with an air flow with high speed into the expansion chamber, where the air speed is reduced so much that the light materials reach a container or a discharge belt. The heavy materials fall down from the rotation drum in the windsifter into a container or onto a discharge belt.

The air volume brought into the expansion chamber is removed again in the upper section of the windsifter and, depending on the individual application, is once more drawn in by the blower or routed into a filter system. To retain high-grade recycling raw materials, Westeria® has designed a special windsifter to unerringly sort the input material into three fractions with a high degree of selectivity.

44

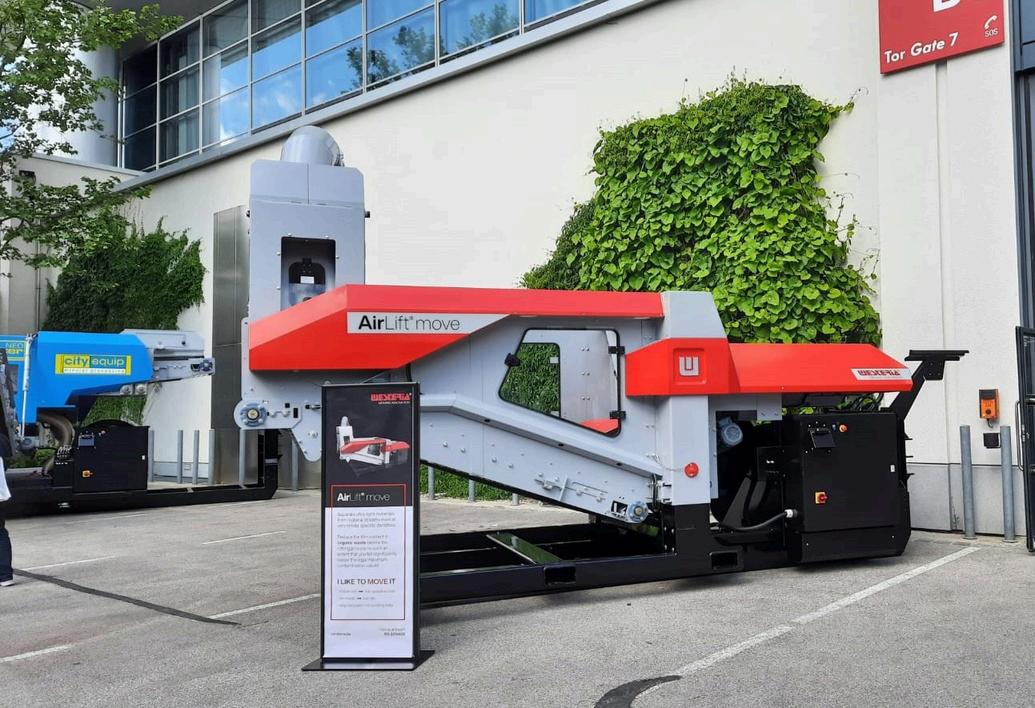

AirLift® move

45

Free from all impurities - more flexible than ever before!

Now also mobile! Westeria’s proven technology of the AirLift windsifter is now more flexible than ever. The AirLift move brings effective separation to any location. The ultra-light separator is already widely used as a stand-alone version for the removal of impurities. Materials with similar specific densities are easily separated by the unit. For compost processors, the AirLift move therefore enables the effective and efficient removal of films from the valuable organic material.

ADVANTAGES High purity of over 99% Max. Flow rate 320 m³/h Precise adjustment of ballistic trajectory, air speed and visibility DiscSpreader and prefeeding belt integrated as standard

46

47

Since 1997 Ecostar has been synonymous with the most advanced technology in the mechanical separation of waste.

With more than 20 years of research and development, Ecostar has developed custom solutions for every kind of material to be screened. Thanks to its patented technology Dynamic Disc Screening, today many types of waste can be efficiently recovered to supply clean fuels and energy sources, such as biomass and RDF(Refuse-Derived Fuel), or substances useful for agriculture and forestry, such as compost. The Ecostar technology revolutionizes the standards achieved in terms of consumption, production performance, footprint, amortization expectations, economic return, and emissions released during the process. https://ecostar.eu.com/

48

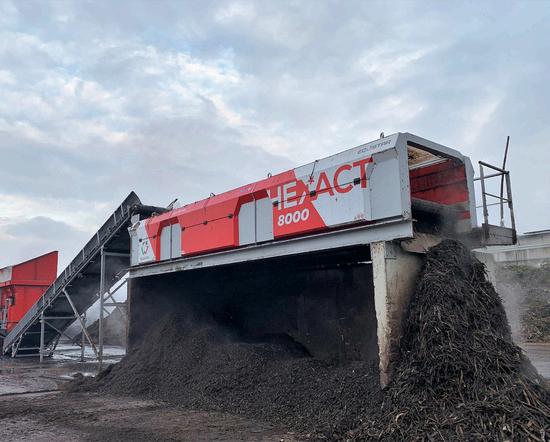

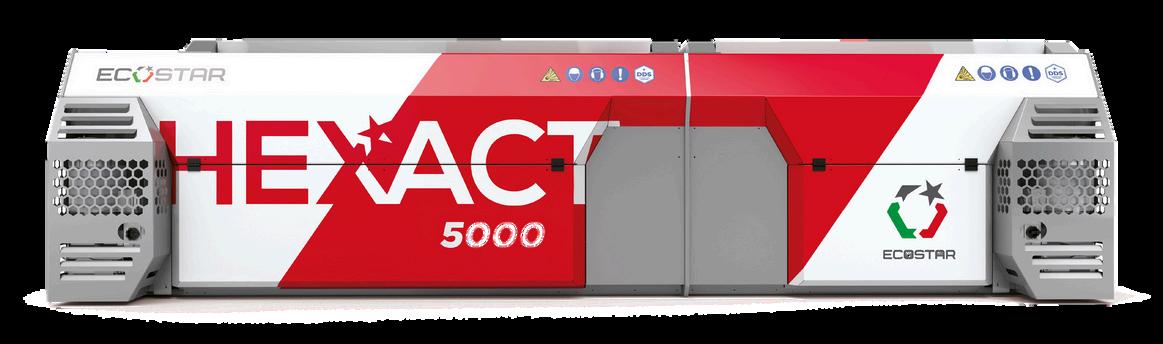

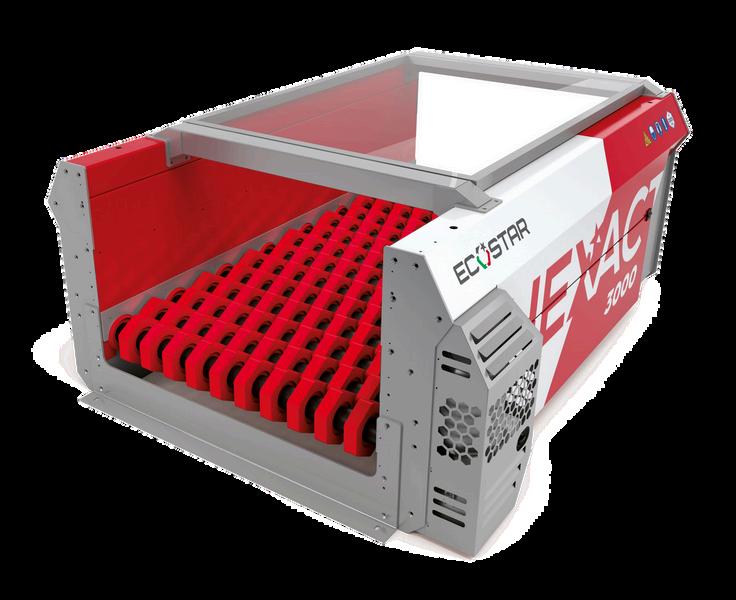

Stationary Waste Screen: HEXACT Thanks to DDS (Dynamic Disc Screening) technology, Hexact is able to screen materials faster (1 m/sec), using less space, and reaching a productivity level of up to 200 t/h. Revenue from the sale of recycled materials can be increased thanks to the unique characteristics of this system. The top quality of its components and assembly procedures, exceeding market standards by far, guarantees maximum reliability and a reduction in maintenance costs.

The efficiency of DDS (Dynamic Disc Screening) technology allows the installation of low power 7.5 kW electric motors for every 4 linear meters of screen. Hexact is built with high quality materials and can be configured with different disc sizes to screen any type of material: car fluff, SRF (Solid Recovered Fuel), biomass, compost, construction and demolition debris, incinerator ash, municipal solid waste, organic waste, paper and cardboard, PET, aggregates, tires and recycled wood.

The length of the Hexact screen starts at 2 meters and can be supplemented with additional 2 or 3 meter modular sections. This system makes it possible to proportion the machine’s performance according to the needs and the available space.

49

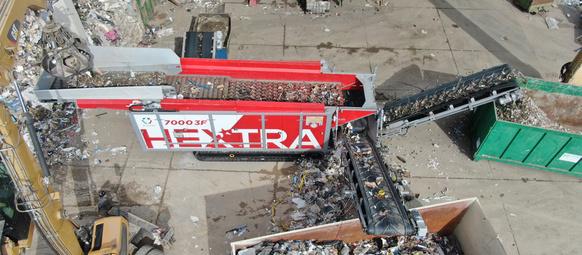

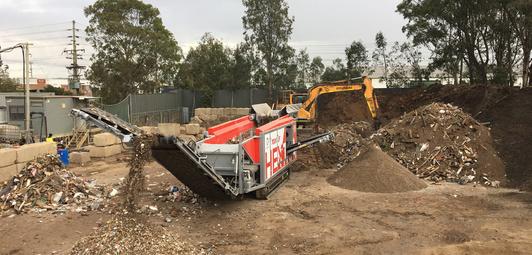

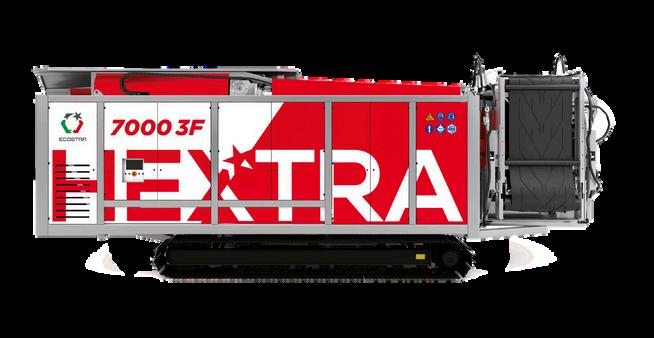

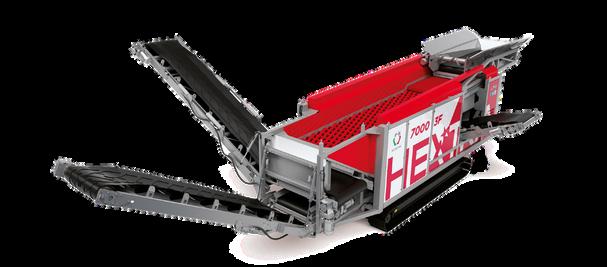

Mobile Screening Equipment: HEXTRA Thanks to DDS (Dynamic Disc Screening) technology, Hextra is able to screen materials faster (1 m/sec), using less space and reaching a productivity level of up to 200 t/h. Revenue from the sale of recycled materials can be increased thanks to the unique characteristics of this system. The top quality of its components and assembly procedures, far superior than market standards, guarantees maximum reliability and a reduction in maintenance costs.

Thanks to SMART HOPPER – the special loading hopper developed by Ecostar – Hextra is in fact, a screening system with unbeatable flexibility. Its sliding hopper is equipped with a dosing screw which also enables it to operate in a loop with all shredders.

Its hydraulic system, operated from the control console, enables the screening options to be changed from 2 fractions to 3 fractions in relation to specific processing needs. The hopper slides to reduce its dimensions to a minimum during transport.

Hextra is available in tracked and roll-off versions, with 2 and 3 screening fractions and screening surfaces from 5 to 7 meters in length.

ADVANTAGES • 70% less energy consumption – The efficiency of Dynamic Disc Screening technology enables the use of 7.5 kW electric motors for outputs of 20 t/h and energy savings of up to 70% compared to traditional screening technologies.

• Productivity up to 200 t/h – Hextra is able to screen materials faster (1 m/sec), using less space and reaching up to 200 t/h.

• Loop with shredder – The SMART HOPPER is equipped with a sliding system which enables it to operate in loop with all shredders.

50

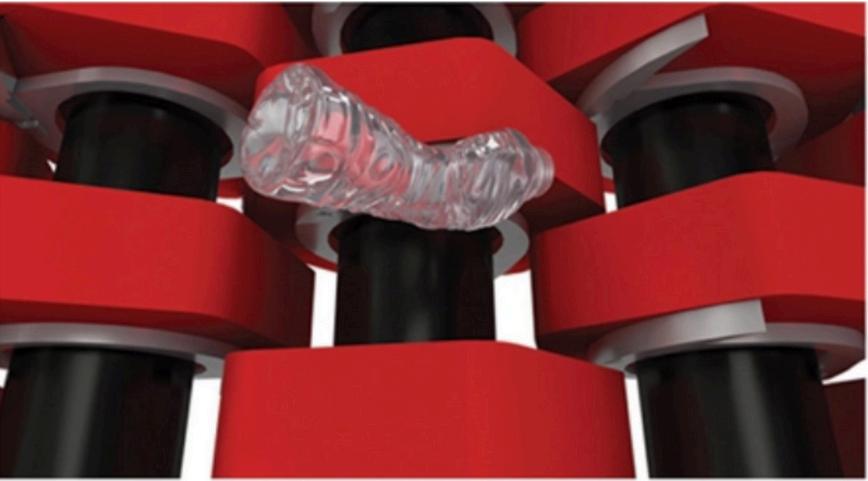

Ecostar Technology DDS: Dynamic Disc Screening Unique in its kind, DDS is based on a series of shafts equipped with hexagonal or octagonal discs, with a flat profile, made of Hardox to guarantee maximum resistance. Thanks to this design, the material flows on the screen’s discs and is subjected to a jolting movement that separates the waste. The undersized material drops below the screening surface, passing through the gaps between the discs while the oversized material advances to the end of the screening plane. The result is a clean fraction, ready for recycling processing.

Anti Wrapping systems: The drive shaft is protected by highly resistant loose sleeves which are independent of the rotation of the shaft itself. This prevents long and stringy parts of the material being screened from getting wrapped around the shaft. This optimizes the separation and significantly reduces downtime.

HDDS: Hyper Dynamic Disc Screening HDDS is the Ecostar technology for the separation of particularly difficult waste containing long and stringy materials, such as bags and plastic straps used for packaging, which can wrap around the shafts, or plastic bottles that can get stuck during the screening process.

51

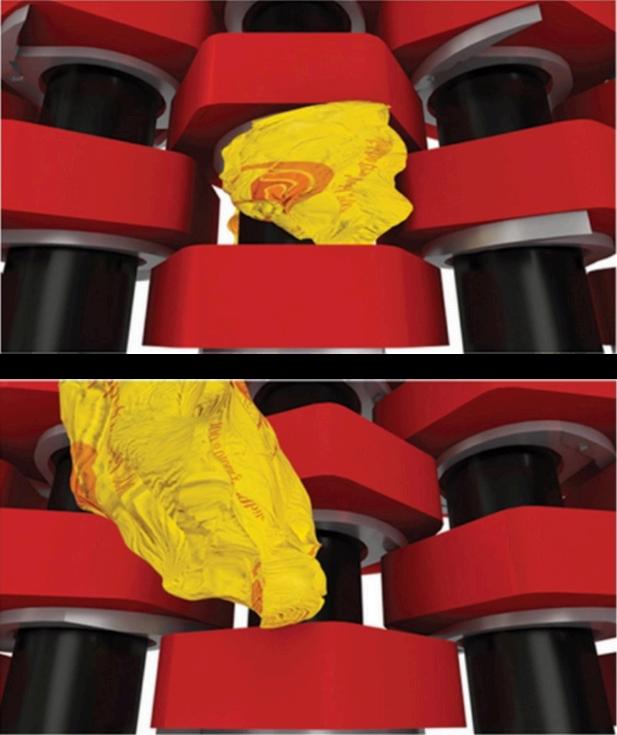

Anti Wrapping & Anti Clogging Thanks to its special flap, Hyper DDS technology is able to hook bags or stringy materials that could become wrapped around the screening shafts by pushing them forward and keeping them over the screening surface. Its jolting movement enables the optimization of the separation process of materials such as plastic bottles and cans, so as to obtain a superior quality of the screened fractions for their subsequent processing.

SWAT: Screening Width Adjustment Technology SWAT discs consist of two semicircles with a double spiral which are mounted in series directly on the drive shaft between the hexagonal discs. Depending on the positioning of the SWAT discs, it is possible to configure different screening sections, ranging from 150 mm to 200 mm or from 200 mm to 100 mm, in just a few minutes. The installation can be carried out on site on operational DDS screens with screening sections starting at 100 mm and above.

The double spiral shape pushes large materials upward, separating the oversize from the undersize more efficiently. In addition, the risk of material wrapping around the shaft is minimized and the quality of the separation is increased.

52

Located near Gothenburg in Sweden, for over 30 years Flexus BalaSystem has been involved in the design, engineering and manufacturing of sustainable technical solutions.

Flexus pioneered & developed the unique heavy-duty, all-in-one round baling & wrapping technology, and today with hundreds of installations worldwide in nearly 50 countries on 5 continents, they are proud to have built a solid #greentech reputation for durability, cost efficiency and operational safety.

A brief history: The two brothers Jan and Bo Ansbjer founded Bala Industri in 1983, manufacturing equipment for material handling of agricultural products. In 1992 Bala developed a first new round bale press for waste materials, and in 1993 it was decided to focus entirely on the waste industry and the company name was changed to Bala Press AB. From 1999 to 2002 the company was part of the ATLE Group/Sweden. In 2003 the Ansbjer brothers took over Bala Press AB and renamed it Flexus Balasystem AB. In 2007 Flexus moved to the newly built premises in Nossebro/Sweden, and since 2015 Flexus is wholly-owned by Bo Ansbjer.

Given the worldwide drive towards sustainable waste solutions and renewable energies, Flexus is all geared and ready to continuously adjust its manufacturing capacity and growth, and to retain its well-known short delivery times and technical support for their worldwide customers.

53

54

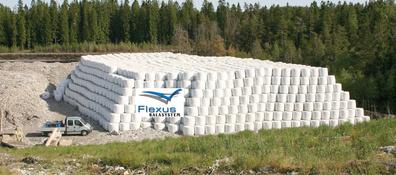

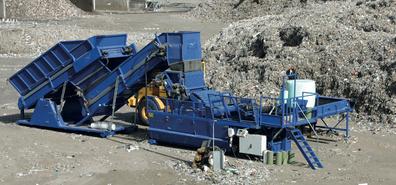

EQUIPMENT: Flexus is the pioneer in industrial-scale all-in one round-baling & wrapping solutions, for the compaction and volume reduction of a wide range of applications: MSW, RDF/SRF, landfill management & remediation, transfer stations, Waste-to-Energy and incineration facilities, biomass, C&I waste, ASR, tires, pulp, ashes.

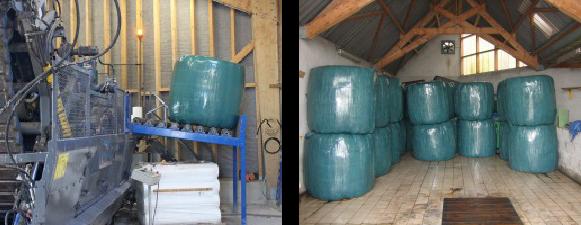

Since 1995, Flexus heavy-duty round-baling systems have a solid reputation for being flexible, easy to operate, low and predictable operating costs, and being service friendly; the small footprint and the mobility of Flexus round balers make it a perfect choice, either as a standalone machine or for processes. Flexus round bales are highly space-efficient when it comes to stacking, storage and transport of baled & wrapped materials.

The Flexus baling system is available in three variations, for different needs and capacities:

TYPHOON BALING SYSTEM

For higher capacities up to 30-35 bales/hour (up to 50 t/h) and 40 kW of power.

BREEZE BALING SYSTEM

For medium size projects up to 15 bales/hour (up to 15 t/h) and 35 kW of power.

BREEZE MINI BALING SYSTEM

For small capacities of up to 5 bales/hour (up to 7 t/h) and 25 kW of power, e.g. on small islands or in remote places.

55

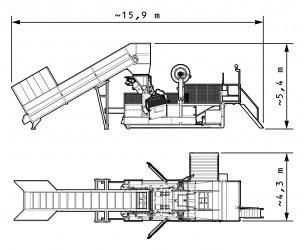

TYPHOON Flexus Typhoon integrated baling and wrapping technology The Typhoon is the successor to the widely sold and highly popular Tornado model. The Typhoon is a high capacity baler, conservatively rated at a baling capacity of 30 bales/hour, but with good O&M can comfortably reach 35+ bales/hour = up to 50 tons/hour for MSW applications, with a power consumption of up to 40 kW only.

The Typhoon heavy-duty baler is perfect choice to cost-efficiently handle a wide range of applications including: MSW, WtE, transport and shipping of RDF/SRF, biomass, landfill remediation, C&I, recyclables, disaster clean-ups, tires, ASR, ashes and high-value agricultural products i.e. beet pulp etc.

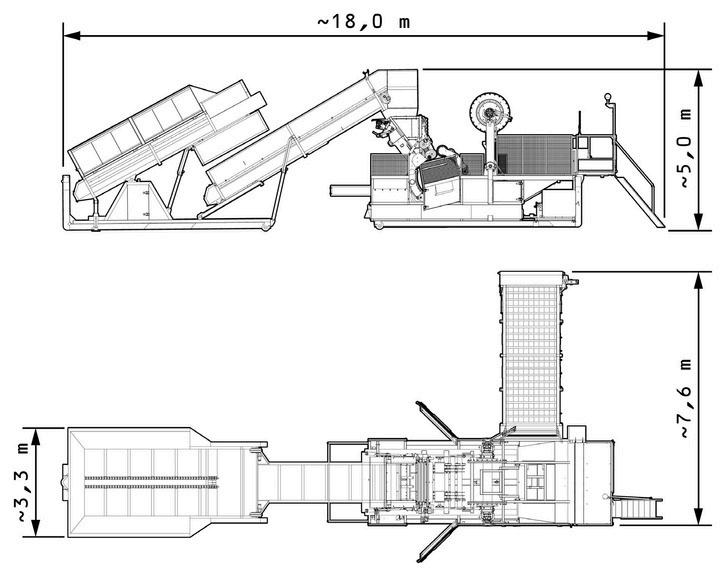

From installation to production within one day: With its small foot print and compact layout, Flexus balers do not require extensive civil works for installation and operations, the first installation only takes one working day.

The integrated round baling and wrapping systems have always been designed for easy transport, quick installation and dismantling. The combination conveyor is equipped with its own hydraulic system facilitating easy installation and dismantling. Both the baling and wrapping as well as the conveyor modules are mounted on hook lift frames. The Typhoon baler’s mobility is a perfect choice for large landfill sites, MSW and RDF at different locations as well as for baling and wrapping contractors: arriving at the new site, the Flexus system generally is back in full production within two hours.

Flexus balers have always been designed to be service friendly; the Typhoon is easy to maintain – thereby increasing productivity and cost efficiency.

All measurements are approximations. Variations may occur depending on configuration.

56

BREEZE High efficiency waste processing for medium sized projects The Breeze model is suitable for medium sized projects of up to 20 tons per hour (15 bales/hour), requiring no more than around 35 kW of power. Excellent efficiency for sites that doesn’t require continuous operation 24 hours per day, but still need high reliability.

The Breeze baling system has a bottom-mounted wrapping unit and is available only with bale ejection to the side, unlike the Typhoon model. There are dual feeding conveyors for easier loading and to increase the capacity of the baler. Finished bales are ejected onto a bale conveyor that holds up to 3 finished bales.

All baling systems are heavy duty, and for many installations the Breeze baler is a very good fit.

Suitable for baling: MSW, RDF, SRF, recyclables.

All measurements are approximations. Variations may occur depending on configuration.

57

BREEZE MINI Waste processing for small islands or remote locations The Breeze Mini handles up to 7 tons per hour (5 bales/hour) at around 25 kW of power, making it a perfect fit for smaller installations, e.g. on small islands or in remote places. High reliability for seasonal or irregular operation, with high energy efficiency as an added bonus.

The Breeze Mini is equipped with a bottom-mounted wrapping unit, bale ejection to the side and a single feeding conveyor making it the smallest of our baling systems. The finished bales are ejected onto a roller conveyor that holds a single bale.

All baling systems are heavy duty, and for smaller projects the Breeze Mini will give you many years of reliable service.

Suitable for baling: MSW, RDF, SRF, recyclables.

All measurements are approximations. Variations may occur depending on configuration.

58

ACCESSORIES Considering that Flexus baling systems are heavy duty machines we feel that to maintain a problem free workflow, all the parts of the workflow need to be able to handle the job at hand. For that reason, their accessories are just as heavy duty, and capable of handling almost anything you throw at them.

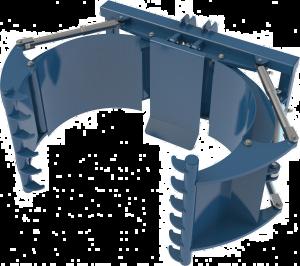

BALE GRAB

Flexus’ own bale grab fits almost all loaders, and is constructed to be capable of coping with the continuous heavy loads of handling the finished bales. Developed and built by Flexus, these are a lot stronger than your normal agricultural version.

59

BALE OPENER For opening bales, Flexus has developed its own bale opener that fits almost any loader, making it easy to swap out the bale grab for a bale opener when the time comes to open the bales for incineration or further processing when needed. Like the bale grab, the bale opener is developed and built entirely by Flexus to withstand the heavy loads of continuous waste management.

SPILLAGE CONVEYOR For stationary or semi-stationary installations, Flexus provides spillage conveyors that makes it easy to handle any spilled materials, automatically transporting it back to the feeding conveyor to be fed into the baling chamber.

60

61

MAS specializes in machines and equipment for plastics recycling and processing and has a reputation for innovative solutions and best-ofclass process technology competence. MAS’s core competencies are dry cleaning of used plastics based on the innovative DRD System (Double Rotor Disc) and processing of plastics/composites in the world’s first, conical, co-rotating twin screw extruder based on New Conical Technology (NCT). www.mas-austria.com/en/

62

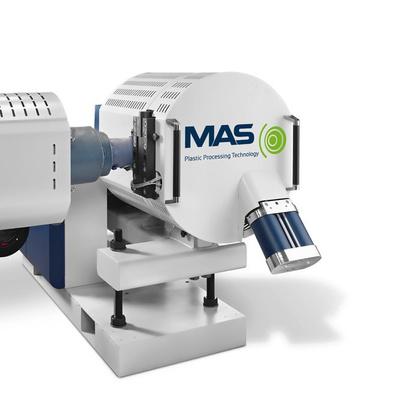

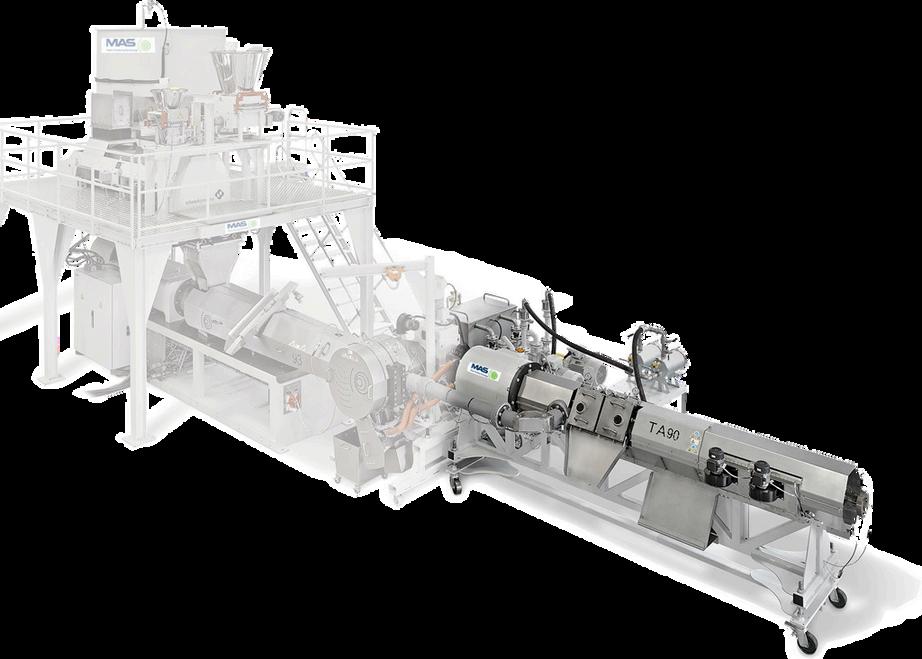

The MAS Extruder

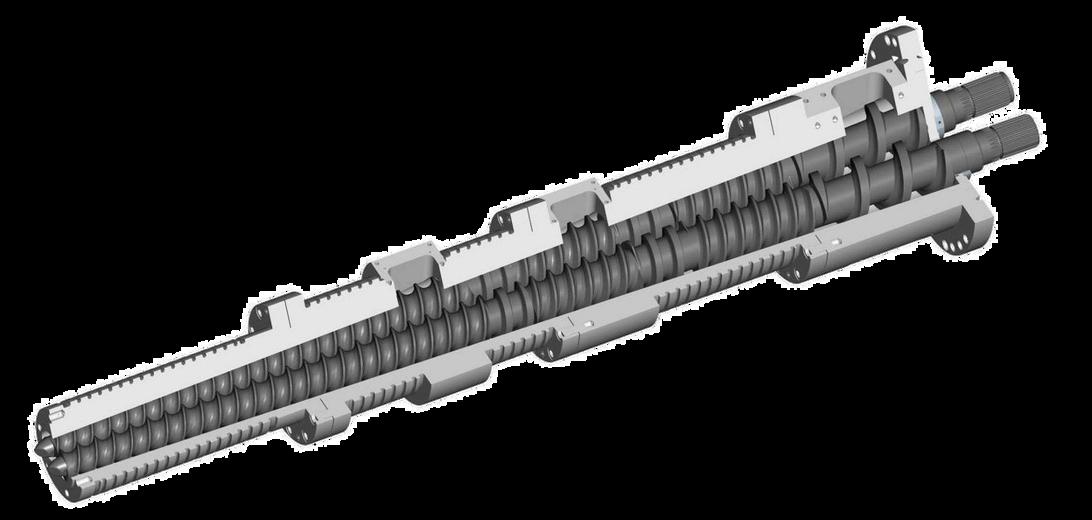

The MAS EXTRUDER combines the familiar, superior, plastification and homogenization of a corotating parallel twin screw extruder with the specific advantages of the conical screw design; a key element of this integrated recycling and compounding system.

The MAS EXTRUDER is perfectly suited for any application when a variety of product requirements need an individual, high quality solution.

Technological Features:

Compact design Small footprint Conical co-rotational twin screw design Superior homogenization Large feed opening Process low bulk density materials (Film, Fibers, etc.)

Cascade configuration for superior degassing Low melt temperatures Reduce energy consumption by as much as 40% High melt pressure combined with maximum pressure stability Large shaft diameters allow for high torque Easy Screw Removal Modular Screw and Barrel Design Processing of undried PET and PLA Re-Compounding

63

The MAS Series of Extruders offers a wide range of production capacity from 200 lbs/hour to 6000 lbs/hour (depending on model, polymer and other variables).

Compact, robust, durable Thanks to the conical design MAS has been able to construct an extruder with extremely large back pressure bearings that allow a high torque input into the extruder screws especially in the area where it is needed most (Melt Section). The screw diameter in the feed section is approximately twice as big as the pump section of the screw.

Configurations TYPE

MATERIAL

OUTPUT

MAS 24 (laboratory line)

e.g. PE / PP / PS / PET

(20-35 kg/h) 44-77 lbs/hr

MAS 45

e.g. PE / PP / PS / PET

(200-300 kg/h) 440-660 lbs/hr

MAS 55L (K)

e.g. PE / PP / PS / PET

(400-700 kg/h) 880-1540 lbs/hr

MAS 75 (K)

e.g. PE / PP / PS / PET

(700-1200 kg/h) 1540-2640 lbs/hr

MAS 90 (K)

e.g. PE / PP / PS / PET

(1000-1800 kg/h) 2000-3960 lbs/hr

MAS 93 (K)

e.g. PE / PP / PS / PET

(1200-2200 kg/h) 2640-4840 lbs/hr

MAS 93 400 (K) Plus

e.g. PE / PP / PS / PET

(1500-2730 kg/h) 3300-6000 lbs/hr

64

The MAS Cascading Extruder

The MAS Cascade Extruder makes it possible to reprocess materials (heavily printed materials, recycled materials with high contamination levels etc.) that are difficult to de-gas on conventional extrusion lines. he Cascade extruder works in conjunction with an upstream Extruder (preferably MAS twin-screw extruder) to reprocess and de-gas the material after the melt filtration.

Depending on the size, the MAS Cascade Extruder is equipped with 2 or 3 vent ports and a melt distribution system to increase the degassing efficiency. With a MAS Cascading system, the two processes of Recycling and Re-Compounding can be combined into ONE STEP.

65

The MAS Laboratory Extruder

The MAS 24 LABORATORY EXTRUDER is the only conical & co-rotating twin screw extruder available for small volume applications. This technology enables the customer to process a wider range of materials including recycled materials on a laboratory scale. It is also ideal for small-scale high-end polymer compounding applications.

If it is used in conjunction with MAS Processing Extruders (MAS 45-93) the results from the laboratory can be transferred to production without recreating recipes.

66

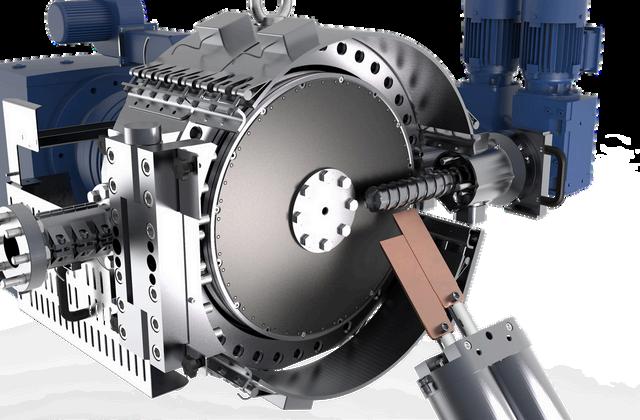

The MAS CDF Continuous Melt Filtration Wood, paper, aluminum foil, non-melting polymers etc. are very common impurities in the plastic recycling industry. Conventional filter systems using mesh screens are usually unable to cope with even small amounts of these impurities. The MAS CDF continuous melt filter separates contamination such as paper, wood, aluminum or rubber efficiently and can deal with large amounts of contaminants in the melt stream (up to 5%). A melt pressure-controlled scraper system removes the contamination from the surface of a rotating screen disc into a discharge screw system. The impurities are discharged continuously from the CDF, while the filtered melt continues to flow downstream to the pelletizing system, profile or sheet die. The melt inside of the filter automatically controls the function of the scraper as well as the speed of the screen and discharge screw(s).

Product Range TYPE

CDF 300

CDF 500

CDF 500-D

CDF 500D-P

Diameter of filter

1 x 11.8”

1 x 20.1”

2 x 20.1”

4 x 20.1”

Filter Surface

109.4 in

2282.9 in

2565.8 in²

1131 in²

Filtration finesse

170-20 mesh

170-20 mesh

170-20 mesh

170-20 mesh

Max Pressure

2610 psi

2610 psi

2610 psi

2610 psi

Capacity (lbs/hour)*

660-1540

1760-3520

3300-6600

6600-13200

*Depending on filtration finesse, polymer type and contamination level

TYPE

CDF 300

CDF 500

CDF 500-D

CDF 500D-P

Diameter of filter

1 x 300 mm

1 x 510 mm

2 x 510 mm

4 x 510 mm

Filter Surface

706 cm

21825 cm

23650 cm²

7300 cm²

Filtration finesse

90 µm – 750 µm

Max Pressure Capacity (lbs/hour)*

90 µm – 750 µm 90 µm – 750 µm 90 µm – 750 µm

180 bar

180 bar

180 bar

180 bar

300-700

800-1600

1500-3000

3000-6000

*Depending on filtration finesse, polymer type and contamination level

67

68

The MAS DRD 21 & 26

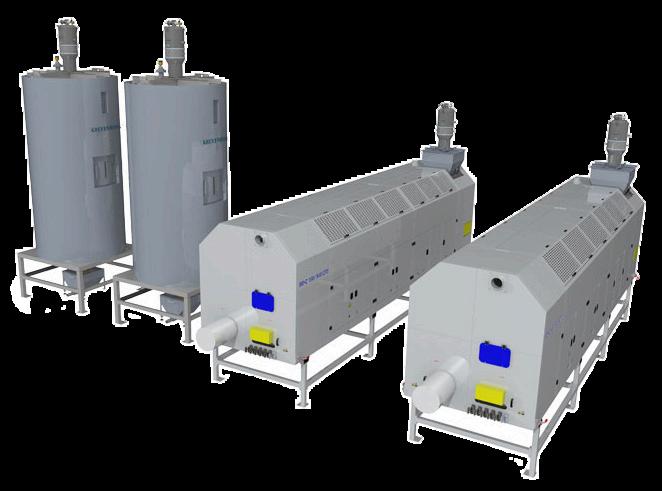

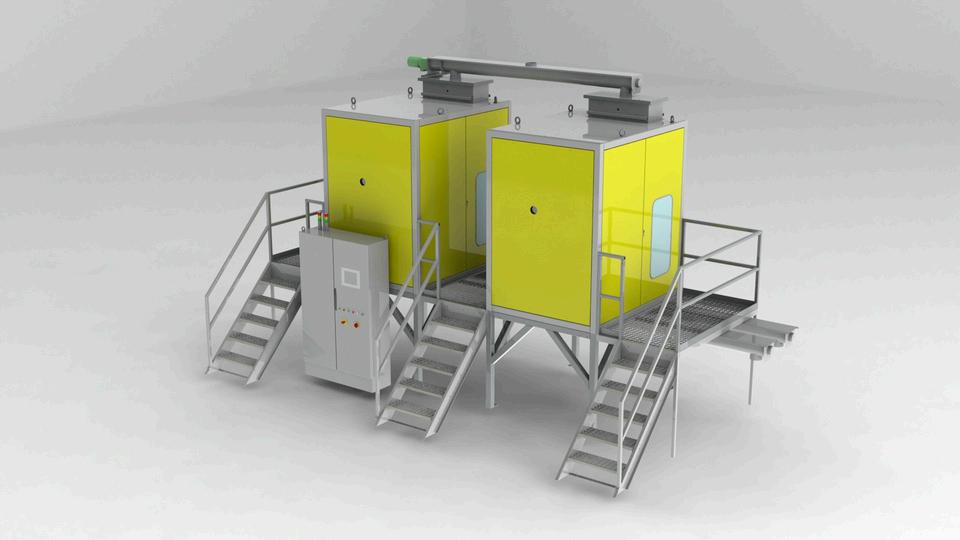

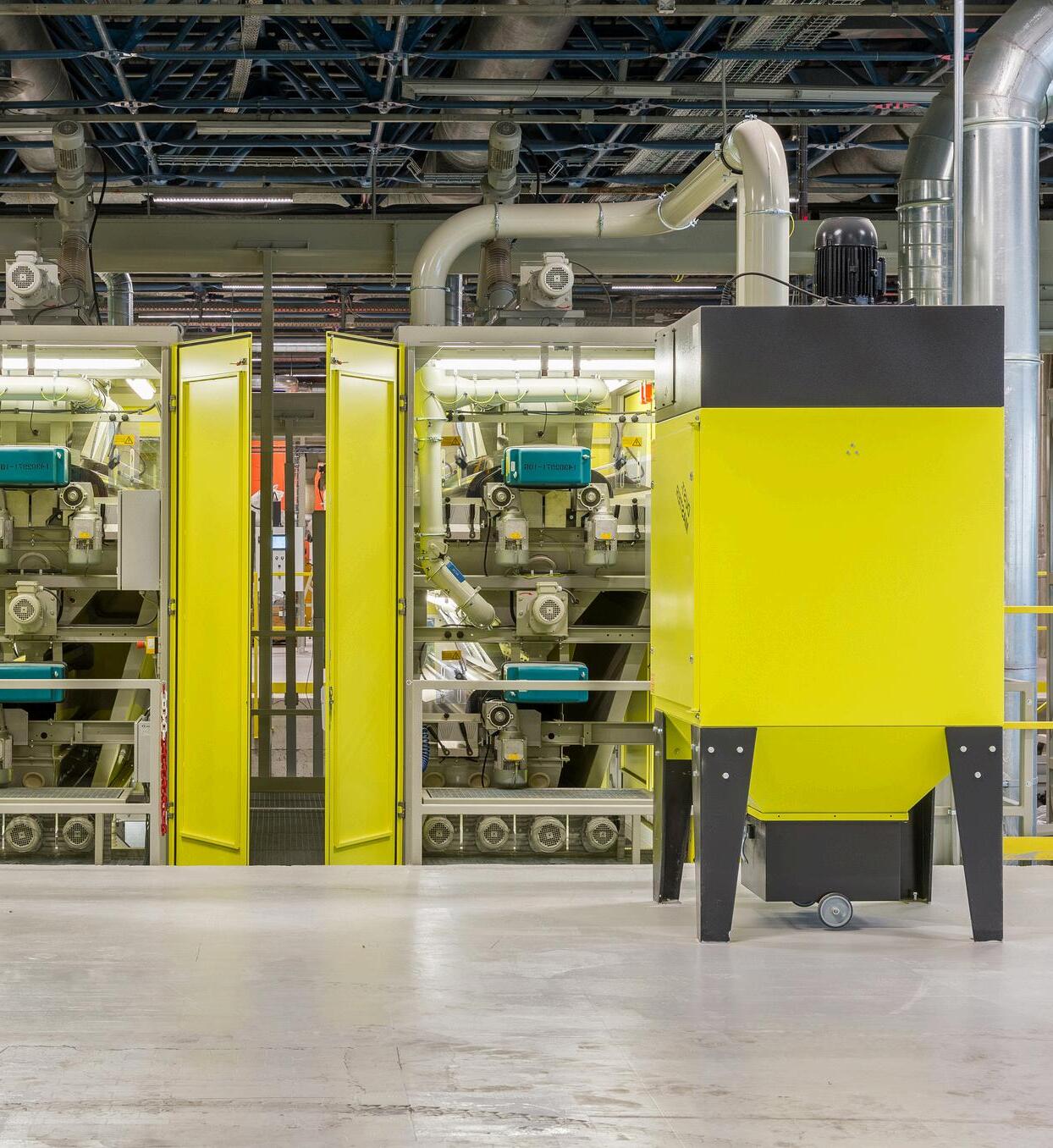

Drying and Cleaning in a Single Step – Washing Without Water MAS dry cleaning plants are a modern and extremely economical alternative, or an optimal supplement, to conventional wet wash systems. Based on the tried-and-trusted DRD (Double Rotor Disc) technology, the technology combines a centrifuge with thermo-mechanical drying. This special design allows for economic processing in a wide range of applications: As a standalone cleaning system Downstream of a wet wash system for final drying and cleaning Upstream of a wet wash system This technology can remove moisture and dirt (Soil, Sand etc.) from shredded film or granulated rigid plastic. Oily, greasy or sugar-based residues cannot be removed with this technology and need to be processed with conventional wet wash systems.

69

Washing without water means saving money: Lower cost of investment No water treatment No waste water disposal cost Simple Process Low maintenance cost Low operating cost MAS offers a broad range of DRD solutions from the MAS DRD 21 SINGLE STEP TO the MAS DRD 26 DS (Double Step).

The MAS DRD Single Step This solution is typically utilized as a final cleaner and dryer after wet wash systems as well as a Pre- Cleaner before wet wash lines. It can also be used as a complete drying and cleaning process for lightly contaminated materials like post Industrial film.

The MAS DRD DS Double Step This solution is typically utilized as a complete drying and cleaning process for contaminated materials like greenhouse film, nursery trays, big bags, AG-film, flower pots and similar items.

TYPE

MATERIAL

THROUGHPUT

DRD 21 (DS)

e.g. LDPE foil, industrial waste

1320 – 1760 lbs/hour (600-800 kg/h)

DRD 26 (DS)

e.g. LDPE foil, industrial waste

2860 – 3520 lbs/hour (1300-1600 kg/h)

DRD 26 (DS) P

e.g. LDPE foil, industrial waste

2860 – 3520 lbs/hour (1300-1600 kg/h)

*The Output of the system depends on the type of material, material thickness, shred size, contamination level and type as well as moisture content.

OUTPUT

INPUT

SEPARATED DUST

70

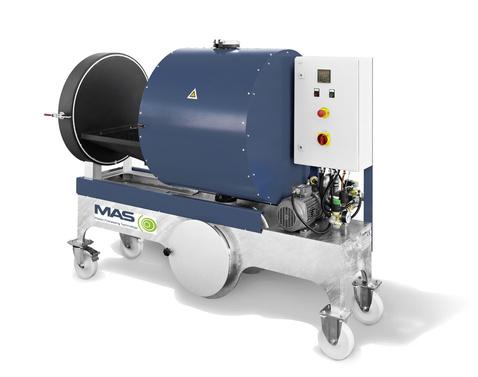

SC 700 SPECIFICATIONS External dimensions

76.4 x 33.5 x 72.8”

Workspace dimensions with grating attachment

23.6 x 23.6 x 16.7”

Max. workpiece weight

~ 265 lbs

Vacuum pump

1,5 kW, 2900 rpm

Water consumption vacuum pump

0.8 – 1.3 gal./min

Water supply

3/8”

Water discharge

1“

Heating units total

9.5 kW

Working temperature Max.

max 842 °F

MAS AUXILIARY: ESTABLISHED AND RELIABLE The SC 700 can be installed in any room with a water supply, water drain and an electrical power supply.

SAFE AND EFFICIENT VACUUM CLEANING With a working compartment measuring 23.6 x 27.6 x Ø 27.6” diameter, the SC 700 reliably removes thermoplastic contamination from extrusion tools, filter parts and more.

No cleaning agents required. All contaminants are baked off under vacuum without any combustion.

This protects the components against local overheating and thus against annealing and mechanical damage.

A cleaning cycle takes between 2 to 4 hours depending on part size, at a working temperature of 752 – 842 °F under vacuum.

TECHNICAL HIGHLIGHTS Usable for the removal of all thermoplastics and mixed plastics Fast cleaning process Simple and safe to operate Maintenance-free operation Gentle cleaning increases the lifespan of tools, filters, dies, etc.

Kind to the environment as no incineration takes place Low energy consumption

71

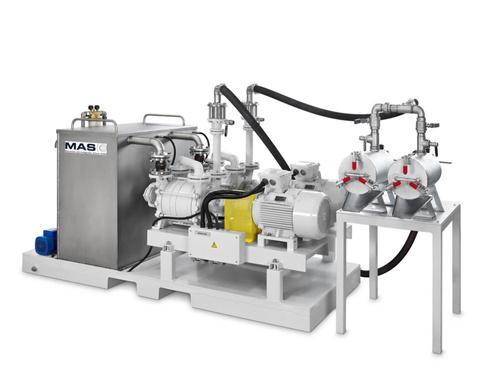

CC 290 CLOSED PROCESS WATER CIRCUIT The MAS CC 290 Closed Circuit Water Process system is designed to reduce the water consumption of the watering vacuum pumps to a minimum.

SPECIFICATIONS SS Water Tank

76.6 gal.

Water Pump

0.6 kW

Water Filter

2 pcs. For alternate operation

Heat Exchanger

SS Plate heat exchanger

THROUGHPUT SCALE

DW 1500

The DW 1500/2500 throughput scale provides inline measurement of the capacity of a repelletizing or similar process. It is designed for flowable material like regrind or pellets.

Easy to control Simple and fast start-up Minimal wear and maintenance

DW 2500

Main Dimensions 25.2 x 27.6 x 68.9” 25.2 x 27.6 x 78.7” Max. Capacity

3,306.9 lbs

5,512.0 lbs

Weigh Bin Capacity

1.8 cu. ft.

3.0 cu. ft.

Connection

3.9”

3.9”

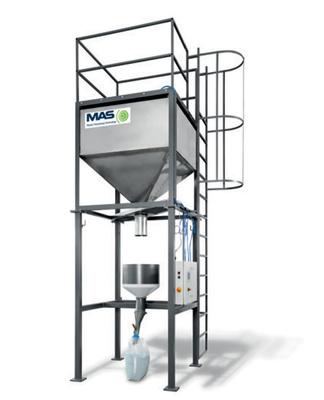

SILO THROUGHPUT SCALE The TMS 2500 silo throughput scale provides a fully integrated solution for the measuring, storing, and bagging of flowable materials like pellets or regrind. This system relies on the DW 2500 scale in combination with a silo and bagging station. All components that are in direct material contact are manufactured from stainless steel. The integrated controls provide valuable process information like fill level, current throughput, total shift capacity, etc.

Main Dimensions (L x W x H)

59 x 66.9 x 181.1”

Max. Throughput

5,511.6 lbs

Silo Volume

75.0 cu. ft.

Connection

NW 160

72

Kreyenborg has been a global partner and solution provider to the plastic industry for more than 50 years. In addition to innovative turnkey solutions for bulk material handling, the core competence of Kreyenborg is in the fields of drying, crystallization, storage, mixing, conveying and dosing of plastics.

The Infrared Drying Technology offers the ability to dry and crystalize materials in minutes compared to hours with conventional drying equipment which reduces change over time significantly and reduces energy consumption drastically. www.kreyenborg.com/en

73

74

The KREYENBORG IR Dryers can heat, dry and crystallize in one-step The heating of pellets and/or regrind (PVC, PET, PE, PP, etc.) prior to extrusion helps to significantly increase the capacity of the downstream equipment.

When PET, PLA PEEK, PPS, PBT or other materials are processed in the Kreyenborg IR the material can be crystallized in the same step. Even so the process has a short residency time compared to conventional dryers; the material can be dried from >1% moisture to less than 300 PPM within 15 to 20 minutes.

The IR Process also allows the coating of adhesives in the system (hot melt, EVA and lime, etc.)

Through this thermal process it is possible to also remove volatiles from the material that is dried. With the IR-CLEAN® system, KREYENBORG offers an attractive and cost-effective alternative for the direct reprocessing of PET post-consumer flakes for food packaging. This process has been awarded a LNO from the FDA and is also EFSA compliant. etc.)

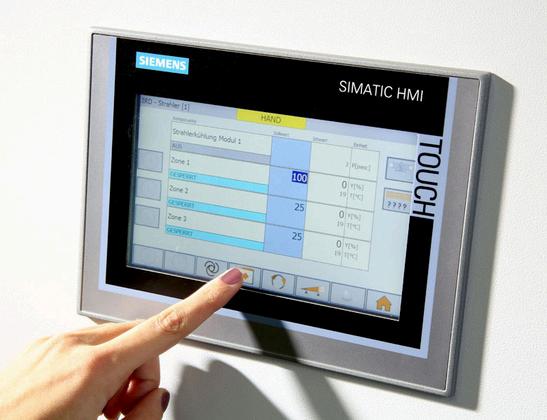

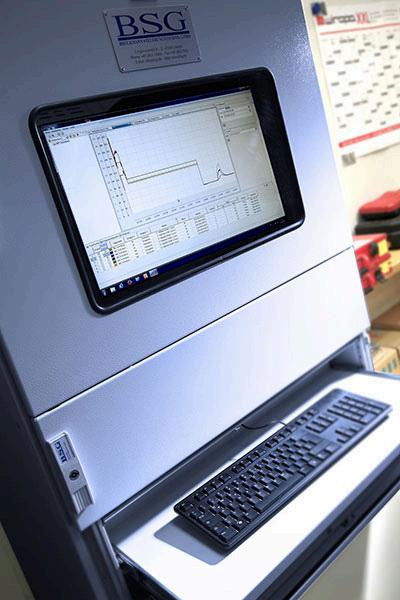

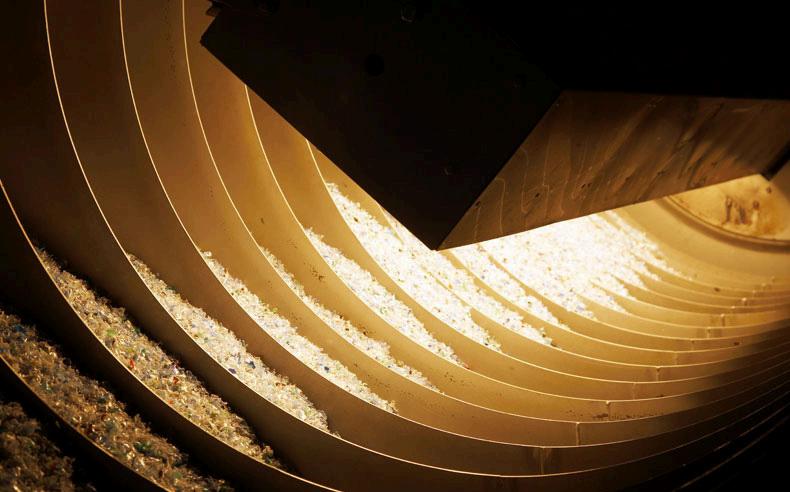

The KREYENBORG Infrared Dryer Function The energy is instantaneously brought into the core of the product by short-wave infrared radiation.

The heat flow pushes the moisture from the inside towards the outside of the material ensuring a homogeneous drying of the material inside out. Since the material is constantly in motion the evaporated moisture is immediately taken away from the rotating drum. The constant motion also exposes huge surface area of the material to the IR Radiation which ensures an instant heat up process. The rotating drum has an internal spiral that is equipped with mixing elements ensuring a constant mixing process that avoids any material clumping and furthermore ensures that the material is heated evenly throughout the process. Combined with the low rotational speed of the drum the material will not be damaged throughout the process. The speed of the process and the final moisture content of the product can be adjusted by the rotational speed. All functions are controlled through a simple HMI, that allows the storage of recipes and monitors exhaust air temperatures, fill levels, etc.

The system will self adjust if parameters deviate from the set points.

The IR-Radiator module The Kreyenborg radiator module has been specifically developed for the Infrared dryer and has been thermally and fluidic optimized for the process. It is continuously by the airflow through the dryer.

A special ceramic ensures optimum utilization of infrared light which increases the efficiency of the technology. To protect the IR Radiators from moisture, dust particles, etc, Kreyenborg has developed an Air-Shield around it.

75

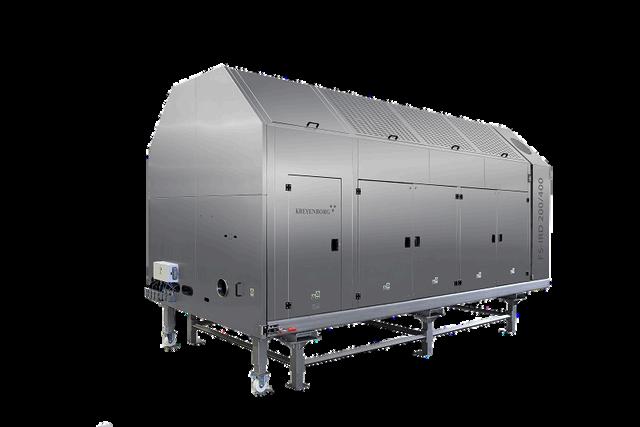

KREYENBORG offers continuous and batch processing IR Dryers For large scale production environments, the continuous process is ideal since it ensures production without interruption. In this process the equipment is automatically filled by a volumetric dosing system. Throughout the rotating drum the material is evenly mixed and thermally treated. The process takes only minutes compared to conventional drying methods that take hours.

We offer systems with capacities that range from 50 lbs/hour to 11,000 lbs/hour.

For lower capacity applications Kreyenborg offers a batch process as well

Advantages for your process

Low energy consumption Minutes instead hours Instant heat High efficiency Gentle Simple changeover and maintenance Heating, crystallizing and drying in one step Increase capacity for downstream equipment

76

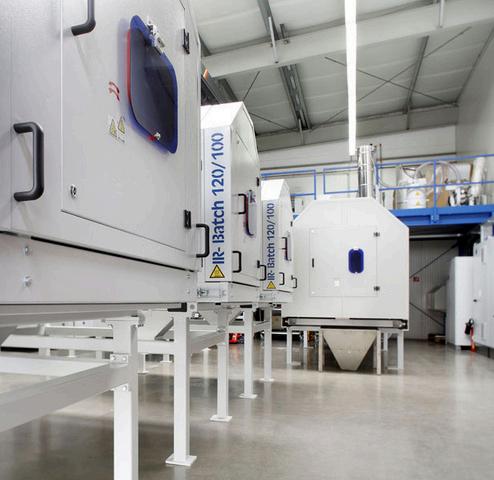

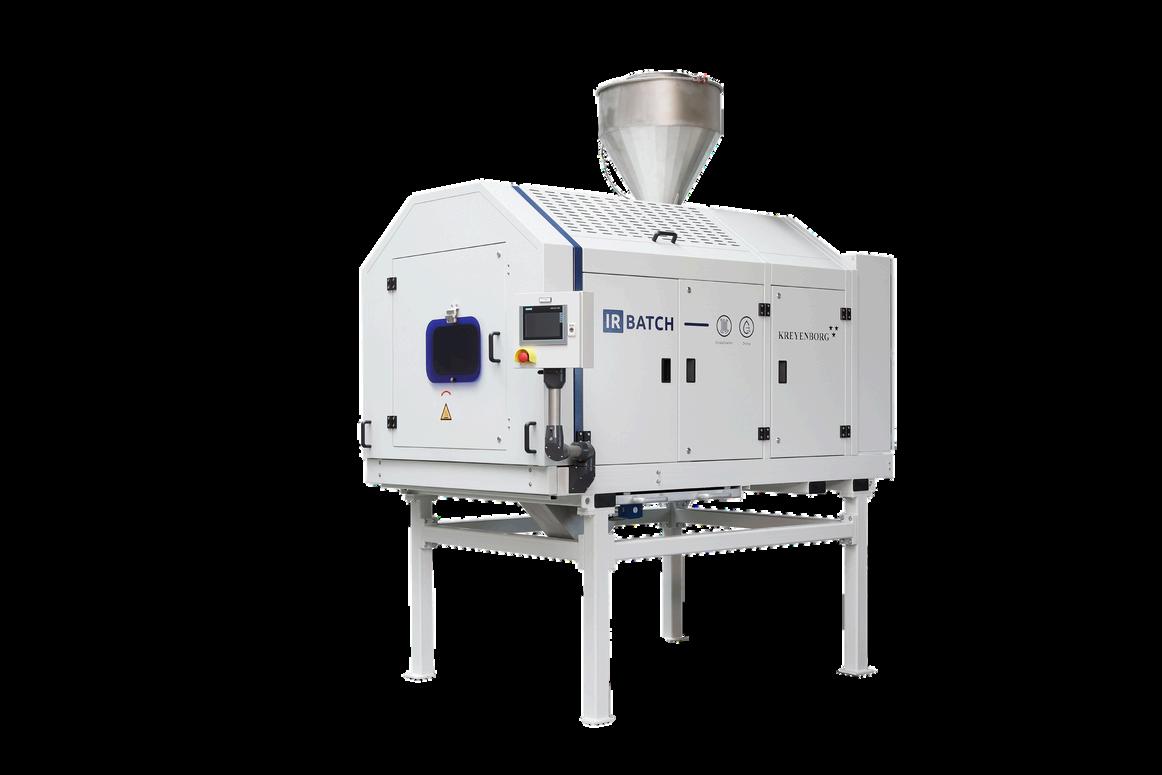

KREYENBORG IR BATCH Discontinuous heating, crystallization, drying and coating of batches of different plastics and other bulk materials in minutes instead of hours.

Ideal solution for thermal treatment of single batches.

The machine operates in batch mode which means that an entire batch of material is loaded at once into the system Once the processing time has elapsed the batch is discharged from the drum by reverting the rotational direction.

APPLICATION EXAMPLES: Drying and crystallization of PET to 50 PPM Drying and crystallization of PLA Drying and heating of PE pellets to remove volatiles Crystallization of masterbatch in small batches

77

KREYENBORG IRD Continuous heating, crystallization, drying and coating of different plastics and other bulk materials in minutes instead of hours.

The ideal solution for continuous thermal treatment of pellets, regrind or powders.

APPLICATION EXAMPLES: Drying and Crystallization of PET for pelletizing or sheet extrusion Drying and Crystallization of PLA for pelletizing or sheet extrusion Drying and Crystallization of PPS Pellets, amorphous Co-Polyester Drying and Crystallization of PET to 150 PPM Drying and Crystallization of PEEK (High Temperature Polymers) Drying and Heating of PE Pellets to remove volatiles Drying, Crystallization and heating of bulk materials

78

KREYENBORG PET BOOSTER Continuous crystallization and drying of PET in minutes instead of hours with significantly lower energy consumption. The PET Booster System can increase capacities of existing sheet lines or pelletizing systems by 30%.

APPLICATION EXAMPLES: Drying and Crystallization of PET for pelletizing or sheet extrusion Drying and Crystallization of PLA for pelletizing or sheet extrusion Drying and Crystallization of PPS Pellets, amorphous Co-Polyester Drying and Crystallization of PET to 150 PPM Drying and Crystallization of PEEK (High Temperature Polymers) Drying and Heating of PE Pellets to remove volatiles Drying, Crystallization and heating of bulk materials

79

KREYENBORG IR CLEAN IR-CLEAN® Super-Clean recycling process. With the IR-CLEAN® system, KREYENBORG offers an attractive and cost-effective alternative for the direct reprocessing of PET post-consumer flakes to food grade.

High-Performance Decontamination Efficient decontamination of recycled PET for re-use in direct food contact packaging.

PET – PROCESSING WITH IR-CLEAN® With the IR-CLEAN® system, KREYENBORG offers an attractive and cost-effective alternative for the direct reprocessing of PET post-consumer flakes for food packaging – without using any vacuum technology and as a retrofit solution for existing extrusion lines. The efficiency of the cleaning process has been verified by a Letter of Non-Objection from the US Food and Drug Administration (FDA).

Similarly, several challenge tests have demonstrated compliance with the criteria established by the European Food Safety Authority (EFSA) for the use of recycled materials for direct food contact packaging: APPLICATION EXAMPLES: Drying, Crystallization and decontamination of PET for food-contact pellets or sheets

80

IR-FRESH® With the IR-FRESH® system, KREYENBORG has developed a high-performance, innovative and costeffective technology for the odor reduction in post-consumer plastics – without using vacuum, and as a retrofit solution for existing extrusion lines.

ODOR REDUCTION TECHNOLOGY IN POST-CONSUMER PLASTICS Post-consumer plastic packaging has absorbed odors due to its direct contact to food, cleaning agents, chemicals, cosmetics, fuel, etc. These migrated substances are not completely removable during the washing phase. So, in support of the recycling process chain, odor reduction is a critical step to guarantee a high-quality end product.

81

82

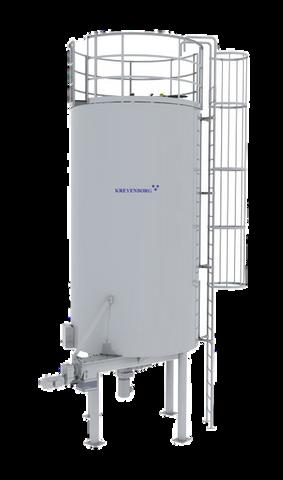

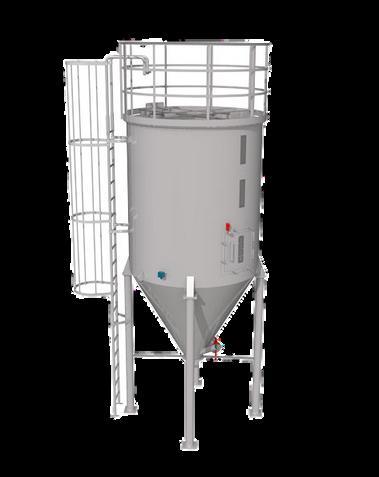

Stock Silo

Stock Silos are used for interim storage of sophisticated and high-quality bulk solids, such as pellets, raw material or powder. We offer standard silo diameters up to 2.850 mm, but we will gladly add additional diameters for our customers.

PRODUCTS

Ex: plastics, raw materials, pellets, agglomerates, flakes, cut / ground freight

FEEDING

Tangential feeding via pressure transport Manhole with end switches for better maintenance of the silo

MANHOLE

Per demand

VOLUME MATERIALS

Aluminum, standard- or stainless steel

RAILING/VERTICAL LADDER OPTIONS

Optional, with guard rails on top and vertical ladder, including back protection Other options and sizes available on request

Fiber Silo

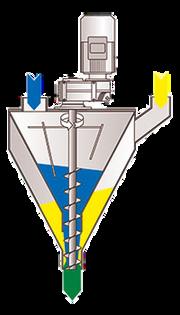

Due to their relatively low bulk density, flow properties, consistency, or static electricity, light-weight materials such as fibers tend easily to bridge when being stored and discharged. The purpose of the Fiber Silo is precisely to avoid this unwanted effect.

LOW BULK DENSITY

Specially for the processing of fibers with a low bulk density. Also suitable for various flakes and powder

BULK DENSITY

Bulk densities of 50 to 100 g/m³ (0.05 to 0.1 kg/dm³)

AGITATOR SHAFT

The agitator feeds the material continuously towards the discharge screw

MATERIAL SIZE

Typical fiber lengths are 10 to 30 mm in length

FEEDING

Tangential feeding via pressure transport

CONICAL

The conical design ensures a sloughing of the material and prevents bridging of the material

OUTLET

Up to 3 controllable material outlets possible

DISCHARGE MANHOLE

83

Consistent and adjustable discharge by means of separate discharge/ screw Manhole with limit switches for better maintenance of the silo

VOLUME

Volumes from 3 m³ to 50 m³

MATERIALS

Standard- or stainless steel

RAILING/VERTICAL LADDER OPTIONS

Optional, with guard rails on top and vertical ladder, including back protection Other options and sizes available on request

Film Flake Silo

Due to their relatively low bulk density, flow properties, consistency, or static electricity, light-weight materials such as film flakes tend easily to bridge when being stored and discharged. The purpose of the Film Flake Silo is precisely to avoid this unwanted effect.

LOW BULK DENSITY

Specially for the processing of film flakes with

BULK DENSITY

low bulk density.

Bulk densities of 20 to 300 g/m³ (0,02 to 0,3 kg/ dm³).

MIXING SCREW

Three vertically-mounted mixing screws

HOMOGENIZATION

Constant movement of the material promotes homogenization of film flakes of variable thickness and size.

MATERIAL SIZE

Film flakes are up to 30 mm in length.

FEEDING

Tangential feeding via pressure transport

NO DEAD ZONES

Specially shaped silo to avoid dead spots

DISCHARGE MANHOLE

Consistent and adjustable discharge by means of separate discharge/ screw Manhole with limit switches for

VOLUME

better maintenance of the silo Volumes from 3 m³ to 40 m³

MATERIALS

Standard- or stainless steel

RAILING/VERTICAL LADDER

Optional, with guard rails on top and vertical

OPTIONS

Other options and sizes available on request

ladder, including back protection

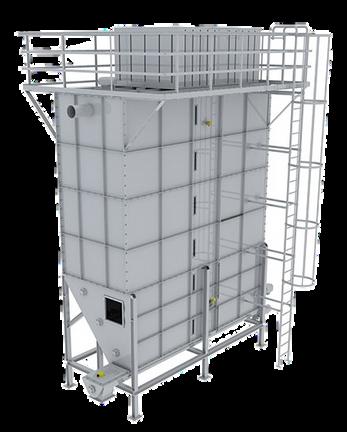

Block-Type Silo

Storage and dosed discharge of ground- and sensitive materials e.g.: film flakes, fibers, foams, etc.

LOW BULK DENSITY

Specially for processing of materials with low bulk density

SENSITIVE BULK

Specially suitable for sensitive bulk

BULK DENSITY

Bulk densities of 50 to 200 g/m³ (0,05 to 0,2 kg/dm³)

FEEDING

Tangential feeding via pressure transport

LOOSENING

The bottom of the substructure contains a twin discharge screw and stepped loosening elements that prevent the material from bridging

DISCHARGE

The material sinks smoothly. A trough screw extending over the complete length of the silo ensures a uniform and adjustable discharge.

VOLUME

Manhole with limit switches for better maintenance of the silo By default, block-type silos with a volume up to 60 m³ are available

MATERIALS

Standard- or stainless steel

RAILING/VERTICAL LADDER

Optional, with guard rails on top and vertical ladder, including back protection

OPTIONS

Other options and sizes available on request

MANHOLE

84

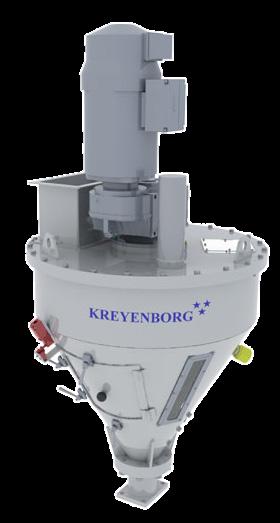

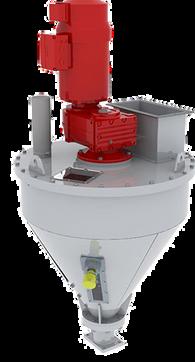

EXTRUDER FEEDING SYSTEMS Densifier KSW type

The Densifier KSW type is used for extruders with not-optimally-free-flowing products such as ground material, punching ribbon, powder, agglomerates, film flakes and fibers.

Filling: The material to be processed, is fed into the feed hopper of the densifier.

FILLING LEVEL LOOSENING

The filling level of the KSW is monitored with a level-indicator.

If necessary, the material is loosened up in the bin by means of special agitators and scrapers.

PRE-COMPACTION

The material is pre-compacted via the densifying screw.

EXTRUDER FEEDING SYSTEM

The compaction of the material via densifying screw and the feeding of the extruder with constant pressure ensures optimal loading of the extruder with material.

THROUGHPUT

100 – 4.000 kg/h (film flakes) 200 – 9.000 kg/h (powder)

Options Lifting system The densifiers may be equipped with a hydraulicallyoperated lifting system with manually-operated pump.

This device ensures the quick and easy lifting and swinging away of the aggregates from the extruder for easier cleaning and maintenance.

Coating Special coatings of the bin and of the densifying screw for products that tend to stick.

85

Special feed hopper The Densifier KSW type is used for extruders with not-optimally-free-flowing products such as ground material, punching ribbon, powder, agglomerates, film flakes and fibers.

Filling: The material to be processed, is fed into the feed hopper of the densifier.

DIRECT FEEDING

No additional thermal stress of the material is caused, absent intermediate granulation, by direct refeeding.

FILLING

At the end of the film line, the edge trims are ground and fed into the special feed hopper. Simultaneously, granulate can be conveyed into the same hopper over a second inlet pipe.

MIXING

Regrinds of edge trims/production waste and granules can be mixed by means of a screw.

FEED-EXTRUDER

An adjustable feeding screw ensures constant feeding of the extruder.

THROUGHPUT

100 – 1.000 kg/h

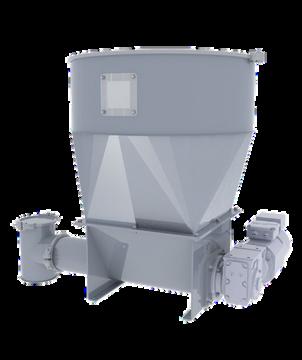

Volumetric metering system. VDOS type Volumetric dosing of the VDOS series are perfectly suited for dosing of bulk materials with good- to moderate flowability.

FUNCTION STORAGE CONTAINER

The metering screw essentially consists of a screwtrough with a large feeding area to ensure a continuous feeding level for the screw.

The modular storage container can be adapted from 75 to 150/300/450 and has a lid with inlet and vent opening.

DRIVE

An AC motor drives the screw.

METERING CAPACITY

The metering capacity in combination with an FU control is in the range of 30 to 5000 l/h.

Replacement screws and tubes.

Longer/extended screws.

Bag hoppers.

Trough mixer for homogenization.

Bridge breaker in storage containers.

Bellows to seal the inlet and outlet.

Quick release valves located at the outlet.

OPTIONS

86

87

Hamos is a German manufacturer of electrostatic separation technology for the recycling industry.

Through years of research and development, hamos has positioned itself as one of the leaders of the materials separation industry. Hamos’ unique electrostatic separation system has not only opened the door to new applications previously thought impossible but has also improved the performance of previous material separation processes. Today there are hundreds of hamos EKS (Plastic/Plastic Separators) and KWS (Metal/Plastic Separators) around the world all providing meaningful separation technology and proving hamos’ name as one of the frontrunners of the plastics machinery industry. www.hamos.com

88

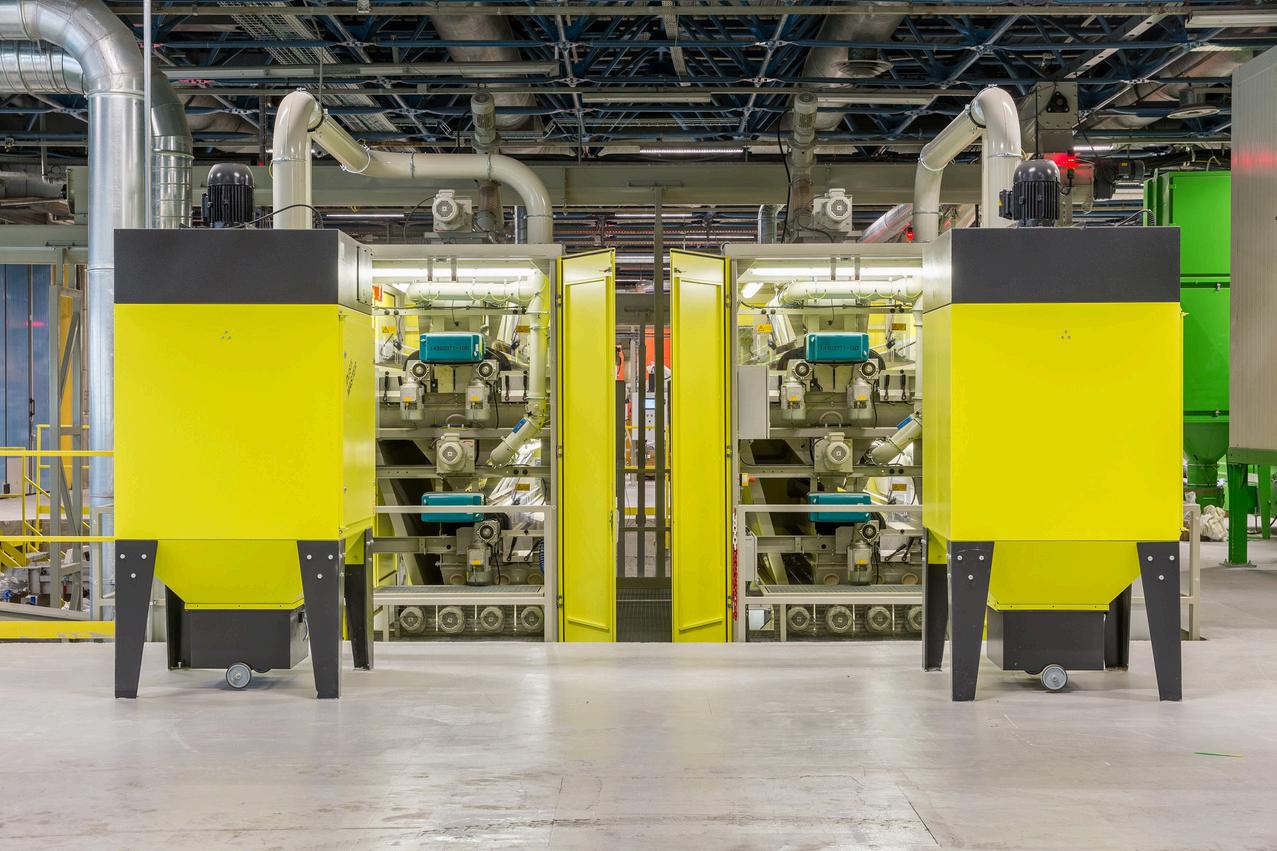

EKS Electrostatic Plastic Separator

89

Hamos EKS electrostatic separators make use of the differences in tribo-electric behavior of individual plastics. The plastic mixture is fed via a vibrating conveyor into a tribo-electric charging unit. Different plastics are charged here according to the specific properties of the material, taking on either a positive or negative charge. After charging, the mixture enters a high-tension field where the components are separated electrostatically into pure sorted fractions, determined by their different charges. Positive particles are attracted by a negative electrode, while negative particles are rejected and vice versa.

With the hamos EKS you can separate mixed plastics waste into individual fractions using electrostatic separation, as well as separate out undesired plastic contamination. The hamos EKS takes advantage of the differing tribo-electric properties of different plastics, separating these materials into 99.5% pure sorted fractions. This allows recycled mixed plastics waste to be used as quality raw material in new high-grade products. For proper processing, hamos systems require a few different parameters to work best. There must be two distinct and separate materials in the mixture (no composites), the material must be dry, dust free, and have a particle size of ~10mm.

APPLICATIONS Black plastics Plastic production waste Cable production waste PVC window profiles PET beverage containers Engineered thermoplastics E-waste Packaging materials Bottle caps Automotive industry production waste Refrigerators Other mixed plastics

90

KWS Electrostatic Metal Separator

91

Don’t run plastic/plastic mixtures? Well don’t worry because hamos has a solution. The KWS can even separate plastic/metal mixtures such as e-waste with no headaches.

The hamos KWS separates conductive from non-conductive materials. The mixture is introduced via a vibrating conveyor to a rotating metal drum. Inside this process is also a 35,000-volt electrode that is constantly charging the materials. The metal loses its charge very quickly to the drum and is ejected by the rotational momentum, while the plastic loses its charge much slower, allowing for a very clean separation of the different materials.

For proper processing, hamos systems require a few different parameters to work best. There must be two distinct and separate materials in the mixture (no composites), the material must be dry, dust free, and have a particle size of ~10mm.

APPLICATIONS Mixtures of metal and non-conductive materials Cable waste E-waste Grinding dust Aluminum-plastic composite materials Other conductive/non-conductive mixtures

92

eFACTOR3 represents the following innovative manufacturers:

15050 Choate Circle, Suite E Charlotte, NC 28273 704.944.3232 | 1.877.801.3232 | sales@efactor3.com | www.efactor3.com
