BA Architecture Portfolio

Page 1


Vatnajö kull, Iceland

INDIVIDUAL SEMESTERS

eco village : marstal

industrial landscapes : kalundborg

the value of space : carlsbergbyen

spatial monumentality : sydhavnen

a home / a room : unknown location

The project is located in Marstal, an old port town on Ærø, and utilises an existing plot of land with 12 single-family houses. The general idea is based on a Danish interpretation of the “Half Farmer, Half X” philosophy, first proposed by Naoki Shiomi in the mid-1990s.

With sustainability in mind, the steel frames in each greenhouse are repurposed from the botanical gardens in Copenhagen, and are said to have been shipped to Marstal by a crew of volunteers on board the local superstar coaster vessel Samka

The greenhouses and the small outdoor farmbeds have enough garden space to sustain an estimated population of 18 adults and 12 children, although the composition of the village demographics is flexible. Given enough time to develop, the plot could potentially produce excess vegetables as a sourceofincome.Poultryandbeesarealsoplanned as part of the project, to bolster the capacity for partial self-sufficiency of the small community.

The communal building in the centre of the plot serves as shared kitchen facilites and general utility needs. There is a lot to be gained from shared labour and collective dining, especially a significant reduction of waste. The house features a dining table on rails, enabling a fluid shift between indoor and outdoor recreation throughout the year.

eco village : marstal

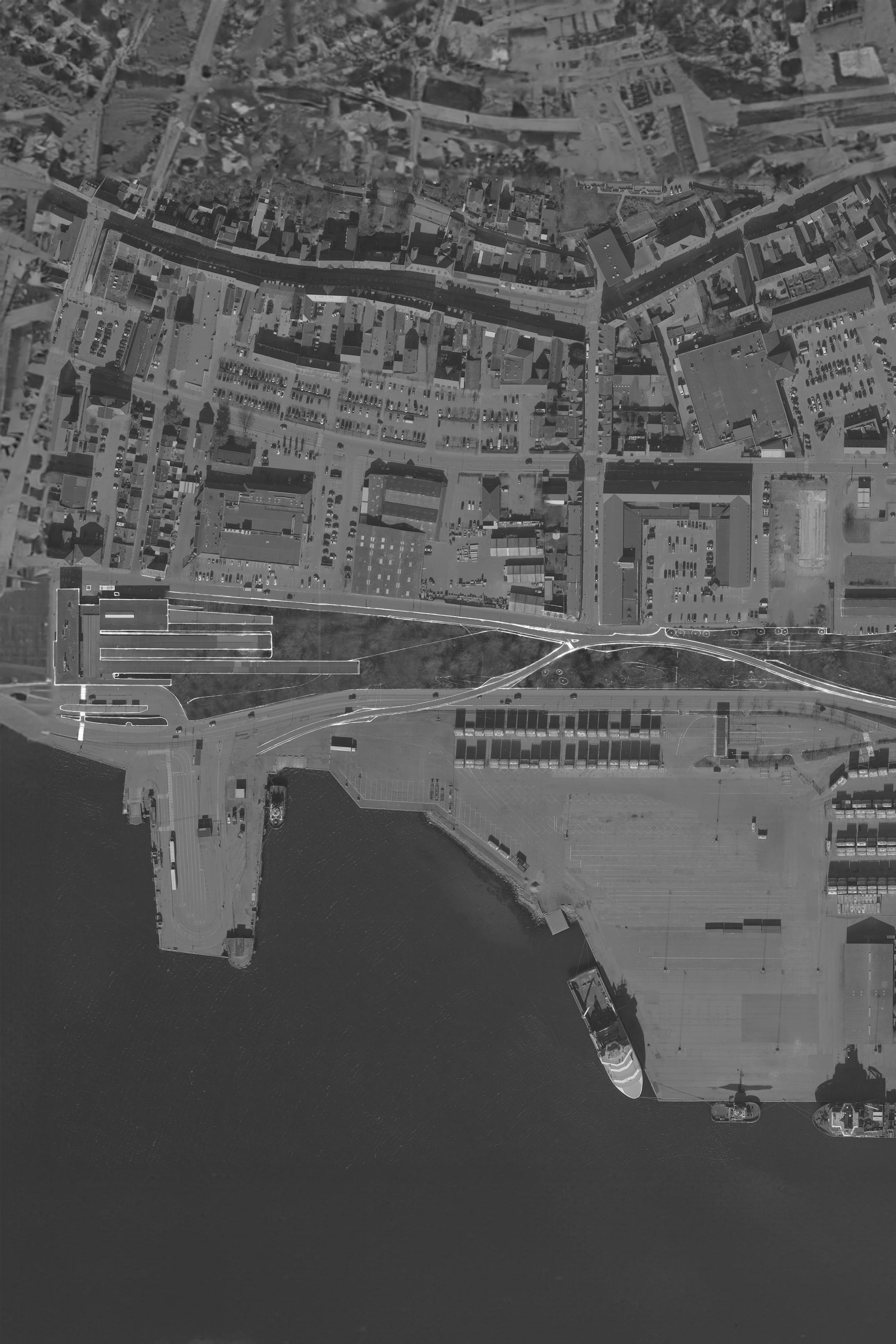

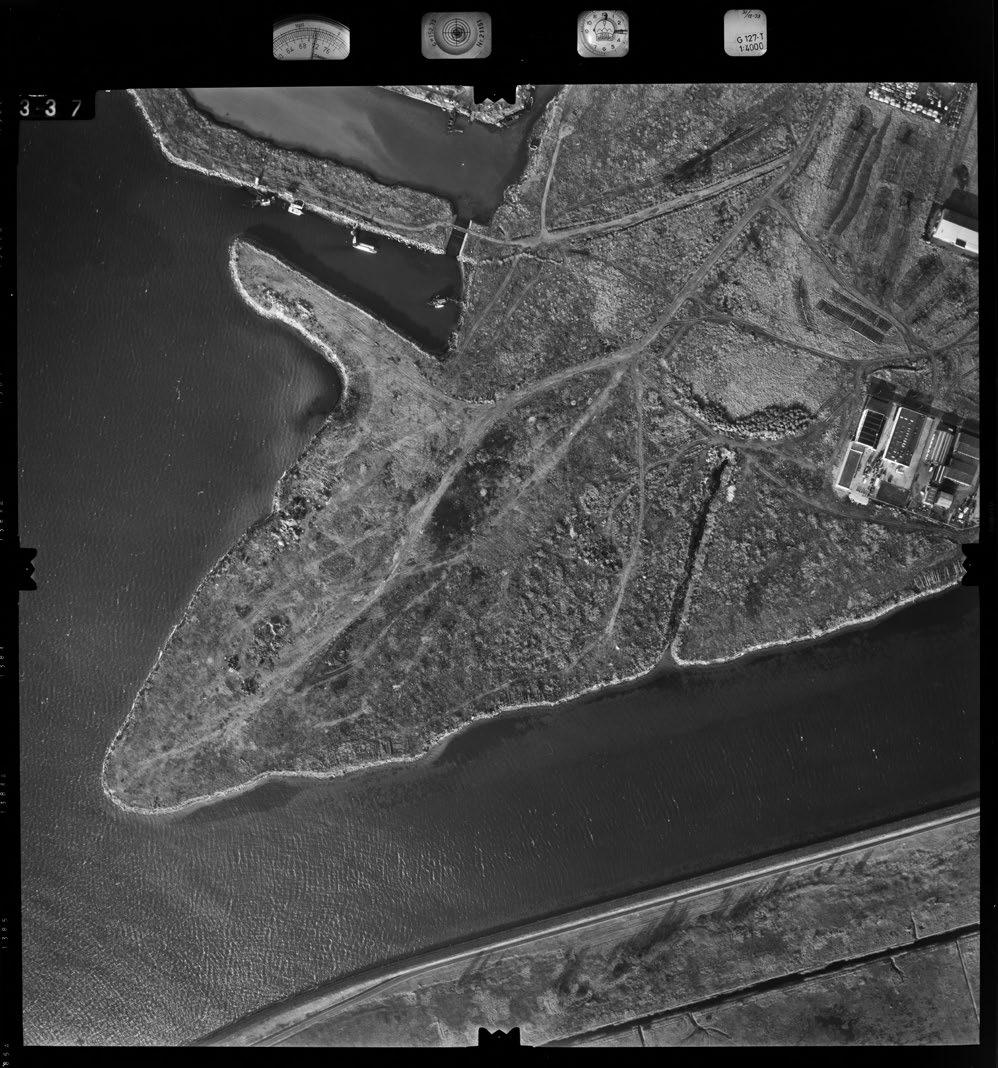

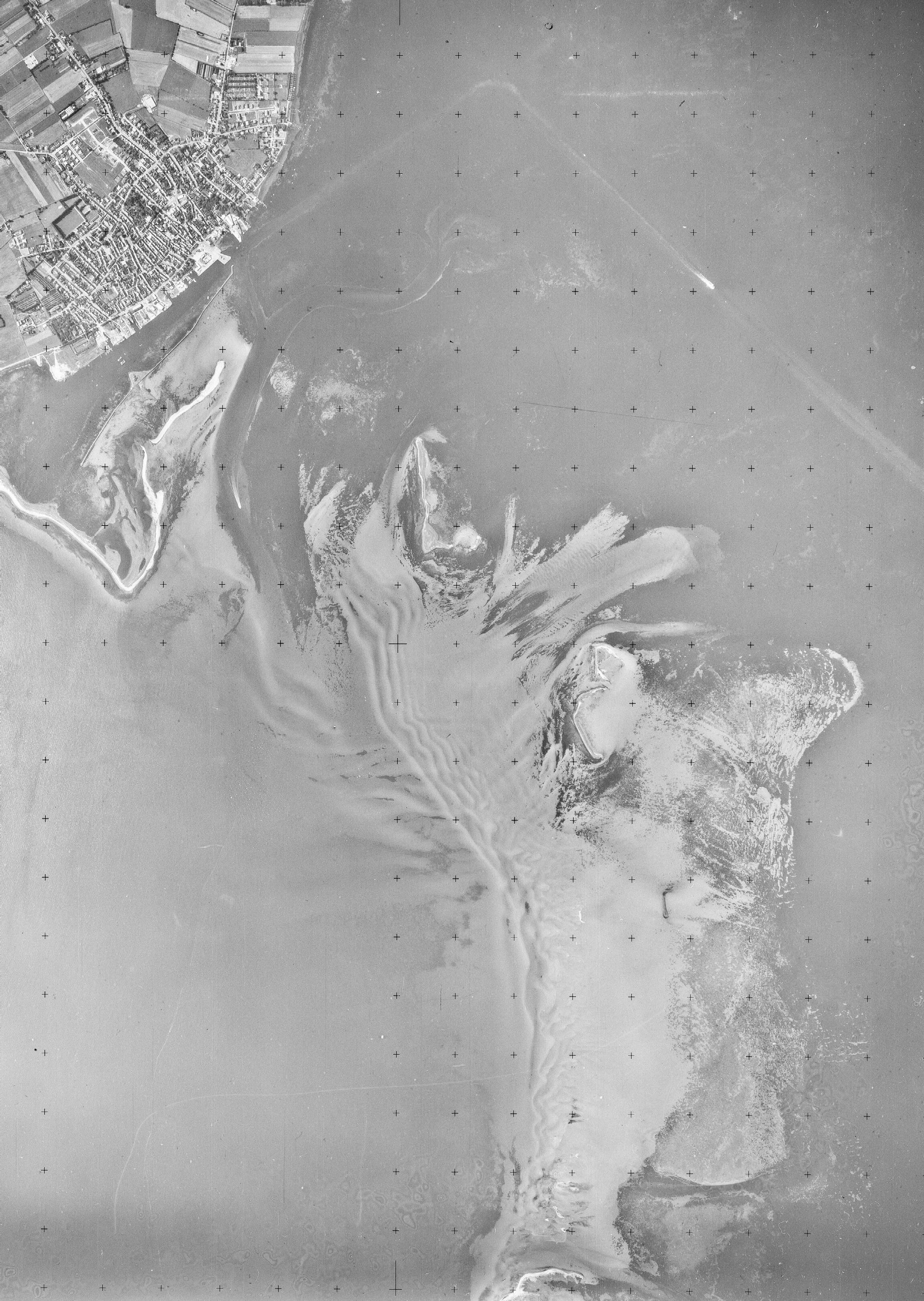

Marstal captured by The British Royal Air Force

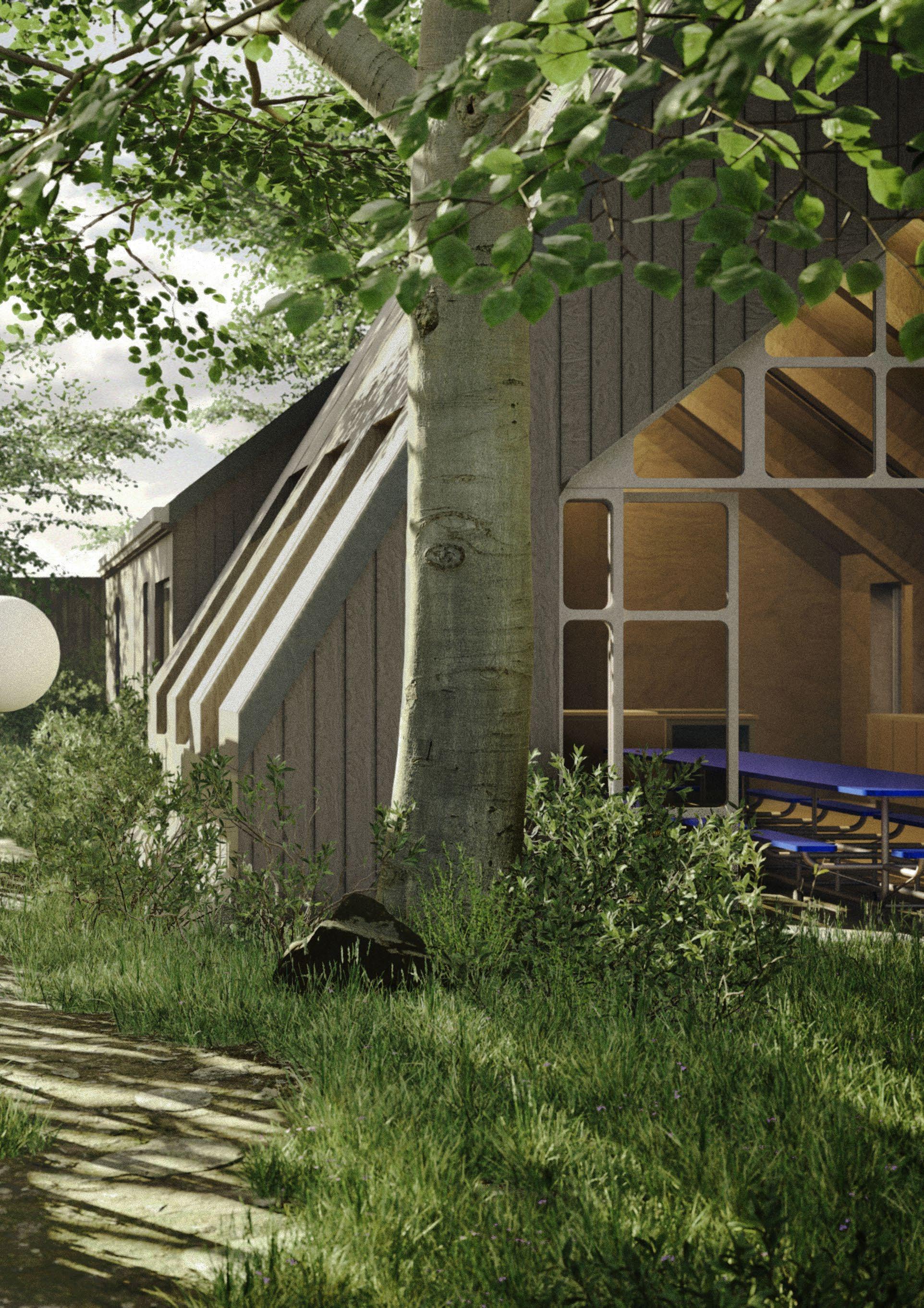

Greenhouse exterior + communal building, Marstal

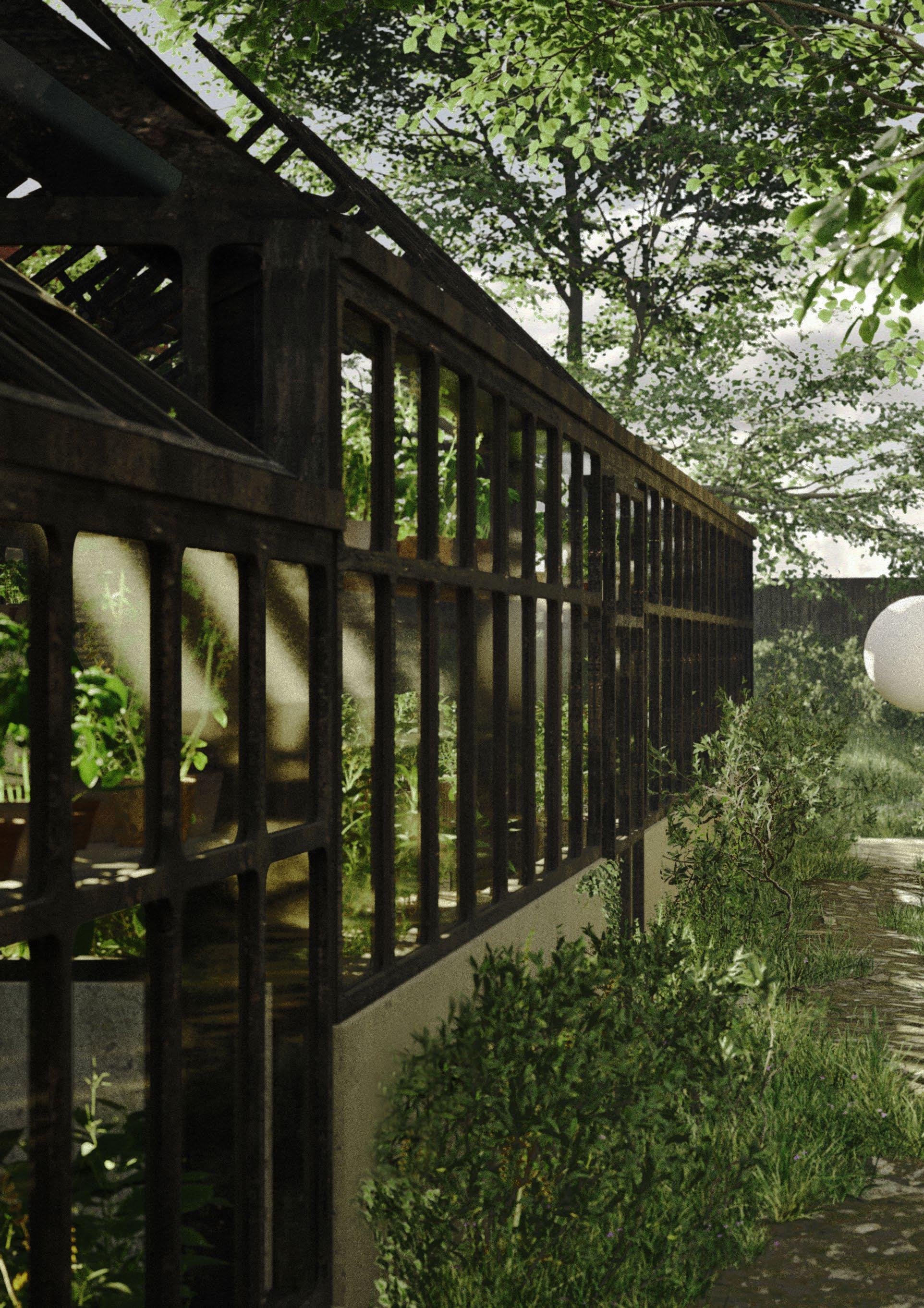

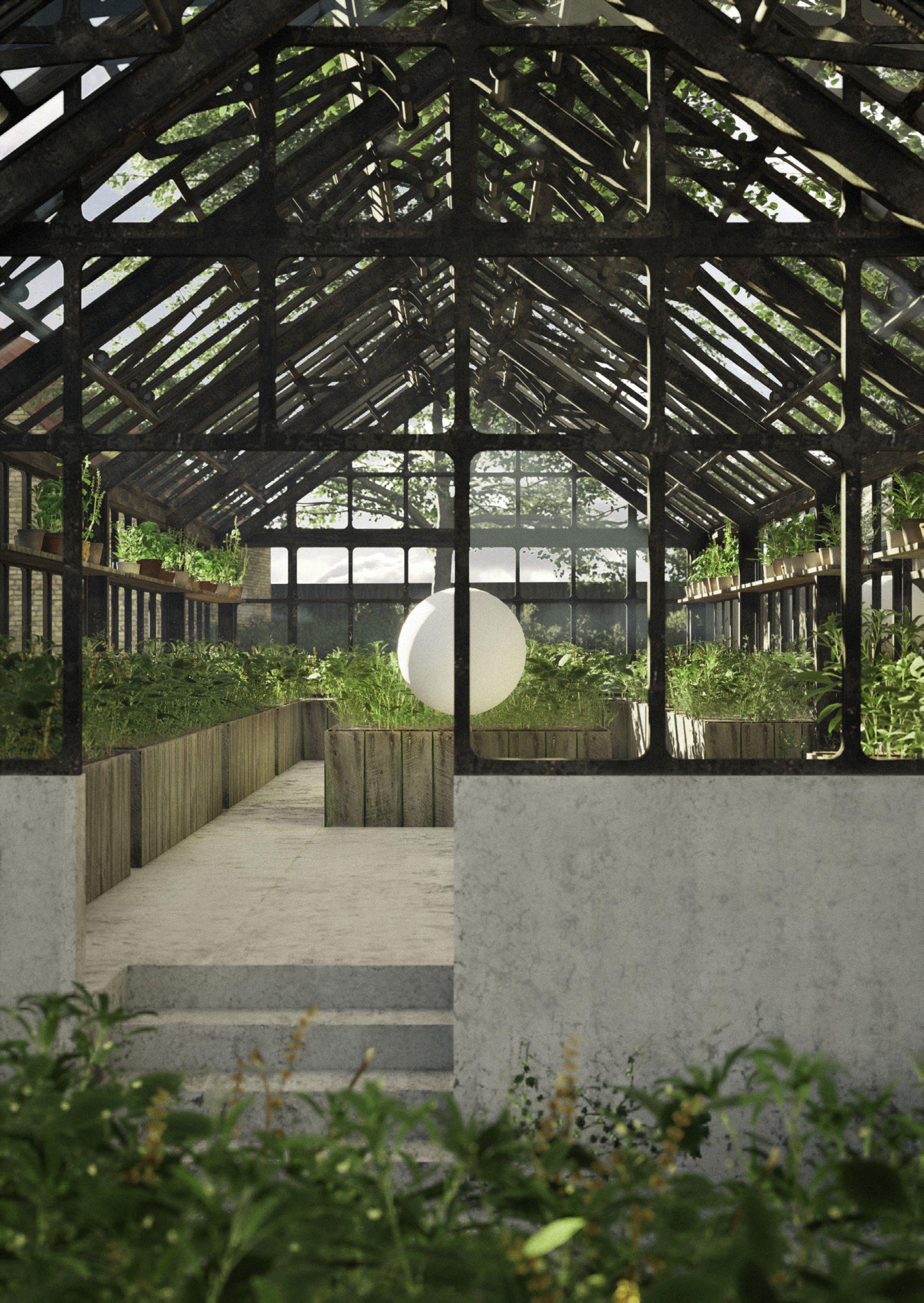

Greenhouse interior, Marstal Unreal Engine

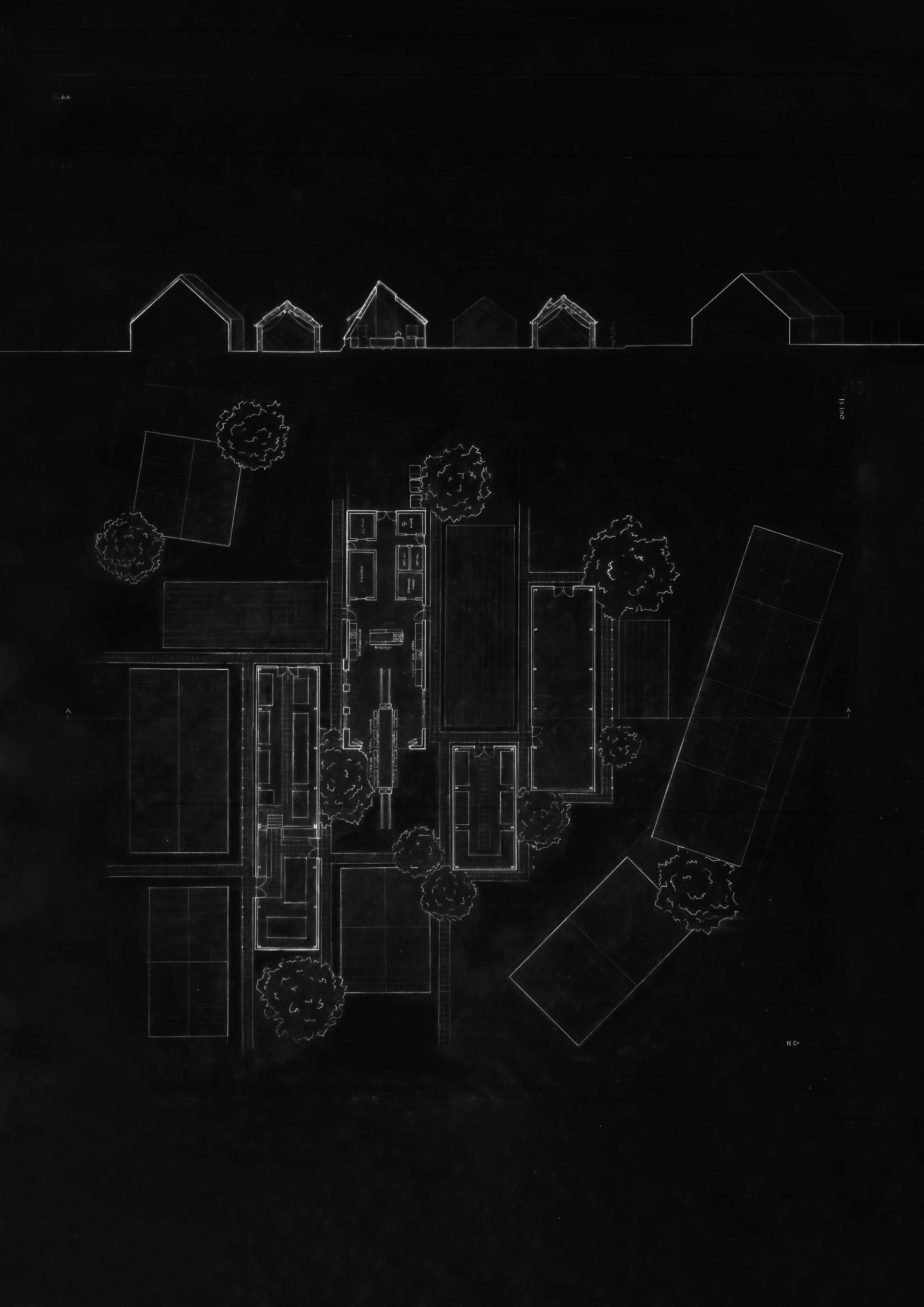

Sketch + grid process (1:100)

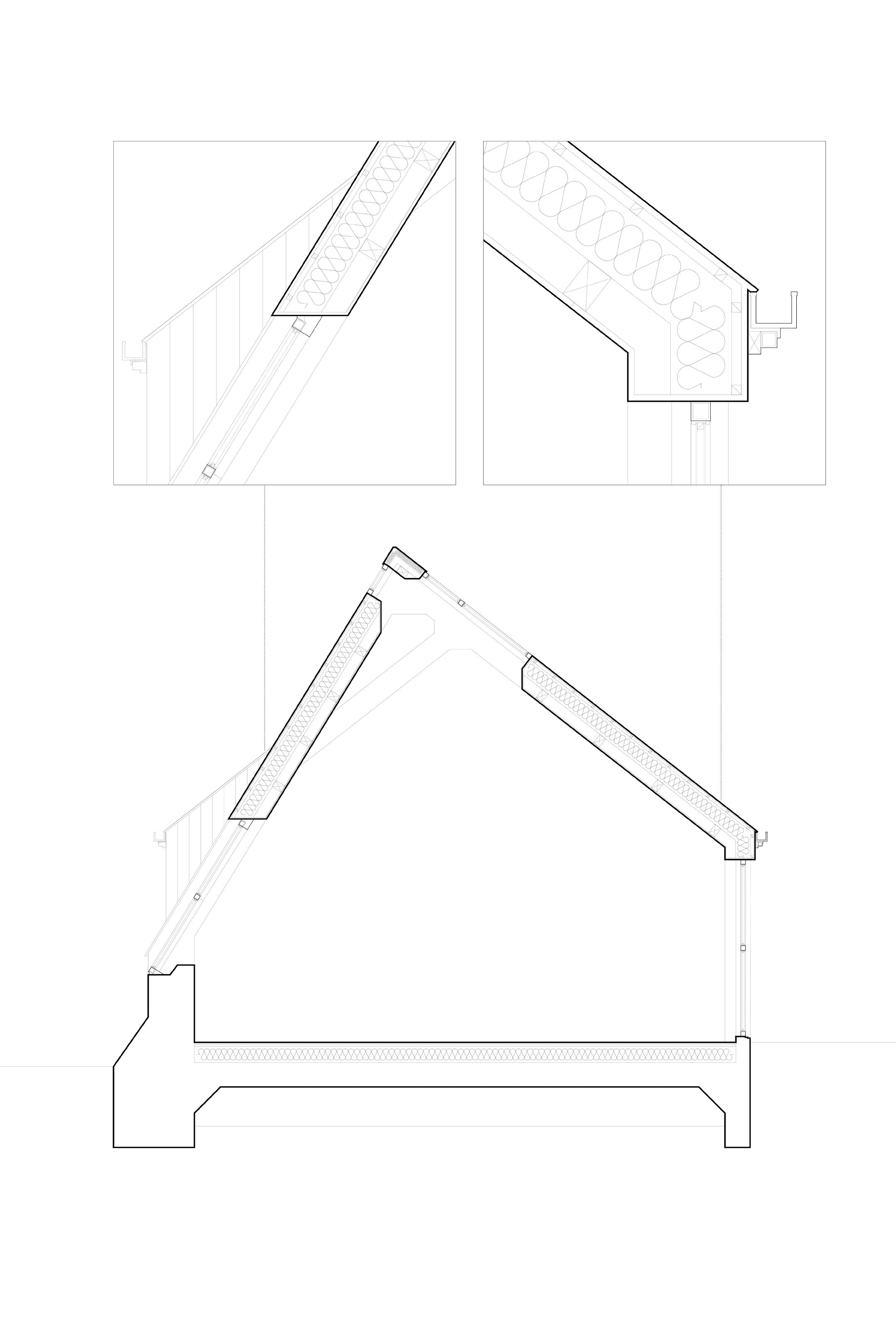

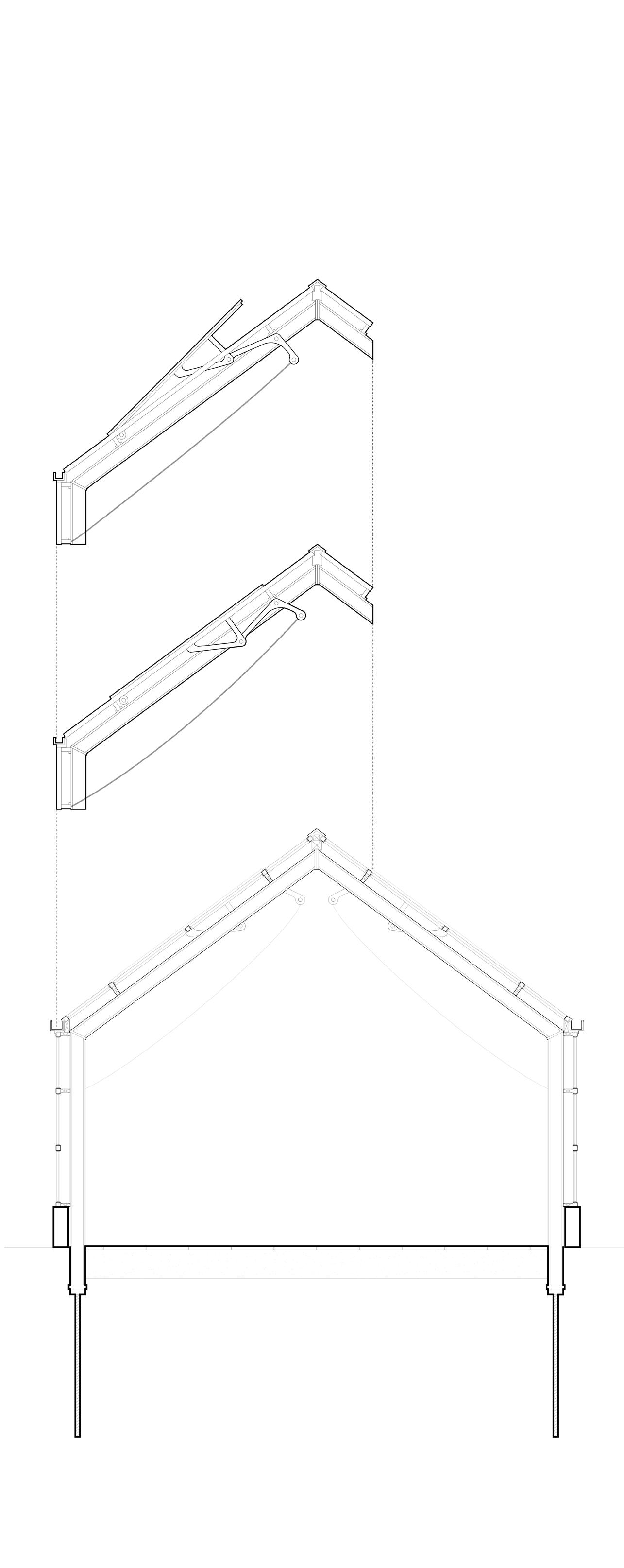

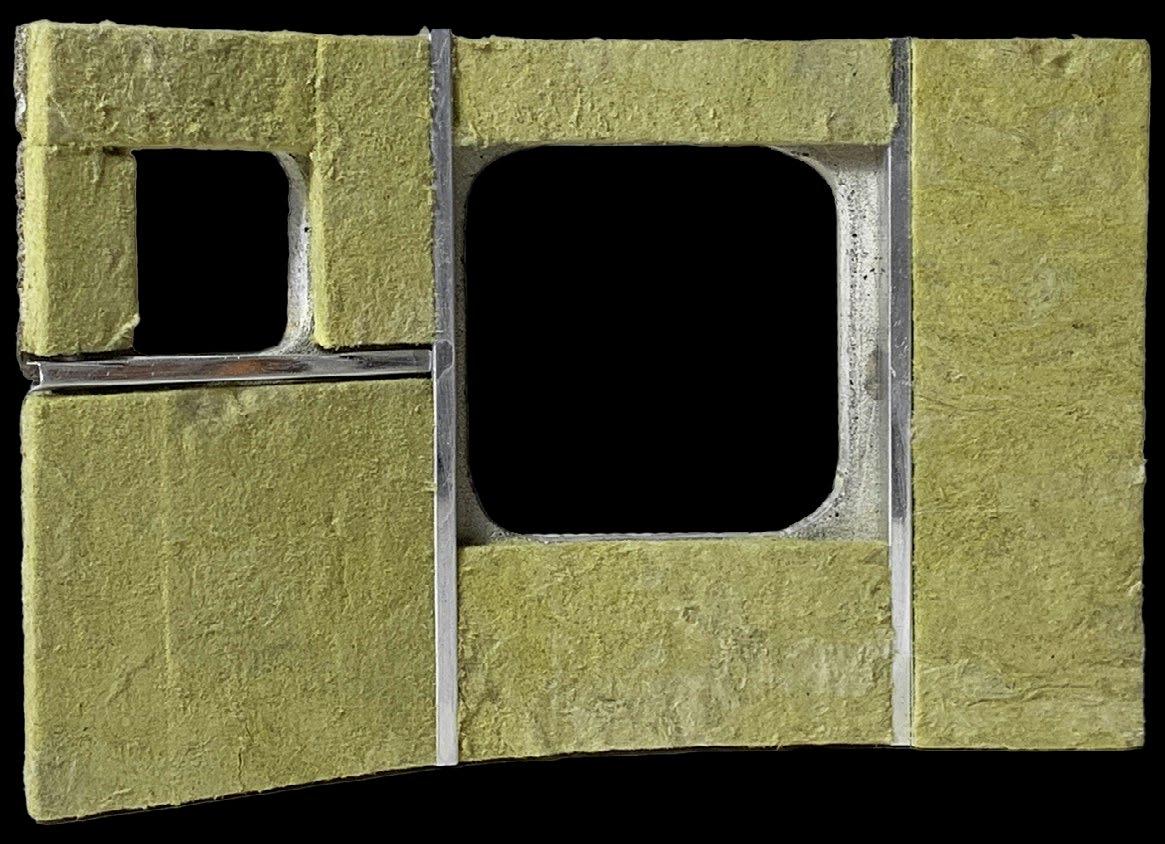

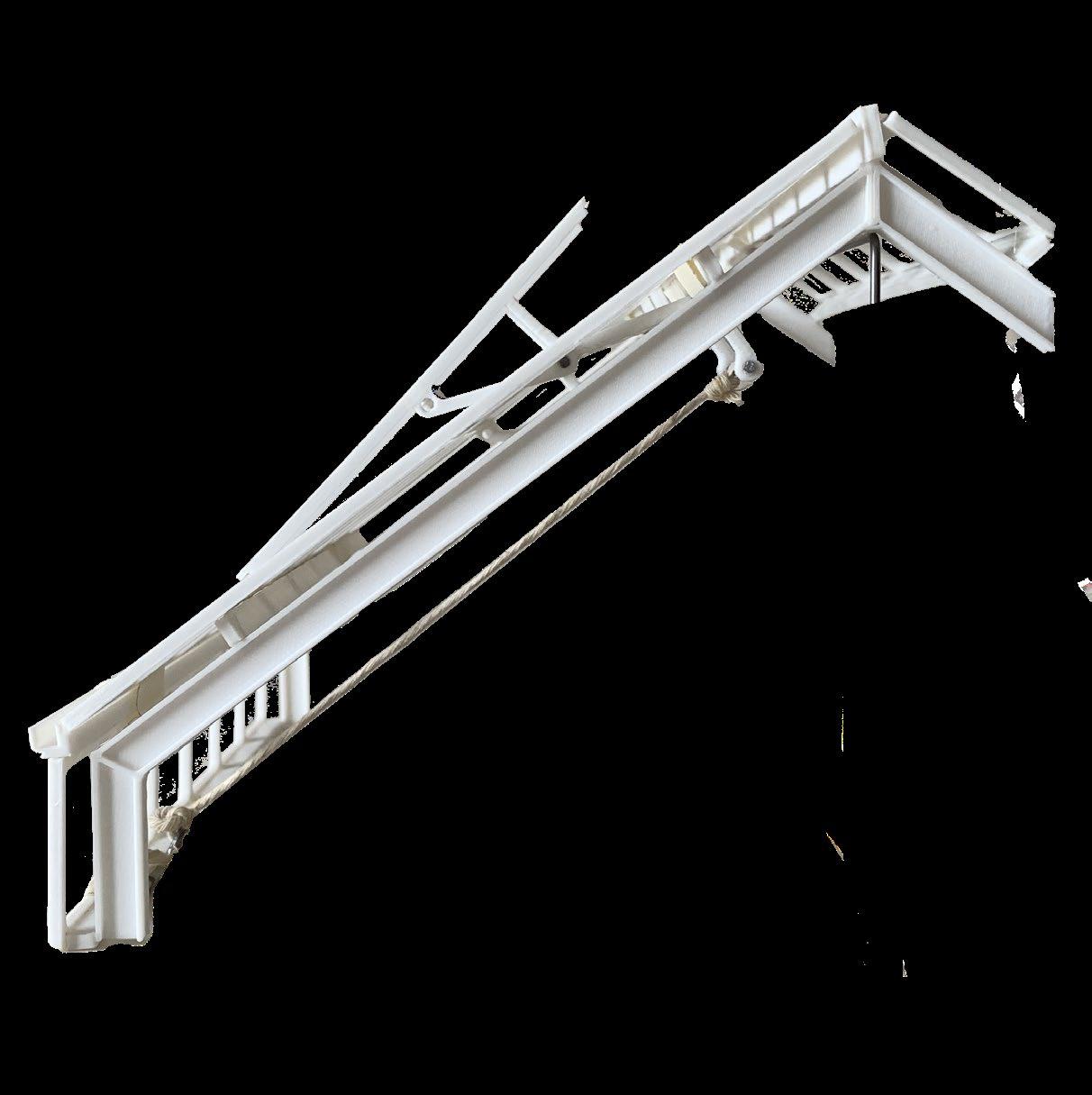

anatomy + construction

Each greenhouse is built around the load bearing structure of the repurposed steel frames, each of which are placed on screw piles in intervals of 3600 mm. Concrete blocksareutilisedatthebaseofeachwallto withstand significant amounts of moisture. By making use of repurposed materials, parts of the original tectonic qualities are retained, even as they are integrated into a different,modularapproachtoconstruction.

The communal building adheres to more traditional means of construction, as it consists of a CLT frame structure, placed on a solid concrete foundation. The reason behind the less experimental approach is mainly because of the Scandinavian weather, which is predominantly wet and cold. Good insulation is key to a lasting and energy efficient household. Arguably, the carbon heavy material expenses would be outweighed by the extensive use and accommodation of a large group of people, bringingtheactualconsumptionfootprintof the structure down significantly over time.

Future iterations of similar projects would ideally explore the integration of biogenic materials in the construction of all facilities, yet the driving philosophy of this approach to sustainability is to design space in such a way, as to encourage a more communal and efficient approach to energy and material consumption.

Self-sufficiency is sustainable.

Sharing space is sustainable.

Pelvorm, Germany
Original sketch project, Bicycle park in Kalundborg (1:500)
industrial landscapes : kalundborg

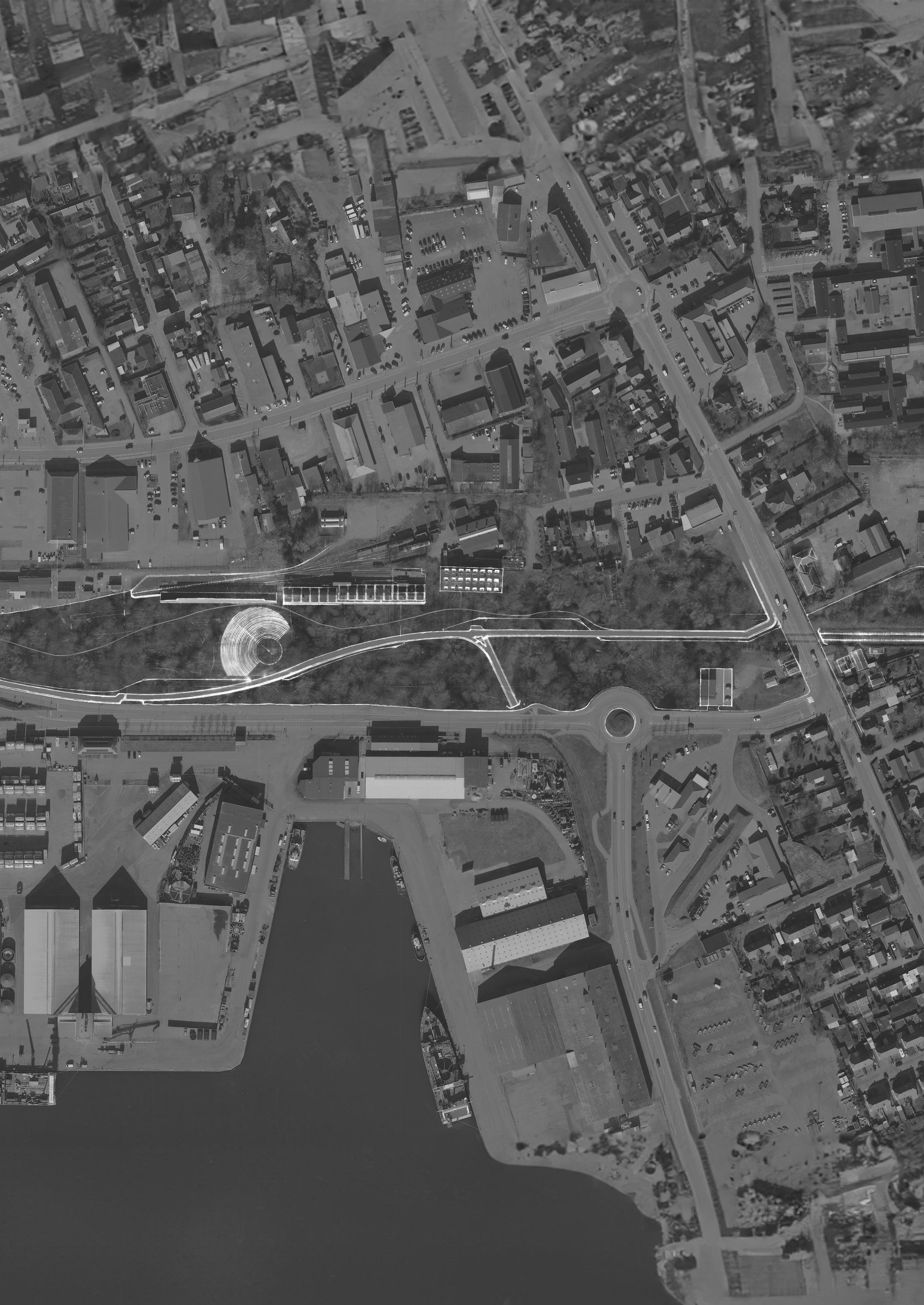

Sketch project, Bicycle park in Kalundborg (1:500) Final area plan, Architecture School & Train Station with Recreational Bicyccle Park (1:1200)

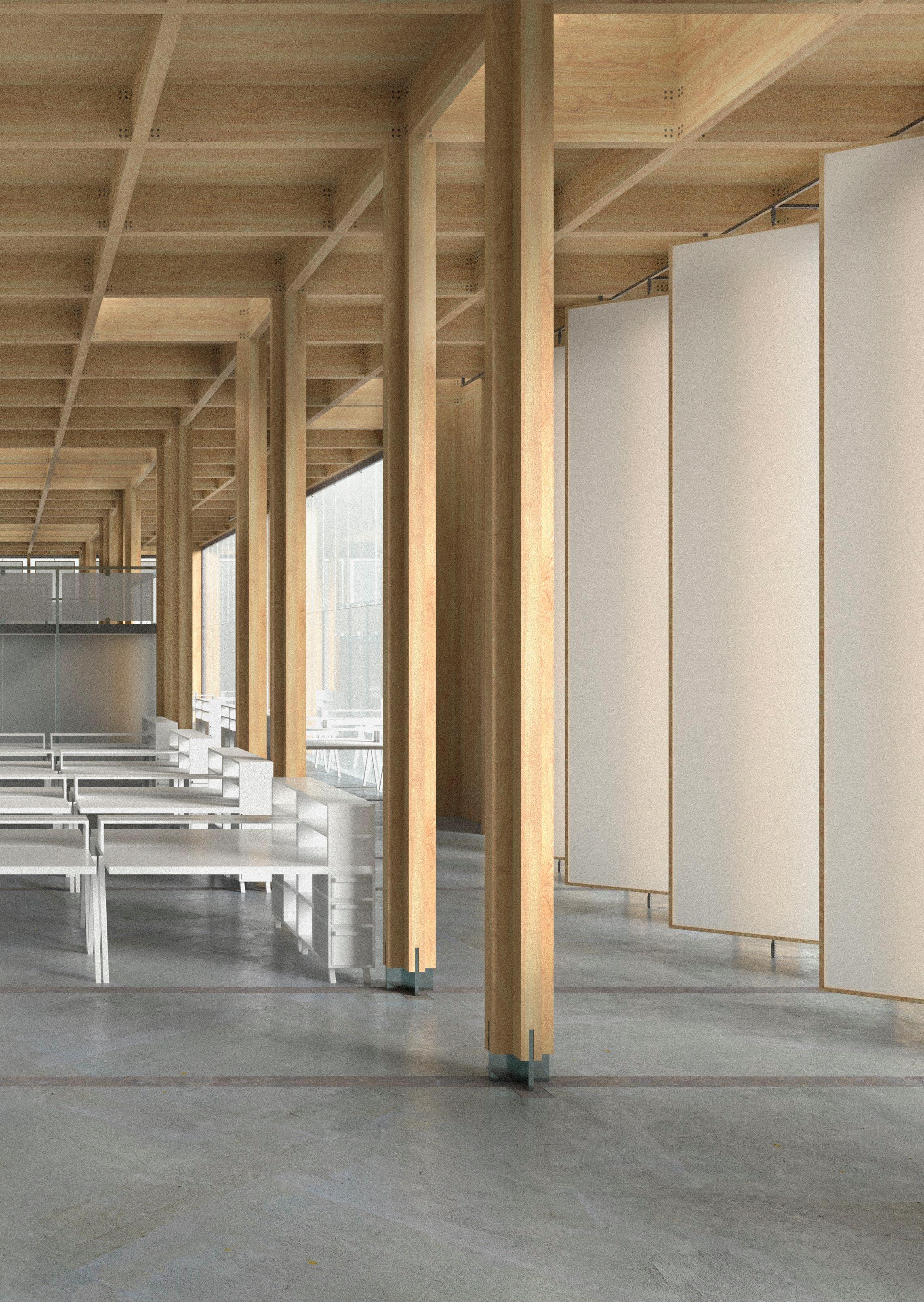

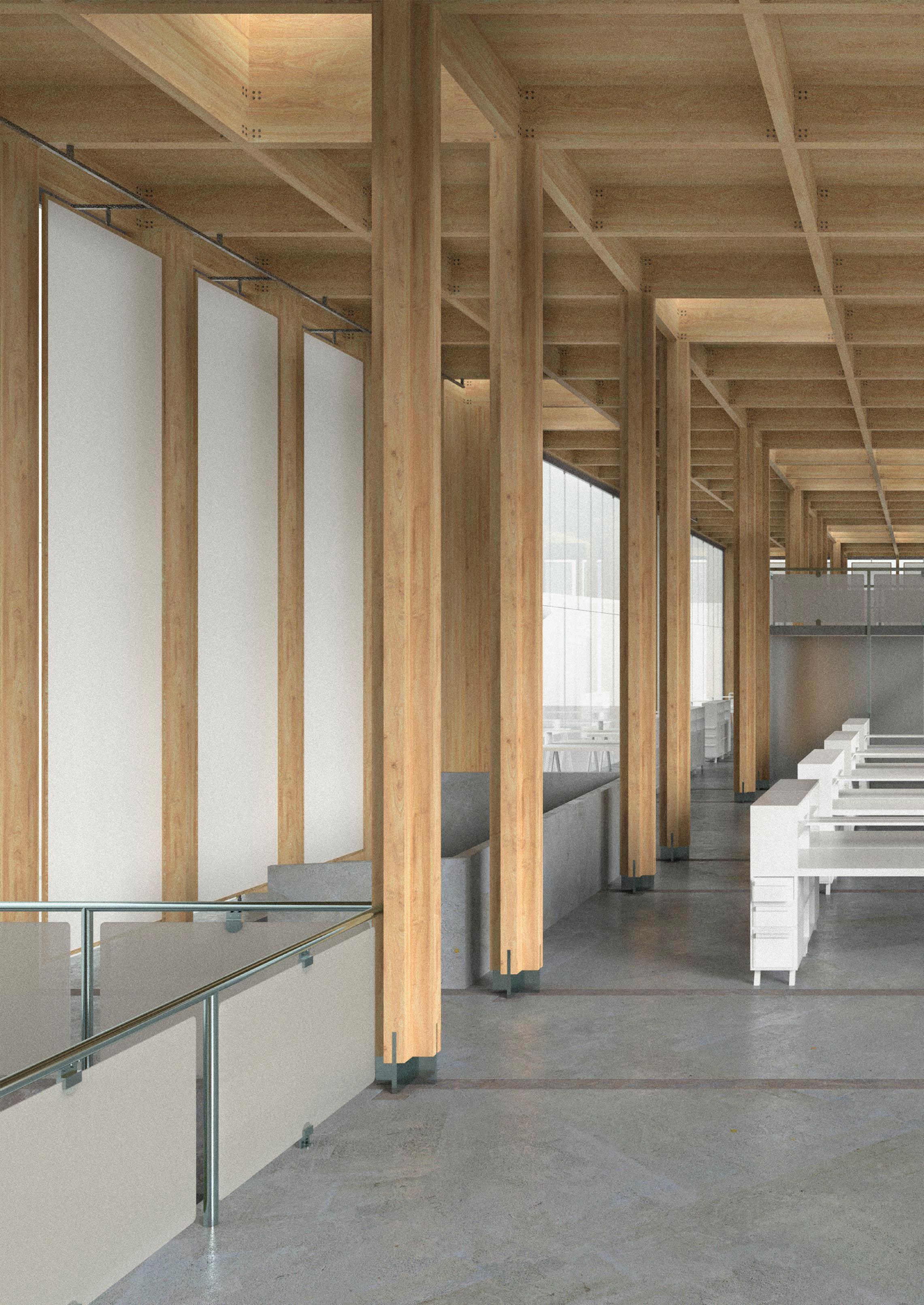

Interior Render : Architectural Master's Programme, top floor
V-Ray · In collaboration with Maya Allende

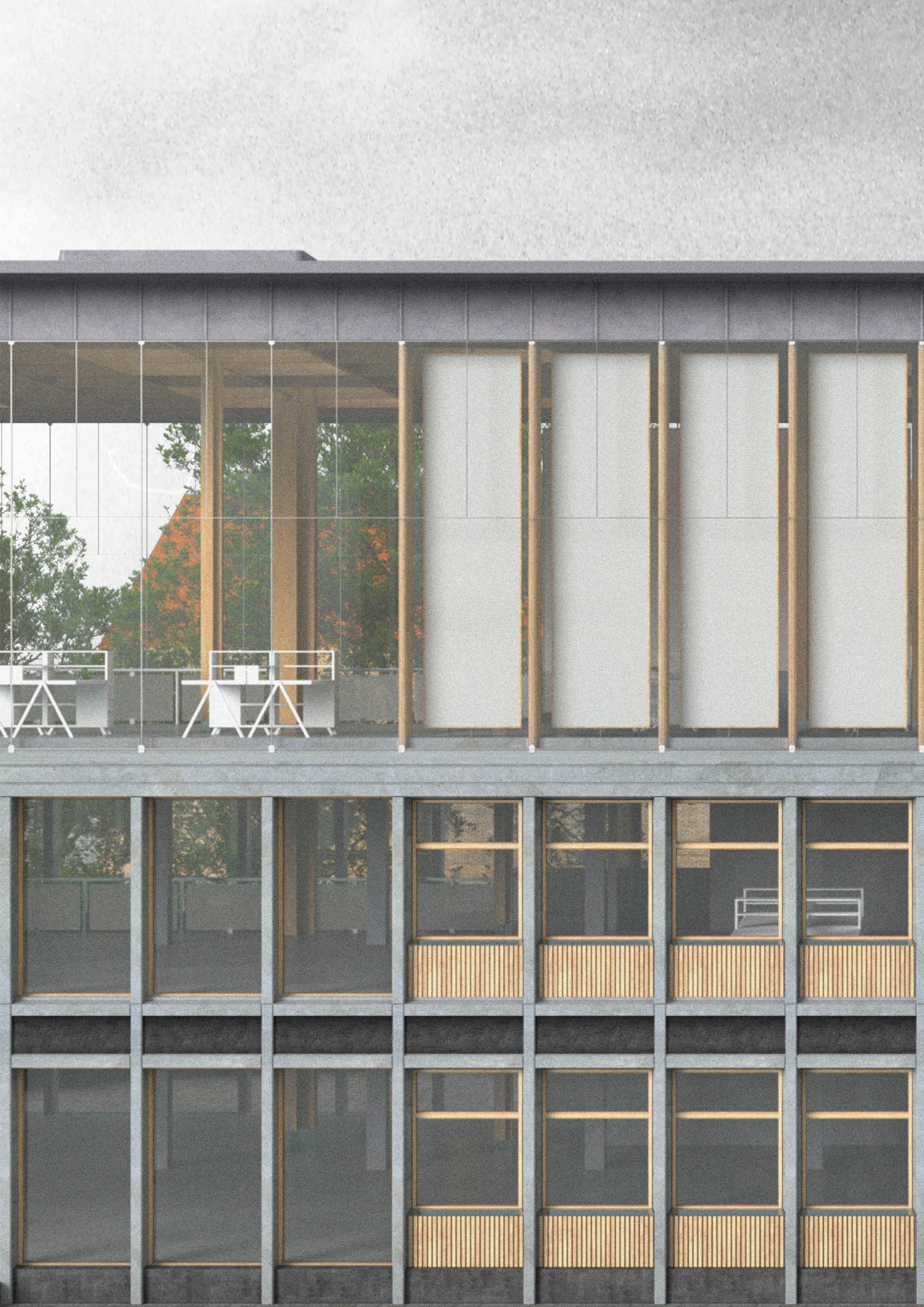

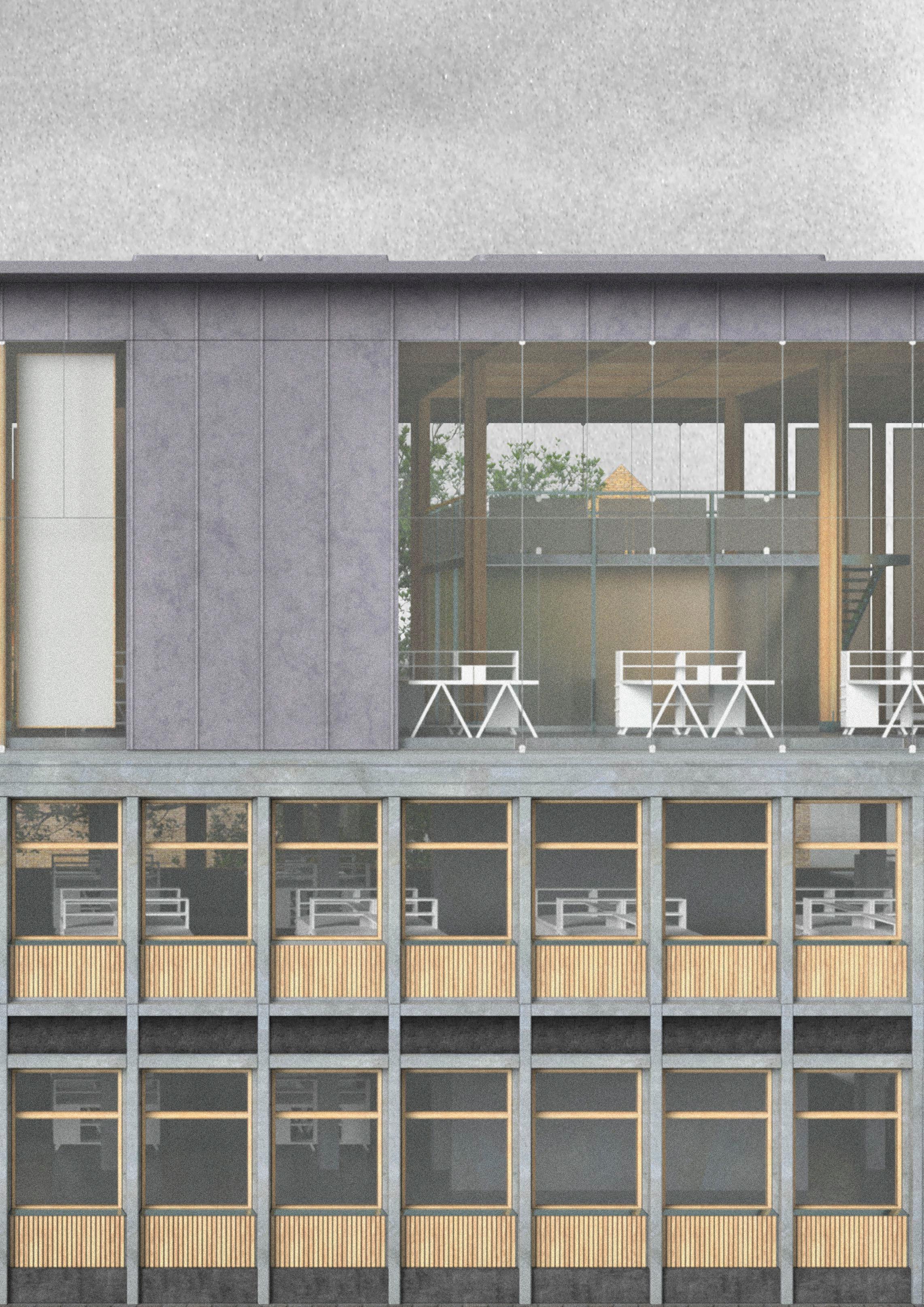

Exterior Render : Transformation and extension of original train station

V-Ray · In collaboration with Maya Allende
In collaboration with Maya Allende
In collaboration with Maya Allende

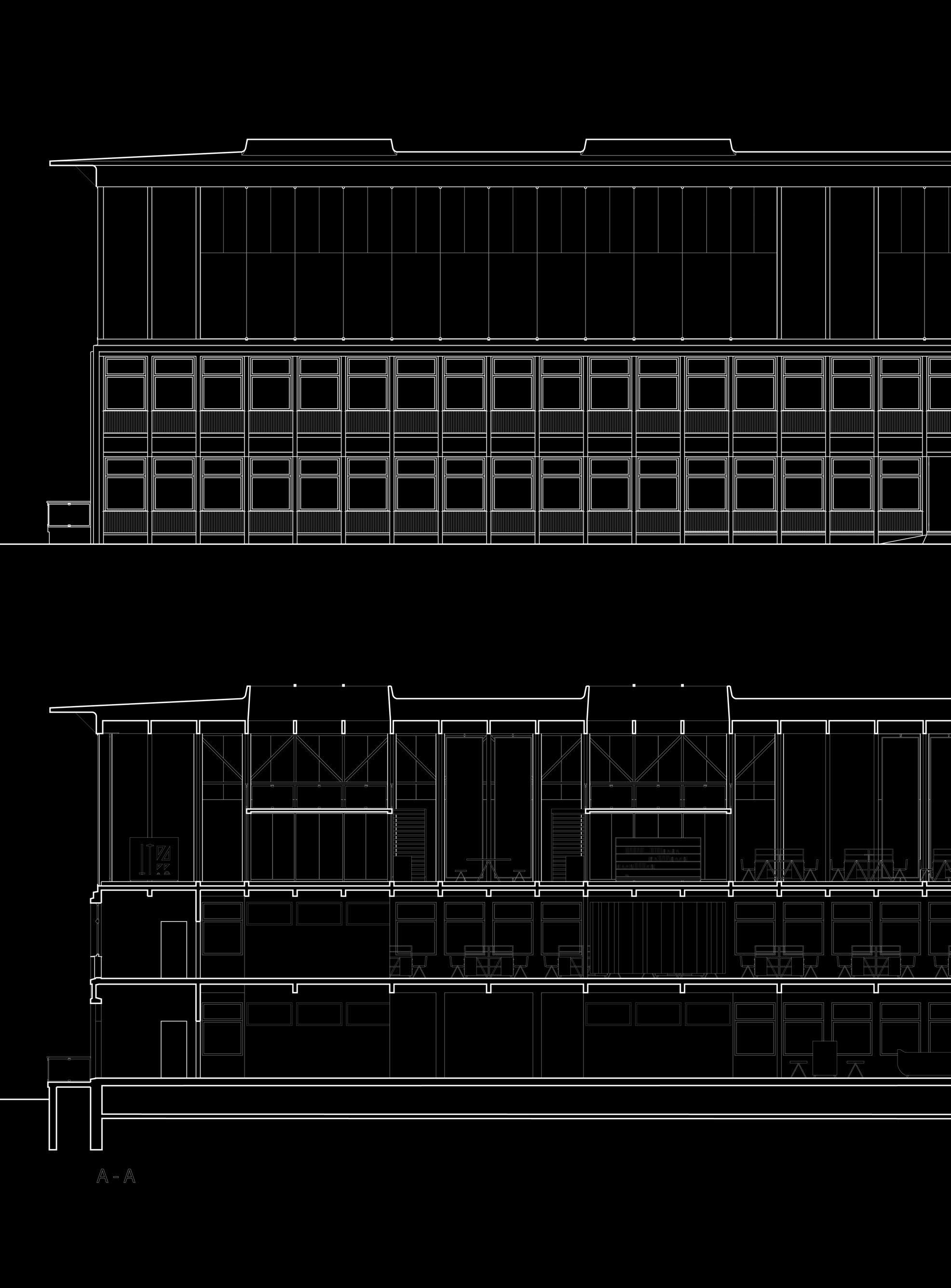

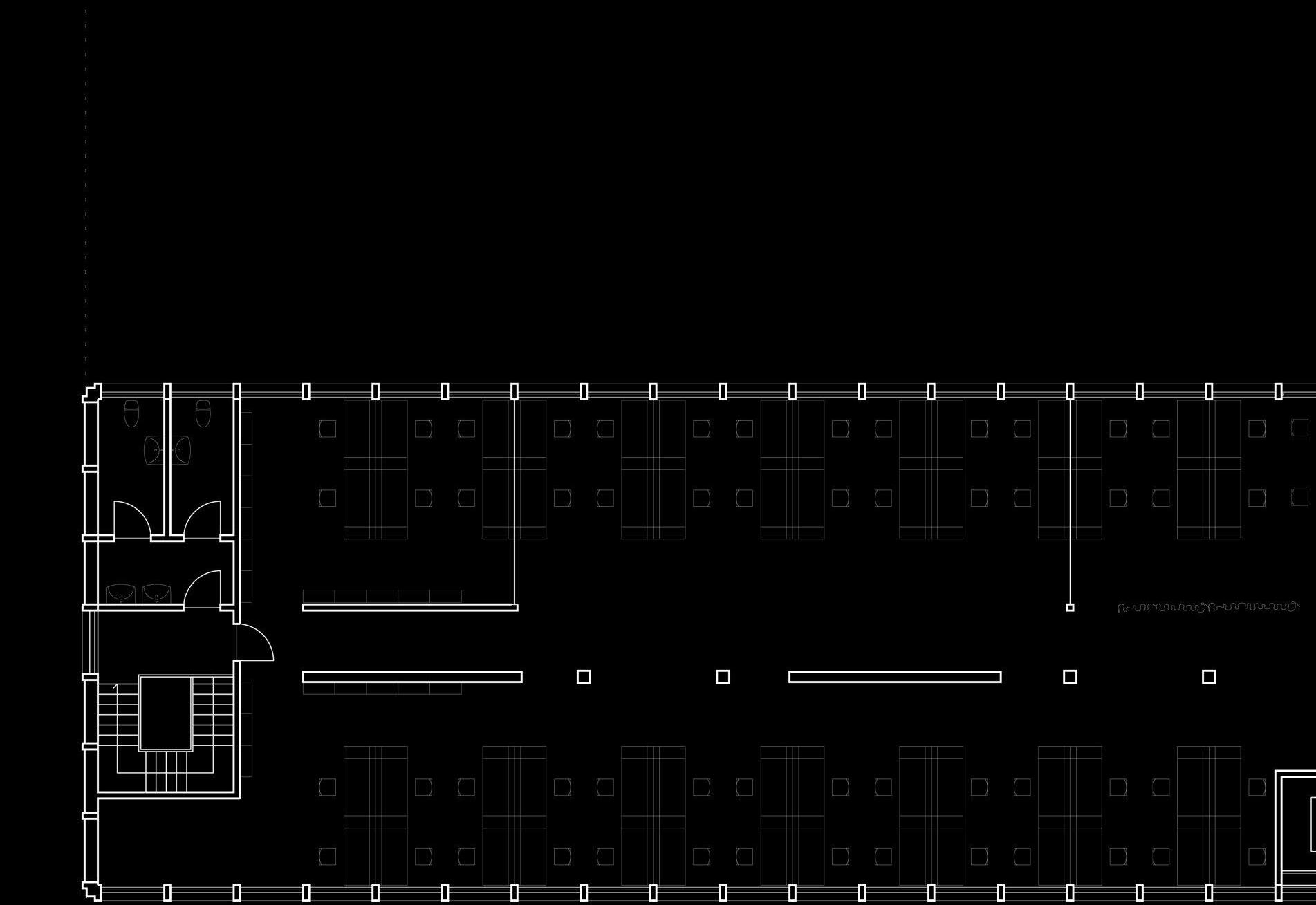

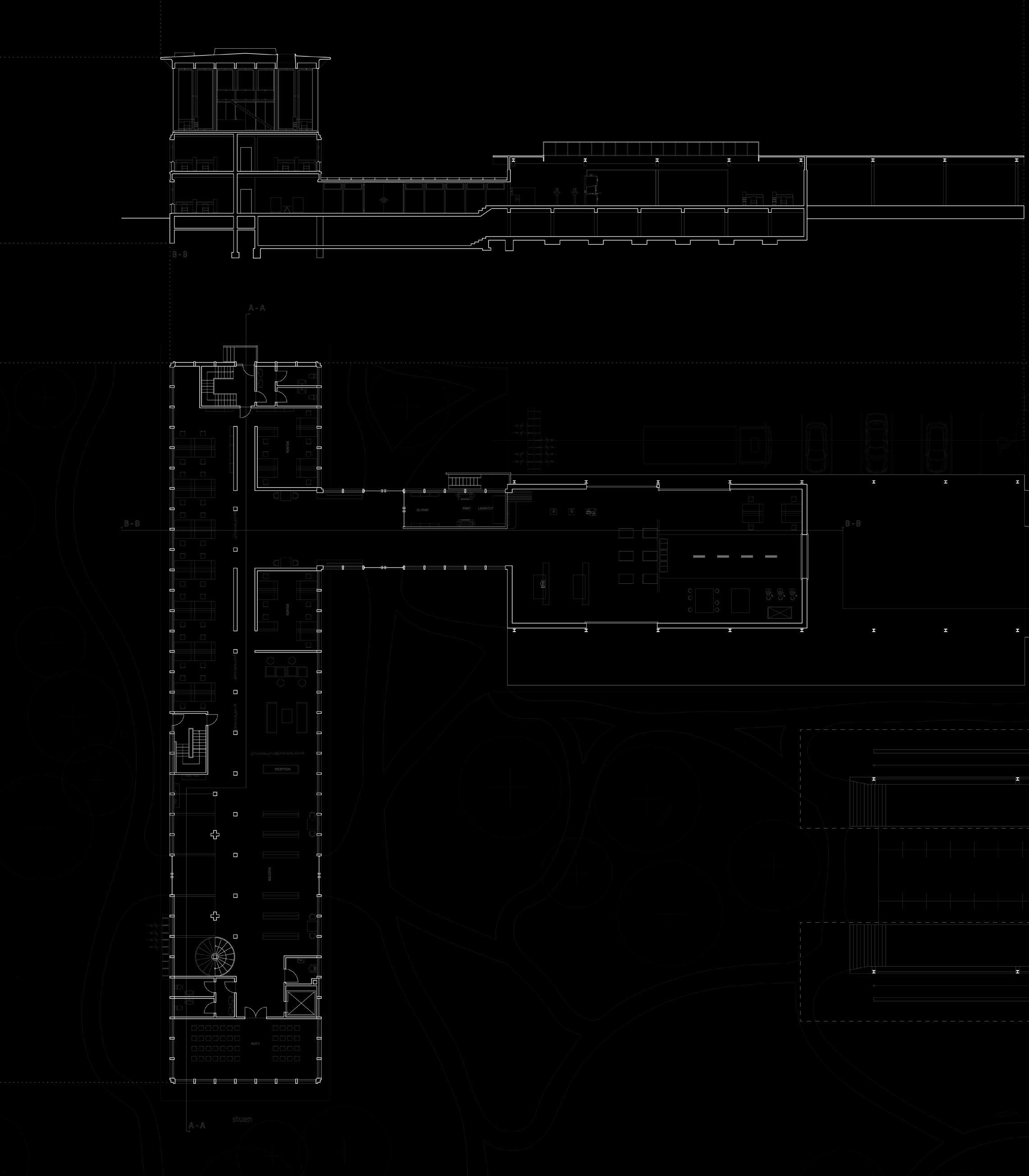

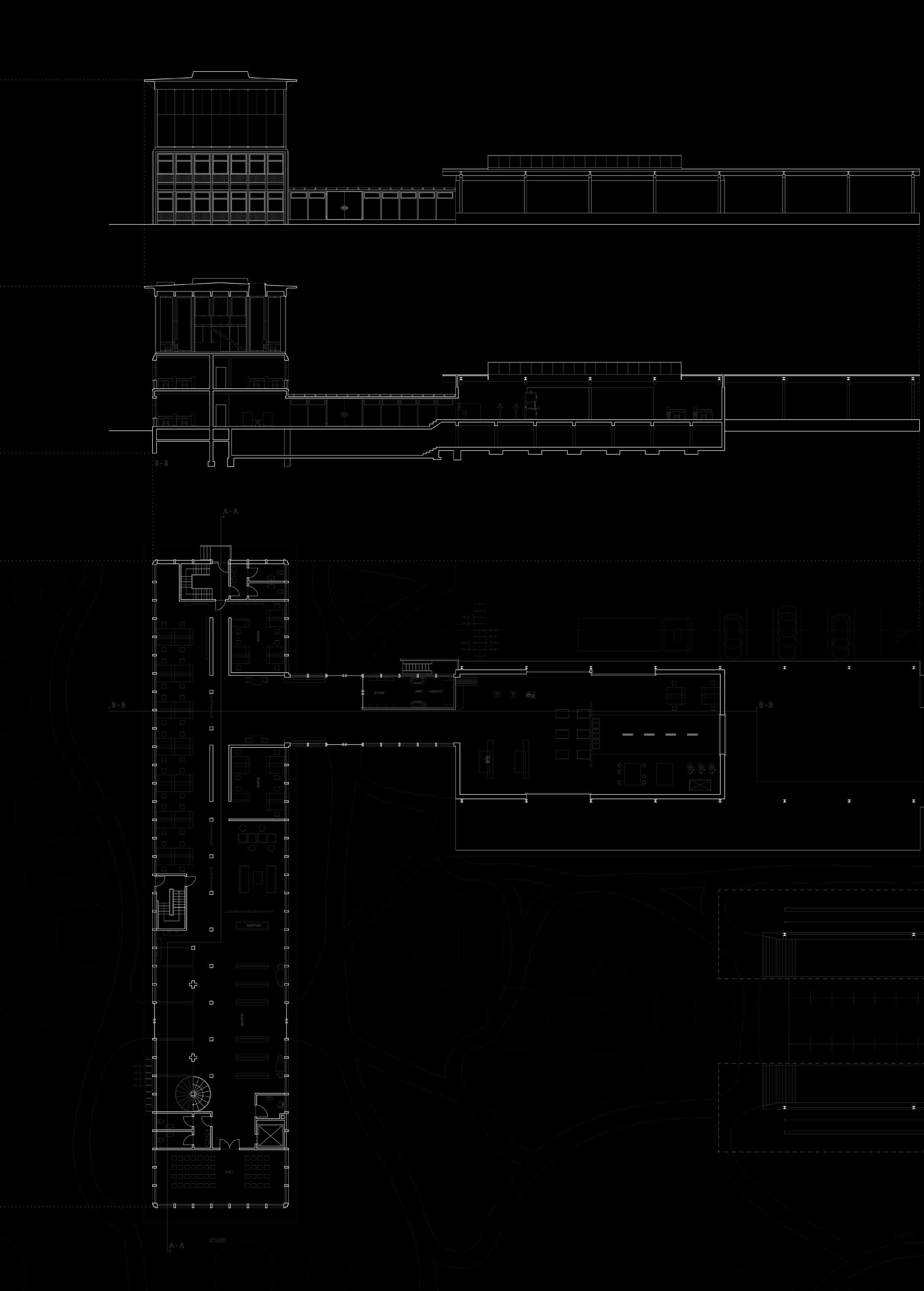

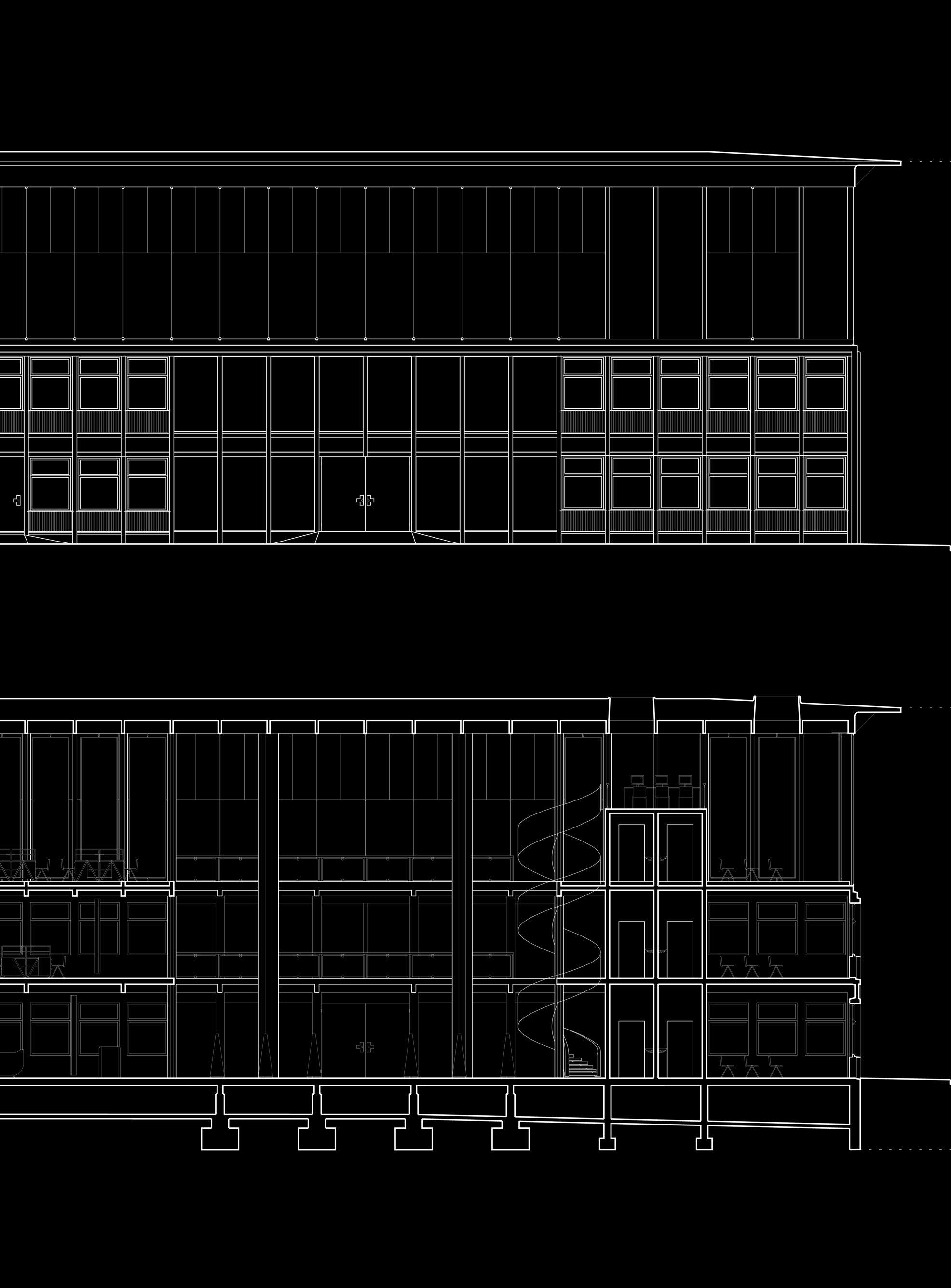

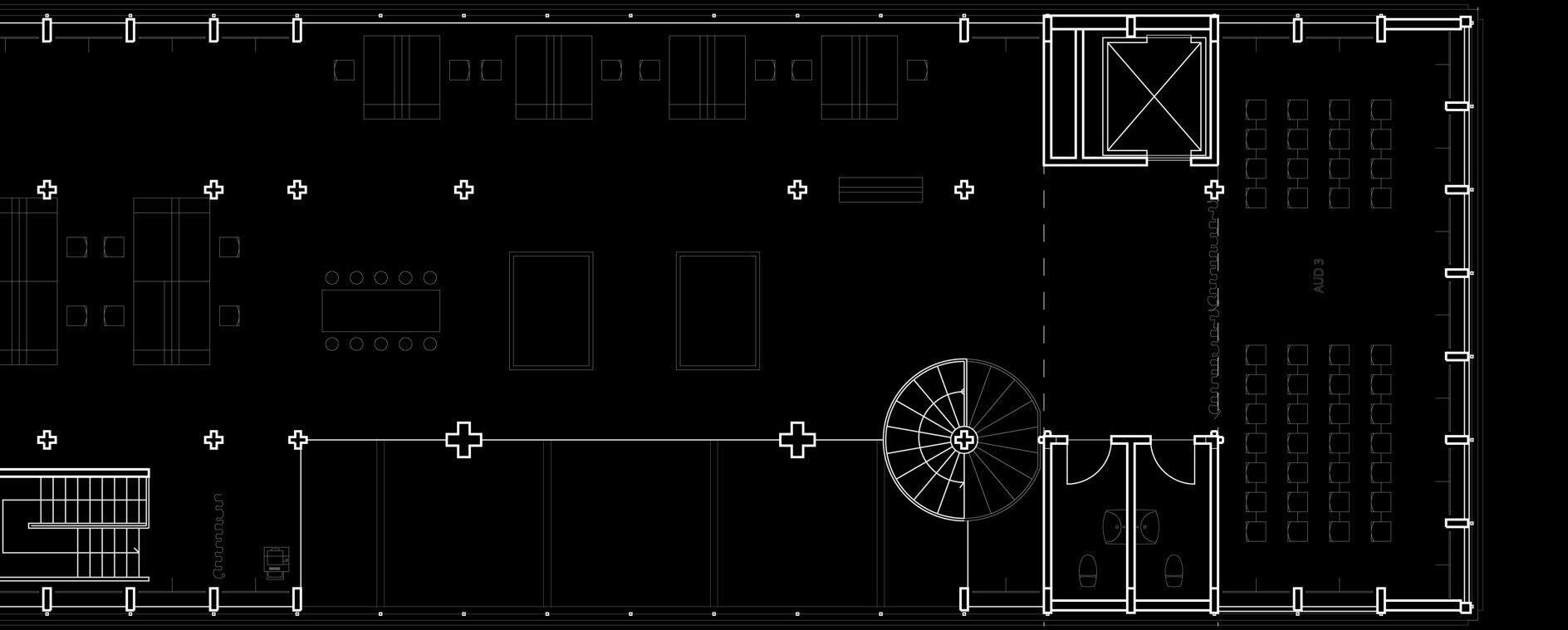

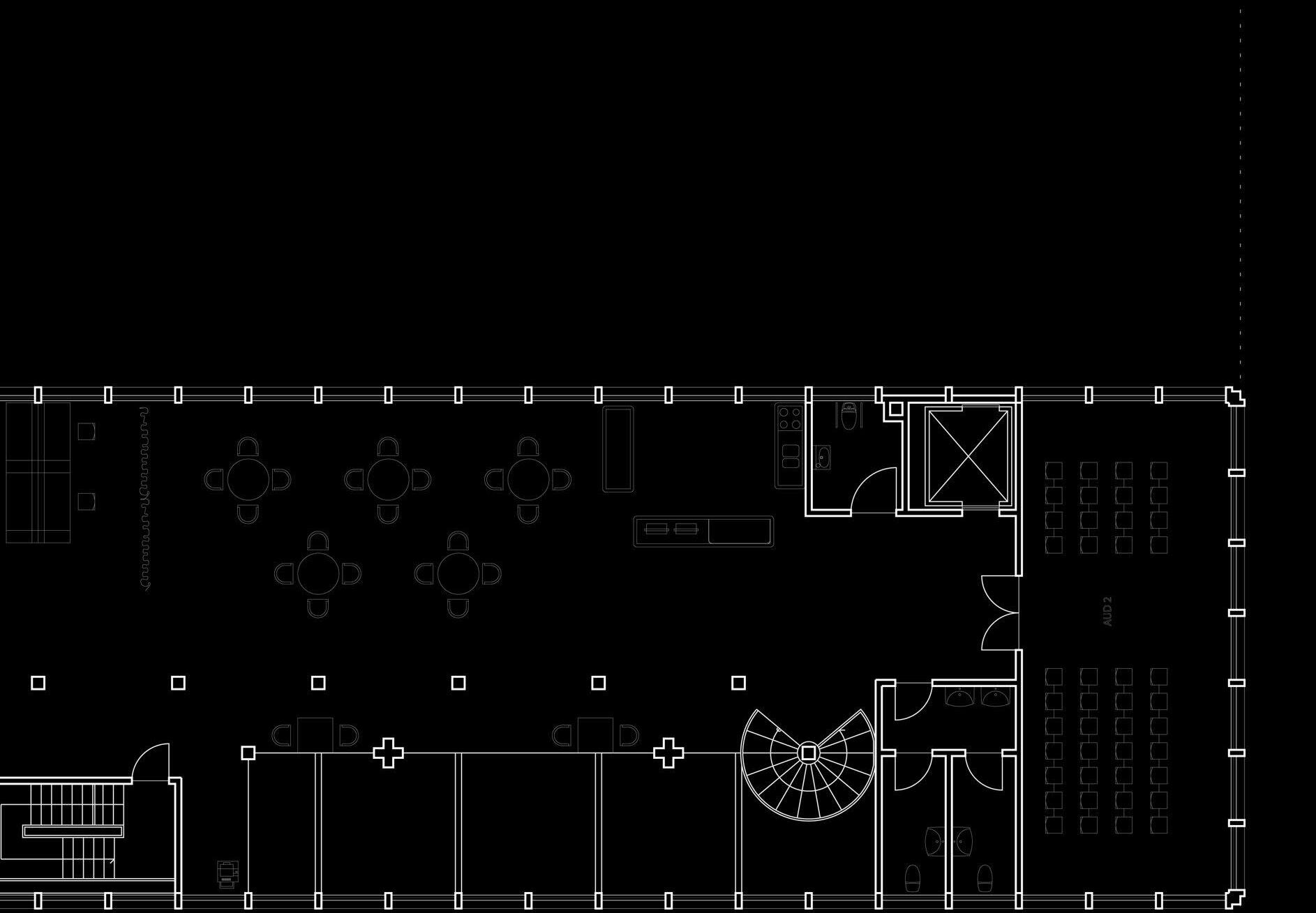

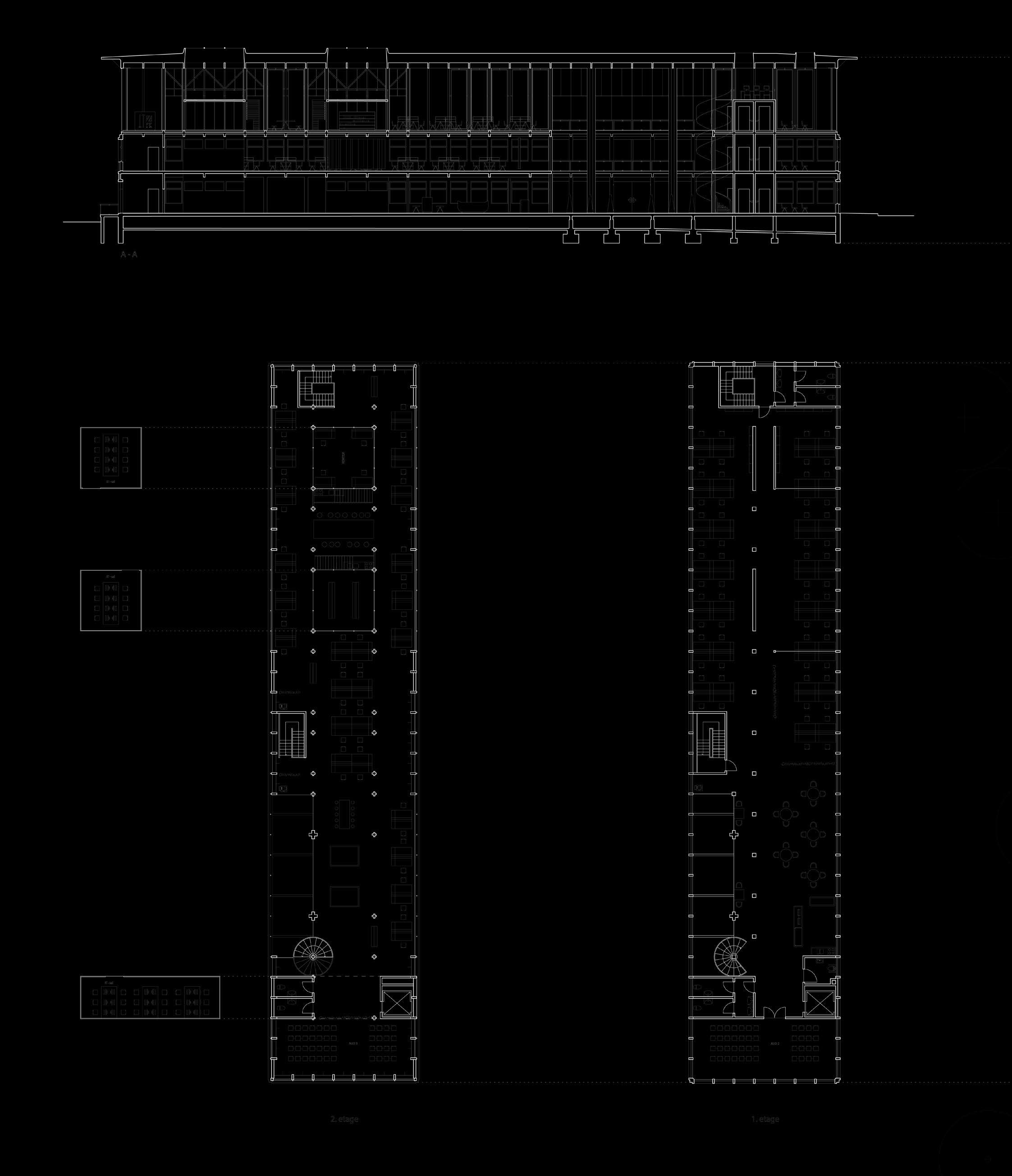

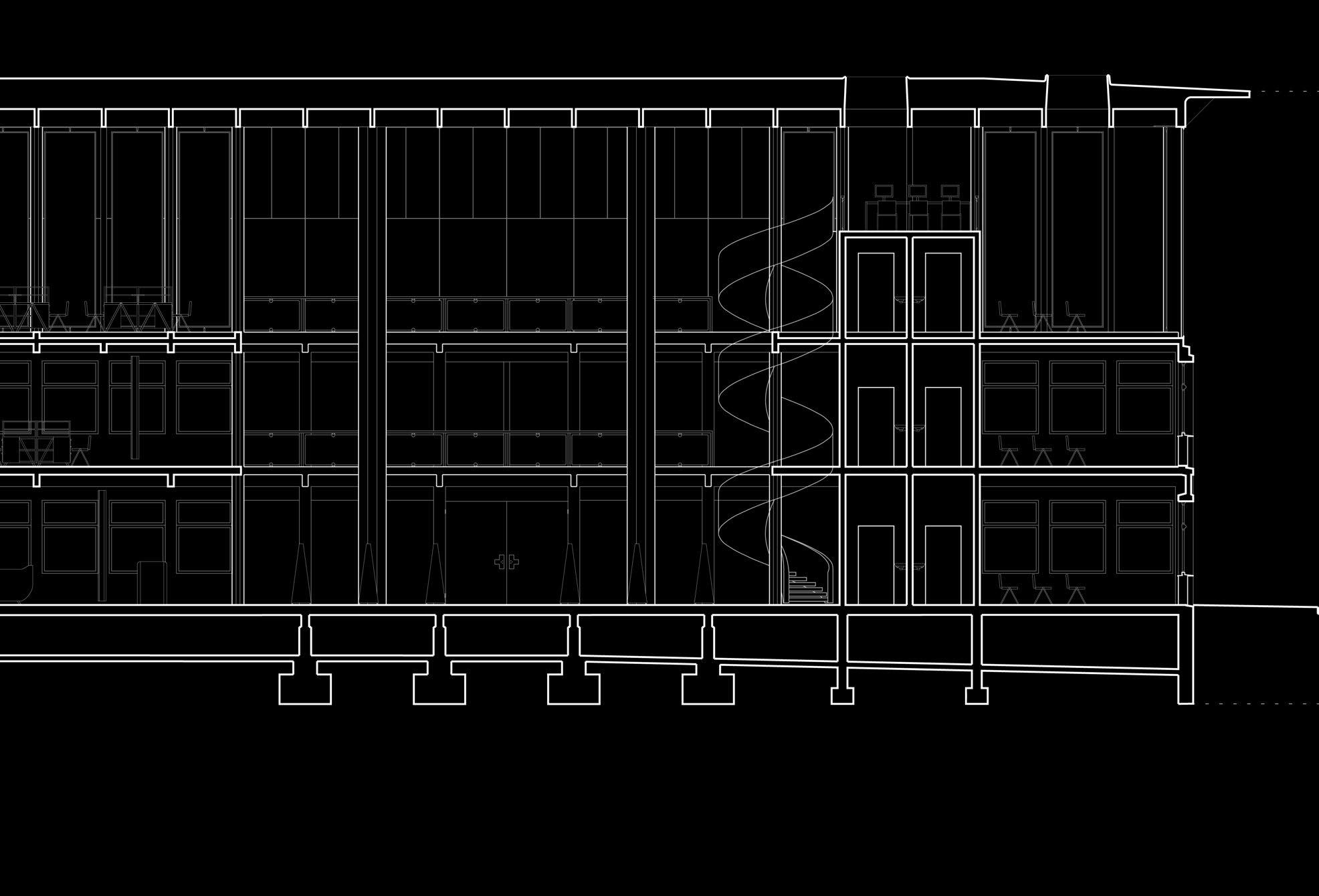

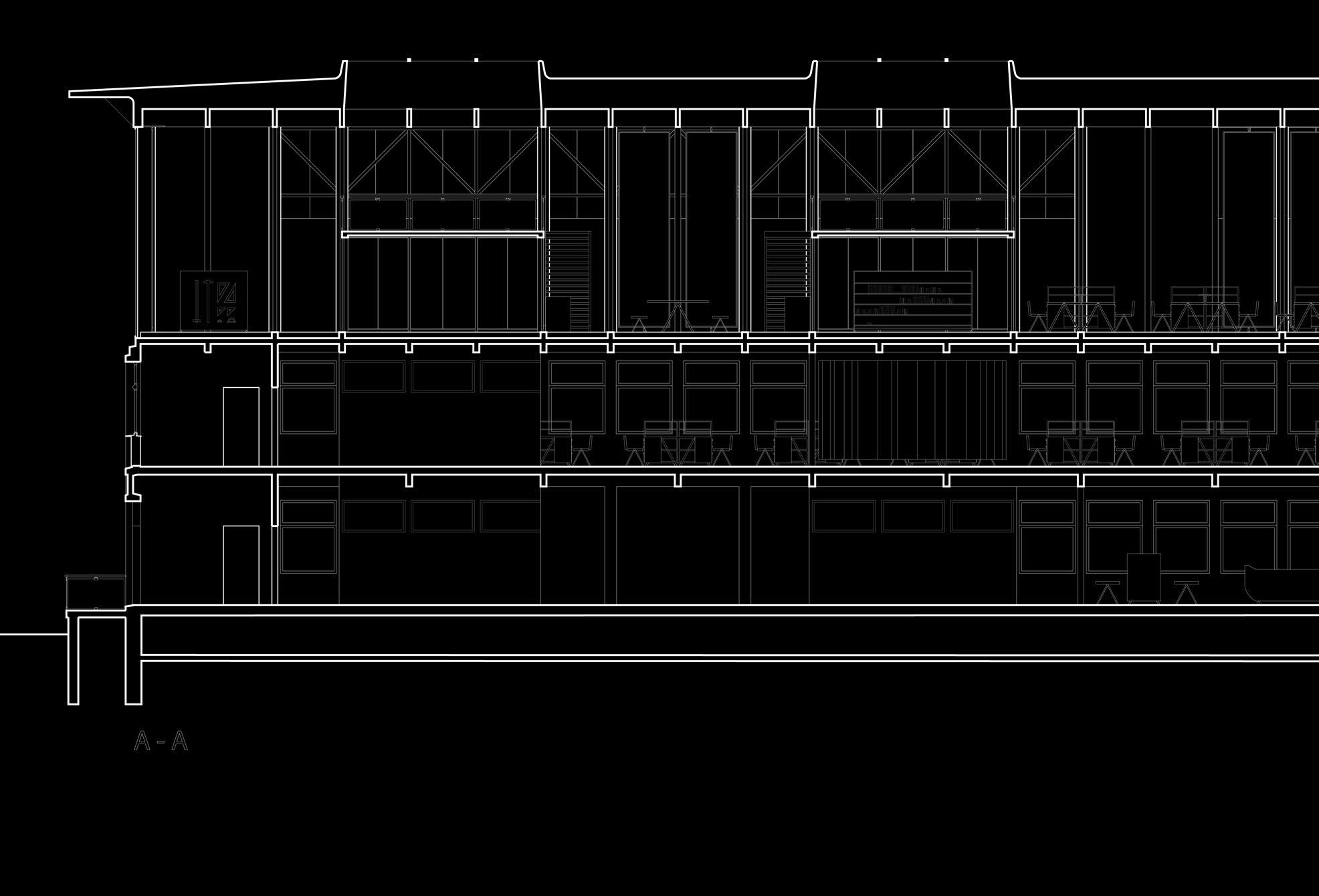

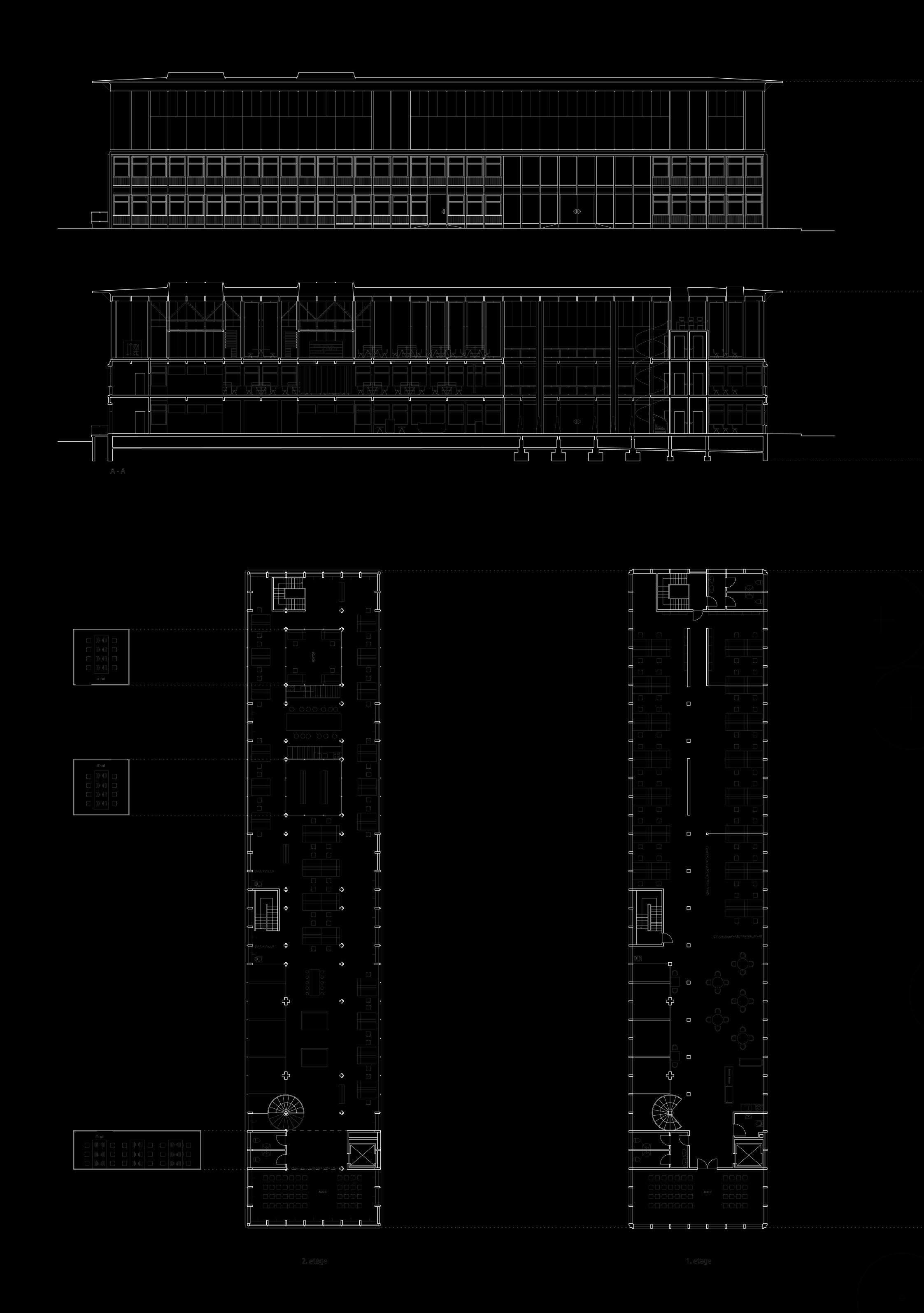

Plan + Section, Transformation and Extension : The Royal Danish Academy's Architecture Programme in

Kalundborg (1:200)
In collaboration with Maya Allende

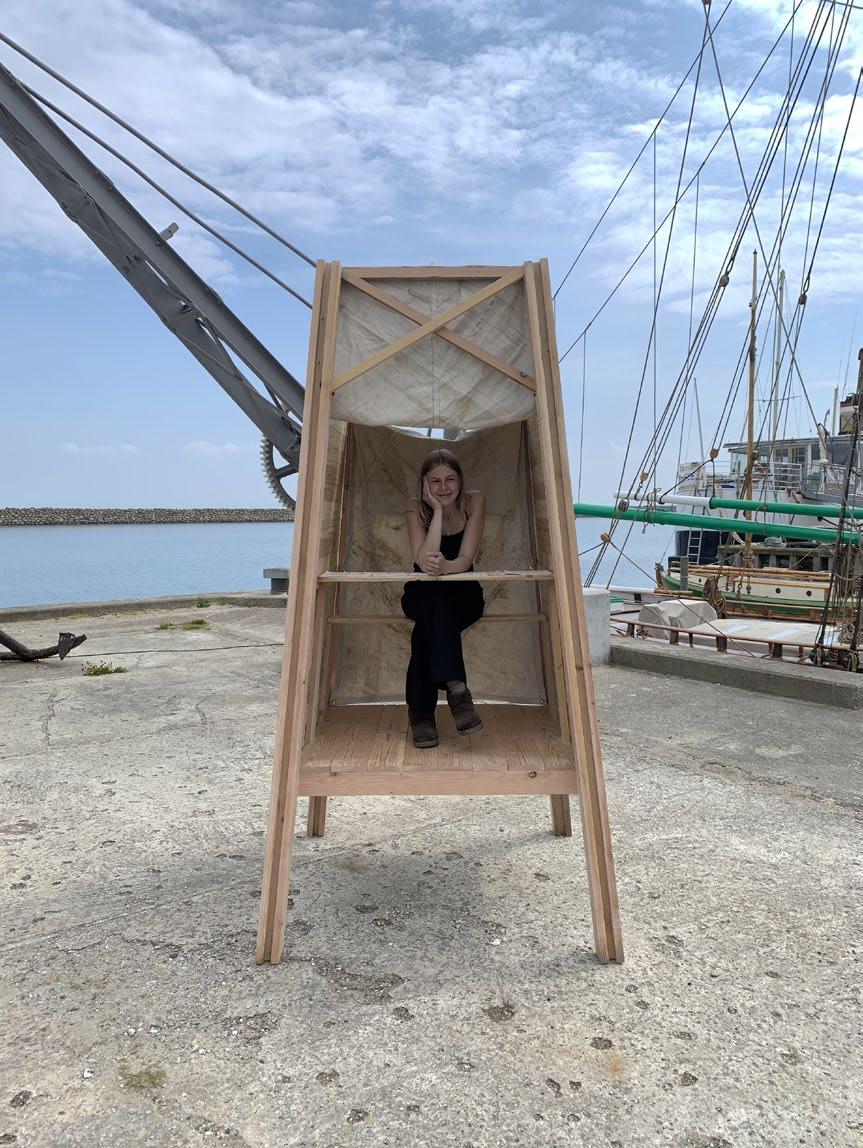

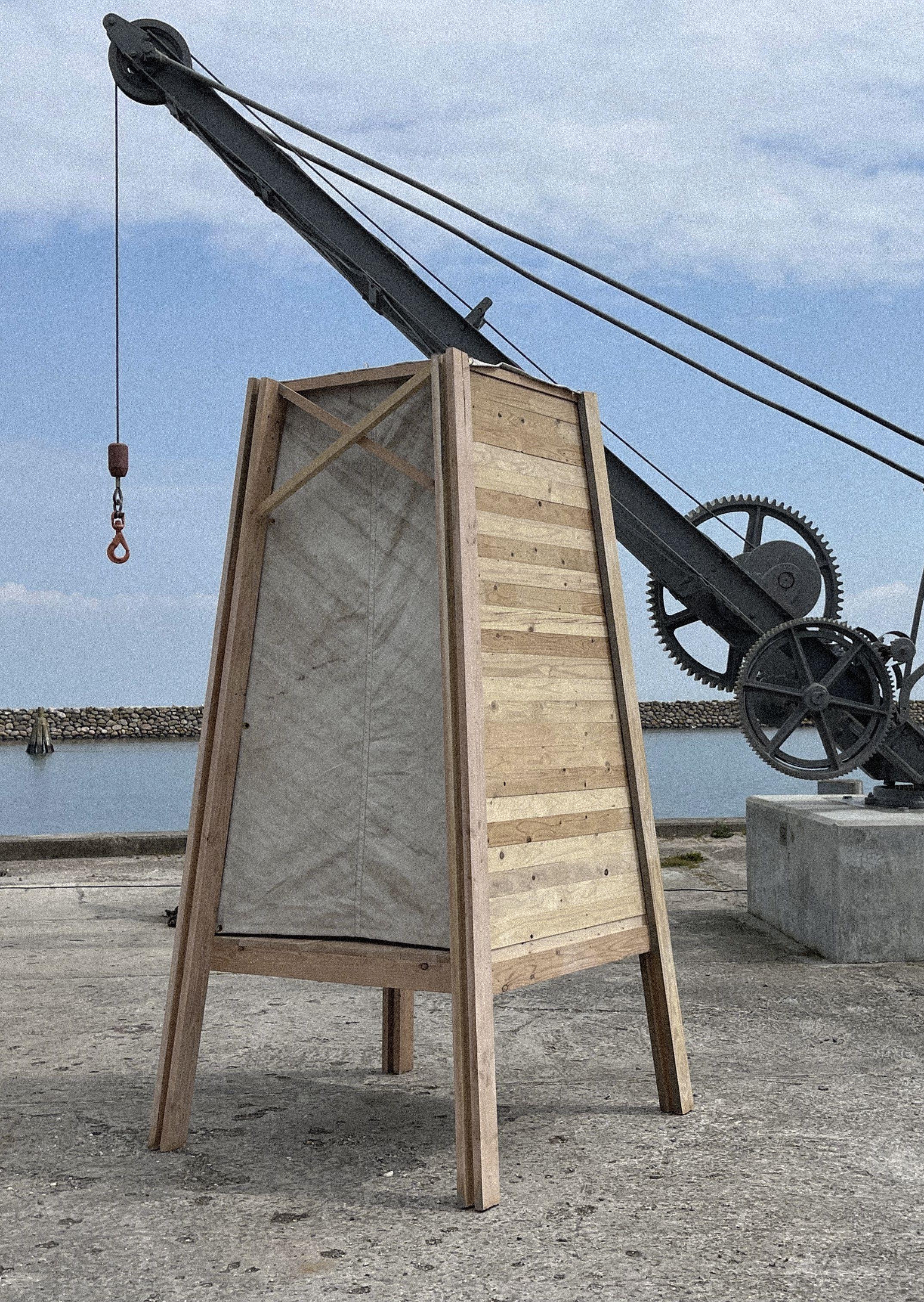

carpentry basics

In collaboration with: Clea Lorenzen

Oskar Diermayr

Tony Tran

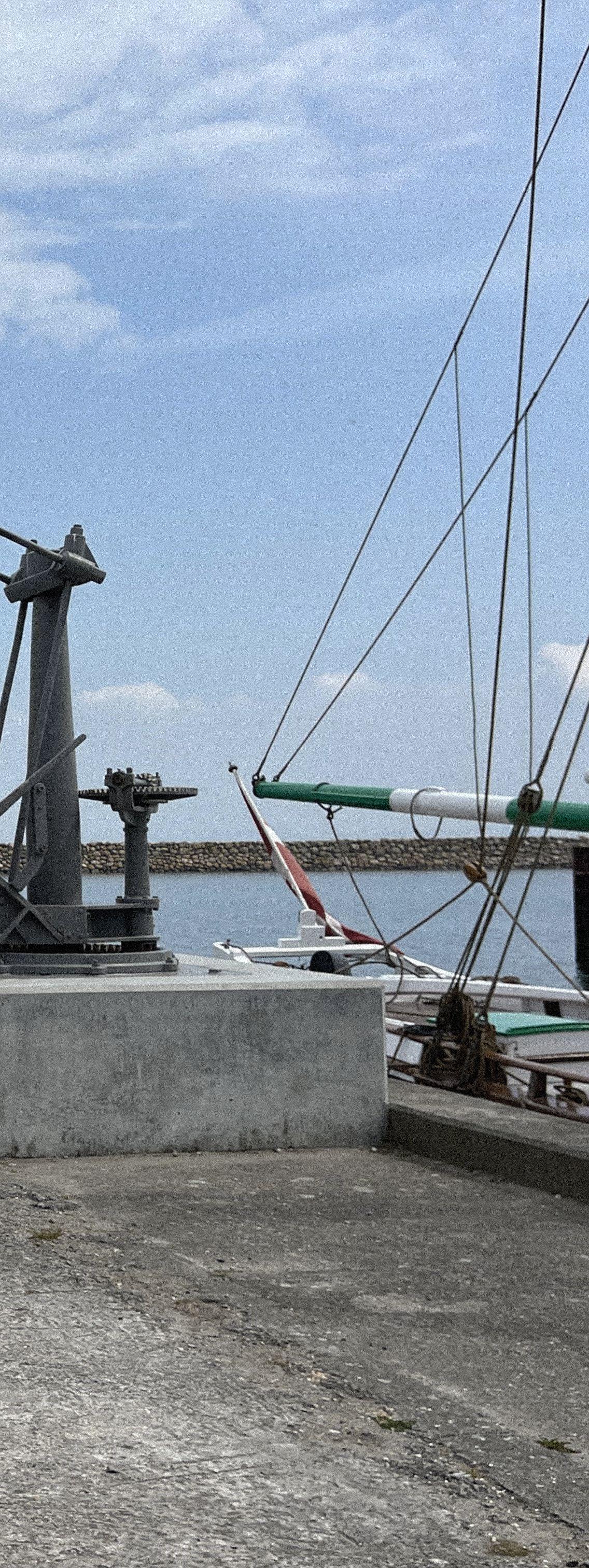

Our annual 1:1 scale construction project was created over the span of two weeks with a group of friends, during an on-site workshop in Marstal. While working on the docks, we would analyse and register the town during our stay, assimilating into coastal town culture for a little while. We learned a lot about the local environment, architectural tradition, and the essential basics of timber construction. All materials used, were recycled from local businesses or previous projects.

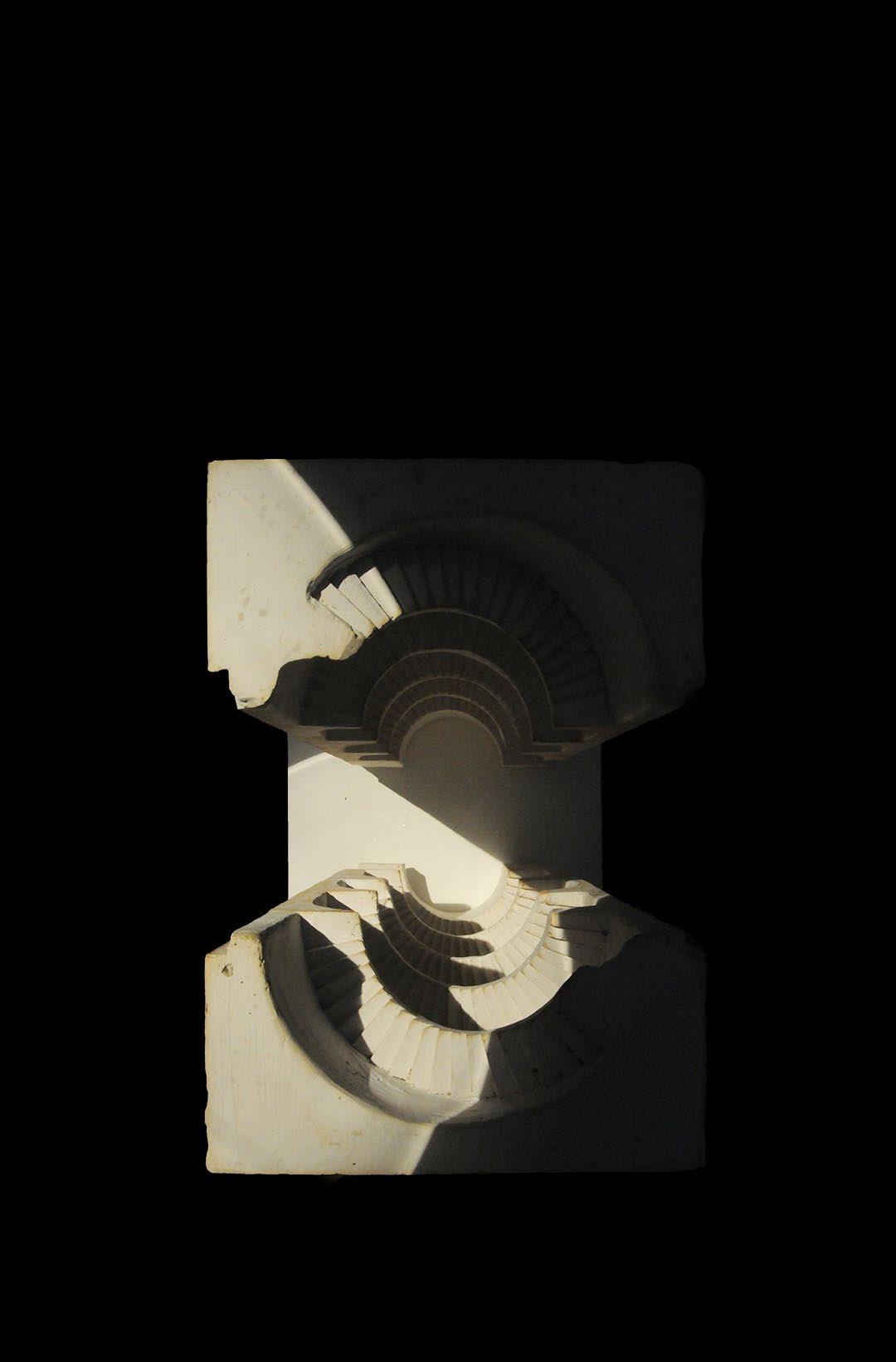

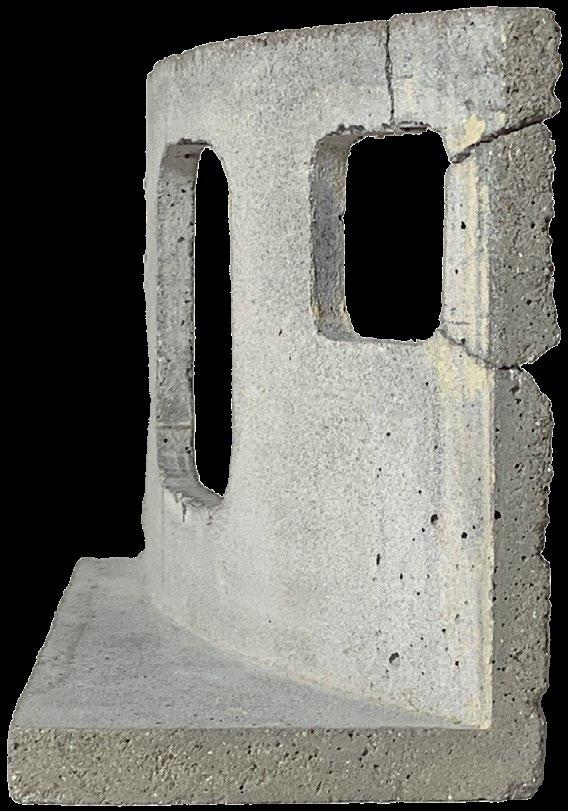

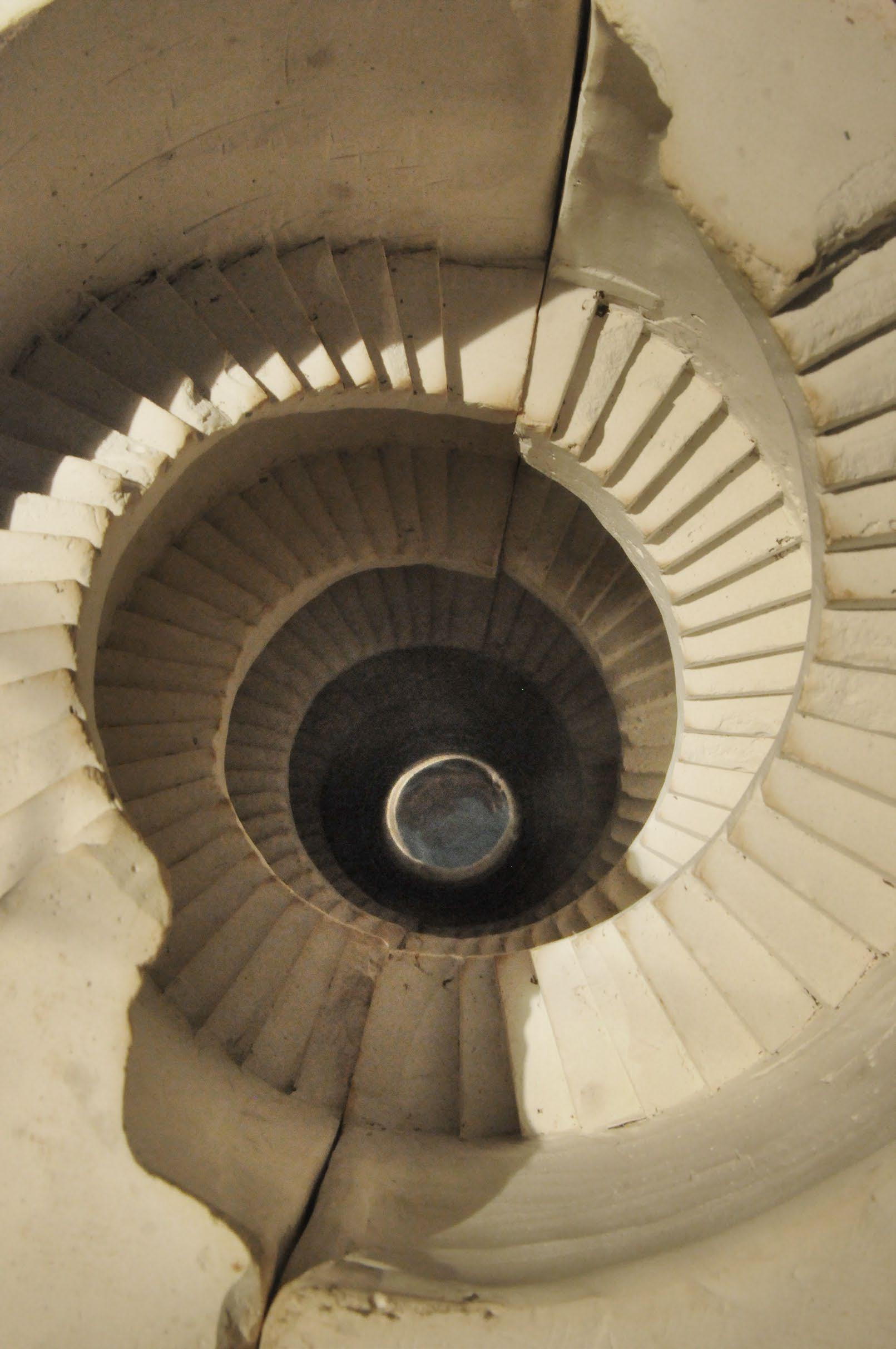

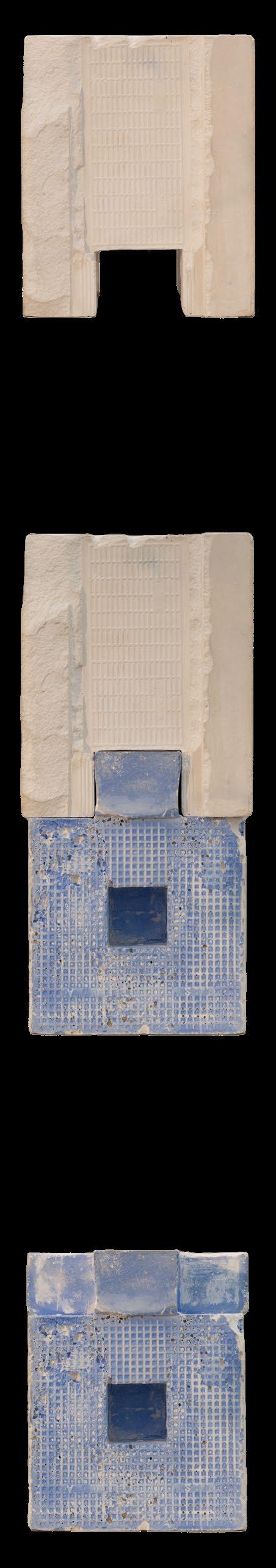

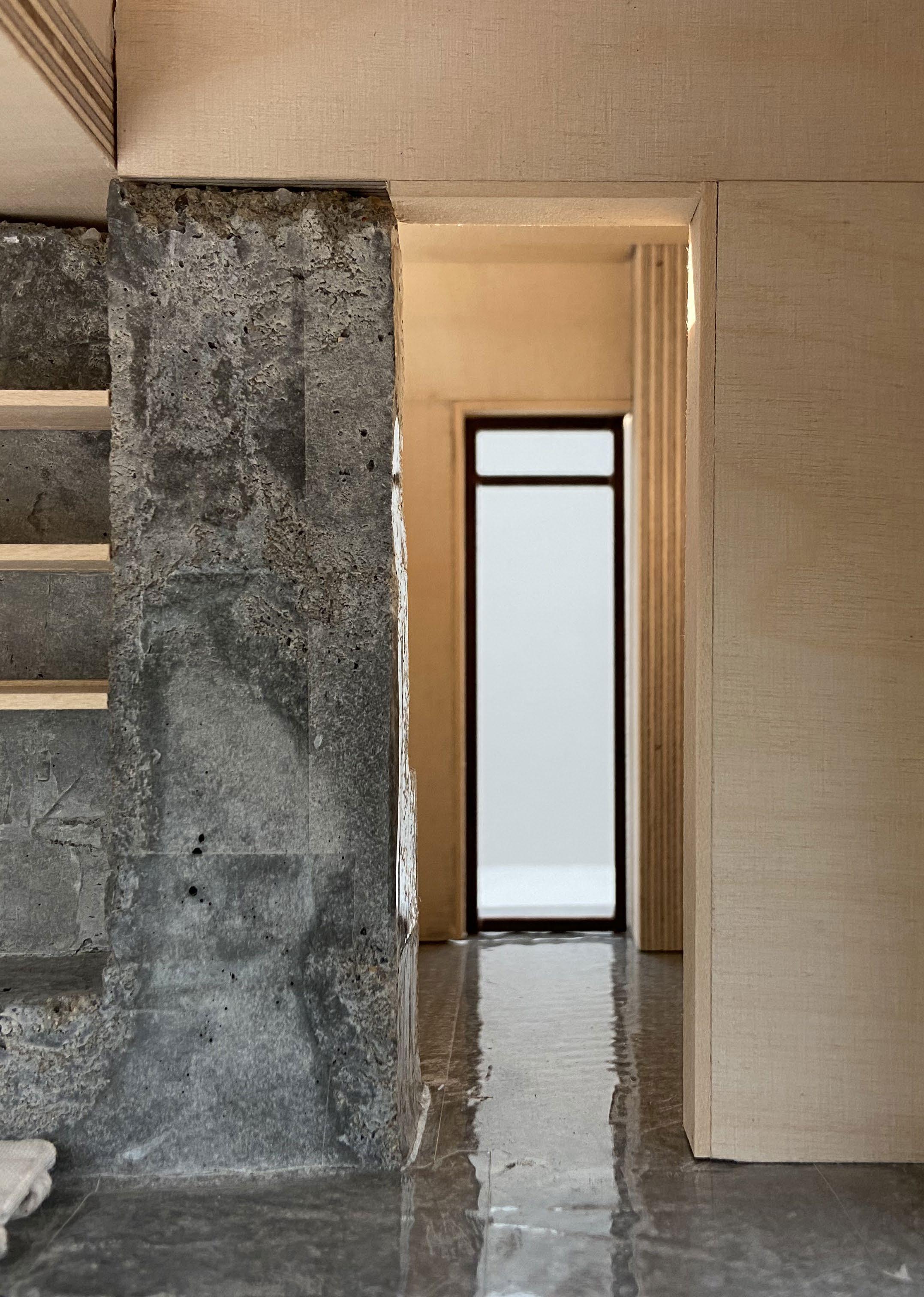

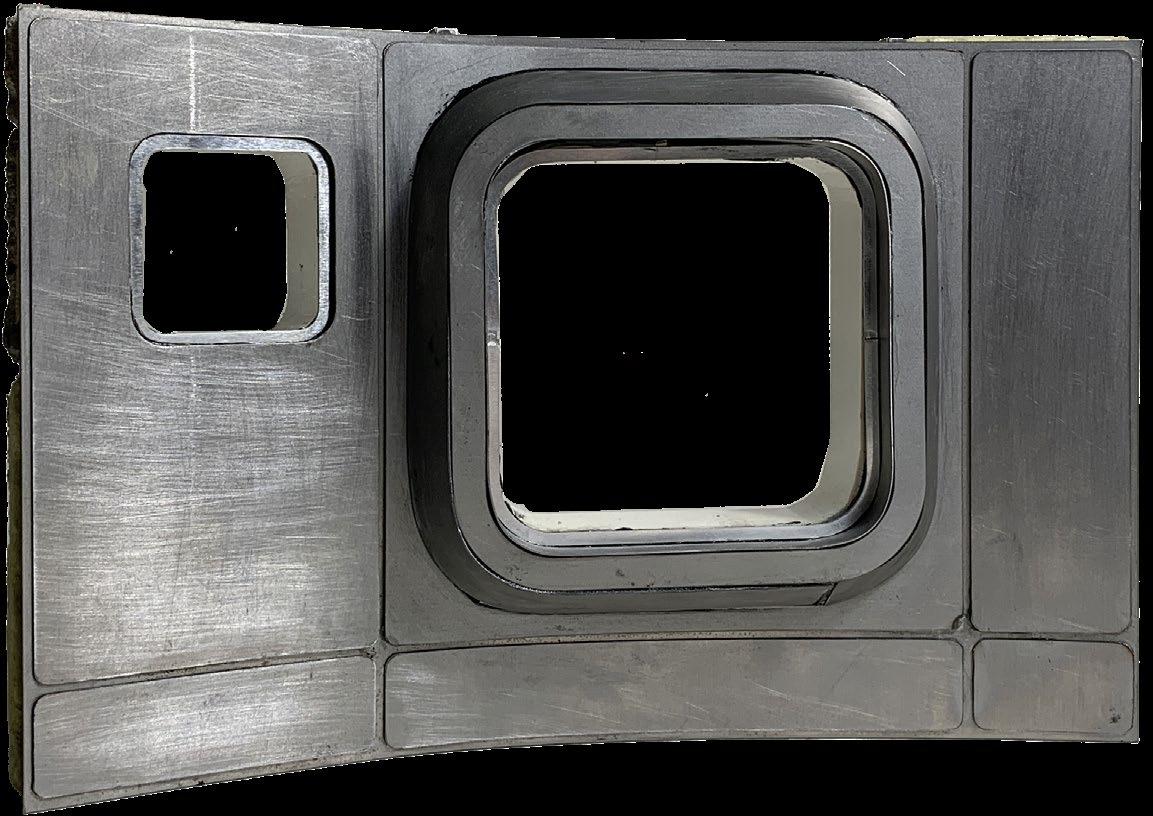

Plaster interior model of exhibition space (1:25)

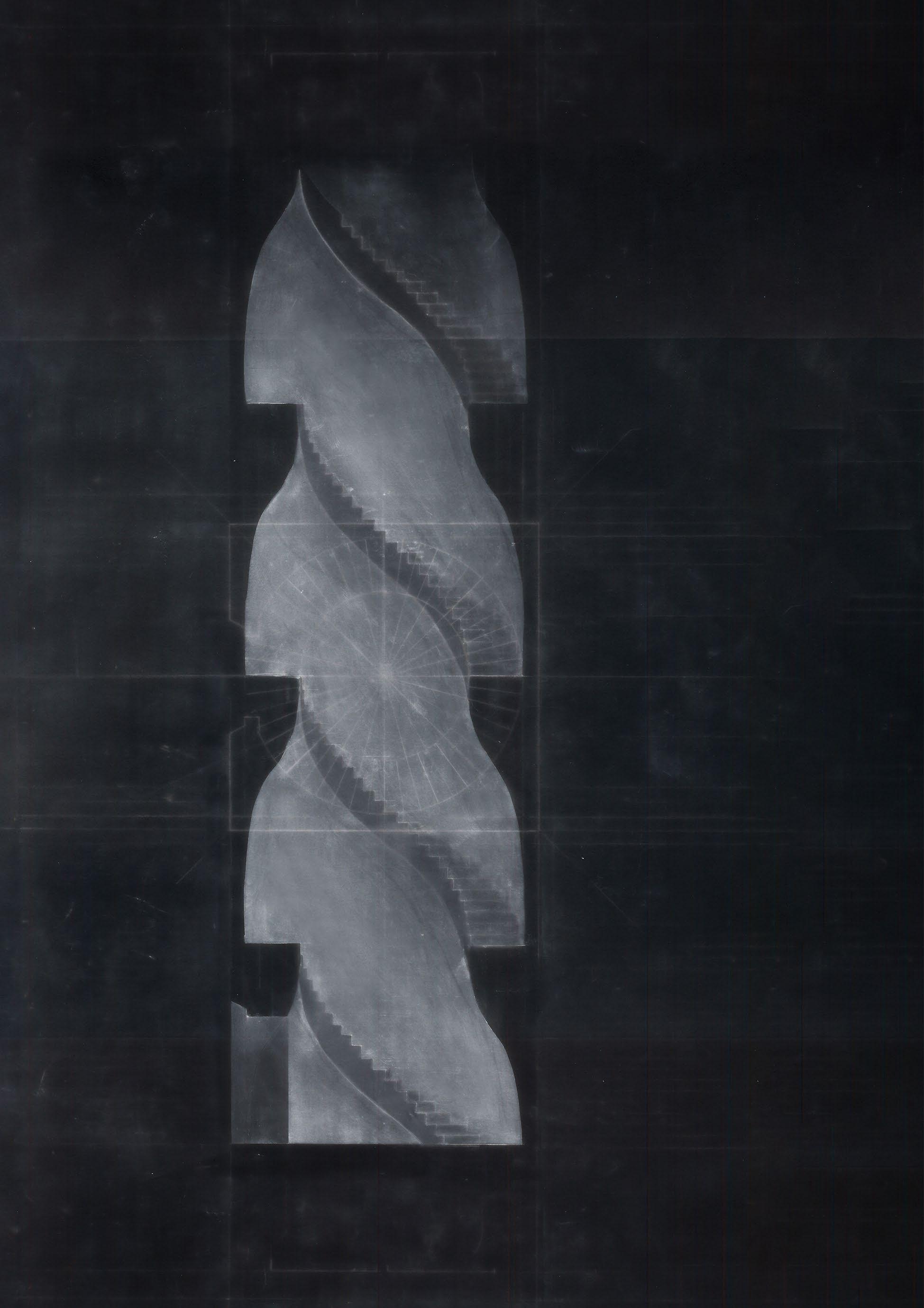

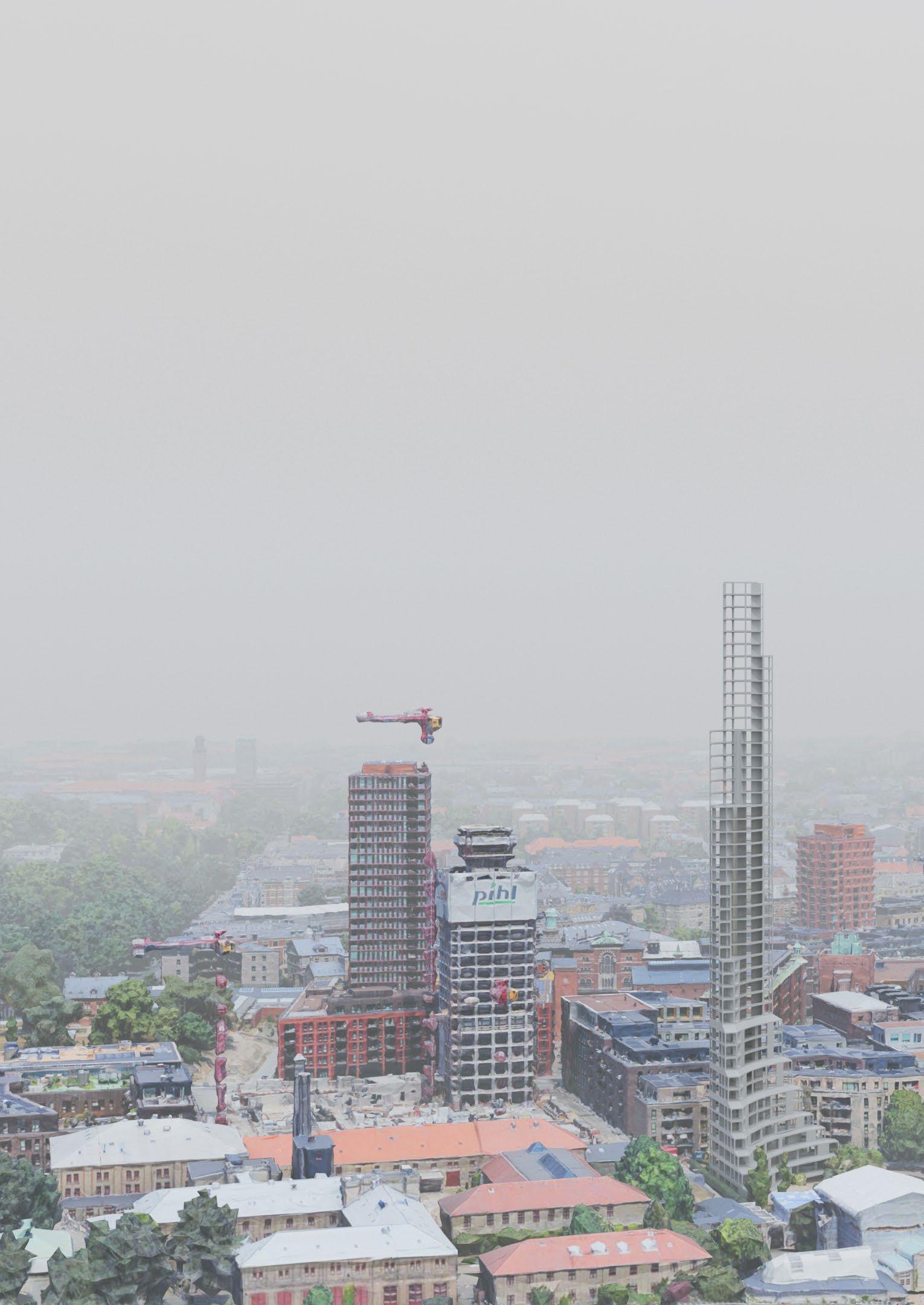

spatial monumentality : sydhavnen in response to the local environment

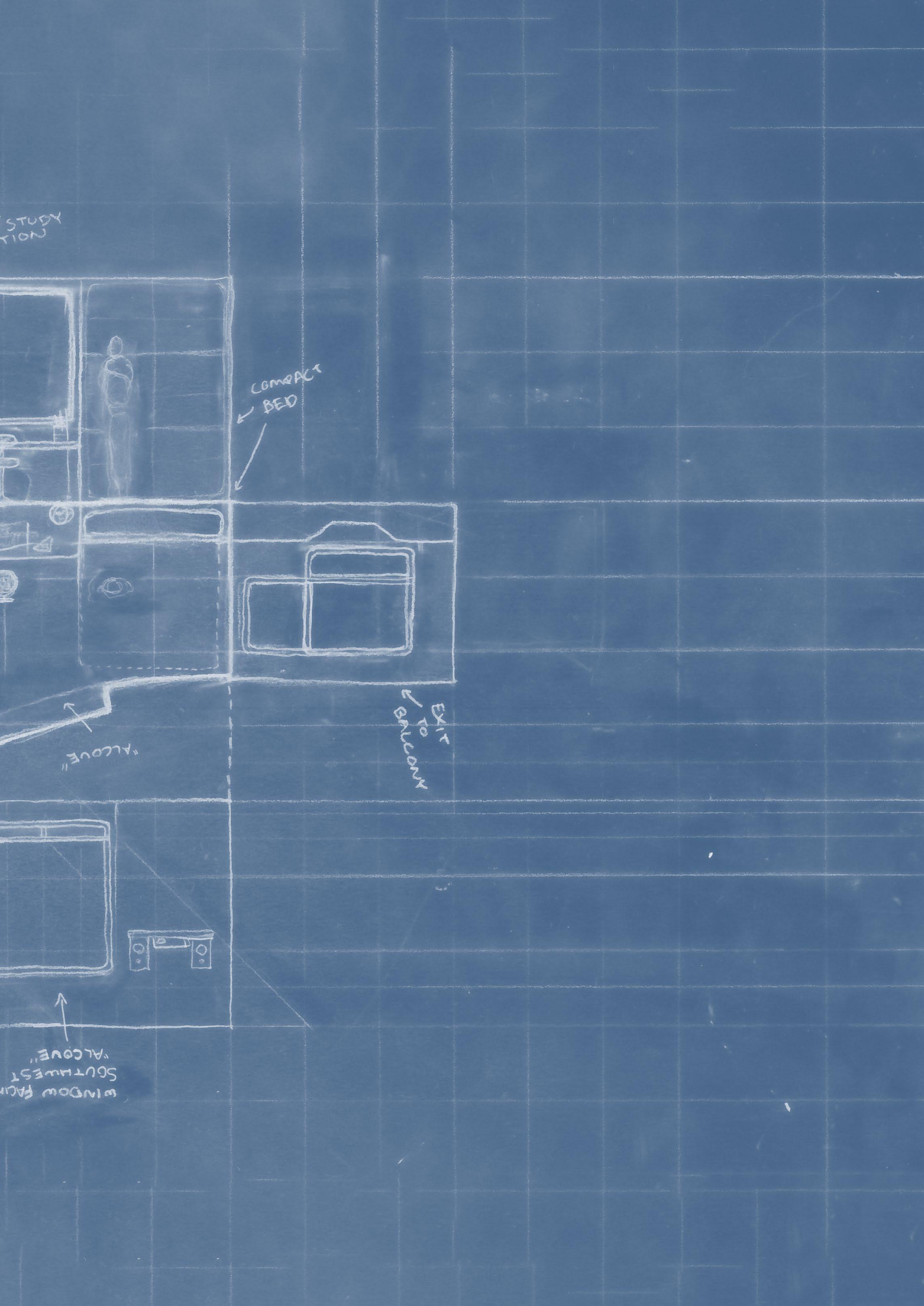

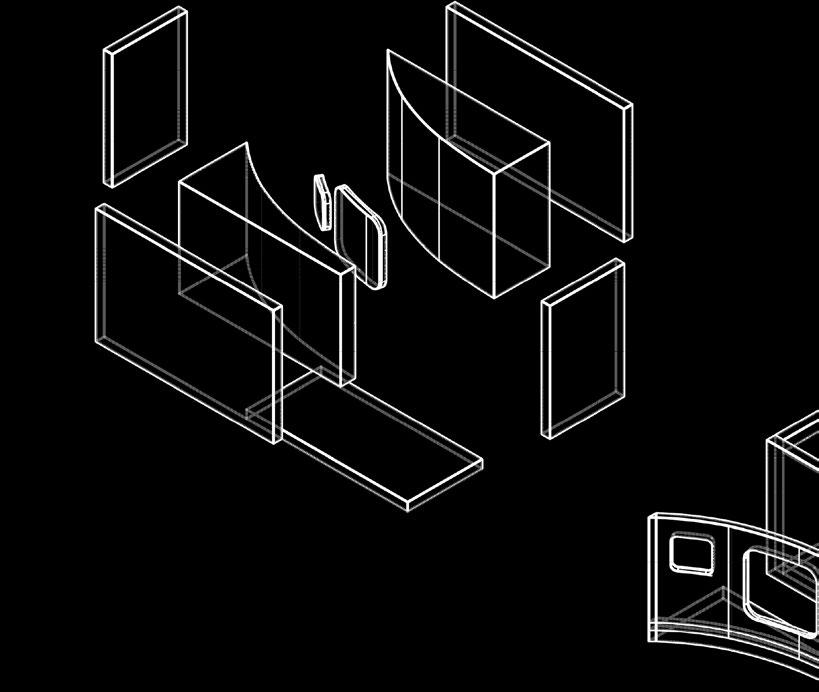

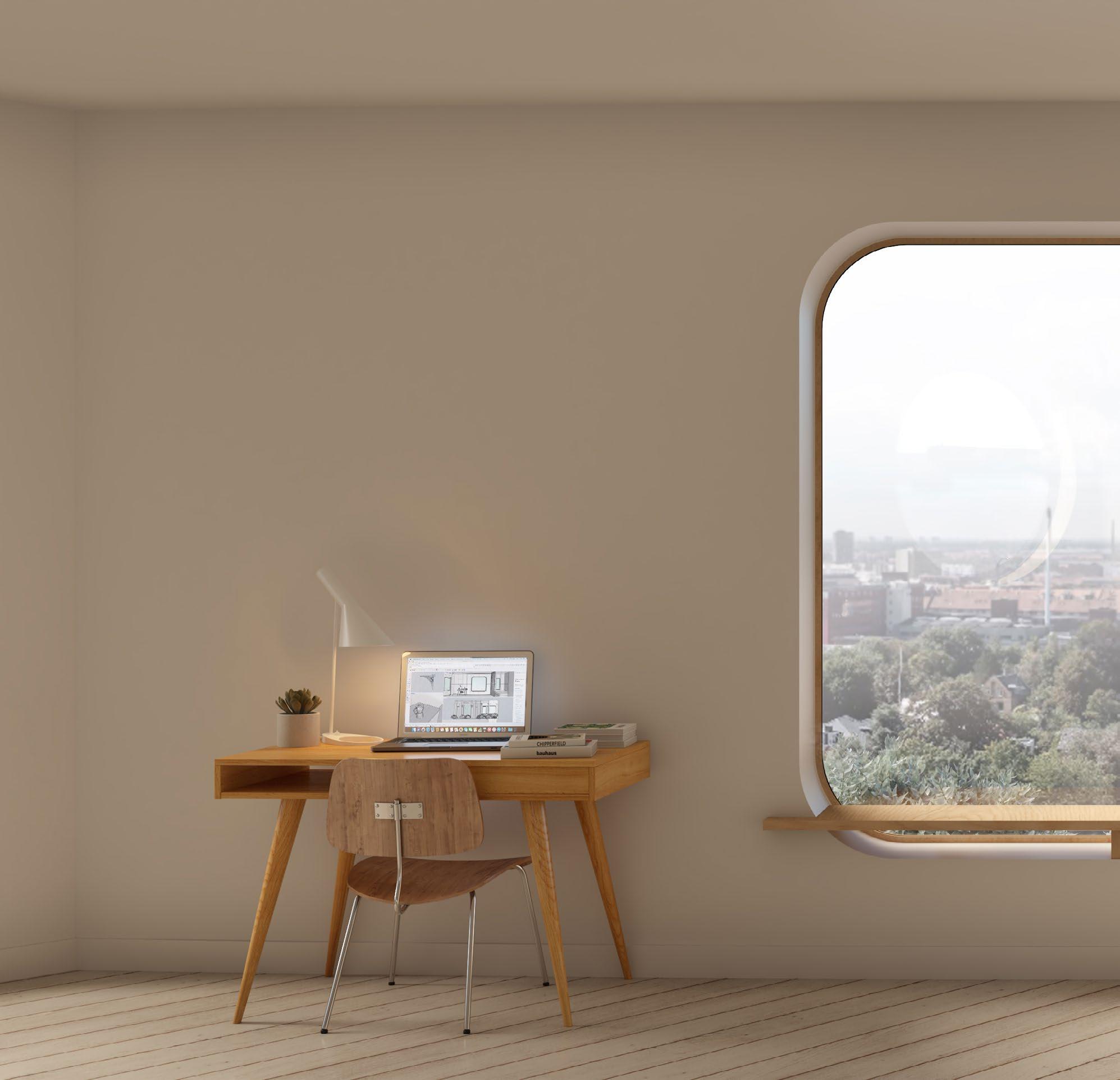

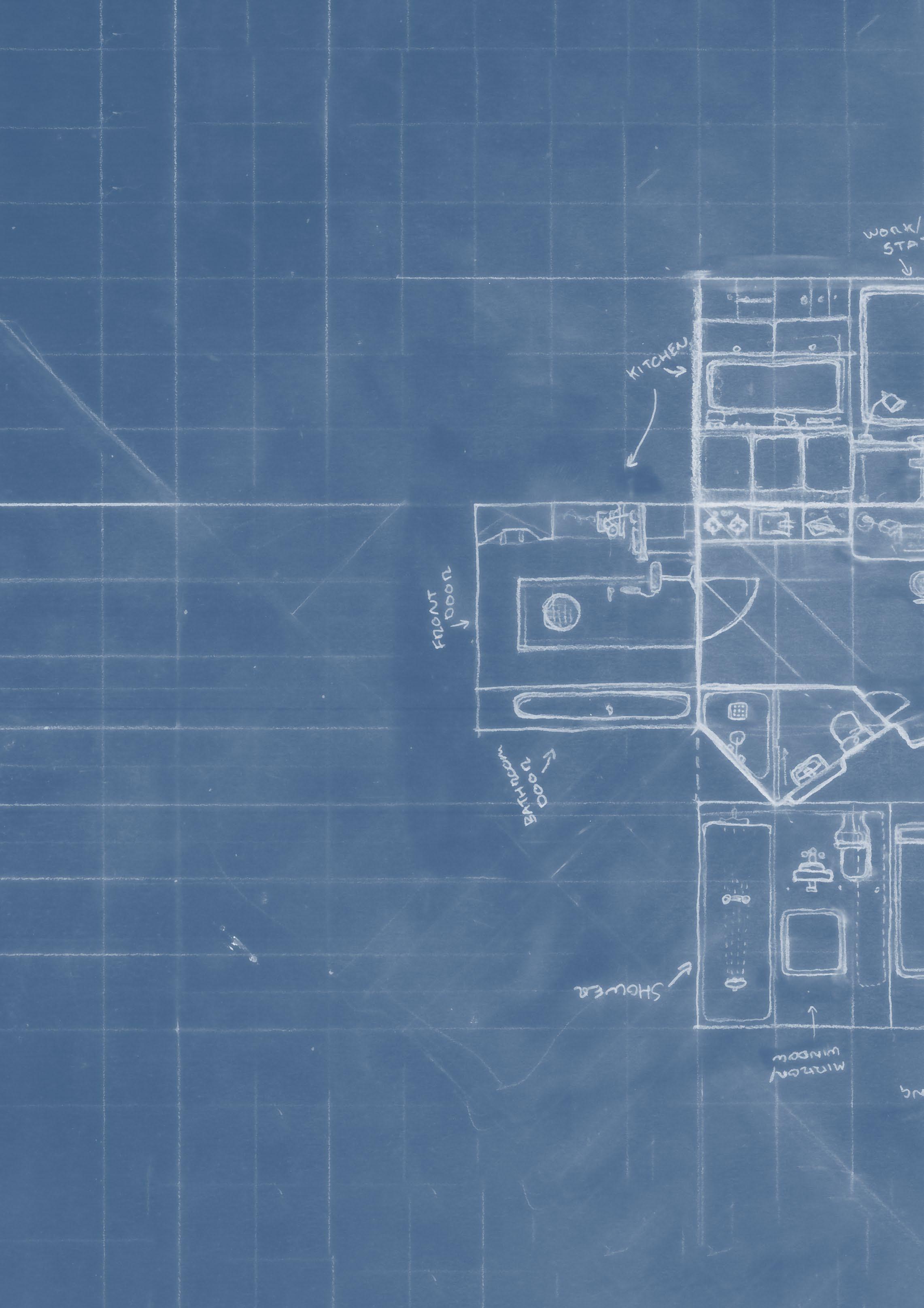

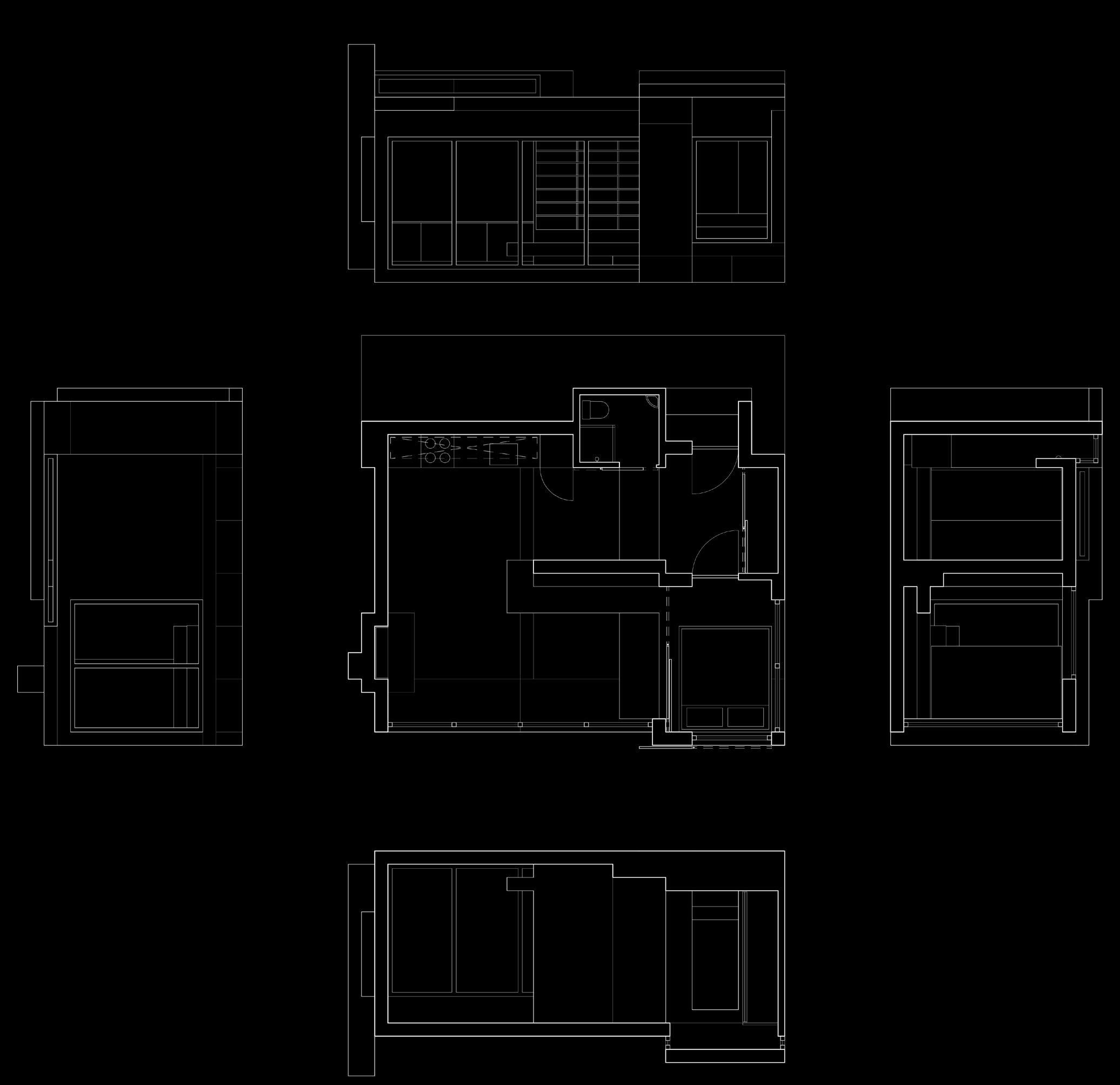

a home / a room the embodiment of personal space

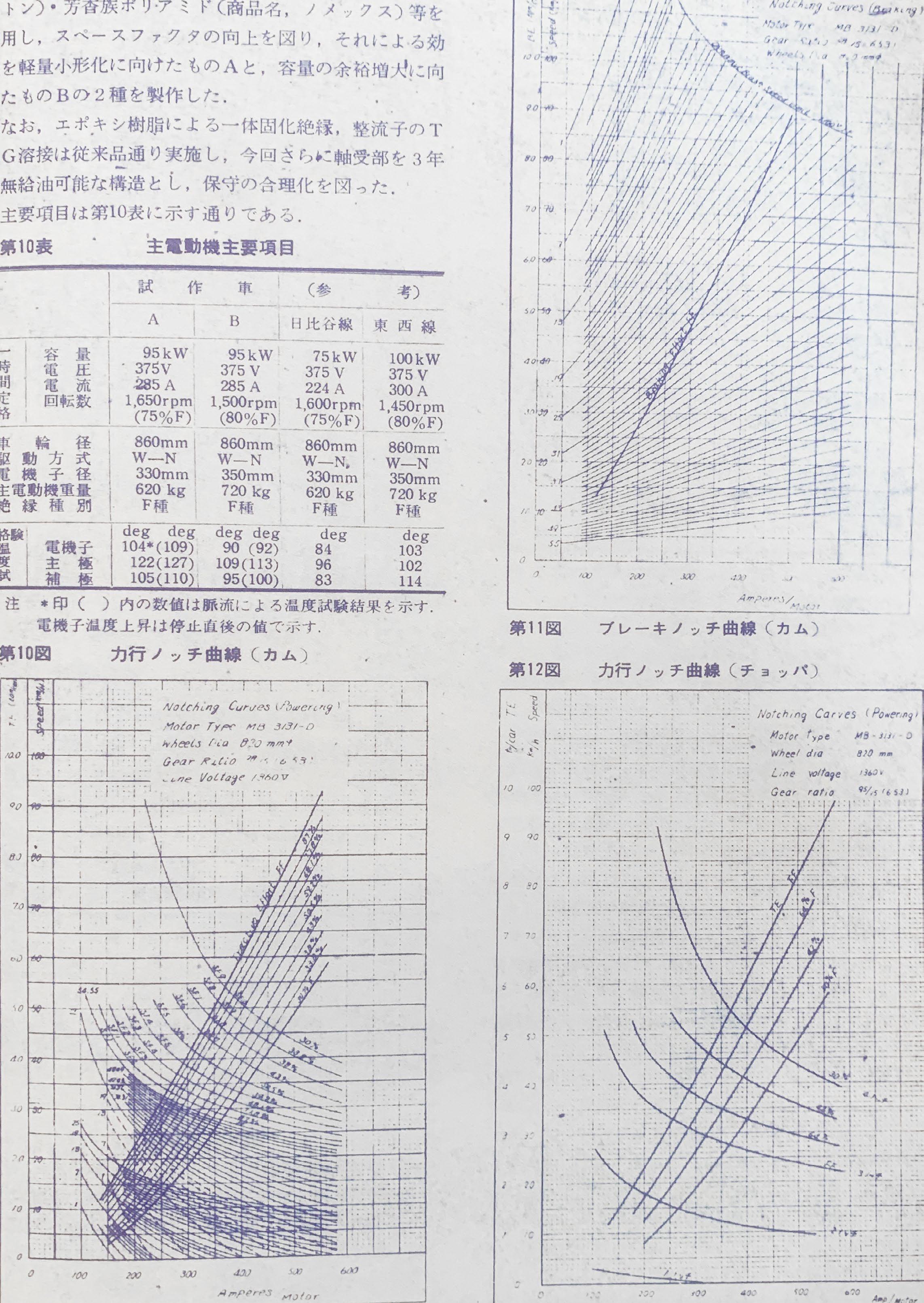

layout and design assistance work for 'concrete poetry' by hebiinu

Sketch project, tide ritual

Eddie Emil Hemsley Skat-Rørdam

EDUCATION

Royal Danish Academy | Architecture, Design, Conservation Bachelor of Architecture 2021-2024

Krabbesholm Højskole Spring 2020 - Architecture, Photography

Gefion Gymnasium

Summer 2018 - Social Sciences A · English A

WORK

tideland studio · Jonas Swienty & Simon Strøyer www.tidelandstudio.dk

Intern – Febuary through May 2024

tokonoma · Linda Korndal www.tokonoma.dk

Assistant – May 2020 to June 2023

HEBIINU · Helle Vibeke Jensen www.hebiinu-archive.com

Project assistant – Summer 2023

PRIMARY SOFTWARE

Rhino 7 + V-Ray

AutoCAD

Photoshop

InDesign

Illustrator

QGIS

SECONDARY SOFTWARE

Blender 3D

Unreal Engine

Prusaslicer

CloudCompare

Premiere Pro + After Effects

PRACTICAL SKILLS

3D Print / CNC Machining

Model building / Digital fabrication

Analogue / Digital photography

Wood-workshop certificate

Anzhu Islands, Siberia
