CHENYI (EASSON) SHEN

Having graduated in Urban Design and Landscape Architecture, my enthusiasm lies in crafting sustainable and healthy environments that benefit both humanity and our planet. Hailing from Changzhou, China, a city steeped in the history of classical Chinese gardens, I possess a profound interest in the traditional garden styles of both the East and the West.

Given my passion for camping, reading, and traveling, I seek inspiration from these experiences to infuse creativity into my work. Whether it’s integrating elements from my journeys or drawing from the tranquility of camping, I aspire to create urban landscapes that resonate with both cultural significance and modern sustainability.

LINWOOD RE-IMAGINED

SHIFTING THE NORMAL FOR ALBANY

HAND DRAWING

FOOT BRIDGE DESIGN & PLANTING PLAN WORK EXPERIENCE

1

SHIFTING THE NORMAL FOR ALBANY

FOR ALBANY 1

SHIFTING THE

NORMAL

SHIFTING THE NORMAL FOR ALBANY 1

VISION

Albany centre will become a low emission neighbourhood with a high quality living and working environment to create a sense of belonging for the community.

KEY MOVES

High quality of living and working

• Promote the density to support the existing amenities and accommodate more population on site.

• To create an active streetscape by improving the experience in the street.

• To create comfortable and active public/private interface for ground floor units.

Sustainable, low-emission development

• Expand existing Albany Bus Station into a TOD development to encourage of using public transport.

• To create a walking and cycling friendly environment to ease the dependence on private vehicle traffic.

• Make the most of the existing infrastructure

Sense of belonging

• To improve the green connection with the surrounding natural landscape.

• To promote the activities of all age groups to unite the community.

1

SHIFTING THE NORMAL FOR ALBANY

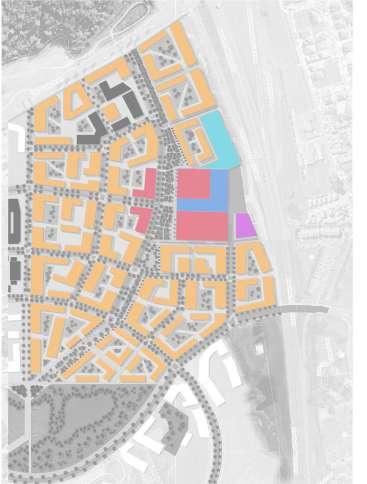

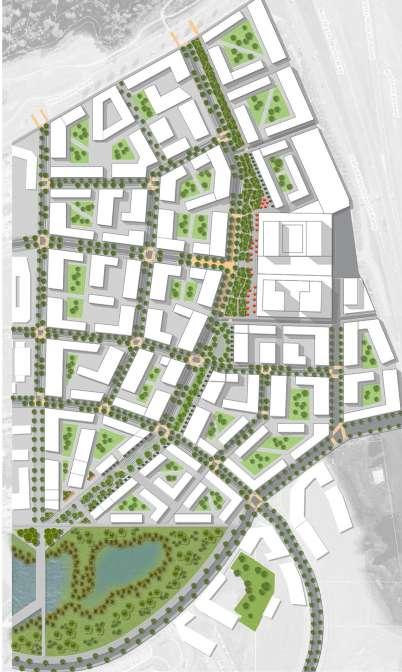

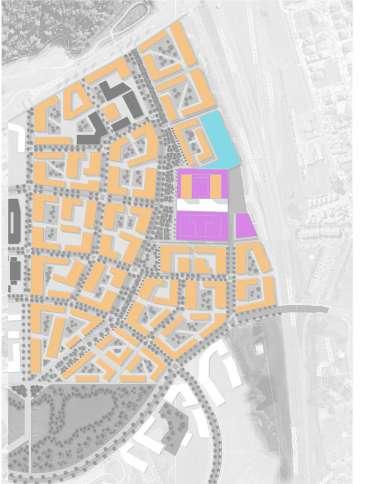

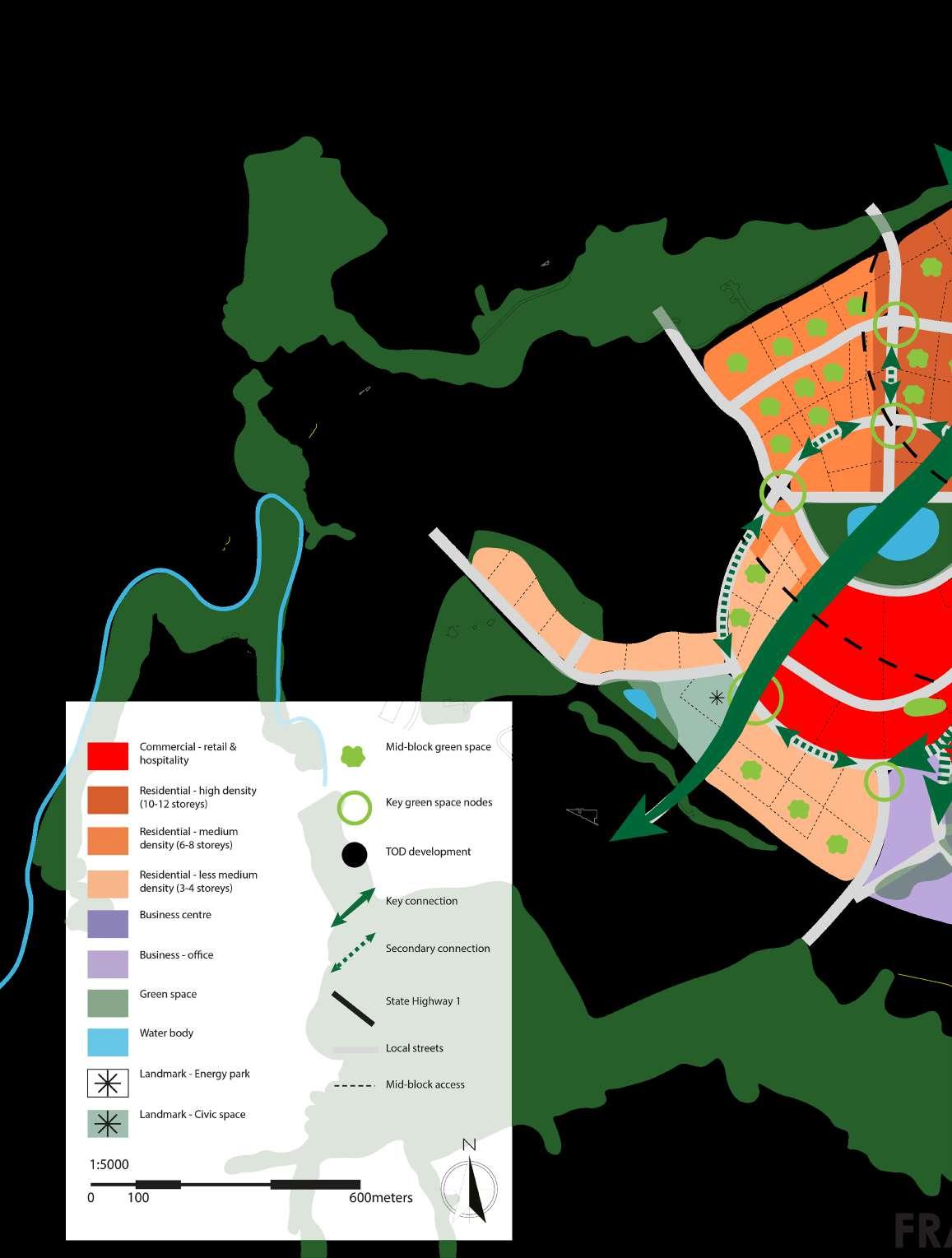

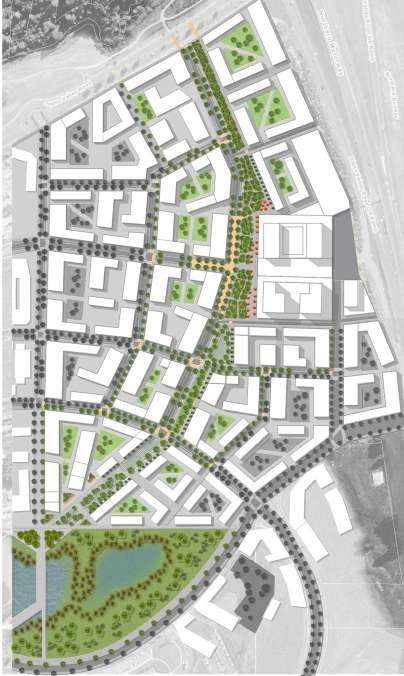

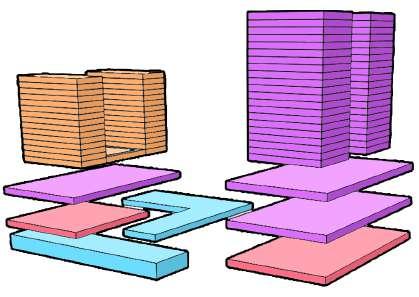

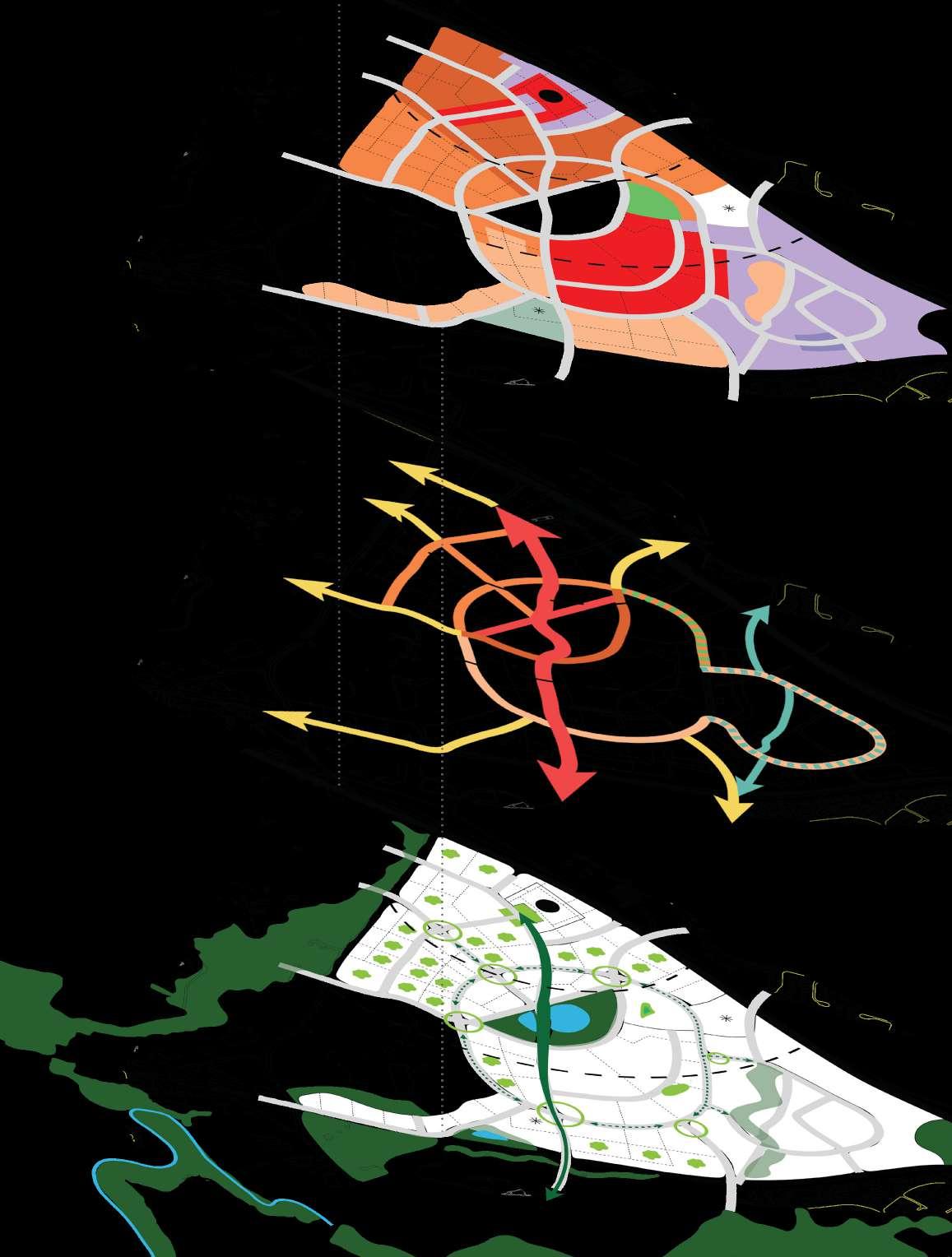

LAND USE (GROUND FLOOR)

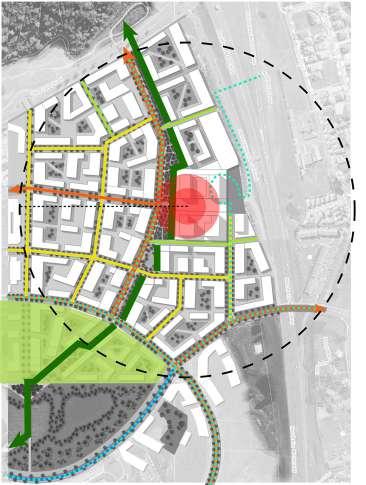

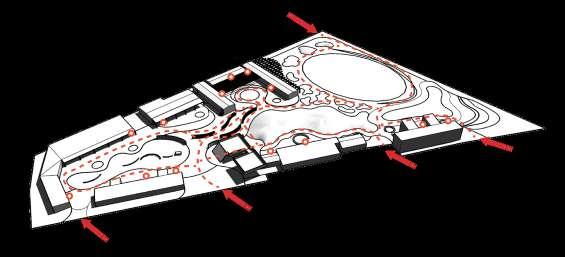

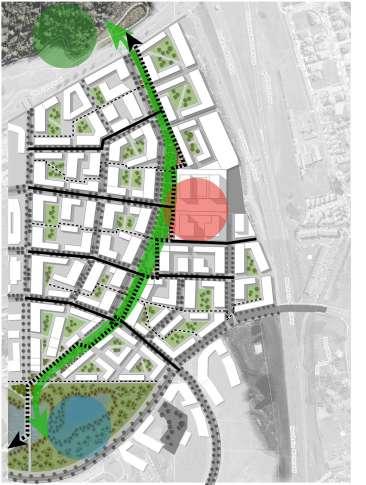

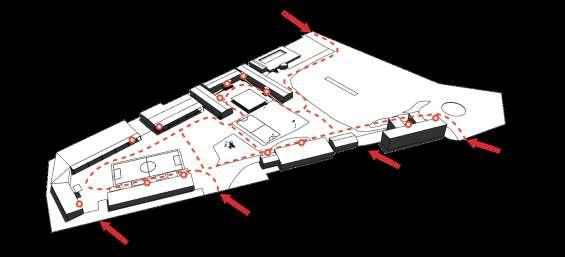

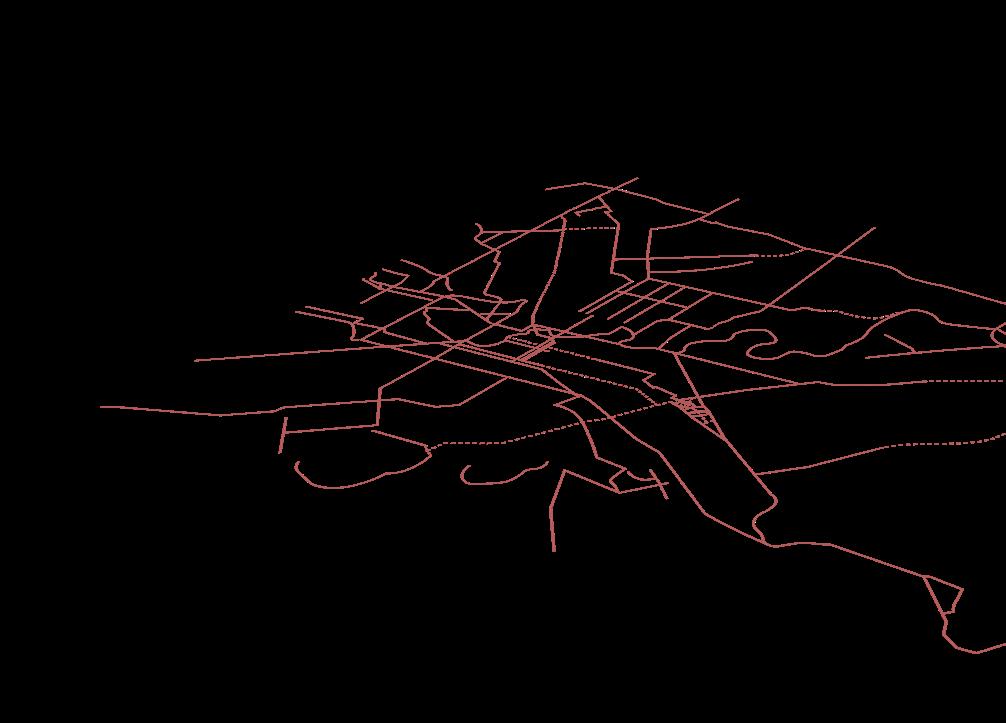

MOVEMENT

LAND USE (UPSTAIRS)

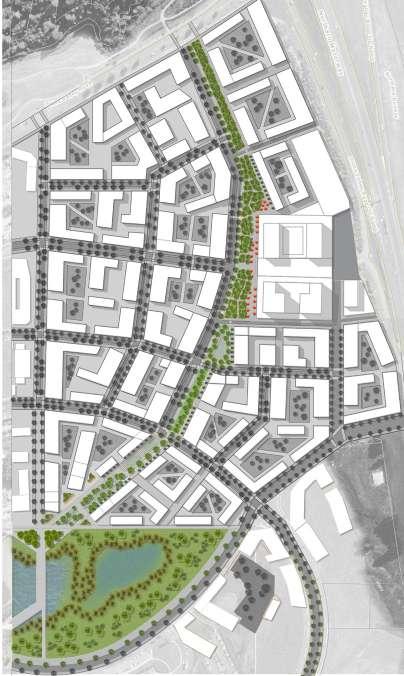

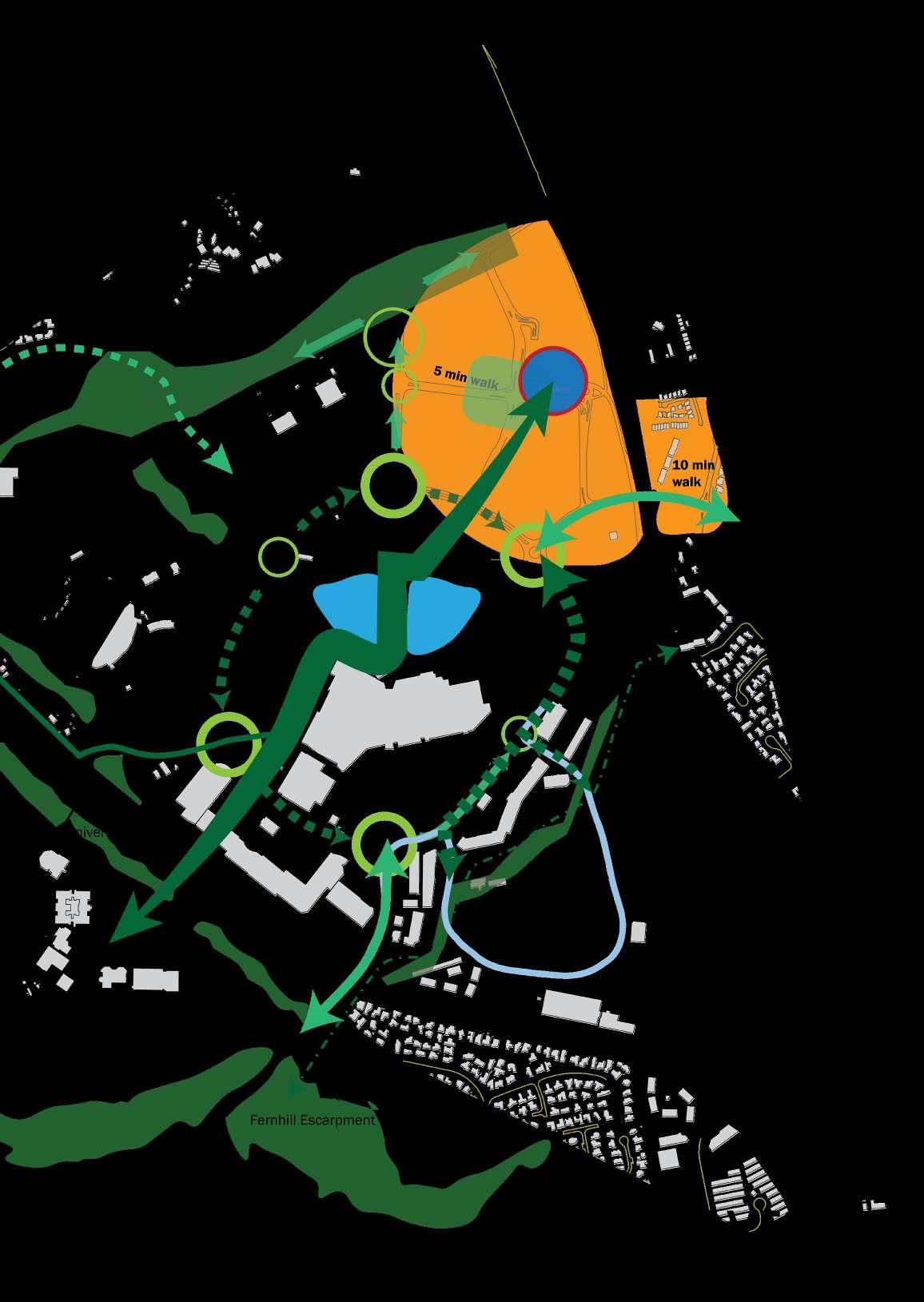

OPEN SPACE

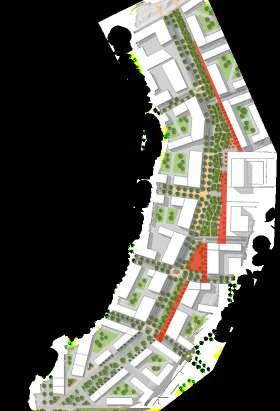

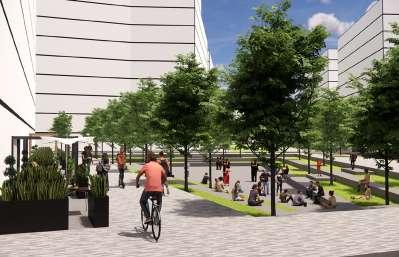

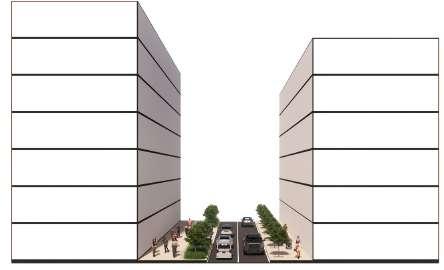

STREET TYPOLOGY

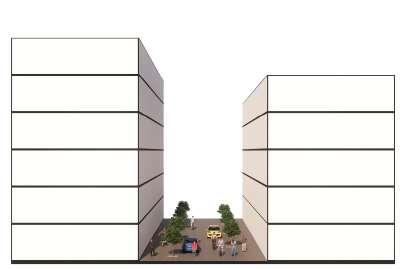

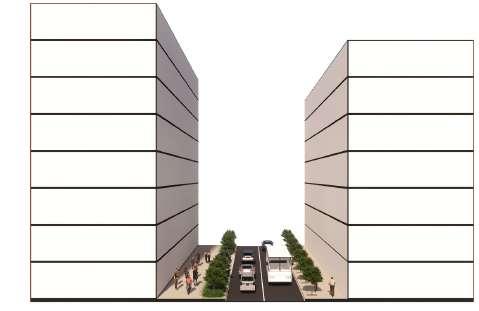

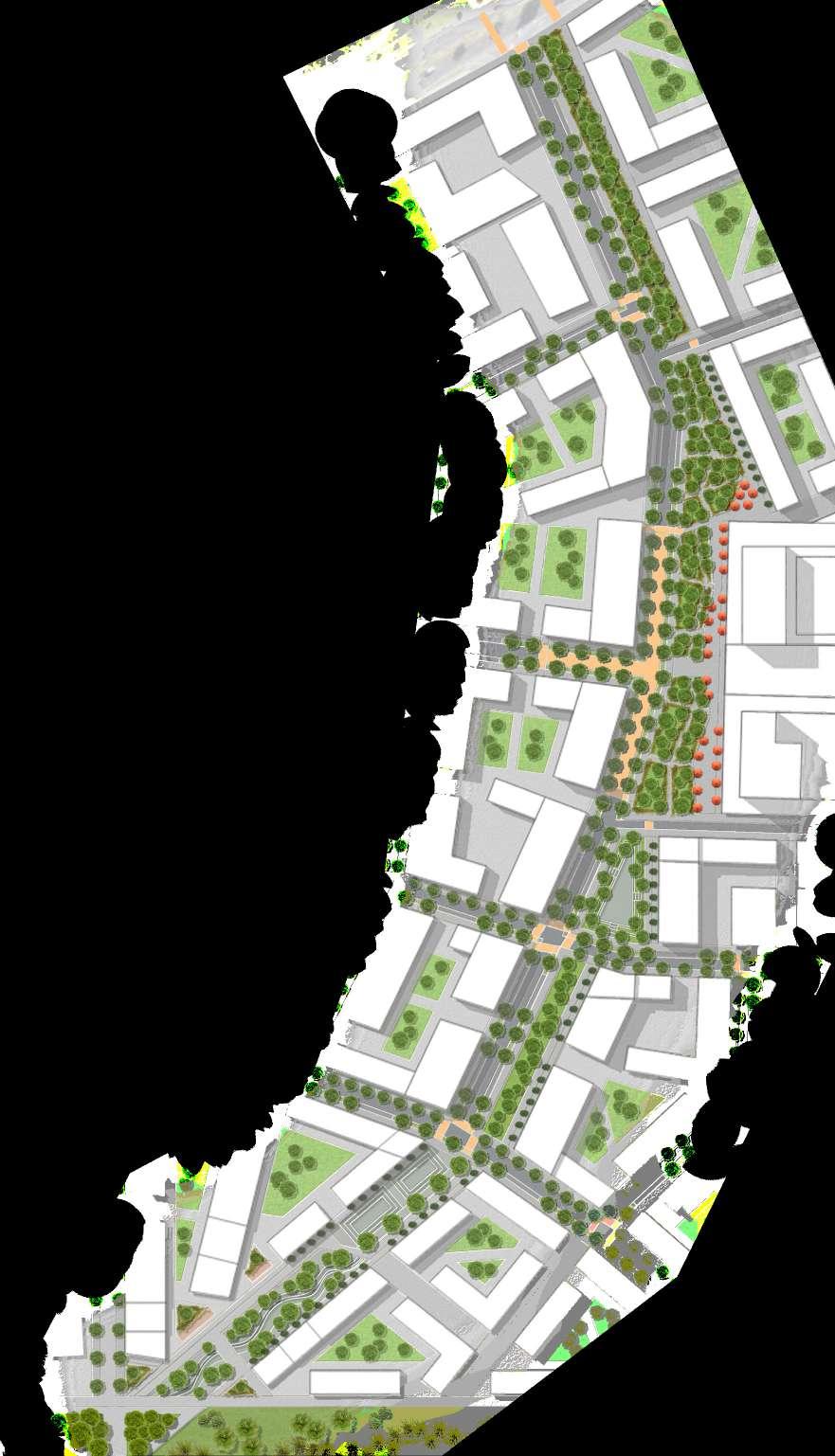

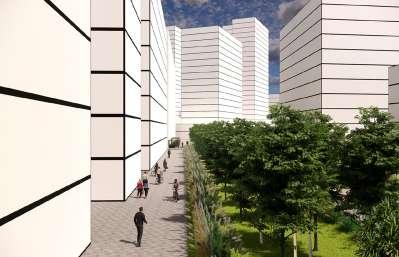

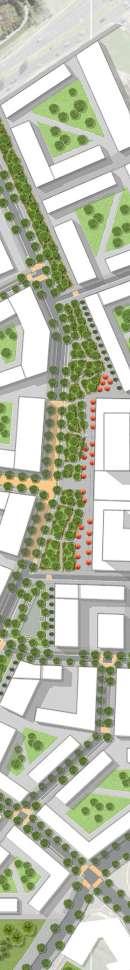

20m street and linear park

SHIFTING THE NORMAL FOR ALBANY 1

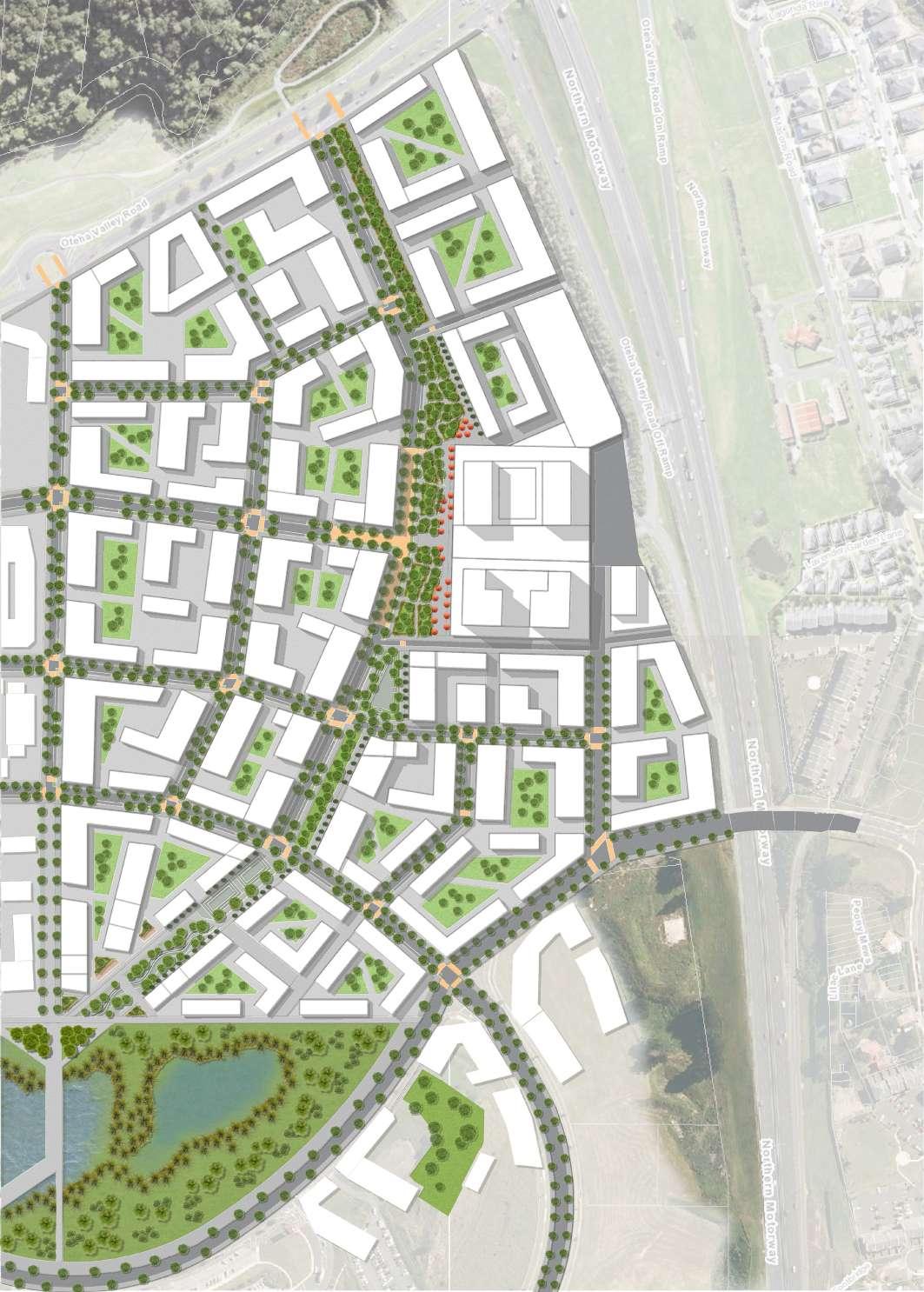

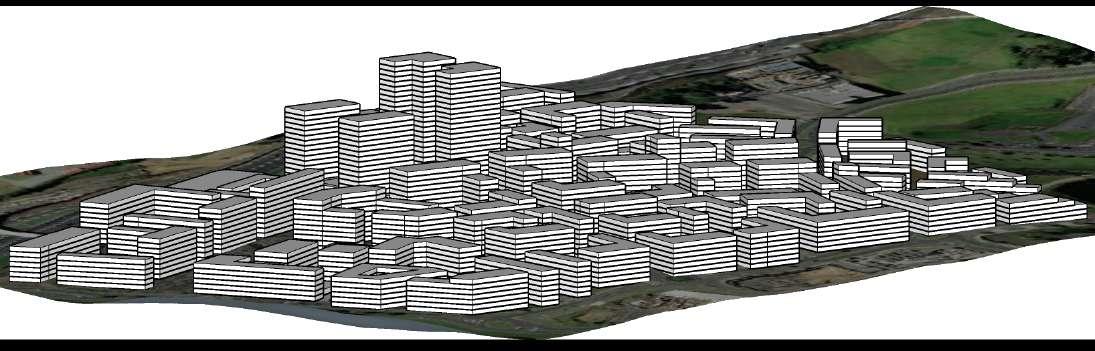

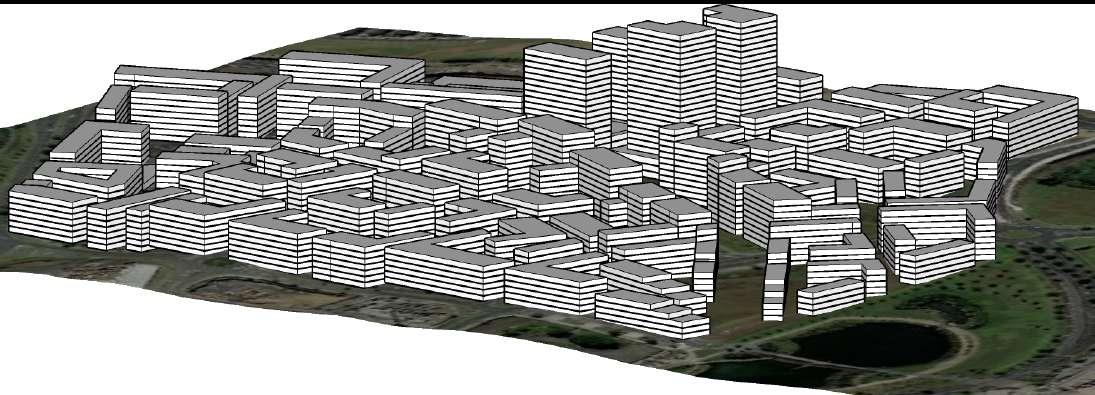

STAGE 1 - Linear park

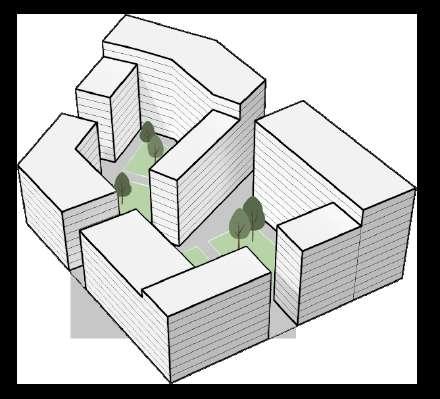

STAGE 3 - Residential blocks along the park

STAGE 2 - TOD

STAGE 4 - Residential blocks

PLANT PALETTE

Cabbage tree Pohutukawa

Lancewood Harakeke

Titoki

Manuka

Pin oak

Carex secta

North Island Kowhai

Nikau palm

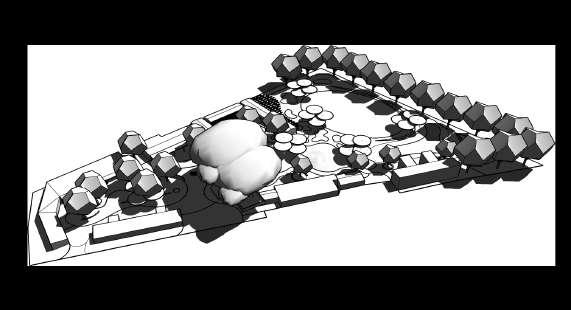

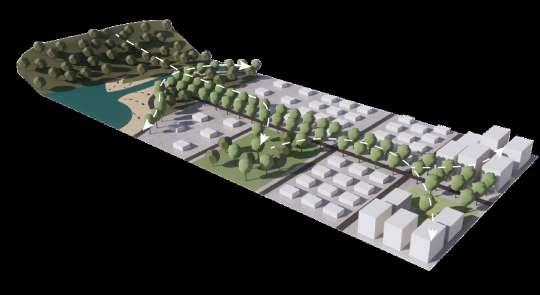

View Shaft Analysis

LINWOOD RE-IMAGINED 2

VISION

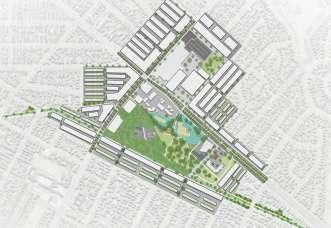

Linwood Park – Eastgate Mall will become a diverse and eclectic community hub with a strong community identity, enhanced transport connections, and regenerated natural landscape to make it a place called home.

Port Hills

AvonRiver

HeathcoteRiver

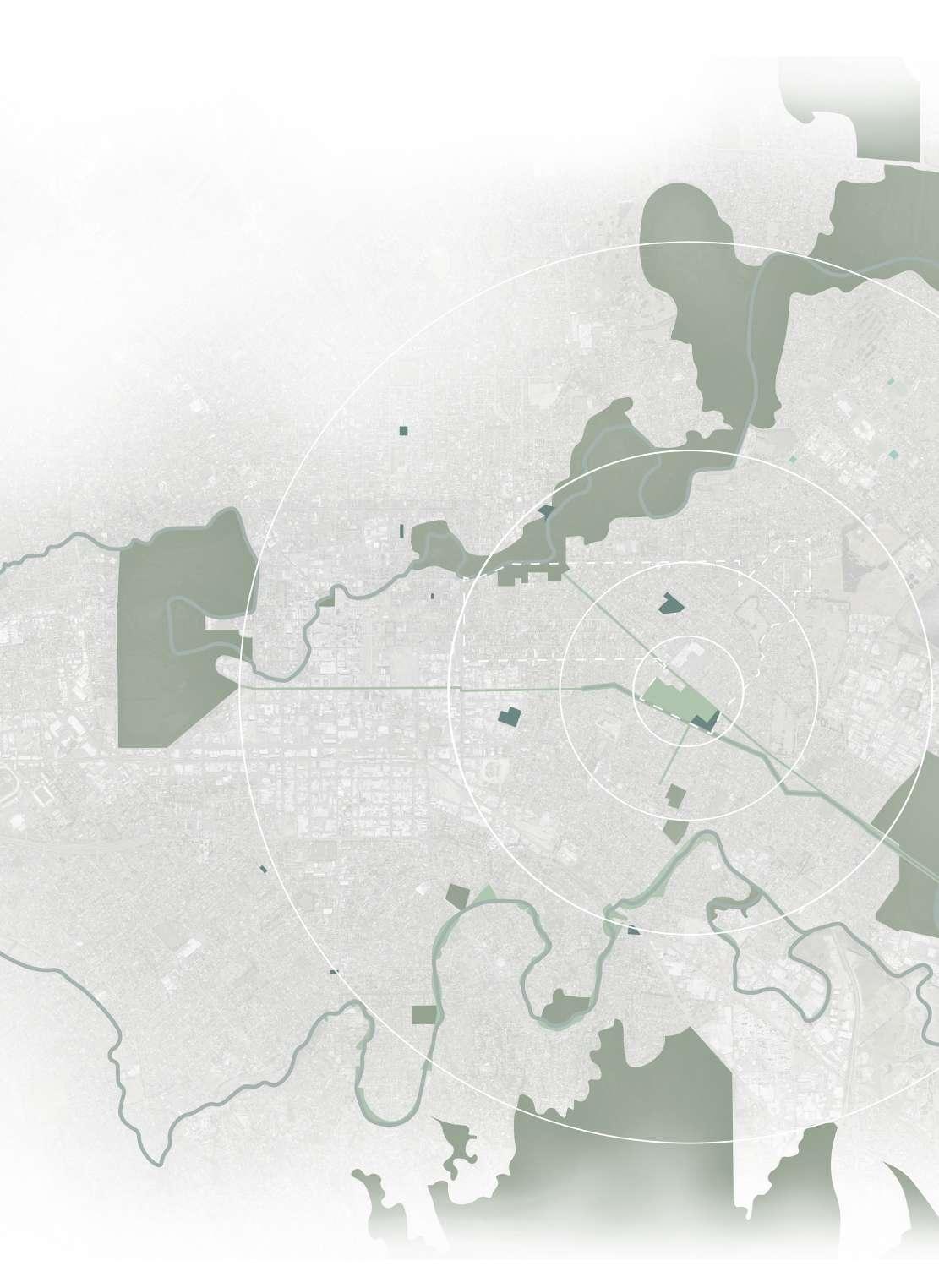

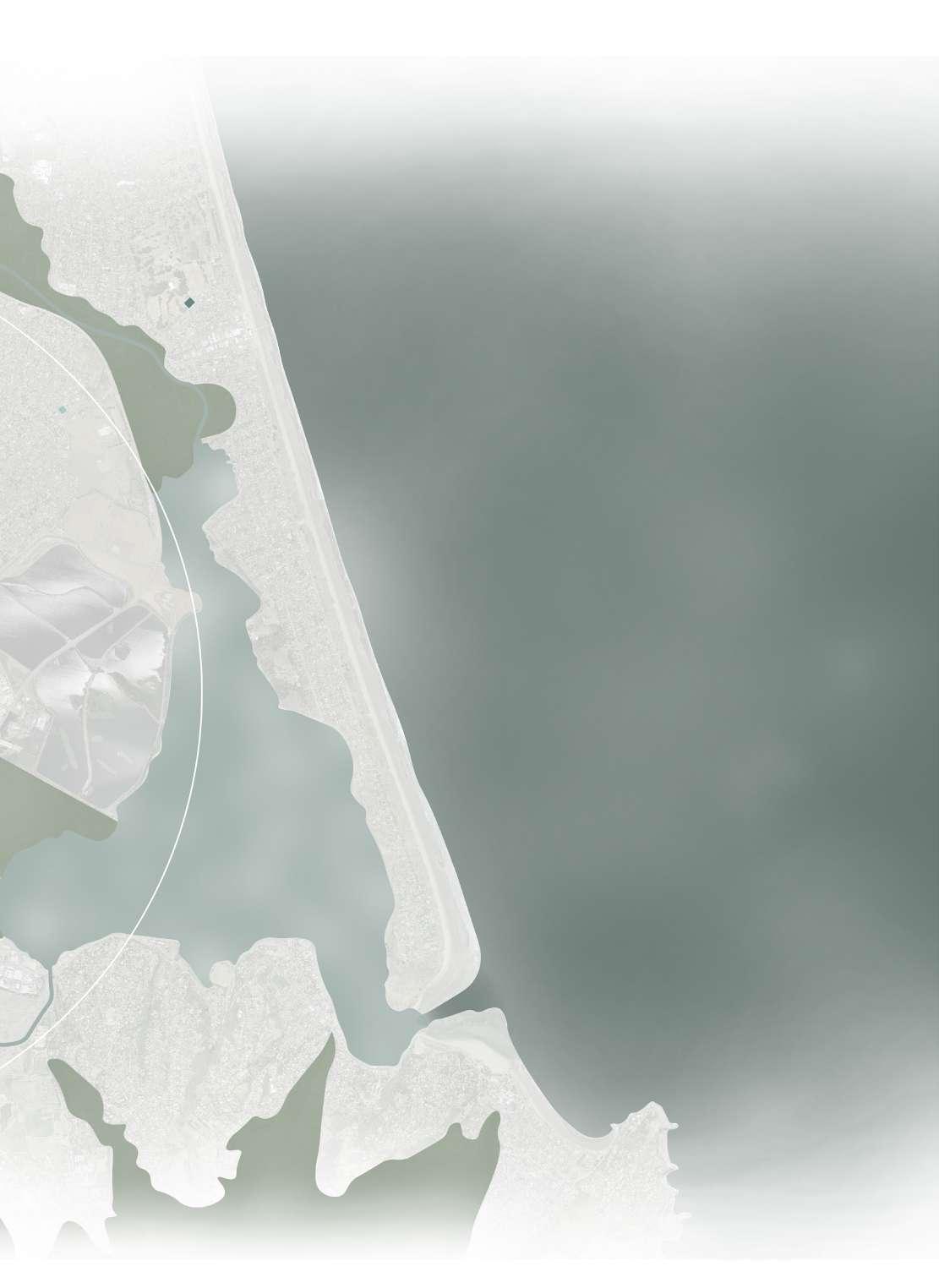

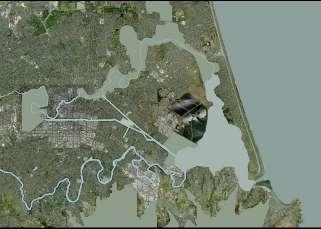

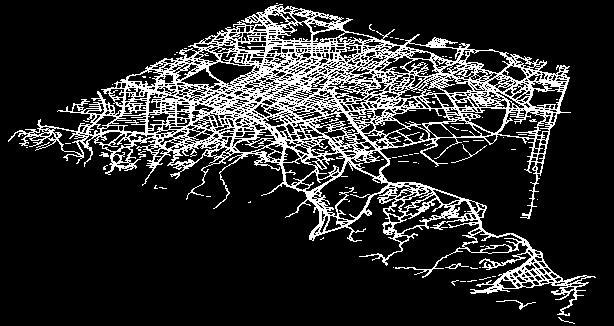

CHRISTCHURCH CITY CONTEXT GREEN NETWORK SYSTEM

LINWOOD RE-IMAGINED 2

DESIGN INTENT

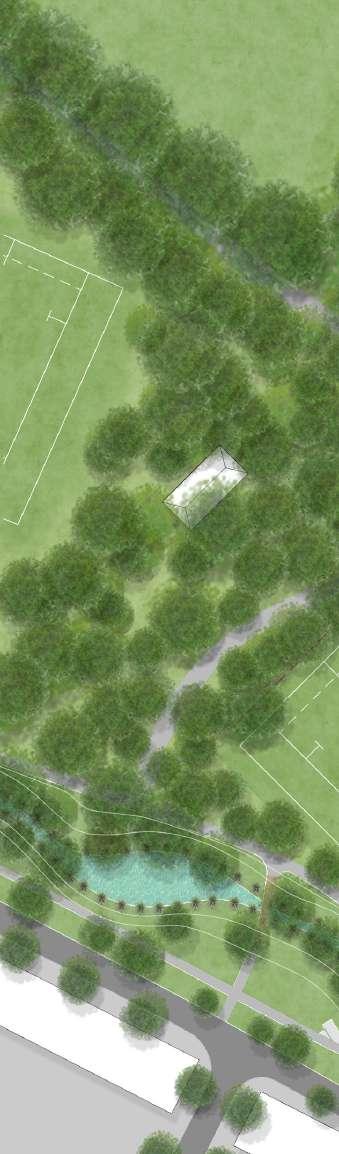

The area of the intermediate plan is located in Linwood Park. The design was driven by creating a playful experience through the site. Nature not only inspired the design but also being part of it. The design encourages users to be creative and adventurous and enjoy nature and sports.

LINWOOD RE-IMAGINED 2

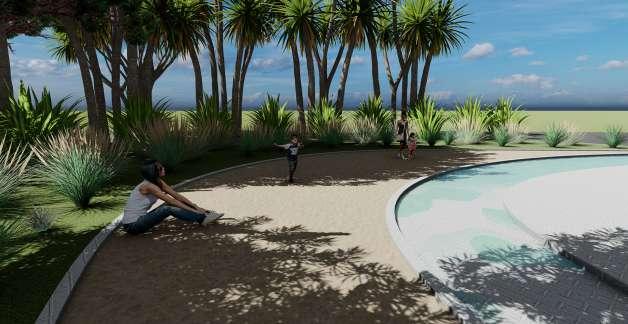

DESIGN INTENT

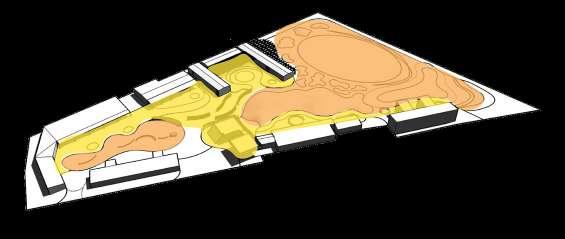

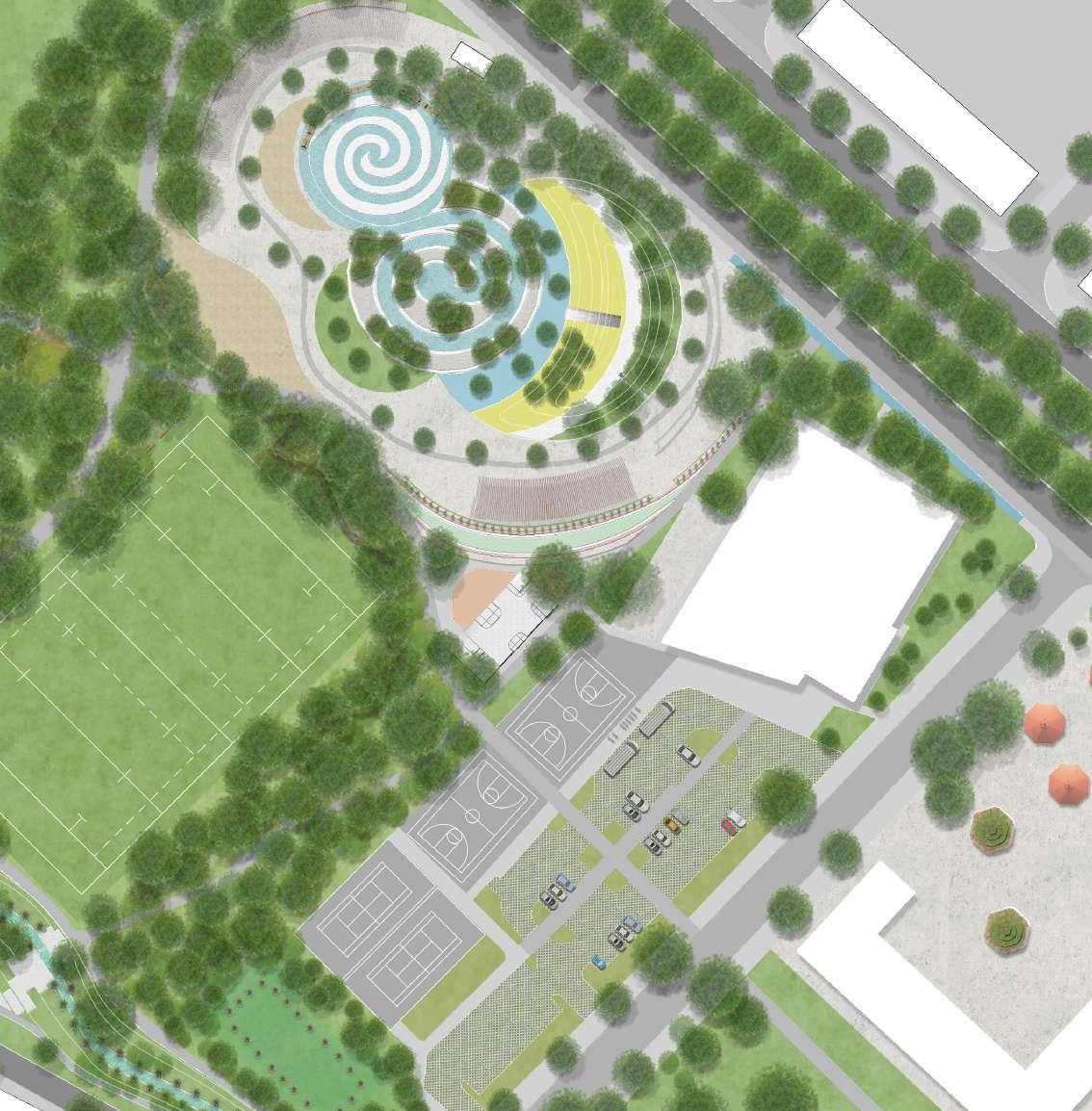

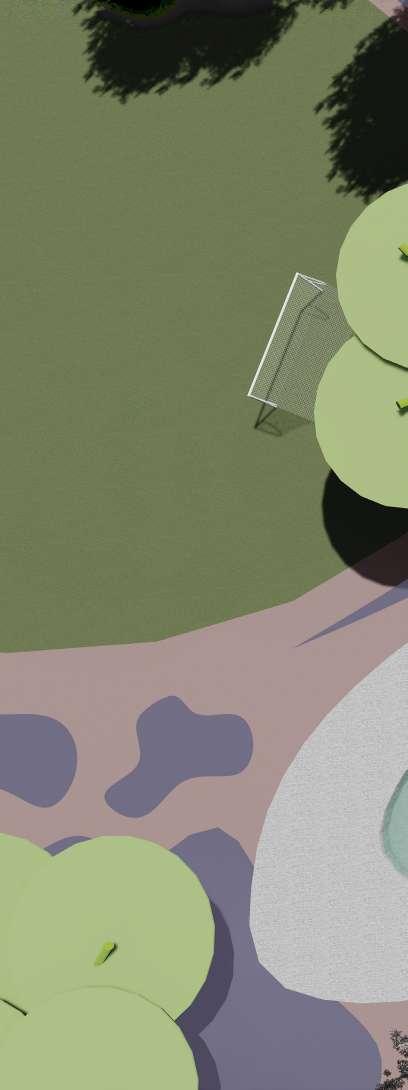

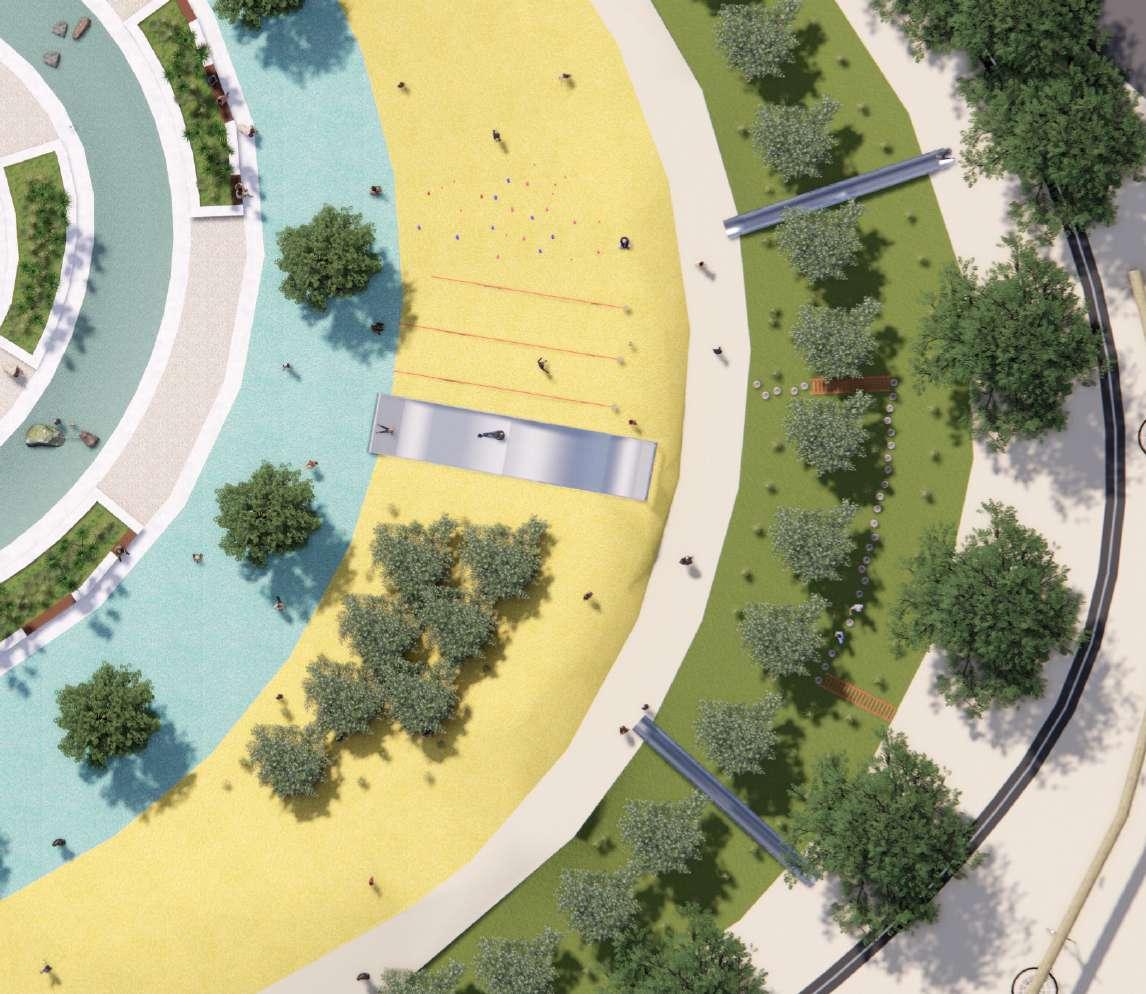

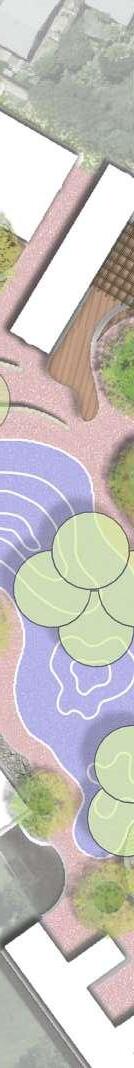

The detail design shows the area of Sand dune Playground. The design is aimed to reflect the sand dune landscape with vegetation, landform, colour palette, and activities. A water management system will be introduced to make the most of the water in the playground.

LINWOOD RE-IMAGINED 2

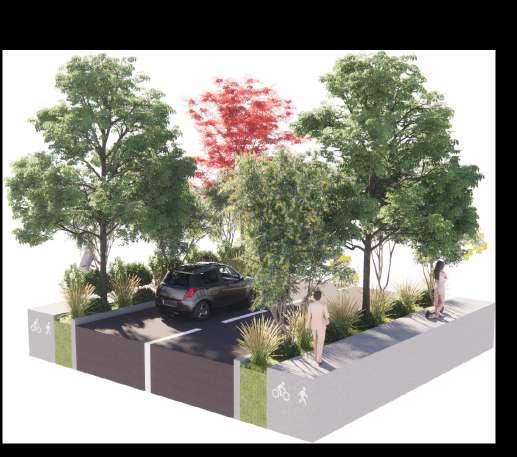

Street corridor

The green corridor along Linwood Ave and Tuam St was proposed To enhance the connection between Avon/Heathcote Estuary, Linwood, Avon River and Hagley Park. The plants in this area need to be hardy and tolerant to the pollution from the road. The plant selection contains exotic and native species. The fast-growing street trees would provide shade/shelter to the road users for a short time before the native species matures. The native plants were proposed to provide food to the wildlife and attract them to move along those corridors.

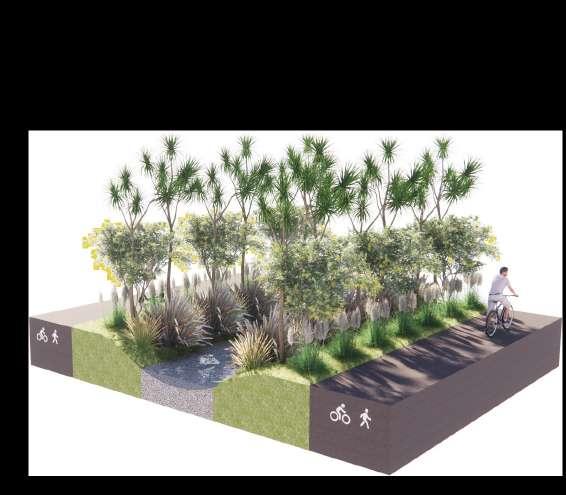

Waterway corridor

To improve the water quality of Linwood Canal and Heathcote River, the two waterways with several issues on water quality in Christchurch and deal with flood threat in the catchment of Heathcote River. The plant selection is focussed on native riparian plants following the instruction of Riparian zones: A guide to the protection of Canterbury's rivers, streams and wetlands from Environment Canterbury Regional Council. The plant species are divided into groups of margin, Lower bank and upper bank according to the distance from the water.

GREEN NETWORK

On the regional scale, the strategy shows how the green network was enhanced by improving the street corridor along Linwood Ave and Tuam St, the waterway corridor along Linwood Canal and Heathcote River and encouraging on growing of more native plants in the backyard and schoolyards.

Backyard/schoolyard patch

The site is surrounded by residential areas and has seven educational institutions 4km from the site. It occupies a significant proportion of the extent of Christchurch, in which the plant species are not selected with considering ecological benefits but aesthetic values. The schoolyard and backyards will form the biggest patch in the city by encouraging the residents and school to plant more native species.

Quercus palustris Pin oak

Phormium cookianum NZ mountain flax

Typha orientalis Bulrush

Cordyline australis Cabbage tree

Coprosma repens Mirror bush

Sophora microphylla Kōwhai

Leptospermum scoparium Manuka

Olearia solandri Coastal daisy bush

Pseudopanax arboreus Five finger

Podocarpus totara Tōtara

Aristotelia serrata Wineberry

Ileostylus micranthus NZ mistletoe

Leptospermum scoparium Manuka

Carex secta Pukio

Phormium tenax NZ flax

Libertia ixioides New Zealand iris

Coprosma propinqua Mingimingi

Hebe salicifolia Koromiko

Pachystegia insignis Marlborough rock daisy

Hebe ‘Wiri Mist’ Hebe

Quercus robur English oak

Sophora microphylla Kōwhai

Libertia grandiflora Mikoikoi

Apodasmia similis Oioi

Margin

Lower bank

Pittosporum tenuifolium Black matipo

Pittosporum tenuifolium Black matipo

Dodonaea viscosa Hopbush

Sophora microphylla Kōwhai

Libertia ixioides New Zealand iris

Kowhai

Manuka Black matipo

Kowhai Cabbage tree Pukio Manuka NZ flax Bulrush

Pin oak English oak Kowhai NZ iris Hebe wiri mist

LINWOOD RE-IMAGINED 2

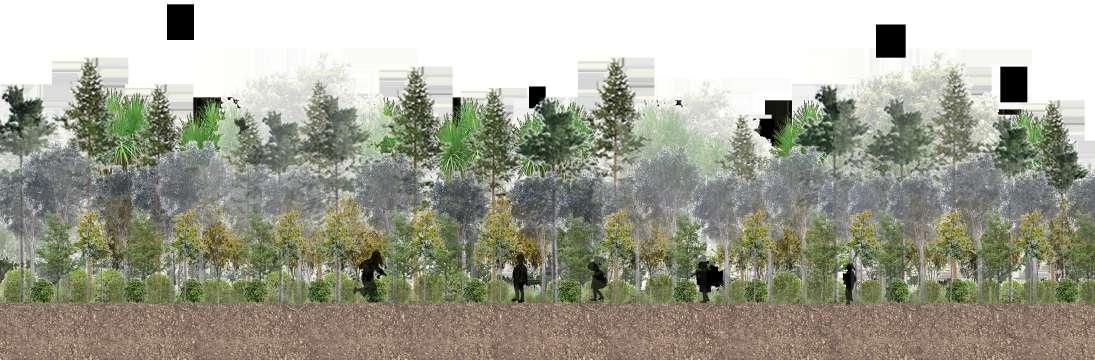

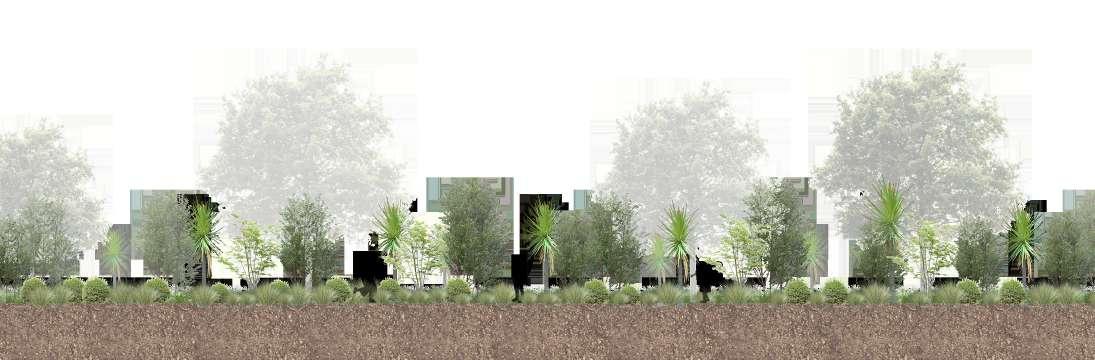

URBAN FOREST

Kahikatea – kereru manatu, lush, older plains ecosystem, was identified in Christchurch Ecosystem Map by Lucas Associates based on the soil types. The plant species in this area need to be suitable/tolerant to wet Taitapu/deep silt soil. Linwood Park is aimed to create an urban forest by integrating the proposed native plants and existing exotic trees with good conditions. The urban forest will be the stepping stone patch and habitat for wildlife.

Cordyline australis Cabbage tree

Dacrycarpus dacrydioides White pine

Alectryon excelsus Titoki

Melicytus micranthus Shrubby mahoe

Aristotelia serrata Wineberry

Leptospermum scoparium Manuka

Podocarpus totara Tōtara

Pittosporum eugenioides Lemonwood

Prumnopitys taxifolia Black pine

Prumnopities ferruginea Miro

Melicytus ramiflorus Mahoe

Pseudopanax arboreus Fivefinger

Pittosporum eugenioides Black matipo

Plagianthus regius Lowland ribbonwood

Pseudopanax crassifolius Lancewood

Myrsine australis Red mapau

Fuchsia perscandens Climbing fuchsia

Griselinia littoralis Broadleaf

Coprosma propinqua Mingimingi

Coprosma robusta Karamu

Sophora microphylla Kowhai

Ileostylus micranthus NZ mistletoe

Schefflera digitata Seven finger

Carex secta Pūkio

STAGE 2

STAGE 3

LINWOOD RE-IMAGINED 2

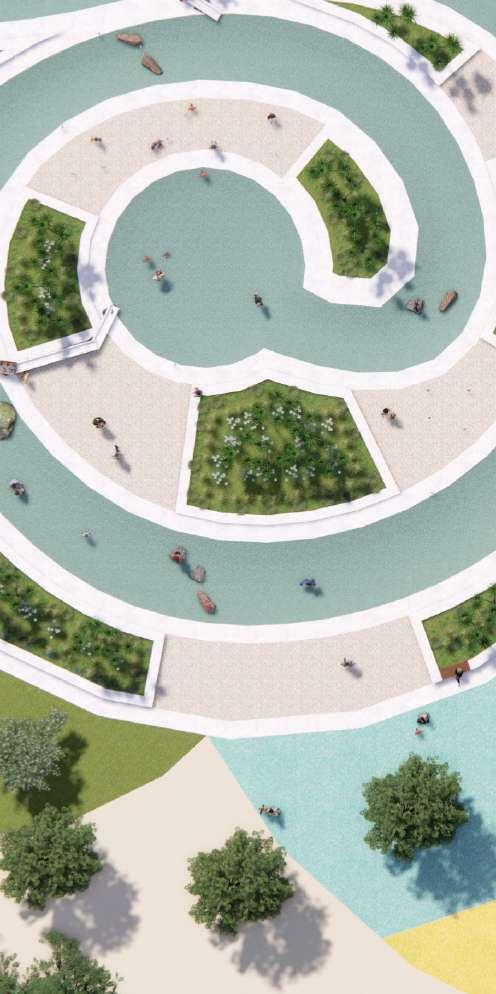

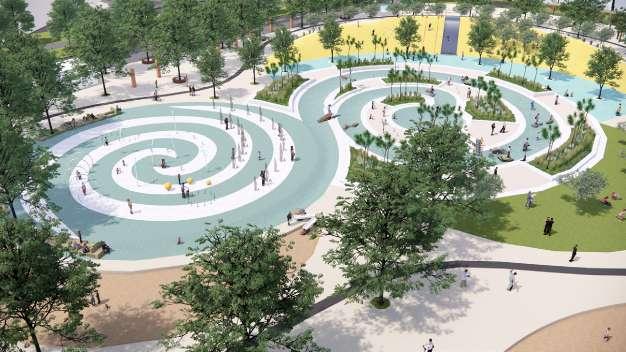

PLAYFUL LANDSCAPE ARTIFICIAL PLAY

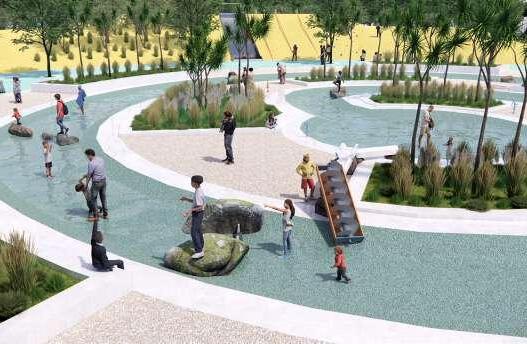

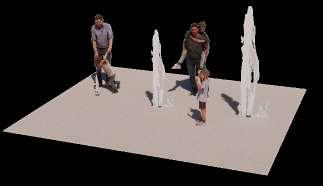

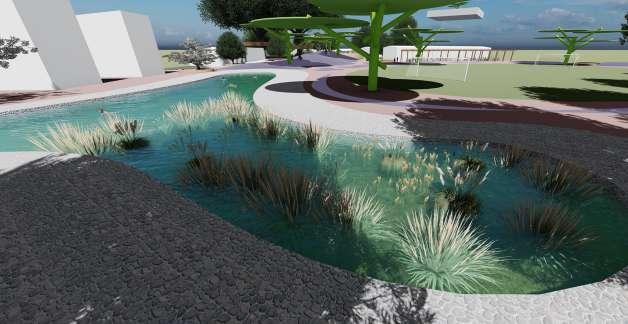

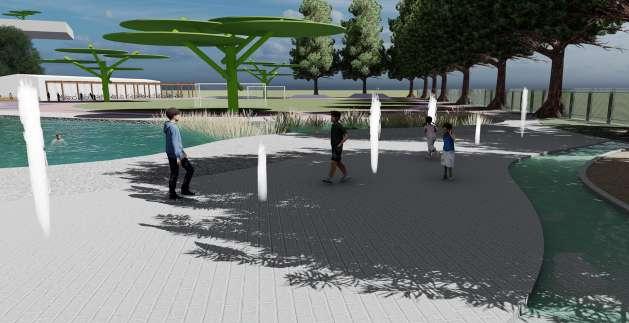

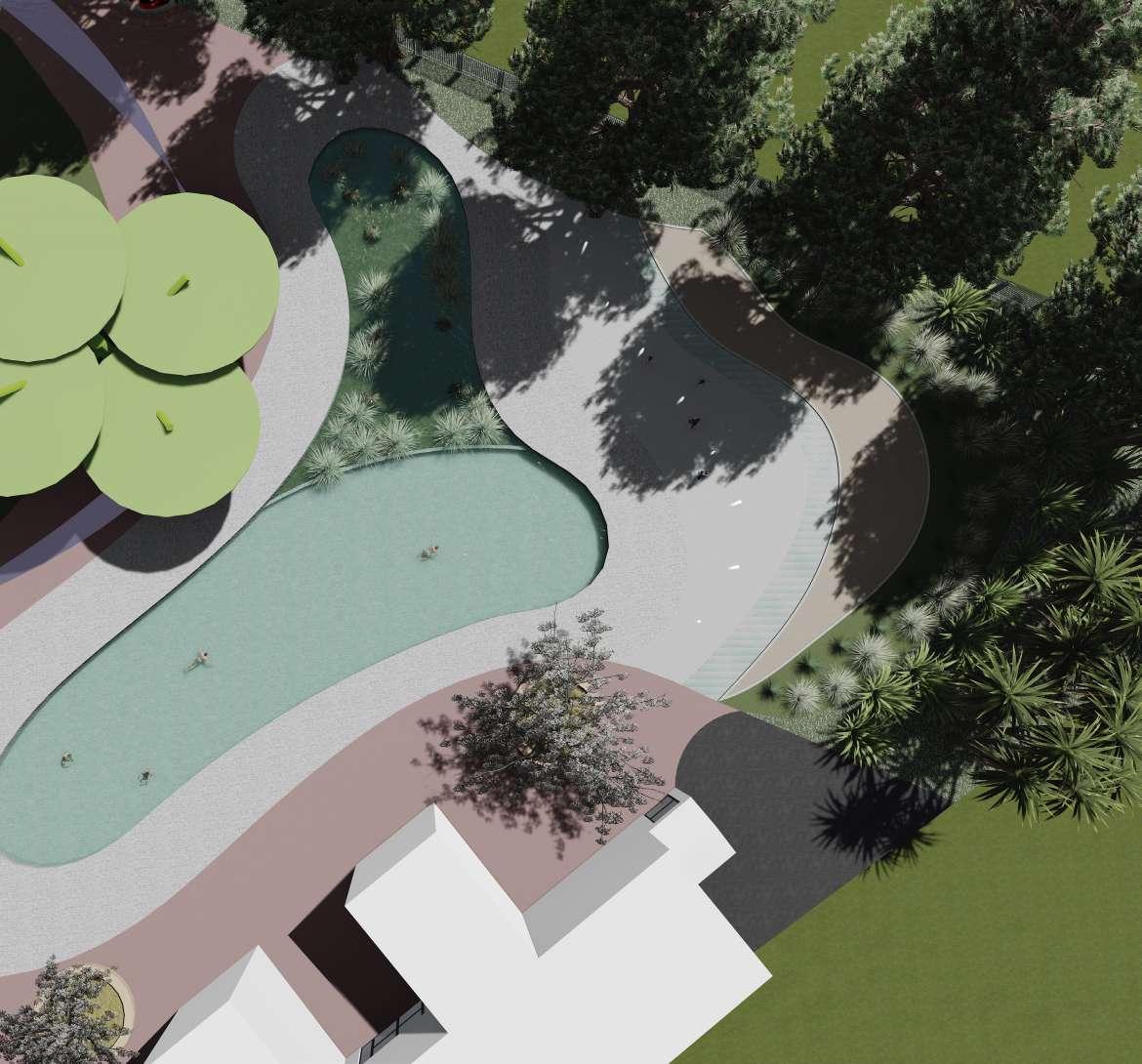

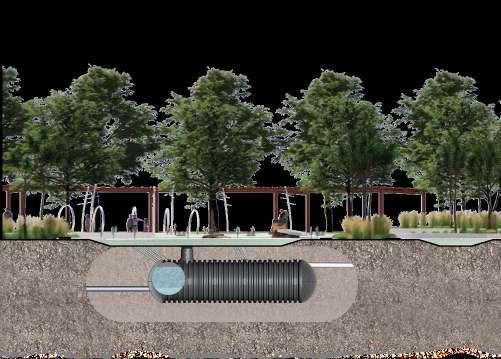

PLAYING WITH WATER

The play features were mostly customised. The ones that the local suppliers could not provide would be replaced with their existing products with similar functions.

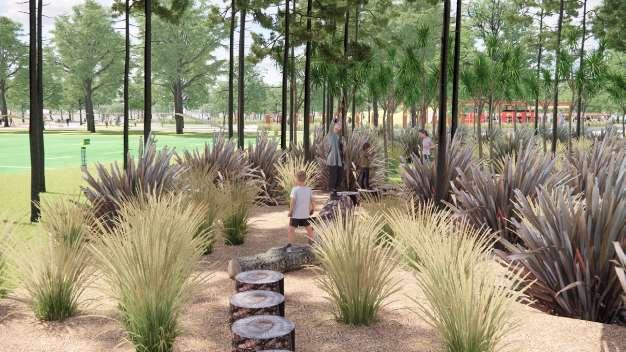

PLAYING WITH LANDFORM

NATURAL PLAY

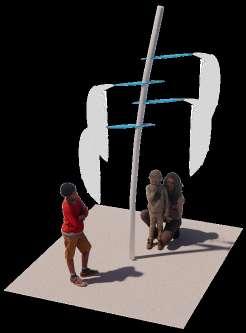

STRUCTURE

LIGHTING

CUSTOM DRAIN COVER

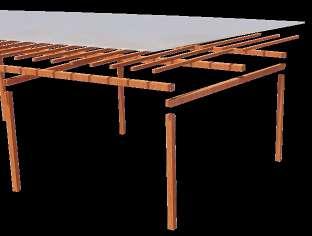

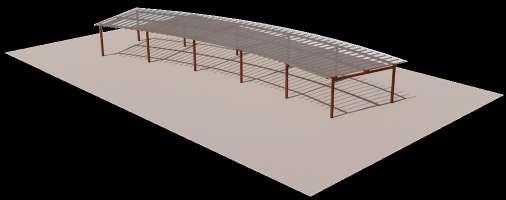

PERGOLA

FURNITURE

SPECTATOR SEAT

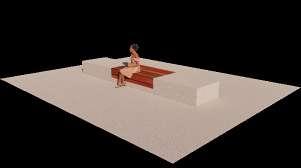

CONCRETE BENCH

STREET GALLERY

KEAS LANE

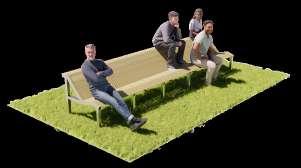

PALLET SEAT

PLAY UNDER THE SHADE 3

DESIGN INTENT

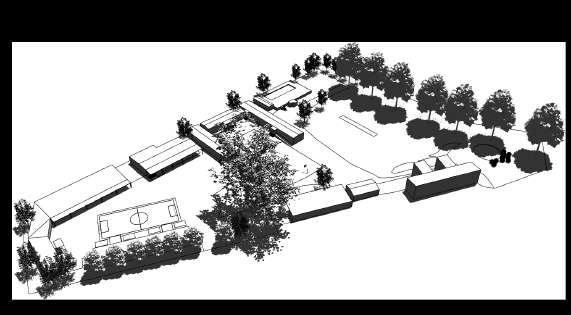

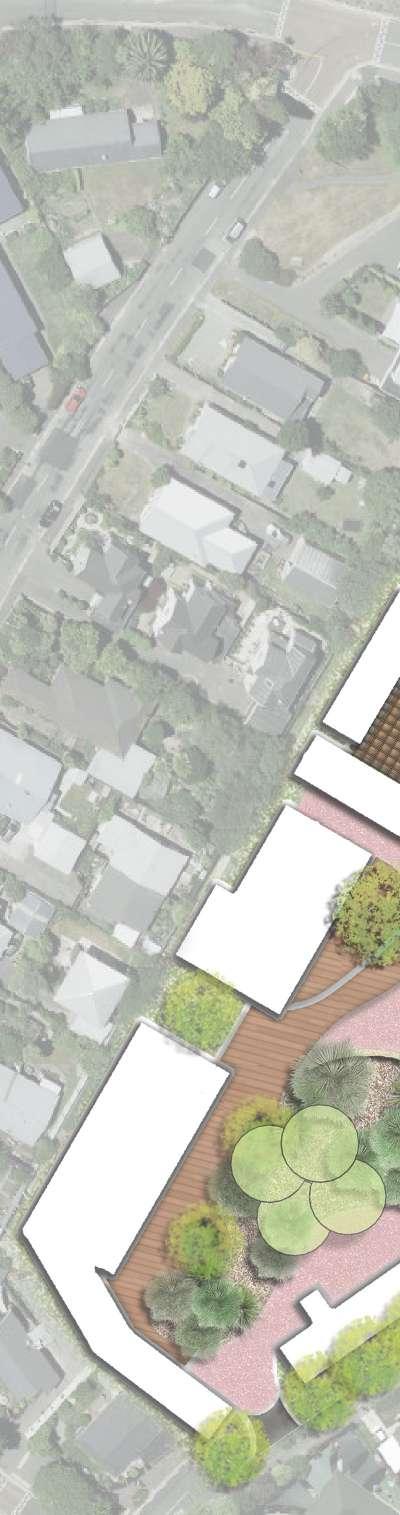

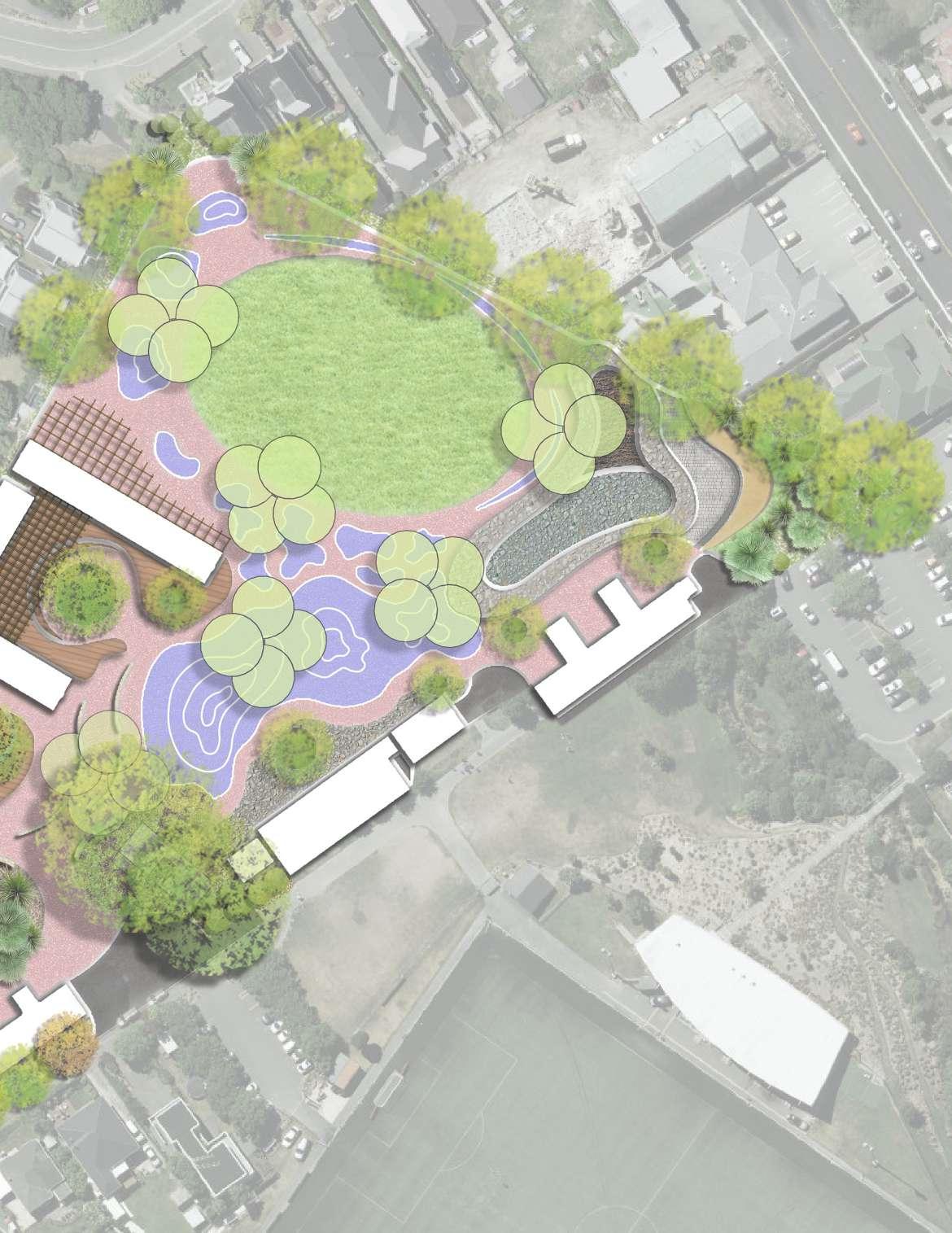

Schoolyard of St Albans School were redesigned into an adventurous playground, which encourages students taking risk to explore in their lives and inspires their creativity. The forms of design components refer to different types of natural landscape on Canterbury Plain.

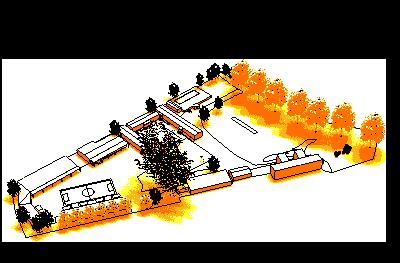

Shade patterns (11:00-13:00 February 1st)

Surface material UV reflectivity

Thermal comfort

LEGEND

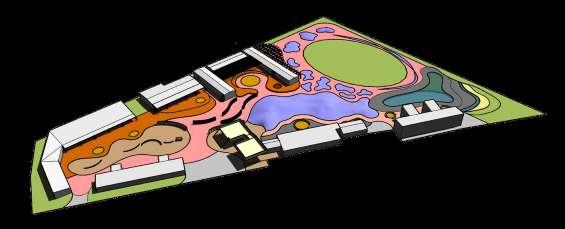

PLAY UNDER THE SHADE 3

1. JUNGLE CROSSING

Native plant species have been chosen to recover a small forest, which represents the native forest in Canterbury area. Except providing better sun protection behaviour, it could increase the biodiversity on the campus.

2. TREE HOUSE

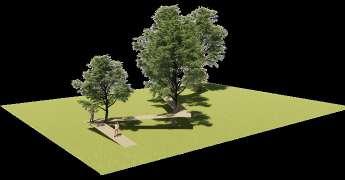

It is built on the two huge Oak trees at the entrance of the school. Those two trees provide almost 90% shade coverage all day long. It uses net climbing as access approach.

3. OUTDOOR GALLERY

It gives school kids a proper place to hang their artworks. At the time without exhibitions, those walls could be used for graffiti. They also have the function of blocking cold wind.

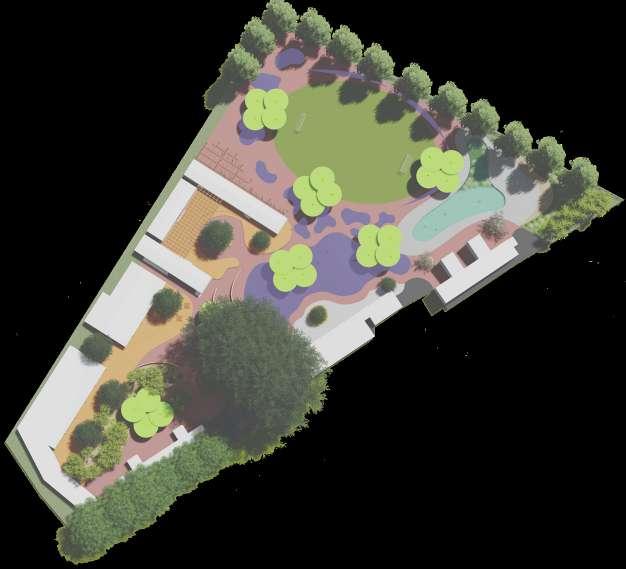

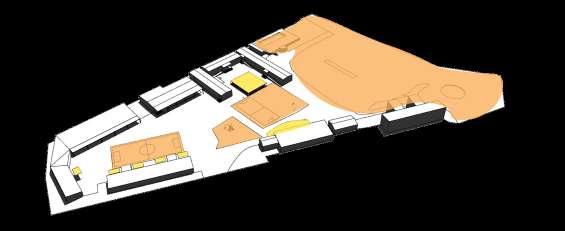

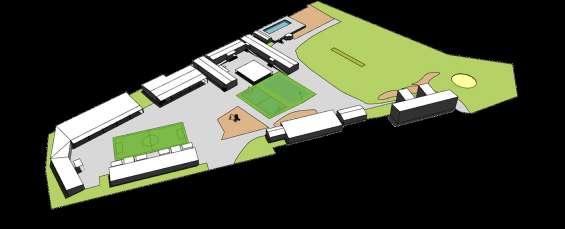

SHADE MASTER PLAN

BUILT SHADE

NATURAL SHADE

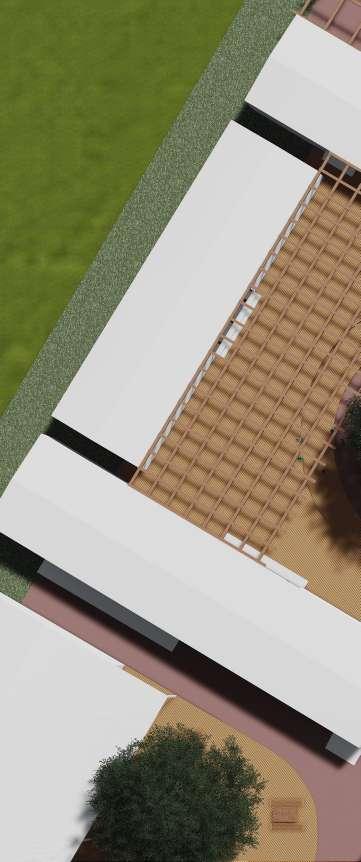

It is the main gathering place at lunchtime. More shade is added to ensure sufficient protection. The ground surface material is changed into wooden deck to avoid reflective UVR.

4. OUTDOOR CAFE

PLAY UNDER THE SHADE 3

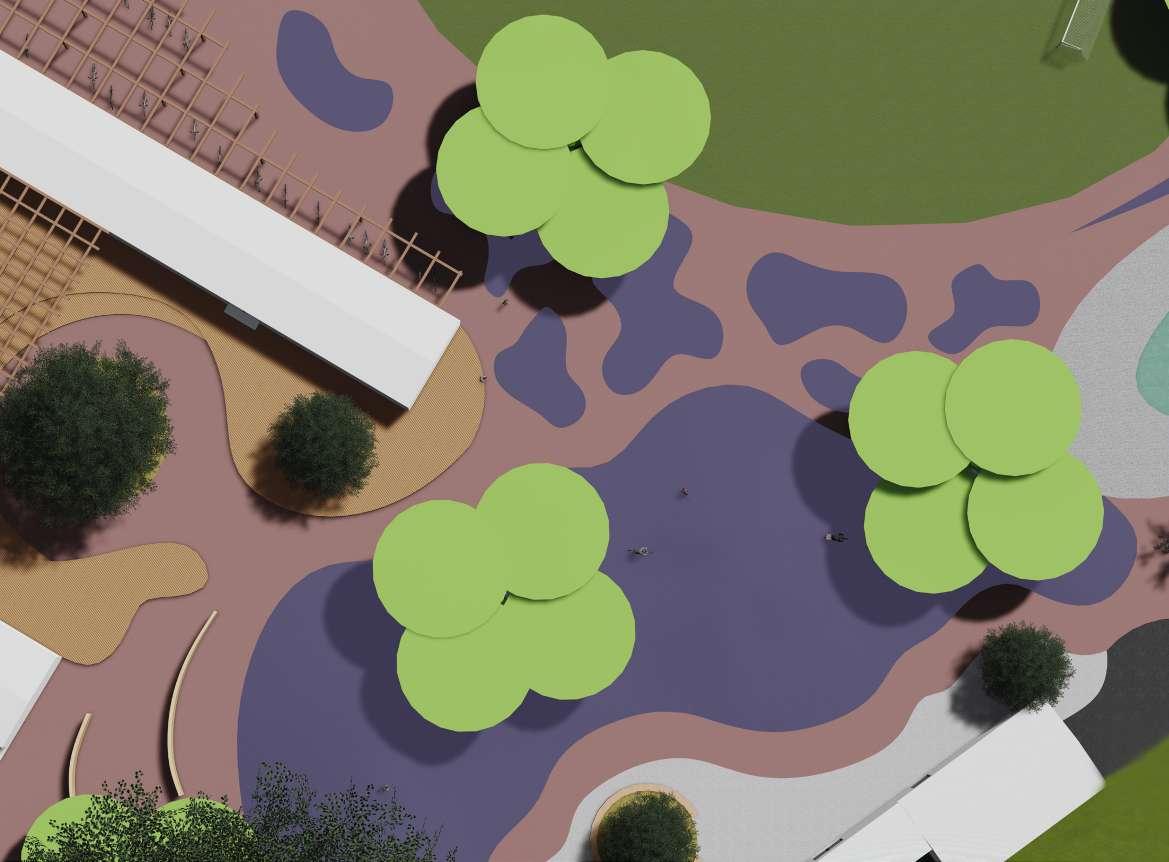

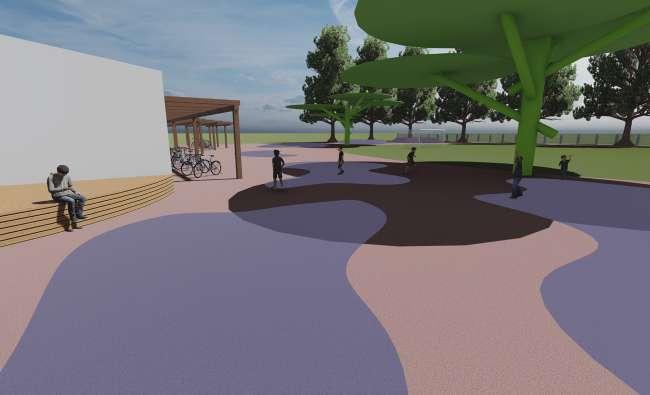

RED POURED RUBBER

PURPLE POURED RUBBER

WOODEN DECKING

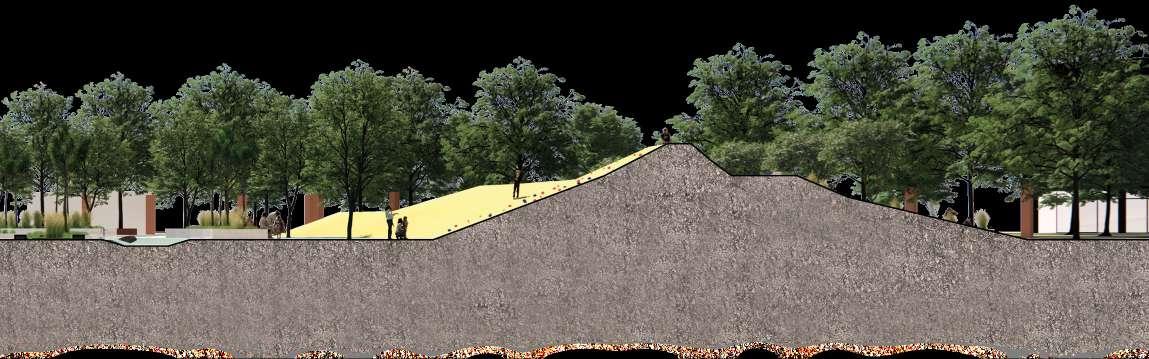

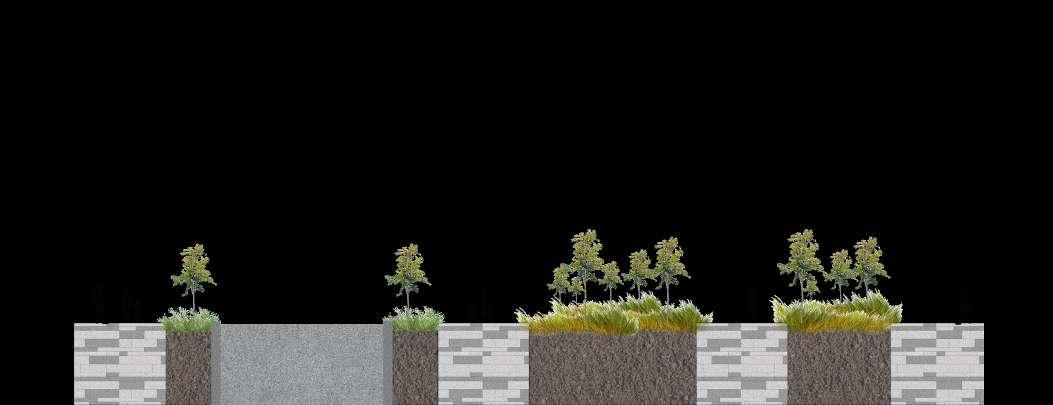

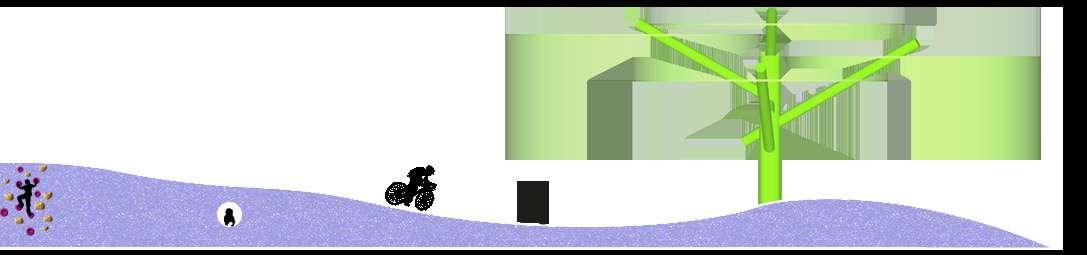

SECTION A-A’ OF TERRAIN PLAYGROUND

Leptocarpus similis Oioi

Carex secta

Typha orientalis (Raupo or bulrush)

PLAY UNDER THE SHADE 3

BEFORE

Artificial turf (3-7%)

Asphalt (4-9%)

Wooden chips (7-9%)

Grass (1-3%)

Entrance of buildings

Entrance of school

Moving routes

Water (3-7%)

Sand (15-18%)

EVALUATION

Comparison between original

SHADE COVERAGE

The new design increased shade schoolyard range through both However, it is impossible to create shade coverage) everywhere on shade coverage has been provided of the area in transition zone has zone, the shaded area has been (Shen, 2021)

MATERIALS

The main change of material happened surface. Low reflective (soft) material wooden chips and wooden decking in the original design to reduce

CIRCULATIONS

New circulation is based on the each part of the campus. The new route options, which could enhance movement in school. Shade in this both shade plants and built structures.

Active zone

active zone

ZONES

A new layout of components has Since the pool has been moved campus, the three experiences of the main spine of school and form with each other. Passive active zone defined space and the area surrounding spectators. Higher shade coverage and built structures.

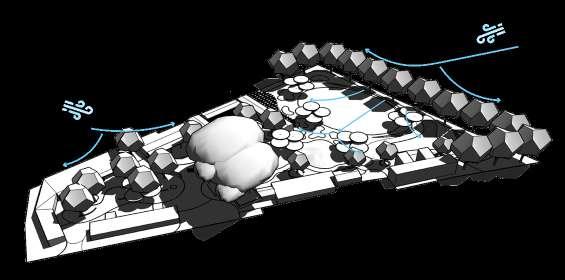

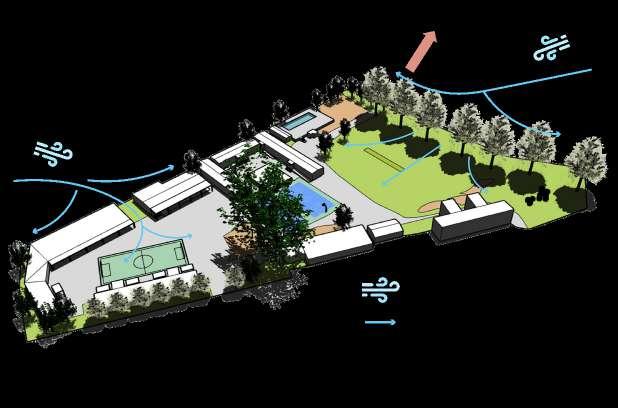

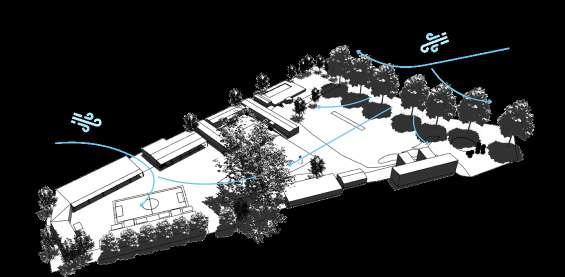

THERMAL COMFORT

Trees, outdoor gallery walls and wind from north-east and south-west. chosen as natural shade to ensure coverage and heat from sun radiation

original design and new proposal

shade coverage across the whole both natural and artificial shade. create good quality shade (94% on the campus. About 70-80% provided to passive zone. 60-70% has been shaded. In the active been raised to at least 25-30%.

happened on the ground material like poured rubber, decking replaced asphalt surface reduce reflective UVR.

original design. It connects new design provides more enhance the interest of this part was provided by structures.

has been applied in the design. to north-east corner of the of active zone flow through form a stronger connection zone expands within well surrounding the active zone as coverage is given by shade plants

terrain are used to block south-west. Deciduous trees was ensure the the sufficient shade radiation in winter.

AFTER

Poured rubber (3-7%)

Asphalt (4-9%)

Wooden chips (7-9%)

Grass (1-3%)

Water (3-7%)

Decking (7-9%)

Soil (4-6%)

Exposed aggregate (4-9%)

Entrance of buildings

Entrance of school

Moving routes

Active zone

Passive active zone

Wind direction

Air flow direction North-east South-west

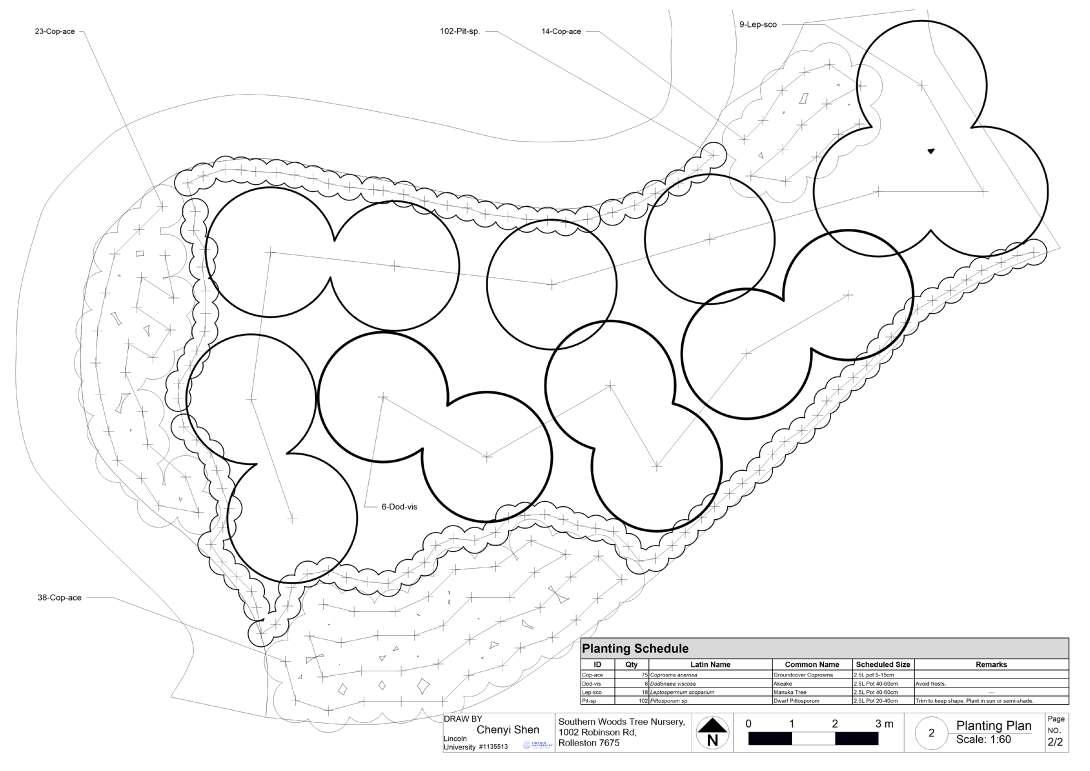

FOOT BRIDGE DESIGN & PLANTING PLAN 4

DESCRIPTION

This project was about designing a foot bridge and planting plan, then push them to the stage of construction. The skills were required for this project is drawing the scale accurate technique drawings and knowledges landscape materials including the hard construction material and planting.

Bridge Construction Drawing

DRAW

WORK EXPERIENCE 5

DESCRIPTION

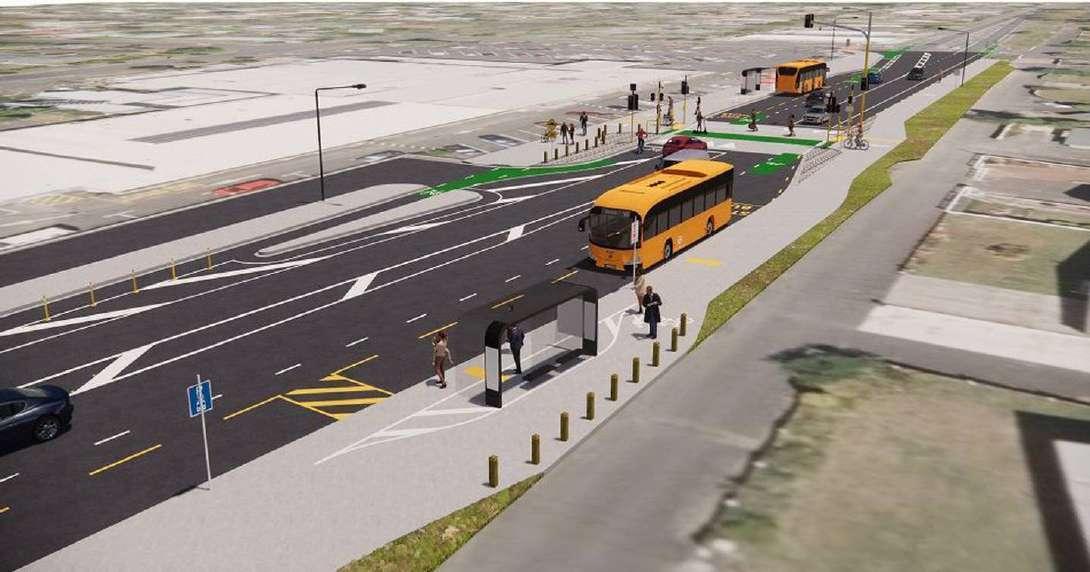

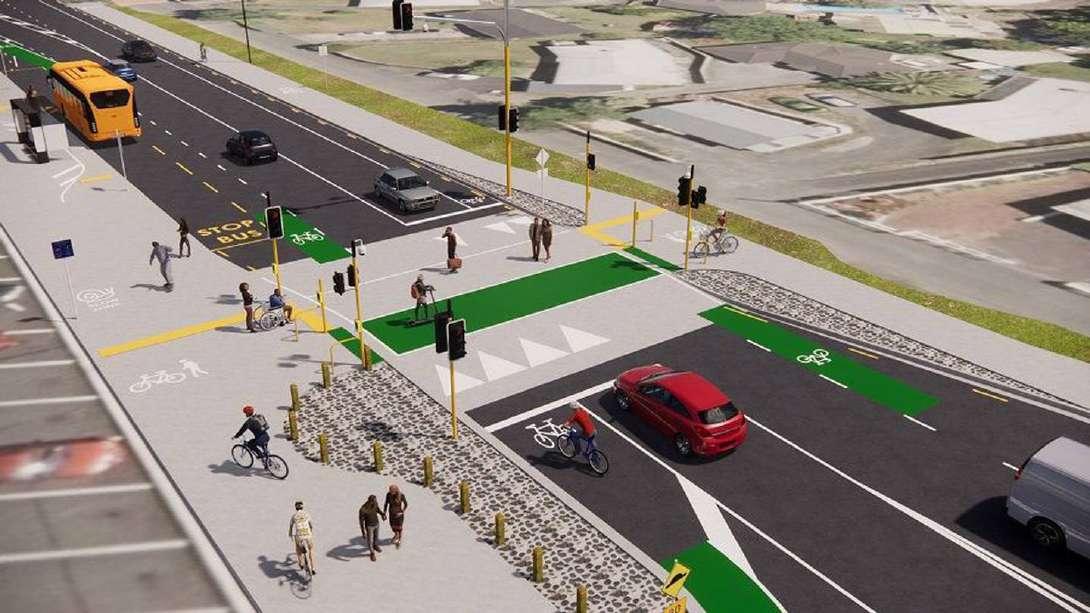

Project name: SH3 Ōhaupō Road, Glenview bus hub

Location: Hamilton, New Zealand

Client: New Zealand Transport Agency

I worked as landscape architect intern at DCM Urban Design. This selection of work includes the projects I completed under the mentor of Dave Compton-Moen, the director of DCM Urban Design.

This project is aimed to create renderings for the new proposed bus hub in Hamilton. I was asked to contact the client directly to make revisions according to the enquiries from NZTA through emails.

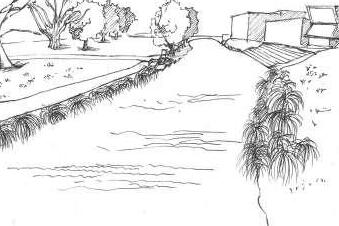

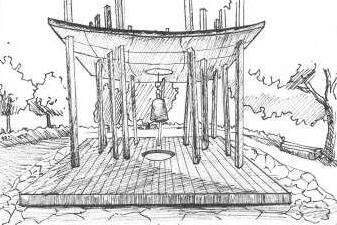

HAND DRAWING 6
