` DELIANG CHEN UNDERGRADUATE PORTFOLIO ARCHITECTURE PORTFOLIO ARCHITECTUREPORTFOLIO
2
TABLE OF CONTENT
FLOWING SPACES
MONTGOMERY ELEMENTARY SCHOOL COMMUNITY CENTER
BLURRING OF INTERIOR AND EXTERIOR COURTYARDS
COMMUNAL SPACES
NEW SCHOOL BUILDING FOR OLLI
RURAL STUDIO
A HANDS ON EXPERIENCE
INTERNSHIP
3
01 02 03 04 05
FLOWING SPACES
MONTGOMERY ELEMENTARY SCHOOL
35 Maxwell Blvd, Montgomery,AL 36104
This was a elementary school built in the heart of downtown Montgomery. This design focused on the flow from city scape to nature scape . This concept was carried through the project through the undulation of the main facade .It was carried through the interior of the project through the views of the facade facing the park .
01
Flowing Spaces
Looking at the diagram to the right it shows the main connection that I was trying to establish within my plan. The exterior of the building form a path that would lead people from cityscape to park. Within in the plan instead of a direct path views were utilized to stimulate the two connections . Large view points are created on the Southern facade to allow these visual connection .
Wright Brother’s Park
SITE Downtown Montgomery
GROUND
7 AA BB Whitman St. ENTRANCE R30’ R30’ 4.00 8.00 0.00 D D D D UP UP UP UPUP UP UPUP UP UPUP UP 0.00 4.00 D D UP UP UP D SECOND FLOOR
FLOOR
8
+38.00
+24.00
+6.00
0’ Section AA SECTION
+38.00
9 +6.00 +0.00
+24.00
SECTION AA
BB
RENDER OF MAIN VIEWPORT
10
RENDER OF SPECIALED CLASSROOM
11
RENDER OF MAIN FACADE
12
RENDER OF MAIN FACADE
13

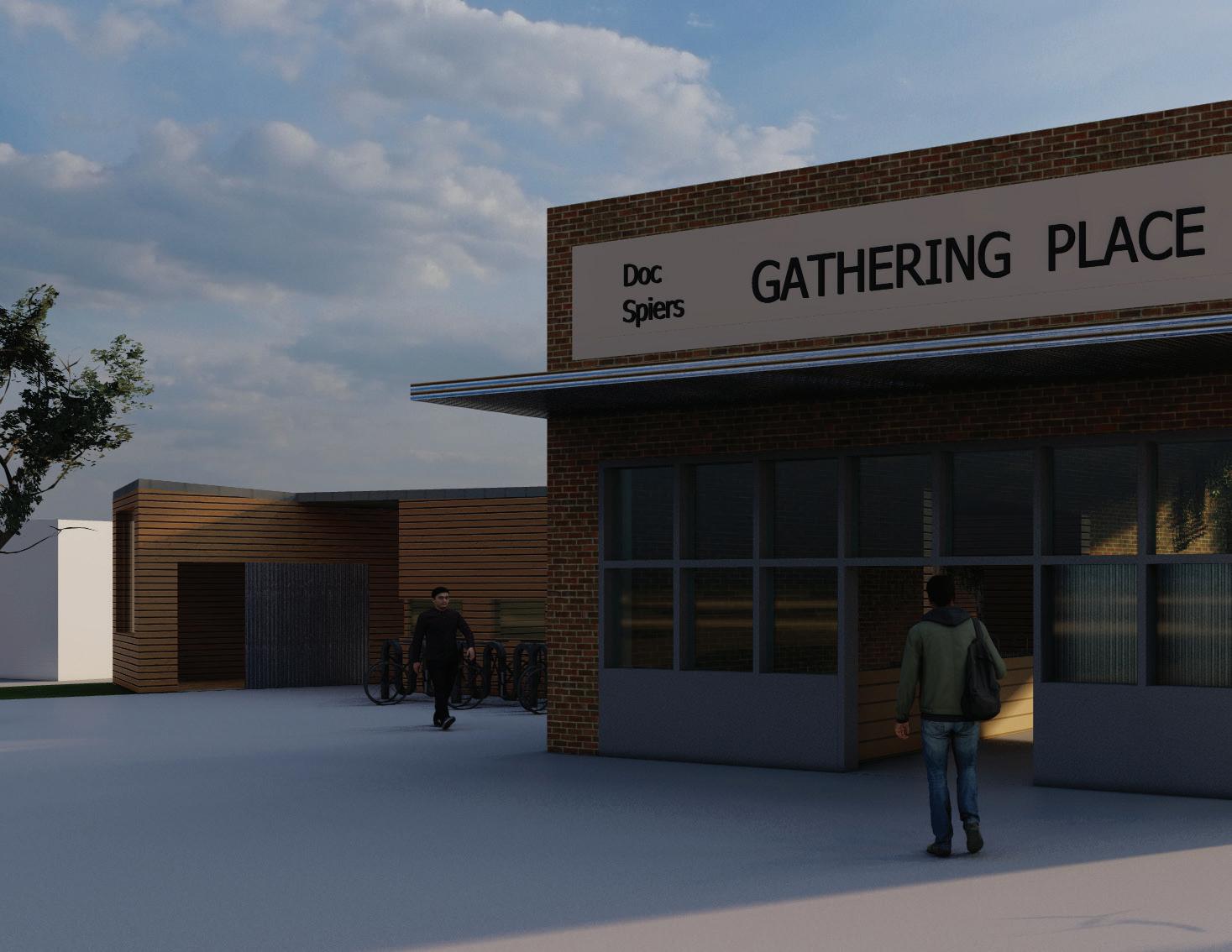

BLURRING OF INTERIOR & EXTERIOR COURTYARDS
COMMUNITY CENTER NEW MEETS OLD
610 Jefferson Street, La Grange, GA 30240
We were tasked with adding retail space and readapting the existing gathering space and adding another gathering space on the west side of the building. My initial thought of the site was that it was an indoor courtyard. Taking this thought through the project. Extensions were placed in such a way that multiple out/indoor courtyards would be formed. Through these courtyards different types of intimacy between people was achieved.
02
The In/Out Courtyards
By looking at the plan one can see the different courtyard spaces. With the existing structure being the initial courtyard that connects the other three. Each courtyard provides an different experience for the user. The courtyard to the South is filled with birch trees that encourages a more intimate space for the users. While opposite to the South the North is a smaller but more open courtyard that is geared toward the community. The Northern courtyard contains the community garden that enforces the idea of community. Last there is the Western courtyard. The Western courtyard is less of courtyard but a interior space that opens into the space in the middle. Its identity is an open interior space that was meant to be used depending on the events that need to be held.
OUTIN
SITE
OUT
IN/OUT IN OUT
17 FLOOR PLAN
WEDDING ARRANGMENT
ARRANGMENT
18
TASTING
CONCERT ARRANGMENT
19
COMMUNITY ARRANGMENT
RENDER OF WESTERN COURTYARD
20

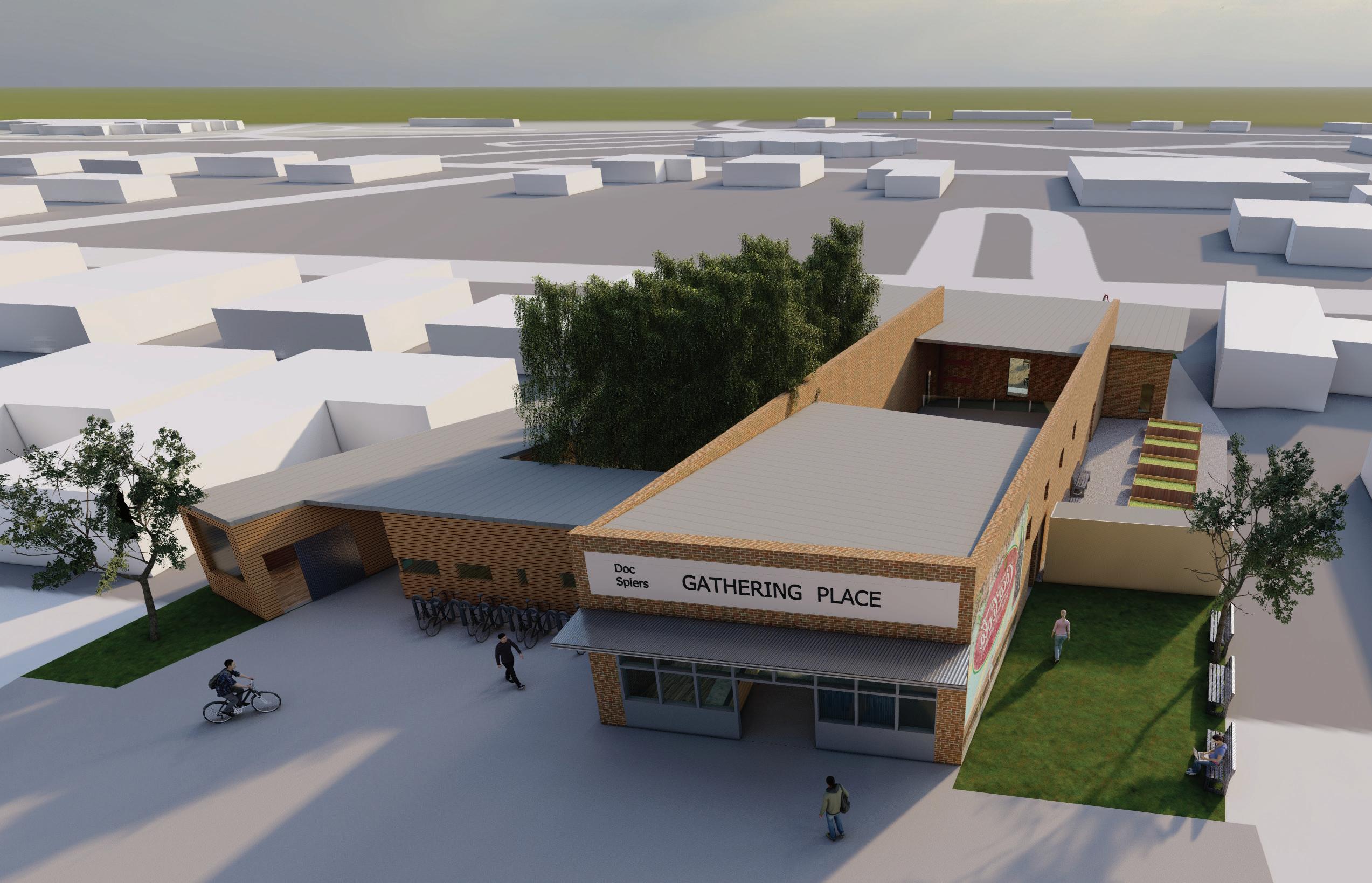

BIRD EYE VIEW
21
COMMUNAL SPACES
A NEW BUILDING FOR OLLI 1031 S College St, Auburn, AL 36832
The task was to design a new building for OLLI. It required classrooms for the different types of classes that OLLI provided. A few examples are art classrooms, kitchens, and typical classrooms. Another major space that was required was an auditorium that could be flexible in use.
03
Private Courtyards
The diagram shows the spaces that were carved out in between the different classrooms . These spaces were turned into private courtyard spaces for the selective specialized classrooms. These spaces were created so that the different types of students would have a private space.

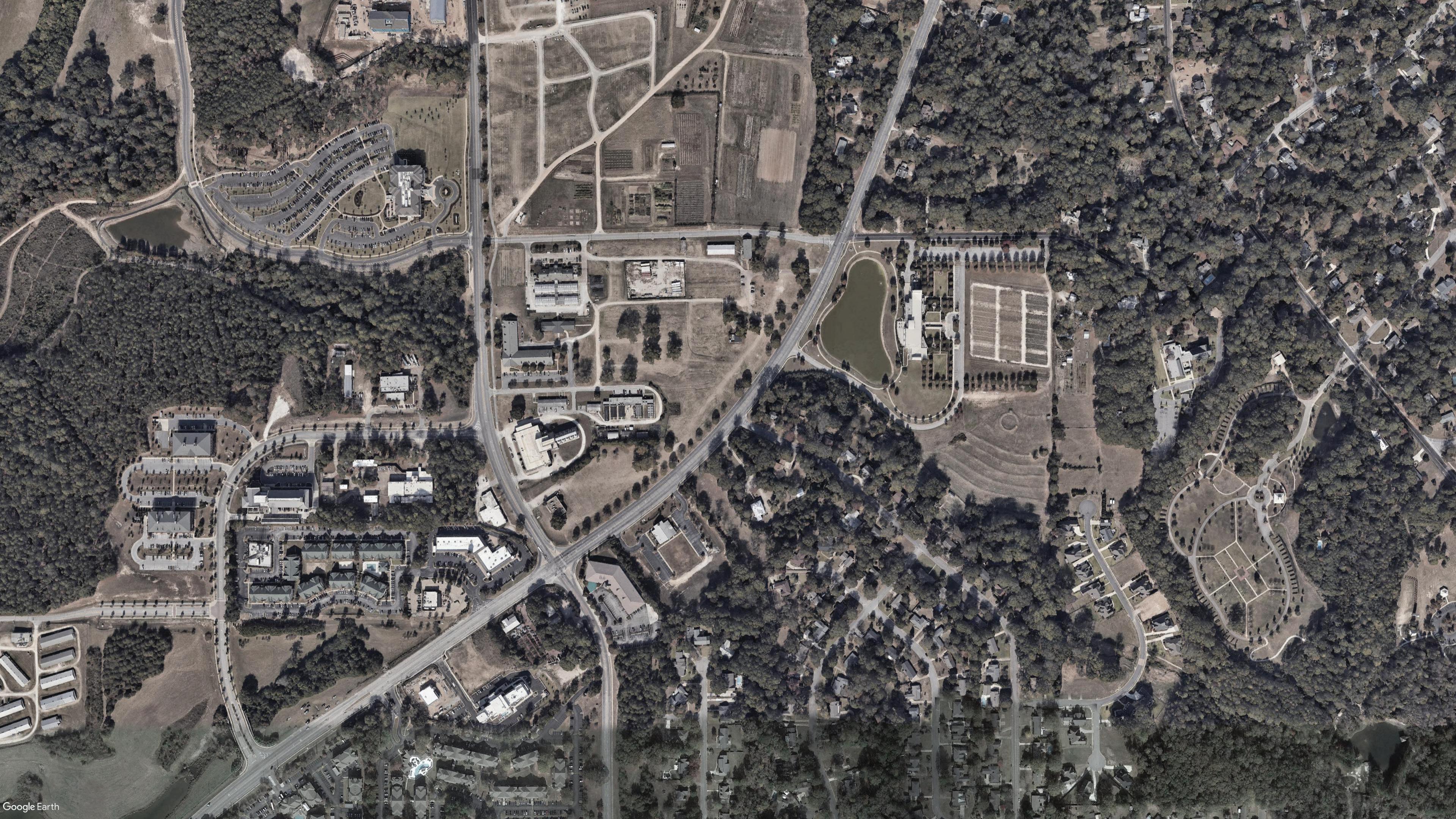

SITE
25 A B FLOOR PLAN
26
27 Section A 1/8” = 1’SECTIONAL PERSEPCTIVE

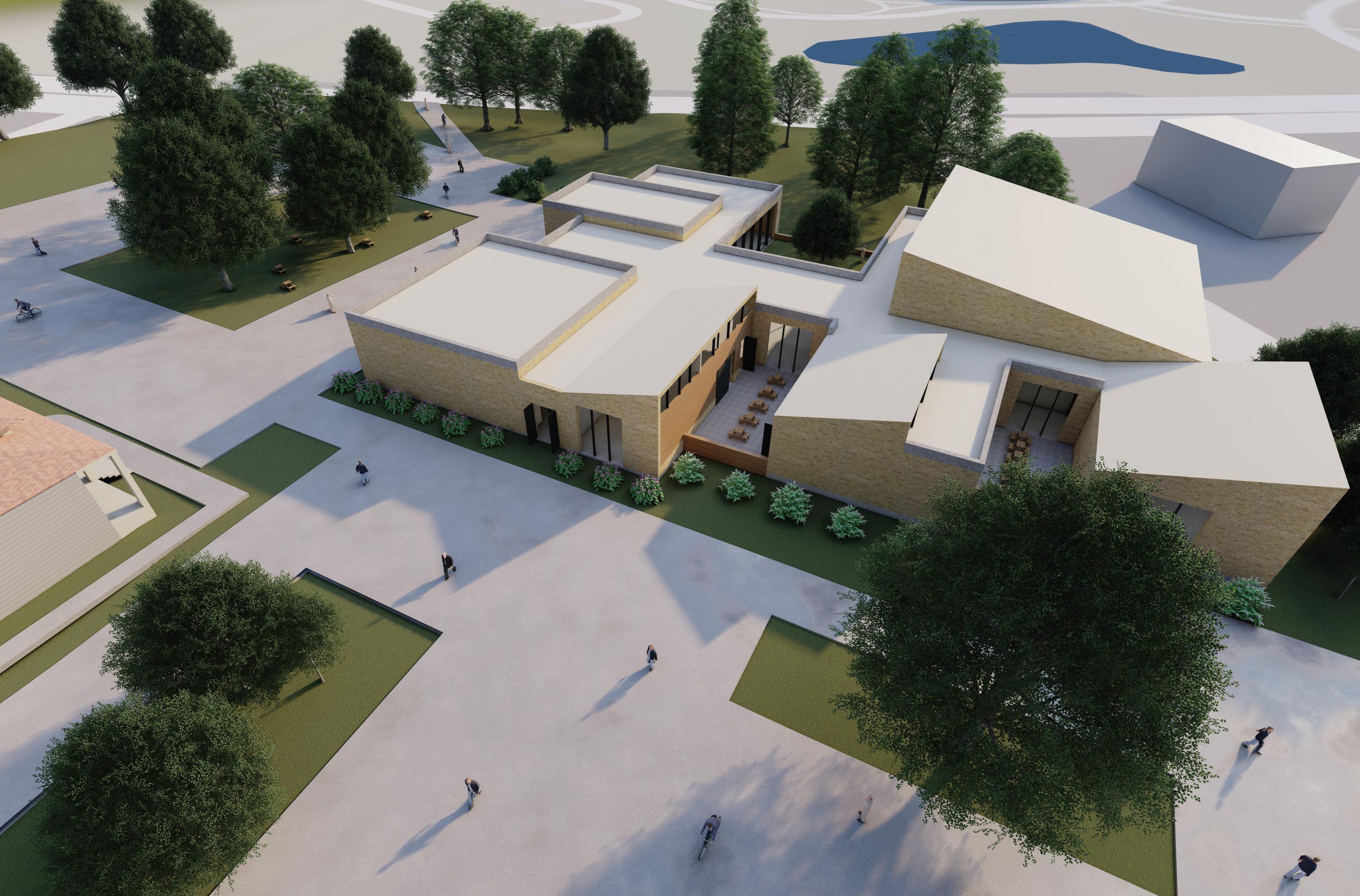

AXON FROM NORTH WESTERN CORNER
AXON FROM SOUTH EASTERN CORNER
28
RENDER FROM NORTH WESTERN CORNER
29
RENDER FROM SOUTH EASTERN CORNER
30
RENDER FROM SOUTH EASTERN CORNER
31

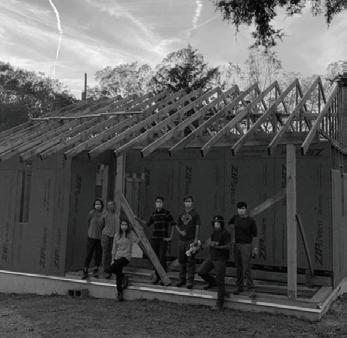

RURAL STUDIO
HANDS ON EXPERIENCE Newbern, AL 36765

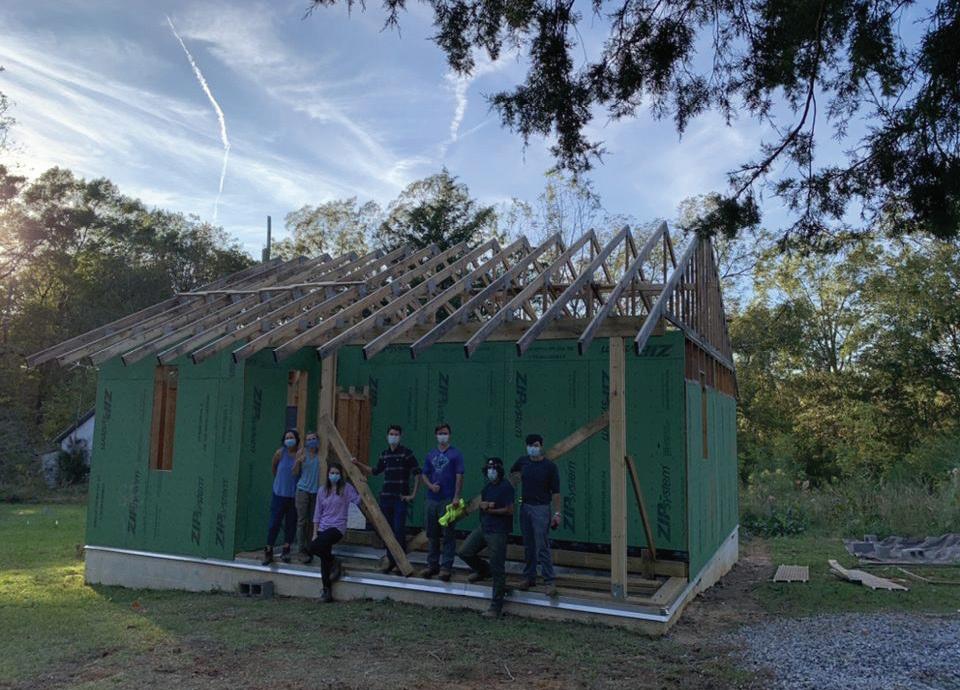

At Rural Studio my studio was largely focused on the construction portion of Ophelia’s home. Ophelia’s home is the most recent finished home in the line of 20k projects. My studio achieved in installing the walls and roof. With the studio behind us coming in and completing the project.
04
A
34
35
INTERNSHIP
AUBURN, AL 36765

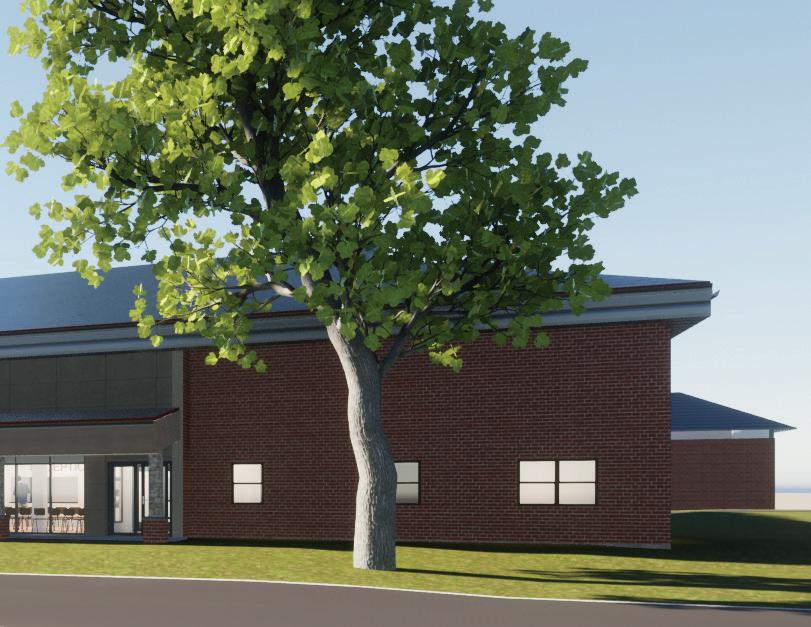

This was a medical clinic I worked on during my internship with SS&A. This was a remodeling project that called for the complete redone of the original clinic that was existing.
05
STANDING SEAM METAL ROOF
STANDING SEAM METAL ROOF
GALV. STEEL SQUARE COLUMN
EXTERIOR FINIHS SYSTEM
BRICK VENNER
STEEL RAFTER
STEEL BEAM
FINISHED CELING CONCRETE
CURTAIN WALL
FINISHED FLOOR (AS SCHEDULED)
39 LEVEL 1 0" TOP OF STEEL 14' 0" ROOF 19' 5" A-500 A4 A-631 A3 A-630 A6 A-630 E6 A-630 E1 A-630 A1
0 Designed By: Date: 12345678910 US of Mobile SCALE: 3/4"=1' 0" 1' 2' 3' SCALE: 3/4" = 1'-0"A3 WALL SECTION WALL SECTION
STEEL RAFTER
STANDING SEAM METAL ROOF
Z CLIP @ 8"- O.C
FLASHING
METAL GUTTER
DOWNSPOUT (BEYOND)
ALUM. FASCIA PANELS
STEEL BEAM
GAVL. STEEL SQUARE COLUMN
HAT CHANNELS
SEALANT & BACKER ROD (CONT.) COLOR TO MATCH FASICA PANELS
ALUM. FASCIA PANELS
STEEL BRACING
HAT CHANNELS
METAL DRIP EDGE
SOFFIT PANELS
40 PORTICO DETAIL
SCALE:
3" 12"
0 SCALE:
3" = 1'-0"A3
PORTICO DETAIL
A-632
TOP OF STEEL 14' 0"
EXTERIOR FINISH SYSTEM
1/2" CEMENT BOARD
1" RIGID INSULATION
5/8" GYP. BD. BATT INSULATION
FLASHING STANDING SEAM METAL ROOF
Z CLIP @8" O.C. SEALANT
6" STEEL STUDS
FLASHING (CONT.) BEHIND METAL ROOF FLASHING STEEL BRACKET
PORTICO ROOF CONNECTION
STEEL BEAM STEEL RAFTER
BRICK VENNER
GALV. STEEL SQUARE COLUMN
VAPOR BARRIER CONCRETE SLAB
ISOLATION JOINT POROUS FILL COMPACT FILL ANCHOR BOLT
METAL PLATE CONCRETE FOOTING
NONSHRINK GROUT
1/8" AIR BARRIER EXTERIOR SHEATHING
1/4" DRAINAGE MESH THRU WALL FLASHING 2 1/2" X 2 1/2" X 1/16" STL. LINTEL (ATTACHED WITH 10 16 SCREW) PAINT TO MATCH
DOUBLE STUDS
VAPOR RETARDER
@ JAMBS SHIM SPACE
ALUMINUM CURTAIN WALL SYSTEM
SEALANT & BACKER ROD (CONT). COLOR TO MATCH CURTAIN WALL
SCALE:
SEALANT & BACKER ROD
ISOLATION JOINT
VAPOR BARRIER
CAULK (CONT.) FLASHING PAN CONCRETE SLAB POROUS FILL
ALUMINUM CURTAIN WALL SYSTEM CONCRETE SLAB POROUS FILL VAPOR BARRIER COMPACT FILL FOUNDATION WALL AND STRIP FOOTING
CURTAIN WALL SILL
SCALE:
41 CURTAIN WALL JAMB
ARRAY OF DETAIL
A1
0 G F E D C B A SCALE: 8 3 1 / 2 0 2 2 2 : 3 3 : 1 1 P M G : M y D r v e \ 0 7 W O R K I N T E R N S H I P S S S & A \ 2 0 1 3 0 2 0 C o n n e l y P r a c t c e P r o j e c \ A \ 0 2 R e v t \ 2 0 1 3 0 2 0 W o r k n g N e w r v t
3" = 1'-0"E6
3" = 1'-0"A6
SCALE: 3" = 1'-0"A1 PORTICO SILL SCALE: 3" = 1'-0"E1
