Motherboard
Supplier in India - Dynalog India
Looking to build an Industrial PC, Choose from a wide range of high quality Industrial motherboards at Dynalog India for reliable performance.

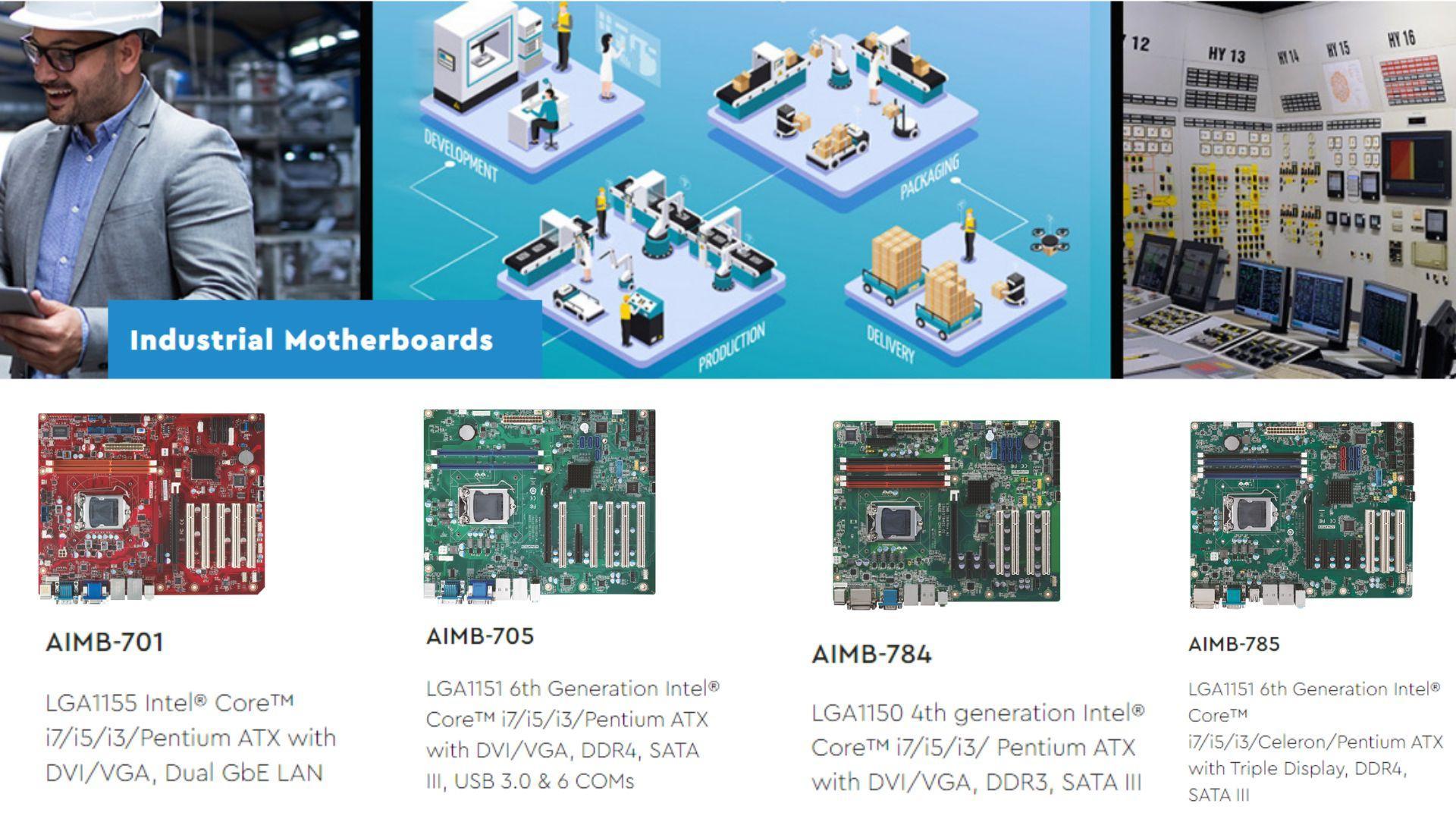

AIMB-701
LGA1155 Intel® Core™ i7/i5/i3/PentiumATX with DVI/VGA, Dual GbE LAN
Product Features
● Supports Intel® Core™ i7/i5/i3/Pentium processor with H61 chipset
● Two DIMM sockets support up to 16 GB DDR3 1066/1333
● Supports dual display VGA/DVI-D and dual GbE LAN
● Supports RS232/422/485 with auto flow control
● Supports One PCIe x16 and 5 PCI expansion slots
AIMB-701 motherboard is the most advanced Intel® H61 board for industrial applications that require high-performance computing. The motherboard supports 2nd/3rd generation Intel® Core™i7/i5/i3/Pentium and DDR3 1066/1333/1600 MHz memory up to 16 GB.AIMB-701 provides cost-effective graphics integrated in a processor which is Intel HD 2000/3000/4000 graphics, and the graphics VRAM is 1 GB maximum shared memory with 2 GB and above system memory installed.
AIMB-705
LGA1151 6th Generation Intel® Core™ i7/i5/i3/PentiumATX with DVI/VGA, DDR4, SATAIII, USB 3.0 & 6 COMs
Product Features
● 1 PCIe x16 (Gen3) and 1 PCIe x4 (Gen3), and 5 PCI expansion slots
● Intel 6th generation Core i7/i5/i3/pentium processor
● Dual channel (Non-ECC) DDR4 1866/2133 up to 32GB
● Supports VGAand DVI display
● Supports SATA3.0, USB3.0, dual GbEs
● Support 5 RS-232 and 1 RS-232/422/485 serial ports
AIMB-705 motherboard is the most advanced Intel H110 board for industrial applications that require high-performance computing.The motherboard supports 6th and 7th generation Intel Core i7/i5/i3 and DDR4 1866/2133 MHz memory up to 32 GB.AIMB-705 provides cost-effective integrated graphics with 1 GB VRAM max shared memory and 2 GB or above system memory installed.
AIMB-784
LGA1150 4th generation Intel® Core™ i7/i5/i3/ PentiumATX with DVI/VGA, DDR3, SATAIII
Product Features
● SoftwareAPIs: SMBus / H/W Monitor / Watchdog
● Utilities: Monitoring
● Supports Intel® Core™ i7/i5/i3 processor with Q87 chipset
● Four DIMM sockets support up to 32 GB DDR3 1333/1600
● Supports triple display VGA/2 DVI-D and dual GbE LAN
● Supports SATARAID 0, 1, 5, 10,AMT9.0, USB 3.0
● SupportsAdvantech LPC modules of TPM
AIMB-784 motherboard is the most advanced Intel Q87 board for industrial applications that require high-performance computing.The motherboard supports 4th generation Intel Core i7/i5/i3 and DDR3 1333/1600 MHz memory up to 32 GB.AIMB-784 provides cost-effective integrated graphics with 1 GB VRAM max shared memory and 2 GB or above system memory installed.
AIMB-785
LGA1151 6th Generation Intel® Core™ i7/i5/i3/Celeron/PentiumATX withTriple Display, DDR4, SATAIII
Product Features
● 6th generation Intel® Core™ processor-based platform
● Supports Intel® Core™ i7/i5/i3/Celeron/Pentium processor with Q170 chipset
● Four DIMM sockets support up to 64 GB DDR4 1866/2133
● Supports triple display VGA/2 DVI-D and dual GbE LAN
● Supports SATARAID 0, 1, 5, 10, USB 3.0
● Supports Intel vPro, iAMT 9.0 &TPM technologies
Note: PCA-TPM-00A1E module is required to enable Intel vPro and TPM technologies
AIMB-785 motherboard is the most advanced Intel Q170 board for industrial applications that require high-performance computing.The motherboard supports 6th and 7th generation Intel Core i7/i5/i3 and DDR4 1866/2133 MHz memory up to 64 GB.AIMB-785 provides cost-effective integrated graphics with 1 GB VRAM max shared memory and 2 GB or above system memory installed.
