PORTFOLIO - 2025

SELECTED WORKS

2020-2025

VE U L AZ Q

EZ

DANIL

O

CONTENTS

ACADEMIC HOUSE FOR A CHEF

04

LOOP

14

SUNNYSIDE FLEX

24

WALL PARTY

34

PROFESSIONAL POLYCARB HOUSE

46

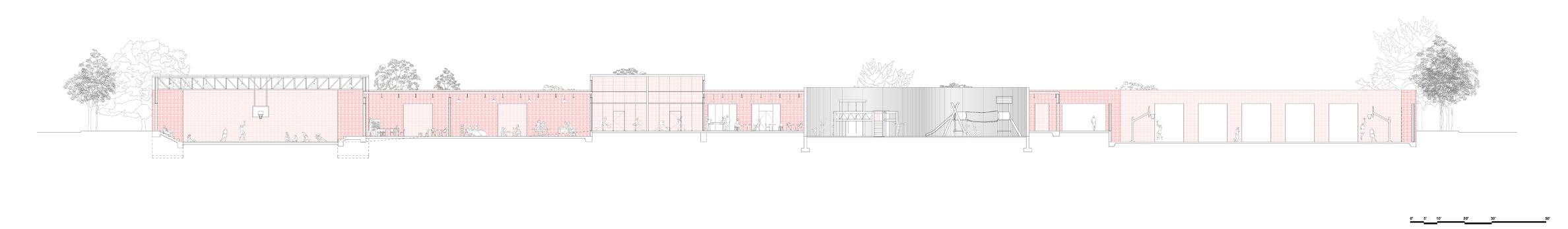

Above: Site Plan and Section for Wall, Unfinished. Rhino

03

HOUSE FOR A CHEF

FA ‘21

06

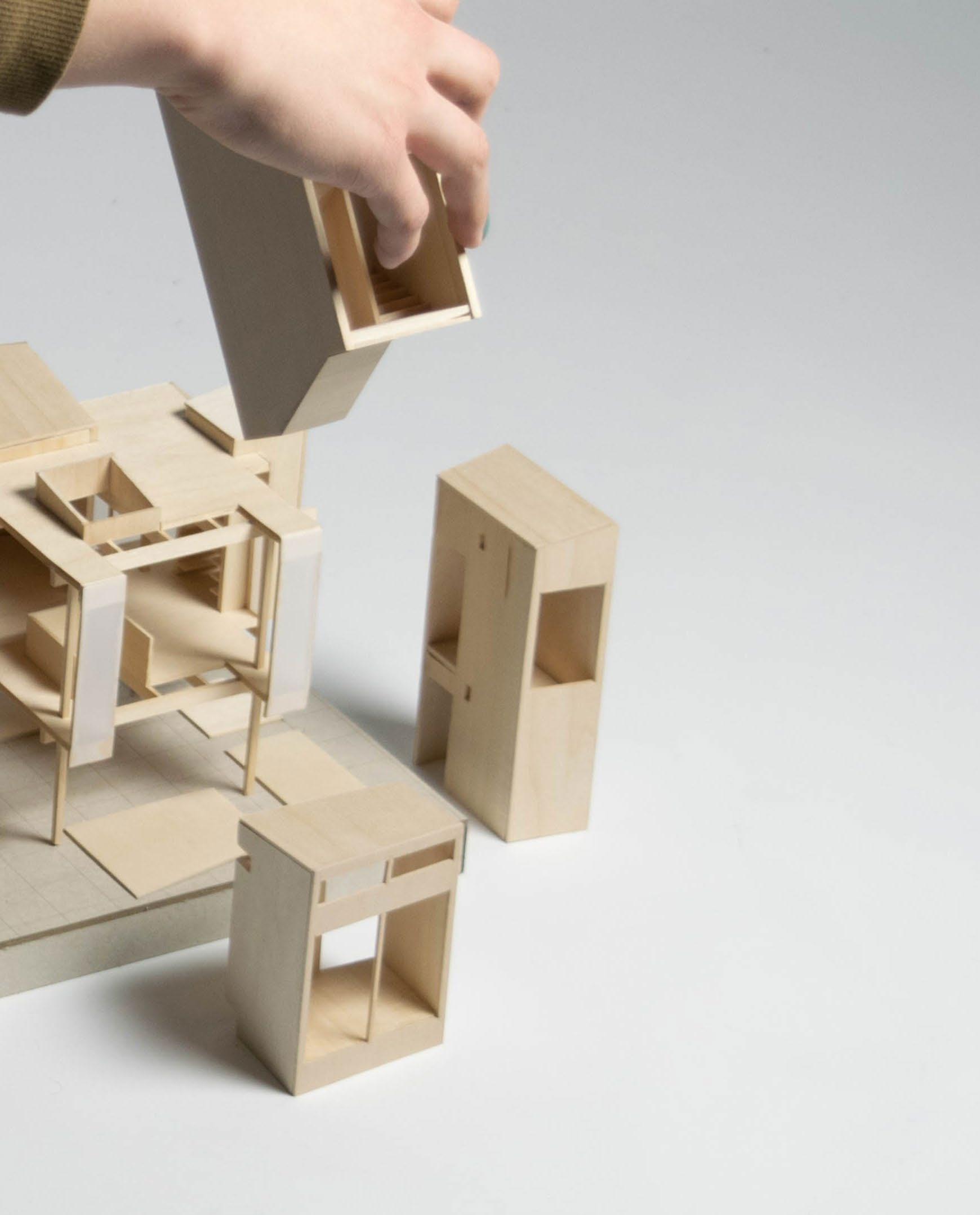

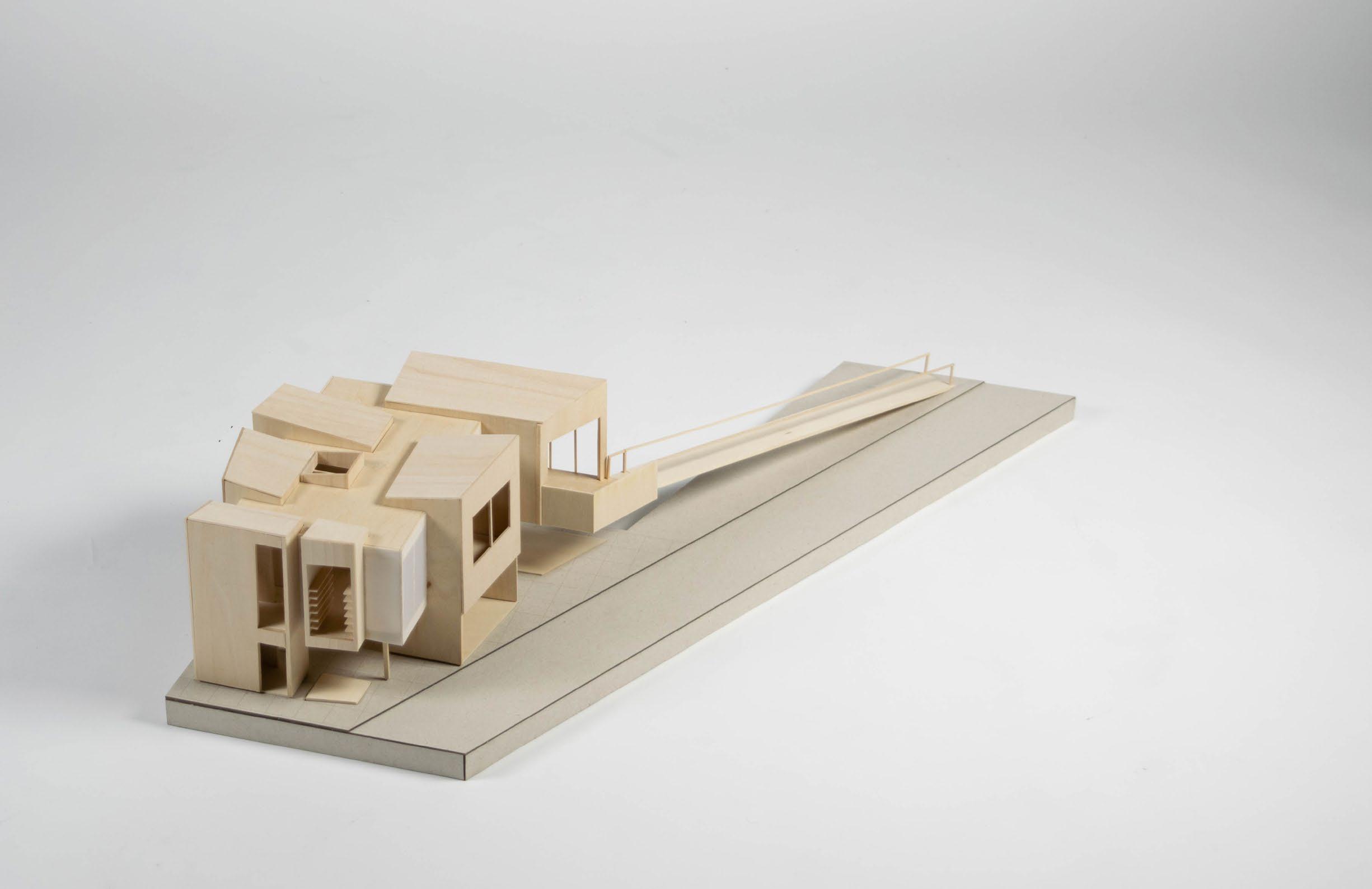

Previous: 1/4” Model. Basswood, Chipboard, and Mylar

This home’s client is a 45-year-old single chef that spends her weekdays working at a restaurant. On weekends, the chef invites friends into her home and hosts day long parties she cooks for. Formal and tectonic attitudes were informed by an assigned residential precedent: the Mendes da Roche House.

HOUSE FOR A CHEF

Programmatic functions are assigned to several volumes that decorate a box lifted off the ground on parti. While these volumes maintain a similar expression, they are distinct in form. The elevated living space allows for an underside that the public might use for shade or larger out-door gatherings.

SITE ITHACA, NY

Left: 1/4” Model.

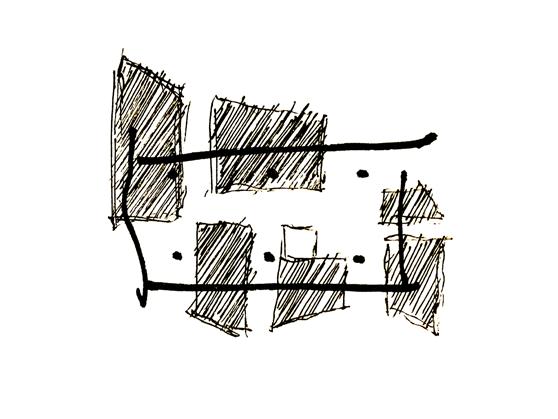

Right: Parti Sketch. Pentell Sign Pen, Pilot Precise V7

ARCH 2101 | FALL 2021 INSTRUCTOR ANDREA SIMITCH

PROGRAM RESIDENTIAL SIZE 2,000 SQ FT

07

The home orients itself north, drawing lines of structure from key architectural elements found on site. Ithaca’s porch typology was an important driver in the development of the building’s formal attitude. The ground floor is populated with planting beds and grilles, complementing the functions of the program volumes that they rest beneath.

08

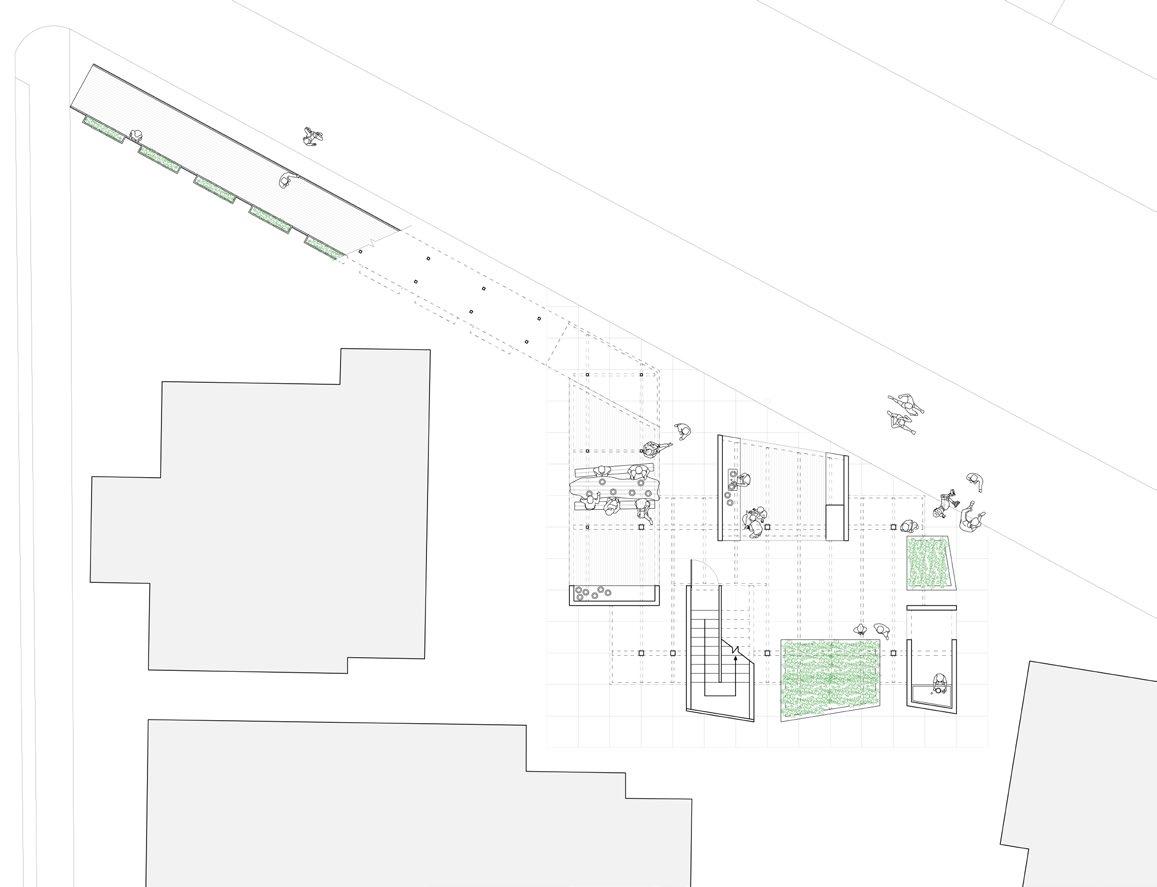

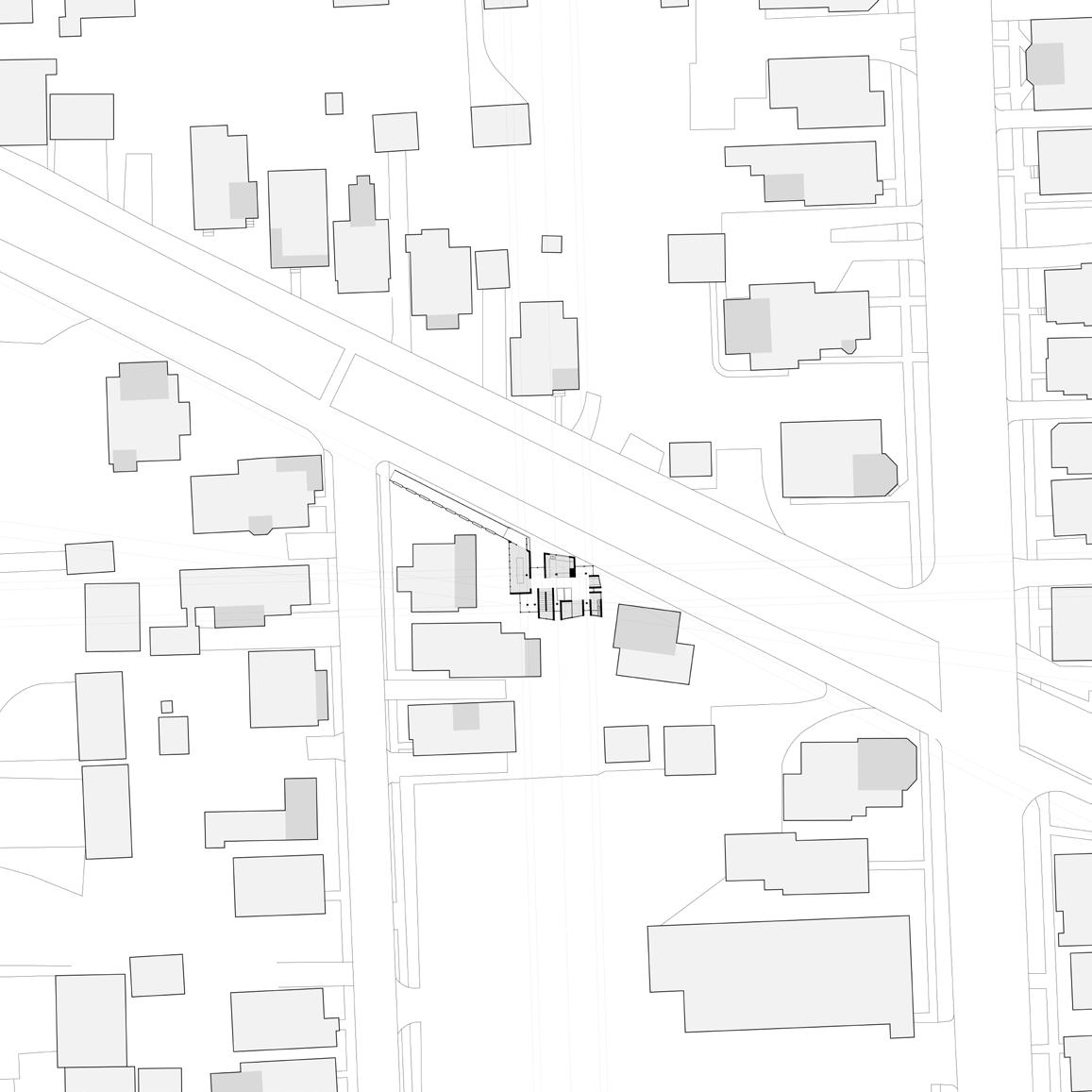

Above: Site Plan. Rhino, Illustrator

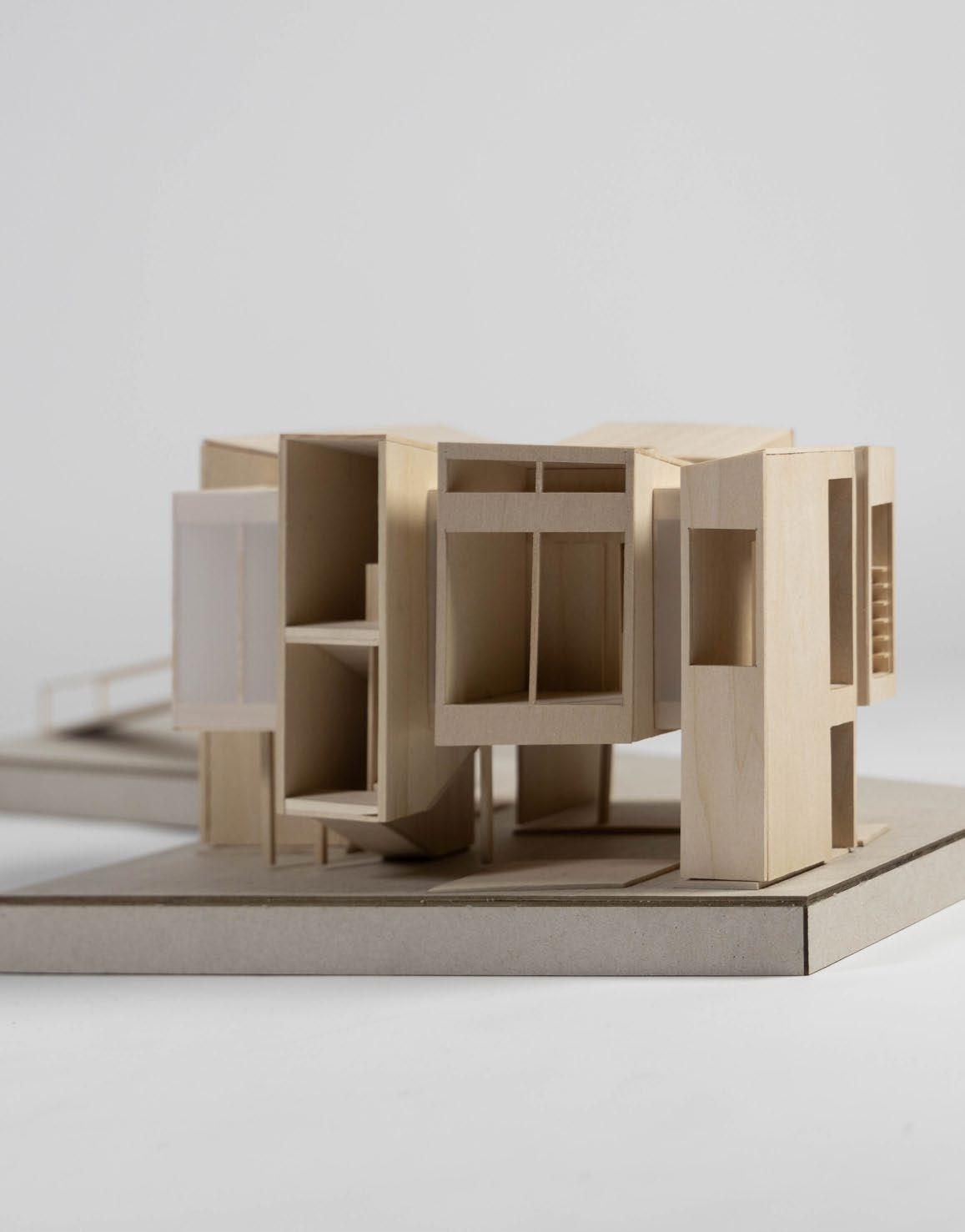

Above: 1/4” Model.

09

10

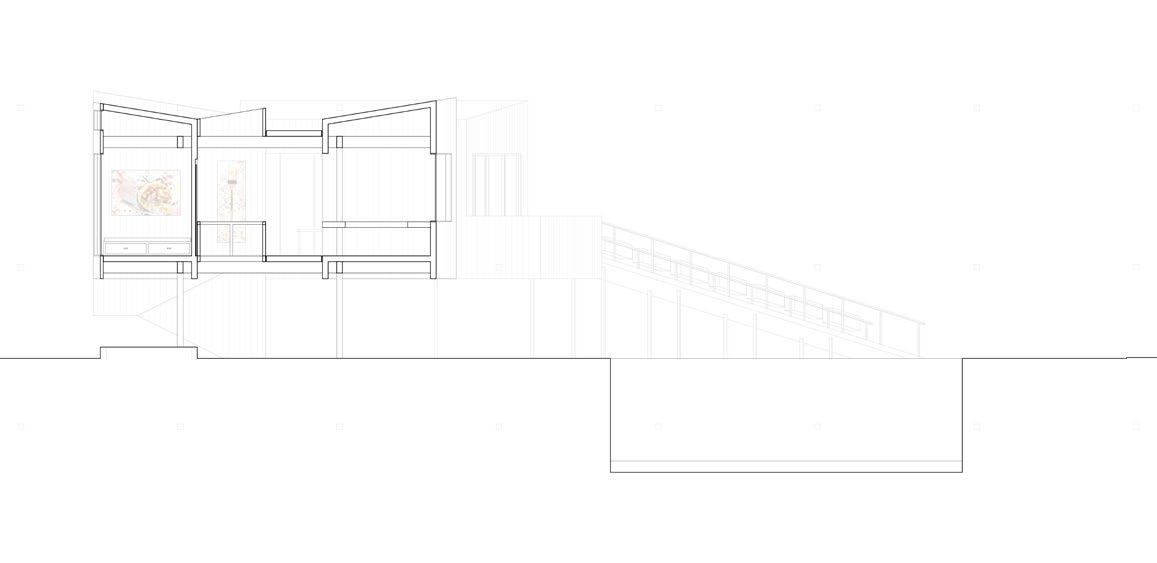

Top: Sections. Rhino, Illustrator

Bottom: Plans. Rhino, Illustrator

11

The program volumes within the home support the clients every-day needs: a spice-rack room, a kitchen, a bedroom, a bathroom, and a large dining room for the large weekend gatherings.

12

Above: 1/4” Model.

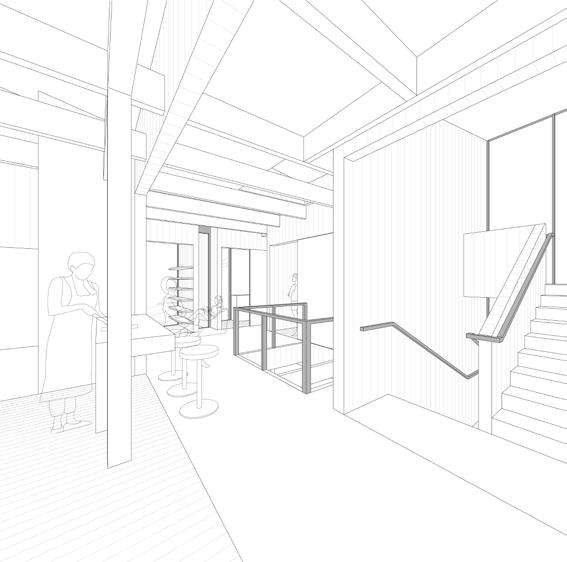

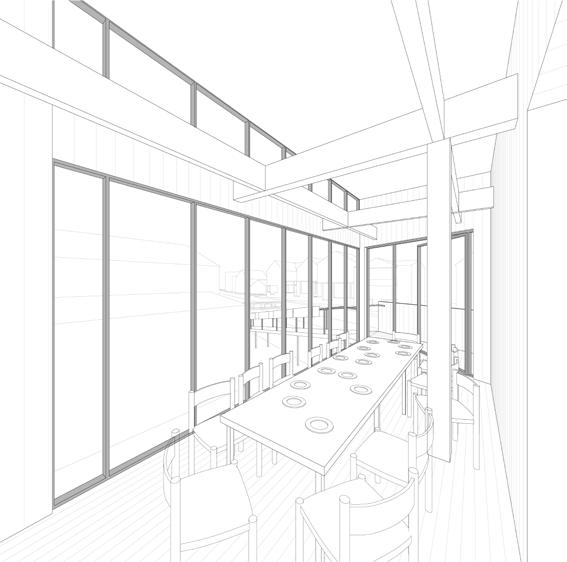

Above: Interior Perspectives. Rhino, Illustrator

13

LOOP

SP ‘22

16

Previous: Interior View, Towards Courtyards. Rhino, VRay

LOOP interrogates traditional approaches to library program in a couple of ways: building structure and book shelving are accomplished with the same system, the library’s plan takes the form of a perforated spiral wall, and floor elevation changes gradually. The result is a layered, porous plan.

LOOP

These organizational and material approaches are quirks informed by assigned architectural and material precedents. The precedents in question were Musashino Library (organization/ parti), Cervantes Pavilion, and the Serpentine Pavilion by Toyo Ito (two different applications of plate steel structure).

SITE AUBURN, NY

Left: Exterior View, Within Arcade. Rhino, VRay

ARCH 2102 | SPRING 2022 INSTRUCTOR DAVID COSTANZA

PROGRAM LIBRARY SIZE 25,000 SQ FT

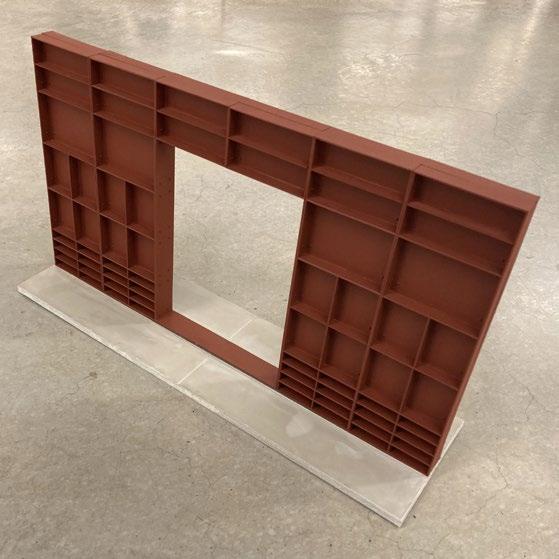

Right: Wall Assembly Diagram + 1/2” Model.

17

A spiral is fit to the site, expanding and contracting in response to program needs. The spiral wall is periodically punctured, producing a ‘spongy’ spatial condition. Program within the building varies in elevational increments of 2 feet, introducing more complexity in the relationship between rooms that are already connected together with various portal types. This condition is made accessible via the outer, ramped hallway-ring.

18

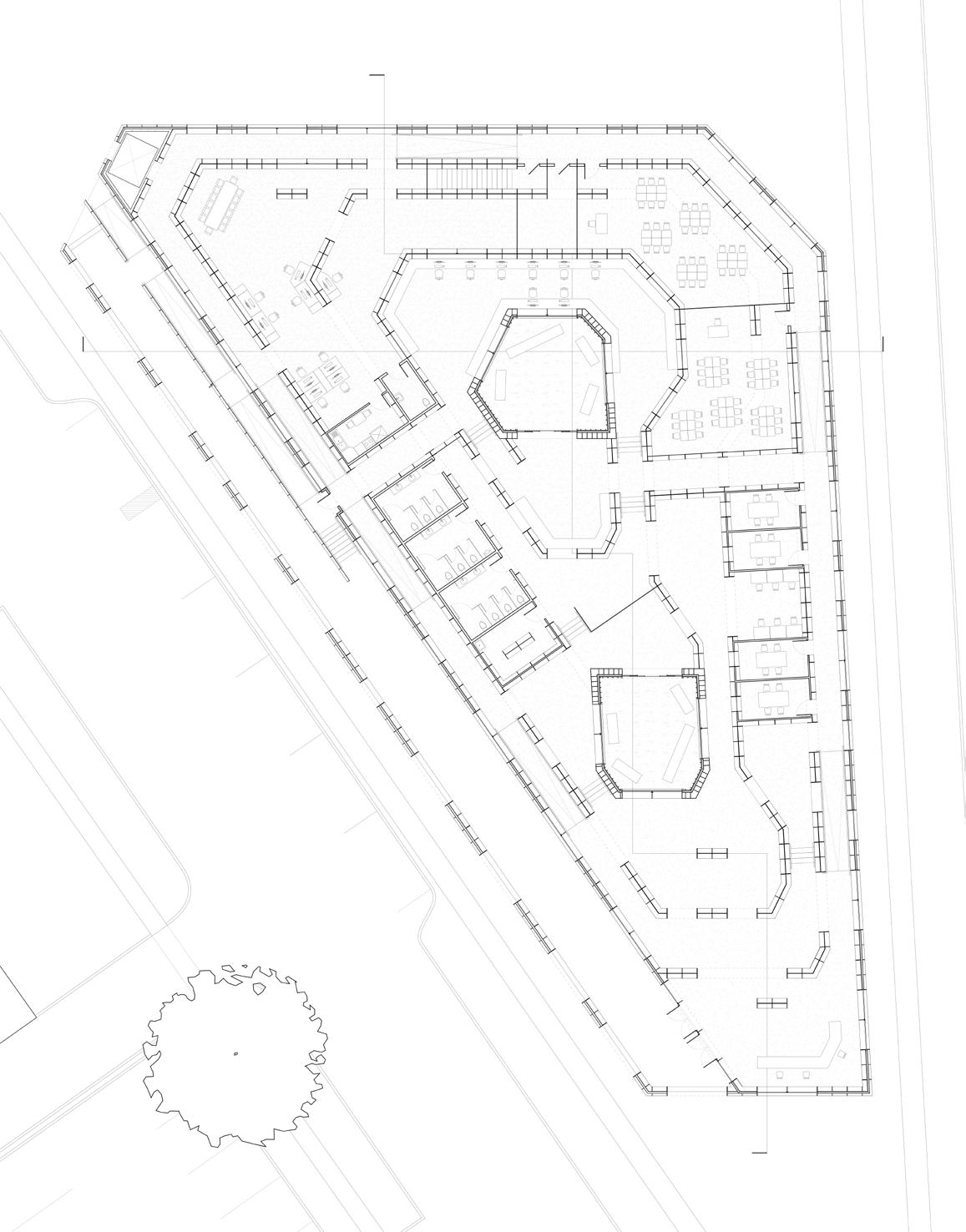

Above: Plan. Rhino, Illustrator

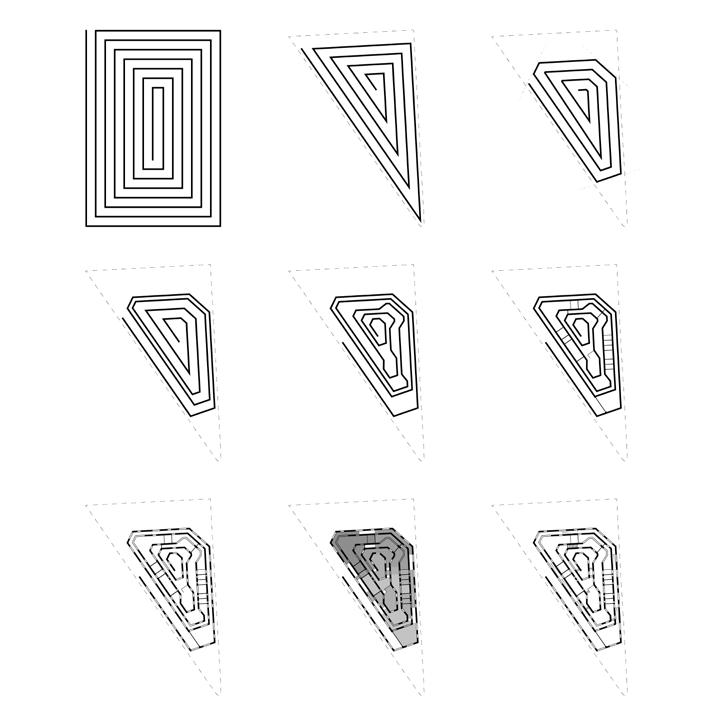

Top: Taxonomy Diagram. Rhino, Illustrator

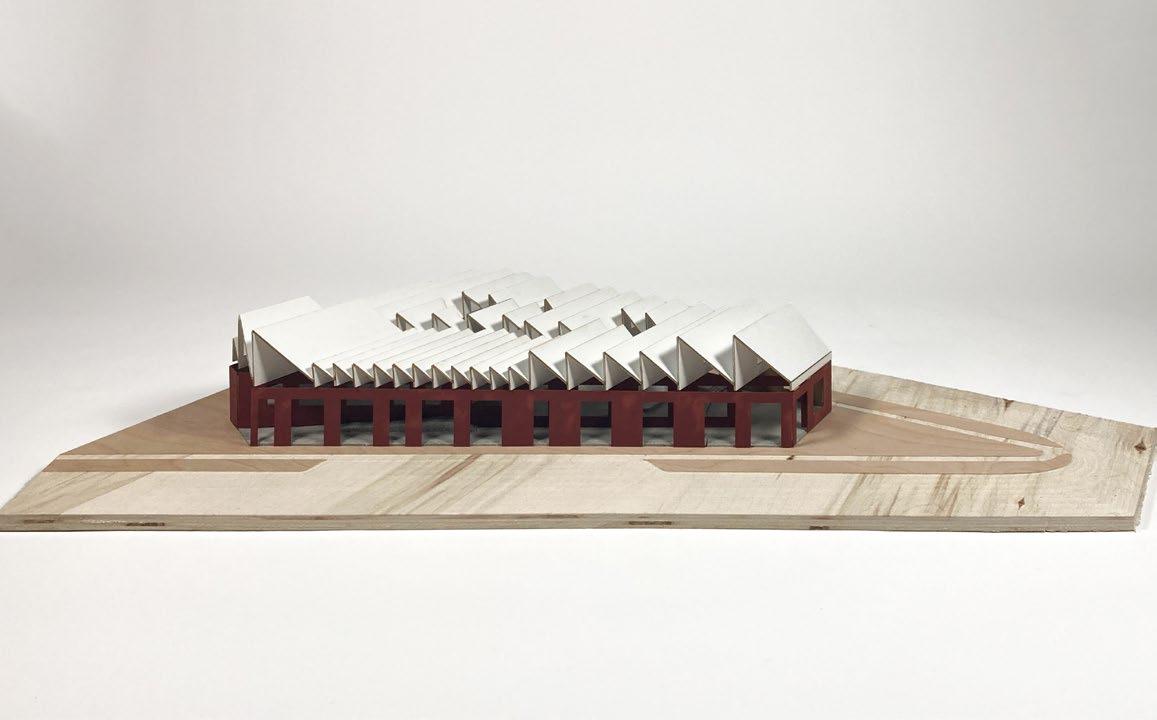

Bottom: 1/8” Model Chipboard, Alphacore, Rockite, Plywood

19

Atop the spiral wall lies a saw-toothed roof, an independent system that addresses daylighting concerns. This secondary system is distinct from the latticed load-bearing walls in aesthetic and construction, opting for a white painted waffle-sandwich steel structure. This allows for diffuse northern light to provide consistent lighting conditions in deeper layers of the spiral. Sawteeth are sized according to the lighting needs of the program conditions beneath them - lobbies have larger teeth than hallways or administrative space. Two courtyards sit at the innermost portions of the plan - these are instances where this system folds inwards, allowing for bright anchor points within the plan.

20

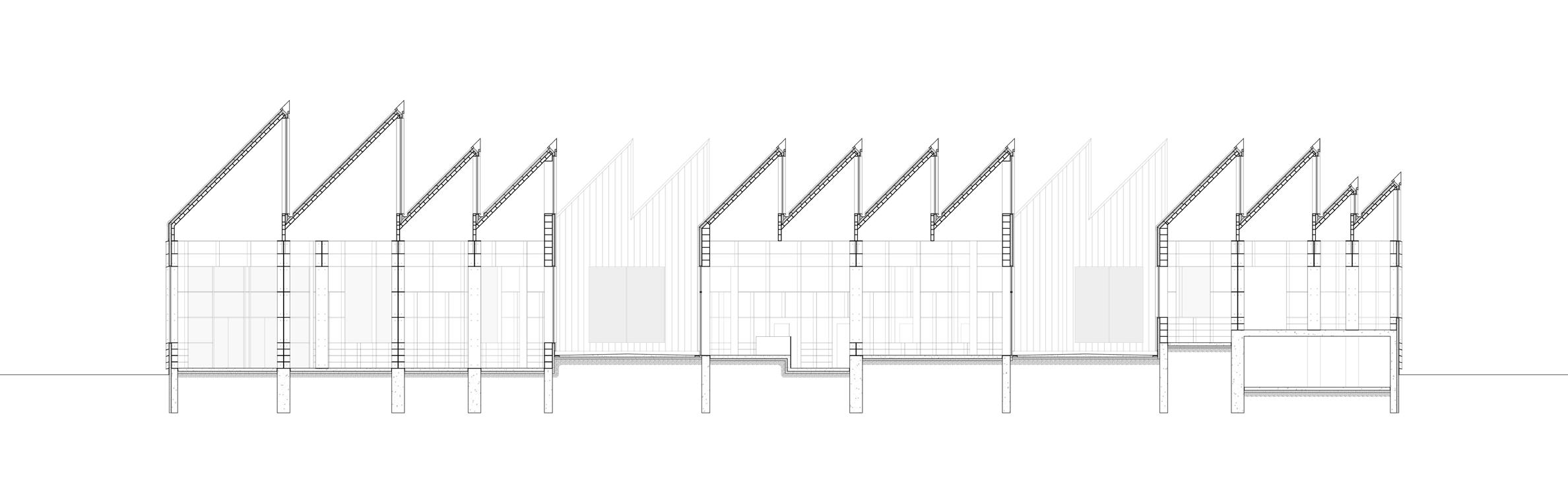

Top: Section. Rhino, Illustrator

Bottom: 1/8” Model.

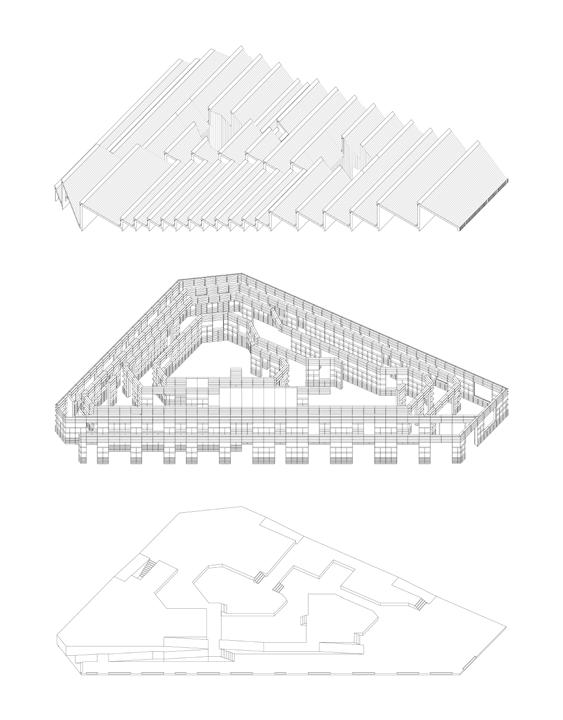

Bottom: Exploded Isometric. Rhino, Illustrator

21

The latticed steel modules allow walls to simultaneously carry load and be occupied by books. These units are treated with a red-oxide intumescent paint, addressing fire rating concerns and complementing material qualities found around the site.

22

Above: Wall Section. Rhino, Illustrator

Above: Interior Render. Rhino, VRay

23

SUNNYSIDE FLEX

FA ‘24

Spurred by the Local Law 97, NYC property owners are searching for methods of bringing poorly preforming buildings to higher energy standards. At the same time, NYC is struggling with a housing crisis and legislation that put long-time New York residents at risk of displacement. The goal of this studio was to develop effective strategies for energy efficiency and increased density while challenging traditional notions of city living.

Sunnyside Flex is a retrofit of an existing 4-story mass-masonry building built in 1929 and located in Sunnyside, Queens. This retrofit proposes that flexible apartment boundaries create a model for collective living that returns agency to tenants. Taking advantage of two under-built lots and their court-style typology allowed for the development of a shimmering crown with a flexible floor plate, ample day-light and natural ventilation.

26

Previous: 1/4” Chunk Model. Rockite, Basswood, Chipboard, Alphacore, Construction Paper.

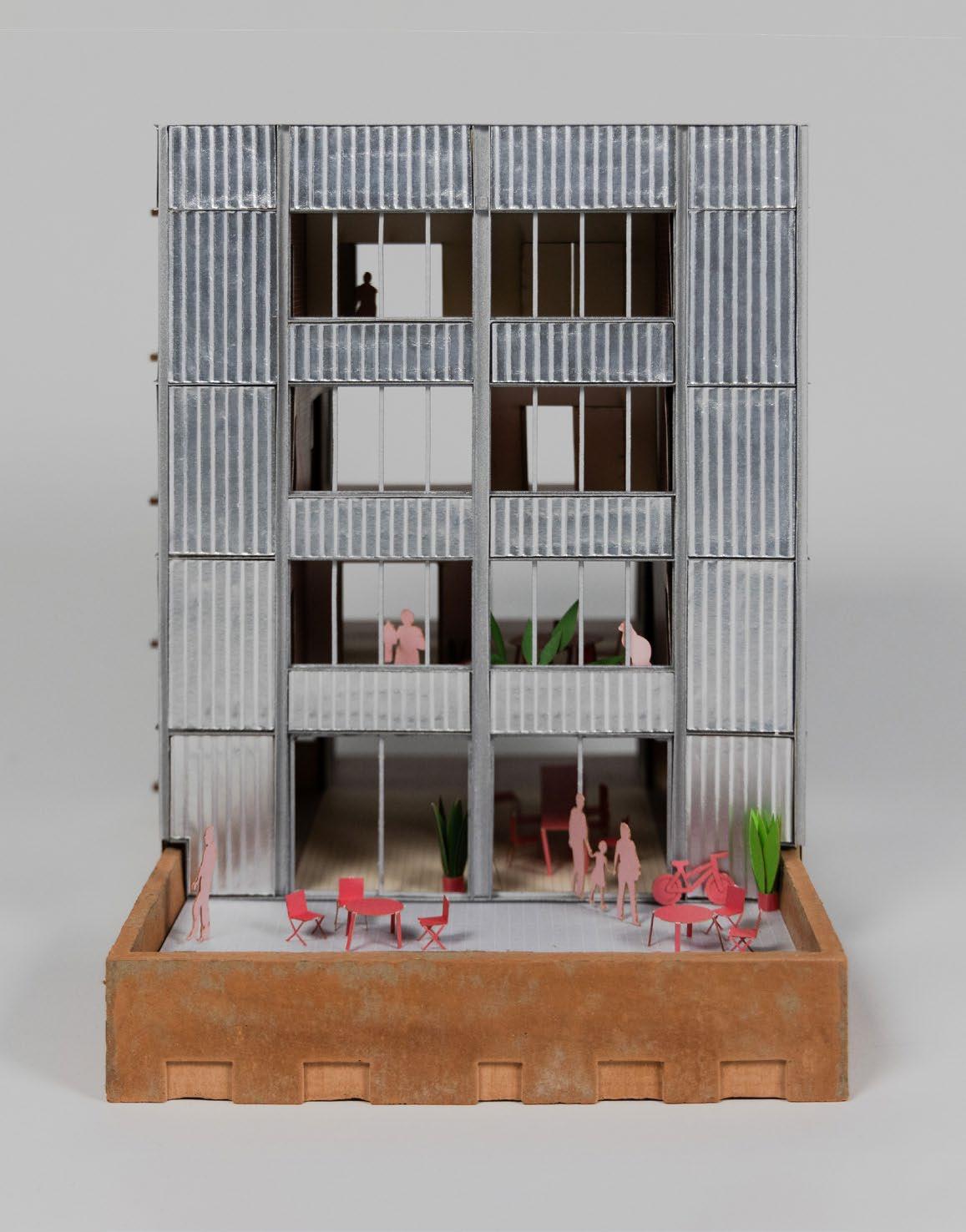

Left: 1/4” Chunk Model.

SUNNYSIDE FLEX ARCH 5101 | FALL 2024 INSTRUCTORS KATHARINA KRAL MARTA WIESNIEWSKA TEAM JESSICA KIM DANILO VELAZQUEZ SITE NEW YORK, NY PROGRAM HOUSING, RETROFIT SIZE 81,500 SQ FT FAR: 3.8 106-86 UNITS

Right: 1/32” Site Model. Alphacore, PLA, Plaster, Construction Paper.

27

NYC’s housing shortage is the result of decades of under-building exacerbated by global financial crises, corporate greed, and other pertinent issues. In response to these conditions and assigned collective living precedents (La Borda + San Riemo Residential Building) ‘blueprints’ for alternative ways of collective living were developed. A conceptual housing prototype manifested as a ‘game-board’ that has tenants working together to decide on where boundaries are drawn.

While the massing was driven primarily by zoning and natural ventilation strategies, the earlier housing prototypes were primary design drivers in the development of the project in plan. Service space is pushed to edges of the envelope with poor day-lighting, allowing for multiple apartment configurations in the space left over.

28

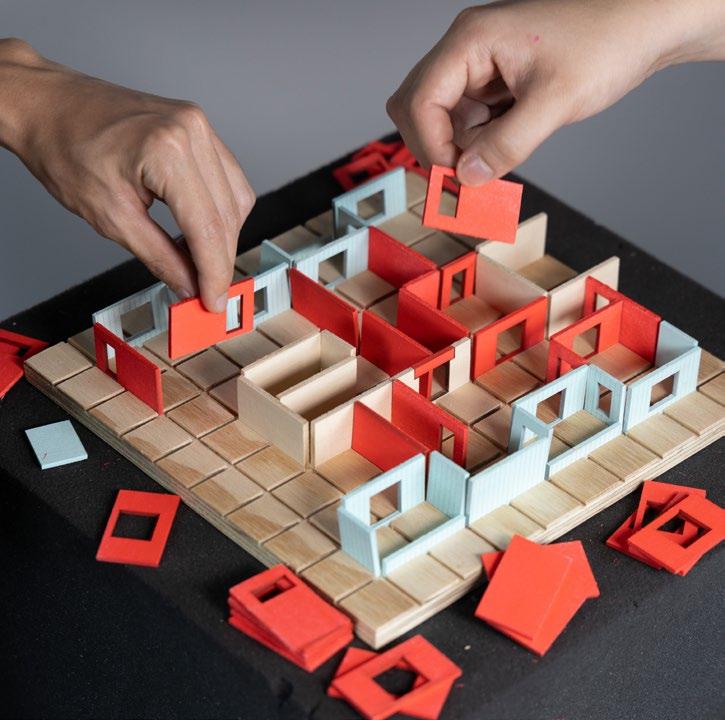

Top: Conceptual Housing Model. Plywood, Basswood, Spray Paint

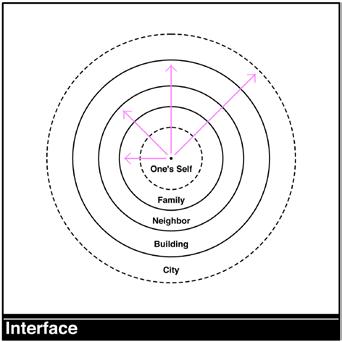

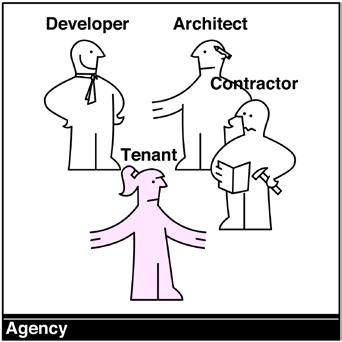

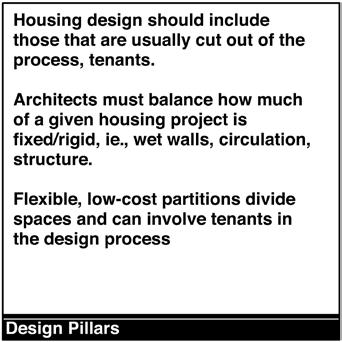

Below: Design Pillar Diagrams. Rhino

Above: 1/4” Chunk Model.

29

30

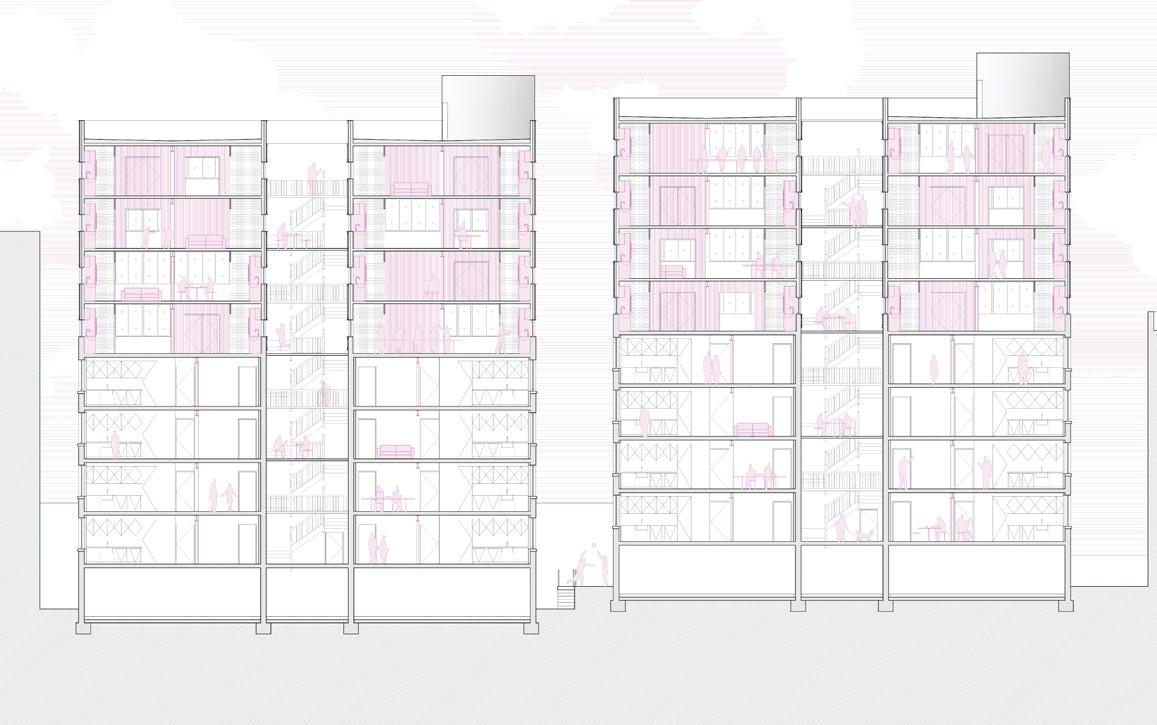

Top: Sections. Rhino

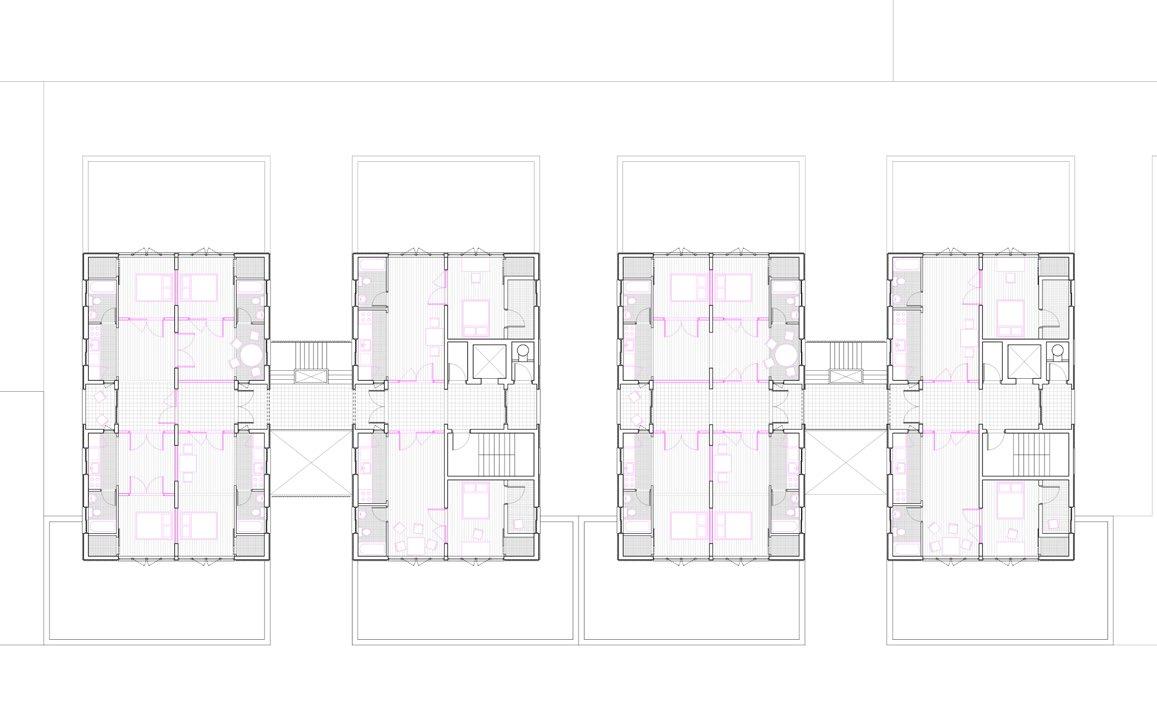

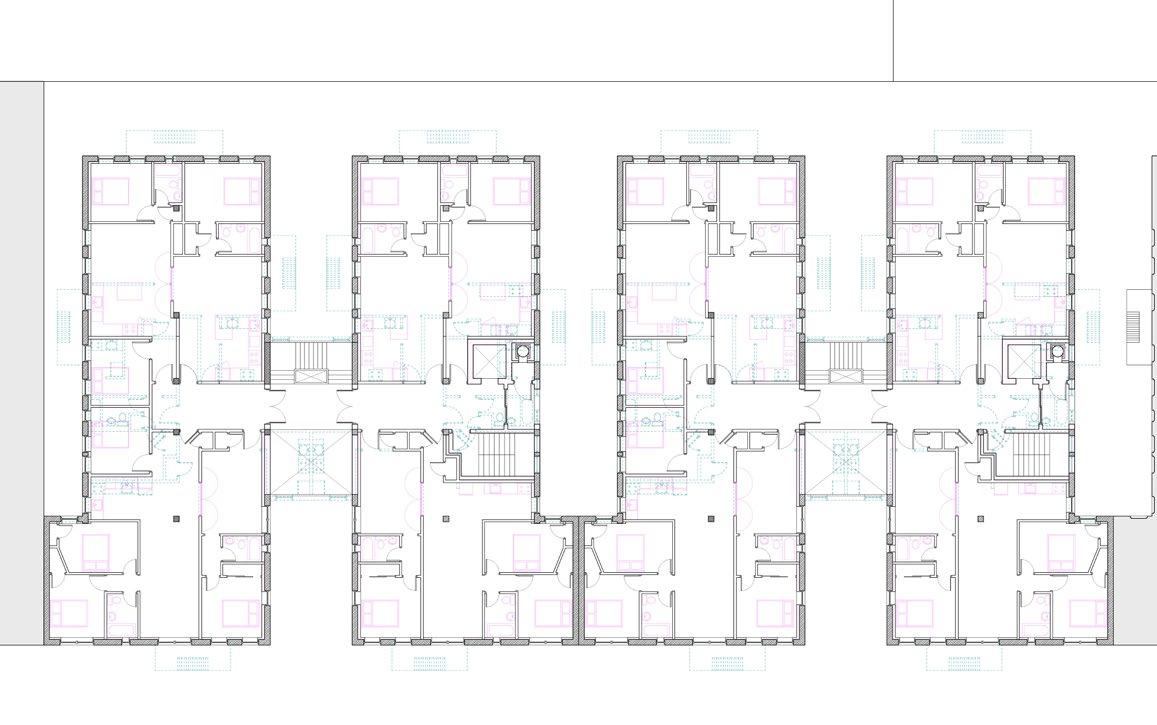

Below: Plans. Rhino

31

The crown’s primary structural system is comprised of DLT panels and maintain existing lines of structure. DLT members establish a sturdy, long-term system that carries load down and allows for lighter-weight partitions to define apartment boundaries. These partitions support shorter-term alterations that might be made to support changing tenant needs. Corrugated 32

Left: Section Detail. Rhino

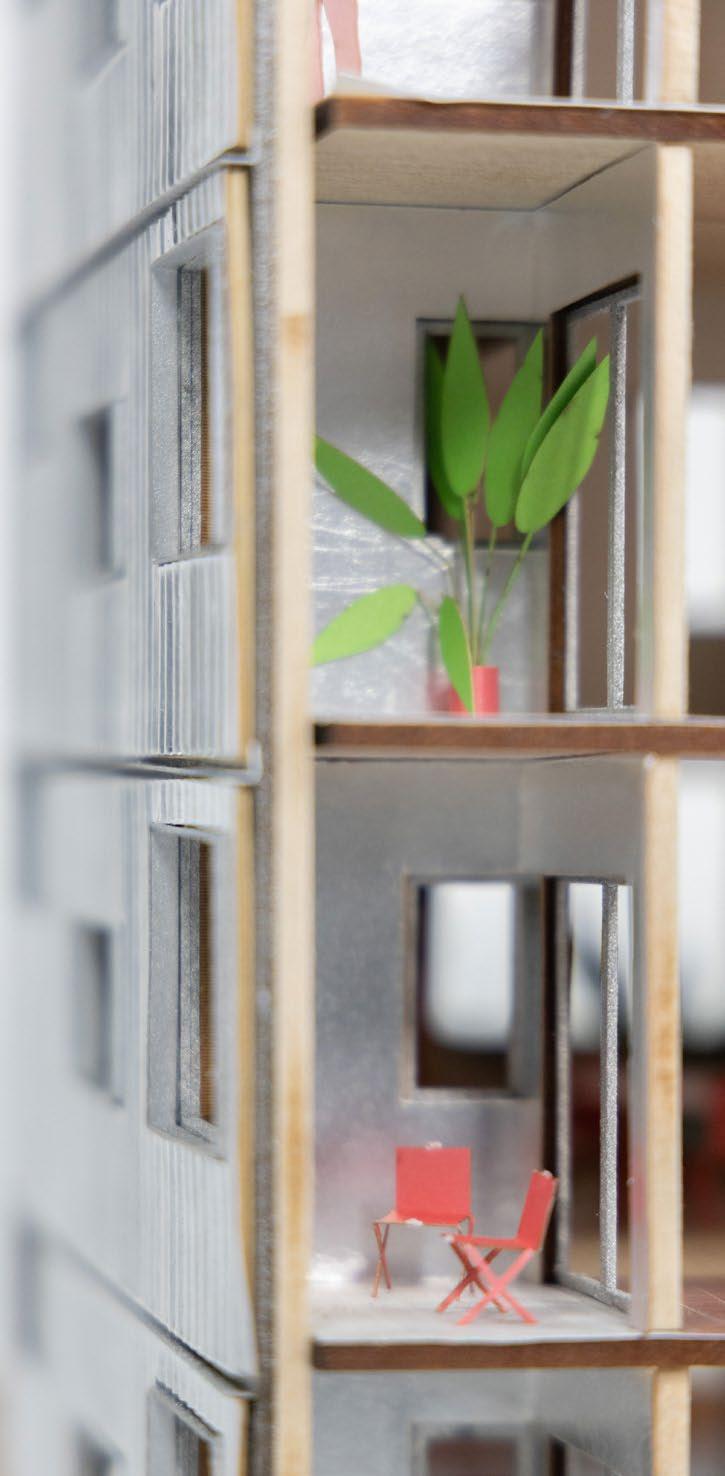

Right: 1/4” Chunk Model.

aluminum cladding indicates that the retrofit challenges traditional means of living while allowing ample room for the envelope to be filled with insulation. The corrugated treatment of the panels and expression of furring creates a more complex facade, a counter to the dull, flat metal panels found in many affordable projects.

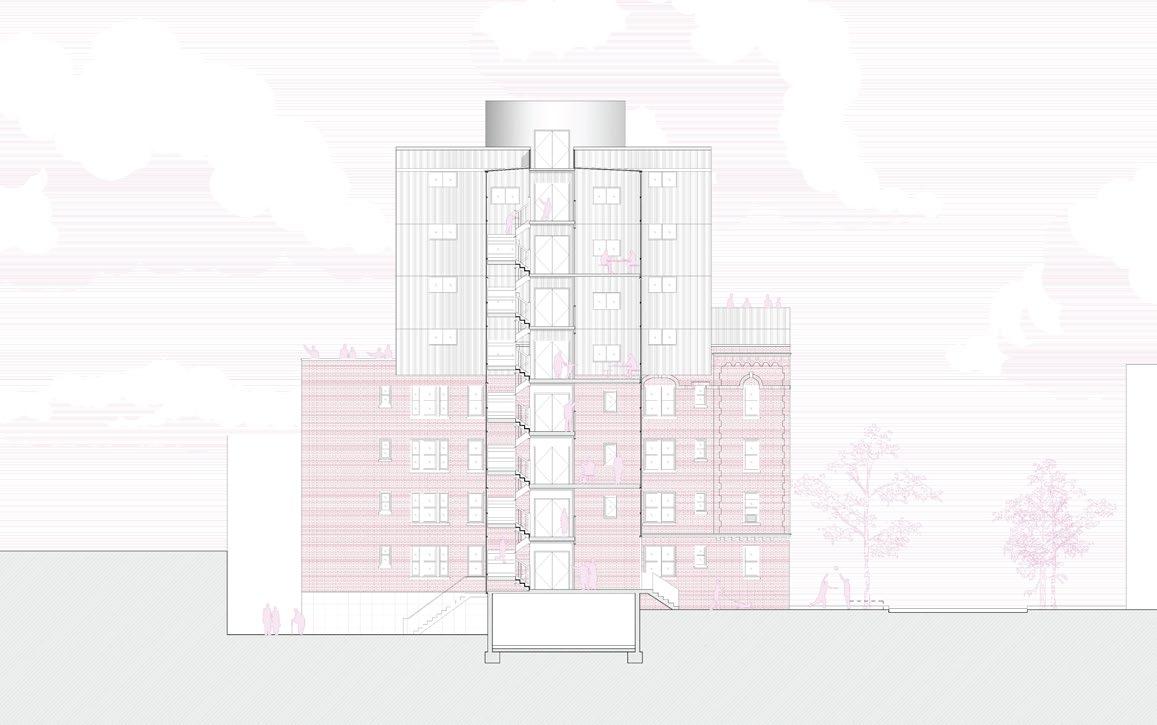

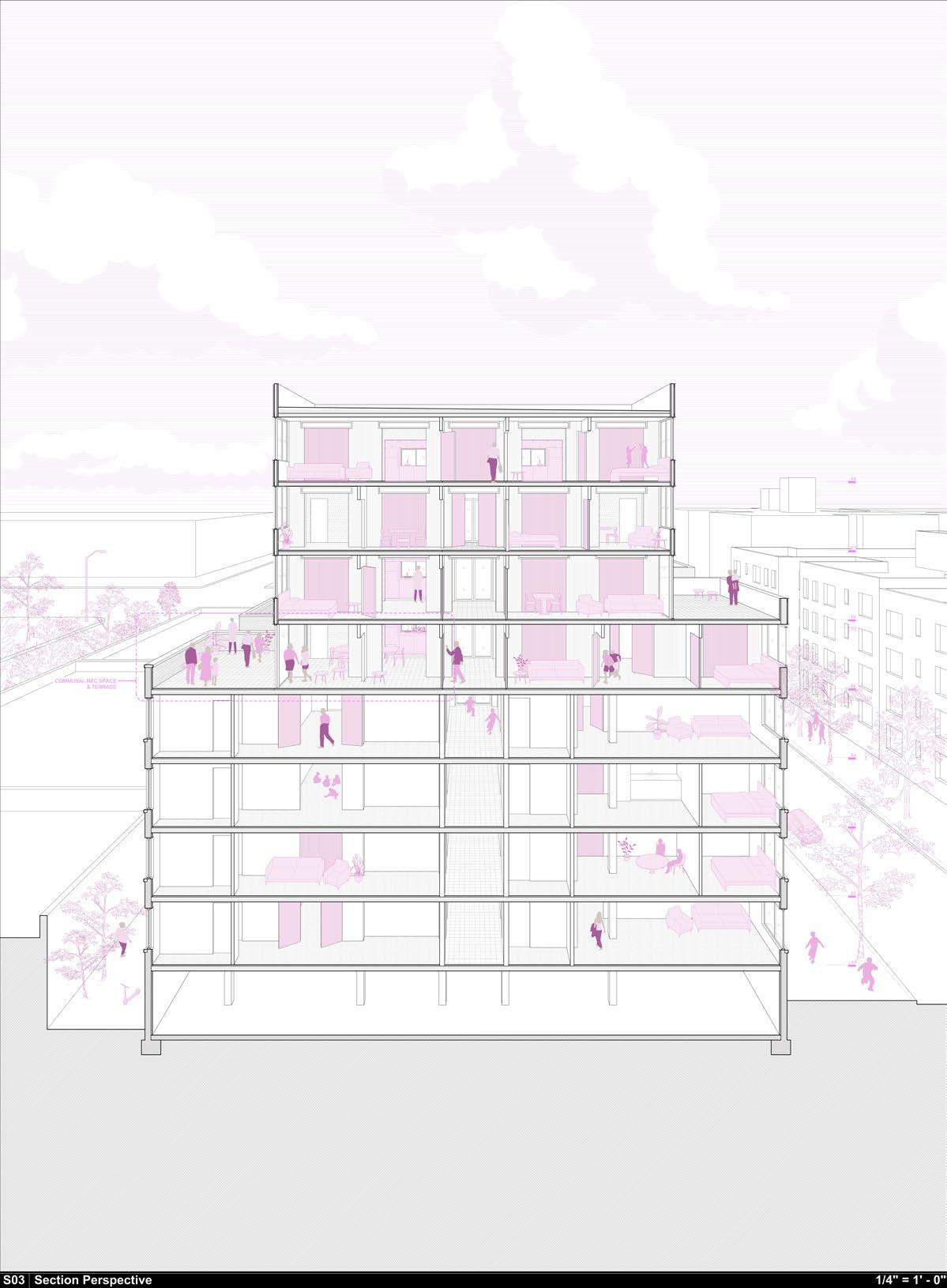

Above: Section Perspective. Rhino

33

34

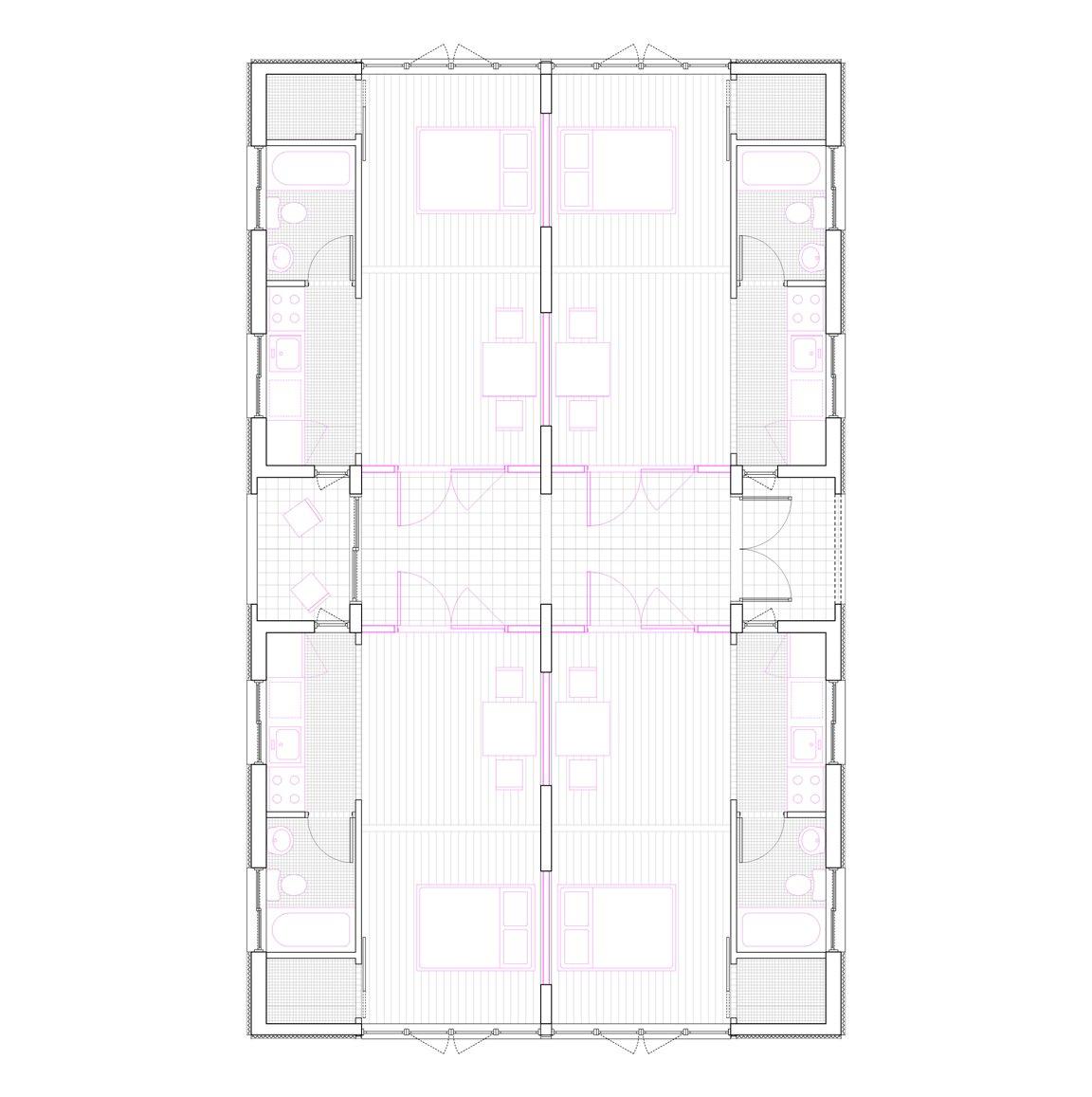

Above: Sample Unit Plan. Rhino

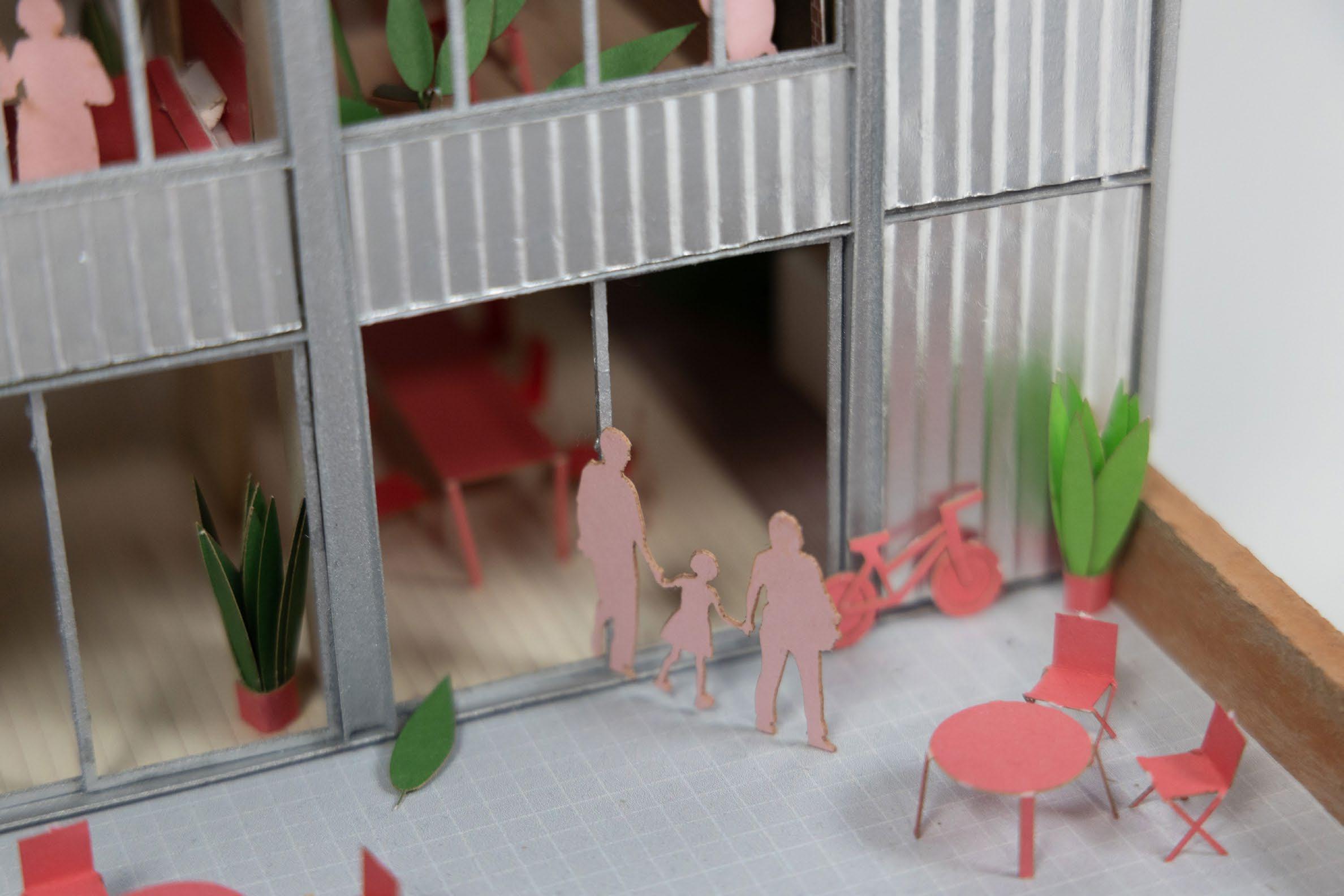

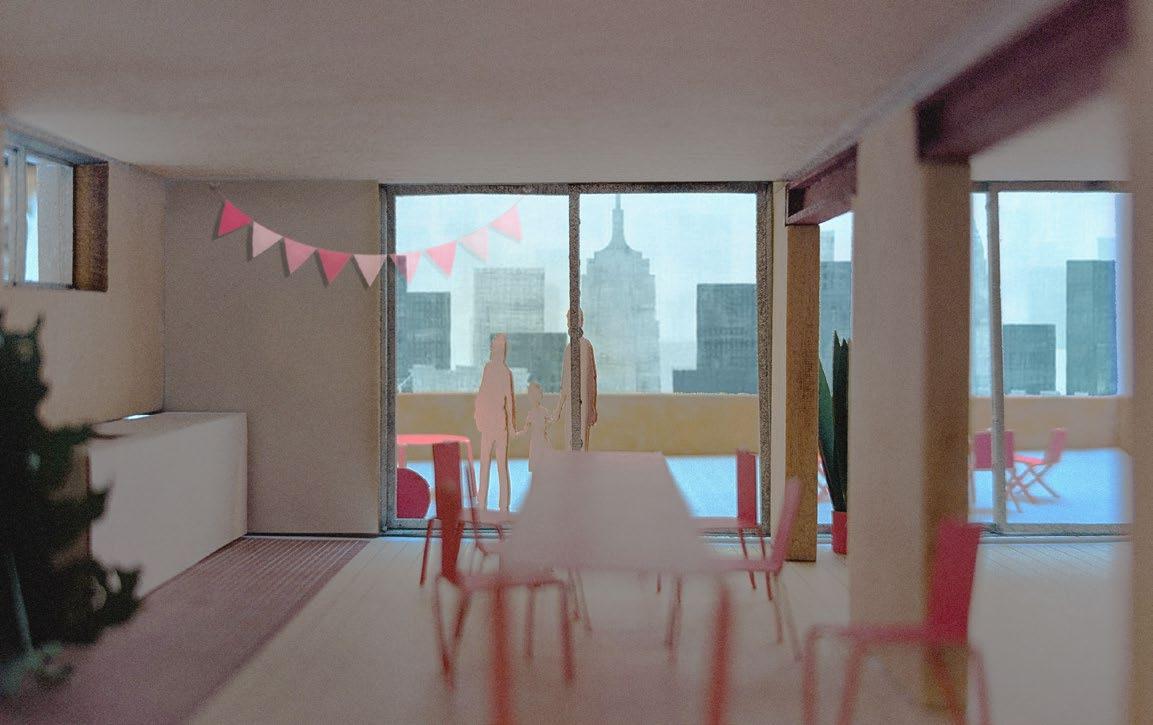

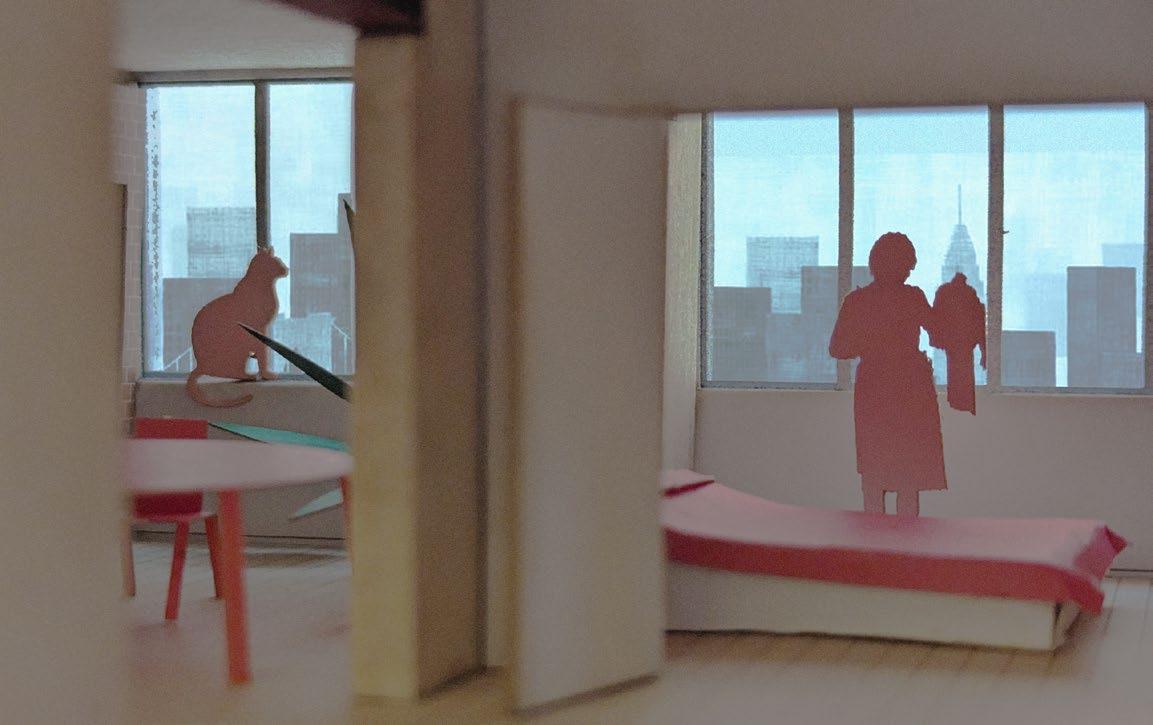

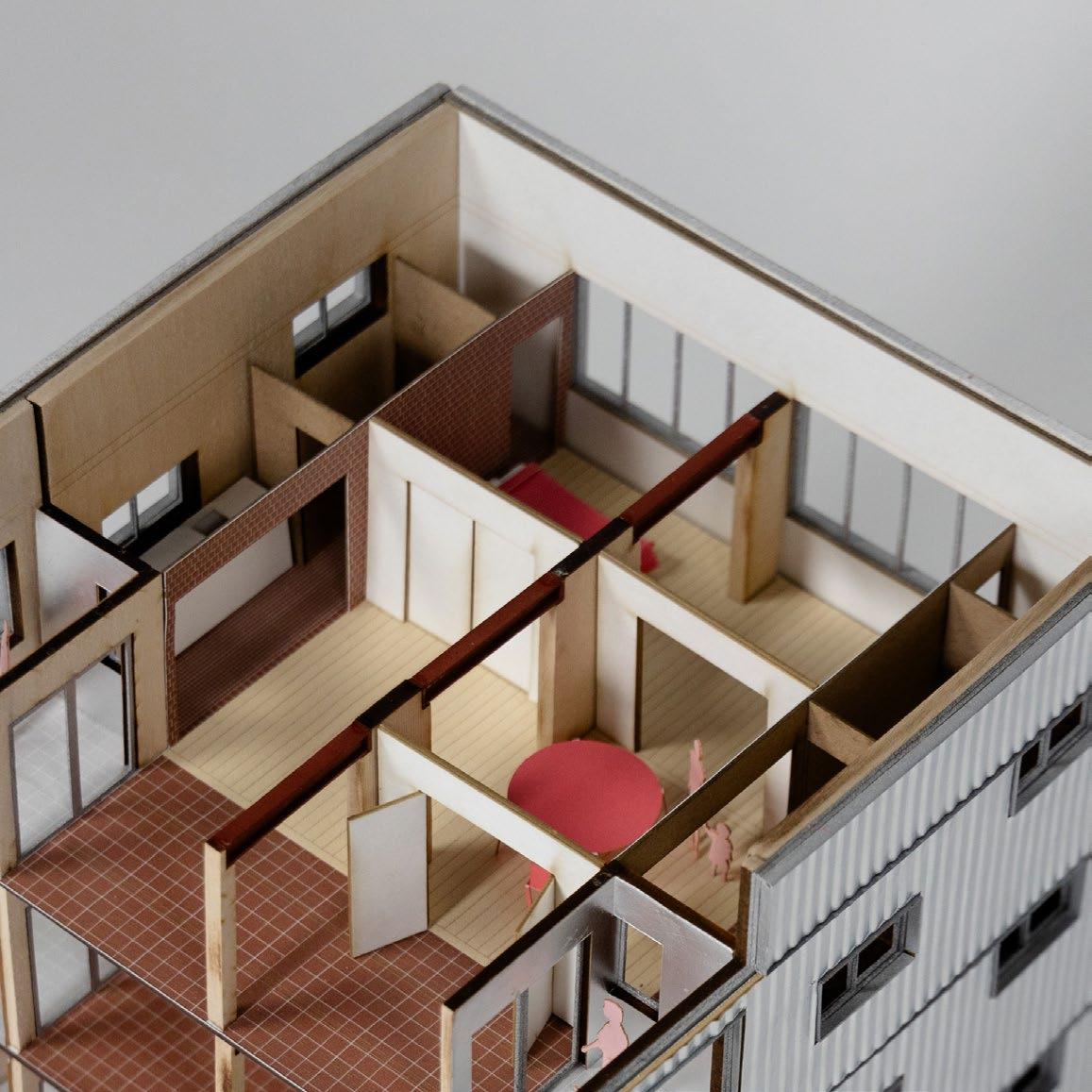

Above: 1/4” Model Interior Perspectives.

35

WALL PARTY

FA ‘23

While it was once a leader in public rec-spaces and pools, many of Philadelphia’s are in a state of disrepair due to a lack of funding.

Spurred by a large pool of funding created by a soft-drink tax, the city’s parks and rec spaces are currently undergoing extensive updates to their facilities.

38

Previous: 1/16” Model. Basswood and Chipboard.

WALL PARTY ARCH 4101 | FALL 2023 INSTRUCTORS FLORIAN IDENBURG KARILYN JOHANESEN

What does recreation mean to us today?

How can we define new relationships between evolving notions of play?

TEAM STEFFIE CHAN DANILO VELAZQUEZ

This rec-center redesign attempts to respond to these questions, positing that recreation in modern times has evolved to include the non-physical or even acts of ‘labor.’ As such, this space of recreation aims for a condition of continuous rooms and atypical programmatic adjacencies.

SITE PHILADELPHIA, PA

Left: Courtyard Visualization. Rhino, Photoshop

PROGRAM RECREATION CENTER SIZE 68,000 SQ FT

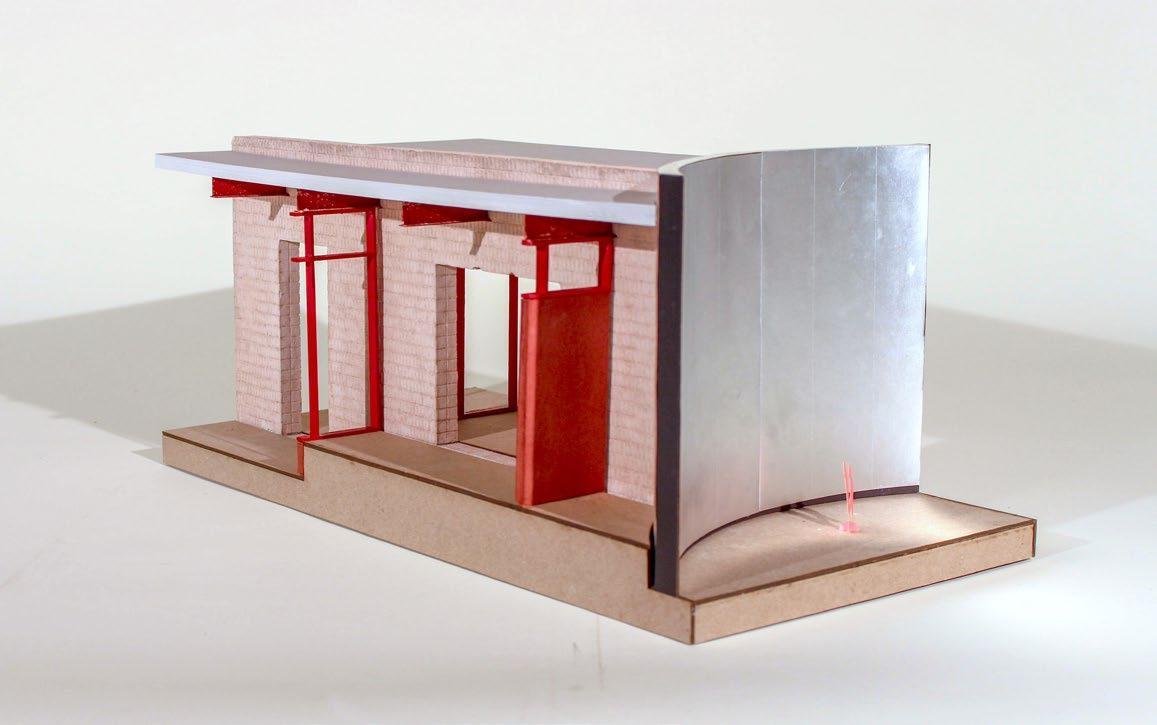

Right: 1/2” Detail Chunk Model. Plaster, Chipboard, Basswood

39

Several thick pink CMU walls are stretched across the site, continuing pre-existing lines of structure. Larger gaps between these walls are flexible spaces with varied elevational relationships. These are supported by smaller service spaces that might contain kitchens or workshops. Portals are cut into these walls as a means to allow for rooms to bleed free40

ly into one another. Partitions are positioned transverse to the walls and are materially porous/transparent, used to define boundaries for program. A glimmering aluminum bean materializes within and disrupts this system as a means to ground one’s self in plan.

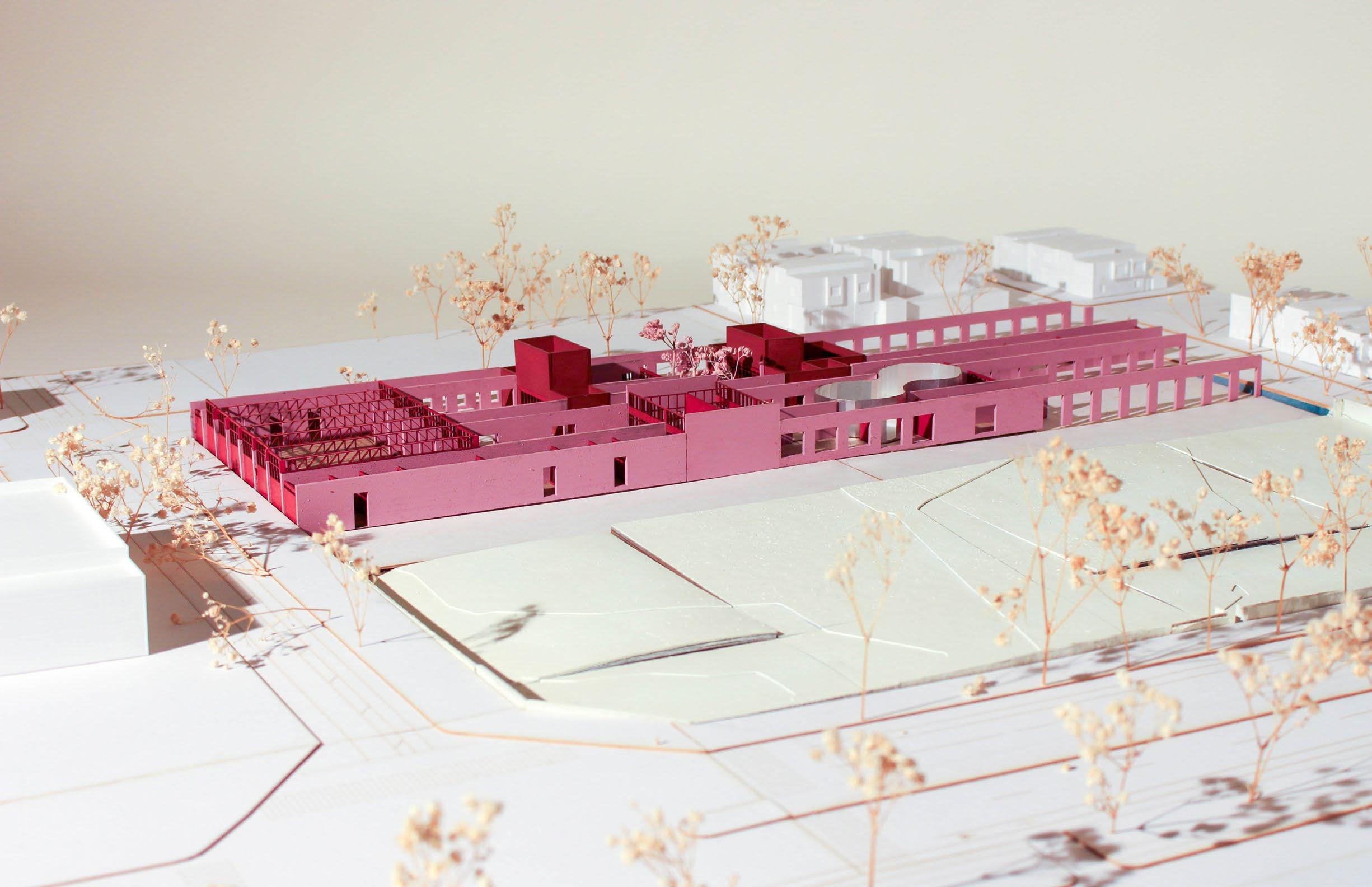

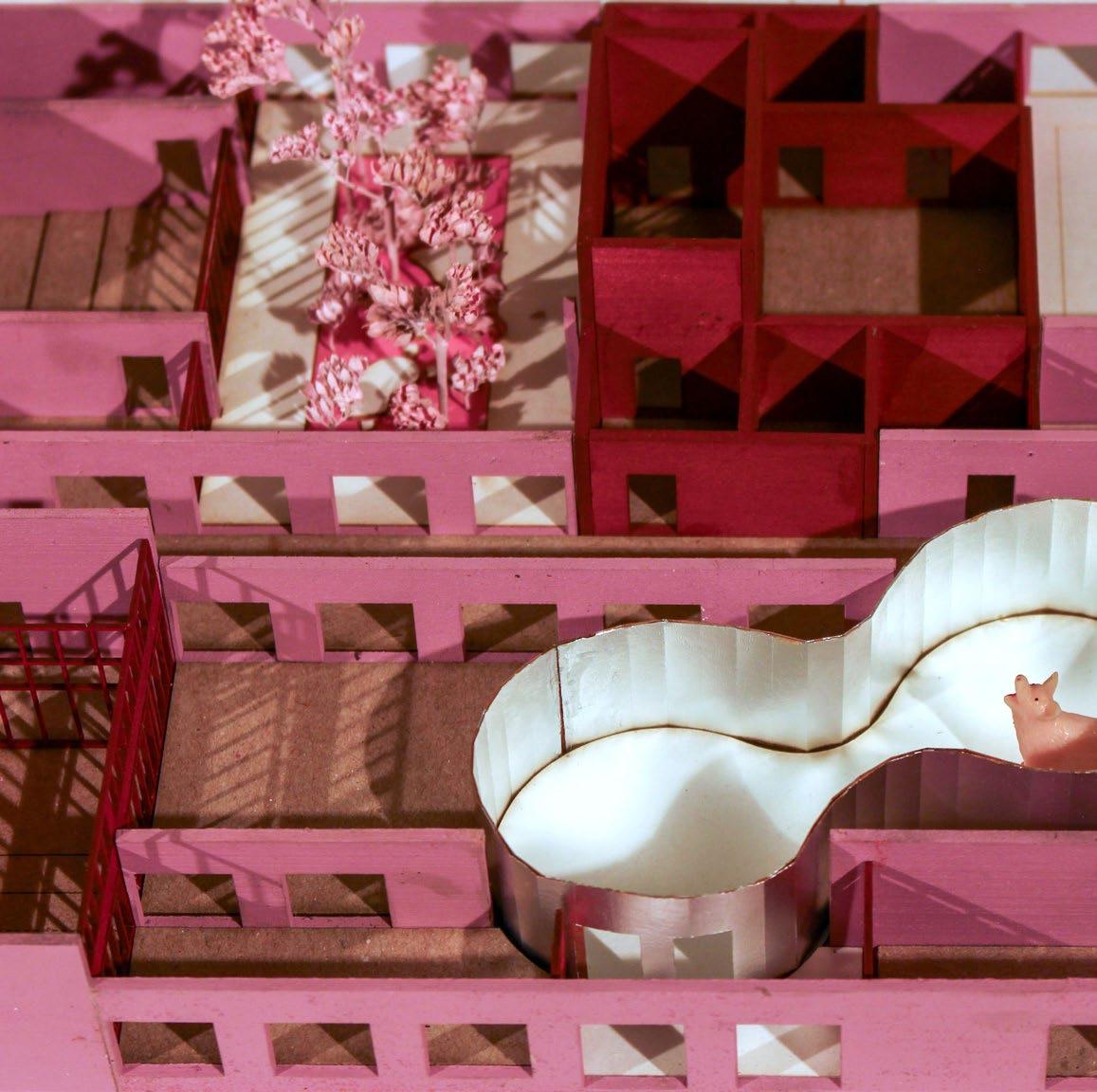

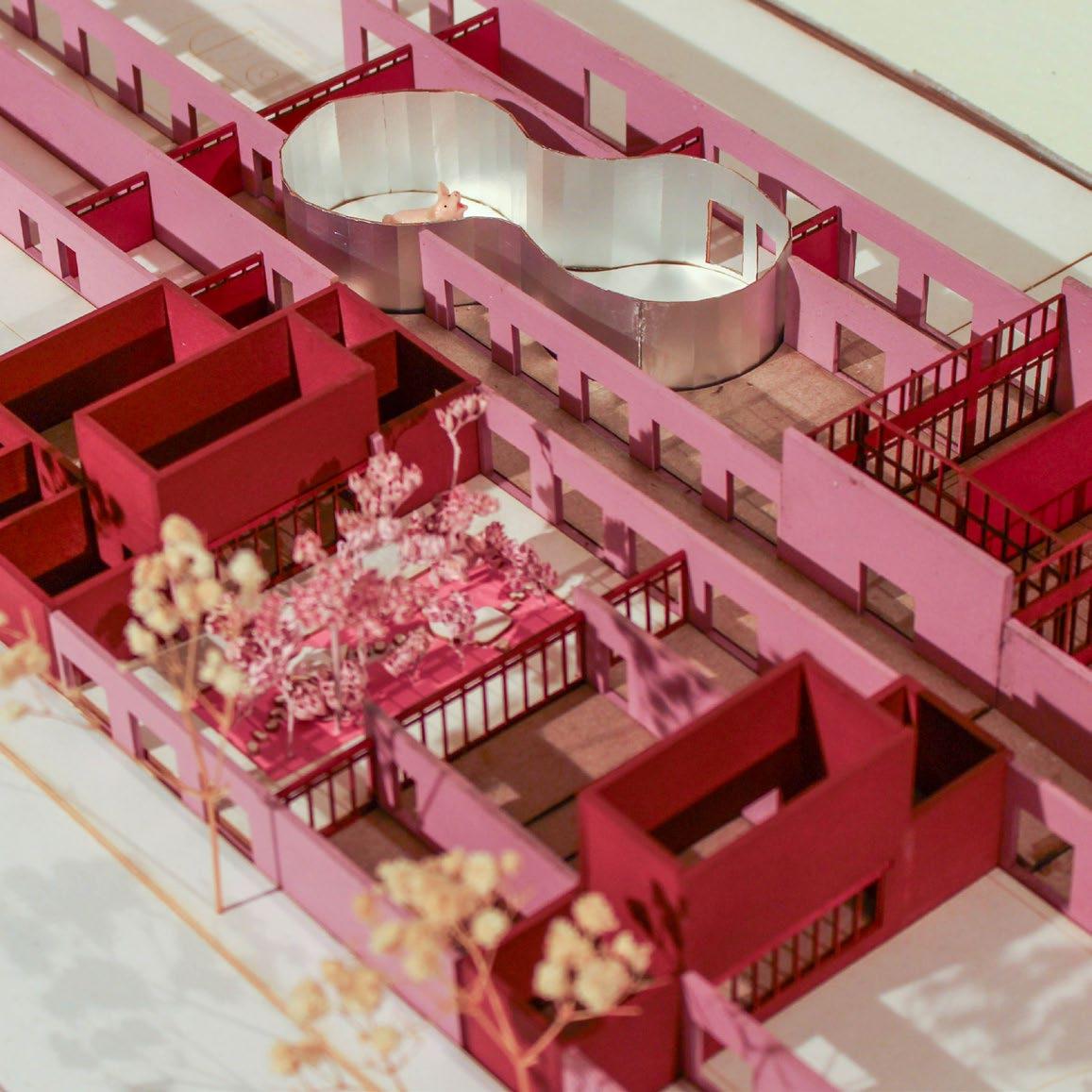

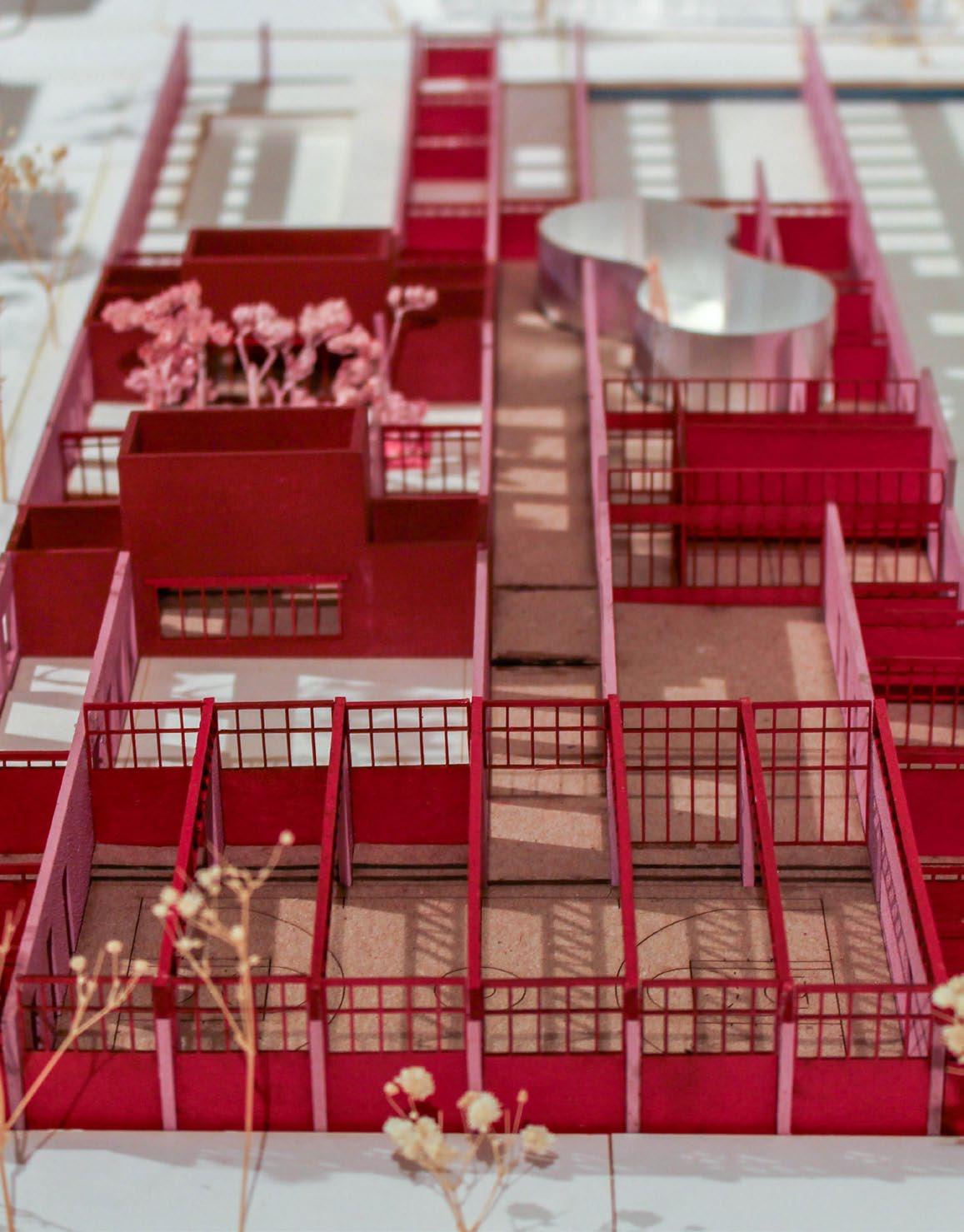

Above: 1/16” Model. Spray Painted Basswood and Chipboard

Above: 1/16” Model. Spray Painted Basswood and Chipboard

41

42

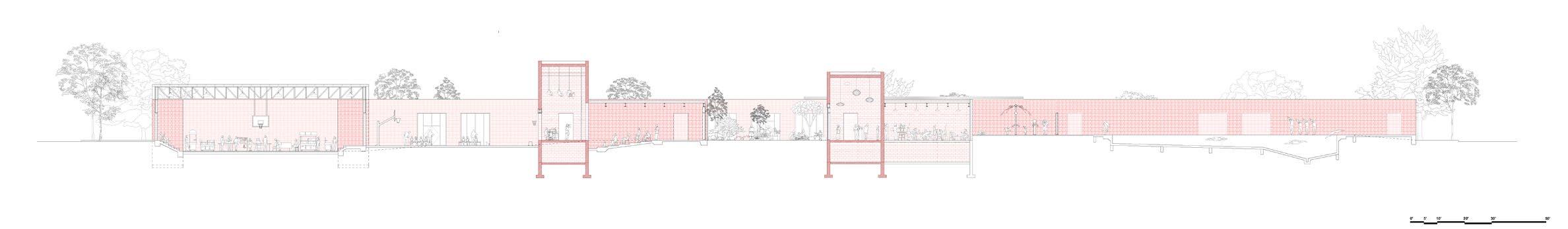

Top: Sections. Rhino, Illustrator

Bottom: Plan. Rhino, Illustrator

43

Walls are constructed out of pink 3-score CMU blocks with a staggered running bond to give the wall the appearance of an infinite plane - grout disappears and all that is left is a whimsical pink wall.

44

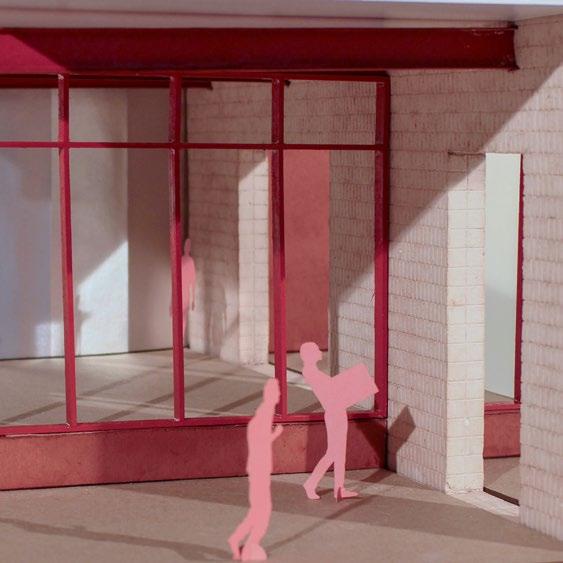

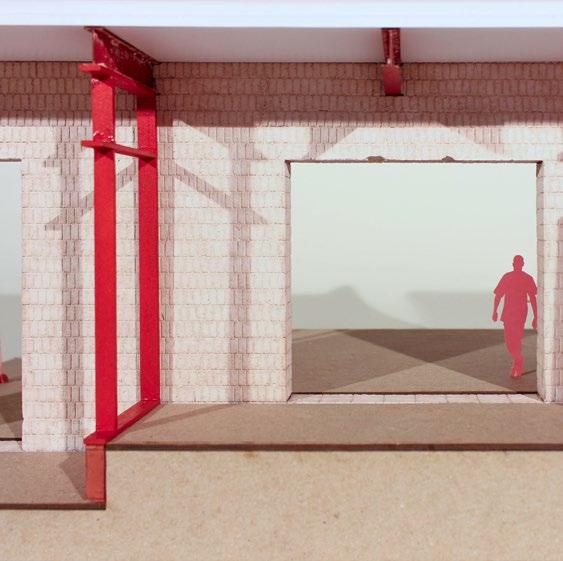

Above: 1/2” Detail Chunk Model. Plaster, Chipboard, Cardstock

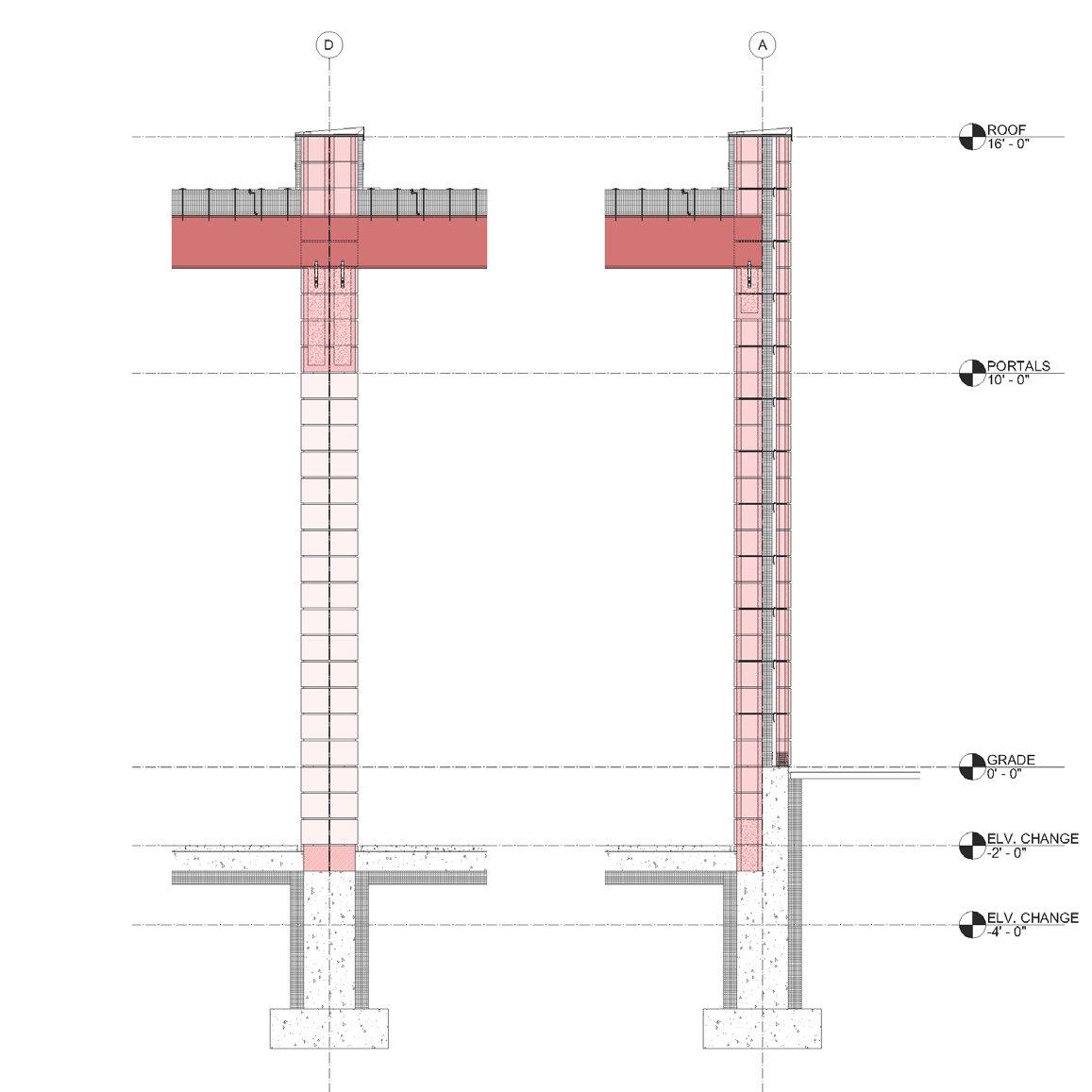

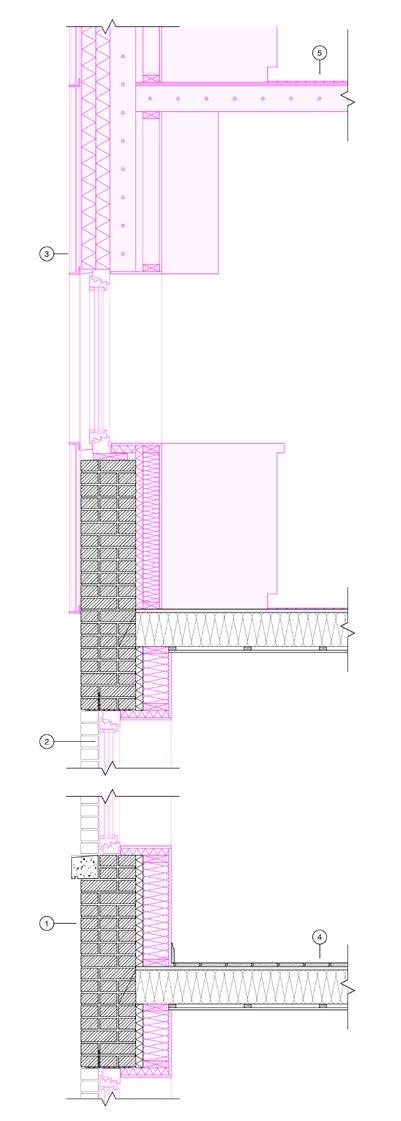

Above: Wall Section. Rhino

45

46

Above: 1/16” Model. Spray Painted Basswood and Chipboard

Bottom Left: Existing Site. Google Earth

Above: Interior Visualizations. Rhino, Photoshop

47

POLYCARB HOUSE

‘22-’24

Located west of Cayuga Lake, Polycarb House was initially acquired in a weathered, dilapidated state. A result of poor building construction practices, entire edges of it’s envelope were uninsulated, floors were heavily warped, and ledger boards rotted.

Nonetheless, this building serves as an example of typical housing stock in Ithaca. As the city steers towards it’s 2030 goal of carbon neutrality, strategies for retrofitting/adapting housing stock play a crucial role in lowering carbon emissions. Polycarb House positions itself as a first pass at identifying scalable & efficient tactics that aim to bring poorly performing homes to higher energy standards.

POLYCARB HOUSE PRACTICE DAVID COSTANZA STUDIO PRINCIPAL DAVID COSTANZA TEAM DANILO VELAZQUEZ ANDREYA ZVONAR SITE ITHACA, NY PROGRAM RESIDENTIAL - 4BD 4BR SIZE 5,400 SQ FT STATUS 2022 - ONGOING

50

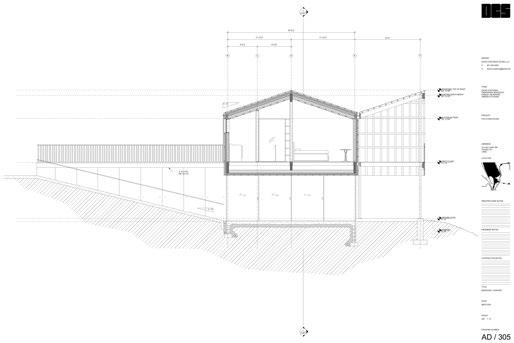

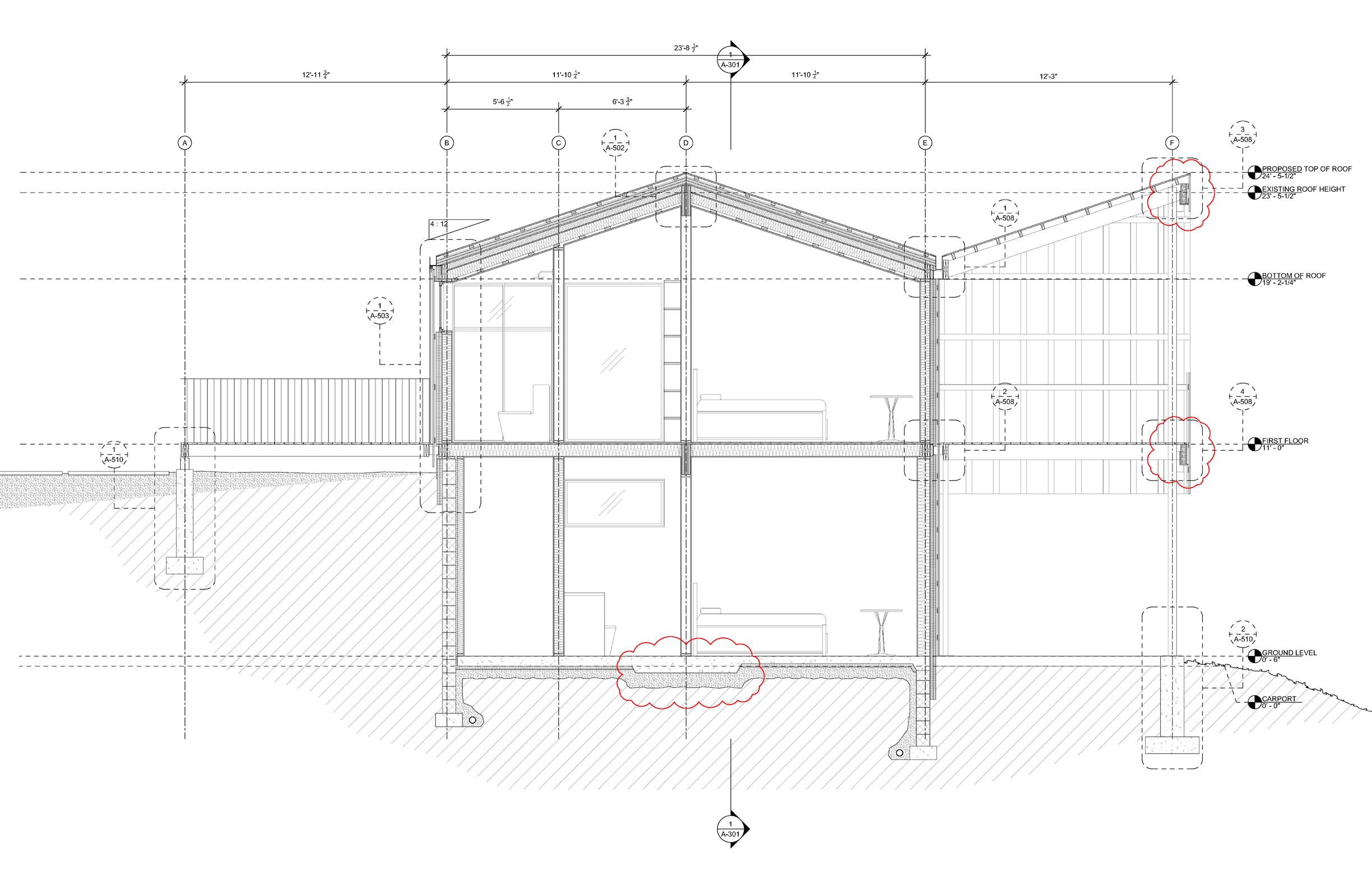

Previous: Short Section thru Bedrooms. Rhino

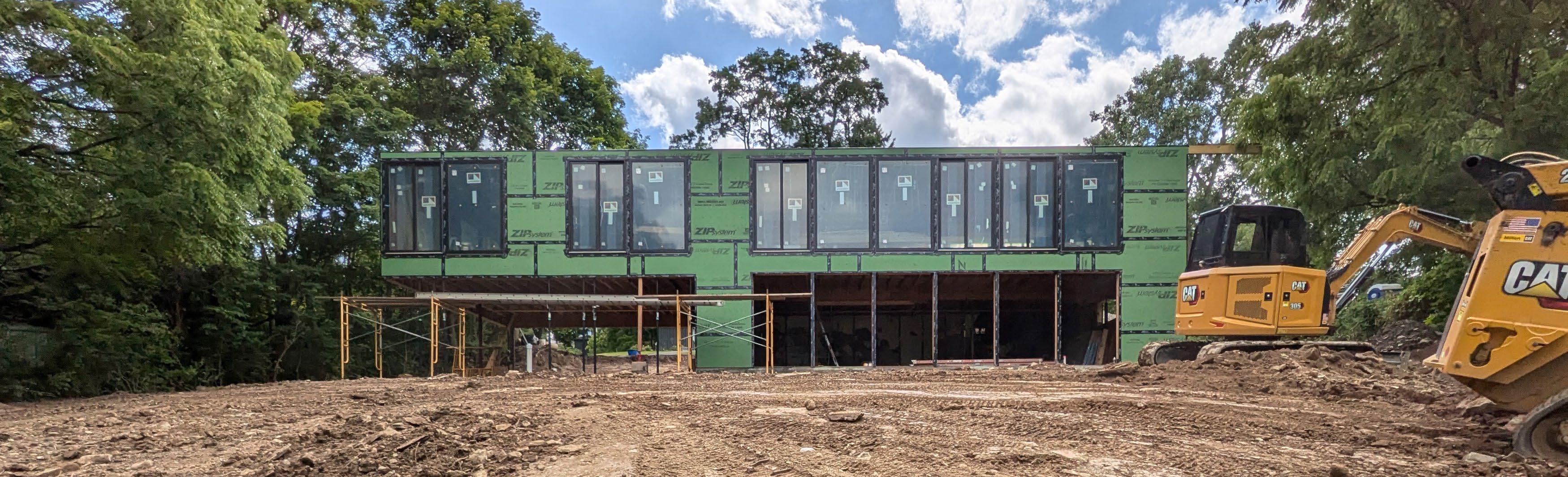

Left: Photograph, in situ.

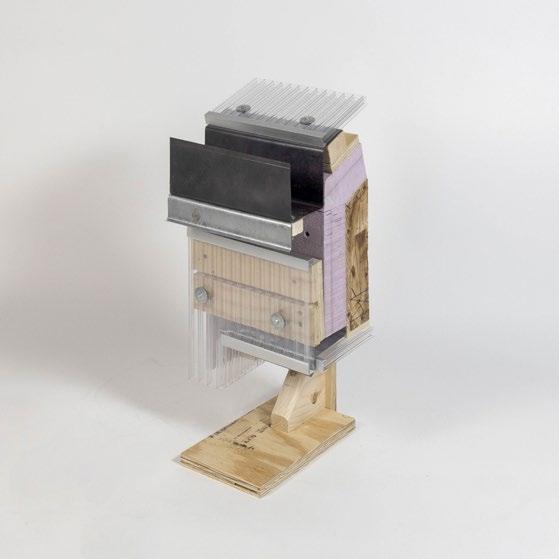

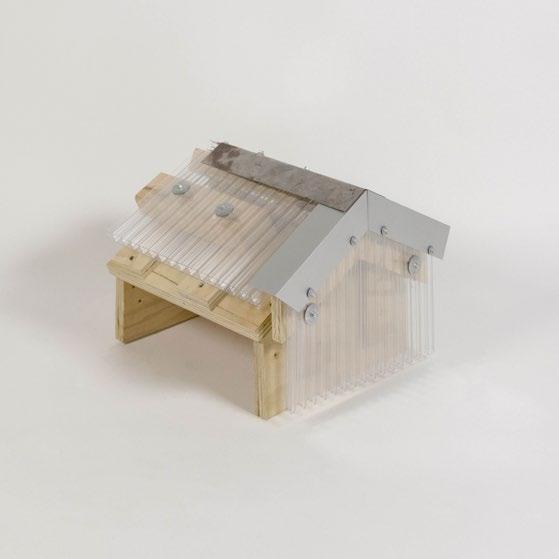

Right: 1:1 Detail Chunk Models. Built by Andreya Zvonar

51

Polycarb House maintains the original structure’s pitchedroof form, but is clad in a polycarbonate shawl. This rainscreen cladding system is an exploration into emerging building technology and is one of the first in New York state. It’s interiors register the the pitched roof form, allowing for a series of program bars (wet, circulation, living) to share the same cathedral ceiling condition.

52

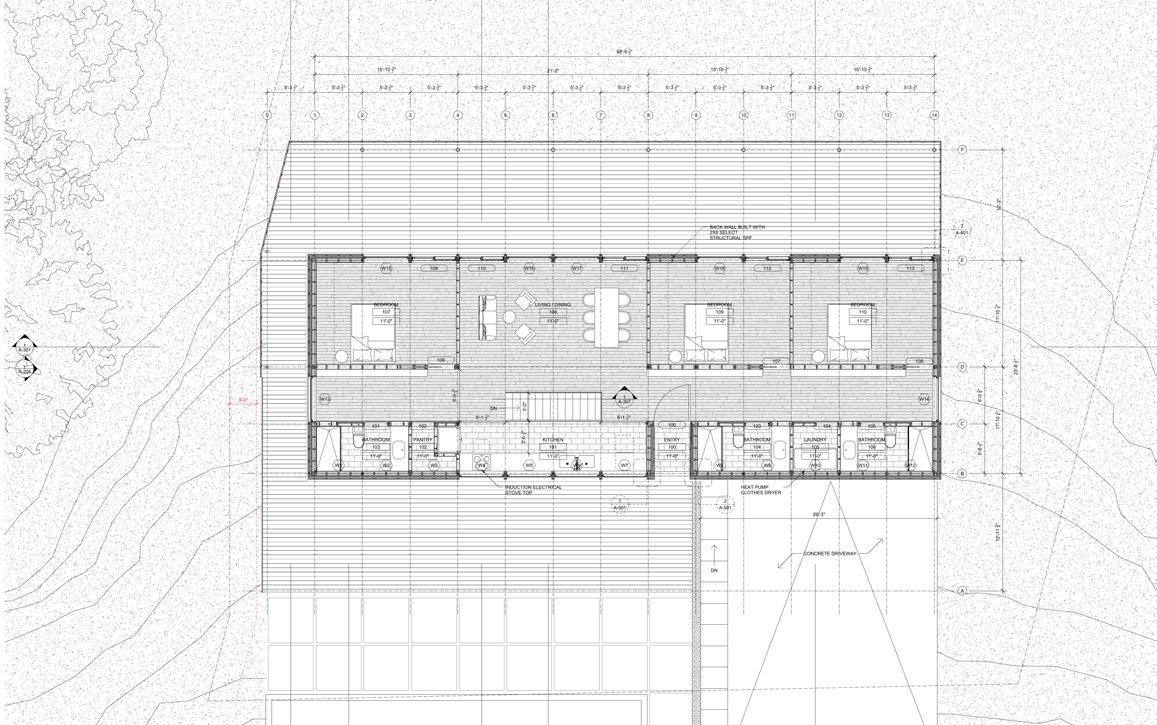

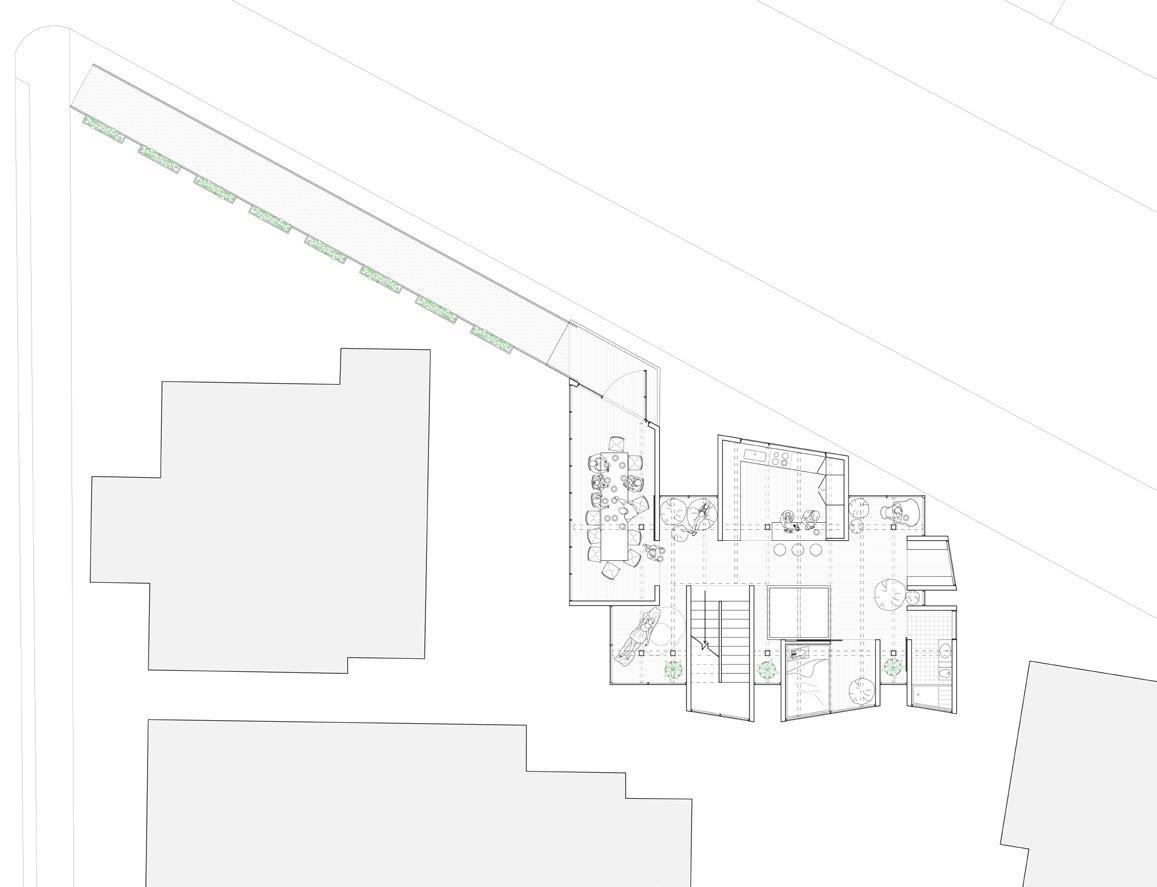

Bottom Left: First Floor Plan. Rhino

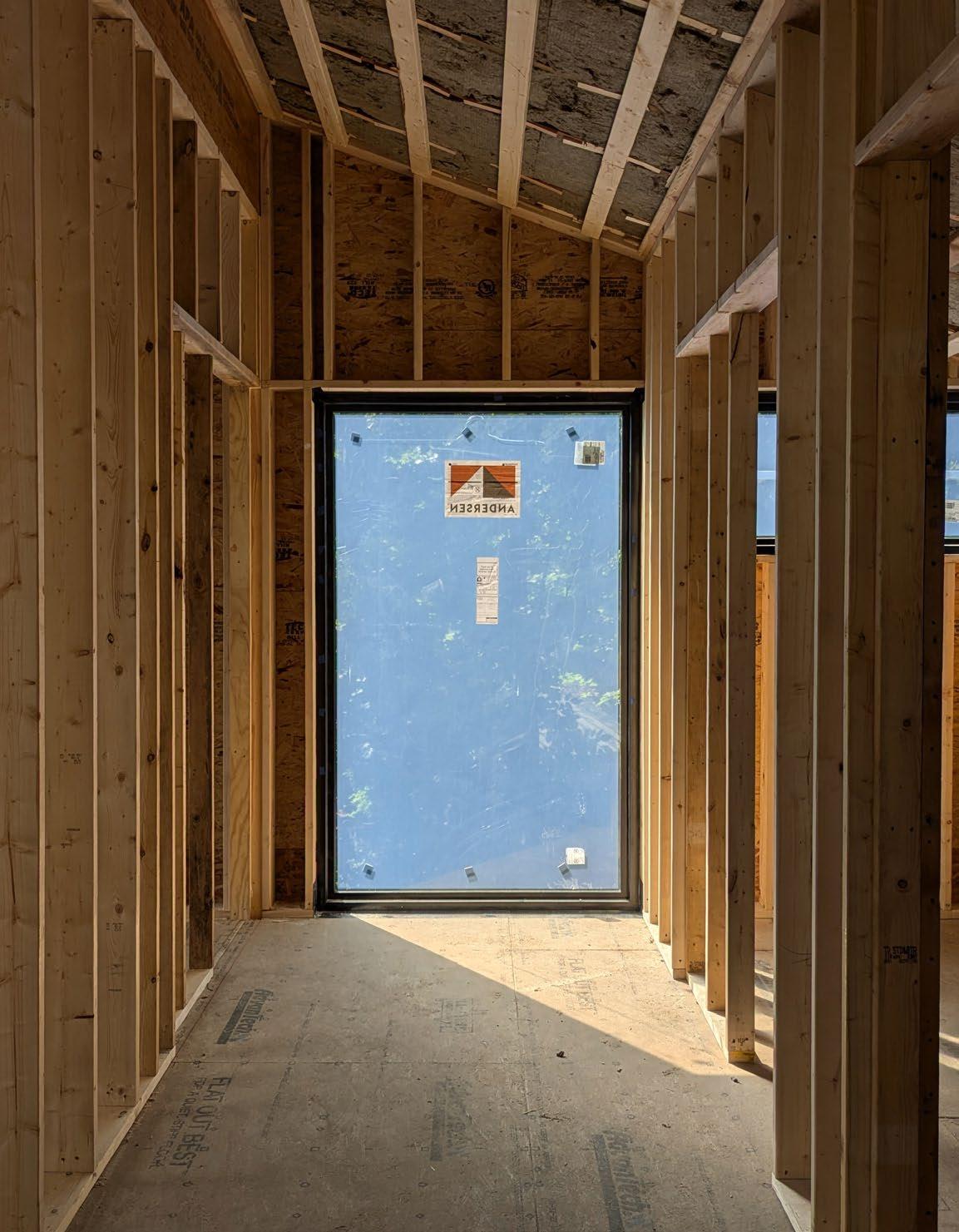

Top: Photograph, in situ.

Bottom Right: 1:1 Detail Chunk Models. Built by Andreya Zvonar

53

54

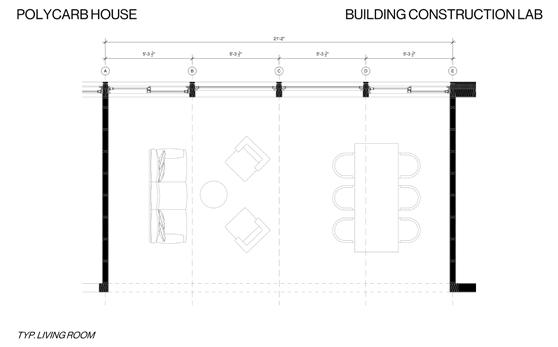

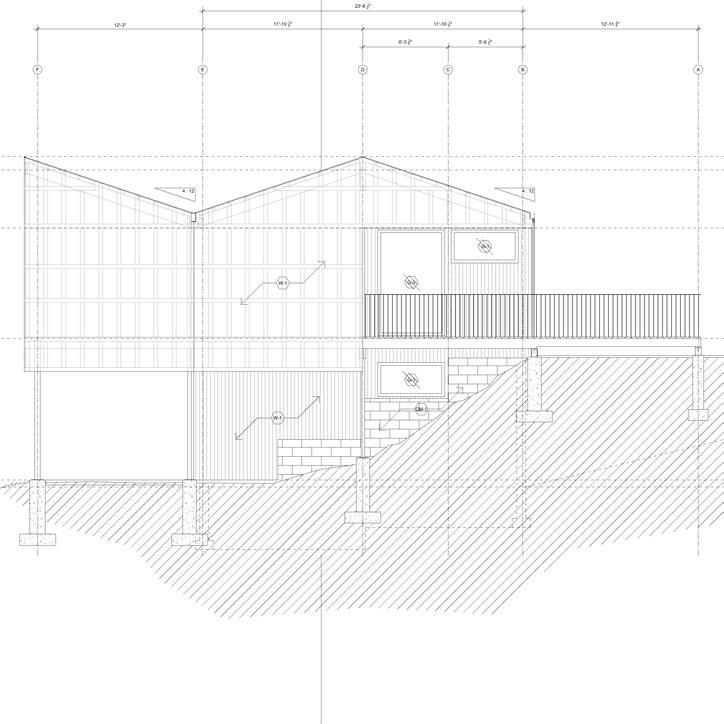

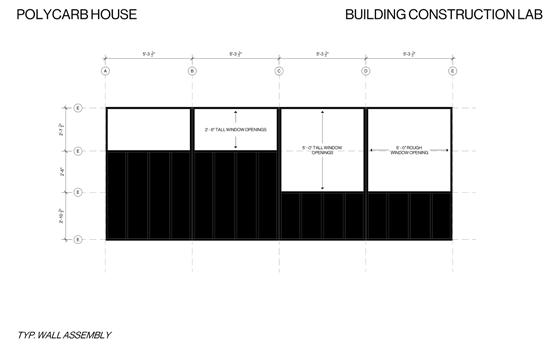

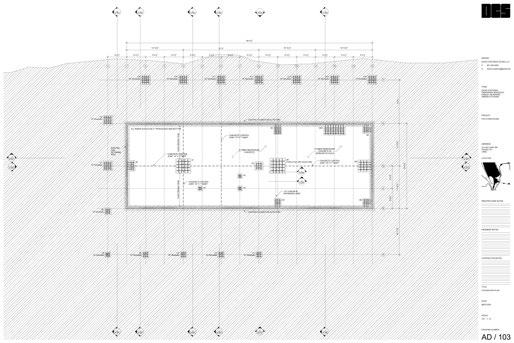

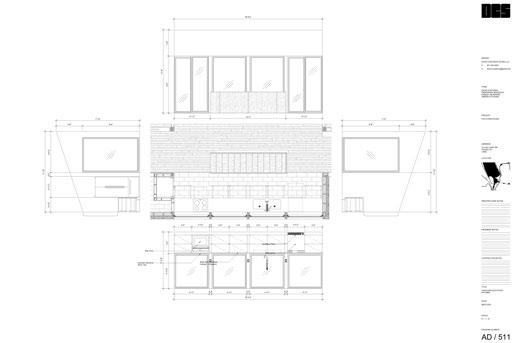

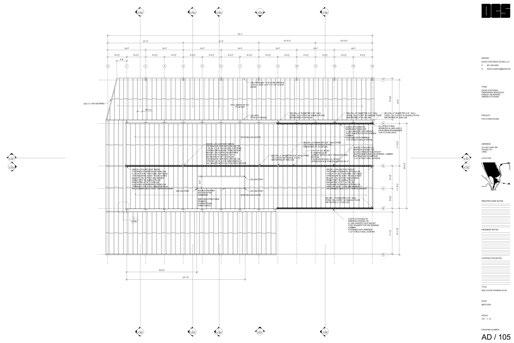

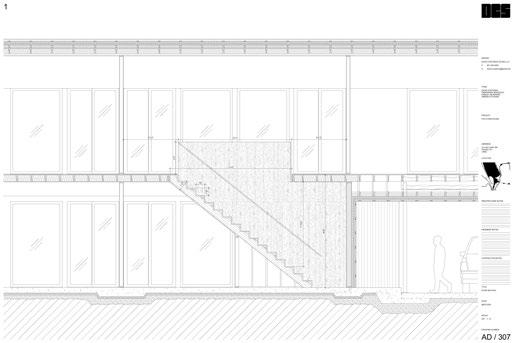

Bottom Left: Selected Sheets from CD Set. Rhino

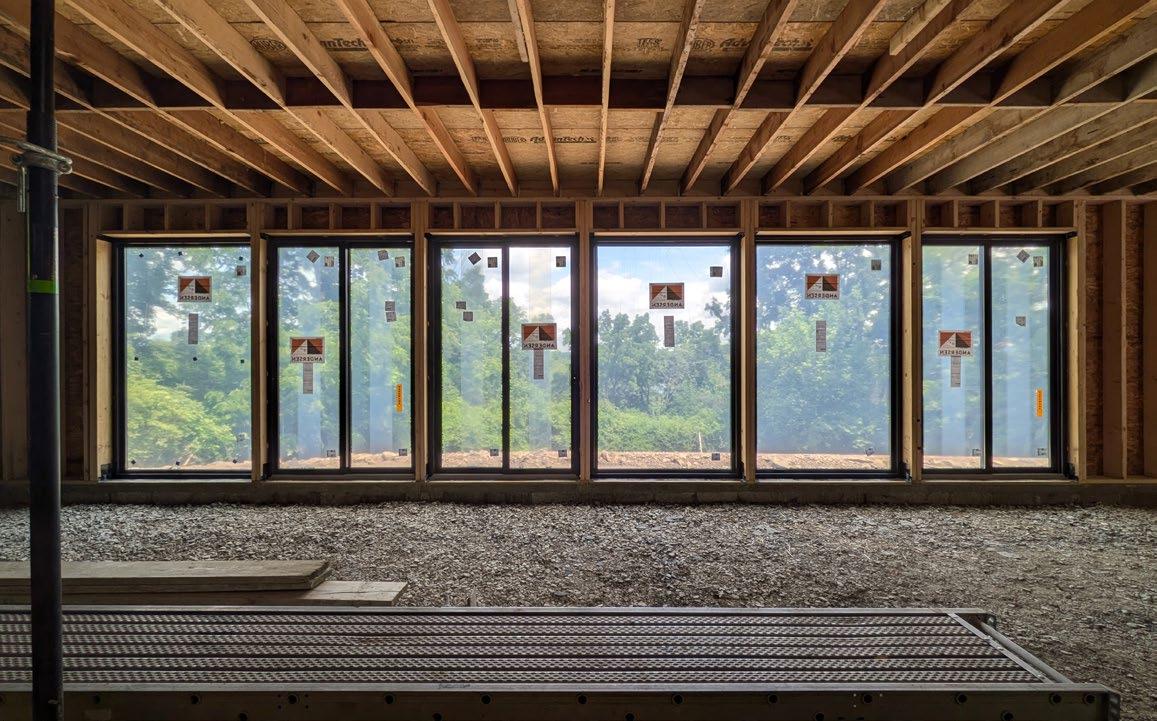

Top: Photograph, in situ.

Bottom Right: 1:1 Detail Chunk Models. Built by Andreya Zvonar

55

56

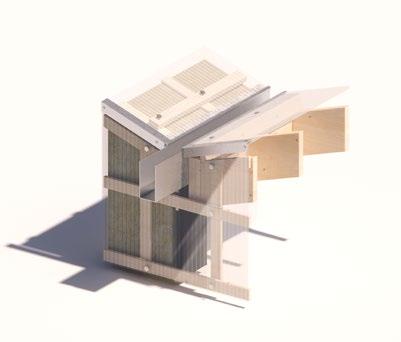

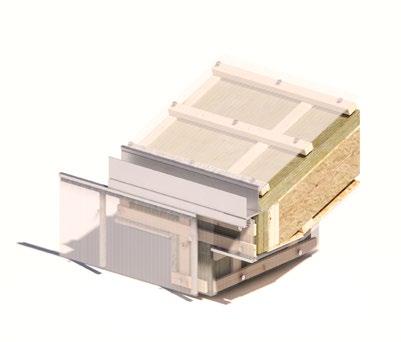

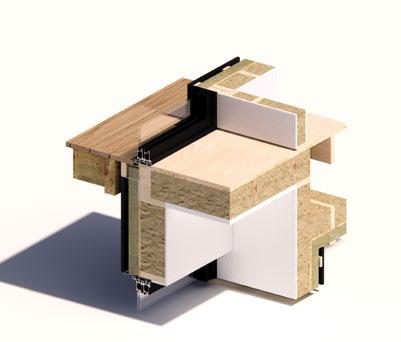

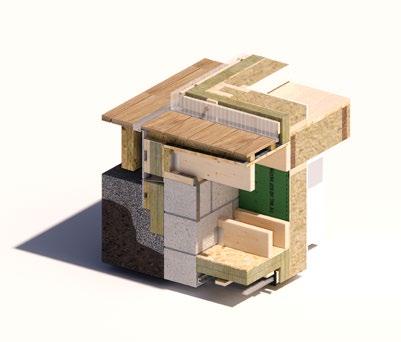

Left: Detail Chunks. Rendered by Andreya Zvonar

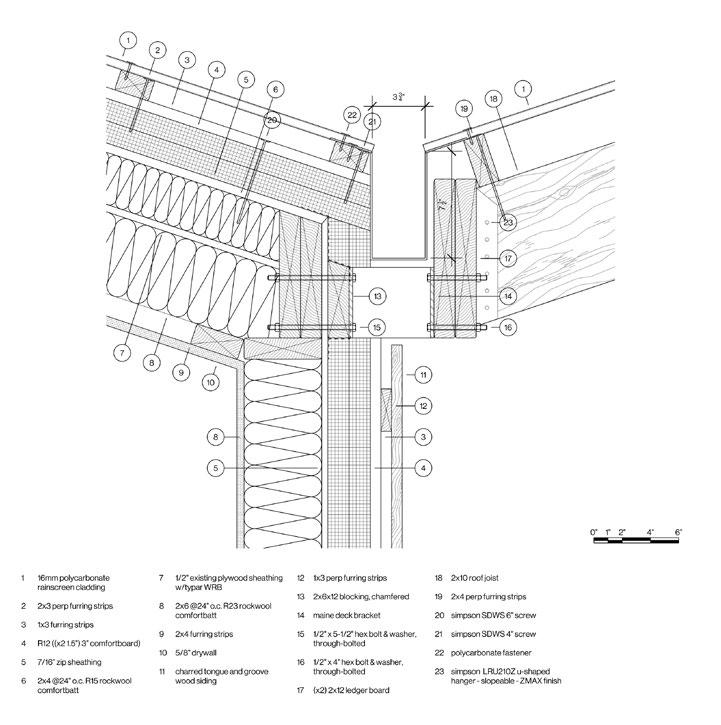

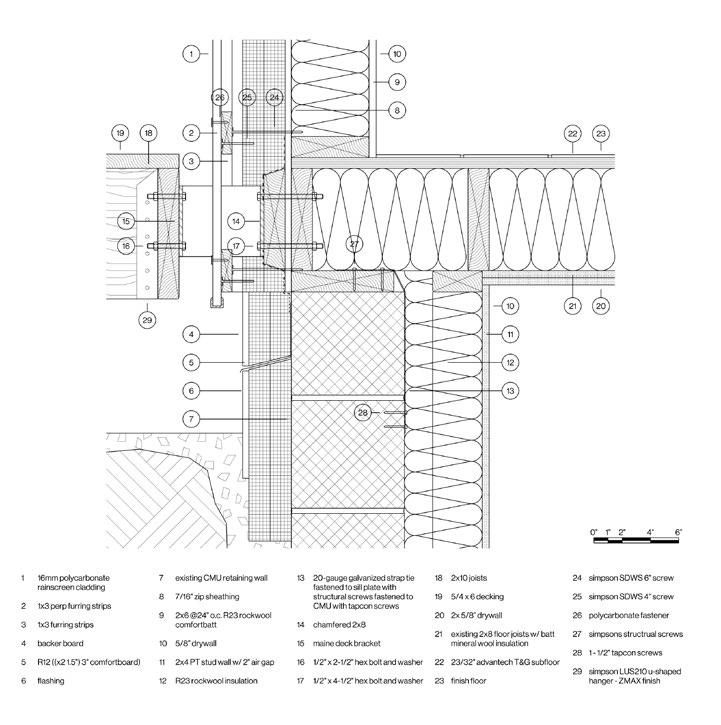

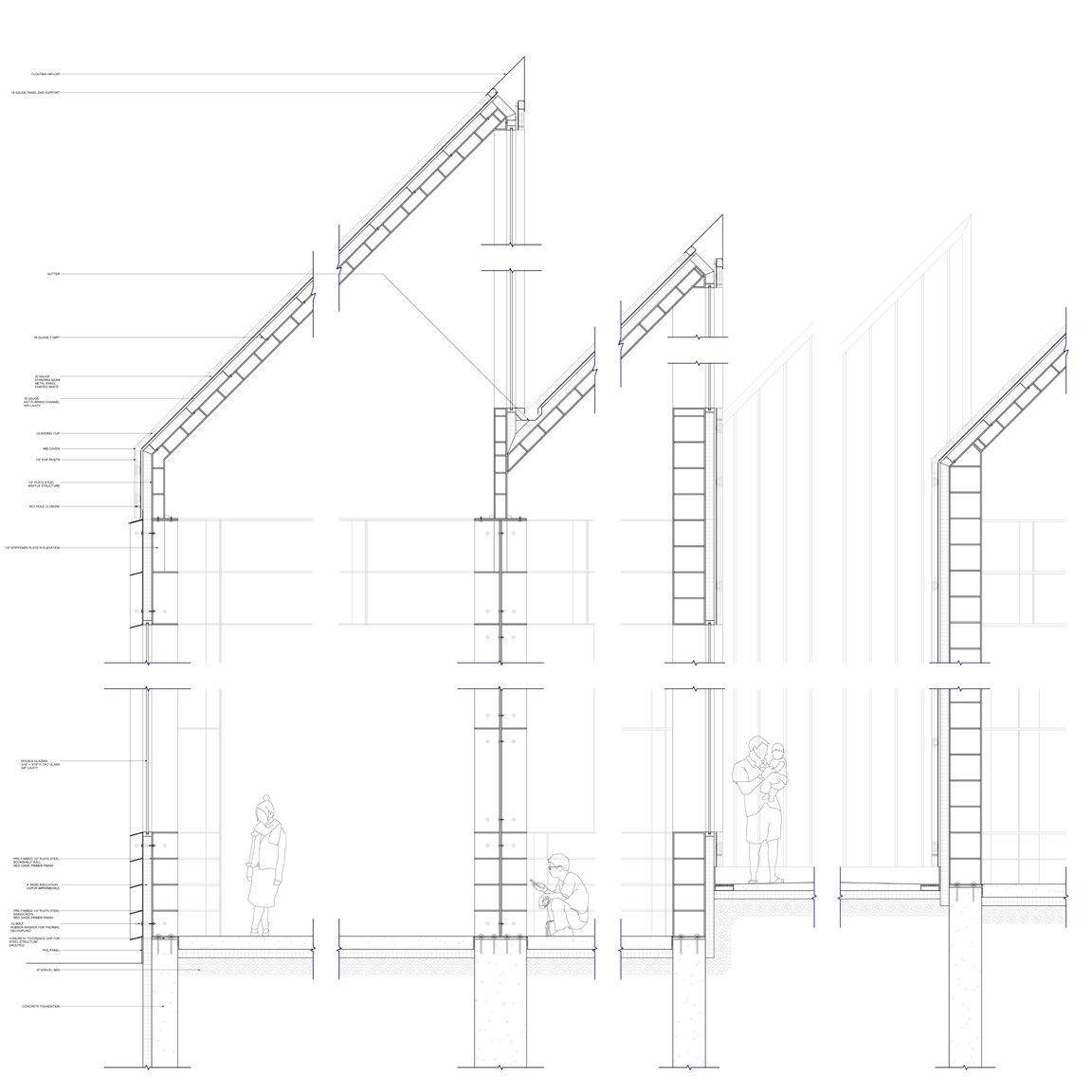

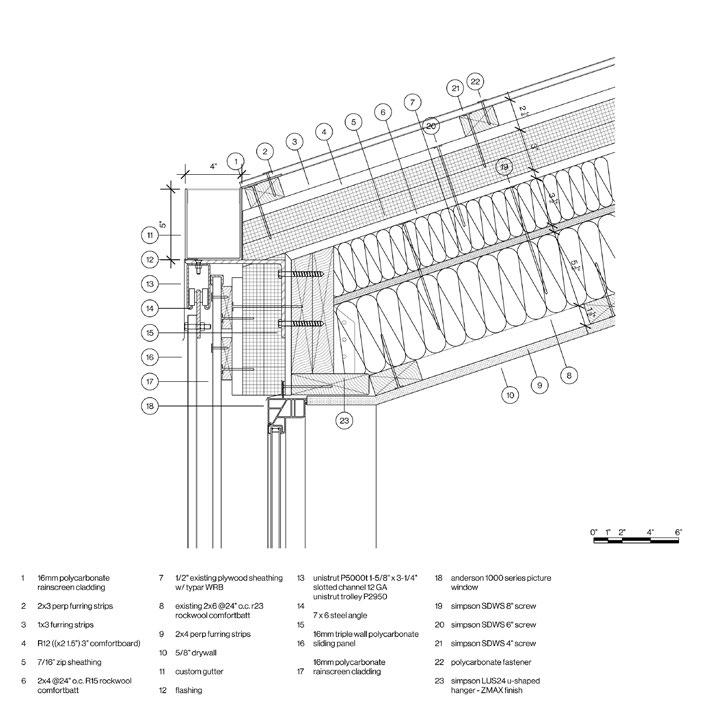

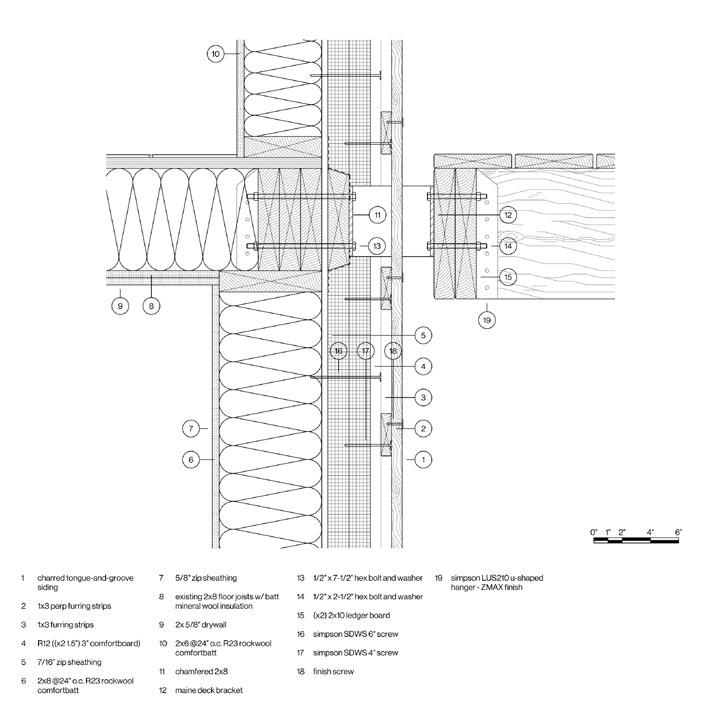

Center: Wall Sections. Rhino, Illustrator

57
