Temperature Controlled Bath – USER MANUAL

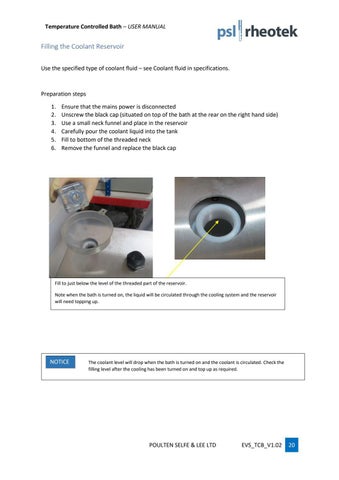

Filling the Coolant Reservoir Use the specified type of coolant fluid – see Coolant fluid in specifications.
Preparation steps 1. 2. 3. 4. 5. 6.
Ensure that the mains power is disconnected Unscrew the black cap (situated on top of the bath at the rear on the right hand side) Use a small neck funnel and place in the reservoir Carefully pour the coolant liquid into the tank Fill to bottom of the threaded neck Remove the funnel and replace the black cap
Fill to just below the level of the threaded part of the reservoir. Note when the bath is turned on, the liquid will be circulated through the cooling system and the reservoir will need topping up.
NOTICE
The coolant level will drop when the bath is turned on and the coolant is circulated. Check the filling level after the cooling has been turned on and top up as required.
POULTEN SELFE & LEE LTD
EVS_TCB_V1.02
20
