IK HOUSE

RENDER : GERRY NATABRAJA

Outline IK House is a house prepared for 5 person household located in medium density residential in East Jakarta. Main problem of the site is the constant flood, recently as high as 50 cm. Located beside a abrandgang, rats and bad smell becomes consistent annoyance. The client also uses hijab, so privacy is also a concern. Those are the concerns that have to be addressed by the design.

The architect-in-charge develops a two mass concept with two-tone material to accentuate a volumetric and minimalistic approach to the building. The two masses are connected by some kind of stair and bridge, creating a transitional space filled with natural wind and light. Half of the site are elevated to avert the flooding, while the lower part becomes carport space with permeable material to help absorb water.

The house is divided into two masses, one for the primary functions and the other is for the bedrooms and services. The height and size signifies the order of the masses. The primary one also serves as the entrance to welcome the user

The site faces towards the east, there’s a risk on getting heat if exposed to too much sunlight. So, there’s less window-to-wall ratio on the front (purple) then on the sides (green)

With two masses and two floors, the house can be divided into four area. Based on the zoning, the first floor is the public and semi-private zones, hosting living room, guest bedroom, helpers bedroom, and storage. The second floor is the private zone, hosting children bedrooms in the left (south) mass and master bedroom in the right (north) mass. Sun path from east to west

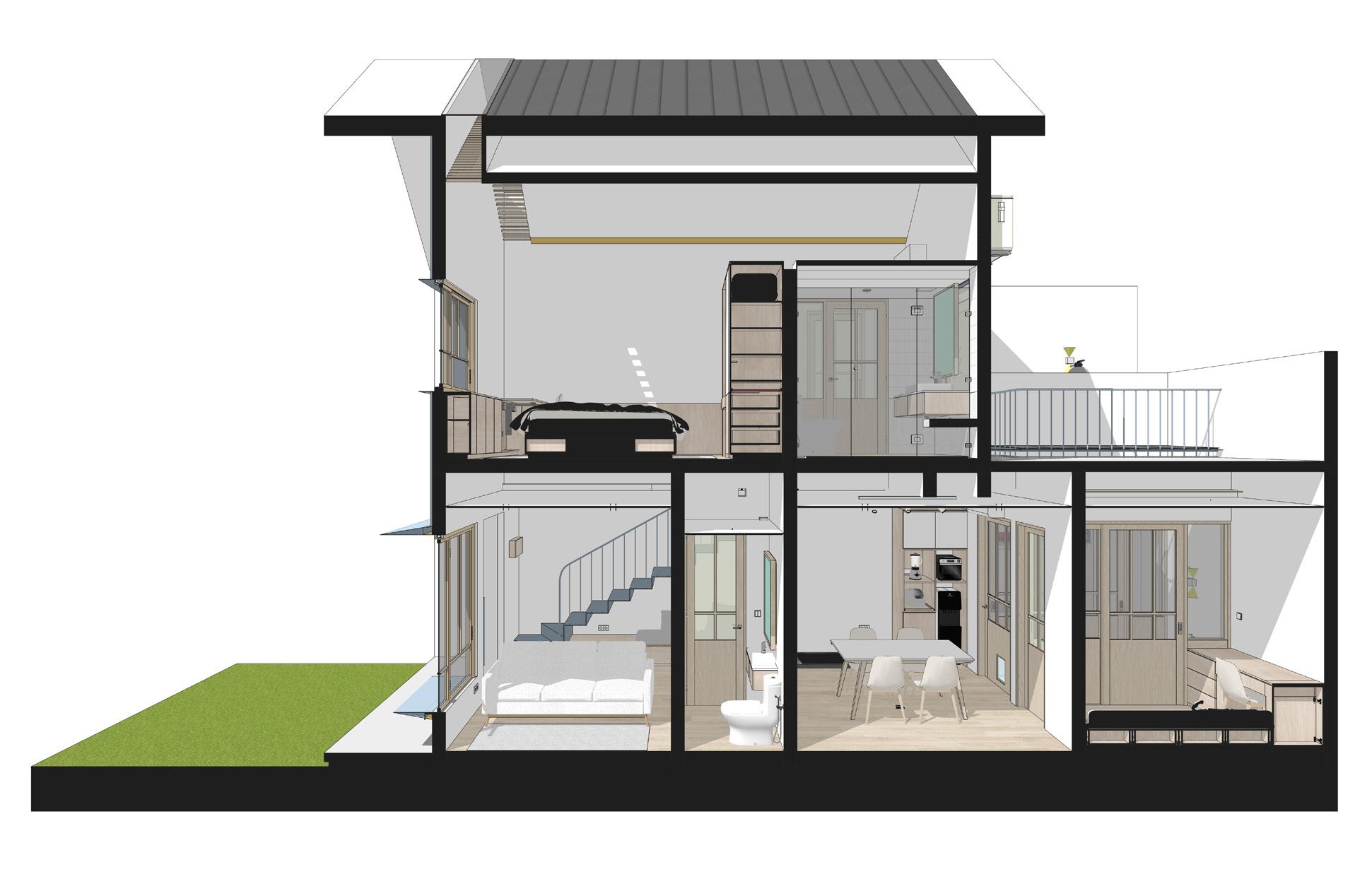

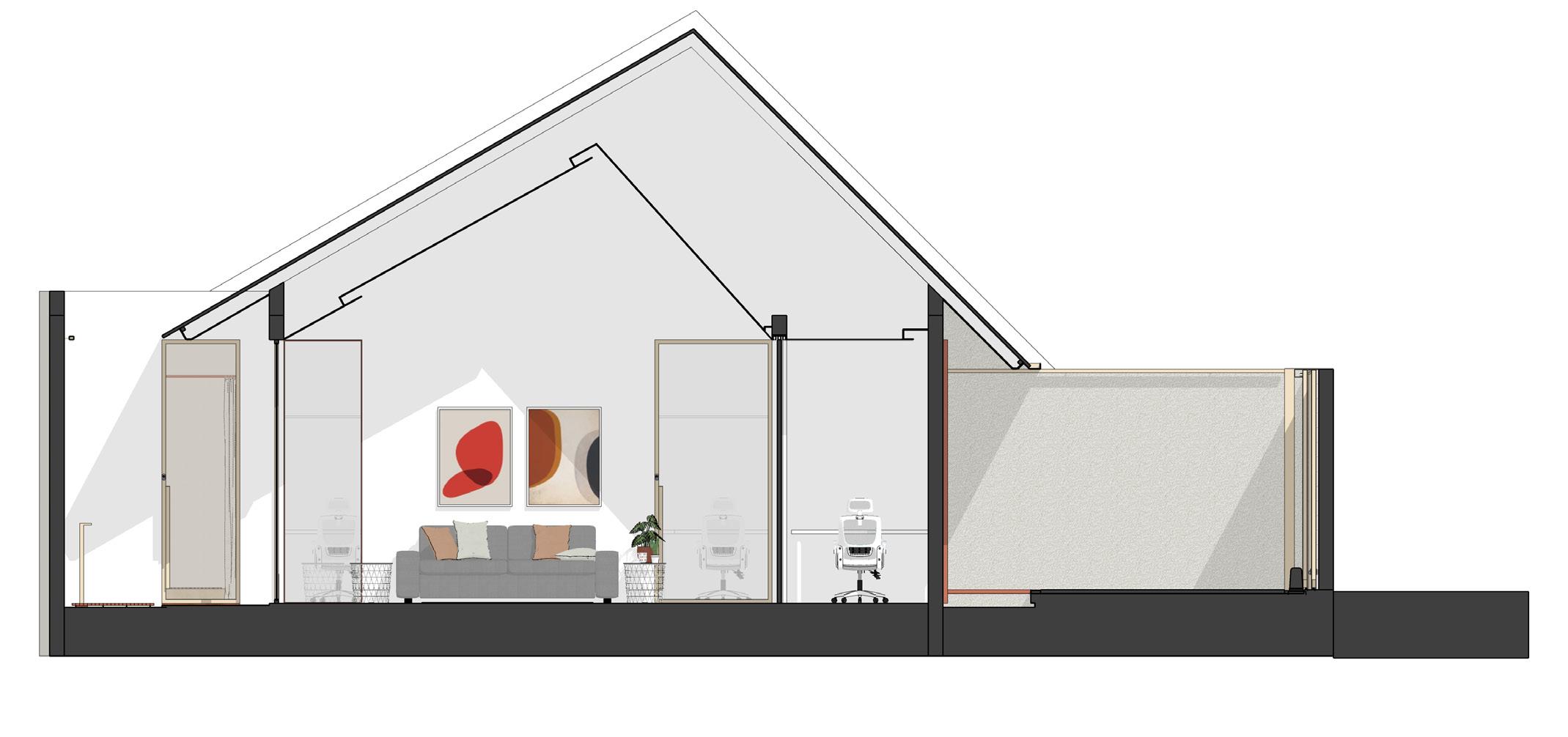

CROSS SECTION

DENAH LANTAI 2 IK-House

GUEST BEDROOM

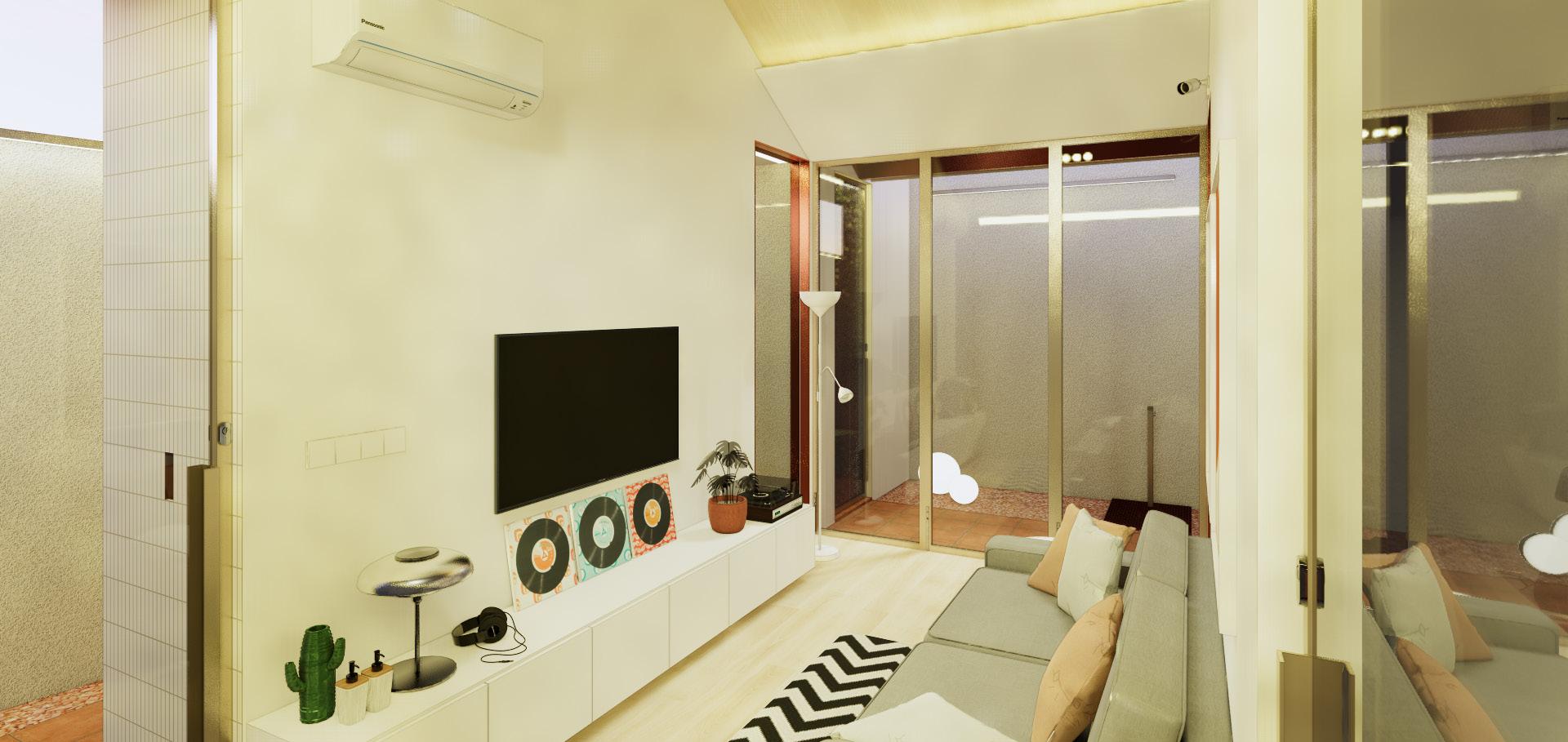

LIVING ROOM

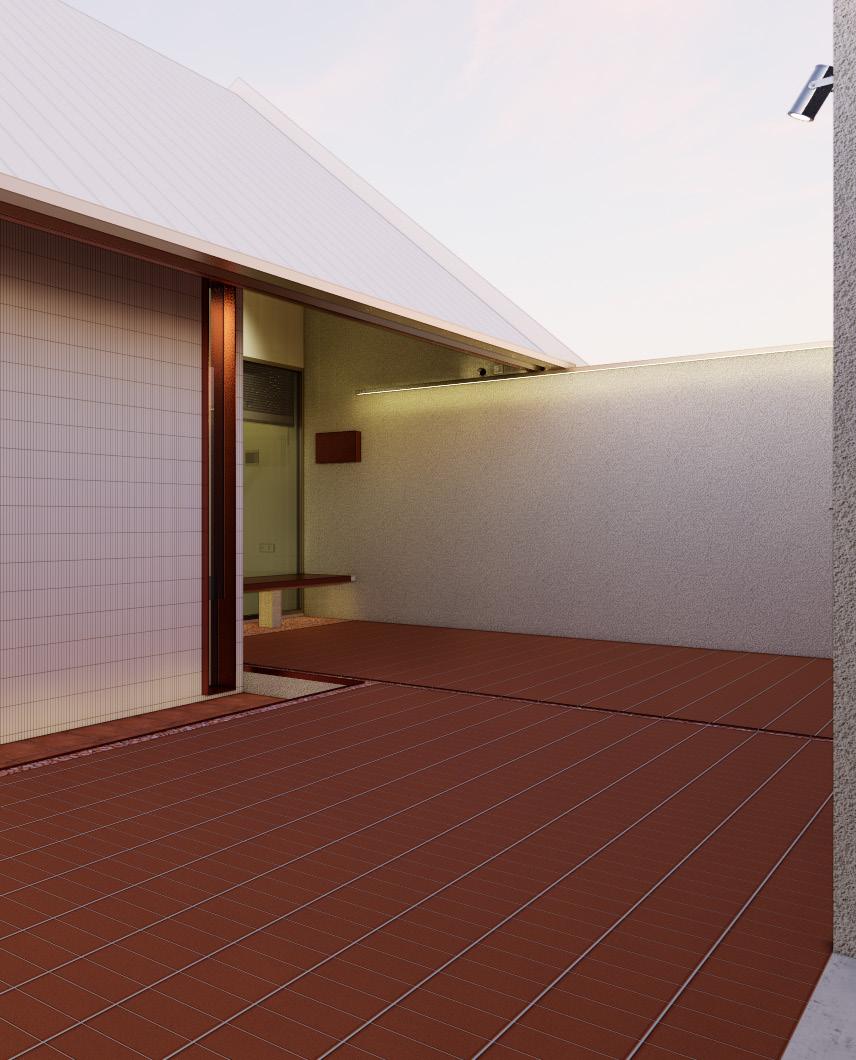

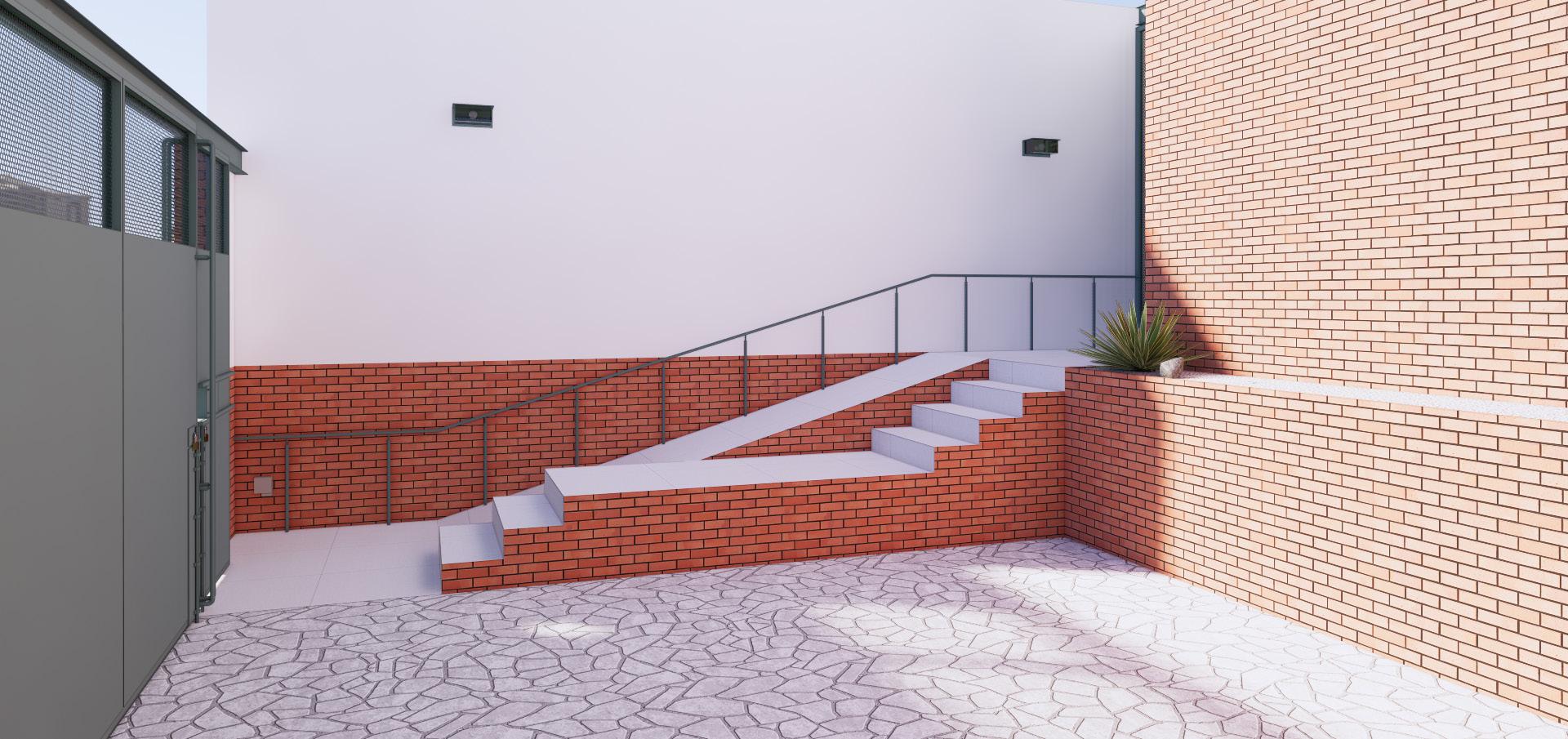

COURTYARD

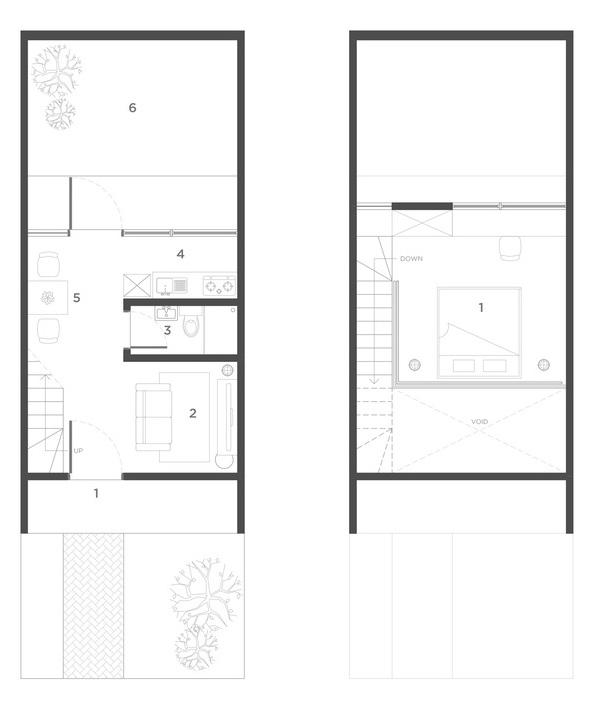

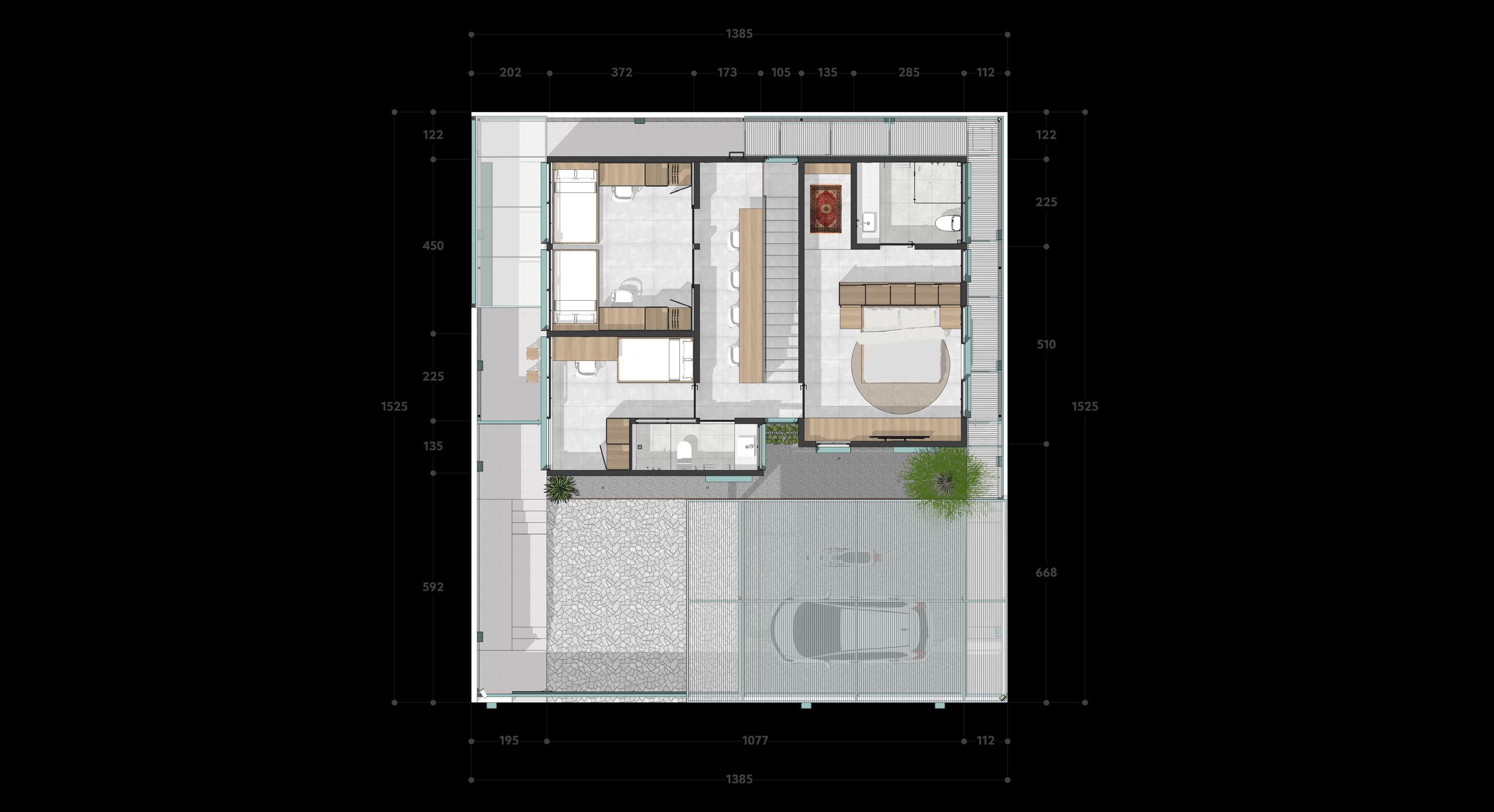

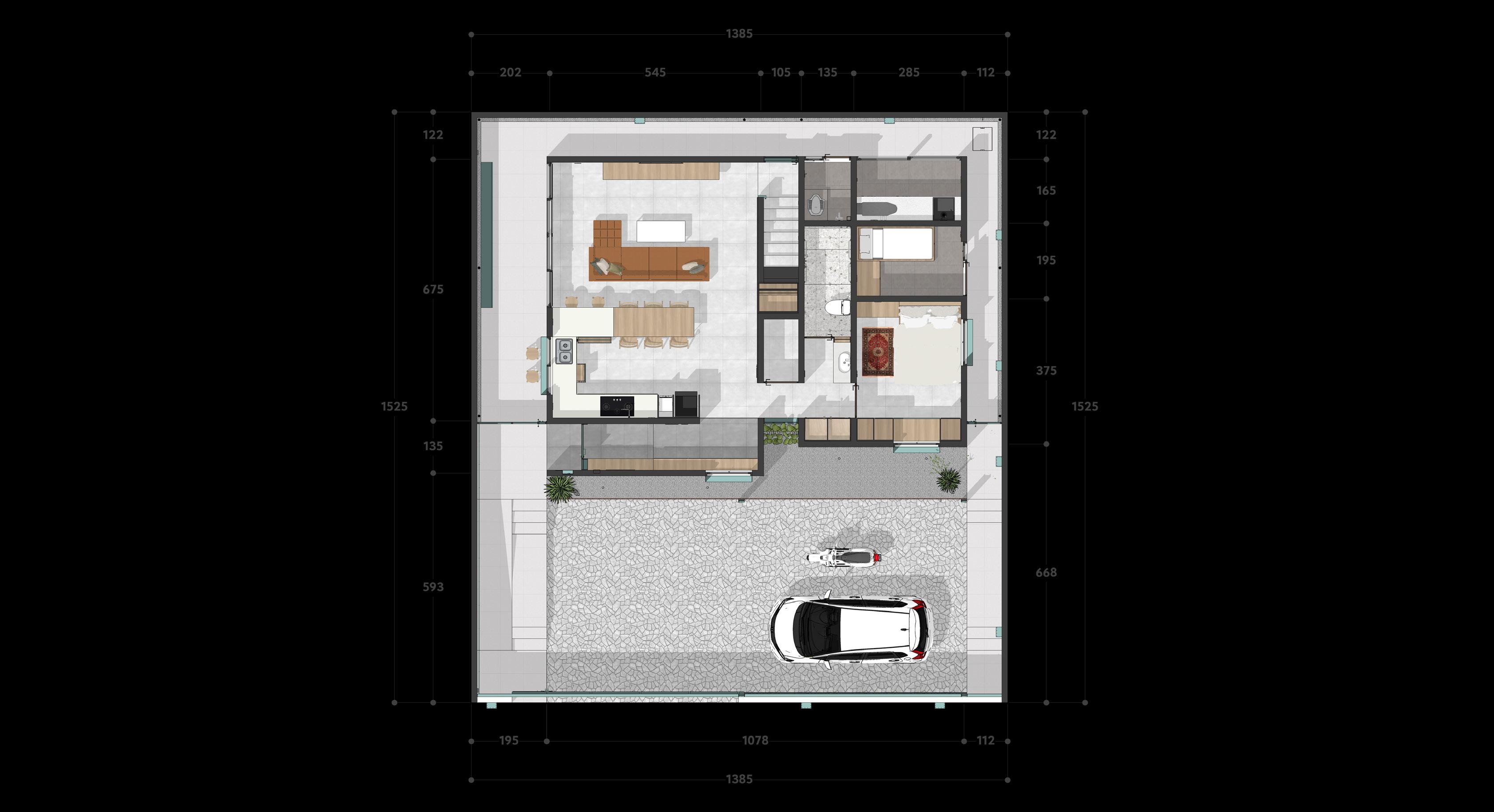

1ST FLOOR PLAN

2ND FLOOR PLAN

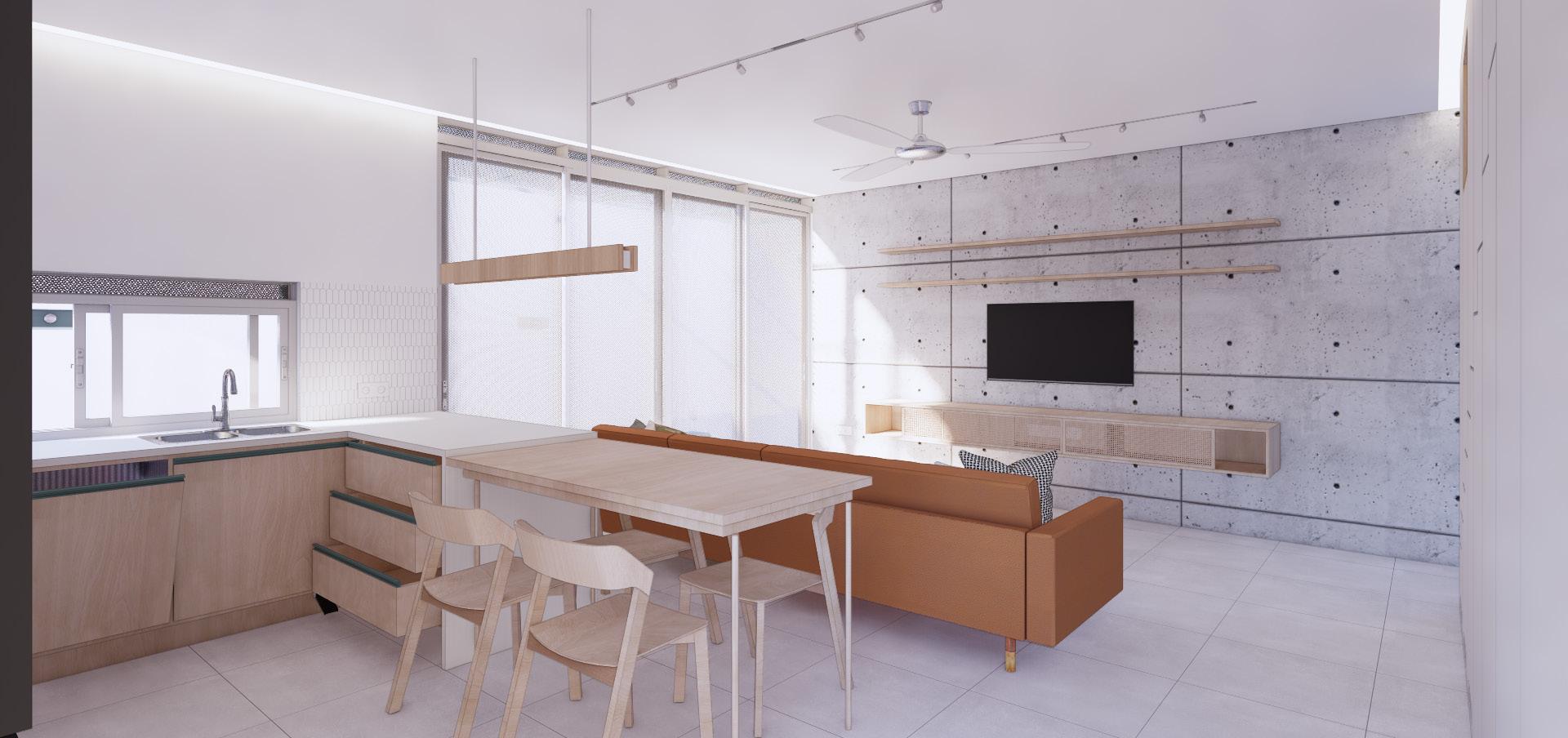

LIVING + DINING + KITCHEN

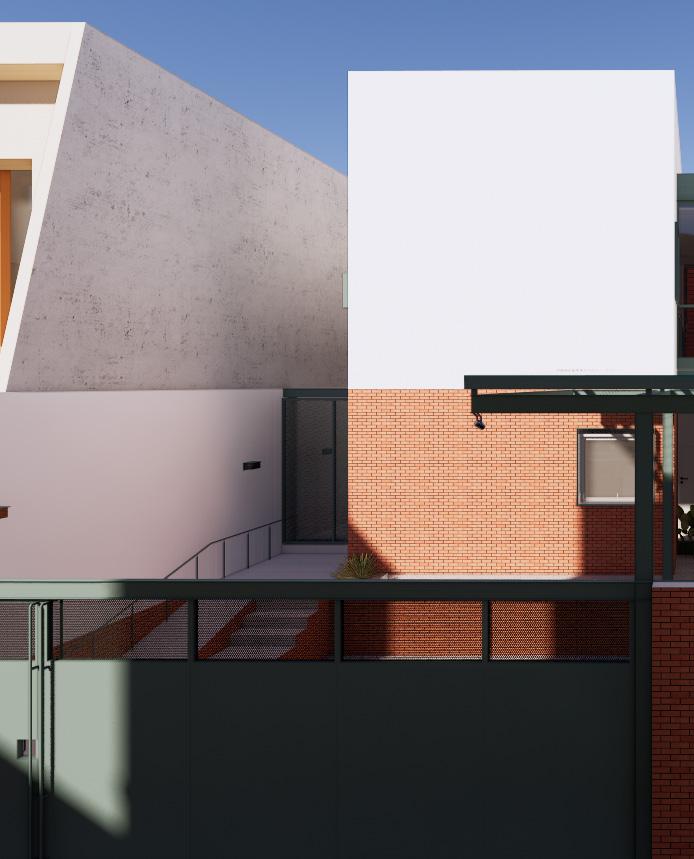

FRONT FACADE

PARKING AREA

MASTER BEDROOM

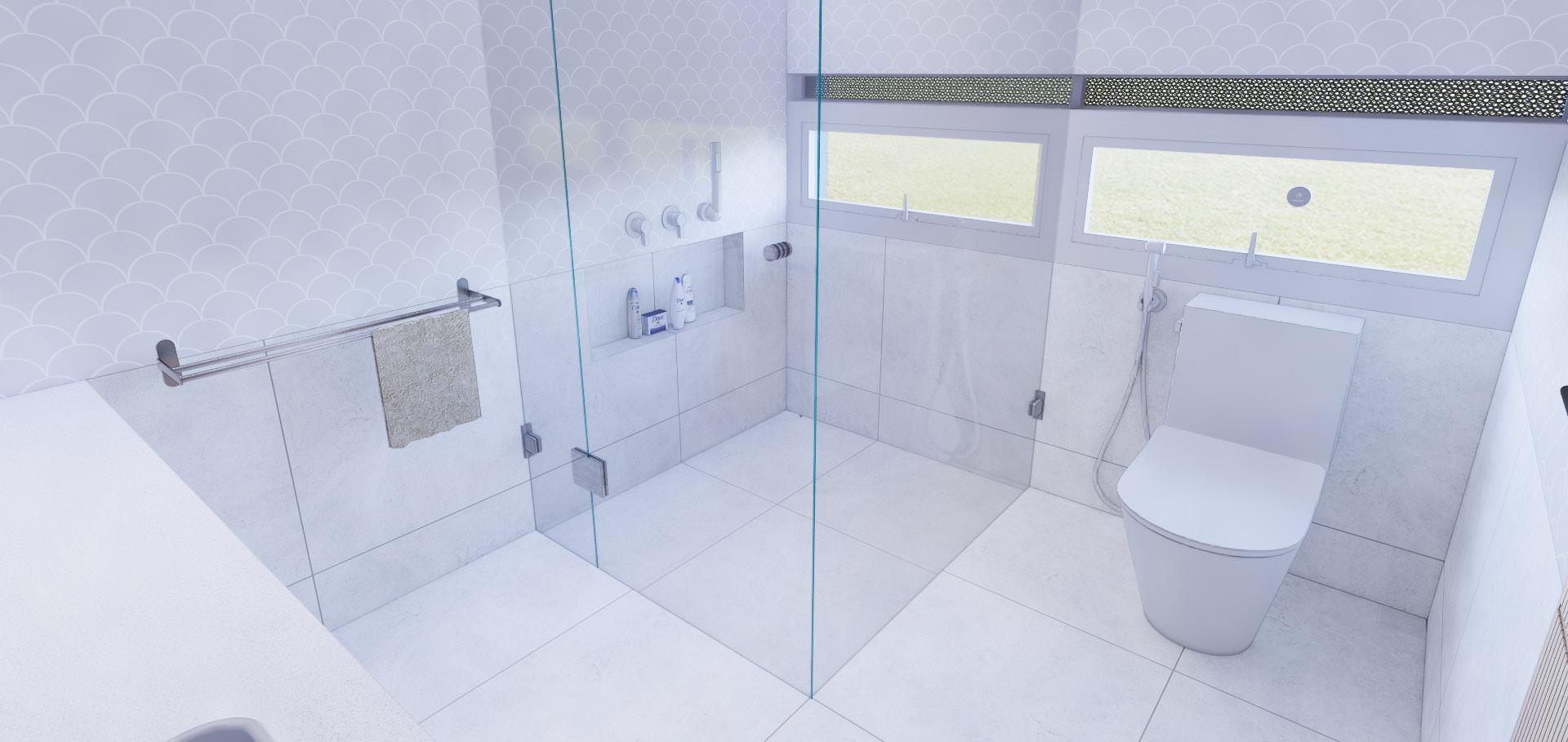

MASTER BATHROOM

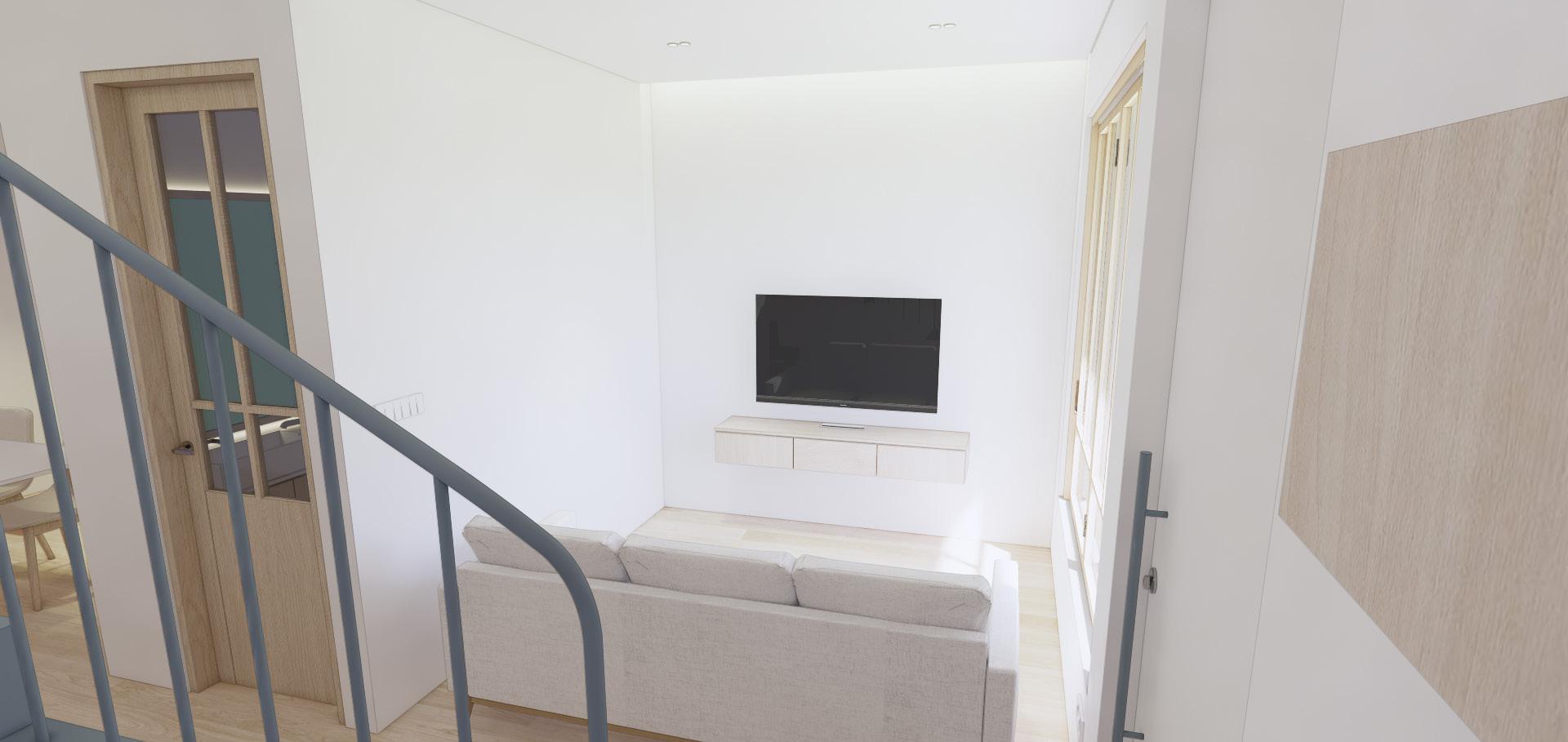

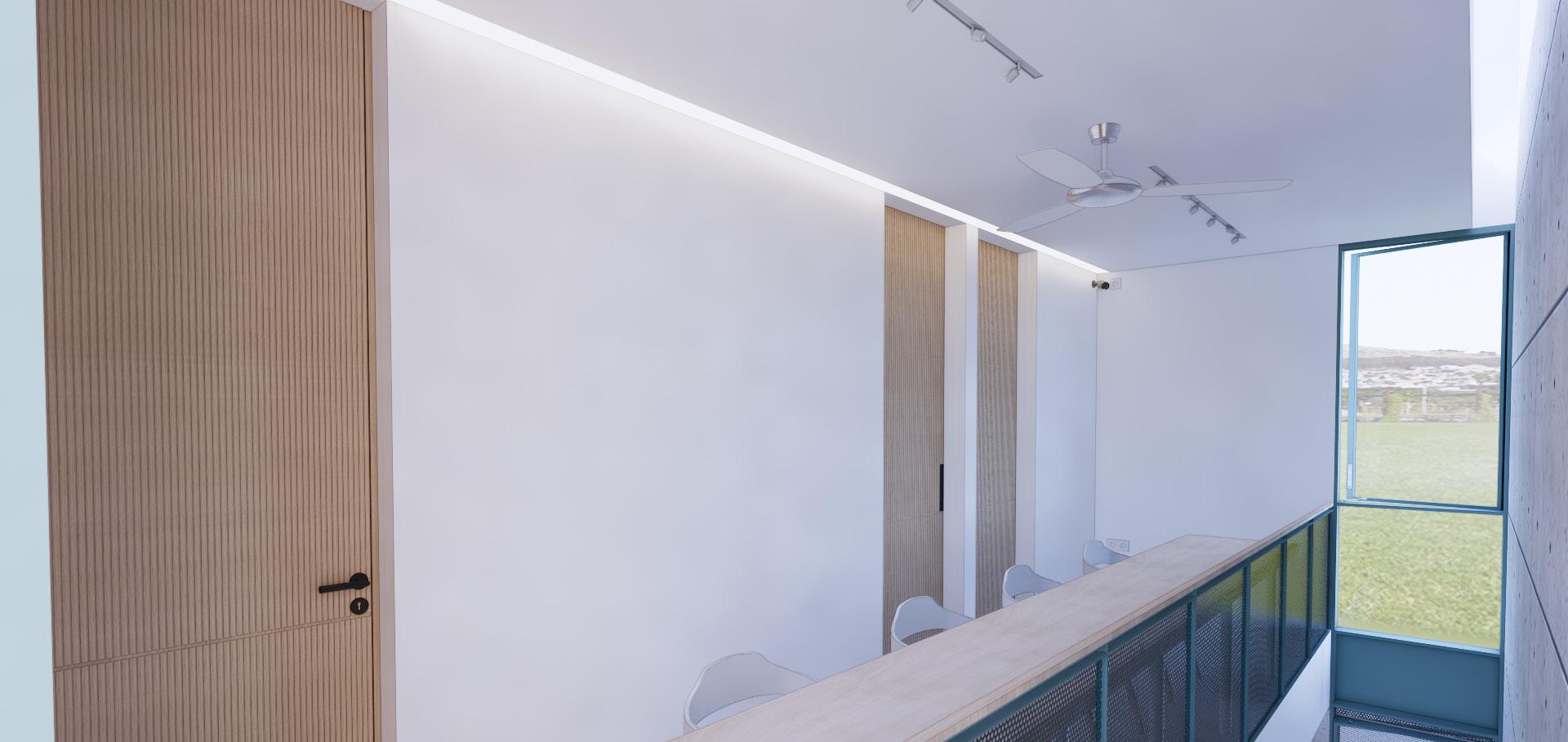

STAIR AREA (2ND FLOOR)

RENDER : GERRY NATABRAJA

While facing such limiting constraints, the office was a manifesto of DFORM’s exploration of its own design philosophies. DFORM Office redefines the DFORM’s design philosophy by adding more details and colors, while maintaining its white heavy pallete and volumetric approach. The result is a more expressive design.

Outline DFORM Office hosts Bintaro-based architecture studio, DFORM. The office nestled in a compact site located in a high density residential area near Bintaro. The compact site limits the buildable area. The site faced with constantly high traffic and activity, which poses a challenge for office activities. Containing various assets and data, security and privacy becomes priority when designing the office.

To maintain a certain degree of privacy, the front fence and roof formed as the facade, enclosing the space inside, while simultaneously adding several boxes behind as an additional space for services, storage, and toilet.

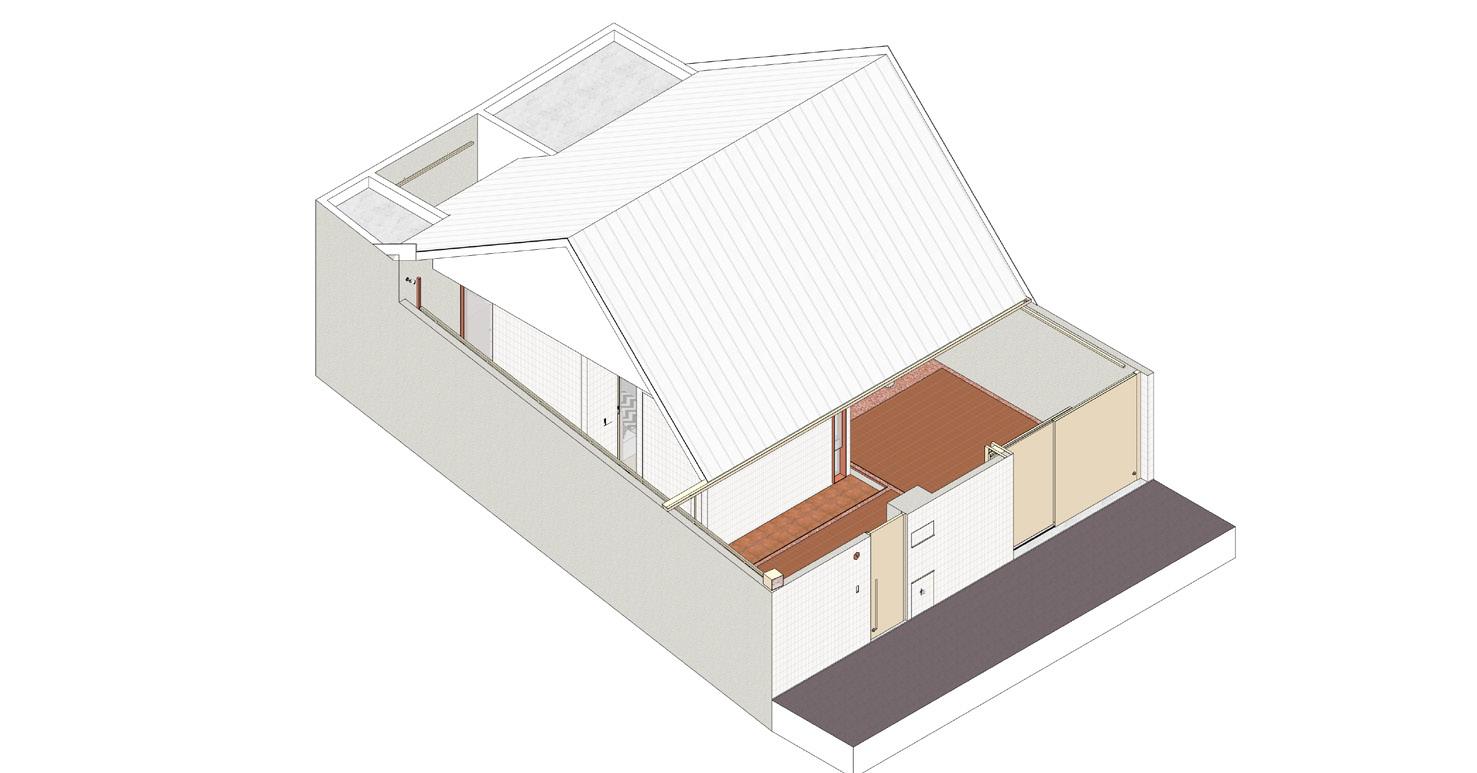

While the main mass is a box with triangle roof, substraction required to make transitional space for entrance and activity spaces. Also, on the back required inner court for ventilation to keep the wind and air fresh.

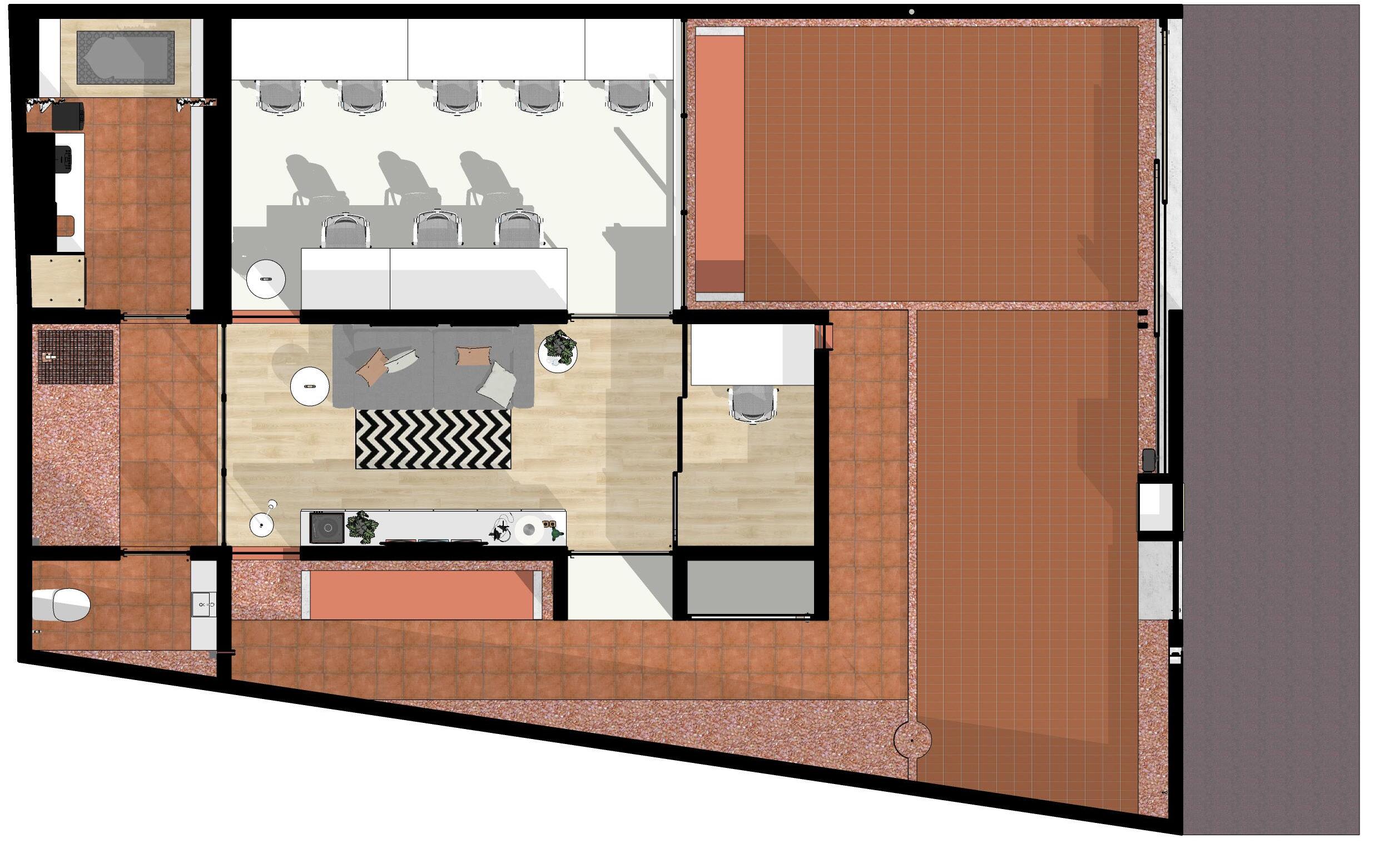

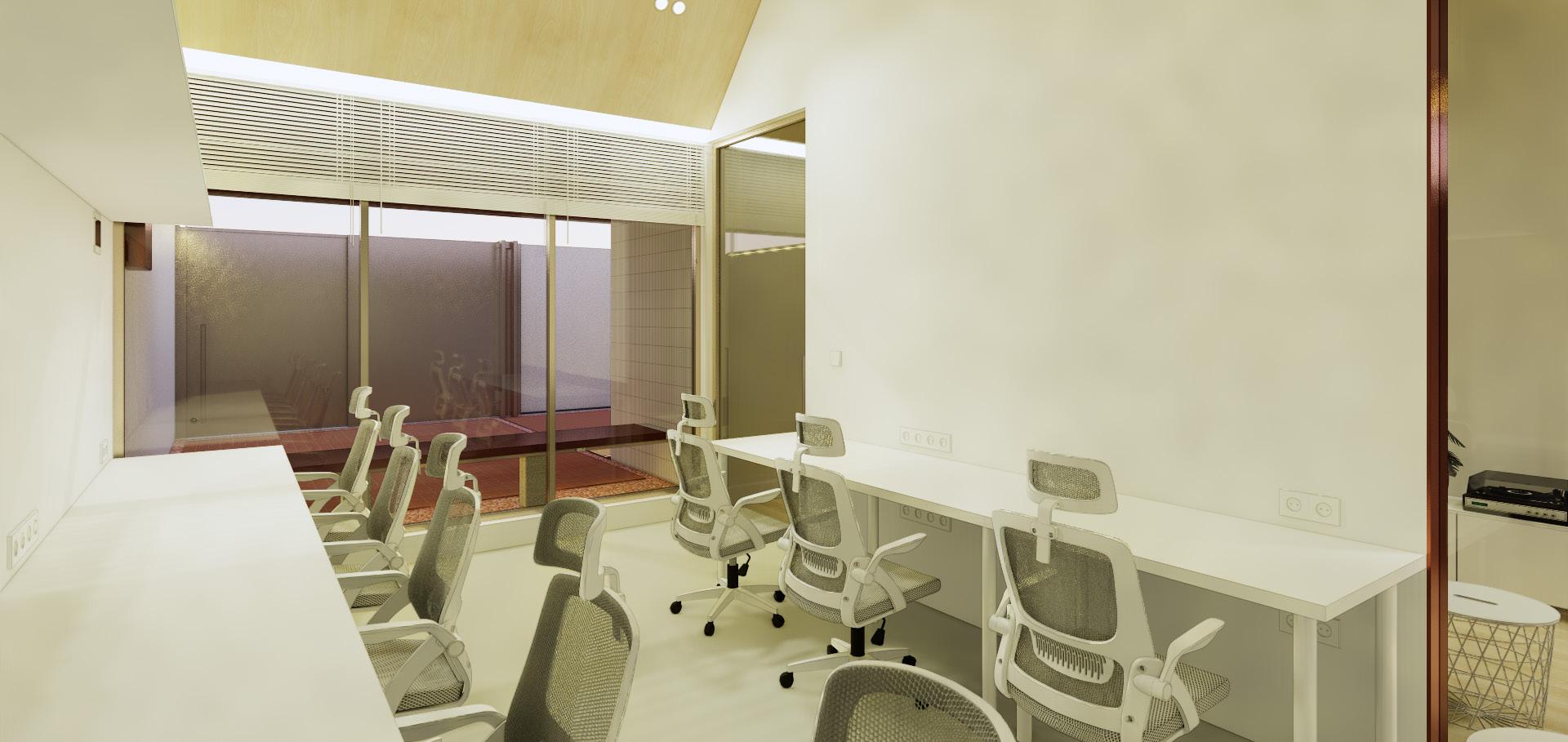

The layout mostly split into two part, left rooms are the public zone responsible as meeting and distribution points, while right wing is private zone primarily as working space

Facade form

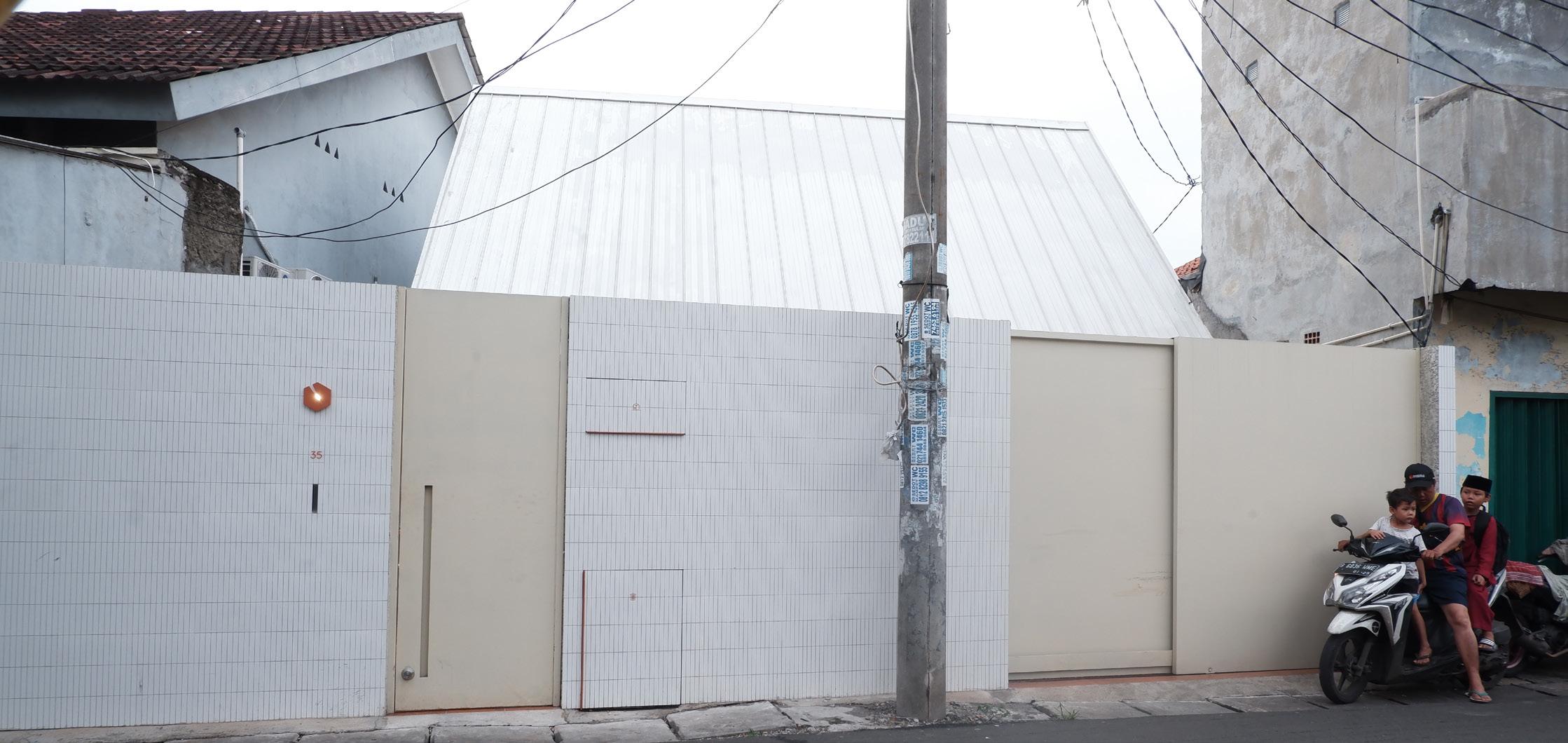

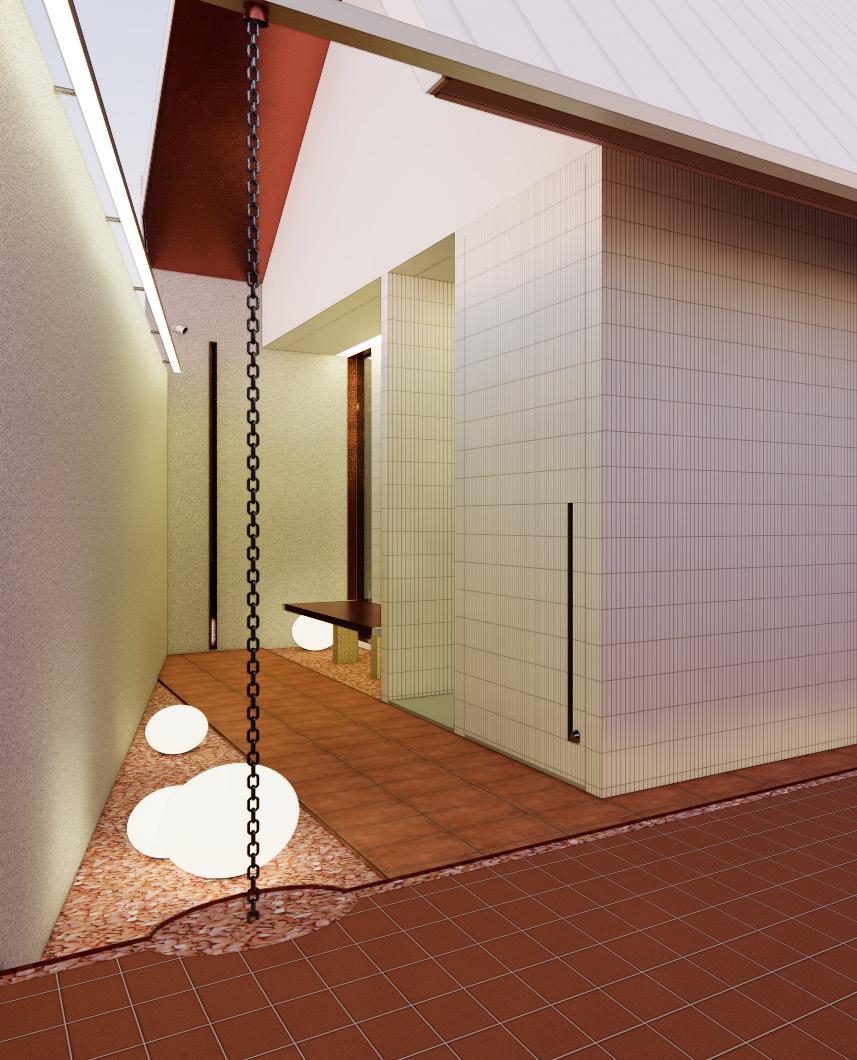

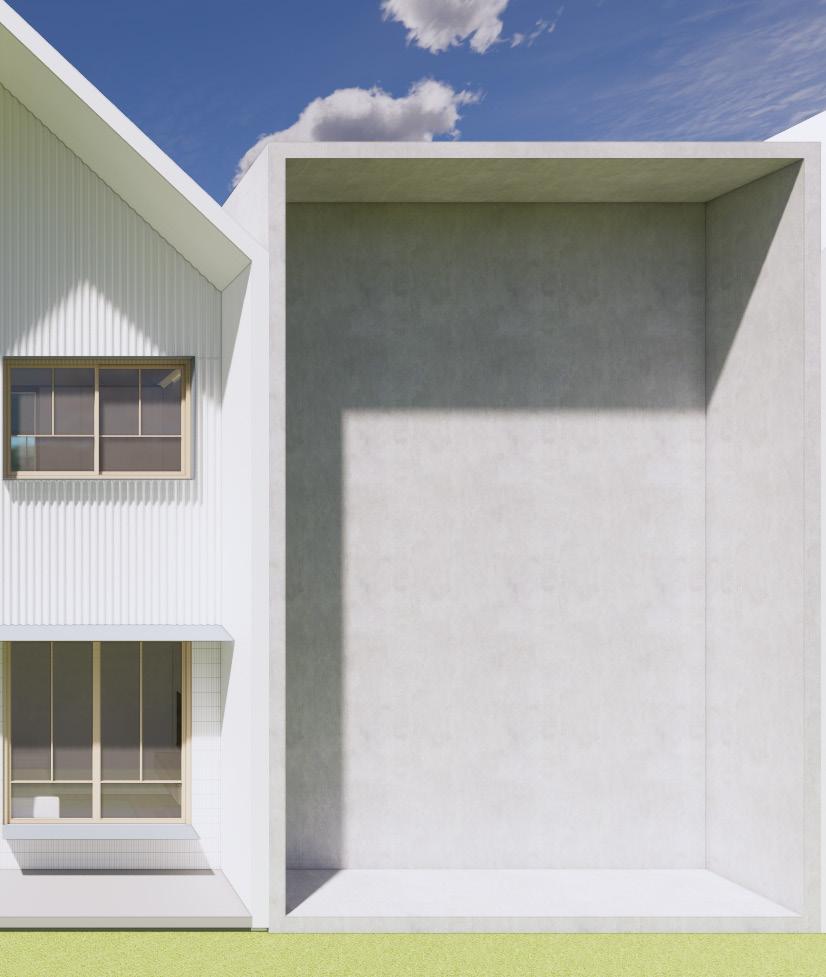

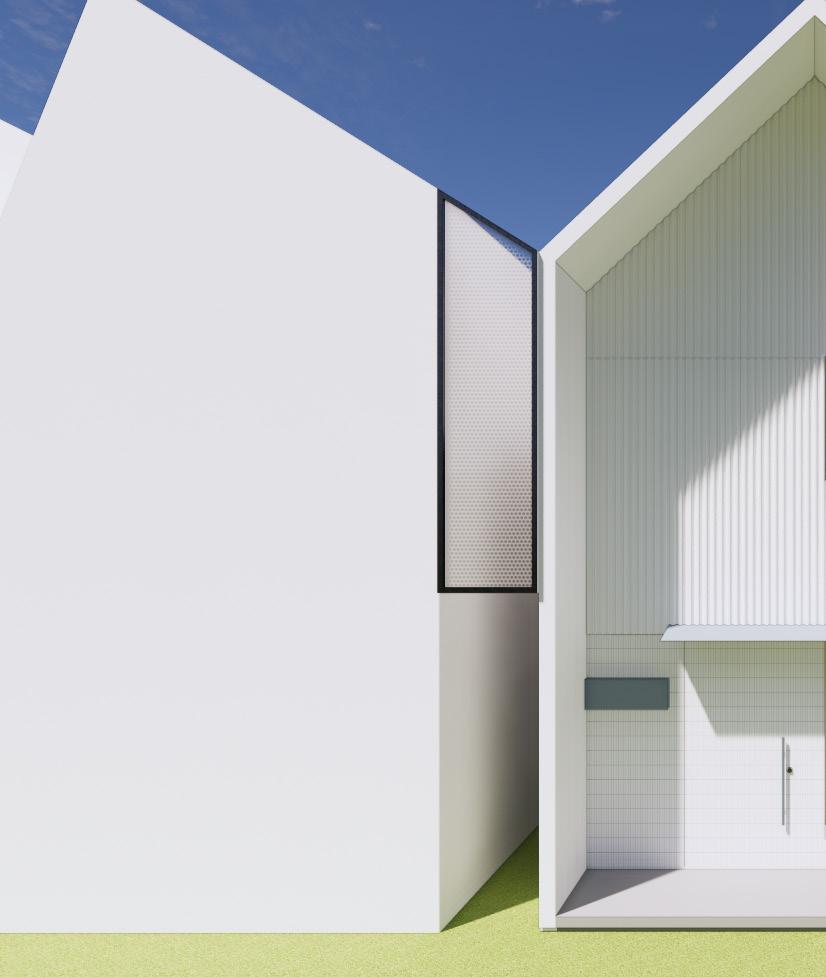

FRONT FACADE

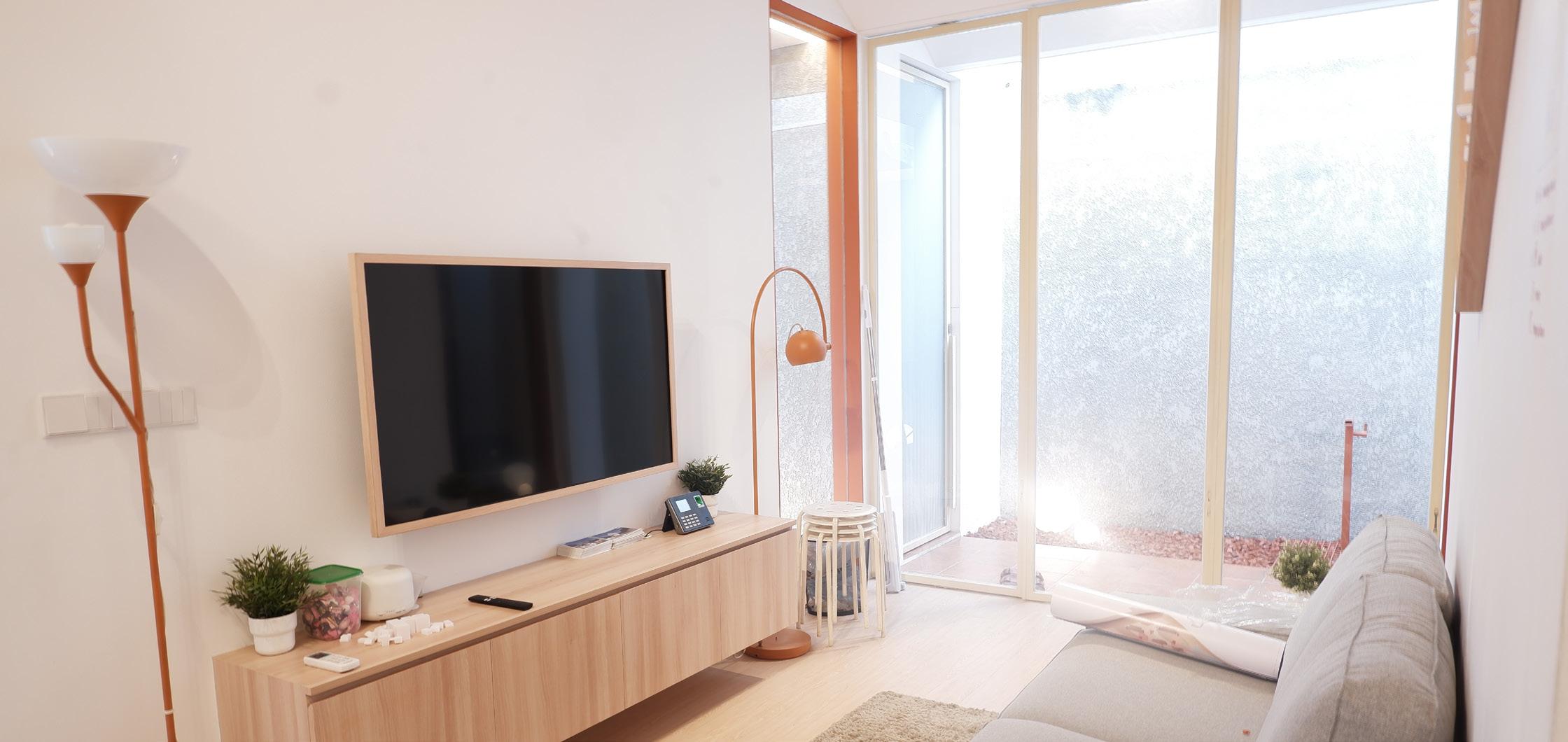

LOUNGE

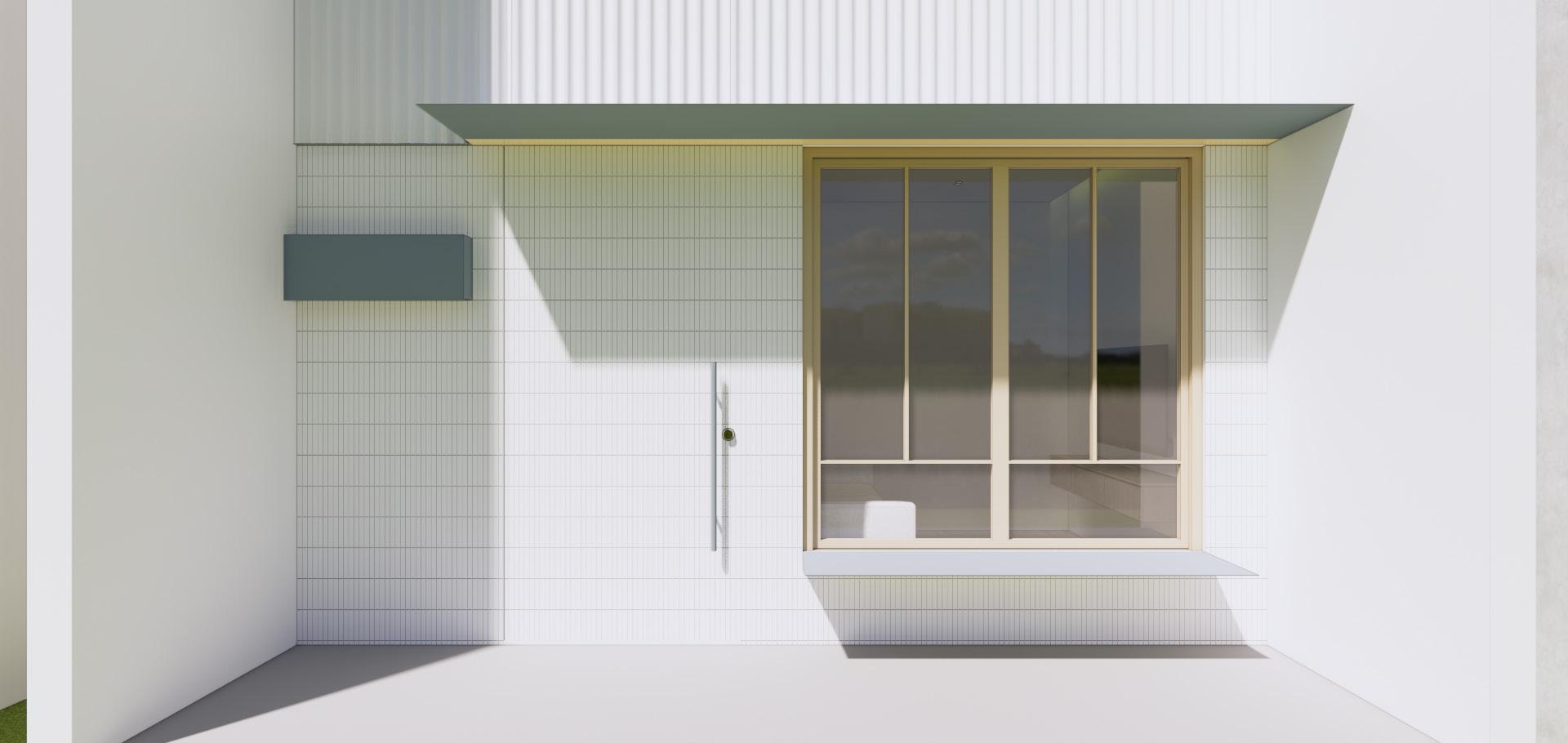

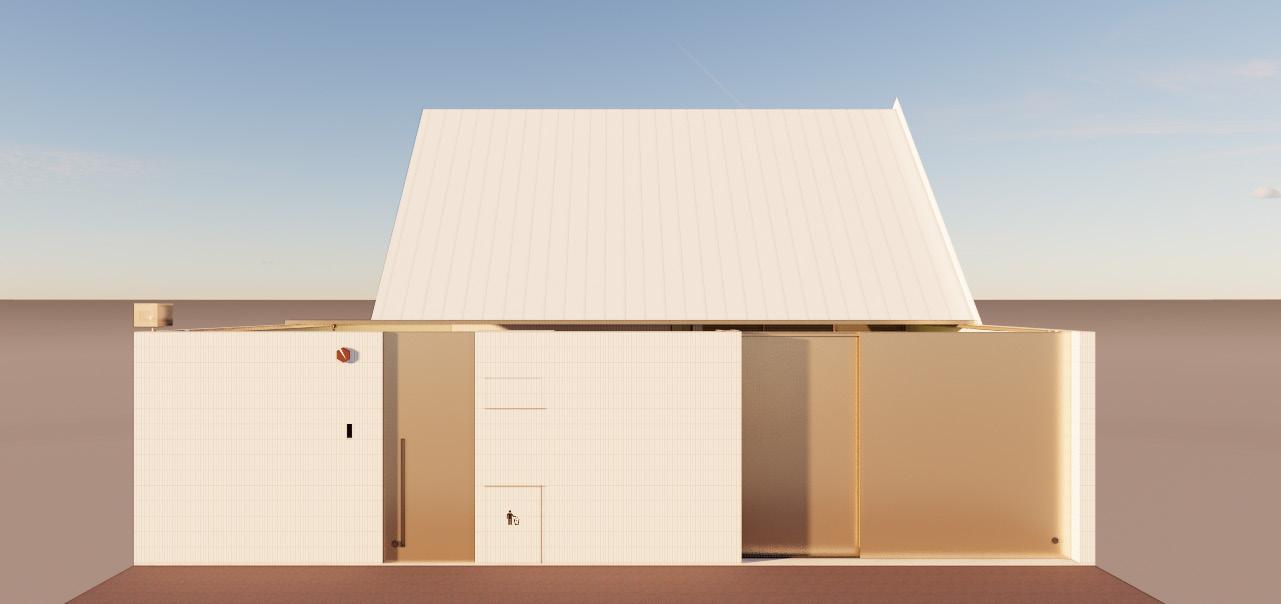

FRONT FACADE

LOUNGE

Ar. Mande Austriono Kanigoro, S. T., IAI

Ars

Role I was responsible in schematic, design development, and construction phase. I was tasked in proposing schematic designs, developing design, designing custom furnitures, specifying materials and details, and preparing documents for contractors nearly paralel to the construction process. I was also responsible in briefing and supervising the construction process.

Gerry Natabraja, S.

Ria Ridwana, S. Ars

Akbar Wihernanda, S. Ars

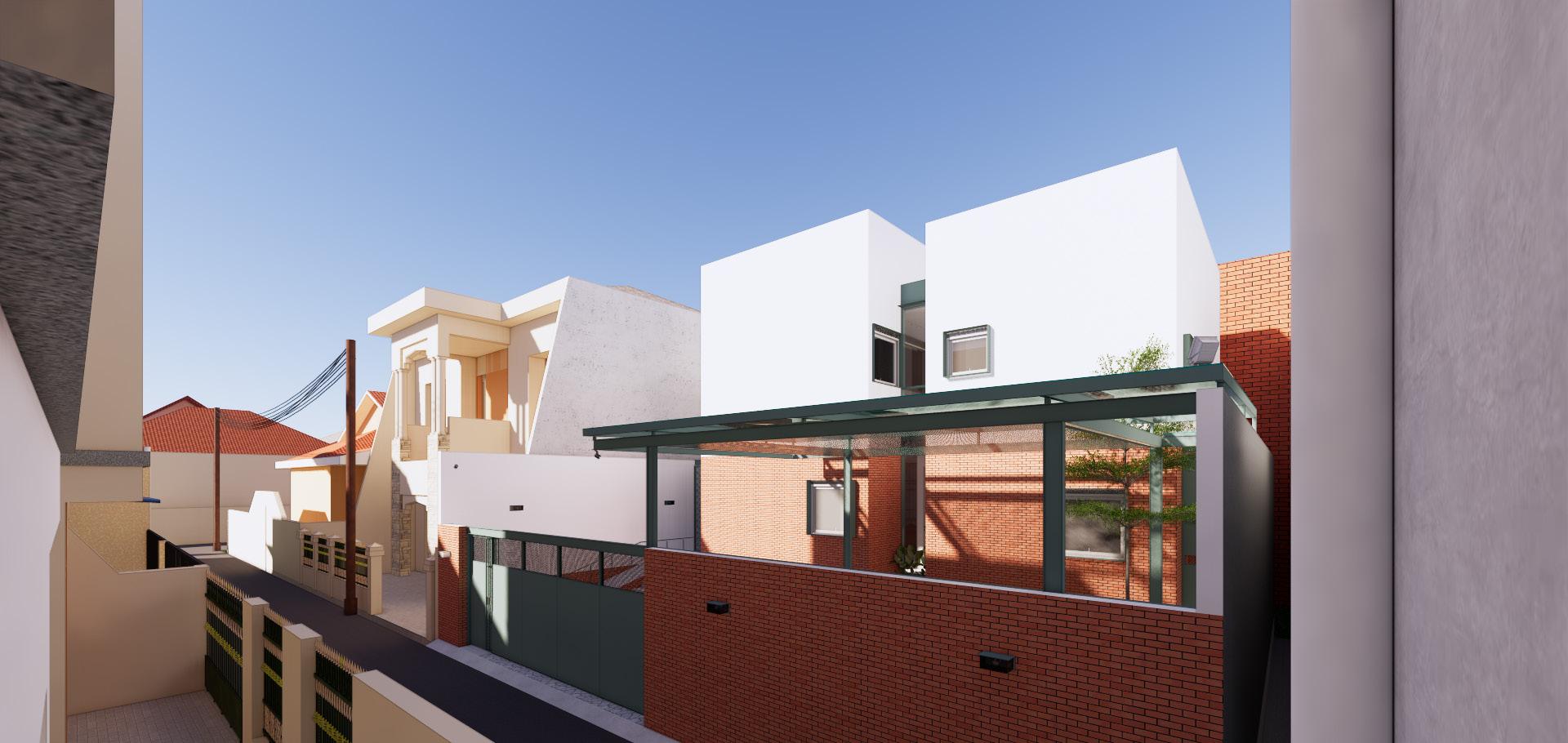

Outline MO House was initially designed for growing family of a couple not yet needed a children bedroom for a couple of years. Now a couple of years into the marriage, the lifestyle has changed and adjustment needs to be made in order to accomodate the growing family. Hence, the second phase of MO House aimed to fulfill the growing lifestyle of adulthood and anticipation of future children.

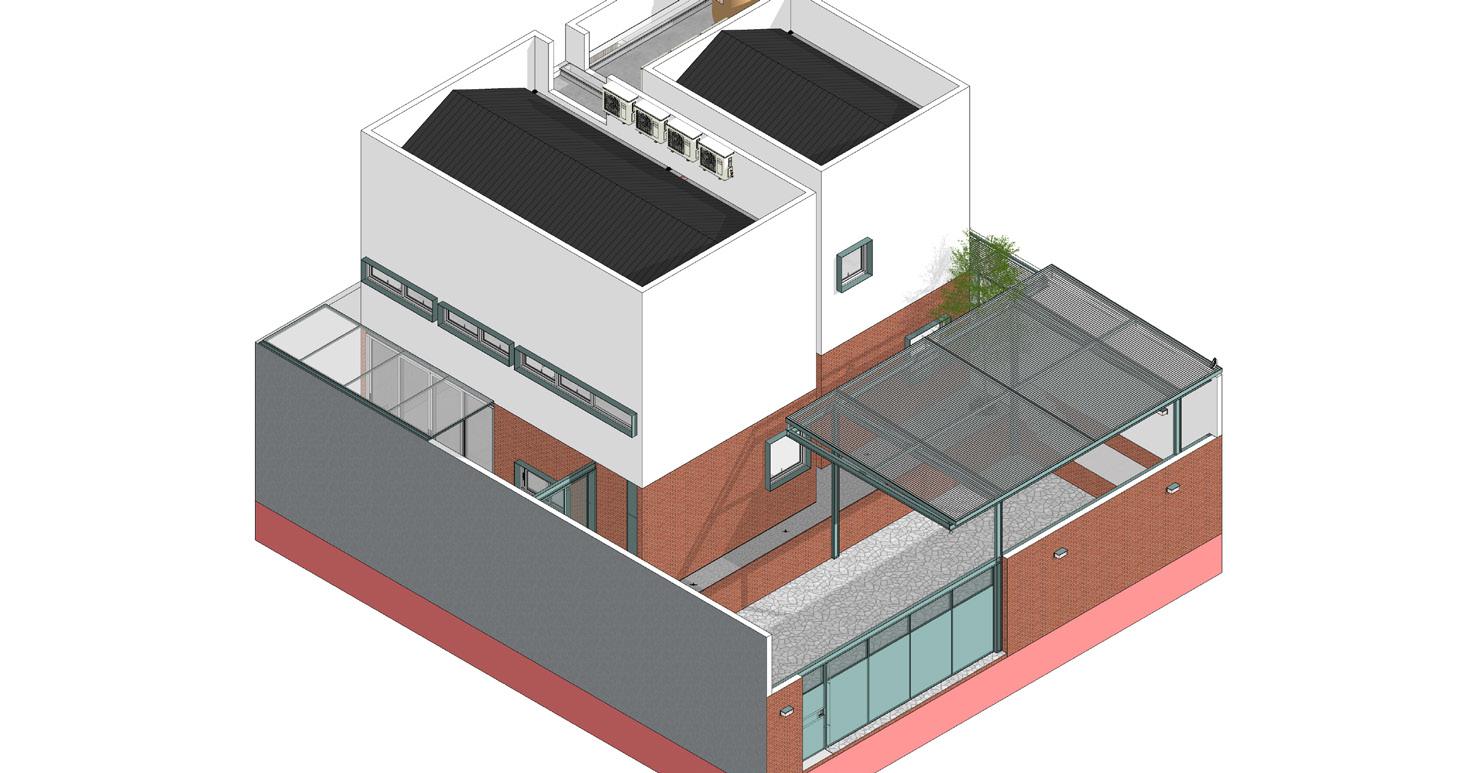

Adding to the previous program: children bedroom and laundry are added on the previously-empty backyard. Another bathroom also added to the 2nd floor, prompting the bedroom to have more privacy and enclosure. As the room starts to increase, added opening on the bedroom becomes necessary for natural airflow and lighting. Lastly, the addition of steel canopy, railings, doors, windows, and details serves as design statement as well as well function elements.

RENDER : GERRY NATABRAJA

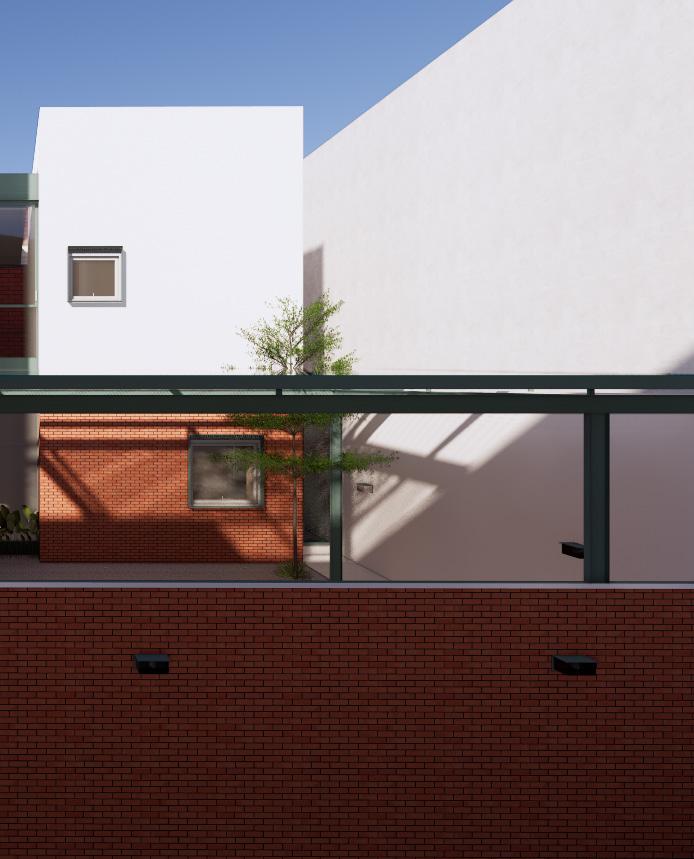

COURTYARD

PRINCIPAL OFFICE

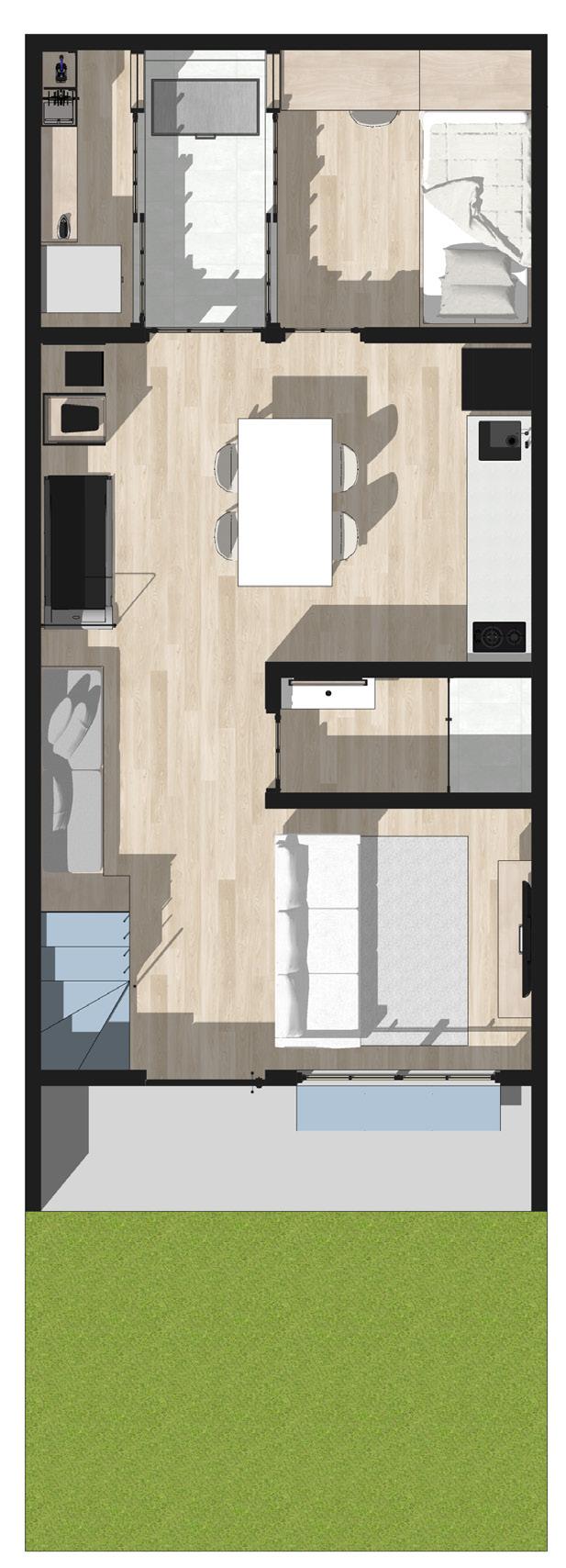

1ST FLOOR PLAN

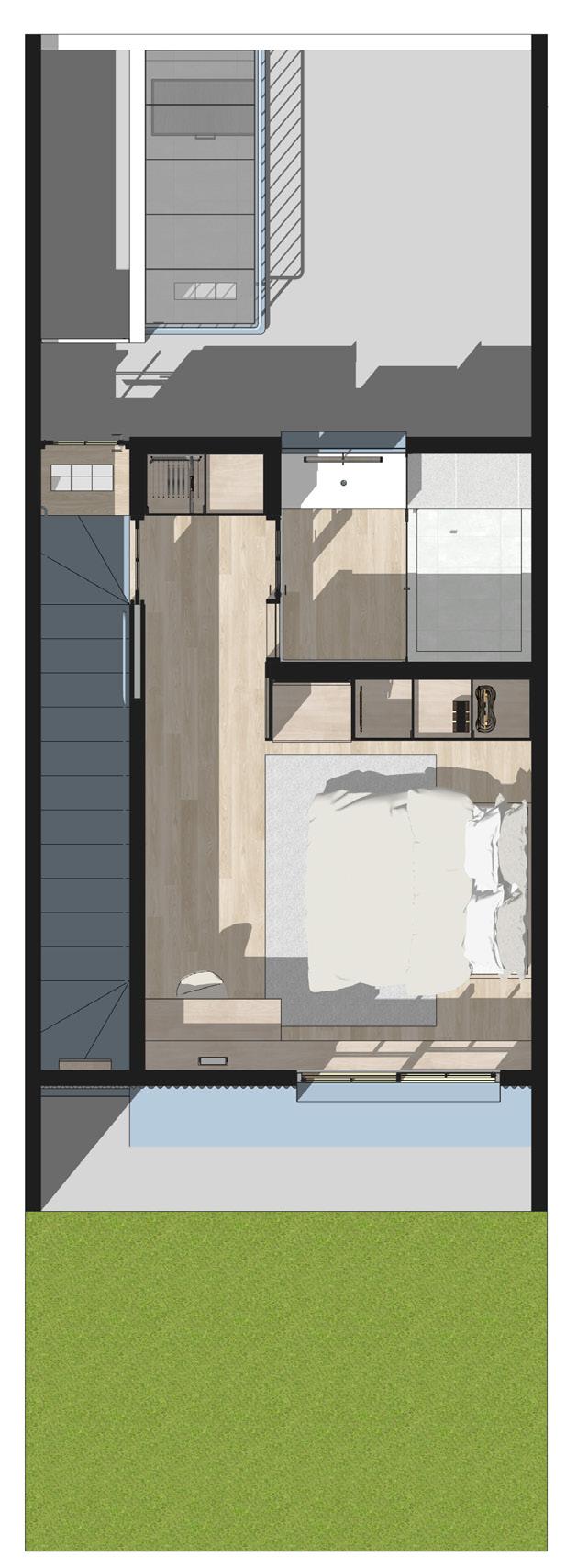

2ND FLOOR PLAN

BACKYARD

DINING ROOM

COURTYARD

1ST FLOOR PLAN (EXISTING) SOURCE: DFORM

PARKING ENTRANCE LIVING ROOM

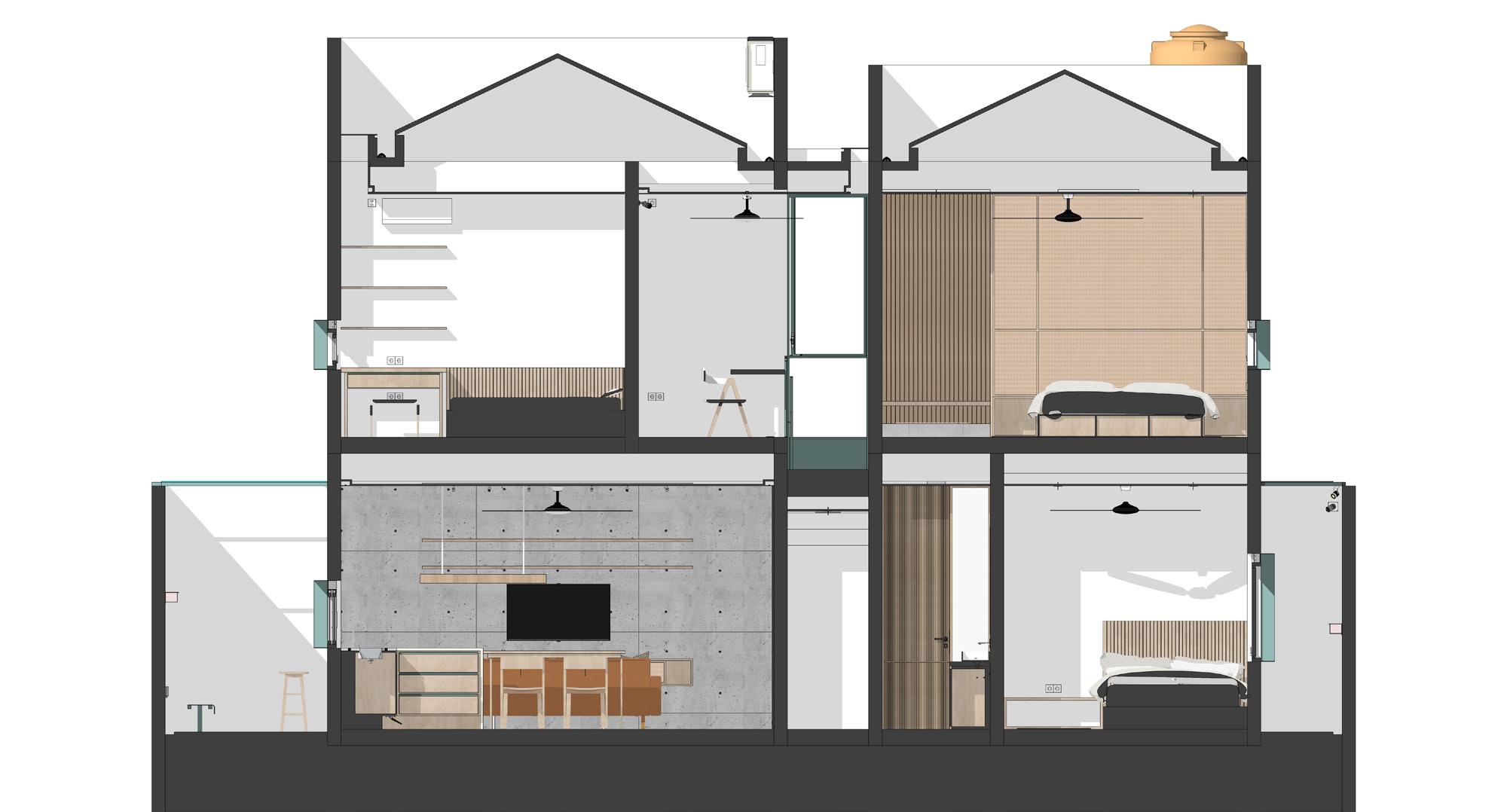

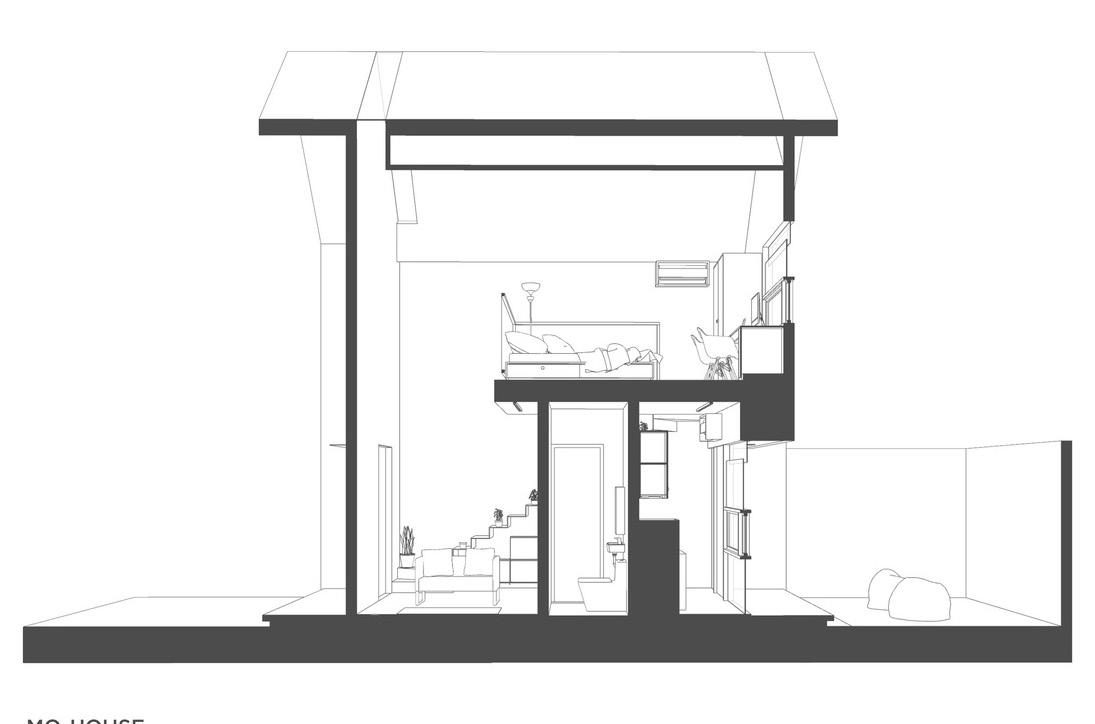

LONGITUDINAL SECTION (EXISTING) SOURCE: DFORM

PRINCIPAL OFFICE KITCHEN

2ND FLOOR PLAN (EXISTING) SOURCE: DFORM

LOUNGE

ENTRANCE

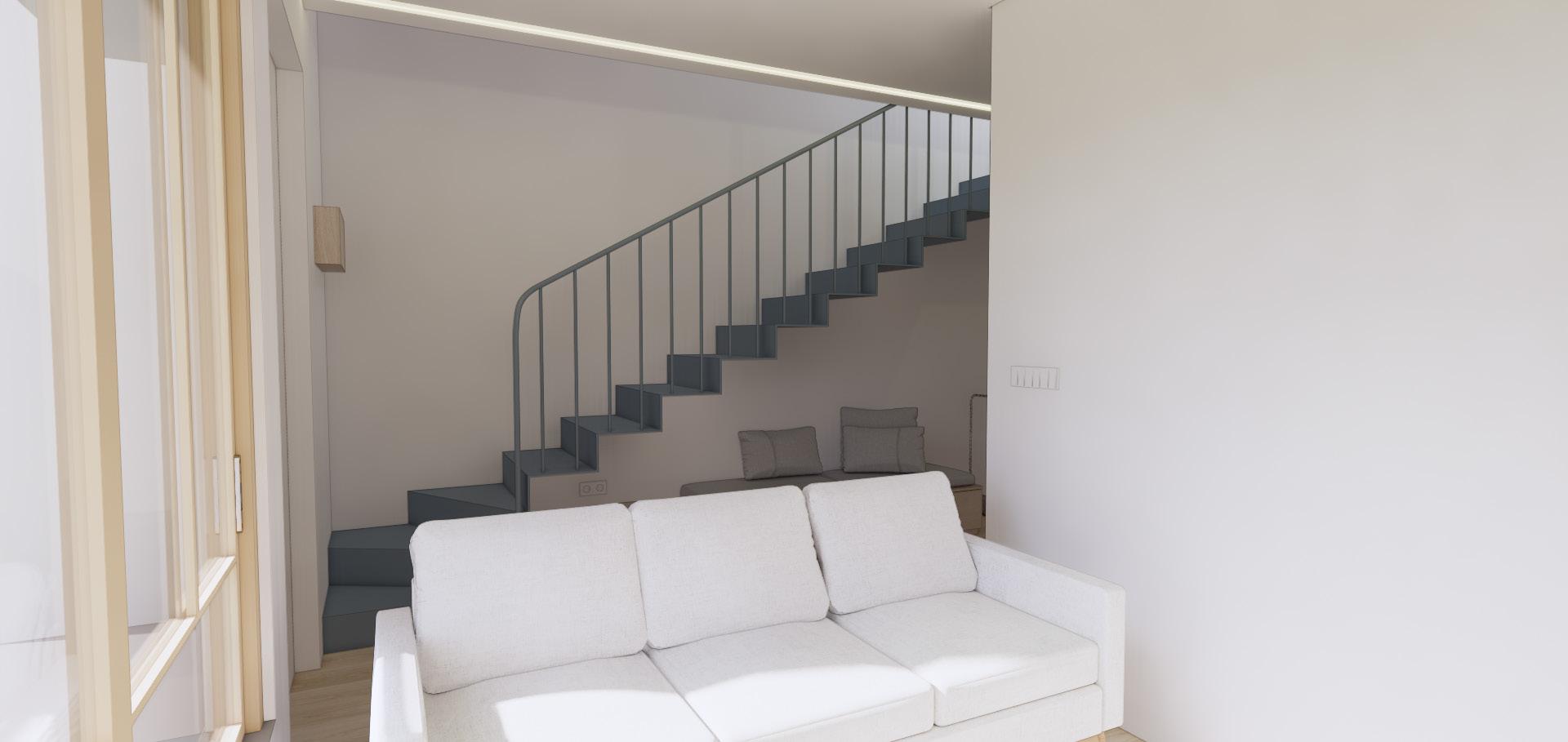

LIVING AREA

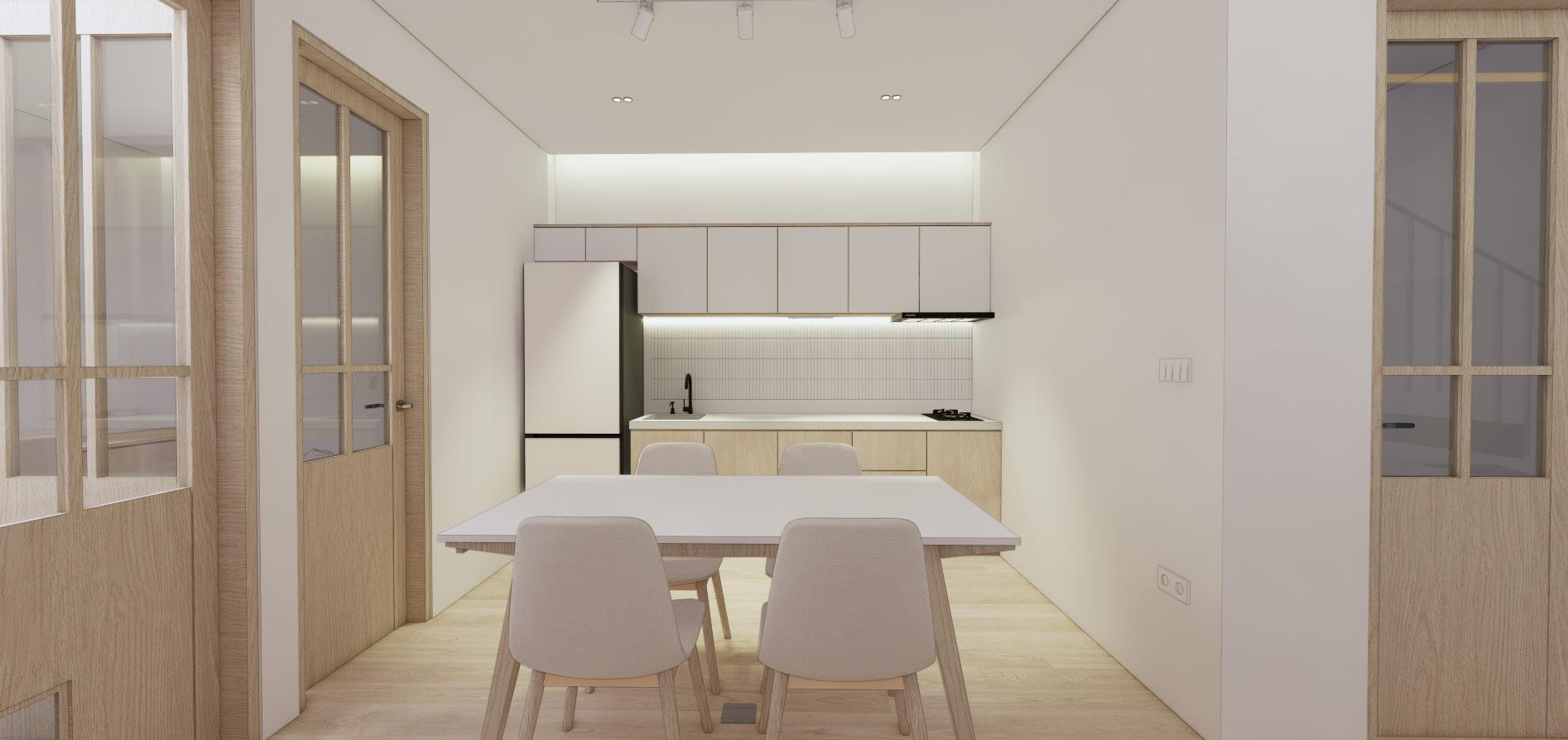

DINING & KITCHEN

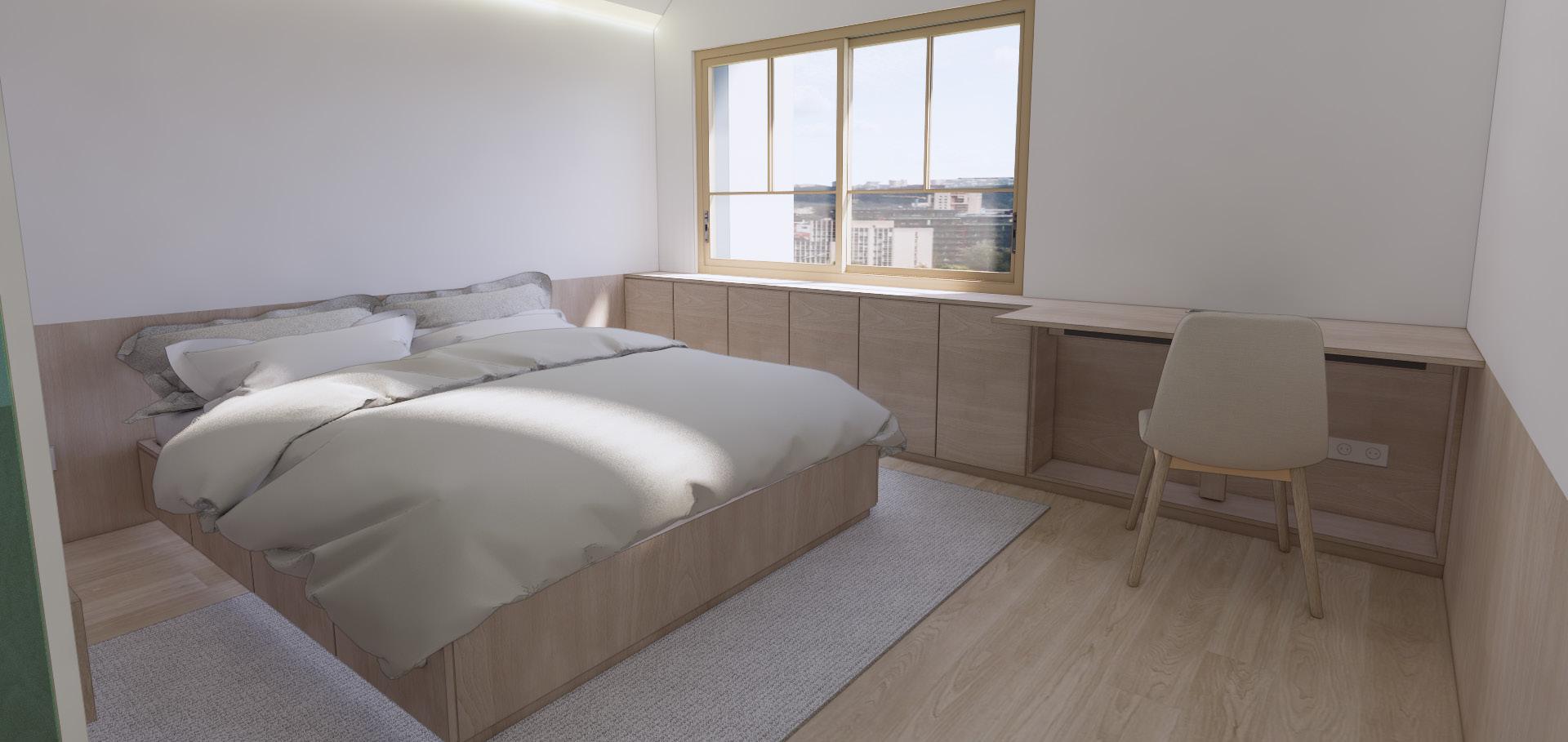

CHILDREN BEDROOM

MASTER BEDROOM

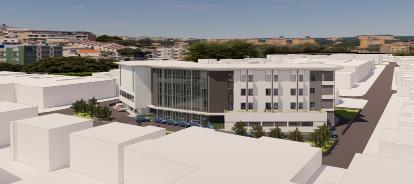

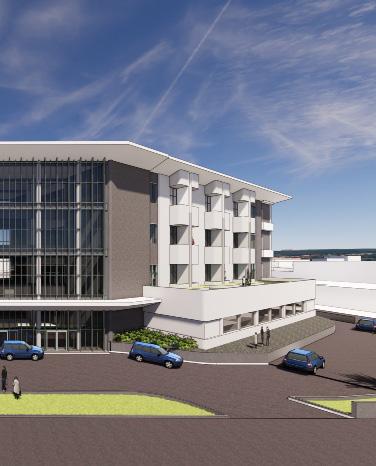

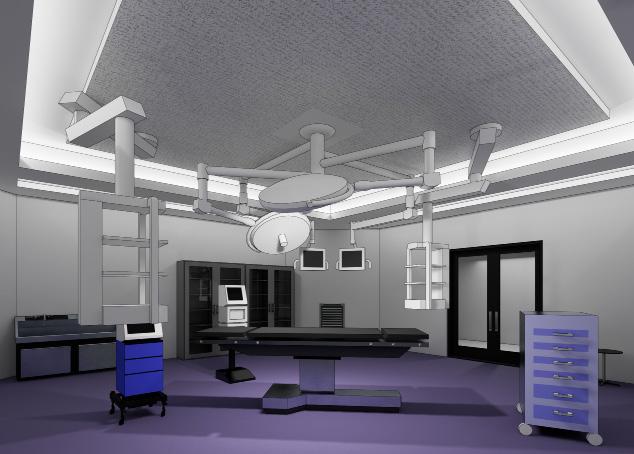

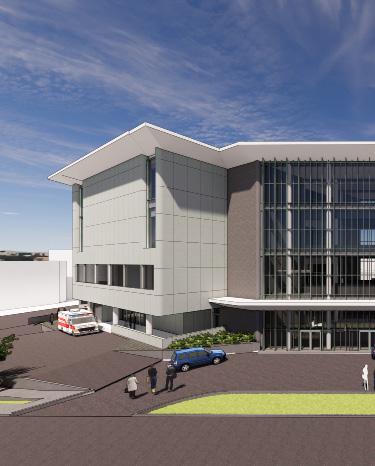

BANDUNG HEART HOSPITAL

FINAL ARCHITECTURE PROJECT

According to WHO, in 2020, ischemic heart disease has the highest mortality rate in the world with 16%, followed by stroke with 11%. West Jave have the highest prevalence of heart diseases in Indonesia (Riskesdas, 2018). Per September 2021, Bandung doesn’t have a heart hospital yet, so it is necessary to have a comfortable and remarkable hospital specialized in cardiovascular diseases.

Located in Pasir Kaliki, Bandung Heart Hospital is near to critical places, such as Husein Sastranegara Airport and Bandung Train Station. Its in an urban neighborhood with middle density, 2-3 stories of skyline, and plenty of trees. Buildings are dominated by commercial and residential buildings. While not so dense, it’s also near the city center, so the traffic is high during peak hours.

The site is in Pasir Kaliki Street flanked by Dr. Rajiman and Dr. Roem Streets, meaning 1) the site has 3 fronts which is ideal for a hospital entrance : main entrance, emergency entrance, and secondary entrance, and 2) the site has 2 forks to be responded to. The elongated side faces frontally to the west, which has side effects on the thermal aspect.

Site is surrounded by 3 streets, Pasir Kaliki on the west (down), Dr. Rajiman on the north (left), and Dr. Roem on the south (right). The buildings in this area has 2-3 sto- rey heights.

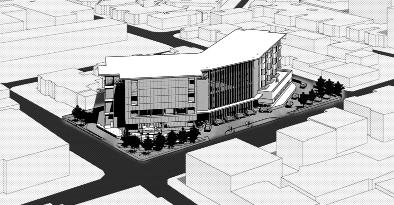

Two forks at the corner of site needs to responded, as well as the height of the buildings. The solution is angled orientation of masses and forwarded ground floor.

Buildings divided into two masses to accommodate the zones: medical treatment building (red) and medical support building (blue). Angles and in-betweens is used as open spaces and vertical circulations.

Hospitals are strictly divided into three zones: patient zone (red), visitor zone (blue), and doctor-service zone (green). It’s related to hygiene and sterility, also to the flow and circulation.

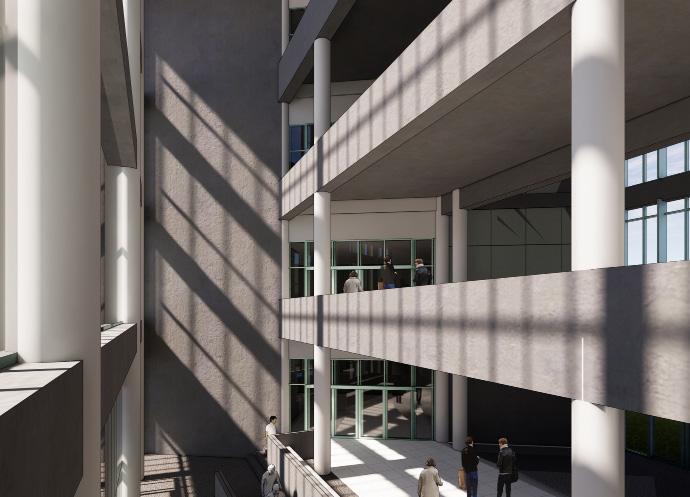

ATRIUM

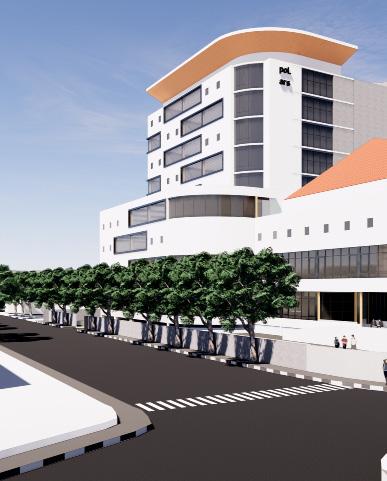

BANDUNG POLYTECHNIC OF ARCHITECTURE

The site is located in a medium density urban area and is quite close to the city center. On the site, there’s a class B heritage building, the Wastu Gallery, as a primary design constraint. In addition, the area of Wastukencana St. has the Maung Monument at the crossroads as an icon.

The theme of this architectural work is “Cycle” which means ‘a series of events that are regularly repeated in the same order’. This theme represents architecture and design as an iterative process. In addition, the theme also captures the relationship between the heritage and newer building, as back-and-forth neverending sequences.

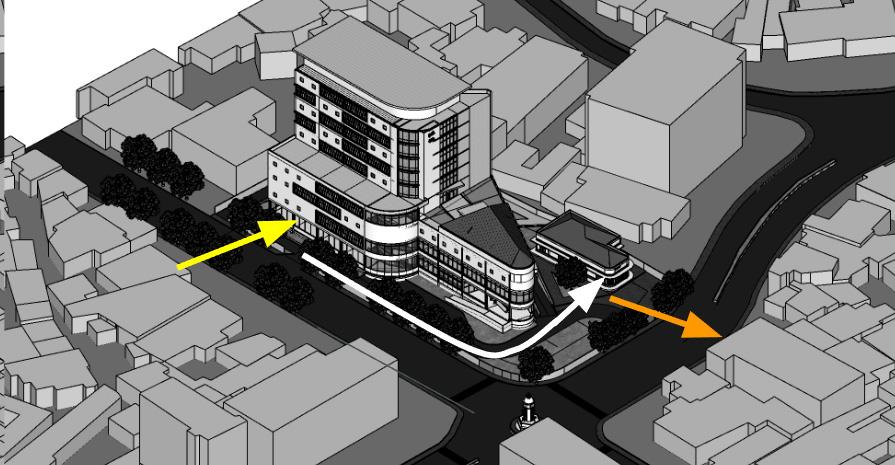

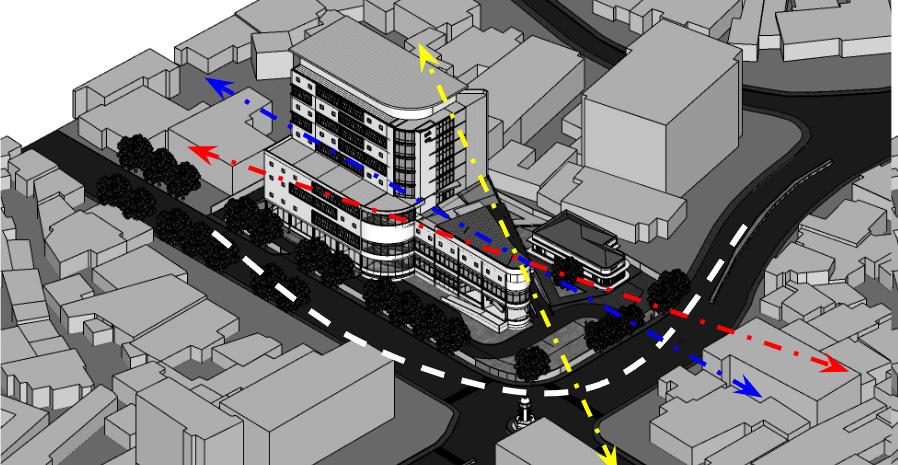

The orientation of the is elongated to the northsouth axis (blue line), then the heritage building are aligned to the small river (red line), and the roundabout monument have gravitates the site towards it (yellow line). There’s angles and axises crossing on the site.

The main entrance to the site is located on the Cihampelas St. based on 1) it is on the elongated side of the side, 2) the streets are mainly one-way road, 3) there’s a huge traffic coming from the Mochtar Koesoemaatmadja Flyover

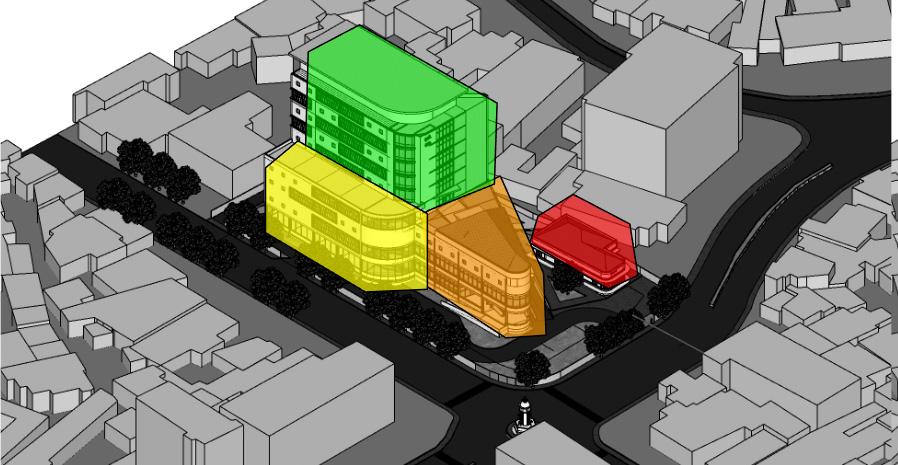

Buildings divided into three masses: mid rise building (green), triangle building (orange), and heritage building (red). The mid rise and triangle building intersected to create seamless transition between the building.

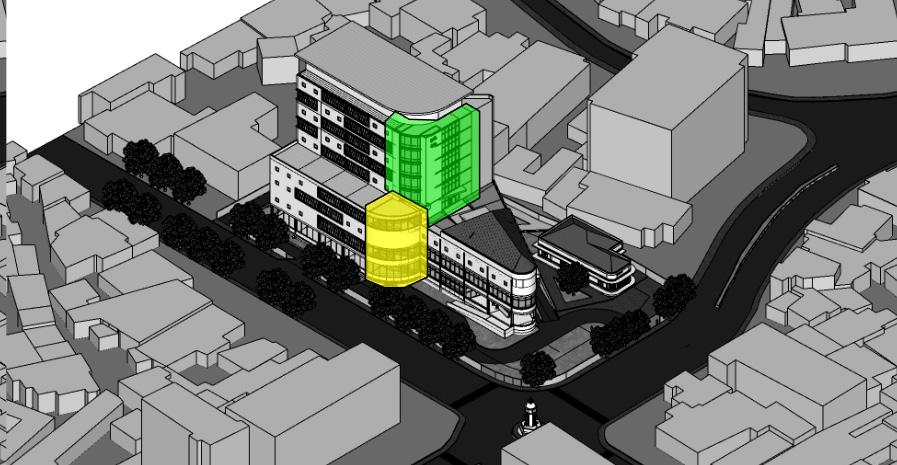

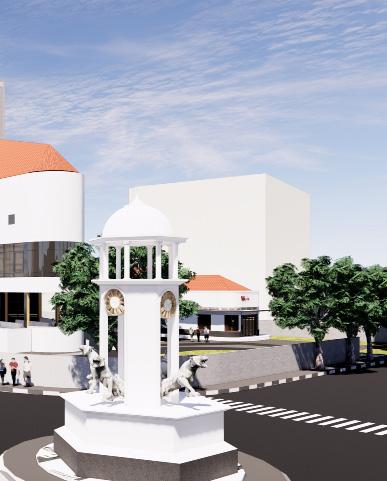

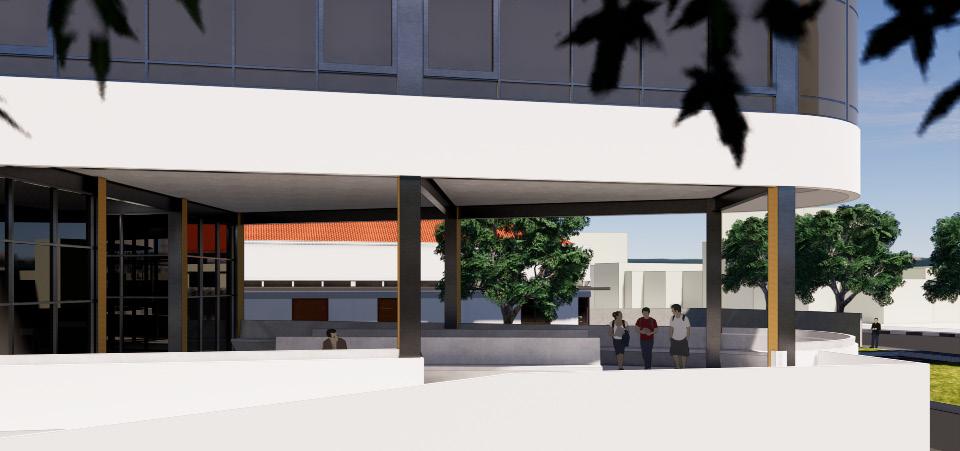

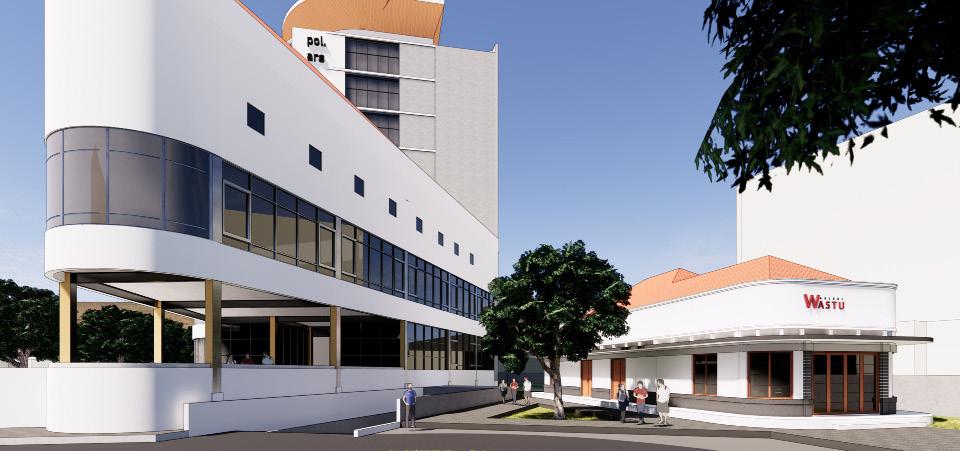

The corner (yellow and green) are curved in response to the roundabout. The podium curve serves as curved stair, while the mid rise curve used as a vertical circulation.

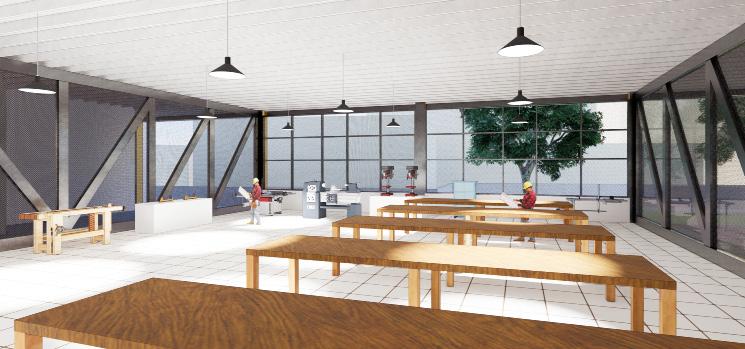

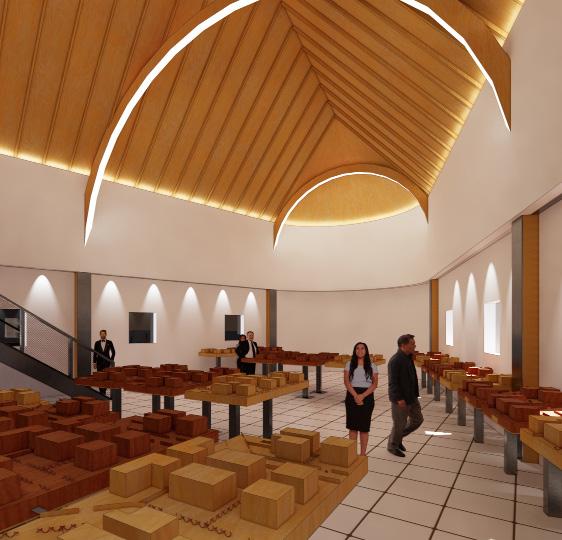

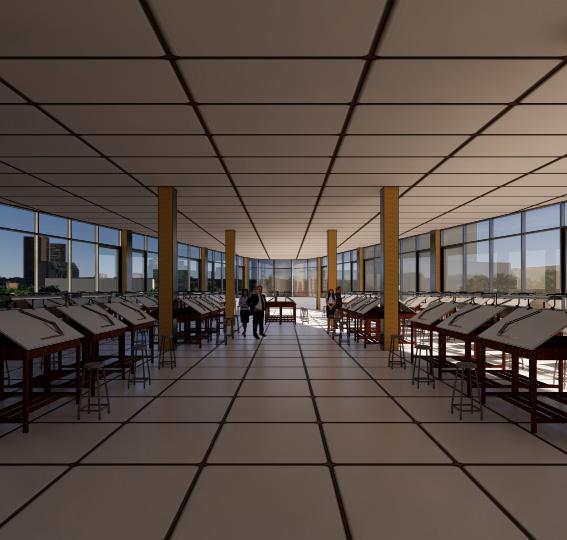

STUDIO (DAY VIEW)

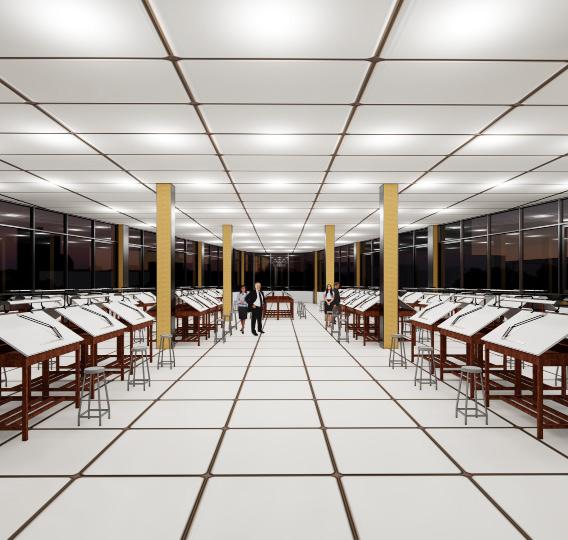

STUDIO (NIGHT VIEW)

NOISE ANALYSIS AND OPTIMIZATION OF BUILDING ENVELOPE TO ACHIEVE NOISE CRITERIA IN KADIN JAWA BARAT OFFICE BUILDING

1) Gerry Salman Natabraja, 2) Irma Subagio, S.T., M.T.. 1 Student in the Undergraduate’s (S-1) Study Program in Architecture at Parahyangan Catholic University

Abstract - The West Java Kadin office building is located at the intersection of Jakarta St. - Supratman St., which is close to traffic noise sources. Noise has a negative impact on the audial comfort of office workers. This study aims to determine the distribution of noise levels from the streets, then determine the value of noise criteria of the room, and then optimise the noise insulation of the building envelope at the West Java Chamber of Commerce and Industry to achieve the noise criteria for office building.

The study used a quantitative approach and conducted by measuring Sound Pressure Level on the environment, the site, and inside the building, then calculating the Noise Reduction on the building envelope exposed to traffic noises. Environmental noise of 90.7 dB (84.1 dB-A) on Jakarta St. and 88.5 dB (81.1 dB-A) on Sukabumi St., does not meet the standards of the Decree of the Minister of the Environment,. Overall, background noises inside the building also do not meet NC40, background noise standards for office buildings. with an increase in noise reduction of 12.9-24.4 dB is required to achieve a Noise Reduction value of 33.8-34.4 dB or equivalent to STC 33.

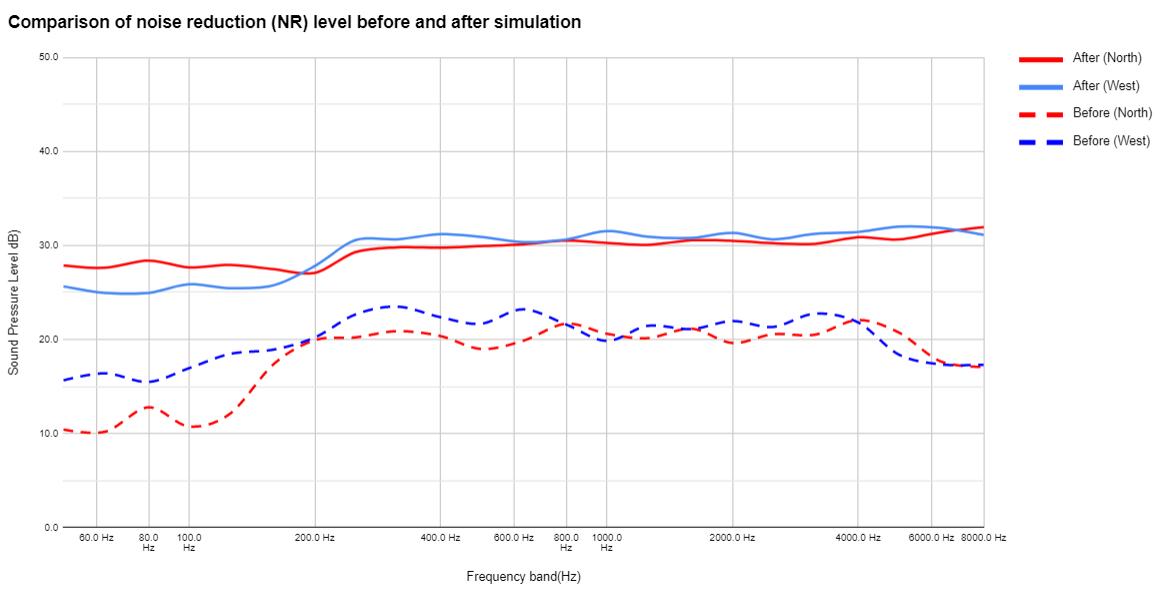

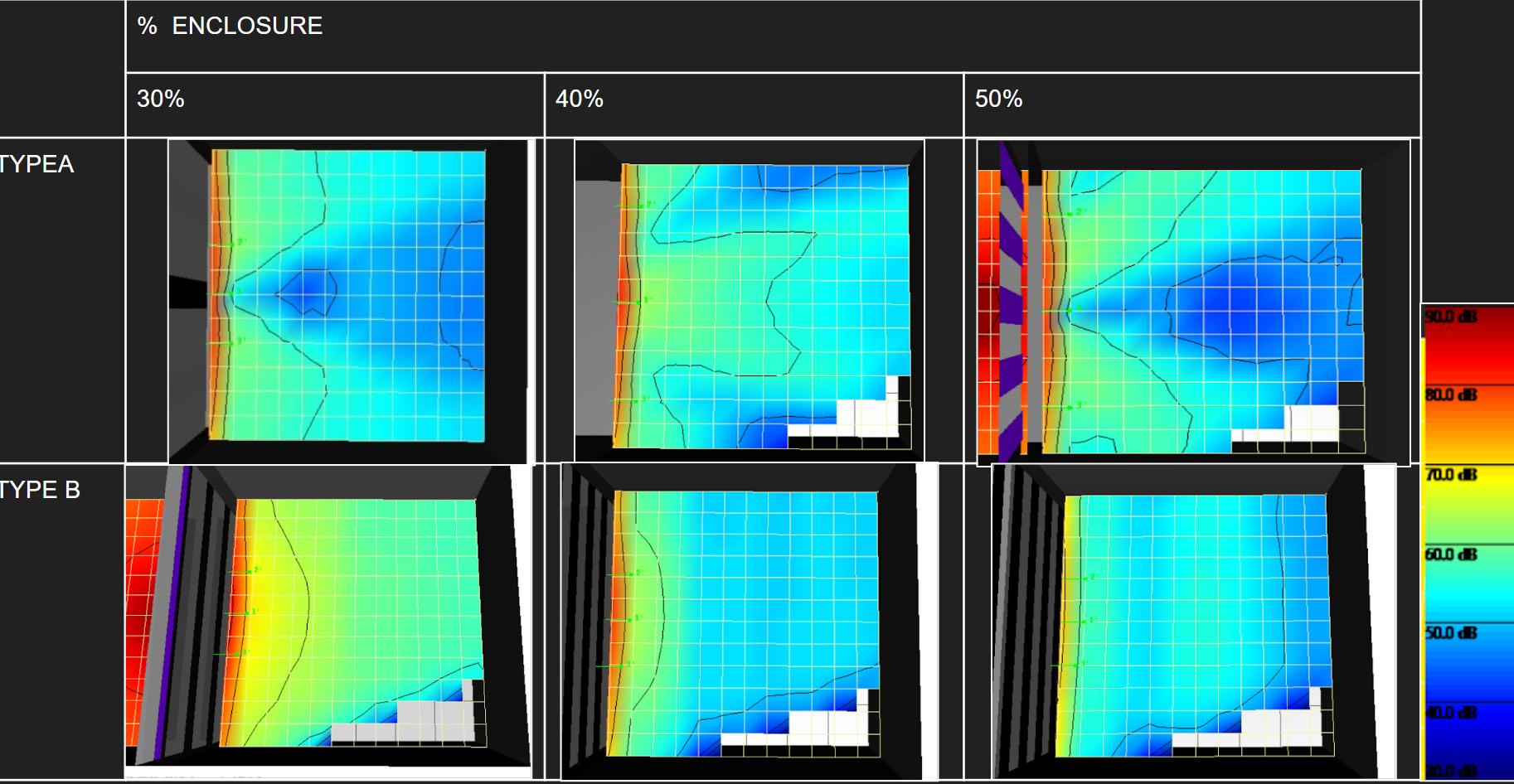

The simulation of building envelope types with 2 types of GRC panels with a degree of enclosure of 30% to 50% has proven to increase the noise reduction value up to 30,5 dB on the north side and 29,5 dB on the west side. The simulation resulted in indoor noise level of 53.7 dB (50.5 dB-A) on the north side and 51.7 dB (41.6 dB-A) on the west side, which equals NC35 on the north side and NC40 on the west side, meeting the recommended level of background noise in office buildings.

Keywords: noise control, noise criteria, building envelope, sound pressure level

MARE FRUITCLUB

INTERIOR DESIGN PROJECT

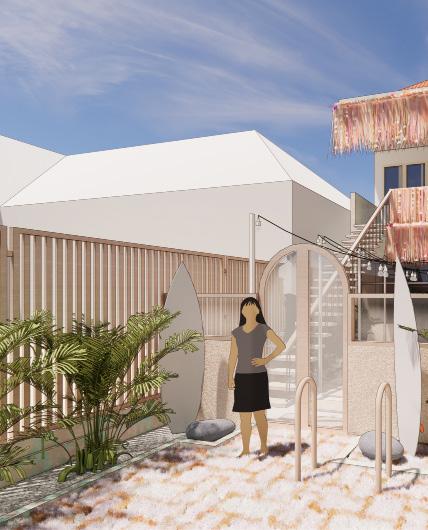

The beach club theme was chosen to fulfill specific brand concept of “fruit-based food and drink that attracts the youths”. In collaboration with the branding team, the dollor pallete of pink tint, coconut milk, and dark gray was chosen for the color and interior ambient, which then Interpretated into a natural material and wall-washed interior design.

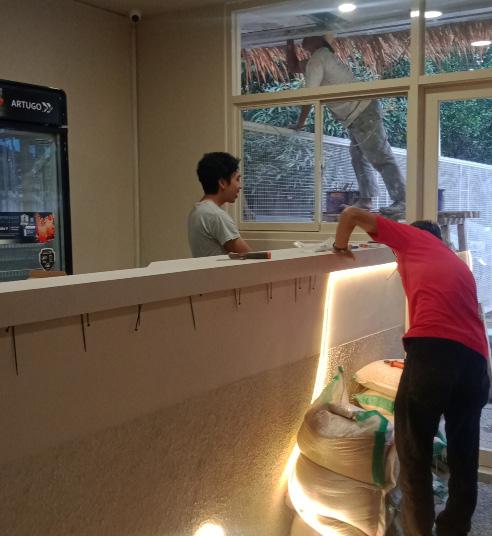

This project was done in tandem with Farhan Ramadhan. The responsibilites and workloads are divided equally as the model was done together and then, the drafting and rendering were done separately. Then, the construction phase carried out for 3 months supervised, in which problems are encountered and solved swiftly.

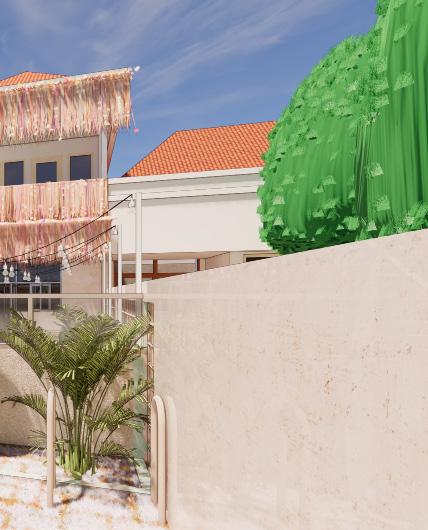

RENDER : FARHAN RAMADHAN RE-STYLE

GERRY NATABRAJA

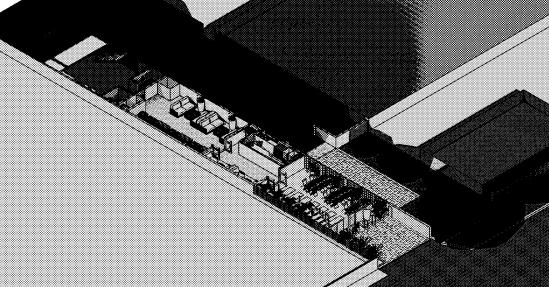

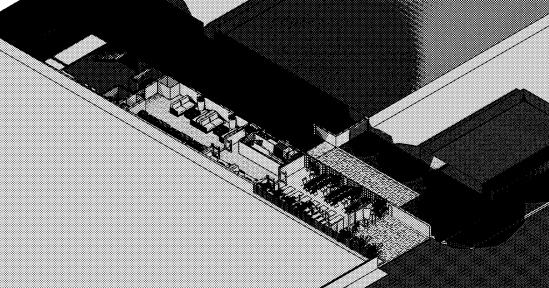

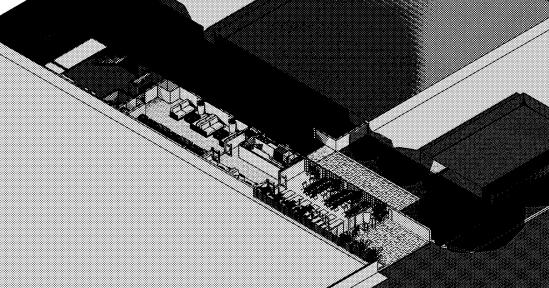

The site is located in Jawa st., which a low density urban area dominated by residential building. The renovated place was a garage of a house, which needs separation in order to maintain the privacy of the house.

The space is elongated and natural light doesn’t reach to the back space. The space felt pretty narrow and dark due to said elongated shape and lack of natural light. Artificial lighting becomes crucial in setting the tone of the space.

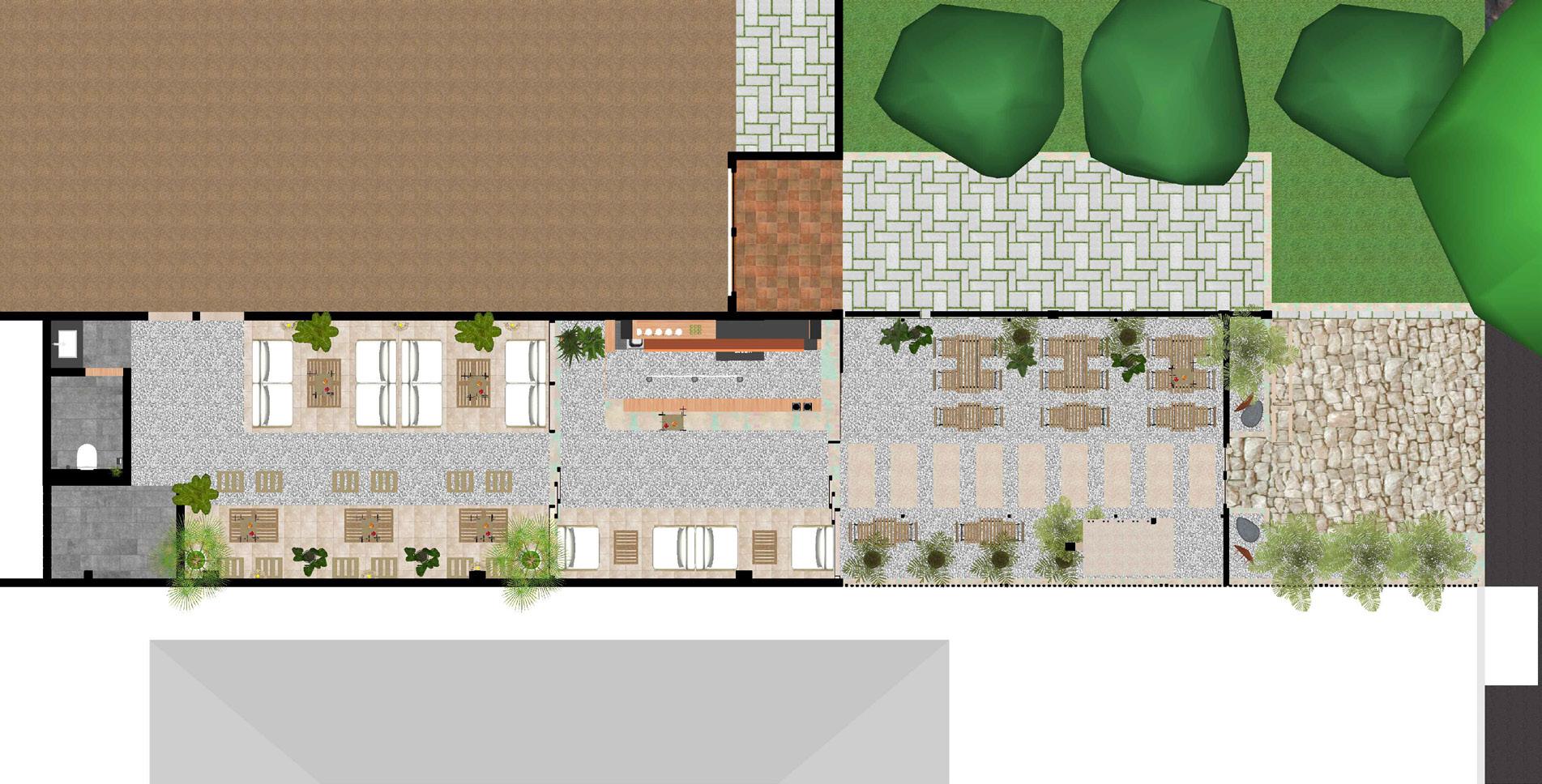

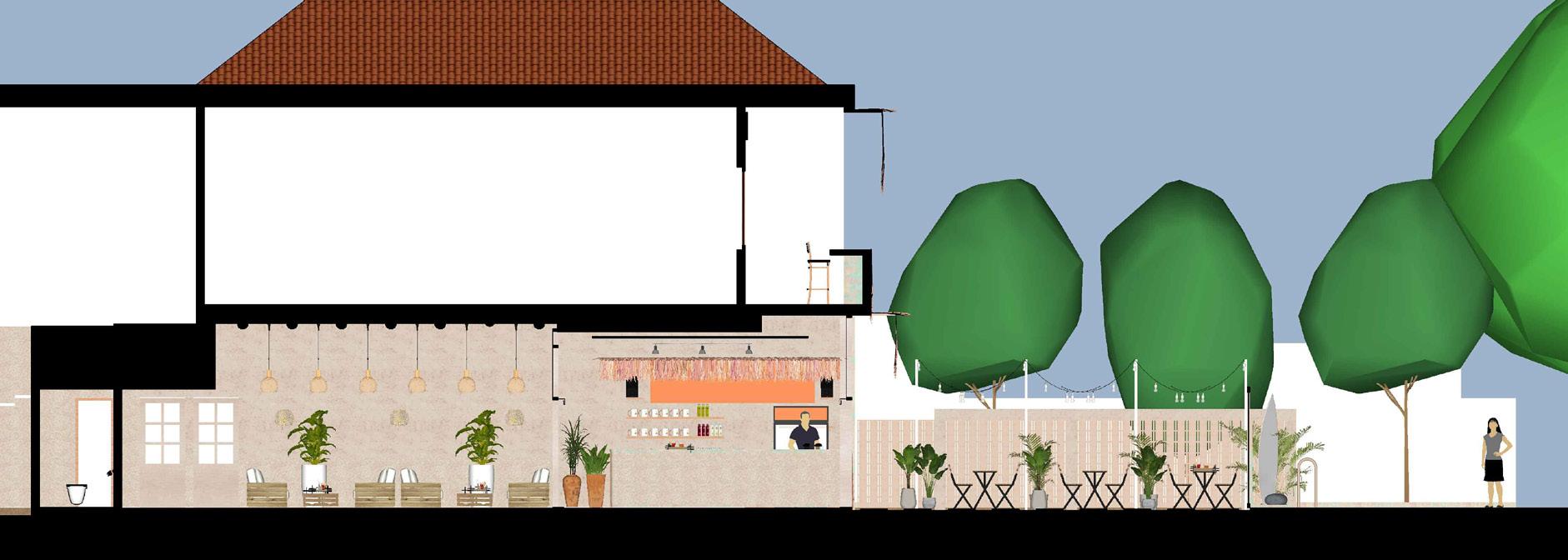

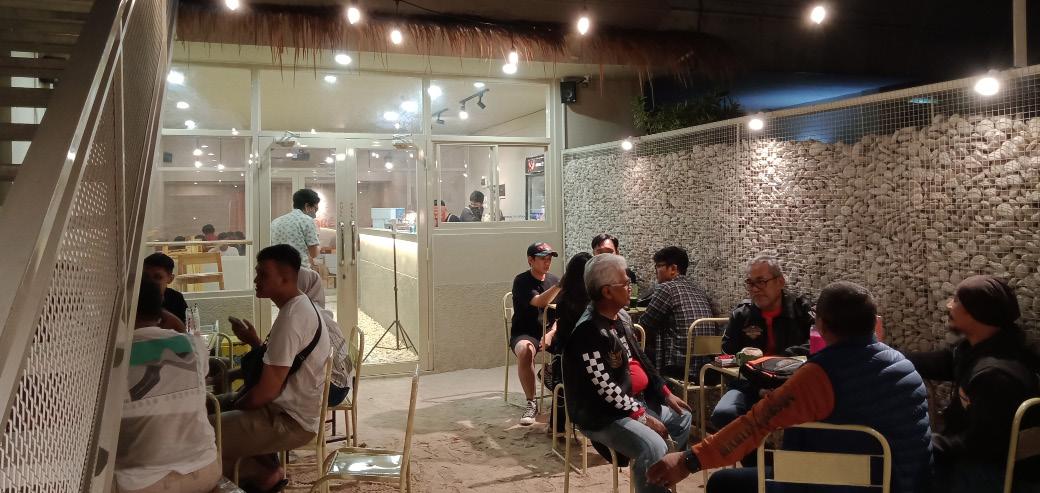

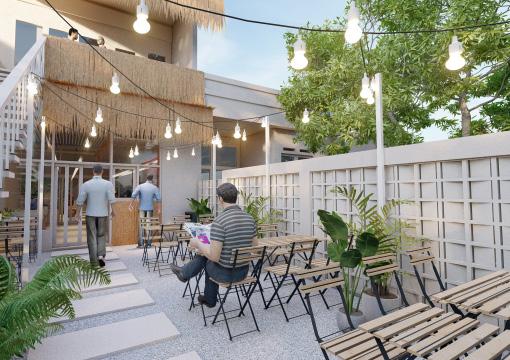

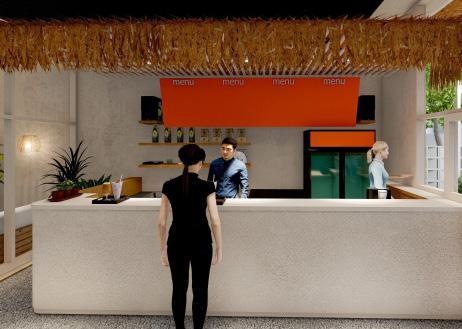

Buildings divided into three area: outdoor (yellow), indoor bar (orange), and indoor seating (red). The separation of space uses framed glass wall to make individual area become a space while maintaining openness, resulting in reduced narrowness.

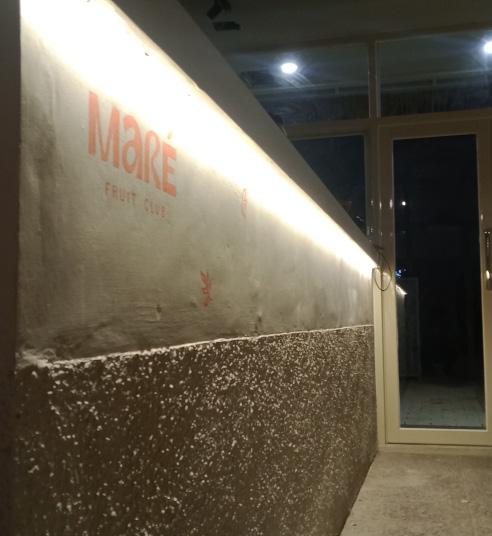

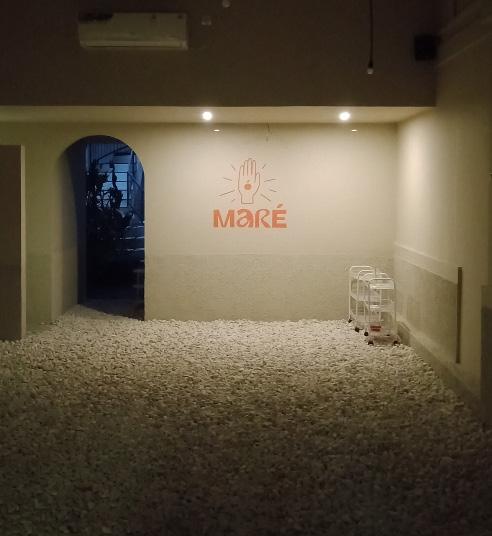

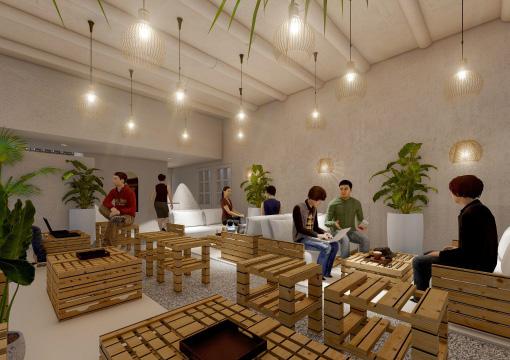

There’s four main material used: pebble floor, sand floor, pink tint color paint, and river stone mesh-binded wall. Pink Tint (PANTONE 12-1404 TCX) color is used on the interior wall and the sand, while the pebble and stone are used to bring tactility into the design.
