Drew Marshall
Architecture & Design Samples
A B C D
Cover Images
A - Chainmail

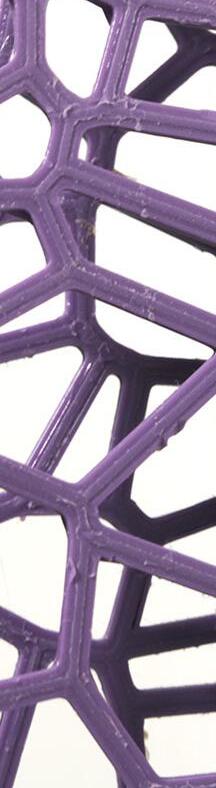

B - Voronoi SSD Case

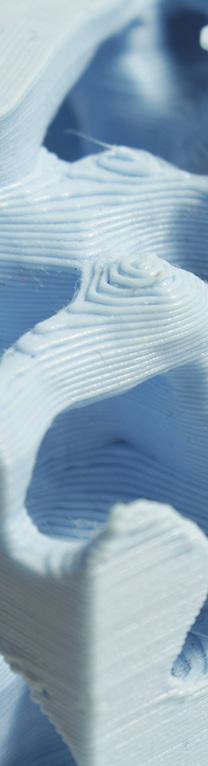

C - Pen Plotted Pattern
D - 3D Perlin Noise Cube
Queensborough Performing Arts Center
QUEENSBOROUGH COMMUNITY COLLEGE | NYC | 2012

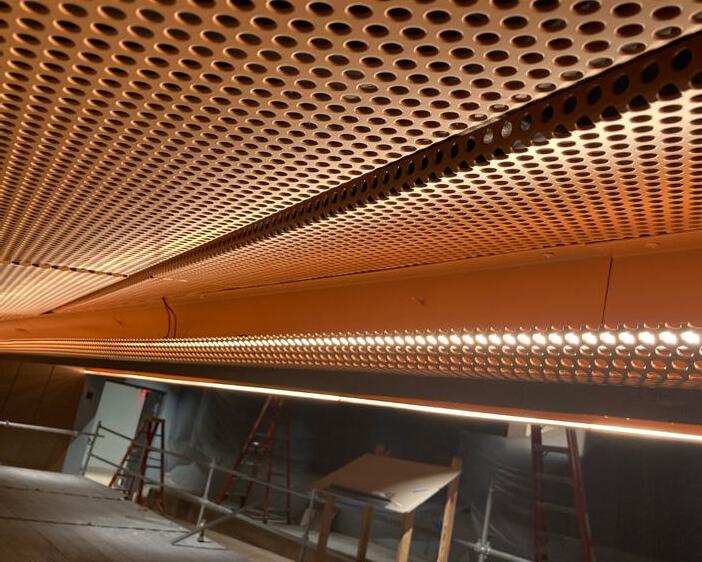

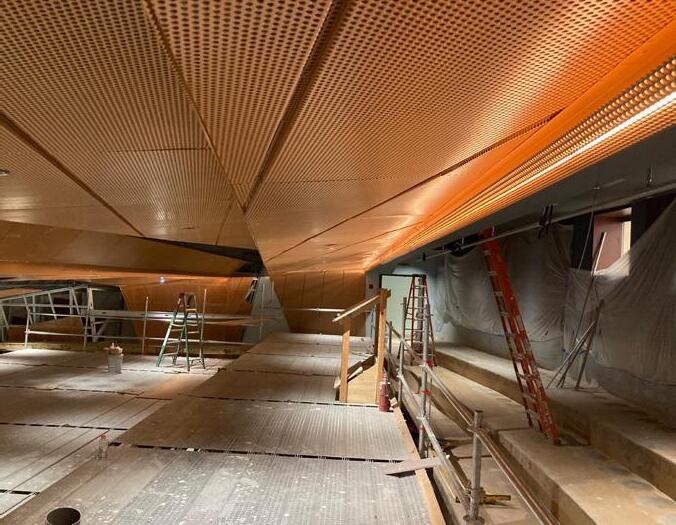

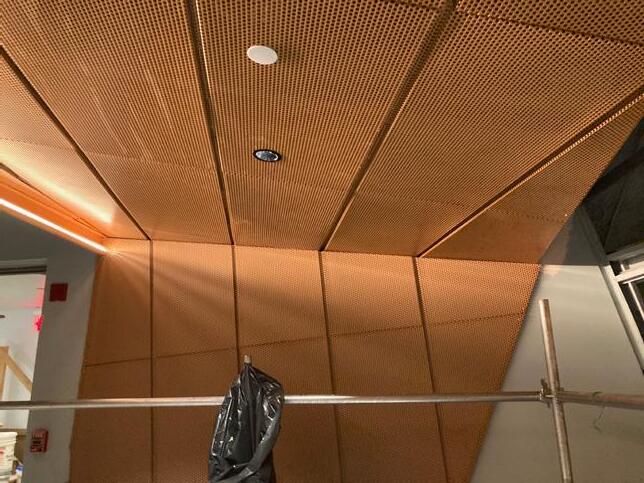

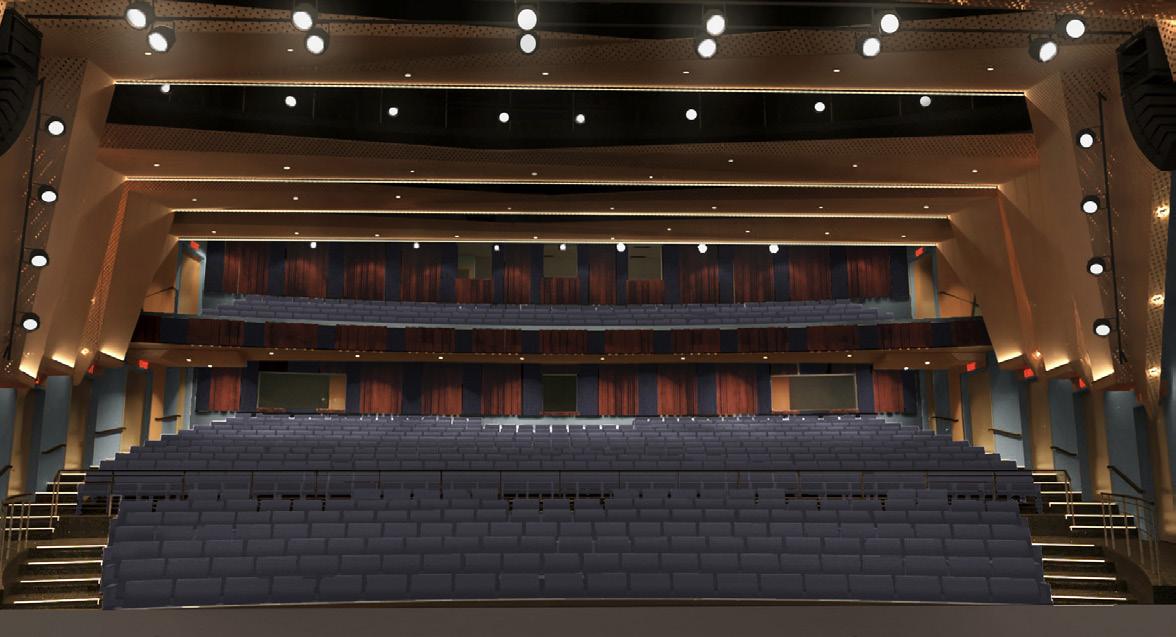

The renovation of a community college theater. These renders and details were part of a lighting study to pitch a new house lighting scheme, as well as attachments for AV stage lighting.
SOFTWARES: - Revit
- 3ds Max - V-Ray - Photoshop

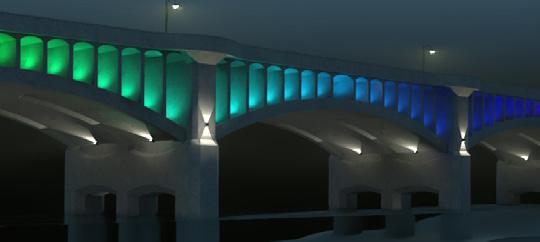

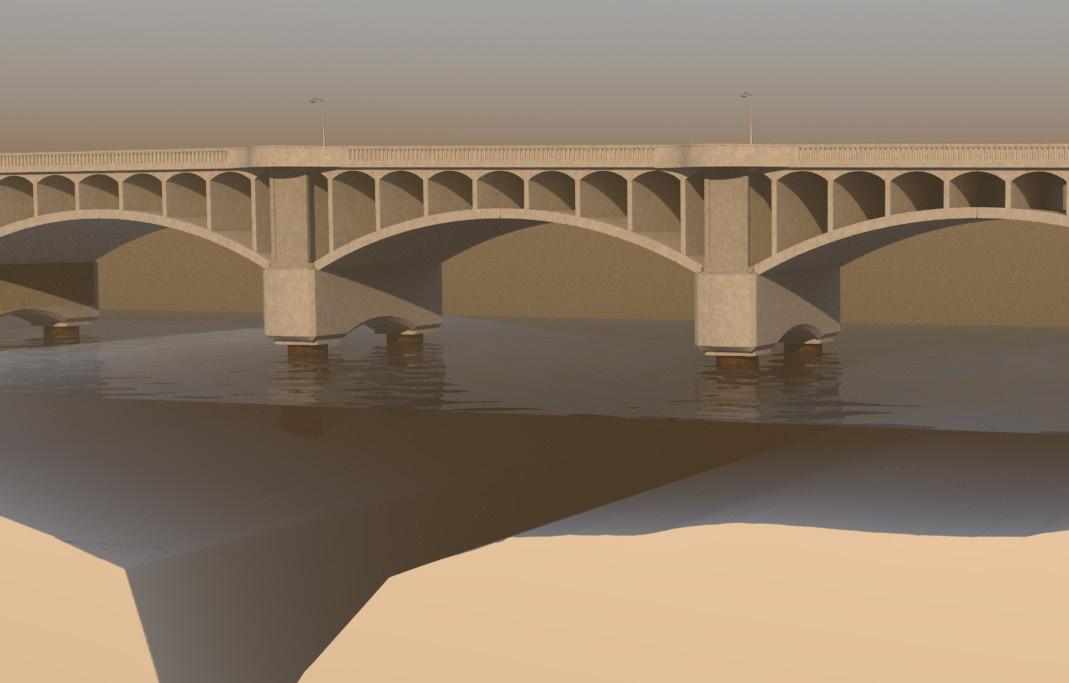

Upstate Bridge Reconstruction
Upstate NY | 2022

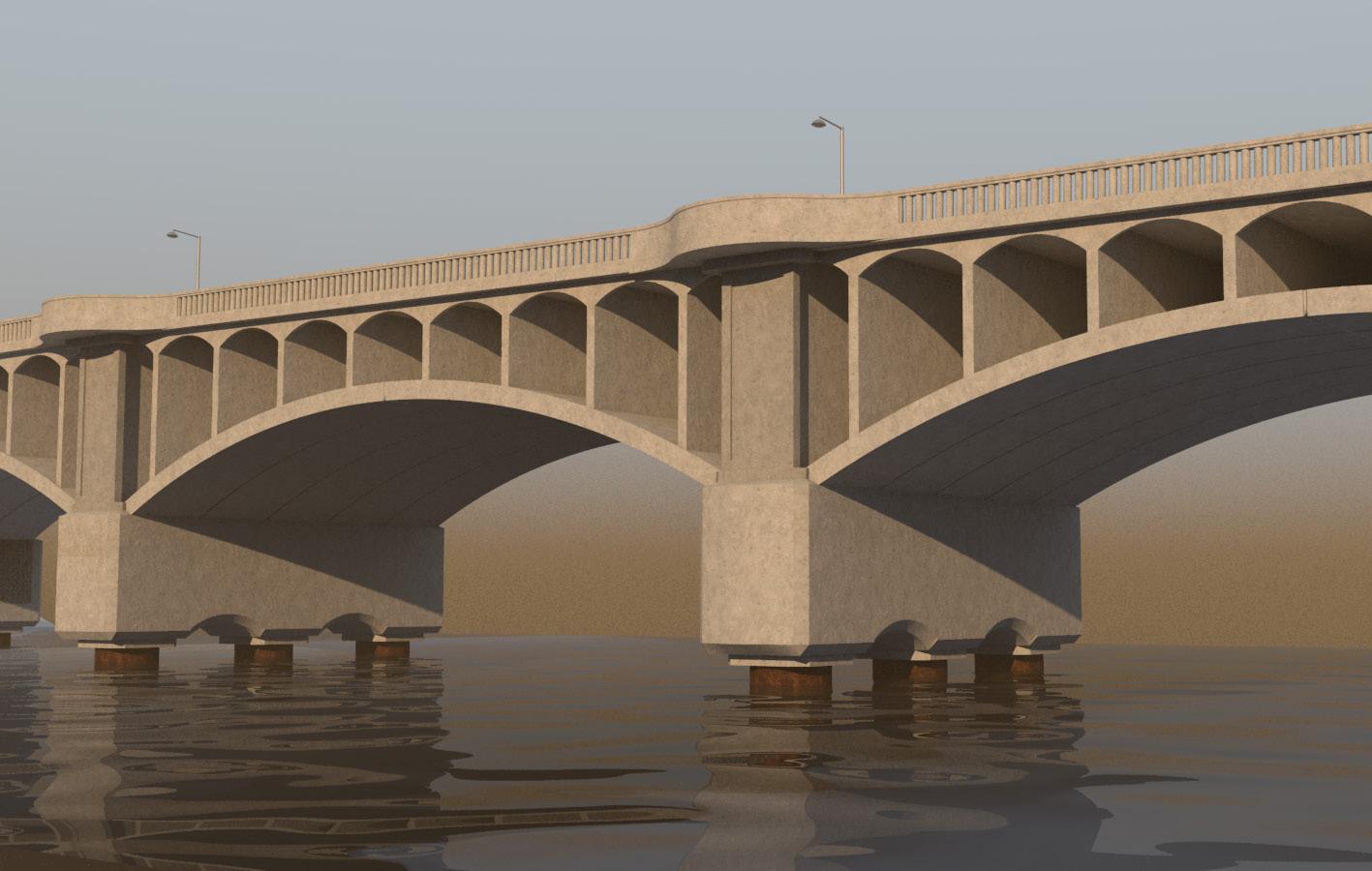

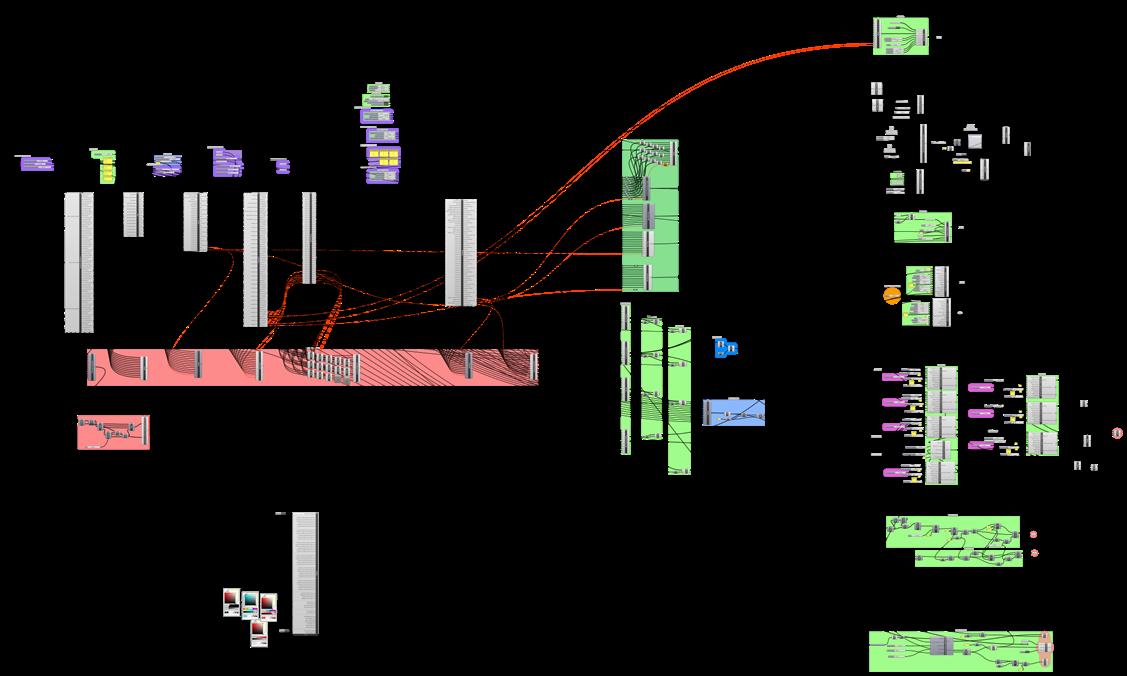

This bridge concept was produced to visualize a multitude of options for a vehicle and pedestrian crossing. All details are fully parametric to streamline creating variations of both major and minor elements.
SOFTWARES: - Grasshopper - Rhino - V-Ray
First Layer - Base Bridge Second LayerGeometric References
Third Layer - Detail
Pier Facing
Ballusters
Lookout
Stony Brook Chemistry Upgrades
Stony Brook NY | 2022
To go along with labratory renovations and equipment upgrades, we redesigned the mechanical penthouse of this university building to accomate an extensive mechanical ventilation system serving 300 fume hoods and their maintenance.
Automarket at Union SQ. - Master’s Thesis
Union Square | NYC | Thesis Studio | 2019 - 2020
SOFTWARES:
- Grasshopper
- Rhino
- Unity
- AutoCAD
- Illustrator
The Automarket at Union Square is one of a network of automated farmer’s markets throughout New York City. In an effort to alleviate congestion caused by ground logistics, these markets use the subway system during off-peak hours to distribute fresh goods. The square is an array of mechanically rearrangeable platforms that flexibly accomodate many public square functions, and blends the domain of humans at street level and the domain of mechanized transportation underground into a combination public park and logistics center.
Canopies and skylights
Reconfigurable tiles
Above-ground park
IT/Maintainence office
Street level
Conveyor system
Sorting and distribution space
vendor stalls
Market floor
Concourse level
N-R-Q-W lines
4-5-6 lines L line
The Automarket is an interface allowing the public market to interact directly and efficiently with the subway below.
Subway level
A sample of the square under a market configuration.
Flexible
Southeast Axonometric - Random Perlin Noise
Southeast Axonometric - Carnival Configuration

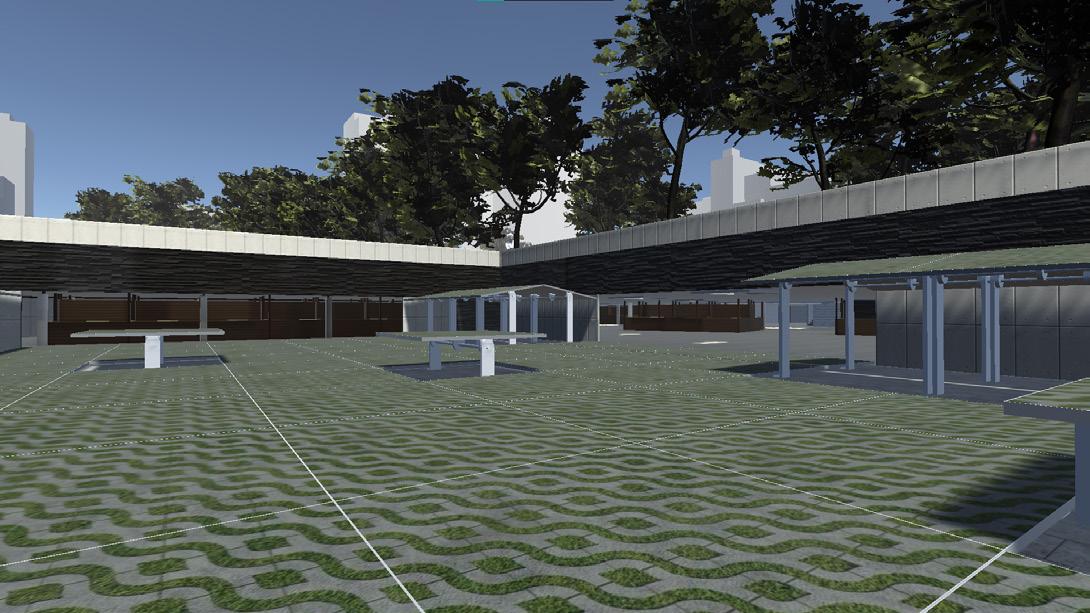

Market sheds in a Perlin Noise landscape, configured in an interactive Unity model.
Market configuration opens up to train station, revealling interior vendor stalls. Configured in an interactive Unity model.
SOFTWARES:
- Grasshopper
- Rhino
- V-Ray
- AutoCAD
- Illustrator
- Photoshop
Polarized
Harlem | NYC | Graduate Studio | 2019 - 2020

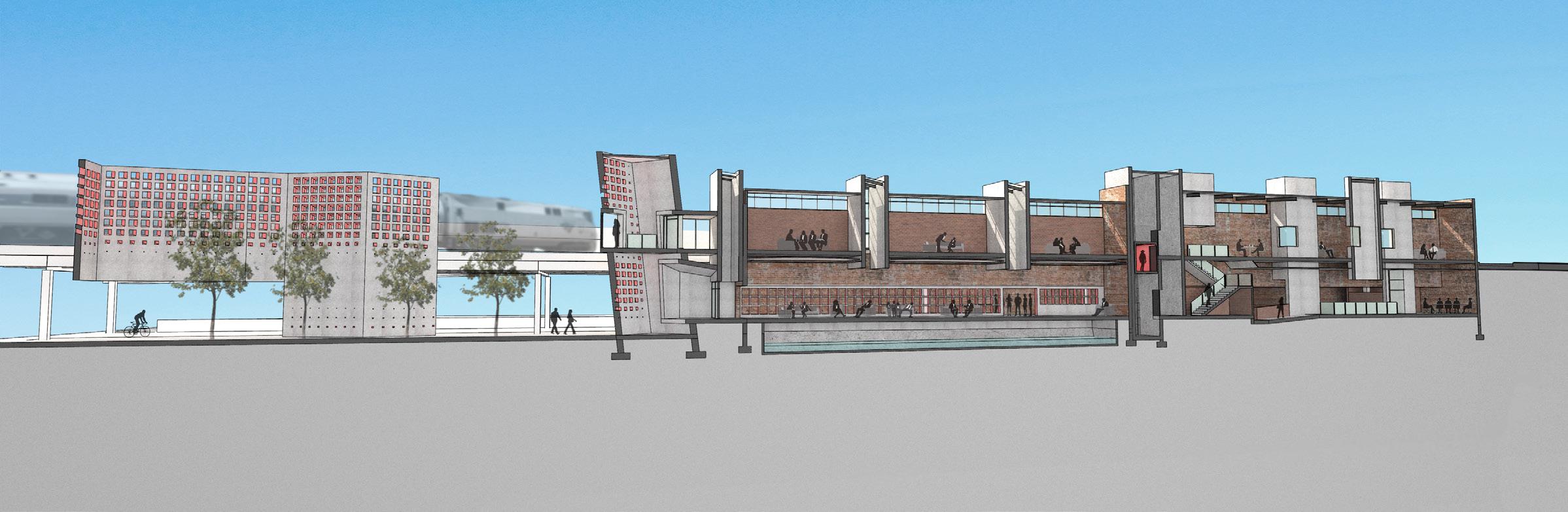

Long Section Perspective
In times of dispute, clearing the mind can be achieved by removing oneself from the combative environment to a more peaceful area. Polarized is an arbitration office located in Harlem. Using large perforated screens, light wells, and long walks, it removes disputing parties from the surrounding city. The parametrically-generated facade screens out the harsh urban streets and railroad, while bringing in daylight and views of the sky and the viaduct trees. Within these screens, people have the space to separate themselves from whom the dispute in the waiting area, but opportunities to engage them in the cafe lounge.
~1/8” = 1’-0”
A6 - Facade Systems
Drew Marshall

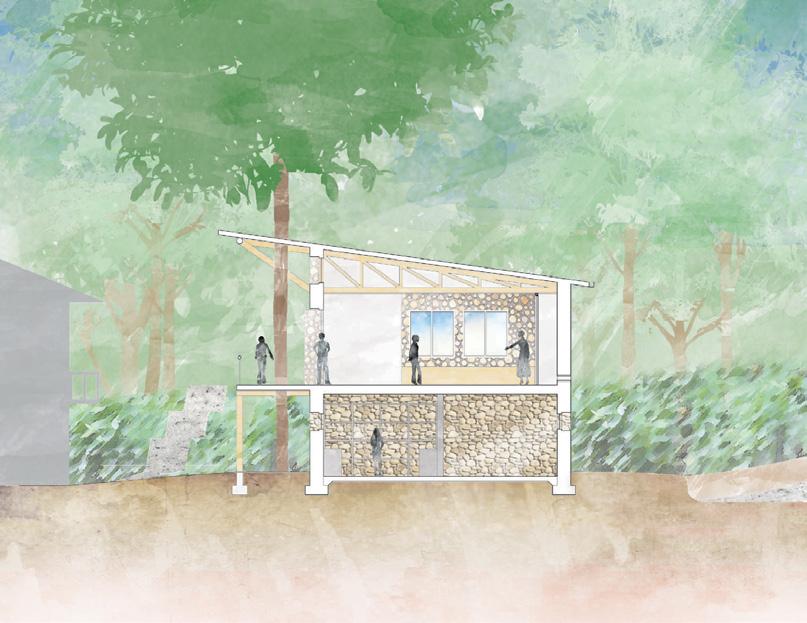

La Casa del Arbol
COSTA RICA | 2019 - 2020
The Monteverde Institute, as an organization, works to educate, promote, and develop sustainability through the sciences and design. A classroom here should be made such that it furthers this mission.

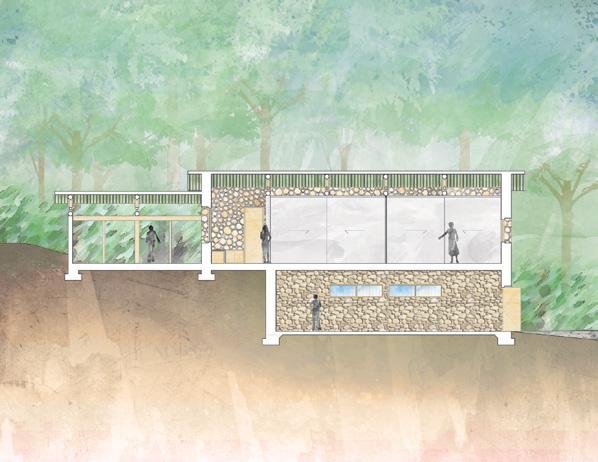

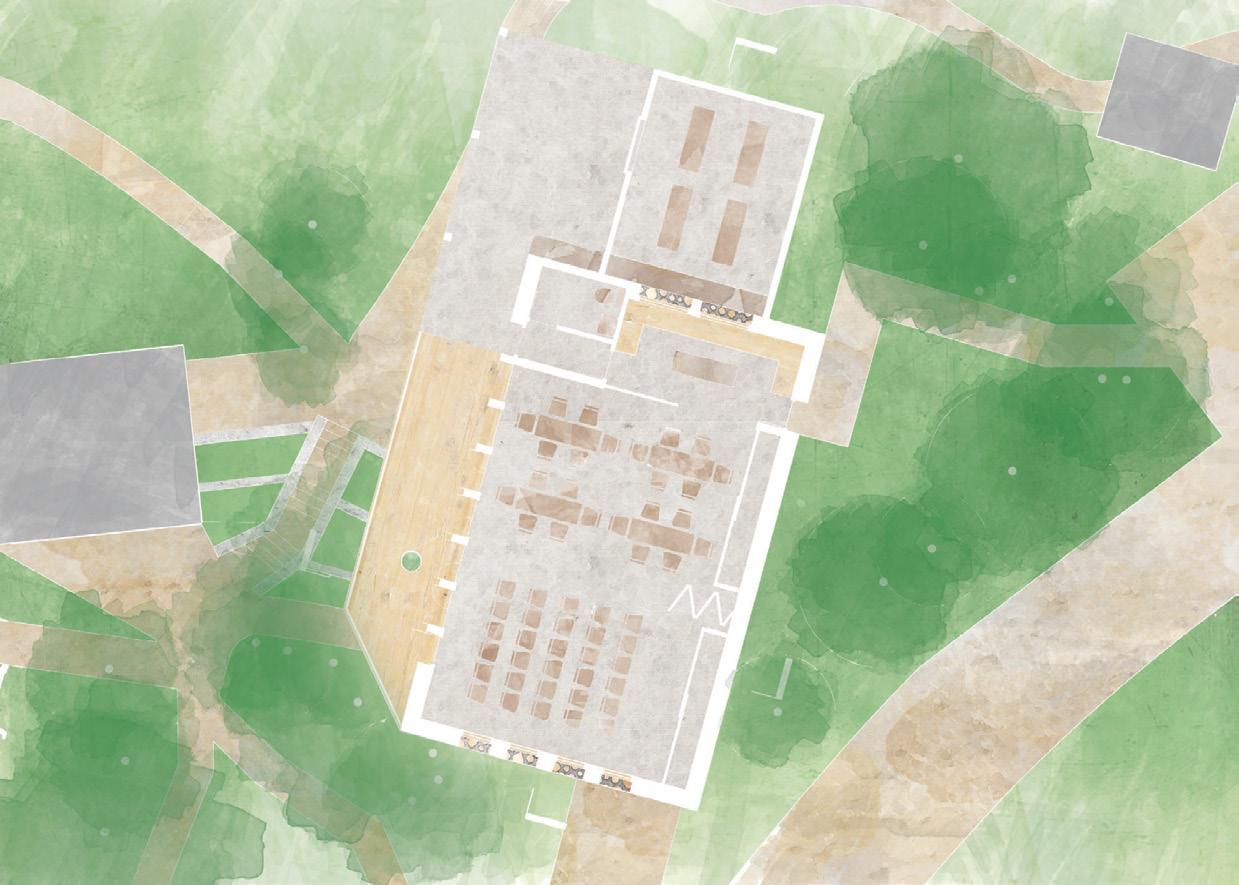

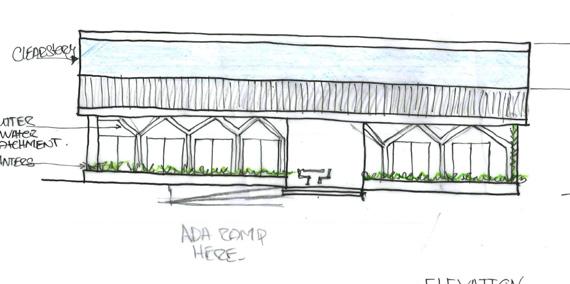

La Casa del Arbol a near total reconstruction of an existing shed on site, which contains a mountain of scrap materials, mainly wood. It seeks to minimize this kind of constuction waste by using wood in its complete, round form in both structure and skin. All stone is rough cut and local, and the metal roof is found commonly in the area.
catchment
spigot
20 CM ROUND WOOD FASCIA NOTCHED CONNECTIONS
20 CM ROUND WOOD BOLTED TO STEEL PLATE, WELDED TO COLUMN
10 CM SQUARE STEEL TUBE COLUMN EMBEDDED INSIDE CORDWOOD WALL
STEEL COLUMN ON PLATE ON CONCRETE BEAM 15 CM STEEL PIPE WELDED TO BOLTED STEEL PLATE (PROVIDE WEEP HOLES)
CONTINUOUS REINFORCED STRIP FOOTING AROUND PERIMETER
GUTTER - DRAIN TO CISTERN / SUPPLY RAIN GARDEN
CM ROUND WOOD WEBBING 7.5 CM STEEL PIPE WELDED TO BOLTED STEEL PLATE
OPTIONAL ACOUSTIC INSULATION BELOW CEILING STRUCTURE POINT FOOTING UNDER COLUMN 20 CM CONCRETE SLAB ON STEEL DECKING CONCRETE SHOULDER JOINT

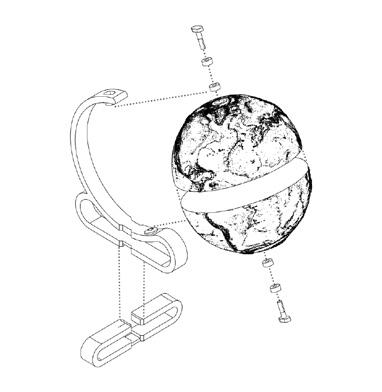

Tactile Globe
3D Printing
SOFTWARES:
- Grasshopper
- Rhino
- Cura

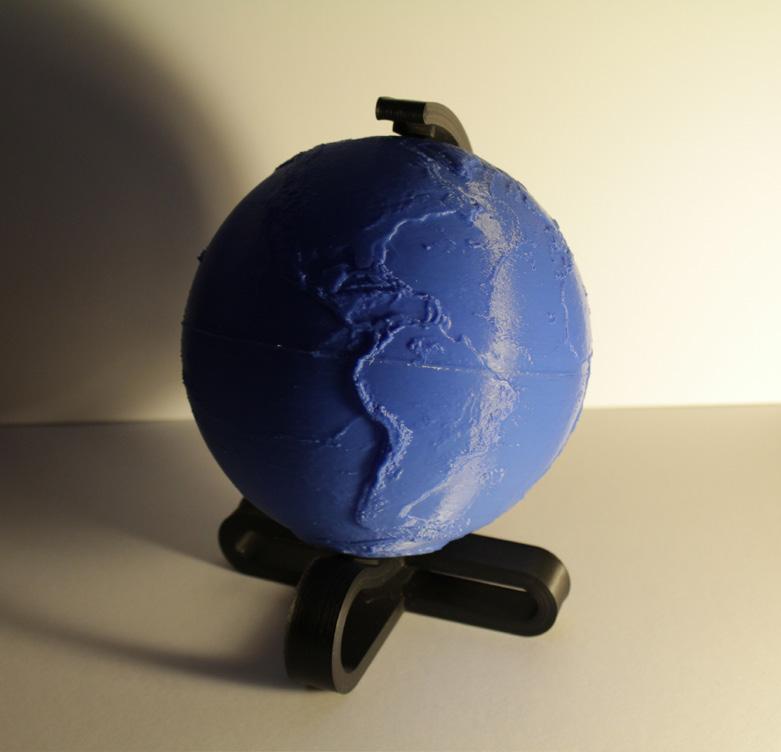

The globe was generated using a heightmap. The grasshopper script takes this samples grid of points on this image and translates the grayscale value into the height of a corresponding vertex on a rectangular mesh. Then, the mesh is projected around a sphere. The stand is designed in Rhino to mount the globe on pins with bearings for free spinning.

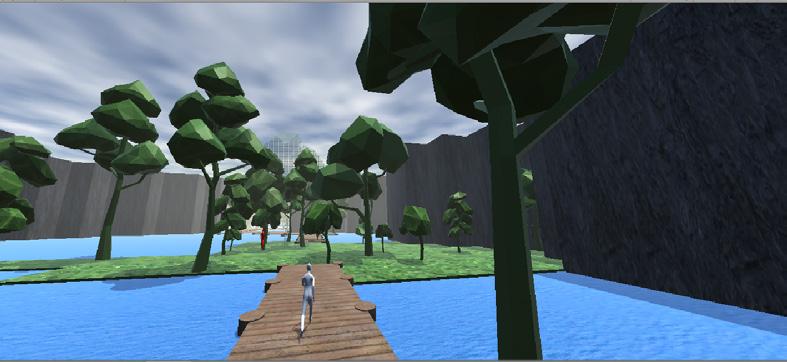

Canyon Runner - World Generation
Unity Project
SOFTWARES:
- Unity
- Blender
- Microsoft Visual Studio

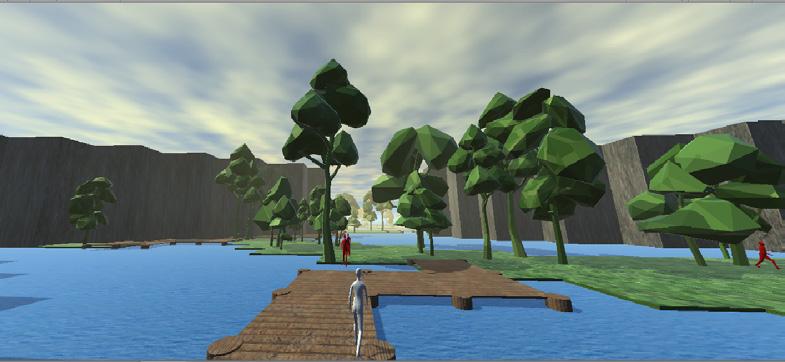

This is a Unity prototype featuring the procedural generation of an infinitely long canyon. Pixel texture “chunks” are generated in series using several passes, then used to determine the placement of tile modules.
Edge pass: create canyon walls using 1D perlin noise sets.
Hazard pass: place water or lava tiles with 2D perlin noise.
Bridge pass: connect land masses using edge detection and A* navigation.
Blender walk animation
Wave Function Collapse
Procedural generation Grasshopper plugin
SOFTWARES:
- Grasshopper
- Rhino
- Microsoft Visual Studio

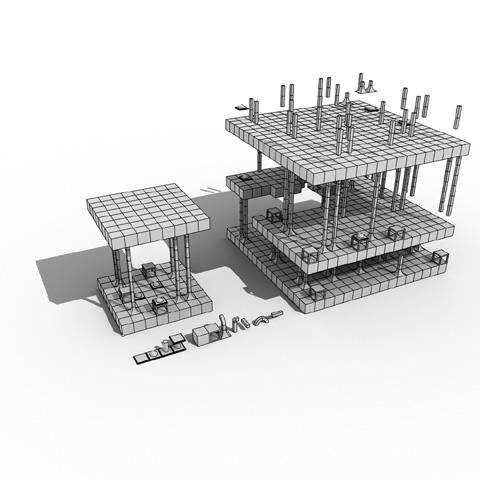

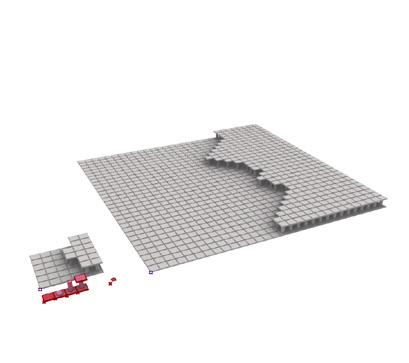

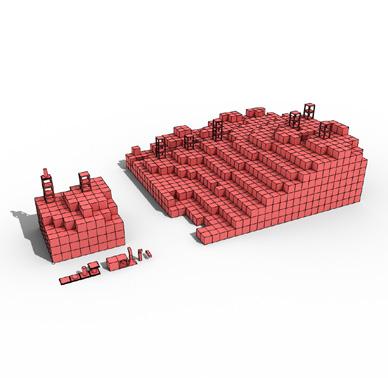

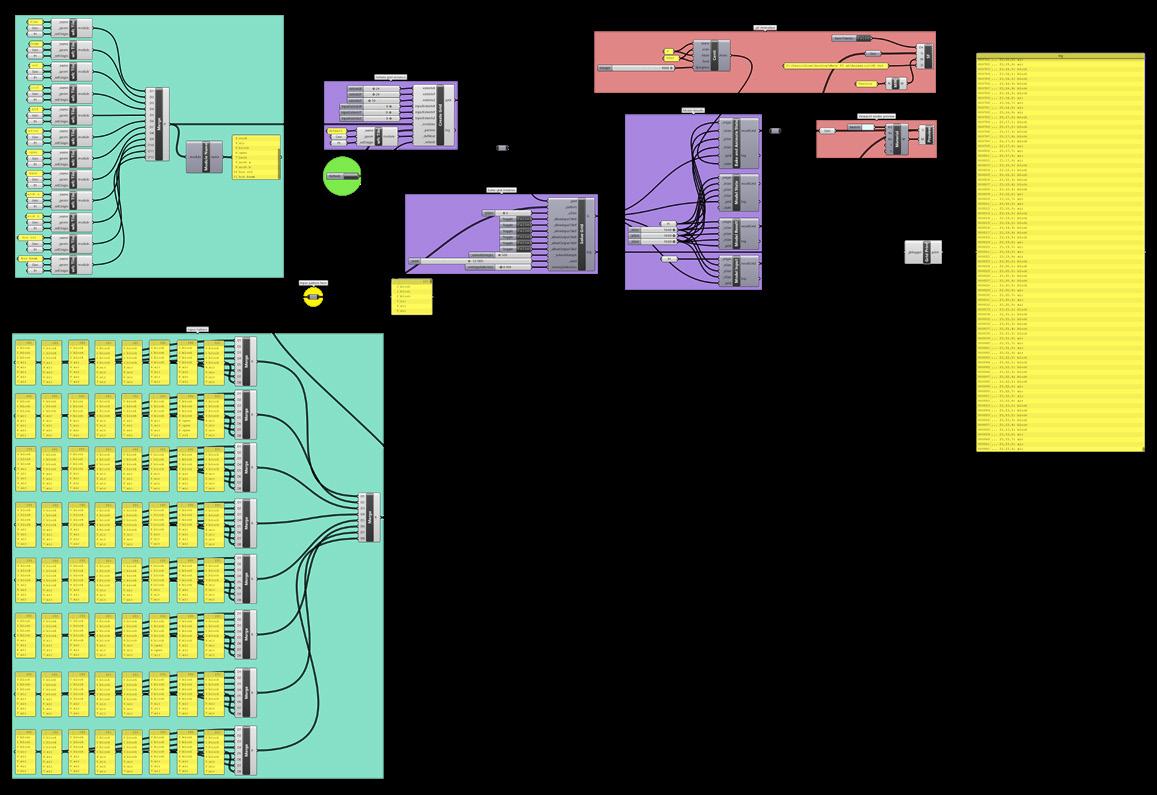

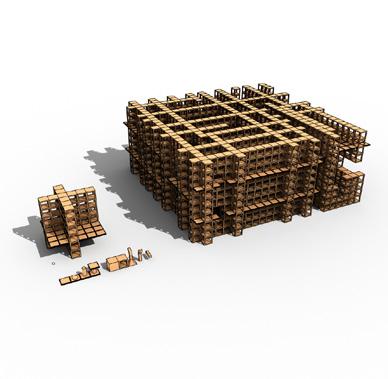

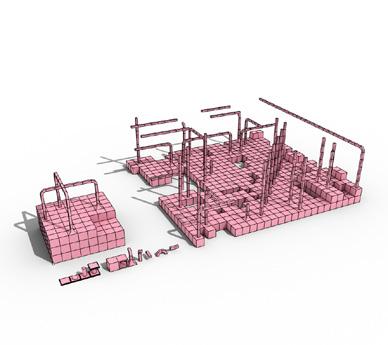

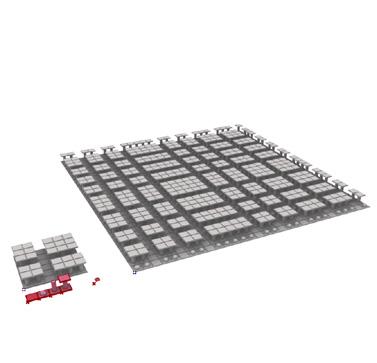

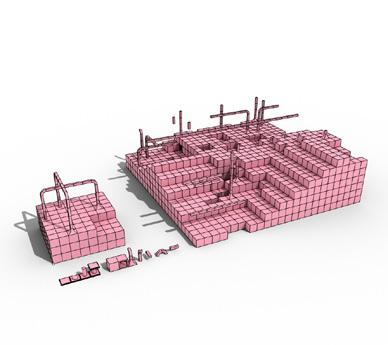

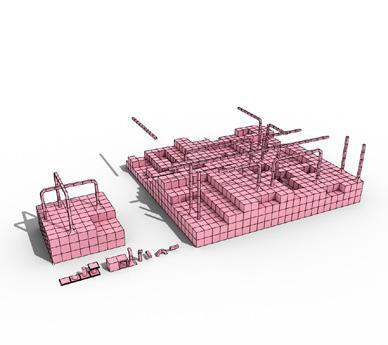

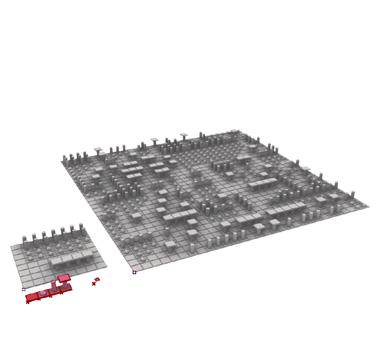

Wave function collapse is a technique of procedural generation inspired by a quantum physics phenomenon of the same name. Using a given pattern of modules in a 2D or 3D tile grid, it will output a larger grid that is randomly composed of these modules in a way that follows the same patterns shown in the input. This plugin is an implementation written for Grasshopper.
Palette
