01 - Kintsugi Library

6

Overall Shots

April

North Faca

2022

Library and Ceramics Studio

Course_ 1B Design Studio Supervisors_ Rick Andrighetti Location_ Downtown Toronto, Ontario Skills_ Rhino, Adobe Illustrator and

Photoshop, Enscape, model making

parti diagram

Objective Designing for the ‘New Library’ typology.

Project Response Tucked beside a highway at the edge of a residential neighbourhood, this library is a well-suited to the creative district where it is located. Entering from the sidewalk into the main atrium, various programs are available as users walk through the library to a small park outside. This design is reminiscent of main street marketplaces featuring different hubs of activity. The main library and ceramics studio are elevated above the atrium to allow for visual interaction where the physical is not possible.

Kintsugi is a Japanese ceramics practice on which this library’s metaphorical design is based. It is an art form that celebrates imperfection by joining broken pottery pieces with gold. The people represent this gold, bounding different groups of the community together through their involvement.

7

01 - Kintsugi Library

program mapping

site plan

8

April

2022

Library and Ceramics Studio

teens area meeting area

cafe

ceramics display

children’s area

washrooms staff office

ground floor plan

checkout area

public computers

book stacks

quiet study area

ceramics classroom

ceramics studio

second floor plan

9

01 - Kintsugi Library

east elevation

north elevation

10

April

2022

Library and Ceramics Studio

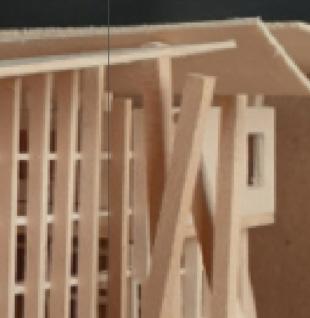

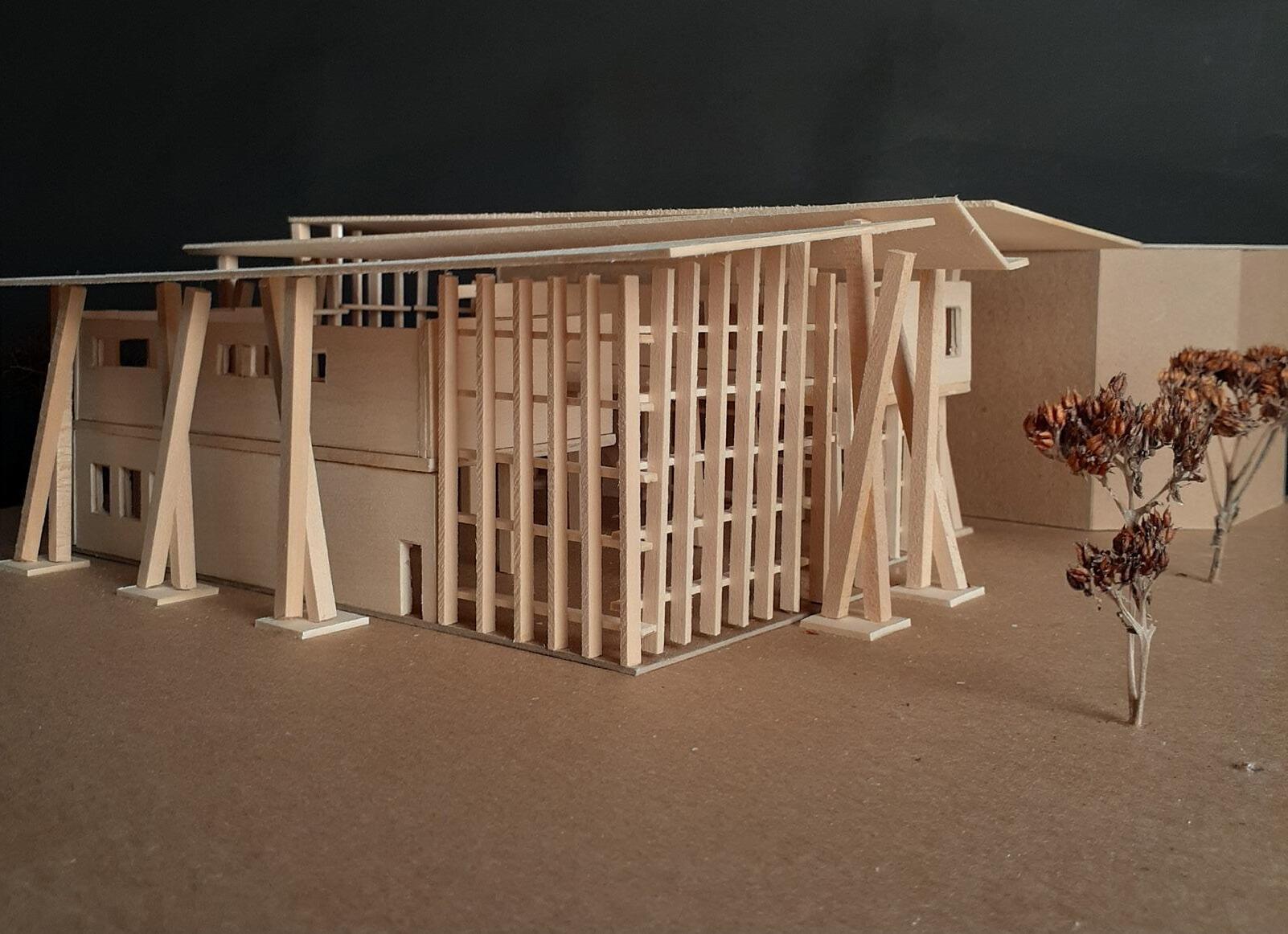

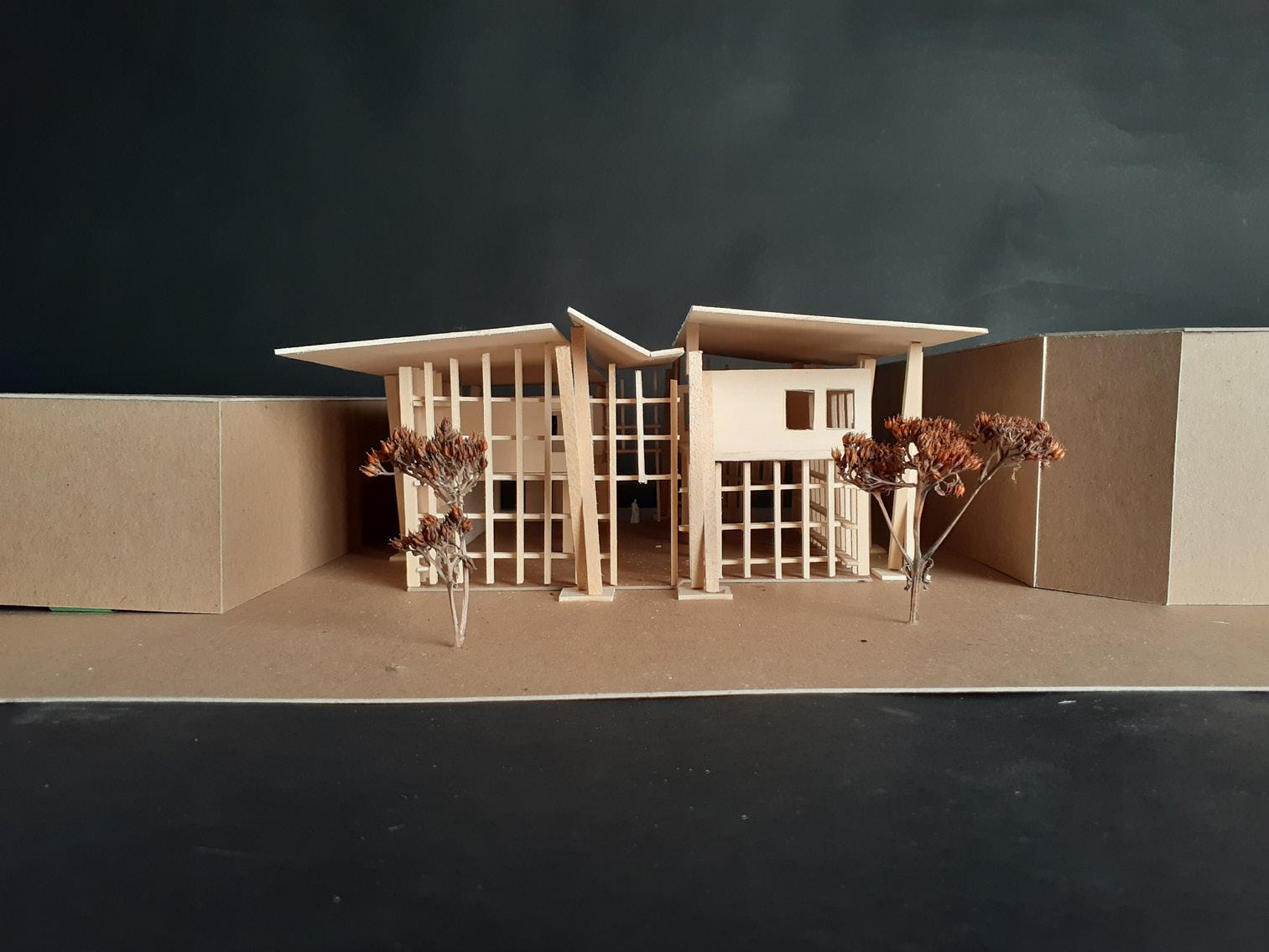

model facing west

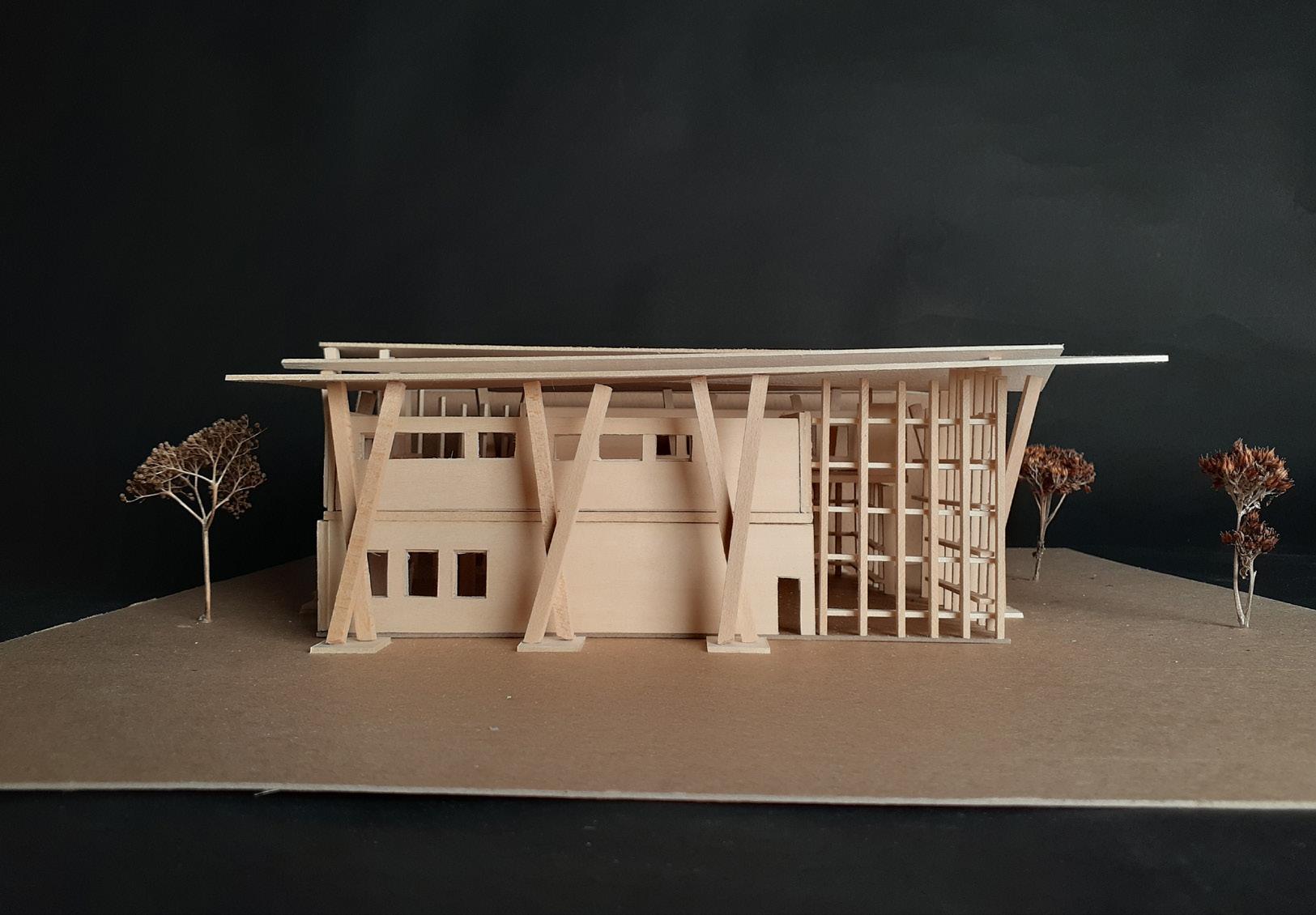

Eas

West Facade (facing sidewalk)

East Facade (facing park)

model facing south

South Facade

11

No

01 - Kintsugi Library

April

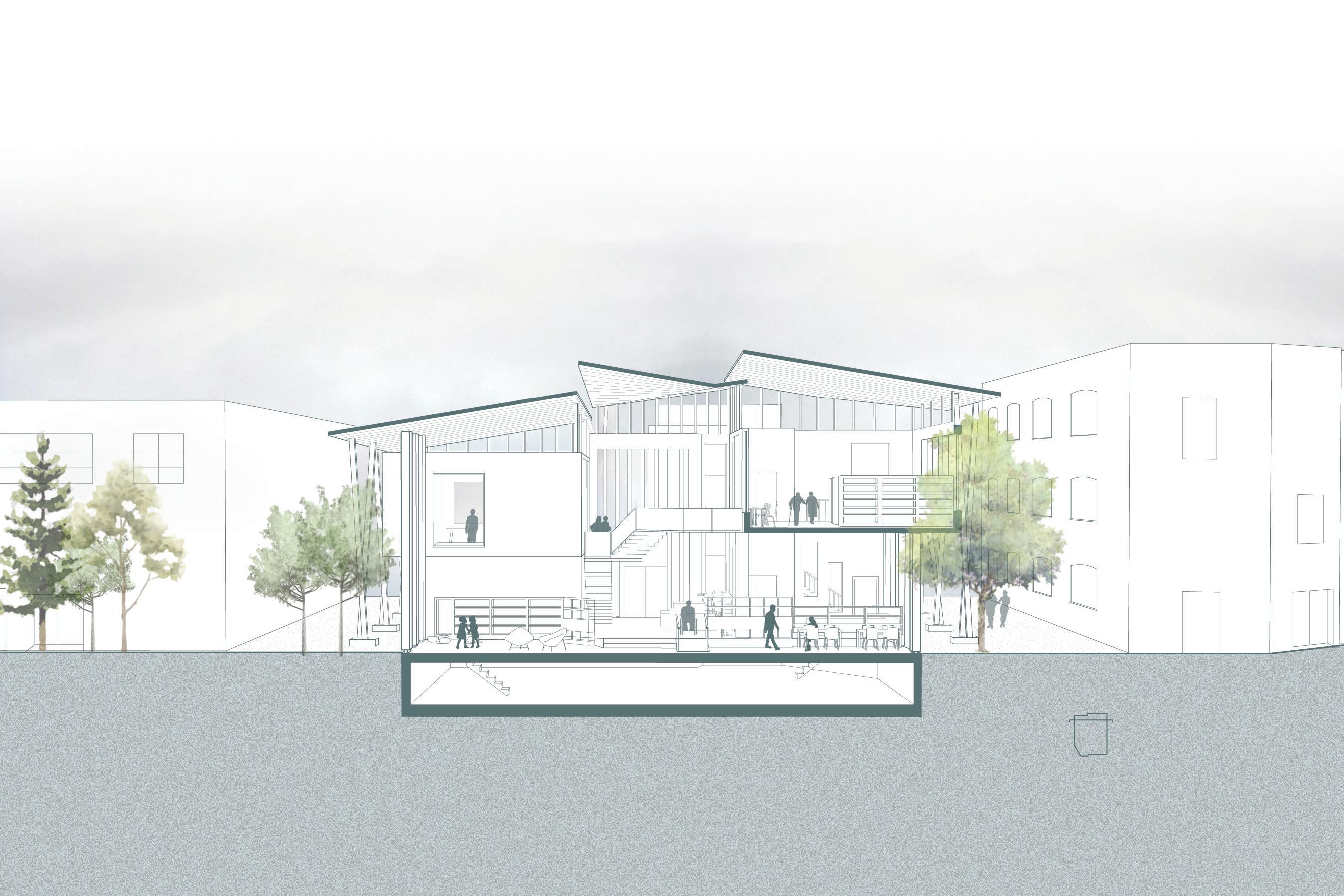

cross sectional perspective

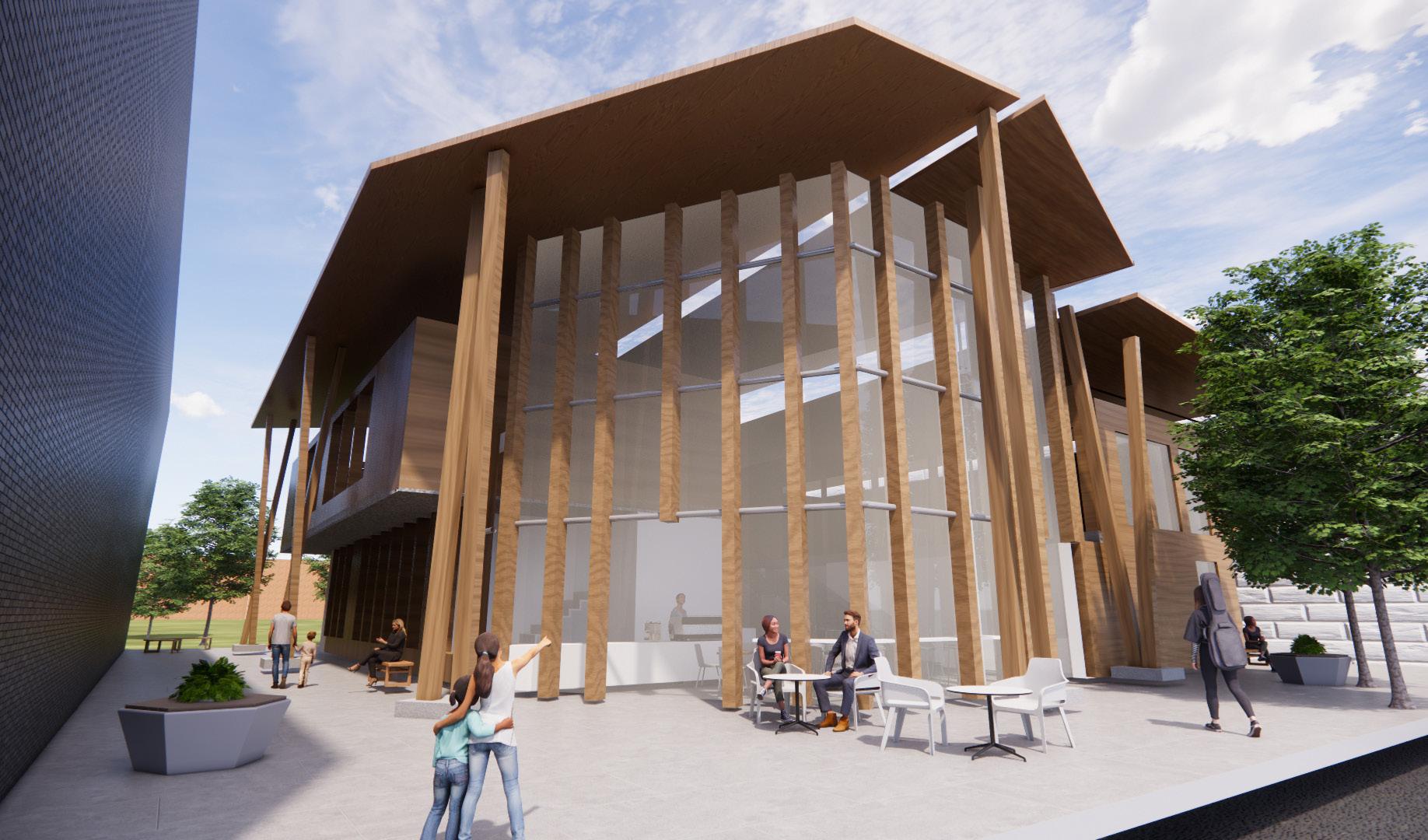

street entrance render

12

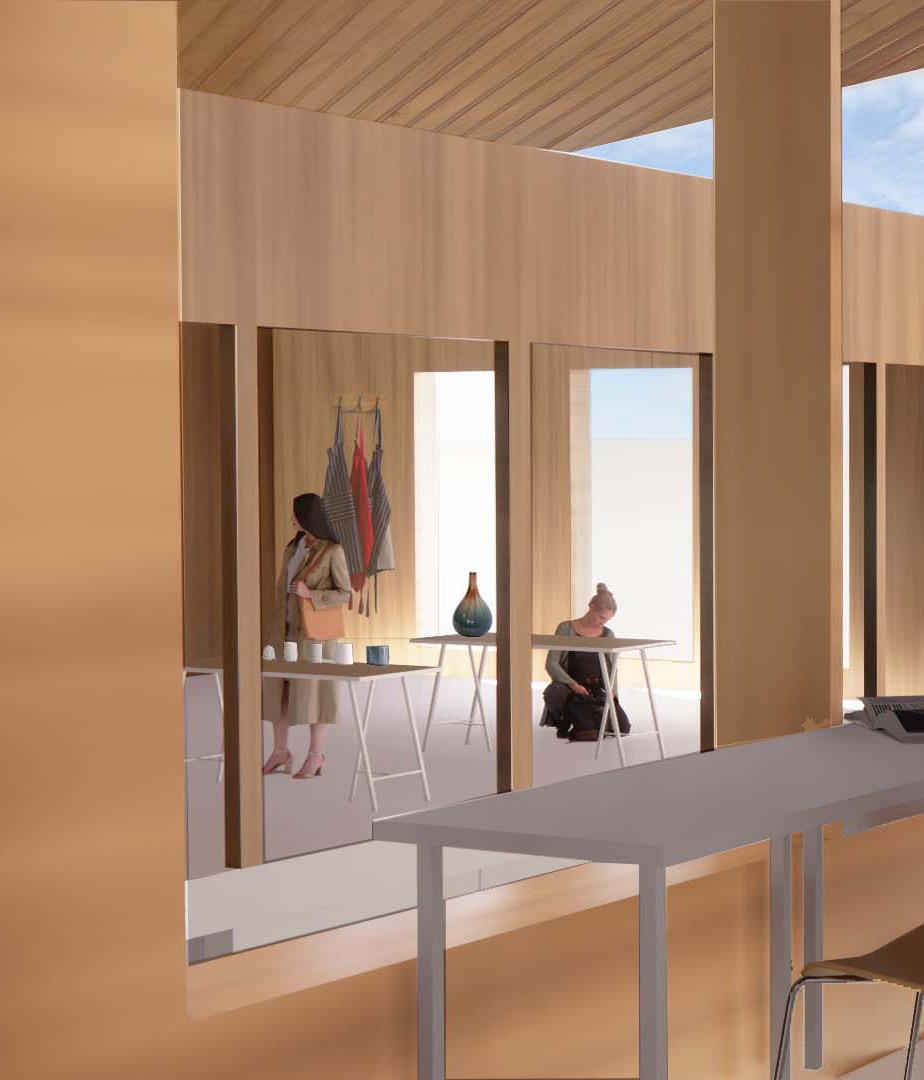

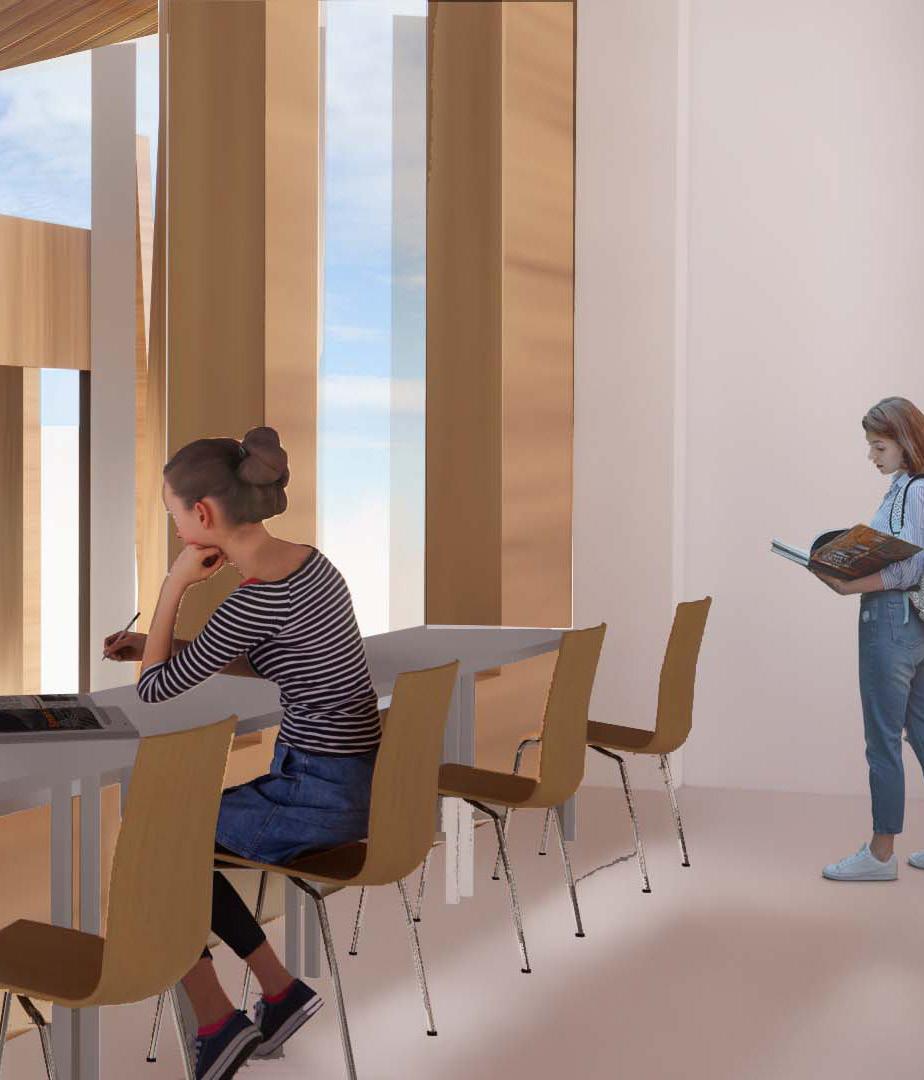

library overlooking pottery studio render

2022

Library and Ceramics Studio

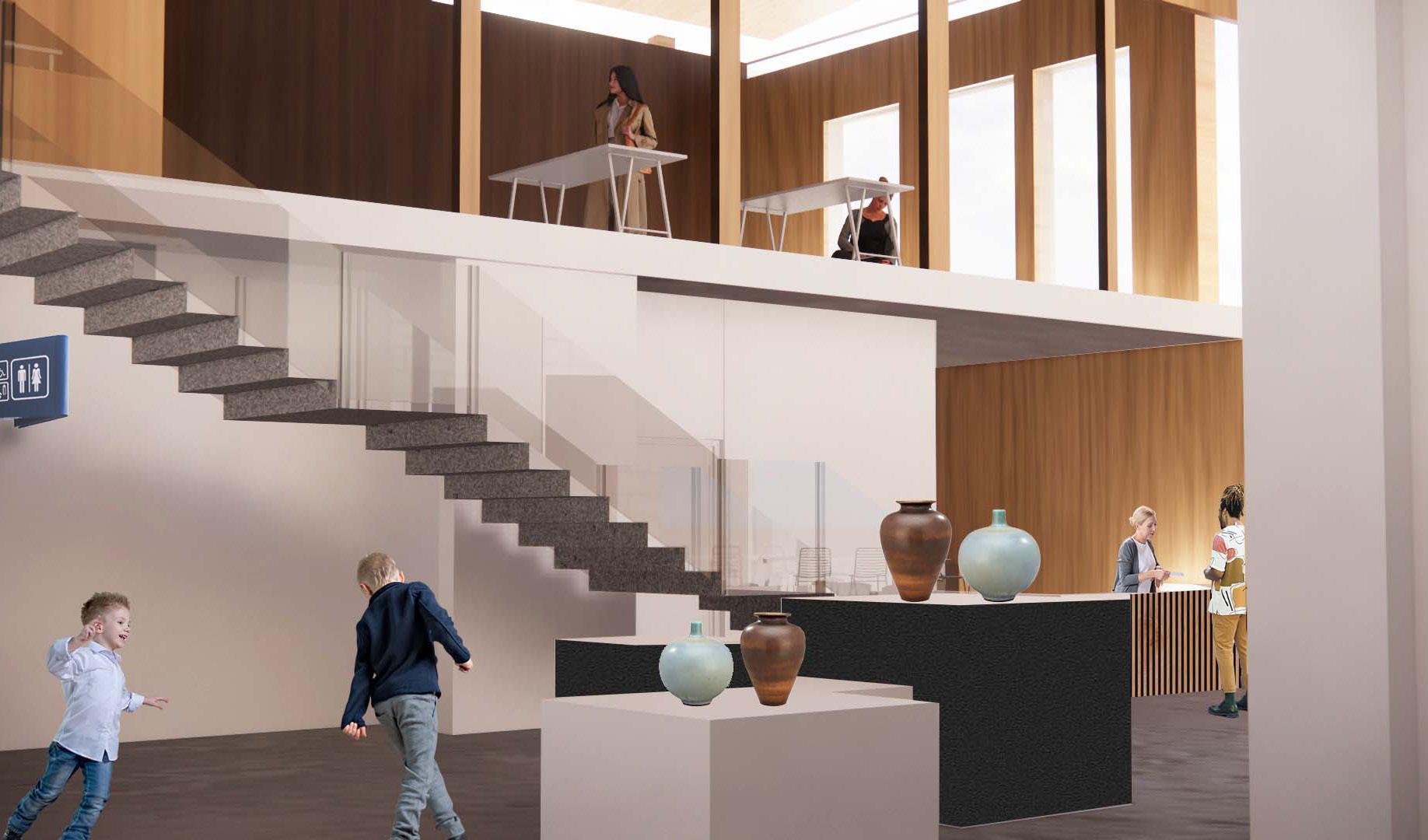

pottery studio and atrium display render

13

02 - Off the Street

14

Decemb

ber 2022

Midrise Residential Course_ 2B Design Studio Supervisor_ Adrian Blackwell Location_ Cambridge, Ontario Skills_ Rhino, Adobe Illustrator, Enscape, Photoshop

morphological diagram

Objective Build affordable midrise housing within a hypothetical Galt Community Land Trust.

Project Response Off the Street takes a stance against alienation by providing transitional housing for recently homeless adults and at-risk youth. This caters towards the needs of the local demographic in downtown Galt, where there is a higher percentage of homeless population. To reduce stigmatism, a public courtyard faces the main road as well as ground floor programs which provide opportunities for social relations. This includes a public health clinic, bike repair cafe, and job training centre. Residential units are based on 4 modules differentiated by duration of stay. This design is aware to the unstable financial situations of its tenants.

15

02 - Off the Street

Decemb

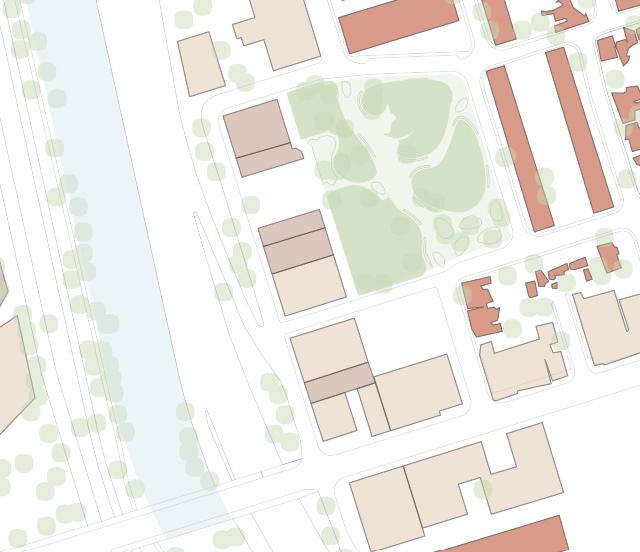

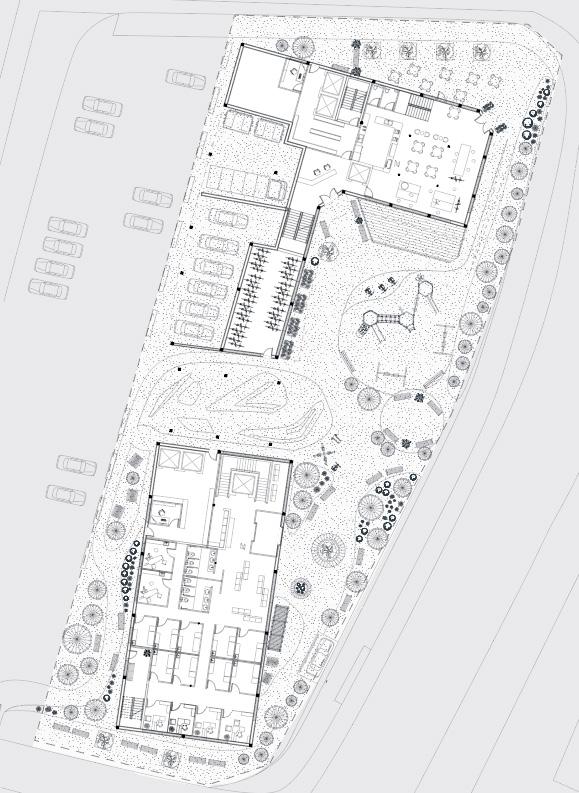

site plan

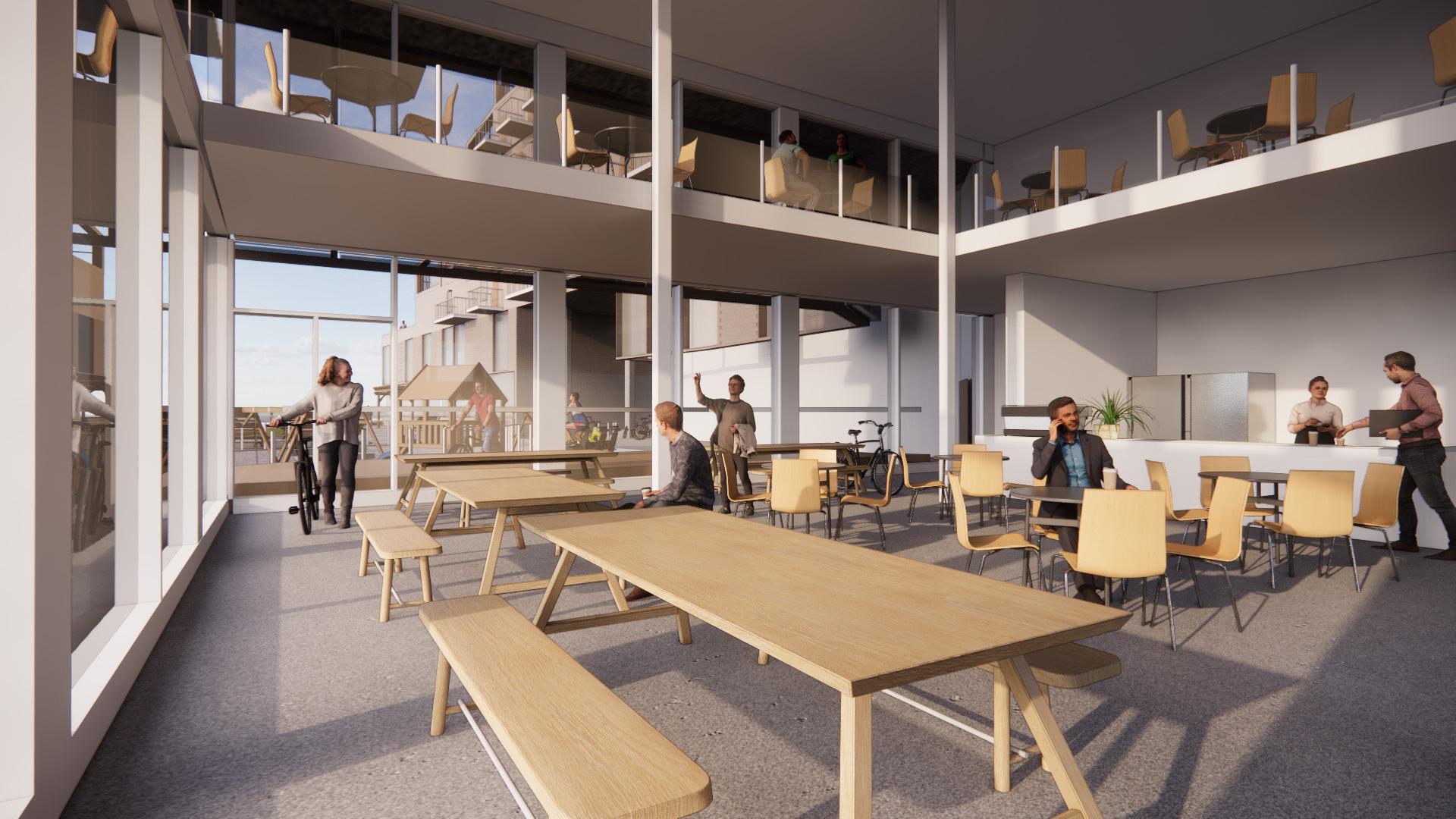

bike repair cafe render

16

LLI WE

points of access to proposed building

NG

TO N

ST

MAIN ST

ber 2022

Midrise Residential

1

2

residential floors sun room 1 common room 2

6

social corridor 3 communal laundry room 4

3

second floor

rooftop garden 5

7 event room, for residents

shared kitchen, 6 for rental units

7

4 8

16 9 ground floor

residential lobby 1 12

10 13

9

counseling services

17 18

15

12

job training centre

10 clinic staff lounge

5

medical clinic 11

8

14

underpass skate park 13 neighbourhood park 14

11

bicycle storage 15 storage and loading 16 SCALE 1:500

residential lobby 2 17

0

1

5m

bike repair / cafe 18

programmatic exploded axonometric

17

02 - Off the Street

ground floor plan

18

Decemb

second floor plan

ber 2022

Midrise Residential

This diagram represents floors 3-5 (from top to bottom) occupied by modular residential units.

A widened double loaded corridor allows each unit to have small front ‘porches’ which alternate with lightwells (filled in grey).

‘Shift units’ (filled in light green) are slightly modified units allowing the succession of lightwells to be achieved throughout the five residential floors.

residential floors diagram

19

02 - Off the Street

single residence: week-to-week rent unit plans

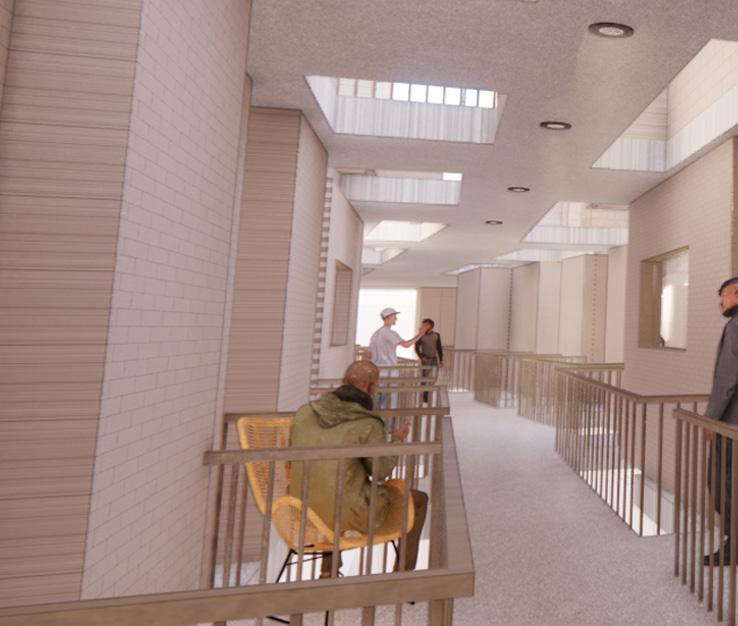

corridor with lightwells render

20

Decemb

joint 1BR unit: month-to-month rent

ber 2022

Midrise Residential

2BR unit: month-to-month rent

youth residence: month-to-month rent

21

02 - Off the Street

Decemb

interior common area

terrace detail section

intermediate sun room

outdoor terrace

SCALE 1:50 0

1

5m

summer solstice

winter solstice

longitudinal section

22

ber 2022

Midrise Residential

terrace balcony render

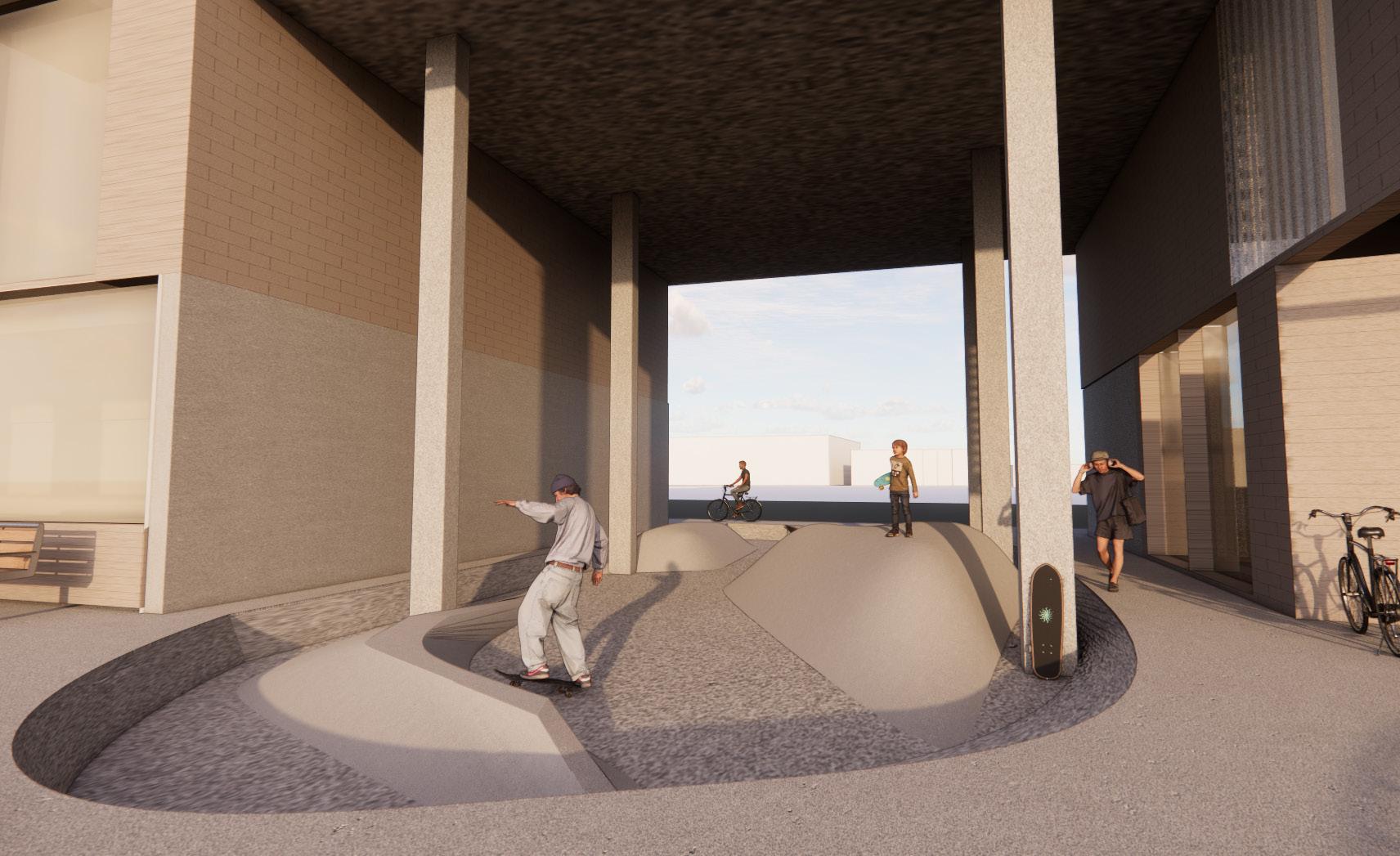

underpass skate park render

23

03 - Built-In Living

exploded axonometric

24

Decemb

ber 2021

Furniture Workshop and Student Residence Course_ 1A Design Studio Supervisors_ Fiona Lim Tung Location_ Cambridge, Ontario Skills_ Rhino, Adobe Illustrator and Photoshop, model making

This diagram depicts the morphological process used to address the challenging slope of the site. By staggering the three volumes, the building can embed itself into the topography.

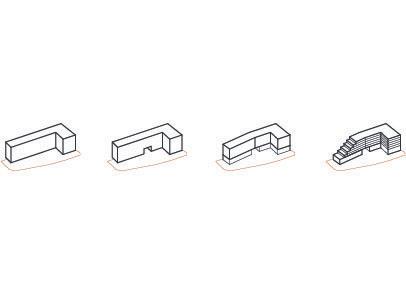

morphological diagram

site plan

Objective House two unrelated students with an additional makerspace.

Project Response Situated on a steep terrain facing a busy street, this hybrid workshop and residence provides a sanctuary of work-life balance for local students. Excluding the living quarters, this building is publicly accessible as a joint furniture-making studio and gallery displaying local craftsmanship. This is ensured by leveling the garage door entrance with the sidewalk, while adjacent stairways allow direct access to the gallery and residence. Visitors can learn hands-on trade as a hobby or career opportunity.

Intersections between volumes create unique moments such as the gallery overlooking the workshop and the outdoor terrace on the workshop roof.

This connective design is inspired by wood joinery techniques which slot pieces together without the use of mechanical fasteners.

25

03 -Built-In Living

north elevation

section a-a

26

Decemb

ber 2021

Furniture Workshop and Student Residence

west elevation

section b-b

27

03 -Built-In Living

ground floor plan

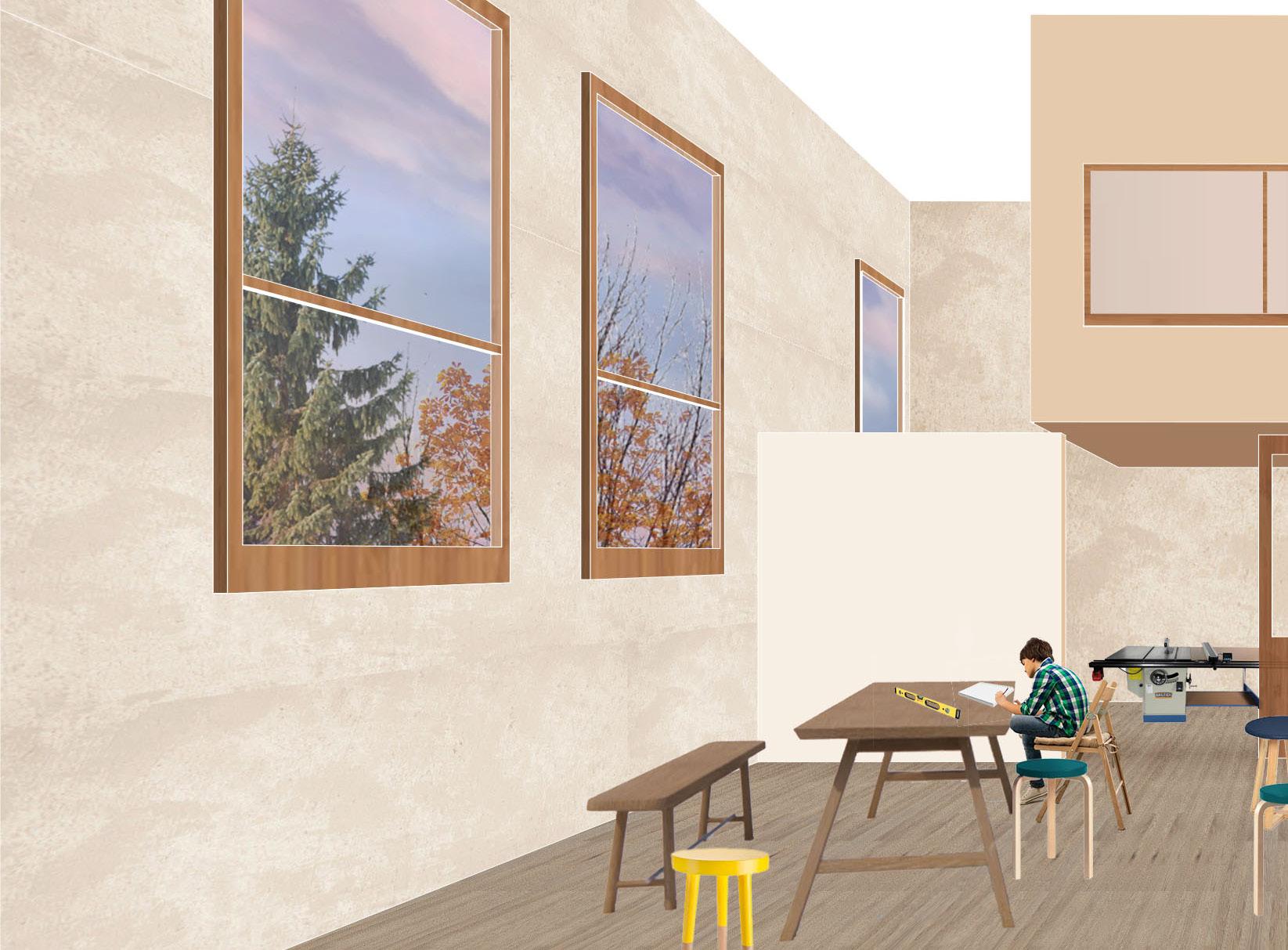

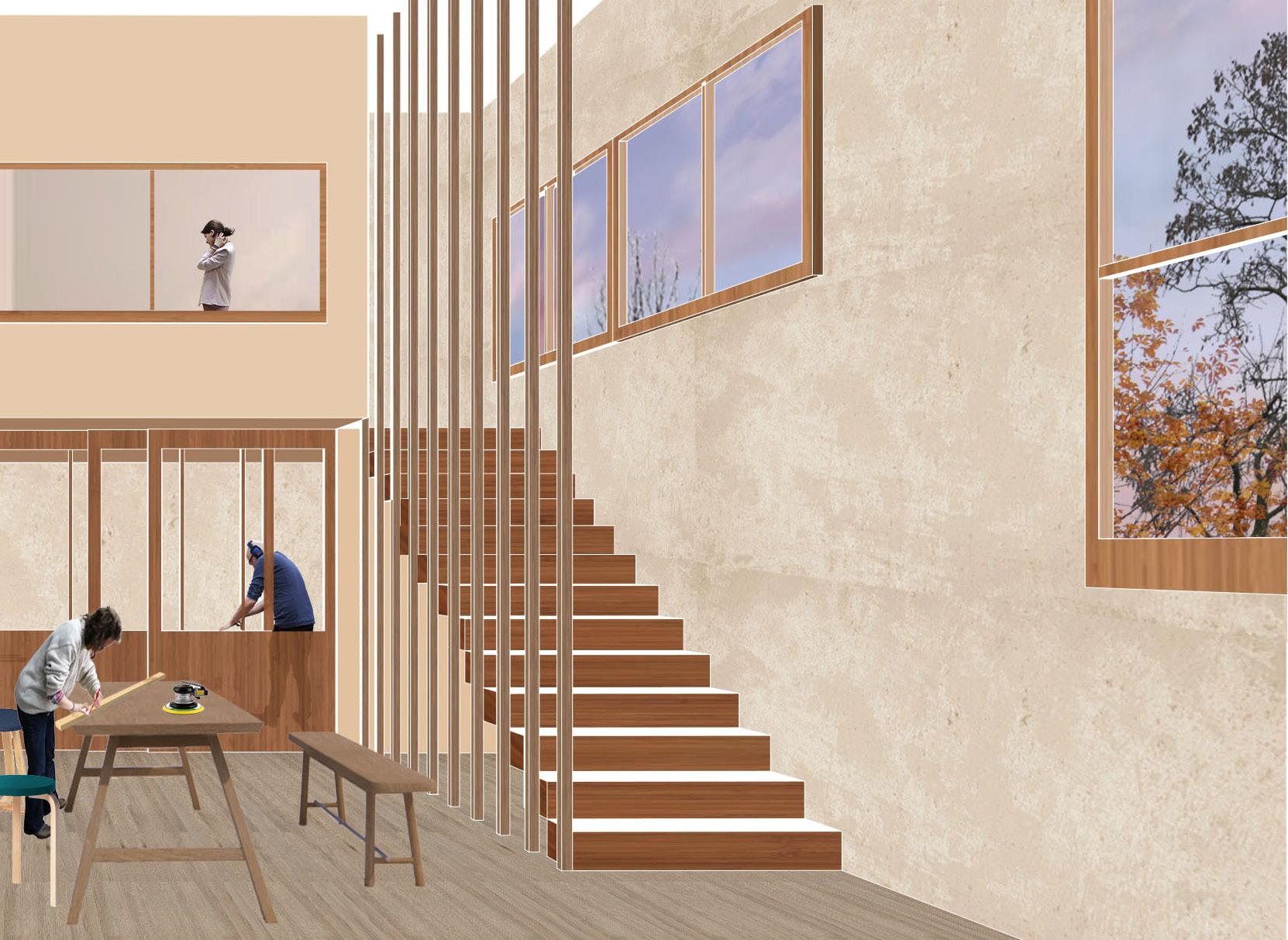

furniture workshop render

28

Decemb

second floor plan

ber 2021

Furniture Workshop and Student Residence

third floor plan

29

04 - Peace Path

30

April

2022

Pedestrian Bridge 2022 CISC Steel Competition Entry Collaborator_ Ellen Lin Supervisor_ Terri Boake Location_ Centennial Park, Toronto, Ontario Skills_ Rhino, Adobe Illustrator, Enscape

site plan

Objective ‘Bridge With a View’ showcasing structural steel detailing and ingenuity.

Project Response Influenced by the characteristic shape of Pacman Pond in which it is located, this bridge acts as an extension to the park’s trail, leading to an unused green area on the other side of the water. Due to this destination’s popularity, both hikers and cyclists are welcome on the bridge, entering from two different paths before converging into one. Two large interlinking rings mark the point where the paths meet in a dramatic yet elegant silhouette.

Composed entirely of steel and with a cable tension system, this pedestrian bridge spans a total of 160m across the calm pond surface. Gentle slopes on one side of the bridge divide brisk cyclists from leisurely pedestrians who can enjoy the view at different elevations - away from the usual business of city life.

31

04 - Peace Path

3 4

FEATURES IN FAR VIEW FEATURES IN CLOSE VIEW

2

angle plate

steel cable

steel rings

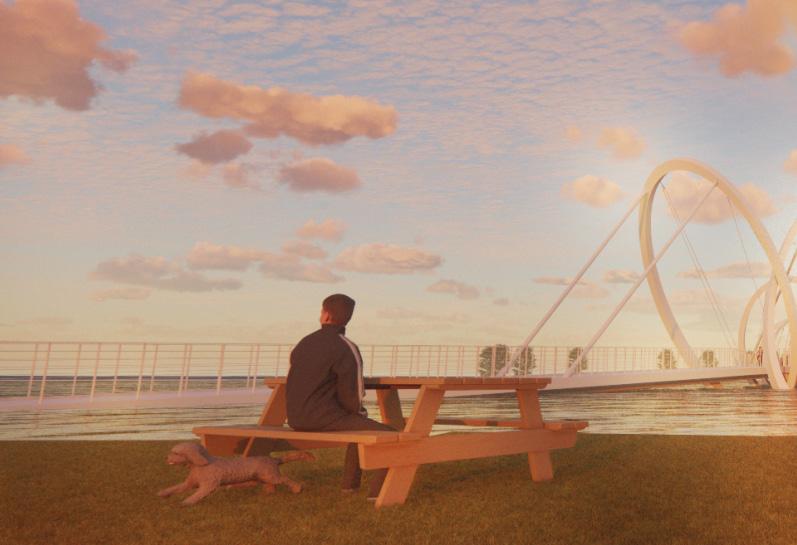

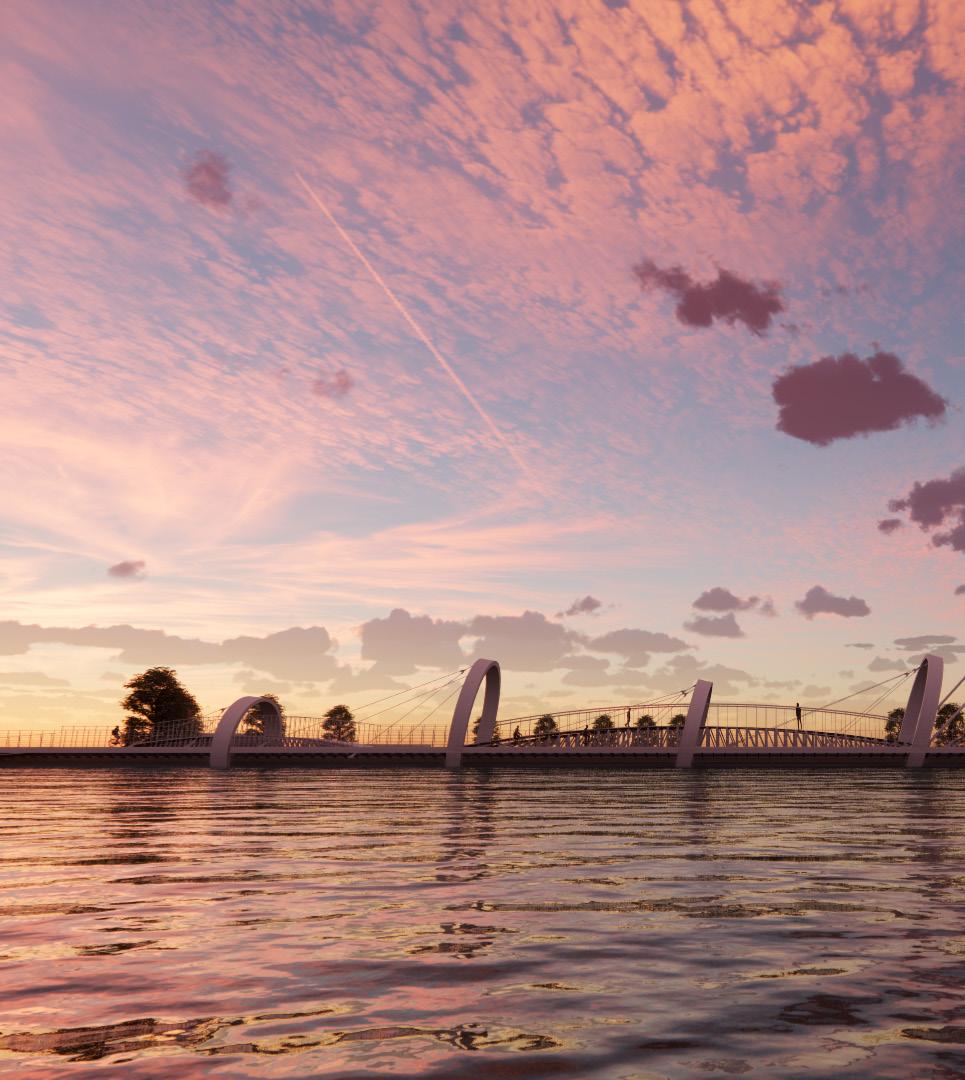

picnic area render

32

steel ring bracket

support column

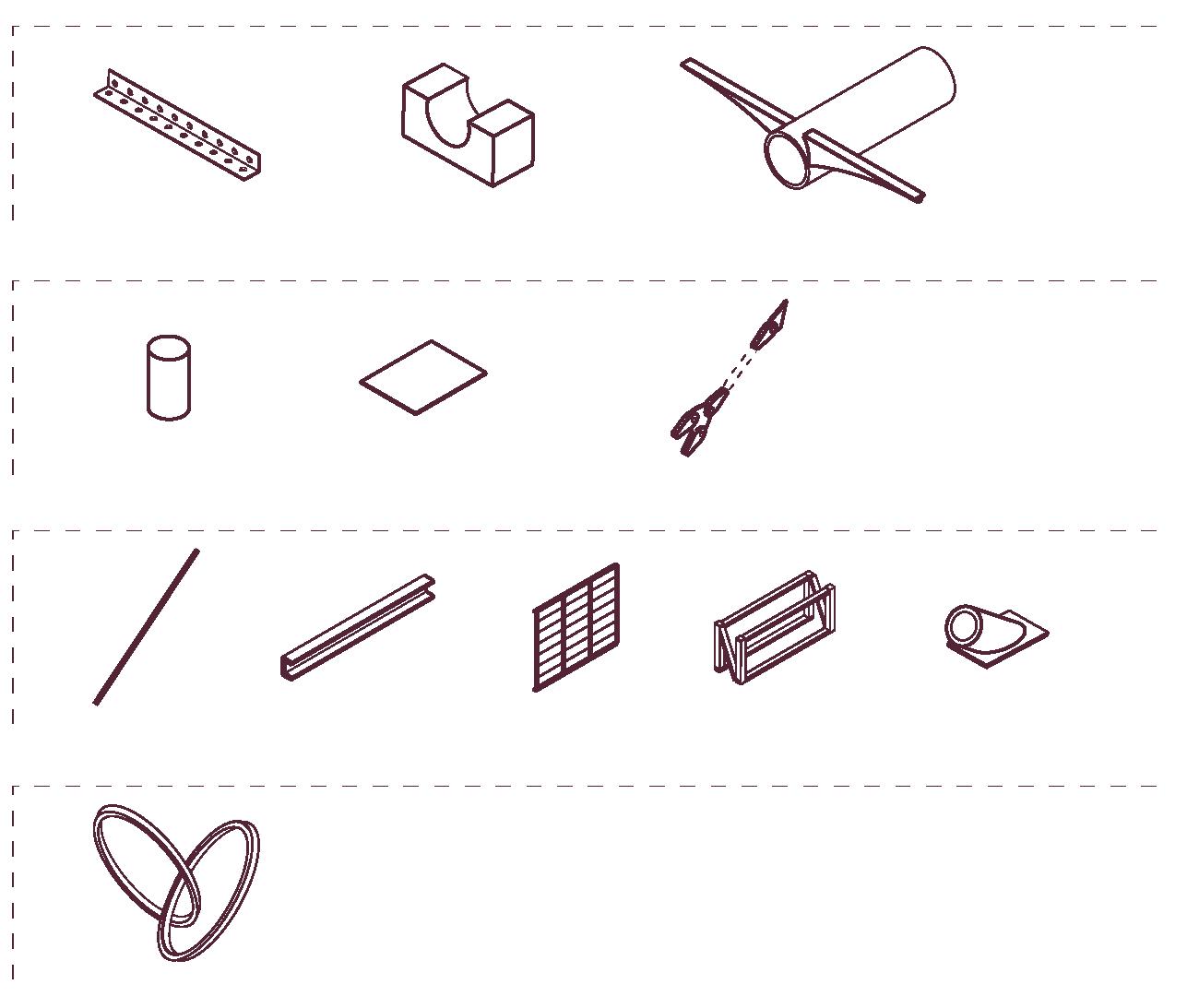

SHOWCASE ELEMENTS

aess categories

1

BASIC ELEMENTS

April

deck plate

C-channel

T-ribs welded to HSS tube

hinge-pin connectors

railings

truss

rod socket

2022

Pedestrian Bridge

cross section

33

04 - Peace Path

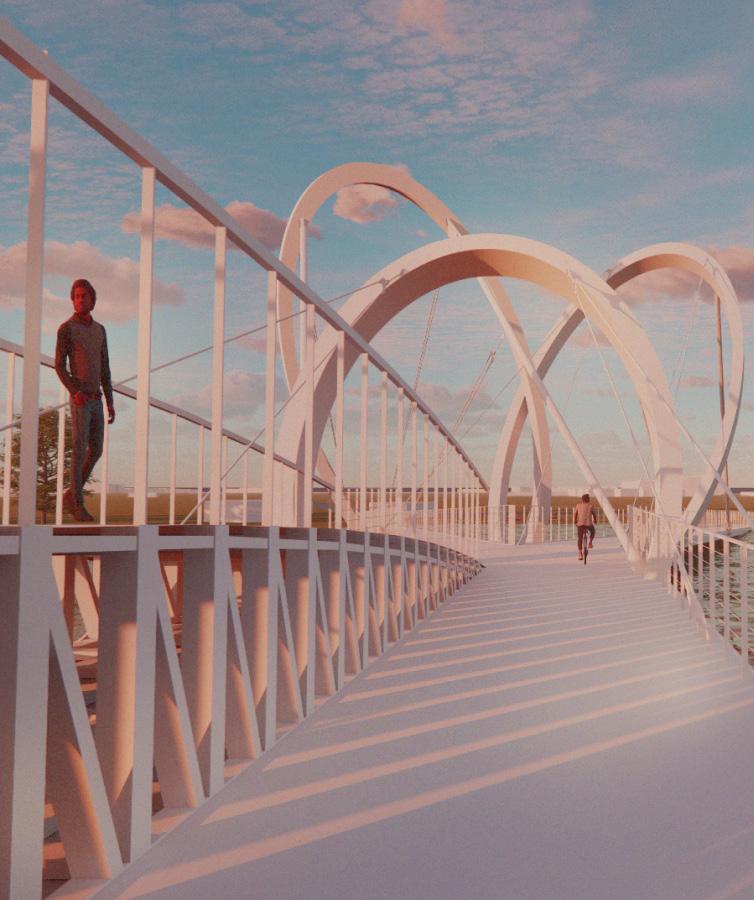

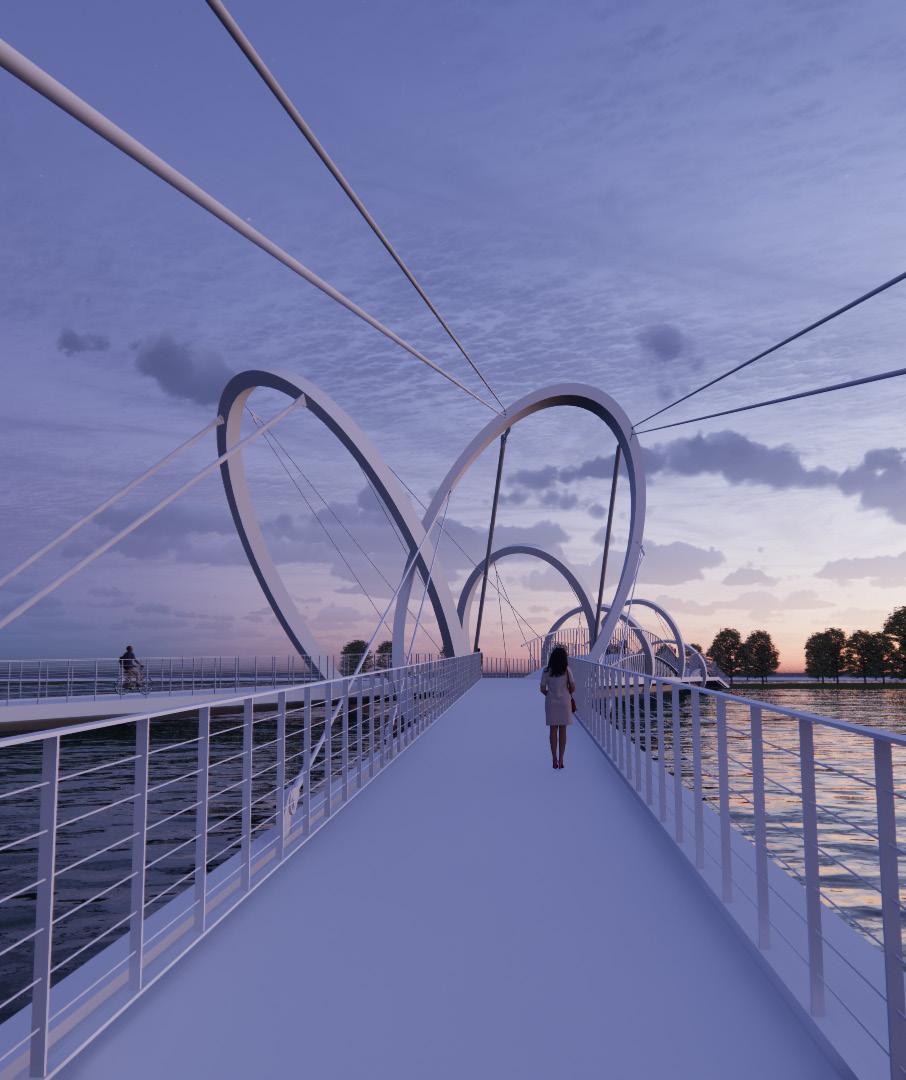

pedestrian and bike paths render

34

April

2022

Pedestrian Bridge

1 2 3 5

4 6

7

8

9

10 11

1

asphalt overlay

2

UHPC over steel studs

3

steel deck plate

4

welded T-rib

5

cable hinge joint

6

steel plate bolted to C-channel

7

welded rectangular tube

8

round 1 HSS tube

9

rectangular HSS ring

10

welded steel ring bracket

11

bolt and nut

12

concrete block foundation

12

detail section

35

04 - Peace Path

April

2

12

11

1

3

4

5 6

10 7

9 8

exploded axonometric

36

1

HSS rings

1

steel C-connector

2

steel cables

2

concrete block foundation

3

steel ring bracket

3

HSS tubes on concrete piles

4

hand-railings

4

steel T-ribs welded in HSS

5

covered steel deck plate

5

hinge and pin connector

6

box truss support

6

steel socket joint

2022

Pedestrian Bridge

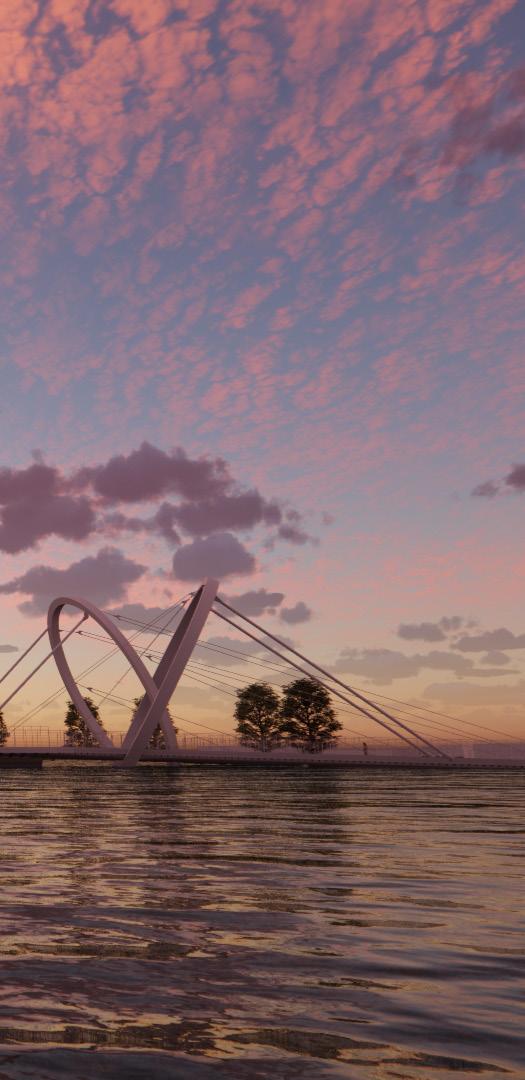

approaching main rings render

37

additional works

38

Case Study - Ontario Place

exploded axonometric

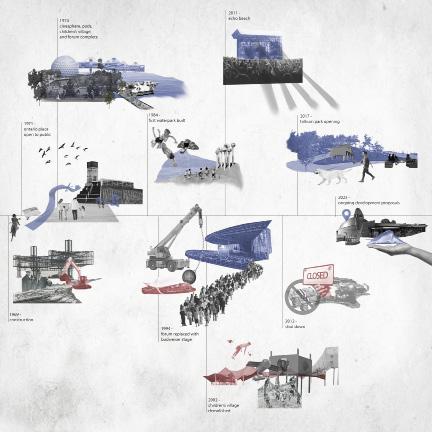

historical timeline

39

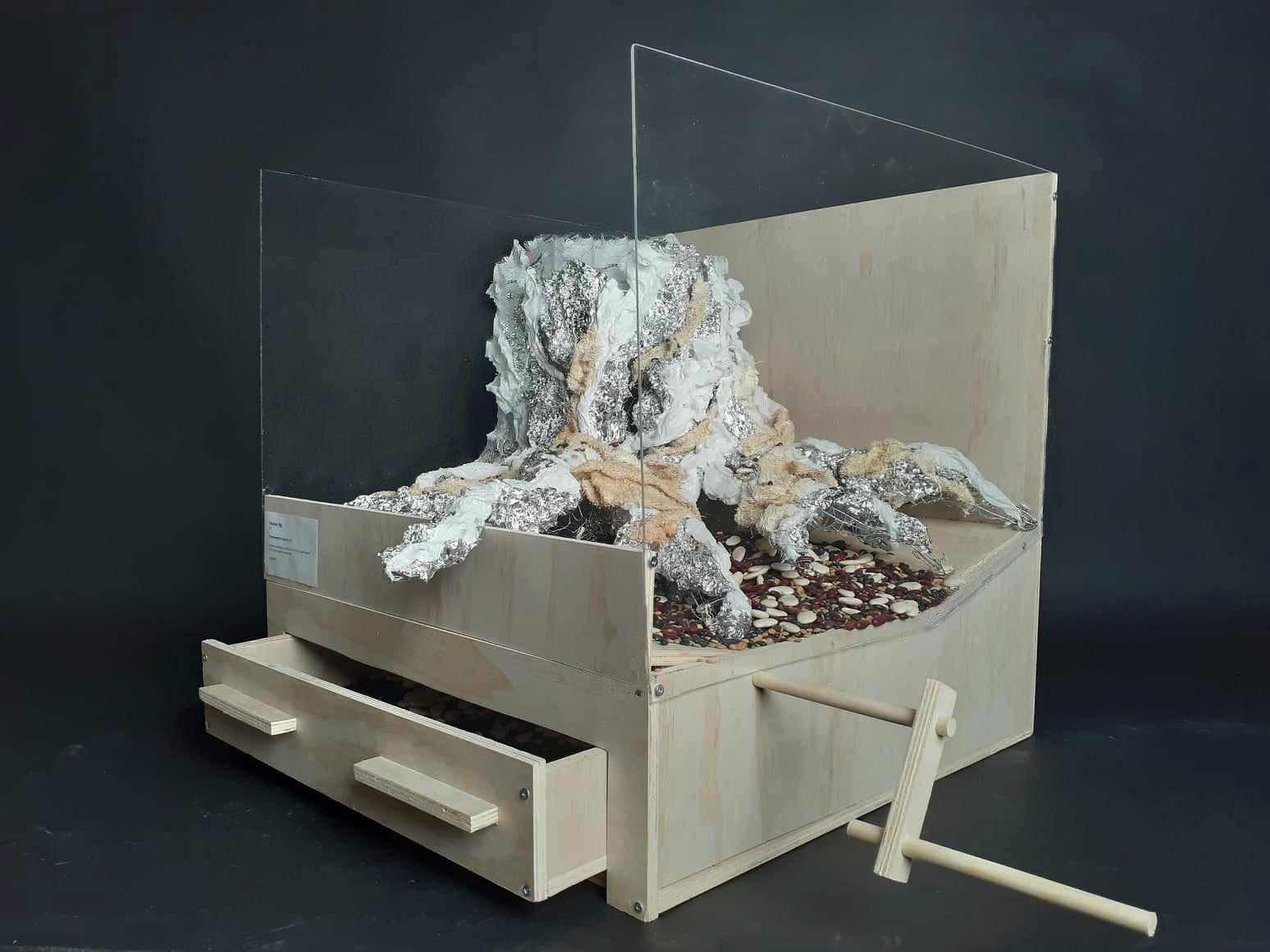

Direcrtionality in Nature Model materials: plywood, plexi, wire mesh, paper mache 2 x 2 x 2ft

overall view

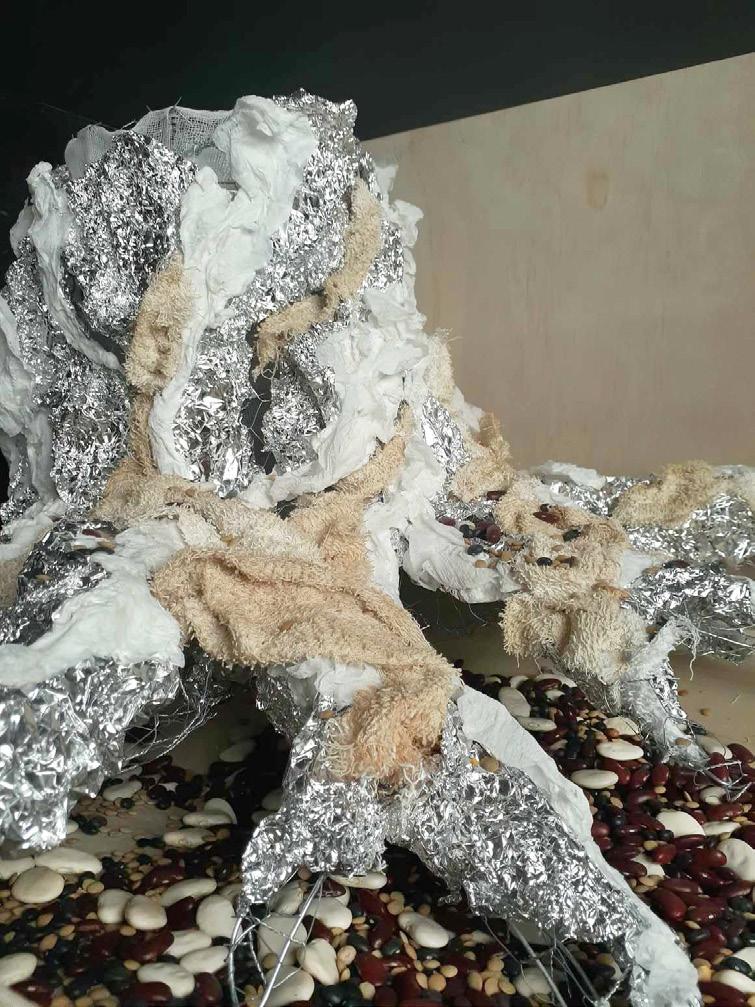

wire tree detail

40

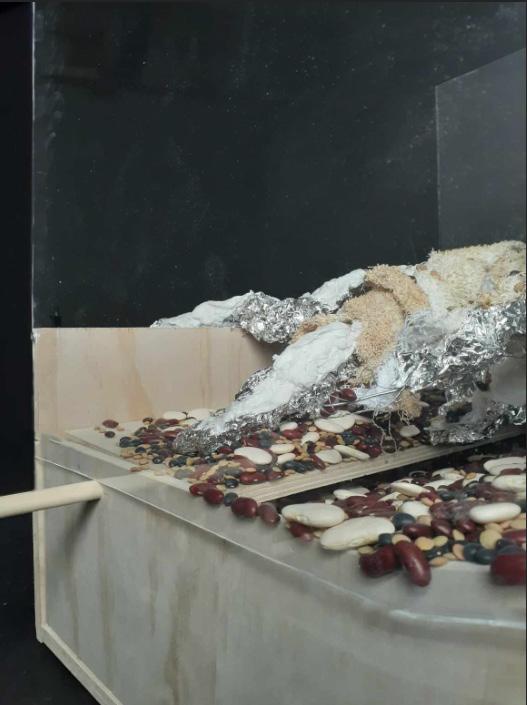

mechanism opening detail

Laser-Cut Model

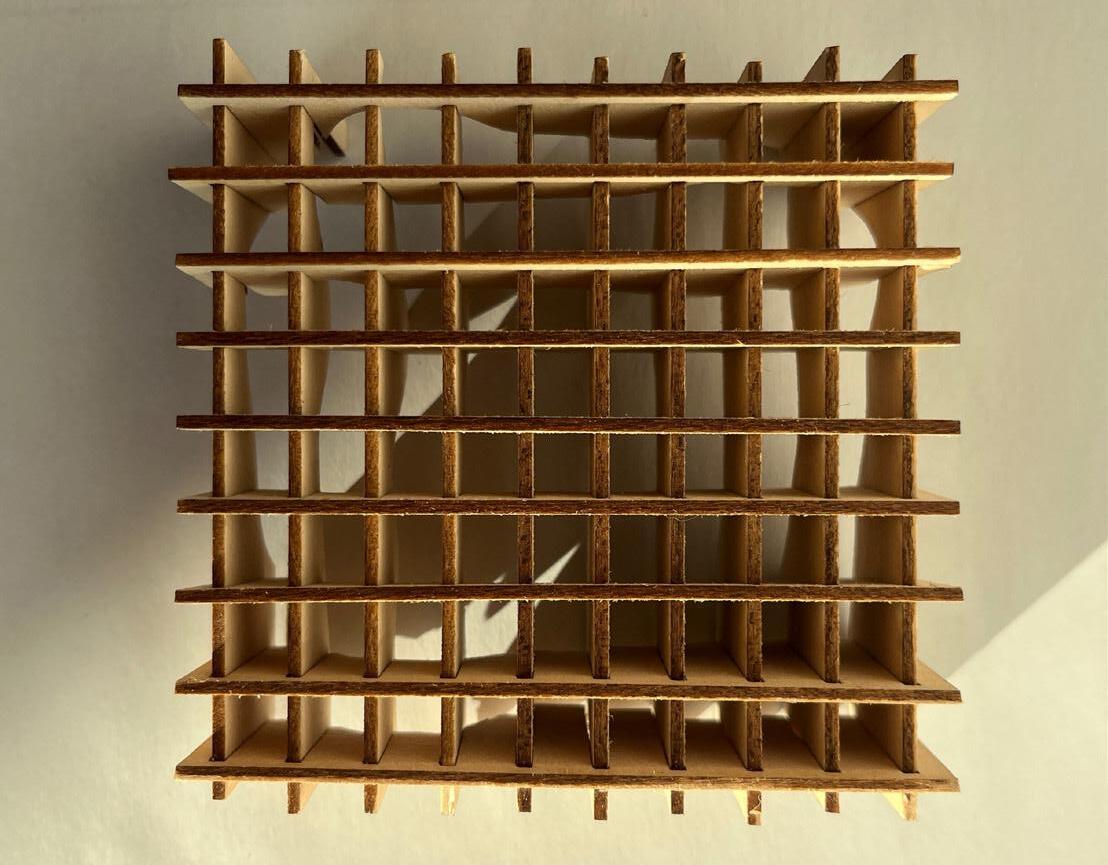

plan view

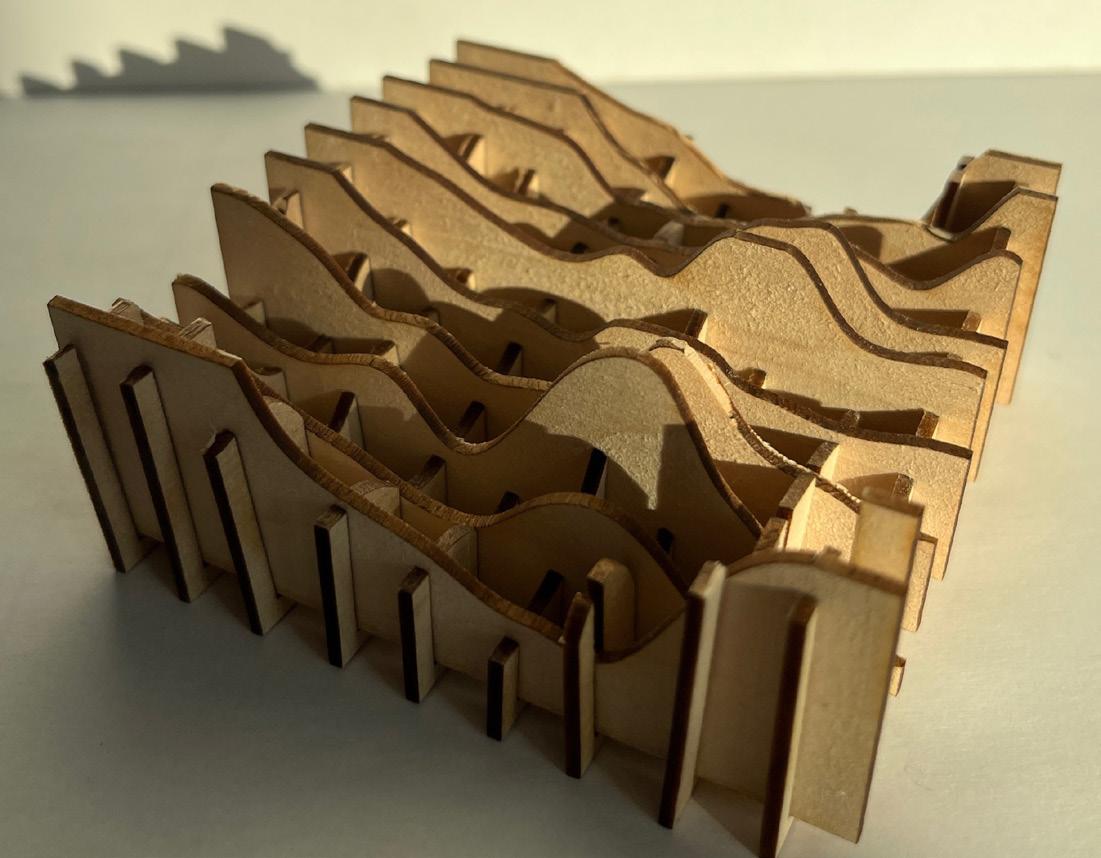

underside perspective

Personal Works

light model

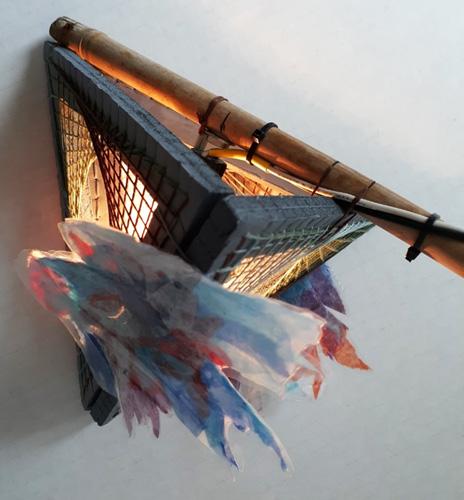

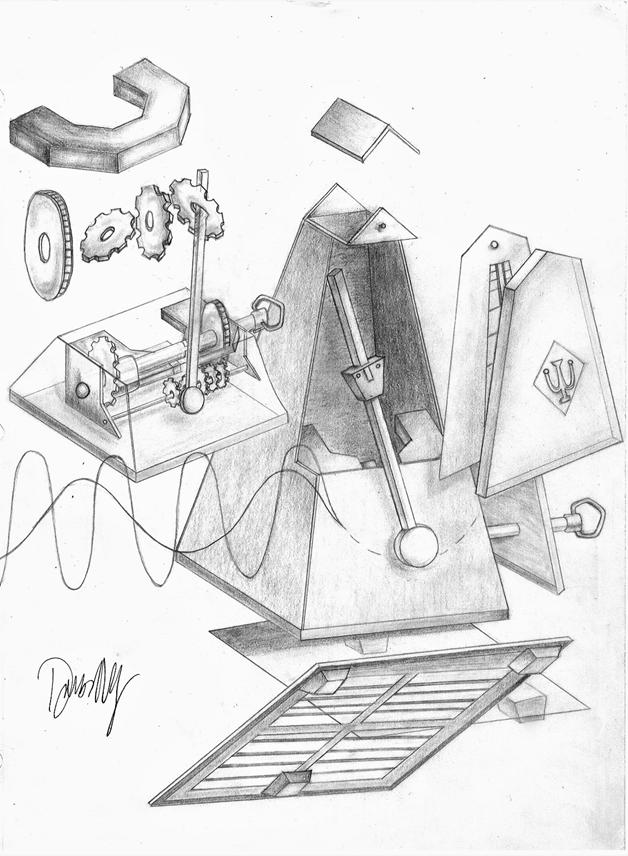

revealed metronome drawing

41

vvv

Thank You!
