Sound* *is one of the top three complaints of residents in multifamily properties.

1

Soft whispers can be measured at 30 decibels.

The ring of an alarm clock lands between 60 and 80 decibels.

A wash cycle in the laundry machine can fall anywhere between 50 and 60 decibels.

2

I N T RO D U CT I O N

2

F LO O R ASS E M B LY

4

I M PACT SO U N D | I I C

8

A I R BO R N E SO U N D | STC

16

I N RO O M SO U N D | SA A

18

U N D E R L AY M E N TS

22

RU GS

24

T E ST I N G

26

P RO D U CT G U I D E

28

3

Understand sound from the beginning of a project to avoid unwanted noise disruption and complaints.

2

INTRODUCTION

Avoid this loss of revenue by understanding what flooring materials can impact your building’s soundscape.

Sound layers, as they exist in a unique environment, create soundscapes—the clicks of typing, machinery beeps or the whirring of an air conditioner. A pleasant soundscape can positively impact our wellbeing, while a soundscape that exists as a by-product of acoustic failings can be harmful to our daily lives. Carefully chosen interior materials help us design a soundscape that encourages positive emotional and physical responses in the built environment.

Our soundscapes are composed of three main types of sound: Impact Sound, Airborne Sound, and In Room Sound. Each of these is a test focusing on a different type of sound absorption or transmission.

To create the ideal soundscape, all three must be balanced in conjunction with the proper floor assembly.

3

F LO O R A S S E M B LY

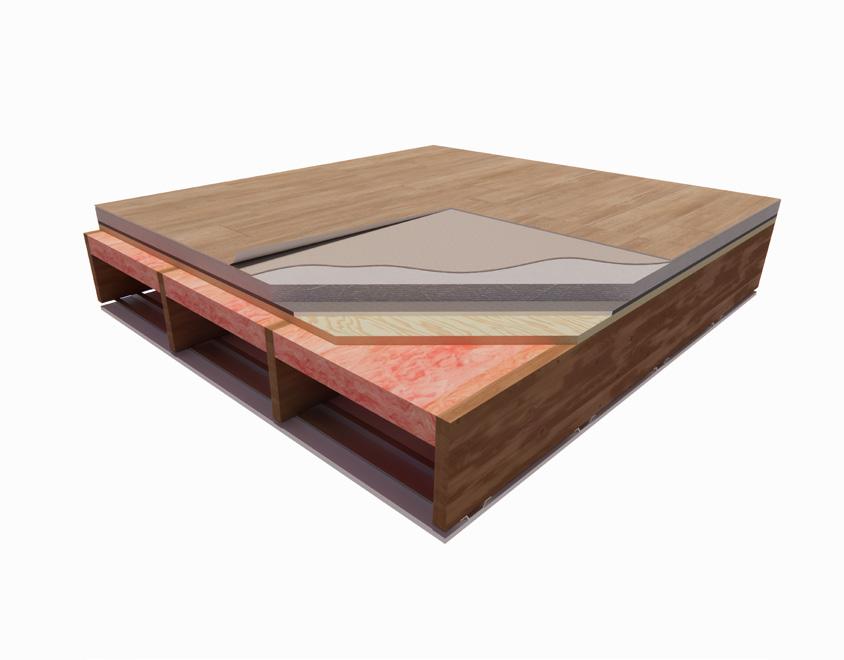

Floor Assembly Understanding the building construction is especially important when discussing acoustics with your client. Flooring assemblies come in many different thicknesses and components and ultimately contribute to the overall sound rating in a building.

See the range of assemblies we suggest when it comes to multifamily constructions.

4

F LO O R A S S E M B LY

Soundscapes are dependent on the selection of interior materials and the floor assembly.

5

F LO O R A S S E M B LY

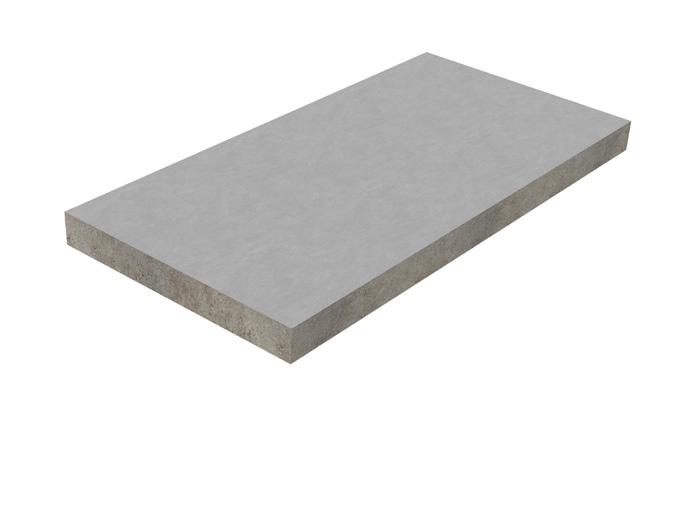

6” Concrete Slab IIC Rating

STC Rating

Subfloor Only

26

52

2mm–4mm LVT

33

52

5mm SPC

54

52

EcoWorx® Carpet

57

52

25 oz Cut Pile with Fiber 5 lb Rebond

74

54

IIC Rating

STC Rating

Subfloor Only

29

53

2mm–4mm LVT

34

56

5mm SPC

54

53

EcoWorx® Carpet

61

55

25 oz Cut Pile with Fiber 5 lb Rebond

77

56

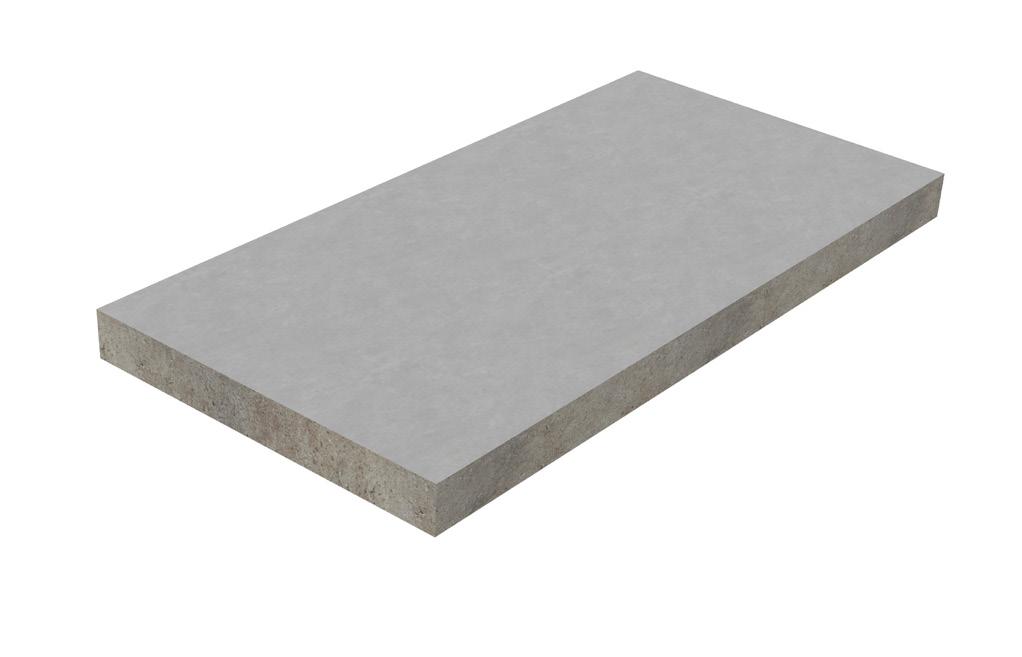

8” Concrete Slab

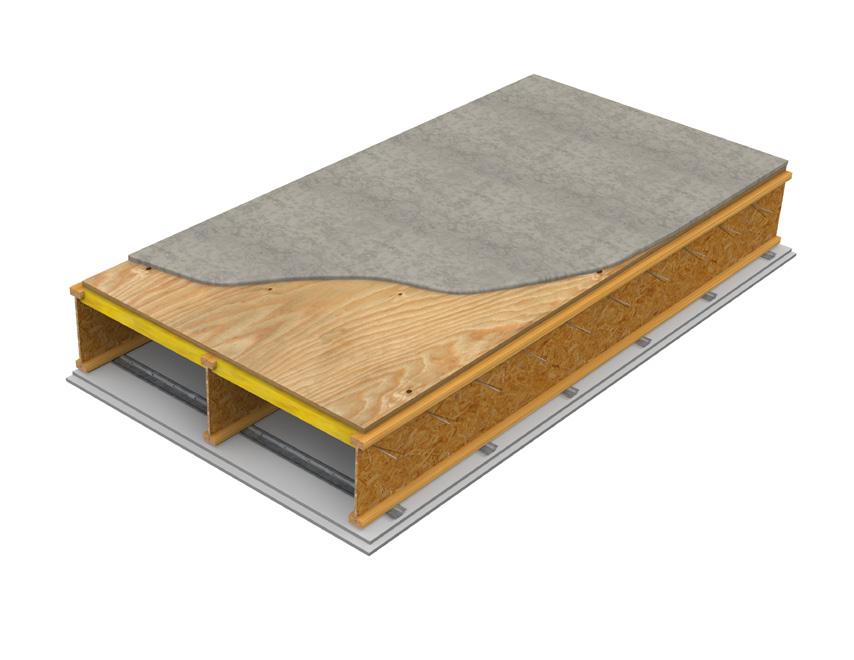

12” Engineered Wood Joist

6

IIC Rating

STC Rating

Subfloor Only

43

58

2mm–4mm LVT

47

59

5mm SPC

51

58

EcoWorx® Carpet

84

58

25 oz Cut Pile with Fiber 5 lb Rebond

74

59

F LO O R A S S E M B LY

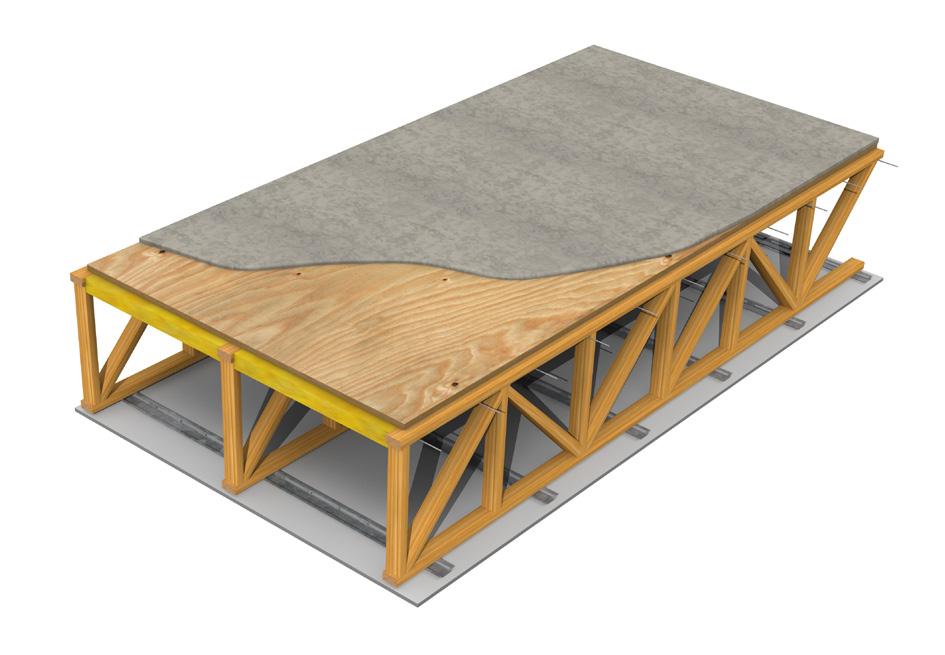

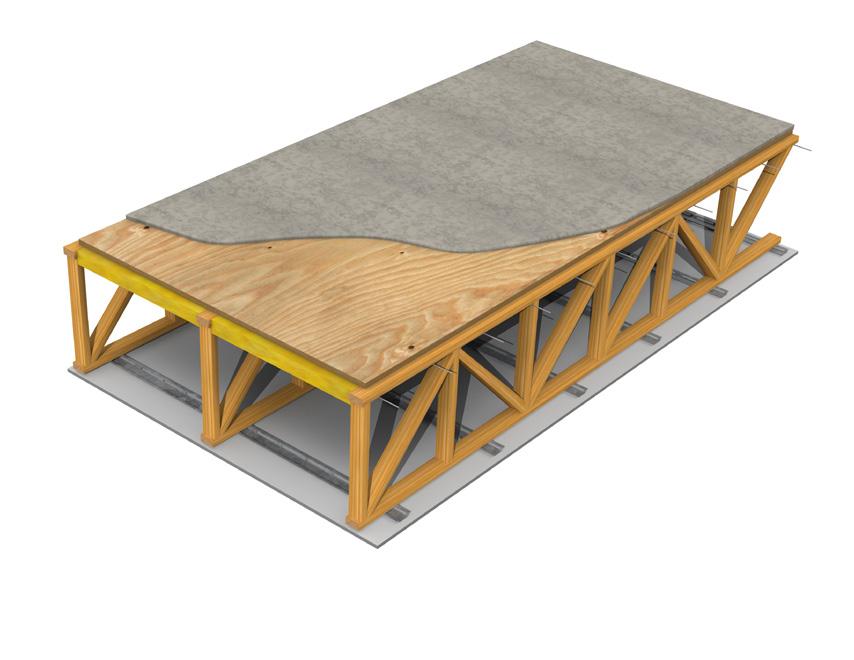

18” Open Web Truss IIC Rating

STC Rating

Subfloor Only

39

59

2mm–4mm LVT

44

59

5mm SPC

52

60

EcoWorx® Carpet

58

59

25 oz Cut Pile with Fiber 5 lb Rebond

68

60

2 x 10 Multifamily 3/4” Gyp IIC Rating

STC Rating

Subfloor Only

40

59

2mm–4mm LVT

47

59

5mm SPC

53

59

EcoWorx® Carpet

54

58

25 oz Cut Pile with Fiber 5 lb Rebond

75

60

7

I M PAC T S O U N D

The International Building Code requires an IIC of 45–50 in a field test.

8

I M PAC T S O U N D

Impact sound: a heavy couch dragging across the floor above.

An Impact Insulation Class (IIC) rating references how well a floor/ceiling assembly, including the finished floor, reduces the impact of sound. Knowing how different platforms contribute to the IIC can help you make flooring choices that align with the acoustic needs of a space.

9

I M PAC T S O U N D

See How Our Products Score Reference the charts to the right for our product offerings and their acoustic scores. See the following pages for construction diagrams on each of our products to learn how the layers that make up a product contribute to the acoustics of a space.

10

I M PAC T S O U N D

I I C R AT I N G C H A R T S BASED ON AN 8” CONCRETE SLAB

Carpet Tile Product

LVT IIC Rating

Product

IIC Rating

ReWorx PET Non-Woven Composite

53

Reside 12 mil

34

16–20 oz EcoWorx® Carpet Tile

61

Repose

55

20–26 oz Commercial Broadloom

68

Branching Out 12 mil

56

Reside 12 mil with Groundworx™

56

Soundscape Acoustic

59

16–20 oz EcoWorx® Carpet Tile with Underlayment 25 oz Residential Cut Pile with Fiber Select Pad

68 77

11

I M PAC T S O U N D

25 oz Residential Cut Pile with Fiber Select Pad

1 2

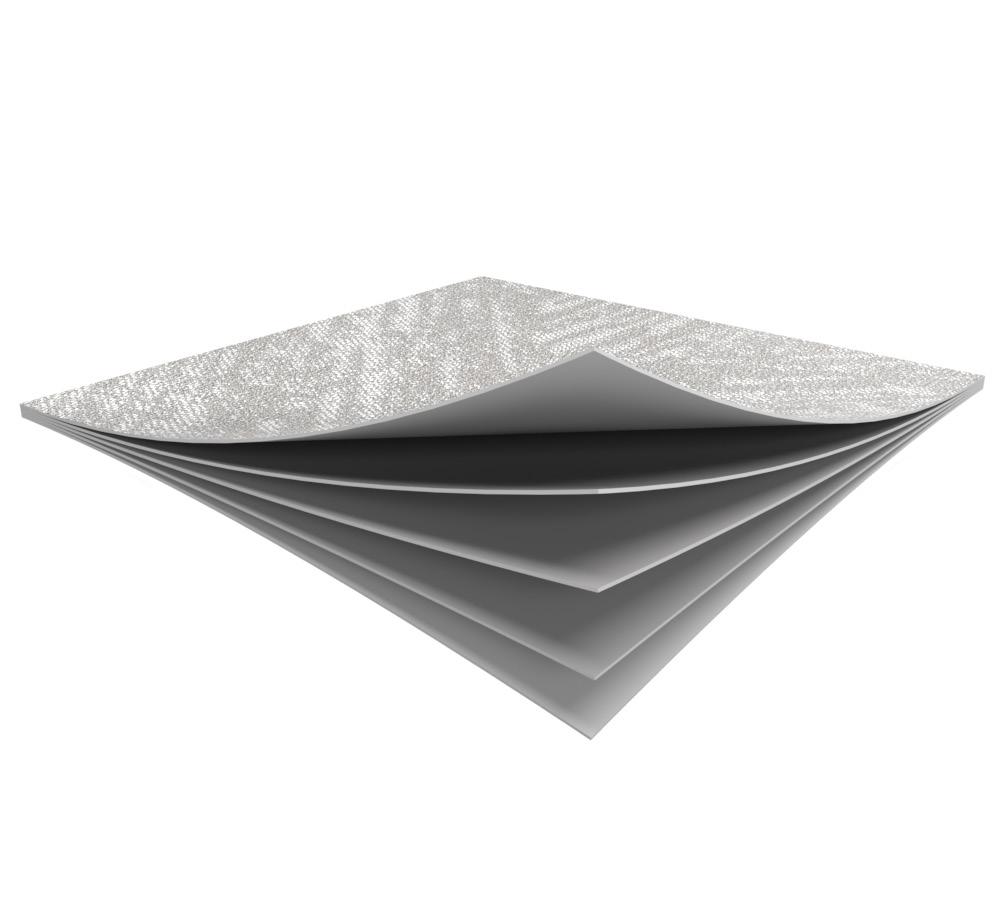

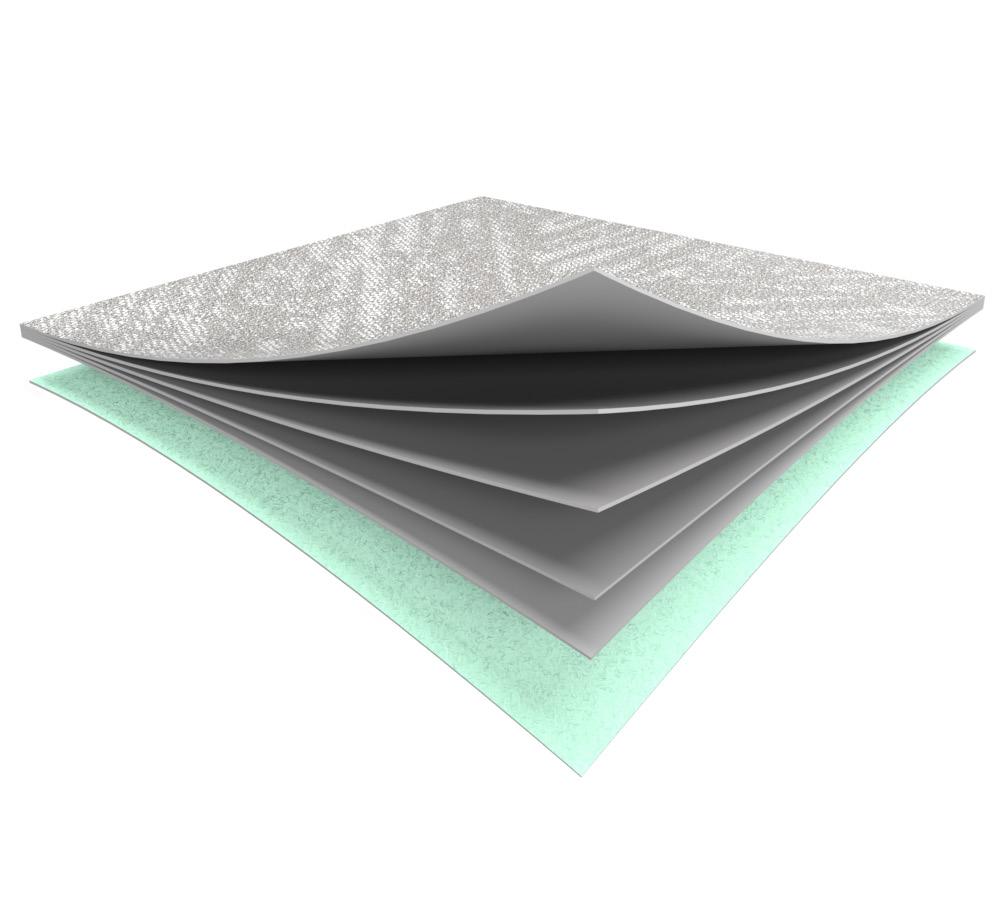

1. Face Yarn 2. Primary Backing 3. High-Performance Precoat 4. Thermoplastic Laminate 5. Woven Reinforcement Layer 6. Fiber Select Pad, added separately*

3 4 5 6

1

20–26 oz Commercial Broadloom 1. Face Yarn 2. Primary Backing

2 3 4

3. High-Performance Precoat 4. Thermoplastic Laminate

5

5. Woven Reinforcement Layer

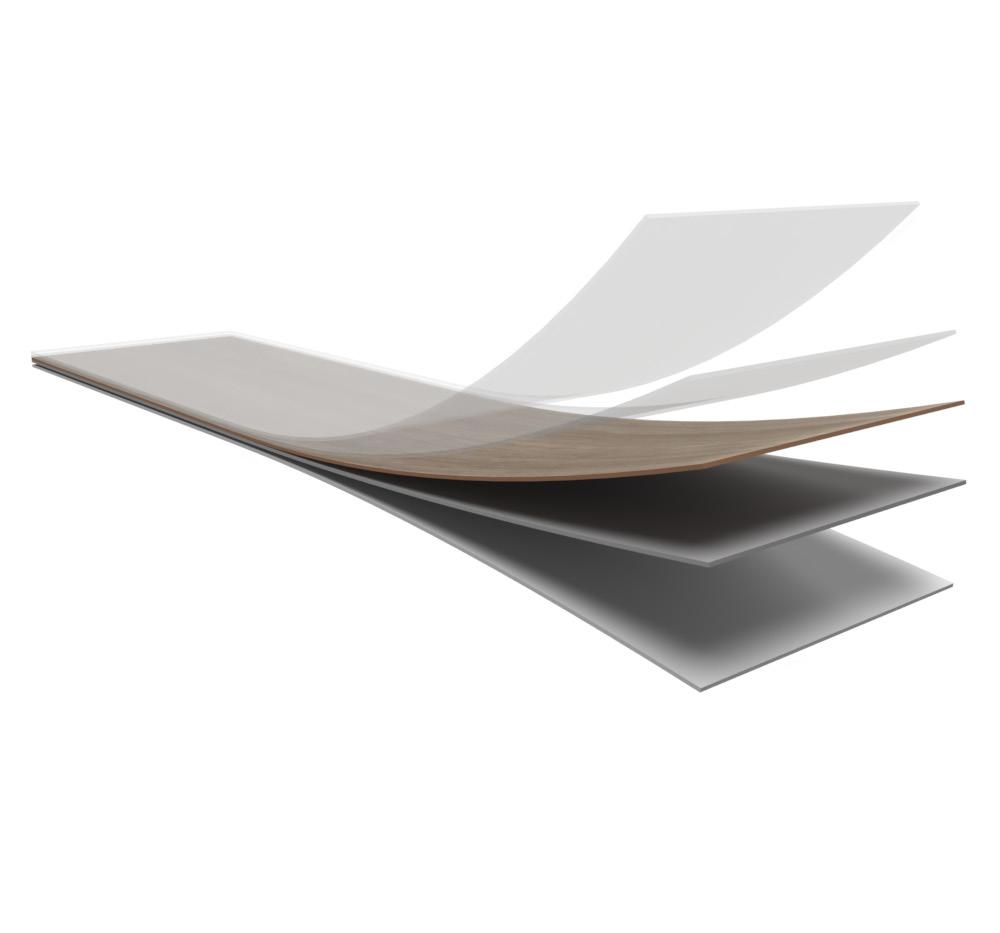

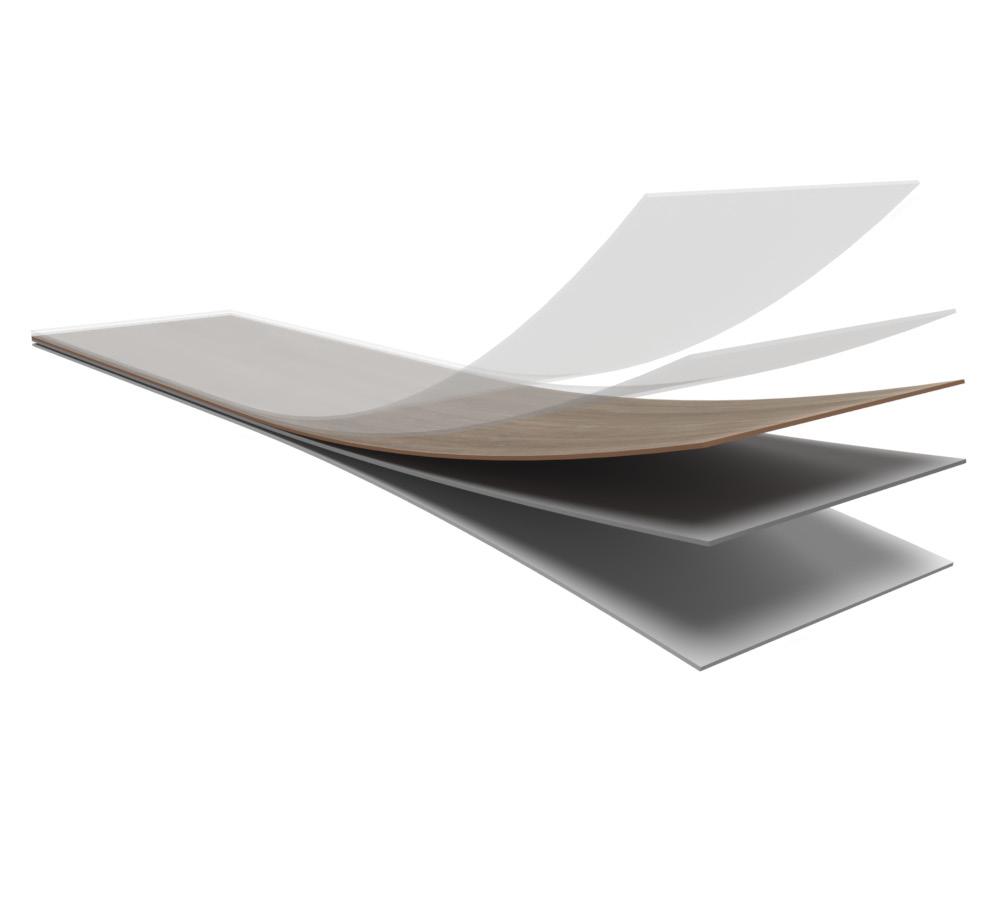

ReWorx PET Non-Woven Composite 1. ExoGuard™ Finish Layer 2. Clear Wear Layer

12

* I T E M SO L D S E PA R AT E LY F RO M F LO O R I N G P RO D U CT

1 2

I M PAC T S O U N D

16–20 oz EcoWorx® Carpet Tile

1 2

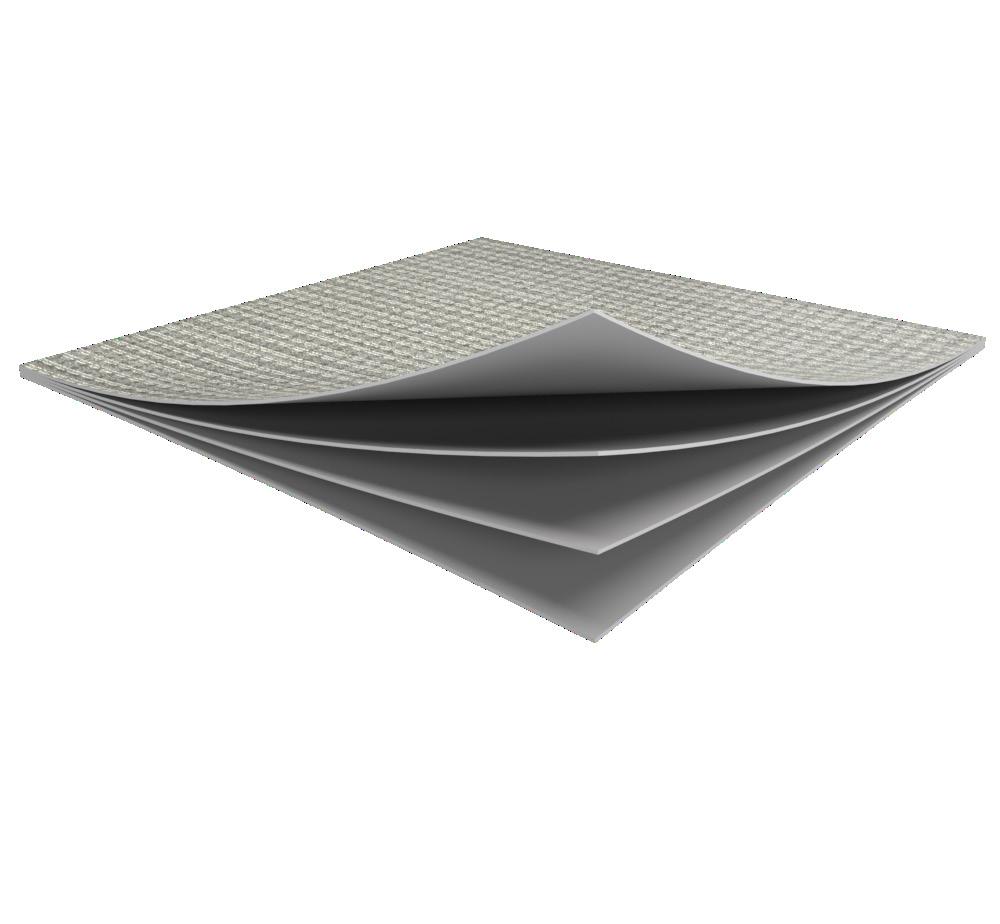

1. Face Yarn 2. Primary Backing 3. High-Performance Precoat 4. Thermoplastic Compound 5. Fiberglass Reinforcement

3 4 5

1

16–20 oz EcoWorx® Carpet Tile with Underlayment

2

1. Face Yarn

3

2. Primary Backing 3. High-Performance Precoat

4

4. Thermoplastic Compound

5

5. Fiberglass Reinforcement

6

6. CushionWorx Backing, added separately*

1

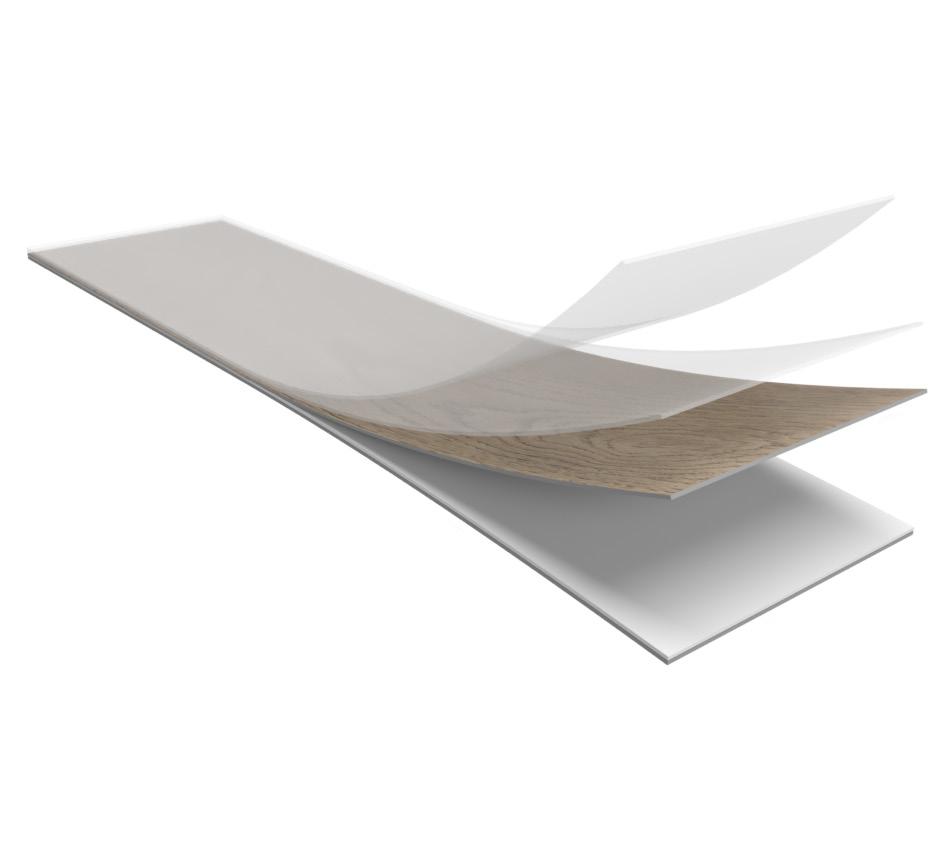

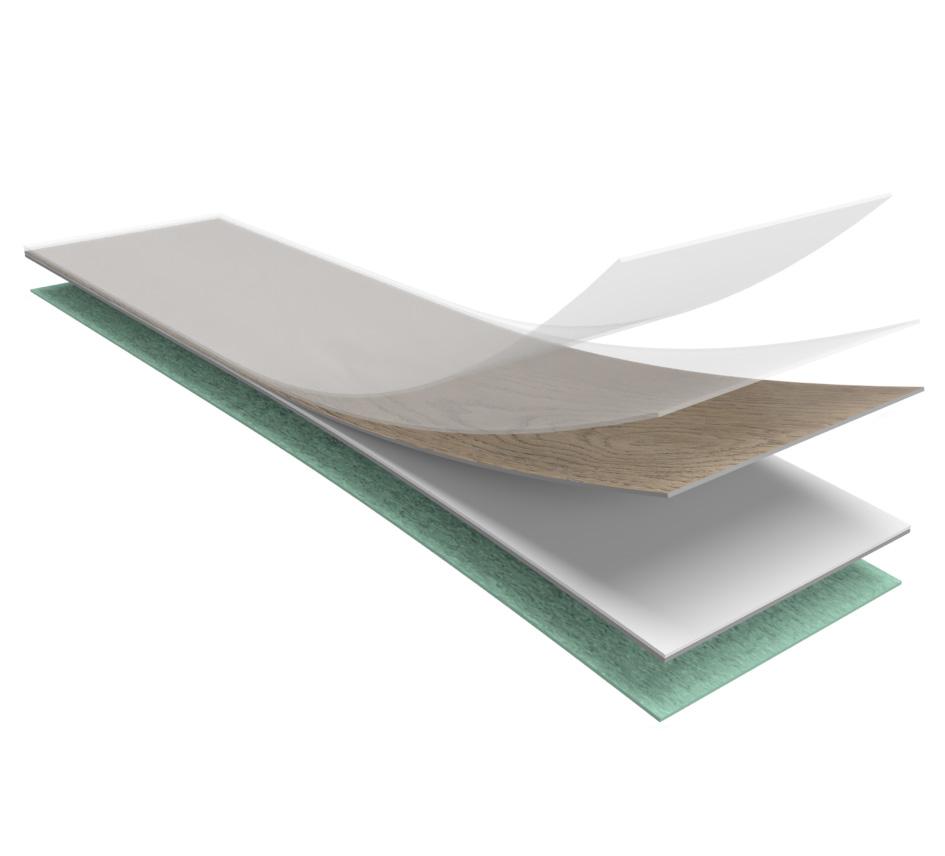

Reside 12 mil 1. ExoGuard™ Finish Layer

2 3

2. Clear Wear Layer 3. High-Resolution Image

4

4. Commercial Core 5. Backing

5

* I T E M SO L D S E PA R AT E LY F RO M F LO O R I N G P RO D U CT

13

I M PAC T S O U N D

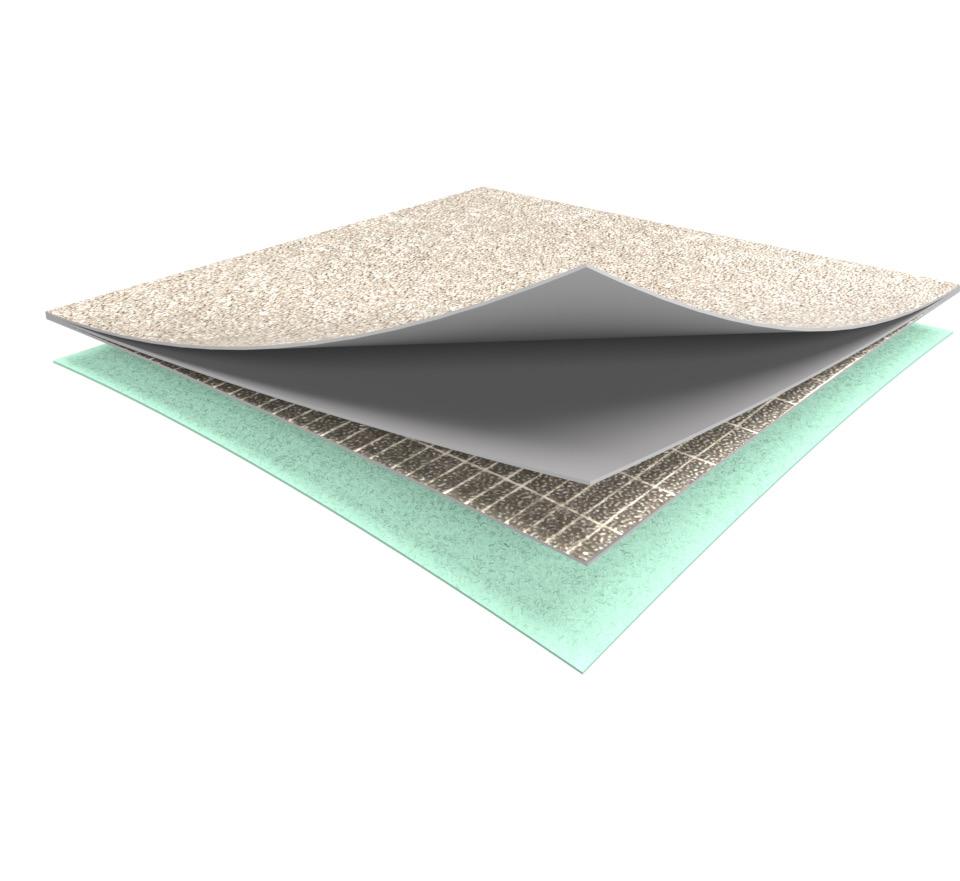

Reside 12 mil with Groundworx™

1 2

1. ExoGuard™ Finish Layer 2. Clear Wear Layer 3. High-Resolution Image

3 4

4. Commercial Core 5. Backing

5

6. Groundworx™ Underlayment, added separately*

6

Repose

1

1. ExoGuard™ Finish Layer

2

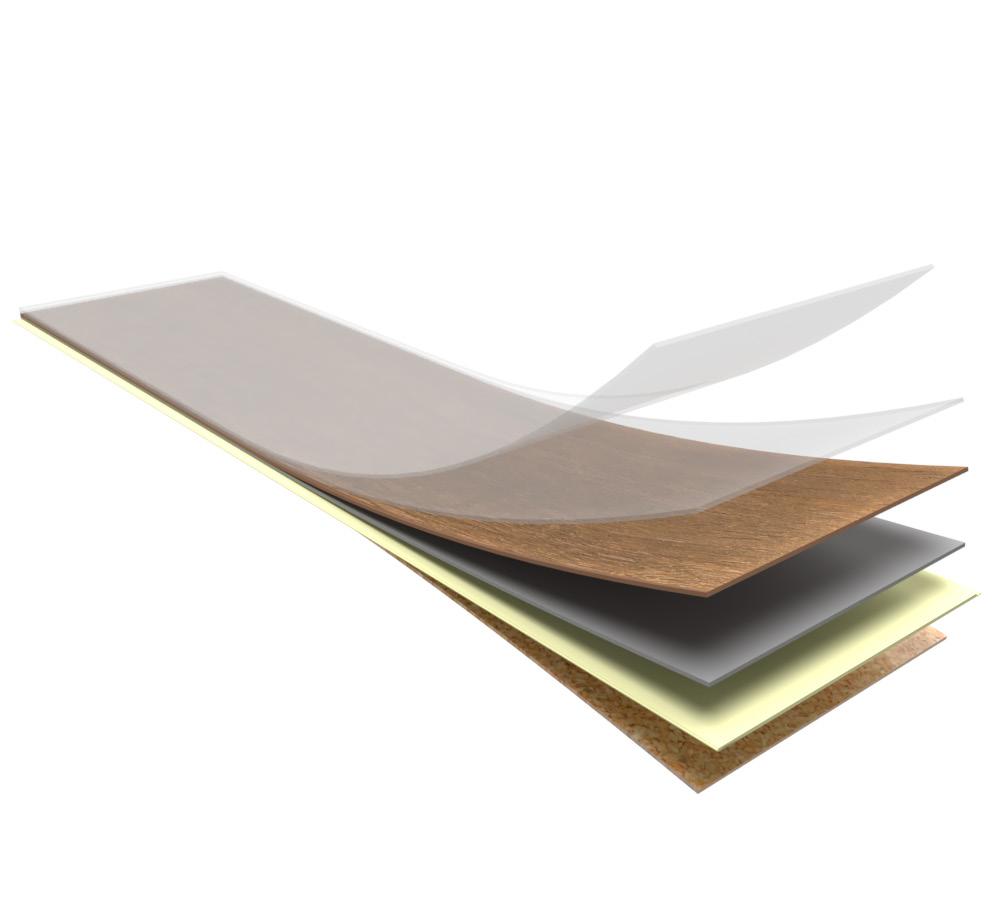

2. Commercial Wear Layer 3. Print Film Layer 4. COREtec® SPC 5. Attached Cork Underlayment 6. Integrated Locking Edges

3 4 5 6

1

Branching Out 12 mil

2

1. ExoGuard™ Finish Layer

3

2. Clear Wear Layer 3. High-Resolution Image 4. Commercial Core 5. Acoustic Backing

14

* I T E M SO L D S E PA R AT E LY F RO M F LO O R I N G P RO D U CT

4 5

I M PAC T S O U N D

1

Soundscape Acoustic

2

1. ExoGuard™ Finish Layer

3

2. Clear Wear Layer 3. High-Resolution Image 4. Commercial Core 5. Acoustic Backing

4 5

15

AIRBORNE SOUND

A high STC product can help reduce the amount of sound transmitted to the room below.

16

AIRBORNE SOUND

Airborne Sound: hearing your neighbor practicing drums through the ceiling.

Sound Transmission Class (STC) is a measurement of the amount of In Room Sound energy the product prevents from transmitting from one room to another. A loud noise is played in one room, and a device measures how much of that sound energy is transmitted into the next room, above or below.

The largest contributors to STC are the flooring and ceiling construction materials. For example, adding a sheetrock ceiling to a 6” concrete construction can add up to 9 points. Choosing a 2 x 10 Multifamily 3/4” Gyp flooring assembly over a 6” concrete slab will result in a 7 point difference.

17

IN ROOM SOUND

In Room sound: voices echoing from across the room and down the hall.

The Sound Absorption Average (SAA) measures the amount of sound energy absorbed by a product such as flooring, ceiling tiles, fabric or furniture. When designing a commercial or living environment, this test allows you to measure how two different spaces with the same amount of sound energy will differ from one another. How quickly the sound dissipates and how it reflects will change occupants’ perceptions of their space. ​ Flooring can assist in absorbing sound. The flooring solutions chosen for a space can impact the overall acoustics in the built environment.

18

rd Su r fa ce

e

ug

T il

oz R

ix ®

30

50

og

70

40

25 Cu oz R t P es il e i d e w i n ti th a Pa l d

oL

10

Ec

15

Ec oW 24 – 4 Ult orx 0oz ® ra Lo T il e c® BL

20

Ec oW 14 – Ult orx 24oz ® ra Lo T il e c® BL

Ha

0 Po C o li s h e nc d re t e

PERC ENTAG E O F S O U N D AB S O R B ED

IN ROOM SOUND

100

90

80

70

60

50

35

20 25

5

0

PL ATFO RM

19

IN ROOM SOUND

3 7

6

4

1

5

8 2

20

IN ROOM SOUND

Sound Absorbing Palette P RO D U CT K E Y 9 1

Interlude EcoLogix Tile (5T344) in Orchestrate (27550) 18 oz EcoLogix Tile | SAA: 25

2

Braided Broadloom (5A381) in Cobblestone (81100) 32 oz Ultraloc Broadloom | SAA: 20

3 10

Story Ultraloc MB (5A377) in Anthem (75486) 22 oz Ultraloc Broadloom | SAA: 15

4

Reside 8 mil (4099V) in Dwelling (94250) 2 mm LVT | SAA: 5

11 5

Inlet II (4327V) in Dune (72240) 5 mm LVT | SAA: 5

6

Kista Rug by Lindsay Stead (G288R) in Graphic (54485) 6x9 Area Rug | SAA: 35

7

Bisect Tile (5T448) in Mortar (06530) 16 oz EcoWorx® Tile | SAA: 15

8

Hand in Hand (5T450) in Together Color (50120) 24 oz Carpet Tile | SAA: 20

9

Casa Tile (5T525) in Vibrant Maiz (25210) 18 oz EcoWorx® Carpet Tile | SAA: 15

10

Terrain II 20 mil (0454V) in Alder (07005) 2.5 mm LVT | SAA: 15

11

Niche (5A292) in Locality (00114) 25 oz ClassicBac Broadloom with Pad | SAA: 70

12

Process Tile (5T302) in Riad (01518) 28 oz EcoWorx® Carpet Tile | SAA: 20

An SAA of 1 means that 100% of the sound​energy is 12

absorbed, while an SAA of 0 means that none of the sound is absorbed. A soft surface flooring has a 300% increase in sound absorption when compared to a hard surface flooring.

21

U N D E R L AY M E N T S

Including an underlayment or cushion under any product greatly increases the IIC. 22

U N D E R L AY M E N T S

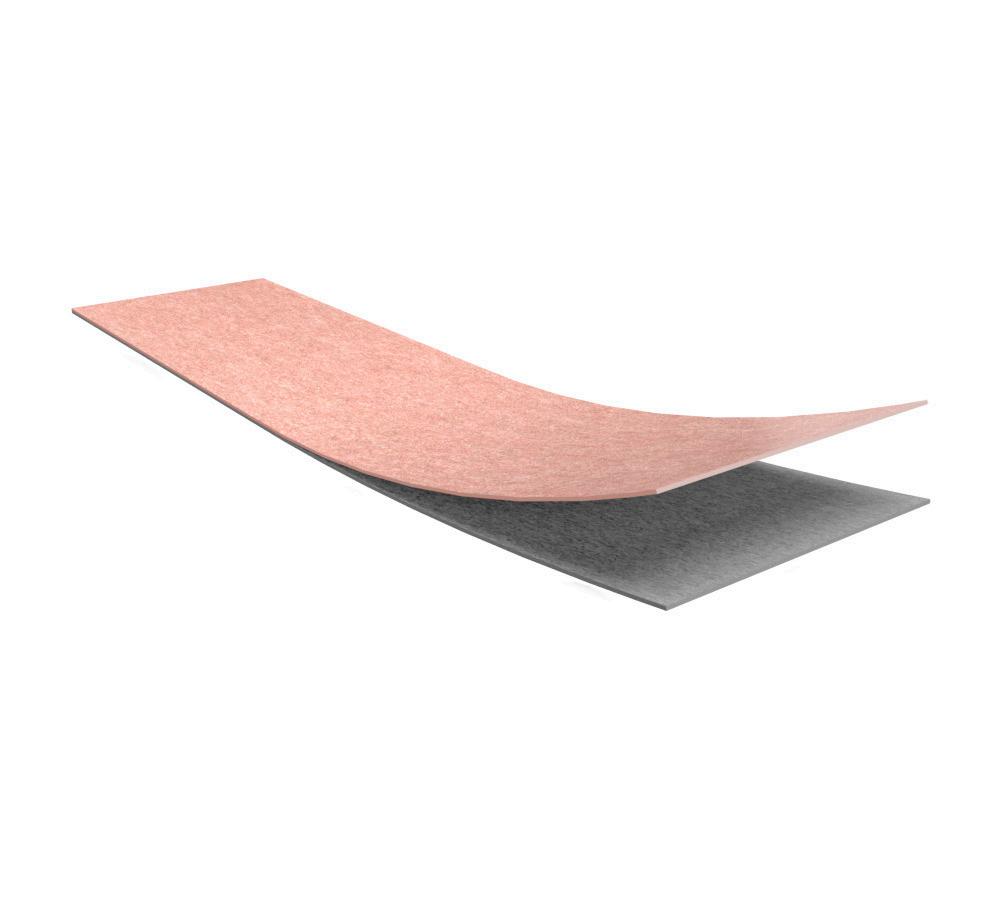

Groundworx™ Groundworx™ is an Impact Sound Reduction Underlayment that was engineered to reduce sound transmission between floors within multi-level structures.

Hush III

A Complete Line of Accessories Totalworx™ is a complete line of flooring accessories designed to help make installation and care easy. Our underlayment and cushion products are great for added acoustical benefits in your properties.

Hush III is recognized as some of the most effective sound control, environmentally friendly acoustical flooring underlayment designed to reduce sound transmission between floors within multi-level structures.​

Cushion Cushion can drastically improve multifamily environments by improving acoustics including IIC and SAA scores.

Shaw Contract offers cushion solutions for every project and price point.

LEARN MORE ABOUT OUR

E X P LO R E O U R F U L L TOTA LWO R X™ O F F E R I N G

U N D E R L AY M E N T & C U S H I O N O F F E R I N GS

F RO M F LO O R P R E P TO M A I N T E N A N C E

23

RUGS

J O I N (G 2 2 5 R ) I N S M O K E ( 68 50 0 )

24

RUGS

The impact of sound can be reduced by adding a rug. A rug on top of a resilient floor offers a softer surface to absorb unwanted sound.

As you layer in carpet with our hard surface, acoustics improve and sound absorption rises. An area rug can create a 40% increase in sound absorption over polished concrete alone. Scan the QR code to explore our running line rug program.

25

TESTING

Hear the Difference Shaw has the largest testing database of anyone in the floor covering industries with over 1,500 unique acoustic tests. Our team has tested over 50 unique floor assemblies.

Sound Advisor™, a patented tool from Shaw​Contract, is designed to help you hear the acoustic difference between a variety of​hard and soft surfaces, with or without​ underlayments. Simply select the floor and​ceiling construction for your project, apply the​flooring choice and Sound Advisor™ will allow​you to experience the sound of an IIC score.

The patented Sound Advisor tool from Shaw Contract gives you the power to select the right flooring combination for your project’s needs. Scan to hear the difference.

26

TESTING

C U LT U R A C U STO M RU G H F 864 47

27

PRODUCT GUIDE

Product Performance It is important to keep flooring assembly in mind when selecting product to ensure the best acoustical selection has been made.

See how our products score on both IIC and STC tests when used with the below flooring assemblies.

6” Concrete Slab

28

18” Open Web Truss

PRODUCT GUIDE

Bisect Tile | Floor Architecture

$ Product Specifications Style Number Fibre Dye Method Tufted Weight Gauge Average Density Product Size Secondary Backing Recommended Installation IIC Rating STC Rating
