Stellar

PORCELAIN + CERAMIC F LO O R + WA L L

High design meets high traffic.

Earthborn texture and atmospheric depth with the resilience and ease modern hospitality demands.

The Future Takes Form Above and Below Born from a spirit of exploration and a drive to push surface design beyond the ordinary, Stellar redefines porcelain and ceramic tile with rocky textures and otherworldly forms. Evoking ambition and vision, this bold, futuristic collection brings a sculptural aesthetic to walls and floors alike. Grounded in possibility, elevated by design and ready for what’s next.

L E F T: F LO O R | S T E L L A R 2 4 X 4 8 ( C T 8 3 K ) I N M E T E O R ( 0 0 7 6 1 )

FIELD TILE

Available Formats

1 2 X 2 4 M AT T E

2 4 X 4 8 M AT T E

CT82K

CT83K

Size: 12 x 24 in

Size: 24 x 48 in

Thickness: 8 mm

Thickness: 8.5 mm

Edge Profile: Rectified

Edge Profile: Rectified

Colorbody Glazed Porcelain

Colorbody Glazed Porcelain

Applications: Floor, Wall

Applications: Floor, Wall

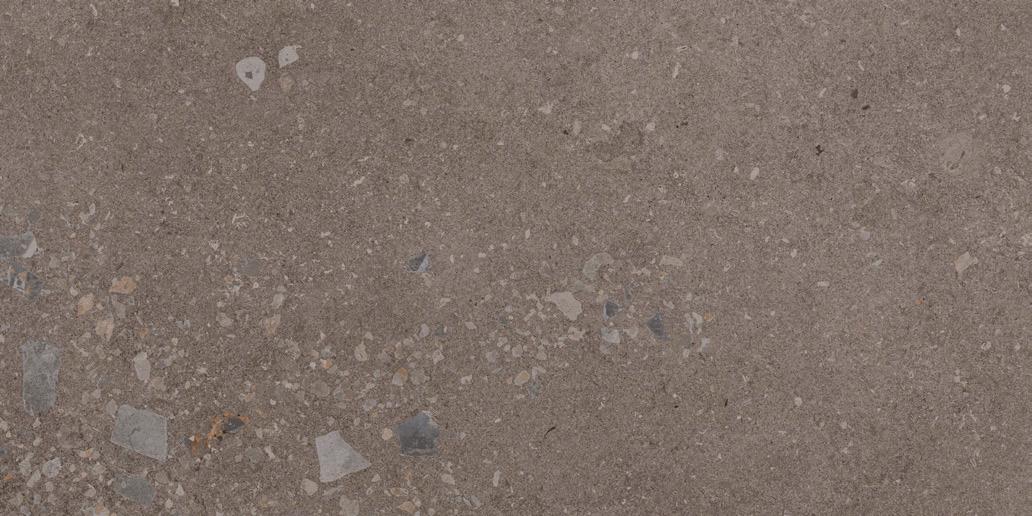

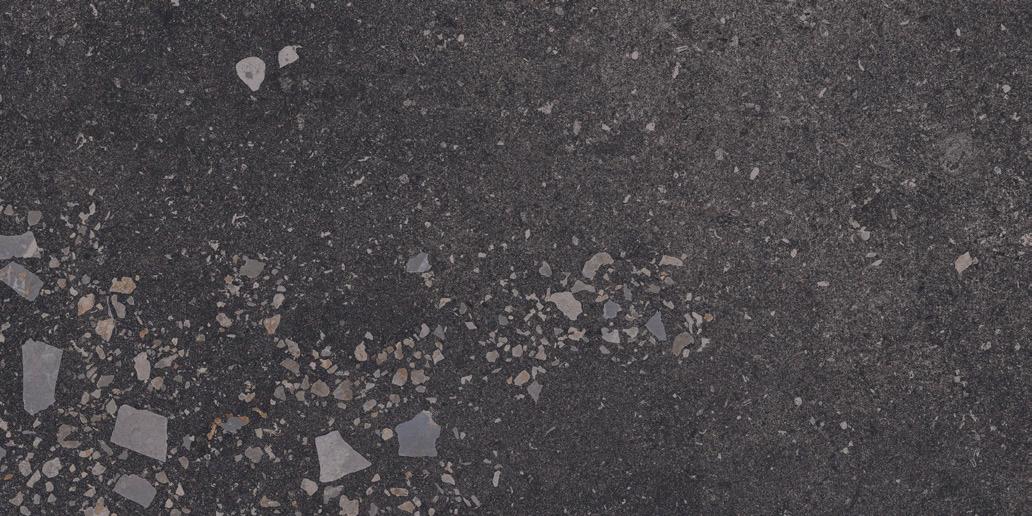

Colors

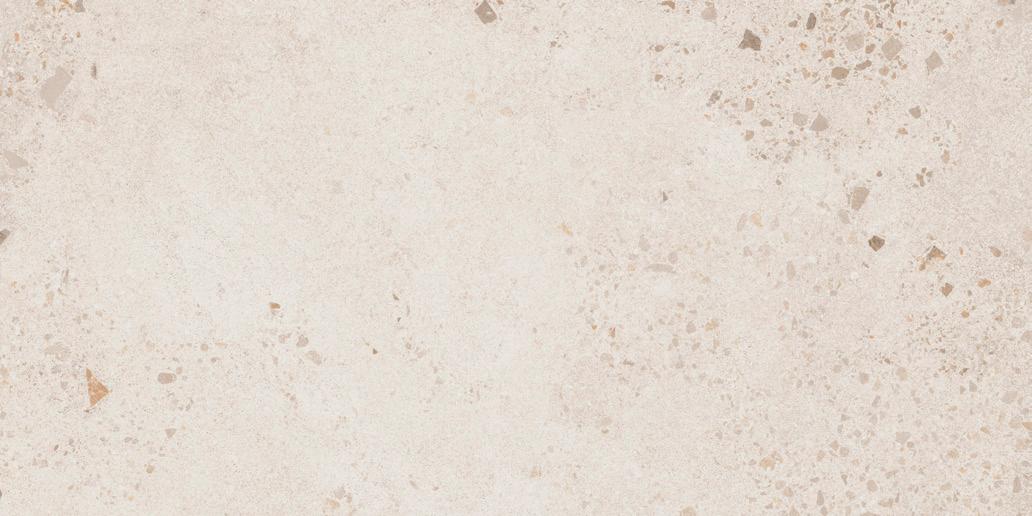

NEBULA

00105

PULSAR

00515

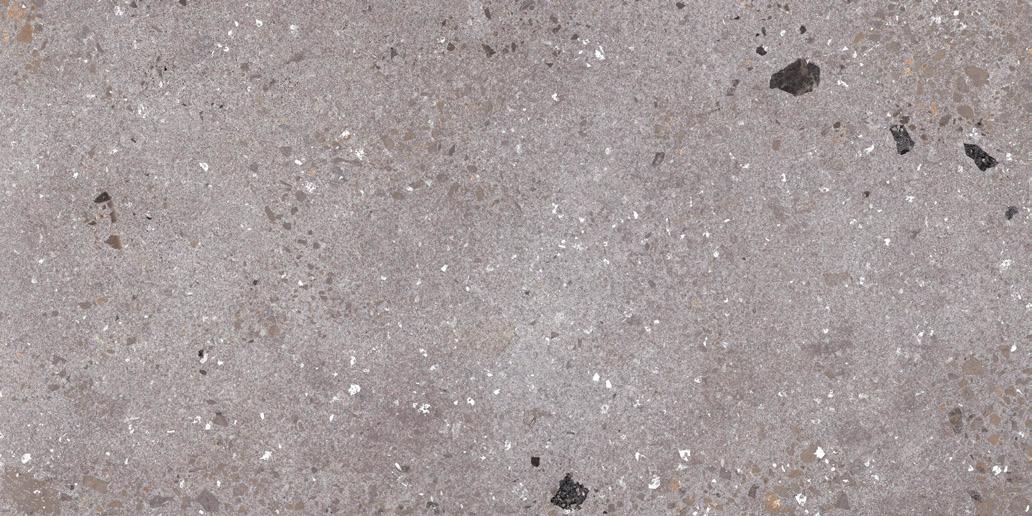

M E TEO R

00761

VA S T N E S S

00505

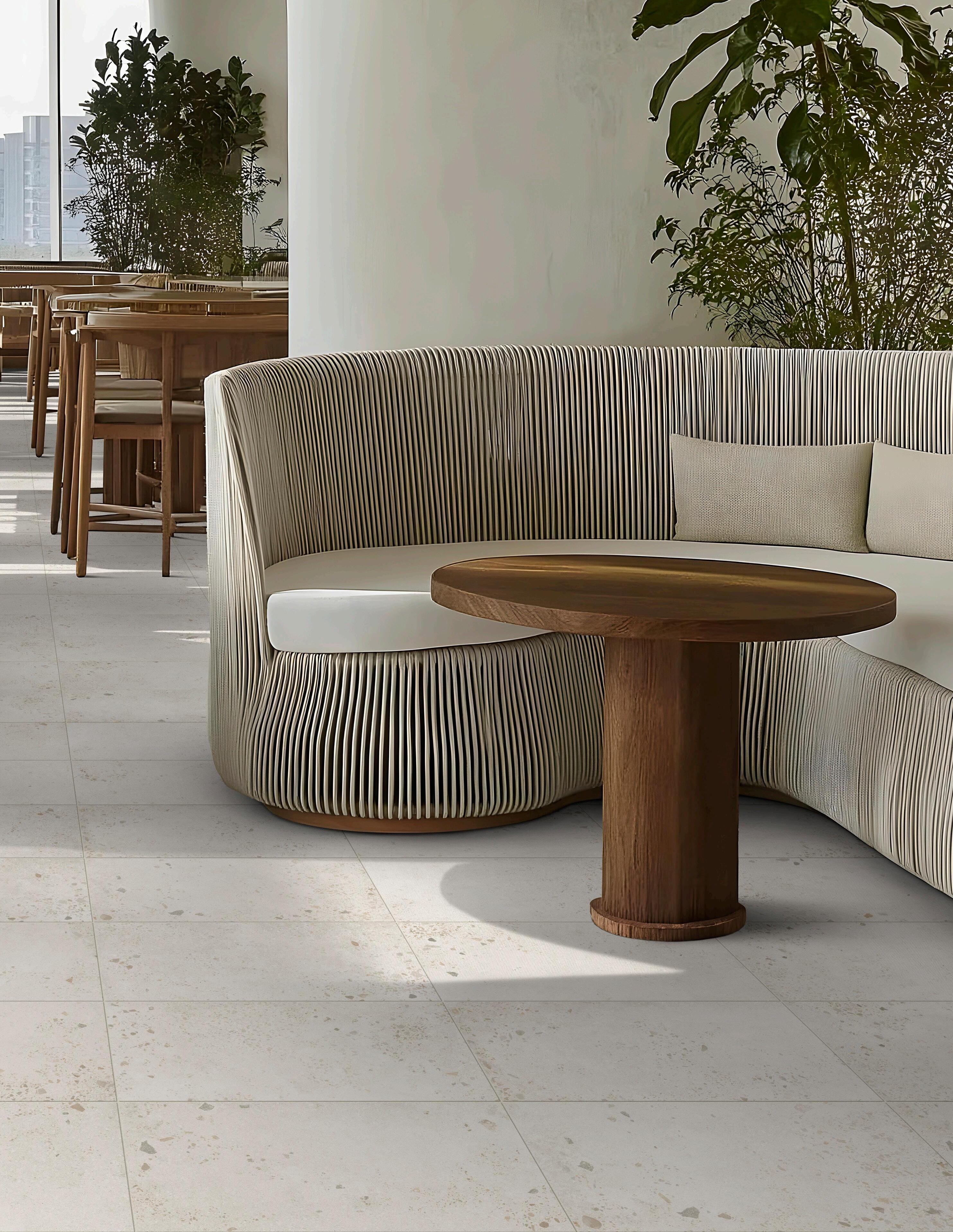

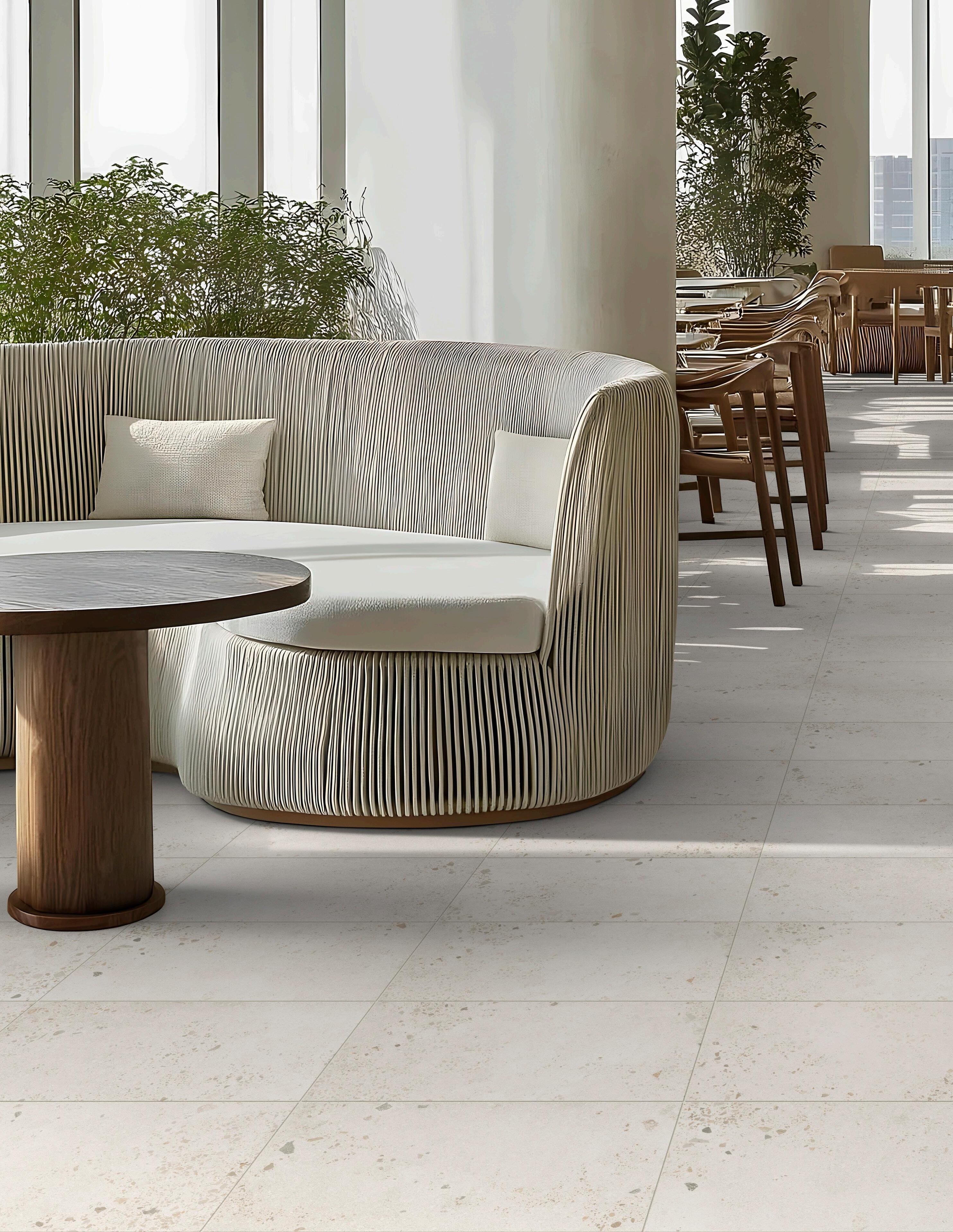

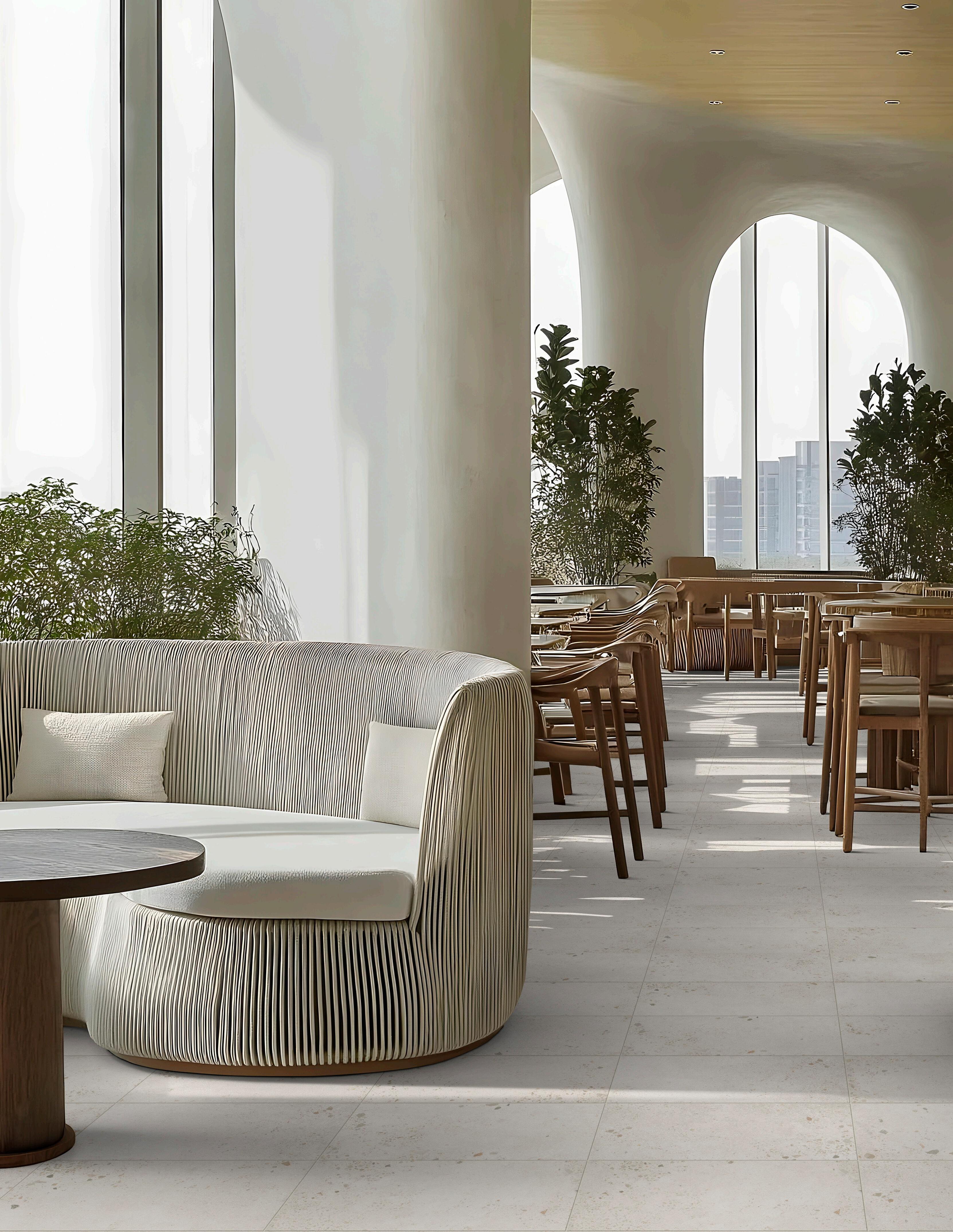

R I G H T: F LO O R | S T E L L A R 1 2 X 2 4 ( C T 8 2 K ) I N N E B U L A ( 0 0 1 0 5 )

2

Stellar grounds a sky-high setting with a surface that combines earthly texture with cosmic allure.

3

First impressions are the ones that last. Stellar's creative possibility comes into graphic clarity in an upscale reception space.

4

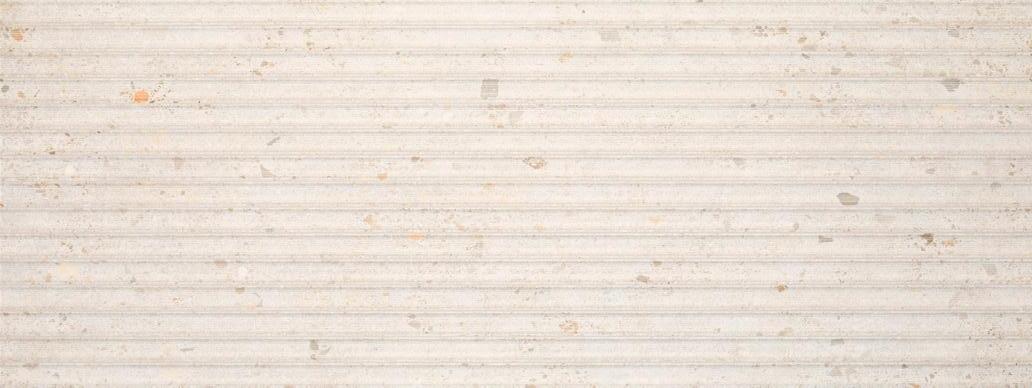

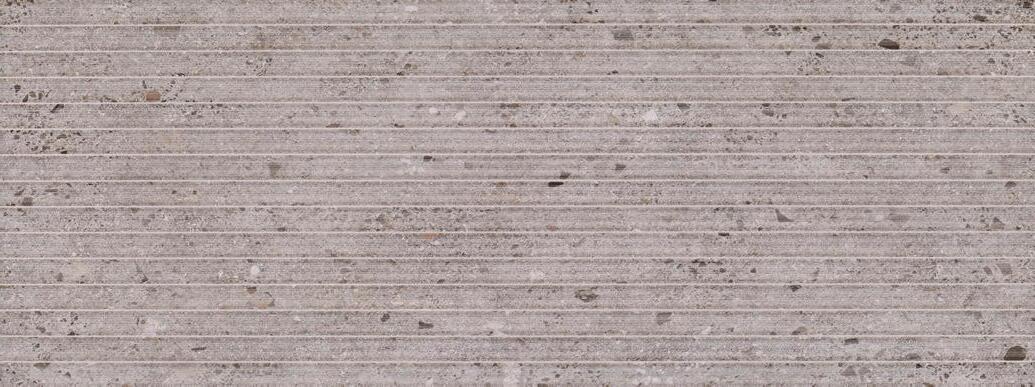

WA L L T I L E

Available Formats

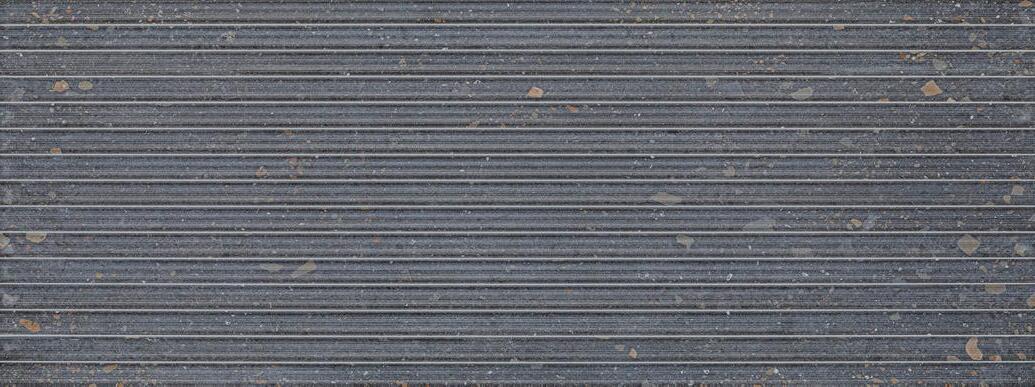

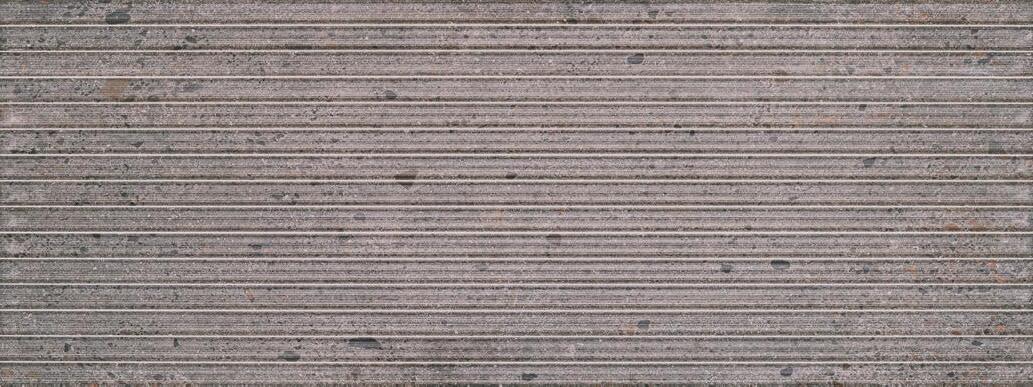

WA L L PA N E L M AT T E CT87K

Size: 18 x 48 in Thickness: 13.3 mm Edge Profile: Rectified Glazed Ceramic Applications: Wall only

Colors

NEBULA

00105

PULSAR

00515

M E TEO R

00761

VA S T N E S S

00505

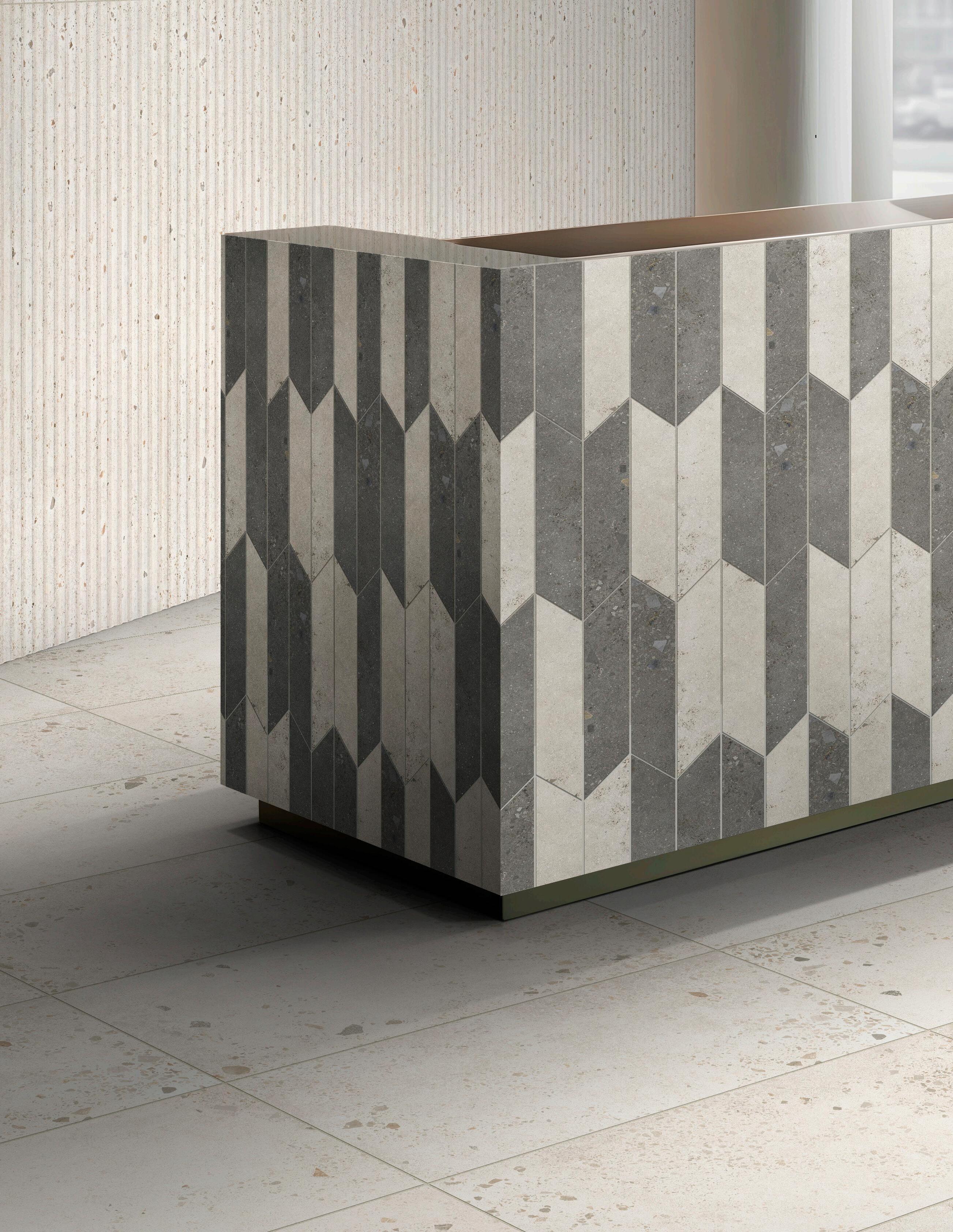

L E F T: F LO O R | S T E L L A R 1 2 X 2 4 ( C T 8 2 K ) I N N E B U L A ( 0 0 1 0 5 ) A N D WA L L | S T E L L A R 1 8 X 4 8 WA L L PA N E L ( C T 8 7 K ) I N N E B U L A ( 0 0 1 0 5 ) AN D D ES K | STELL AR C H E VRO N (CT86 K ) I N N EB U L A (0 0 10 5) + M E TEO R (0 076 1)

5

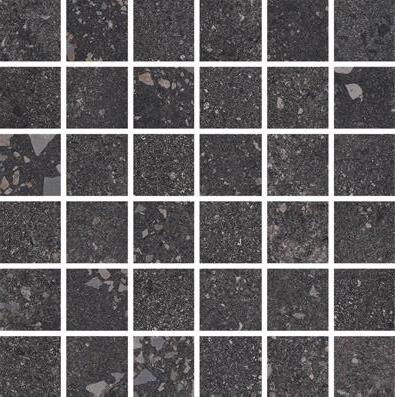

AC C E N T T I L E

Available Formats

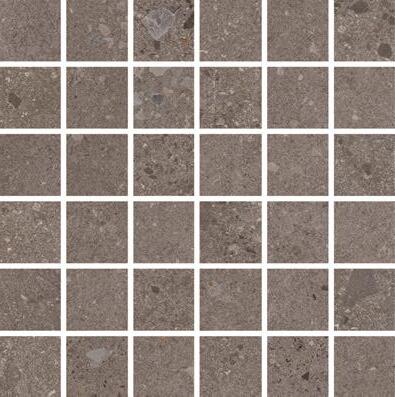

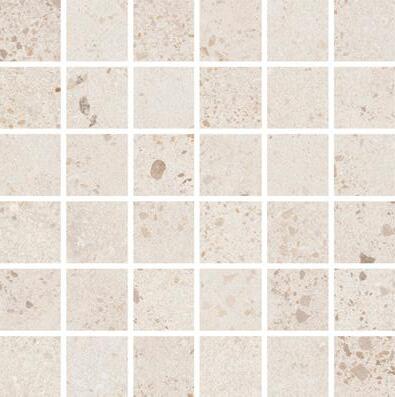

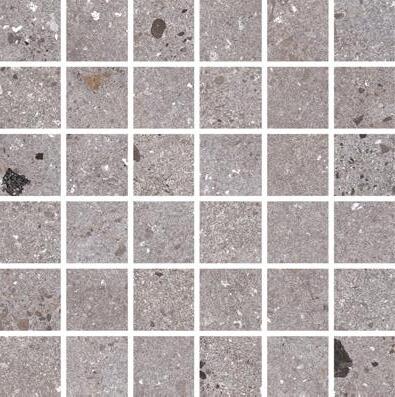

2 X 2 M O S A I C M AT T E

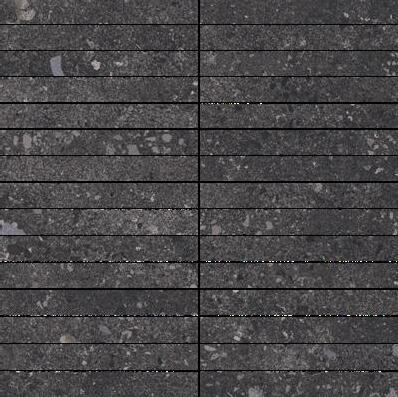

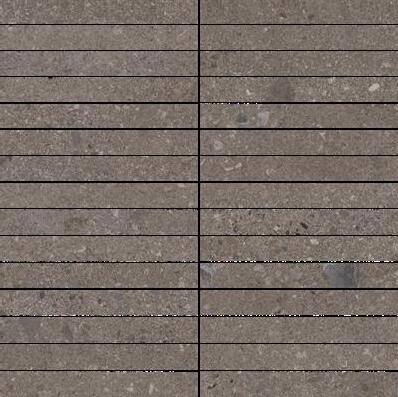

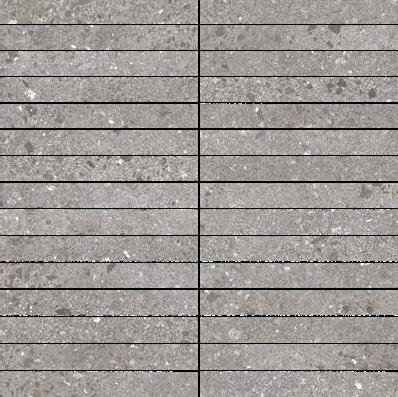

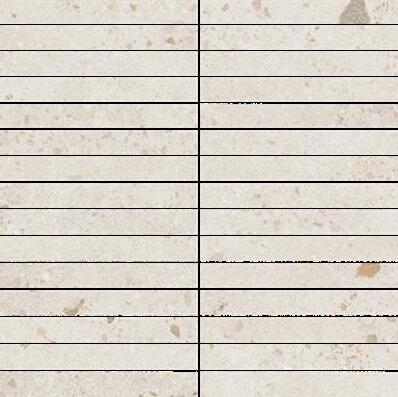

S TA C K E D M O S A I C M AT T E

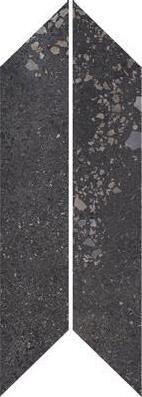

C H E V R O N M AT T E

CT84K

CT85K

CT86K

Size: 12 x 12 in

Size: 12 x 12 in

Size: 2.5 x 15 in

Thickness: 8 mm

Thickness: 8 mm

Thickness: 8 mm

Colorbody Glazed Porcelain

Colorbody Glazed Porcelain

Colorbody Glazed Porcelain

Applications: Floor, Wall

Applications: Floor, Wall

Applications: Floor, Wall

Colors

NEBULA

00105

PULSAR

00515

M E TEO R

00761

VA S T N E S S

00505

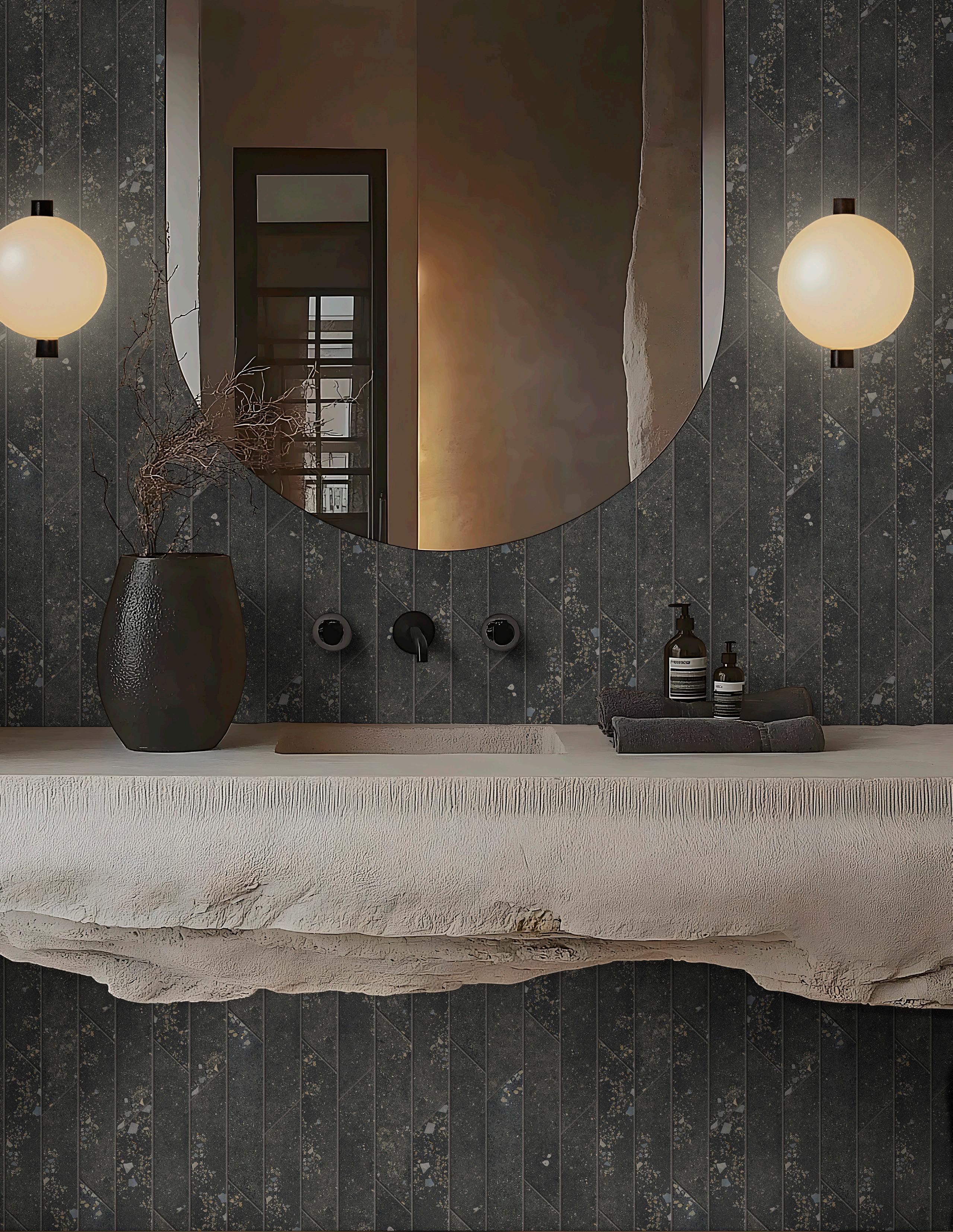

R I G H T: WA L L | S T E L L A R C H E V R O N ( C T 8 6 K ) I N VA S T N E S S ( 0 0 5 0 5 )

6

Mosaic accents lend subtle texture and organic rhythm to environments that soothe the soul and elevate the everyday.

7

Clean lines. Soft light. Adding a quiet dimension to spaces designed for rest and relaxation.

8

T EC H N I CA L DATA

Areas of Application

Category

Grout Joint Recommendation

12 x 24, 24 x 48

Mosaics

Chevron

Minimum of 1/8”

Wall Panel

Interior Walls/Backsplash

Color Variation

Interior Dry Floors Interior Wet Floors Shower Floors

V1 UNIFORM APPEARANCE

Interior Wet Plus

V2 SLIGHT VARIATION

V3 MODERATE VARIATION

V4 SUBSTANTIAL VARIATION

Exterior Wet Floors Exterior Walls

Performance Testing

Product

12 x 24

24 x 48

Mosaics

Chevron

Wall Panel

Water Absorption ASTM C373

≤ 0.5% (Impervious)

≤ 0.5% (Impervious)

≤ 0.5% (Impervious)

≤ 0.5% (Impervious)

≤ 20%

Breaking Strength ASTM C648

≥ 275 lbf

≥ 275 lbf

≥ 275 lbf

≥ 275 lbf

≥ 125 lbf

Stain Resistance ASTM C1378

Class A

Class A

Class A

Class A

Class A

Chemical Resistance ASTM C650

Class A

Class A

Class A

Class A

Class A

Frost Resistance ASTM C1026

Resistant

Resistant

Resistant

Resistant

Not Resistant

Scratch Hardness ASTM MOHS

7

7

7

7

5

Wear Rating

4

4

4

4

0

Packaging

Style Number

CT82K

CT83K

CT84K

CT85K​

CT86K​

CT87K

7​

2

10

10

20​

3

Area Per Carton (sq ft)​

13.37​

15.38​

9.6

9.62

5

17.36

Weight Per Carton​(lbs)

52.09​

64.87​

39.99​

36​

71​

70.99​

Pieces Per Carton​

*Coordinating bullnose(s) available.

All Shaw Contract Tile + Stone products are covered by our 1 Year Commercial Limited Warranty.​Visit shawcontract.com for more details.​

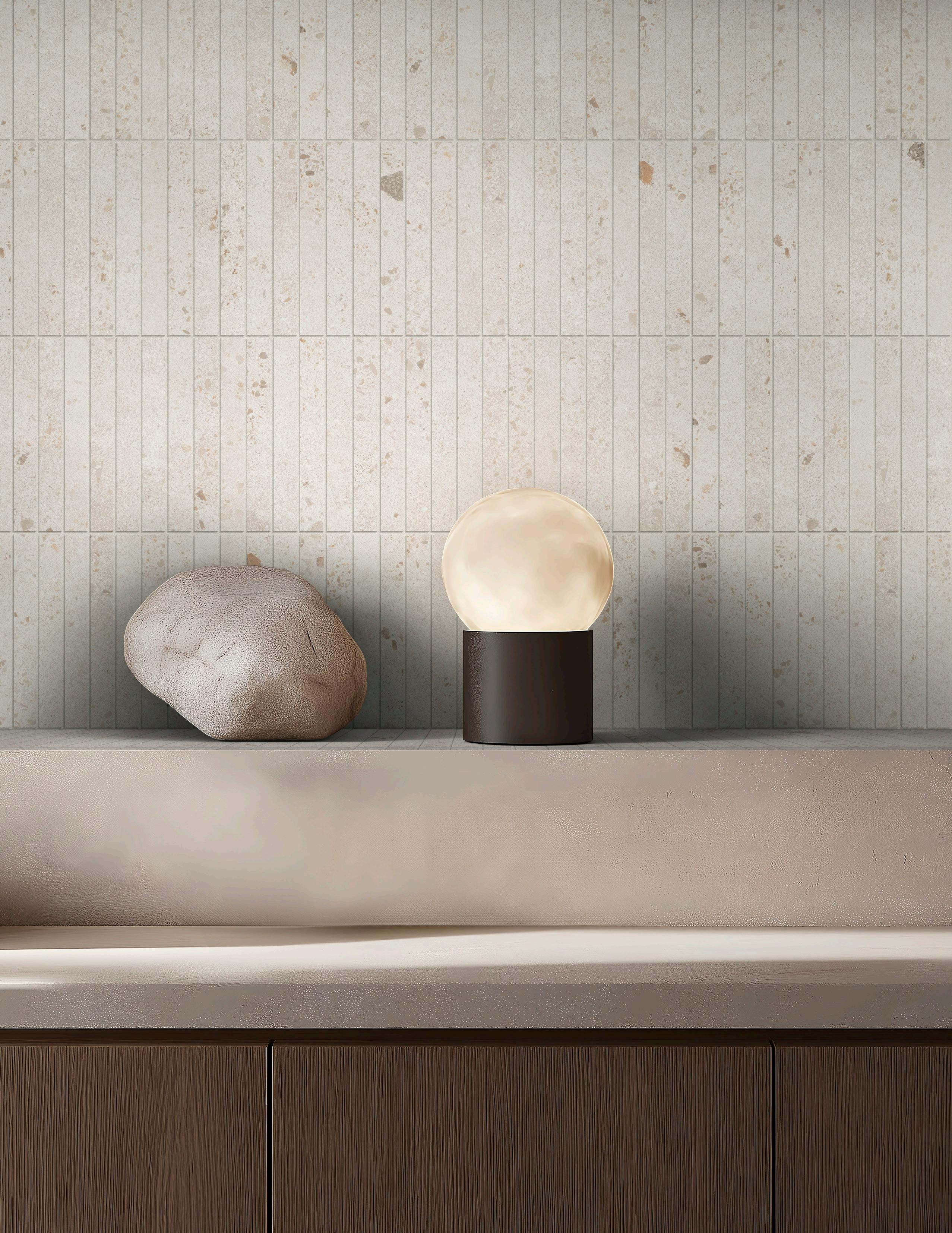

L E F T: B A C K S P L A S H | S T E L L A R S TA C K E D M O S A I C C T 8 5 K ) I N N E B U L A ( 0 0 1 0 5 )

9

WA L L PA N E L M AT T E (CT87K )

1 2 X 2 4 M AT T E (CT82K )

C H E V R O N M AT T E (CT86 K )

1 2 X 2 4 M AT T E (CT82K )

C H E V R O N M AT T E (CT86 K )

WA L L PA N E L M AT T E (CT87K )

S TAC K E D M O S A I C M AT T E

1 2 X 2 4 M AT T E

(CT8 5K )

(CT82K )

CAP NO HRERE L E A RTIO N M E A B O U T T H E S U S TA I N A B L E F E AT U R E S O F O U R C E R A M I C A N D P O R C E L A I N C O L L E C T I O N S AT S H AW C O N T R A C T. C O M
