Function + Flow 2026 brochure

Function + Flow

5

4 6

7

9 2 8 1

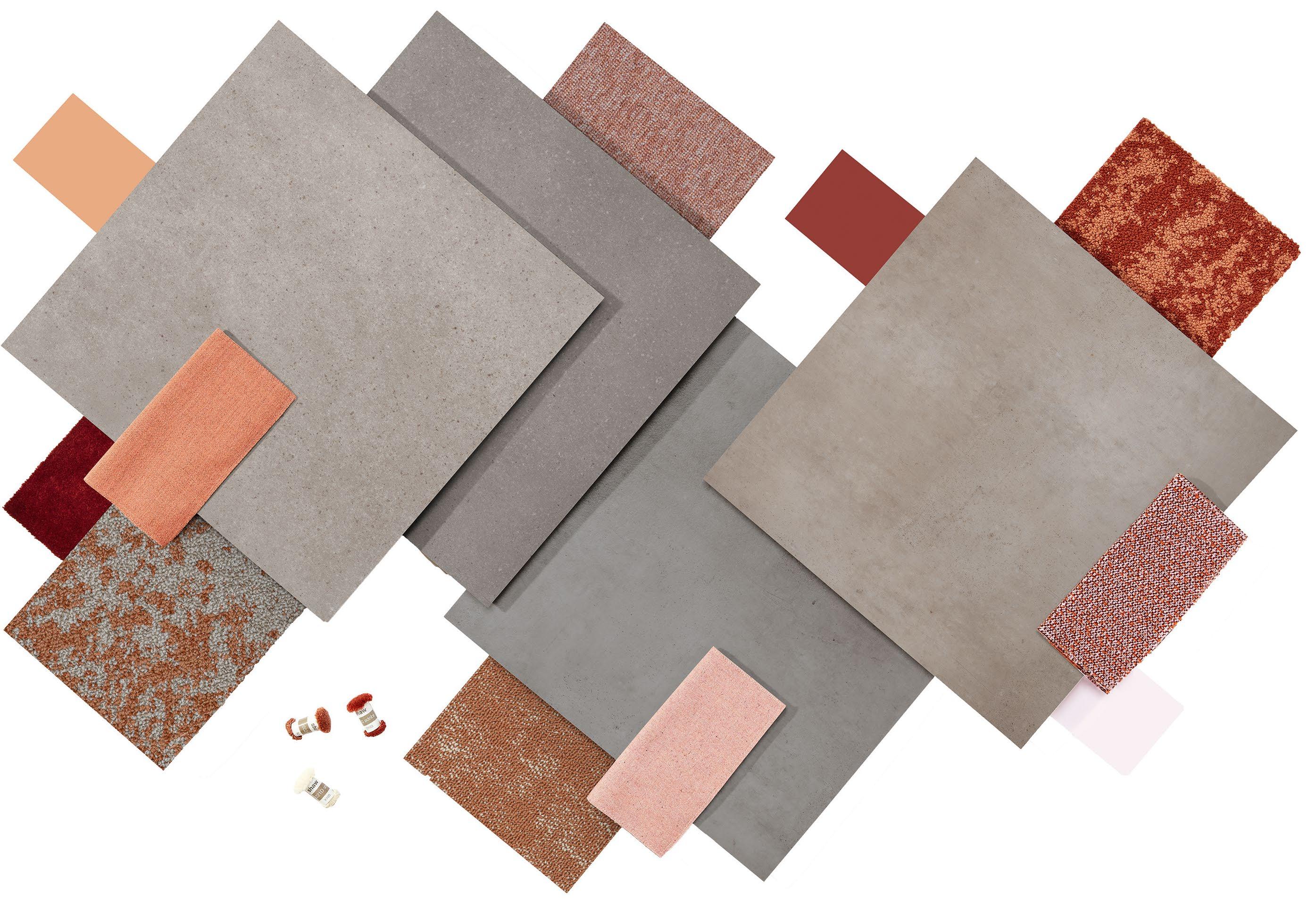

3 1 Plains Sunset 2 Dye Lab Cochineal 3 Fragment Colours Apricot 4 Endless Coral 5 Complement Blush 6 Function Pebble 7 Function Change 8 Flow Streamline 9 Flow Sandstone

A Sophisticated Aesthetic Beyond the boundaries of location and trends, classic styles inspire confidence with their timeless aesthetic. The Function + Flow LVT collection works in harmony as a foundation in any space. Warm to cool neutrals, combined with modern stone and concrete visuals, balance the simple and complex with their timeless aesthetic.

Available in multiple thicknesses and sizes, both styles can energise, complement, or define a space. Function + Flow have a layered construction engineered for enhanced durability in highdemand environments. Both styles feature our maintenance friendly ExoGuard+® finish with more resistance to abrasion, staining, and improved cleanability.

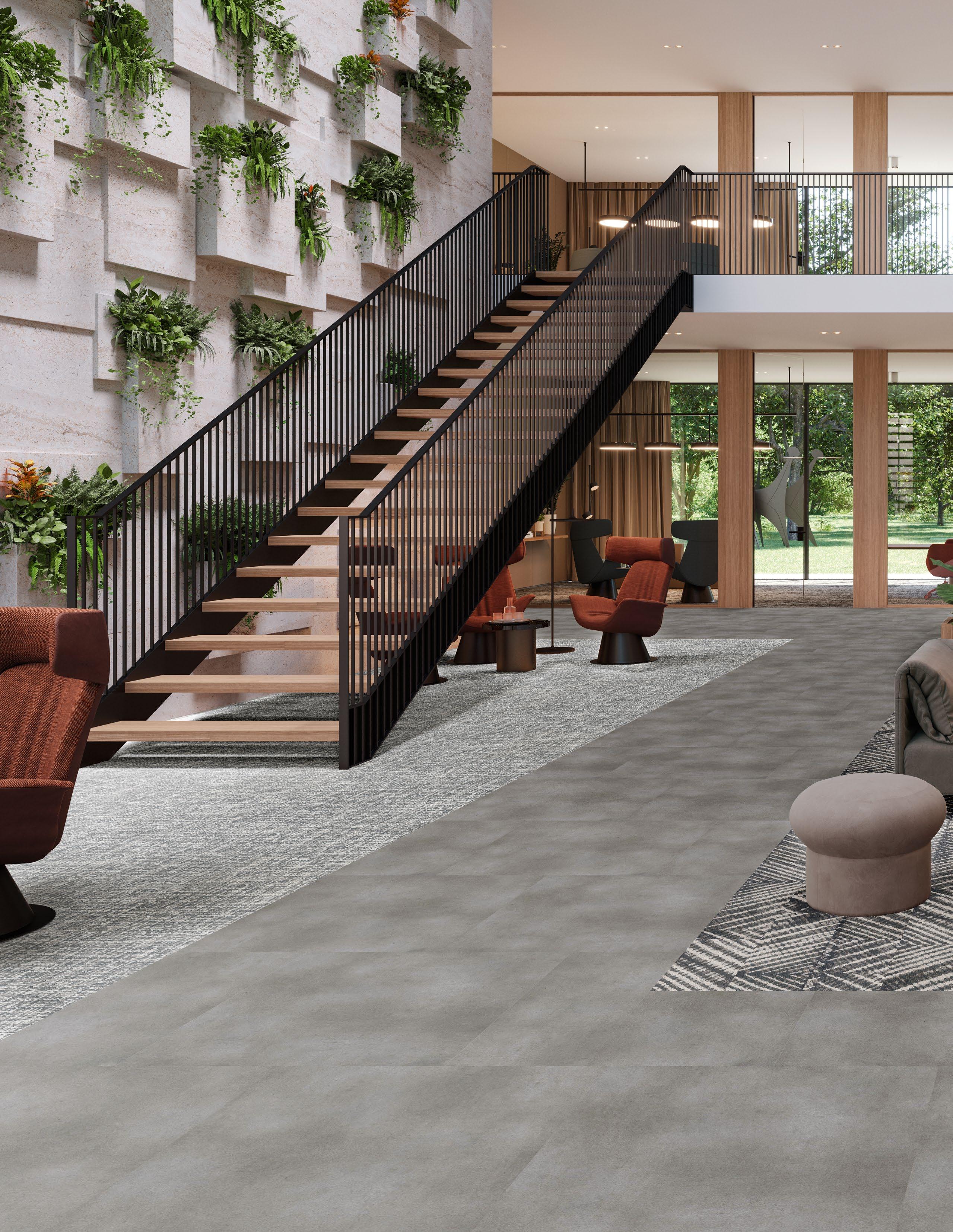

COVER: FUNCTION 2.5 IN TRANSITION 2

FLOW The inherent beauty of concrete elevates the visual for a minimal, classic appeal. Flow LVT: available in 2.5 mm 46 x 46 cm direct glue and 5.0 mm 91 x 91 cm loose lay options.

TEXTILE (CARPET TILE) ⦁ IN MUSLIN

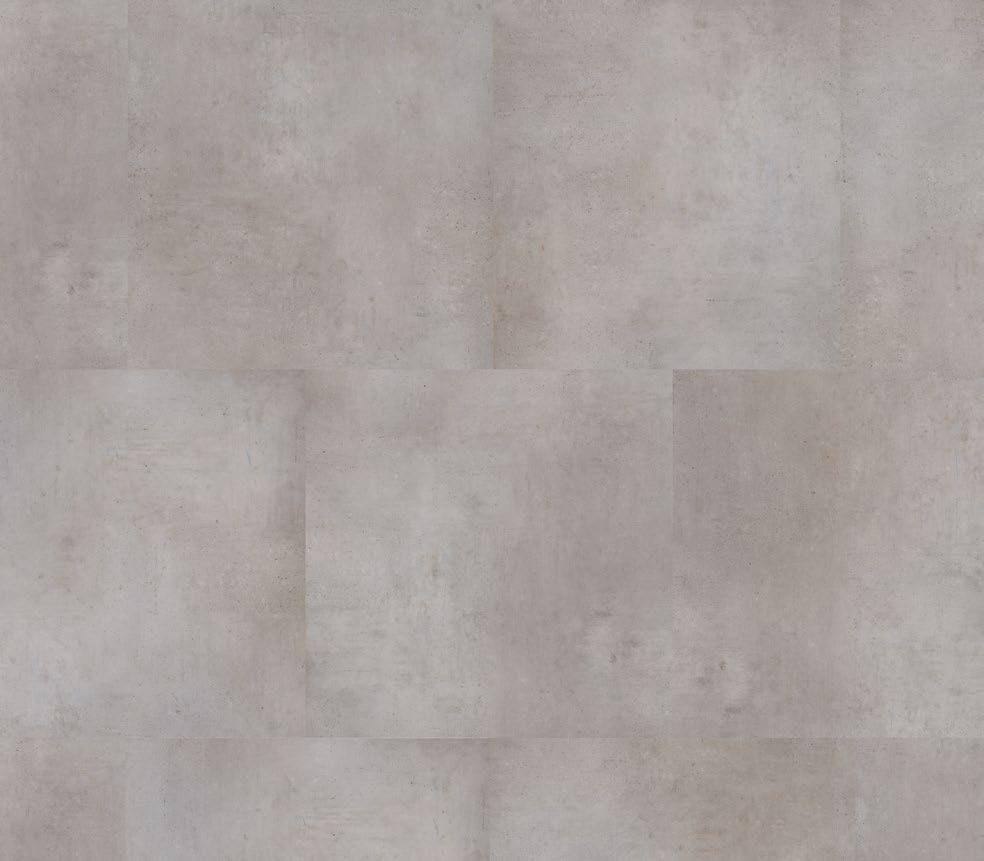

FLOW 5.0 MM ⦁ IN STREAMLINE

IDENTITY (CARPET TILE) ⦁ IN GREIGE 3

Natural Minimalism Four soothing stone visuals in a range of warm neutrals to cool tones provide design flexibility and the high performance for the spaces where we gather, learn, collaborate, rest, and recharge.

FLOW 2.5 MM ⦁ IN SANDSTONE 4

FUNCTION A hint of stone terrazzo subtly blends into the warm, versatile design of Function. Flexible design meets foundational style, ready for any installation configuration.

Function LVT is available in 2.5 mm 46 cm x 46 cm direct glue.

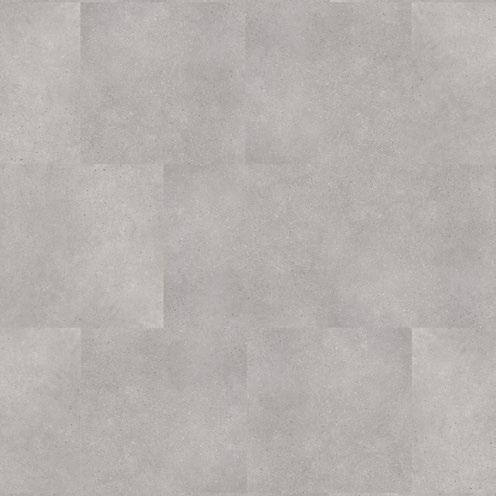

FUNCTION 2.5 MM ⦁ IN TRANSITION

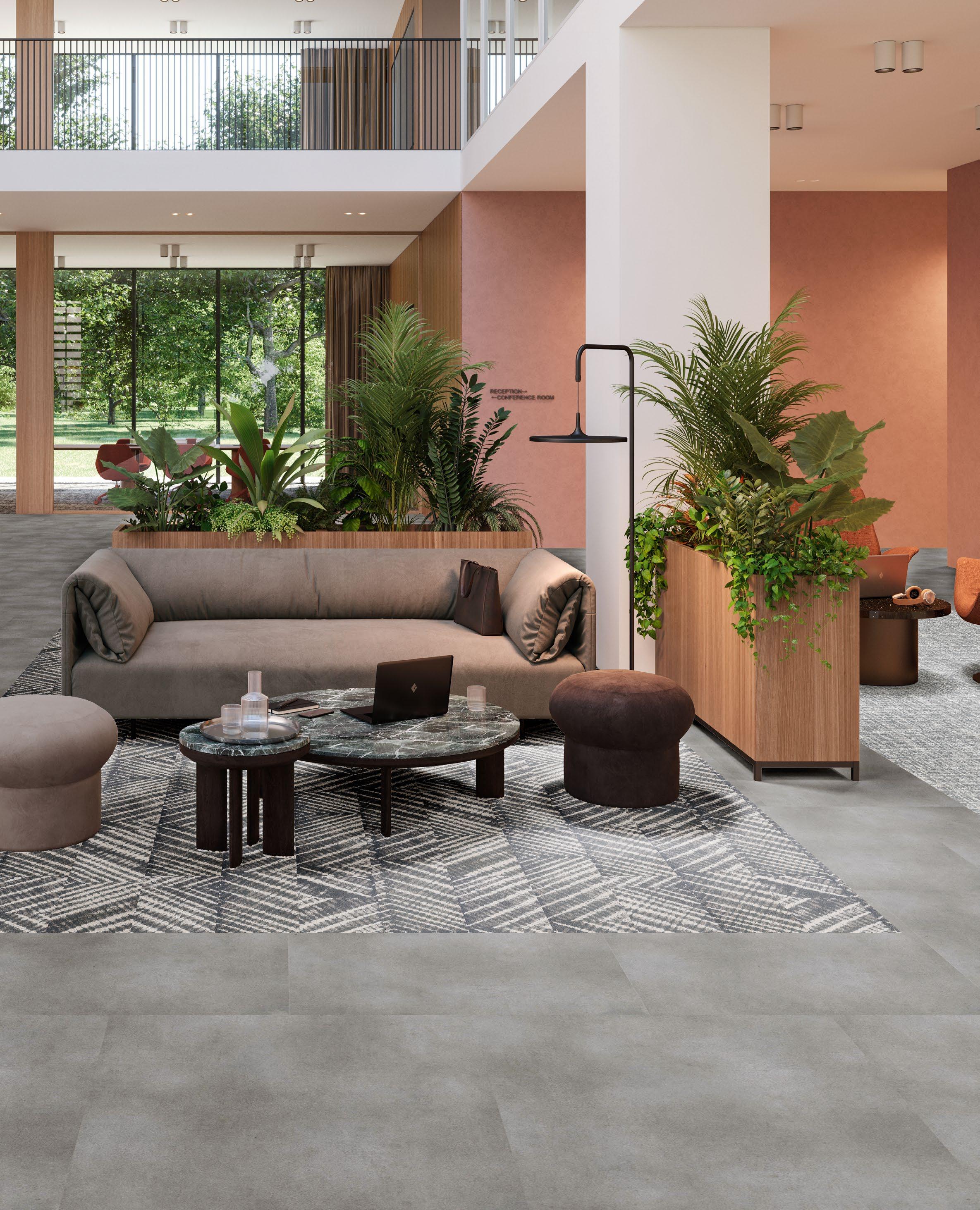

FLOW 2.5 MM ⦁ IN STREAMLINE 5

Two timeless visuals; different thickness options. Function available in 2.5 mm thickness and Flow in 2.5 mm and large format 5.0 mm thickness. Function + Flow provides endless opportunities for no transition installations with both TaskWorx®, EcoWorx S® and ComfortWorx® carpet tile options. Function + Flow offers texture, pattern and materiality as a design foundation.

6

UPBEAT (CARPET TILE) ⦁ IN GRATEFUL

Seamless Design, Effortless Functionality

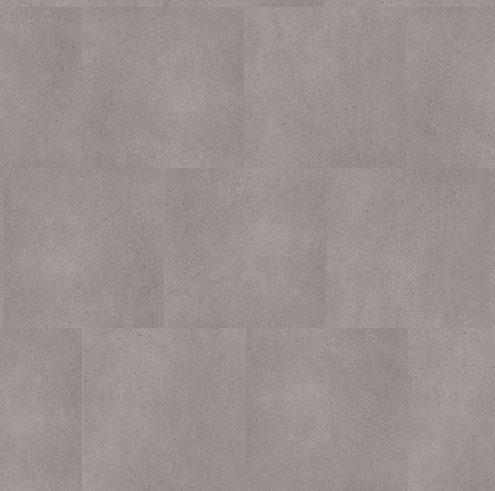

FUNCTION 2.5 MM ⦁ IN PEBBLE

UPBEAT (CARPET TILE) ⦁ IN GRATEFUL 7

Colour and Visual Variation Index Shade and texture variation is inherent in all resilient products and can vary significantly from piece to piece. Samples should be used to assess colour. V1 planks have little or no variation in shade and/or texture and/or visual. V4 planks have the greatest variation from piece to piece. Images represent shade variations only.

V1

V2

Uniform Appearance

V3

Slight Variation

V4

Moderate Variation

Function 2.5 mm 4386V

V2

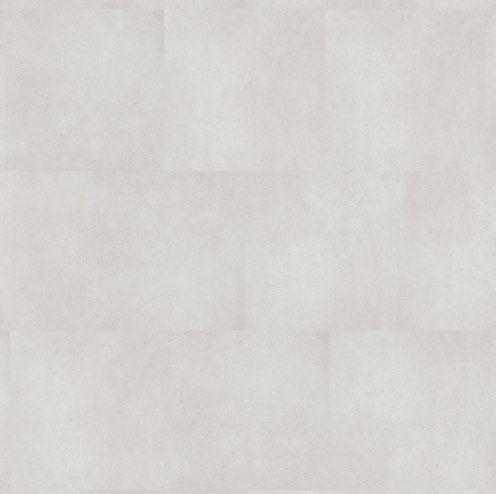

Silica 86100 V2

46 cm x 46 cm

Transition 86501 V2

Pebble 86504 V2

Flow 2.5 mm 4385V

V3

8

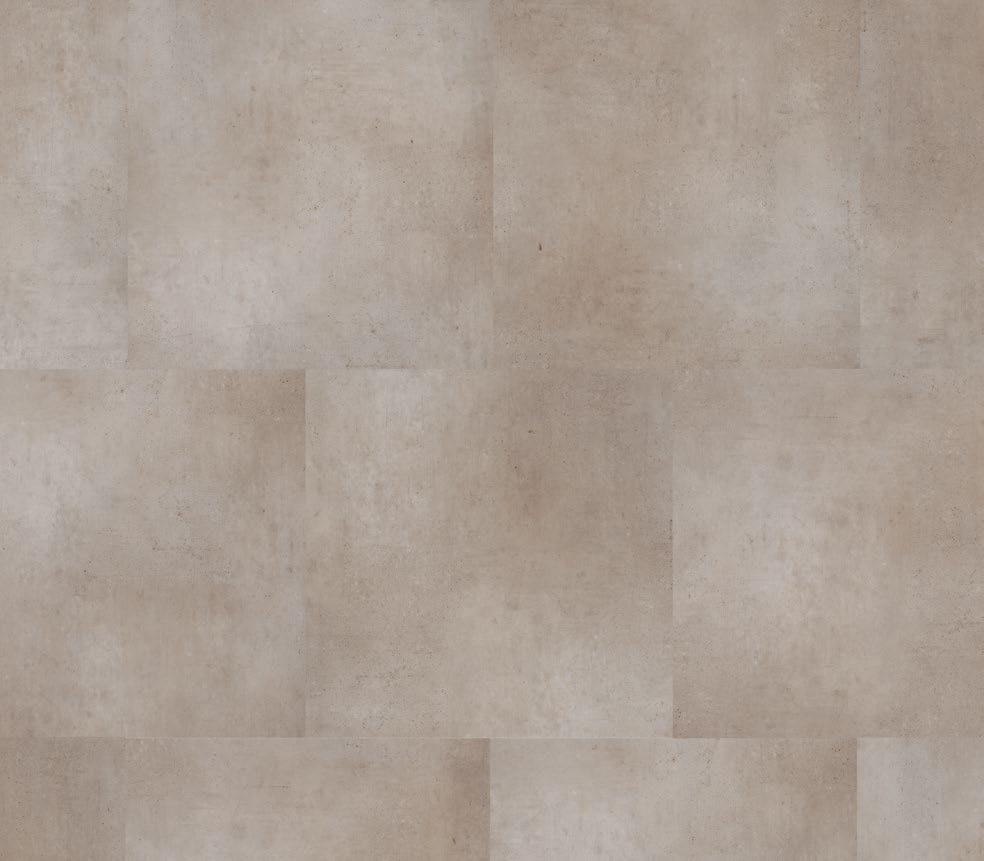

Sandstone 85120 V3

Substantial Variation

Change 86520

46 cm x 46 cm

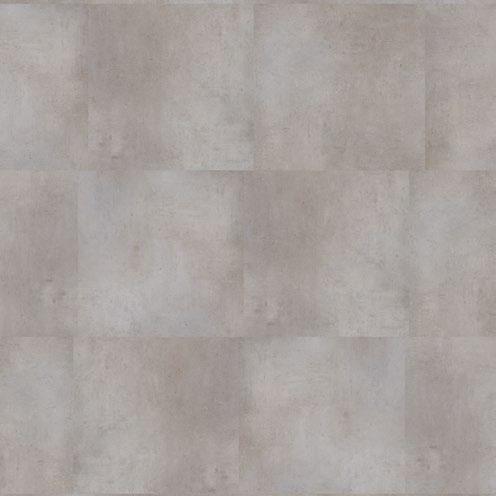

Smooth 85114 V3

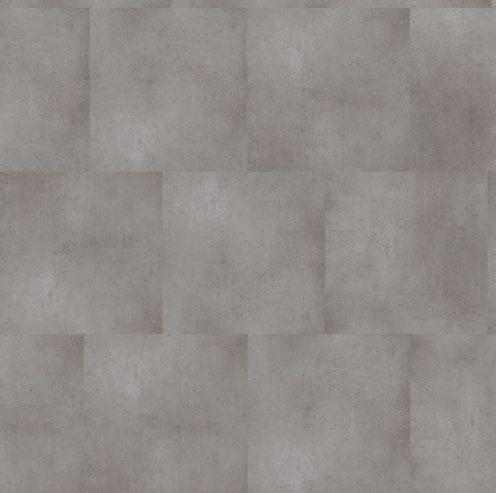

Streamline 85520 V3

Molten 85585

Flow 5.0 mm 4419V*

91 cm x 91 cm

V3

Sandstone 85120

V3

Smooth 85114

V3

Streamline 85520

V3

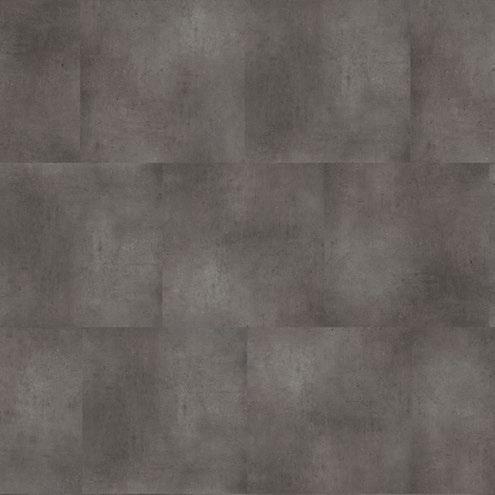

Molten 85585

*Flow 5.0 mm 4419V 91 x 91 cm available as loose lay optional

9

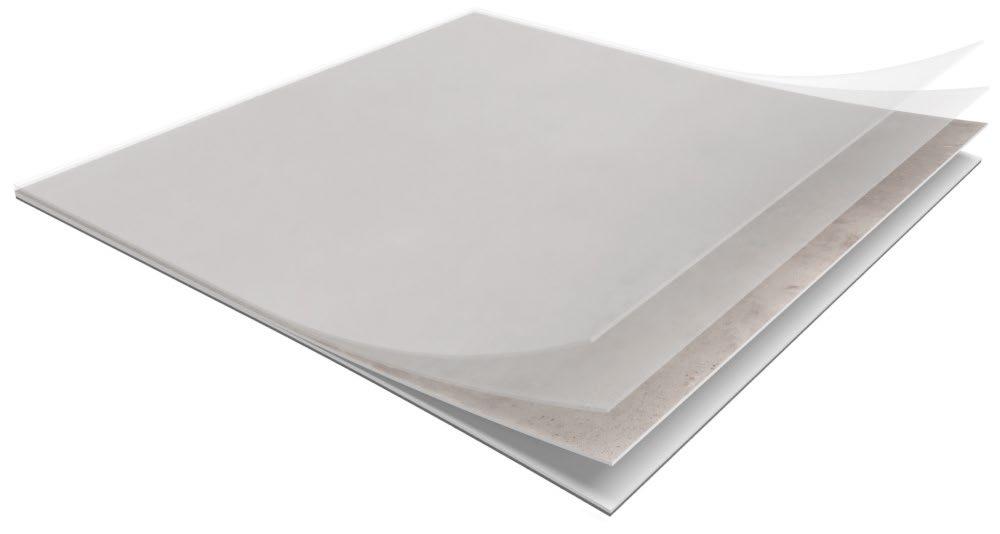

Function + Flow Function + Flow have a layered construction that is engineered for enhanced durability in high-demand environments. Both styles feature our maintenance-friendly ExoGuard® finish for more resistance to abrasion, staining, and improved cleanability.

1

2

3

ExoGuard+® Finish

Provides superior durability against scratching and abrasion in demanding environments.

Clear 0.55 mm Wear Layer

Protects the printed image layer from damage sustained from intensive use.

High-Resolution Image

Creates a stunning visual with depth and detail.

4

Commercial Core

5

Commercial Backing

Protects against residual indentation.

Designed with non-skid pattern that can be installed loose lay or direct glue.

Product Attributes Superior Durability ExoGuard+® advanced topical finish technology delivers the highest performance scratch resistance and resists UV light degradation, hand sanitisers, disinfectants, and common stains.

Direct Glue or Loose Lay The dual-purpose backing construction allows for direct glue or loose lay installation (Flow 5.0 mm) for more flexibility to support the needs of the space.

Polish-Optional Reduces Cost ExoGuard+® is a highly durable finish that can be installed as is to reduce the cost of annual maintenance. If a polished look is desired, it requires no coating prep work.

Indoor Air Quality Indoor Air Comfort® Gold Certified for low-emitting products and demonstrates our focus on quality and contribution to a healthy indoor environment.

10

No Transition Needed 5.0 mm LVT can be installed next to most carpet tiles without the need for transition strips.

Performs with Static and Rolling Loads When direct glued, the high PSI tolerance of the product enhances resistance to indentation.

Improved Acoustics Flow 5.0 mm LVT softens in-room foot fall and reduces floor-to-floor impact sound transfer. Impact sound reduction of 9dB. Low VOC Verified Certified to rigorous indoor emission requirements.

Non-Ortho-Phthalate Formulated without orthophthalates.

1

2

3

4 5 9

6

7

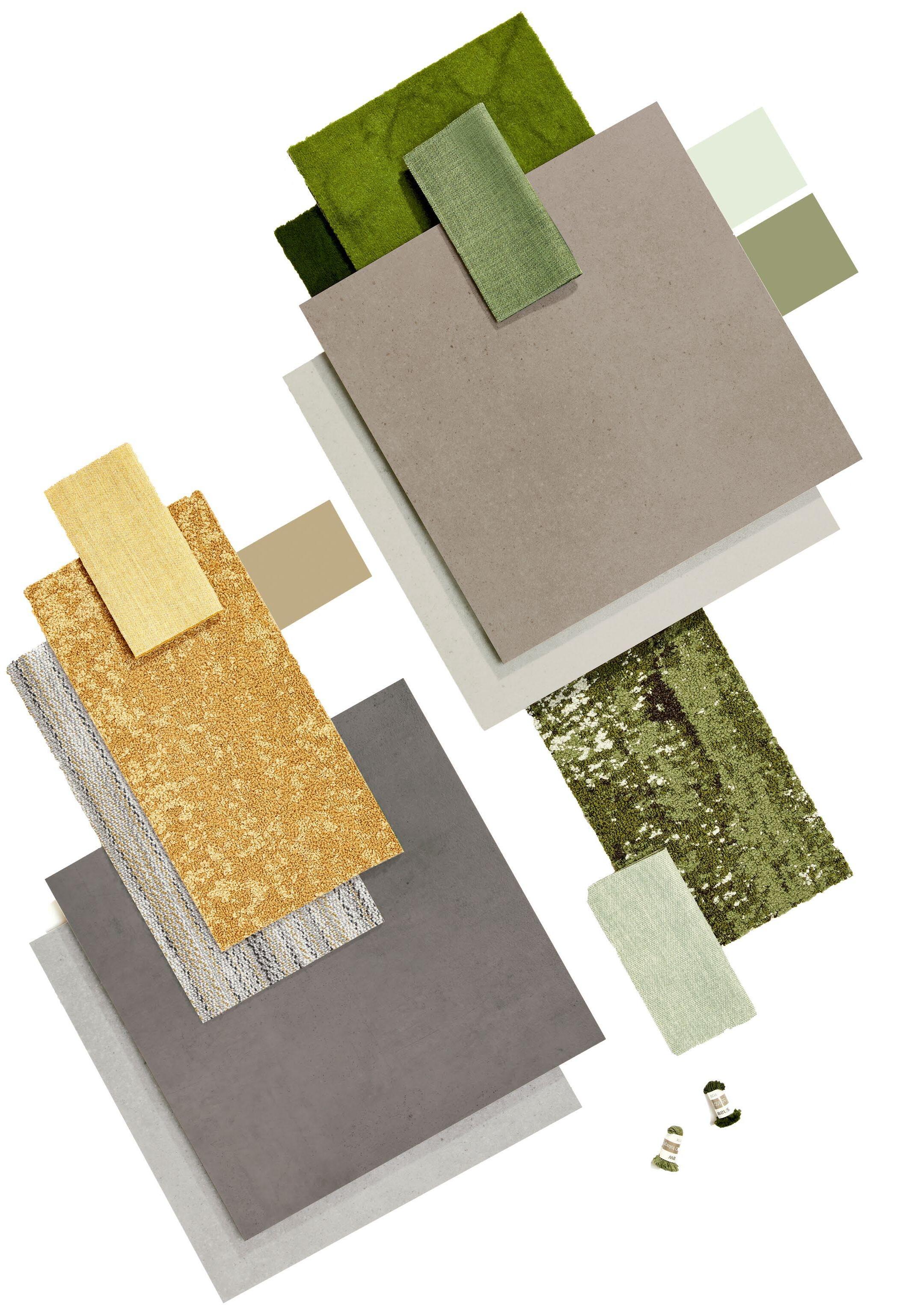

1 Dye Lab Fustic Saxon 2 Dye Lab Fustic Wood 3 Function Pebble 4 Function Silica 5 Endless Ochre 6 Braid Saffron 7 Flow Streamline 8 Function Transition

8

9 Familier Ivy

11

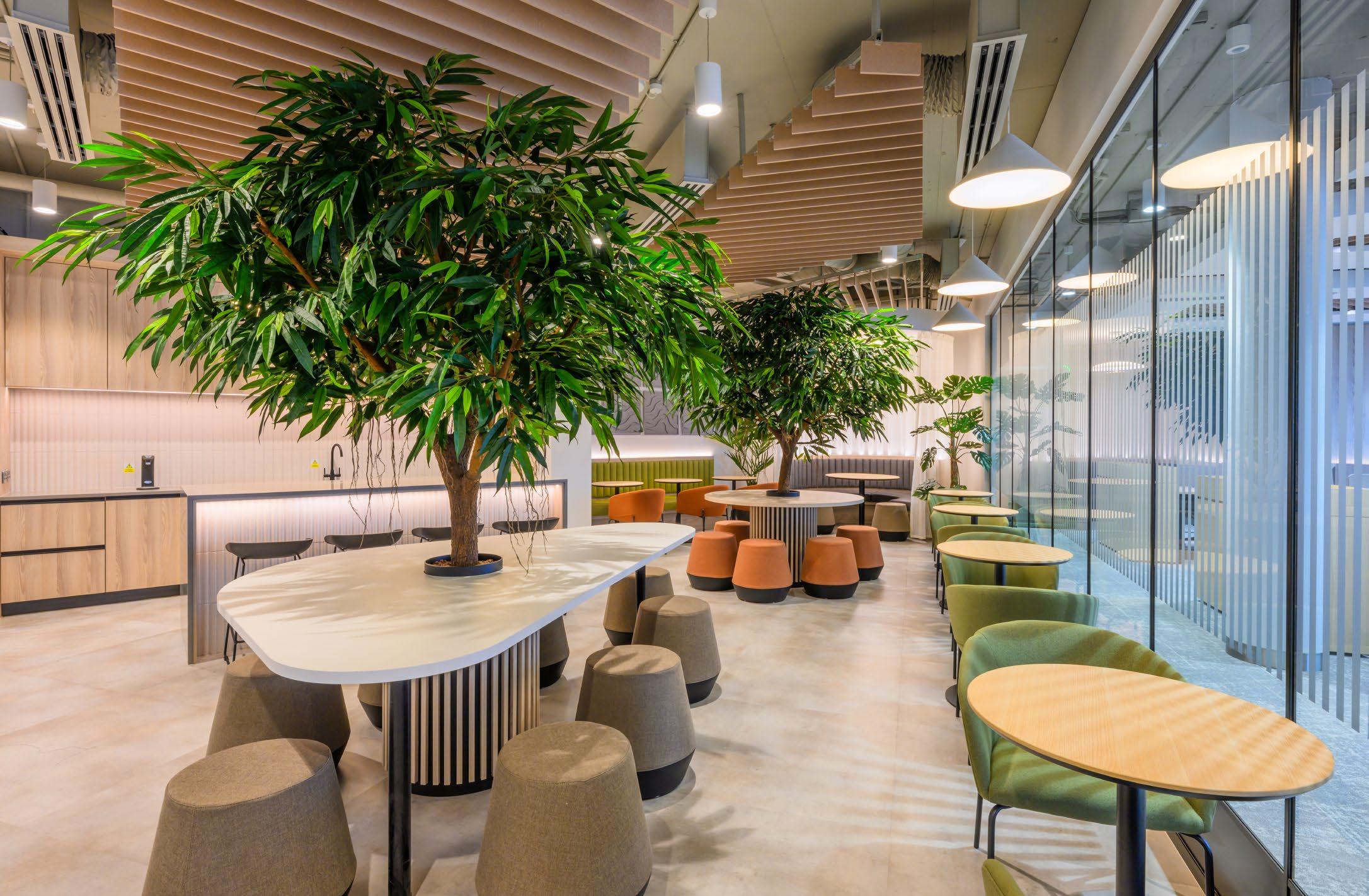

INSTALLATION AT SOLOIST BUILDING, NORTHERN IRELAND, BELFAST

12

FLOW 5.0  IN SMOOTH

FORMATION (CARPET TILE)  IN MARBLE

INSTALLATION AT SOLOIST BUILDING, NORTHERN IRELAND, BELFAST

FLOW 5.0  IN SMOOTH

FLOW 5.0  IN SMOOTH

13

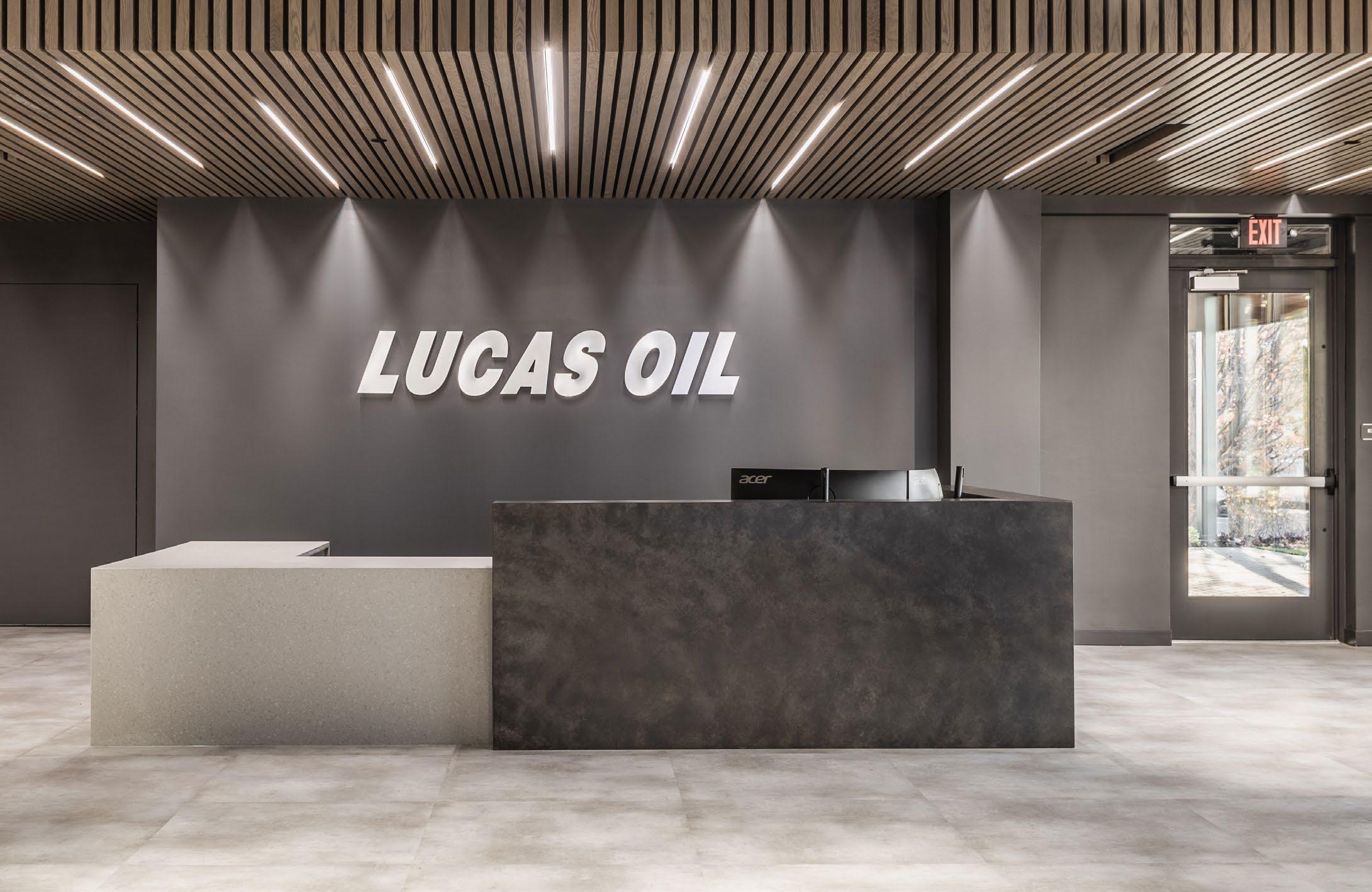

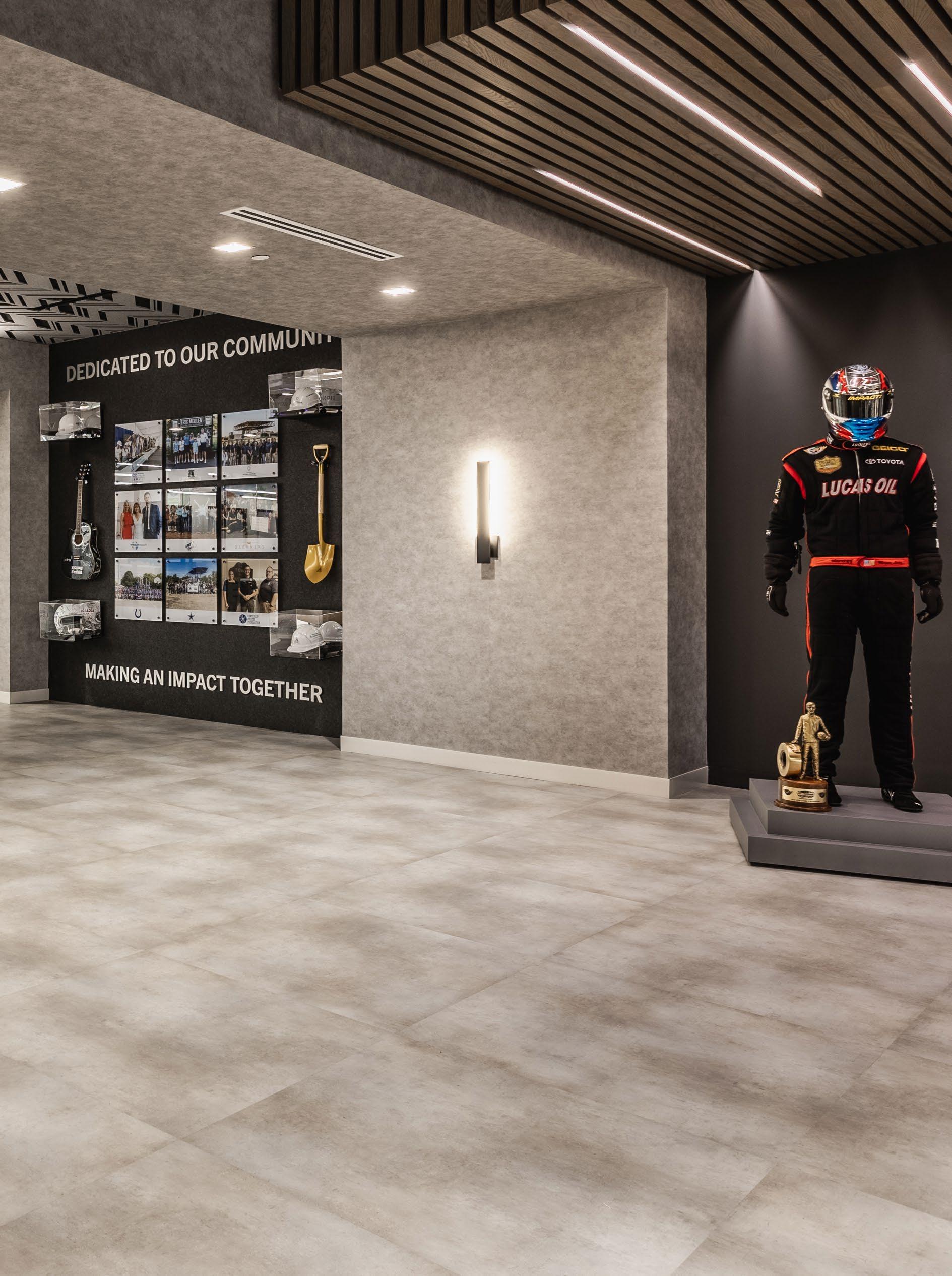

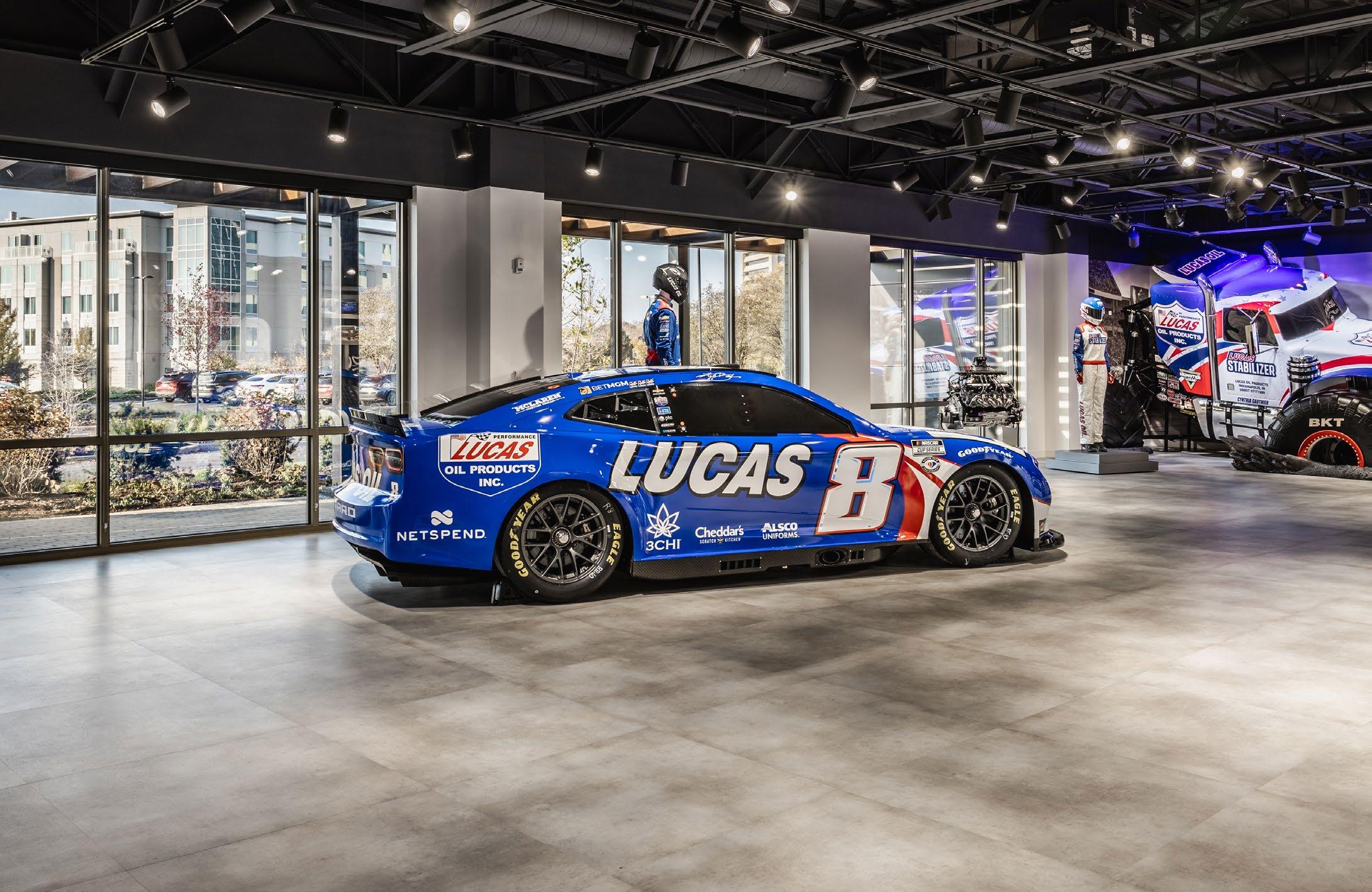

INSTALLATION AT LUCAS OIL

14

FLOW 5.0  IN SMOOTH

FLOW 5.0  IN SMOOTH

INSTALLATION AT LUCAS OIL

FLOW 5.0  IN SMOOTH

15

In Stock Programme Function + Flow is now stocked at our manufacturing plant in Sanquhar, Scotland.

Offering available stock for the EMEA region.

Choose the look Create the look you want to achieve with the timeless Function + Flow collection.

2

1

Select your colour Complement your commercial interior scheme with available In-Stock colours.

Quick service option 24 hour dispatch* on receipt of order acknowledgement.

3

*Terms and conditions of 24 hour dispatch Function + Flow is available to Shaw Contract account holders only, dispatch is subject to stock levels and issue of our full acknowledgment of your order details. The 24 hours does not apply over a weekend or national holiday. Maximum quantities apply.

16

LRV: Light Reflectance Values Light Reflectance Values and L* LRV is a measurement that indicates how much light a surface reflects and how much it absorbs.

Understanding the Light Reflectance Values of surfaces enables interior lighting levels to be optimised and colours to be contrasted.

Function 2.5

Designers can use the L* value for determining lighting levels or the LRV (Y) value to compare the carpet tile colours to edgings and other surface finishes.

Flow 2.5

Flow 5.0

Colour name

Colour number

LRV

L*

Silica

86100

57

80.17

Transition

86501

42.4

71.15

Pebble

86504

39.9 69.43

Change

86520

23.5 55.58

Smooth

85114

36.9

67.22

Sandstone

85120

32.5

63.77

Streamline

85520

25.6

57.62

Molten

85585

13

42.71

Smooth

85114

37.7

67.81

Sandstone

85120

32.1

63.39

Streamline

85520

25.4 57.45

Molten

85585

13.3

43.23

Full Spread Adhesive Recommended Applications

Loose Lay Recommended Applications

Function 2.5 mm 4386V | 46 x 46 cm

Flow 5.0 mm 4419V | 91 x 91 cm *

Flow 2.5mm 4385V | 46 x 46 cm

Ideal for Heavy Commercial Environments

Ideal for Moderate Commercial Environments

Education | Healthcare | Hospitality | Retail | Workplace

Education | Healthcare | Hospitality | Retail | Workplace

Light

Moderate

Heavy

Light

Foot Traffic

Foot Traffic

Rolling Loads

Rolling Loads

Static Loads

Static Loads

Moderate

Heavy

* Please adhere with a pressure sensititve type fixative. Should the location be subject to temperature fluctuations that exceeds 27° C, such tiles should be fully bonded, using a suitable high temperature grade LVT/PVC adhesive.

17

Function 2.5 mm

Flow 2.5 mm

Flow 5.0 mm

Style name

Function

Flow

Flow

Style number

4386V

4385V

4419V

Product type

Glue down luxury vinyl tile

Glue down luxury vinyl tile

Loose lay luxury vinyl tile

Constr uction

Data + Performance

Type of floor covering

Heterogeneous non-cushioned vinyl tile

Heterogeneous non-cushioned vinyl tile

Heterogeneous non-cushioned vinyl tile

Classification

33 commerical heavy

33 commerical heavy

33 commerical heavy

Total mass

4.04 kg/m2

4.10 kg/m2

8.92 kg/m2

Total thickness

2.5 mm

2.5 mm

5.0 mm

Finish

ExoGuard+®

ExoGuard+®

ExoGuard+®

Dimensions

46 x 46 cm 20 tiles (4.2 m²) per box

46 x 46 cm 20 tiles (4.2 m²) per box

91 x 91 cm 4 tiles (3.3 m²) per box

Weight per box

18.21 kg

18.21 kg

32.4 kg

Shipping by pallet

168m2 | 40 boxes

168m2 | 40 boxes

73m2 | 22 boxes

Slip resistance

PTV Dry 46 PTV Wet 32 (pendulum)

PTV Dry 46 PTV Wet 32 (pendulum)

PTV Dry 68 PTV Wet 24 (pendulum)

Slip rating

R10

R10

R10

Recommended installation methods

Quarter Turn, Monolithic, Brick, Ashlar

Quarter Turn,Monolithic, Brick, Ashlar

Quarter Turn, Monolithic, Brick, Ashlar, Random

Recommended installation methods Méthodes d’installation conseillées | Advies tapijttegels leggen | Empfohlene Installationsmethoden

Monolithic Quarter turn

Ashlar

Brick

Random

V1

V2

5seKup 2.5 mm 4dB/21dB with 2mm underlay 5.0 mm 6dB/21dB with 2mm underlay

V3

V1 Uniform Appearance V2 Slight Variation V3 Moderate Variation V4 Substantial Variation

V4

22

22

EU.DOP/1658/CPR/1222/1222/LVT

UK.DOP/0321/CPR/1222/1222/LVT

Oosterhout Showroom

Blackaddie Road Industrial Estate,

Vaartweg 10, 4905 BL Netherlands (NLD)

Sanquhar, DG4 6DB, UK

Notified Body 1658

Approved Body 0321

Xbr41 EN 14041:2004/AC 2006

For use as an indoor floor covering as specified by the manufacturer

London +44 (0) 20 7961 4120 | Dubai +971 4 584 6956 | Oosterhout +31 85 2084890 This product is not a safety floor. It is manufactured and sold for floor covering use only. To meet warranty requirements, approved adhesives must be used for glue-down application as outlined in the Shaw Contract installation instructions. Installation and maintenance instructions can be found on shawcontract.com Specifications are subject to nominal manufacturing variances. Material supply and/or manufacturing processes may necessitate specification changes without notice. Not for use in commercial wet areas due to slip and fall concerns.

18

Printed and produced in the UK using vegetable-based inks on sustainable, FSC certified paper.

People Together, Planet Forever is our promise.

Neutral is not enough is our call to action.

We are one planet. We cannot afford to be neutral. We must make changes and take action together. Together, we are Design Optimists.

MATERIAL HEALTH

CARBON IMPACT

Together, we design and manufacture products to optimise human environments.

Together, we are a positive force in the global effort to collectively fight climate change.

Cradle to Cradle Certified®

Carbon Neutral Manufacturing

Our products are verified as being safe, circular and responsibly made. Over 90% of products are Cradle to Cradle Certified®.

Our manufacturing facility in Scotland runs entirely on electricity from renewable sources.

Indoor Air Quality

EcoSolution Q100™ is a high-performance nylon fibre made from 100% recycled content. Flooring products like EcoWorx® and EcoWorx S®, made with EcoSolution Q100™ fibre, reduce carbon impact by 42% compared to traditional carpet tiles.

People spend 90% of their time indoors, making these environments critical to our wellbeing.

These products are GREENGUARD Certified, meeting the California Department of Public Health (CDPH) indoor air quality standards for low-emitting products.

Low Embodied Carbon

Product Transparency Function + Flow collection has a Health Product Disclosure (HPD), which is a transparent disclosure of product content and associated health information.

CIRCULAR ECONOMY

DIVERSITY & INCLUSION

Together, we practice a closed-loop approach to sustainability.

Together, we nurture an environment where every voice and perspective can be heard, with equal value placed on seen and unseen experiences.

We Want it Back

Supplier Diversity Programme

At the end of its useful life, we will reclaim and recycle EcoWorx®, EcoWorx S® and EcoWorx™ Resilient styles to make more EcoWorx products.

Since 2006, we have reclaimed and recycled nearly 500 million kilograms of post-consumer flooring, reducing landfill waste.

Community | Supply chain | People • Signatory of UN Global Compact upholding and protecting human rights, labour, environment and anti-corruption standards.

• World GBC Health & Wellbeing Framework supporter

19
