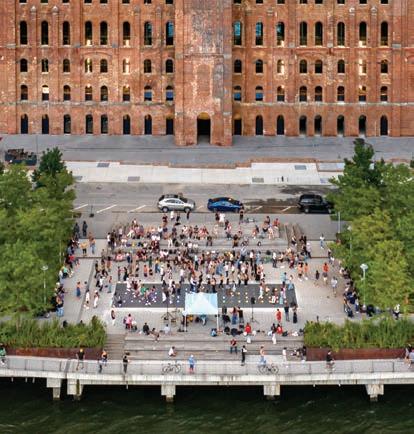

Originally built in 1882, the Domino Refinery on the Brooklyn waterfront was the world’s largest sugar refinery by the mid-20th century. By 2014, the brick façade served as little more than a shell. The punched windows were misaligned with the floorplate. How could the historic remnants be transformed into a modern, mixed-use space? The design team at
“It
was like building a ship inside of a bottle.”
Practice for Architecture and Urbanism (PAU) had a wild idea—insert a new, 460,000-sq. ft. curtainwall building inside it. Learn more about how this incredible vision was achieved on page 48.
The idea of commercial office space is also undergoing a broad renovation as companies grapple with the best ways to address the new needs employees have throughout the workday and the new technology they need to get work done in this still hybrid environment. Architectural Products interviewed five experts in workplace design to identify the trends emerging to help this type of space evolve to meet the needs of the new 9-5. Their insights begin on page 24.
Two other types of space notorious for giving people the creeps are also due for a little reimagining. A new
AIA-accredited CEU, “Reimagining Storage Areas and Public Restrooms,” (1.0 LU/HSW) provides architects with new ideas for offering people better, safer experiences. This new course begins on page 56.
While all the renovated projects covered in this issue are decidedly different, they all have one thing in common—a great story.
Happy reading.
—Jeanie Fitzgerald Pitts, Editor in Chief
EDITORIAL, DESIGN + PRODUCTION
Jeanette Fitzgerald Pitts Editor in Chief jfitzgerald@endeavorb2b.com
Robert Nieminen Chief Content Director rnieminen@endeavorb2b.com
Contributing Editors
Vilma Barr Barbara Horwitz-Bennett
Jana Madsen Jeff Pitts
Heather Ronaldson Katy Tomasulo
Lauren Lenkowski Art Director llenkowski@endeavorb2b.com
Jennifer George Ad Service Manager jgeorge@endeavorb2b.com
CIRCULATION MANAGEMENT
Laura Moulton 941-259-0859 lmoulton@endeavorb2b.com
ADVERTISING SALES
Dyanna Hurley Director of Sales 248-705-3505 dhurley@endeavorb2b.com
Tim Shea Brand Director/East 708-860-5684 tshea@endeavorb2b.com
Ellyn Fishman West 949-239-6030 efishman@endeavorb2b.com
Paul Hagen Midwest 319-360-1306 phagen@endeavorb2b.com
Tim Kedzuch West/Southwest/Canada 630-728-9204 tkedzuch@endeavorb2b.com
ENDEAVOR BUSINESS MEDIA, LLC
Chris Ferrell CEO
June Griffin President
Patrick Rains COO
Paul Andrews CRO
Jacquie Niemiec Chief Digital Officer
Tracy Kane Chief Administrative & Legal Officer
Tracy Smith Design & Engineering and Buildings, Lighting & Digital Infrastructure Group (EVP - D&E + BLDI)
EDITORIAL SUBMISSIONS
For editorial submissions, email Jeanette Fitzgerald Pitts: jfitzgerald@endeavorb2b.com
For subscriptions, visit: arch-products.com/subscribe For article reprints, email: reprints@endeavorb2b.com
Copyright © 2024 Endeavor Business Media llc
—Ruchika Modi, Principal, PAU
The Raffles London and OWO Residences 36
The Domino Sugar Refinery, New York City 48 © Max Touhey
© John Athimaritis
Easy Operation: Smoothest and easiest operation of any folding glass wall.
Flexible Stacking: Floating panel sets can stack to the left or right with panels inward or outward opening.
Slim Profiles: Clean aesthetics with the slimmest profiles available.
Uninterrupted Transitions: ADA-compliant sill with a high heel resistant feature.
Proven Durability: Swing doors tested to 500,000 and bi-fold panels to 20,000 open/close cycles.
Castell Rooftop Lounge, AC Hotel NYC | Architect: Helpern Architects
events resources
CONTINUING EDUCATION PLATFORM
CERSAIE
International Exhibition of Ceramic Tile and Bathroom Furnishings Sept. 23-27
Bologna Exhibition Center, Bologna, Italy cersaie.it
Architecture + Design Master Continuing Education Platform has AIA-approved courses, designated as either LU or LU/HSW, that cover a range of important topics. Here is a small sample of the courses currently available.
Decarbonization 101 (1 LU/HSW)
Exploring Design Trends for K-12 Applications (1 LU/HSW)
Flexible Offices: Key to Retaining Talent and Optimizing Space for a New Work Era (1 LU) Lessons in Renovation and Adaptive Reuse (1 LU/HSW)
Telehealth to Metaverse: The Bold Future of Healthcare Design (1 LU/HSW) archdesignmaster.com
MAGAZINE MERGER
HCD
Healthcare Design Expo & Conference Oct. 5-8
Indiana Convention Center, Indianapolis hcdexpo.com
ASLA
American Society of Landscape Architects Expo Oct. 6-9
Walter E. Washington Convention Center Washington DC asla.org/conference.aspx
ASPE
Effective July 1, 2024, LightSPEC magazine officially merged into Architectural Products magazine. This change gives readers one definitive source in print and online for finding the latest products available for specification, examples of products in application, and insights from the design and specification team who selected them. Readers can now find all of the fantastic coverage they enjoyed from LightSPEC—lighting products, trends, design tips, and project profiles at arch-products.com and check out our expanded lighting coverage in the July/August issue.
“Light and lighting control are integral parts of the way that people experience the built environment and the way that the building performs. With the inclusion of LightSPEC in Architectural Products, the magazine will expand its coverage of new luminaires and control systems and highlight the lighting systems designed and installed in many of the stunning projects we cover.” –Editor in Chief, Jeanie Fitzgerald Pitts.
American Society of Plumbing Engineers 2024 Convention & Expo Oct. 18-23
Greater Columbus Convention Center Columbus, Ohio aspe.org
MetalCon Oct. 30-Nov. 1
Georgia World Congress Center Atlanta metalcon.com
Greenbuild Nov. 12-15
Pennsylvania Convention Center, Philadelphia informaconnect. com/greenbuild/
MAKE YOUR M RK
Gilbert Place at Virginia Tech Blacksburg, Virginia — QuadCore ® KarrierPanel®, Designwall 4000 and Designwall 2000
Designwall Series
Kingspan’s BENCHMARK Designwall architectural insulated panels are the premiere choice for tailor-made, one-of-a-kind façade designs. Make your mark with a variety of custom finishes and sizes in an extended color range for striking aesthetics and design flexibility combined with advanced thermal performance and energy efficiency.
For the creative freedom to make your mark, explore Kingspan BENCHMARK at kingspanbenchmark.us
QuadCore® Designwall 4000
Creative freedom to make your mark www.kingspanbenchmark.us
CODES ›› Standard Specification for Poly(vinyl Chloride) Sheet Roofing
PVC Roofing Membrane: Thicker Isn’t Necessarily Better
There’s an alphabet soup of single-ply roofing membrane options available (i.e., TPO, PVC, and EPDM). Once you’ve settled on PVC, you’ll have to decide which type is best suited for the application. A little familiarity with the ASTM industry standard and its minimum performance attributes will not only make specification easier, but also increase the likelihood that the roof system will demonstrate the desired durability.
ASTM D4434/D4434M-21 Standard Specification for Poly(vinyl Chloride) Sheet Roofing was drafted in 1985, and most recently updated in 2021. It classifies PVC roofing into three types—Type II, Type III, and Type IV (Type I is no longer manufactured). These classifications define physical attributes of the membrane, setting minimum membrane properties for each type.
• Breaking strength is measured with a mandrel test. A sample of the membrane is pulled apart at certain temperatures until it breaks. It is a prediction of durability.
• Elongation is especially important in locations with big temperature swings (i.e., high heat in summer and bitter cold in winter). It conveys the ability of the membrane to snap back over time.
• Tensile (or tearing) strength is a measure of puncture resistance, and how likely it is that a small cut or hole will become larger. The membrane is put through a lab test where a sharp metal instrument is pushed through the material until it breaks. No matter the geography, a membrane with higher tensile strength is desired for added protection.
Understanding these properties and minimum performance attributes can help you select the membrane that will deliver the desired performance. For example, Type II (a 45-mil membrane) includes fiberglass reinforcement which provides dimensional stability, but does not improve elongation or tensile strength. Type III is also 45 mils, but internally reinforced with a fabric backing. Similarly, Type IV is internally reinforced with fabric backing, but differs in thickness (a minimum of 36 mils).
While it’s easy to think that thicker PVC membrane always provides better durability, it is simply not true. Because Type IV is thinner (36 mils), the material is required to have higher physical strength than Type II and III.
There are more manufacturers of Type III PVC roofing membrane than Type IV, because the latter is harder to formulate; however, Type IV provides superior membrane performance with 38% better breaking strength, 66% better elongation, and a 100% increase in tensile strength over Type III. Additionally, the enhanced physical properties of Type IV improve roof membrane longevity due to improved performance for building movement, thermal shock, and increased wind resistance.
The performance of Type IV PVC membrane is desirable for a variety of facilities, especially those with photovoltaic solar arrays or a lot of rooftop equipment that requires servicing; foot traffic and dropped tools from tradespersons require the extra durability Type IV membrane provides. Additionally, data
centers, hospitals, and numerous other facilities that can’t afford damage from, or the disruption of, a roof leak will appreciate the performance of a stronger membrane. Geographies prone to hail also stand to benefit.
Both Carlisle SynTec Systems’ Sure-Flex™ PVC and Sure-Flex KEE HP (High Performance) membranes meet or exceed all Type IV minimum standards, making them the ideal choice whenever superior roof performance is desired.

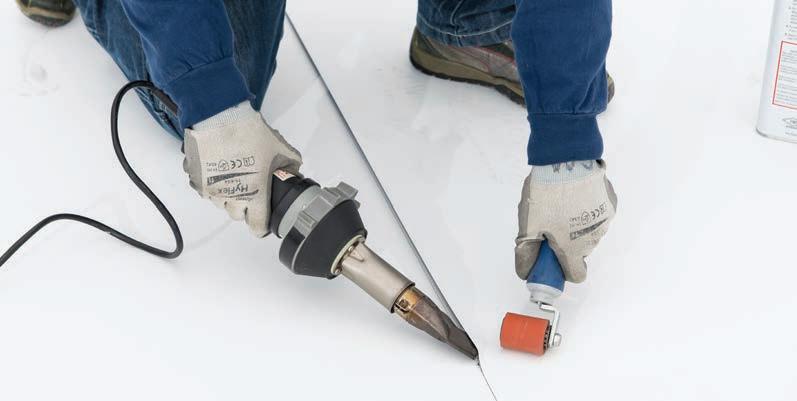

Carlisle’s Sure-Flex PVC is heat-weldable and designed for long-term weatherability and performance. It has exceptional fire and chemical resistance.
The Sure-Flex KEE HP membrane is manufactured using DuPont® Elvaloy® KEE HP resin modifier; this enhances the performance of PVC compounds by providing outstanding thermal stability and flexibility in more demanding applications. The higher molecular weight of KEE HP results in slower migration to provide extended low- and high-temperature performance limits, increased chemical resistance, and outstanding microbial growth resistance when compared to standard KEE.
Both membranes have anti-wicking polyester fabric encapsulated by thick PVC-based top and bottom plies and antimicrobials throughout the polymer for increased resistance to mold, mildew, and algae growth. Additionally, they are each suitable for fully adhered, mechanically fastened, and induction-welded applications.
Sure-Flex PVC and KEE HP membranes provide higher breaking strength, tear resistance, and elongation properties than ASTM D4434 Type III/IV PVC specification standards. This means you are getting the best PVC roofing material available.
Understanding properties and minimum performance attributes can help you select the membrane that will deliver the desired performance.
Type III Type IV % Increase Sure-Flex PVC Sure-Flex KEE HP
Set Your Design in Motion

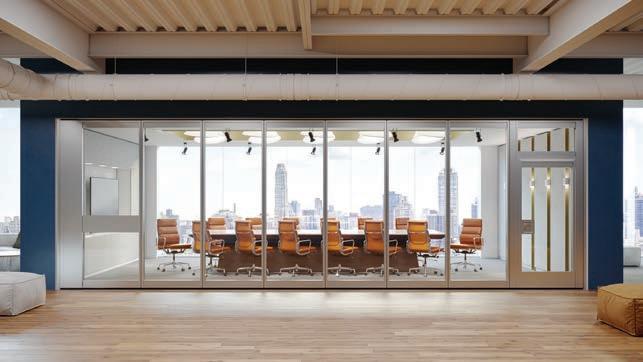

Transform your space with fully-automated movable walls by Modernfold. See how touchpad activation can achieve hands-free set up, industry-leading sound separation, and daylighting benefits. Watch as technology and design merge to elevate your flexible space solution.
