Remember when?

Ingenuity, fortitude and effort yielded process control advances

SOME of you will remember when control systems suffered issues or outright failure, and the reason was simply a mistake. Nefarious acts of cyber-criminals or agenda-driven governments weren’t even on most people’s radar. Why, no one would ever be able to bring down critical infrastructure so easily, right? Except, they could.

Likewise, some of you probably remember when instrumentation and controls were designed to network with a specific set of field devices, effectively operating in their own little world of a plant. There couldn’t be any reason for interoperability among vendors, right? Except, there was.

Also, some of you may remember when engineering was among the most attractive fields of study at many universities around the world. Surely, new students would never shun process control, and leave plants searching for deep minds in a shallow pool of candidates, right? Except, they did.

Process control is a never-ending stream of new problems to solve. Luckily, there have been many forwardthinking engineers, who showed ingenuity, creativity and resolve to push forward, and make things a bit easier and more secure, even when they stood alone in their efforts. The Process Automation Hall of Fame is filled with such problem-solvers, who advanced industry and society with their work. We’ve been honoring them for more than 20 years.

We add three more game-changers as we induct this year’s class: Joe Weiss, Marcos Peluso and Mark Darby. All three worked extensively on solving the three vital issues I noted at the beginning of this column.

I’m excited to tell their stories in this month’s cover story beginning on page 20 and featured on controlglobal.com. That’s just the beginning. Later this spring, we’ll have a special “Control Amplified” podcast with all three inductees, and look at how process control advanced through the years and made industrial operations safer and more productive. You’ll want to listen and hear their unique perspectives.

Until then, join me in congratulating the newest members of

LEN VERMILLION Editor-in-Chief lvermillion@endeavorb2b.com

"

Process control is a never-ending stream of new problems to solve."

Peace with nature: building the ’artificial forest’

How a reversible fuel cell concept can pave the path to green energy

BÉLA LIPTÁK liptakbela@aol.com

"Reestablishing the balance between energy supply and demand can be accomplished by mimicking nature’s photosynthesis process, i.e. designing and using 'artificial vegetation.'"

MY book, Controlling the future: controlling non-industrial processes to prevent climate and other disasters (ISA, 2023, bit.ly/controllingthefuture), describes the knowledge we already have about artifi cial intelligence (AI) and climate processes. It also describes the many challenges yet to be solved.

The book was intended to be a textbook. However, after it was read by a student, he put it down and murmured, "Yeah, this is the kind of stuff I would like to work on after graduation." In this and future columns, I’ll discuss some of the "stuff" students can work on to reverse trends, such as the U.S. becoming the world’s top supplier of liquefi ed natural gas (LNG). I’ll start by outlining the "artifi cial tree.”

Building blocks of green energy

A carbon-free, fully distributed, sustainable energy future requires safely matching energy needs and energy sources. Such a balance existed, initially, because people could perform only as much work as their muscles allowed. That lifestyle was followed by animal power, which was still supported by nature because nature continuously provided animals’ energy source (food furnished by vegetation). As humans moved into the Industrial Age and began using machines, the energy supply nature could continuously provide through the availability of vegetation was no longer enough, and we started to use up the energy sources (fossil fuels) that had accumulated underground over

Figure 1: During the day (red), a reversible fuel cell (RFC) generates hydrogen from excess electricity that’s not needed by the home and stores it. At night (blue), stored hydrogen is used to meet the home’s electricity needs.

ELECTROLYZER FUEL CELL

millions of years. We still use fossil fuels today.

Reestablishing nature's balance requires us to stop using fossils—an exhaustible energy source—and start using inexhaustible, clean, renewable energy sources. Jokingly, I often say we must follow the example of our stone age ancestors, who switched to bronze, not because they ran out of stone, but because bronze was better. Green energy is much better than fossil fuel energy.

Reestablishing the balance between energy supply and demand can be accomplished by mimicking nature’s photosynthesis process, i.e. designing and using "artificial vegetation." This technology uses intermittently available sunlight to make and store hydrogen, so the energy derived is continuously available.

The calculations in my book show we don’t have much more than a generation to reestablish the balance between the energy needs and supplies of our planet by planting enough "artificial forests." Global warming has already exceeded 1.5 °C and the CO2 concentration in the air isn’t just the highest it’s been in 3 million years, but is still increasing. Today, it’s at 424 ppm, which means, if CO2 wasn’t transparent, the atmosphere would be black.

The world’s energy needs increased partially because of the population

explosion of the last two centuries. The global population in 1800 was about 1 billion people, but it doubled by 1930, and today it’s at 8 billion and growing. During the same period, per capita energy consumption increased five times, and will only rise as humans become more mobile and energy demands increase in both the advanced and developing worlds.

At the same time, resources aren’t used to solve the problem, but are wasted by focusing on adaptation to help people adjust to current and future effects of climate change, instead of eliminating its causes. Money is also wasted by fighting energy wars, and subsidizing and supporting the fossil fuel industry to build new power plants, shipping ports and pipelines, as well as expanding drilling. These investments shorten the time left to convert the world to a green-energy economy.

Reversible fuel cell concept

By the time the student above retires, a reversible fuel cell (RFC) will be as common as a PC is today. It’s the key component of the artificial tree package. During the day, an RFC operates in electrolyzer mode, using solar energy that’s not needed at the time to make hydrogen (Figure 1, red path). At night, or whenever solar energy is insufficient to meet the electricity needs of the user, it switches into fuel-cell mode, reversing the direction of the hydrogen

flow to provide all or part of the electricity needed (Figure 1, blue path).

The resulting “artificial tree” package can be a net hydrogen user or a net hydrogen generator, depending on the geographic location and size of the solar collectors, and the energy needs of the user. In the case of a home, electricity produced by the RFC meets the usual needs, and supplies the split pumps that heat and cool the home, while the hydrogen can refill the tanks of cars with fuel cells.

One of the economic advantages of such a system is that electricity is locally generated and doesn’t need to be transported over long distances, which eliminates the need for an electric grid that would otherwise double the cost of electricity.

In a hydrogen economy, trucking hydrogen is bidirectional. At times of high insolation—when demand for hydrogen is less than what’s generated—excess hydrogen can be trucked to a central storage hub, so it can be used during low-insolation periods, when demand exceeds supply. The same trucks will fill “local” storage tanks, which would be placed next to homes, and are similar in size and design to those used in fuel-cell cars. About 15,000 are already operating in San Francisco and 50,000 are in use worldwide. The districts in a fully distributed energy economy will require larger or smaller, centralized hydrogen storage hubs due to their geographic locations.

Regenerative fuel cell

What I describe is only a concept today, but the seeds of it becoming reality are sprouting in the form of regenerative fuel cells. Similar to the vacuum tubes in early computers, which became the chips of today, regenerative fuel cells (Figure 2) can grow into the artificial tree package of the future. My hope is that the student at the beginning of this column will decide to become the new Oppenheimer and lead this project.

Figure 2: the regenerative fuel cell

JOHN REZABEK Contributing Editor JRezabek@ashland.com

"Maybe someday 'Gemini' will read all the manuals for us, but until then, access to a knowledgeable human is indispensable."

Overcoming complexity without AI

Hey, sometimes a knowledgeable, thoughtful human will do the trick

EMILY was trying to decipher the manual, a PDF file on a tiny optical disk that shipped with the device. The search for a PC that still had an optical drive was only the beginning of her concerns.

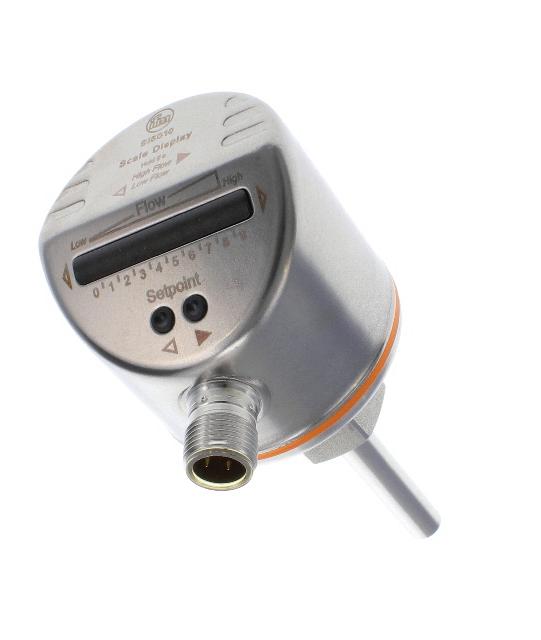

“NEMA 6, what's that?,” she asked, worried the new instrument wouldn’t survive long in the unceasing veil of mist around their cooling tower. The National Electrical Manufacturers Association (NEMA) creates ratings for enclosures, and is familiar to most specifying engineers in North America. However, NEMA 6 was uncommon, and she needed at least NEMA 4 or 4X, aware that some numerically higher ratings, e.g. NEMA 12, offer less protection.

Happily, Emily discovered NEMA 6 meant “submersible.” Indeed, this new magnetic flowmeter could even be buried in the ground or subjected to intermittent flooding, provided the installer followed the guidelines for sealing the electrical conduit entries. It was as if her specifying engineer or vendor representative gave some thought as to where this new meter was expected to function.

When soliciting proposals for a given application from multiple suppliers, a written and vendor-agnostic specification has been de rigueur, respecting a modicum of fairness in awarding a purchase order (PO). End users can drift away from this discipline, and many times a proposal is solicited and a PO is cut without such diligence—we simply don’t have the time or the people. A site may not even have an I&C specialist, such as a maintenance person, who looks after more than just instruments, or a process specialist, who is unhappily saddled with the additional responsibility. We’ve become “lean” to the point where even those who want to hire an engineer can’t find one.

Relieved her device was likely to survive the moist and sometimes icy environment, Emily looked for a place to land the wires. There were a multitude of PDFs on the tiny optical disk.

There must have been certifications and approvals for every country or region on the planet, which gave her a glimpse of the enormous effort and expense device manufacturers face when marketing their wares worldwide. There were different manuals for the meter body and the transmitter, and yet another for bussed or digital interconnections to a capable host.

Configuration instructions presented a (not uncommon) ponderous menu-map, which must be navigated to get the transmitter set up. The six pictogram keys of mysterious meaning permitted navigation through a flowchart that consumed two pages of the manual. That was for “basic” settings. Emily counted about 23 key presses to set flow direction, line frequency, full scale, units and cutoff. Such is life in the digital age!

There are YouTube videos that feature basic instruction, but Emily was fortunate that her representative composed a focused and truncated version of the manual that addressed everything needed to complete the installation in a few pages. In the current zeitgeist, where we end up relying on more distant and less accountable/responsible technical support, one wonders what the future portends.

One remedy is a growing number of Bluetooth-connected interfaces for field devices. Provided a given region supports and allows it, apps using Bluetooth to monitor and configure field devices are adaptable across many languages. Getting one’s app certified by Android and Apple isn’t a given either, and obtaining a Bluetooth-capable smartphone or tablet for use in hazardous areas is a must for many processes. Having used both methods for a little, 1/16 DIN temperature controller, I’d opt for Bluetooth wherever it’s an option.

Emily’s good fortune of a capable and available representative saved the day. Maybe someday “Gemini” will read all the manuals for us, but until then, access to a knowledgeable human is indispensable.

Growing pains of industrial networks

More powerful networks mean cybersecurity vulnerabilities must be minimized

ETHERNET Advanced Physical Layer (Ethernet-APL) products are entering the market and pushing Internet protocol (IP) networks down to field device levels. Packet-based IP networks can transmit more data than traditional sensor-level (fieldbus) networks, and offer more functions and visibility to Ethernet APL devices. Nearly all networks, including the Internet, use packet-based communications, and their vulnerabilities extend to other network layers, where they can have potentially devastating effects beyond simply needing to reformat personal devices.

Joe Weiss, managing partner at Applied Control Solutions (realtimeacs.com), and an ISA Fellow specializing in cybersecurity, has been concerned about Level 0 vulnerabilities for many years. Bringing packet-level communications further into operational technology (OT) requires appropriate cybersecurity practices, such as those defined in IEC 62443. Fortunately, organizations responsible for developing and maintaining wired and wireless sensor-level networks actively work to address security concerns at these network levels.

Several useful documents on industrial automation security are available from the Industrial Ethernet Security Harmonization Group (IESHG, bit.ly/3vrwbkC). IESHG members include major standards development organizations, such as OPC Foundation, ProfibusProfinet International, ODVA and FieldComm Group. OPC UA Security Model (IEC 62541-2) and OPC UA Role-Based Security (IEC 6254118) are both in committee draft for vote (CDV) in their development processes, and have 1Q25 publication target dates.

ISA-84, under Weiss’ guidance, also has a taskforce looking at sensor-level security.

Though it may appear that standards are stifling product launches, this isn’t the case. By the time a standard reaches CDV, it’s approximately 90% complete. And since many organizations supplying Ethernet-APL

products are also active on international standards committees, the timing of these products coming to market and security standards supporting their use are usually well-aligned.

The European Parliament of the Network and Information Security’s NIS2 directive (www.nis-2-directive.com) took effect on Jan. 16, 2023, with full compliance required by October 2027. It requires operators of public or private entities to implement appropriate security tools to protect their systems from cyberattacks, and applies to essential and important facilities, including companies operating in critical infrastructures, such as electricity/gas generation, power storage and transmission, transportation on water, roads and rails, and drinking water and wastewater facilities. It also includes digital infrastructure.

NIS2 is supported by the Cyber Resilience Act (www.european-cyber-resilience-act.com) and addresses two major areas:

1. Lack of cybersecurity of products with digital elements; and

2. Insufficient understanding and access to information by users.

Examples of products with digital elements include end devices (industrial control systems, laptops, smartphones, sensors, smart robots, routers and switches), software (firmware and operating systems) and components (computer processing units and software libraries).

Security is a two-edged sword. The same is true of the enhanced capabilities of IP-based, sensor-level networks. It will be possible to access orders of magnitude more data, and respond proactively to incidents before they can escalate to impact safety, reliability and production. However, these new capabilities come with increased complexity, including cybersecurity risks that must be managed. It’s our responsibility as automation practitioners to implement security measures in our facilities, while minimizing or hiding the associated complexities from the users of our “magic.”

IAN VERHAPPEN Solutions Architect Willowglen Systems

Ian.Verhappen@ willowglensystems.com

" Though it may appear that standards are stifling product launches, this isn’t the case."

Everyone into the green pool

Schneider Electric, Emerson, ABB and friends launch multiple, separate sustainability programs

IF it seems like everyone and their brother is undertaking sustainability projects and launching net-zero solutions, it’s a good bet they probably are. Here are some of the most recent efforts by three major process control and automation suppliers and their partners.

Schneider starts Scope 3

Schneider Electric (www.se.com) launched April 4 its “Materialize” supply chain decarbonization program to help metals and minerals companies reduce carbon emissions by their suppliers worldwide. To meet exponential demand for their products without further increasing carbon emissions, Schneider reports it’s crucial for end-user companies to decarbonize power supplies, mitigate environmental impacts of their energy-intensive processes related to these critical resources, and reduce the sector’s Scope 3 emissions, which are typically produced by companies they work with.

Materialize is a continuation of Schneider’s suite of the supply-chain decarbonization programs from its Sustainability Business consulting division, which employs supply-chain cohorts for renewable, scalable energy procurement. The program will encourage wider value chains to transition to renewable energy sources by accelerating deployment of decarbonization projects and software, and improving access for suppliers to renewable energy solutions at scale, such as power purchase agreements (PPAs).

“We’re delighted to launch Materialize as our latest collaborative program to reduce Scope 3 emissions. We have a strong track record of working with customers to meet their sustainability objectives, and this program will accelerate action in this sector,” says Barbara Frei, industrial automation EVP at Schneider Electric. “Educating suppliers in the sector’s wider value chain on the importance of their operational models in closing net-zero ambition gaps is vital for us to decarbonize the sector. Materialize will drive definitive next steps for the industry to lead the way.”

Collaborates with HyStor on green hydrogen

Schneider Electric and Hy Stor Energy (hystorenergy.com) reported Mar. 20 that they’re supporting development of Hy Stor's Mississippi Clean Hydrogen Hub (MCHH) and its broader U.S. initiative. Hy Stor produces carbon-free, renewable, hydrogen and long-duration storage. They report their partnership will solve large-scale energy and sustainability challenges needed to transition to a renewable. fossil-free energy system.

Schneider will provide Hy Stor with automation and safety products, Aveva process operation and AI optimization software, weather analysis, predictive operations, and digital energy management solutions, as well as commissioning, operational analytical tools and support. This project will fulfill Hy Stor Energy's vision of MCHH as the world’s first provider of zero-carbon hydrogen to industry, and give its customers secure, reliable, affordable, green hydrogen with no carbon footprint or methane emissions.

Partners with Mainspring on fuel-flexible microgrid

Schneider Electric and Mainspring Energy (www.mainspringenergy.com) reported Mar. 20 that they’re partnering to offer a hybrid-energy technology that combines Schneider’s EcoStruxure Microgrid software and design-build services with Mainspring’s Linear Generator. This combination is expected to provide power, fuel flexibility and energy resilience, let users generate electricity onsite, and operate in parallel to the power grid or independently when needed.

This decentralized microgrid will ensure accessible electricity to critical operations, and reduce greenhouse gas (GHG) emissions. The novel fuel-flexibility of Mainspring’s power-generator also lets users switch dynamically without retrofit among multiple fuel options, including low- and zerocarbon fuels.

Emerson provides H2 Hauler with hydrogen mobility

To enable safe, efficient management of hydrogen terminal operations and remote monitoring, Australia-based H2 Hauler (www.h2hauler.com.au) reported March 11 that it’s picked Emerson (www.emerson.com) to provide a consolidated, integrated, hydrogen-mobility, business-management system. H2 Hauler designs, manufactures and certifies storage and distribution equipment for compressed hydrogen. Emerson will fully automate H2 Hauler’s loading and monitoring systems, manage custody transfer, and monitor trailer tube assets to enable safe, sustainable hydrogen transport.

Source: Hy Stor

“As we expand our operations in hydrogen road transport and storage manufacturing, we’re confident Emerson’s proven automation technologies and software will support not only safe storage and distribution, but vital chain-of-custody management and auditing capabilities to demonstrate the impact of this emerging industry,” says Tyson Cooney, CEO at H2 Hauler.

H2 Hauler’s hydrogen dispensing skids and trailer onboard units will be optimized with Emerson’s DeltaV PK controller, fire and gas systems, valves, actuators and regulators. Emerson will also provide a secure, cloud-based data platform to remotely view and control equipment, enabling real-time data for optimal operations.

“As demand for hydrogen accelerates across heavy-duty transportation applications, we need to safely, reliably and efficiently transport hydrogen,” says Mike Train, chief sustainability officer at Emerson. “We look forward to delivering our hydrogen mobility technologies to H2 Hauler, which is making strides in support of Australia’s mobile hydrogen infrastructure.”

ABB, Captimise decarbonize cement industry

ABB Process Automation (go.abb/processautomation) and Captimise (www.captimise.com) reported Mar. 25 that they’re extending their collaboration to drive adoption of cost-effective carbon capture, utilization and storage (CCUS) technologies in the cement industry.

They’re planning to develop screening, feasibility and front-end engineering and design (FEED) studies, to help cement producers identify cost-efficient carbon capture technologies covering their carbon chain from capture, liquefaction and buffer storage to transport, permanent storage and utilization. They’ll also combine ABB’s automation, electrification, instrumentation and digitalization technologies, and its expertise in cement operations, with Captimise’s CCUS know-how and experience in the U.S. and Europe.

“Our relationship with ABB has materialized on projects in different industries, and we 're exploring further opportunities for cement customers,” says Mattias Jones, CEO of Captimise. “We draw on a track-record of more than 25 live case studies with CO2 emitters across Europe and the U.S., and know we’ll be able to support operations of all sizes in cement through combined CCUS, automation and electrification technologies.”

Max Tschurtschenthaler, global business unit manager for cement at ABB Process Industries, adds, “Reducing the carbon emissions from cement manufacturing is a major challenge and a top priority for this industry. We are on a mission to make it more cost-effective. By combining our automation, electrification and digital technologies with the know-how of partners like Captimise, we can further support the cement industry in achieving their climate and net zero targets.”

Electrifying high-emission industries with Salt X

ABB and Sweden-based, green-tech supplier Salt X (www. saltxtechnology.com) agreed Mar. 12 to further develop its Electric Arc Calcination (EAC) technology. While it’s difficult to decarbonize cement, quicklime and other industries that rely on high-emission fossil fuels, EAC reportedly reinvents the high-temperature calcination process with renewable electricity that makes it possible to reach several thousand degrees Celsius and capture CO2 emitted during heating.

ABB will also become a minority shareholder in Salt X, and contribute control and electrical systems to EAC. The two companies also plan to commercialize EAC. The two companies started collaborating on EAC in 2022, and built Salt X's research and test facility (ECRC) in 2023.

“Together with a capital injection, Salt X is gaining an optimal industrial partner with experience in implementing and globally scaling up new technologies,” says Carl-Johan Linér, CEO of Salt X. “This strengthens us as a company, and enables us to progress with our growth plans. With ABB and our other partners, we can take a leading role in the electrification wave sweeping through the industrial sector.”

Boris Gabin (left), VP for Australia and New Zealand at Emerson, signs an agreement with Tyson Cooney (right), CEO of H2 Hauler, to provide integrated hydrogen mobility technologies.

Source: Emerson

NIST opens AI-focused manufacturing contest

The U.S. Dept. of Commerce’s National Institute of Standards and Technology (www.NIST.gov) announced Mar. 12 an open competition for a new Manufacturing USA (www. manufacturingusa.com) institute focused on using artificial intelligence (AI) to improve U.S. manufacturing resilience. NIST expects $70 million in federal funds will be invested in this institute over five years, with an equal or greater contribution from private and other nonfederal funding sources.

NIST has published a notice of intent (NOI) in the Federal Register (www.federalregister.gov/documents/2024/03/13/2024-05228/manufacturing-usa-institute-competition-ai-for-resilient-manufacturing) to give potential applicants sufficient time to develop meaningful collaborations among industry, academia, federal laboratories, and state and local government. More information on the NOI is available at NIST's website.

“Manufacturers that use AI to improve operations and strengthen supply chains will be more productive and resilient as they compete in an increasingly crowded global

marketplace,” said Laurie Locascio, director of NIST and undersecretary of commerce for standards and technology. “We look forward to reviewing applications for a new Manufacturing USA institute that will strengthen the national economy by helping domestic manufacturers maximize the potential of AI.”

Petroperú picks Honeywell for cybersecurity

Honeywell (www.honeywell.com) reported Mar. 18 that one of the largest hydrocarbon producers, refiners and distributors in Peru, Petróleos del Perú S.A. (www.petroperu.com. pe), will implement Honeywell’s cybersecurity solutions to help Petroperú strengthen the cyber-resilience of its refinery operations and accelerate its digital transformation.Petroperú’s multi-year investment with Honeywell includes access to Honeywell’s cybersecurity consulting support, managed security services and threat-detection capabilities. Honeywell will also help Petroperú further scale its operational technology (OT) cybersecurity efforts to improve visibility into potential cybersecurity vulnerabilities and threats across its systems.

SIGNALS AND INDICATORS

• The International Society of Automation (www.ISA.org) will host its second annual Operations Technology (OT) Cybersecurity Summit (otcs.isa.org) on June 18-19 in London. The two-day, two-track event will be organized around two major topics: intelligence evolution and IoT cybersecurity with panel discussions on standards and conformity assessment.

• Bühler’s (www.buhlergroup.com) reported Mar. 20 that its new Grain Innovation Center (GIC) is nearing completion in Uzwil, Switzerland. This new, 2,000-square-meter facility will replace the former Grain Technology Center (GTC) that served the milling industry since 1951, but needed modernization to keep up with market demands.

• Nozomi Networks Inc. (www.nozominetworks.com) reported Mar. 27 that it’s extended its partnership with Yokogawa Electric Corp. (www.yokogawa.com) to meet global demand for managed security services and solutions designed to holistically satisfy the unique OT and IoT cybersecurity requirements of process manufacturers.

• Motion control supplier Heidenhain Corp. (www.heidenhain. com) announced Mar. 6 that it’s acquired a new Silicon Val-

ley headquarters in Fremont, Calif. The 12,000-square-foot Manufacturing Innovation Hub will house a 6,000-squarefoot demonstration lab and office space for the company’s regional sales and support staff.

• Fortifi Food Processing Solutions (www.FortifiFoodSolutions.com), a leading platform of food processing equipment and automation solutions, reported Mar. 18 that it’s acquired Reich Thermoprozesstechnik GmbH (reich-germany. de), a leader in thermos-processing systems for red meat, fish, poultry, cheese, pet food and other food markets.

• Genuine Parts Co. (genpt.com) reported Mar. 21 that its board of directors has appointed James Howe as president of its Motion (www.motion.com) industrial business. He most recently served as Motion’s EVP and chief commercial and technology officer. Howe will continue to report to Randy Breaux, group president of GPC North America.

• Galco (galco.com) reported Mar. 19 that it’s expanding its portfolio by partnering with Balluff (www.balluff.com) that supplies sensor, identification and network solutions. The new partnership will let Galco's customers enhance operational efficiencies and productivity in automation projects.

CHRIS LITTLE Media Relations Director, VTScada by Trihedral

Overcoming custom code costs in SCADA systems

YOU'RE probably aware of the important role that supervisory control and data acquisition (SCADA) software plays in managing automation systems used by water or power utilities, national broadcasters or scientists. You’re also likely aware of the role custom coding plays when configuring these applications for users. However, you may be less aware of the ongoing price of each line of code that, if not carefully managed, can reduce performance, reliability, and longevity of critical SCADA systems.

Control talked with Chris Little, media relations director for Trihedral Engineering Limited, to find out how systems integrators and in-house developers can create advanced SCADA solutions that aren’t limited by rapidly aging code.

Q: Why is custom code standard practice when configuring most SCADA applications?

A: For many SCADA software platforms, it’s the primary mode of configuration. It's what holds together the combination of proprietary or thirdparty components that provide the standard SCADA functionality that operators and managers need. Basic things like trending reports, remote access and hot backup failover usually need some form of hand coding to work. To be fair, many integrators like doing it this way because they’re very good at it.

Q: What are some of the hidden costs of this practice?

A: There are several, but they're all different variations on technical debt, which is the cost of future work that would be required when you choose a solution that’s easier in the short term. By writing custom code, you're creating work for yourself in the future. SCADA systems involve so much money, time

and decision-making that, once you've got one in place, you don't want to turn the hourglass over and start again from scratch.

The more technical debt you incur by writing custom code, the more work you make for yourself going forward.

Q: What’s the limitation of custom code, especially if everyone likes doing it?

A : For one, it ages badly. One of the keys to longevity for a SCADA system is the ability to regularly update the software, so you can take advantage of new features and security fixes. Many system integrators insist that, once a system is working, you should never upgrade it or the operating system it runs on. They're afraid to upgrade to a version with an important fix in it because they're afraid it will possibly break their custom code. This is why you get old, increasingly limited systems running on machines with unsupported and insecure operating systems. This can affect the scalability of your system, so it becomes a source of risk.

When an integrator needs to go back and service, troubleshoot or add to the application, it’s frustrating to look at someone else's code from 10 years ago, or even their own. People's best practices change. They get better and learn different ways of writing code. So, even if they've documented their code as they should, it can still be challenging to build reliably onto that base without breaking anything.

Q: What’s the alternative?

A: Look at built-in features out of the box. If you have a system where every piece of core functionality is installed up front with one installer, and gets upgraded with every new version, you avoid this risk. You also reduce the configuration time for each application.

Q: Does this make a big difference to the application's resilience?

A : Absolutely. Let's assume you have talented integrators, who have coded server failover dozens of times, and they're able to cut-and-paste the best version of that redundancy code each time they do a new system. It means the stability and security of the code they wrote has been tested, at most, a few dozen times, and was tested over however long those systems existed.

The cost of each line of code can affect the reliability, resilience and longevity of a SCADA system.

By making redundancy core to the SCADA product, the code not only goes through an extensive product development lifecycle, but also internal and personal testing. The way we do it with our VTScada software is, when there’s a new unreleased version, everyone in our company uses it because we want to fi nd the things that go wrong before anyone else does. We have powerful automated tests that we pound on each version, and this goes on for weeks before we let anyone touch it.

Source: Trihedral

Because they’re part of the core product, the standard features installed with VTScada are battle-hardened and have been running in the field for decades. Everybody gets to take advantage of what we've learned from every system. You can’t do that with custom code.

HEAR MORE

Listen to more of this interview on the Control Amplified podcast, available at controlglobal.com/podcasts. To learn more about VTScada and VTScada Light, at vtscada.com/start

Q: By which standard is VTScada's development measured?

A: A few years ago, VTScada’s development environment was certified as compliant with IEC's 62443-4-1, maturity level 2, “Security for industrial automation and control systems.” This is the standard that defines the secure development lifecycle requirements for products used in industrial automation and control systems.

Q: To be clear, you're not saying all custom code is bad, right?

A: Correct, and that's a great point. Every application has something about it that’s unique, some challenge, some opportunity that’s different than every other system. A chance for an integrator to do something really special that will improve the quality of work for that user. This is where custom codes come in.

Q: Why should integrators use a built-in approach?

A: You can do more in less time. There’s always pressure to get a lot of things done in a limited period of time. With VTScada's built-in features, most of these functions are builtin out of the box. You can set up two, three, four levels of server redundancy distributed across a wide area network (WAN) without writing any code.

Integrators can also support it more easily over time. VTScada has built a variety of ways to remotely support users without traveling to their sites. Many integrators can support it without having to travel 100 miles in the winter to open that client’s computer. They can do it by becoming a secure node on the Internet. They can pass VTScada ChangeSet fi les back and forth, which contain complete copies of the entire application, including builtin version control.
