Architectural Design 08 - Finals (Rural Revitalization of Santa Rita, Pampanga)

2022-2023 | QUE

ARCHITECTURAL DESIGN MAGAZINE

Contents Part I

Part II

Part IV

Part VI

Research Problem

Theoretical Framework

Site Analysis

Architectural Guidelines

Goal

Conceptual Framework

Design Objectives

Landscape Guidelines Part V

Significance of the Study

Part III

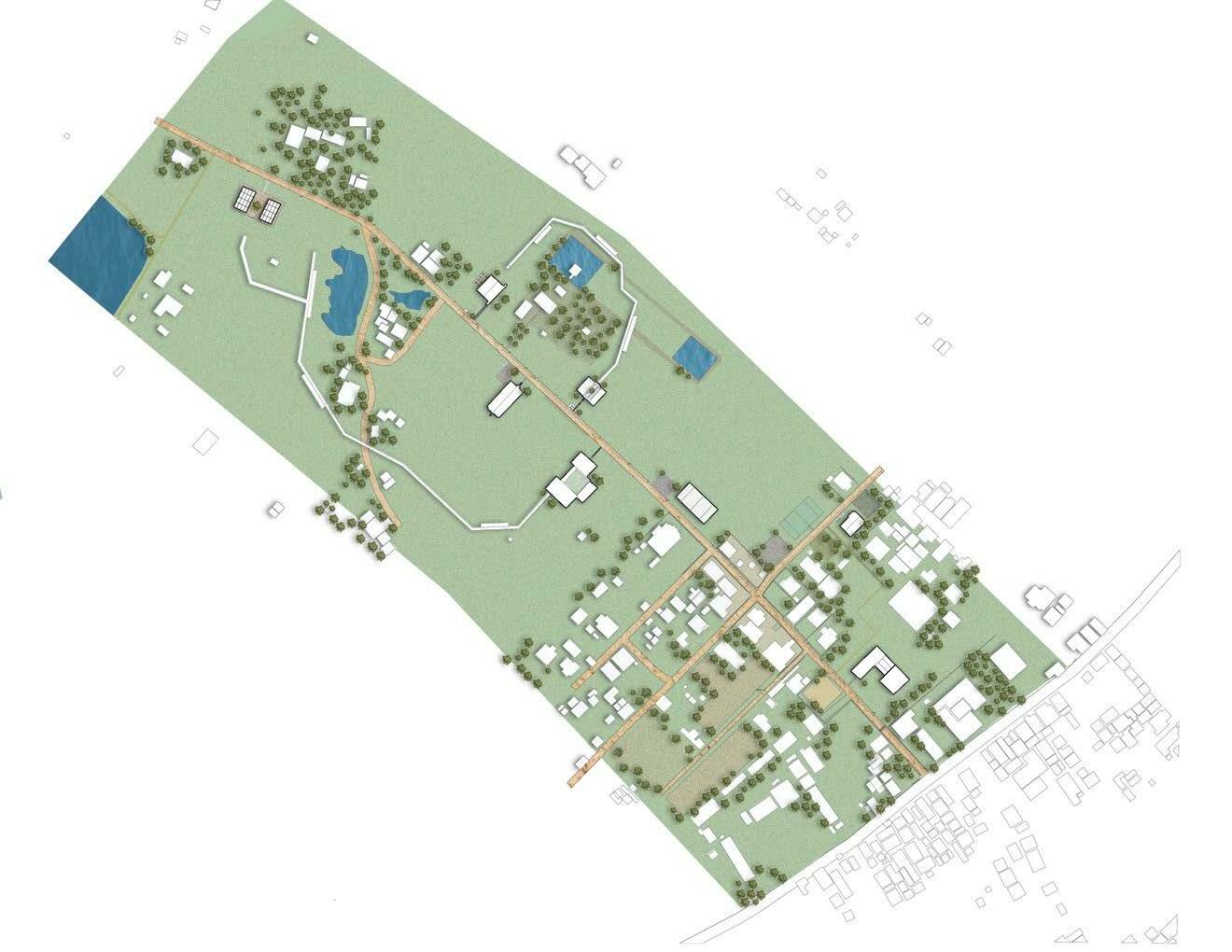

Master Development Plan

Part VII

Scope and Limitation

Review of Related

Translation

Literature

(macro to micro)

There has been a continuous issue regarding the declining of culture within Santa Rita. Furthermore, there is also the lacking in facilities which can further aid the site showcasing and save the farming tradition/ culture of the site.

The aim of this project is to create an environment for Santa Rita which shall help showcase a culture and retain the farming traditions of Duman, which is known for Santa Rita.

The objectives to be followed in attaining the goal are:

1. To incorporate the use of indigenous material in the design 2. To apply a design approach which showcase sustainability 3. To provide spaces and programs of the desired activity through which this shall aid the revitalization of the site

of the 5 dimension of agricultural landscape values from the The findings within this projects shall benefit the selected site,

thesis title: Multi-dimensional Assessment of Agrarian Cultural

Santa Rita, Pampanga, considering the problem on the

Landscape Values which aims to assess the landscape values

continuous declining culture. Due to the approach of this project

of Santa Rita, Pampanga.

it will also benefit the farmers into documenting their culture which is the traditional farming of duman in the future.

Furthermore, the findings on this project may be utilized as reference by other researchers in determining a way to revitalize rural areas.

This study focuses on the revitalization of Santa Rita, Pampanga through which the problem, the declining of culture is visible. This study will only extend to the factor of ecology one

culture/ tradition

existing building

rural revitalization economic inclusiveness

proposed building

user activities available resources

user activities available resources

5 dimensions

Agricultural Hubs

Theory of Change

rural revitalization economic inclusiveness

considerations

ecological

natural areas

production

mixed land use

economy

compact urban form

social

parks & community spaces

cultural

safety & security

values culture context

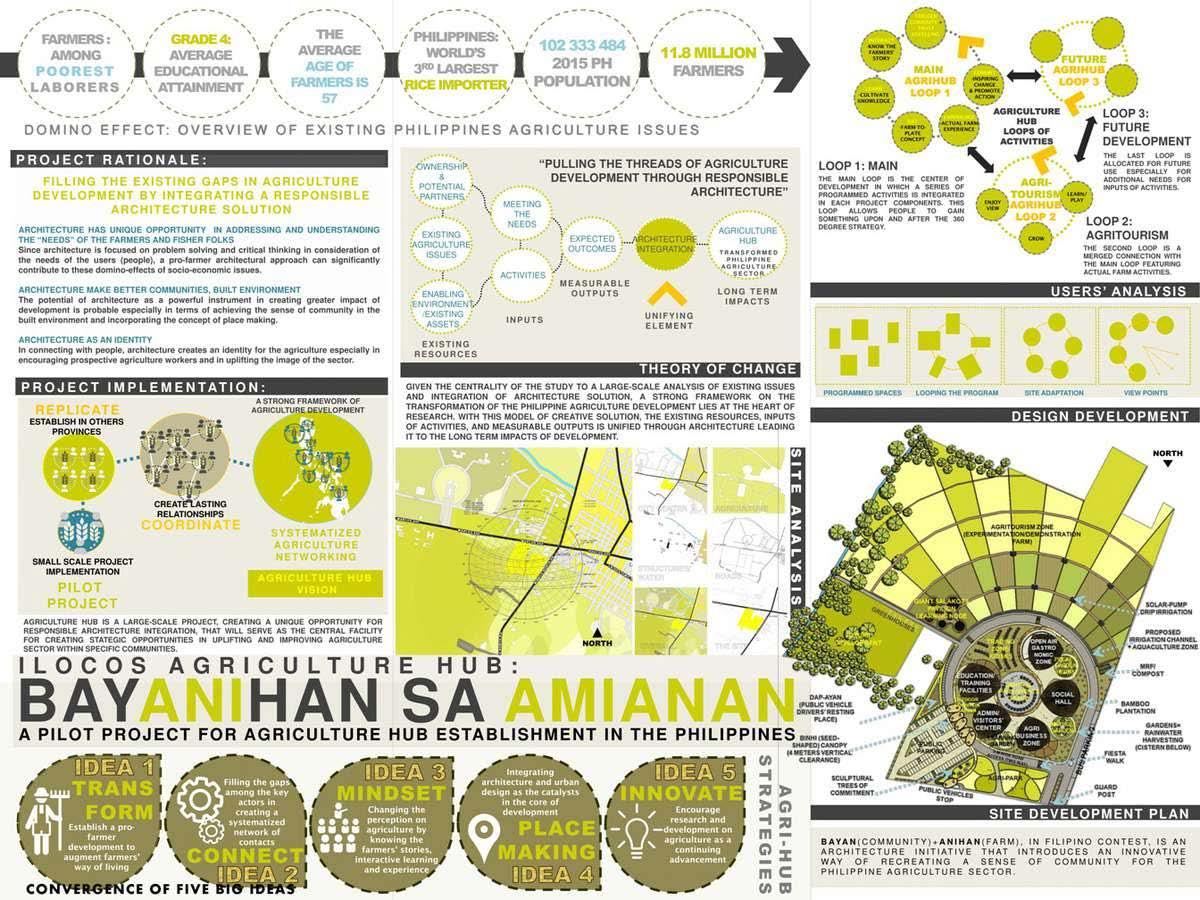

Case Study: Agriculture Hubs: An Ambitious Architectural Approach Towards Economic Development

There are gaps in agriculture wherein the "need" of the farmers is to be addressed Architecture has the ability to influence which leads to development, benefiting not only the people/ the country but also the future Theory of Change

san matias san vicente

santa monica

santa agustin

guagua

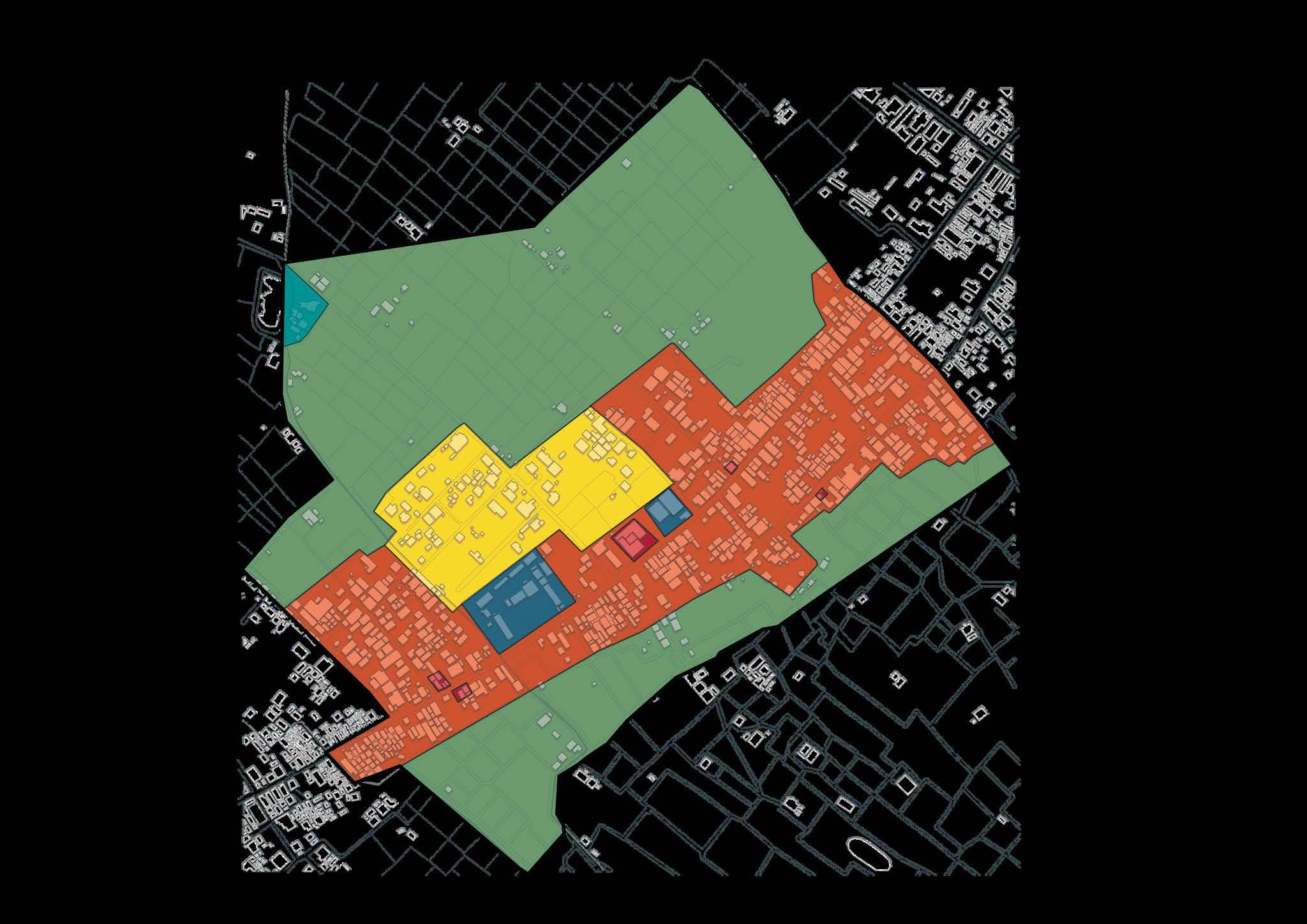

Agricultural Residential Mixed Residential & Agricultural Institutional Commercial Retention Pond

Municipal Road Barangay Road

High Medium Low

greenhouse

restaurant

production facility

assembly hall

training & educational facility farmer's matket

cafe

visitor's center

The Architectural Design Guidelines prepared are intended to provide information for the architectural

development

and

rural

revitalization of Santa Rita, Pampanga. The following guidelines extend the ideas of the overall Master Plan to the and the proposed buildings

programs.

The

guidelines

are

organized and shall provide further level of detail and information in architectural Design.

The proposed criteria and character within this document should ensure harmony among all elements. Furthermore, it should be utilize as a guide for the future revitalization or development of Santa Rita.

** These Guidelines complies to the National Building Code of the Philippines (NBCP).

The

character

of

the

different

building

programs for the revitalization of Santa Rita shall reflect a vernacular architecture through its material which shall be a model for modern design. For the level of detailing may be expected to be duplicated and it shall place an emphasis on the front elevation/ entry area.

The description of the architectural styles below are intended to provide a brief and common understanding, as well as to provide information and may be used as a basis in different building program design.

The designated styles that are encourage in the community and will provide a variety of design within Santa Monica:

Modern Contemporary Vernacular

** for more information, kindly refer to the next page

emphasizes function and a streamlined form over ornamentation

Characteristics: Rectangular forms Lack of adornment Low, horizontal composition Elements of asymmetry Open floor plans Large glass windows Whitewashed exteriors Natural materials like wood Modern Style

Emphasis on nature

blends modern styles and, has various features

Characteristics: Combination of styles Both angles and curves Free-form composition Elements of asymmetry

Large glass windows Mixed materials Emphasis on nature Sustainable design

Open floor plans

Contemporary Style

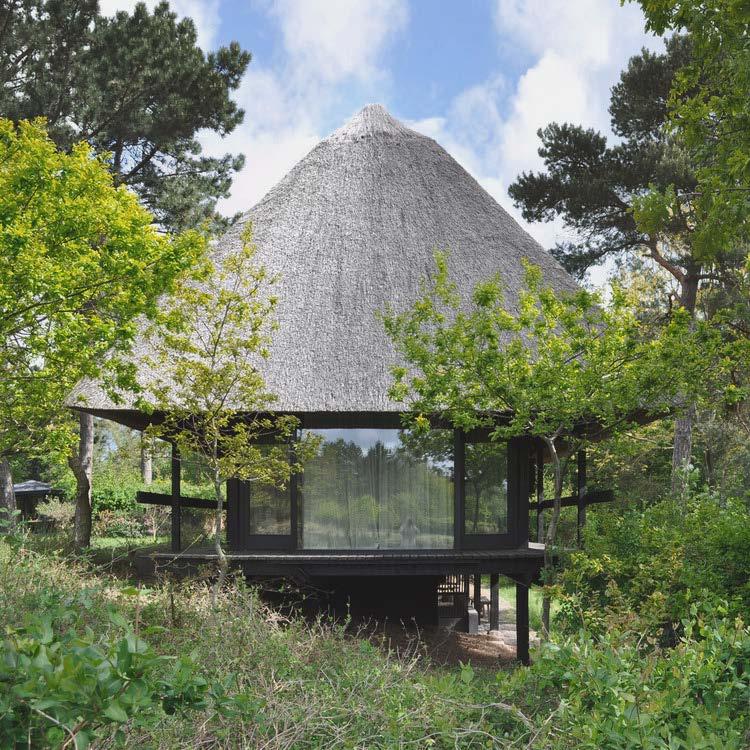

encompasses cultural building traditions that have been passed down through generations

Characteristics: use of inexpensive materials embodies social conditions and culture reflective of the climate evolving design

Vernacular Style

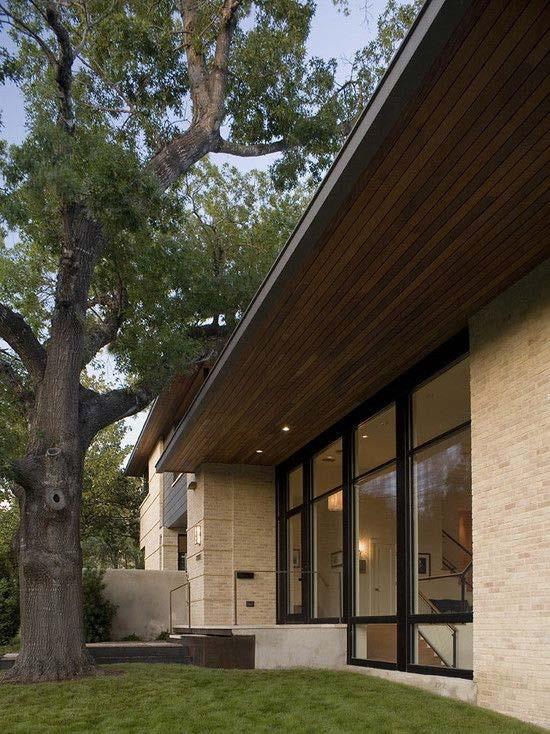

Overhangs enhance the look and feel of buildings by creating deep shadows and strong profiles Eaves

Building projections are acceptable but shall not exceed 1.5 meters from the main building face into the front yard setback Main entrance may be covered by a projecting element Eaves (Figure 6) shall not be not be less Facade

than 750 millimeters from the side and rear property lines

Eaves

Setbacks

2m

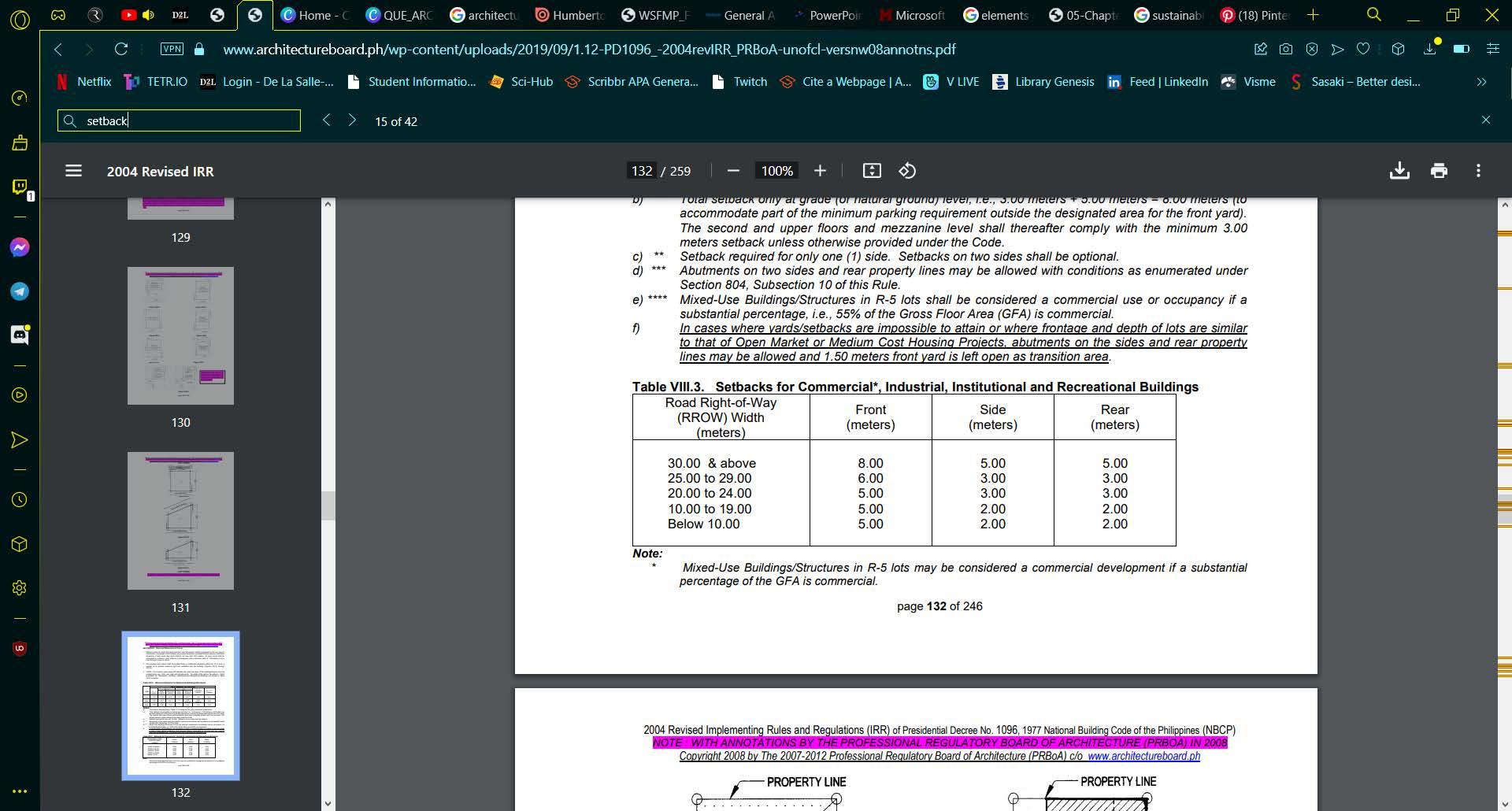

For purposes of ensuring optimal access to daylight, natural ventilation, privacy, and to ensure proper separation between structures; the National Building Code of the Philippines (NBCP), Section 804 Table VIII.3 has indicated that buildings types shall 2m

be placed with the shaded area as shown in the given table

Buildable Area

2m

below. Check the diagram (Diagram 1) provided for further

5m

information.

Road Right-of-Way (RROW)

Diagram 1. Setback for Commercial and Institutional Buildings National Building Code of the Philippines (pg. 132) ** Restaurant/ Cafe, Visitors Center, Farmers' Market, Training & Educational Facilities, Production Facility

Building Height Proposed Building Program

For purposes of providing the minimum standards to protect the public health, safety, and general welfare, the National Building Code of the Philippines (NBCP), Section 707 Table VII. 2 has

most building programs should may limit to 1-storey but shall not exceed more than 2-storey.

less than

(refer to the diagram 2 for reference). For the number of floors,

15 meters

indicated that building heights shall be less than 15 meters

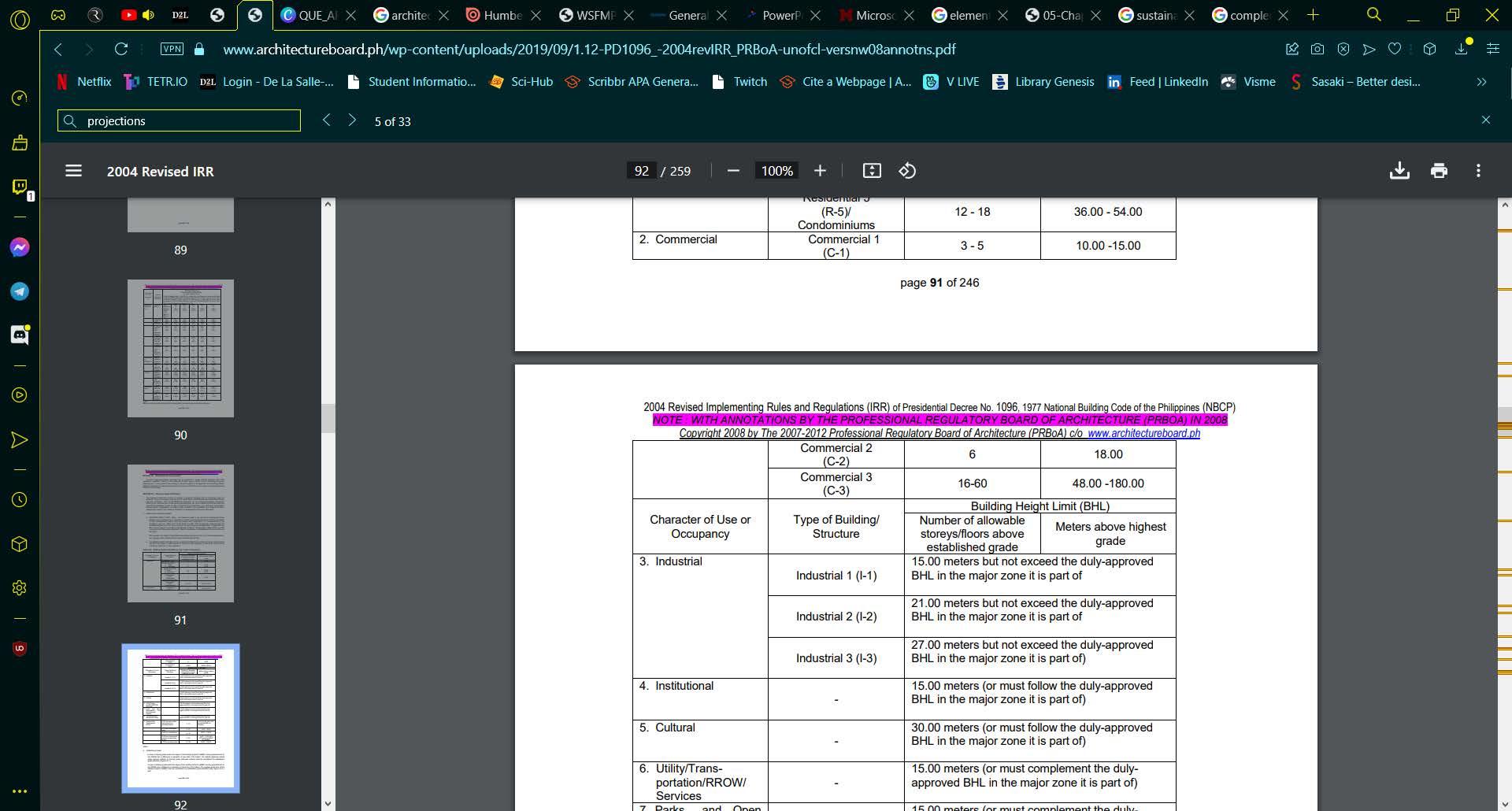

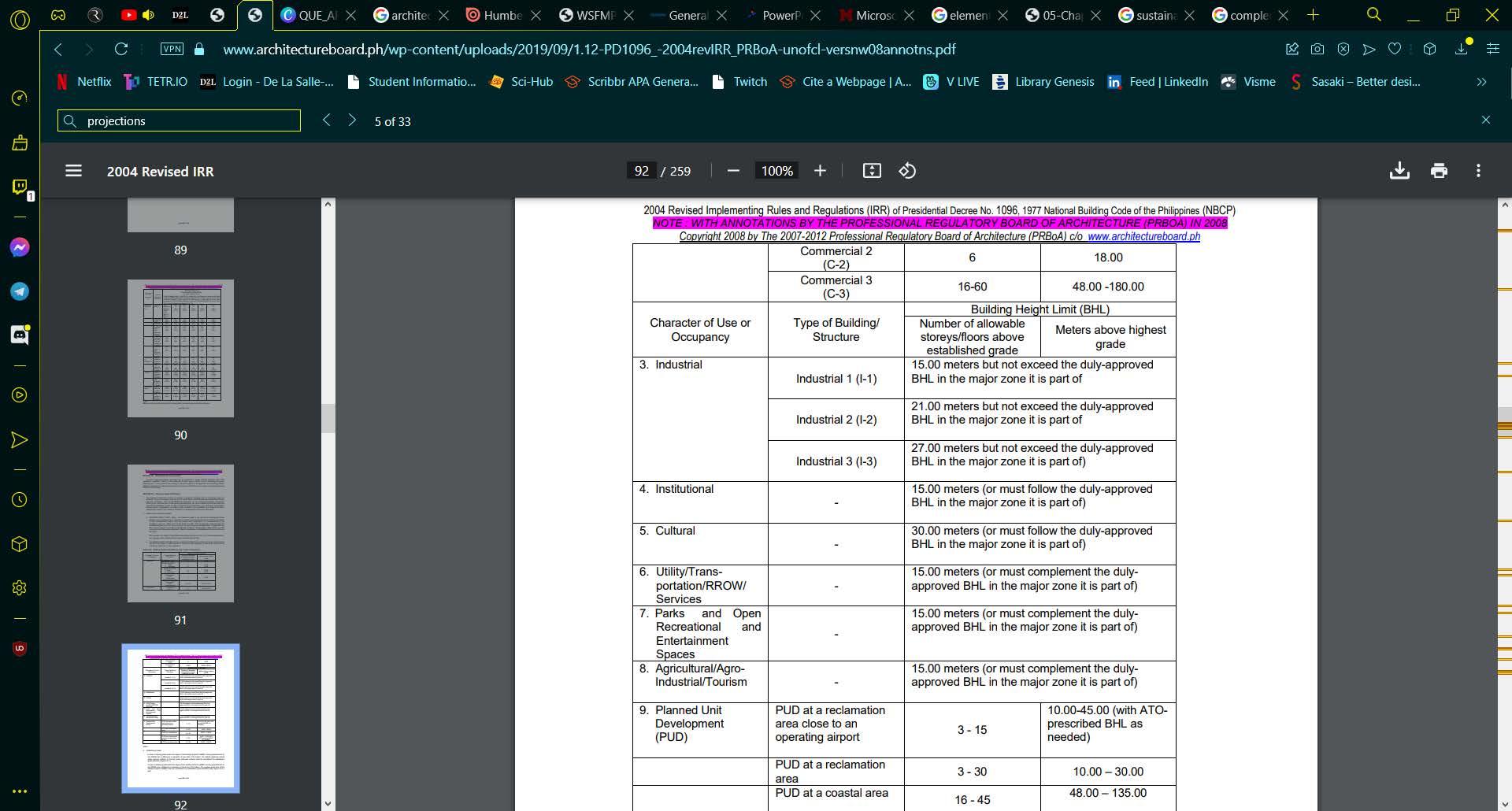

Table VII.2. Building Height Limit (BHL) by Type of Use or Occupancy

Diagram 2. Building Height for Commercial and Institutional Buildings

** Restaurant/ Cafe, Visitors Center, Farmers' Market, Training & Educational Facilities, Production

National Building Code of the Philippines (pg. 91-92)

Facility

This section provides design guidelines for various exterior building materials and conditions.

Color schemes featuring neutral colors are strongly encouraged such as: black

grey

white

tan

brown

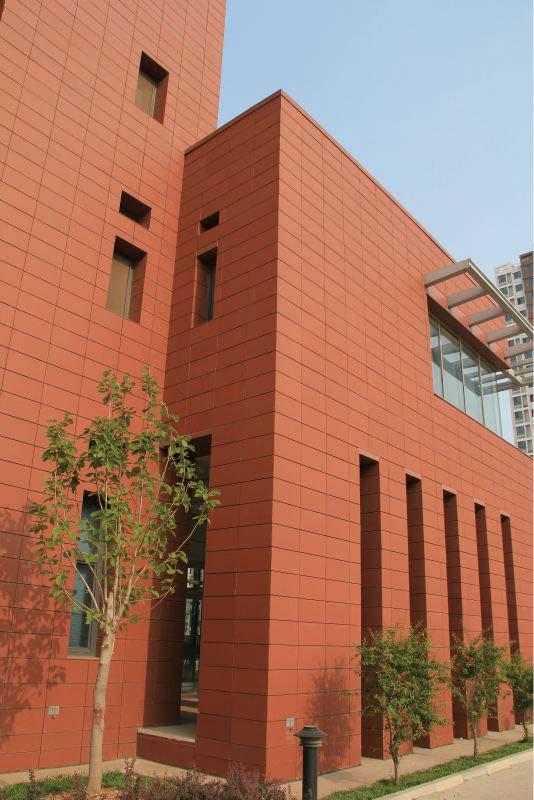

Cladding materials are encourage to be used but shall be limited to the following: bamboo terracotta

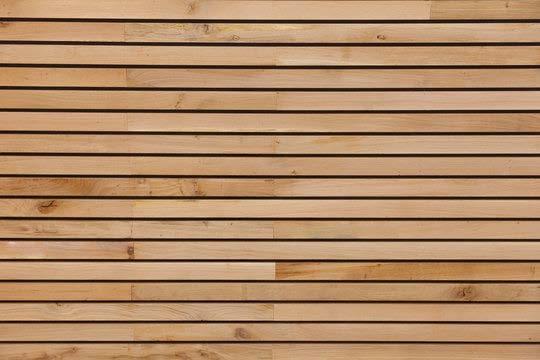

Bamboo Cladding

Terracotta Cladding

The use of stucco combined with terracotta or bamboo in complementary colors encourage Different building programs may be cladded with a single material, or feature a combination of material.

Both light and dark color of bamboo surfaces will be encourage to create attractive and lively streetscapes When selecting terracotta, colors shall be limited to the following: red

orange

brown

The use of steel is encourage but shall not be seen or faced on the public realm.

Exterior Building Material | Page 16

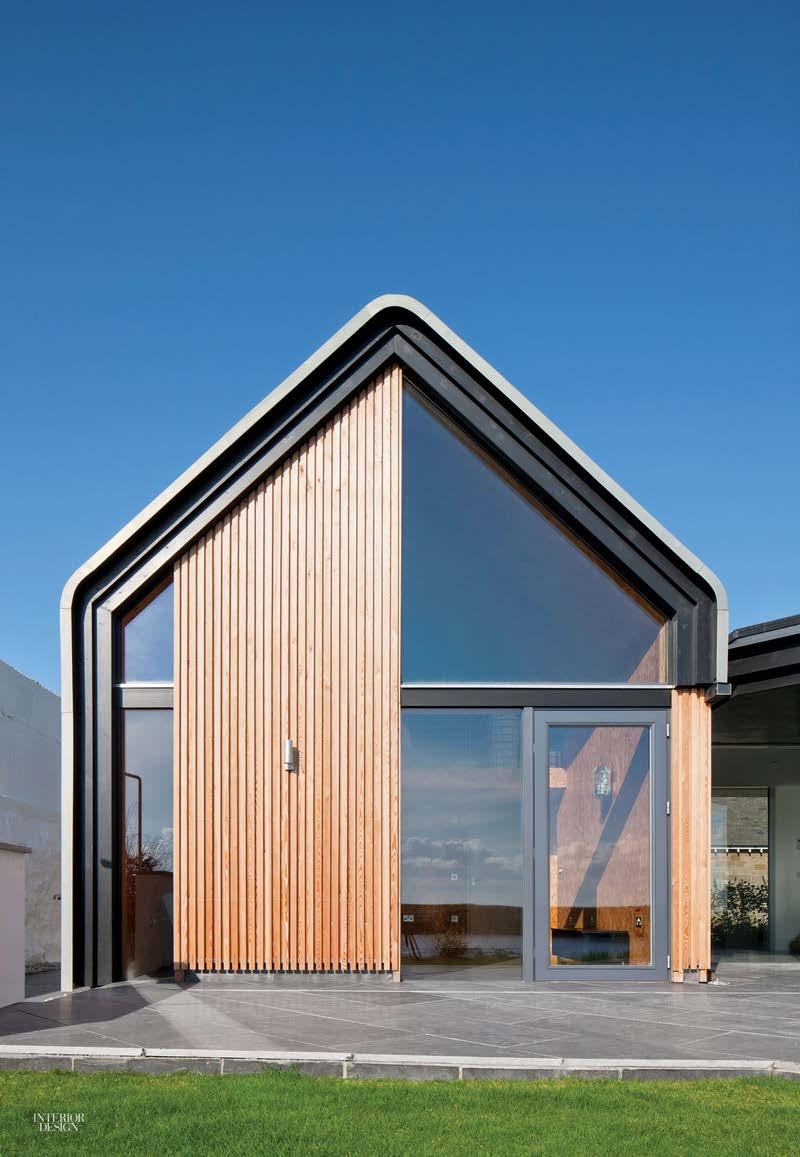

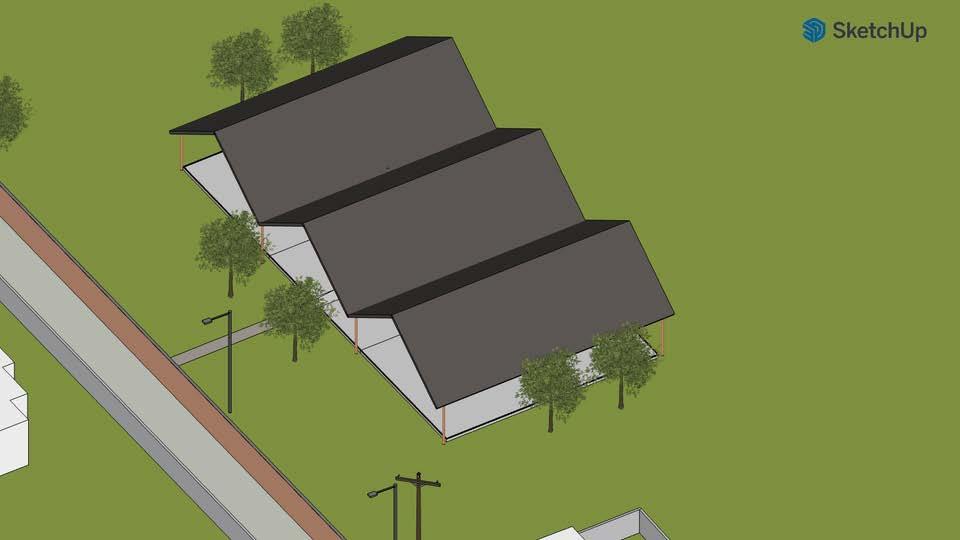

Figure 8. Gable Roof

Roofs shall be limited to the following: (figure 8-9) gable mono-pitched or shed Variety of roof slopes and height may be used but should not exceed within the given height limit of the National Building Code for specific building types.

Gable Roof

Roof drains is to be installed at low points of

Shed Roof

the roof and shall be adequate in size to discharge all tributary waters Roof material shall be limited to the following: (figure 10-11) bamboo natural slate Bamboo Shingles

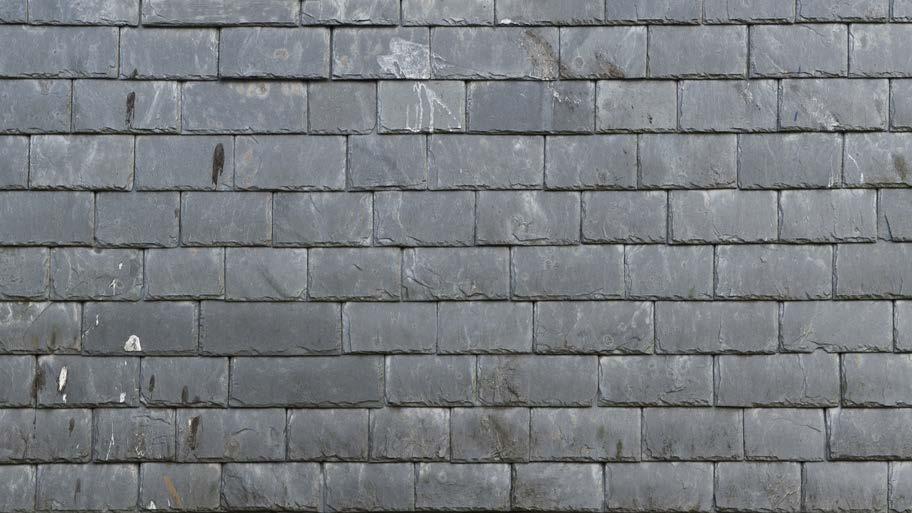

Natural Slate Tiles

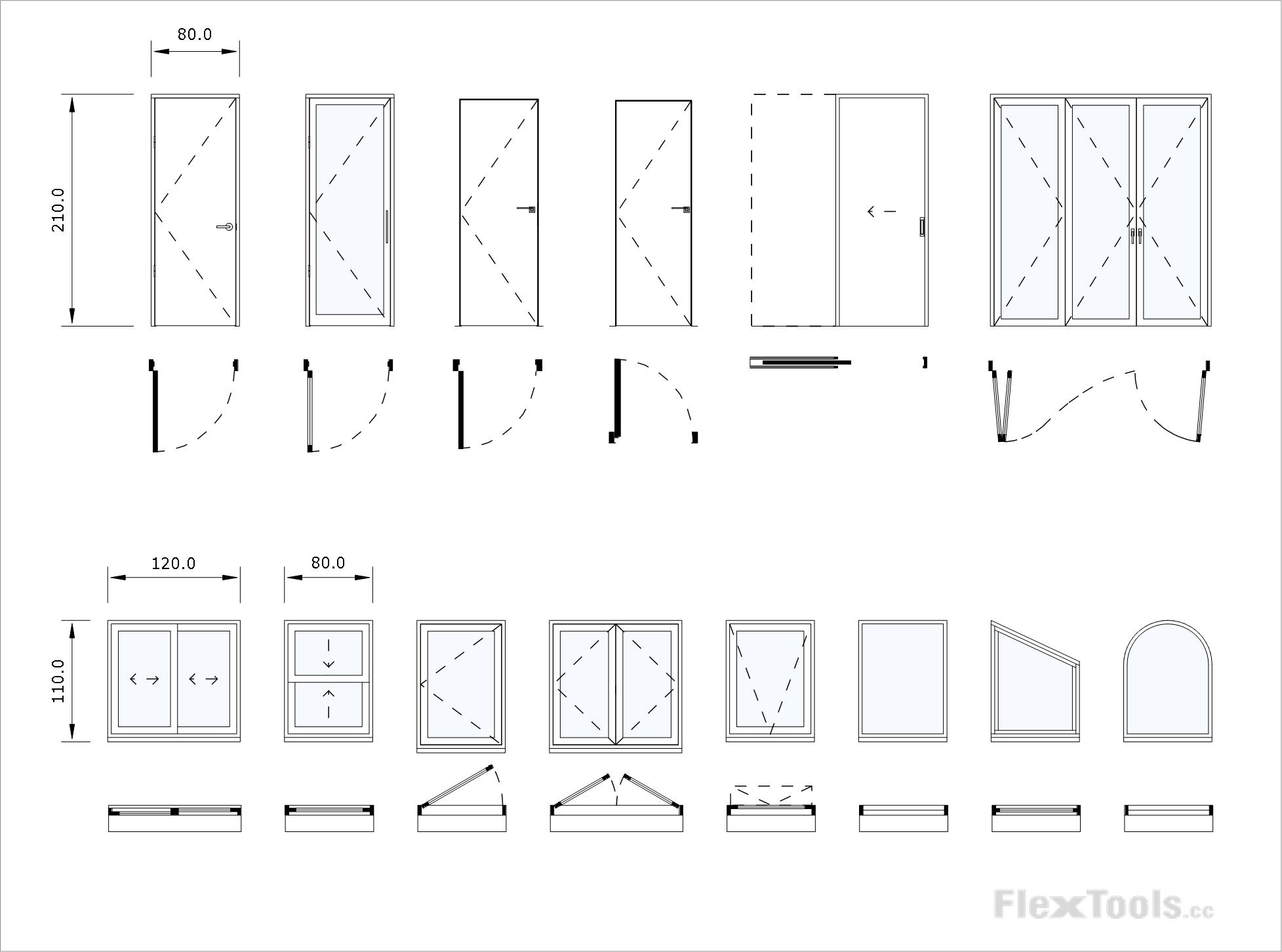

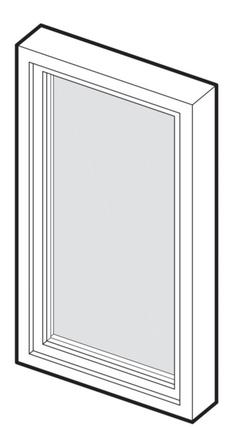

The window types to be utilize is limited to the following:

The minimum clear opening of windows shall have a width

(kindly refer to the images provided)

not less than 820 millimeters

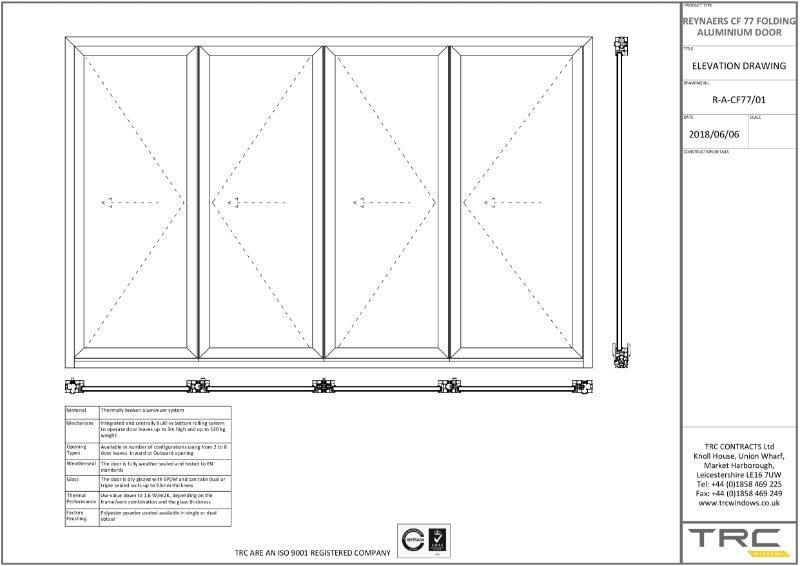

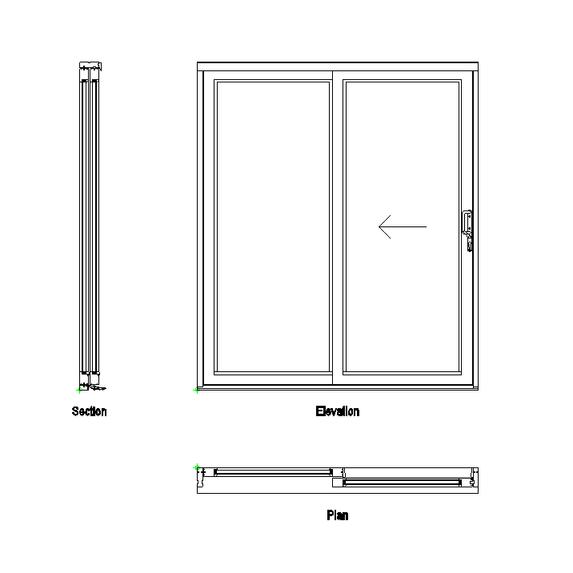

fixed casement awning sliding door French door Colors limiting to neutral color shall be consider for window frames, such as: black

white

fixed

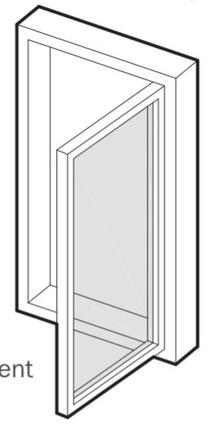

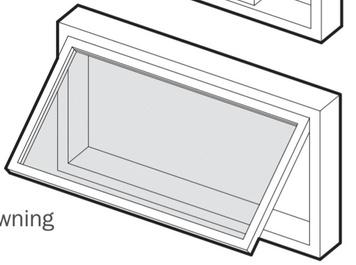

casement

awning

Window bars and grills are discourage for safety purposes.

Windows exposed to the public realm shall feature the same window type

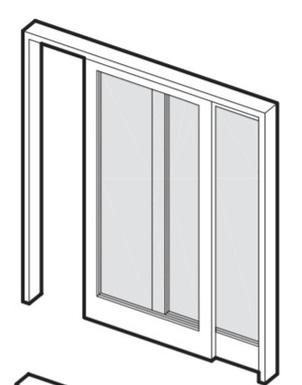

sliding door

French door

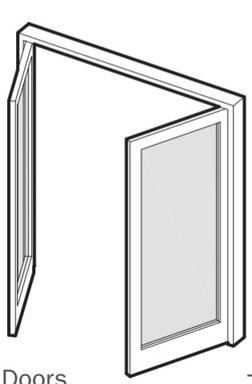

The use of door type and style shall be limited to the following: Based on Operation or Mechanism (figure 17-20) folding sliding Figure 17. folding

swinging

Figure 18. sliding

pocket Colors limiting to neutral color shall be consider for window frames, such as: black

white

For safety measures, door frame materials shall use common materials such as: aluminum fiberglass

Figure 19. swinging

Figure 20. pocket

Smart technologies is encourage for safety and privacy on certain building programs applicable Air conditioning units, where provided, should not be located in the front yard or

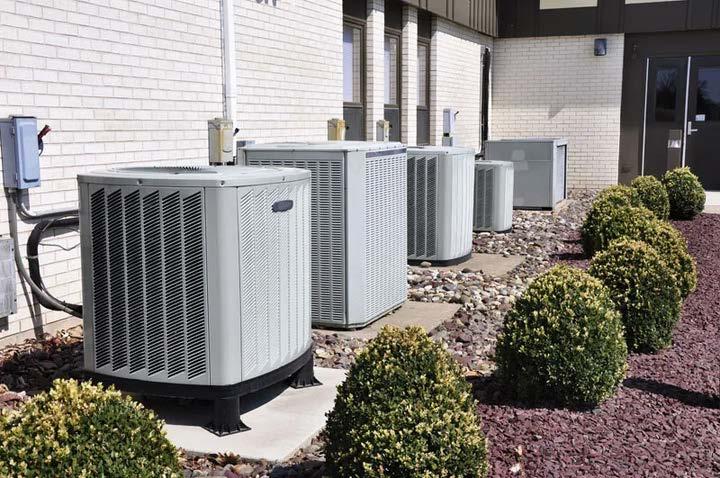

Air conditioning units

any spaces that is visible in the public realm. However, it may be hidden through the use of softscape.

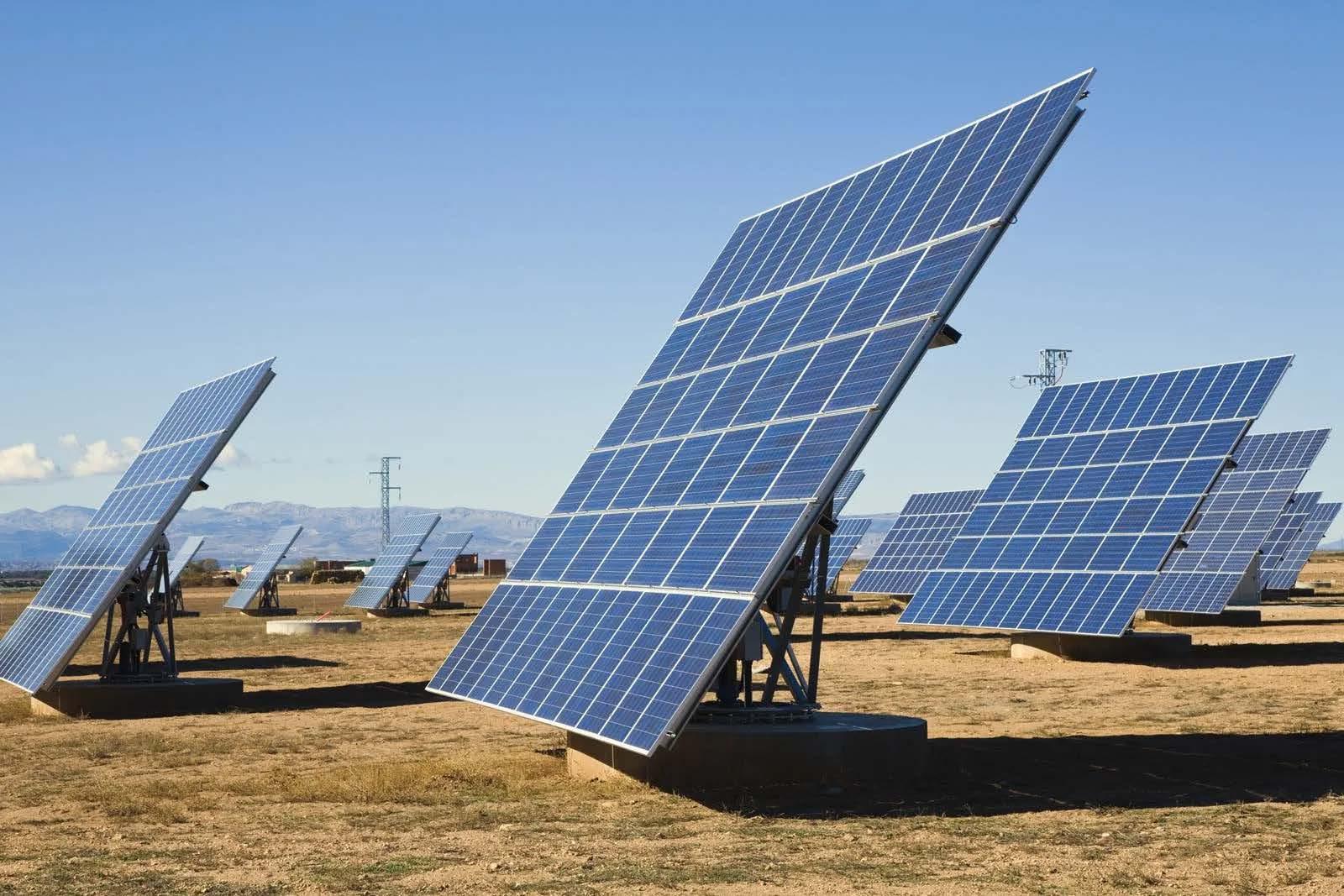

Solar panels may be placed on an area that is between south and east or on the roof of the building programs Irrigation system pipes is encourage to be placed in areas that does hinder the pedestrian circulation Solar Panels

such

as

smart

glass

if

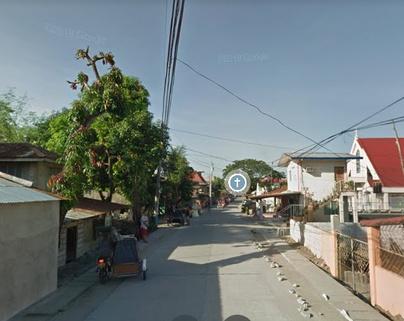

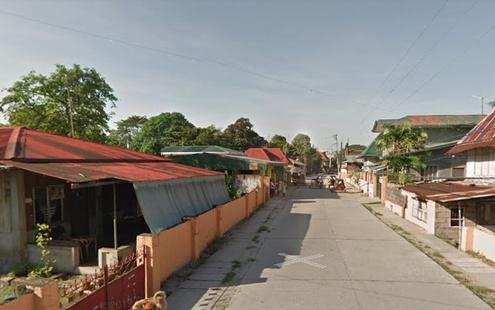

Public road within Santa Rita, Pampanga

function as a sidewalk or viewing deck

which functions as the main road for

overviewing the agriculture farm

interconnecting the different existing streets

Use of private vehicles within the site shall

within the site shall remain to be utilized.

not be permitted Main road shall be access by e-jeeps, tricycle or trucks while the elevated

Public Road must prioritize pedestrian

sidewalk may be accessed by bicycle

and cyclists use and on-street parking is

For the purpose of providing mobility and

highly discouraged.

accessibility, public transportation shall be

Public road will be demarcated through

limited to the following:

the use of green pavement (porous).

tricycle

Softscapes may be included but will be

bicycle

limited to the following shrubs or herbs

Bioswale should be placed along the road

(see the next page for more information)

Provide filter in order to easily trap and

Public road will be expanded to give way

remove contaminants in stormwater.

for pedestrians, and cyclists. This will also

The material to be utilized for the sidewalk will be limited to the following: PVC wood finish (figure ) As for the paving material to be used for the road will be limited to the following: concrete In order to provide safety and garden light post

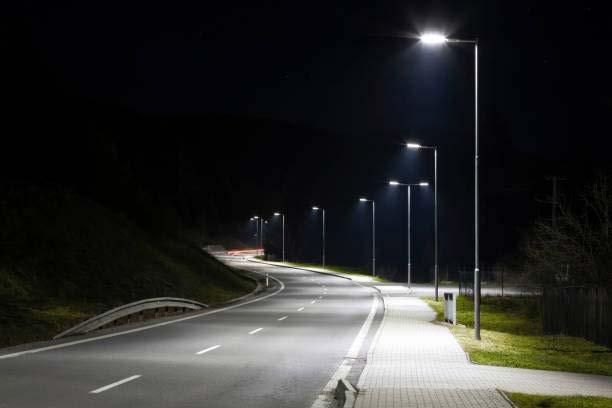

security within the site lighting post shall be provided Lighting post shall be limited to the following type: (figure ) light post single arm

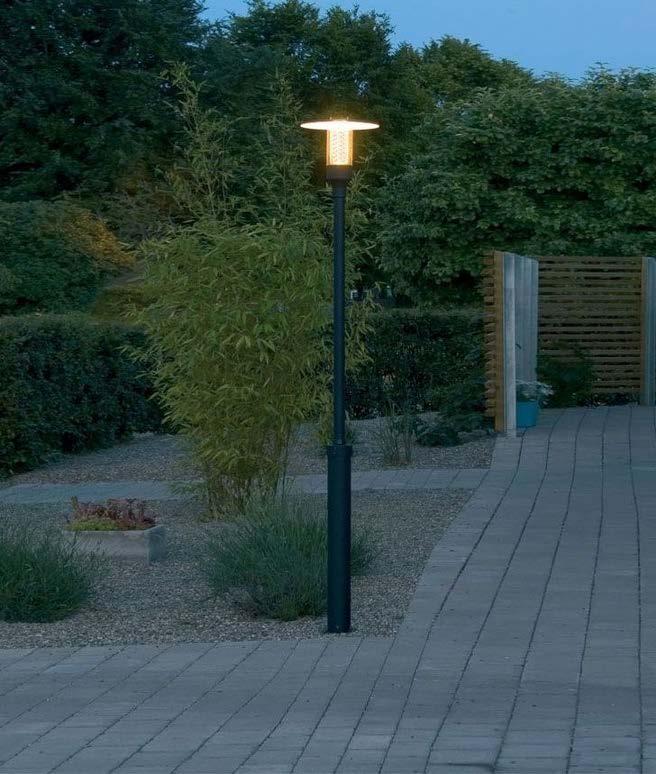

single arm light post

PVC wood Finish

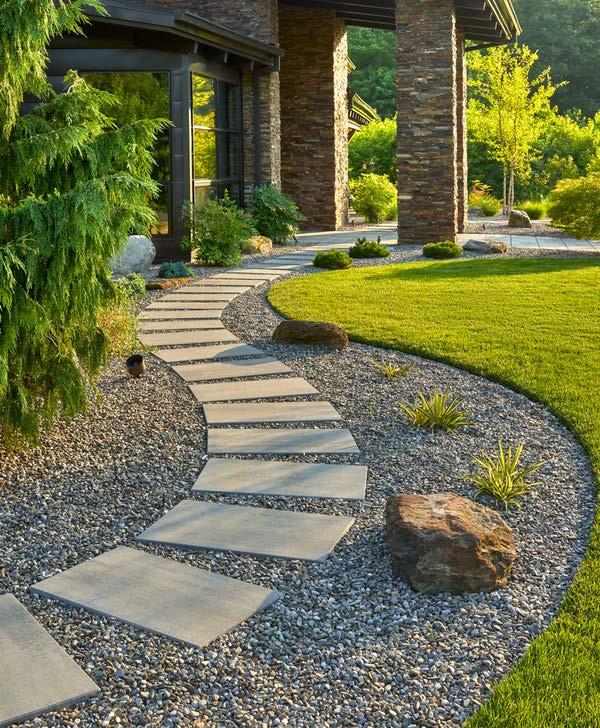

Characteristics of Modern Style Landscape The design concept to be utilized within the both public and private road shall be contemporary in style

Combining straight-line wood elements with shapely rocks adds a contemporary touch.

Flowers aren’t unwelcome but should be placed strategically and kept within

Contemporary Style Landscape works well with contemporary architectural styles, especially wood or concrete homes with dynamic angles goes for a natural look with wood accents upholds the principle that less is more primary goal is to work with what’s already in place and make it better

borders by groundcover or within beds. curves are not off-limits Rocks and gravel make be used, and the rounded edges of winding paths can be tamed by wood or tile spacers

Simple palette of low shrubs, trees, and ground cover may be added but shall not be

excessive,

especially

along

the

agricultural area this is not block or cover the scenic view of the agricultural area Due to the current width of the road which is 5.00m, softscapes width shall only take up not more than 1m Softscapes may vary but shall be limited to the following: (kindly refer to the the images for more information regarding the name of the species) trees shrubs Table are taken from the National Building Code of the Philippines (NBCP)

ground covers the color scheme will be limited to the following colors:

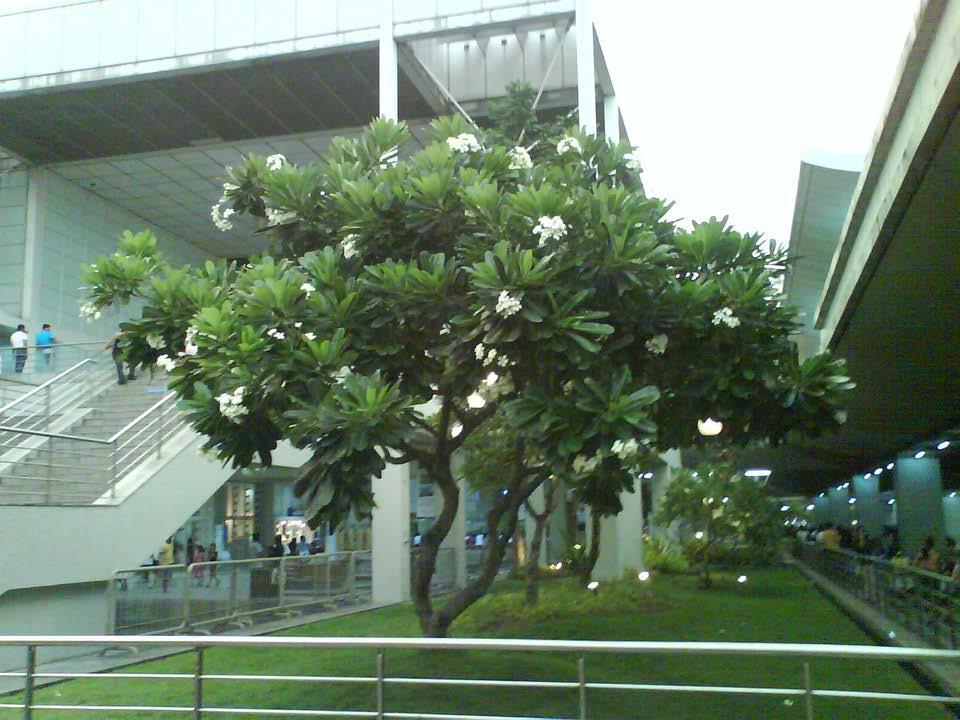

Tree Terminalia mantaly Talisay Tree

Ground Cover Pennisetum setaceum 'Rubrum' Purple fountain

Tree Alstonia scholaris Dita

Ground Cover Bouteloua dactyloides Buffalo grass

Tree Podocarpus macrophyllus Buddhist pine

Shrub Asparagus densiflorus Foxtail Fern

Shrub Acalypha wilkensiana Copperleaf

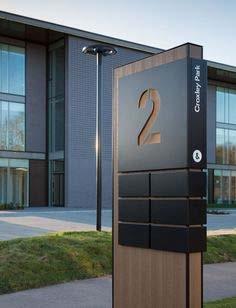

Wayfinding signage should be visible for tourists and pedestrian convenience and are encouraged to provide directions (i.e.: visitors center, etc.)

Signage if included, should be enhanced/ complemented

through

streetscape

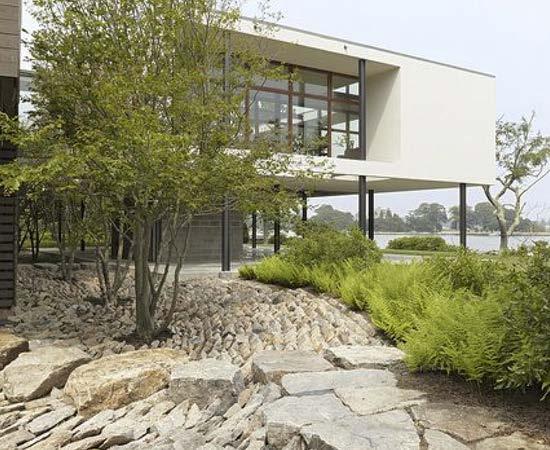

elements such as paving, planting and lighting Bioswale should be placed along the road Provide filter in order to easily trap and remove contaminants in stormwater.

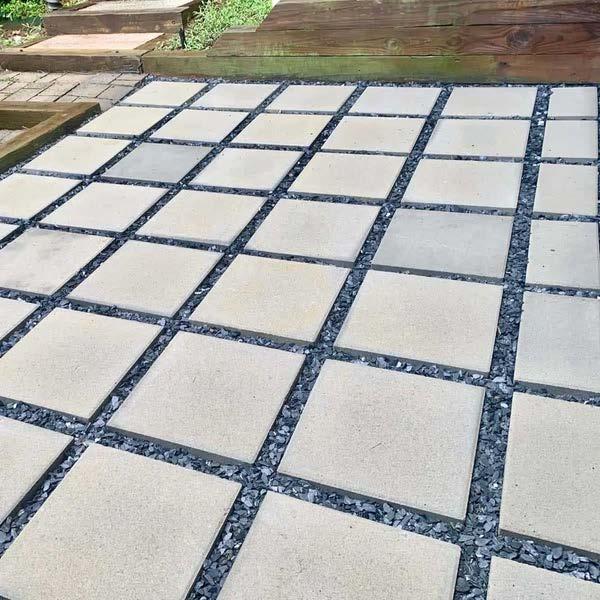

Paving materials to be utilized shall be limited to the following: concrete Bike lane should be determined through the color finish of the pavement:

bollard light

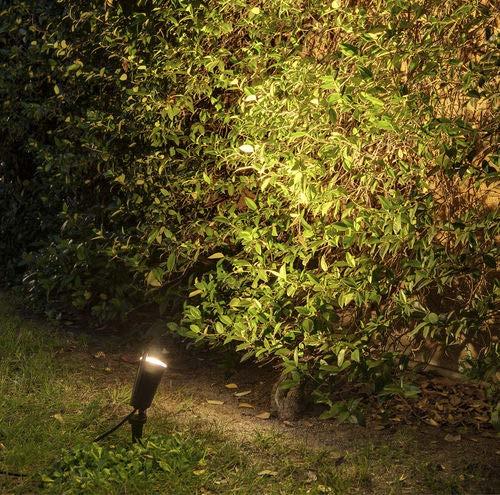

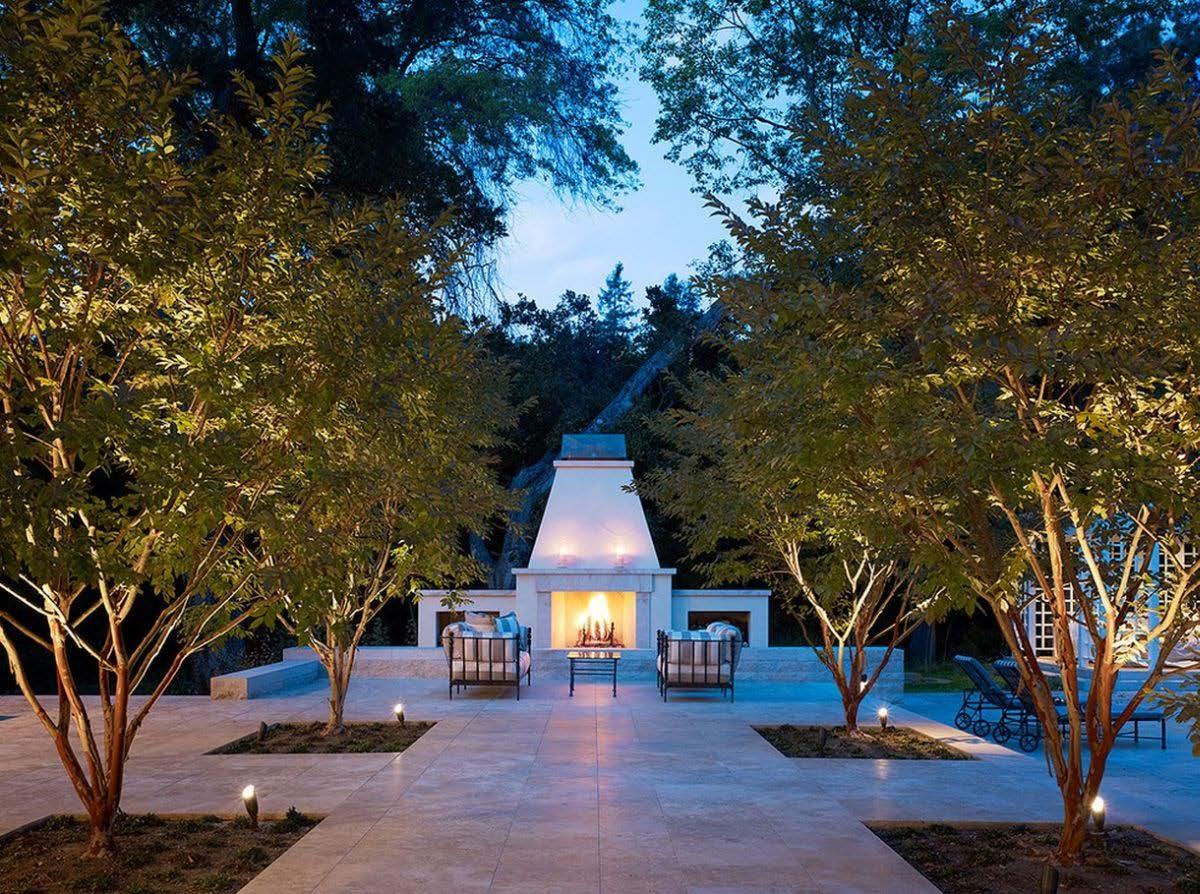

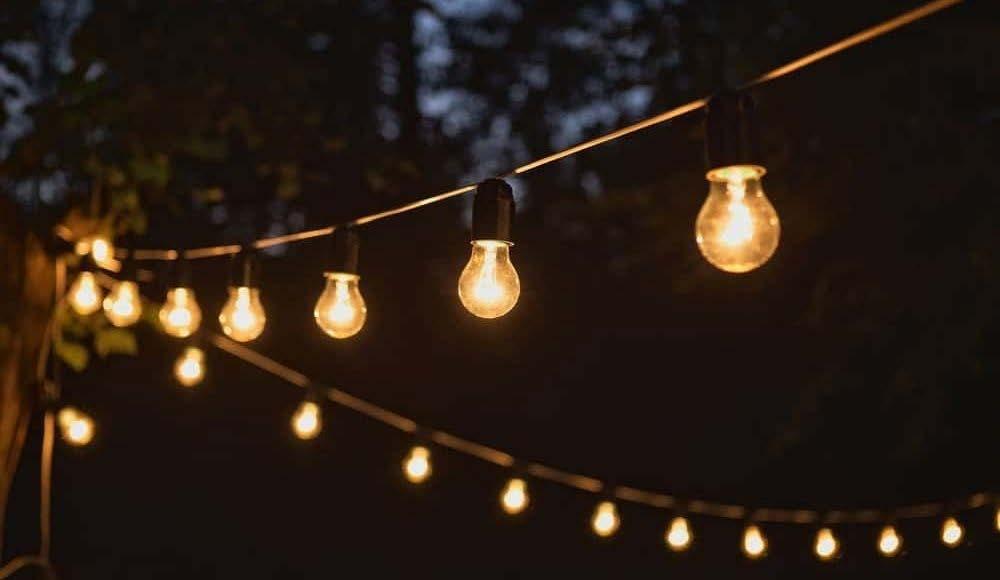

red Lighting is provided for safety and security purposes, and shall be limited to the following types: Bollard Garden Light Post Light floor spotlight

post light

garden light post

Floor Spot Light

Due to the narrow width of private roads, potted plants in front of the existing structures are encourage in order to act as

Indoor Plant Cicar calathea Cigar plant

a barricade or divider On ground softscape may be encourage but shall not be placed within the road For the layout of the potted plant it should be in front of the existing structure (houses) if applicable and is to be in linear/ adjacent to the minor road

Tree Ficus lyrata Fiddle leaf fig

Indoor Plant Spathipyllum 'Sensation’ Spatheflower

Color scheme to be seen within the area: white green yellow Indoor Plant Dracaena trifasciata Snake plant

Indoor Plant Mussaenda philippica Snake plant

Potted plants that will be utilized may be in varied but shall be limited (kindly refer to the images provided)

** The name of the species is indicated in the images along with their scientific name

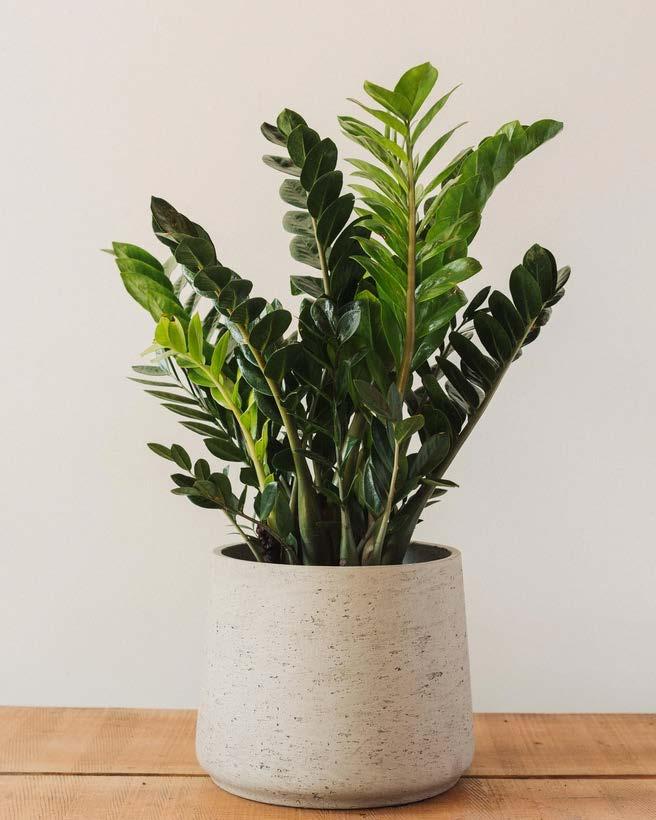

Indoor Plant Zamioculcas zamiifolia ZZ plant

Indoor Plant Dracaena marginata Madagascar dragon tree

Indoor Plant Spathiphyllum wallisii Peace lily

Rental Biking locations will be provided and are encourage within the site as one of the mode of transportation in order to provide safety, accessibility and convenience

Bicycle racks shall be provided within open

spaces

such

as

parks

and

recreational as well as bicycle rental Bioswale

should

be

placed

within

ornamental grasses, shrubs, perennials, or a combination of these Provide filter in order to easily trap and remove contaminants in stormwater.

Rack Type U-rack

Rack Type Grid

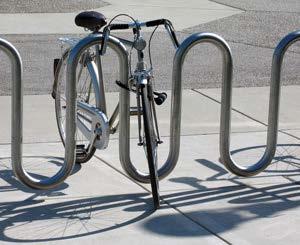

Rack Type Wave

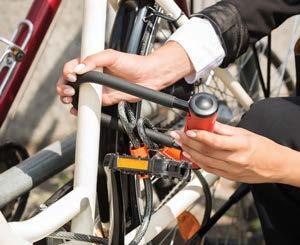

Lock Type U-lock

For security purposes lock type to be utilized Where

rental

bikes

are

should

be

the

u-lock

located,

typeSymbols or pavement markings may

information signages or way finding may

be included to distinguish all cycling

be provided

routes

Bicycle racks should be provided where

Lighting to be utilized will be limited to

rental bikes are located

the following type: (kindly refer to the

Bicycle racks should be under the

images)

following style: (kindly refer to the

Post Light

images)

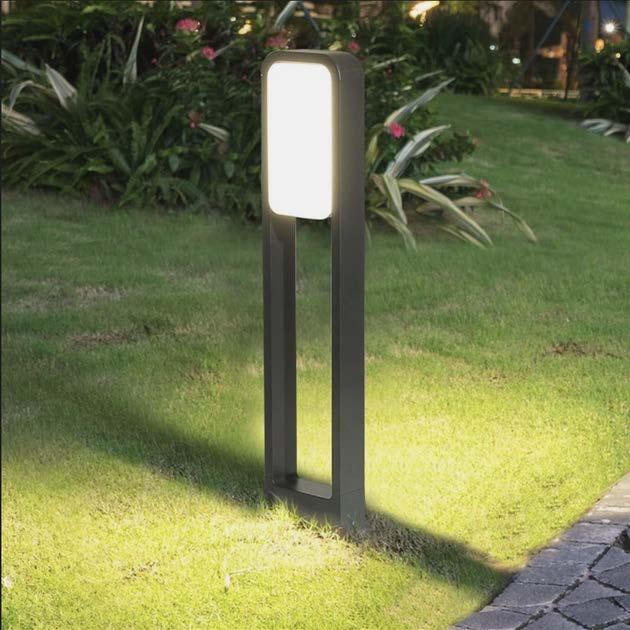

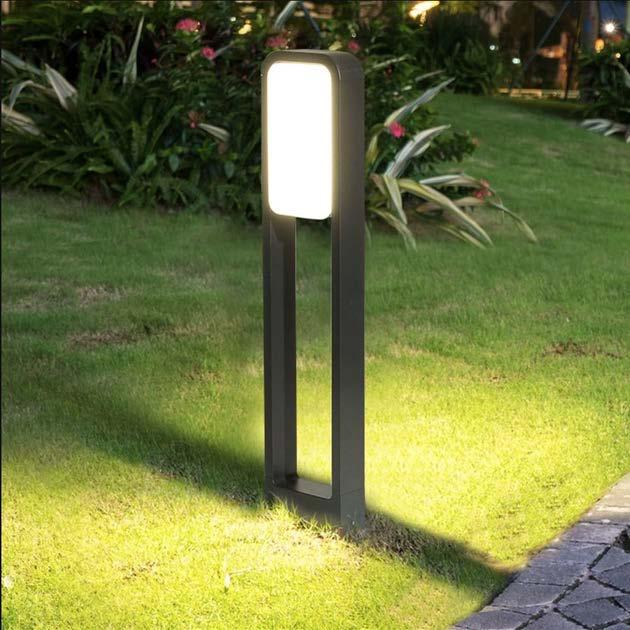

Garden Light (Bollard)

wave

Garden light should be placed near the

grid

softscape in order to provide safety and

u-rack

not cause users accidents

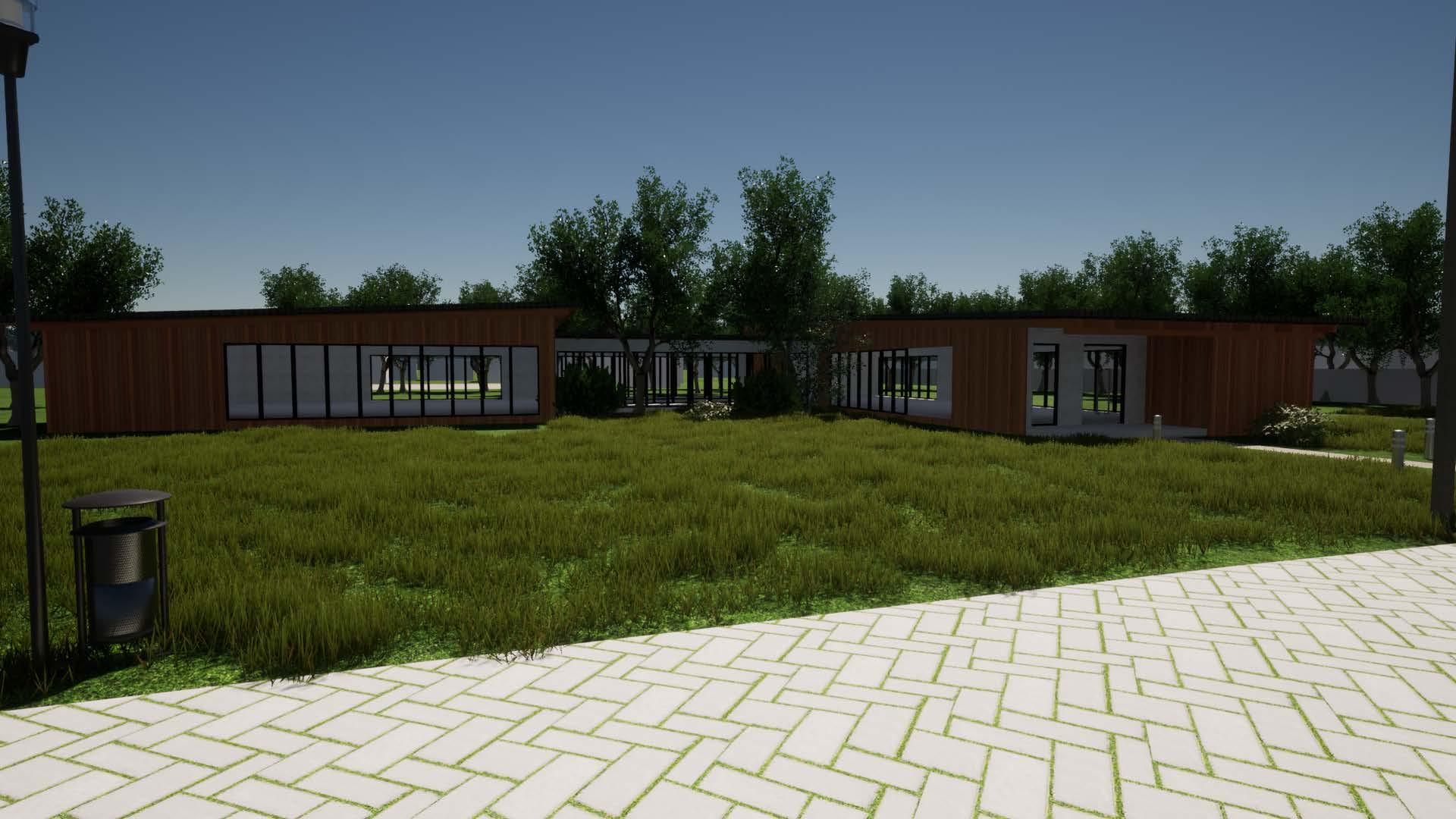

The design concept to be utilized will be modern in style

Modern Style Landscape defined by clean edges and an uncluttered look. a great fit for a property with a contemporary or modern home as well as a refreshing juxtaposition to a more traditional architectural style

Characteristics of Modern Style Landscape grass lawn can be the majority of a modern landscape or can be used as an accent if paths, gravel-filled beds and steps make up the bulk of the design. easier to maintain plants are used symmetrically Pale colors and plants with a distinct form work best. Wild and wooly shrubs, wandering vines and flowering shrubs don’t fit the aesthetic.

Mixing too many types of plants together can immediately make the design look traditional

Where bike rentals are located, trees shall be provided with the maximum of 3 color scheme for this program are yellow

Tree Terminalia mantaly Talisay Tree

Tree Cassia fistula Drooping Cassia

Tree Tabebuia rosea Trumphet tree

green white blue/ purple Trees to be utilize must provide shade Shrubs are encourage but shall be limited (kindly refer to the images provided for more information) Providing of trees that provides shades

Ground Cover Ophiopogon jaburan Variegated mondo

Ground Cover Bouteloua dactyloides Buffalo grass

Shrub Plumbago auriculata Cape plumbago

Shrub aglaia odorata Chinese Perfume Plant

Shrub Scheffera arboricola Five fingers

may be included but are limited (refer to the images provided)

Shrub Carmona retusa Tsaang gubat

Wayfinding signage should be visible for tourists and pedestrian convenience and are encouraged to provide directions (i.e.: visitors center, etc.)

Signage

should

complemented

be

enhanced/

through

streetscape

elements such as paving, planting and lighting Bioswale

should

be

placed

within

ornamental grasses, shrubs, perennials, or a combination of these Provide filter in order to easily trap and remove contaminants in stormwater.

The signage must be modern in character material should showcase wood and/or steel finish The material to be utilized for the viewing

PVC wood Finish

deck must be limited to PVC with wood like finish Provide lights for visibility because of the site's condition it lacks visibility to the

bollard light

people The light fixture that shall be utilize must be limited to the following: Ground Spotlight Bollard Garden Light

floor spotlight

modern signage

The design concept to be utilized will be modern in style

Prairie Style Landscape Landscape

spaces

were

characterised by horizontal lines

organized as a sequence of

and

outdoor

architecture

rooms

and

views,

masses, of

with the

the houses

emphasizing the interaction of

embracing an all-encompassing

sky and landscape

philosophy of integration with the

Walls, fieldstone paths, bridges,

surrounding landscape

overlooks,

relied on light and shadow,

and

council

rings

often were built of horizontally

repetition,

and

horizontal

detailed native limestone

elements to create spaces

Color scheme is to fall under the following: green Plant species should consist of

white

ground covers, shrubs or fern

purple

through which it shall not block

pink

the signage of the entry point Trees

are

discourage

for

Ground Cover Panicum virgatum switchgrass

Ground Cover Pennisetum setaceum 'Rubrum' Purple fountain

Variety of plants may be used for it

blocks the landmark for entry

this selected program but it shall be limited to the following type:

and exit points, and scenic view

ground cover

for viewing deck

flowering plant

Ground Cover Ophiopogon jaburan Variegated mondo

Flowering Plant Aster trinervius Aster

Flowering Plant eriocapitella vitifolia Grape-Leaved Anemone

Shrub Plumbago auriculata Cape plumbago

Bioswale should be placed within ornamental

grasses,

shrubs,

perennials, or a combination of these Provide filter in order to easily trap and

remove

stormwater.

contaminants

in

Hardscape finish for walkway should be within the provided list: Stepping stone

Flagstone

flagstone stepping stone wood, and gravel may also be utilized and incorporated in the walkway as finish In order to provide visibility, safety and ambiance lighting shall be included The light to be utilize shall be limited to the following: bollard light

Bollard Garden Light

Ground Light

spotlight

The design concept to be utilized will be modern in style

Modern Style Landscape defined by clean edges and an uncluttered look. a great fit for a property with a contemporary or modern home as well as a refreshing juxtaposition to a more traditional architectural style

Characteristics of Modern Style Landscape grass lawn can be the majority of a modern landscape or can be used as an accent if paths, gravel-filled beds and steps make up the bulk of the design. easier to maintain plants are used symmetrically Pale colors and plants with a distinct form work best. Wild and wooly shrubs, wandering vines and flowering shrubs don’t fit the aesthetic.

Mixing too many types of plants together can immediately make the design look traditional

Ground Cover Ophiopogon jaburan Variegated mondo

Ground Cover Tradescantia spathacea Boat lily

Ground Cover Bouteloua dactyloides Buffalo grass

Tree Plumeria obtusa Kalachuchi tree

Tree Podocarpus macrophyllus Buddhist pine

Color scheme to use is to fall

Variety of plants may be used

under the following:

but for this selected program, it

white

shall be limited to the following

green

type:

purple

ground cover shrub tree

shrub Conocarpus erectus Silver buttonwood

outdoor spaces such as outdoor dining should provide shade for tourist and guests Bioswale

should

be

placed

within

ornamental grasses, shrubs, perennials, or a combination of these Provide filter in order to easily trap and remove contaminants in stormwater.

Hardscape finish for walkway should be within the provided list: Stepping stone

flagstone

Flagstone

stepping stone wood, and gravel may also be utilized and incorporated in the walkway as finish In order to provide visibility, safety and ambiance lighting shall be included The light to be utilize shall be limited to the following: bollard light spotlight Bollard Garden Light

Ground Light

String Lights

string lights

Characteristics of Modern Style Landscape The design concept to be utilized within the both public and private road shall be contemporary in style

Combining straight-line wood elements with shapely rocks adds a contemporary touch.

Flowers aren’t unwelcome but should be placed strategically and kept within

Contemporary Style Landscape works well with contemporary architectural styles, especially wood or concrete homes with dynamic angles goes for a natural look with wood accents upholds the principle that less is more primary goal is to work with what’s already in place and make it better

borders by groundcover or within beds. curves are not off-limits Rocks and gravel make be used, and the rounded edges of winding paths can be tamed by wood or tile spacers

Indoor Plant Dracaena trifasciata Snake plant

Ground Cover Ophiopogon jaburan Variegated mondo

Ground Cover Bouteloua dactyloides Buffalo grass

For the layout of the plants, it should be within the following: rectalinear Tree Terminalia mantaly Talisay Tree Tree Terminalia mantaly Talisay Tree

Tree Alstonia scholaris Dita

Tree Vitex parviflora Molave

Tree Alstonia scholaris Dita

irregular Variety of plants may be used but for this selected program, it shall be limited to the following type: (kindly refer to the images for the species name) ground cover shrub indoor plant trees

Shrubs Pandanus pygmaeus Dwarf screwpine

shrub Conocarpus erectus Silver buttonwood

Tree Solanum macranthum Potato Tree

Bioswale should be placed within ornamental grasses, shrubs,

perennials,

or

a

combination of these Provide filter in order to easily

trap

and

remove

contaminants in stormwater.

Hardscape finish for walkway should be within the provided list: Stepping stone

Flagstone

flagstone stepping stone wood, and gravel may also be utilized and incorporated in the walkway as finish In order to provide visibility, safety and ambiance lighting shall be included The light to be utilize shall be limited to the following: bollard light

Bollard Garden Light

Ground Light

spotlight

The design concept to be utilized will be modern in style

Modern Style Landscape defined by clean edges and an uncluttered look. a great fit for a property with a contemporary or modern home as well as a refreshing juxtaposition to a more traditional architectural style

Characteristics of Modern Style Landscape grass lawn can be the majority of a modern landscape or can be used as an accent if paths, gravel-filled beds and steps make up the bulk of the design. easier to maintain plants are used symmetrically Pale colors and plants with a distinct form work best. Wild and wooly shrubs, wandering vines and flowering shrubs don’t fit the aesthetic.

Mixing too many types of plants together can immediately make the design look traditional

For the plants should complement a spanish style For the layout of the plants, it should be within the following:

Tree Alstonia scholaris Dita

Tree Nerium sp White Adelfa

Tree Crateva religiosa Salingbobog

Tree Jacaranda mimosuifolia Jacaranda

Tree Podocarpus macrophyllus Buddhist pine

rectalinear irregular Variety of plants may be used but for this selected program, it shall be limited to the following: (kindly refer to the next page for more information)

Shrub Dracaena angolensis Cylindrical Snake Plant

Shrub Aglaia odorata Chinese perfume plant

Flowering Plant Aster trinervius Aster

Ground Cover Bouteloua dactyloides Buffalo grass

Ground Cover Ophiopogon jaburan Variegated mondo

The edible garden is not limited to the products that the owner wanted to plant or to what is provided on the given list (refer to the product page) Both raised bedding and planters should be applicable for greenhouses.

Greenhouse

structure

must

also

be

utilized for indoor herbs and an area for storage Bioswale

should

be

placed

within

ornamental grasses, shrubs, perennials, or a combination of these Provide filter in order to easily trap and remove contaminants in stormwater.

For walkway, the materials to be used should be within the list provided: gravel stepping stone pavers

Stepping stone

Pavers

In order to provide visibility, safety and ambiance lighting shall be included The light to be utilize shall be limited to the following: bollard light spotlight

Bollard Garden Light

Ground Light

gravel

Fruit Calamnsi

Vegetable Lettuce

Fruit Carabao mango

Fruit Piko mango

Vegetable Cabbage

Vegetable Carrots

Fruit Muskmelon

Vegetable Onion

Fruit Mandarin ladu

Vegetable Eggplant

Guyabano

Vegetable Tomato

Parsley

Basil

Rosemary

Cilantro

Bay leaf

Oregano

Lemongrass

Black pepper

For every recreational and open spaces, trees must be provided that may act as a buffer zone.

Outdoor amenities such as benches, trash bins are encouraged for

parks, and

recreational spaces Information board may be provided but are placed where they may be most useful and easily accessible by tourists Signage should be coordinated near entrances in order to minimize of reduce clutter Bioswale

should

be

placed

within

ornamental grasses, shrubs, perennials, or a combination of these Provide filter in order to easily trap and remove contaminants in stormwater.

Hardscape finish for walkway should be within the provided list: Stepping stone

Flagstone

flagstone stepping stone wood, and gravel may also be utilized and incorporated in the walkway as finish In order to provide visibility, safety and ambiance lighting shall be included The light to be utilize shall be limited to the following: bollard light

Bollard Garden Light

Ground Light

spotlight

Characteristics of Modern Style Landscape The design concept to be utilized within the both public and private road shall be contemporary in style

Combining straight-line wood elements with shapely rocks adds a contemporary touch.

Flowers aren’t unwelcome but should be placed strategically and kept within

Contemporary Style Landscape works well with contemporary architectural styles, especially wood or concrete homes with dynamic angles goes for a natural look with wood accents upholds the principle that less is more primary goal is to work with what’s already in place and make it better

borders by groundcover or within beds. curves are not off-limits Rocks and gravel make be used, and the rounded edges of winding paths can be tamed by wood or tile spacers

Trees for cooling and shade should be provided in open spaces For safety, only bushes may be placed at points where it adjacent to the road in order to act as barricades For planting layout it should be within the following:

Shrub Aglaia odorata Chinese perfume plant

Flowering Plant Aster trinervius Aster

rectalinear irregular Vegetations to be utilized should be within the provided list (refer to the images) shrubs ground covers trees Flowering plant Ground Cover Bouteloua dactyloides Buffalo grass

Ground Cover Ophiopogon jaburan Variegated mondo

Tree Crateva religiosa Salingbobog

Tree Cassia fistula Drooping Cassia

Tree Jacaranda mimosuifolia Jacaranda

Tree Tabebuia rosea Trumphet tree

Tree Alstonia scholaris Dita

Tree Plumeria obtusa Kalachuchi Tree

Ground Cover Pennisetum setaceum 'Rubrum' Purple fountain

Shrub Acalypha wilkensiana Copperleaf

visitor center

farmer's market

education & training facility

assembly hall

restaurant

greenhouse

entry point

public road

private road

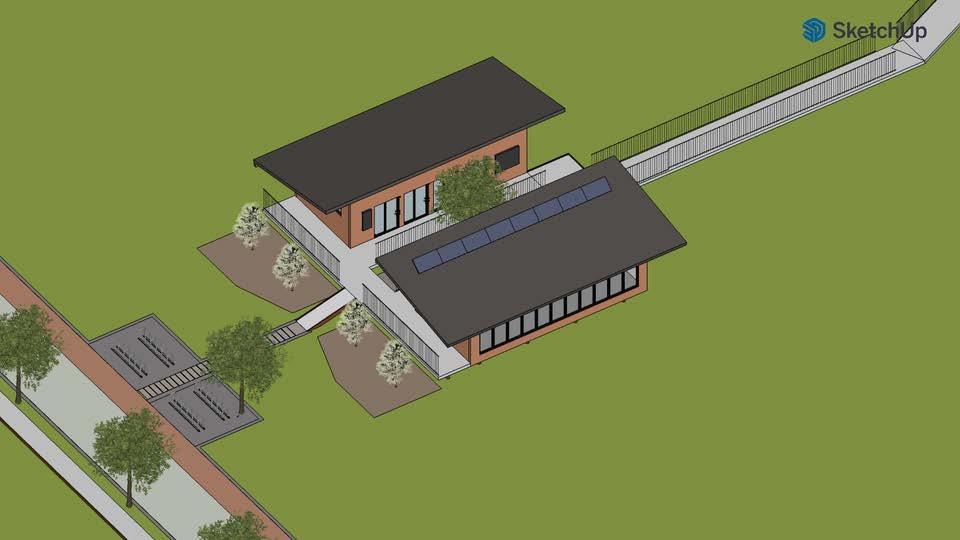

Area Tabulation: 8.20 x 25.65 = 210.33sqm visitor center

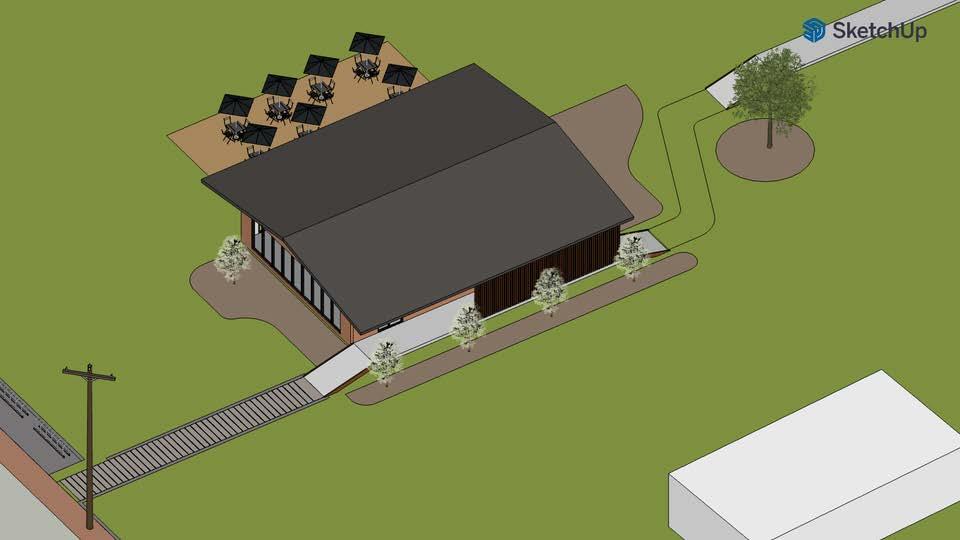

Area Tabulation: 29.70 x 14.85 = 441.045sqm farmer's market

Area Tabulation: 37.70 x 25 = 942.5sqm educational & training facility

Area Tabulation: 13x 16= 208sqm assembly hall+ bike area

Area Tabulation: 10x 15.15= 151.5sqm restaurant

Area Tabulation: 25x15= 375sqm production facility

viewing deck + elevated pathway

Area Tabulation: 10x17.20= 172sqm edible garden/ greenhouse

open spaces

Domingo, G. (n.d.). Agriculture Hubs. Https://Futurearchitectureplatform.Org. Retrieved August 17, 2022, from https://futurearchitectureplatform.org/projects/de72ab49-878e-464b-9526-516855ff5700/

What is Theory of Change? (2021, January 30). Theory of Change Community. Retrieved August 17, 2022, from https://www.theoryofchange.org/what-is-theory-of-change/

Architecture Design 08 08.13.22
