Building Regulations Example Project - Kensington

Sheet Schedule

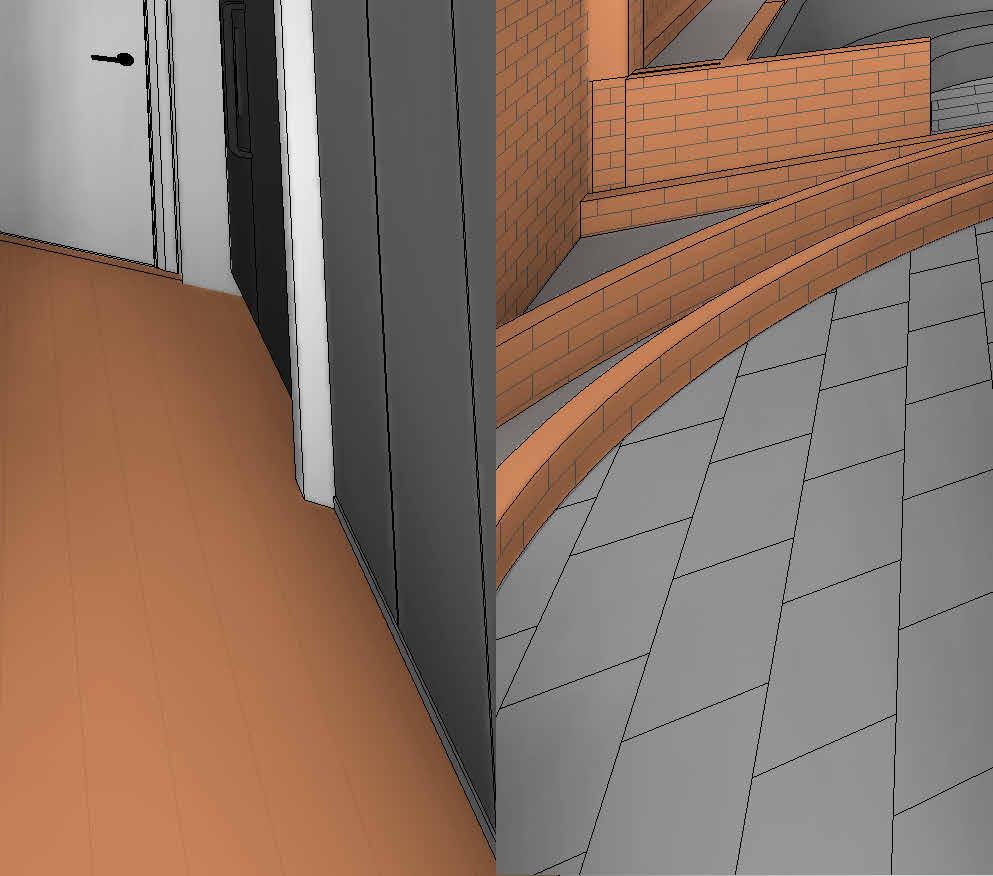

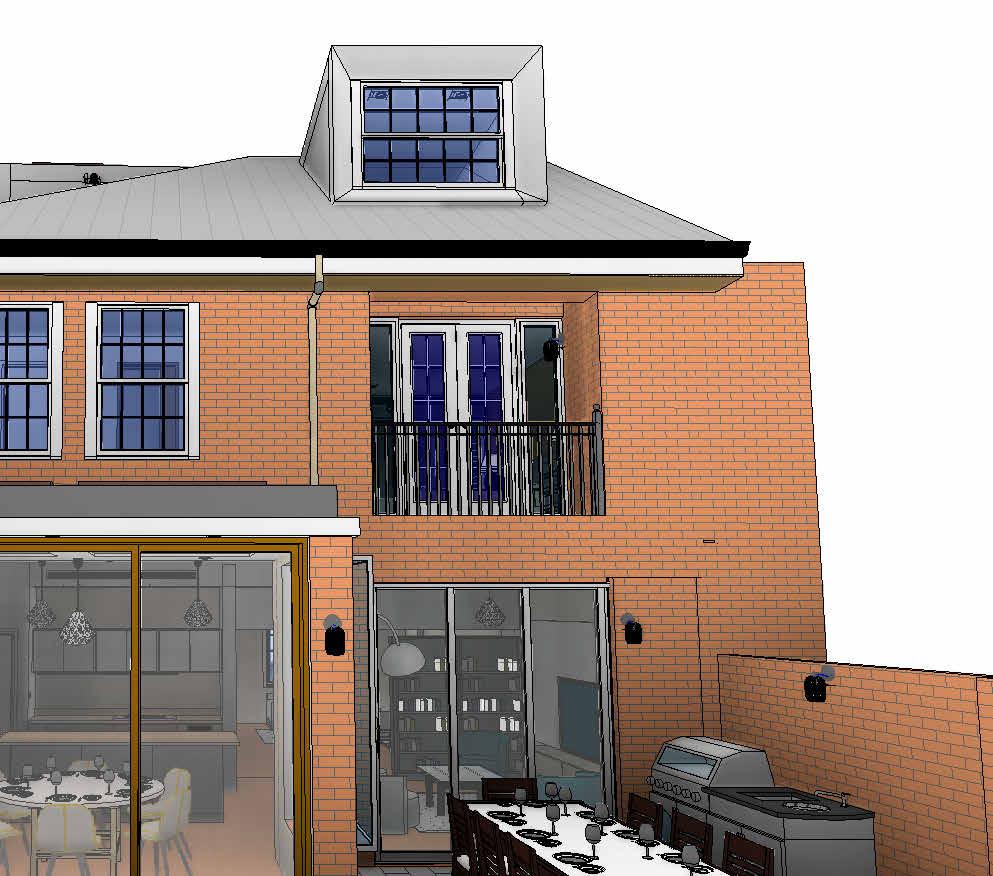

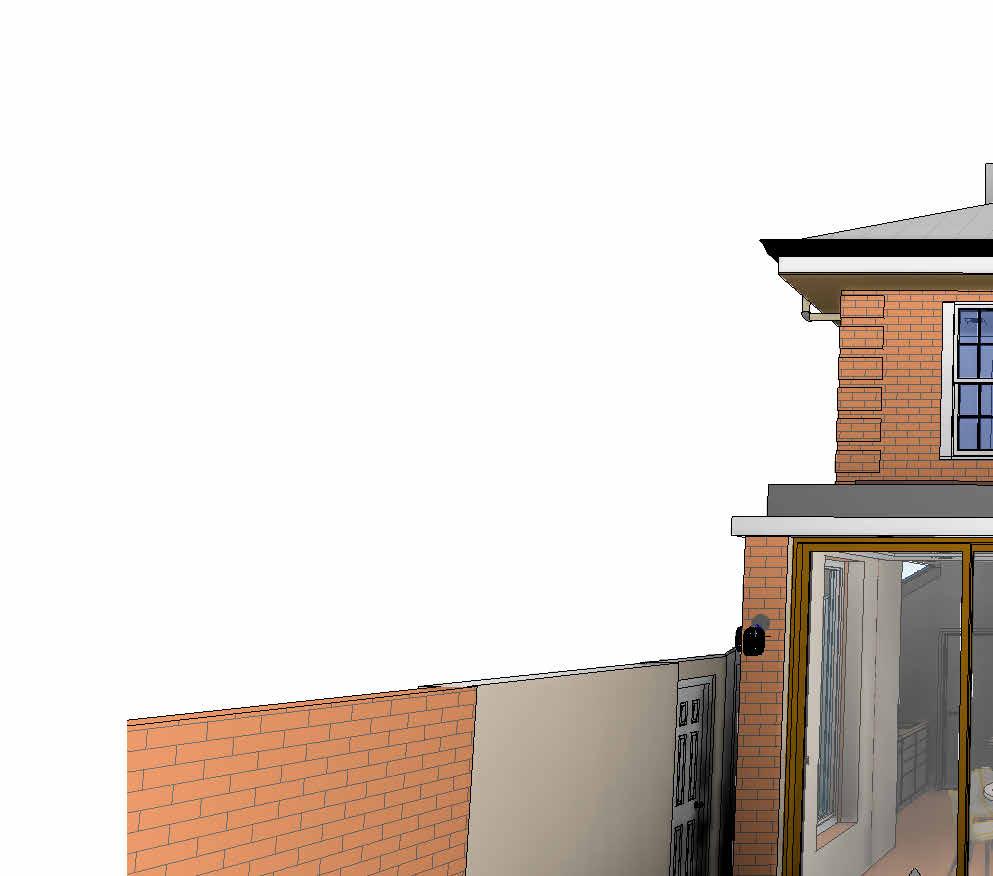

NC-GR1-DR-XX-014 General Arrangement 3d Views 13/12/21 Constructio n Site Issue

NC-GR1-DR-XX-015 General Arrangement 3d Views 13/12/21 Constructio n Site Issue

NC-GR1-DR-XX-016 General Arrangement 3d Views 13/12/21 Constructio n Site Issue

NC-GR1-DR-XX-017 General Arrangement 3d Views 13/12/21 Constructio n Site Issue

NC-GR2 Title Sheet- Setting-Out Sheets 13/12/21 Constructio n Site Issue

NC-GR2-DR-00-020 Setting-Out Plans'- Proposed Ground Floor Plan 2 13/10/2022 Constructio n Site Issue

NC-GR2-DR-01-021 Setting-Out Plans'- Proposed First Floor Plan 2 13/12/21 Constructio n Site Issue

NC-GR2-DR-01-022 Setting-Out Plans'- Proposed Second Floor Plan 13/12/21 Constructio n Site Issue

NC-GR2-DR-01-023 Setting-Out Plans'- Proposed Roof Floor Plan 13/12/21 Constructio n Site Issue

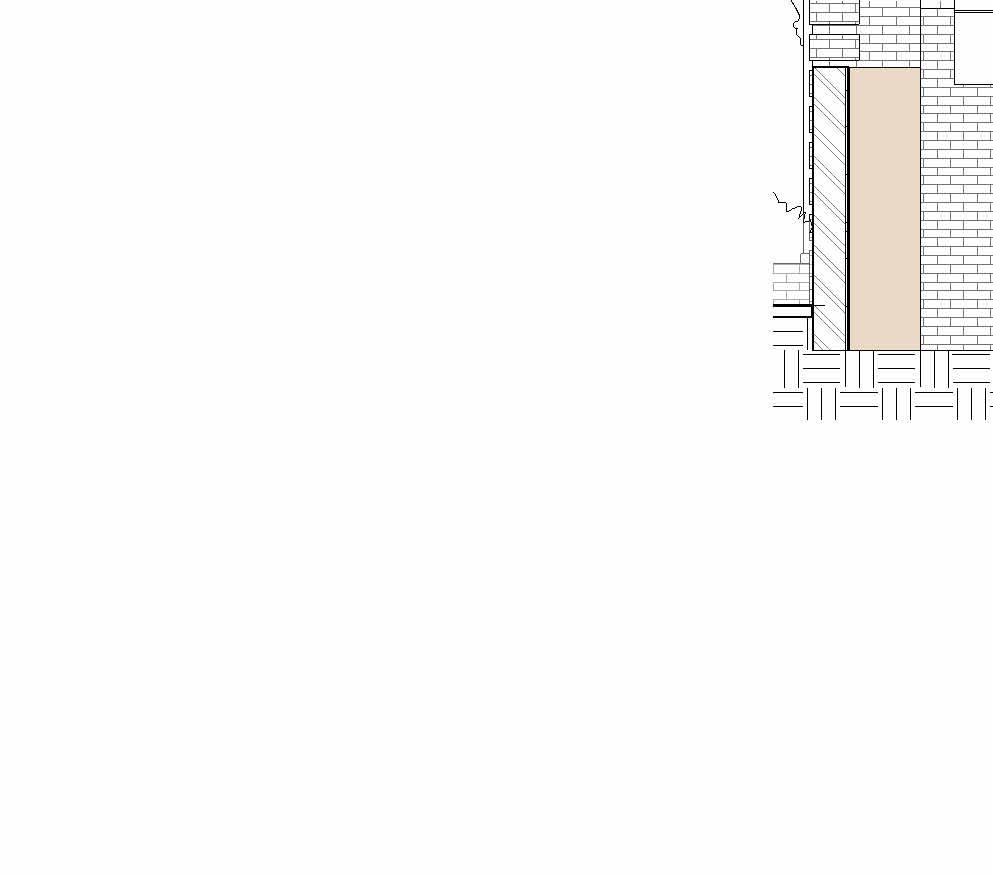

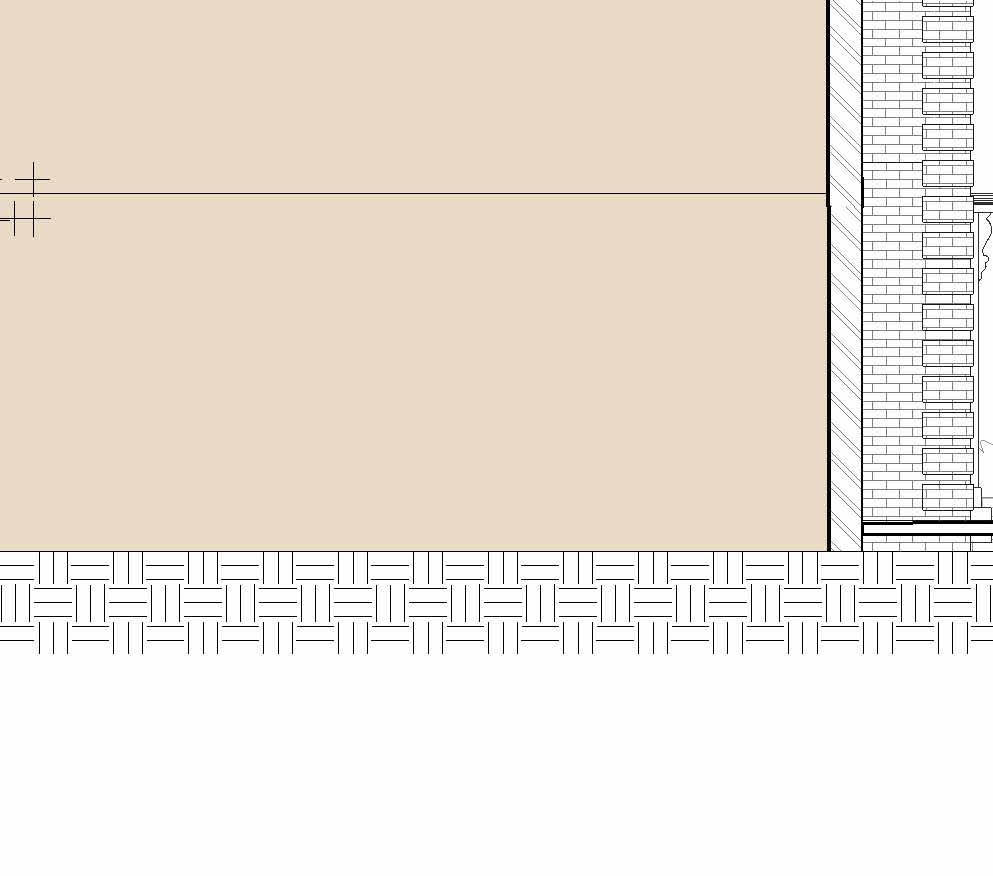

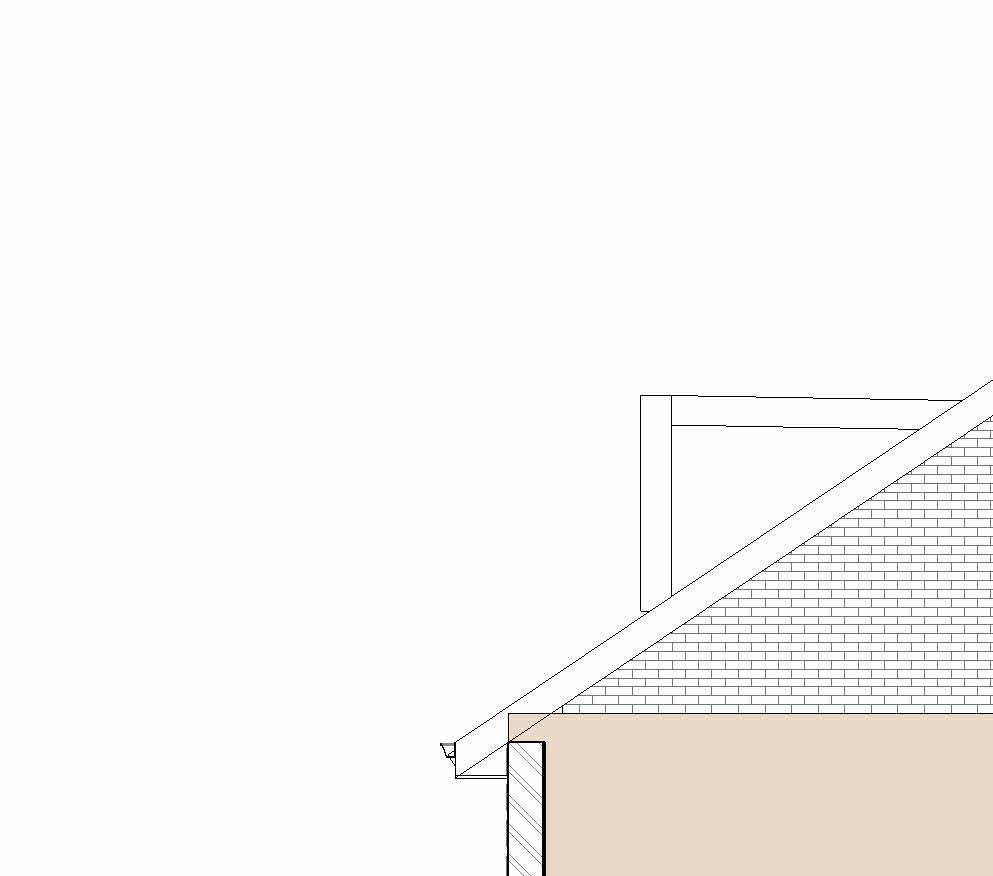

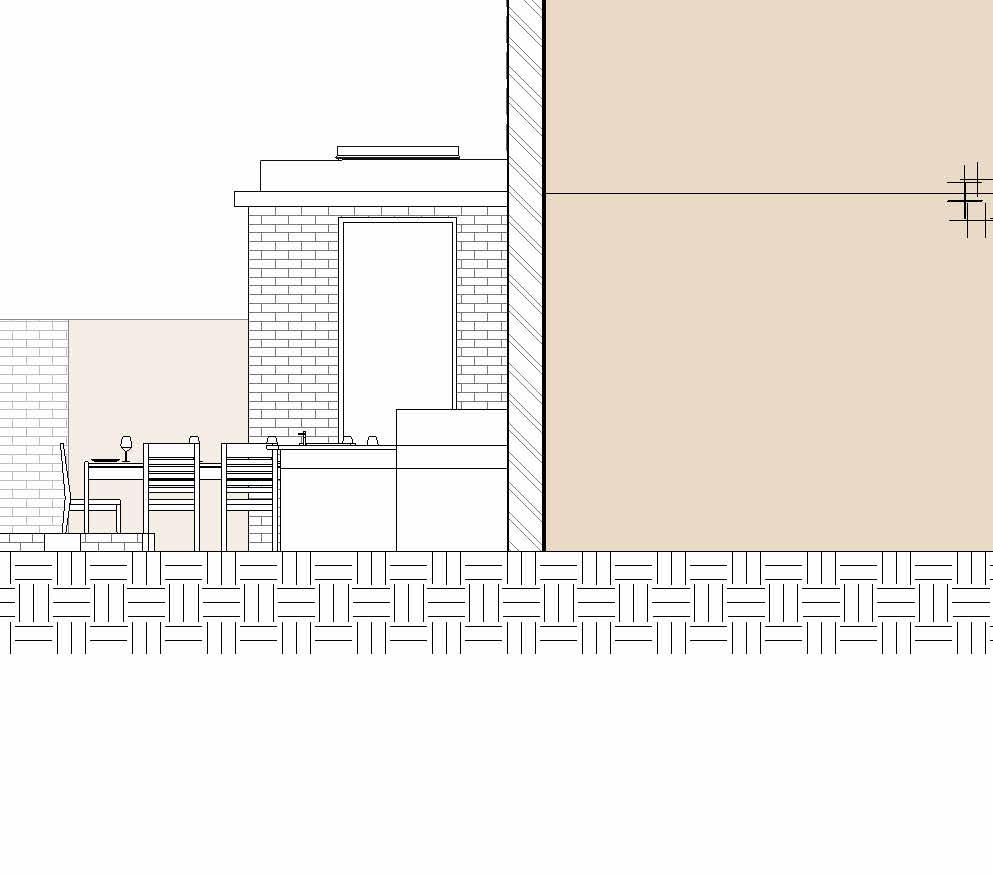

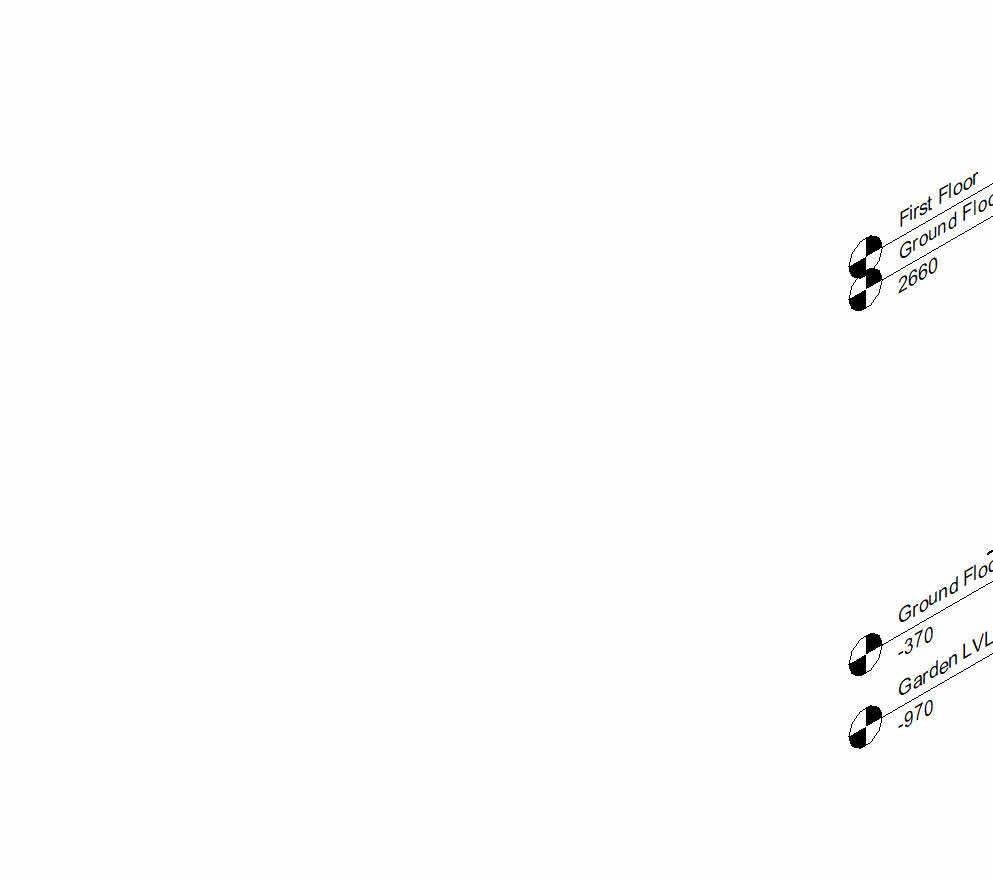

NC-GR2-DR-XX-030 Setting-Out Sections'- Proposed Sections 13/12/21 Constructio n Site Issue

NC-GR2-DR-XX-031 Setting-Out Sections'- Proposed Sections 13/12/21 Constructio n Site Issue

NC-GR2-DR-XX-032 Setting-Out Sections'- Proposed Sections 2 13/12/21 Constructio n Site Issue

NC-GR2-DR-XX-033 Setting-Out Sections'- Proposed Sections 2 13/12/21 Constructio n Site Issue

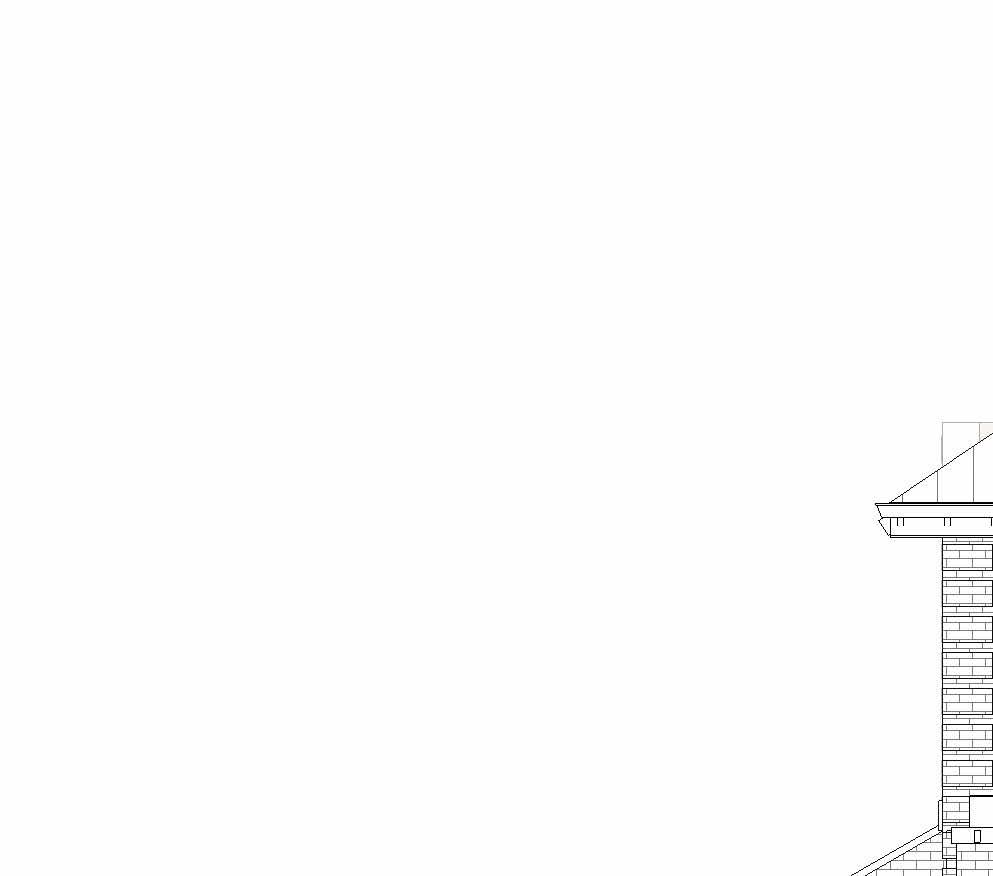

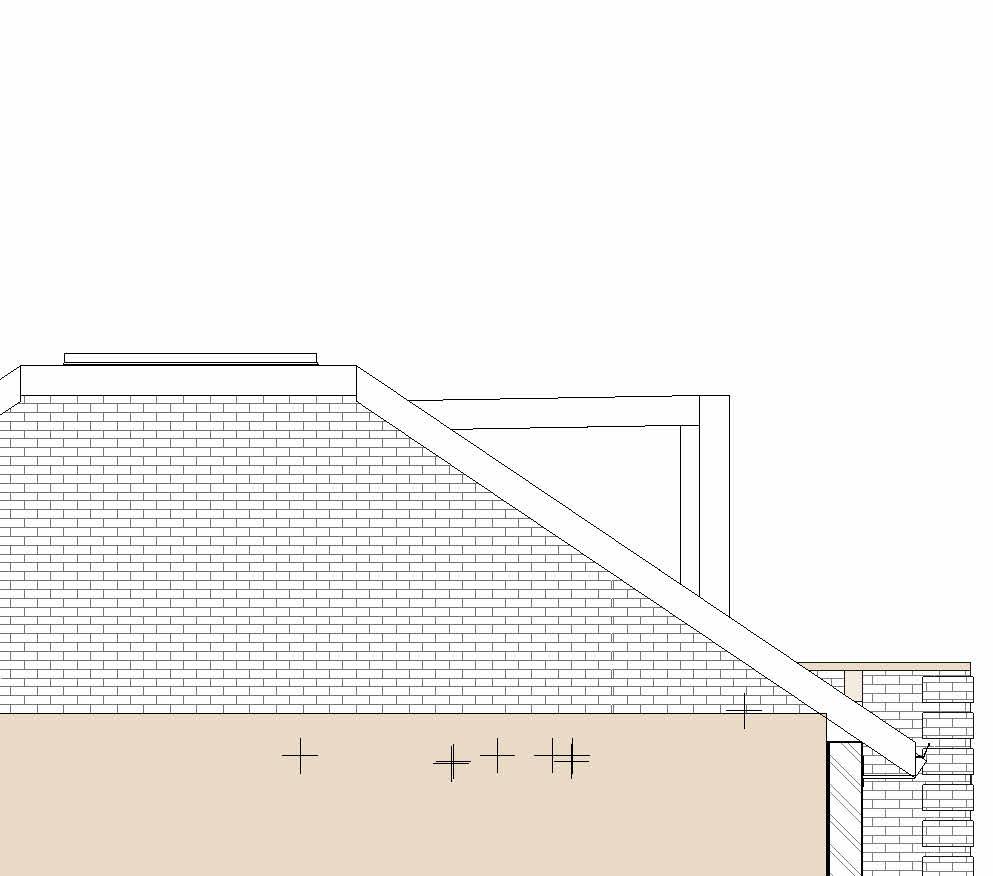

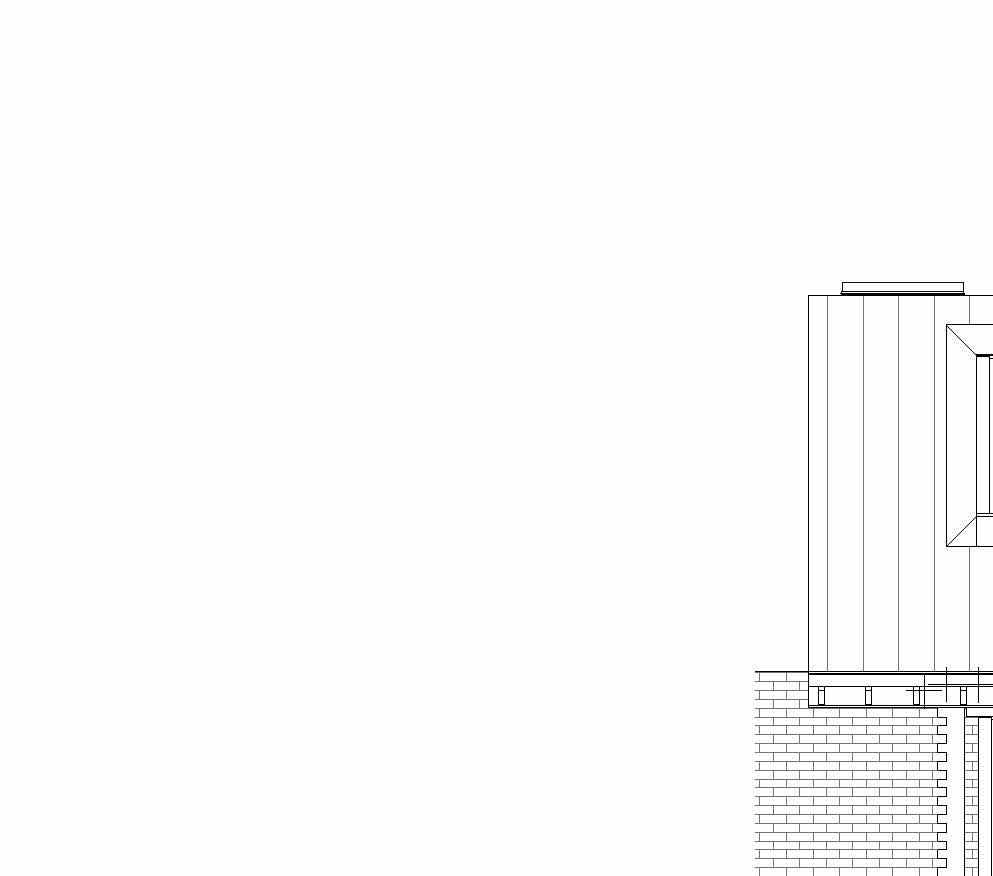

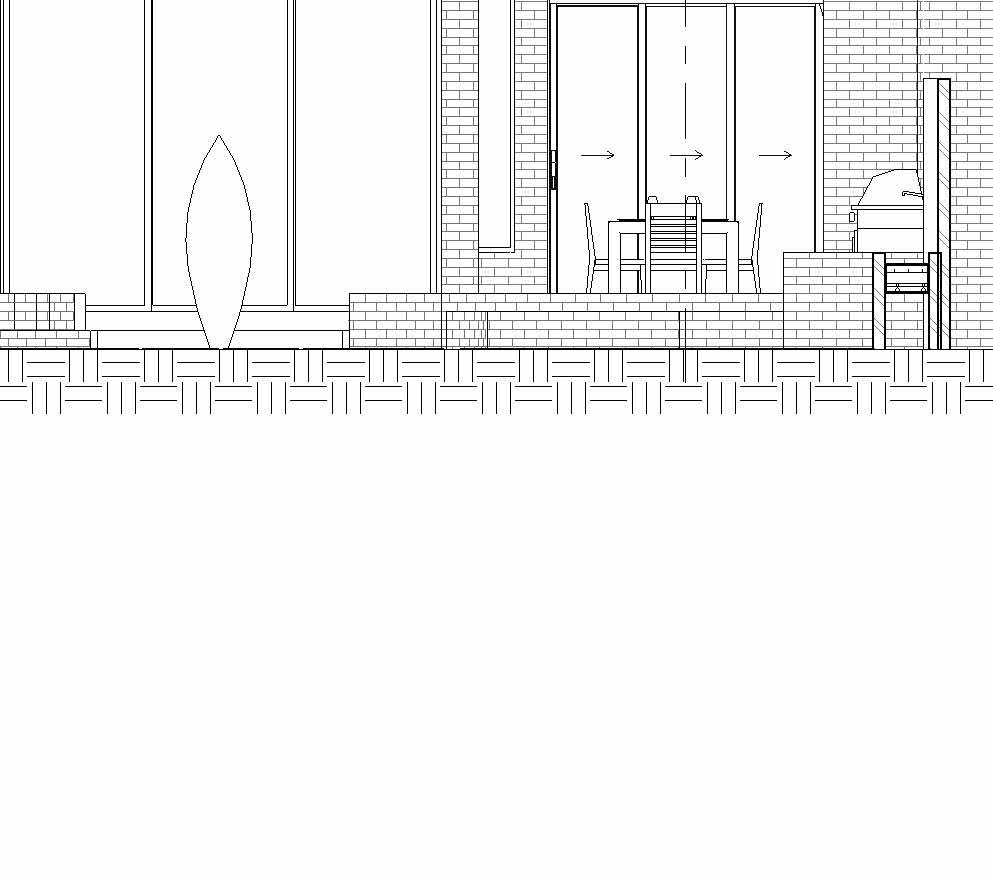

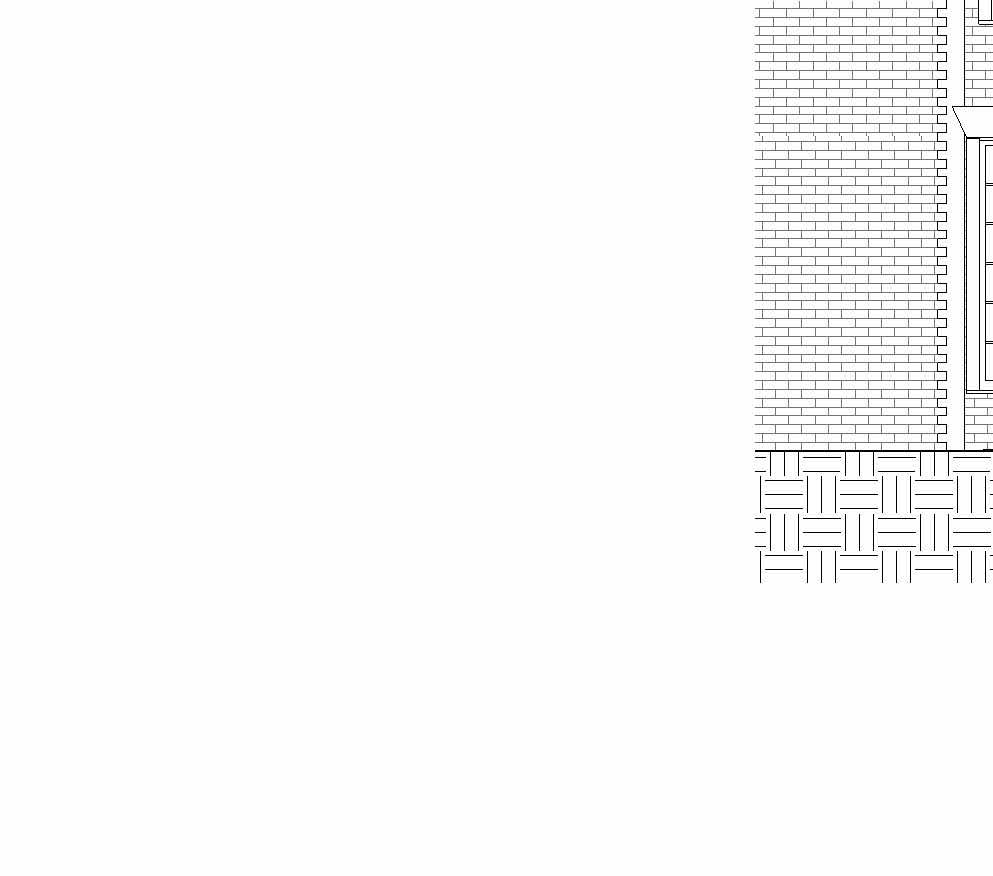

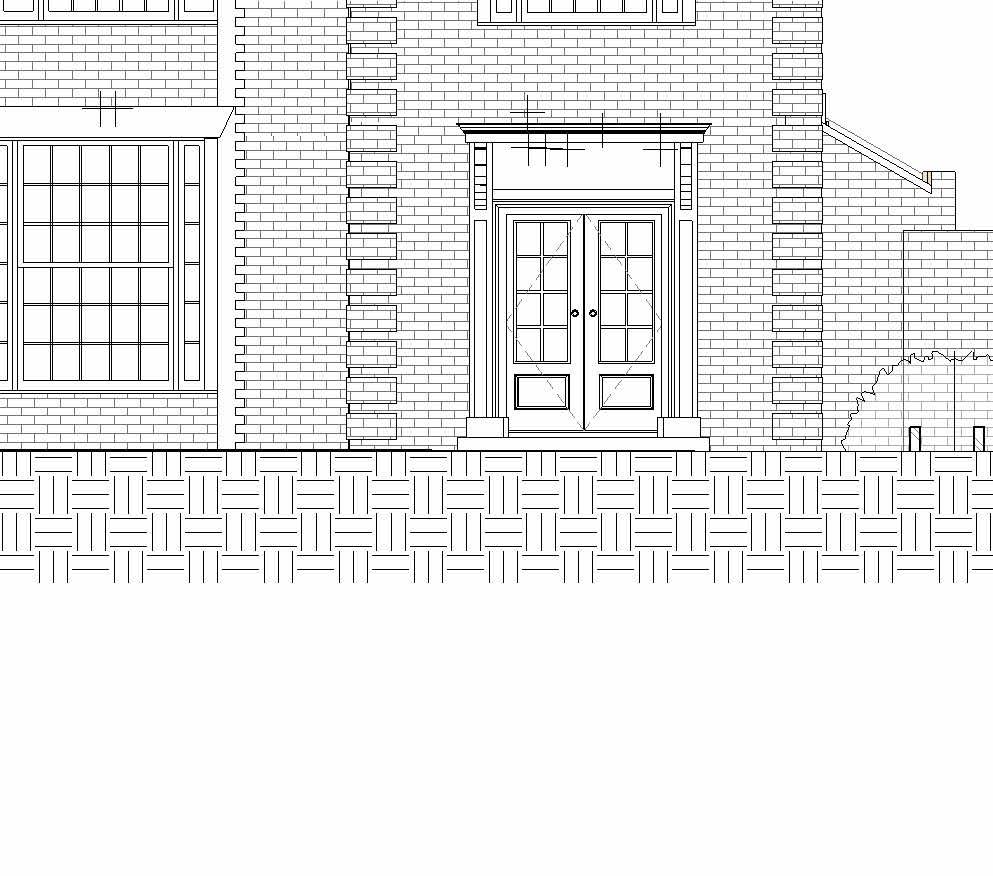

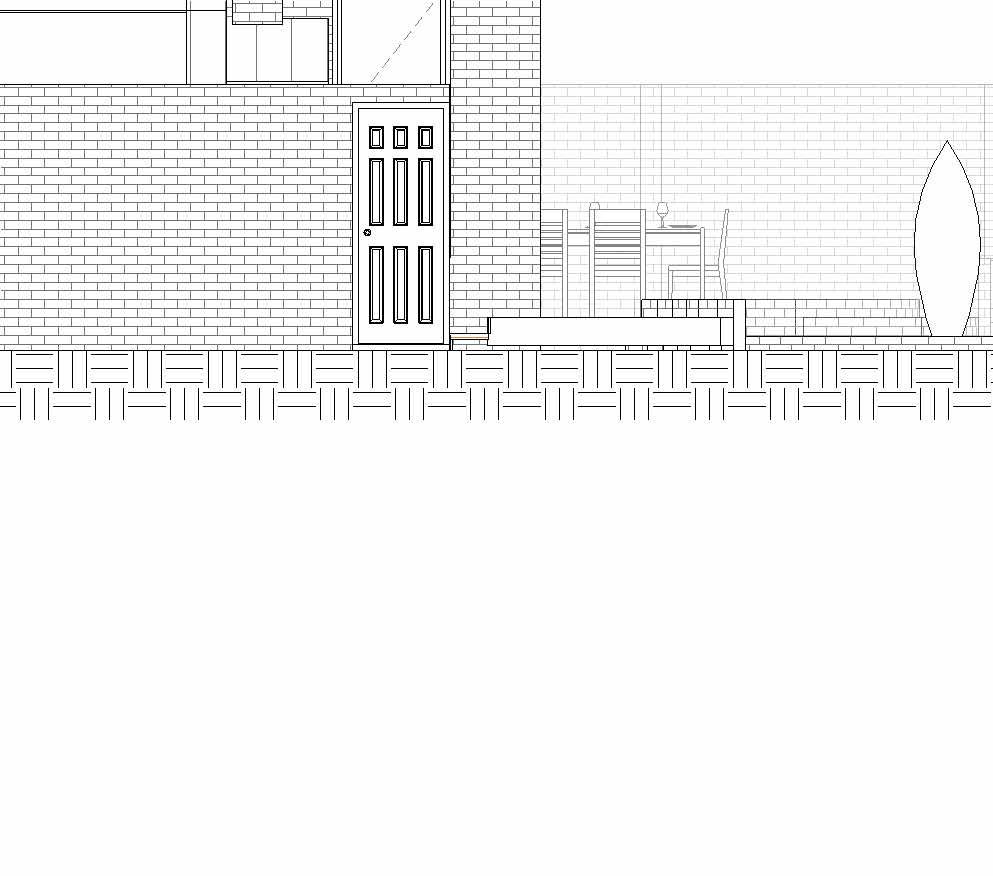

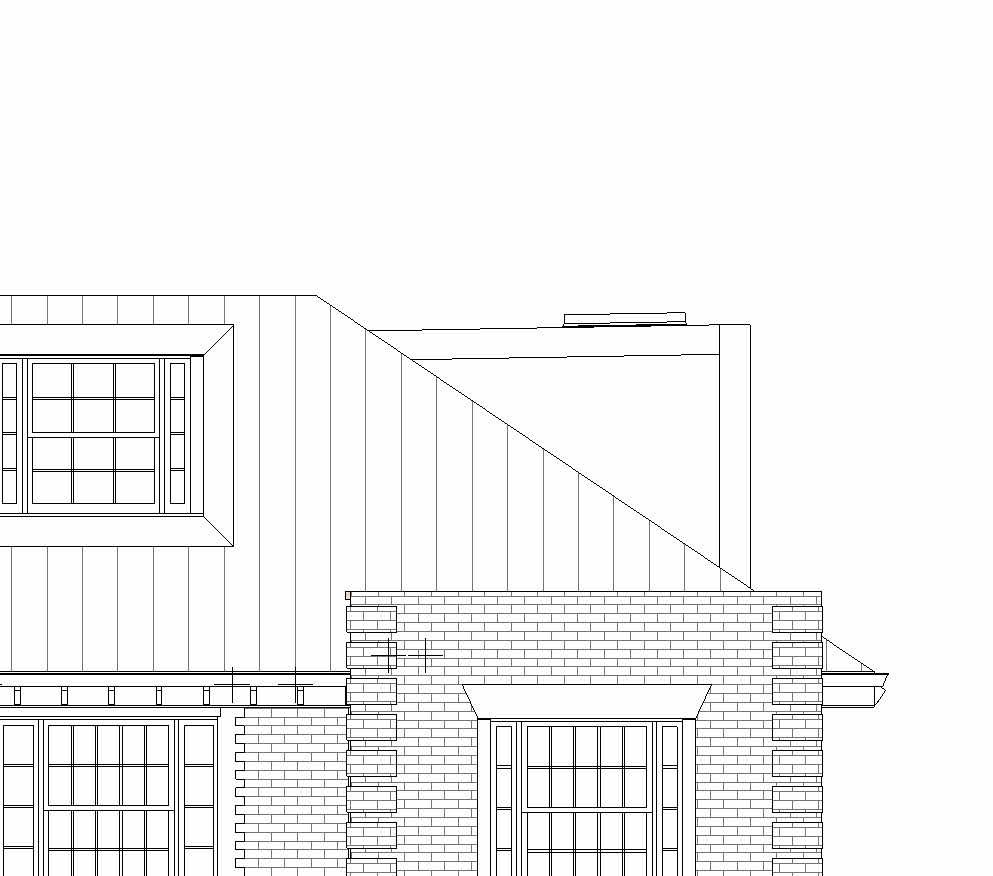

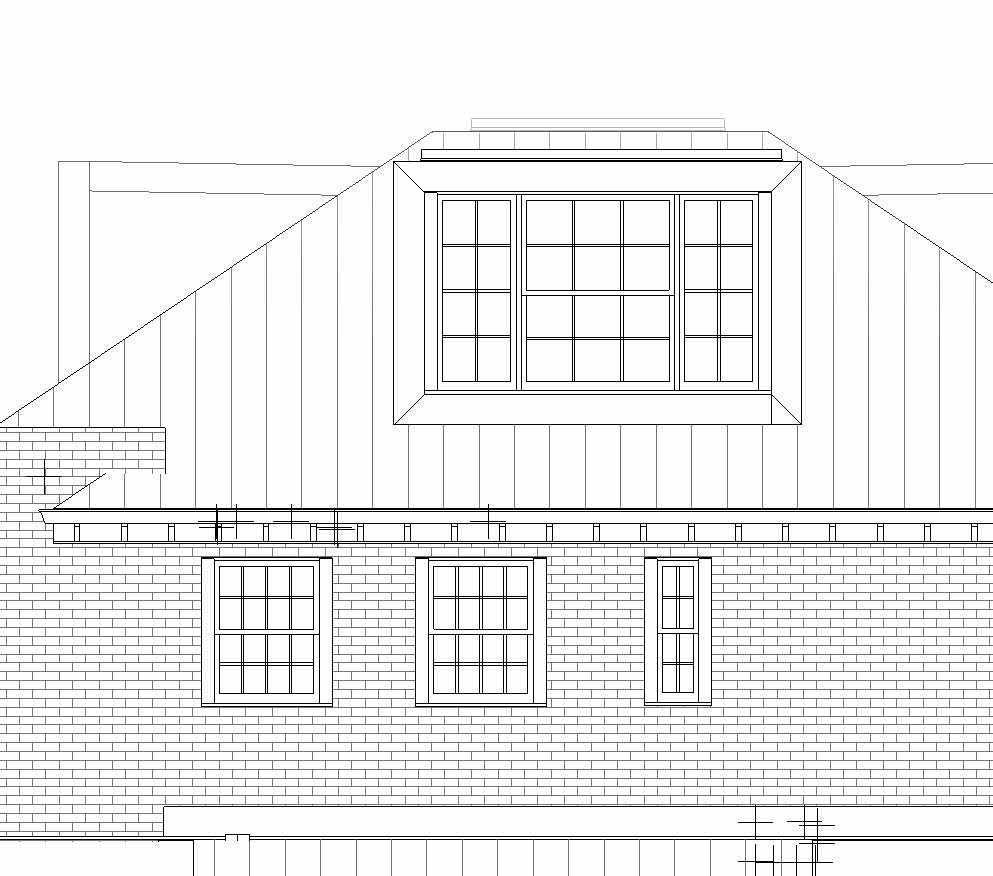

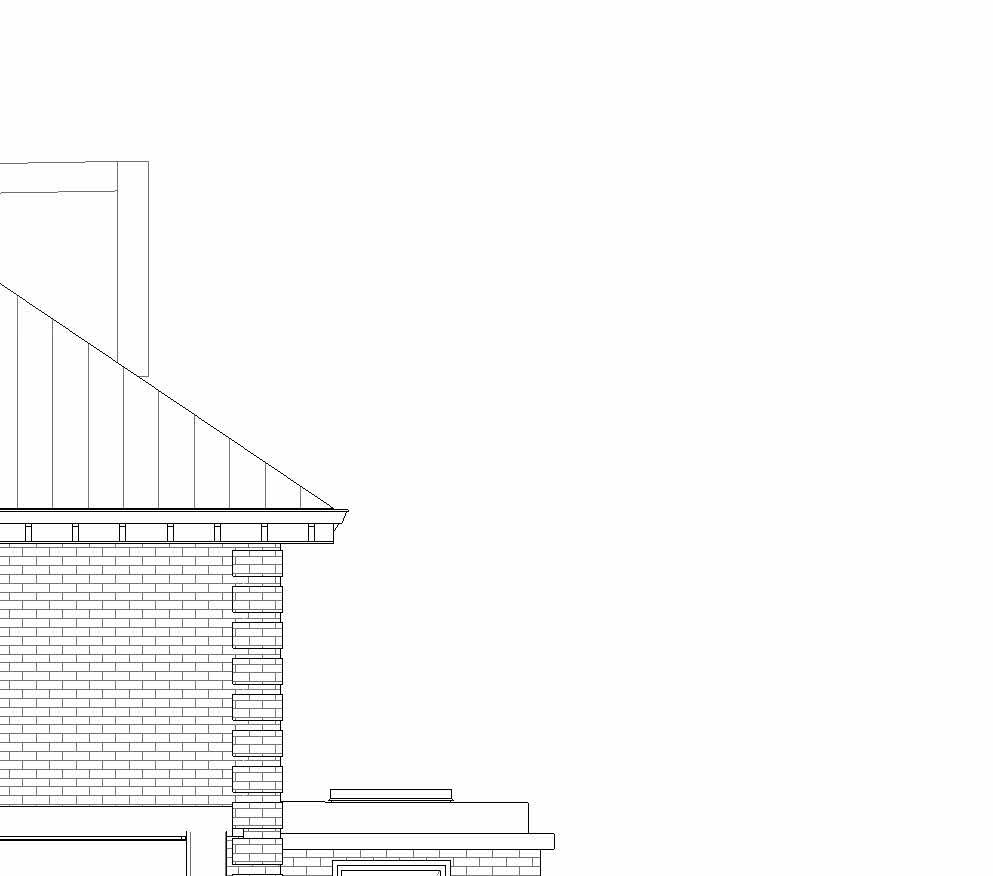

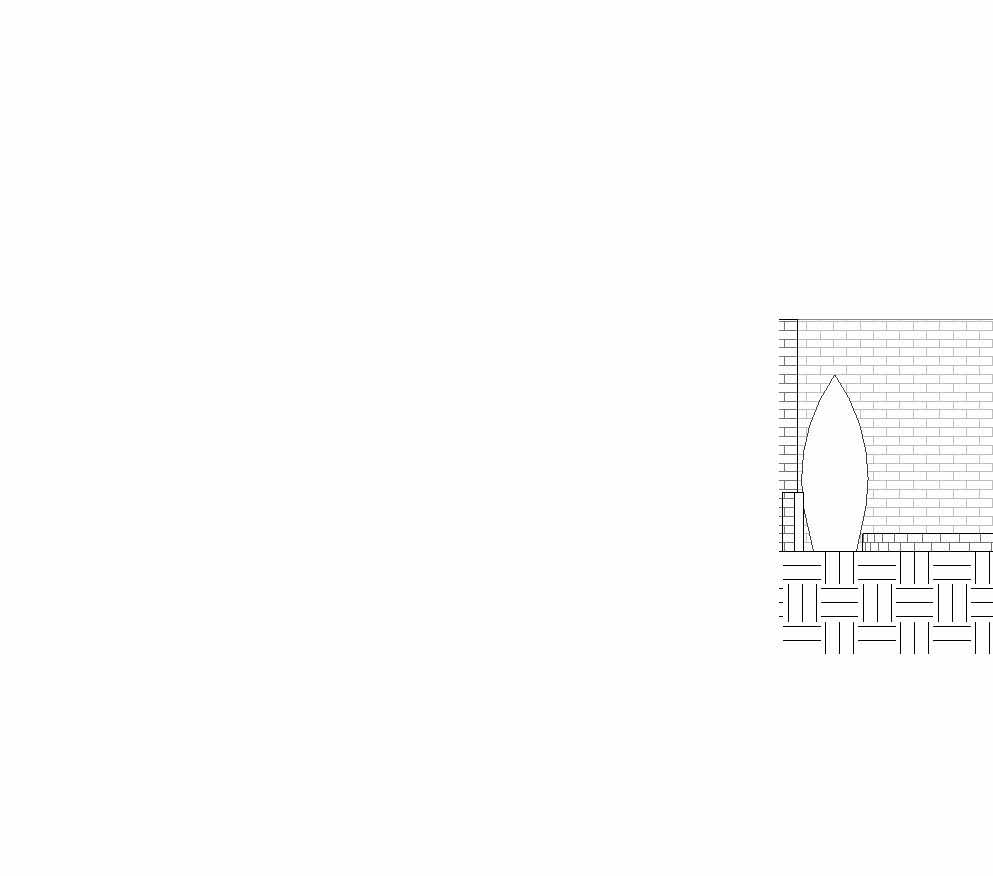

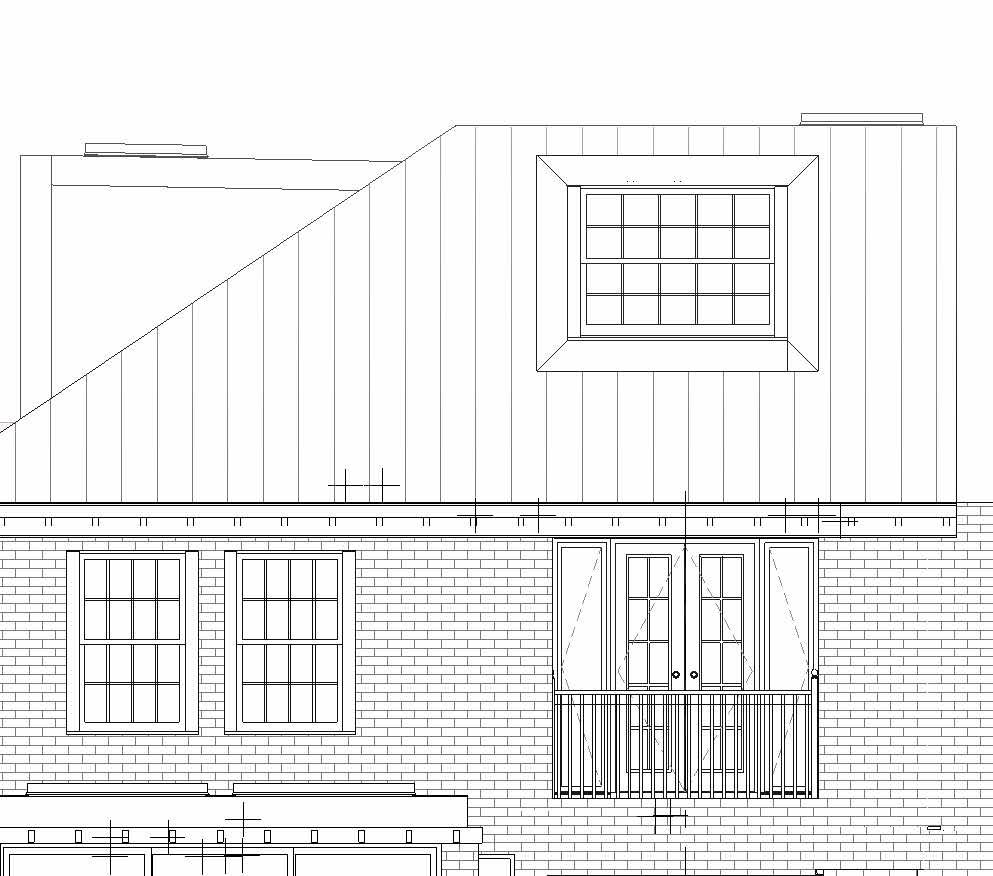

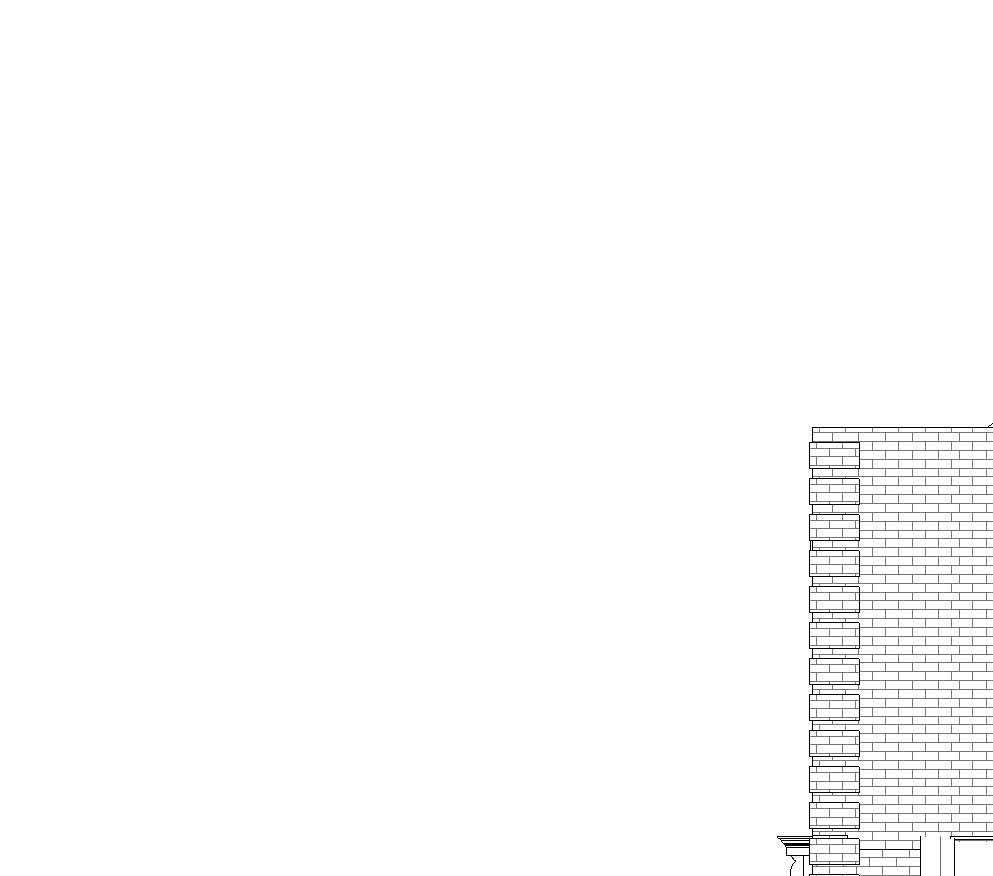

NC-GR2-DR-YY-034 Setting-Out Elevations'- Proposed Elevations 1 13/12/21 Constructio n Site Issue

NC-GR2-DR-YY-035 Setting-Out Elevations'- Proposed Elevations 1 13/12/21 Constructio n Site Issue

NC-GR3 Title Sheet- Sub-structure setting-Out Plans 13/12/21 Constructio n Site Issue

NC-GR3-DR-00-050 Sub-structure setting-Out Plans- Proposed Foundation Plan 13/12/21 Constructio n Site Issue

NC-GR4 Structural Drawing Title 13/12/21 Constructio n Site Issue

NC-GR4-DR-00-040 Proposed Ground Floor Structure 1 13/12/21 Constructio n Site Issue

NC-GR4-DR-00-041 Proposed First Floor Structure 13/12/21 Constructio n Site Issue

NC-GR4-DR-00-042 Proposed Loft Floor Structure 13/12/21 Constructio n Site Issue

NC-GR4-DR-00-043 Proposed Roof Structure 1 13/12/21 Constructio n Site Issue

NC-GR4-XX-00-045 Proposed Structural Sections 2 13/12/21 Constructio n Site Issue

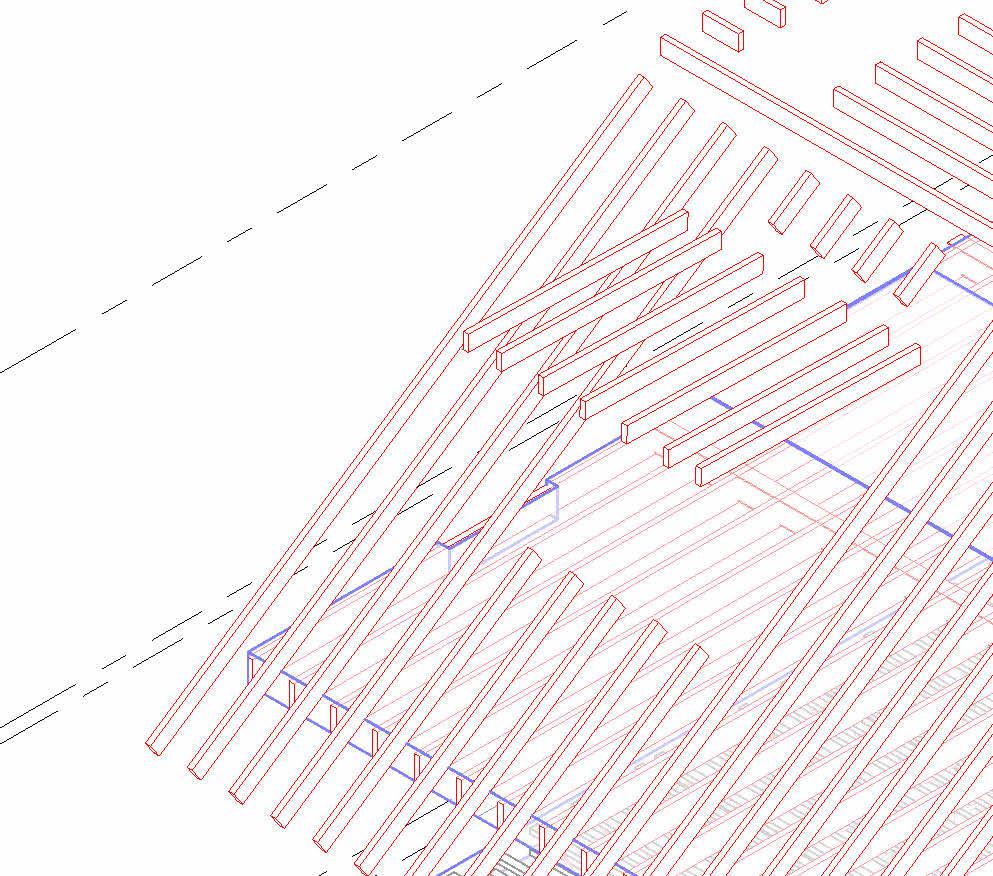

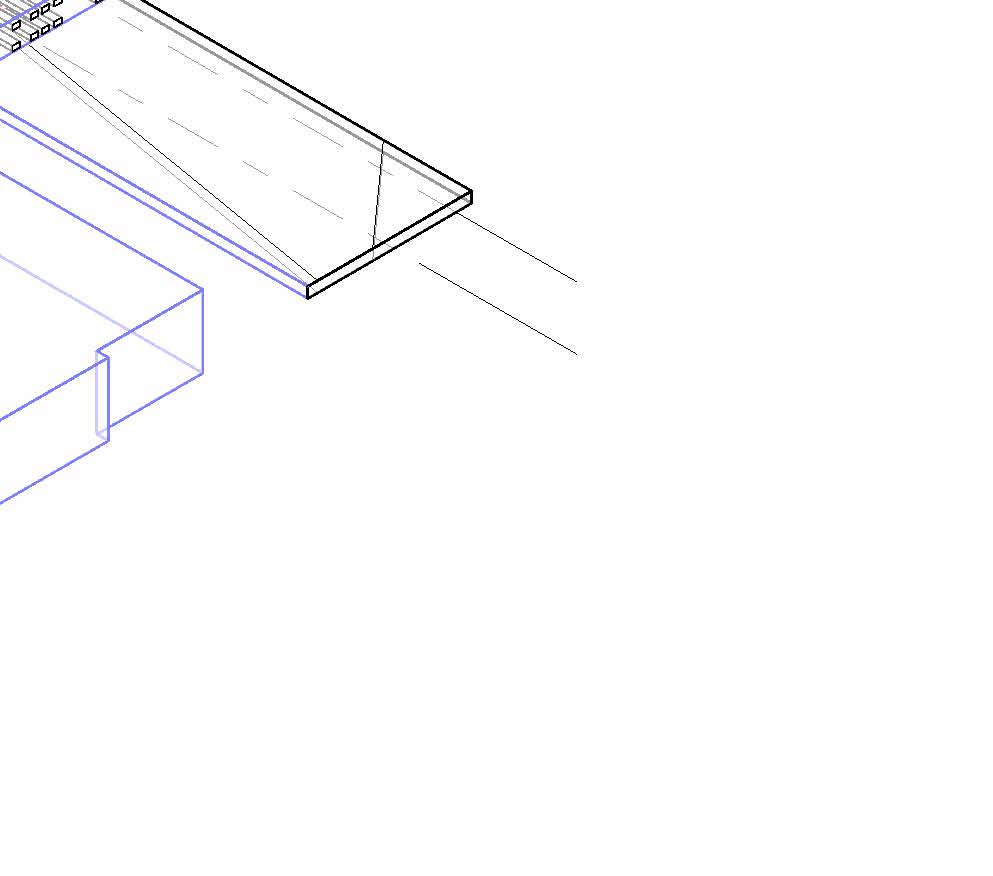

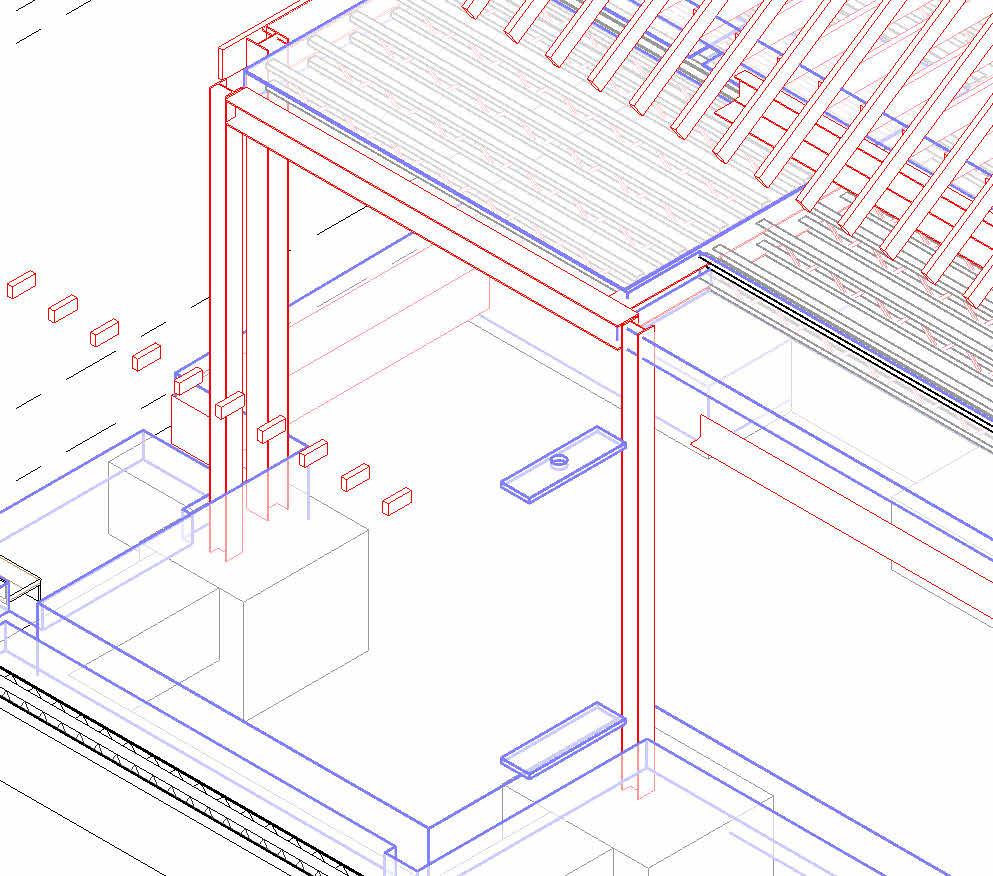

NC-GR4-XX-00-046 Structural 3Ds 2 13/12/21 Constructio n Site Issue

NC-GR4-XX-00-047 Structural 3Ds 1 13/12/21 Constructio n Site Issue

NC-GR4-XX-00-048 Joist Setting-Out Plan 09/21/22 Constructio n Site Issue

NC-GR5 Title Sheet- Walls, Floors and Roofs Type Drawing - Constructio n Site Issue

NC-GR5-SC-00-051 Legends- Wall, Floor & Roof Types 2 13/10/2022 Constructio n Site Issue

NC-GR6 Detail Callout 13/12/21 Constructio n Site Issue

NC-GR6-DR-YY-060 Detail Callout 13/12/21 Constructio n Site Issue

NC-GR6-DR-YY-061 Detail Callout 13/12/21 Constructio n Site Issue

NC-GR6-DR-YY-062

NC-GR10-DR-02-104

NC-GR11-DR-XX-11 5 Airconditioning Mechanical VentilationSections

NC-GR11-DR-XX-11 6 Airconditioning Mechanical VentilationSections

NC-GR11-DR-XX-11 8 Airconditioning Mechanical VentilationProposed 3D

NC-GR11-DR-XX-11 9 Airconditioning Mechanical VentilationProposed 3D

Title Sheet Plumbing & Drainage

NC-GR12-DR-00-120 Plumbing & Drainage Plans - Proposed Ground Floor Plan

NC-GR12-DR-00-121 Plumbing & Drainage Plans - Proposed First Floor Plan

NC-GR12-DR-00-122 Plumbing & Drainage Plans - Proposed Second Floor Plan

NC-GR12-DR-XX-12 5 Plumbing & Drainage Section 1

NC-GR12-DR-XX-12 6 Plumbing & Drainage Section 2

NC-GR12-DR-XX-12 8 Plumbing & Drainage 3D

NC-GR13-DR-00-130 Lighting RCPs Plans - Proposed Ground Floor RCP 1

NC-GR13-DR-01-131 Lighting RCPs Plans - Proposed First Floor RCP 1

NC-GR13-DR-02-132

NC-GR13-DR-XX-13 7

NC-GR13-DR-XX-13

NC-GR14 Title Sheet Electrical & Small Power Layouts (With Furniture)

NC-GR14-DR-00-140 Electrical & Small Power Layouts Proposed Ground Floor Plan

NC-GR14-DR-01-141 Electrical & Small Power Layouts Proposed First Floor Plan

NC-GR14-DR-02-142 Electrical & Small Power Layouts - Proposed Second Floor Plan

NC-GR17 Title Sheet Coordination Ceiling Plans

NC-GR17-DR-00-170 Coordination Ceiling Plan - Proposed Ground Floor Plan

NC-GR17-DR-00-171 Coordination Ceiling Plan - Proposed First Floor Plan

NC-GR17-DR-00-172 Coordination Ceiling Plan - Proposed Second Floor Plan

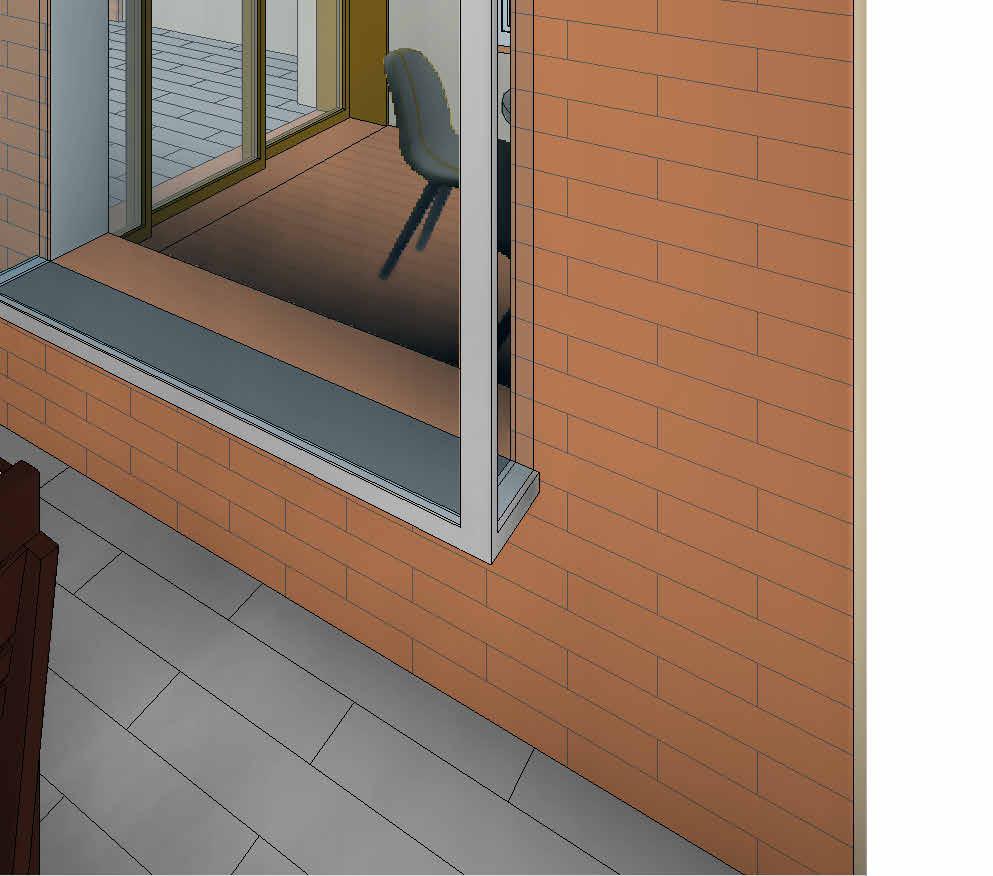

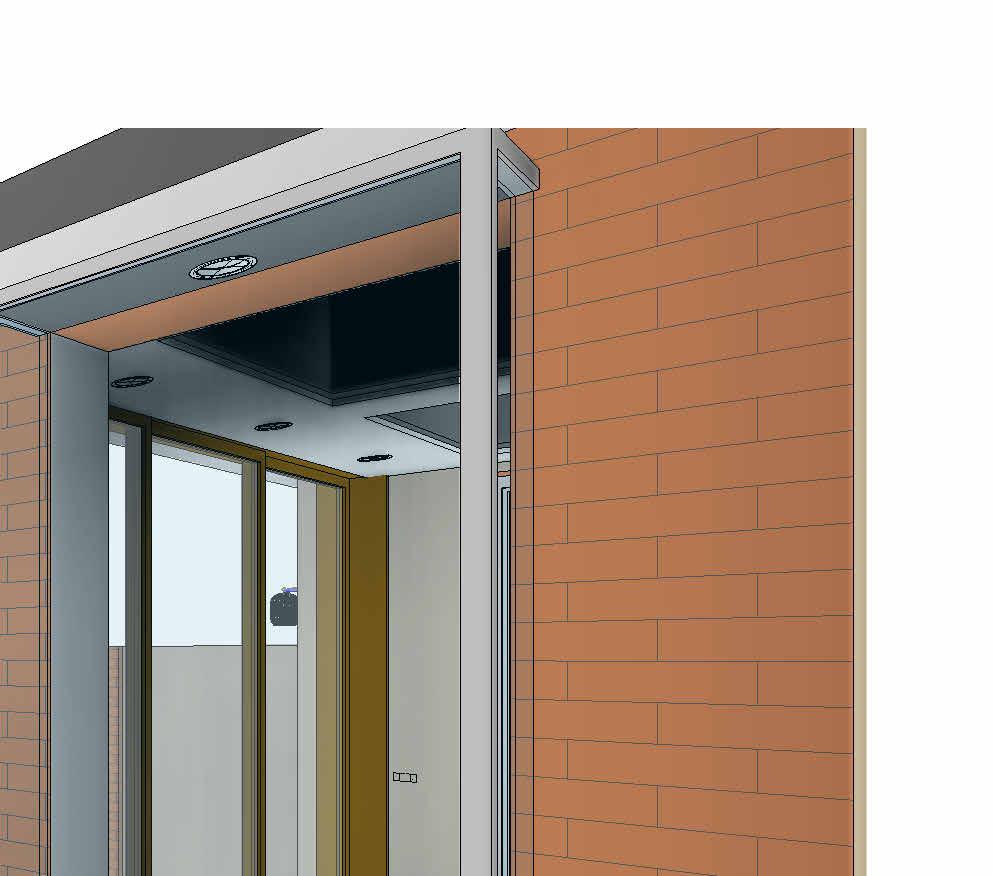

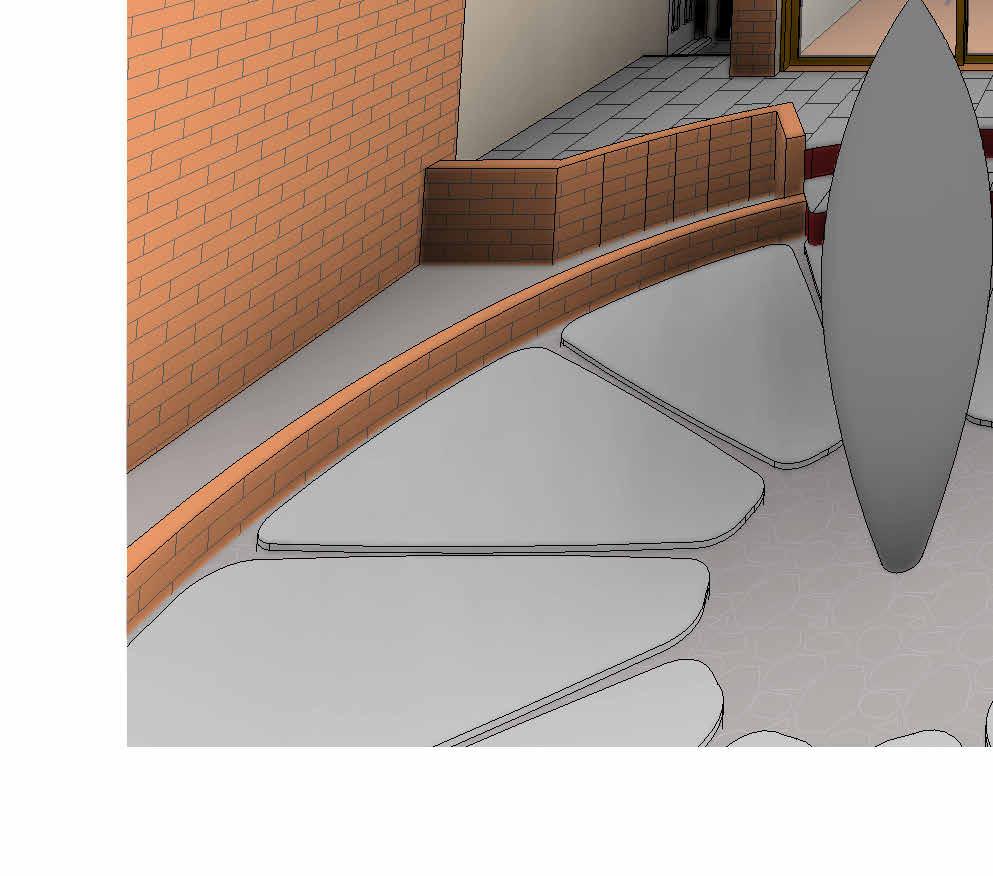

General Arrangement Plans

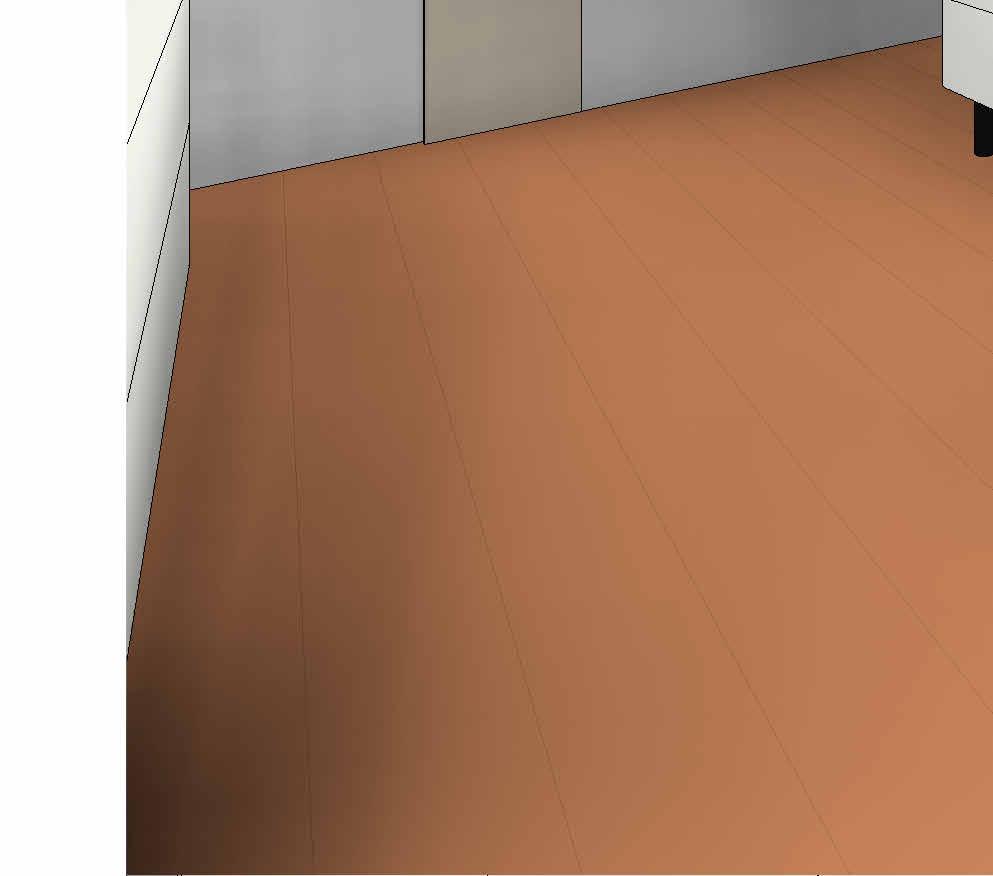

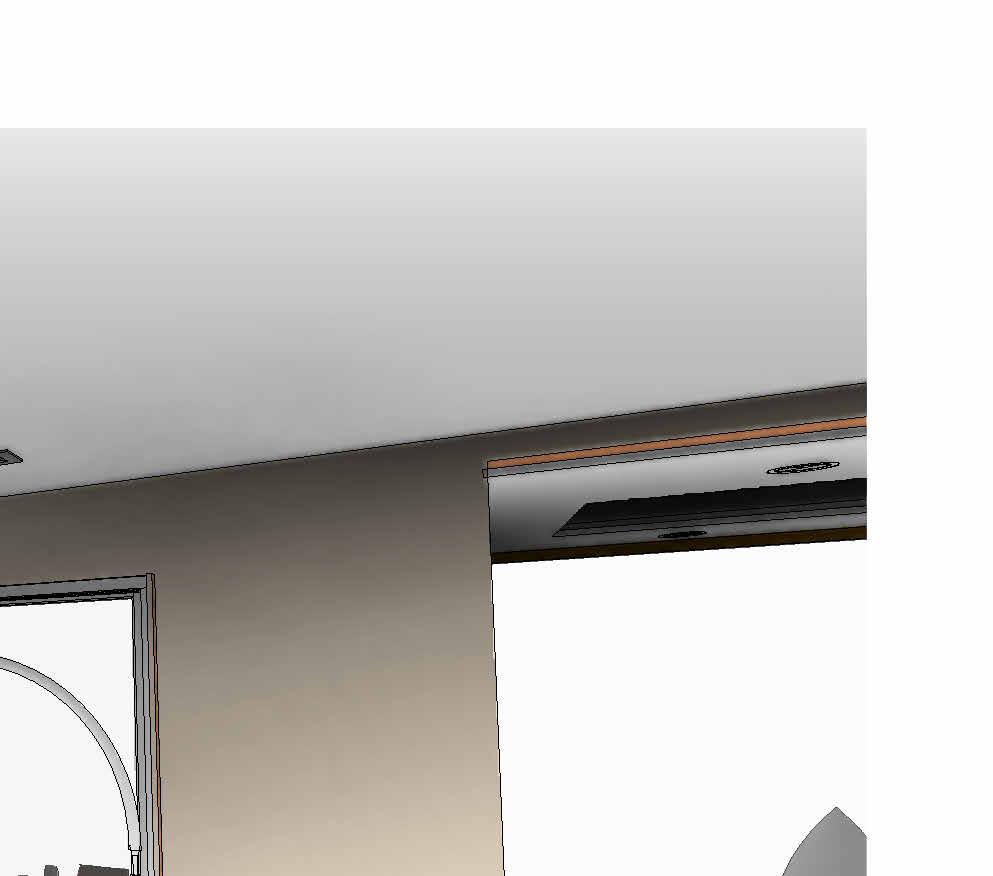

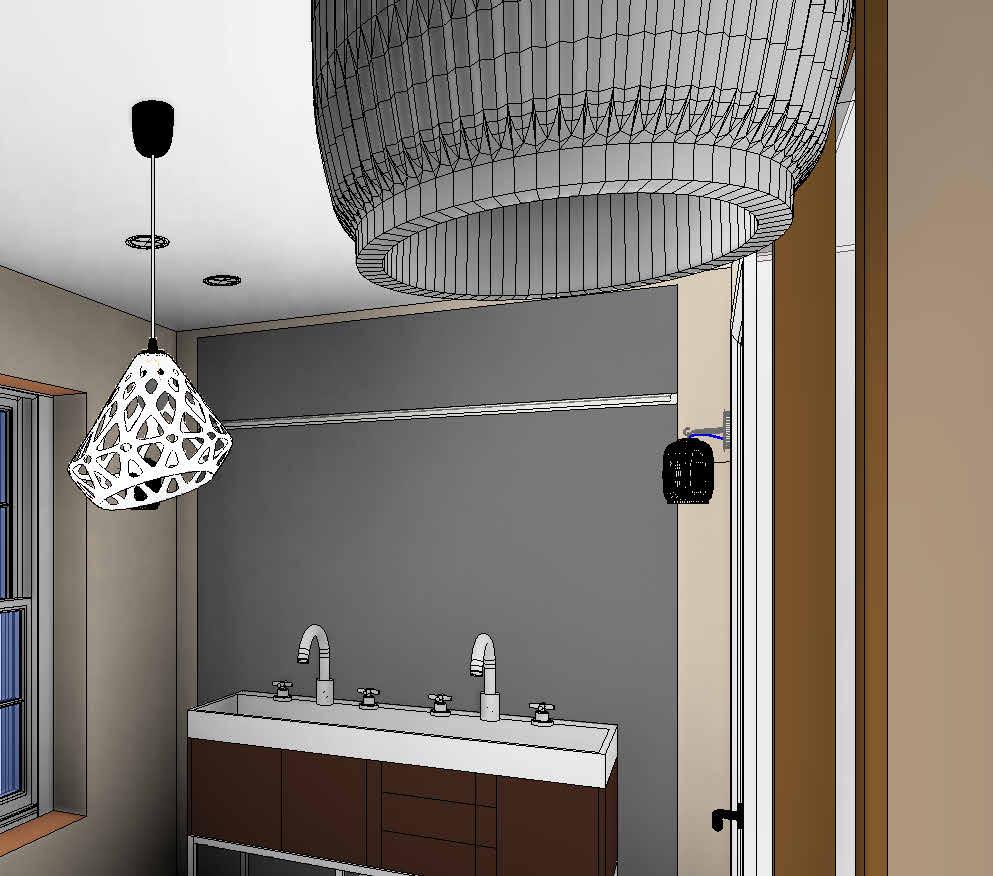

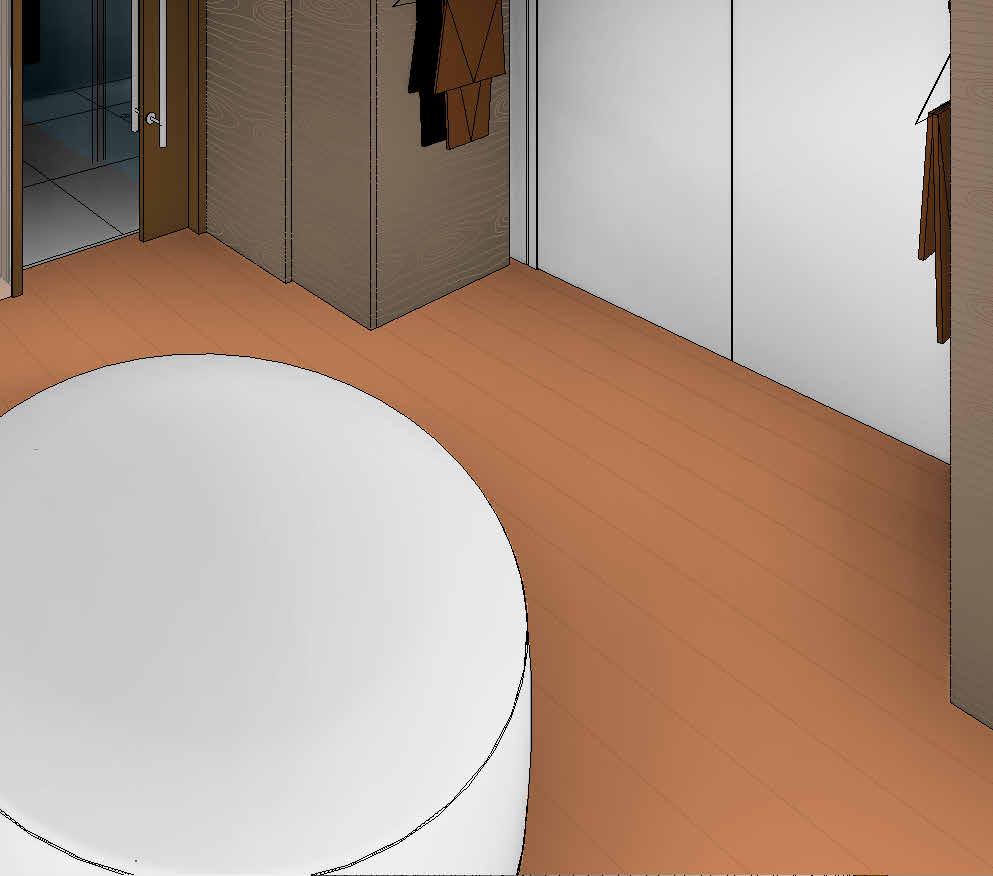

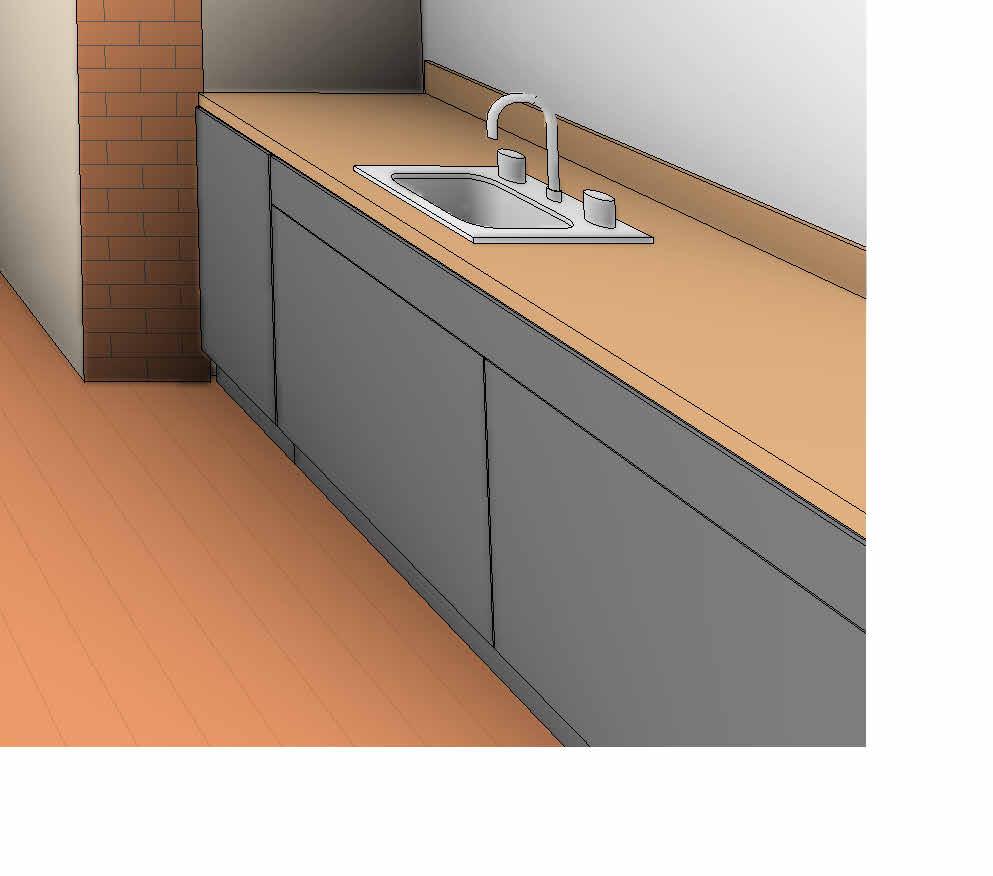

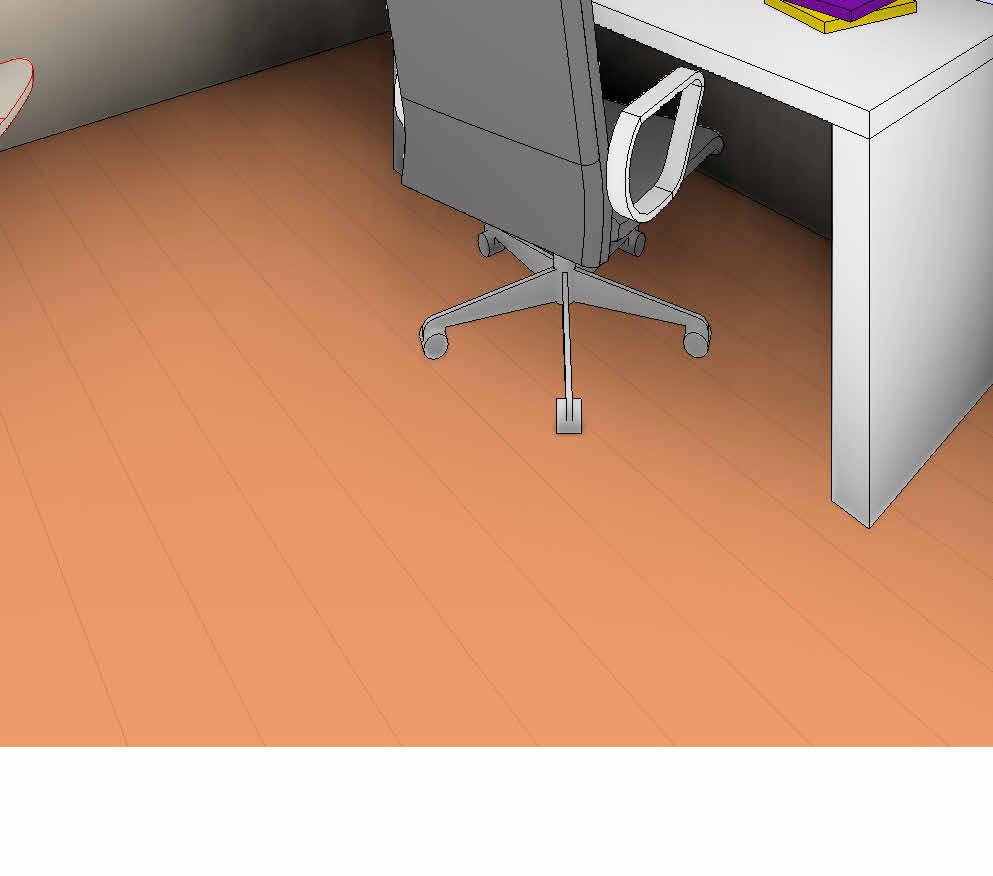

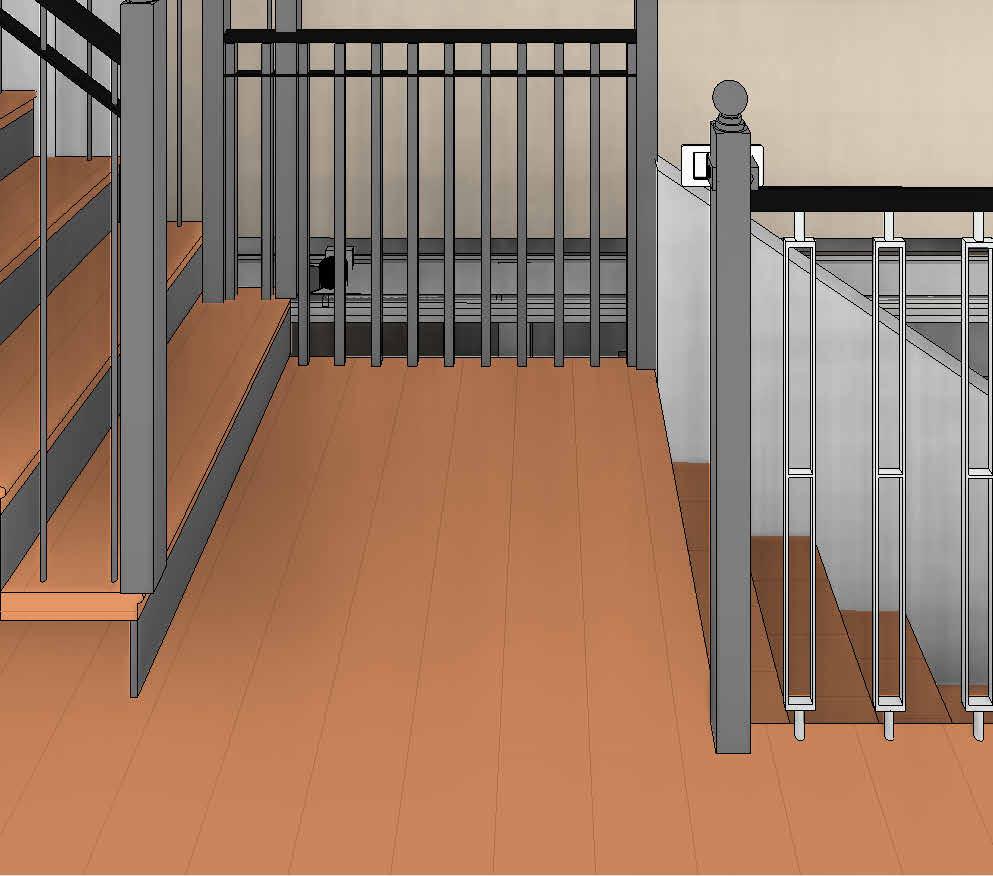

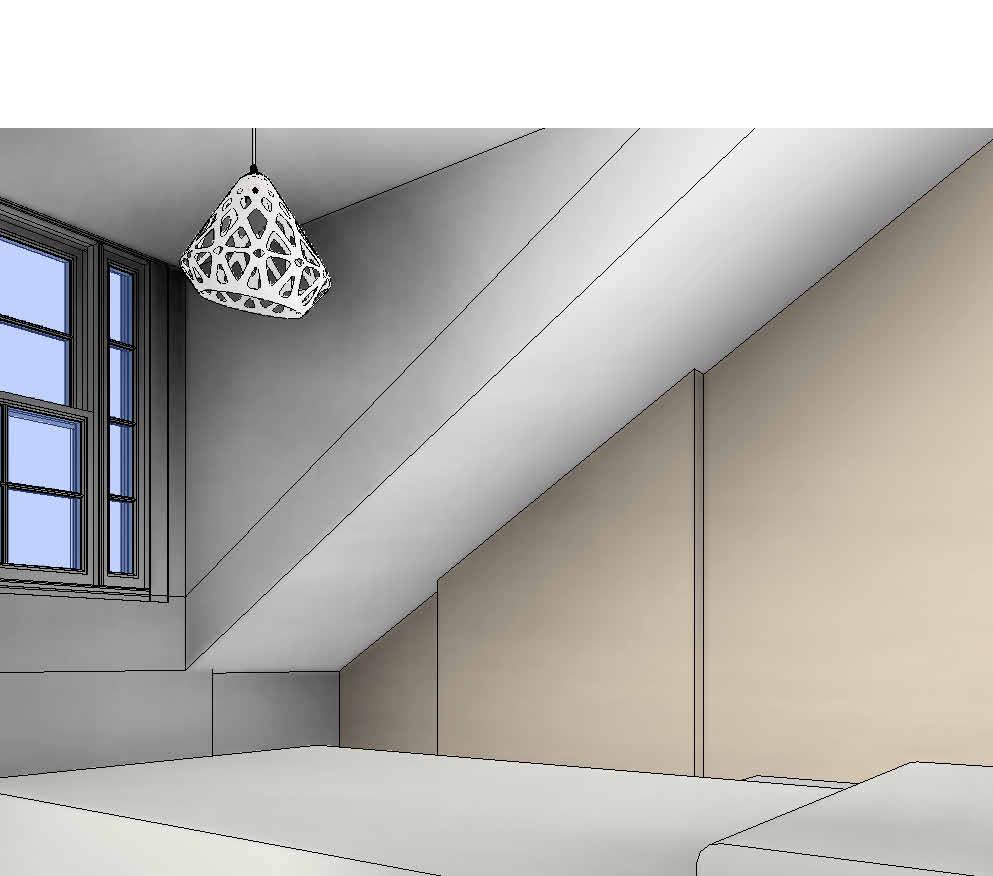

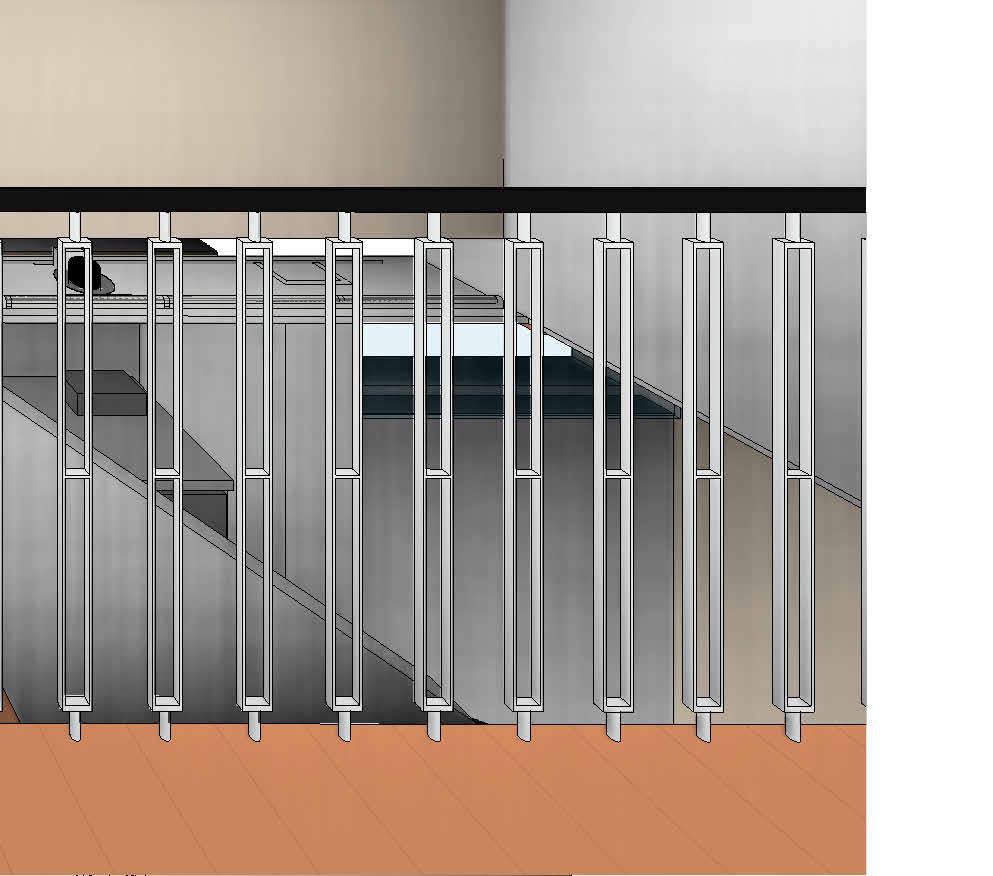

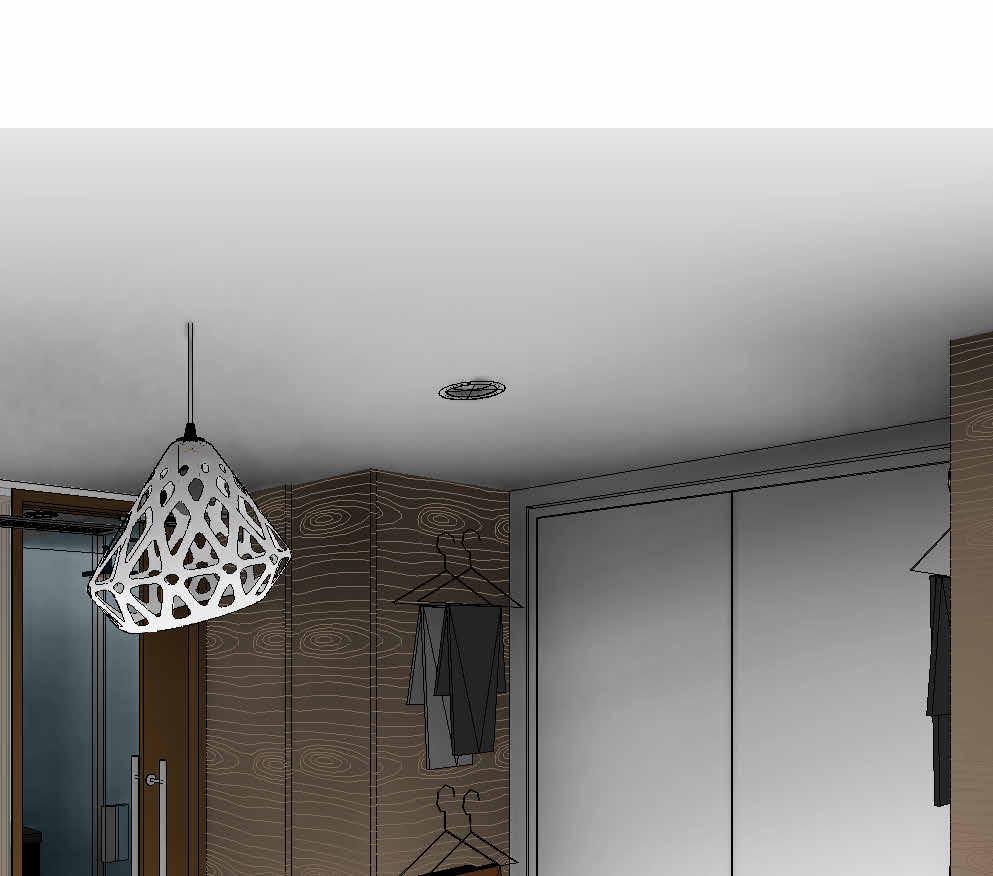

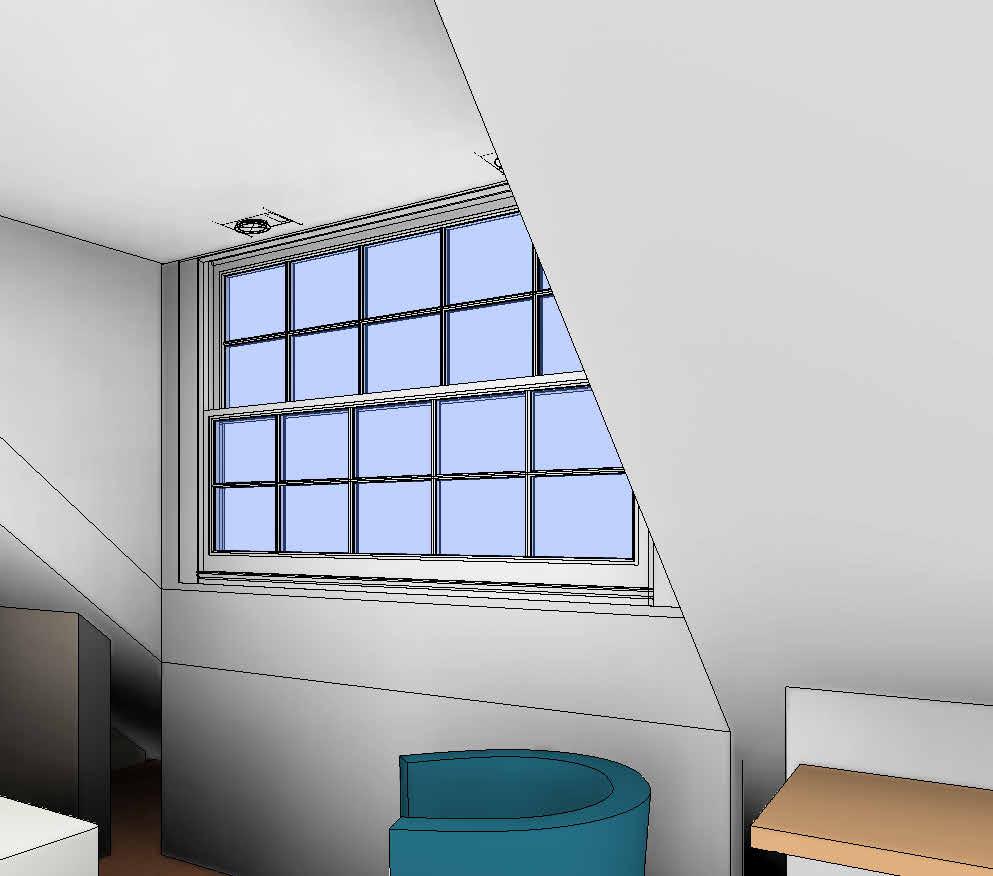

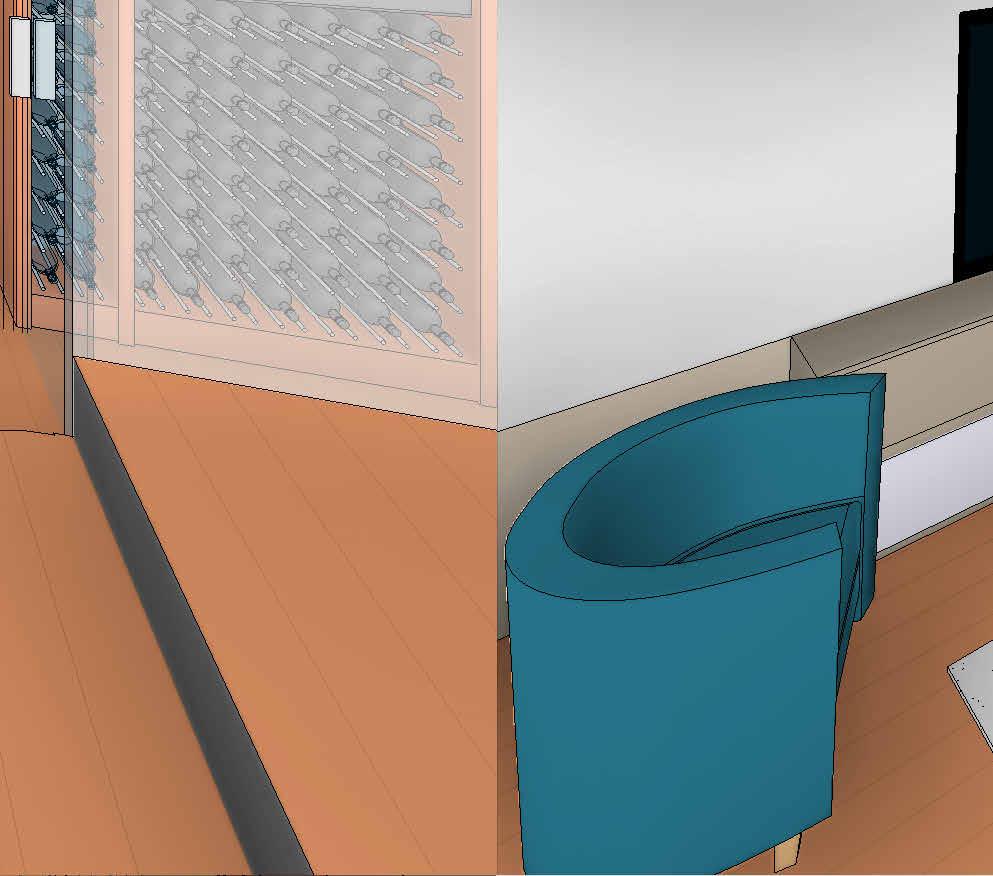

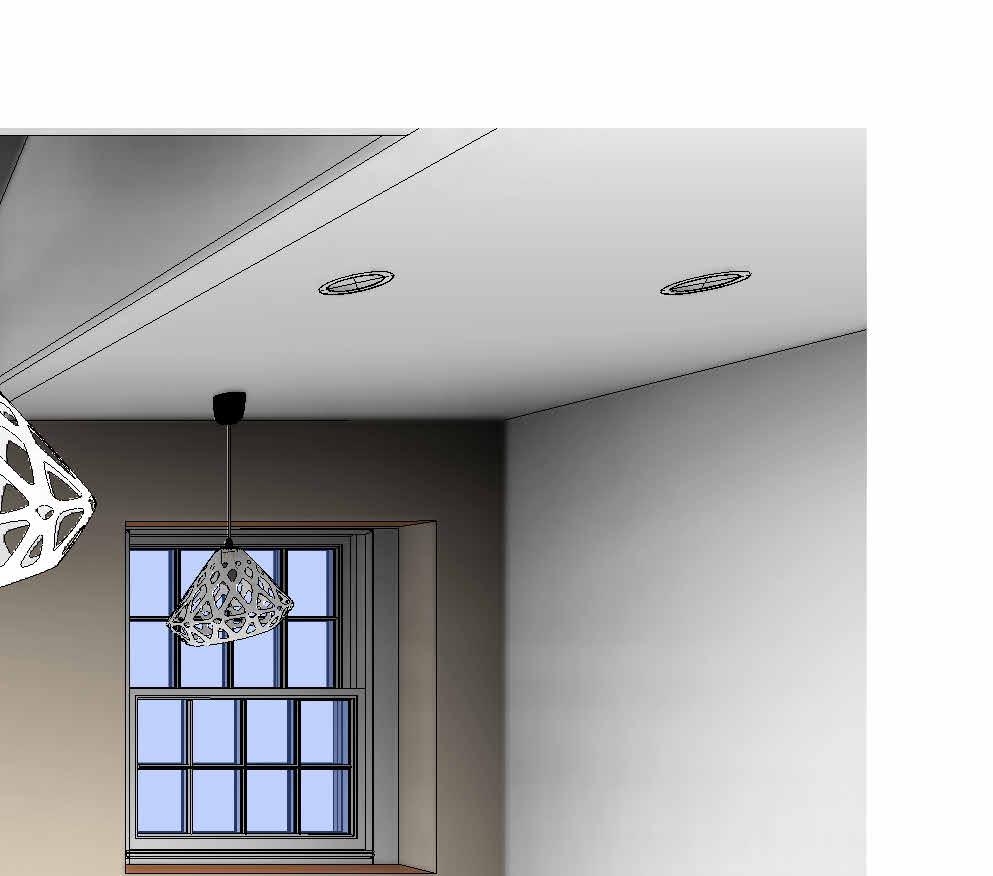

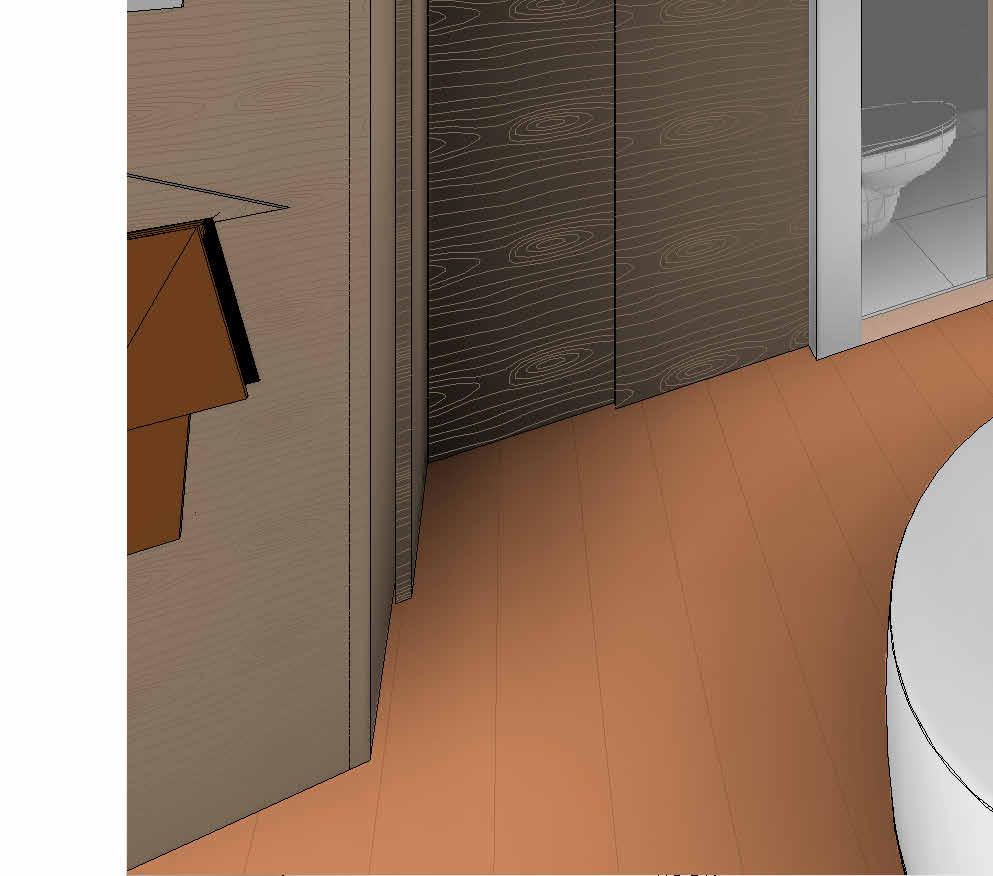

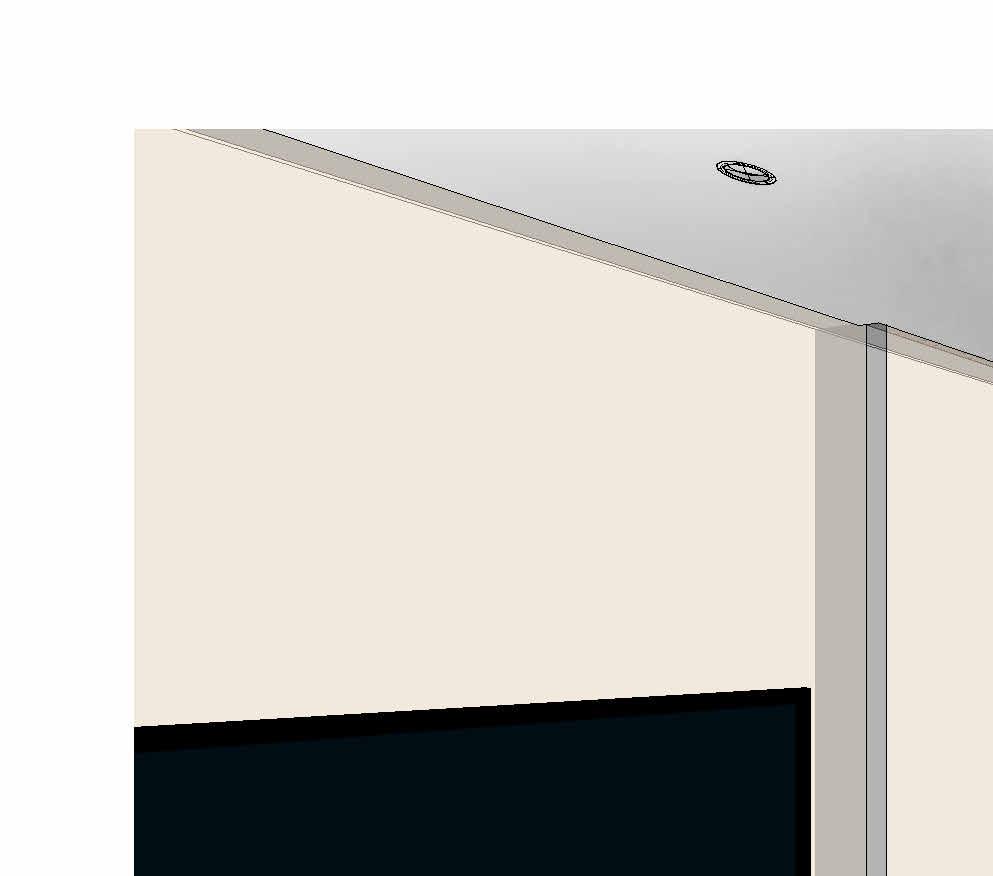

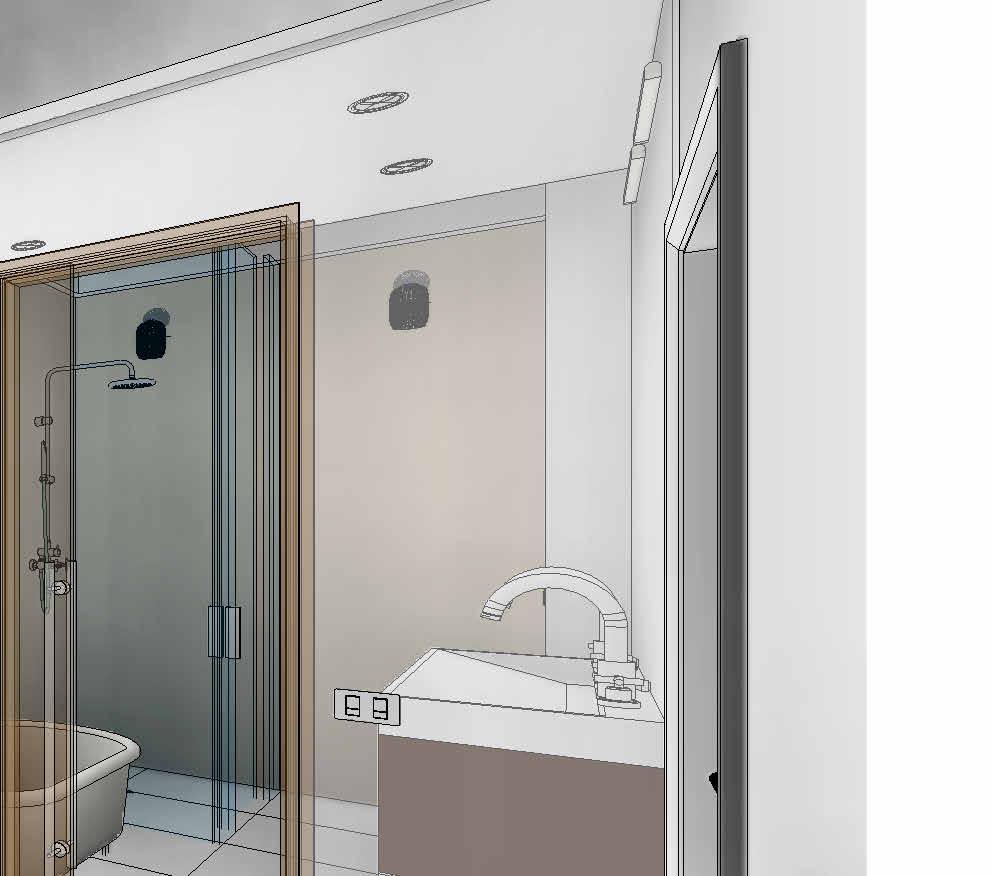

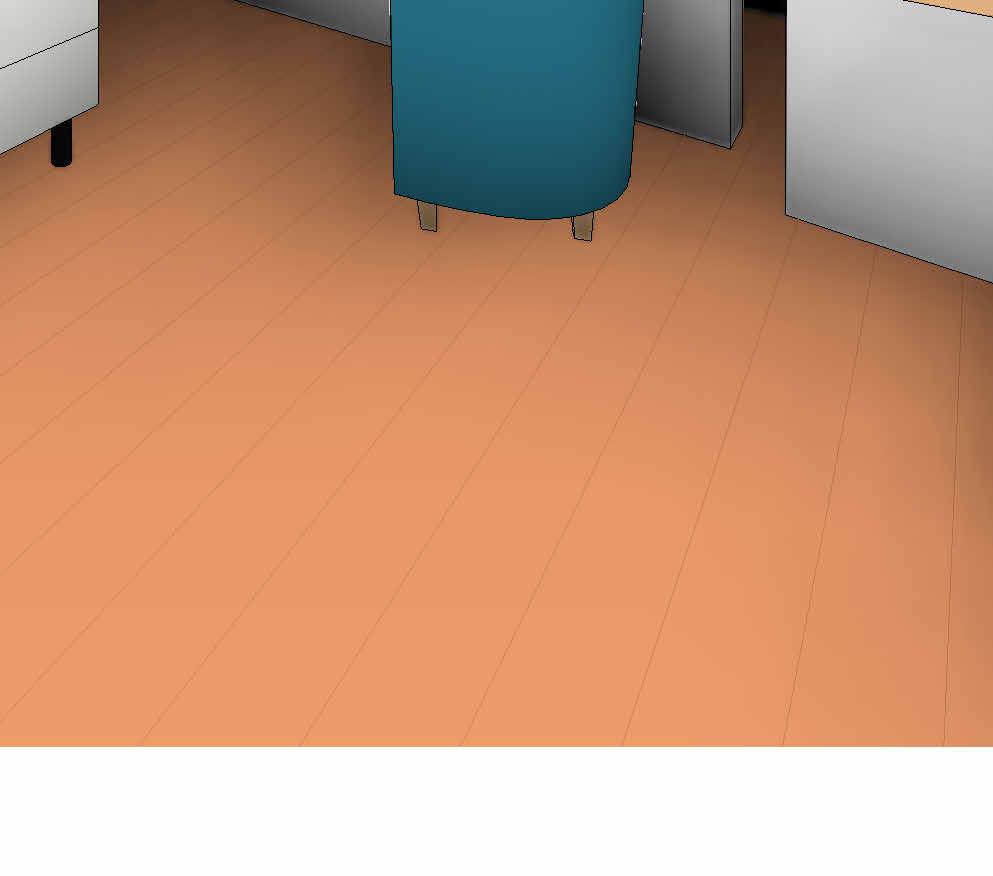

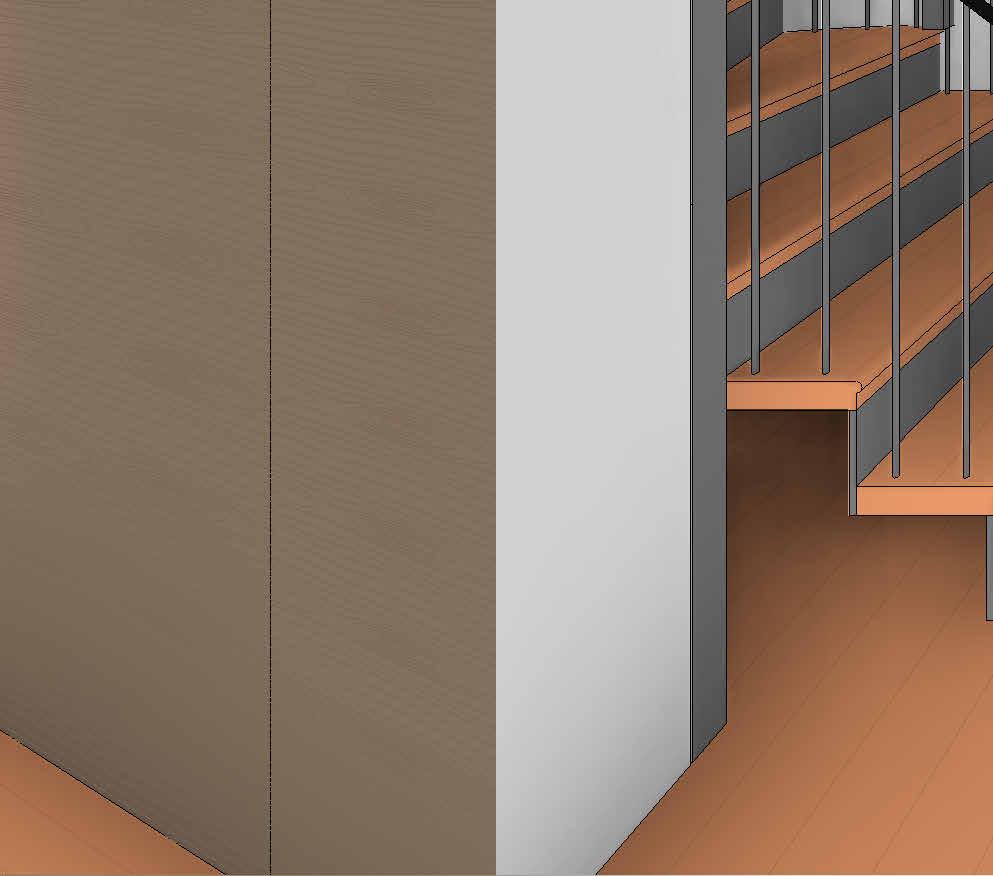

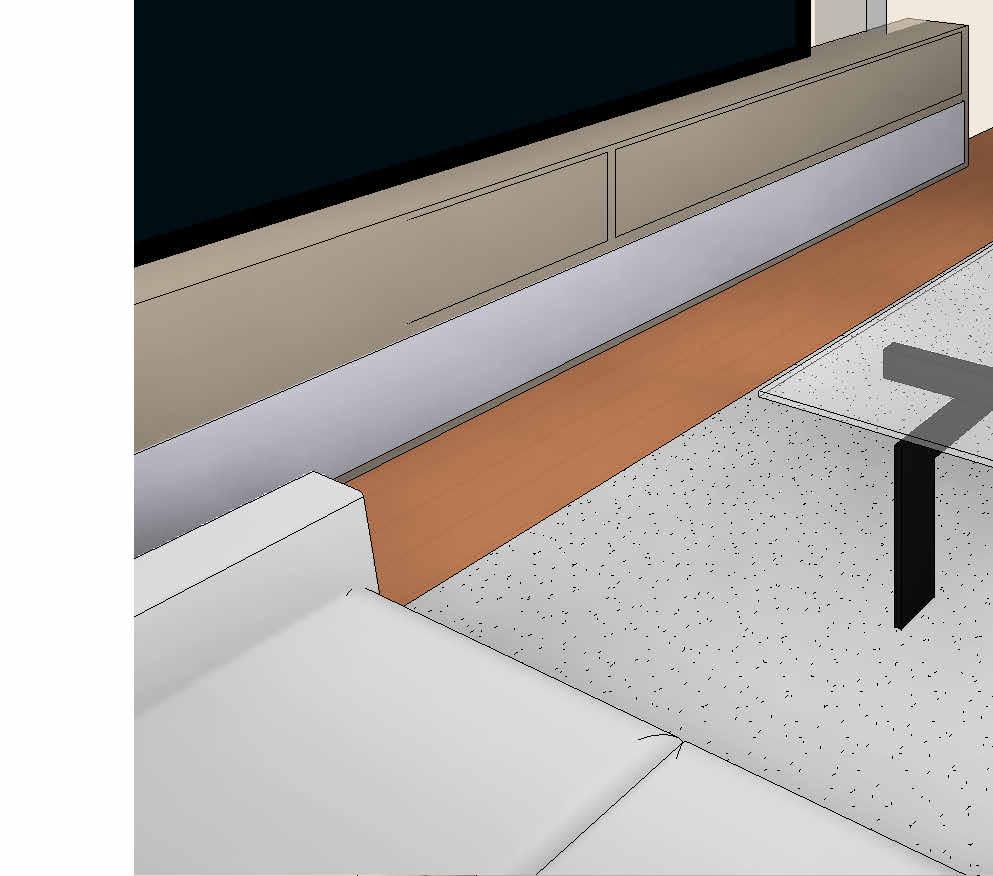

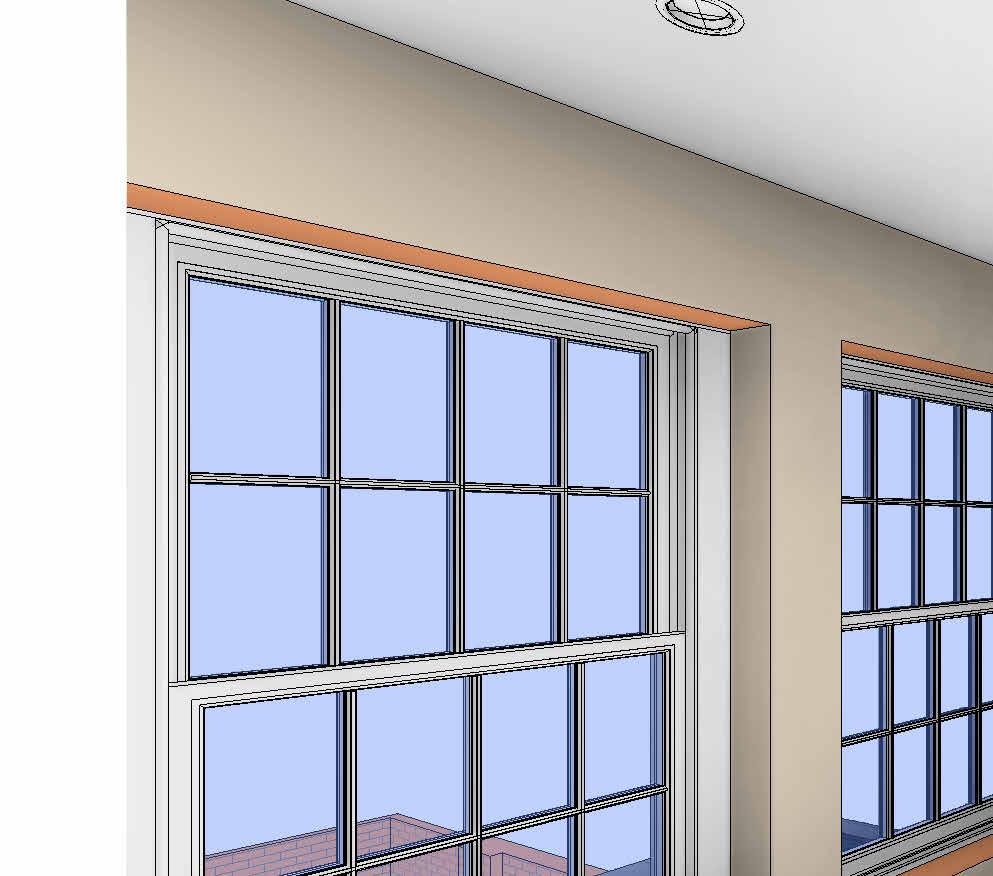

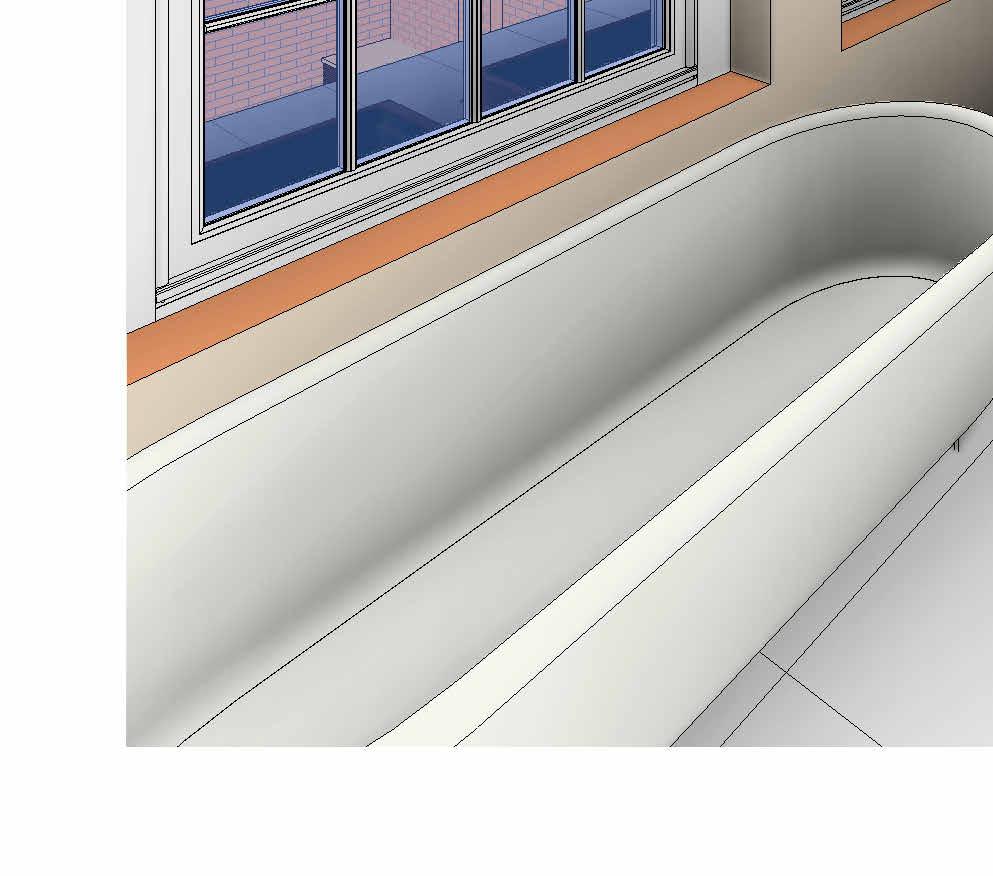

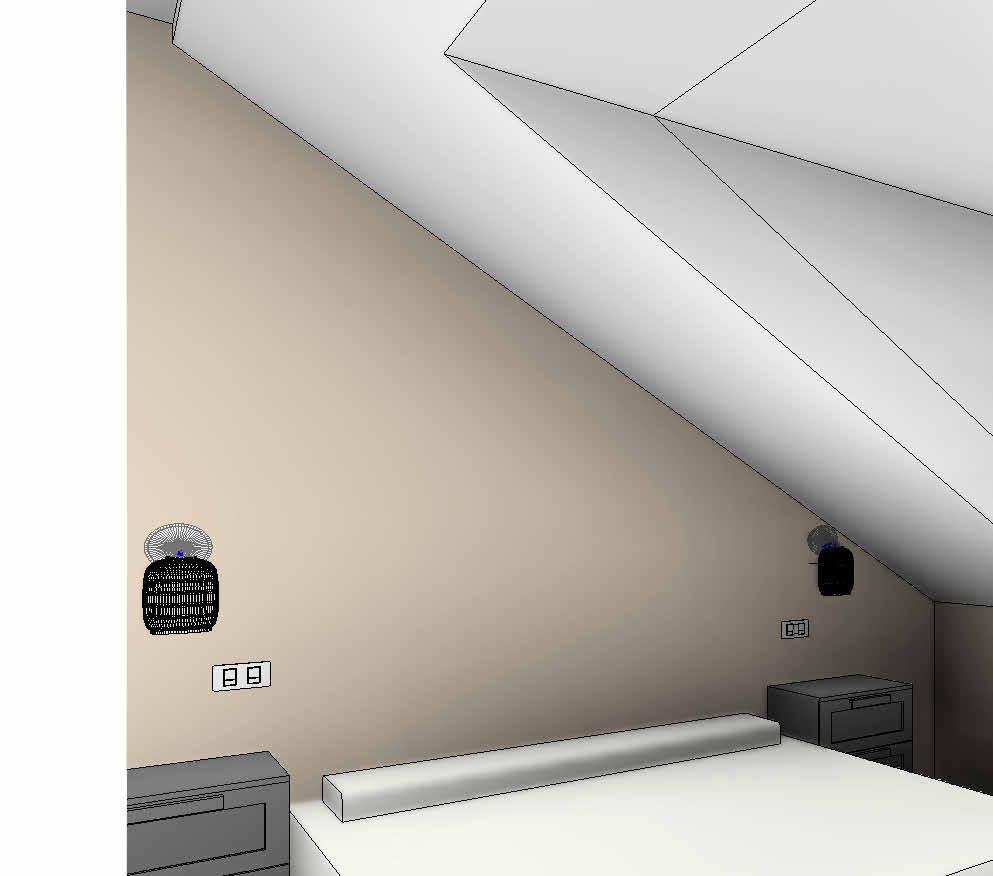

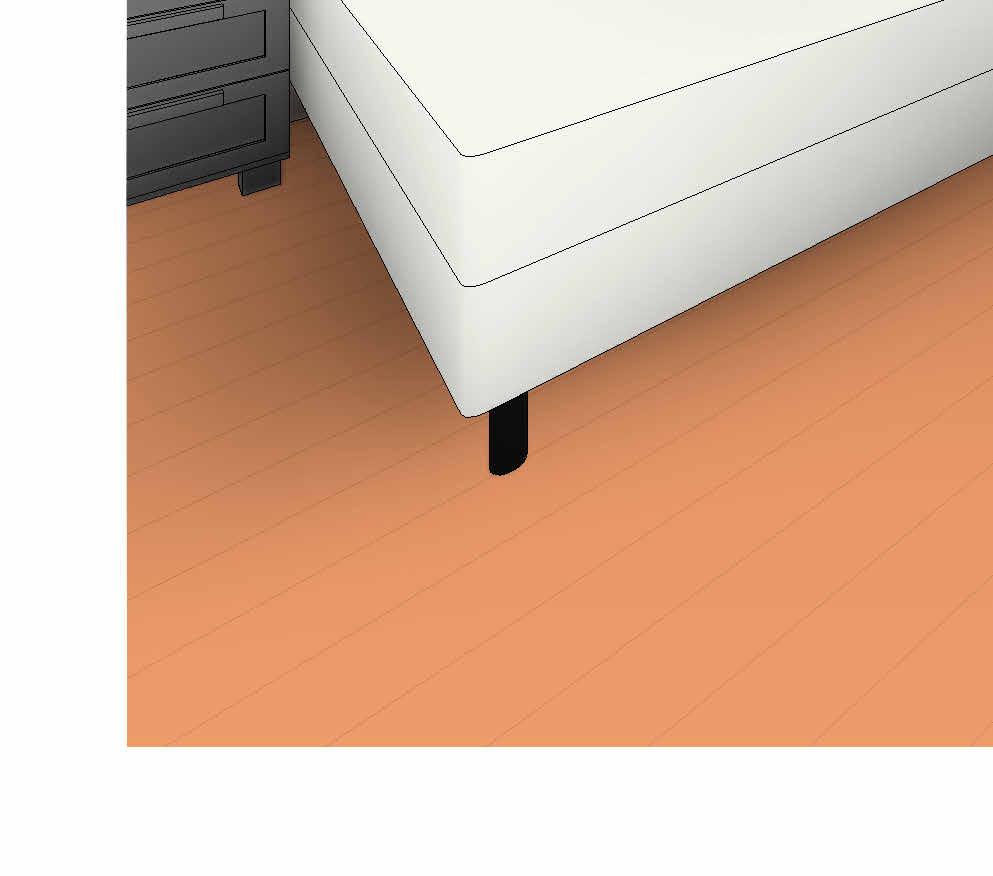

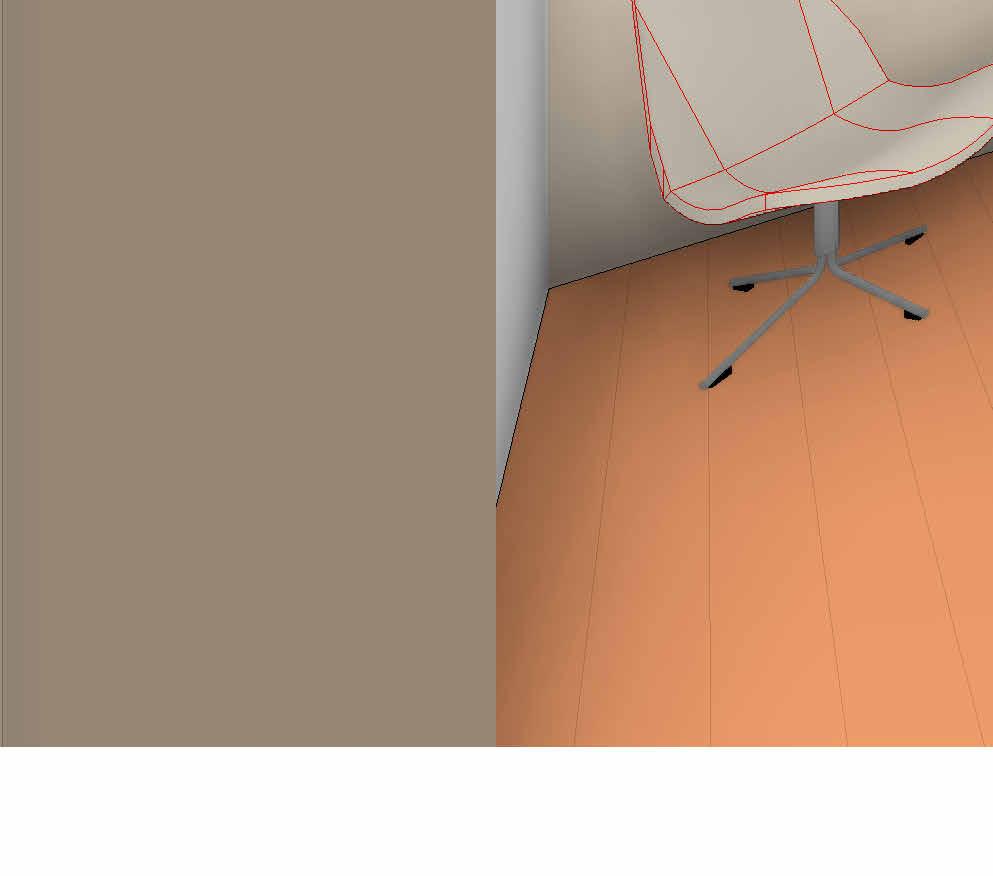

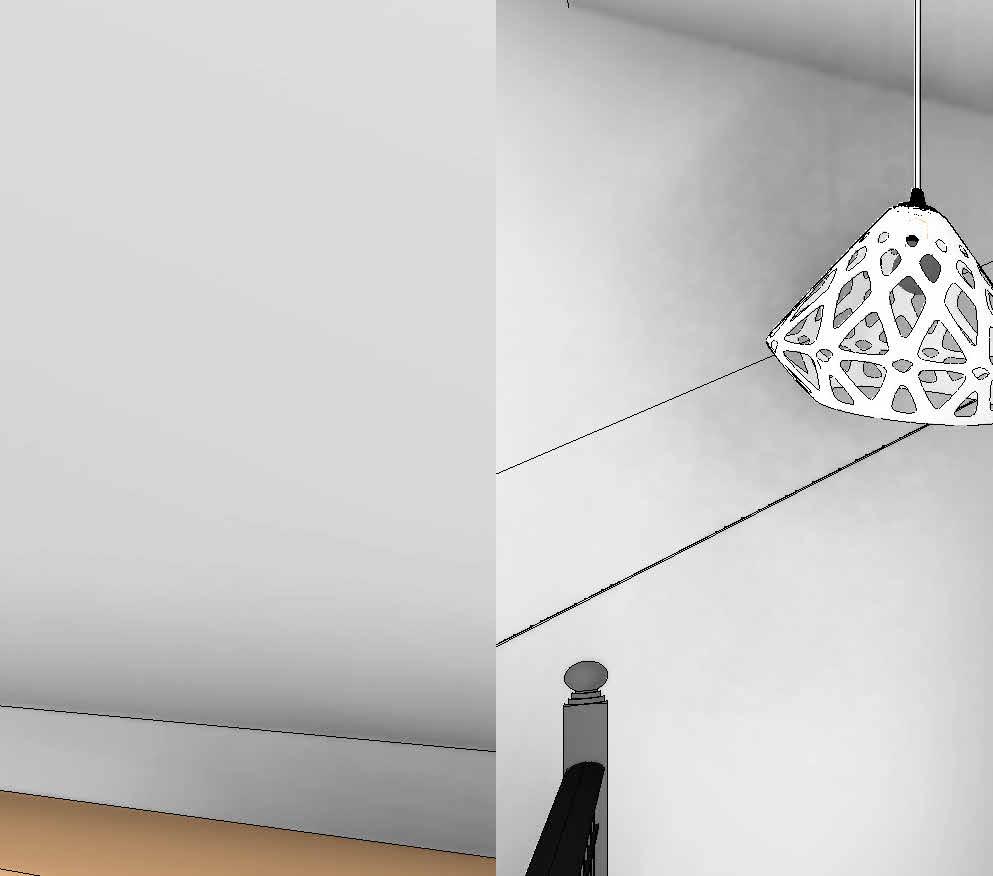

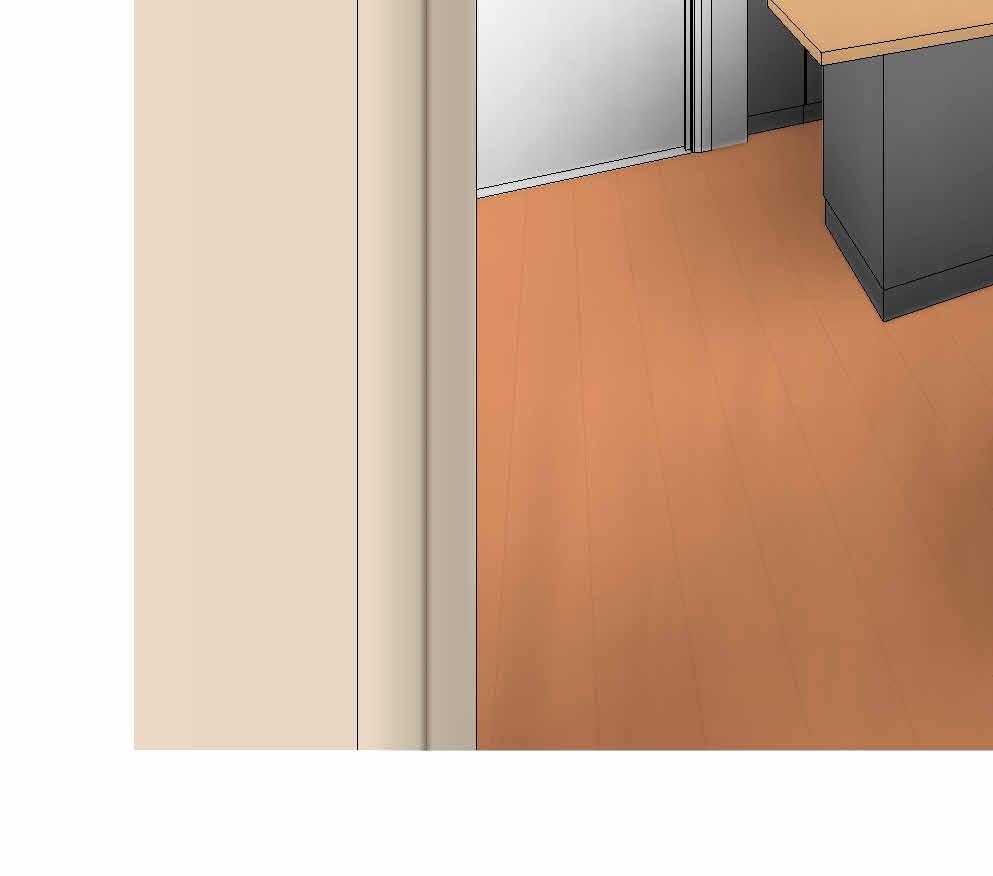

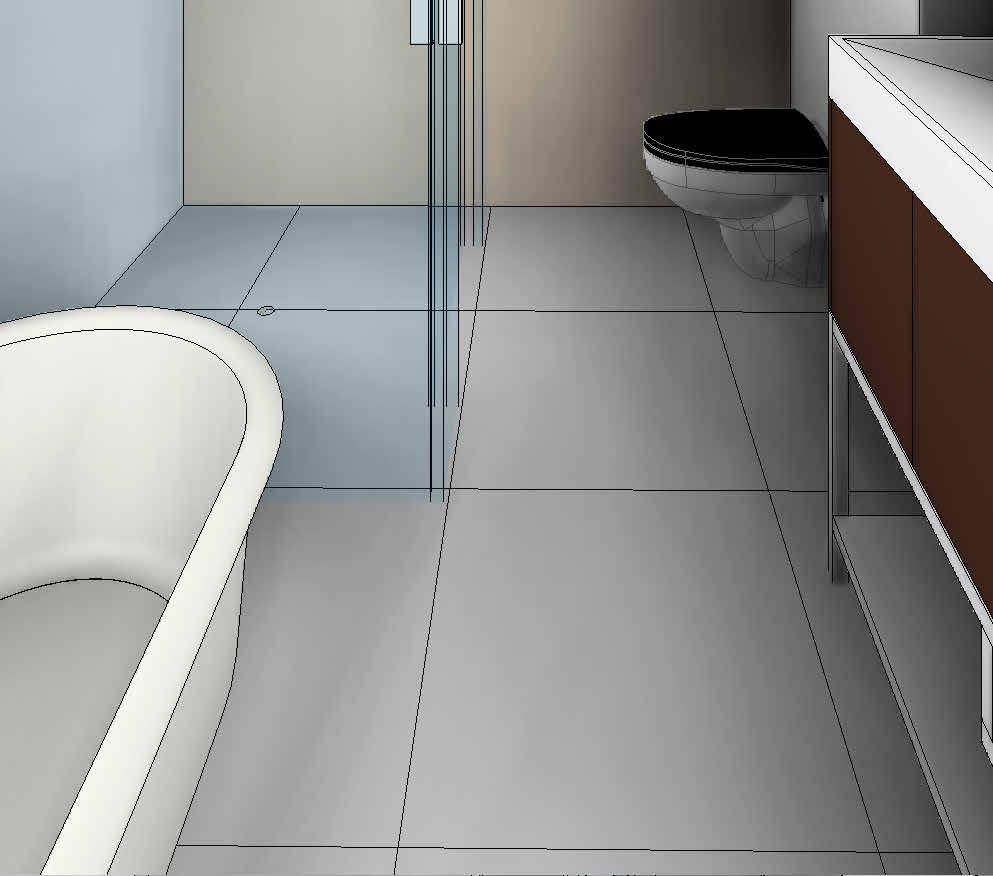

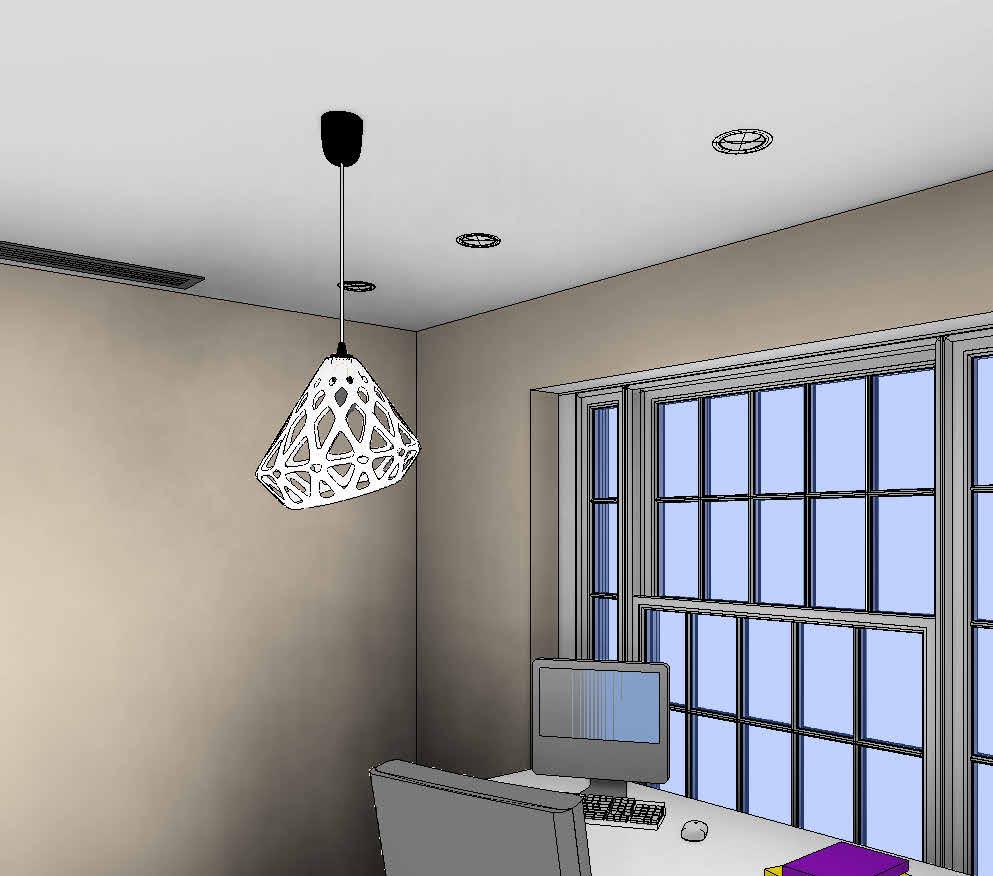

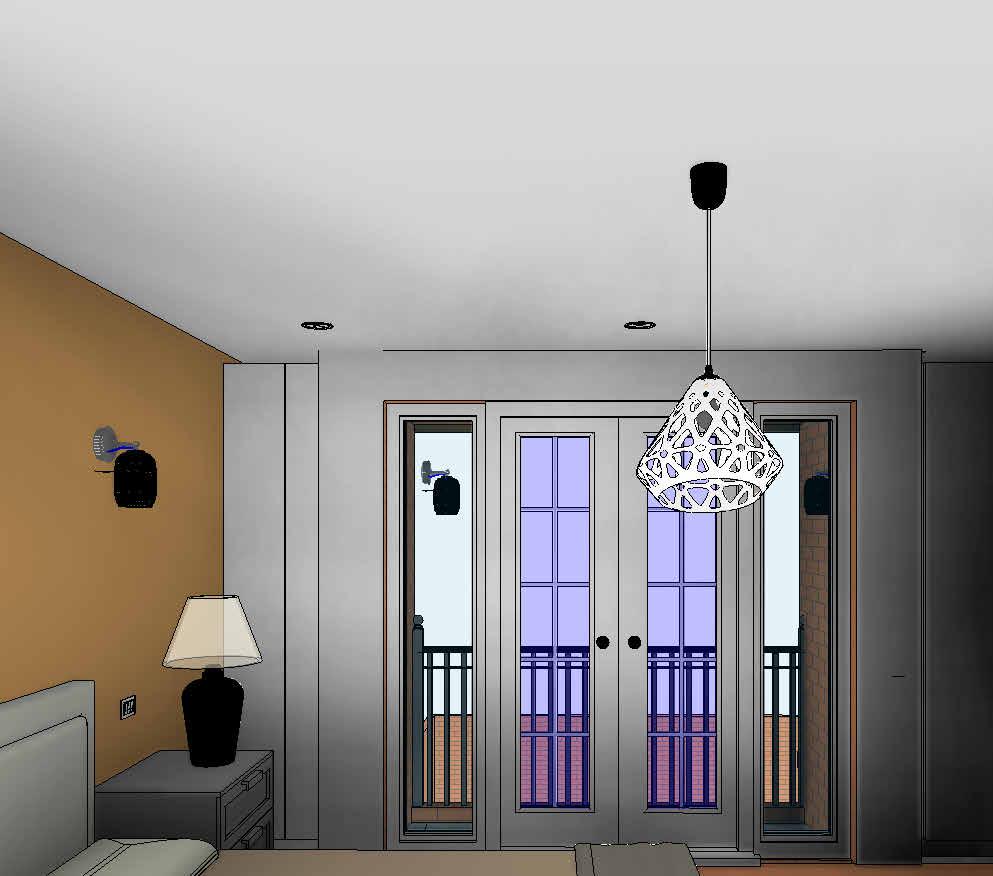

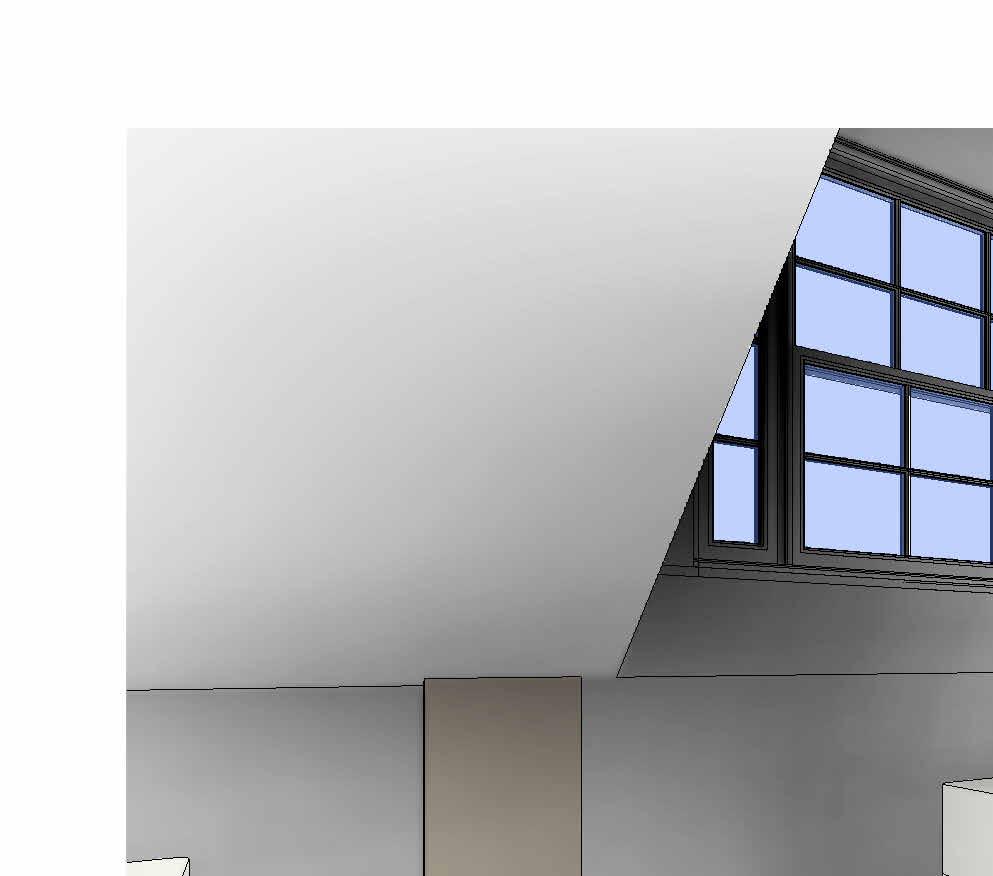

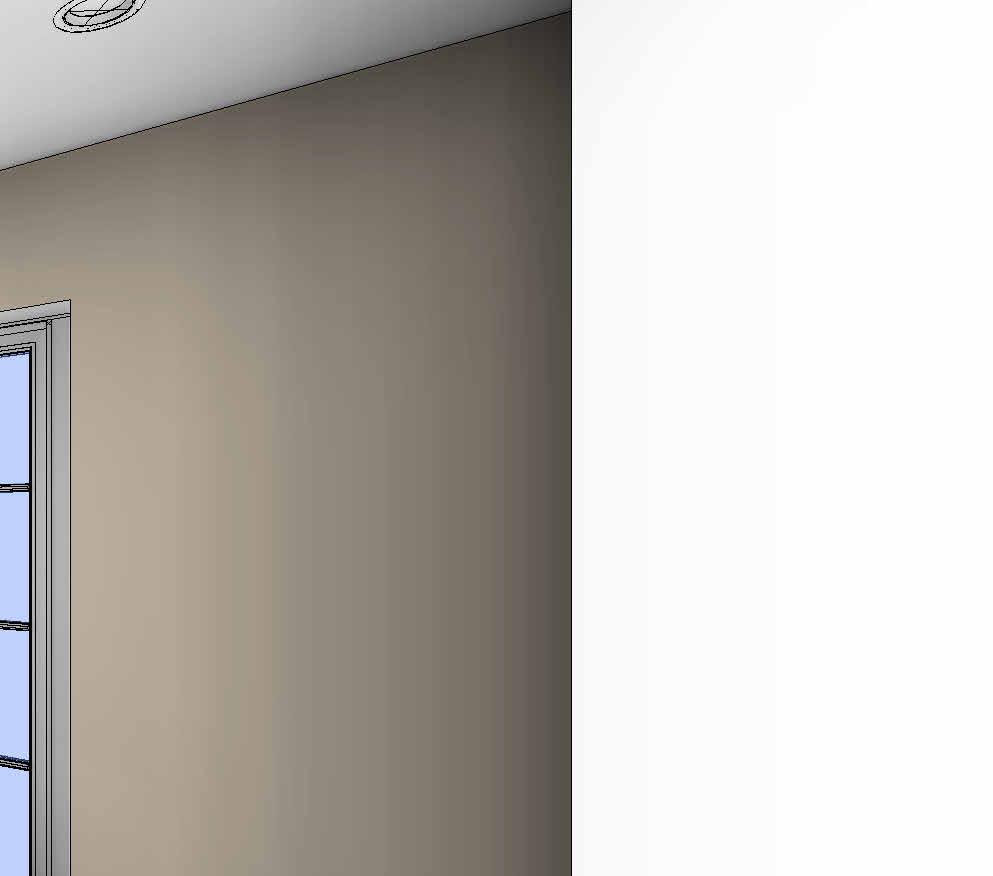

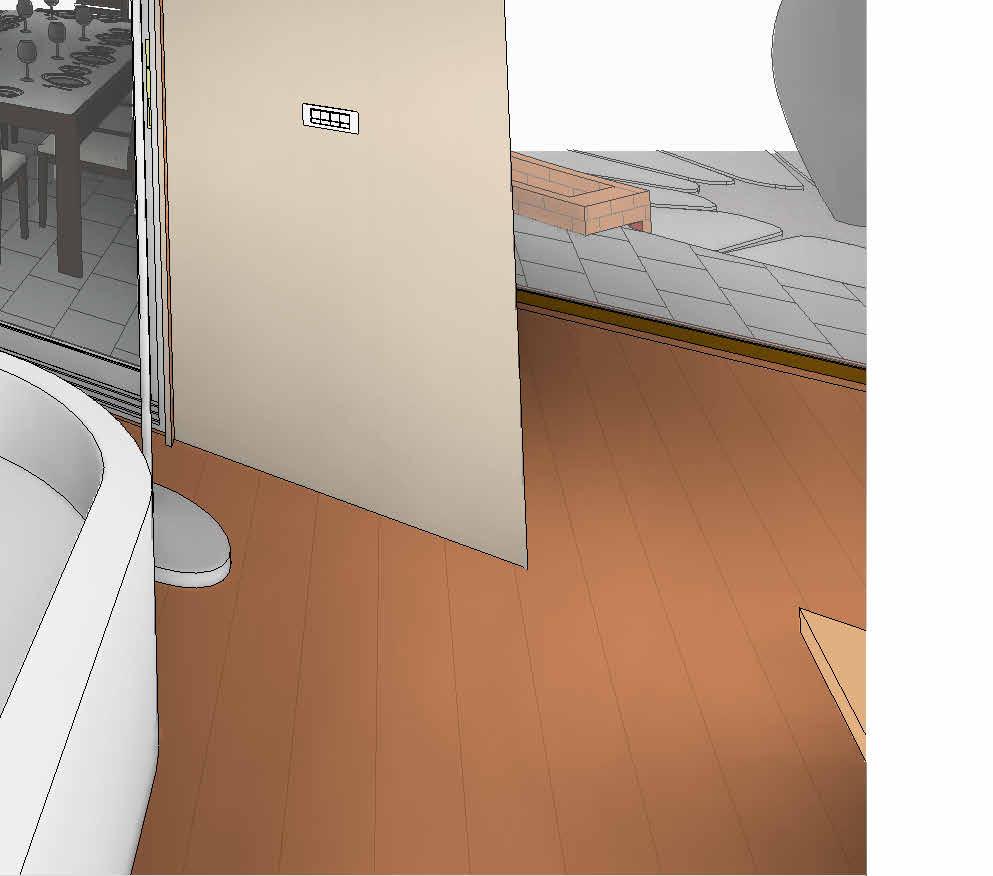

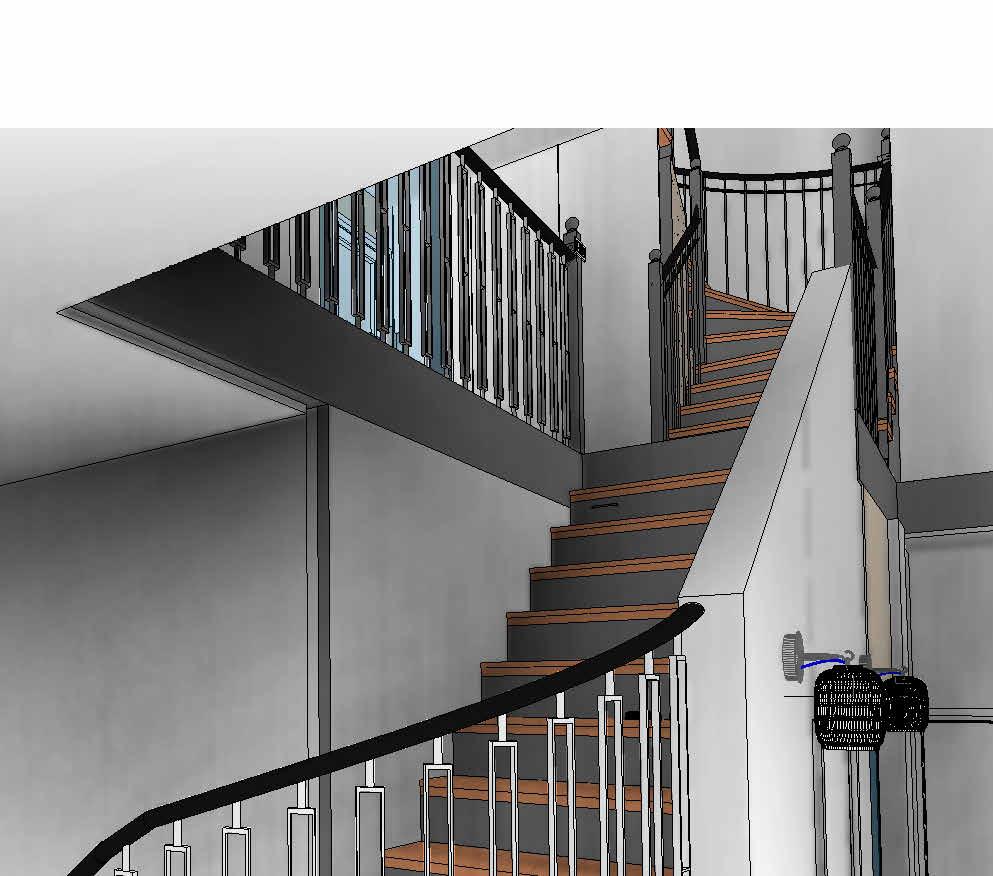

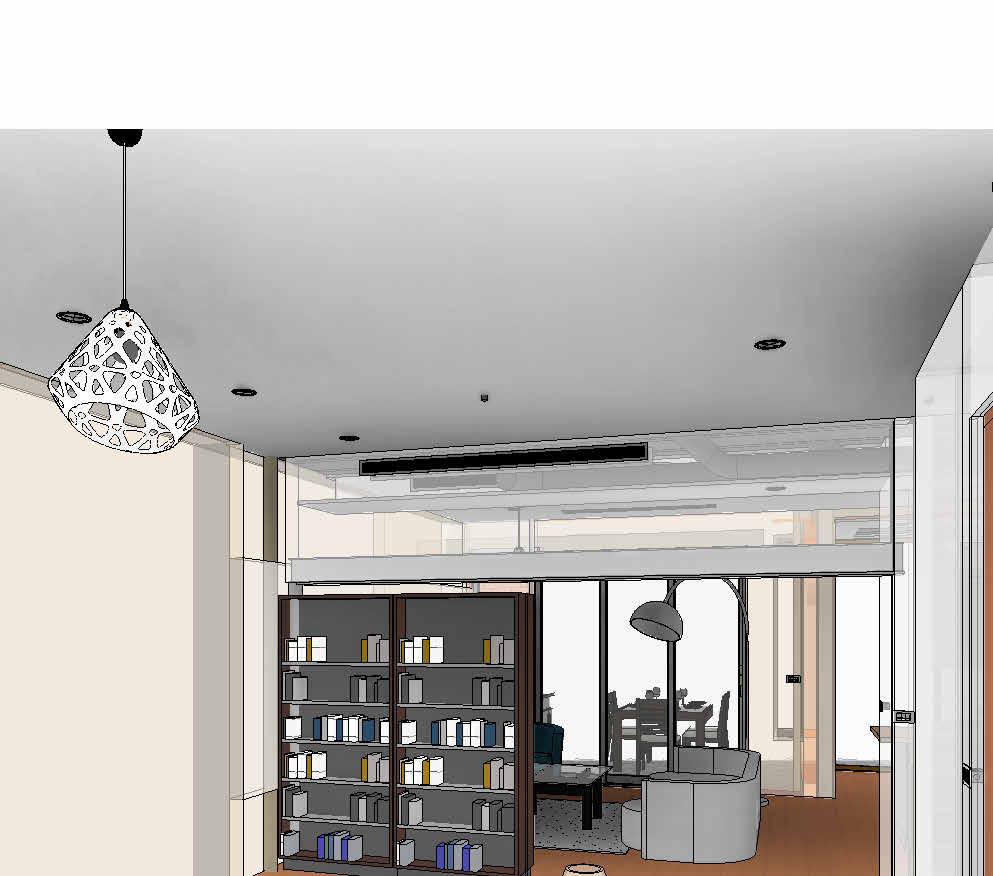

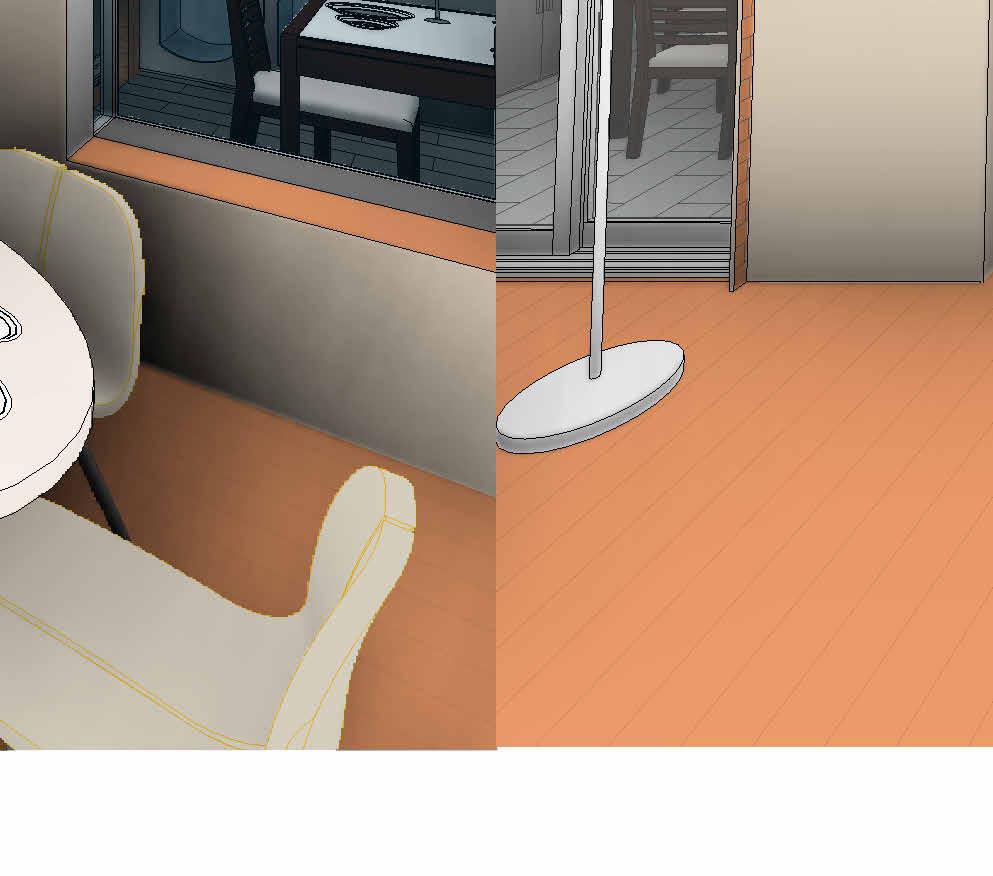

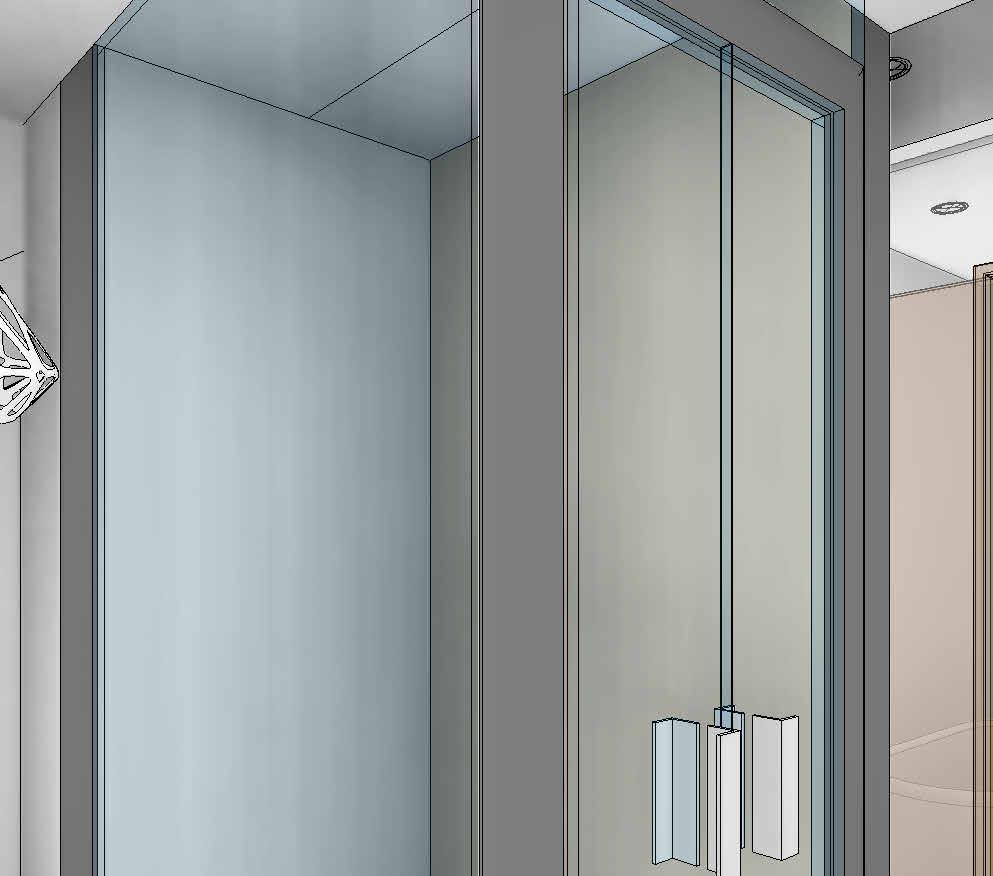

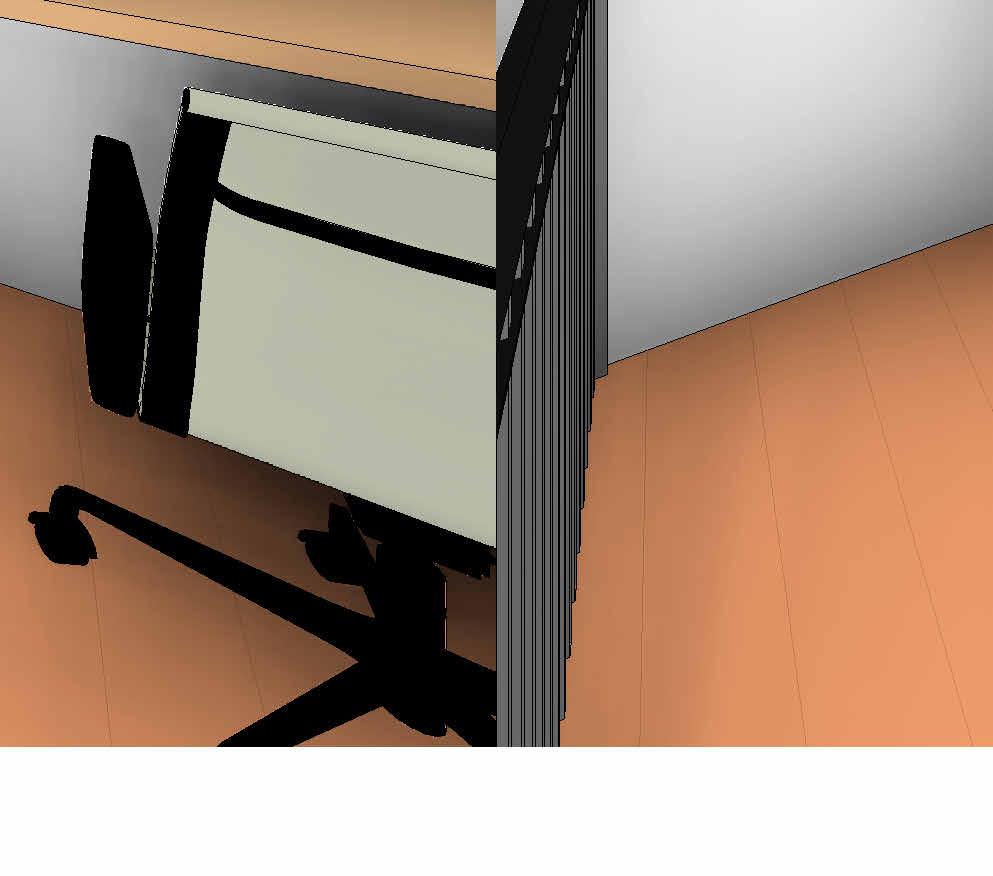

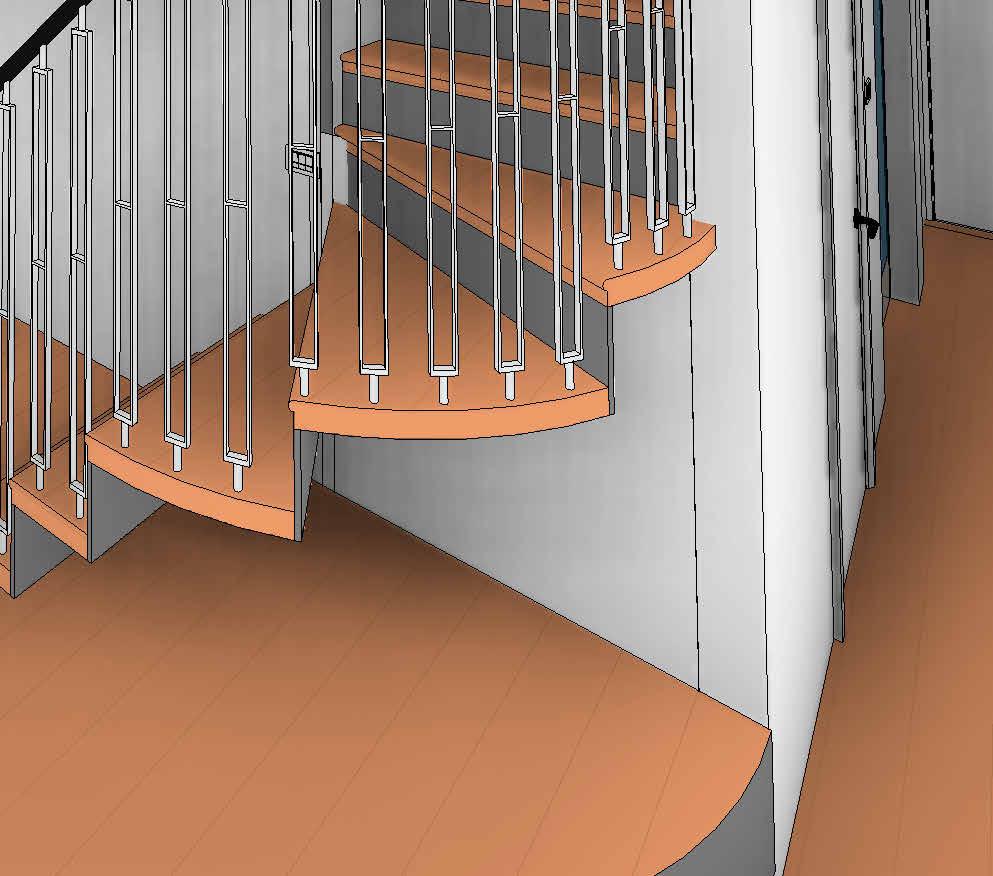

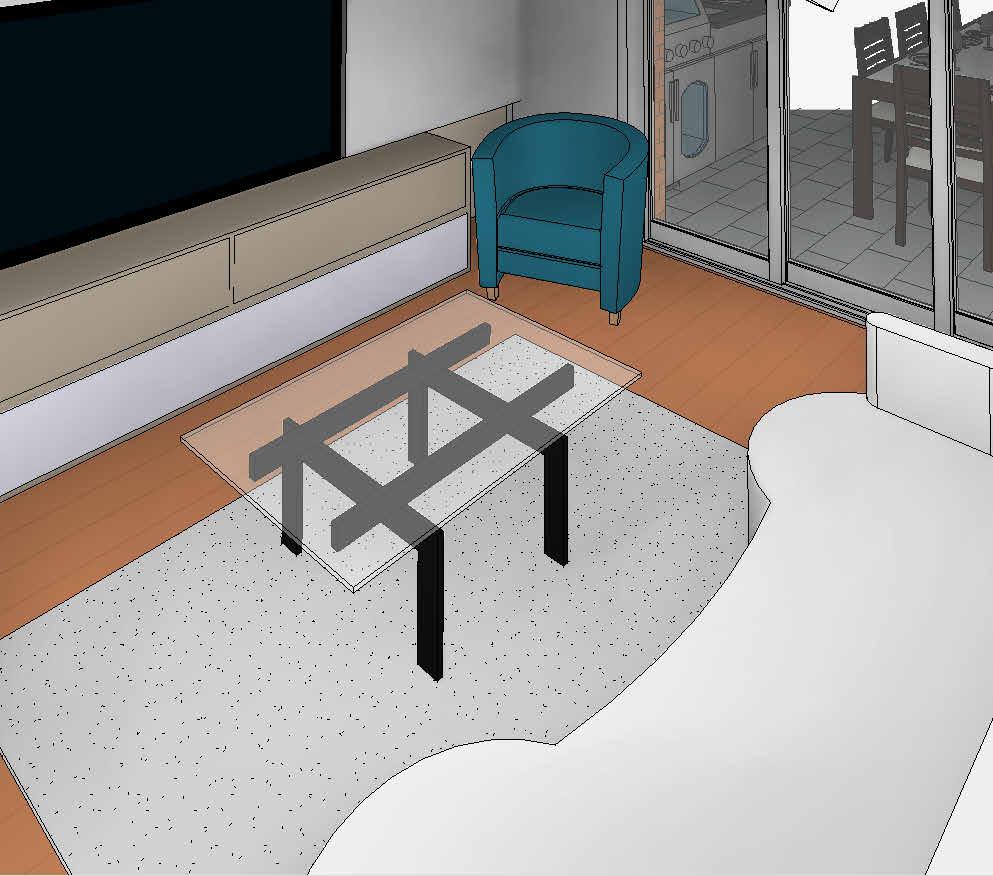

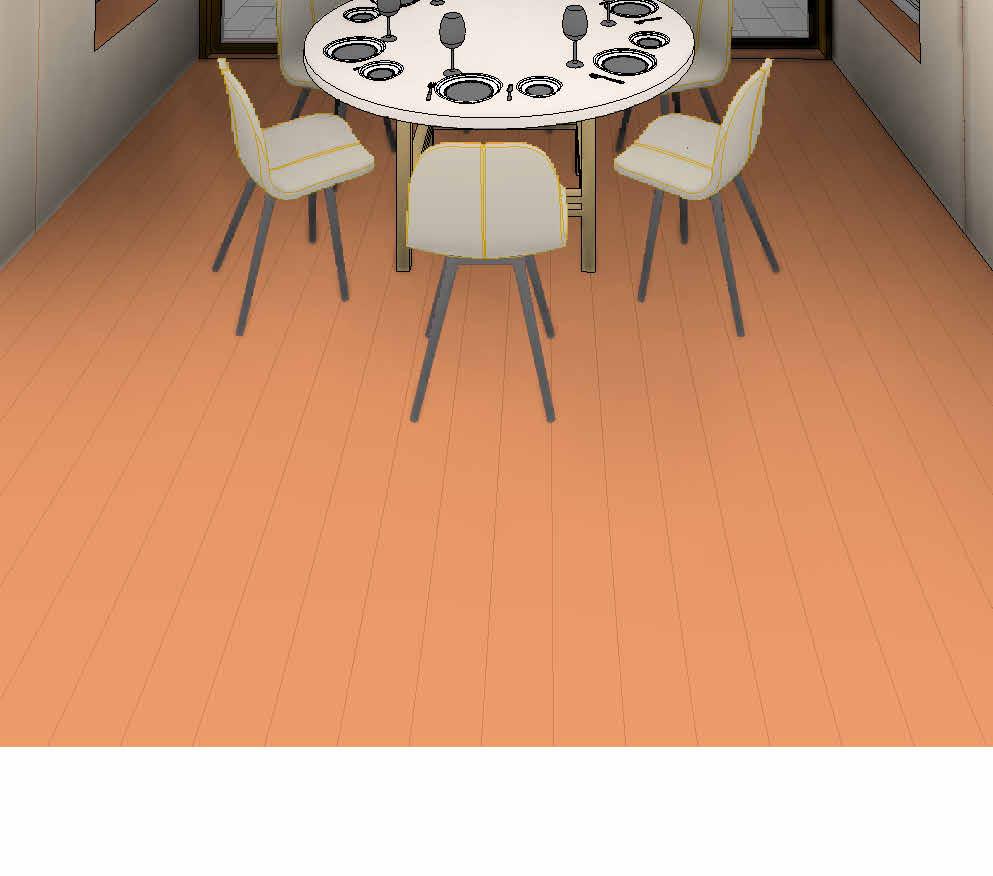

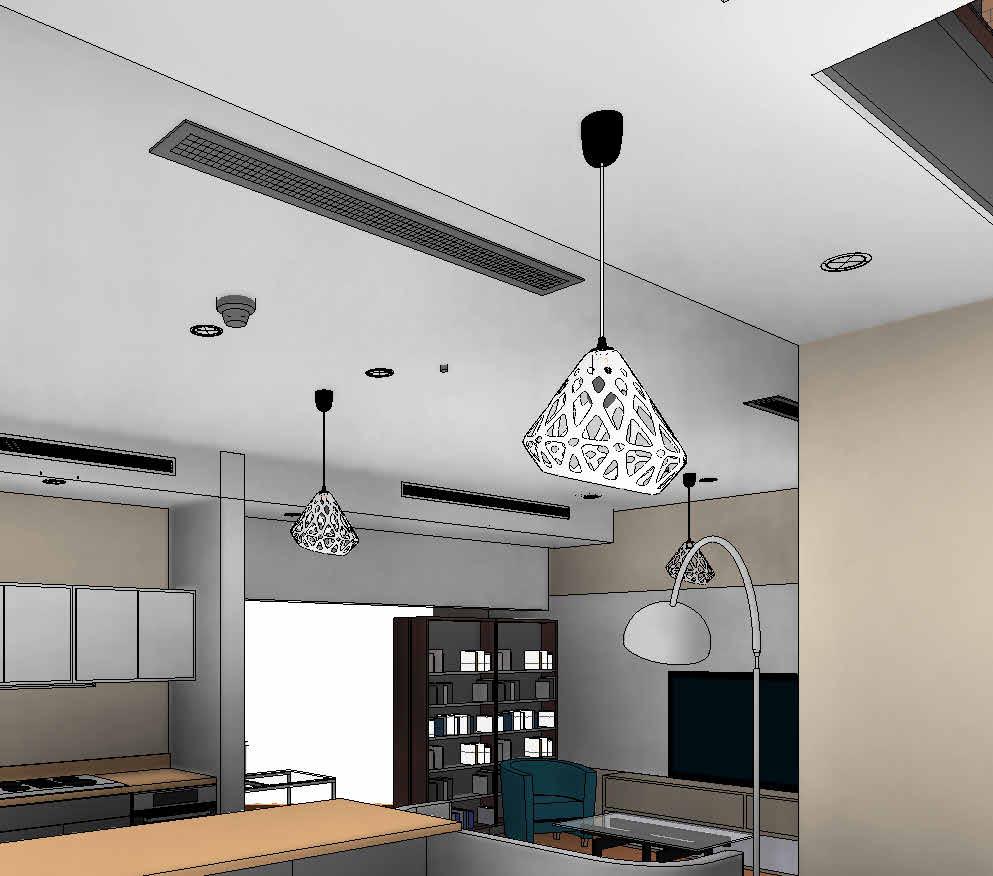

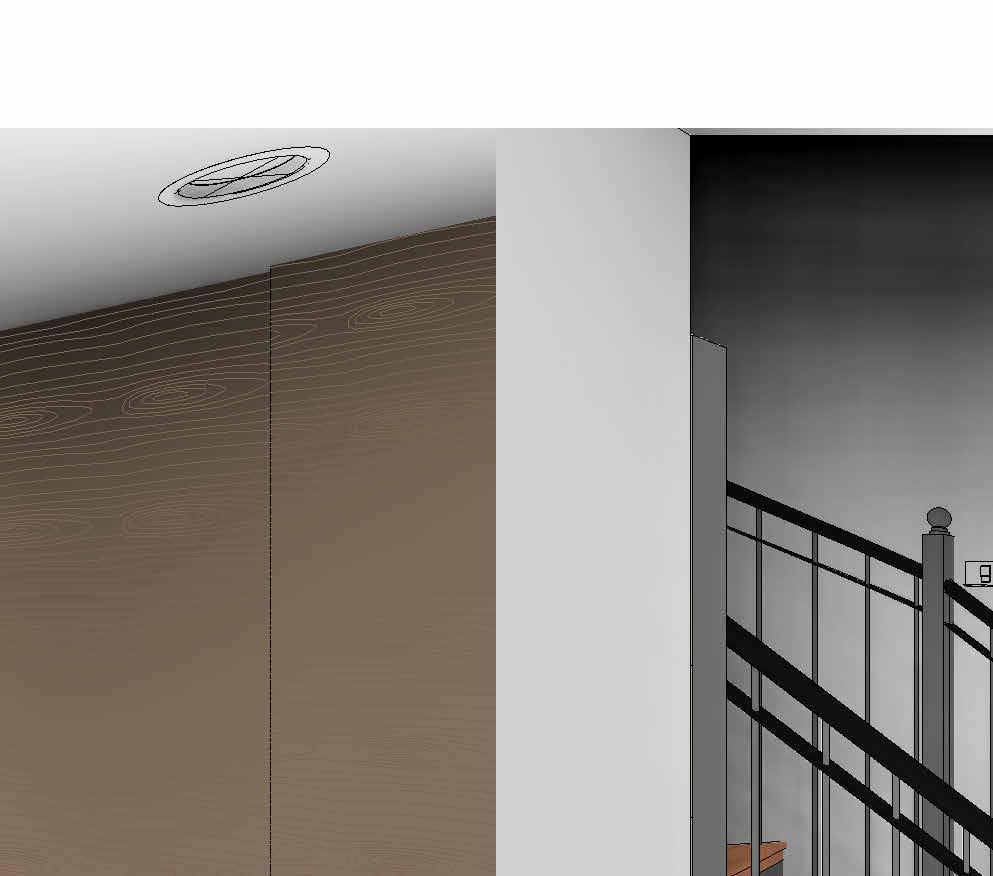

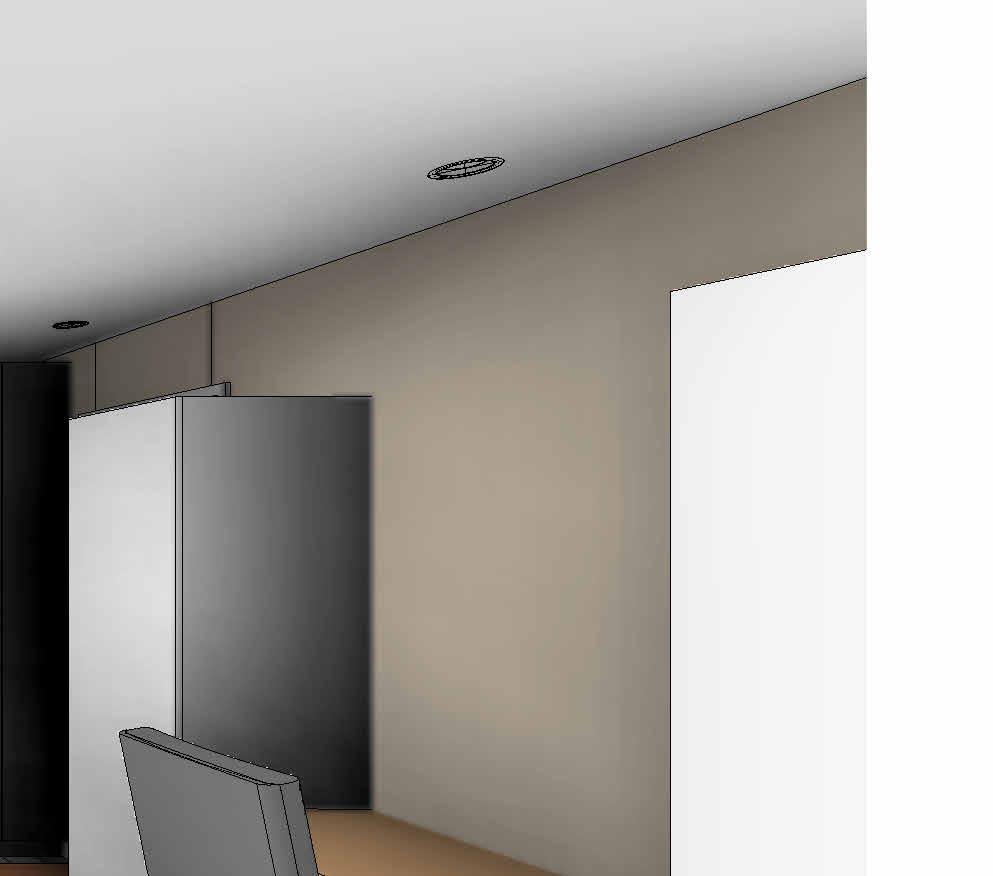

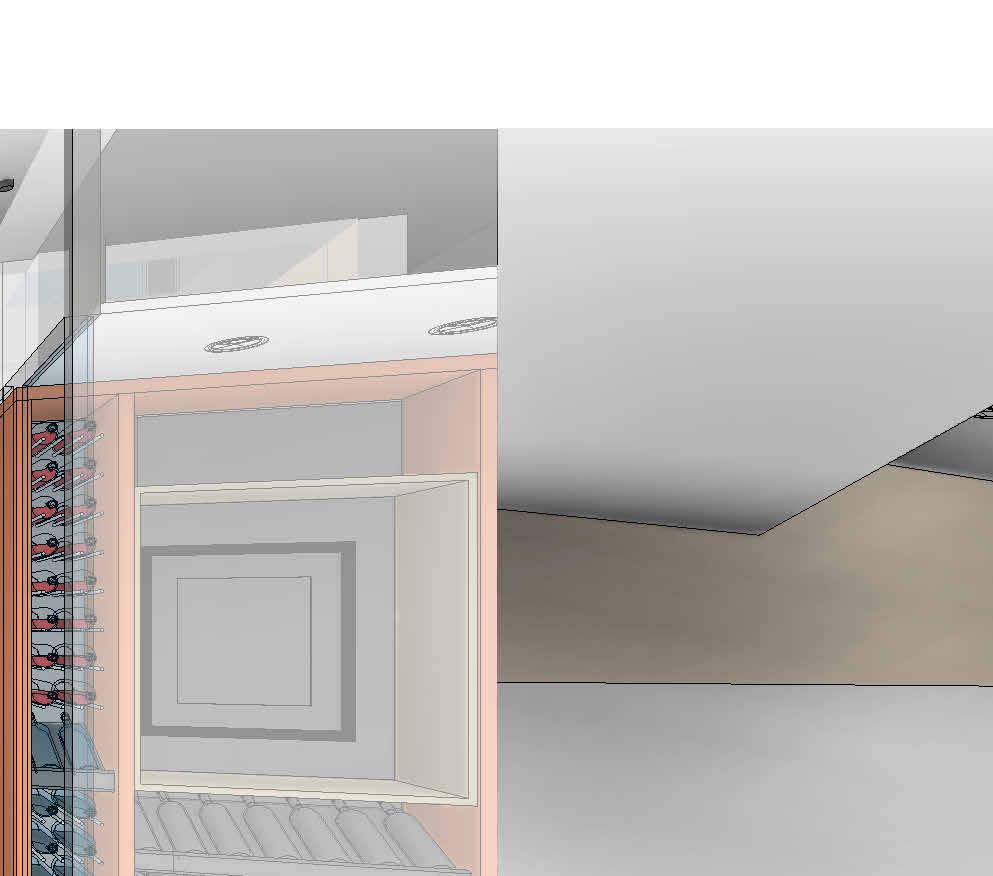

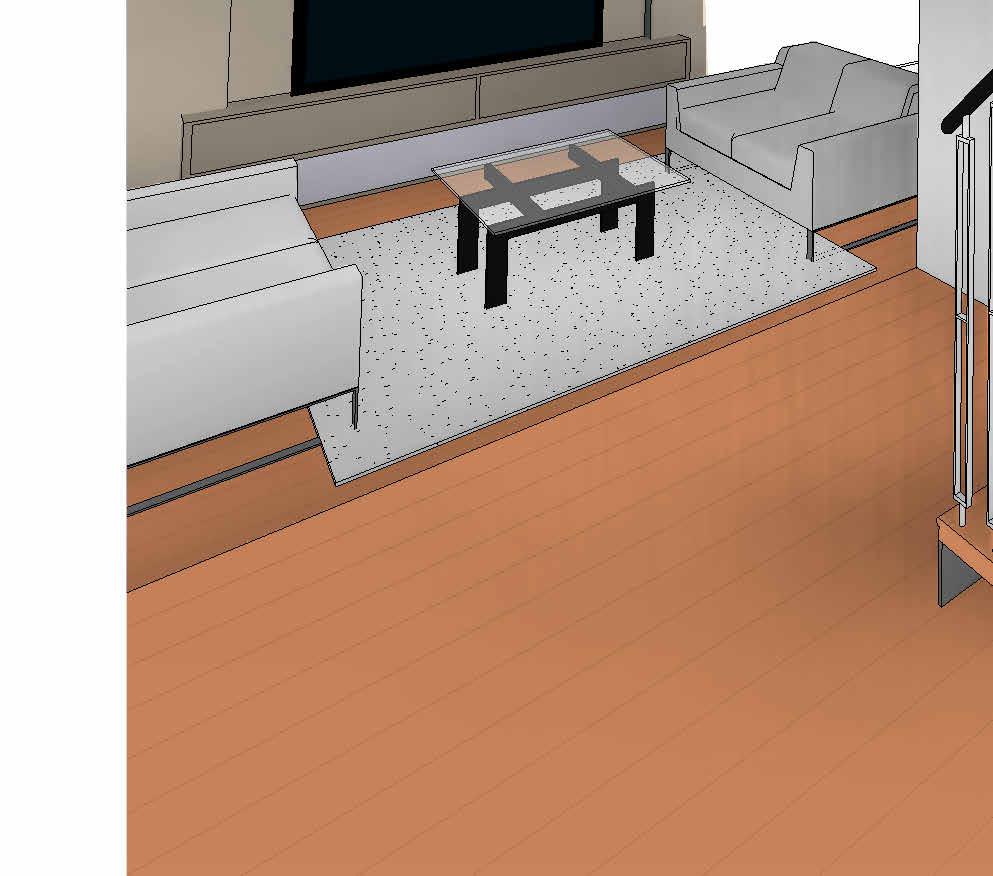

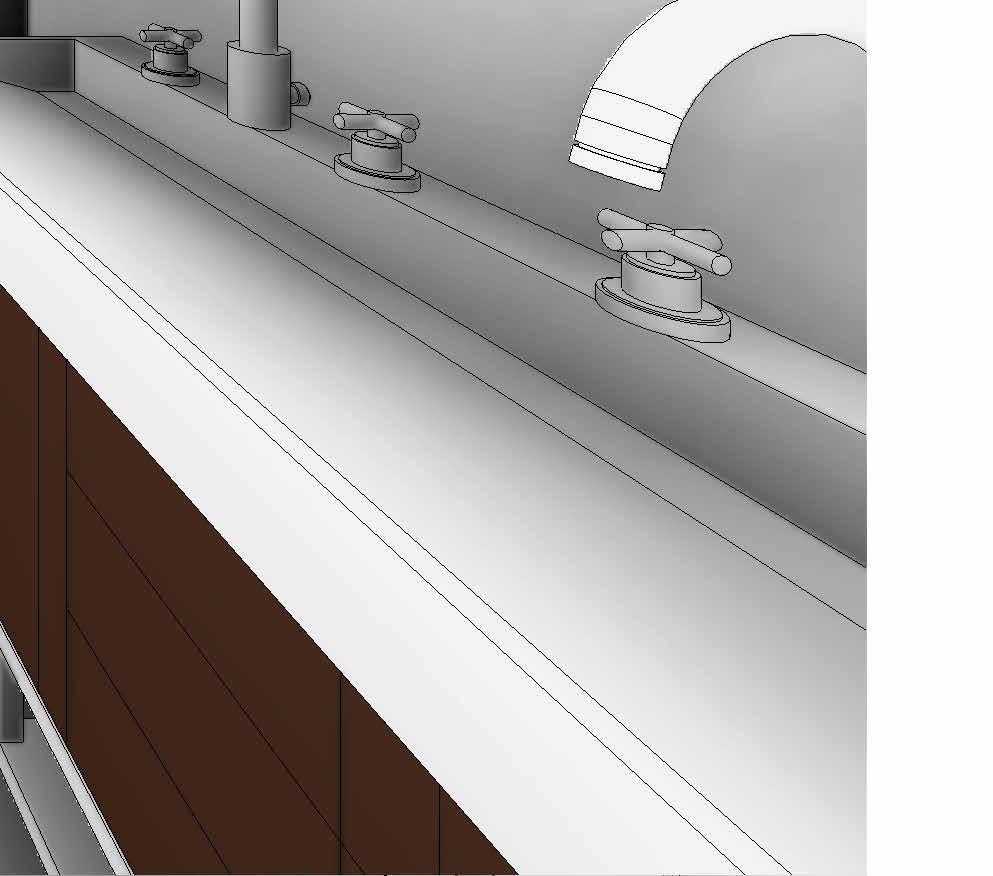

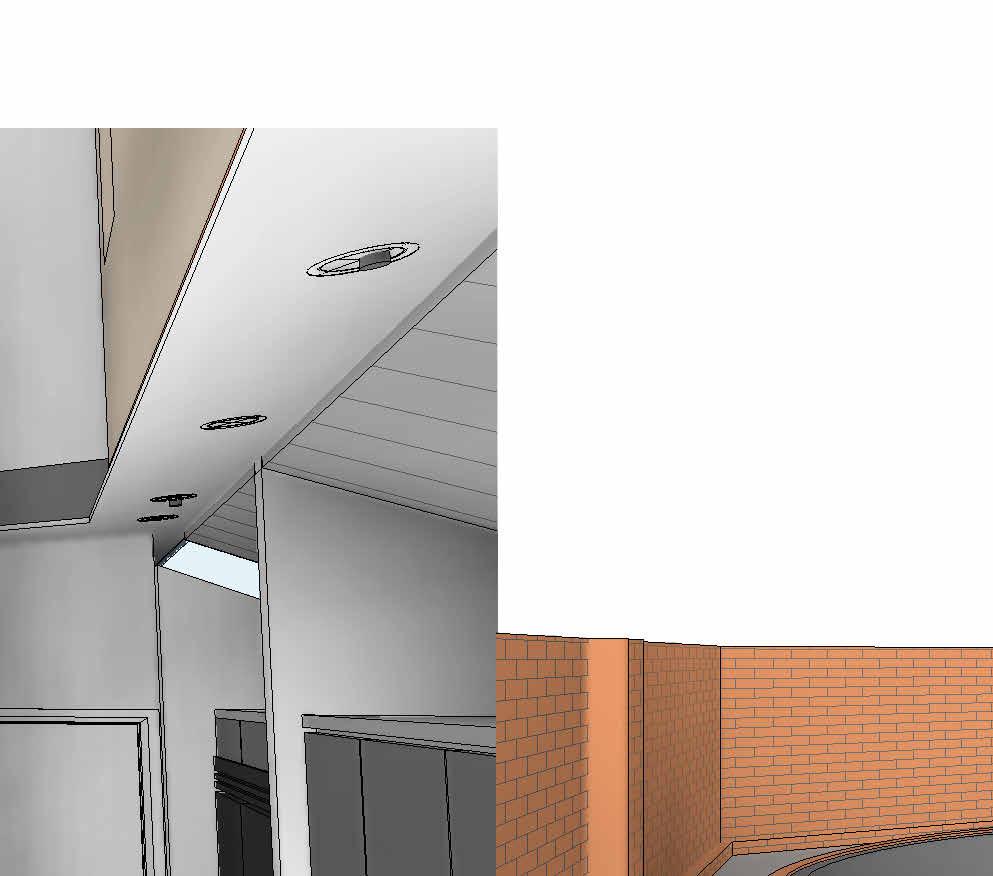

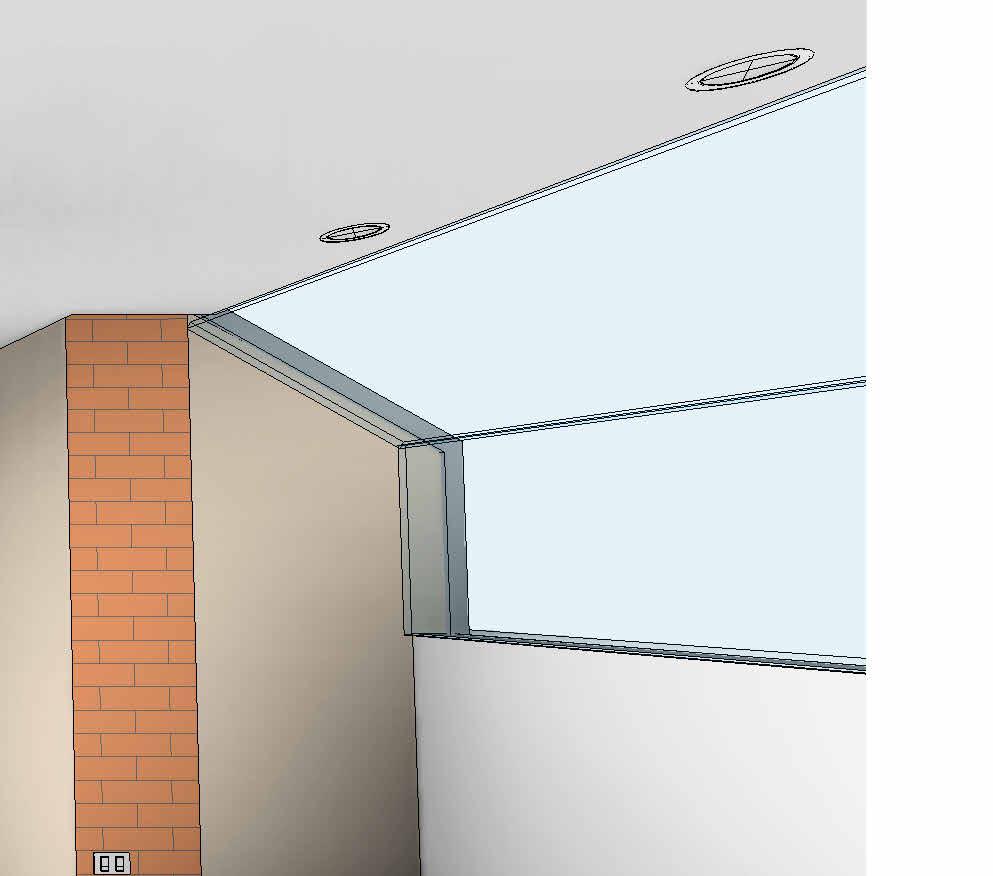

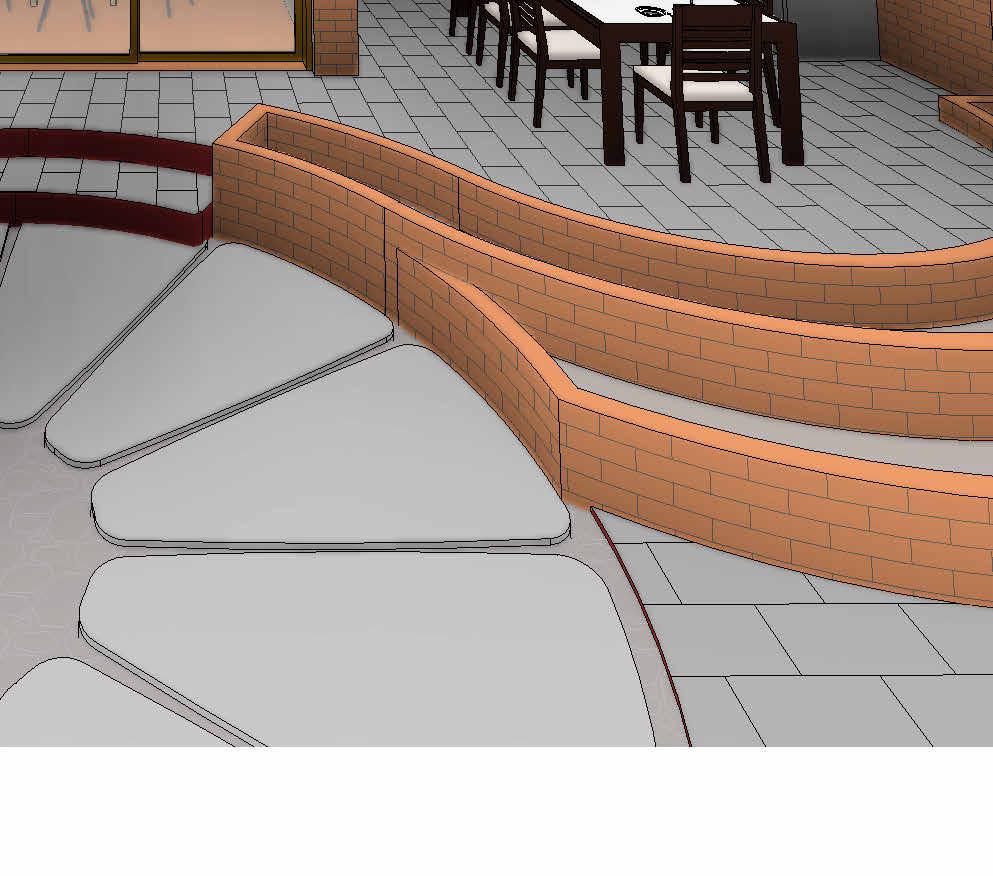

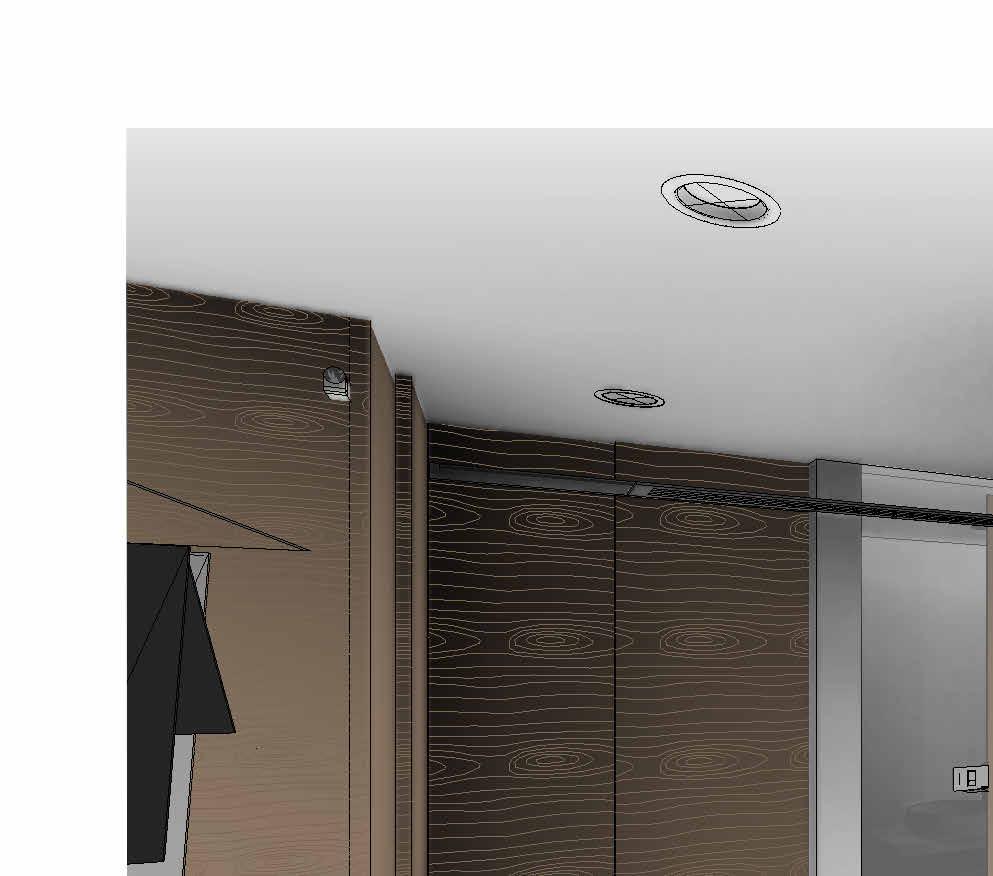

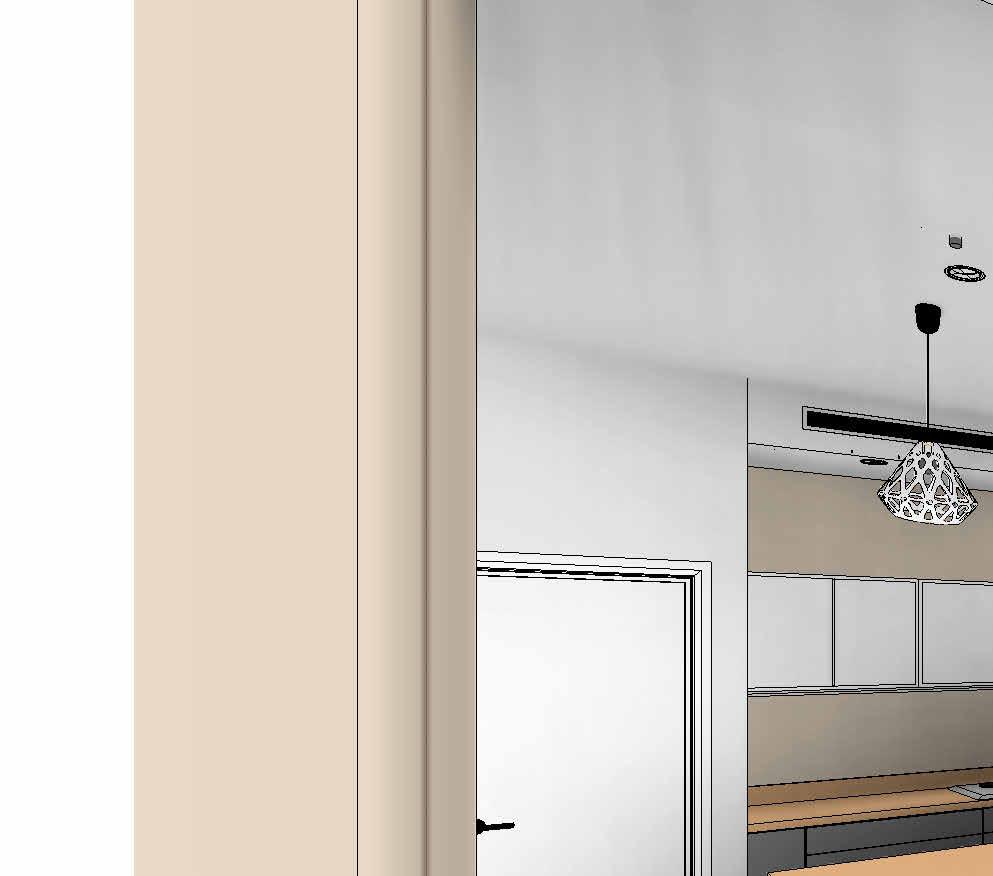

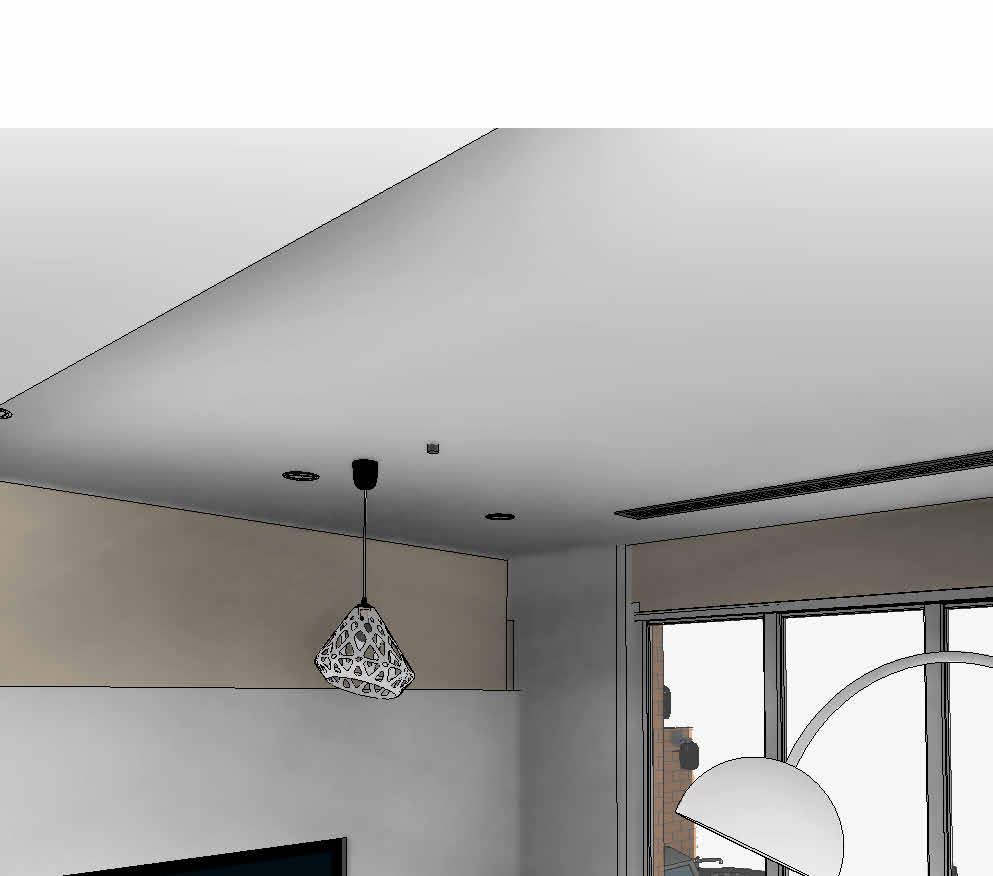

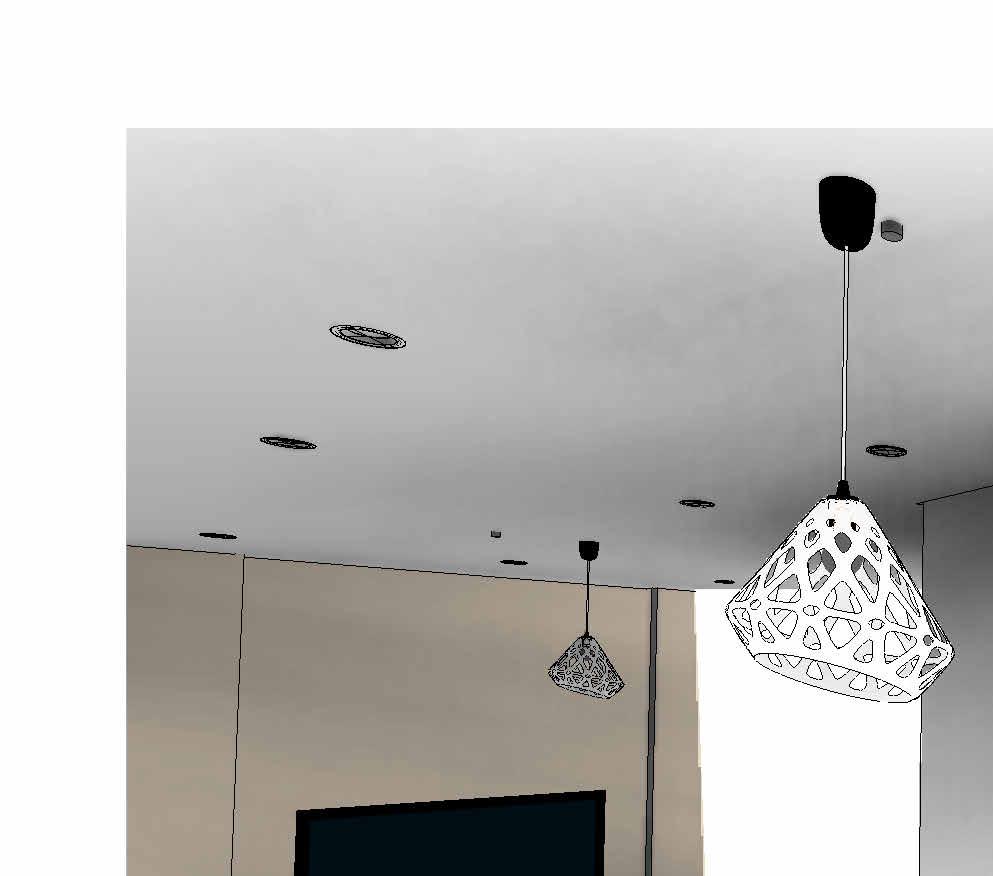

3D Visual of Guestroom

Setting-Out Sheets

Sub-structure Setting-Out Plans

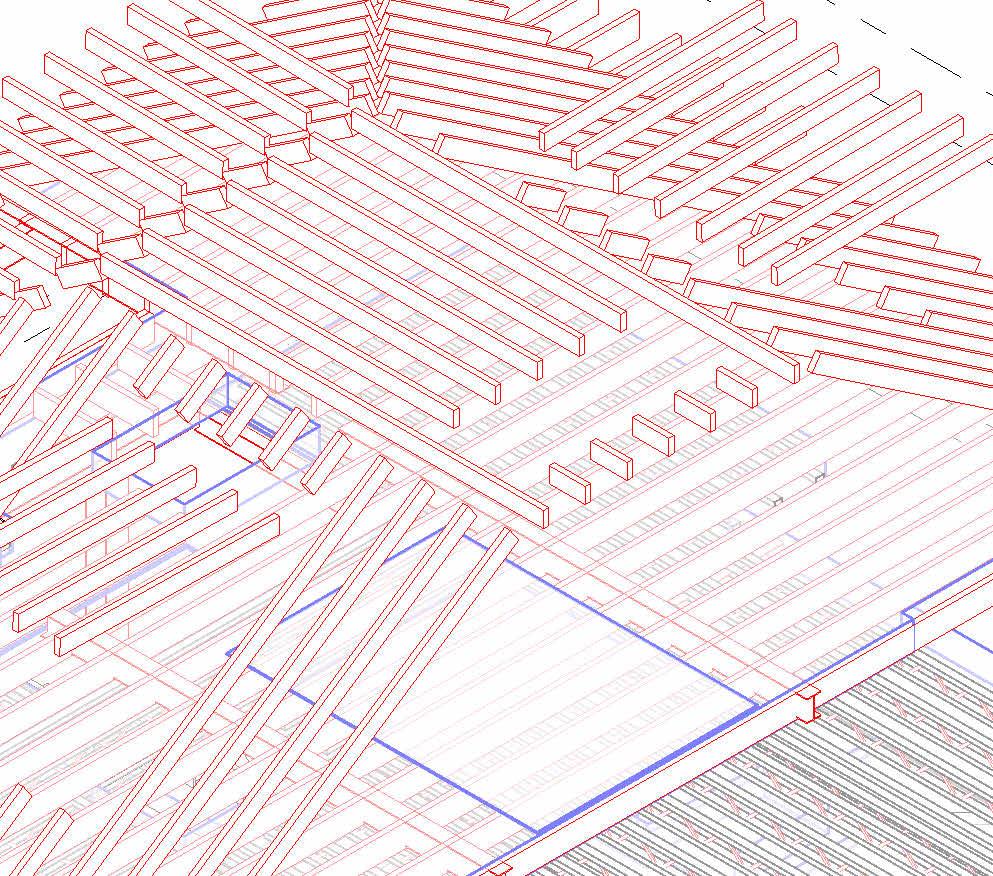

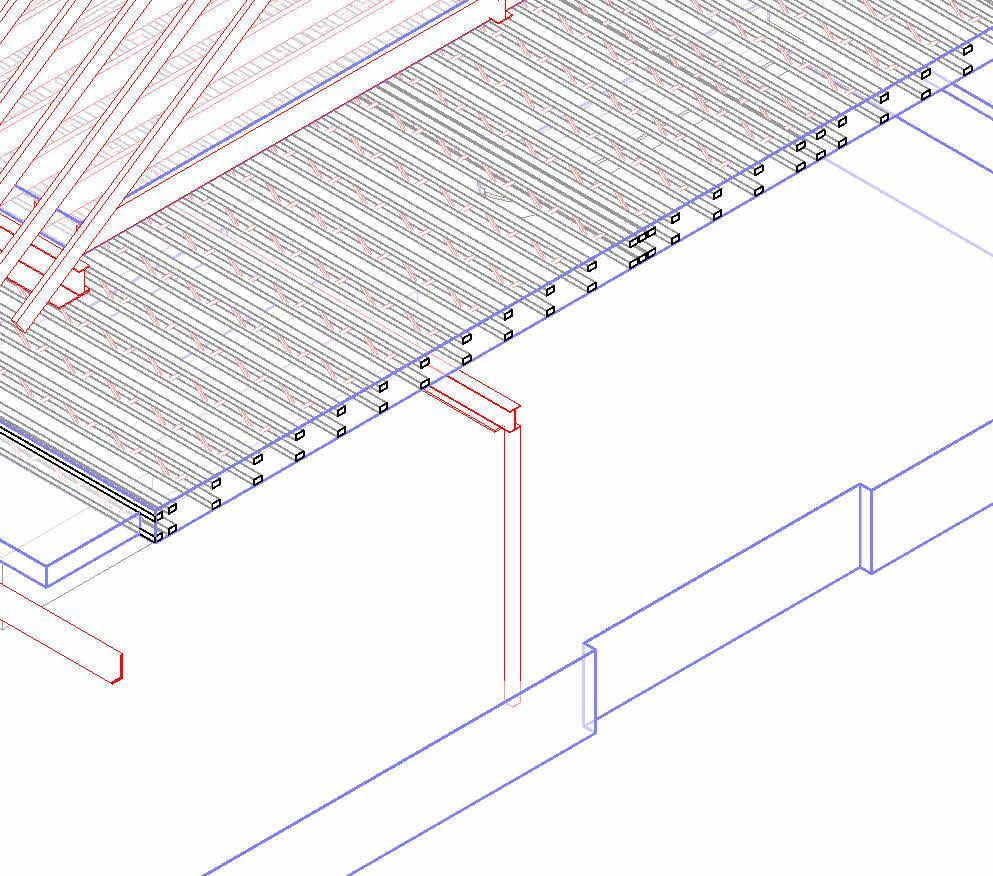

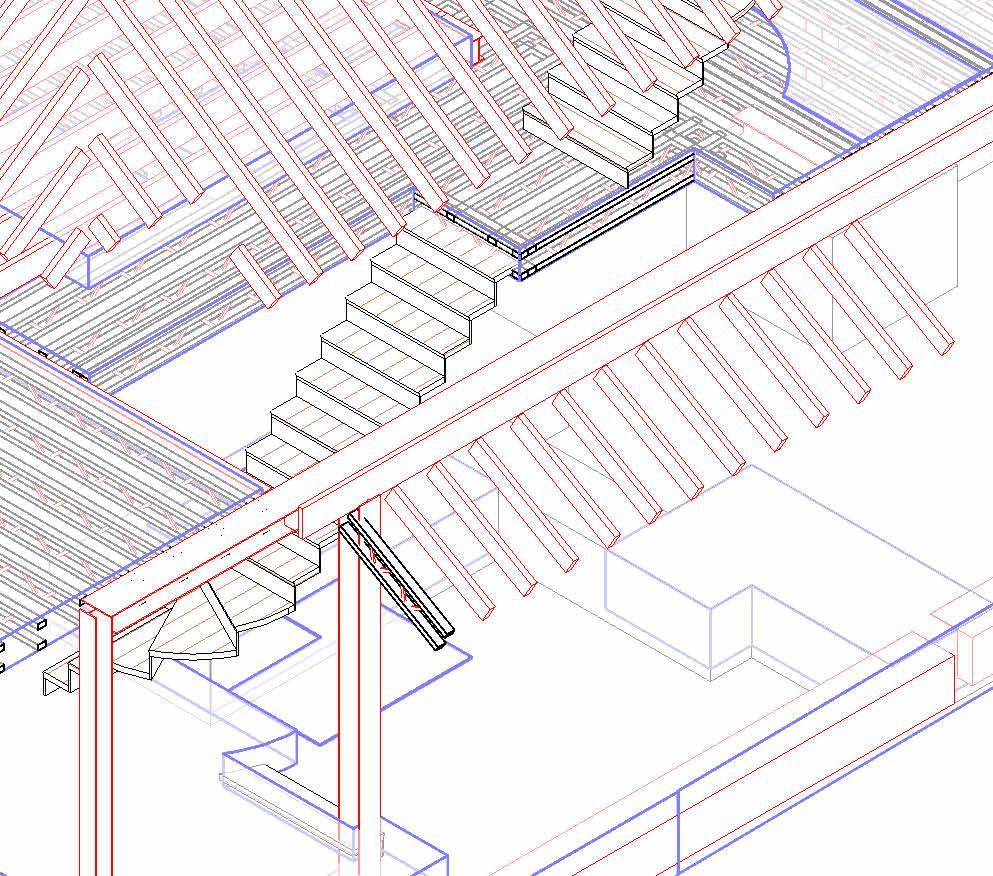

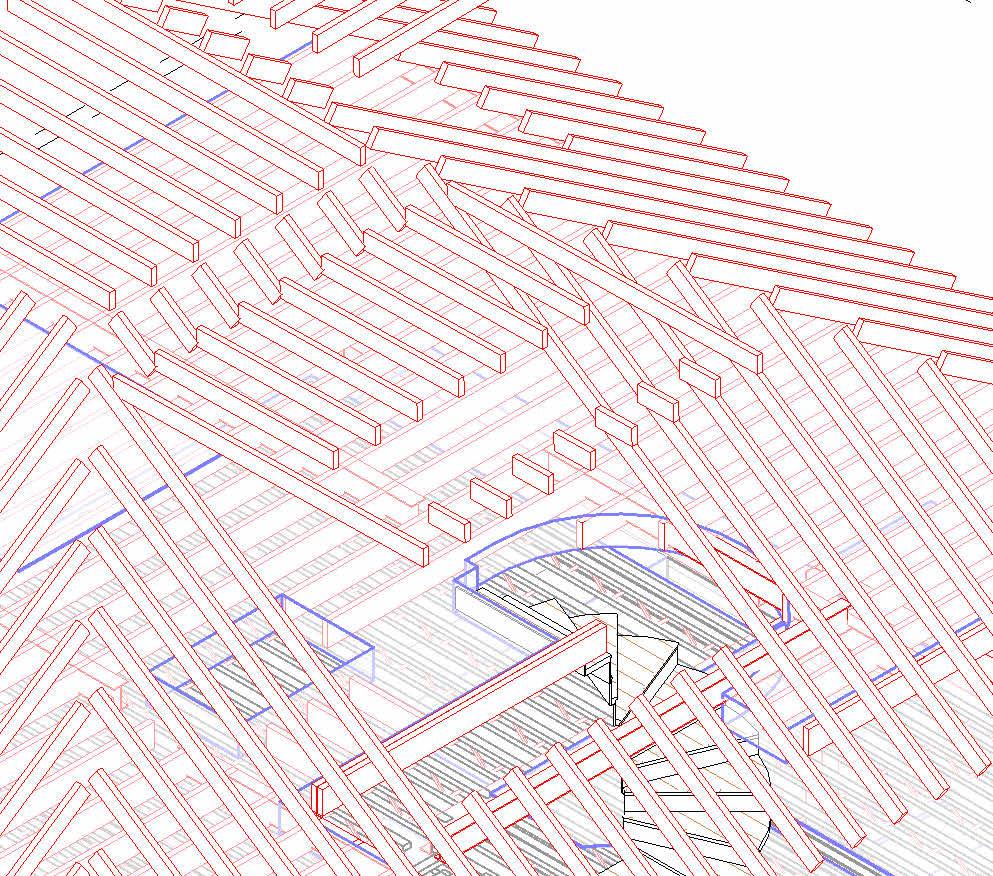

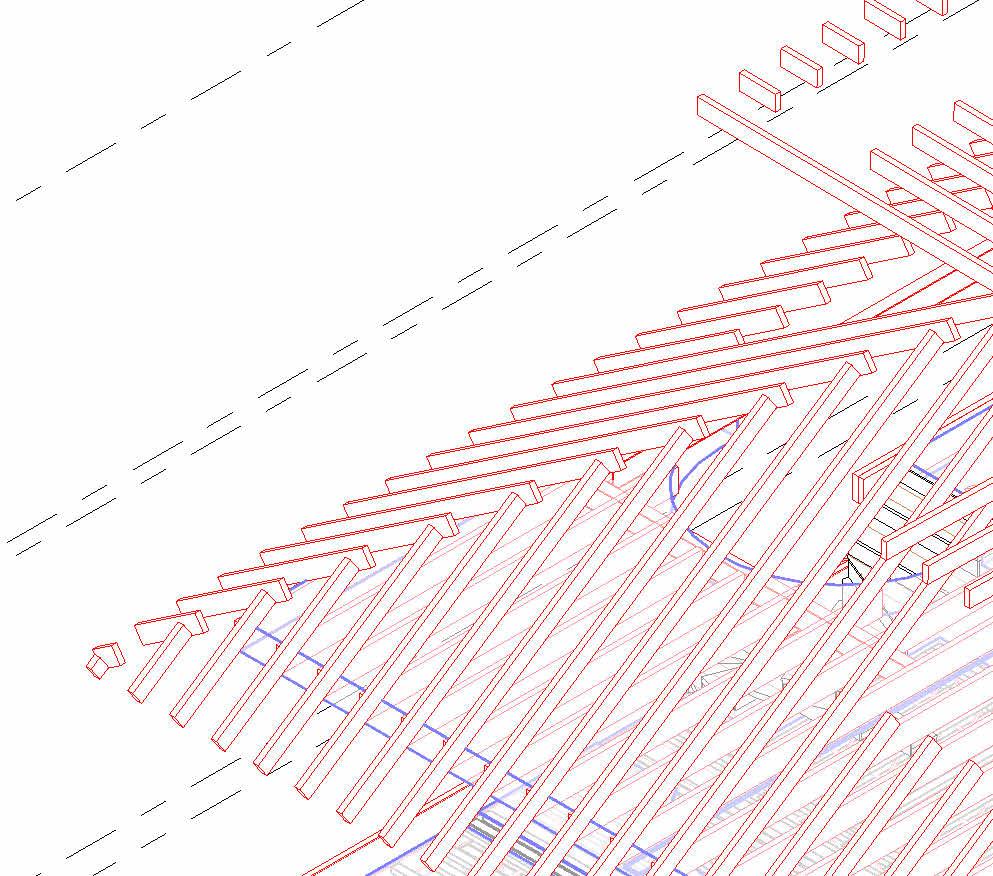

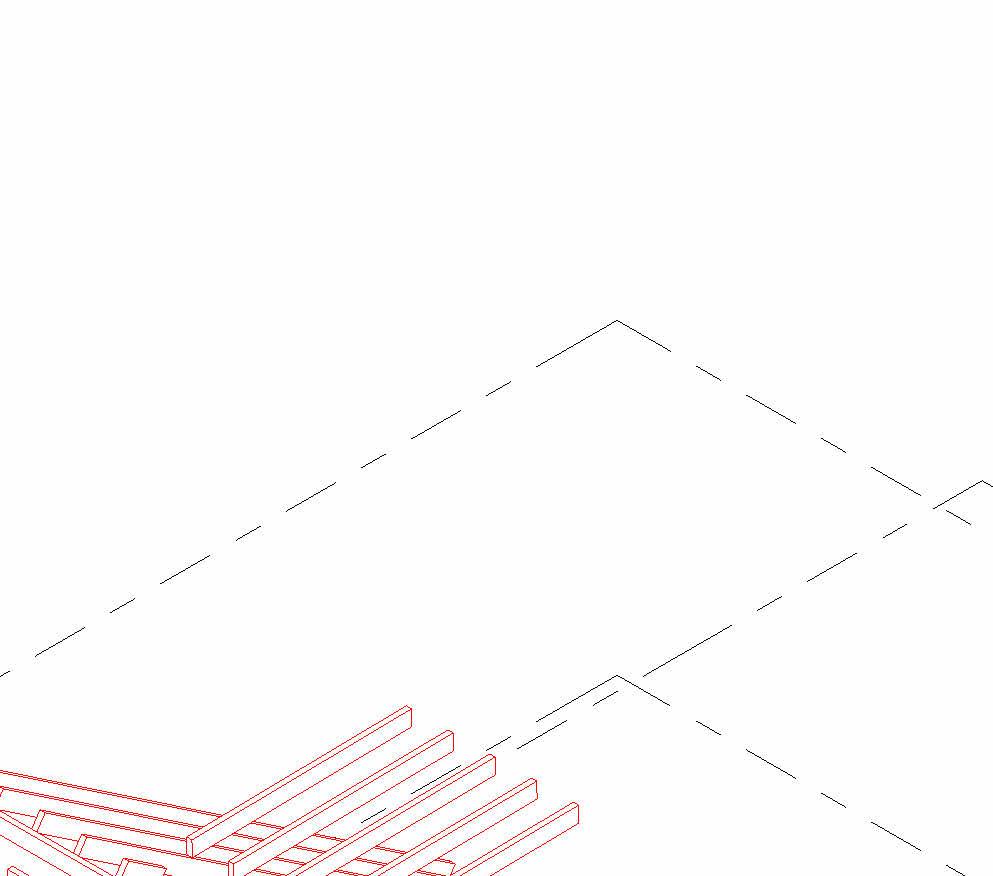

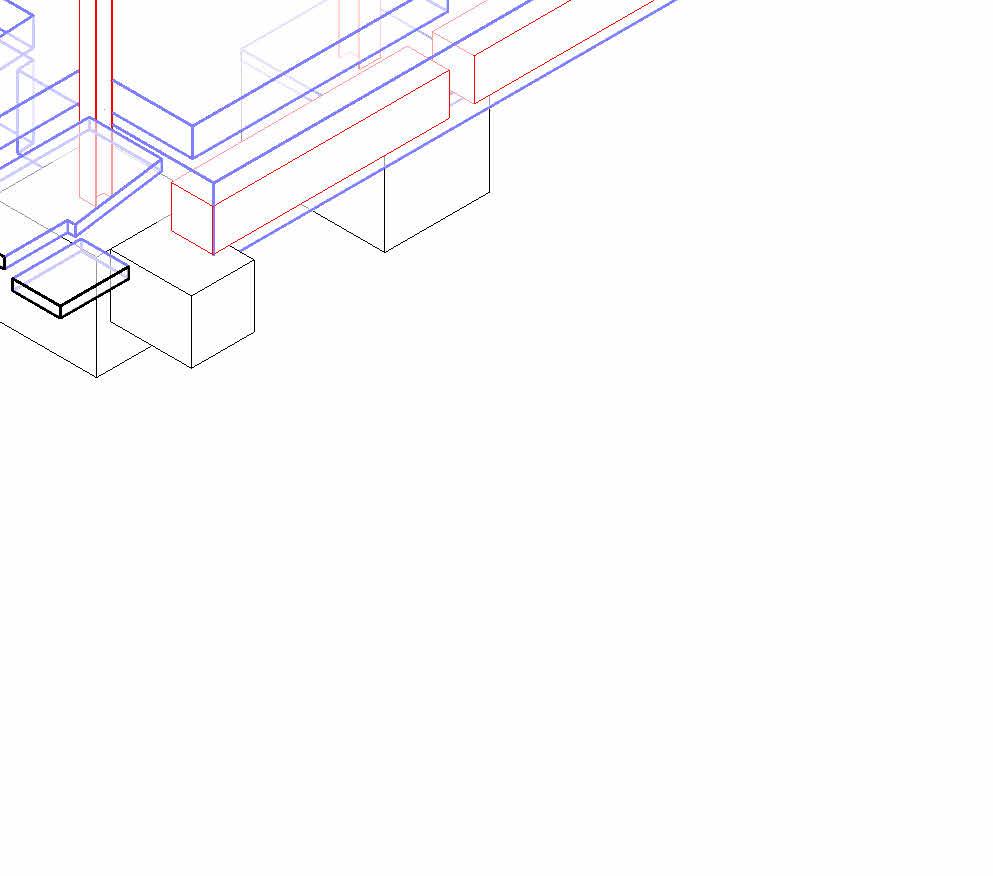

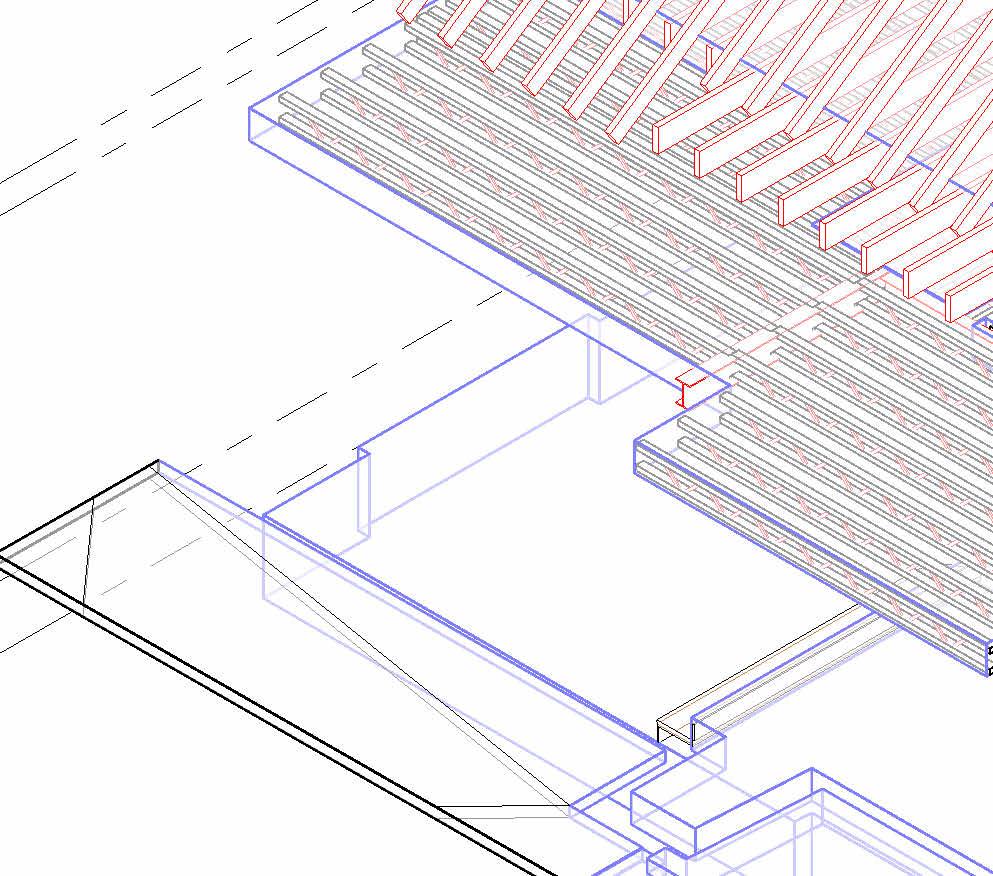

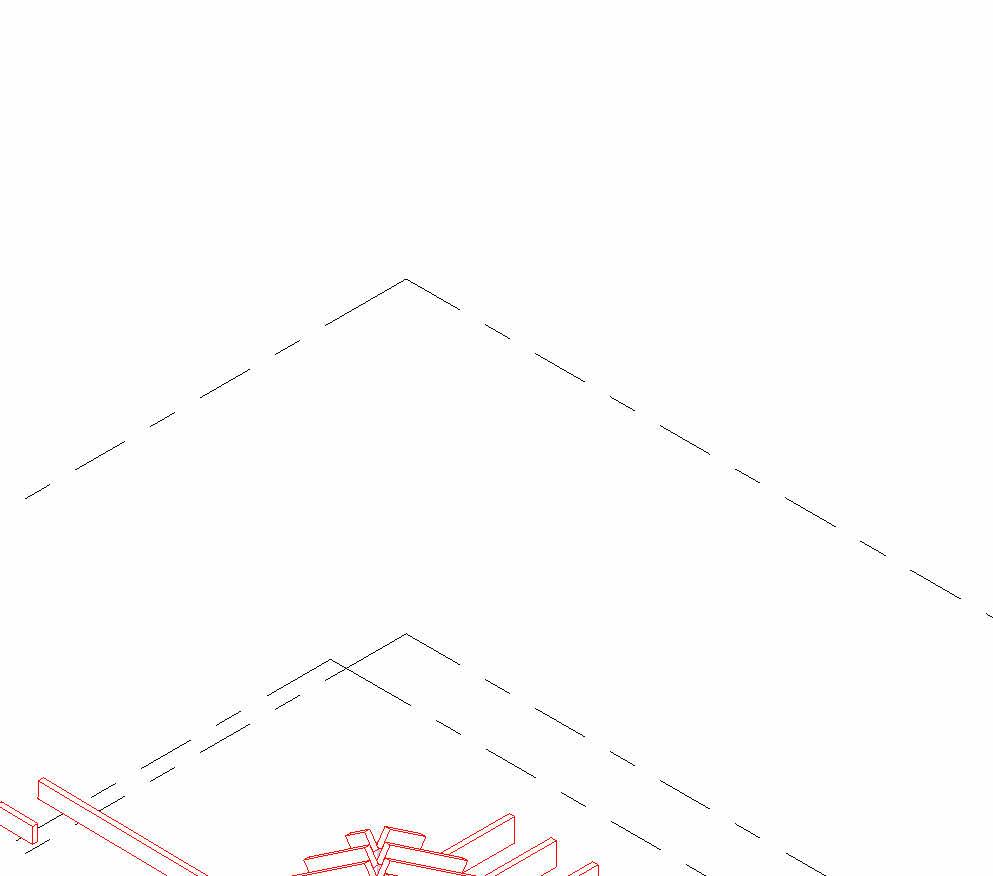

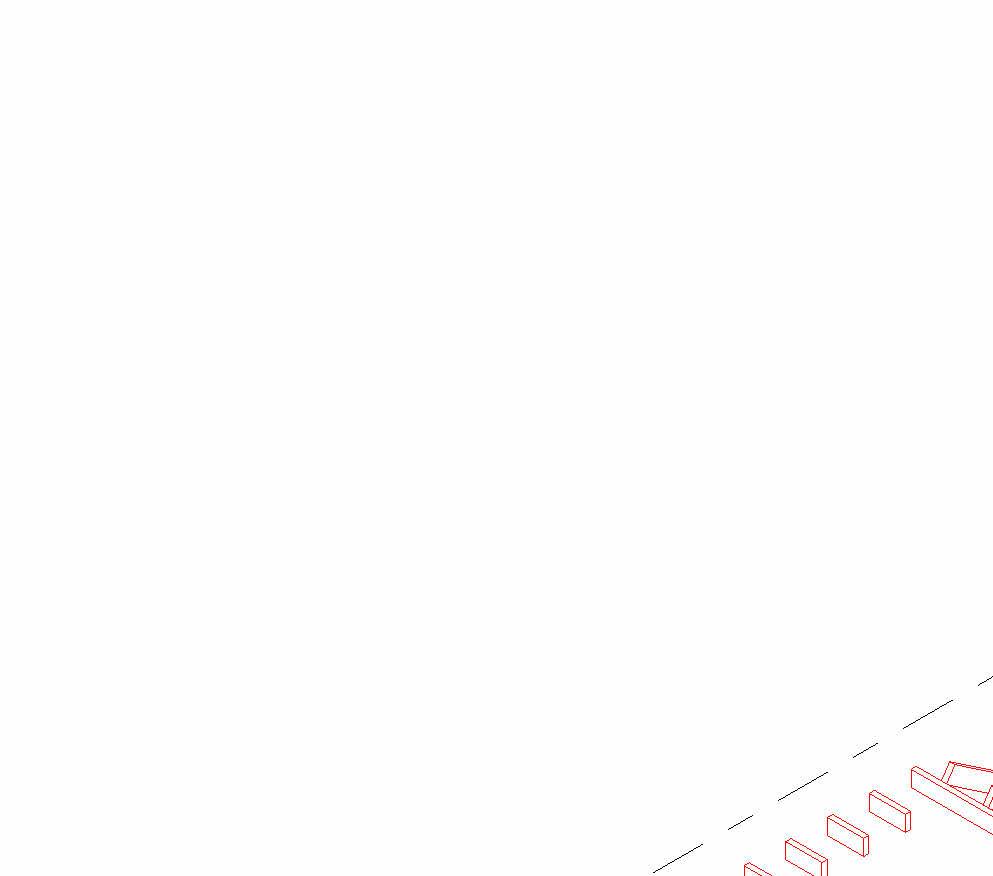

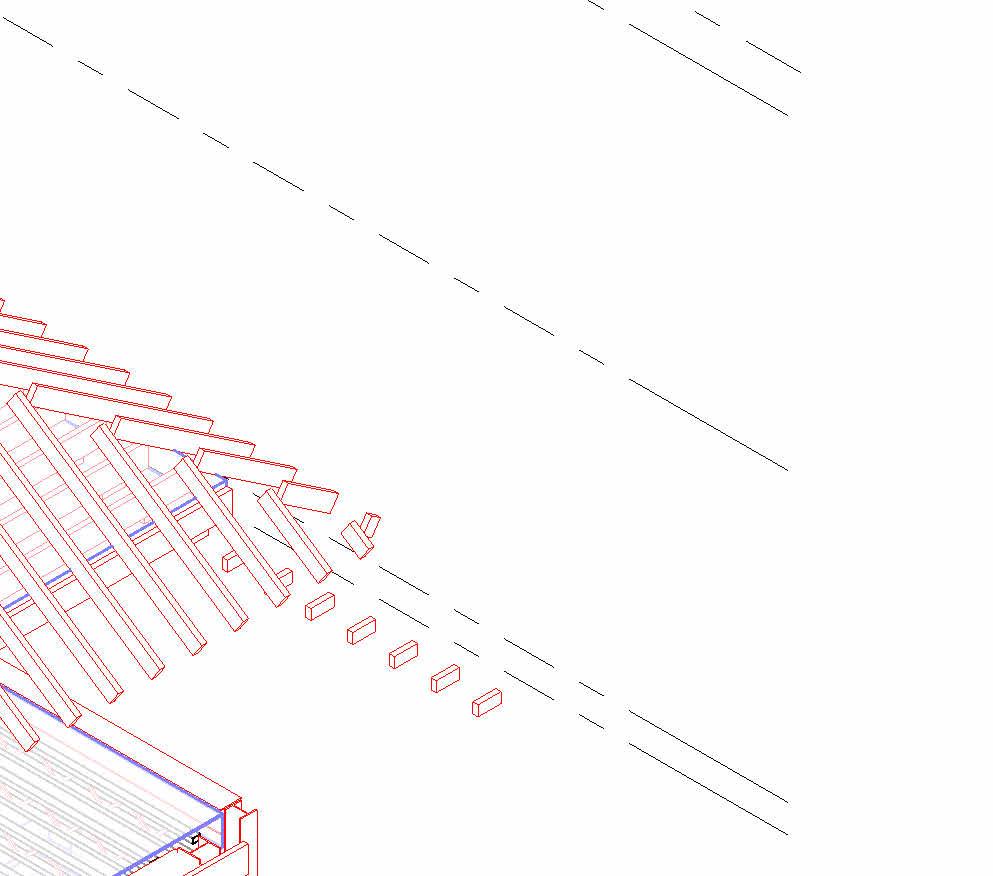

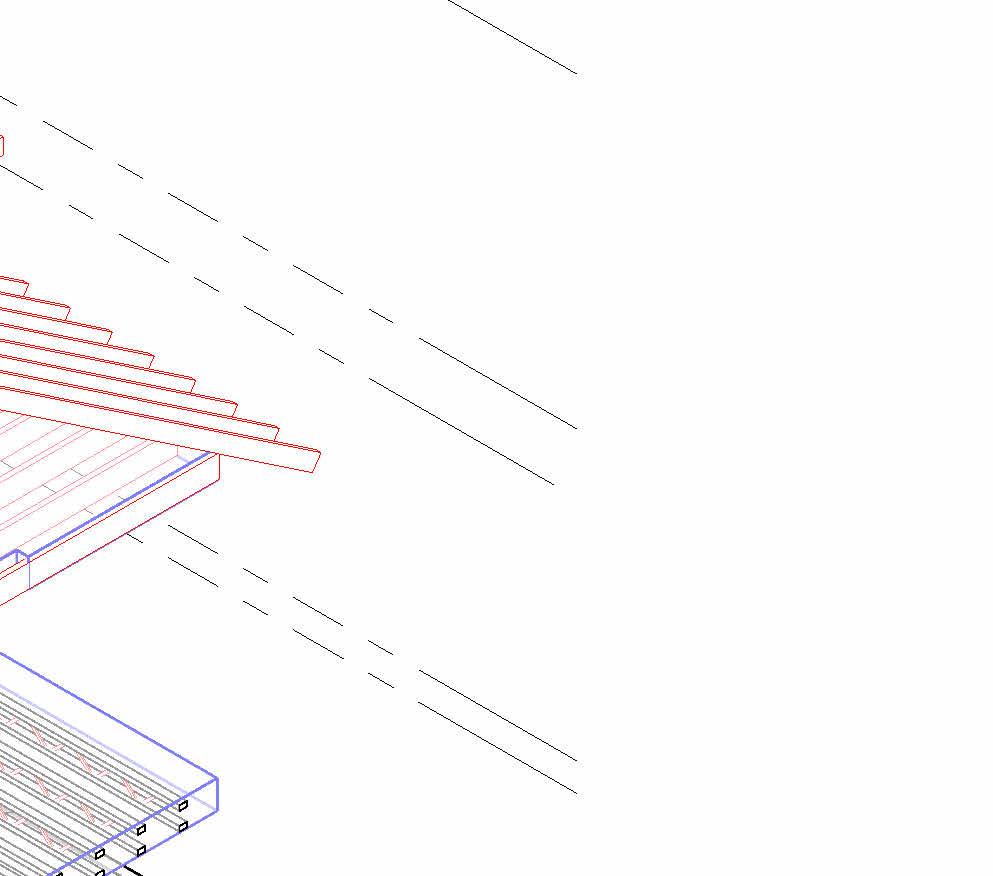

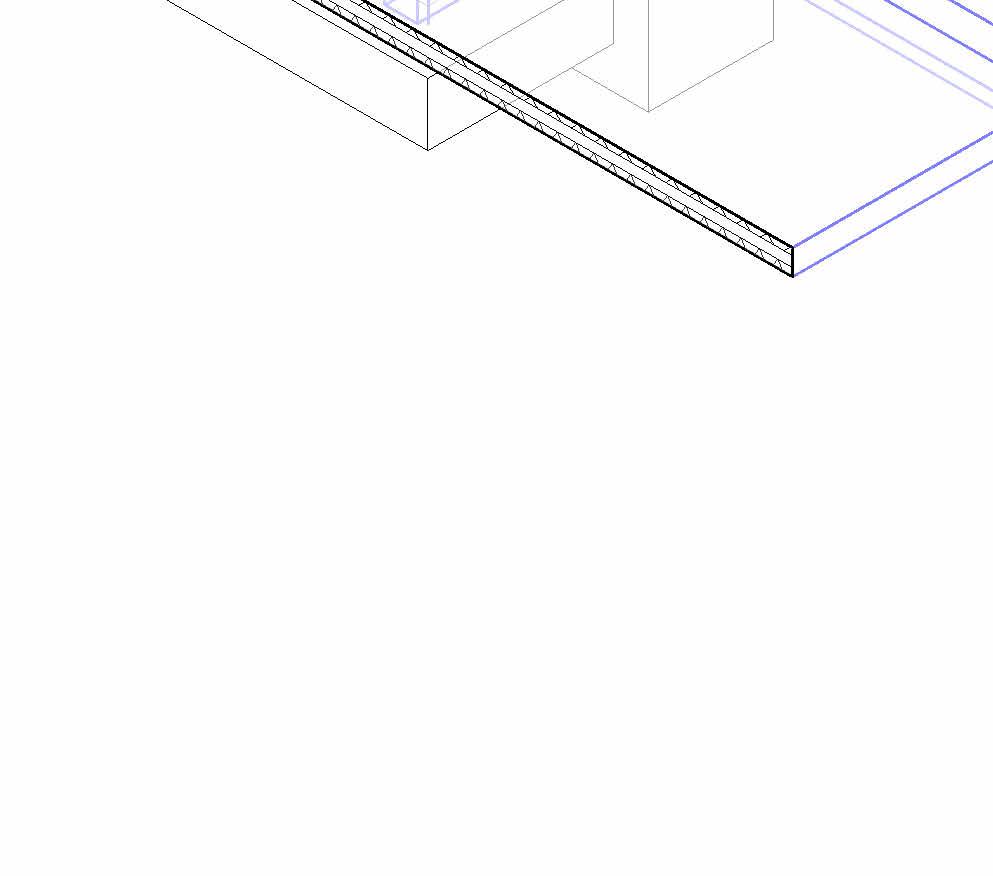

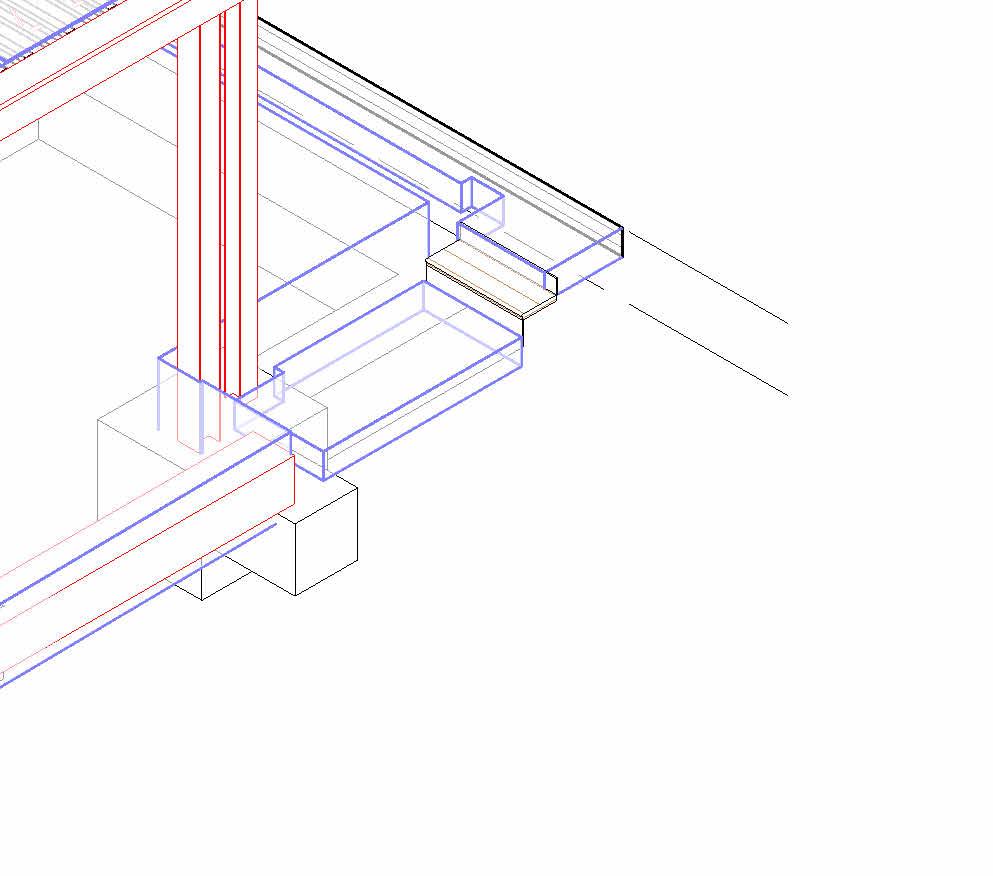

Structural Drawing Set

UKB203x102x23

B1.01/ UKB203x133x30 B1.04/ UKC203x203x46

UKB203x102x23

B1.05/ UKC203x203x60

B1.08/ UKC203x203x46

C3UKC203x203x46

C4UKC152x152x37

Fire Safety Drawings Set

NOTES:

PUMP LOCATION TO BE SPECIFIED AT SITE VISIT.

DESIGN PRODUCED IN LINE WITH THE I-MIST LTD “DESIGN AND INSTALLATION MANUAL ” (QA1 ISSUE 2).

DRAIN POINT AT THE PUMP LOCATION.

ANY EXTRA NOZZLES OR LOSS OF NOZZLES WILL NEED TO BE APPROVED BY THE AHJ (AUTHORITY HAVING JURISDICTION).

PRESSURE AT NOZZLE (STANDING): TOWNS MAINS PRESSURE.

IMIST ONLY REQUIRE NATURAL VENTILATION PROVIDED BY WINDOWS AND DOORS INSTALLED.

ALL PIPE TO BE PTFE06 3/8 ” SMOOTH BORE STAINLESS STEEL FLEXIBLE HOSE.

ALL EXPOSED PIPING TO BE STAINLESS STEEL.

EXACT NOZZLE LOCATIONS ARE SUBJECT TO CHANGE ON SITE INSTALL/REVIEW CONDITIONS AND COULD BE INSTALLED WITHIN 300MM OF DESIGNED LOCATION UNLESS HIGHLIGHTED OTHERWISE.

TO THE INSTALLER: WET PIPE SYSTEM SYSTEM TO BE PRESSURE TESTED AS SOON AS POSSIBLE AFTER 1ST FIX COMPLETION NOZZLES MUST BE INSTALLED AS SHOWN NOZZLE SHOULD BE POSITIONED IN ACCORDANCE WITH OBSTRUCTION GRAPH TO AVOID IMPACT ON DISCHARGE P CLIPS TO BE INSTALLED NOMINAL 300MM SUBJECT TO SITE CONDITIONS. ALL NOZZLES TO BE INSTALLED OFF TEE BRANCH

TO THE CLIENT:

I-MIST LTD DO NOT ACCEPT AND RESPONSIBILITY FOR DAMAGE CAUSED BY FROST OR FREEZING TEMPERATURES.

NOTE: IT IS THE CLIENTS RESPONSIBILITY TO TAKE CORRECT PRECAUTIONS TO PREVENT WATER IN THE PIPEWORK/EQUIPMENT FROM FREEZING DUE TO COLD WEATHER.

IT IS THE CLIENTS RESPONSIBILITY TO INFORM I-MIST LTD OF ANY AREAS WHERE THE AMBIENT TEMPERATURE WILL EXCEED 38°C.

NOTE: PER BS 8458:2015, FOR NORMAL CONDITIONS IN THE UNITED KINGDOM THE WATERMIST NOZZLE TEMPERATURE RATINGS ARE BETWEEN 57°C AND 68°C.

PIPES, SCAFFOLDING OR ANY OTHER ITEMS OF PLANT MATERIALS MUST NOT AT ANY TIME BE ATTACHED TO OR SUPPORTED FROM ANY PART OF THE FIRE PROTECTION EQUIPMENT, CONTROLS, NOZZLES ETC.

MINIMUM 1 BAR, MAXIMUM 4 BAR INCOMING PRESSURE TO PUMP OTHERWISE PRESSURE RELIEF VALVE TO BE INSTALLED NOZZLES MUST NOT BE PAINTED.

THIS DRAWING SHOULD BE FULLY CO-ORDINATED WITH ALL OTHER SERVICES AND CONSTRUCTION DRAWINGS INVOLVED IN THIS PROJECT. I-MIST LTD SHOULD BE NOTIFIED OF ANY CLASHES WITHIN 7 DAYS OF ISSUE.

ANY SITE ALTERATIONS REQUIRED AS A RESULT OF LATE CO-ORDINATION OR INFORMATION WILL BE CHARGEABLE.

THE SQUARE METER IS APPROXIMATE AND IT IS THE CUSTOMERS RESPONSIBILITY TO INFORM IMIST IF THEY HAVE UNDERESTIMATED ROOM/BUILDING SIZES.

SLEEVES / FIRE STOPPING TO BE INSTALLED BY OTHERS.

CLIENT TO UNDERTAKE 25MM HOLES THROUGH BEAMS, STRUCTURAL ELEMENTS OR OBSTRUCTIONS.

ALSO TO CUT 76MM HOLE FOR NOZZLE LOCATION.

CLIENT TO INSTALL INTERCONNECTING CABLES FROM ALL FLOW SWITCHES AND PUMP RUNNING TERMINAL, TO MAIN FIRE ALARM PANEL TO INITIATE SITE WIDE GENERAL ALARM.

PLEASE SEE WORKS IN ASSOCIATION SECTION OF YOUR QUOTATION FOR ELECTRICAL AND MECHANICAL REQUIREMENTS OF THE IMIST SYSTEM PRIOR TO INSTALLATION.

NOTES:

PUMP LOCATION TO BE SPECIFIED AT SITE VISIT.

DESIGN PRODUCED IN LINE WITH THE I-MIST LTD “DESIGN AND INSTALLATION MANUAL ” (QA1 ISSUE 2).

DRAIN POINT AT THE PUMP LOCATION.

ANY EXTRA NOZZLES OR LOSS OF NOZZLES WILL NEED TO BE APPROVED BY THE AHJ (AUTHORITY HAVING JURISDICTION).

PRESSURE AT NOZZLE (STANDING): TOWNS MAINS PRESSURE.

IMIST ONLY REQUIRE NATURAL VENTILATION PROVIDED BY WINDOWS AND DOORS INSTALLED.

ALL PIPE TO BE PTFE06 3/8 ” SMOOTH BORE STAINLESS STEEL FLEXIBLE HOSE.

ALL EXPOSED PIPING TO BE STAINLESS STEEL.

EXACT NOZZLE LOCATIONS ARE SUBJECT TO CHANGE ON SITE INSTALL/REVIEW CONDITIONS AND COULD BE INSTALLED WITHIN 300MM OF DESIGNED LOCATION UNLESS HIGHLIGHTED OTHERWISE.

TO THE INSTALLER: WET PIPE SYSTEM SYSTEM TO BE PRESSURE TESTED AS SOON AS POSSIBLE AFTER 1ST FIX COMPLETION NOZZLES MUST BE INSTALLED AS SHOWN NOZZLE SHOULD BE POSITIONED IN ACCORDANCE WITH OBSTRUCTION GRAPH TO AVOID IMPACT ON DISCHARGE P CLIPS TO BE INSTALLED NOMINAL 300MM SUBJECT TO SITE CONDITIONS. ALL NOZZLES TO BE INSTALLED OFF TEE BRANCH

TO THE CLIENT:

I-MIST LTD DO NOT ACCEPT AND RESPONSIBILITY FOR DAMAGE CAUSED BY FROST OR FREEZING TEMPERATURES.

NOTE: IT IS THE CLIENTS RESPONSIBILITY TO TAKE CORRECT PRECAUTIONS TO PREVENT WATER IN THE PIPEWORK/EQUIPMENT FROM FREEZING DUE TO COLD WEATHER.

IT IS THE CLIENTS RESPONSIBILITY TO INFORM I-MIST LTD OF ANY AREAS WHERE THE AMBIENT TEMPERATURE WILL EXCEED 38°C.

NOTE: PER BS 8458:2015, FOR NORMAL CONDITIONS IN THE UNITED KINGDOM THE WATERMIST NOZZLE TEMPERATURE RATINGS ARE BETWEEN 57°C AND 68°C.

PIPES, SCAFFOLDING OR ANY OTHER ITEMS OF PLANT MATERIALS MUST NOT AT ANY TIME BE ATTACHED TO OR SUPPORTED FROM ANY PART OF THE FIRE PROTECTION EQUIPMENT, CONTROLS, NOZZLES ETC.

MINIMUM 1 BAR, MAXIMUM 4 BAR INCOMING PRESSURE TO PUMP OTHERWISE PRESSURE RELIEF VALVE TO BE INSTALLED NOZZLES MUST NOT BE PAINTED.

THIS DRAWING SHOULD BE FULLY CO-ORDINATED WITH ALL OTHER SERVICES AND CONSTRUCTION DRAWINGS INVOLVED IN THIS PROJECT. I-MIST LTD SHOULD BE NOTIFIED OF ANY CLASHES WITHIN 7 DAYS OF ISSUE.

ANY SITE ALTERATIONS REQUIRED AS A RESULT OF LATE CO-ORDINATION OR INFORMATION WILL BE CHARGEABLE.

THE SQUARE METER IS APPROXIMATE AND IT IS THE CUSTOMERS RESPONSIBILITY TO INFORM IMIST IF THEY HAVE UNDERESTIMATED ROOM/BUILDING SIZES.

SLEEVES / FIRE STOPPING TO BE INSTALLED BY OTHERS.

CLIENT TO UNDERTAKE 25MM HOLES THROUGH BEAMS, STRUCTURAL ELEMENTS OR OBSTRUCTIONS.

ALSO TO CUT 76MM HOLE FOR NOZZLE LOCATION.

CLIENT TO INSTALL INTERCONNECTING CABLES FROM ALL FLOW SWITCHES AND PUMP RUNNING TERMINAL, TO MAIN FIRE ALARM PANEL TO INITIATE SITE WIDE GENERAL ALARM.

PLEASE SEE WORKS IN ASSOCIATION SECTION OF YOUR QUOTATION FOR ELECTRICAL AND MECHANICAL REQUIREMENTS OF THE IMIST SYSTEM PRIOR TO INSTALLATION.

PUMP UNIT

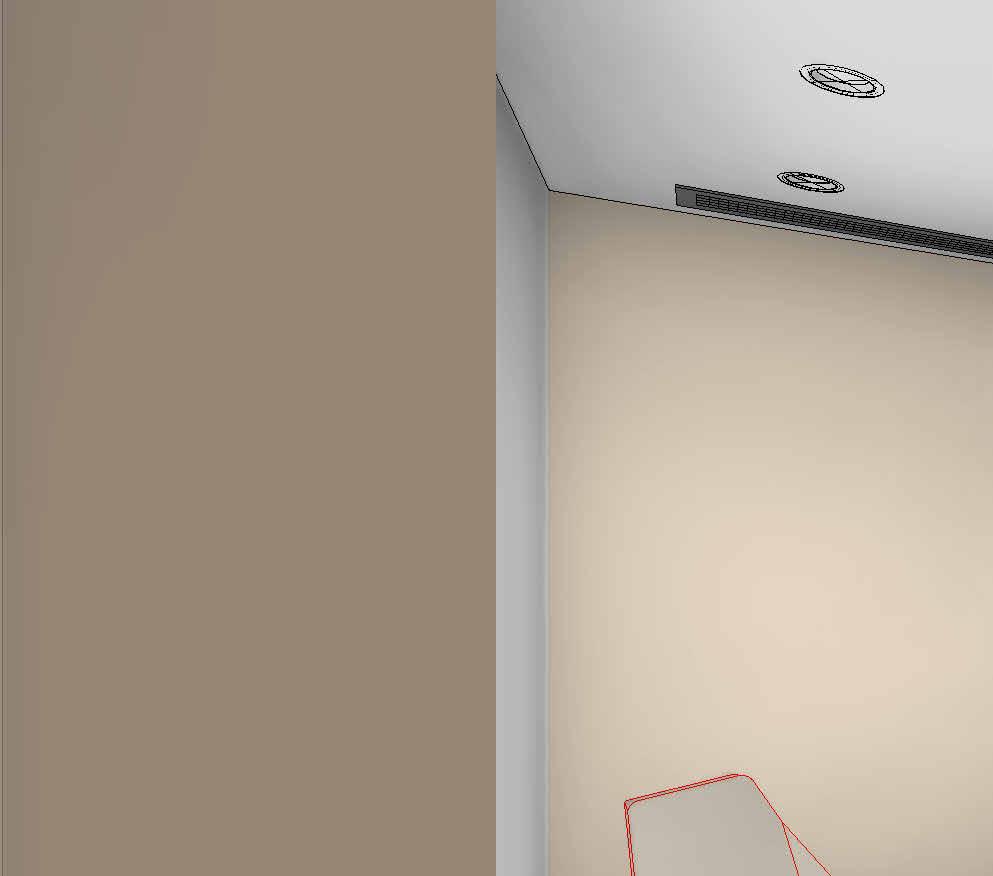

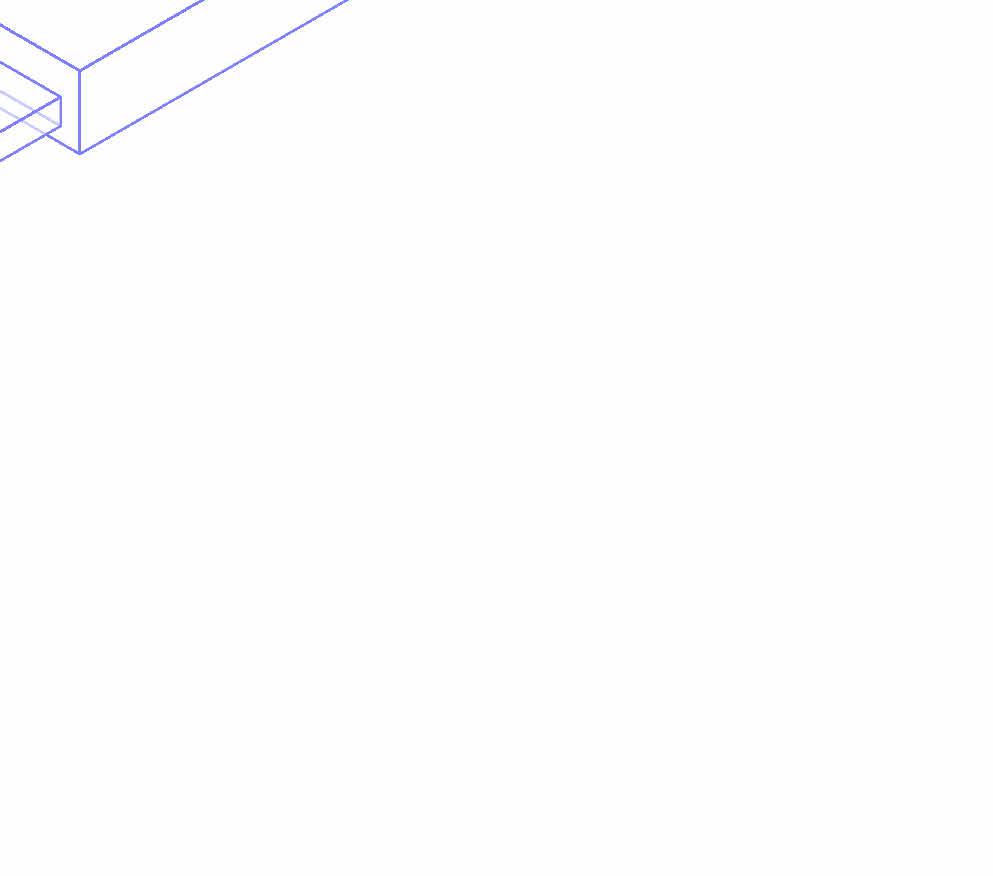

Air Conditioning Mech Vent

AirConditioning Ducting in First Floor Ceiling 1

AirConditioning Ducting in Ground Floor Ceiling 2

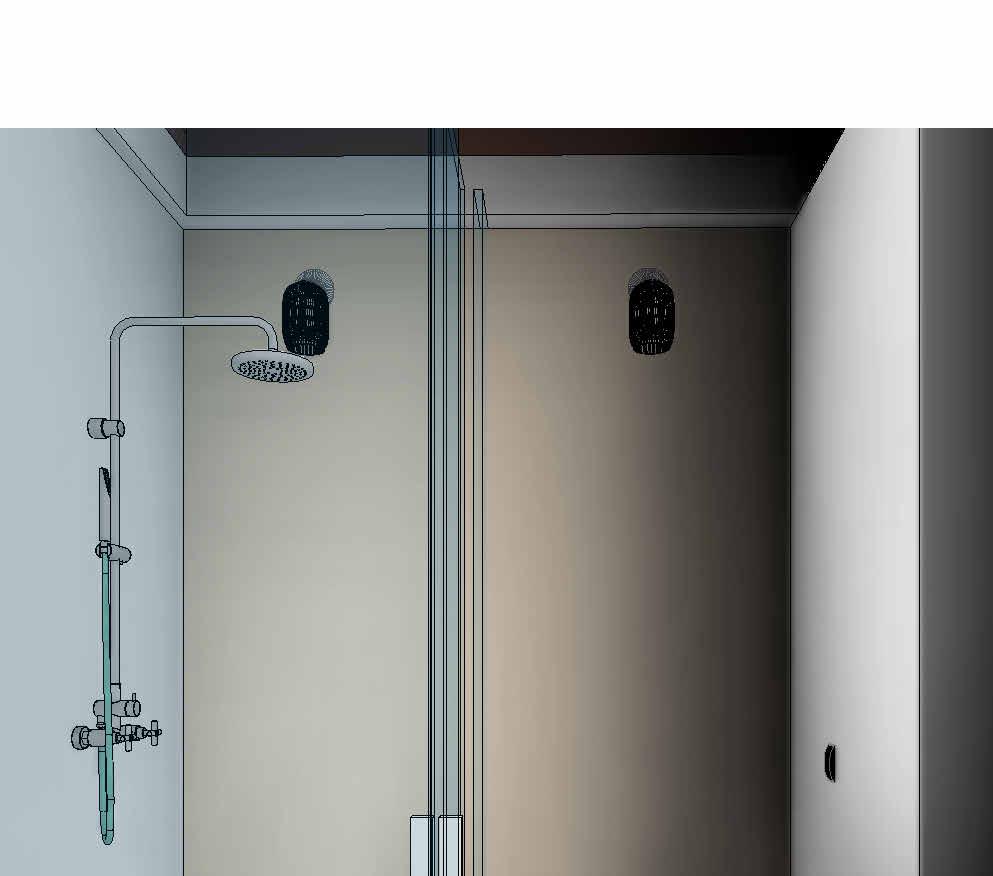

Plumbing & Drainage Drawings Set

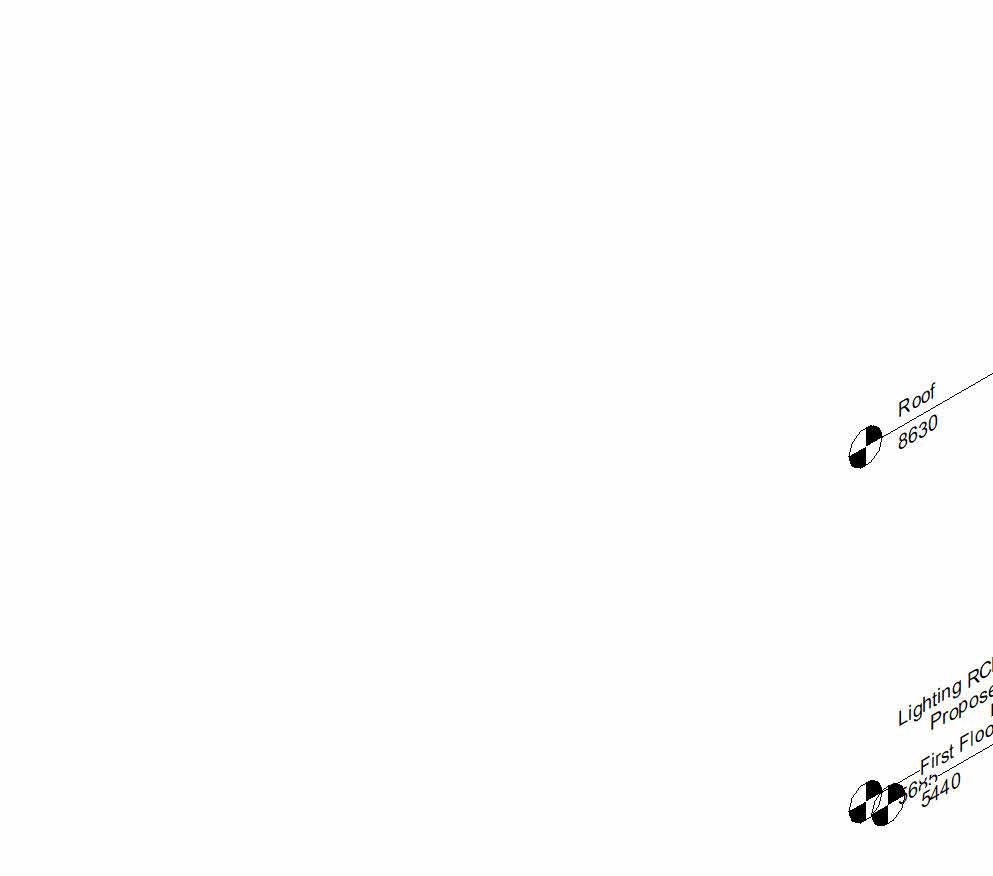

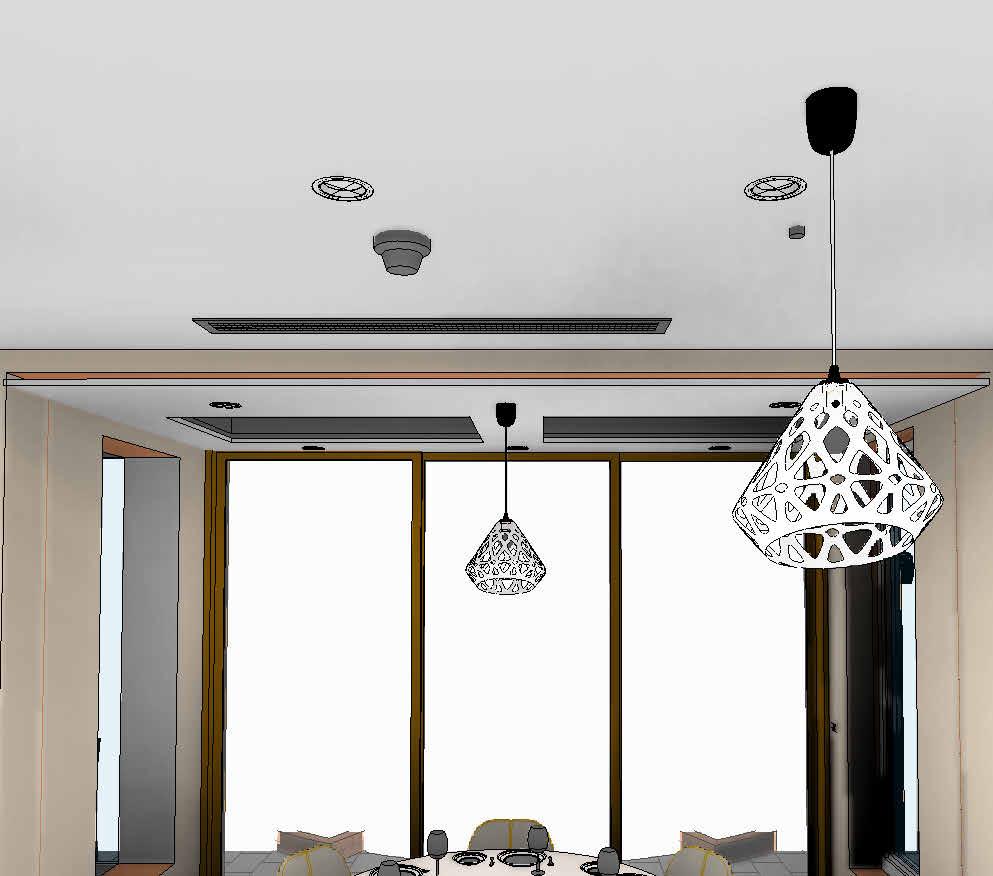

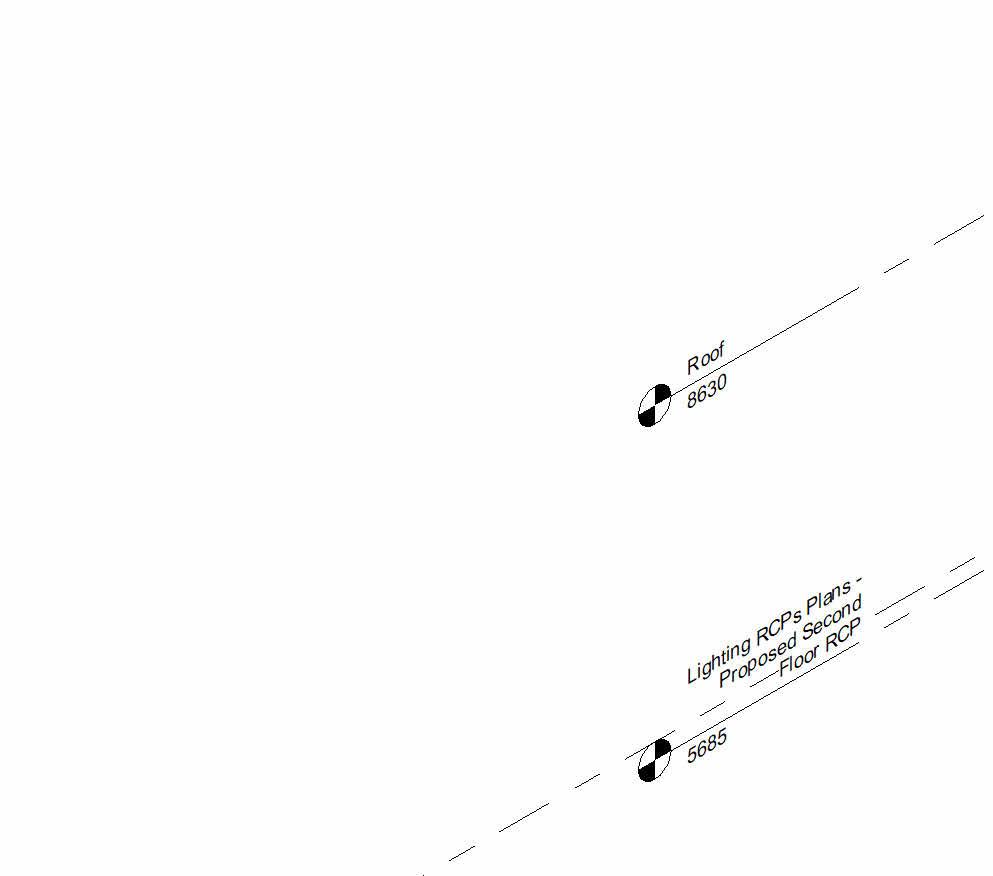

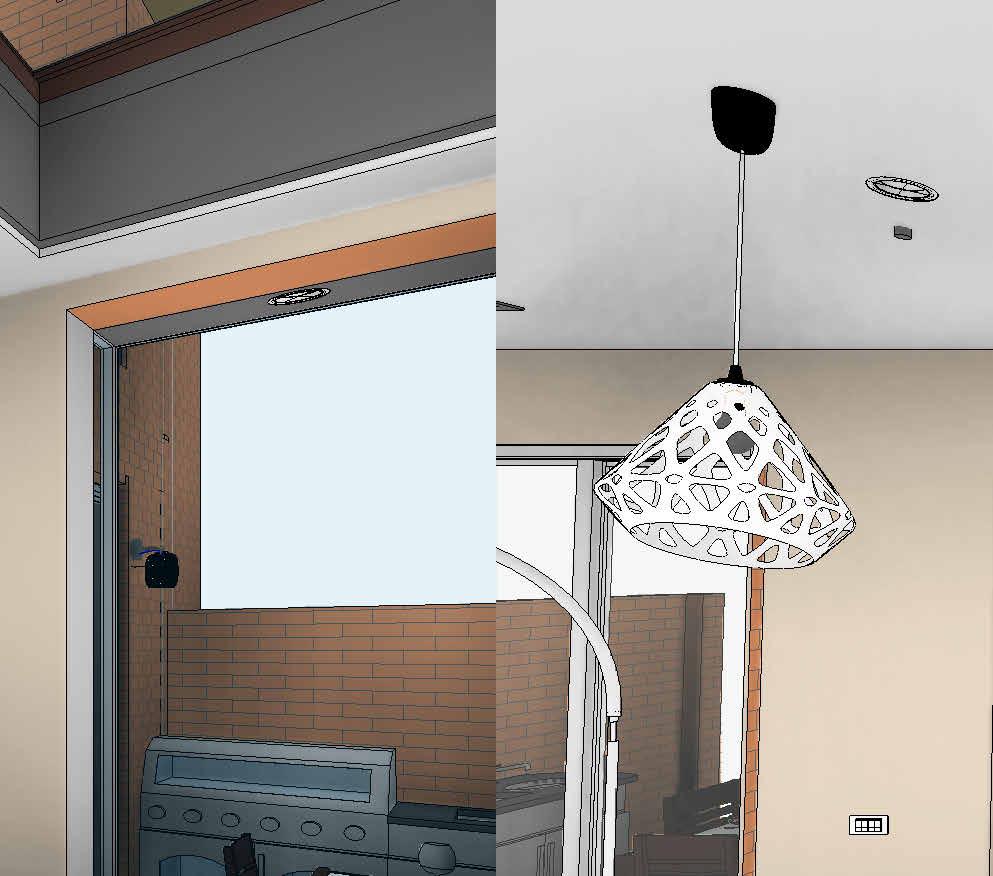

Lighting RCPs (With Structures) Drawings Set

DRESSING- DOWN LIGHTS (DIGITAL DIMMER)

BEDROOM- DOWN LIGHTS (DIGITAL DIMMER) LED STRIP ON

DRESSING- PENDANT LIGHTS (DIGITAL DIMMER)

BESIDE TABLE LAMP (DIGITAL DIMMER) BESIDE DOWN LIGHTS (DIGITAL DIMMER) BEDROOM PENDANT LIGHT (RETRACTIVE TOGGLE)

BEDROOM PENDANT LIGHT (RETRACTIVE TOGGLE)

BEDROOM PENDANT LIGHT (DIGITAL DIMMER) BESIDE TABLE LAMP (DIGITAL DIMMER)

BEDROOM DOWN LIGHT (RETRACTIVE TOGGLE)

BEDROOM DOWN LIGHT (RETRACTIVE TOGGLE)

BEDROOM TABLE DOWN LIGHT (DIGITAL DIMMER)

W T SD REFER TO SECOND FLOOR PLAN FOR LIGHTING FIXTURE LIGHITNG FIXTURE WILL NOT SET

BALCONY WALL LIGHTS (DIGITAL DIMMER)

BATHROOM WALL LIGHTS (DIGITAL DIMMER)

BATHROOM PENDANT LIGHTS (DIGITAL DIMMER)

BATHROOM DOWN LIGHTS (DIGITAL DIMMER)

•

ALL EMERGENCY LIGHTING TO BE DESIGNED & INSTALLED IN ACCORDANCE WITH BSEN1838 & BS5266(1999)

ALL SOCKET OUTLETS TO BE RCD PROTECTED (EXCLUDING TILL EQUIPMENT POWER SOCKETS) AT THE DISTRIBUTION BOARD.

FIRE ALARM SYSTEM TO BE DESIGNED IN ACCORDANCE WITH BRITISH STANDARD 5839 PART 1 & INSTALLED BY APPROVED CONTRACTOR.

ALL WORKS TO CONFORM TO CURRENT LANDLORDS FIT-OUT REQUIREMENTS.

FIRE EXIT SIGNAGE DESIGN & INSTALLATION MUST CONFORM TO BRITISH STANDARD 5499 PART 4-2000. CEILING TO BE INSTALLED ON SOLID SUPPORTS (NOT WIRE) TO COMPLY WITH BRITISH STANDARD 8290 PART 1.

ANY ALTERATIONS TO THE FIRE ALARM SYSTEM WILL BE IN ACCORDANCE WITH BS5839 PART 1. ANY ALTERATIONS TO THE EMERGENCY LIGHTING SYSTEM WILL BE IN ACCORDANCE WITH BS5266 PART1. ALL DOORS/COUNTER FLAPS ON ESCAPE ROUTES WILL BE READILY OPENABLE WITHOUT THE USE OF A KEY. NEW CEILINGS AND WALL FINISHES WILL BE SURFACE SPREAD OF FLAME RATING OF CLASS O TO CIRCULATION ROUTES, CLASS 1 ELSEWHERE, AND CLASS 3 TO SMALL ROOMS.

1. MAIN CONTRACTOR TO COORDINATE INSTALLATIONS BY SUPPLIERS BELOW. MUSIC SYSTEM: CLIENT ORDER DIRECT SUPPLIER THE BASE CONTROL UNIT FOR THIS SYSTEM WILL BE INSTALLED IN THE BOH AND WILL REQUIRE POWER. THIS SYSTEM MUST ALSO BE LINKED TO FIRE ALARM SYSTEM - TO CUTOUT UPON ACTIVATION OF ALARM.

2. FOOTFALL COUNTER: CHECK WITH CLIENT. CABLE CONDUIT BY MAIN CONTRACTOR TO SERVICE DESK, M&E CONTRACTOR TO FIT ELECTRIC SPUR ABOVE DOOR. ALL FOOTFALL KIT TO BE CONCEALED, OR BOH.

3. CCTV: BY CLIENT CABLING AND DATA BY MAIN CONTRACTOR POSITIONS TBC

4. INTRUDER ALARM: CLIENT NOMINATED SUPPLIER M&E CONTRACTOR TO PROVIDE POWER AND SPURS AS REQUIRED IN BOTH FRONT AND BACK OF HOUSE. EQUIPMENT LOCATIONS TO BE AGREED. MAIN CONTRACTOR AND FIRE DETECTION CONTRACTOR TO LIASE WITH NOMINATED SUPPLIER WITH REFERENCE TO INSTALLATIONS AND SENSITIVITY OF SYSTEMS RELATIVE TO OTHER FITTINGS.

5. IT EQUIPMENT: DIRECT ORDER

6. BT INSTALLATION: DIRECT ORDER SUPPLIER

7. HEARING LOOP INSTALLATION: NOT APPLICABLE.

ALL NEW INTERNAL CORRIDOR AND ROOM DOOR SETS ARE TO BE MINIMUM OF 950MM WIDE DESIGNED TO GIVE A CLEAR DIMENSION FROM FACE OF OPEN DOOR LEAF TO OPPOSITE DOOR JAM OF 800MM - BUILDING REGULATIONS PART M COMPLIANCE.

NEW ACCESSABLE TOILET DOOR MUST BE 1000MM OVERALL SET OTHER CUSTOMER/STAFF TOILETS

ENTRANCE DOOR SETS TO BE A MINIMUM OF 950MM WIDE OVERALL.

FD30 S VP SC -30MIN FIRE DOOR CONSTRUCTION (FD30) WITH INTUMESCENT SEALS INCLUDING SMOKE STOPS (S) WITH VISION PANELS (VP AND DOOR CLOSURE (SC). FD60 DOORS TO BE USED WHERE STATED.

VISION PANELS IN FIRE DOORS TO BE CONSTRUCTED IN PYROBEL 12 OR SWISS FLAM CLEAR GLAZING TO GIVE 30MIN PROTECTION. VISION PANELS TO BE APPROX 1450MM X 150MM WIDE EXTENDING TO WITHIN 300MM OF DOOR TOP AND 300MM OF DOOR BOTTOM AND INSET BY 225MM FROM OPEN SIDE. DOORS TO KITCHEN TO HAVE HIGH LEVEL VISION PANELS WITH 500MM STAINLESS STEEL KICKPLATES TO BASE AND DOUBLE SING HINGE. DOOR LEADING FROM PUBLIC SPACES TO BACK OF HOUSE TO BE FITTED WITH ELECTRONIC ACCESS KEPYPAD.

ALL FIRE DOORS TO HAVE SELF CLOSURE DEVICES WITH 'FIRE DOOR KEPT SHUT' SIGNS FITTED TO BOTH SIDES.

ALL FIRE DOORS NOT FITTED WITH SELF CLOSURE DEVICES TO BE FITTED WITH 'FIRE DOOR KEEP SHUT' SIGNAGE.

SELF CLOSURES MUST BE DESIGNED TO SUIT DOOR WEIGHT AND SIZE, BUT SET TO AN OPENING STRENGTH NO GREATER THAN 20N. IRONMONGERY: DOOR FURNITURE, HANDLES, KICK PLATES/PUSH PLATES ALL TO BE STAINLESS STEEL SATIN FINISH. SEE FINISHES FOR DETAILS. DOOR FINISHES: ALL DOORS TO BE DECORATED ON SITE WITH 1 COAT PRIMER AND 2 COATS EGSHELL PAINT PT03. ARCHITRAVE PT03 FINAL FIRE EXIT DOORS TO BE FITTED WITH EMERGENCY RELEASE ESCAPE IRONMONGERY TO PART B BUILDING REGULATIONS AND BS 9999. ADDITIONAL LAST MAN OUT EASY RELEASE SECURING DEVICE MAY BE FITTED IN COMPLIANCE WUTH BS 9999, PROVIDING THAT THE USE IS FACTORED INTO CLIENTS RISK ASSESMENT.

Electrical & Small Power Layouts (With Furniture)

Coordination Ceiling Plans Set
