BGZ: 0010100 No. 100 Remark: Page 1
RANGER 975-964 / 928-925
BRAKE CIRCUIT 1)
BGZ: 0010100
Pos. Part No. Description Dimension Quanti ty Conditions 1 00 0310 026 0 TRANSMITT.CYL.ASS 1 2) 2 00 0321 446 0 SEAL RING 1 3 00 0326 193 0 ADAPTER I-M12X1,5A-A-M14X1,5 1 3 00 0326 193 0 ADAPTER I-M12X1,5A-A-M14X1,5 1 4 00 0314 340 0 BRAKE PIPE 1 5 00 0314 467 0 BRAKE PIPE 1 6 00 0320 190 0 WASHER M06 1 7 00 0326 444 0 PIPE CLAMP 1 8 00 0324 140 0 CONTAINER 2 9 00 0320 102 0 HEXAGON HEAD SCREW M 5X16 4 9 00 0320 198 0 SPRING WASHER M04 8 9 00 0320 315 0 NUT M.5 4 10 00 0313 757 0 HOSE 1 11 00 0314 743 0 HOSE 1 12 00 0326 482 0 CLAMP 2 13 00 0326 454 0 ADAPTER L12 E-G 2 14 00 0324 135 0 PRESS.REDUCER VAL 1 3) 14 00 0315 572 0 SEAL KIT 1 15 00 0326 490 0 BRAKE HOSE 2 16 00 0326 392 0 NUT M12X1 4 17 00 0326 539 0 HOSE 1 18 00 0320 115 0 SCREW M6X10 1 19 00 0236 056 0 HEXAGON HEAD BOLT M12X25 2 20 00 0320 194 0 SPRING WASHER M12 2 21 00 0320 235 0 WASHER M12 2 22 00 0310 192 0 SOCKET SDS-S10XM16X1, 5-TYPE F 2 23 00 0326 279 0 BRAKE PIPE 6X?X700-0 1 24 00 0326 265 0 BRAKE PIPE 1 25 00 0324 048 0 PRESSURE SWITCH L=46/ SW 24 1 4) 25 00 0342 492 0 PRESSURE SWITCH L=46/ SW 24 1 5) 25 00 0342 084 0 REDUCING ADAPTER 1 6) 26 00 0326 264 0 BRAKE PIPE 8X?X200-2 1 27 00 0326 529 0 HOSE 1 28 00 0326 283 0 BRAKE PIPE 8X?X710-0 1 29 00 0320 120 0 SCREW M8X30 1 30 00 0324 215 0 CONNECTION 1 31 00 0326 282 0 BRAKE PIPE 1 32 00 0320 125 0 SCREW M10X30 1 33 00 0320 234 0 WASHER M10 2 34 00 0235 133 1 SPRING WASHER 10 -10,2X18,1X1,8 1 1) Remarks with Ranger 925 2) Remarks see illustration plate 103 3) Remarks 23 bar 4) Remarks 5 bar, see illustration plate 502 5) Remarks 22 bar 6) Remarks for 22 bar RANGER 975-964 / 928-925 No. 100 Remark: Page 2
RANGER 975-964 / 928-925 BGZ: 10100 No. 101 Remark: Page 1
BRAKE CIRCUIT 1)
BGZ: 10100
Pos. Part No. Description Dimension Quanti ty Conditions 1 00 0324 046 0 TRANSMITT.CYL.ASS 1 2) 2 00 0321 446 0 SEAL RING 1 3 00 0326 193 0 ADAPTER I-M12X1,5A-A-M14X1,5 1 4 00 0314 579 0 BRAKE PIPE 1 5 00 0314 580 0 BRAKE PIPE 1 6 00 0320 190 0 WASHER M06 1 7 00 0326 444 0 PIPE CLAMP 1 8 00 0324 140 0 CONTAINER 2 9 00 0320 102 0 HEXAGON HEAD SCREW M 5X16 4 9 00 0320 198 0 SPRING WASHER M04 8 9 00 0320 315 0 NUT M.5 4 10 00 0313 757 0 HOSE 1 11 00 0313 703 0 HOSE 1/4" BORE 1 12 00 0326 482 0 CLAMP 2 13 00 0326 454 0 ADAPTER L12 E-G 2 14 00 0324 135 0 PRESS.REDUCER VAL 1 3) 14 00 0315 572 0 SEAL KIT 1 15 00 0326 490 0 BRAKE HOSE 2 16 00 0326 392 0 NUT M12X1 4 17 00 0313 757 0 HOSE 1 18 00 0320 115 0 SCREW M6X10 1 19 00 0236 056 0 HEXAGON HEAD BOLT M12X25 2 20 00 0320 194 0 SPRING WASHER M12 2 21 00 0320 235 0 WASHER M12 2 22 00 0310 192 0 SOCKET SDS-S10XM16X1, 5-TYPE F 2 23 00 0326 489 0 BRAKE HOSE 1SN 6 P90(S08)P(S08) 370 1 24 00 0326 265 0 BRAKE PIPE 1 25 00 0324 048 0 PRESSURE SWITCH L=46/ SW 24 1 26 00 0326 264 0 BRAKE PIPE 8X?X200-2 1 27 00 0326 259 0 DISTRIBUTOR BLOCK 3 X B-I-M14X1,5 + 1/8 NP 1 28 00 0311 845 0 BRAKE PIPE 8X?X1100-? 1 29 00 0311 844 0 BRAKE PIPE 8X?X710-? 1 30 00 0320 125 0 SCREW M10X30 1 31 00 0320 234 0 WASHER M10 2 32 00 0235 133 1 SPRING WASHER 10 -10,2X18,1X1,8 1 33 00 0326 256 0 DISTRIBUTOR BLOCK 3 X B-I-M14X1,5 1 34 00 0324 996 0 HEXAGON HEAD SCREW M8X35 3 35 00 0320 191 0 SPRING WASHER M08 3 36 00 0320 233 0 WASHER M08 3 37 00 0314 312 0 BRAKE PIPE 1 38 00 0326 489 0 BRAKE HOSE 1SN 6 P90(S08)P(S08) 370 2 39 00 0326 449 0 ADAPTER S08 E-M14 4 40 00 0315 077 0 DISTRIBUTOR BLOCK 1 1) Remarks
2) Remarks
3) Remarks 23 bar RANGER 975-964 / 928-925 No. 101 Remark: Page 2
with Ranger 964-975
see illustration plate 103
BGZ: 10100 No. 102 Remark: Page 1
RANGER 975-964 / 928-925
BRAKE BOOSTER
BGZ: 10100
Pos. Part No. Description Dimension Quanti ty Conditions 1 00 0324 046 0 TRANSMITT.CYL.ASS 1 1) 1 00 0310 026 0 TRANSMITT.CYL.ASS 1 2) 2 00 0326 158 0 BRAKE EFF.CONTR. 1 3 00 0326 159 0 MASTER CYLINDER 1 3) 3 00 0327 018 0 MASTER CYLINDER 7/8" 1 4) 4 00 0326 154 0 SEAL KIT 1 1) 4 00 0327 027 0 SEAL KIT 1 2) 5 00 0326 160 0 SCREW 2 6 00 0326 161 0 SHIM 0,5 STAINLESS 1 5) 7 00 0326 162 0 GREASE NIPPLE 1 8 00 0326 163 0 GUARD CAP 1 1) Remarks Ranger 964-975 2) Remarks Ranger 925 3) Remarks Ranger 964-975 D=25.4 4) Remarks Ranger 925 D=22,25 5) Remarks 0.5 mm thick RANGER 975-964 / 928-925 No. 102 Remark: Page 2

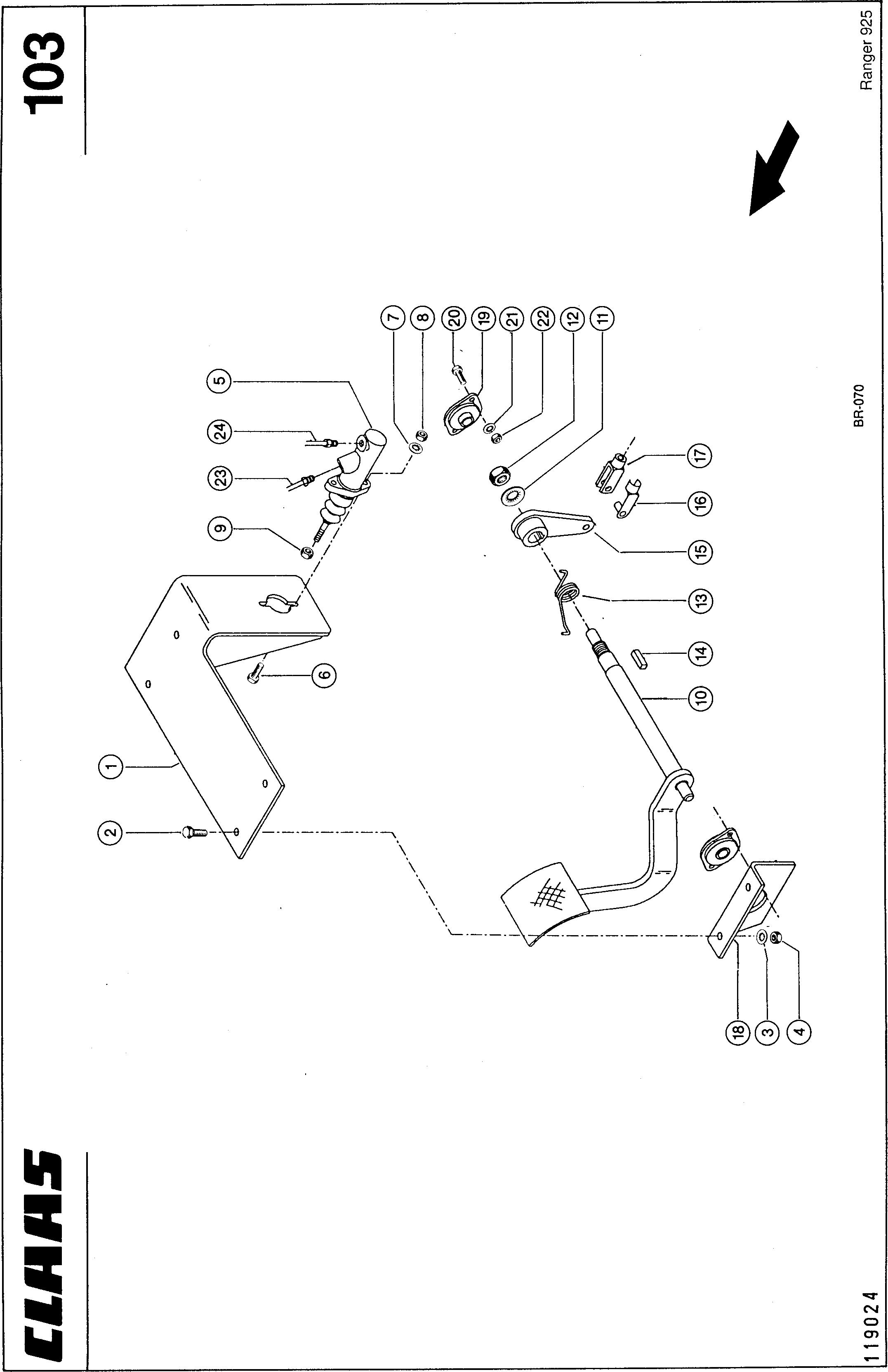

BGZ: 10100 No. 103 Remark: Page 1
RANGER 975-964 / 928-925
BRAKE PEDAL - FOOT OPERATED 1)
BGZ: 10100
Pos. Part No. Description Dimension Quanti ty Conditions 1 00 0326 276 0 SUPPORT 1 2 00 0320 125 0 SCREW M10X30 4 3 00 0320 192 0 WASHER M10 4 4 00 0320 318 0 NUT M10 4 5 00 0324 049 0 BRAKE CYLINDER 1 5 00 0324 050 0 REPAIR KIT 1 2) 6 00 0320 120 0 SCREW M8X30 2 7 00 0320 191 0 SPRING WASHER M08 2 8 00 0320 317 0 NUT M 8 2 9 00 0320 365 0 NUT 2 10 00 0326 274 0 BRAKE PEDAL 1 11 00 0320 237 0 WASHER M20 1 12 00 0237 521 0 HEX.NUT M20 1 13 00 0326 480 0 TORSION SPRING 1 14 00 0326 419 0 PARALLEL KEY 8X7 X25 ERS.D. 600500451 1 15 00 0326 263 0 LEVER ARM 1 16 00 0326 194 0 PIN 1 17 00 0326 275 0 FORK HEAD 1 18 00 0326 290 0 BEARING BRACKET 1 19 00 0326 260 0 FLANGE BEARING 2 20 00 0320 110 0 SCREW M6X20 4 21 00 0320 190 0 WASHER M06 4 22 00 0323 222 0 NUT M 6 4 23 00 0326 280 0 BRAKE PIPE 6X?X550-0 1 24 00 0326 281 0 BRAKE PIPE 6X?X650-0 1 1) Remarks Up To Serial No. 51000422 With Ranger 925 2) Remarks for Item 5 RANGER 975-964 / 928-925 No. 103 Remark: Page 2
BGZ: 10100 No. 104 Remark: Page 1
RANGER 975-964 / 928-925
BRAKE PEDAL - FOOT OPERATED 1)
BGZ: 10100
Pos. Part No. Description Dimension Quanti ty Conditions 1 00 0326 262 0 SUPPORT 1 2 00 0320 125 0 SCREW M10X30 4 3 00 0320 192 0 WASHER M10 6 4 00 0320 318 0 NUT M10 4 5 00 0324 144 0 BRAKE CYLINDER 1 5 00 0324 047 0 SEAL KIT 1 2) 6 00 0237 874 0 HEXAGON HEAD BOLT M10X35 2 7 00 0326 193 0 ADAPTER I-M12X1,5A-A-M14X1,5 2 8 00 0238 316 0 LOCK NUT M10 2 9 00 0320 285 0 SECURING NUT 2 10 00 0326 274 0 BRAKE PEDAL 1 11 00 0320 237 0 WASHER M20 1 12 00 0237 521 0 HEX.NUT M20 1 13 00 0326 480 0 TORSION SPRING 1 14 00 0326 419 0 PARALLEL KEY 8X7 X25 ERS.D. 600500451 1 15 00 0326 263 0 LEVER ARM 1 16 00 0322 768 0 PIN 1 17 00 0326 483 0 FORK HEAD 1 18 00 0326 290 0 BEARING BRACKET 1 19 00 0326 260 0 FLANGE BEARING 2 20 00 0320 110 0 SCREW M6X20 4 21 00 0320 190 0 WASHER M06 4 22 00 0323 222 0 NUT M 6 4 23 00 0326 280 0 BRAKE PIPE 6X?X550-0 1 24 00 0326 281 0 BRAKE PIPE 6X?X650-0 1 25 00 0321 446 0 SEAL RING 2
Up
975
1) Remarks
To Serial No. 51600768 With Ranger 964 -
RANGER 975-964 / 928-925 No. 104 Remark: Page 2
2)
Remarks for Item 5
BGZ: 10200 No. 104A Remark: Page 1
RANGER 975-964 / 928-925
BRAKE PEDAL ASSEMBLY 1)
From Serial No. 51000423
From Serial No. 51600769
See Illustration 104 E
with Item 2 - 6
BGZ: 10200
Pos. Part No. Description Dimension Quanti ty Conditions 1 00 0315 491 0 BRAKE VALVE 1 2) 2 00 0316 895 0 PEDAL CPL. 1 3 00 0316 894 0 PEDAL 1 4 00 0236 200 0 HEXAGON HEAD BOLT M8X20 3 5 00 0239 387 0 CONTACT WASHER A8-8,2X18X1,4 3 6 00 0316 892 0 BRAKE VALVE 1 6 00 0316 893 0 REPAIR KIT 1 7 00 0233 918 0 HEXAGON HEAD BOLT M 5X16 4 8 00 0217 014 0 CONTACT WASHER A 5- 5,1X12X1,1 4 9 00 0315 217 0 METAL SPACER 1
1) Remarks
2) Remarks
RANGER 975-964 / 928-925 No. 104A Remark: Page 2
BGZ: 10200 No. 104B Remark: Page 1
RANGER 975-964 / 928-925
BRAKE CIRCUIT 1)
BGZ: 10200
Pos. Part No. Description Dimension Quanti ty Conditions 1 00 0315 491 0 BRAKE VALVE 1 2 00 0315 904 0 BRAKE PIPE 1 3 00 0316 194 0 T-JOINT,SCREW. SWOBT-S10 MOD. 1/8NPT 1 4 00 0315 493 0 LOW PRESS.SWITCH 116 BAR 1 5 00 0315 903 0 BRAKE PIPE 1 6 00 0316 200 0 SCREW-IN FITTING SDE-S10X9/16-18UN F-2A-TY 1 7 00 0316 181 0 SCREW-IN FITTING 10L F-9/16UNF 2 8 00 0316 195 0 ELBOW UNION W.ERS.D.2386930 2 9 00 0315 905 0 BRAKE PIPE 1 10 00 0315 906 0 BRAKE PIPE 1 11 00 0323 884 0 ACCUMULATOR 0,75L 210BAR 1 12 00 0316 199 0 SUPPORT 1 13 00 0237 442 0 HEXAGON HEAD BOLT M8X25 2 13 00 0236 912 2 FLAT WASHER 8 - 8,4X16X1,6 4 13 00 0239 040 0 LOCK NUT M8 2 14 00 0217 004 0 SEALING WASHER 21,54X28,58X2, 47-G1/2 BS 1 15 00 0316 335 0 SUPPORT 1 16 00 0316 197 0 CLAMP LD-K0R-10-PP-W1 3 18 00 0316 368 0 SCREW-IN FITTING S-S10 1 19 00 0316 248 0 PLATE 1 20 00 0233 918 0 HEXAGON HEAD BOLT M 5X16 2 21 00 0217 014 0 CONTACT WASHER A 5- 5,1X12X1,1 2 22 00 0316 392 0 WIRING LOOM 1 1) Remarks From Serial No. 51000423 From Serial No. 51600769 See Illustration 104 F RANGER 975-964 / 928-925 No. 104B Remark: Page 2
BGZ: 10200 No. 104C Remark: Page 1
RANGER 975-964 / 928-925
BRAKE CIRCUIT WITH ACCUMULATOR CHARGE VALVE 1)
Serial No. 51000423
Serial No. 51600769
BGZ: 10200
Pos. Part No. Description Dimension Quanti ty Conditions 1 00 0315 912 2 HYDR. HOSE 2SN 6 P90(10S)N(L12) 225 1 2 00 0316 409 0 SOCKET SWORT-L12 2 3 00 0316 193 0 SCREW-IN FITTING SDS-L12X3/4-16UNF2A-TYP 2 4 00 0323 892 0 VALVE 1 5 00 0316 363 0 PIPE 1 6 00 0316 412 0 ELBOW BSPP 3/4-F / 3/4-M 1 7 00 0315 986 0 HYDR. HOSE 2SN 6 E(10S)P90(S10) 825 1 8 00 0315 911 0 HYDR. HOSE 1 2) 8 00 0316 411 0 HYDR. HOSE 2SN 6 E(10S)N90(L12) 100 1 3) 9 00 0326 509 0 HOSE 2SN 12 P90P 670 1 2) 9 00 0326 527 0 HOSE 2SN12P90P45820 1 3) 10 00 0316 198 0 SCREW-IN FITTING 1 11 00 0316 364 0 T-PIECE 12S6MK4 1 12 00 0217 006 0 SEALING RING 27,05-28,53X34,93X2, 47-G 1 13 00 0315 988 0 VALVE 1 14 00 0316 185 0 SCREW-IN FITTING SDS-L12XG3/4A-TYPE E 1 15 00 0316 554 0 HYDR. HOSE 1 2) 15 00 0316 555 0 HYDR. HOSE R1612 N90P 950 1 3) 16 00 0316 184 0 SCREW-IN FITTING SDE 20 X 1"1/16-12 TYP F 1 17 00 0217 025 0 UNION 7/8JIC-1.1/16SAE 1 18 00 0315 914 1 HYDR. HOSE 2SN 6 E(8S)1/4BSP90° 750 1 2) 18 00 0316 371 1 HYDR. HOSE 2SN 6 P(8S)1/4"90° 875 1 3) 19 00 0324 124 0 VALVE PRIORITY 1 20 00 0316 183 0 SCREW-IN FITTING GE15L-3/4-16 1 21 00 0238 354 0 ANGLE UNION SWE-L15 ERS. D. 0249836. 1 22 00 0316 492 0 PLUG VSD 10L/S-MMB 1 23 00 0316 493 0 HEXAGONAL NUT A3 S10 1 24 00 0316 162 0 SCREW-IN FITTING GE18L-7/8-14 1 25 00 0315 909 0 HYDR. PIPE 1 26 00 0316 201 0 SCREW 3/8"UNC 3 27 00 0239 388 0 CONTACT WASHER A10-10,2X22,25X1,6 3 28 00 0315 916 0 HYDR. HOSE 2SN 10 N90N90 350 1 1) Remarks
2) Remarks bei Ranger 925 - 928 3) Remarks with Ranger 964-975 RANGER 975-964 / 928-925 No. 104C Remark: Page 2
From
From
BGZ: 10500 No. 104D Remark: Page 1
RANGER 975-964 / 928-925
BRAKE CIRCUIT FOR HYDR. TRAILER BRAKING 1)
Not For Frg From Serial No. 51000423 From Serial No. 51600769
925 - 928
BGZ: 10500
Pos. Part No. Description Dimension Quanti ty Conditions 1 00 0313 127 0 QUICK-COUPLING 1 2 00 0239 387 0 CONTACT WASHER A8-8,2X18X1,4 1 3 00 0237 438 0 HEXAGON HEAD BOLT M8X12 1 4 00 0239 387 0 CONTACT WASHER A8-8,2X18X1,4 1 5 00 0315 919 0 HYDR. HOSE 1 2) 5 00 0316 164 1 HYDR. HOSE 1 3) 6 00 0315 920 0 HYDR. PIPE 1 7 00 0316 180 0 SCREW-IN FITTING SDS-L12X9/16-18UNF -2A-TY 3 8 00 0315 921 0 HYDR. PIPE 1 9 00 0315 922 0 HYDR. HOSE 1 10 00 0316 192 0 T-PIECE S10 1 3) 11 00 0316 191 0 T-PIECE T-S10 1 2) 12 00 0315 494 0 BRAKE VALVE 1 13 00 0316 202 0 SCREW 5/16"X 1"UNC 2 14 00 0316 181 0 SCREW-IN FITTING 10L F-9/16UNF 1 15 00 0315 920 0 HYDR. PIPE 1 1) Remarks
2) Remarks
Ranger
3) Remarks
Ranger
RANGER 975-964 / 928-925 No. 104D Remark: Page 2
bei
with
964-975
BGZ: 10200 No. 104E Remark: Page 1
RANGER 975-964 / 928-925
BRAKE PEDAL ASSEMBLY 1)
Remarks From Serial No. 51600769
Remarks with Item 2 - 6
BGZ: 10200
Pos. Part No. Description Dimension Quanti ty Conditions 1 00 0319 479 0 PEDAL CPL. 1 2) 2 00 0316 895 0 PEDAL CPL. 1 3 00 0316 894 0 PEDAL 1 4 00 0236 200 0 HEXAGON HEAD BOLT M8X20 3 5 00 0239 387 0 CONTACT WASHER A8-8,2X18X1,4 3 6 00 0319 480 0 BRAKE VALVE 1 6 00 0319 524 0 SEAL KIT 1 7 00 0233 918 0 HEXAGON HEAD BOLT M 5X16 4 8 00 0217 014 0 CONTACT WASHER A 5- 5,1X12X1,1 4 9 00 0315 217 0 METAL SPACER 1
1)
RANGER 975-964 / 928-925 No. 104E Remark: Page 2
2)
