COMMUNITY INFRASTRUCTURE | CENTRO INTEGRARÉ
EPHEMERAL HABITAT | OJOS DE AGUA
COLLECTIVE HOUSING | HARMONIA COLIVING
ESTUDIO HIDALGO | LOS DEDOS DEL CORONEL
4
5
CENTRO INTEGRARÉ
ECOMMUNITY INFRASTRUCTURE | January-July 2023
A Heart as Center. The project aims to represent and enhance the identity of the community, serving as a space for integration, prevention, and preparation. The space become as an engine to meet their collective future expectations, being a central point for experiences and offeringtools to fully develop each inhabitant.

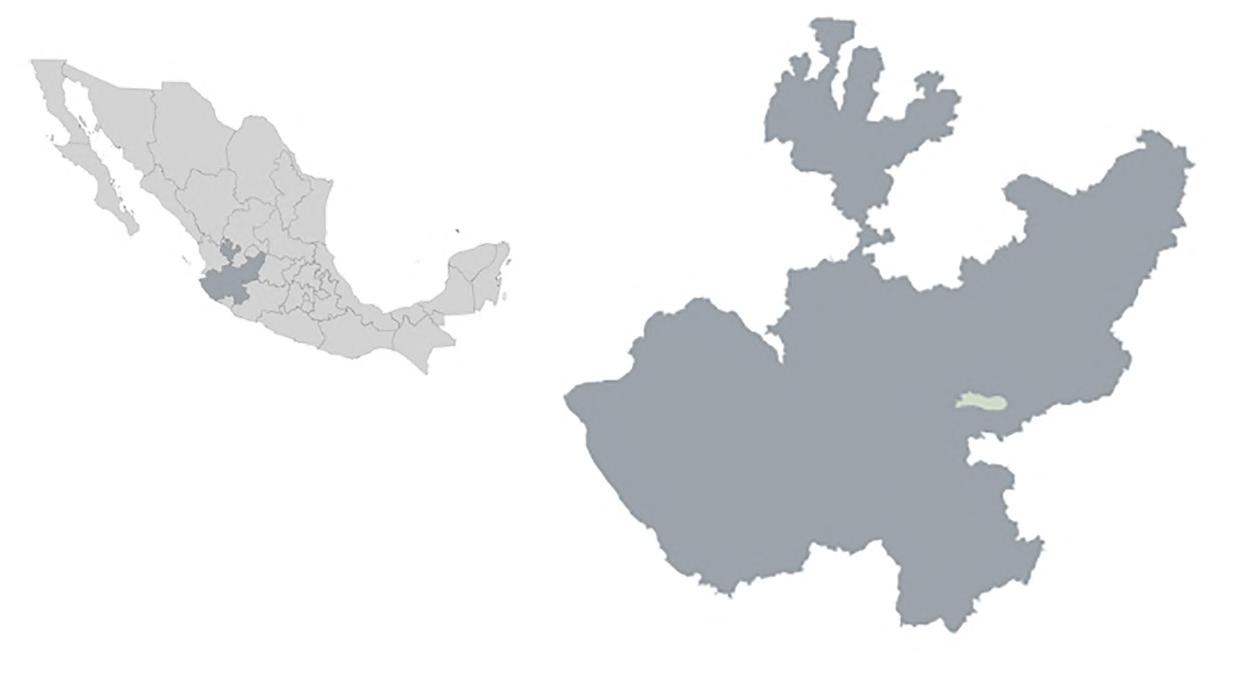

The project is located in San Pedro Itzicán, Poncitlán, Jalisco. A small community on the shores of Lake Chapala. The proposal emerges in response to the issues identifiedin a site analysis and diagnosis, complemented by Transition Design methodology and co-design sessions with the community and involved organization.
6
5

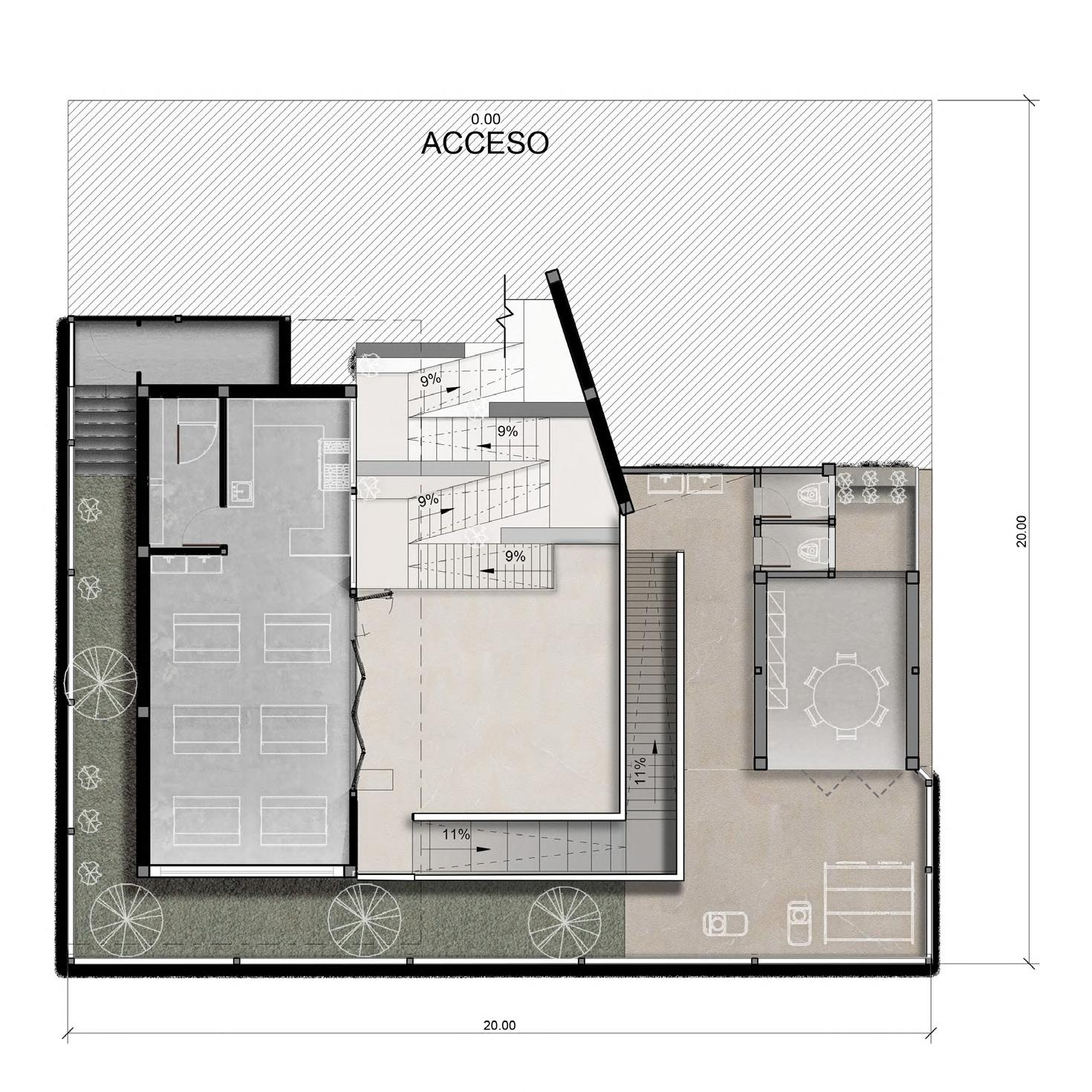

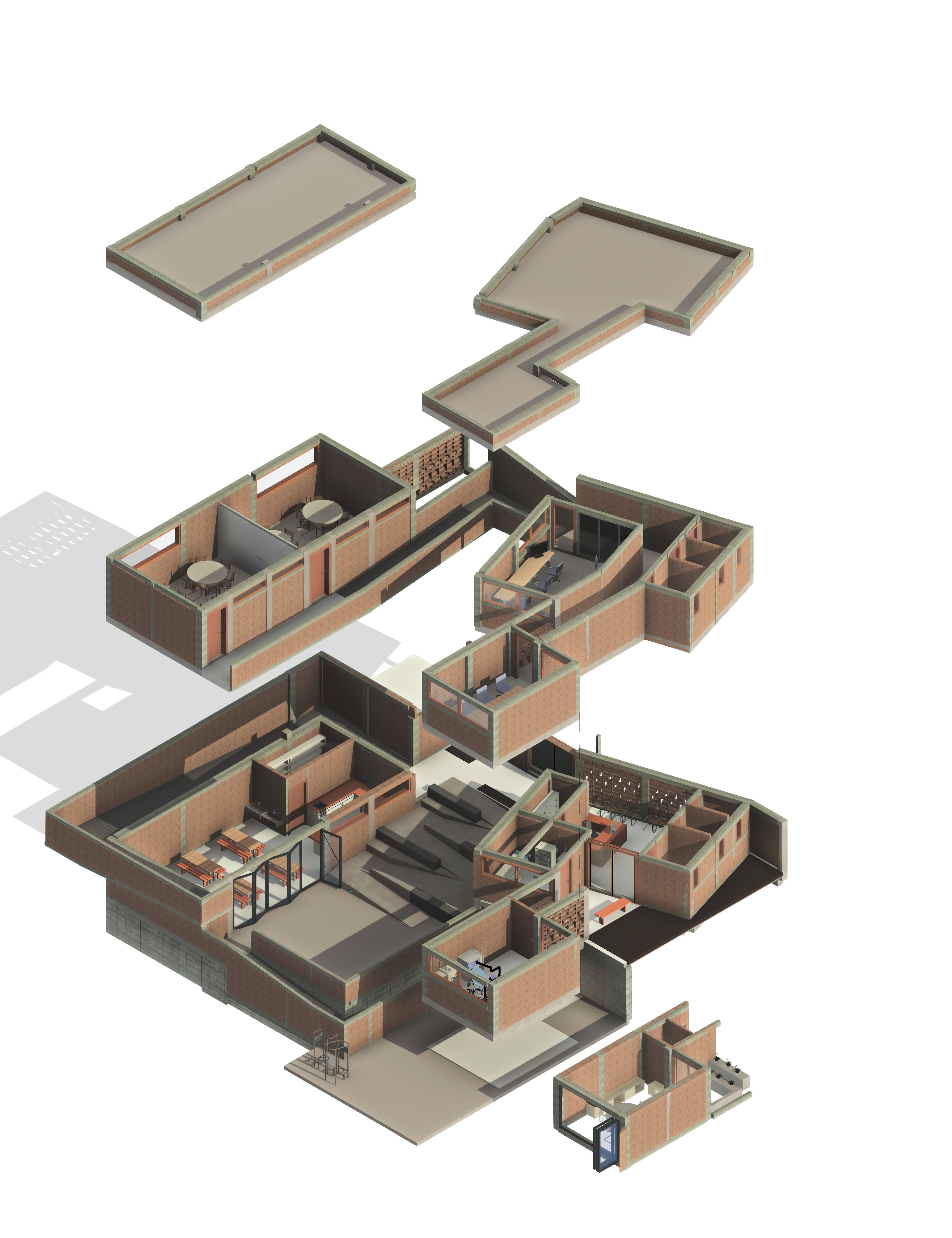

-2.60 -2.60 -1.40 -1.35 -1.40 0.00 0.00 0.00 +1.60 +1.60 +2.60 +2.60 1 2 3 4 8 6 7 5 9 10 11 Amphitheater Dining hall Recreational area Playground Machines room Lobby / Pharmacy Dialysis room Odontology Workshops Office Multipurpose room 1 2 3 4 5 6 7 8 9 10 11 FIRST FLOOR BASEMENT
8 11 1 4 6 10 SECTION

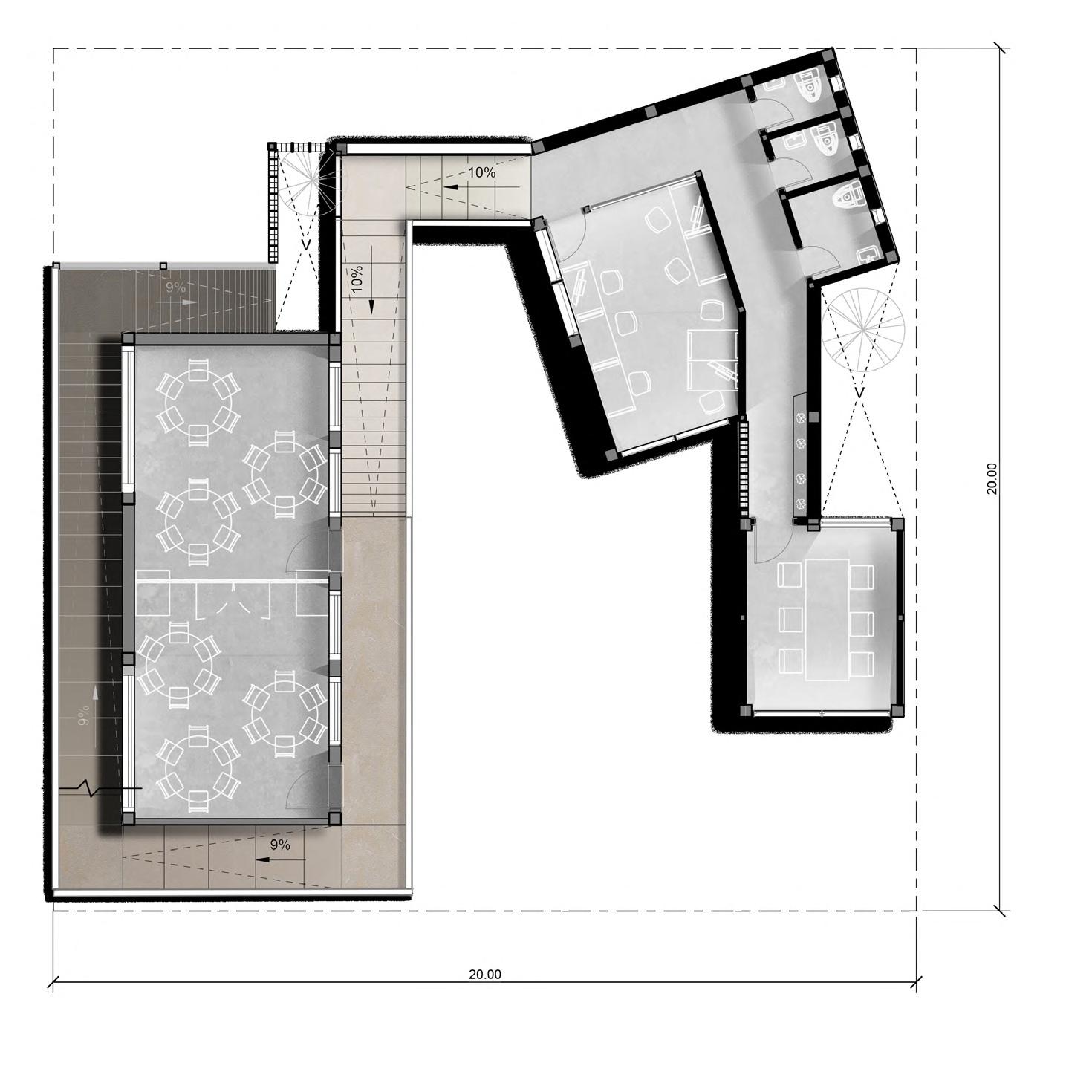

SECOND FLOOR
9 N WORKSHOPS DINNING HALL OFFICE PLAYGROUND MEDICAL AREA SERVICES AMPHITEATHER ZONING
5.20 Roof 1.00 0.20 0.15 0.15 0.15 0.15 0.50 0.13 0.15 1 2 3 4 7 8 11 12 14 Roof brick and grouting Pretil - 50 cm Zavaleta Window frame Brick and 6” beams system Crown/intermediate stringcourse Folding window Base slab
and sand floor/slab

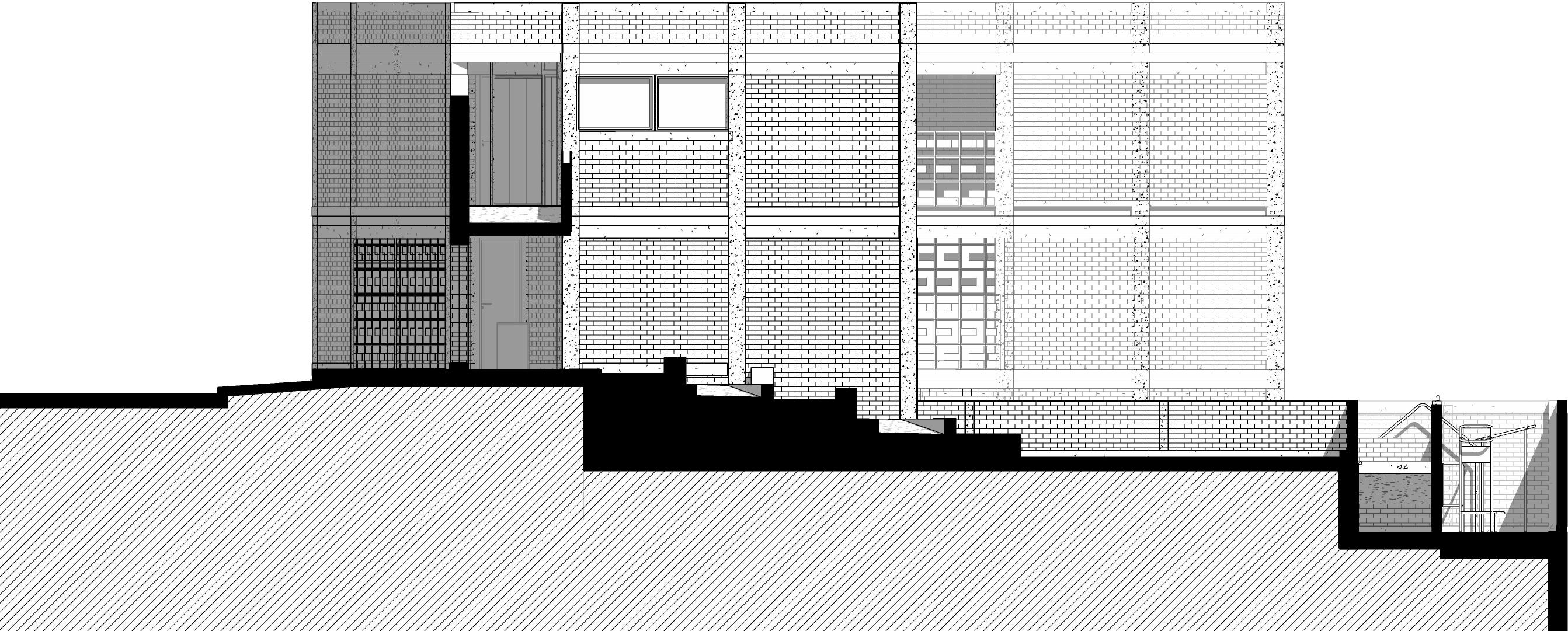

with rock 40x40 cm foundation block Soil-cement foundation Isolated footing 13 10 2.60 2nd Level 0.00 1st Level -2.55 F F.L -2.60 Basement 2 Foundation -4.00 0.15 9 5 6 0.15 1 2 3 4 5 6 7 8 9 10 11 12 13 14 10 CONSTRUCTIVE SECTION
Concrete
Leveling
11

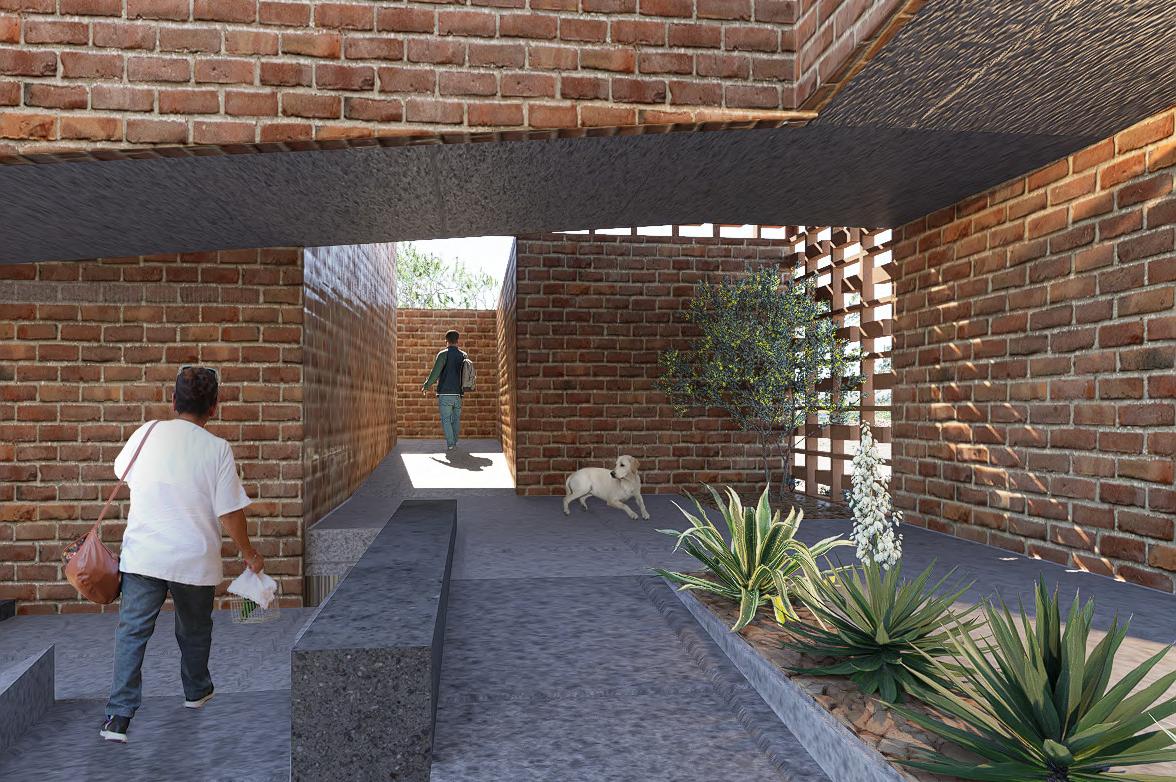

access Facade
Ramp
12

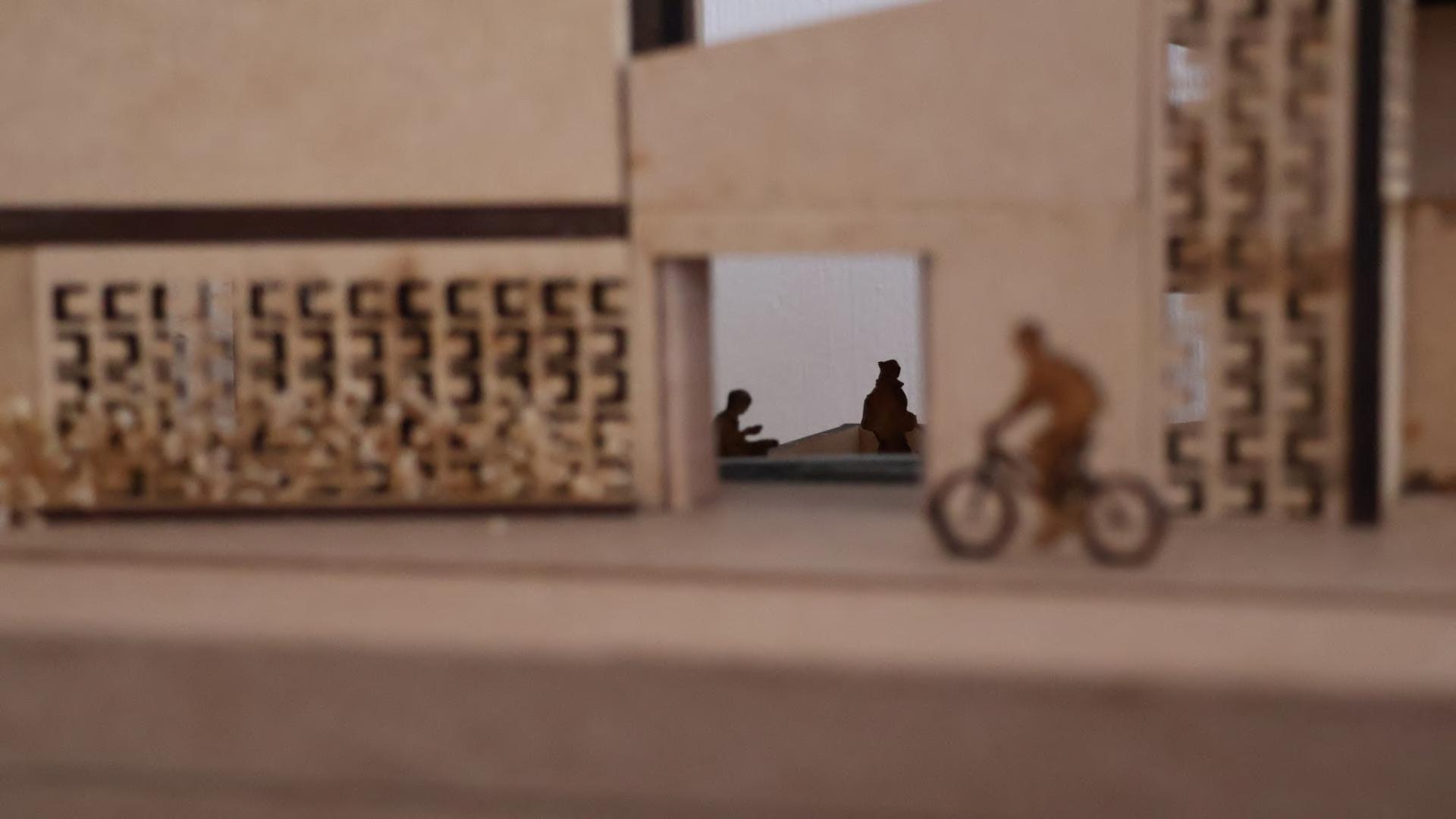

Northwest View - Model
Southeast View - Model
13

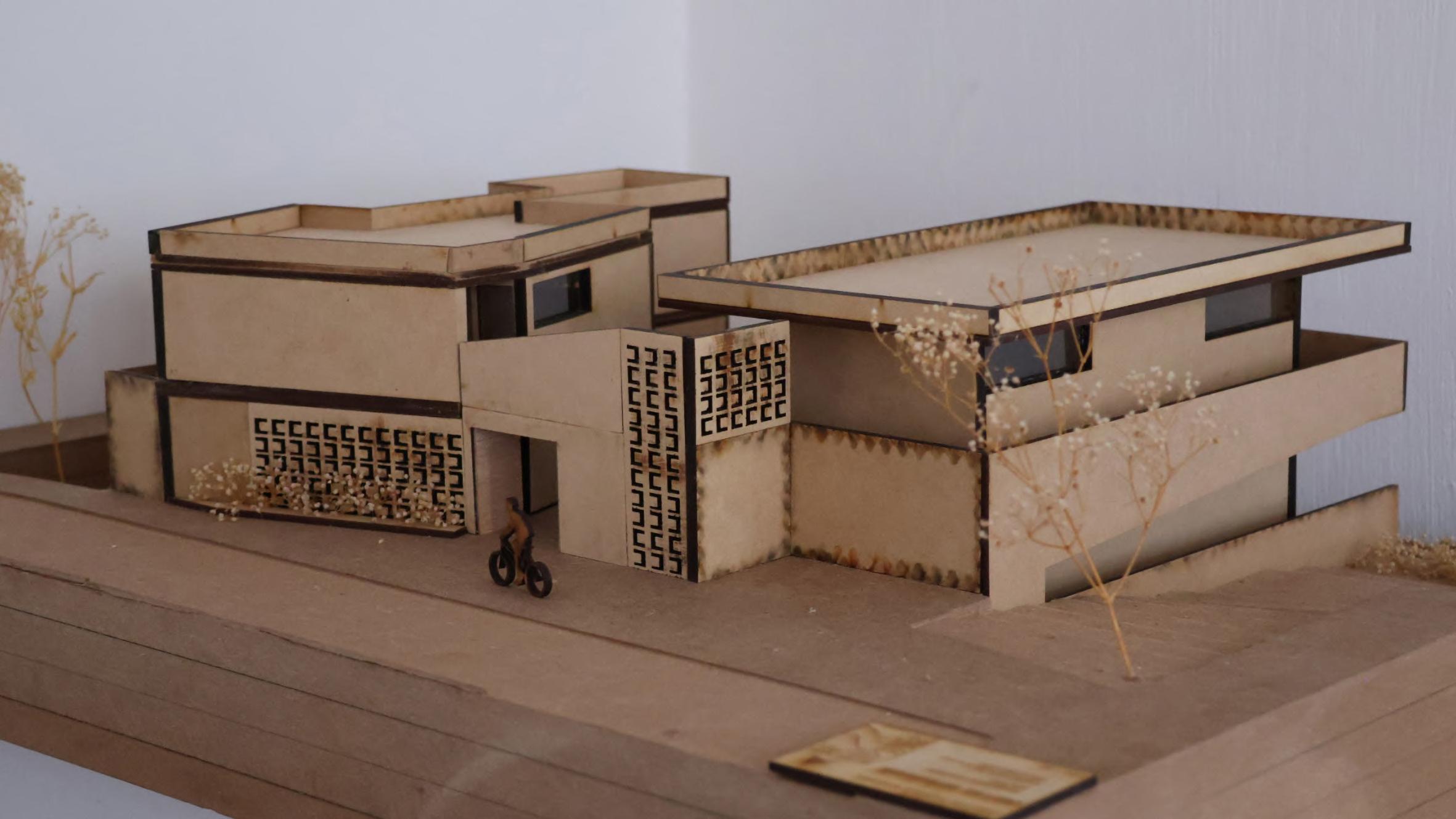

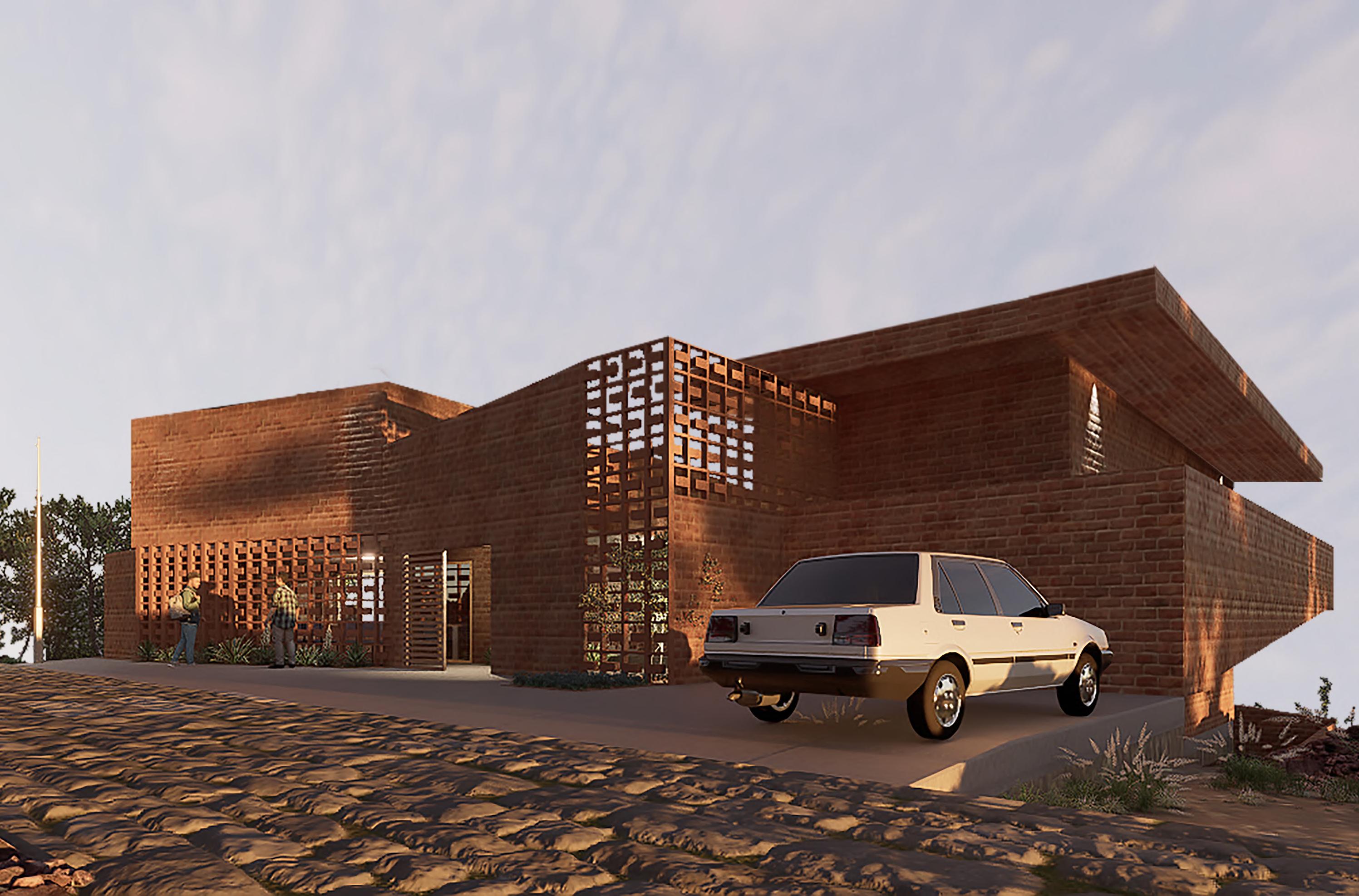

Access - Model

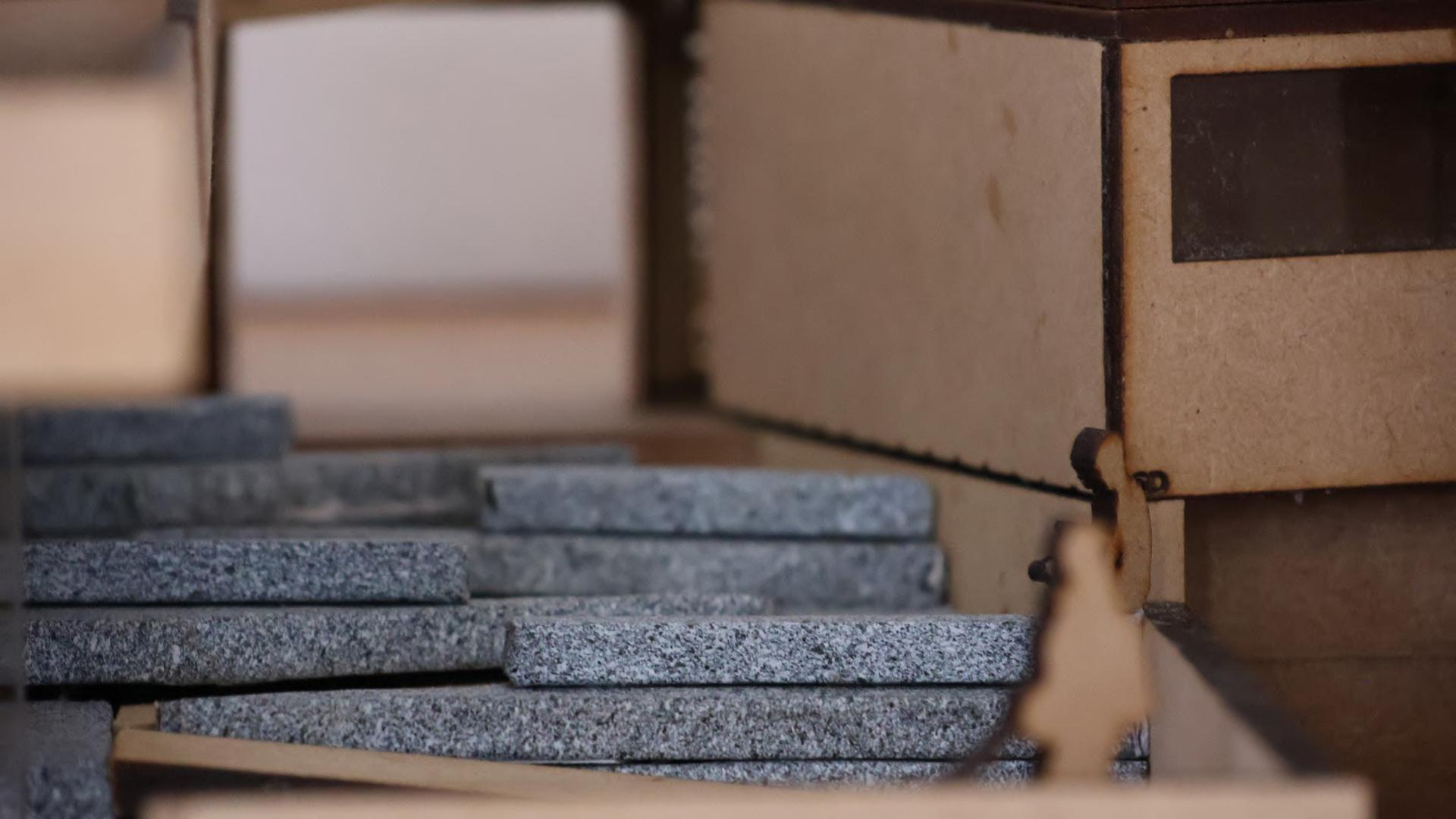

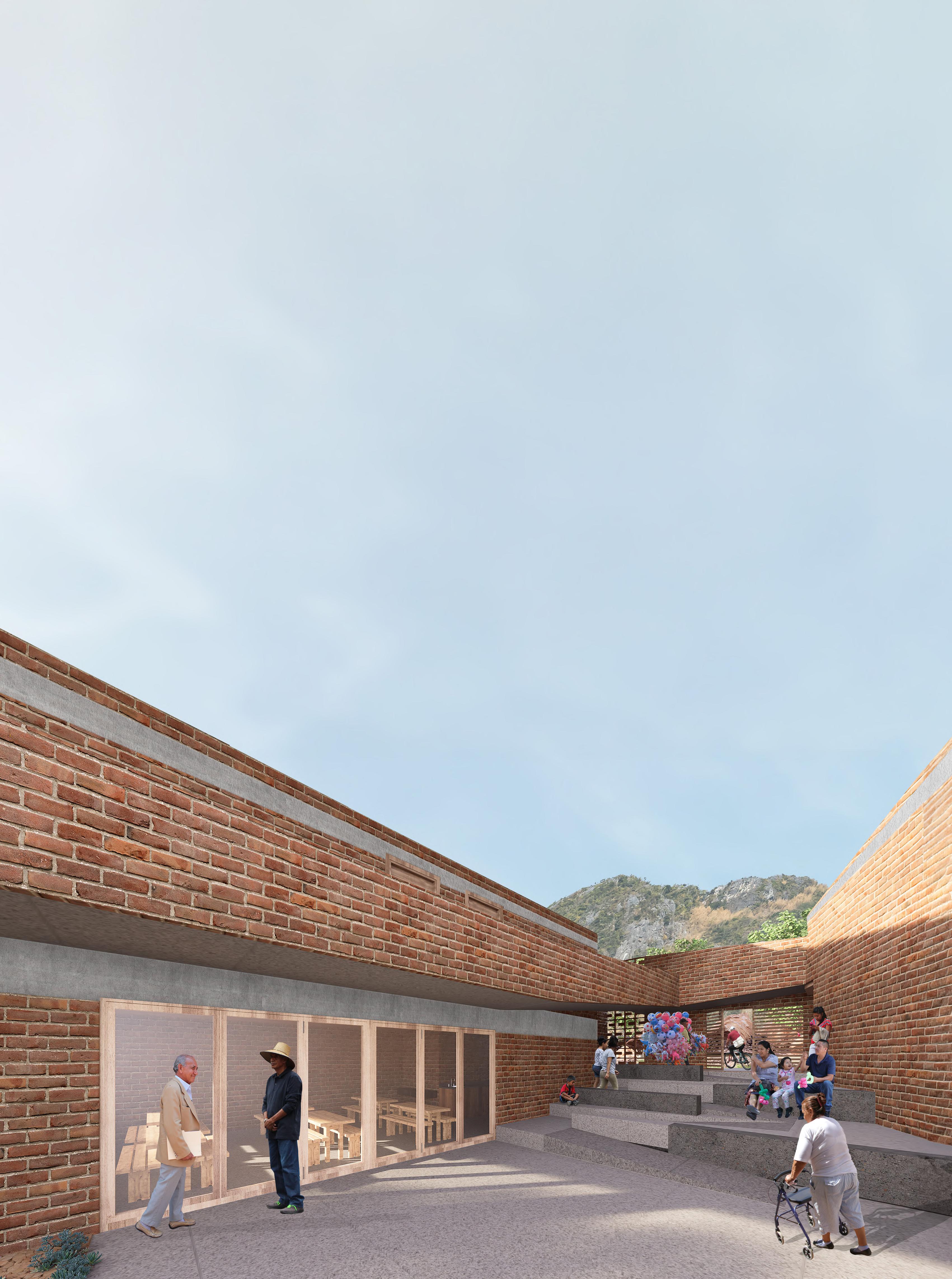

Amphitheater - Model
OJOS DE AGUA
EPHEMERAL HABITAT | August-December 2022
A symbiotic network of shelters. “Ojos de Agua” emergesas an ephemeralhabitat in response to urban disuse, the increase of people experiencinghomelessness,and natural hazards. The project aims to reclaim the spaces with water, specificallyalong the canal of Av. Patria in Guadalajara,Jalisco, seekingto be a replicableand low-costinitiative.
The project consists of modular and floating units, maximizing the use of naturaland humanelements.Focusedon a vulnerable sectorproviding: Temporary refuge and communal living.
14
15

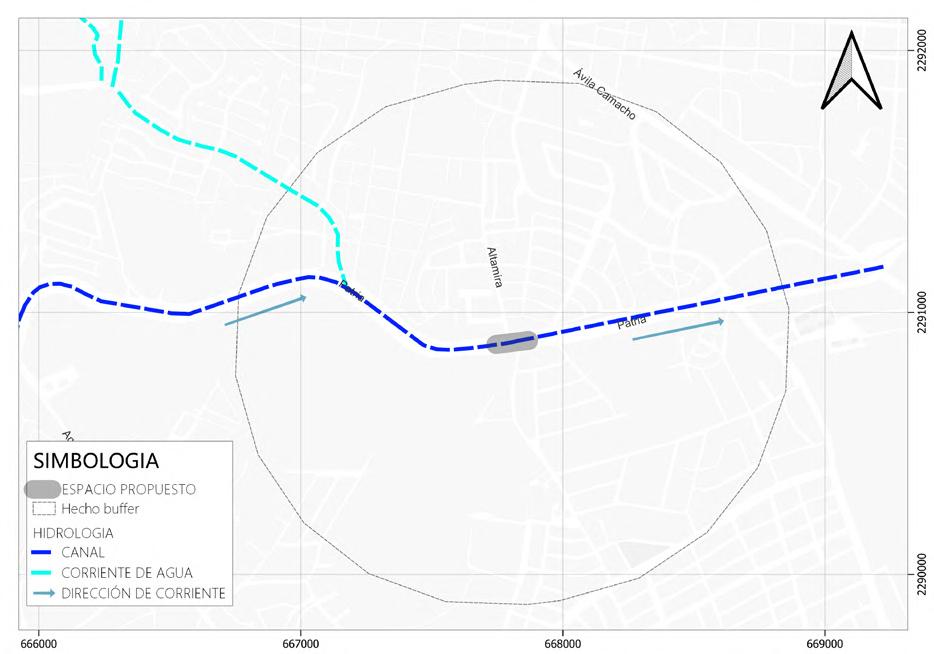

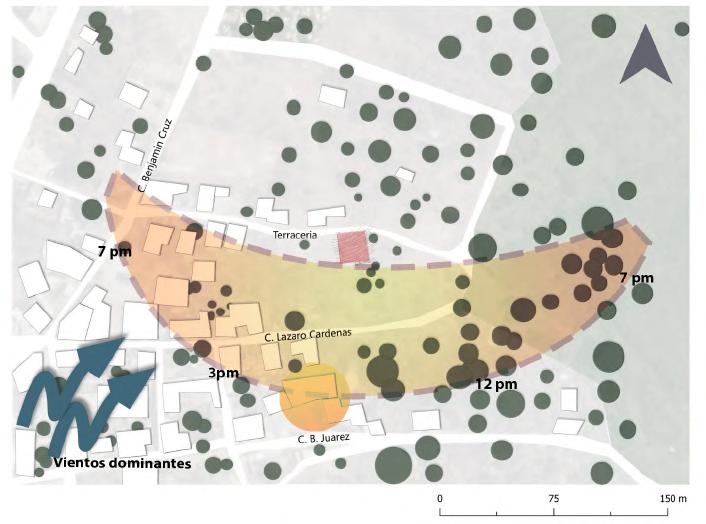

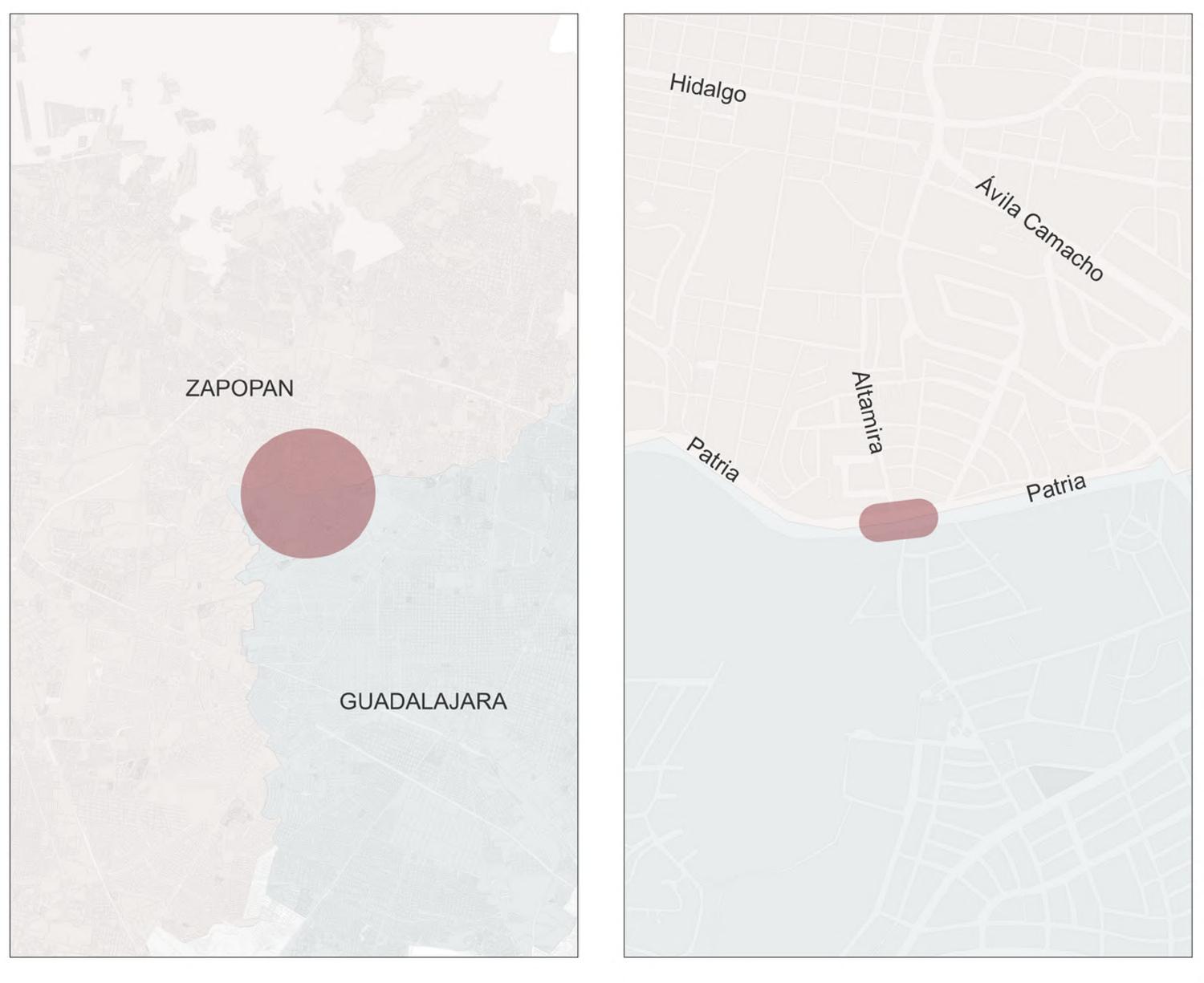

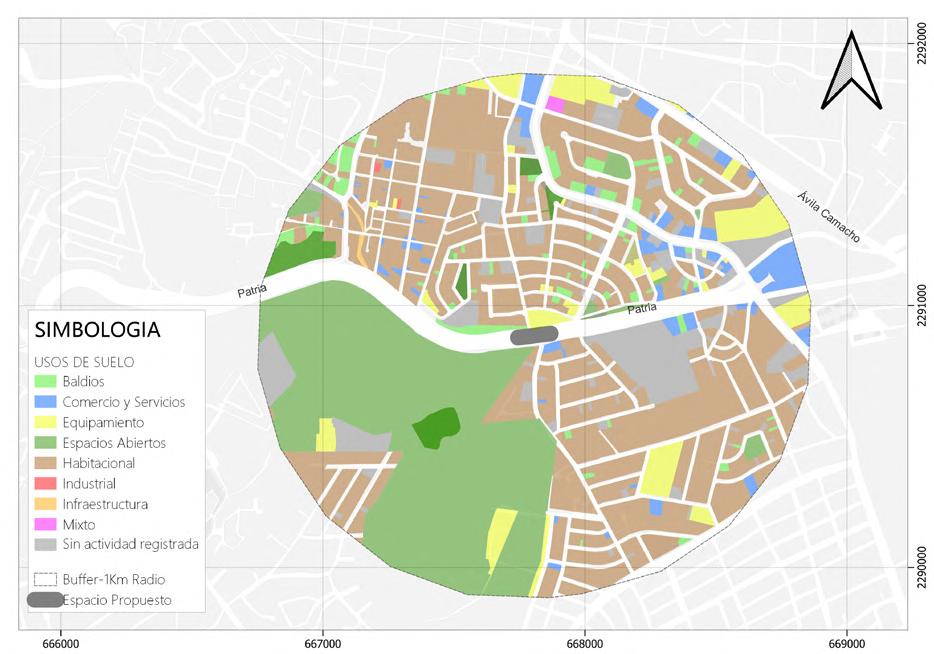

The site analysis allowed us to identify potential users and natural factors, such as hydrology and flooding, and socioeconomic factors, such as land use and marginalization, generating a project capable of generate multiple benefits in a symbiotic manner.
DESIGN
Modularity Interiors Cluster M Social spaces Circulation Equipment 16 Marginalization Hydrology Use of land
SITE ANALYSIS USES

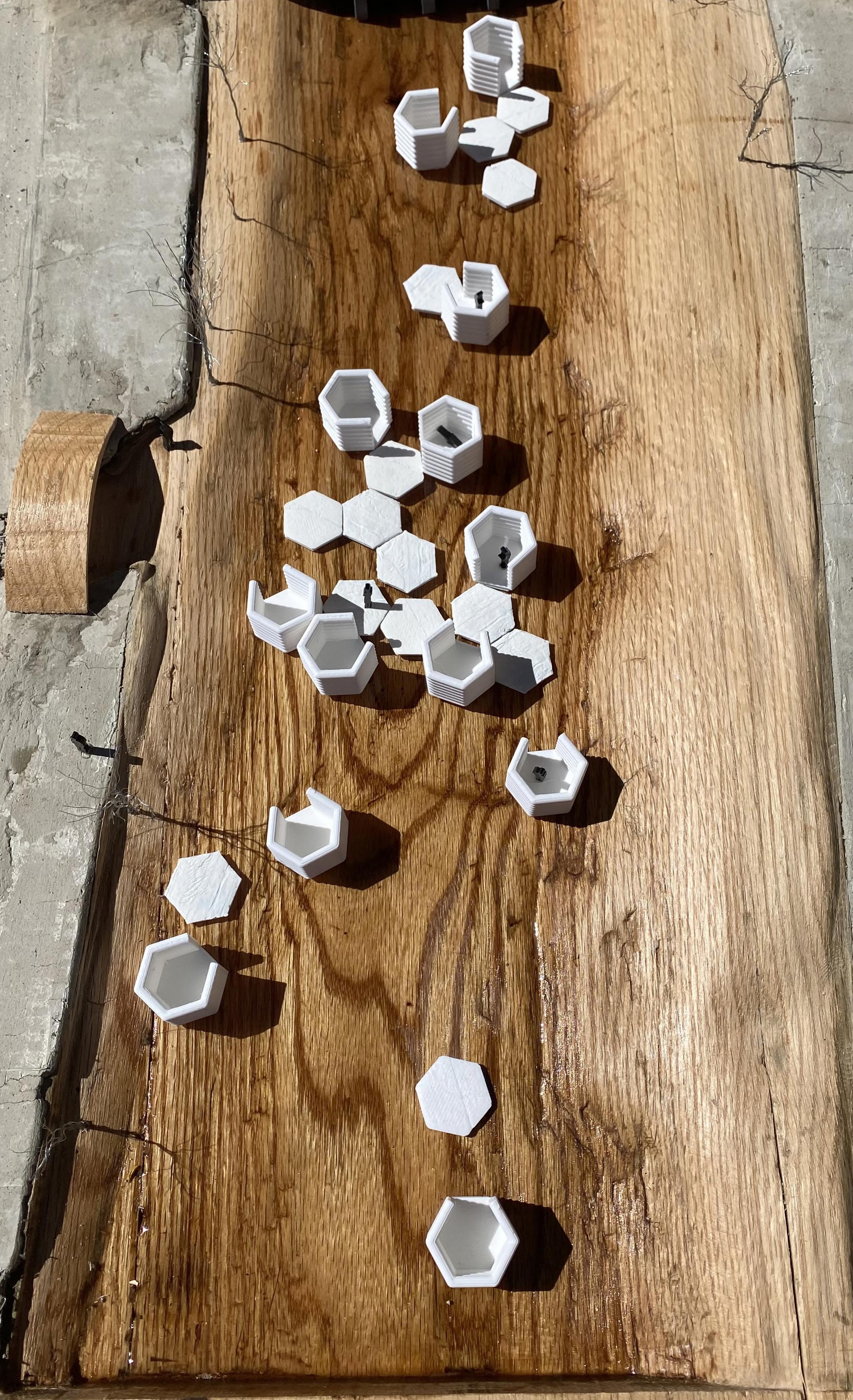

The project utilizes the hexagon, a shape capable of maximizing storage and space, optimizing the use of materials for its construction. Its angles allow modularity and promote the flexibility and aesthetics of the project.
CONSTRUCTIVE SYSTEM
Roof
-Providingshade
-NylonTPU
-Permeable
Skeleton
-Maintaining structure
-Aluminum
-Stainless Steel
Base
-Support and ground
-Bamboo
-Moisture resistance
Frame
-Maintaining shape
Retractable tube
-Supporting nylon cover
Female and Male Hooks:
-Connecting modules
-Plastic
Plastic tube
-Air intake for modules
-Plastic
Molded Base:
-Floating
-Recycled plastic

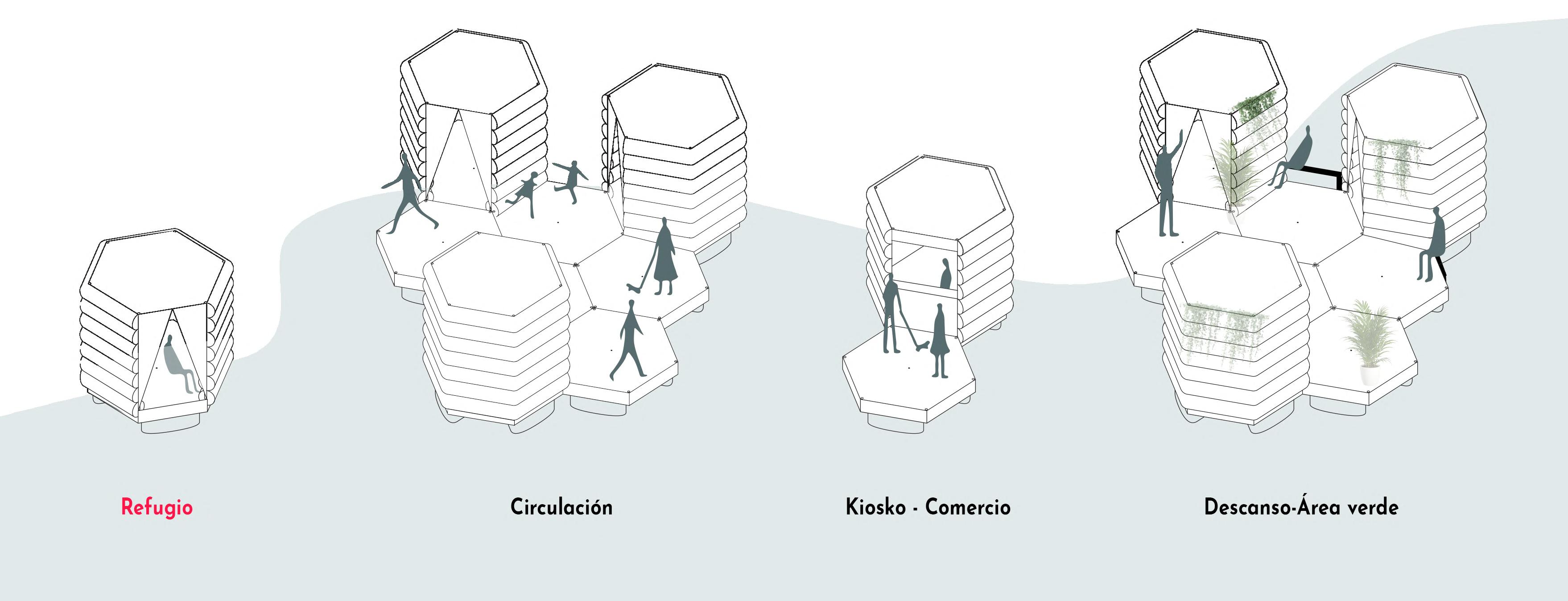

Module 1 Module 2 Cluster S Cluster M Cluster L
17 MODULARITY

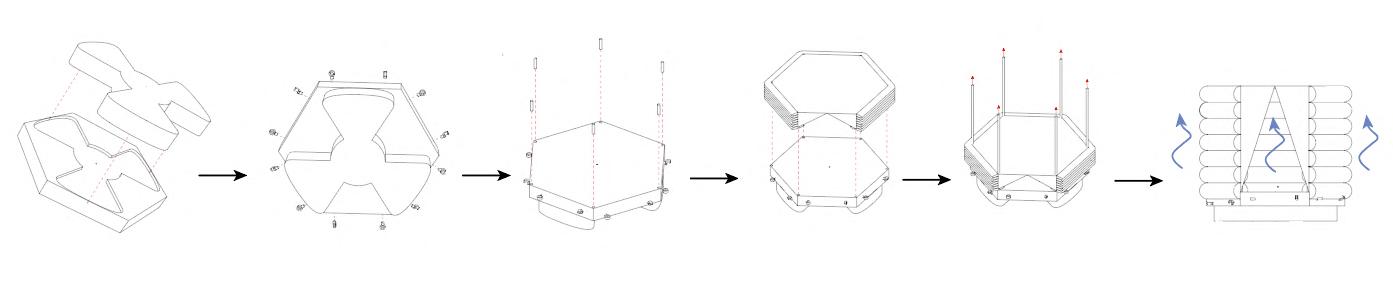

24 12 6 18 Social Space Working Circulation Green Space Resting Commerce Night Day Union based on presion Placing of hooks Placing inflatable locks Placing cover and skeleton
inflation by inner tubing
- Host - Community 18 PROGRAMME
PROCCESS
Manual
Symbiont
CONSTRUCTION
19

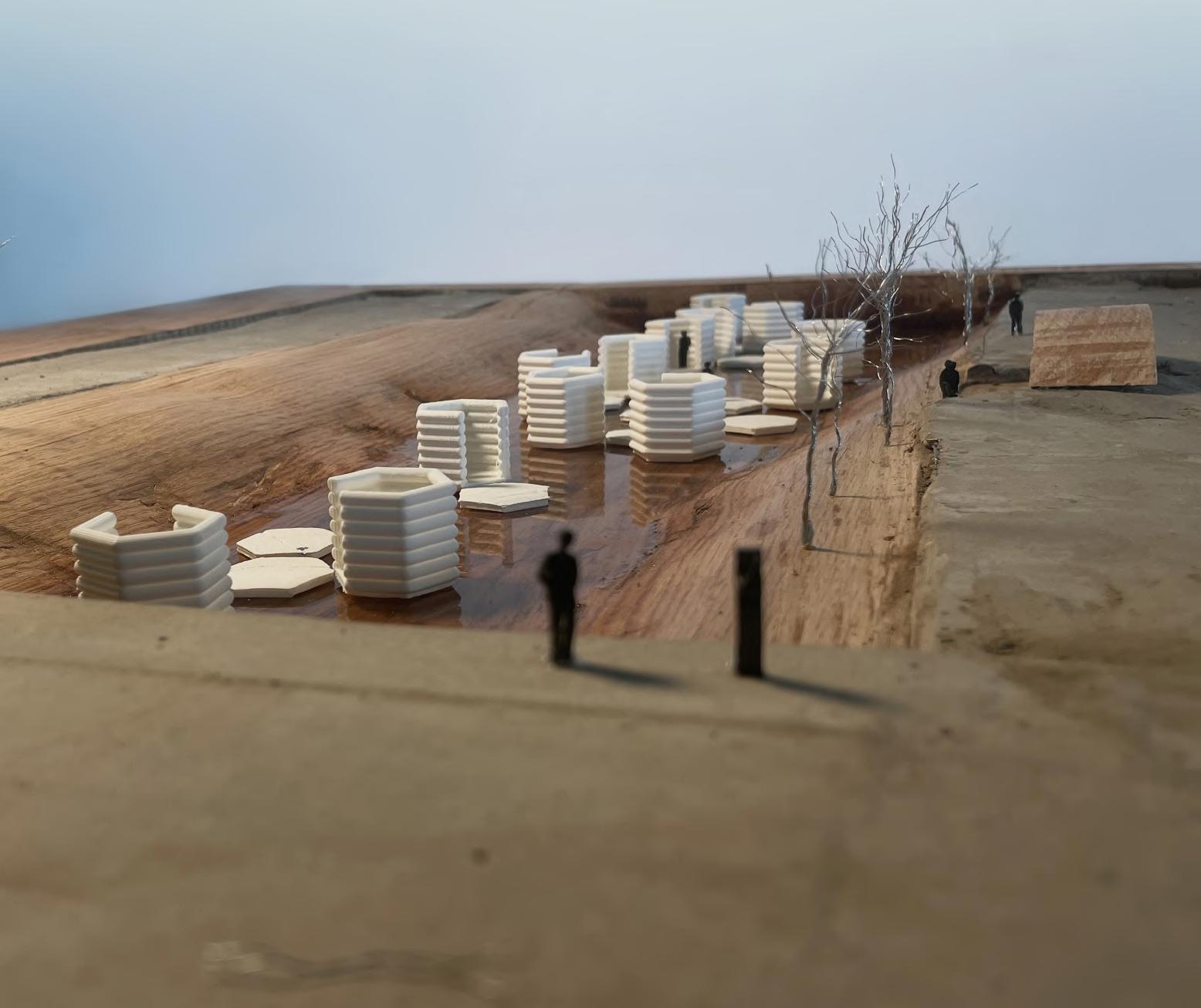

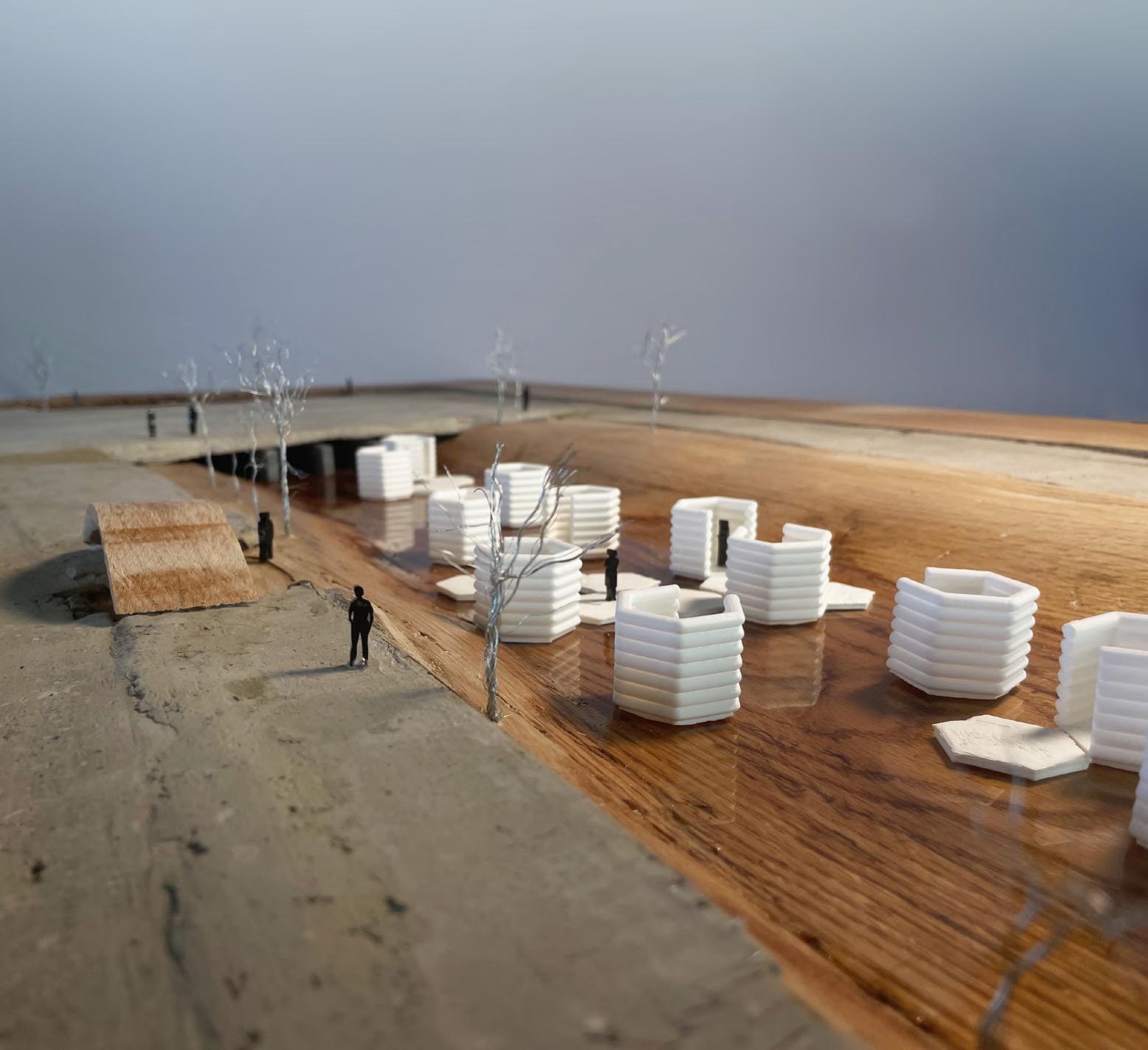

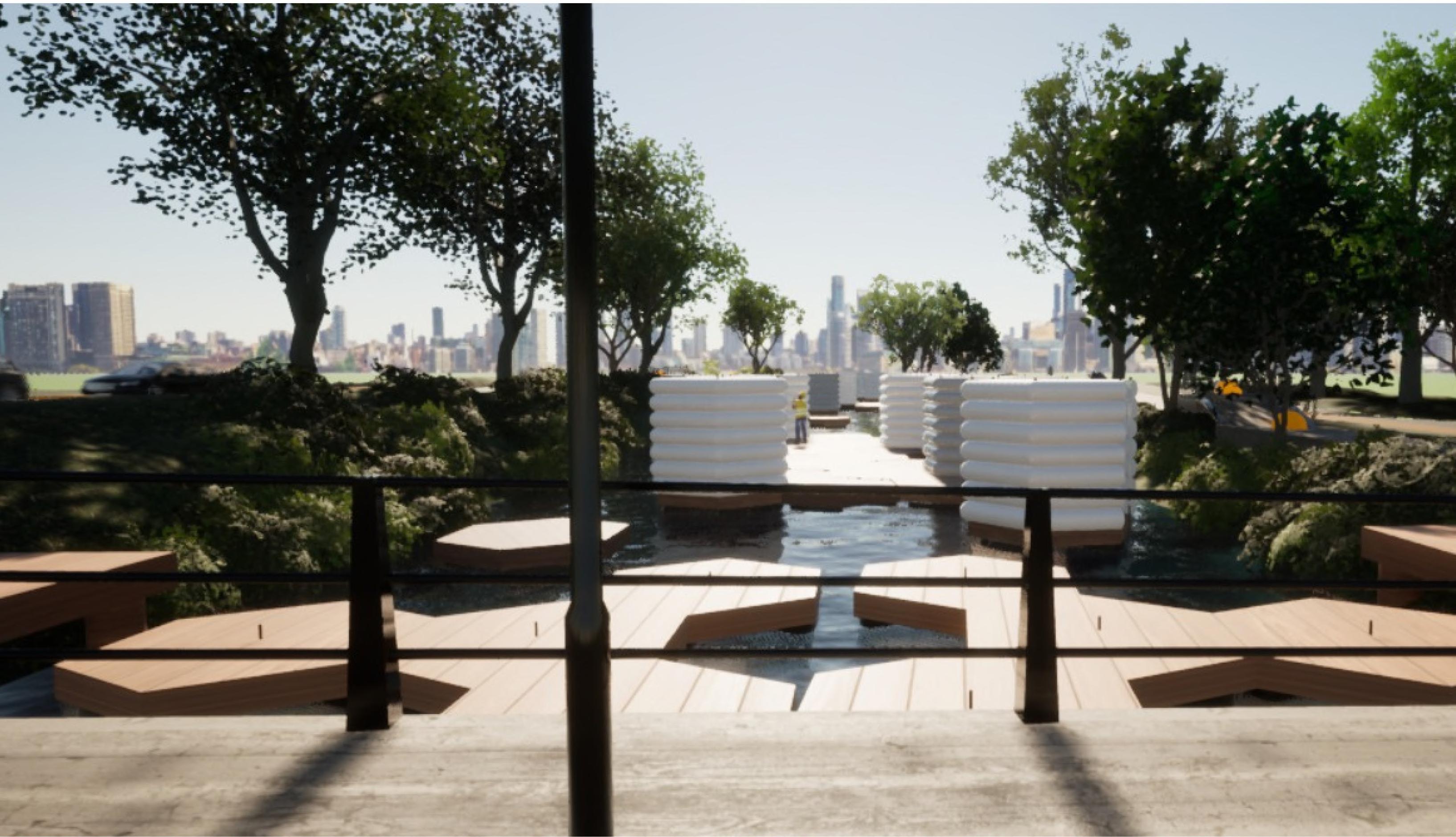

Northwest View - Model
Northeast view - Model
HARMONIA COLIVING
COLLECTIVE HOUSING | Agosto-Diciembre 2023
PUBLIC | PRIVATE; A development that seeks transition between adaptable and flexible spaces, providing the capacity to foster autonomy among its residents through spaces for rest | recreation | routine.
The public use contributes with commercial and working spaces that respond to the spatial needs of the immediate environment, and explores private spaces with flexible typologies to accommodate the changing needs of its inhabitants, based on the increasing type of consumers in the zone.
20
JUSTO SIERRA

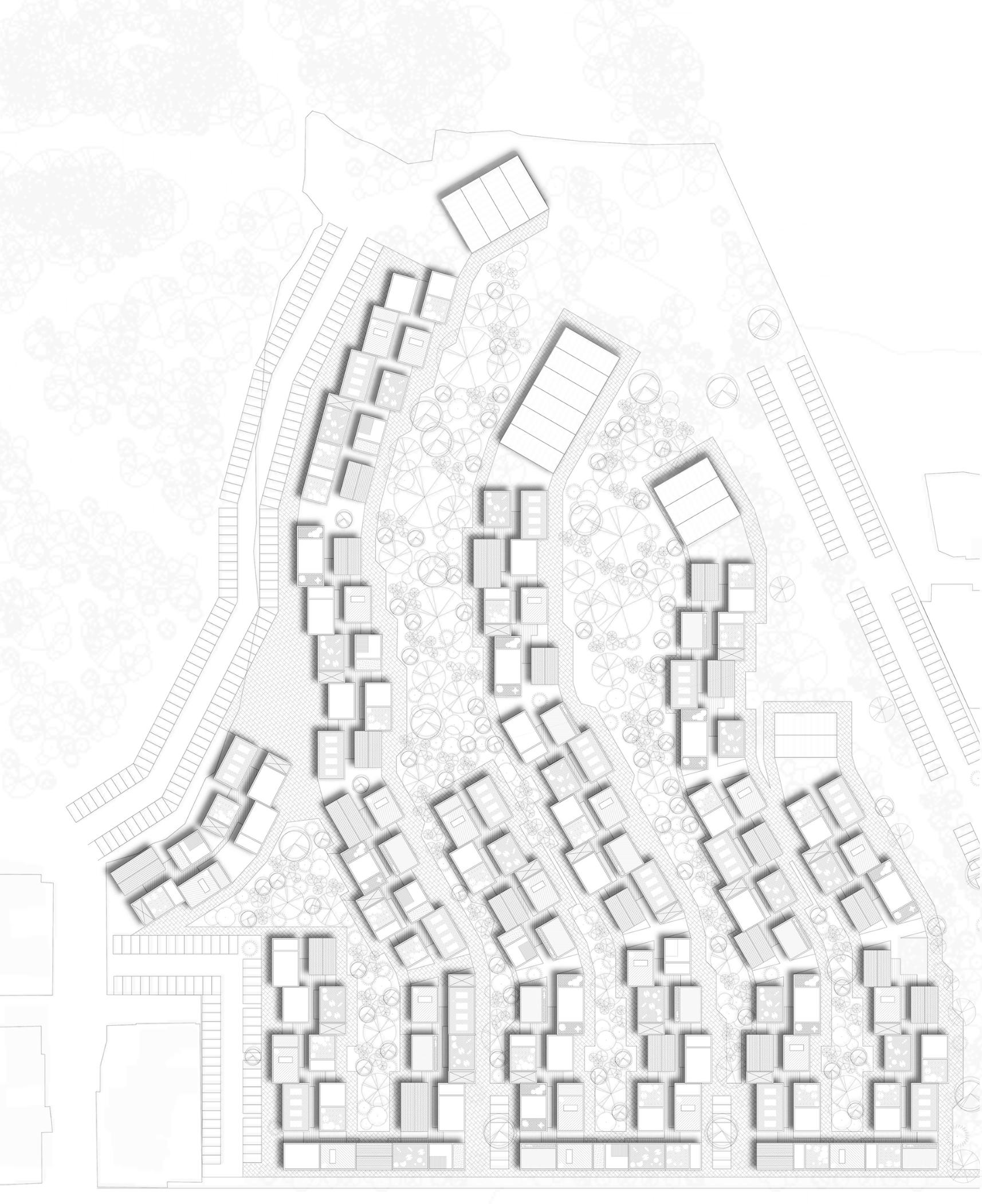

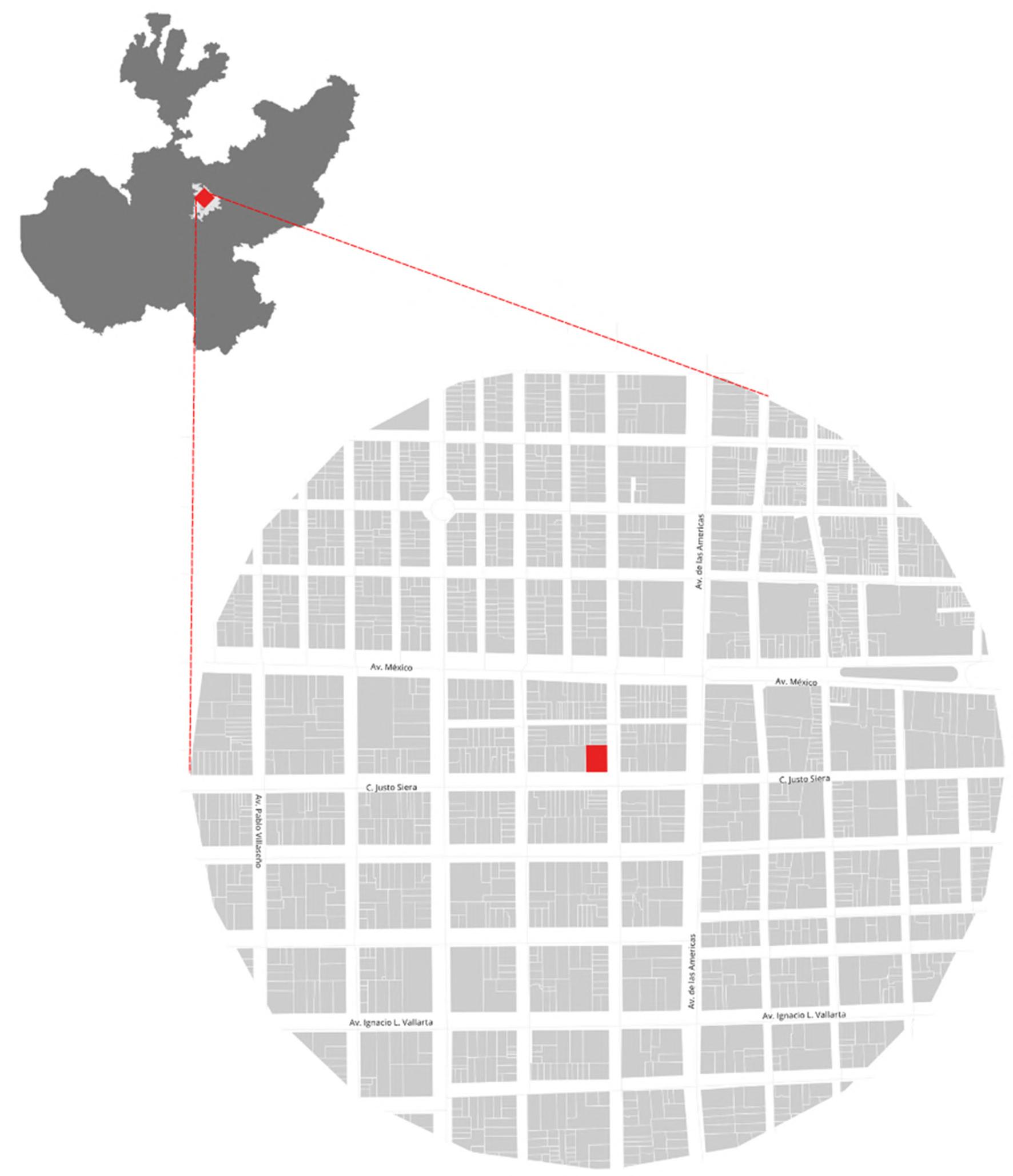

22 SITE PLAN
AMADO NERVO
23 JARDIN INTERIOR AMENIDADES CIRCULACIÓN CENTRAL 7 AM 9 AM 12 PM 3 PM 6 PM 8 PM CIRCULACIÓN CENTRAL DPT. 1 RECÁMARA TIPO ESTUDIO DPT. 3 RECÁMARA DPT. 2 RECÁMARA ROOFTOP LOCALES

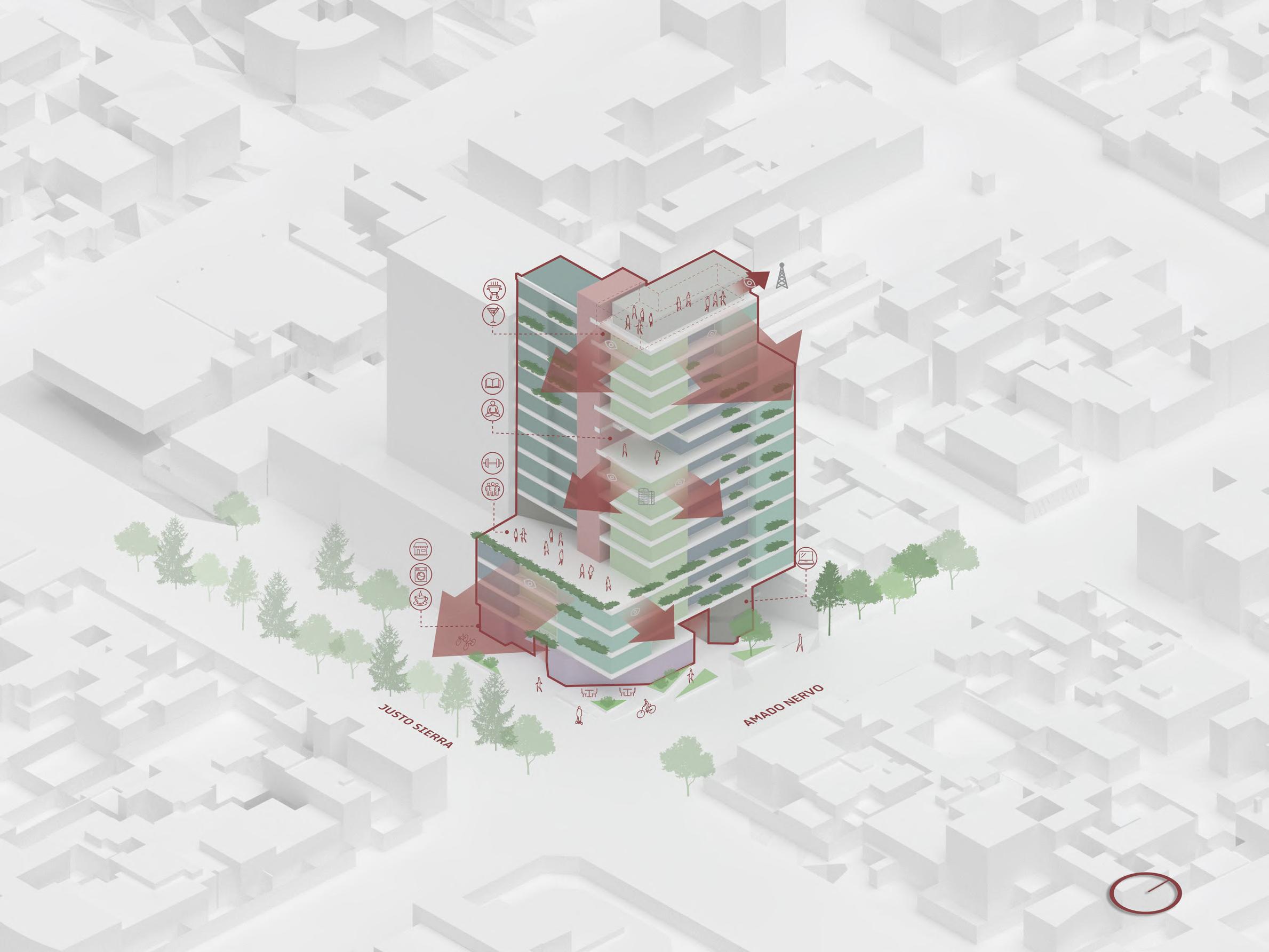

Diagram - Zoning

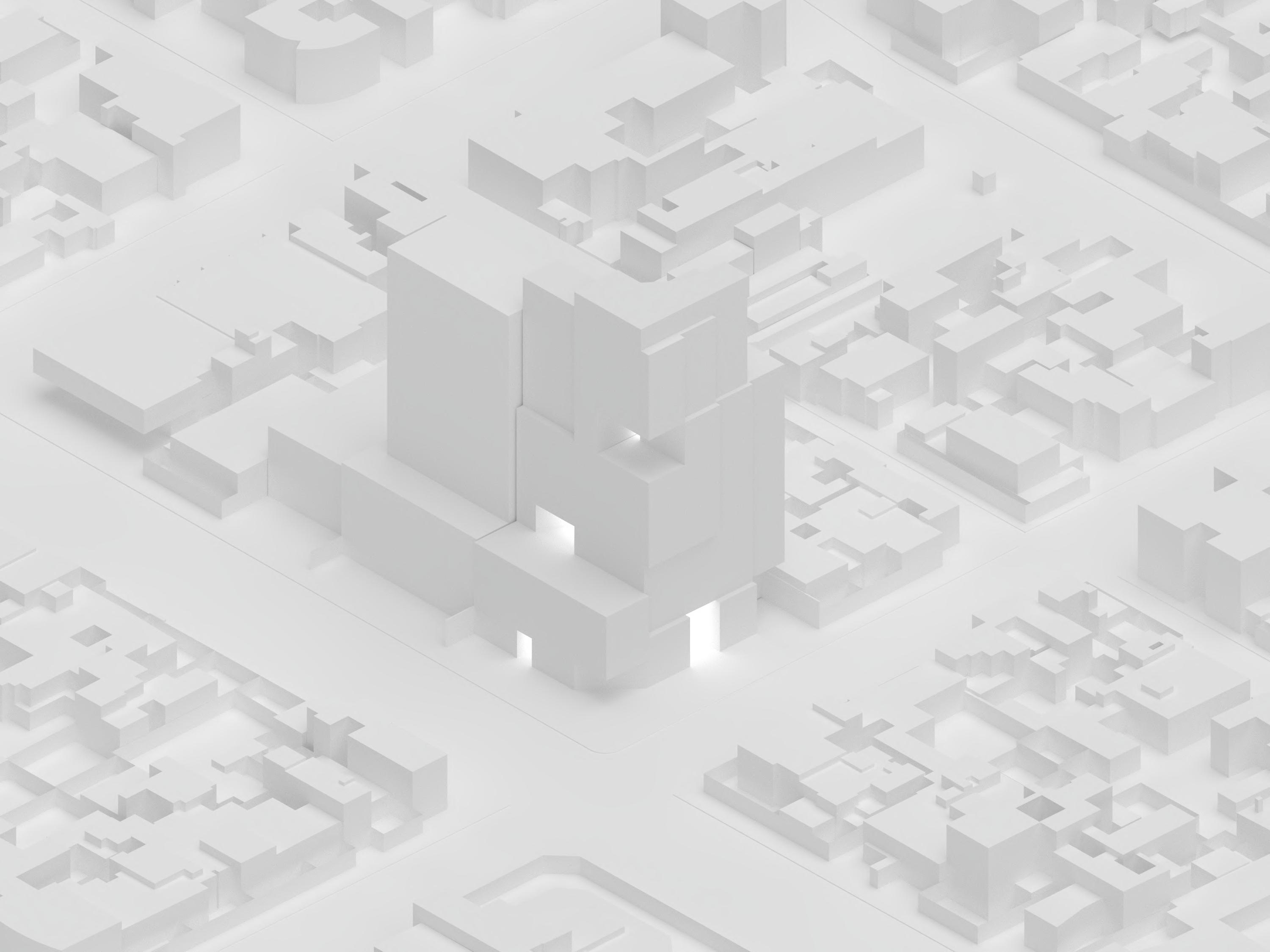

Diagram - Inmediate environment
N.P.T. = ±58.6
N.P.T. = ±54.5
N.P.T. = ±51.00
N.P.T. = ±47.5
N.P.T. = ±44.00
N.P.T. = ±40.50
N.P.T. = ±37.00
N.P.T. = ±33.50
N.P.T. = ±30.00
N.P.T. = ±26.50
N.P.T. = ±23.00
N.P.T. = ±19.50
N.P.T. = ±15.00
N.P.T. = ± 11.50
N.P.T. = ± 8.00
N.P.T. = ± 4.50
= ±
24 AB C D EF 8.10 5.40 5.40 8.10 5.17 N.P.T.
0.00
32.17

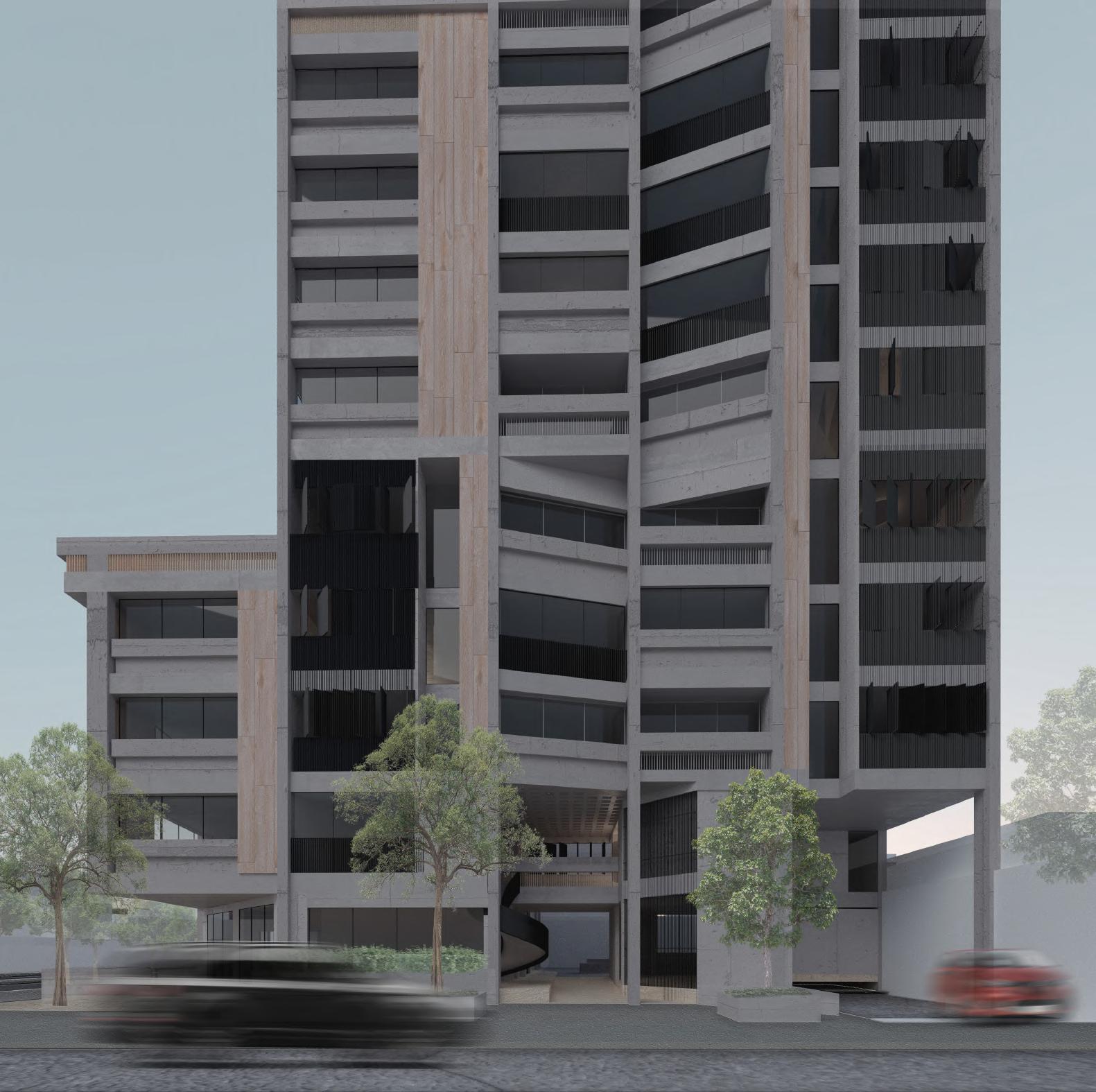

FRONT FACADE
25

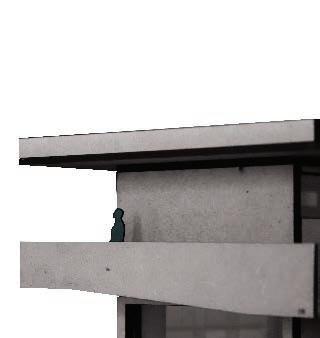

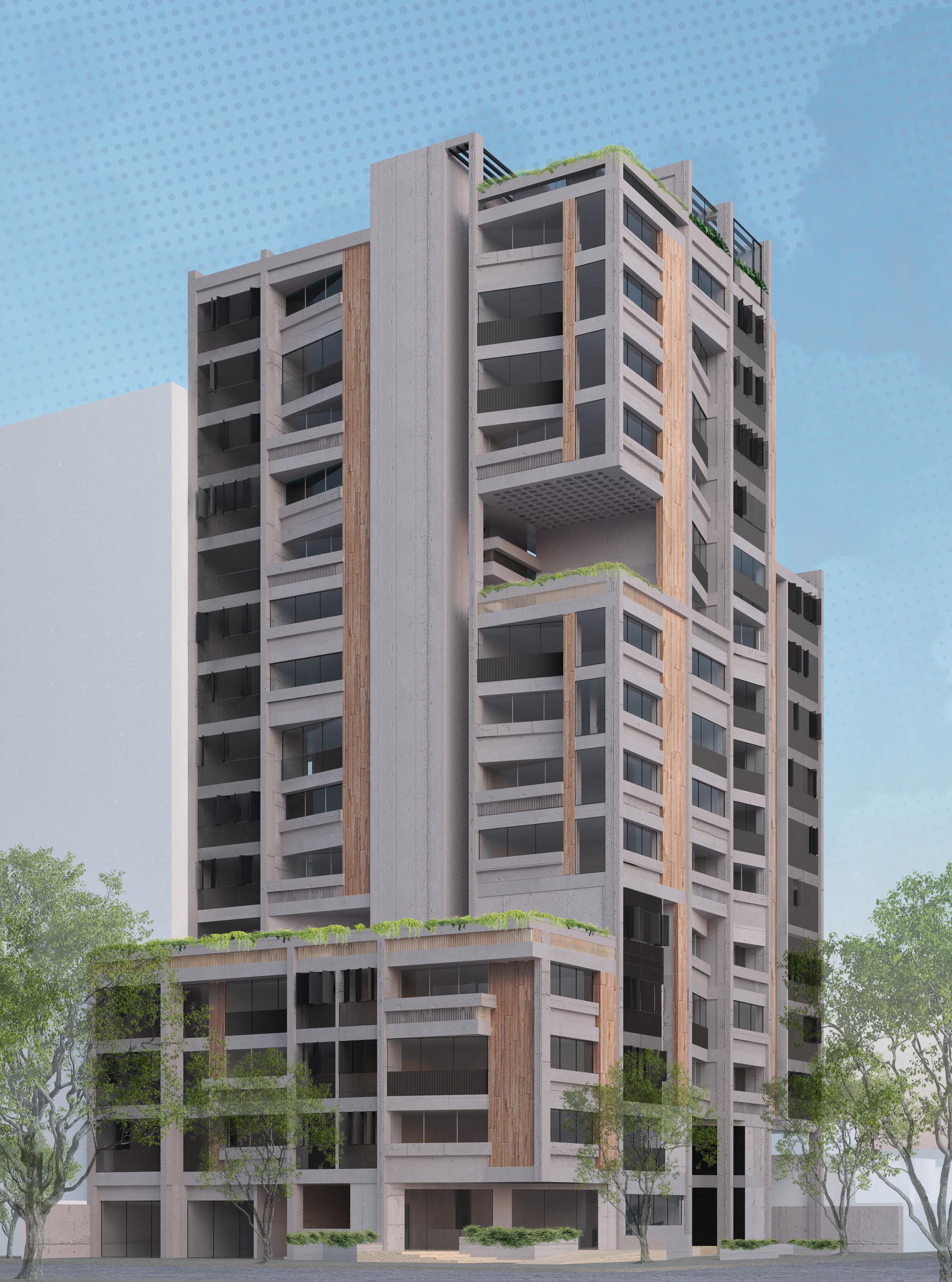

Side Entrance
LOS DEDOS DEL CORONEL
ESTUDIO HIDALGO | Agosto-Diciembre 2024
Site Analysis | Conceptual Phase | Design Development
Collective Housing project in Chihuahua, Chihuahua; stands out in the conception and development of a 120,000 square meter plot and 700 social housing units. The primary focus of the project revolves around creating a mixed-use environment that integrates residential typologies, commercial areas, protected green spaces, and community facilities.
With special attention to inclusion and accessibility, the project addresses the challenges of irregular terrain to highlight its functionality and facilitate individual pathways. My key involvement occurs upon completion of the site analysis, where I engage from the initial stages in post-production of resources. This involves my contribution to the design, quantification and optimization of housing and circulation areas, taking into account the diversity of housing typologies and buildings.
26
DEAGUAS
ZONING

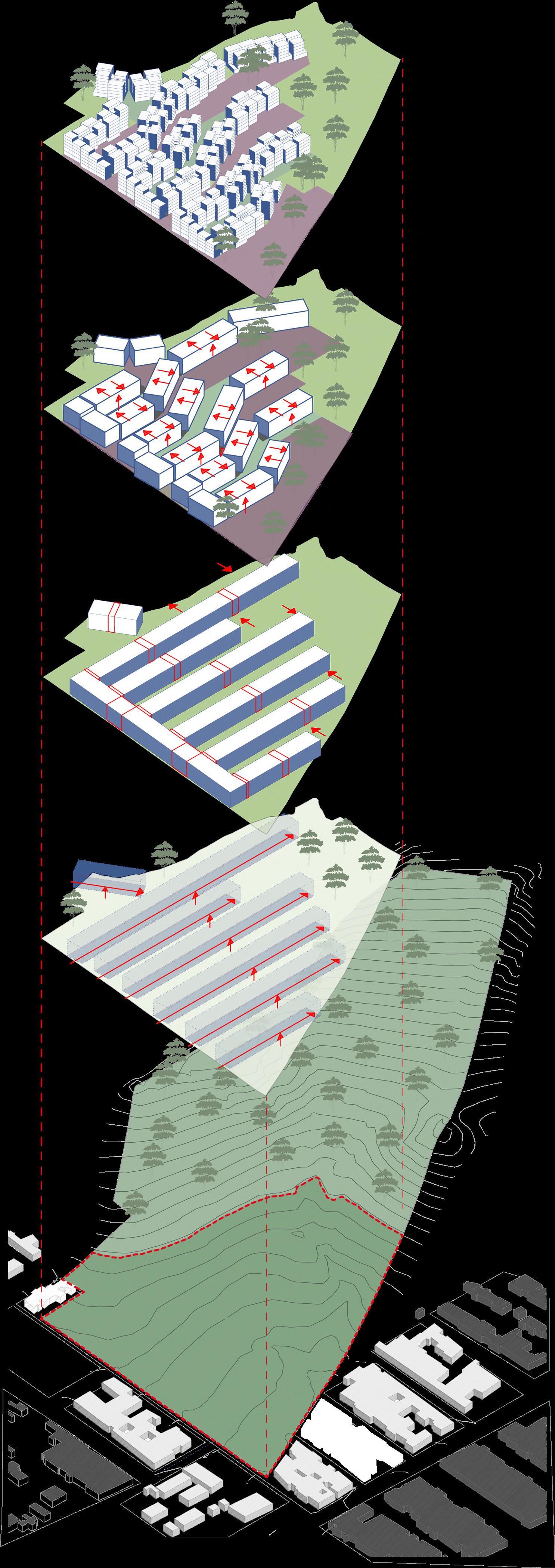

DISPLACEMENT CUTS
FINGERS | EXTRUSIONS
BASE PLOT
28

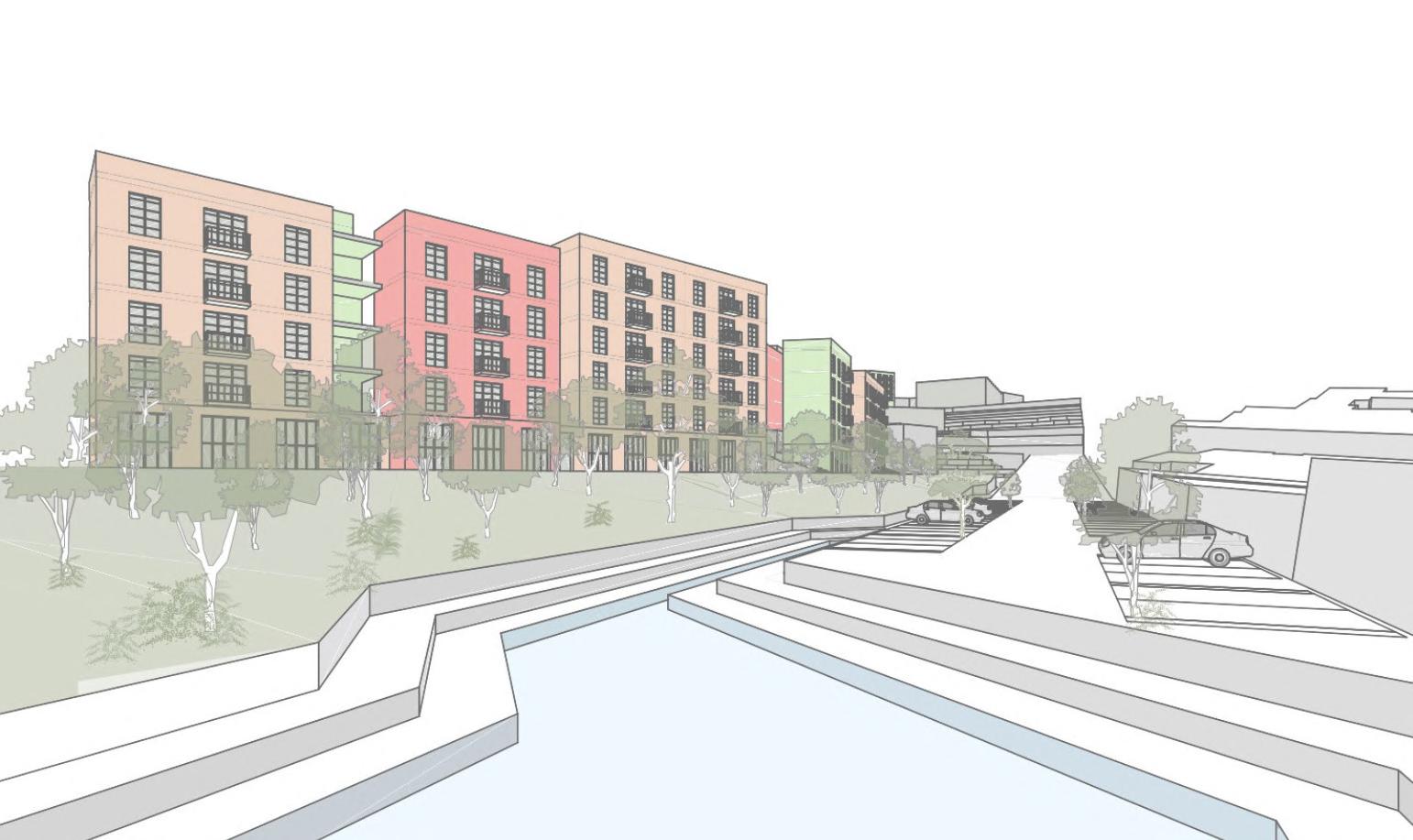

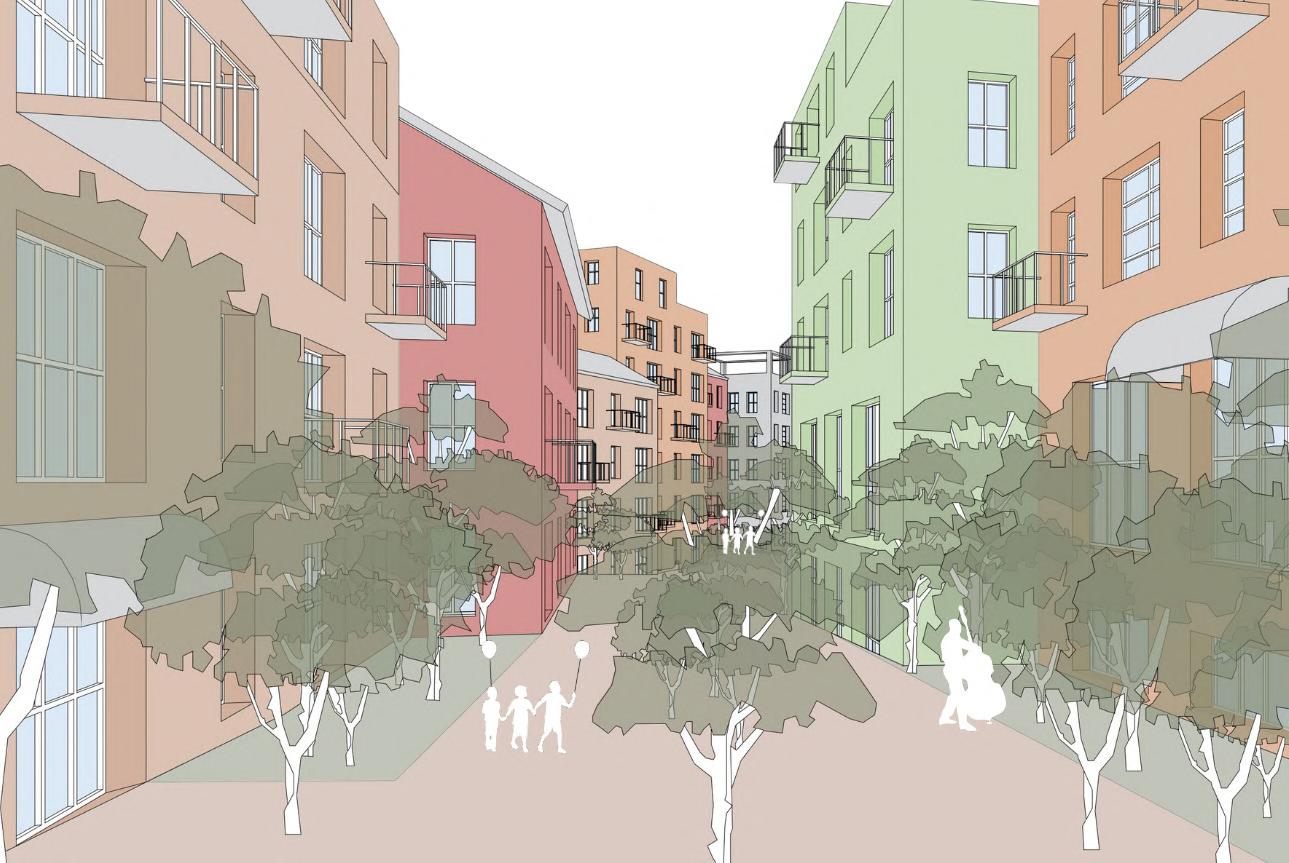

Perspective view 1
Perspective view 2
29
