My name is Diana, and welcome to my portfolio! Inside is the curated collection of my creative endeavors from the years 2022 - 2023.

While I have a lot of interests I am the most passionate about BIM and Heritage , their cultural significance, and the role it plays in moving towards a more sustainable future – not just for the privileged few, but for everyone.

I am eager to learn from my mentors, and use the experience to cater better designs and research.

I hope you enjoy my works as much as I did making them!

SINO NGA BAAKO? KAMUSTA AKO SI MA

PLAYING WITH VOL - UMES

In my approach to model creation, I find pleasure in experimenting and observing the interaction between various tiles and mold shapes. I derive satisfaction from manipulating diverse patterns to gauge their alignment with molds, pushing their boundaries and exploring their potentials. My primary tool of choice is Revit due to its efficiency and adaptability in modelling curtain wall-based patterns and adaptive models.

Looking ahead, my aspirations include delving into Dynamo and exploring the possibilities of coding to facilitate parametric designs. I am captivated by the visual transformations that occur as shapes extend or contract in response to their underlying frameworks, and the intricate interplay of tiles across a range of patterns.

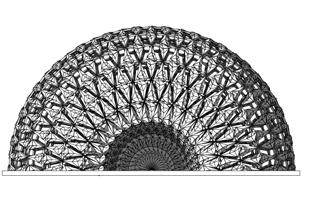

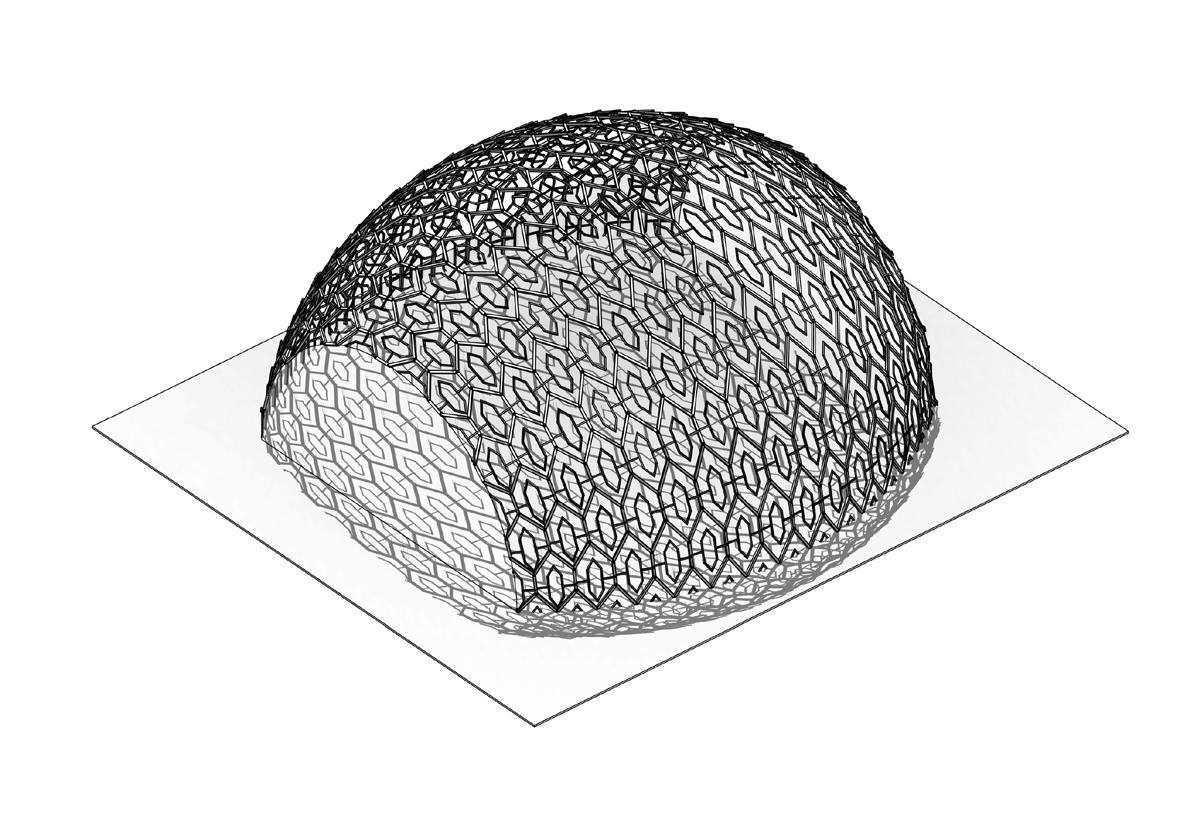

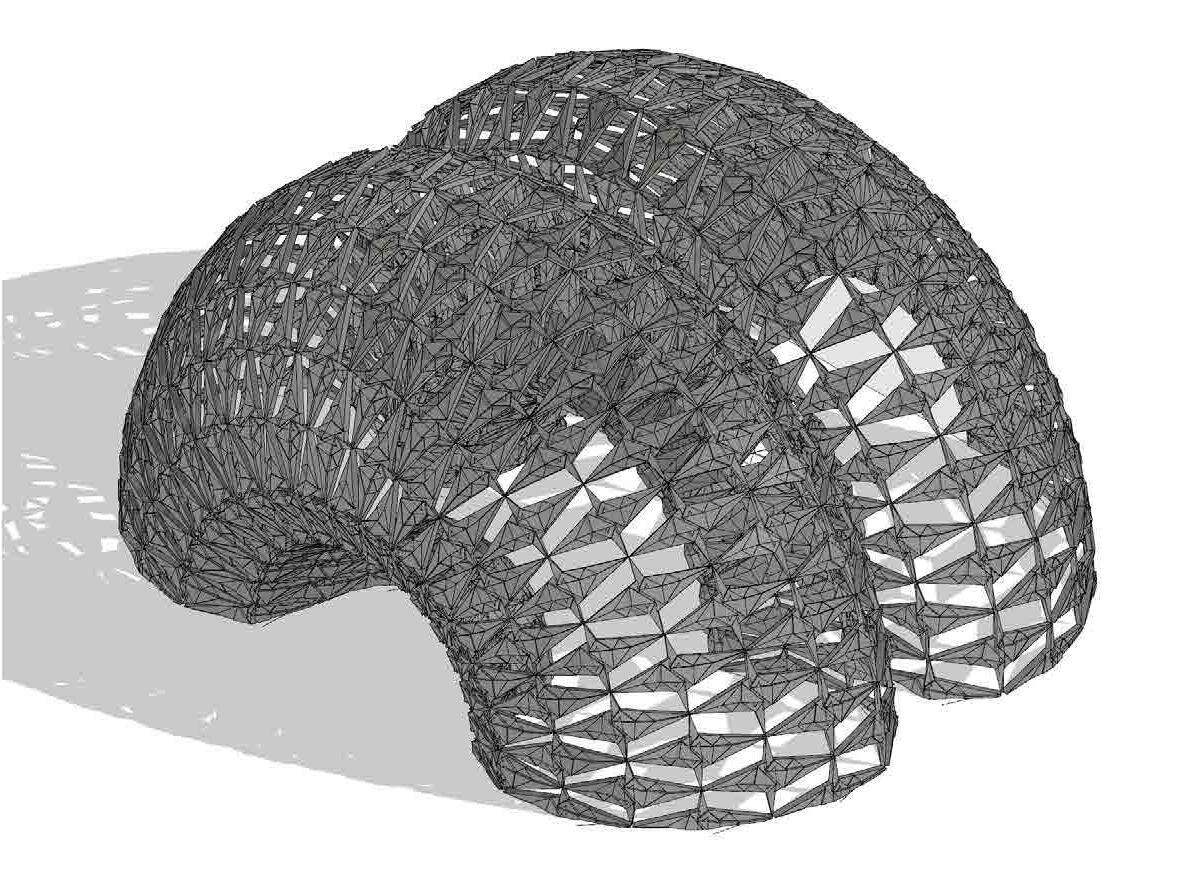

Project Pavilion

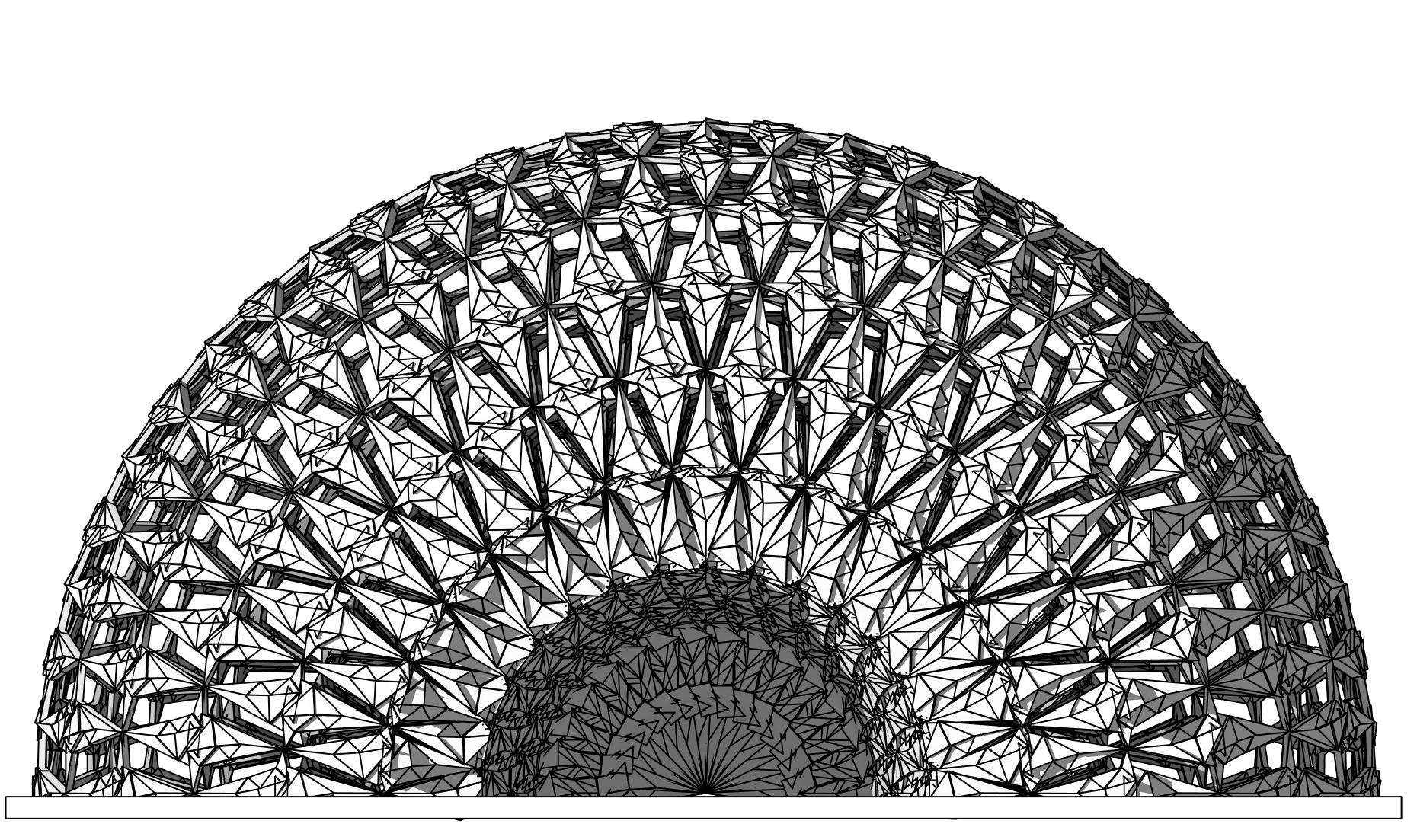

with Arrow tiles

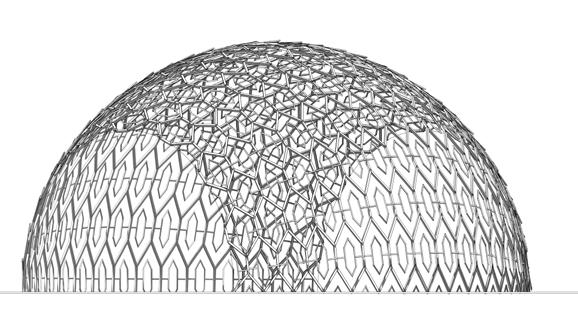

The inception of this project involved the creation of an initial mold, followed by its segmentation into a grid structure based on a predefined pattern. Subsequently, individual tiles were meticulously crafted, and their systematic incorporation ensued as they were precisely situated within the designated grid configurations.

Other Examples

with Hexagon tiles

PLAYING WITH MODELS

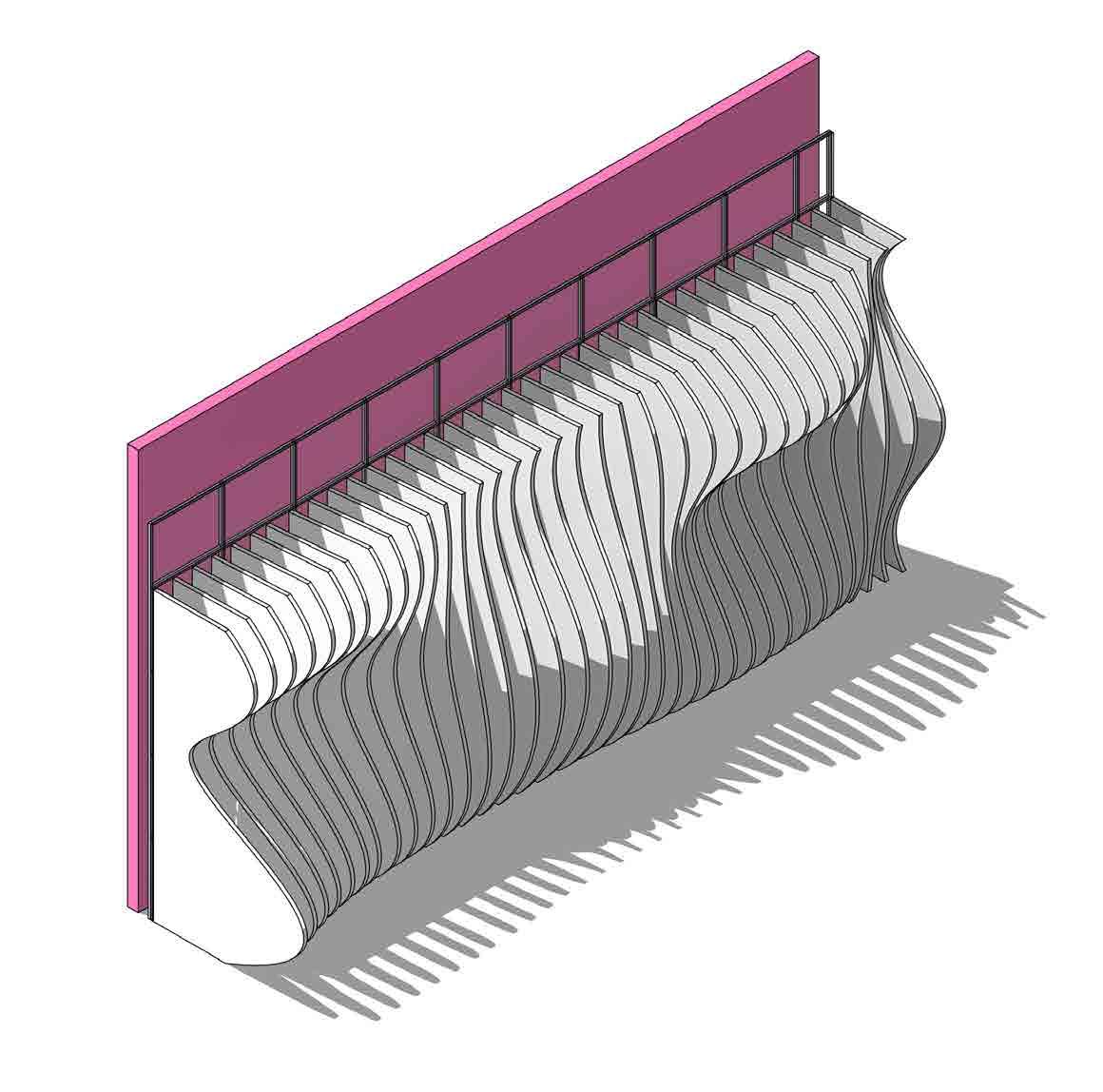

Twisted Facade

Curtain Wall Based Pattern

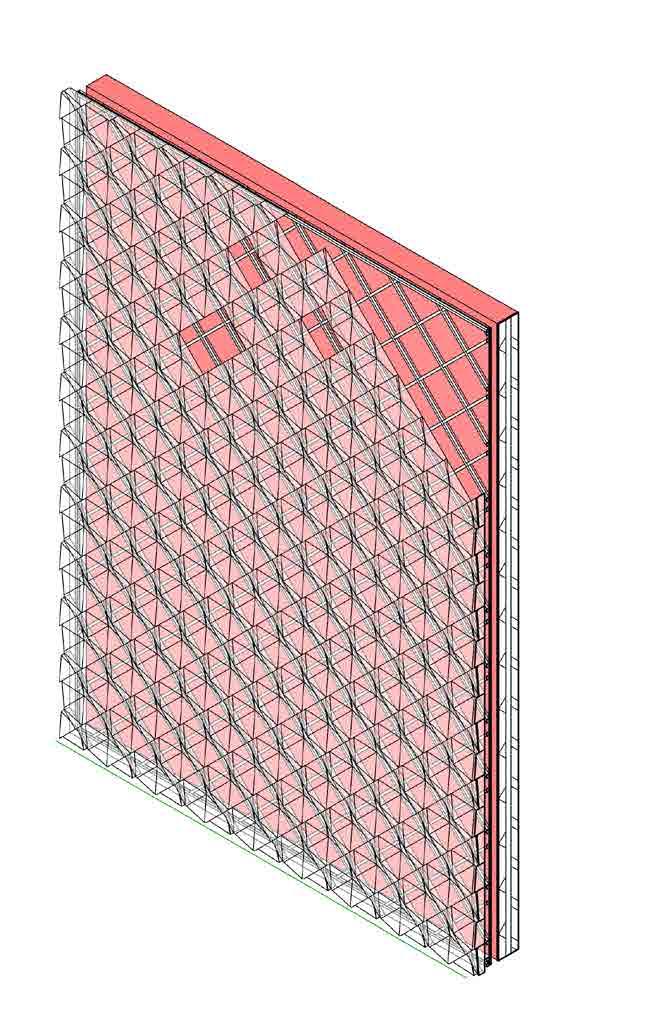

For these models, I began by creating an Curtain Based Wall Pattern model within families.

Following this, I positioned the model onto the in-place mass that was generated within the project.

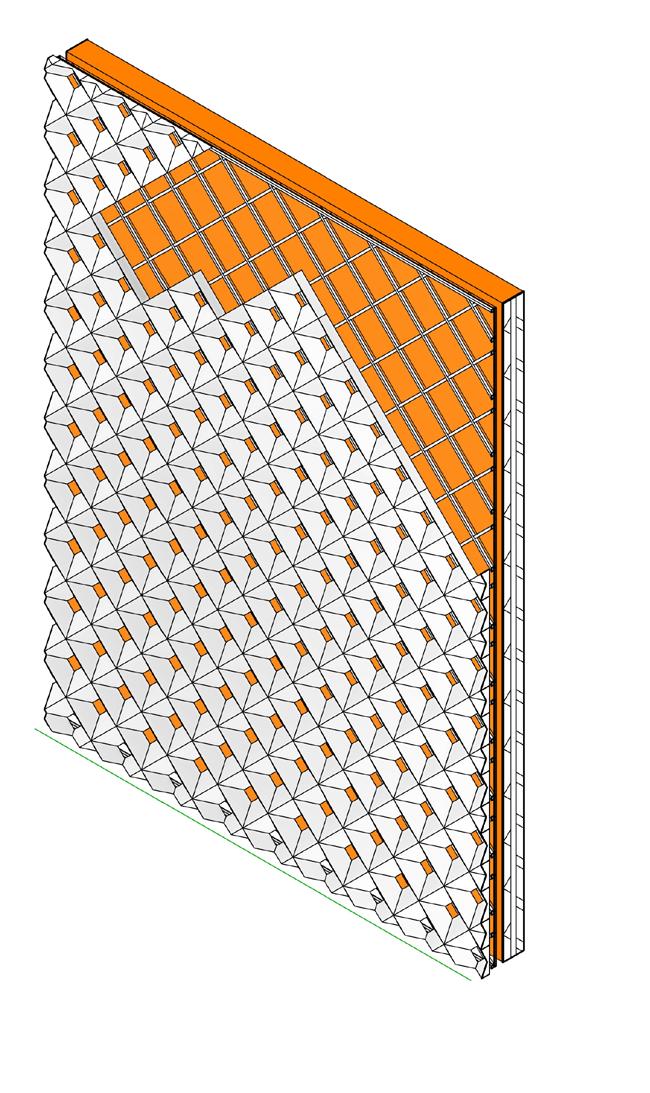

Parametric Facade

Curtain Wall Based Pattern

For these models, I began by creating an Curtain Based Wall Pattern model within families.

Following this, I positioned the model onto the in-place mass that was generated within the project.

Parametric Facade

Generic Adaptive Model

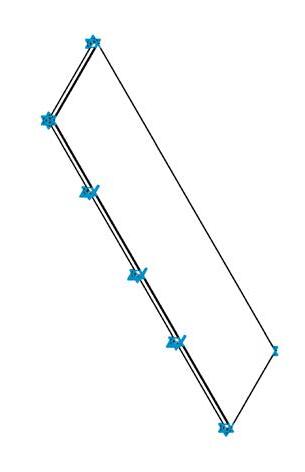

For these models, I began by crafting an adaptive model (left) within families.

The Model is then positioned by it’s main adaptive points on the skeleton surface of the model..

PLAYING WITH DESIGNS AND CONSTRUCTIONS

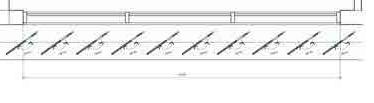

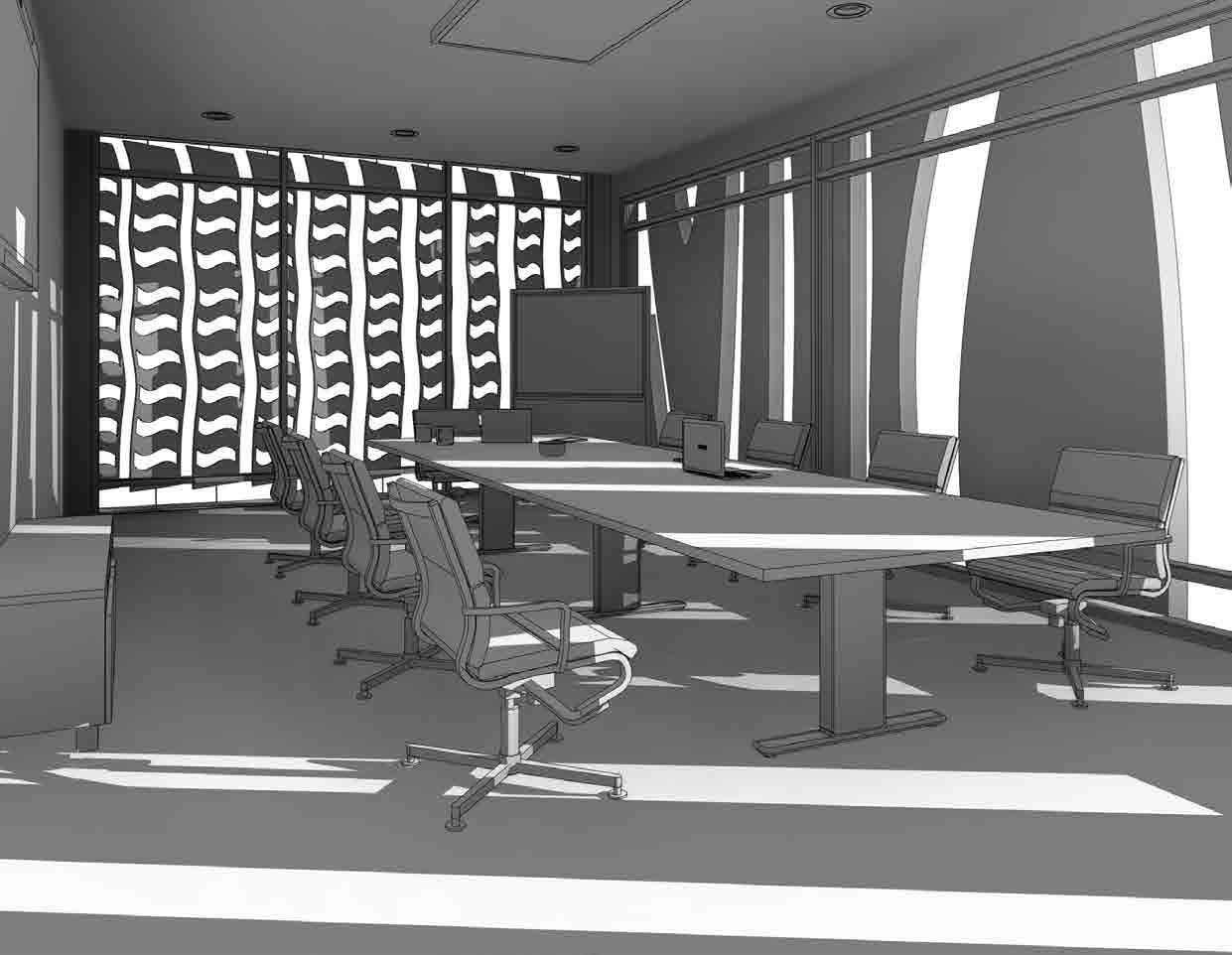

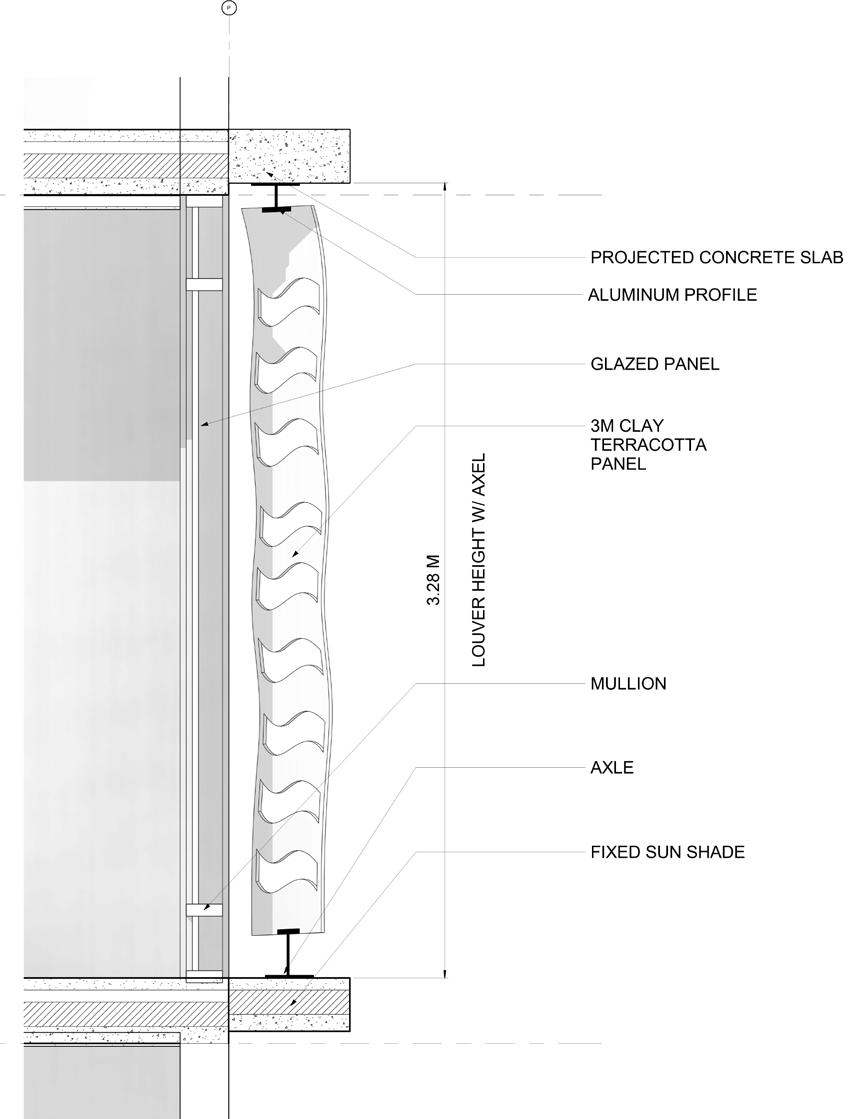

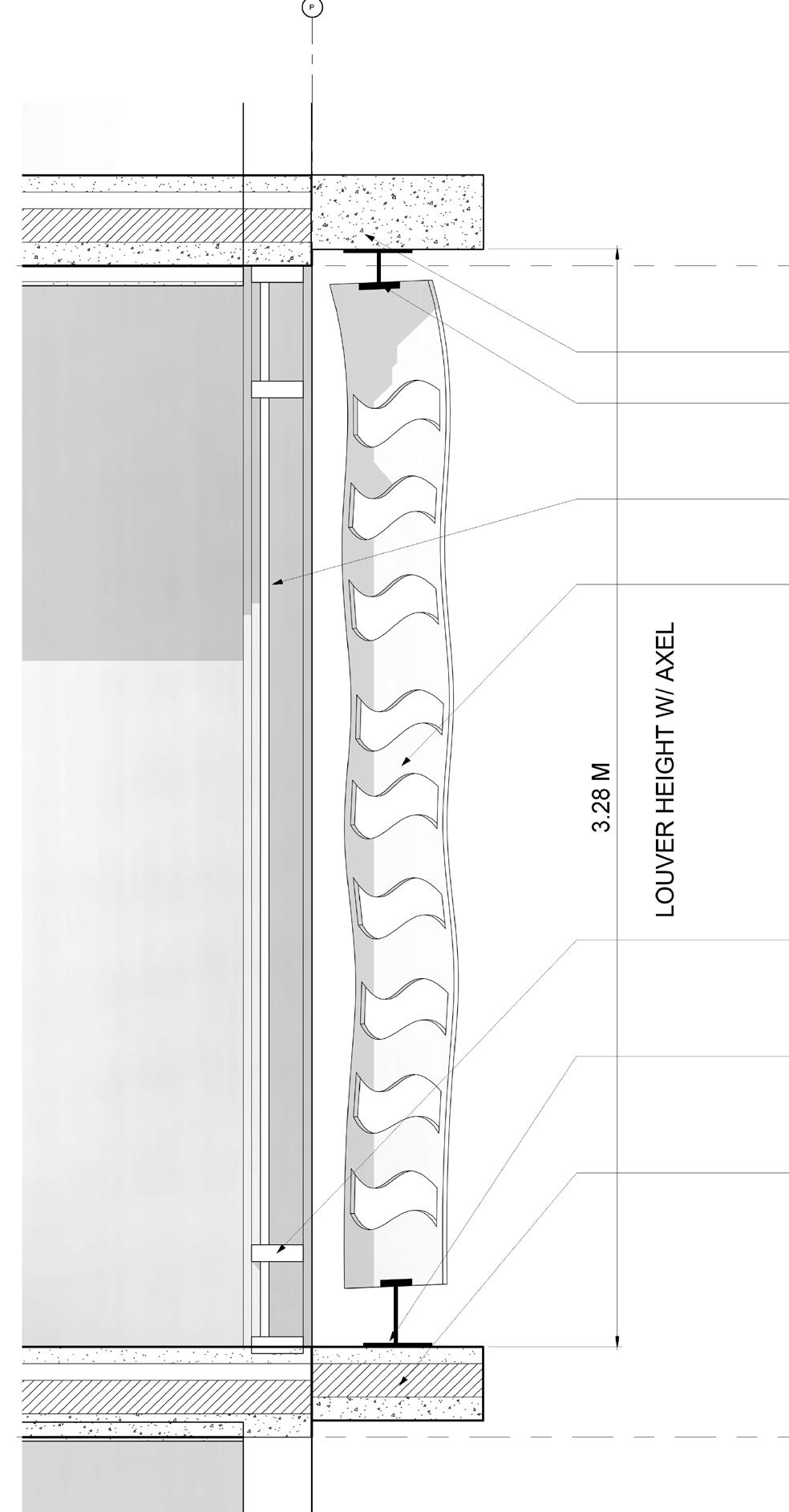

Louver

Generic Model

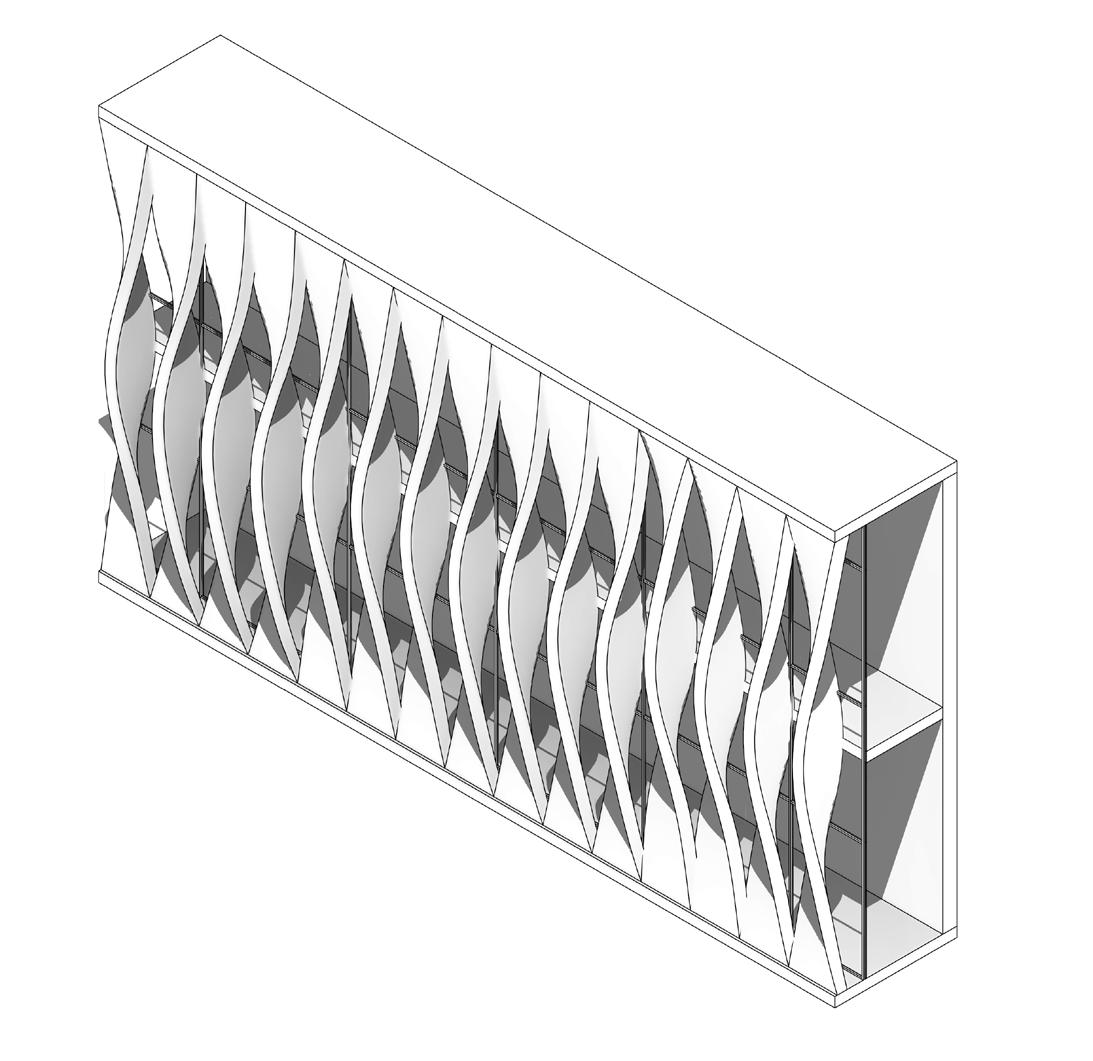

I created this using the Generic model family in revit.

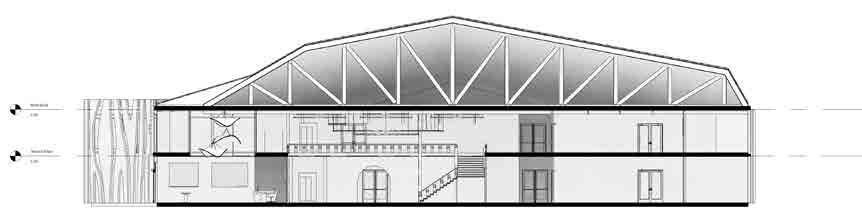

EDADES & BERNAL CULTURAL CENTRE, & MU SEUM

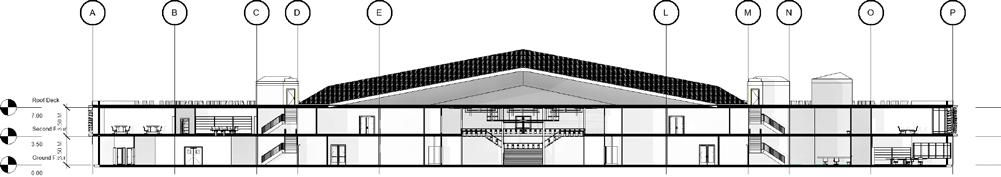

CONCEPT AND DESIGN

THE PROJECT UTILIZES AN ARTERIAL CIRCULATION TO SHOWCASE THE GALLERIES.

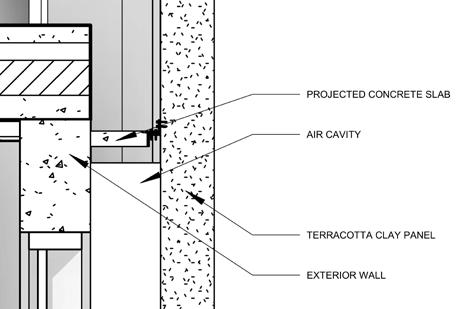

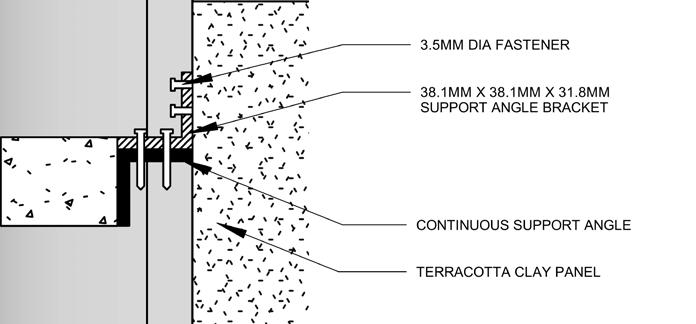

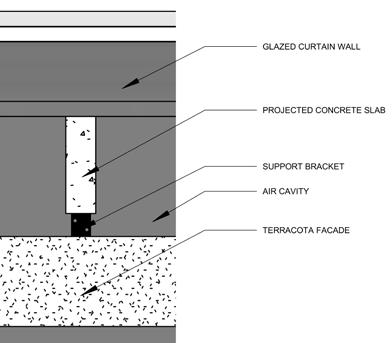

IT ALSO OPTS FOR SUN BREAKERS, CORAL -INSPIRED FACADES, AND A CENTRALIZED HVAC SYSTEM TO ENHANCE EFFICIENCY AND AESTHETIC APPEAL.

LEGEND:

GALLERIES

ADMINISTRATION & CULTURAL OFFICES

LAB & STORAGE

COMFORT ROOMS

UTILITY AREAS

FIRE EXIT

ANG EDADES AT BERNAL MUSEO

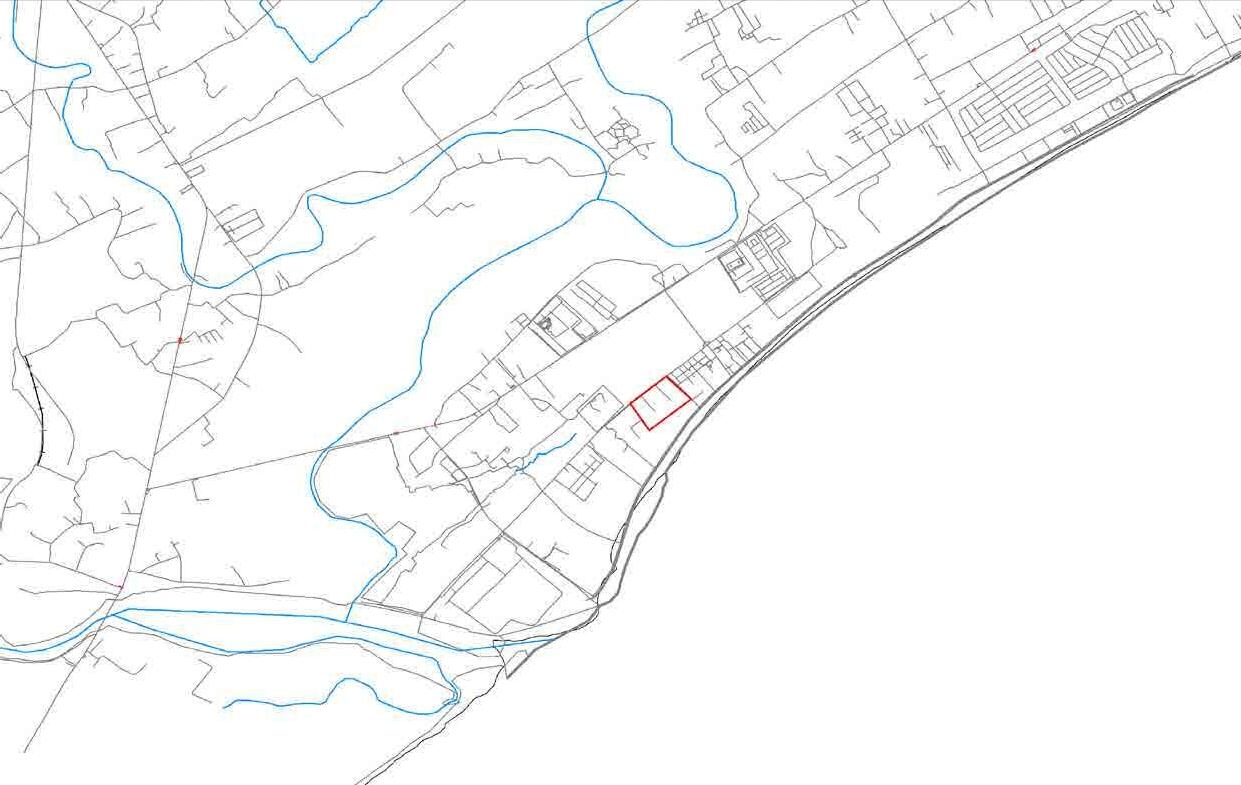

ANG MUSEO AY NAGPAPAKITA NG INSPIRASYON MULA SA LUNGSOD NG DAGUPAN. ITO'Y NAHAHATI SA TATLONG PANGUNAHING ESPASYO: ADMINISTRASYON,GALLERYA, AT STORAGE.

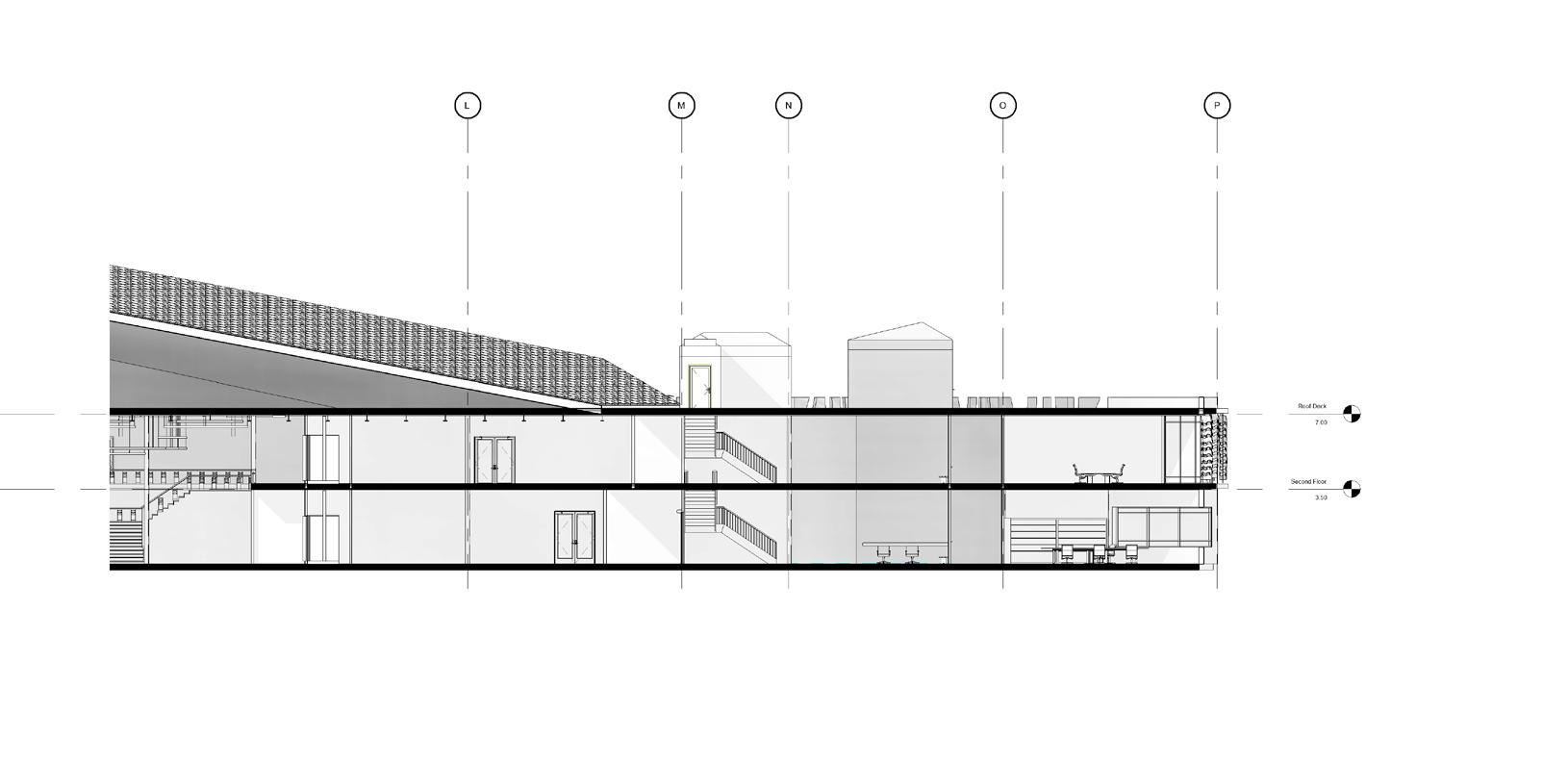

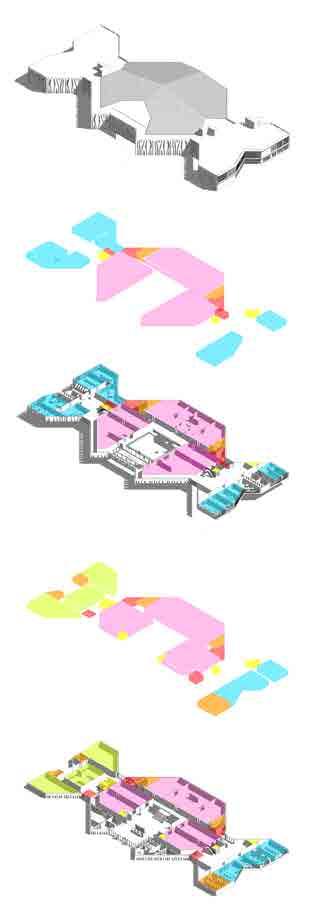

AXONOMETRIC DIAGRAM

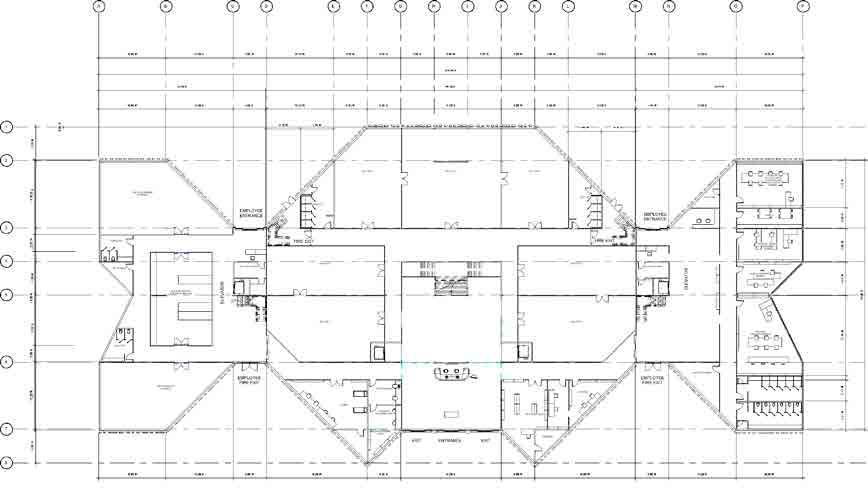

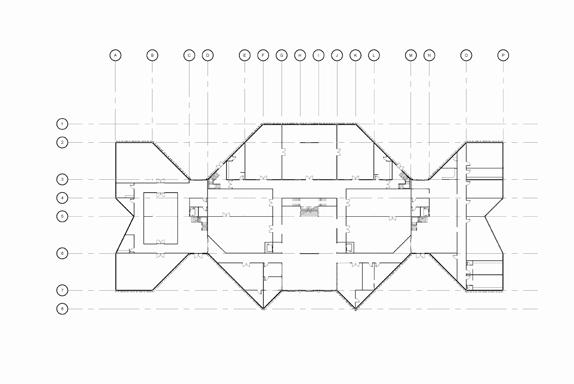

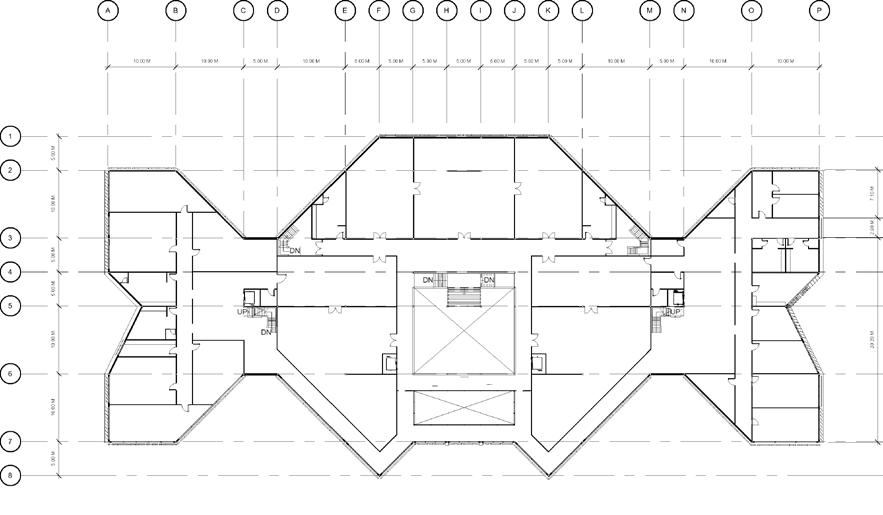

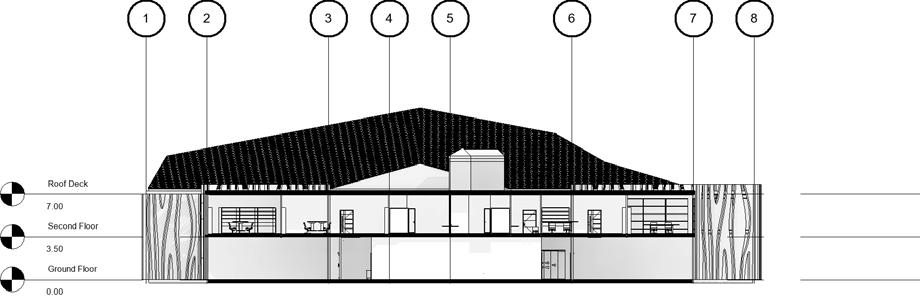

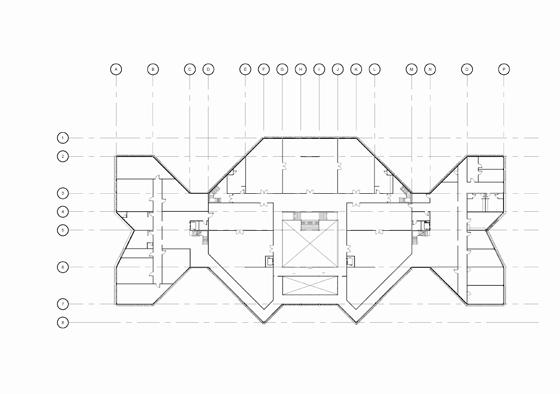

FLOORPLANS
