PROFESSIONAL WORK
_ DESIGN Mixed use Development Hotel + Residential Mixed use Development Restaurant + Residential High - end Residential All dimensions are in millimeters. Verify all dimensions on site prior to commencement of any work. Copyright of DWA. DISCLAIMER CLIENT: ADDRESS: DRAWING NAME: Subject to: full site survey, measurements are preliminary, discussions and meetings with authorities, approval from authorities, relevant consultant information as per council DA equirements. Feasibility completed based on information provided by client. Drawings are not are not suitable for purchase of property. All parking and ramps to traffic engineers details. (Subject to Approval) DISCLAIMER Level 10, 6 Mount Olympus Boulevard, Wolli Creek NSW 2205 Sydney 81a Princes Highway, Fairy Meadow NSW 2519 Email: info@designworkshop.com.au Tel:(02) 4227 1661 Wollongong Web: www.designworkshop.com.au Nominated Architect: Robert Gizzi (Reg. 8286) PATHER 55A WELLINGTON DRIVE BALGOWNIE 3D VIEWS RESIDENCE REF. DATE AMENDMENT A2023.04.17 PRELIMINARY B2023.06.26 PRELIMINARY C2023.10.12 PRELIMINARY

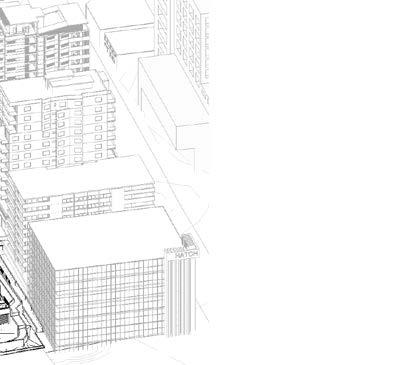

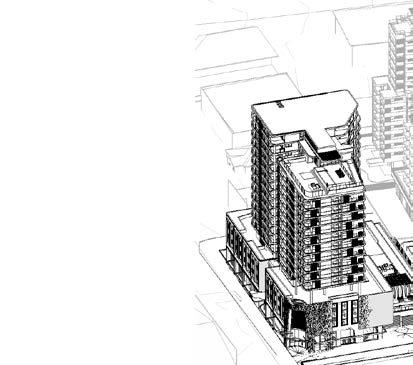

22 - 30 KENNY ST, WOLLONGONG Mixed Use Development (Hotel + Residential) Stage : Development Application
The proposal is a large scale development that includes two basement, 107 hotel units and 105 residential units valued around 60 million dollars.
My Role
- Developed massing strategy considering LEP controls, context, DRP panel suggestions, solar and ventilation access.
- Prepared elevations and material pallette for client approval.
- Planned hotel, typical floor layouts as per clients suggestions, NCC standards and ADG requirements.
- Ensured the documentation meets the council standards.
- Liaised with traffic, access, planning, landscape consultants etc as a part of DA Lodgement.
All dimensions are in millimeters. Verify all dimensions on site prior to commencement of any work. Copyright of DWA. DISCLAIMER CLIENT: ADDRESS: DRAWING NAME: PROJECT No. ISSUE DATE: QA: SCALE: A3 DRAWN: DWG No. Subject to: full site survey, measurements are preliminary, discussions and meetings with authorities, approval from authorities, relevant consultant information as per council DA equirements. Feasibility completed based on information provided by client. Drawings are not are not suitable for purchase of property. All parking and ramps to traffic engineers details. (Subject to Approval) DISCLAIMER Rev. Level 10, 6 Mount Olympus Boulevard, Wolli Creek NSW 2205 Sydney 81a Princes Highway, Fairy Meadow NSW 2519 Email: info@designworkshop.com.au Tel:(02) 4227 1661 Wollongong Web: www.designworkshop.com.au Nominated Architect: Robert Gizzi (Reg. 8286) 20.09.2023 V ANYA SOLUTION Pty Ltd 22-30 KENNY STREET, WOLLONGONG, NSW 3D PERSPECTIVES NT/DM/ML 2563 (DEVELOPMENT APPLICATION) MIXED USE DEVELOPMENT RG 063 REF. DATE AMENDMENT V20.09.2023 DA ISSUE

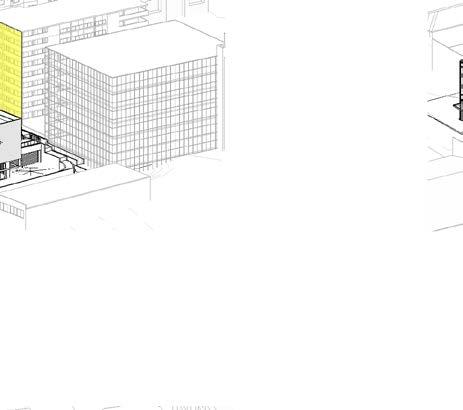

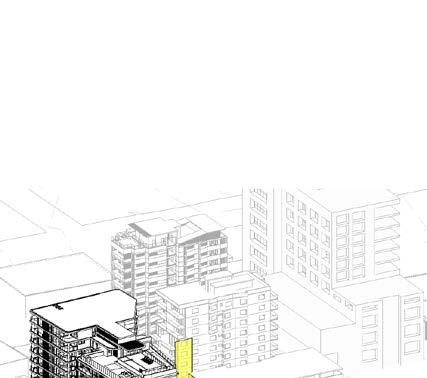

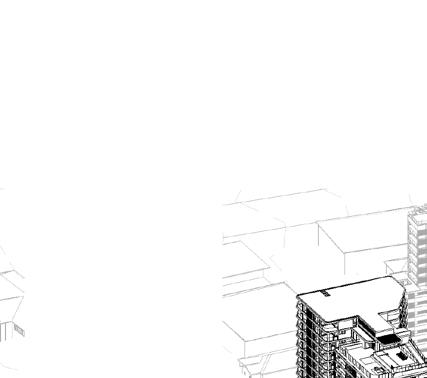

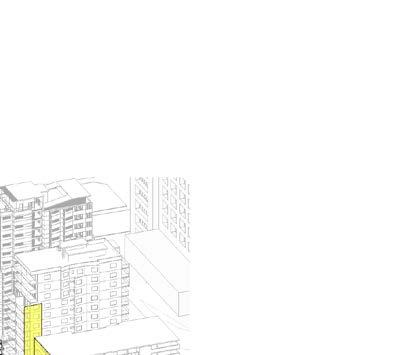

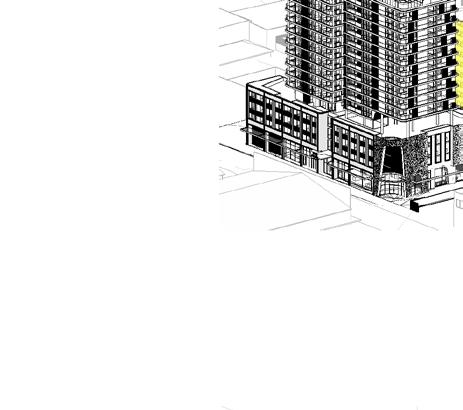

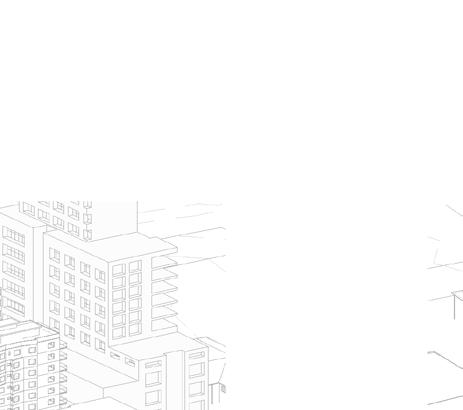

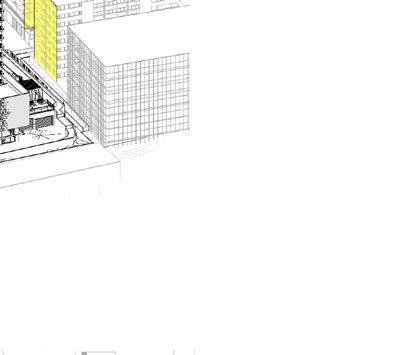

Design Strategy
KENNYST
KENNYST
1. Maximising foot print to setbacks, height limit as per LEP and ADG Guidelines
3. Reducing the northern tower height to create communal spaces for social interaction
KENNYST
2. Pushing the central mass inwards forming the service core with northern and southern tower.
Altering tower form to improve solar access for neighbours.

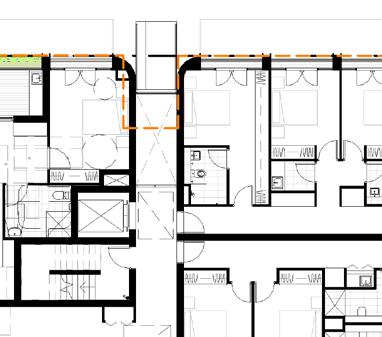

4. KENNYSTTypical Hotel Layout Plan
All dimensions are in millimeters. Verify all dimensions on site prior to commencement of any work. Copyright of DWA. DISCLAIMER CLIENT: ADDRESS: DRAWING NAME: PROJECT No. ISSUE DATE: QA: SCALE: A3 DRAWN: DWG No. Subject to: full site survey, measurements are preliminary, discussions and meetings with authorities, approval from authorities, relevant consultant information as per council DA requirements. Feasibility completed based on information provided by client. Drawings are not are not suitable for purchase of property. All parking and ramps to traffic engineers details. (Subject to Approval) DISCLAIMER Rev. Level 10, 6 Mount Olympus Boulevard, Wolli Creek NSW 2205 Sydney 81a Princes Highway, Fairy Meadow NSW 2519 Email: info@designworkshop.com.au Tel:(02) 4227 1661 Wollongong Web: www.designworkshop.com.au Nominated Architect: Robert Gizzi (Reg. 8286) 02.5 7.5 5 12.5m 10 1:250 SCALE BAR: 01.02.2024 W ANYA SOLUTION Pty Ltd 22-30 KENNY STREET, WOLLONGONG, NSW LEVEL 2 PLAN NT/DM/ML 2563 (ADDITIONAL INFORMATION_WORK IN PROGRESS) MIXED USE DEVELOPMENT RG 017 1 250 LEVEL 2 REF. DATE AMENDMENT W01.02.2024 WORK IN PROGRESS

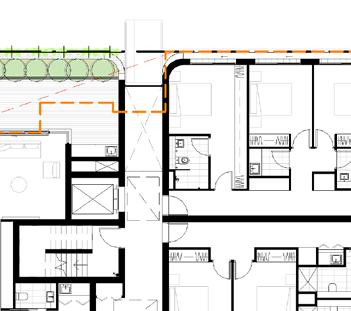

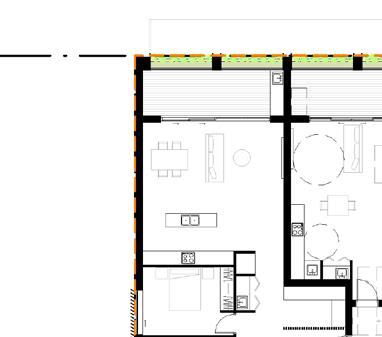

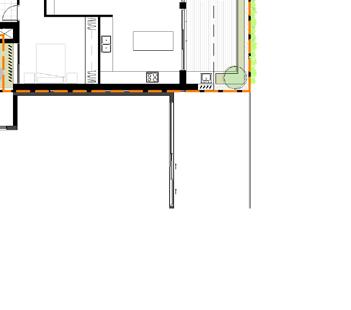

Typical Residential Floor Plan
All dimensions are in millimeters. Verify all dimensions on site prior to commencement of any work. Copyright of DWA. DISCLAIMER CLIENT: ADDRESS: DRAWING NAME: PROJECT No. ISSUE DATE: QA: SCALE: A3 DRAWN: DWG No. Subject to: full site survey, measurements are preliminary, discussions and meetings with authorities, approval from authorities, relevant consultant information as per council DA requirements. Feasibility completed based on information provided by client. Drawings are not are not suitable for purchase of property. All parking and ramps to traffic engineers details. (Subject to Approval) DISCLAIMER Rev. Level 10, 6 Mount Olympus Boulevard, Wolli Creek NSW 2205 Sydney 81a Princes Highway, Fairy Meadow NSW 2519 Email: info@designworkshop.com.au Tel:(02) 4227 1661 Wollongong Web: www.designworkshop.com.au Nominated Architect: Robert Gizzi (Reg. 8286) 02.5 7.5 5 12.5m 10 1:250 SCALE BAR: 01.02.2024 W ANYA SOLUTION Pty Ltd 22-30 KENNY STREET, WOLLONGONG, NSW TYPICAL LEVEL - LEVEL 6-15 NT/DM/ML 2563 (ADDITIONAL INFORMATION_WORK IN PROGRESS) MIXED USE DEVELOPMENT RG 021 REF. DATE AMENDMENT W01.02.2024 WORK IN PROGRESS

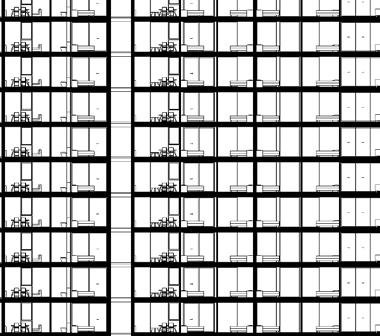

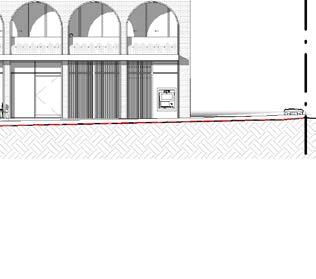

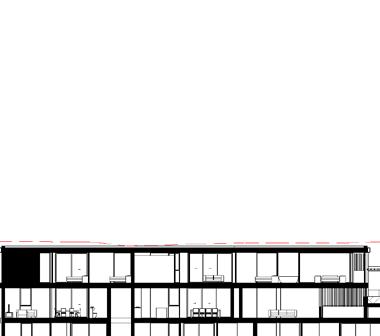

GROUND FL R.L 9.800 LEVEL 1 R.L 15.500 LEVEL 2 R.L 18.800 LEVEL 3 R.L 22.100 LEVEL 4 R.L 25.400 LEVEL 5 R.L 28.700 LEVEL 6 R.L 31.800 LEVEL 7 R.L 34.900 LEVEL 8 R.L 38.000 LEVEL 9 R.L 41.100 LEVEL 10 R.L 44.200 LEVEL 11 R.L 47.300 LEVEL 12 R.L 50.400 LEVEL 14 R.L 56.600 LEVEL 15 R.L 59.700 LEVEL 16 R.L 62.800 ROOF LEVEL R.L 69.000 LEVEL 17 R.L 65.900 LEVEL 13 R.L 53.500 All dimensions are in millimeters. Verify all dimensions on site prior to commencement of any work. Copyright of DWA. DISCLAIMER CLIENT: ADDRESS: DRAWING NAME: PROJECT No. ISSUE DATE: QA: SCALE: A3 DRAWN: DWG No. Subject to: full site survey, measurements are preliminary, discussions and meetings with authorities, approval from authorities, relevant consultant information as per council DA equirements. Feasibility completed based on information provided by client. Drawings are not are not suitable for purchase of property. All parking and ramps to traffic engineers details. (Subject to Approval) DISCLAIMER Rev. Level 10, 6 Mount Olympus Boulevard, Wolli Creek NSW 2205 Sydney 81a Princes Highway, Fairy Meadow NSW 2519 Email: info@designworkshop.com.au Tel:(02) 4227 1661 Wollongong Web: www.designworkshop.com.au Nominated Architect: Robert Gizzi (Reg. 8286) 02.5 7.5 5 12.5m 10 1:250 SCALE BAR: 01.02.2024 W ANYA SOLUTION Pty Ltd 22-30 KENNY STREET, WOLLONGONG, NSW ELEVATION - NORTH NT/DM/ML 2563 (ADDITIONAL INFORMATION_WORK IN PROGRESS) MIXED USE DEVELOPMENT RG 043 REF. DATE AMENDMENT W01.02.2024 WORK IN PROGRESS Northern Elevation
GROUND FL R.L 9.800 LEVEL 1 R.L 15.500 LEVEL 2 R.L 18.800 BASEMENT 1 R.L 5.900 BASEMENT 2 R.L 2.800 LEVEL 3 R.L 22.100 LEVEL 4 R.L 25.400 LEVEL 5 R.L 28.700 LEVEL 6 R.L 31.800 LEVEL 7 R.L 34.900 LEVEL 8 R.L 38.000 LEVEL 9 R.L 41.100 LEVEL 10 R.L 44.200 LEVEL 11 R.L 47.300 LEVEL 12 R.L 50.400 LEVEL 14 R.L 56.600 LEVEL 15 R.L 59.700 LEVEL 16 R.L 62.800 ROOF LEVEL R.L 69.000 LEVEL 17 R.L 65.900 LEVEL 13 R.L 53.500 60 METRE HEIGHT LIMIT 3 1 0 0 3 1 0 0 3 1 0 0 3 1 0 0 3 1 0 0 3 1 0 0 3 1 0 0 3 1 0 0 3 1 0 0 3 1 0 0 3 1 0 0 3 1 0 0 3 1 0 0 3 3 0 0 3 3 0 0 3 3 0 0 3 3 0 0 5 7 0 0 3 9 0 0 3 1 0 0 BASEMENT CARPARK BASEMENT CARPARK ? HOTEL HOTEL 2 BED 508 2 BED 509 2 BED 501 STUDIO 502 2 BED 608 2 BED 609 2 BED 601 1 BED 602 3 BED 603 2 BED 708 2 BED 709 2 BED 701 1 BED 702 3 BED 703 2 BED 808 2 BED 809 2 BED 801 1 BED 802 3 BED 803 2 BED 908 2 BED 909 2 BED 901 1 BED 902 3 BED 903 2 BED 1008 2 BED 1009 2 BED 1001 1 BED 1002 3 BED 1003 3 BED 1103 1 BED 1102 2 BED 1101 2 BED 1109 2 BED 1108 2 BED 1208 2 BED 1209 2 BED 1201 1 BED 1202 3 BED 1203 3 BED 1303 1 BED 1302 2 BED 1301 2 BED 1309 2 BED 1308 2 BED 1408 2 BED 1409 2 BED 1401 1 BED 1402 3 BED 1403 3 BED 1503 1 BED 1502 2 BED 1501 2 BED 1509 2 BED 1508 B O U N D A R Y B O U N D A R Y HOTEL DROP OFF RESIDENTIAL C.O.S HOTEL LOBBY/BAR RESIDENTIAL C.O.S commencement of any work. CLIENT: ADDRESS: DRAWING NAME: PROJECT No. ISSUE DATE: QA: SCALE: DRAWN: DWG No. preliminary, discussions and meetings with authorities, approval from authorities, requirements. Feasibility completed based on information provided by client. property. (Subject to Approval) Level 10, 6 Mount Olympus Boulevard, Wolli Creek NSW 2205 Sydney 81a Princes Highway, Fairy Meadow NSW 2519 Email: info@designworkshop.com.au Tel: (02) 4227 1661 Wollongong Web: www.designworkshop.com.au Nominated Architect: Robert Gizzi (Reg. 8286) 0 2.5 7.5 5 12.5m 10 1:250 SCALE BAR: 20.09.2023 ANYA SOLUTION Pty Ltd 22-30 KENNY STREET, WOLLONGONG, NSW SECTION B NT/DM/ML 2563

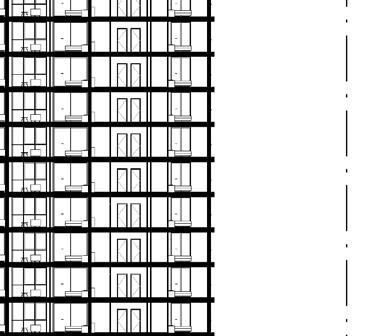

APPLICATION) MIXED USE DEVELOPMENT RG 051 Section
(DEVELOPMENT

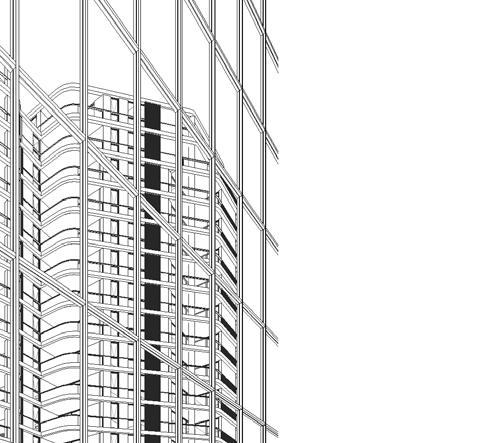

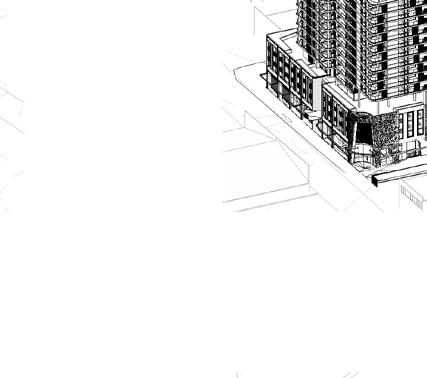

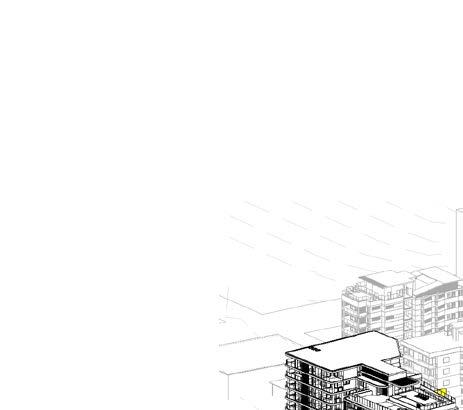

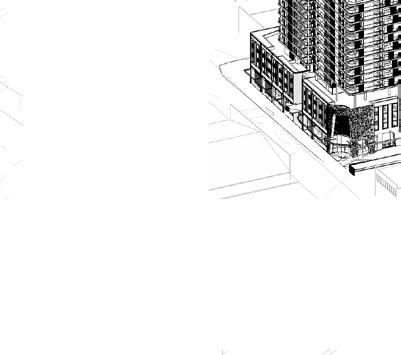

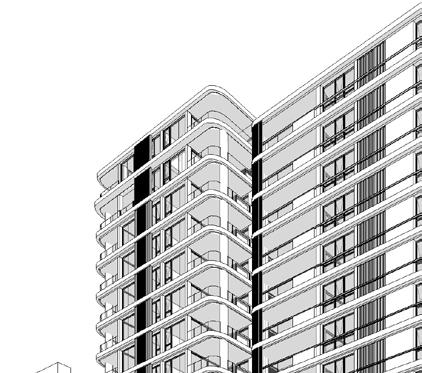

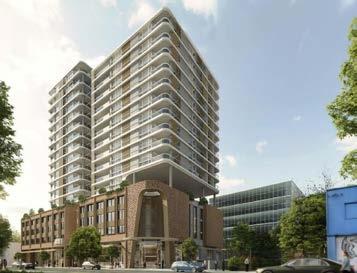

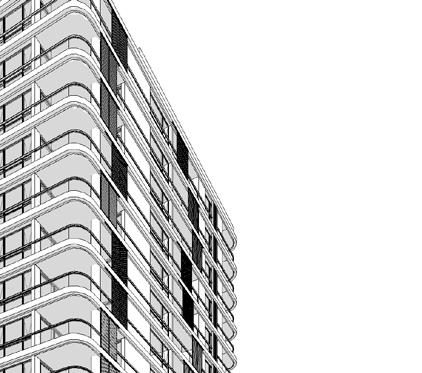

Rear 3D View
CLIENT: ADDRESS: DRAWING NAME: PROJECT No. ISSUE DATE: QA: SCALE: A3 DRAWN: DWG No. Rev. Mount Boulevard, 2205 Architect: (Reg. 8286) 20.09.2023 V ANYA SOLUTION Pty Ltd 22- 30 KENNY STREET, WOLLONGONG, NSW 3D PERSPECTIVE (FRONT) NT/DM/ML 2563 (DEVELOPMENT APPLICATION) MIXED USE DEVELOPMENT RG 061

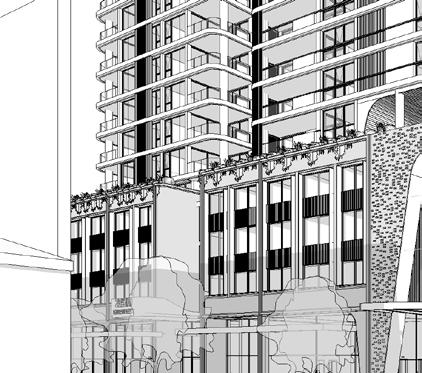

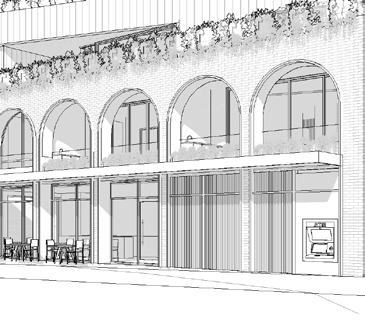

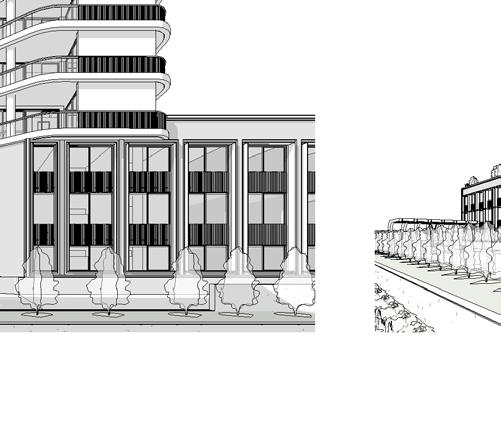

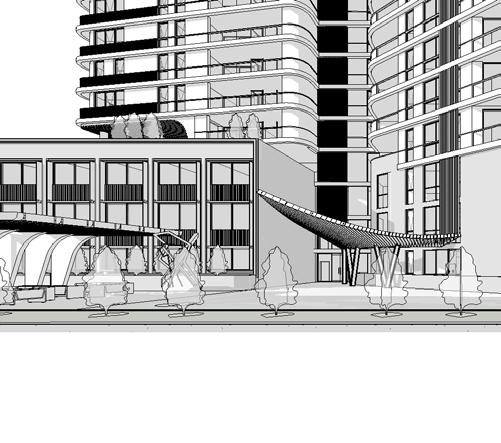

Street View

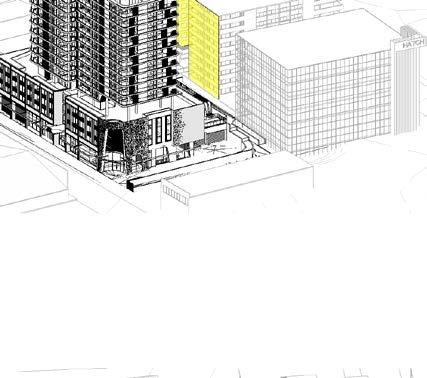

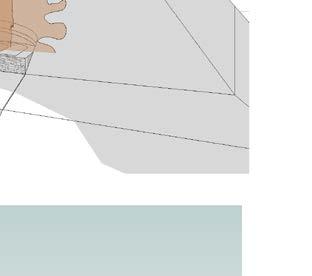

Solar Analysis
Subject to: full site survey, measurements are preliminary, discussions and meetings with authorities, approval from authorities, relevant consultant information as per council DA requirements. Feasibility completed based on information provided by client. Drawings are not are not suitable for purchase of property. All parking and ramps to traffic engineers details. (Subject to Approval) DISCLAIMER Wollongong ANYA SOLUTION Pty Ltd (ADDITIONAL INFORMATION_WORK SOLAR ACCESS -21/06/2023-9.00 SOLAR ACCESS -21/06/2023-11.00 SOLAR ACCESS -21/06/2023-9.30 SOLAR ACCESS -21/06/2023-10.30 REF. DATE AMENDMENT V20.09.2023 DA ISSUE SOLAR ACCESS -21/06/2023-10.00 DISCLAIMER Subject to: full site survey, measurements are preliminary, discussions and meetings with authorities, approval from authorities, relevant consultant information as per council DA requirements. Feasibility completed based on information provided by client. Drawings are not are not suitable for purchase of property. All parking and ramps to traffic engineers details. (Subject to Approval) DISCLAIMER 81a Princes Highway, Fairy Meadow NSW 2519 Email: info@designworkshop.com.au Tel:(02) 4227 1661 Wollongong ANYA SOLUTION Pty Ltd 30 KENNY STREET, WOLLONGONG, NSW (ADDITIONAL INFORMATION_WORK MIXED USE DEVELOPMENT SOLAR ACCESS -21/06/2023-9.00 SOLAR ACCESS -21/06/2023-11.00 SOLAR ACCESS -21/06/2023-9.30 SOLAR ACCESS -21/06/2023-10.30 REF. DATE AMENDMENT V20.09.2023 DA ISSUE All dimensions are in millimeters. Verify all dimensions on site prior to commencement of any work. DISCLAIMER Subject to: full site survey, measurements are preliminary, discussions and meetings with authorities, approval from authorities, relevant consultant information as per council DA requirements. Feasibility completed based on information provided by client. Drawings are not are not suitable for purchase of property. All parking and ramps to traffic engineers details. (Subject to Approval) DISCLAIMER Level Olympus Wolli Sydney 81a Princes Highway, Fairy Meadow NSW 2519 Email: info@designworkshop.com.au Tel:(02) 4227 1661 Wollongong Web: www.designworkshop.com.au Nominated Robert SOLAR ACCESS -21/06/2023-9.00 SOLAR ACCESS -21/06/2023-10.30 REF. DATE AMENDMENT V20.09.2023 DA ISSUE

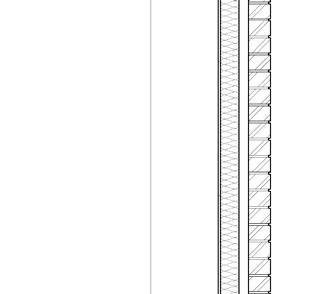

SARKING
BISCUIT BRICK TO MATCH COLOUR SCHEDULE FACE BRICK TO MANUFACTURER
BRICK FACADE CAVITY 92MM STUD WALL
INSULATION TO ACOUSTIC REPORT
13MM PLASTERBOARD
WEEPHOLE
BISCUIT BRICK TO MATCH COLOUR SCHEDULE FACE BRICK TO MANUFACTURER DETAILS AND SPECIFICATION.
BRICK FACADE CAVITY 92MM STUD WALL 13MM PLASTERBOARD
INSULATION TO ACOUSTIC REPORT
BRICK FACADE CAVITY 92MM STUD WALL
INSULATION TO ACOUSTIC REPORT
13MM PLASTERBOARD
(DEVELOPMENT APPLICATION)
BRACKETS AND TEK SCREWS TO FORM BOX.
WINDOW SHROUD SUPPORT ANGLE WITH INTUMESCENT PAINT FINISH TO MEET FRL OF 60/60/60 RUNNING FULL WIDTH OF CAVITY. SIZE AND FIXING TO ENG DETAIL EXTRUDED ALUMINIUM WINDOW SHROUD.
FACADE
13mm PLASTERBOARD 92
INSULATION TO ACOUSTIC REPORT DETAILS
(DEVELOPMENT
(DEVELOPMENT
LEVEL 2 RL. 18.800 BRICK
All dimensions are in millimeters. Verify all dimensions on site prior to commencement of any work. Copyright of DWA. DISCLAIMER CLIENT: ADDRESS: DRAWING NAME: Subject to: full site survey, measurements are preliminary, discussions and meetings with authorities, approval from authorities, relevant consultant information as per council DA requirements. Feasibility completed based on information provided by client. Drawings are not are not suitable for purchase of property. All parking and ramps to traffic engineers details. (Subject to Approval) DISCLAIMER
FACADE

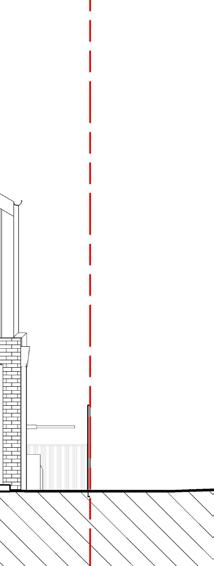

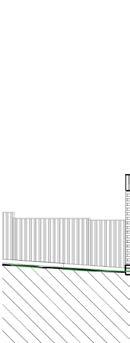

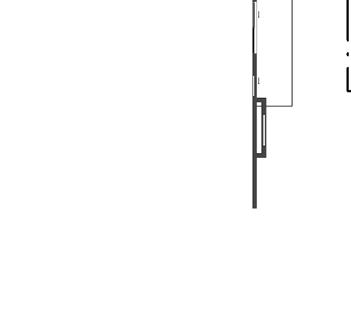

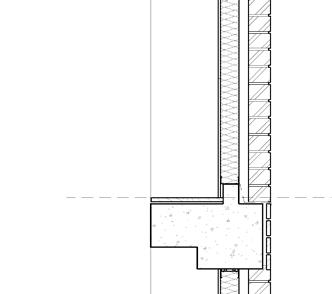

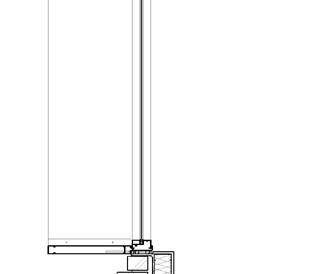

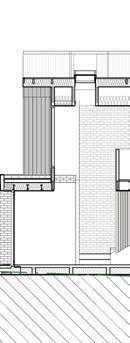

DETAIL SECTION -ONE DETAIL SECTION -TWO REF. DATE AMENDMENT V 20.09.2023 DA ISSUE BRICK
CAVITY 92MM STUD WALL 13MM
TO
BRICK TO
FACADE
PLASTERBOARD INSULATION TO ACOUSTIC REPORT WEEPHOLE BISCUIT BRICK
MATCH COLOUR SCHEDULE FACE
MANUFACTURER DETAILS AND SPECIFICATION.
LEVEL 2 RL. 18.800
STUD
FRAME
ALUMINIUM TOP RAIL TO MANUFACTURER'S DETAILS AND SPECIFICATIONS ALUMINIUM FRAMED BALUSTRADE TO MANUFACTURER'S DETAILS AND SPECIFICATIONS FIXED TO CONCRETE SLAB TO ENGINEER'S DETAILS GB1 -SELECTED ALUMINIUM FRAMED AND GLAZED BALUSTRADE 1200mm ABOVE FFL, WITH TOP RAIL. TO COMPLY WITH BCA/ NCC. REFER TO SPECIALIST CONSULTANTS DETAILS AND SPECIFICATIONS AND IN ACCORDANCE WITH ALL RELEVANT DA CONDITIONS. COLOUR -AS PER EXTERNAL FINISHES SPECIFICATION MINIMUM EDGE FIXING DISTANCE TO BE CONFIRMED WITH ENGINEER All dimensions are in millimeters. Verify all dimensions on site prior to commencement of any work. DISCLAIMER CLIENT: ADDRESS: Subject to: full site survey, measurements are preliminary, discussions and meetings with authorities, approval from authorities, relevant consultant information as per council DA requirements. Feasibility completed based on information provided by client. Drawings are not are not suitable for purchase of property. All parking and ramps to traffic engineers details. (Subject to Approval) DISCLAIMER Level 10, 6 Mount Olympus Boulevard, Wolli Creek NSW 2205 Sydney 81a Princes Highway, Fairy Meadow NSW 2519 Email: info@designworkshop.com.au Tel: (02) 4227 1661 Wollongong Web: www.designworkshop.com.au Nominated Architect: Robert Gizzi (Reg. 8286) 0 0.5 1m 0.25 0.75 SCALE BAR: ANYA SOLUTION Pty Ltd 22-30 KENNY STREET, WOLLONGONG, NSW
WALL
SARKING TOPPING AS REQUIRED ARCHITRAVE SKIRTING AS PER SPECIFICATIONS BRICK
MIXED USE DEVELOPMENT 1 20 DETAIL SECTION -ONE 1 20 DETAIL SECTION -TWO 1 20 DETAIL SECTION -THREE REF. DATE AMENDMENT V 20.09.2023 DA ISSUE BRICK FACADE CAVITY 92MM STUD WALL 13MM PLASTERBOARD INSULATION TO ACOUSTIC REPORT WEEPHOLE BISCUIT BRICK TO MATCH COLOUR SCHEDULE FACE BRICK TO MANUFACTURER DETAILS AND SPECIFICATION. BRICK FACADE CAVITY 92MM STUD WALL 13MM PLASTERBOARD INSULATION TO ACOUSTIC REPORT SCHEDULE FACE BRICK TO MANUFACTURER DETAILS AND SPECIFICATION. WINDOW SHROUD SUPPORT ANGLE WITH INTUMESCENT PAINT FINISH TO MEET FRL OF 60/60/60 RUNNING FULL
OF
AND FIXING TO ENG
FIX BLADES
WITH LBRACKETS
TEK SCREWS TO FORM BOX. BAKING
SEALANT INSULATION TO ACOUSTIC REPORT DETAILS 13mm PLASTERBOARD 92 STUD WALL FRAME SARKING TOPPING AS REQUIRED ARCHITRAVE SKIRTING AS PER SPECIFICATIONS ALUMINIUM WINDOW FRAME TO BASIX REQUIREMENTS BRICK FACADE ALUMINIUM WINDOW FRAME TO BASIX REQUIREMENTS FFL BALCONY ALUMINIUM TOP RAIL TO MANUFACTURER'S DETAILS AND SPECIFICATIONS ALUMINIUM FRAMED BALUSTRADE TO MANUFACTURER'S DETAILS AND SPECIFICATIONS FIXED TO CONCRETE SLAB TO ENGINEER'S DETAILS CONCRETE SLAB TO ENGINEERS DETAILS GB1 -SELECTED ALUMINIUM FRAMED AND GLAZED BALUSTRADE 1200mm ABOVE FFL, WITH TOP RAIL. TO COMPLY WITH BCA/ NCC. REFER TO SPECIALIST CONSULTANTS DETAILS AND SPECIFICATIONS AND IN ACCORDANCE WITH ALL RELEVANT DA CONDITIONS. COLOUR -AS PER EXTERNAL FINISHES SPECIFICATION 5 0 1 1 0 0 SELECTED CERAMIC TILES, INSTALLED TO MANUFACTURERS RECOMMENDATIONS. COLOUR -AS PER EXTERNAL FINISHES SPECIFICATION ENSURE THAT ALL WATERPROOFING MEMBRANE DETAILING IS INSTALLED TO MANUFACTURERS RECOMMENDED DETAILS AND SPECIFICATIONS INCLUDING BUT NOT LIMITED TO PENETRATIONS AND UPSTANDS. TO COMPLY WITH ALL BCA/NCC AND BASIX REQUIREMENTS AS WELL AS ALL RELEVANT AS/NZS STANDARDS MINIMUM EDGE FIXING DISTANCE TO BE CONFIRMED WITH ENGINEER commencement of any work. CLIENT: ADDRESS: DRAWING NAME: PROJECT No. ISSUE DATE: QA: SCALE: A3 DRAWN: DWG No. preliminary, discussions and meetings with authorities, approval from authorities, requirements. Feasibility completed based on information provided by client. property. (Subject to Approval) Rev. Level 10, 6 Mount Olympus Boulevard, Wolli Creek NSW 2205 Sydney 81a Princes Highway, Fairy Meadow NSW 2519 Email: info@designworkshop.com.au Tel: (02) 4227 1661 Wollongong Web: www.designworkshop.com.au Nominated Architect: Robert Gizzi (Reg. 8286) 0 0.5 1m 1:20 0.25 0.75 SCALE BAR: 20.09.2023 V ANYA SOLUTION Pty Ltd 22-30 KENNY STREET, WOLLONGONG, NSW DETAIL SECTIONS NT DM 2563
WIDTH
CAVITY. SIZE
DETAIL EXTRUDED ALUMINIUM WINDOW SHROUD.
TOGETHER
AND
ROD +
MIXED USE DEVELOPMENT RG 055 1 : 20 DETAIL SECTION -ONE 1 : 20 DETAIL SECTION -TWO 1 20 DETAIL SECTION -THREE AMENDMENT
18 - 19 STRAND, DEEWHY
Mixed Use Development (Retail + Residential) Stage : Development Application
The proposal is a medium scale development that includes a basement, restaurant, cafe and 8 luxury apartments valued around 10 million dollars.
My Role
- Assisted the director in concept and design development.
- Ensured that the design complies with setbacks, building height restrictions, parking provisions, accessiblity standards and ADG requirements.
- Assured the necessary documentation in terms of general arrangement plans solar, COS and ventilation analysis using Revit.
- Liaised with consultants and council authorities to address any conditions, modifications required for approval.
PROPOSED SOLAR ACCESS -21_06_2022-9.00 PROPOSED SOLAR ACCESS -21_06_2022-10.00 PROPOSED SOLAR ACCESS -21_06_2022-11.00 PROPOSED SOLAR ACCESS -21_06_2022-12.00 PROPOSED SOLAR ACCESS -21_06_2022-13.00 PROPOSED SOLAR ACCESS -21_06_2022-14.00 UNIT NO.UNIT TYPE0900100011001200130014001500TOTAL2HRS%NIL HRS% NIL HRS TYPECROSS VENT (YES/NO)QTY%

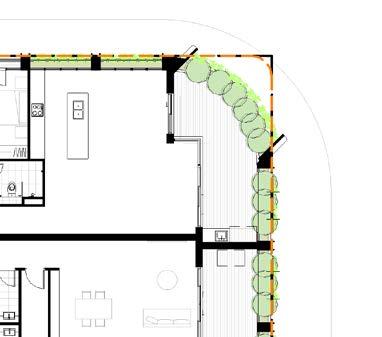

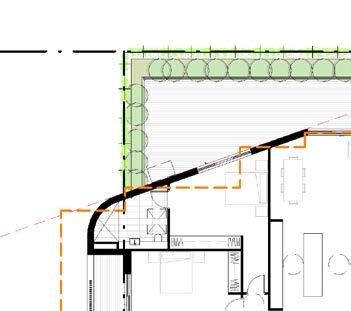

Level 1 Floor Plan
12 1 5 m² 3 BE D 1 01 11 3 5 m² 3 BE D 1 02 B ED 1 31 50 X 33 00 ENS ENS B ED 1 36 00 X 31 50 BED 2 30 00 X 340 0 B ED 3 30 00 X 34 00 L DY BATH 15 4 m² B ALCONY 19 3 m² B ALCONY LOB BY RL 10 510 VO D RL 10 510 ST BED 2 300 0 X 3 300 ST L DY BATH JULIE T BA LCONY JUL E T BA LCONY JULIE T BA LCONY 60 1 m² 1 BE D(ADA PT AB LE ) 1 0 3 95 1 m² 2 BE D 1 04 B ED 1 36 00 X 34 00 B ED 2 34 00 X 30 00 ENS BATH ST STUDY L DY B ED 1 34 00 X 43 00 54 8 m² COMMUNAL SP ACE L GHT WE LL 10 9 m² B ALCONY 11 4 m² B ALCONY JUL E T BA LCONY PR VA CY S CREEN ST ST P R V A C Y S C R E E N ø2250 ø1550 ø1550 ST ST BATH L DY G LASS BLO CKS BBQ B B Q B B Q ME CH A C A / C BBQ A C ELEC/ COMMS L V NG + DIN NG 6 100 X 40 00 K TCHEN 40 00 X 22 50 LIV ING KITCHEN 41 00 X 69 10 K TCHEN 38 00 X 32 00 L V NG + DIN NG 6 000 X 49 50 BED 3 300 0 X 3 300 K T C H E N 2 5 0 0 X 3 9 0 0 LIVING + D NING 48 00 X 72 00 A/C ST INDICAT IVE OSD LOCAT IO N SUBJECTIVE TO ENGINNER'S D ET AILS AND SPECIF CATION ORIG INAL DA OUT LINE 2679 6095 P R I V A C Y S C R E E N 1800 RL 10 510 1 5 4 0 x 2 0 7 0 1540 x 2070 ø1000 LIF T F R E S T A I R 1540 x 2070 1540 x 2070 RL 10 510 RL 10 510 FH K TCHEN E XHA UST OPEN NGS W TH N 3M OF BOUNDARY TO BE PROTECTED N ACCORDANCE W TH C3 4 TO SAT S FY C3 2 OF THE BCA OPENINGS WITH N 3M OF BOUNDARY TO BE P ROTECTED IN ACCORDANCE W TH C3 4 TO SA T SFY C3 2 OF THE BCA VOID TO BE PROTECTED WITH SPRINKLER S YSTEM 3 0 0 0 20 00 x 55 90 20 00 x 53 00 2400 2400 s Ver y a d mens ons on s te p o o commencemen o any work CLIENT: ADDRESS: DRAW NG NAME: rvey, measurements are prelim nary, discuss ons and meet ngs with authorities, approval rom authorit es, ormation as per counci DA requirements Feas b ity comp eted based on nf ormat on prov ded by cl ent no suitab e f or purchase of property s to tra f c engineers detai s (Sub ect to Approva ) Level 10 6 Mount Olympus Bou evard, W o i Creek NSW 2205 Sydney 81a Pr nces H ghway Fa ry Meadow NSW 2519 Ema l: in o@designworkshop.com au Tel: (02) 4227 1661 W ollongong W eb: www designworkshop.com au Nominated Architect: Robert G zz (Reg 8286) 0 5 10m 2 5 7 5 SCALE BAR: RUSSO 18-19 THE STRAND, DEE W HY FLOOR PLAN - LEVEL 1 S4.55 SU M XED USE DEVELOPMENT 1 : 200 LEVEL 1 E AMENDMENT 022 CLIENT REVIEW 022 CONSULTANT CO-ORD NATION 022 CONSULTANT CO-ORD NATION 30 COUNC L SUBMISSION 15 COUNC L SUBMISSION STORAGE SCHEDUL LOCATION TYPE D 1 03 1 BED BASEMENT 1 STORE (BASEMENT) 900 LEVEL 1 STORE (INTERNAL) 500 LEVEL 1 STORE (INTERNAL) 600 1 04 2 BED BASEMENT 1 STORE (BASEMENT) 1365 LEVEL 1 STORE (INTERNAL) 850 LEVEL 1 STORE (INTERNAL) 600 STORAGE SCHEDULE L1 LOCATION TYPE D W H VOL 1 01 3 BED BASEMENT 1 STORE (BASEMENT) 900 2400 2400 5 18 m³ LEVEL 1 STORE (INTERNAL) 800 1000 2700 2 16 m³ LEVEL 1 STORE (INTERNAL) 600 1900 2700 3 08 m³ 10 42 m³ 1 02 3 BED BASEMENT 1 STORE (BASEMENT) 900 2400 2400 5 18 m³ LEVEL 1 STORE (INTERNAL) 850 859 2700 1 97 m³ LEVEL 1 STORE (INTERNAL) 380 3665 2700 3 76 m³ 10 92 m³
16
17 THE STRAND
STRAND
HOWARD LANE
-
THE

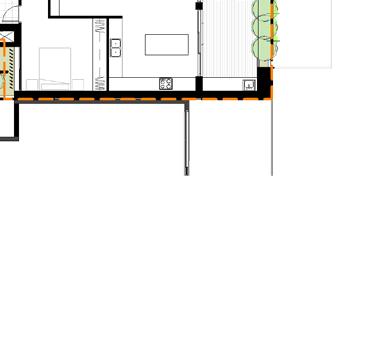

Level 2 Floor Plan
HOWARD LANE THE STRAND
13 6 1 m² 3 BE DL VA BLE 'S IL VE R 2 0 3 B ED 1 31 50 X 33 00 ENS 12 0 6 m² 3 BE D 2 01 19 1 m² B ALCONY RL 13 910 LOB BY VO D RL 13 910 11 3 5 m² 3 BE D 2 02 18 7 m² B ALCONY
50 7 m² B ALCONY BED 1 47 00 X 330 0 ENS BATH B ED 2 5 100 X 30 00 BED 3 46 00 X 320 0 BED 2 300 0 X 3 300 ST L DY BATH 1 0 1 m ² B A L C O N Y PR VA CY S CREEN S T O R E ELEC/ COMMS LIGHT WE LL ST G LASS BLO CKS K TCHEN EXHAUST BBQ ME CH A/C A C BBQ BBQ BED 3 300 0 X 3 300 K I T C H E N 2 5 0 0 X 3 9 0 0 L VING + DINING 48 00 X 72 00 L V ING + D N NG 70 00 X 400 0 K I T C H E N 2 5 0 0 X 4 1 5 0 PWD L A C ENS B ED 1 36 00 X 31 50 BED 2 30 00 X 340 0 B ED 3 30 00 X 34 00 L DY BATH ST K TCHEN 38 00 X 32 00 L VING + DINING 6 000 X 49 50 ST O RIG INAL DA O UTL NE 6095 4345 2679 P R V A C Y S C R E E N 1 5 4 0 x 2 0 7 0 LIF T F I R E S T A I R 1540 x 2070 ø1000 ø1000 ø1000 ø1000 ø1000 1800 3 0 0 0 OPENINGS W TH N 3M OF BOUNDARY TO BE PROTECTED N ACCORDANCE W TH C3 4 TO SAT SFY C3 2 OF THE BCA FH VO D TO BE PROTECTED W TH SPR NKLER SYSTEM HOBLES S S HOWER ens ons are n m me e s Ve fy a d mens ons on s te p o o commencement o any wo k gh o DW A CLAIMER CLIENT ADDRESS: DRAW NG NAME ISSUE DATE QA SCALE: DRAW N: ect o ful s te survey measurements are preliminary d scuss ons and mee ings with authorities approval from authori ies ant consu tan nf ormation as per counci DA requ rements Feas b ty completed based on nf ormat on provided by client wings are no are not suitab e f or purchase o property ark ng and ramps to tra fic engineers deta ls (Sub ect o Approval) CLAIMER Level 10 6 Mount Olympus Bou evard W o i Creek NSW 2205 Sydney 81a Pr nces H ghway Fa ry Meadow NSW 2519 Ema l info@des gnworkshop.com au Tel: (02) 4227 1661 W o ongong W eb: www des gnworkshop.com au Nominated Arch tect: Rober G zz (Reg 8286) 0 5 10m 1 20 2 5 7 5 SCALE BAR: 22 RUSSO 18-19 THE STRAND, DEE W HY FLOOR PLAN - LEVEL 2 DM S4.55 SUBM MIXED USE DEVELOPMENT RG 1 200 LEVEL 2 F DATE AMENDMENT 13 10 2022 CL ENT REV EW K 04 11 2022 CL ENT REV EW 07 11 2022 CL ENT REV EW M 08 11 2022 CONSULTANT CO-ORD NAT ON N 22 11 2022 CONSULTANT CO-ORD NAT ON STORAGE SCHEDULE L2 LOCATION TYPE D W LEVEL 2 STORE (INTERNAL) 850 859 LEVEL 2 STORE (INTERNAL) 380 3665 2 03 3 BED BASEMENT 1 STORE (BASEMENT) 900 2400 LEVEL 2 STORE (INTERNAL) 589 4150 STORAGE SCHEDULE L2 LOCATION TYPE D W H VOL 2 01 3 BED BASEMENT 1 STORE (BASEMENT) 1576 1410 2400 5 33 m³ LEVEL 2 STORE (INTERNAL) 800 1000 2700 2 16 m³ LEVEL 2 STORE (INTERNAL) 600 1900 2700 3 08 m³ 10 57 m³ 2 02 3 BED BASEMENT 1 STORE (BASEMENT) 1420 1492 2400 5 08 m³
VIEWCORRIDOR
16 - 17 THE STRAND

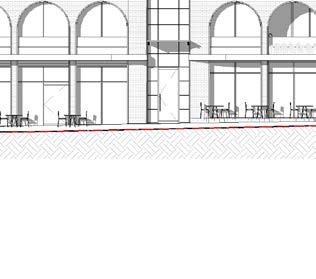

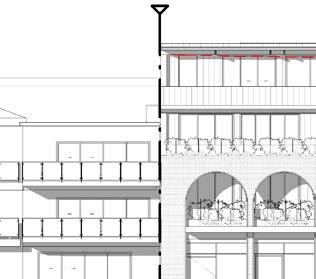

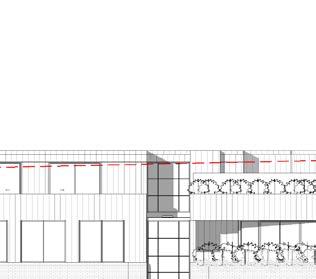

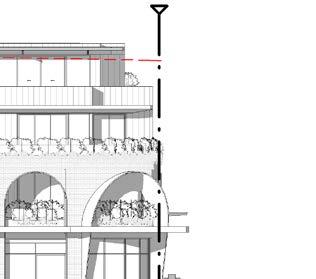

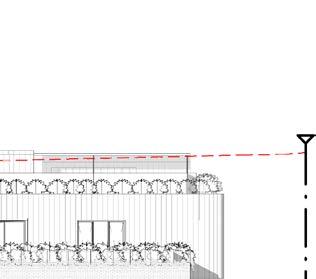

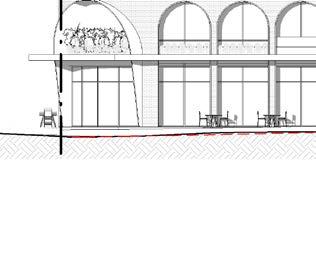

North and East Elevation
R.L.6.910 R.L.10.510 R.L.13.910 R.L.17.010 R.L.20.110 R.L.6.910 LEVEL 1 R.L.10.510 LEVEL 2 R.L.13.910 LEVEL 3 R.L.17.010 ROOF R.L.20.110 All dimensions are in millimeters. Verify all dimen Copyright of DWA. DISCLAIMER DRAWING NAME: ISSUE DATE: DRAWN: Subject to: full site survey, measurements are prel approval from authorities, relevant consultant information as per council DA requirements. Feasibility completed based on informa Drawings are not are not suitable for purchase of p All parking and ramps to traffic engineers details. DISCLAIMER 05 1:200 13.10.2022 DM PRELIMINARY RG EAST ELEVATION NORTH ELEVATION REF. C16.03.2022 E01.09.2022 F09.09.2022 G15.09.2022 J13.10.2022 GROUND LEVEL R.L.6.910 LEVEL 1 R.L.10.510 LEVEL 2 R.L.13.910 LEVEL 3 R.L.17.010 ROOF R.L.20.110 GROUND LEVEL R.L.6.910 LEVEL 1 R.L.10.510 LEVEL 2 R.L.13.910 LEVEL 3 R.L.17.010 ROOF R.L.20.110 All dimensions are in millimeters. Verify all dimensions on site prior to commencement of any work. Copyright of DWA. DISCLAIMER CLIENT: ADDRESS: DRAWING NAME: Subject to: full site survey, measurements are preliminary, discussions and meetings with authorities, approval from authorities, relevant consultant information as per council DA requirements. Feasibility completed based on information provided by client. Drawings are not are not suitable for purchase of property. All parking and ramps to traffic engineers details. (Subject to Approval) DISCLAIMER Level 10, 6 Mount Olympus Boulevard, Wolli Creek NSW 2205 Sydney 81a Princes Highway, Fairy Meadow NSW 2519 Email: info@designworkshop.com.au Tel: (02) 4227 1661 Wollongong Web: www.designworkshop.com.au Nominated Architect: Robert Gizzi (Reg. 8286) 05 10m 2.5 7.5 SCALE BAR: RUSSO 18-19 THE STRAND, DEE WHY ELEVATIONS MIXED USE DEVELOPMENT 1 : 200 EAST ELEVATION 1 : 200 NORTH ELEVATION REF. DATE AMENDMENT C16.03.2022 CONSULTANT ISSUE E01.09.2022 CLIENT REVIEW F09.09.2022 CLIENT REVIEW G15.09.2022 CLIENT REVIEW J13.10.2022 CLIENT REVIEW

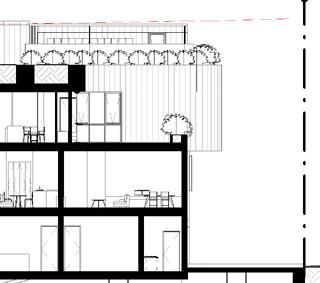

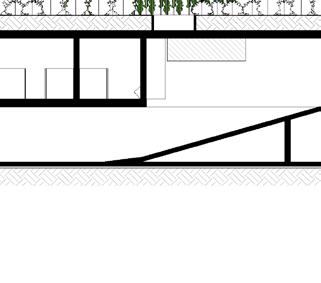

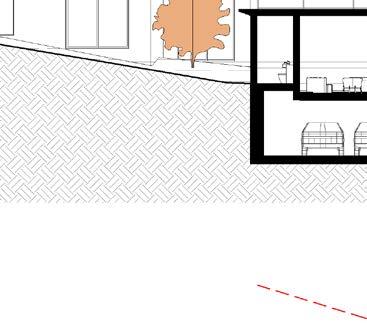

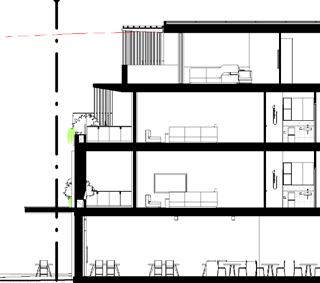

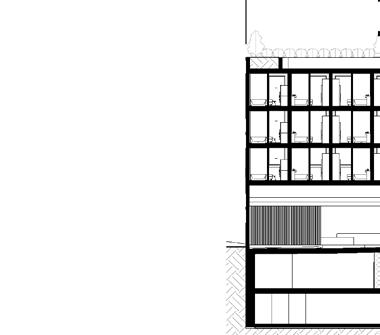

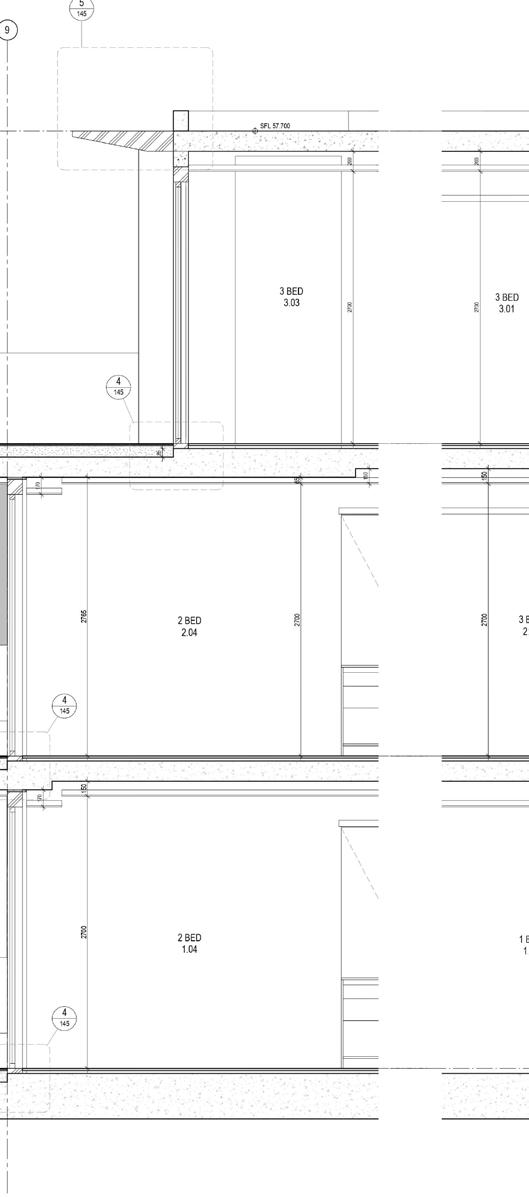

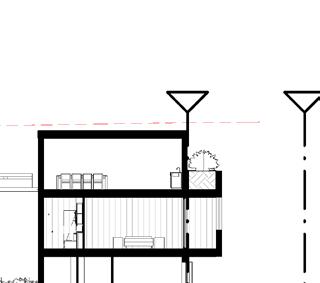

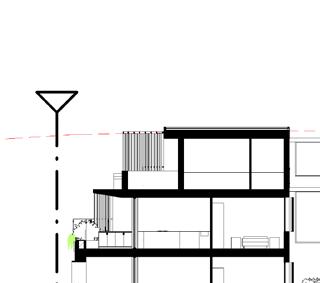

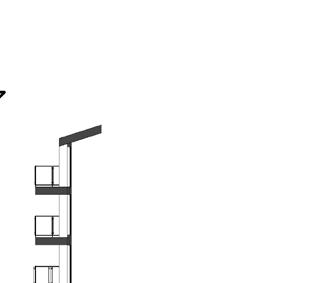

Building Section
GROUND LEVEL R.L.6.910 LEVEL 1 R.L.10.510 LEVEL 2 R.L.13.910 LEVEL 3 R.L.17.010 ROOF R.L.20.110 BASEMENT 1 R.L.3.610 1 20 1:8 1:4 1:8 3 3 0 0 3 6 0 0 3 4 0 0 3 1 0 0 3 1 0 0 13 M HEIGHT PLANE 2300 7024 SPACE ALLOCATED FOR REFRIGERANT MOTORS POTENTIAL OSD LOCATION. TO BE CONFIRMED BY THE CONSULTANT. GROUND LEVEL R.L.6.910 LEVEL 1 R.L.10.510 LEVEL 2 R.L.13.910 LEVEL 3 R.L.17.010 ROOF R.L.20.110 BASEMENT 1 R.L.3.610 3 3 0 0 3 6 0 0 3 4 0 0 3 1 0 0 3 1 0 0 13 M HEIGHT PLANE All dimensions are in millimeters. Verify all dimensions on site prior to commencement of any work. Copyright of DWA. DISCLAIMER CLIENT: ADDRESS: DRAWING NAME: PROJECT No. ISSUE DATE: QA: SCALE: A3 DRAWN: DWG No. Subject to: full site survey, measurements are preliminary, discussions and meetings with authorities, approval from authorities, relevant consultant information as per council DA requirements. Feasibility completed based on information provided by client. Drawings are not are not suitable for purchase of property. All parking and ramps to traffic engineers details. (Subject to Approval) DISCLAIMER Rev. Level 10, 6 Mount Olympus Boulevard, Wolli Creek NSW 2205 Sydney 81a Princes Highway, Fairy Meadow NSW 2519 Email: info@designworkshop.com.au Tel: (02) 4227 1661 Wollongong Web: www.designworkshop.com.au Nominated Architect: Robert Gizzi (Reg. 8286) 0 5 10m 1:200 2.5 7.5 SCALE BAR: 04.11.2022 K RUSSO 18-19 THE STRAND, DEE WHY SECTIONS DM 2246 PRELIMINARY MIXED USE DEVELOPMENT RG 040 REF. DATE AMENDMENT E 01.09.2022 CLIENT REVIEW F 09.09.2022 CLIENT REVIEW G 15.09.2022 CLIENT REVIEW J 13.10.2022 CLIENT REVIEW K 04.11.2022 CLIENT REVIEW 1 200 Section AA 1 200 Section BB

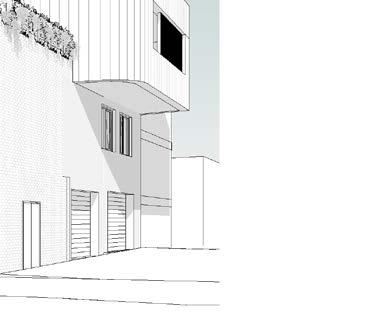

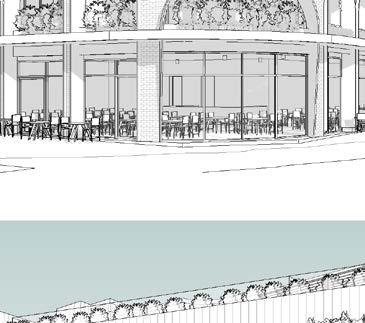

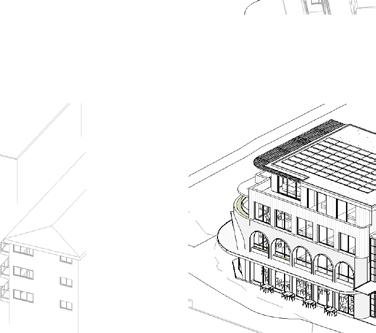

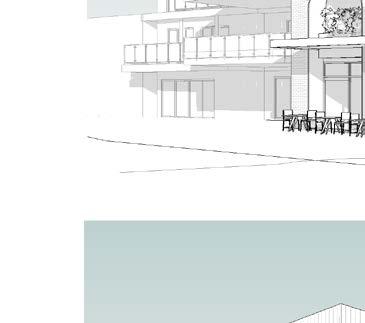

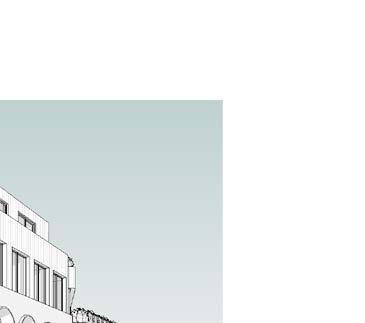

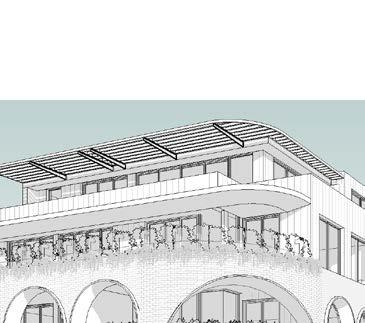

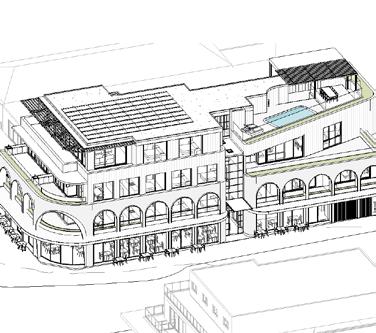

Street Views
millimeters. Verify all dimensions on site prior to commencement of any work. CLIENT: ADDRESS: DRAWING NAME: ISSUE DATE: QA: SCALE: DRAWN: site survey, measurements are preliminary, discussions and meetings with authorities, approval from authorities, consultant information as per council DA requirements. Feasibility completed based on information provided by client. are not suitable for purchase of property. ramps to traffic engineers details. (Subject to Approval) DISCLAIMER Level 10, 6 Mount Olympus Boulevard, Wolli Creek NSW 2205 Sydney 81a Princes Highway, Fairy Meadow NSW 2519 Email: info@designworkshop.com.au Tel: (02) 4227 1661 Wollongong Web: www.designworkshop.com.au Nominated Architect: Robert Gizzi (Reg. 8286) 05 10m 1:200 2.5 7.5 SCALE BAR: 23.06.2022 RUSSO 18-19 THE STRAND, DEE WHY LEVEL 1 - SURVEY OVERALY DM PRELIMINARY MIXED USE DEVELOPMENT RG DATE AMENDMENT D23.06.2022DSAP ADDITIONAL INFORMATION
PANTHER RESIDENCE, BALGOWNIE
High - End Residential Stage : Concept / Feasibility
The proposal is a 800 sqmt luxury home and amenities valued around 8 million dollars.
My Role
- Design lead contributing creative and technical expertise to develop design concept that aligns with client’s vision and program requirements.
- Assessed site conditions, zoning regulations and building codes.
- Used visualisation techiniques in terms of 3D modelling, drawings to communicate the idea effectively.
dimensions are millimeters. Verify dimensions on site prior to commencement any work. Copyright DWA. DISCLAIMER CLIENT: ADDRESS: DRAWING NAME: PROJECT No. ISSUE DATE: QA: A3 DRAWN: DWG No. Subject to: full site survey, measurements are preliminary, discussions and meetings with authorities, approval from authorities, relevant consultant information as per council DA equirements. Feasibility completed based on information provided by client. Drawings are not are not suitable for purchase of roperty. All parking and ramps to traffic engineers details. (Subject to Approval) DISCLAIMER Rev. Level 10, Mount Olympus Boulevard, Wolli Creek NSW 2205 Sydney 81a Princes Highway, Fairy Meadow NSW 2519 Email: info@designworkshop.com.au Tel:(02) 4227 1661 Wollongong Web: www.designworkshop.com.au Nominated Architect: Robert Gizzi (Reg. 8286) 2023.10.12 C PATHER 55A WELLINGTON DRIVE BALGOWNIE DM 2500 PRELIMINARY RESIDENCE RG 033 C2023.10.12 PRELIMINARY

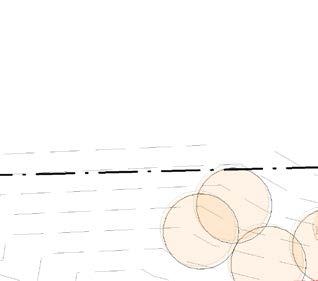

Design Iterations
All dimensions are in millimeters. Verify all dimensions on site prior commencement of any work. DISCLAIMER CLIENT: ADDRESS: DRAWING NAME: PROJECT No. ISSUE DATE: QA: SCALE: A3 DRAWN: DWG No. Subject to: full site survey, measurements are preliminary, discussions and meetings with authorities, approval from authorities, relevant consultant information as per council DA equirements. Feasibility completed based on information provided by client. Drawings are not are not suitable for purchase of property. All parking and ramps to traffic engineers details. (Subject to Approval) DISCLAIMER Rev. Level 10, 6 Mount Olympus Boulevard, Wolli Creek NSW 2205 Sydney 81a Princes Highway, Fairy Meadow NSW 2519 Email: info@designworkshop.com.au Tel:(02) 4227 1661 Wollongong Web: www.designworkshop.com.au Nominated Architect: Robert Gizzi (Reg. 8286) 2023.10.12 C PATHER 55A WELLINGTON DRIVE BALGOWNIE 3D VIEWS DM 2500 PRELIMINARY RESIDENCE RG 033 REF. DATE AMENDMENT A2023.04.17 PRELIMINARY C2023.10.12 All dimensions are in millimeters. Verify all dimensions on site prior commencement of any work. Copyright of DWA. DISCLAIMER CLIENT: ADDRESS: DRAWING NAME: PROJECT No. ISSUE DATE: QA: SCALE: A3 DRAWN: DWG No. Subject to: full site survey, measurements are preliminary, discussions and meetings with authorities, approval from authorities, relevant consultant information as per council DA equirements. Feasibility completed based on information provided by client. Drawings are not are not suitable for purchase of property. All parking and ramps to traffic engineers details. (Subject to Approval) DISCLAIMER Rev. Level 10, 6 Mount Olympus Boulevard, Wolli Creek NSW 2205 Sydney 81a Princes Highway, Fairy Meadow NSW 2519 Email: info@designworkshop.com.au Tel: (02) 4227 1661 Wollongong Web: www.designworkshop.com.au Nominated Architect: Robert Gizzi (Reg. 8286) 2023.04.17 A PATHER 55A WELLINGTON DRIVE BALGOWNIE 3D VIEWS DM 2500 PRELIMINARY RESIDENCE RG 031 A2023.04.17 PRELIMINARY All dimensions are in millimeters. Verify all dimensions on site prior to commencement of any work. Copyright DWA. DISCLAIMER CLIENT: ADDRESS: DRAWING NAME: PROJECT No. ISSUE DATE: QA: SCALE: A3 DRAWN: DWG No. Subject to: full site survey, measurements are preliminary, discussions and meetings with authorities, approval from authorities, relevant consultant information as per council DA equirements. Feasibility completed based on information provided by client. Drawings are not are not suitable for purchase of property. All parking and ramps to traffic engineers details. (Subject to Approval) DISCLAIMER Rev. Level 10, 6 Mount Olympus Boulevard, Wolli Creek NSW 2205 Sydney 81a Princes Highway, Fairy Meadow NSW 2519 Email: info@designworkshop.com.au Tel: (02) 4227 1661 Wollongong Web: www.designworkshop.com.au Nominated Architect: Robert Gizzi (Reg. 8286) 2023.04.17 A PATHER 55A WELLINGTON DRIVE BALGOWNIE 3D VIEWS DM 2500 PRELIMINARY RESIDENCE RG 031 A2023.04.17 PRELIMINARY
pod oriented towards views
1. Cantilevered pool
Each
2. Lateral pool
3. Lateral pool with void

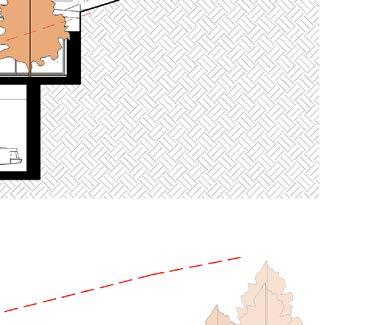

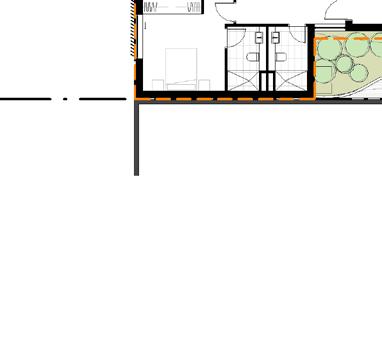

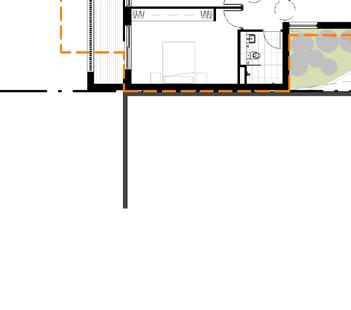

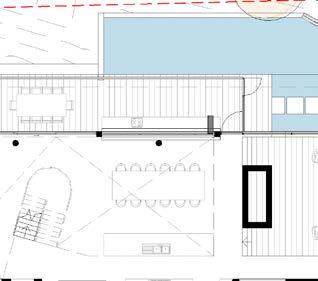

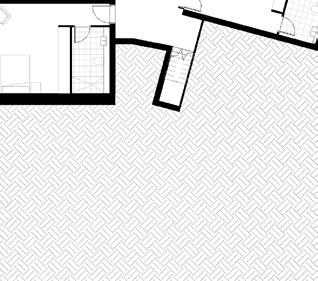

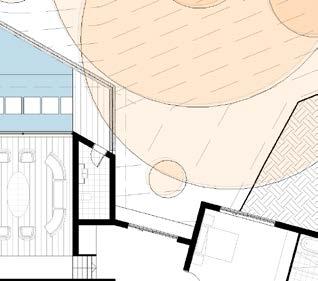

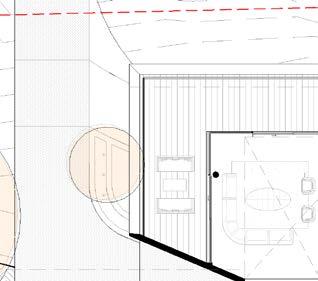

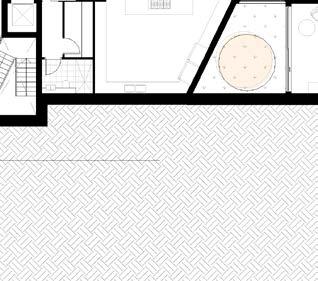

Ground Floor Plan
1:4 1:14 1:4 1:14 millimeters. Verify all dimensions on site prior to commencement of any work. CLIENT: ADDRESS: DRAWING NAME: PROJECT No. ISSUE DATE: QA: SCALE: A3 DRAWN: DWG No. site survey, measurements are preliminary, discussions and meetings with authorities, approval from authorities, consultant information as per council DA requirements. Feasibility completed based on information provided by client. not are not suitable for purchase of property. ramps to traffic engineers details. (Subject to Approval) DISCLAIMER Rev. Level 10, 6 Mount Olympus Boulevard, Wolli Creek NSW 2205 Sydney 81a Princes Highway, Fairy Meadow NSW 2519 Email: info@designworkshop.com.au Tel:(02) 4227 1661 Wollongong Web: www.designworkshop.com.au Nominated Architect: Robert Gizzi (Reg. 8286) 0 5 10m 1:200 2.5 7.5 SCALE BAR: 2023.10.12 C PATHER 55A WELLINGTON DRIVE BALGOWNIE GROUND FLOOR PLAN DM 2500 PRELIMINARY RESIDENCE RG 012 1 200 GROUND LEVEL DATE AMENDMENT A2023.04.17 PRELIMINARY B2023.06.26 PRELIMINARY C2023.10.12 PRELIMINARY

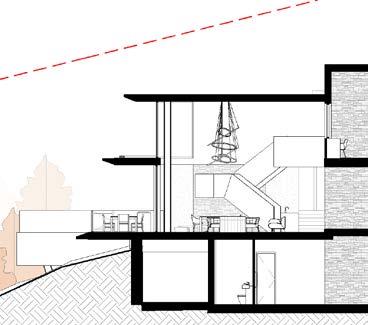

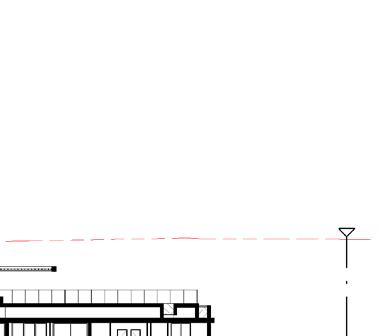

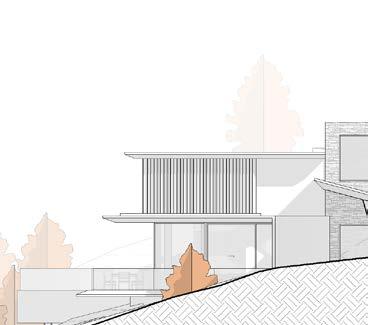

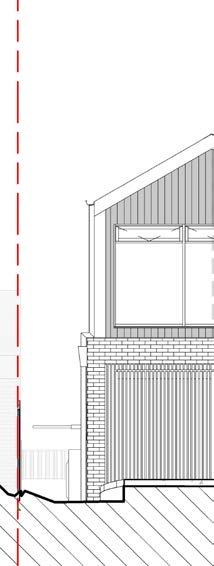

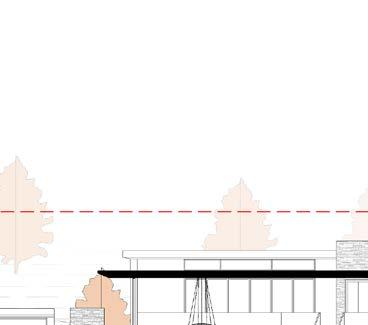

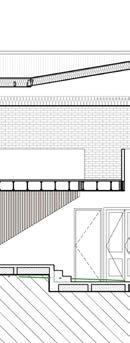

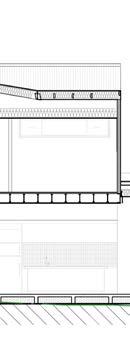

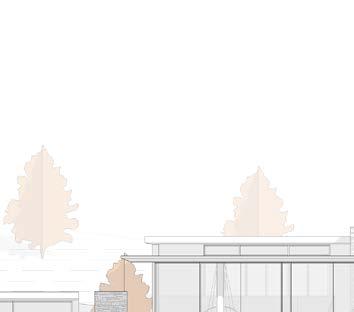

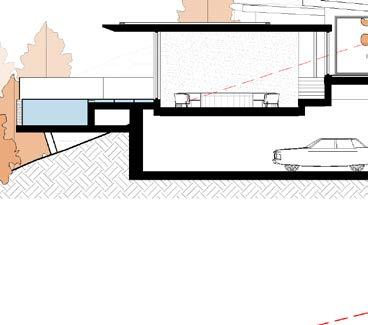

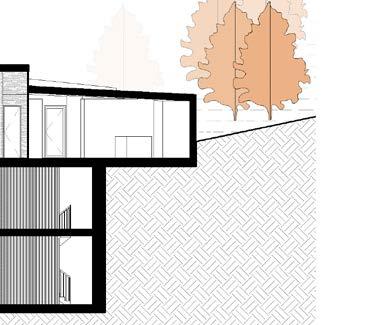

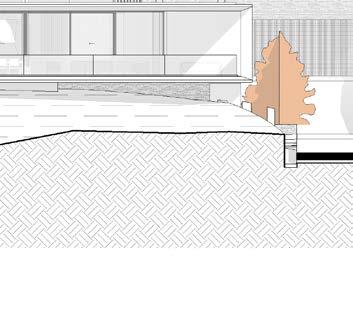

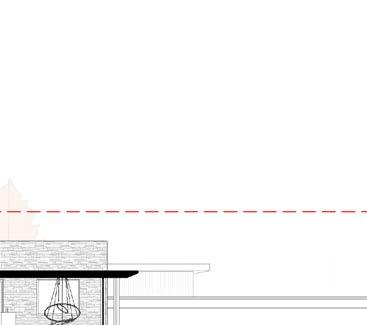

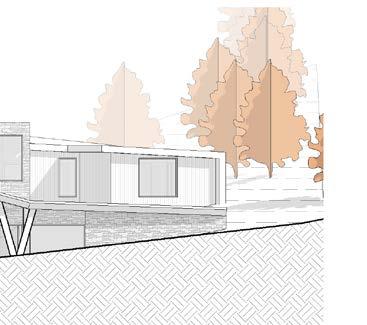

North Elevation and Section
dimensions on site prior to commencement of any work. ADDRESS: DRAWING NAME: QA: SCALE: DRAWN: DWG No. iminary, discussions and meetings with authorities, equirements. Feasibility completed based on informa (Subject to Approval) Level 10, 6 Mount Olympus Boulevard, Wolli Creek NSW 2205 Sydney 81a Princes Highway, Fairy Meadow NSW 2519 Email: info@designworkshop.com.au Tel:(02) 4227 1661 Wollongong Web: www.designworkshop.com.au Nominated Architect: Robert Gizzi (Reg. 8286) 0 5 10m 1:200 2.5 7.5 2023.10.12 55A WELLINGTON DRIVE BALGOWNIE ELEVATIONS Author 2500 RESIDENCE Checker 020 NORTH ELEVATION WEST ELEVATION PRELIMINARY 200 Section 01

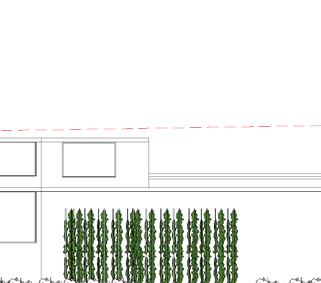

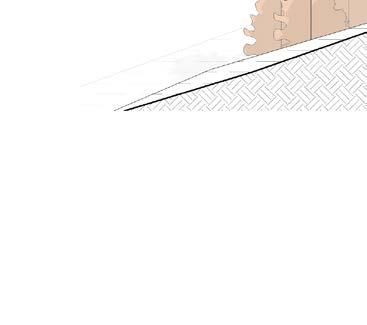

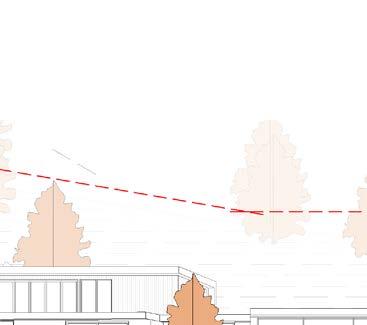

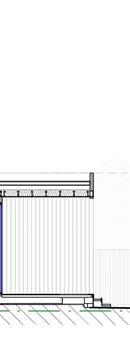

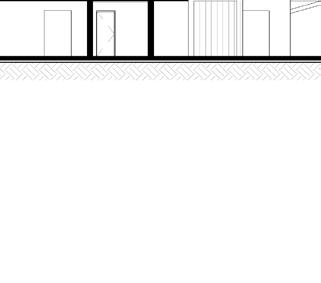

West Elevation and Section
preliminary, discussions and meetings with authorities, requirements. Feasibility completed based on informa property. (Subject to Approval)
commencement of any work.
PRELIMINARY
PROJECT No. ISSUE DATE: QA: SCALE: A3 DRAWN: DWG No.
Rev. Level 10, 6 Mount Olympus Boulevard, Wolli Creek NSW 2205 Sydney
Nominated Architect: Robert Gizzi (Reg. 8286) 1:200 2023.10.12 C Author 2500
Wollongong
Checker 020 ELEVATION ELEVATION AMENDMENT PRELIMINARY commencement of any work. CLIENT: ADDRESS: DRAWING NAME: PROJECT No. ISSUE DATE: QA: SCALE: A3 DRAWN: DWG No. preliminary, discussions and meetings with authorities, approval from authorities, requirements. Feasibility completed based on information provided by client. property. (Subject to Approval) Rev. Level 10, 6 Mount Olympus Boulevard, Wolli Creek NSW 2205 Sydney 81a Princes Highway, Fairy Meadow NSW 2519 Email: info@designworkshop.com.au Tel:(02) 4227 1661 Wollongong Web: www.designworkshop.com.au Nominated Architect: Robert Gizzi (Reg. 8286) 0 5 10m 1:200 2.5 7.5 SCALE BAR: 2023.10.12 C PATHER 55A WELLINGTON DRIVE BALGOWNIE SECTIONS DM 2500 PRELIMINARY RESIDENCE RG 026 1 200 Section 03 1 200 SECTION 04 AMENDMENT PRELIMINARY PRELIMINARY PRELIMINARY

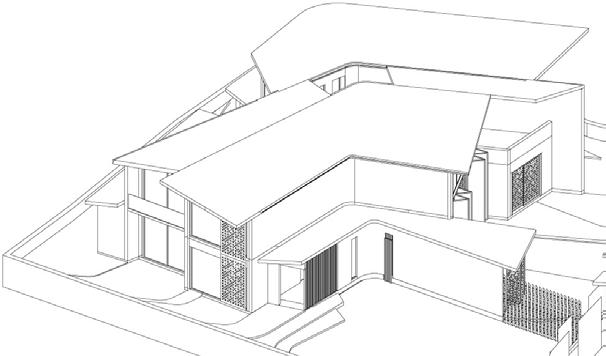

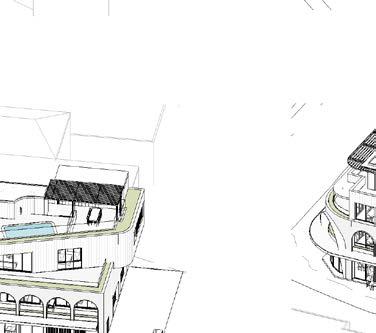

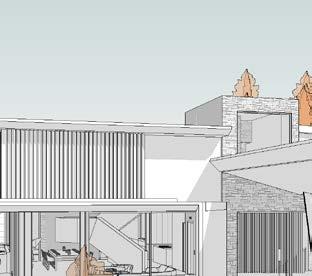

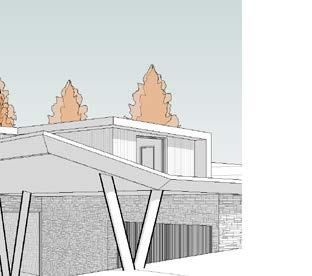

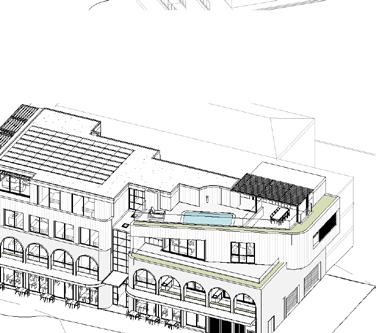

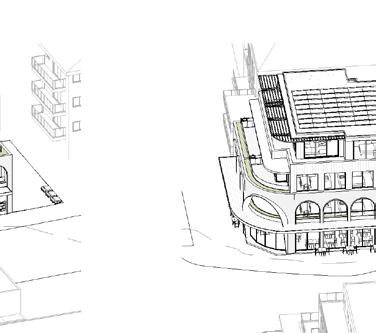

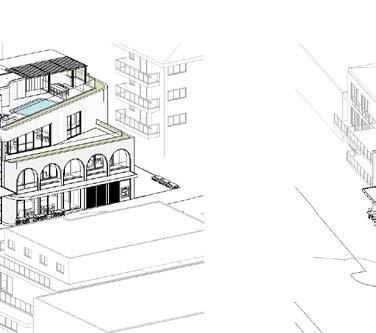

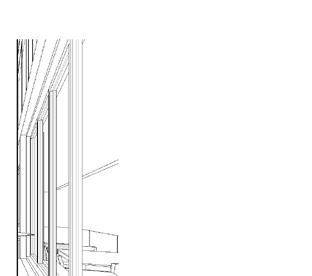

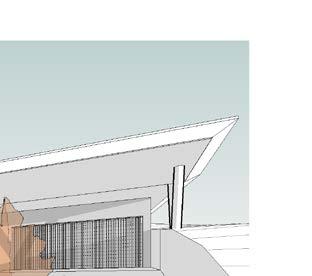

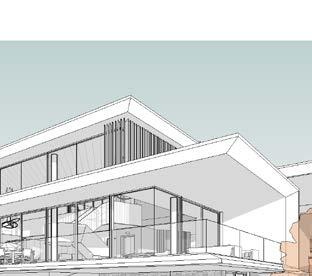

3D Views
All dimensions are in millimeters. Verify all dimensions on site prior to commencement of any work. Copyright of DWA. DISCLAIMER CLIENT: ADDRESS: DRAWING NAME: PROJECT ISSUE DATE: QA: SCALE: DRAWN: DWG No. Subject to: full site survey, measurements are preliminary, discussions and meetings with authorities, approval from authorities, relevant consultant information as per council DA requirements. Feasibility completed based on information provided by client. Drawings are not are not suitable for purchase of property. All parking and ramps to traffic engineers details. (Subject to Approval) DISCLAIMER Level 10, 6 Mount Olympus Boulevard, Wolli Creek NSW 2205 Sydney 81a Princes Highway, Fairy Meadow NSW 2519 Email: info@designworkshop.com.au Tel: (02) 4227 1661 Wollongong Web: www.designworkshop.com.au Nominated Architect: Robert Gizzi (Reg. 8286) PATHER 55A WELLINGTON DRIVE BALGOWNIE Unnamed Author 2500 PRELIMINARY RESIDENCE Checker 034 REF. DATE AMENDMENT

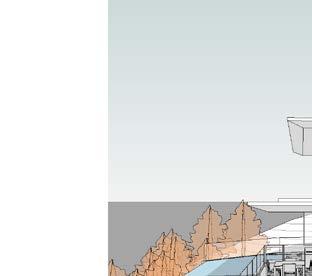

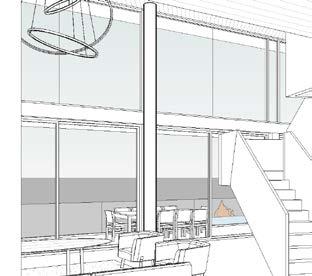

Conceptual Renders_Lumion
PROFESSIONAL WORK _Construction / Completed Work
Mixed use Development Retail + Residential Multi - Dwelling Dual Occupancy High - end Residential Single Dwelling
BALGOWLAH, NEUTRAL BAY
Mixed Use Development (Retail + Residential)
Stage : Construction Certificate

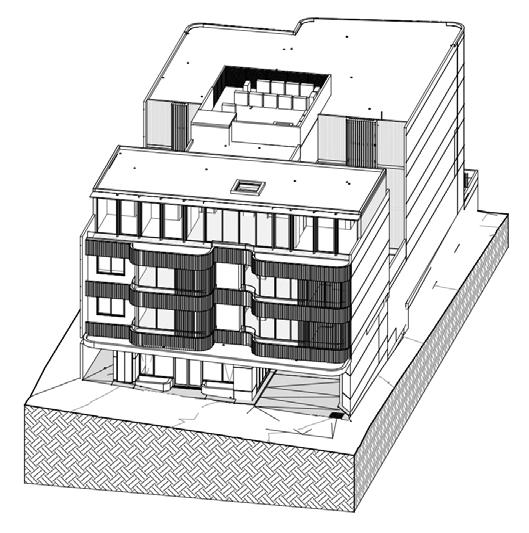

The proposal is a medium scale development that includes two level basements, retail shops and 13 residential units (Class 2, 6 & 7) valued around 5 million dollars.
My Role
- Finalised design details based on approved development applcation.
- Prepared detailed construction documentation as per NCC and Australian standards.
- Co-ordinated with various consultants such as structural, mechanical, fire, access and others and ensured that the documentation reflects their input.

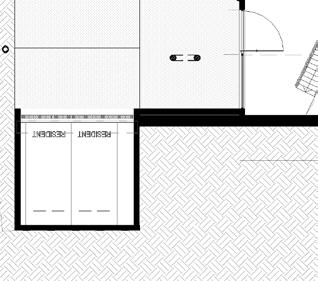

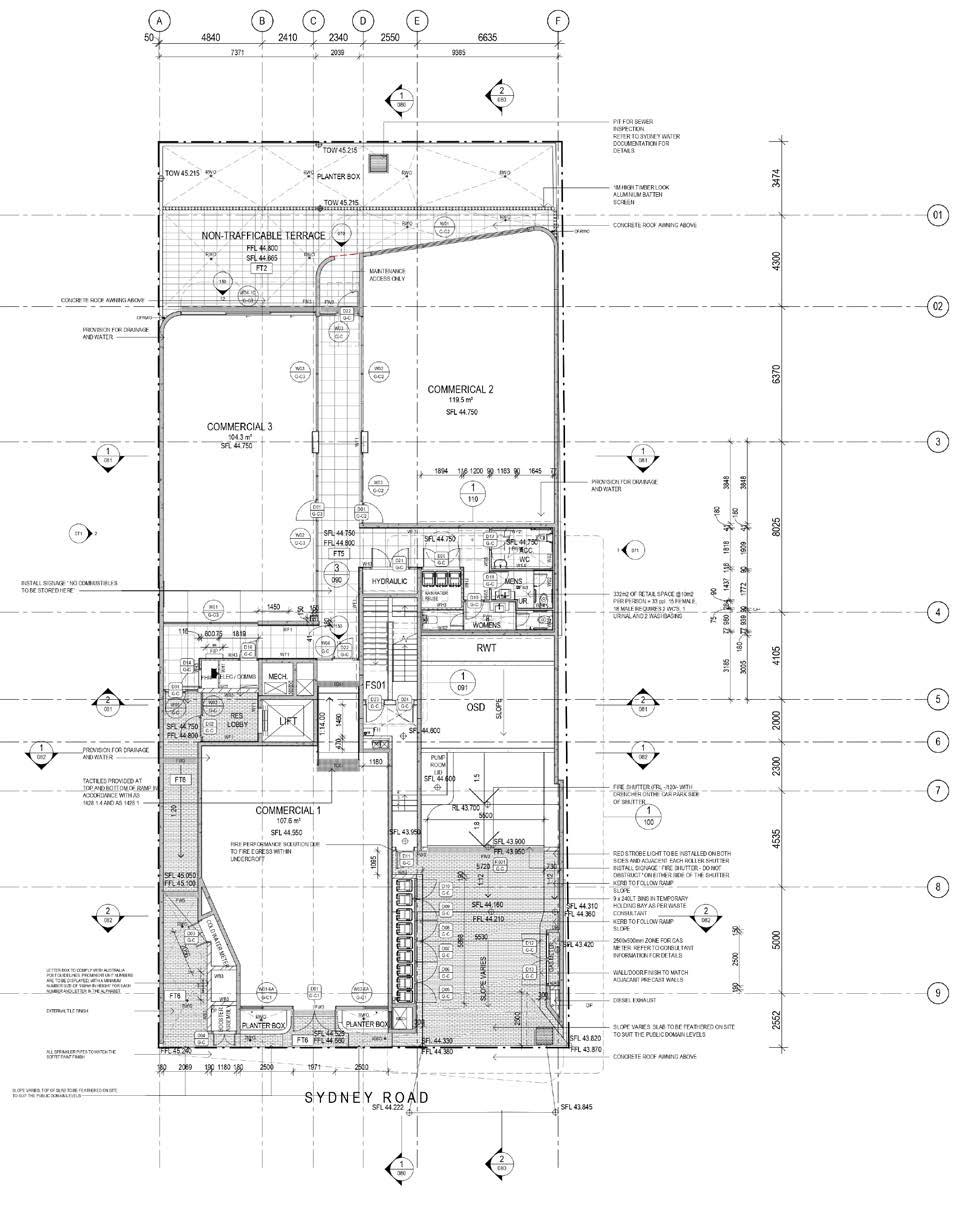

Ground Floor Plan
Typical Floor Plan

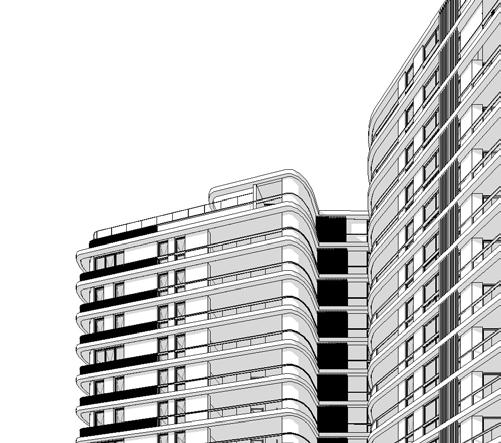

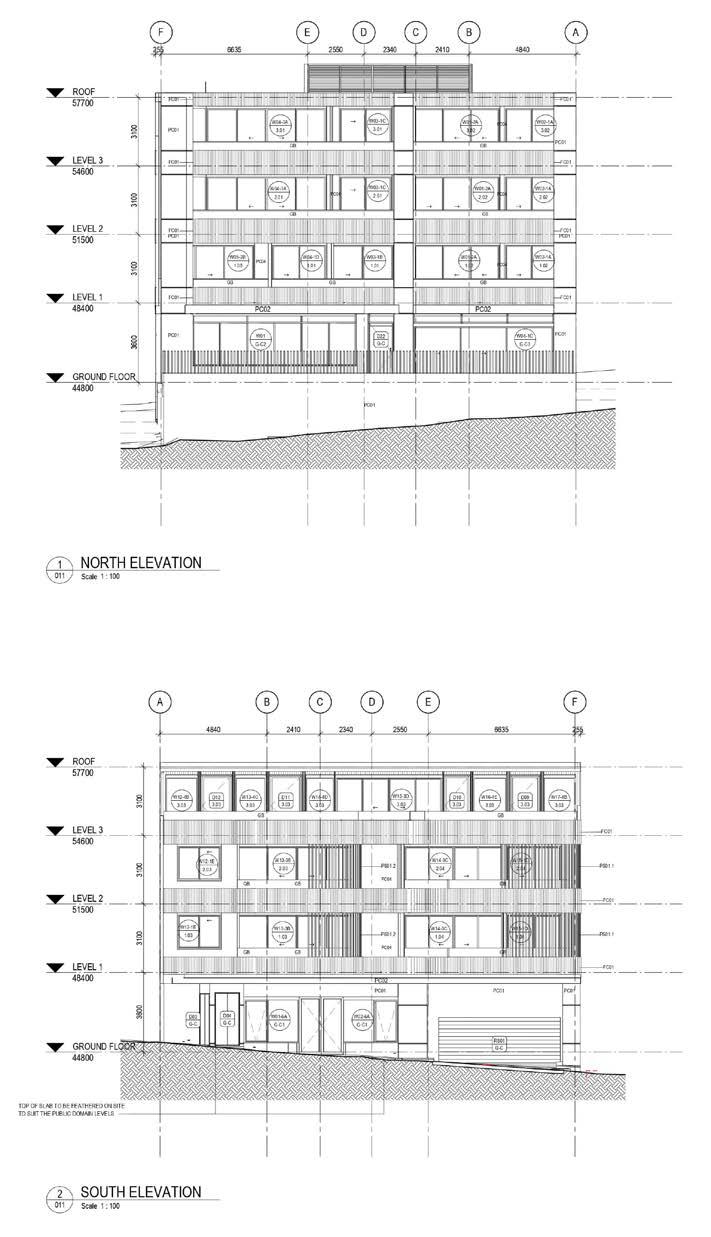

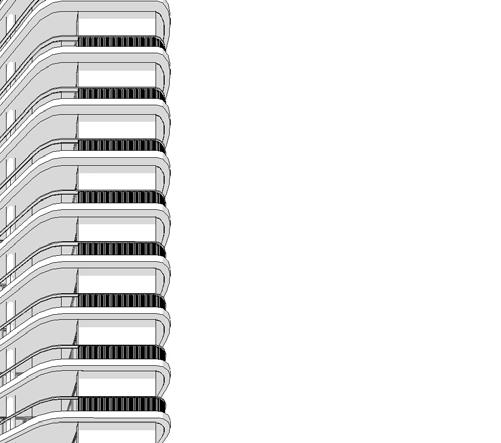

Building Elevations

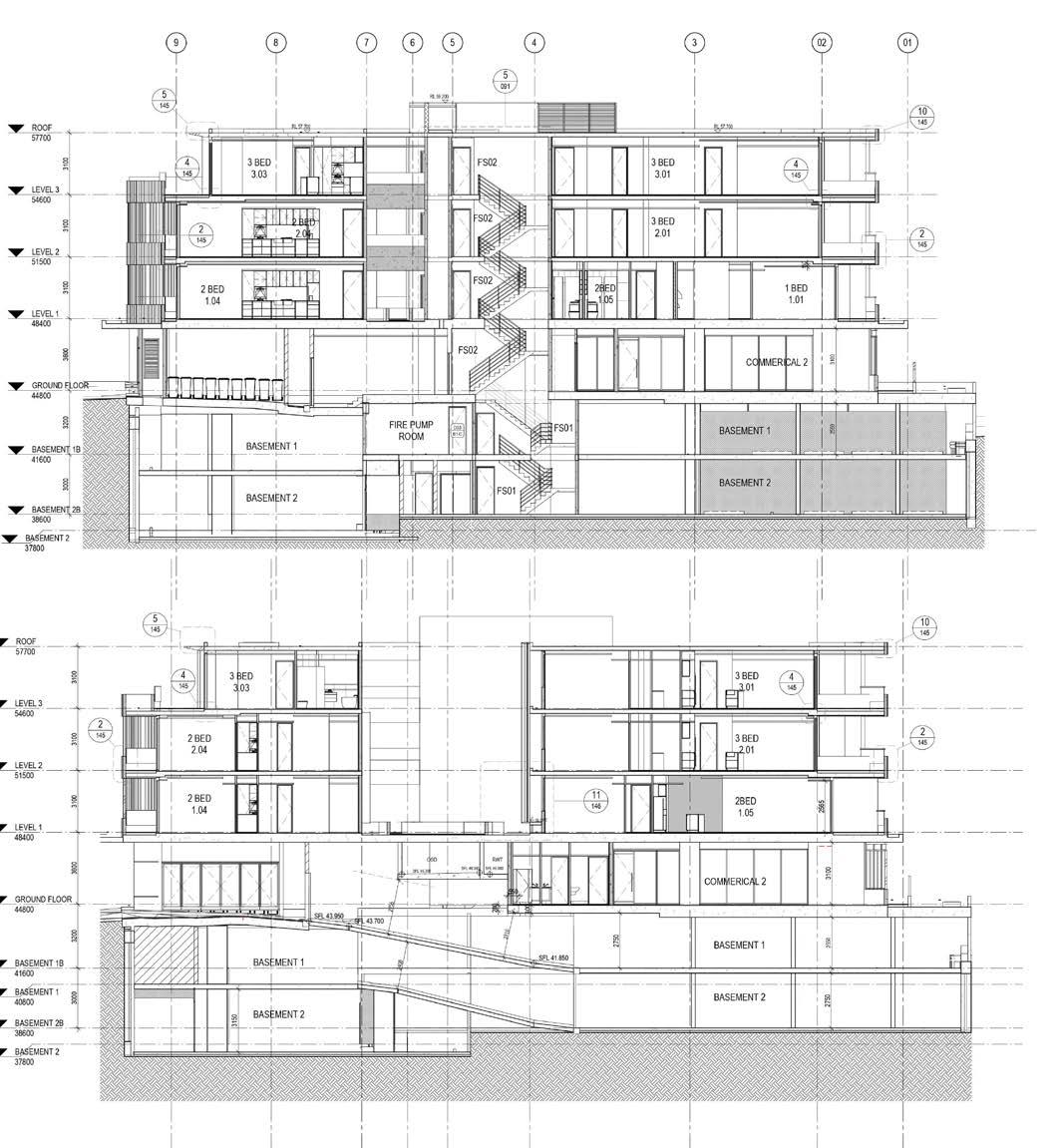

Building Section

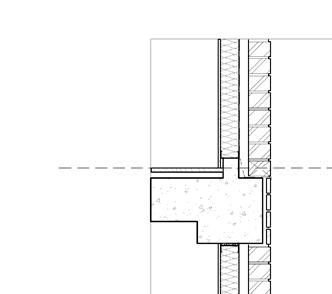

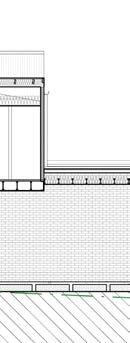

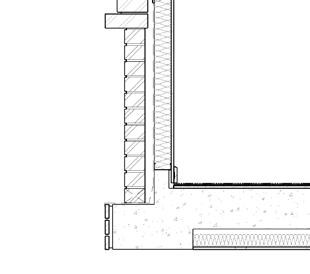

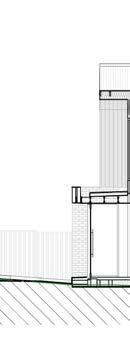

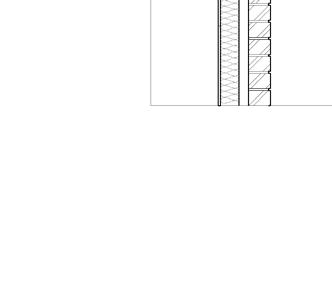

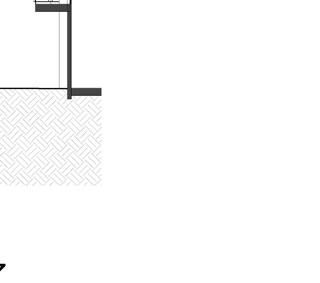

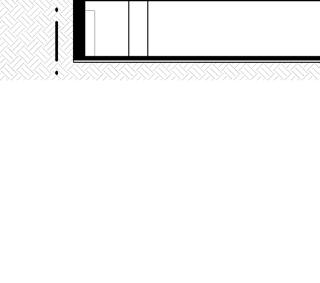

Detailed Sections
SELECTED PAVERSAS PER EXTERNAL FINISHES SPECIFICATION
ENSURE THAT ALL WATERPROOFING MEMBRANE DETAILING IS INSTALLED TO MANUFACTURERS RECOMMENDED DETAILS AND SPECIFICATIONS INCLUDING BUT NOT LIMITED TO PENETRATIONS AND UPSTANDS. TO COMPLY WITH ALL BCA/NCC AND BASIX REQUIREMENTS AS
TILE INSERT BALCONY DRAIN WATERPROOF MEMBRANE FLOOR WASTE SLEEVE TO HYDR. ENGS DETAILS INTERNAL PLASTERBOARD WALL SKIRTING FFL SFL 5 0 PACKING AS REQUIRED WATERSTOP ANGLE BACKING ROD & SEALANT WATERPROOFING TERMINATION HEIGHT ACCORDANCE WITH AS4654.2 5° FALL 1 1 0 0 SELECTED PAVERSAS PER EXTERNAL FINISHES SPECIFICATION ENSURE THAT ALL WATERPROOFING MEMBRANE DETAILING IS INSTALLED TO MANUFACTURERS RECOMMENDED DETAILS AND SPECIFICATIONS INCLUDING BUT NOT LIMITED TO PENETRATIONS AND UPSTANDS. TO COMPLY WITH ALL BCA/NCC AND BASIX REQUIREMENTS AS WELL AS ALL RELEVANT AS/NZS STANDARDS BALCONY EXTERNAL FFL SFL 1 3 5 CONCRETE SLAB TO STRUCT ENG DETAILS SKIRTING TILE TO PERIMETER OF BALCONY TO PROTECT WATERPROOF MEMBRANE GLASS BALUSTRADE WITH STAINLESS STEEL PATCH FIXING TO REAR OF PRECAST PANEL 4 0 0 7 0 0 4 0 0 1 1 0 0 TIMBER LOOK CLADDING TO BALCONY SOFFIT 1 0 0 6 5 2 0 0 METAL CAPPING TO MANUFACTURE DETAIL SAND AND CEMENT MORTAR BASEMENT SFL PERIMETER DISH DRAIN, WITH OUTLETS SPACED TO HYD ENG DETAILS CONCRETE SLAB TO STRUCT ENG DETAILS EXISTING SHORING WALL BLUE METAL PREIMETER DISH DRAIN WATERPROOF MEMBRANE AGG LINE TO HYD ENG DETAIL SFL EXISTING SHORING WALL NON-TRAFFICABLE ROOF MULTI-LAYER WATERPROOFING
UV PROTECTION.
TO OUTLETS/OVERFLOWS
DETAILS CONCRETE SLAB TO ENGINEERS DETAILS. PAINT FINISH FILLET WATERPROOF MEMBRANE TO WRAP AROUND SLAB TO DRIP GROOVE ROOF DECK FOLDED METAL FLASHING WEDGED INTO NOM. 6mm SAWN REGLET & FULLY BEDDED IN SEALANT RC ROOF SLAB TO STRUCT ENGS DETAILS. TOP OF SLAB WITH 1:100 MIN. FALLS TO DRAINAGE OUTLETS VAPOUR BARRIER FULLY TAPED TO U/S SLAB PRECAST CONC. PARAPET TO STRUCT ENGS DETAILS RC ROOF SLAB & UPSTAND CAST INTO PARAPET TO STRUCT ENGS DETAILS WATERPROOF MEMBRANE 1 0 0 M I N L A P PACKING AS REQUIRED FLASHING ENG 3° FALL SUB-FRAMING BEAM TO METAL INSTALLED TO DETAILS 167 00° N/A 145 Scale 1 : 5 3 SECTION Scale 080 1 : 5 4 SECTION Scale 080 1 : 10 2 SECTION -CONC BALUSTRADE -TYPICAL Scale 1 10 9 SECTION -BASEMENT DRAINAGE AWNING SLAB EDGE NameReg No 0000380 0000380 BALCONY FFL BALCONY TILES ON SCREED WITH FALLS SFL CAST-IN LEAK CONTROL FLANGE TILE INSERT BALCONY DRAIN WATERPROOF MEMBRANE WATERPROOF MEMBRANE FLOOR WASTE SLEEVE TO HYDR. ENGS DETAILS DRAINAGE GAP 3 MIN. DRAINAGE GAP 3 MIN. FALLS TO DRA N 1:100 MIN FALLS TO DRAIN 1 100 MIN INTERNAL EXTERNAL BALCONY PREFINISHED ALUM. SUBSILL PREFINISHED ALUM. SLIDING DOOR PLASTERBOARD
SKIRTING FFL SFL 5 0 WATERPROOF MEMBRANE FILLET BACKING ROD & SEALANT
WATERSTOP
RETURNED SAND AND CEMENT SCREED BED 7 0 WATERPROOFING TERMINATION HEIGHT IN ACCORDANCE WITH AS4654.2 1 1 0 0
MEMBRANE WITH
FALLS
TO HYDRAULIC ENGINEERS
WALL LINING
PACKING AS REQUIRED WATERSTOP ANGLE BACKING ROD & SEALANT
ANGLE
AS ALL RELEVANT
STANDARDS BALCONY EXTERNAL FFL SFL 1 3 5 CONCRETE SLAB TO STRUCT ENG DETAILS SKIRTING TILE TO PERIMETER OF BALCONY TO PROTECT WATERPROOF MEMBRANE GLASS BALUSTRADE WITH STAINLESS STEEL PATCH FIXING TO REAR OF PRECAST PANEL 4 0 0 7 0 0 4 0 0 1 1 0 0 TIMBER LOOK CLADDING TO BALCONY SOFFIT 1 0 0 6 5 2 0 0 METAL CAPPING TO MANUFACTURE DETAIL SAND AND CEMENT MORTAR BASEMENT SFL PERIMETER DISH DRAIN, WITH OUTLETS SPACED TO HYD ENG DETAILS CONCRETE SLAB TO STRUCT ENG DETAILS EXISTING SHORING WALL BLUE METAL PREIMETER DISH DRAIN WATERPROOF MEMBRANE AGG LINE TO HYD ENG DETAIL SFL EXISTING SHORING WALL All dimensions prior to commencement CONSTRUCTION General Requirements • Window sizes are approximate • All glass thickness to be suitable • All frames to windows shall be • All windows to comply with current • All windows and doors to be complete • Do not scale window openings • All steelwork to be hot dipped • Steelwork 3 tier paint system -2 colour / hardener. • Expansion joints in brickwork to • All brick ties, lintels and structural • All mortar and brickwork to be salt • All DA conditions to be complied • Provide falls in all areas to achieve ensure acceptance by structural • Waterproofing to all areas to be hydraulic consultant. • All warranties and guarantees to • Painting to AS2311, builder to any work commencing. • All glass balustrades to comply prior to any fabrication. To be confirmed • Exposed timber to be selected • Sound transmission and insulation accordance with relevant BCA/NCC. • Service ducts and pipes to comply provide specialist advice for strict • All service ducts/rises/penetrations requirements. • Mechanical ventilation zones to • Builder to provide full certificate • All steel lintels to be fire rated. (Fire seperation to all floor and cavities • "Homeguard" termite management comply with AS 3660.1 • Glazing to sliding doors and areas • Full compliance with BASIX & Nathers • Builder and all trades must register (www.1100.com.au) prior to commencing • All Mechanical, Electrical Hydraulic • External cladding to be Non-Combustible • All elements within wall systems Standards. • Full compliance with Section J All Standards and Codes including to • All building products in the building Included but not limited to the Building relevant Australian Standards, approved • Building Products and systems relevant specialist consultants prior • Full compliance with the following AS 4858 Wet Areas Membranes, AS 3740 Waterproofing of AS 4654.1 Waterproofing membranes AS 4654.2 Waterproofing membranes • DWA hereby repeats, for clarity that if any building product or item pursuant to the Scope of Works, any event you must ensure that practices relevant to the Site and provide the warranty and undertaking The original Application services DISCLAIMER PUBLIC DOMAIN CIVIL SGC Suite 5.03, Level 5, 156 PACIFIC HIGHWAY ST. LEONARDS, NSW 2065 WASTE ELEPHANTS FOOTScale 1 : 5 3 SECTION -BALCONY DRAIN Scale 080 1 : 5 4 SECTION -BALCONY SETDOWN Scale 080 1 : 10 2 SECTION -CONC BALUSTRADE -TYPICAL DRAINAGE REV DATE A 30.09.2022 FOR B 02.12.2022 PRELIMINARY 1 24.01.2023 ISSUED 2 01.03.2023 ISSUED
WELL
AS/NZS
1 LEA AVENUE, RUSELL LEA
Dual Occupancy Stage : Completed
The proposal is a 400 sqmt town house valued around 2 million dollars.
My Role
- Managed tender and CC dcoumentation based on approved DA drawings.
- Prepared schedule of fixtures and finishes based on client requirements.
- Liased with Certifier, Structural, Stormwater, Basix consultants to attain Construction Certificate approval.
- Resolved client and contractor’s RFI to maintain project operating efficiently on site.

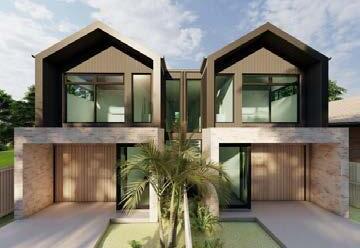

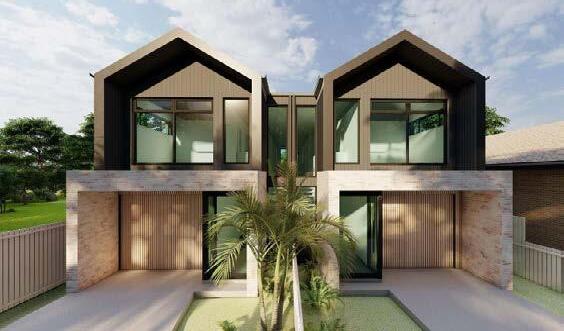

DESIGN PLANS ONLY - FOR APPROVAL Scale: Date: Drawn: Drawing: Project No: Drawing No: Issue: Issue Description No. Date Project: Client: NO PART OF THIS DESIGN TO BE ALTERED OR REPRODUCED WITHOUT WRITTEN PERMISSION. © COPYRIGHT FUTUREFLIP. ALL RIGHTS RESERVED. 6 C810 23/03/2022 JB 20-105 3D PERSPECTIVES Proposed Dual Occupancy 1 Lea Ave, Russell Lea NSW 2046 Gabriel Hammond FRONT VIEW REAR VIEW CRFI 1 DRAFT Issue to Council05/02/21 DRFI 1 COUNCIL SUBMISSION12/02/21 HCOUNCIL CONSENT ADJUSTMENTS 07/06/21 4FOR QUOTE 11/02/22 5FOR APPROVAL 17/03/22 6FOR APPROVAL 23/03/22

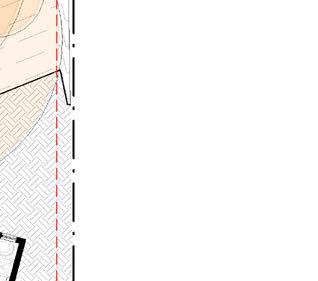

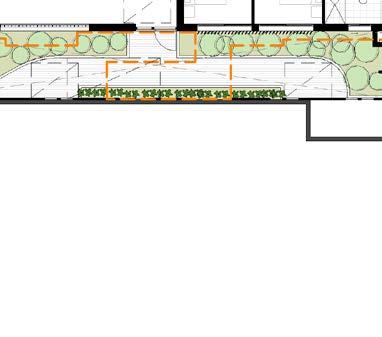

Ground Floor Plan
15 14 13 12 11 10 9 7 6 5 4 3 2 1 15 14 13 12 11 10 9 8 7 6 5 4 3 ENTRY ENTRY HL WINDOW BINS BINS A/C A/C VOID ABOVE REFER TO LANDSCAPE ARCHITECT PLANS REFER TO LANDSCAPE ARCHITECT PLANS RF STRIP DRAIN TO STORMWATER ENGINEERS DETAILS. DRIVEWAY DRIVEWAY FFL 30.78 VOID ABOVE BED 1 STUDY LDY (GF) KITCHEN DINING LIVING VOID ABOVE BED 1 STUDY LDY (GF) VOID ABOVE LIVING STORE KITCHEN DINING VOID ABOVE VOID ABOVE GARAGE PTY (GF) RF BATH 1(GF) PTY (GF) GARAGE STRIP DRAIN STRIP DRAIN STORE CL CL ALFRESCO HL WINDOW 1 4 2 A B C FFL 30.88 to fall FF02 to fall FF02 FFL 30.88 FF01 FF01 FF01 FF11 FFL 30.33 FF11 FFL 30.33 WT02 WT02 Stair 2 Stair 3 Stair 3A Stair 2A RB01a RB01b WT02 WT03 WT02a WT04 WT04 WT02 WT04 WT04 WT03 WT03 WT02 WT02 WT03 BATH 1 (GF) Vent: 0.3m S/O side boundary fence, 7.6 m off rear boundary fence, 11 m height, 1.4 m to invert. Refer to Sheet No. C630 For Details Manhole: 0.8m S/O side boundary fence, 14.1 m off rear boundary fence, 1.7 m to invert. Sewer Pipe 21 STAIR 1 STAIR 1A GROUND FLOOR LOWER GROUND FLOOR GAS INSTANTANEOUS HOT WATER SYSTEM AS PER BASIX GAS INSTANTANEOUS HOT WATER SYSTEM AS PER BASIX PROVISION FOR GAS POINT PROVISION FOR GAS POINT FFL 30.78 ALFRESCO 1500 WT01 18350 4570 2960 1510 90 GARAGE 5800 90 BED 1 3700 90 BATH 1600 90 PTY 1200 90 KITCHEN 4000 90 LIVING 4480 90 ALFRESCO 2960 8440 WINDOW 2500 390 WINDOW 1500 5520 795 WINDOW 2890 3845 500 ENTRY 2099 90 STAIR 1A 4990 90 STUDY 2400 90 LDY 2400 90 730 90 9261 90 2960 240 GARAGE 3029 90 ENTRY 1150 STAIR 1 1006 270 STAIR 1A 1006 ENTRY 1150 90 GARAGE 3029 240 10999 90 PTY 3029 90 1150 90 LDY 916 270 LDY 916 90 1150 90 PTY 3029 90 3 FF04 FF01 FF01 FF04 FF04 FF04 FFL 30.33 LOWER GROUND FLOOR FFL 30.33 UNIT 1A UNIT 1 FF01 GROUND FLOOR GF W-11 GF W-10 GF W-09 GF W-08 GF W-07 GF W-06 GF W-05 GF W-04 GF W-03 GF W-02 GF W-01 GF W-14 GF W-13 GF W-12 D-06 A D-03 A D-02 B D-05 A D-04 C D-05 C D-07 B D-08 B D-09 A D-10 C D-11 C D-12 A D-13 A D-14 B D-01 D D-15 D 90 610 90 ALFRESCO 4550 320 ALFRESCO 4550 90 610 90 90 5275 270 5275 90 2210 1510 2500 L RWT 2500 L RWT 1 1 POOL PUMP TO COMPLY WITH REQUIRMENTS OF PROTECTIONS OF ENVIRONMENT OPERATIONS REGULATIONS 2008 FF12 WT05 WT05 WT08 TP TP TP TP TP TP TP TP TP TP TP TP TP TP TP TP TP TP TP TP TP TP TP TP TP TP TP TP TP TP TP TP DP DP DP DP DP DP DP 150 10999 150 HWS HWS EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ FINGER PULL ACCESS PANELS FOR OSD BELOW DP to fall to fall 240 240 18350 4570 2960 1510 90 GARAGE 5800 90 BED 1 3700 90 BATH 1600 90 PTY 1200 90 4000 KITCHEN 90 LIVING 4480 90 ALFRESCO 2960 8440 WINDOW 2500 390 WINDOW 1500 5520 795 WINDOW 2890 3845 500 ENTRY 2099 90 STAIR 1 4990 90 STUDY 2400 90 LDY 2400 90 730 90 9261 90 2960 WT02a WT06 WT06 WT07 WT07 1 C215 2 C215 1760 1715 350 2909 1251 350 1579 350 1251 2909 350 FF12 90 BED 1 3029 90 1150 90 STORE 916 270 STORE 916 90 1150 90 BED 1 3029 90 WT06 WT07 DESIGN PLANS ONLY - FOR APPROVAL Scale: Date: Drawn: Drawing: Project No: Drawing No: Issue: Issue Description No. Date Project: Client: NO PART OF THIS DESIGN TO BE ALTERED OR REPRODUCED WITHOUT WRITTEN PERMISSION. © COPYRIGHT FUTUREFLIP. ALL RIGHTS RESERVED. 6 1 : 100 C210 23/03/2022 Author 20-105 GROUND FLOOR PLAN Proposed Dual Occupancy 1 Lea Ave, Russell Lea NSW 2046 Gabriel Hammond IGARAGE AMENDMENT 06/08/21 1PRELIMINARY REVIEW 01/10/21 2FOR CONSULTANTS 03/11/21 3ISSUE TO CLIENT 25/11/21 4FOR QUOTE 11/02/22 5FOR APPROVAL 17/03/22 6FOR APPROVAL 23/03/22 1 : 100 Ground Floor
GROUND FLOOR RL 30.88 FIRST FLOOR RL 33.64 FIRST FLOOR CL RL 36.04 SITE BOUNDARY FCL GROUND RL 33.30 ROOFLINE RL 37.82 SITE BOUNDARY A B C 1775 2400 340 2420 6935 WT03 WT03 WT06 WT06 WT03 R01 FF W-03 FF W-02 FF W-01 FF W-22 GF W-13 GF W-14 GF W-01 GF W-02 D-15 D D-01 D FF W-21 FF W-20 APPROVAL Drawing: Project: 0m Scale Bar 1m2m 4m 3m 5m 1:100 NOTE : REFER TO WINDOW SCHEDULE WINDOW SIZES AND SILL HEIGHTS REFER TO EXTERNAL FINISHES AND ROOF FINISHES

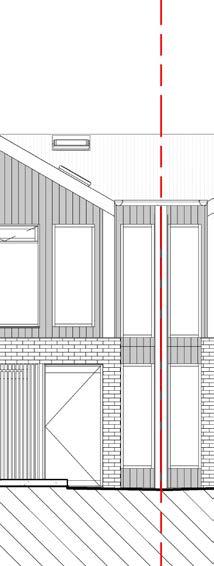

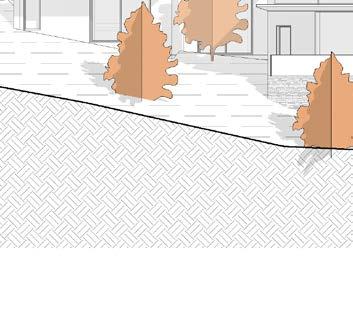

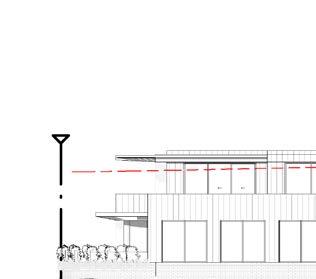

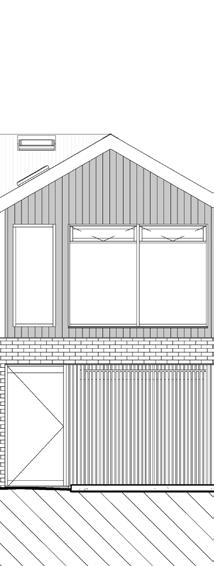

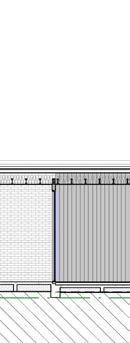

Front Elevations

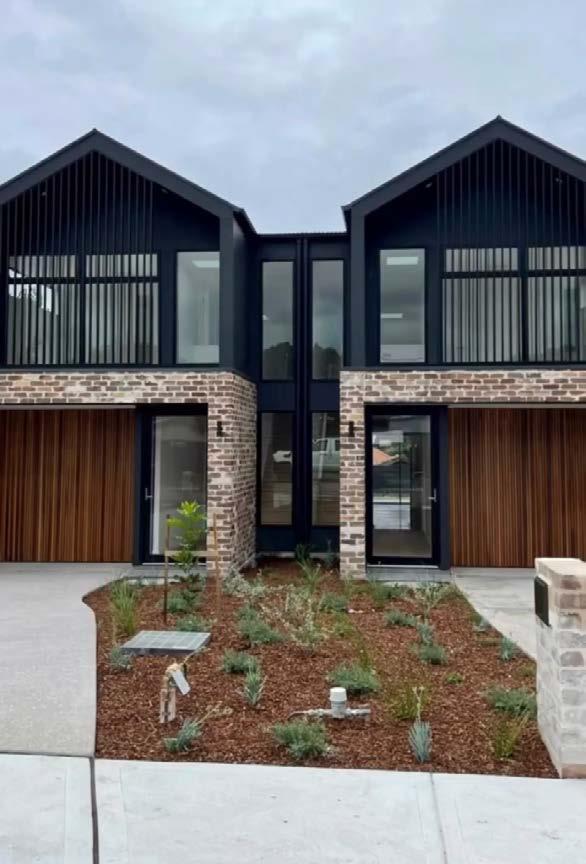

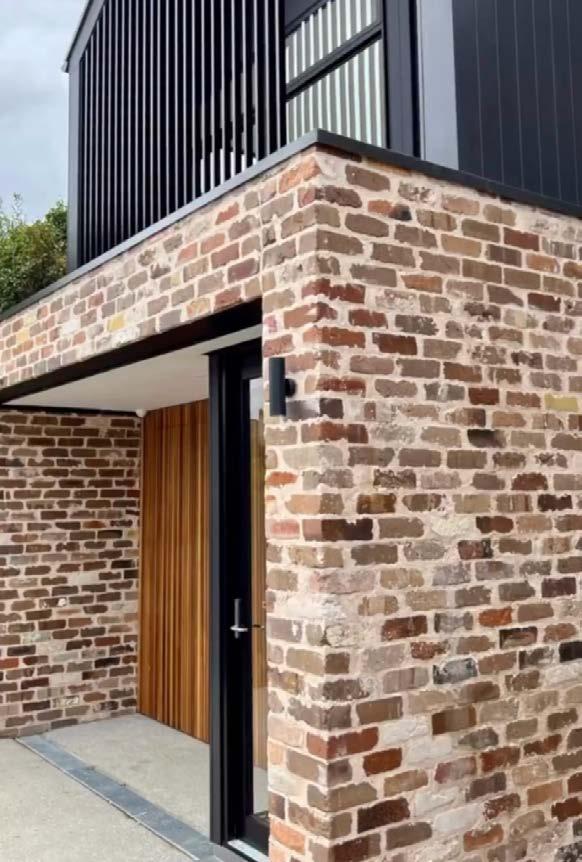

Site Images

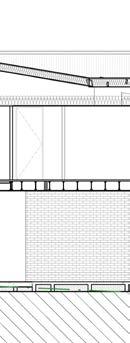

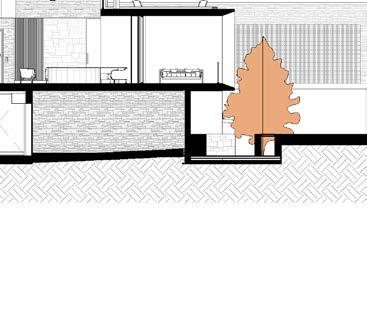

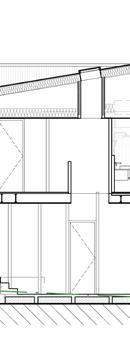

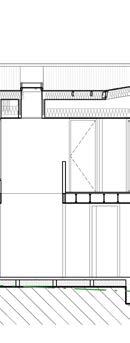

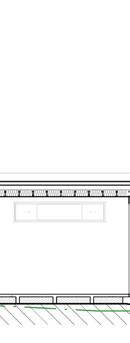

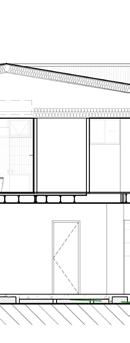

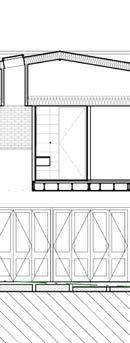

Building Secions
GROUND FLOOR FIRST FLOOR RL 33.64 FIRST FLOOR CL RL 36.04 LOWER GROUND 1775 2400 340 FCL GROUND RL 33.30 ROOFLINE RL 37.82 1775 2400 340 6935 7485 ENTRY BATH LINEN WIR MASTER BED HALL VOID VOID 1 4 2 3160 2400 2400 3 AC UNIT 450 1000 1000 D-25 A D-24 A DWELLING 1 SK W-01 R01 WT02 WT02 WT03 WT05 WT03 WT06 500 DESIGN PLANS ONLY - FOR APPROVAL Drawing No: Project: Client: NO PART OF THIS DESIGN TO BE ALTERED OR REPRODUCED WITHOUT WRITTEN PERMISSION. © COPYRIGHT FUTUREFLIP. ALL RIGHTS RESERVED. 1 : 100 C440 23/03/2022 JB 1 Lea Ave, Russell Lea NSW 2046 1 : 100 Section A-A 3m GROUND FLOOR RL 30.88 FIRST FLOOR RL 33.64 FIRST FLOOR CL RL 36.04 LOWER GROUND RL 30.33 FCL GROUND RL 33.30 ROOFLINE RL 37.82 1 4 2 3 1 C670 310 335 2 C670 3160 1000 D-03 A D-04 C D-05 C D-20 A D-18 A 2400 1775 2400 340 2420 550 7485 550 2950 LIVING DINING ALFRESCO MASTER LINEN ENTRY BATH 2440 DWELLING 1A SK W-06 R01 WT02 WT03 WT05 WT03 WT06 WT02 VOID NGL 1 C661 DESIGN PLANS ONLY - FOR APPROVAL Scale: Date: Drawn: Drawing: Project No: Drawing No: Issue: Issue Description No. Date Project: Client: NO PART OF THIS DESIGN TO BE ALTERED OR REPRODUCED WITHOUT WRITTEN PERMISSION. © COPYRIGHT FUTUREFLIP. ALL RIGHTS RESERVED. 6 1 : 100 C470 23/03/2022 Author 20-105 SECTION Proposed Dual Occupancy 1 Lea Ave, Russell Lea NSW 2046 Gabriel Hammond 1 : 100 Section DD 5FOR APPROVAL 17/03/22 6FOR APPROVAL 23/03/22
SIOLIM VILLAS, GOA
High - End Residential Stage : Completed
The proposal is a 500 sqmt luxury home and amenities valued around 2 million dollars.
My Role
- Involved from design development to completion stage.
- Managed tender and construction documentation process.
- Liased with client, various consultants and site contractors. Attended site meetings to monitor design compliance and resolve issues.

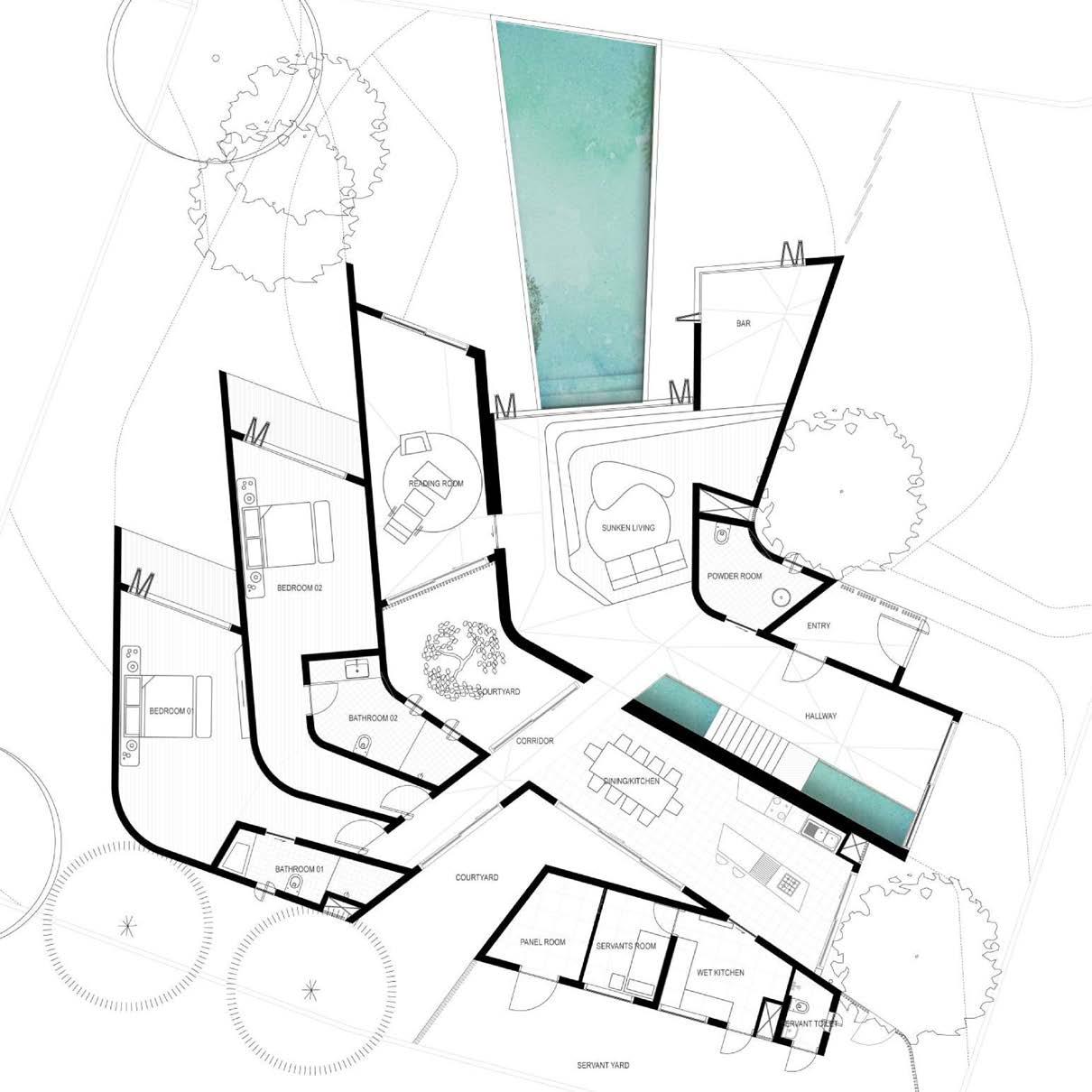

Conceptual Plan
Construction Plan
1 3 6 7 8 9 10 11 12 13 14 15 16 UP 1 2 UP 1 UP SKYLIGHT ABOVE R300 D E F C B D E F C B 14 13 12 11 10 9 M2 RM FFL FSL +101.85M 20.2 HALLWAY +101.80M M2 RM FFL FSL +101.85M 7.2 ENTRY +101.80M M2 RM FFL FSL +101.85M 6.7 POWDER ROOM +101.80M M2 RM FFL FSL +101.25M 26 SUNKEN LIVING +101.20M M2 RM FFL FSL +101.85M 12.6 BAR +101.80M M2 RM FFL FSL +101.85M 24.4 READING ROOM +101.80M M2 RM FFL FSL +101.85M 30 BEDROOM 02 +101.80M M2 RM FFL FSL +101.85M 30 BEDROOM 01 +101.80M M2 RM FFL FSL +101.85M 9.6 BATHROOM 02 +101.80M M2 RM FFL FSL +101.85M 6 BATHROOM 01 +101.80M M2 RM FFL FSL +101.85M 6 PANEL ROOM +101.80M M2 RM FFL FSL +101.85M 6.4 SERVANTS ROOM +101.80M M2 RM FFL FSL +101.85M 8.3 WET KITCHEN +101.80M M2 RM FFL FSL +101.85M 2.2 SERVANTS TOILET +101.80M M2 RM FFL FSL +101.85M 31.4 DINING KITCHEN +101.80M ED2 ED9 ED3 ED6 ED7 ED6 ED8 ED8 ED10 ED5 ED5 D4 ED1 D2 D7 D7 D1 D16 D5 D1 D5 D5 W3 W3 W2 W1 W1 W1 D6 D3 R850 R1015 R855 3415 1445 1115 3950 5300 5325 4520 270 2045 1595 625 1005 4500 4765 3120 2485 R1800 R2150 1510 2825 2150 980 760 450 570 600 3470 2820 2870 435 1755 840 3200 3200 2700 600 2665 5940 825 2925 3580 3210 3230 1615 2660 1110 495 1170 905 3000 1395 1450 3030 600 1070 4500 200 1200 1500 1500 800 4620 2535 1495 1560 2520 215 1440 1620 560 1600 8300 1000 3905 2100 835 3855 3595 1635 2245 2030 3355 4275 400 915 2805 675 3000 790 4180 615 2435 2300 1325 2115 5005 1000 1830 3740 4150 900 2595 555 800 1155 1240 795 1255 755 1000 1965 9245 1000 1850 1495 3510 680 900 2205 680 90° 1585 4320 1845 4375 3760 2060 1655 68° 2020 800 2970 2280 60° 60° 80° 66° 115° 65° 65° 115° 860 79° 121° 755 200 200 600 330 2935 1850 4005 1110 2745 4065 3020 1295 960 1395 1345 1490 1340 255 127° 70° 11600 1440 2210 500 500 2920 120 220 995 R550 1765 575 1990 1390 1865 270 500 945 1070 R1000 2275 2130 3205 600 1110 205 400 600 1200 970 4410 3485 600 100 1355 500 730 700 700 700 1160 107° 115 345 127° 150 580 1145 200 4890 4830 100 4000 155 125 3205 1525 1660 1185 150 3005 R300 205 205 6330 5785 300 480 R400 R600 3495 1450 410 280 205 2200 295 R200 365 270 R300 3215 72° 135 125 1000 160 1025 1025 100 705 3855 30 5705 3730 1025 3675 1260 1025 109° 127° 1660 1665 S1 W1 L1 PL L1 PL L1 PL L2 PL L1 L2 S1 EW2 EW1 EW2 EW1 EW1 EW1 EW4 EW4 EW1 EW1 EW4 EW1 EW1 EW1 EW1 EW1 EW4 EW8 EW1 IW2 IW2 EW4 IW1 IW1 IW1 IW2 IW2 IW1 IW5 IW11 EW1 EW1 IW6 IW1 IW1 EW6 EW9 FW2 FW1 FW1 FW1 EW9 UP L1 300 B 300 B 300 A C301 C301 300 A 301 D 301 D C8 C9 C16 C21 C35 C42 C41 C40 C33 C34 C30 C27 C37 C39 C38 C36 C23 C24 C10 C11 C22 C26 C29 C31 C32 C25 C18 C17 C12 C5 C4 C19 C20 C1 C3 C7 C6 C2 C13 C14 C15 C28 1 1 EW1 FW1 FFL +101.65M FFL +101.50M FFL +101.60M FFL +101.65M FFL +101.65M FFL +101.50M FFL +101.65M FFL +101.75M FFL +101.85M FFL +101.50M FFL COURTYARD +101.70M FFL SERVANTS YARD +101.65M FFL +101.75M FFL +101.65M RWP RWP RWP RWP UP PLOT BOUNDARY WALL PLOT BOUNDARY WALL RISERS STA LANDING TREADS 16 (250MM) 17 (195MM)M2 RM FFL +101.70M COURTYARD 16.8 RISERS STEP TREADS 3 (200MM) 1 2 RISERS STEP TREADS (200MM) RISERS STEP TREADS 3 (270MM) 2 2 M2 RM FFL FSL +101.70M 9.6 WATER FEATURE +101.65M M2 RM LSL HSL +100.69M POOL 40.8 +100.30M I-700 FWE I-700 FWE FWE I-700 FWE I-705 FWE FA-600 FWE FA-600 FSL +101.50M M2 RM FFL FSL +101.85M 8.3 CORRIDOR 1 +101.80M M2 RM FFL FSL +101.85M 18.3 CORRIDOR 1 +101.80M D15 L1 100 100 200 S2 RWP EW6 EW1 EW2 FW2 EW1 EW1 EW1 EW1 IW2 EW1 EW1 EW4 EW1 EW1 IW1 EW4 IW11 EW1 EW1 EW1 EW1 EW8 U.G.T LOCATION FSL VERANDAH +101.80M FSL VERANDAH +101.80M SUN HOUSE - GROUND FLOOR DIMENSION PLAN_SCALE 1:50

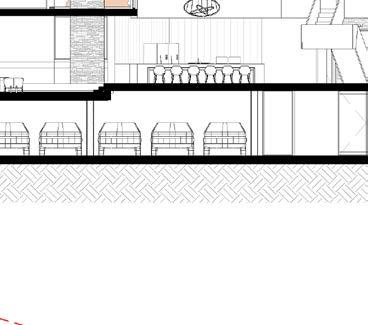

Building Sections
1.ALL

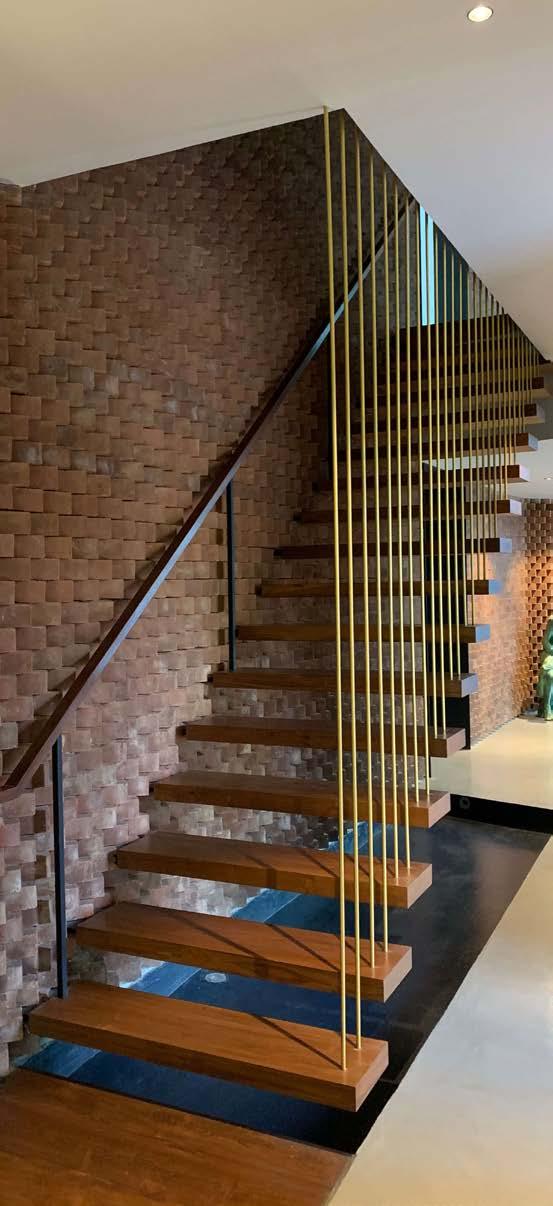

Staircase Detail
4.ANY
5.THIS
Structual Engineer Local Architect M&E Engineer Yogesh Bhobe Kundan Prabhu Teesdale Street E2 6 QF London, UK E: info@studioamitavikrant.com W: www.studioamitavikrant.com E: ms@krissco.com T: +919884934500 Minesh Shah A: Goa, India T: +91 9822485141 Main Contractor Rajesh Murkar A: C4b,Sapana Regency, Shirgaonker Road, Panaji, Goa E: yogibhobhe@gmail.com T: 0832 2423725, 6653177
DIMENSIONS ARE IN MM,UNLESS OTHERWISE SPECIFIED.
LEVELS ARE IN METERS, UNLESS OTHERWISE SPECIFIED.
NOT TO BE SCALED. WRITTEN DIMENSIONS TO BE FOLLOWED.
2.ALL
3.DRAWINGS
DISCREPANCY IN DIMENSIONS TO BE BROUGHT TO THE NOTICE OF THE ARCHITECT AND HIS DECISION SHALL BE FINAL.
DRAWING IS TO BE READ IN CONJUNCTION WITH DETAILS, LARGE SCALE DRAWINGS, STRUCTURAL, PLUMBING/ SERVICES, ELECTRICAL AND
