NOTES:
• LABEL ALL M&E EQUIPMENT
• MDB LABELS TO TYPED & LAMINATED
• COMMS UNIT TO BE LABELLED
• CONDENSATE LINES FROM AC UNITS RISK OF ICE SLIP
• ISOLATORS TO BE LABELLED AT OUTDOOR UNITS.
• ENSURE ALL EMERGENCY LIGHTING IS OPERATING CORRECTLY.
• LOG BOOKS AND ZONE CHART TO BE MOUNTED NEXT TO FAPS
• ALL DATA POINTS TO BE LABELLED USING PRINTED LABELS
• I/O TO BE INSTALLED IN MAIN BUILDING TO CONNECT MAIN FAP TO CABINS FAP
• FULL O&M AND CERTIFICATES TO BE ISSUED FOR FINAL SIGN OFF
• 5 LUX TO BE ACHIEVED ON VERTICAL FACE OF FAP, BGU AND DISTRIBUTION BOARD VIA EMERGENCY LIGHTING. THIS CAN GENERALLY BE ACHIEVED BY FITTING EMERGENCY LIGHT WITHIN 2M OF FAP/DB.
• EMERGENCY LIGHTING TO ACHIEVE NO LESS THAN 0.5 LUX HORIZONTAL ILLUMINANCE IN ROOM OVER 60M2. ACCESSIBLE WC REQUIRES EM LIGHT ALSO (1LUX HORIZONTAL ILLUMINANCE).
• EMERGENCY LIGHT BULKHEAD REQUIRED OVER FINAL EXIT.
• SMOKE DETECTORS REQUIRE 500MM CLEARANCE FROM PARTITION/WALLS.

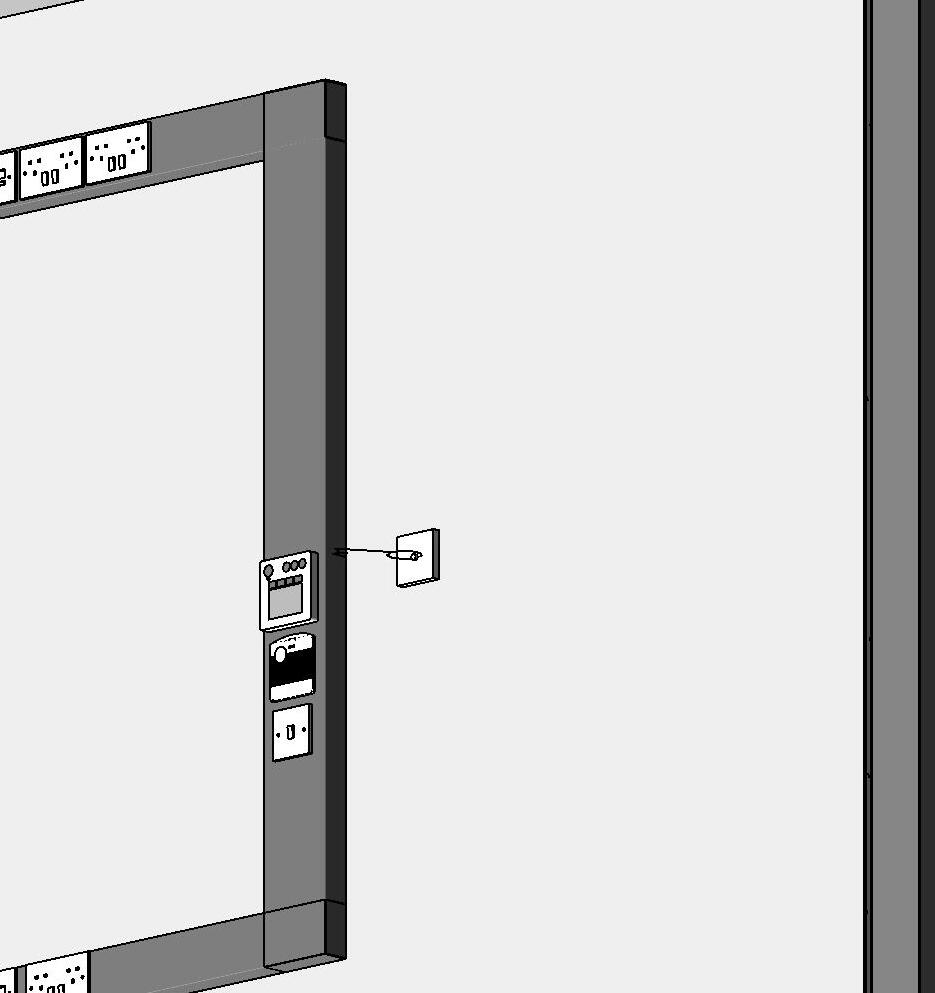

• EMERGENCY CALL CONTROL TO BE INCLUDED ON TEACHER’S WALL.
• SMOKE DETECTOR VAD S TO BE INCLUDED IN CLASSROOM AND WC’S.

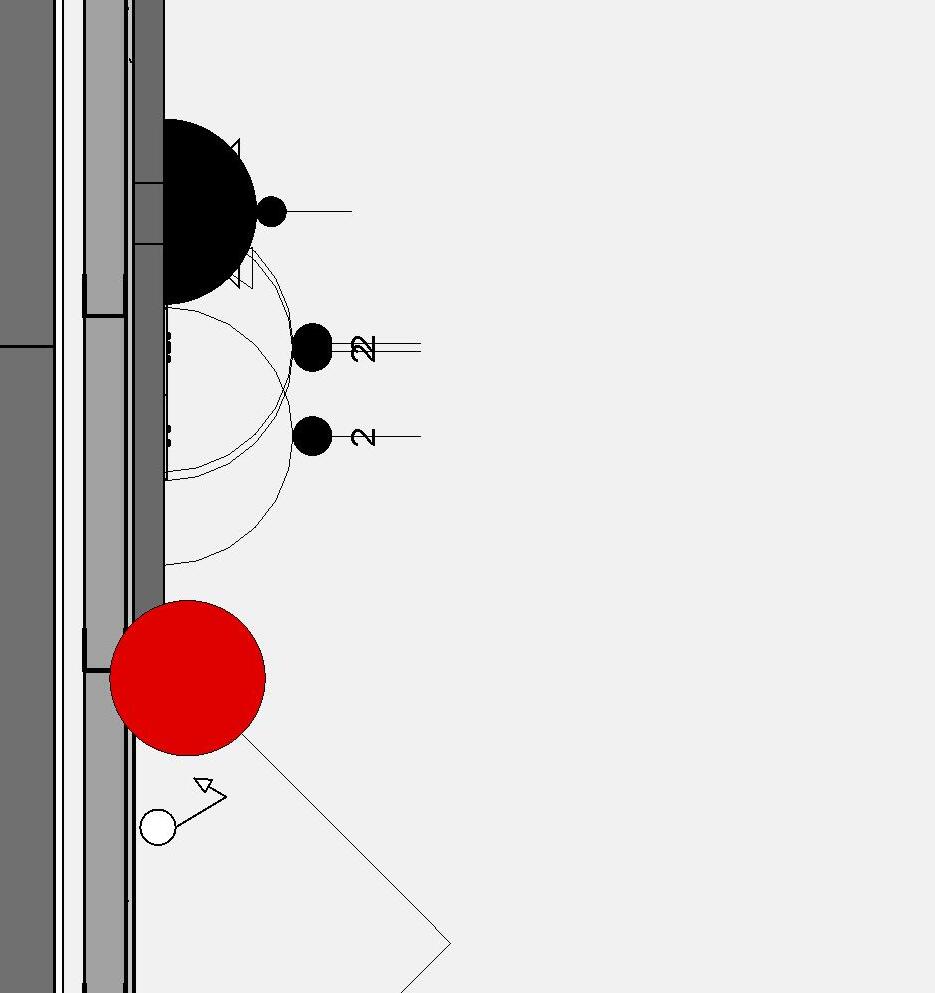

• RESET BUTTON TO BE LOCAL TO PULL CORD. NOTES:

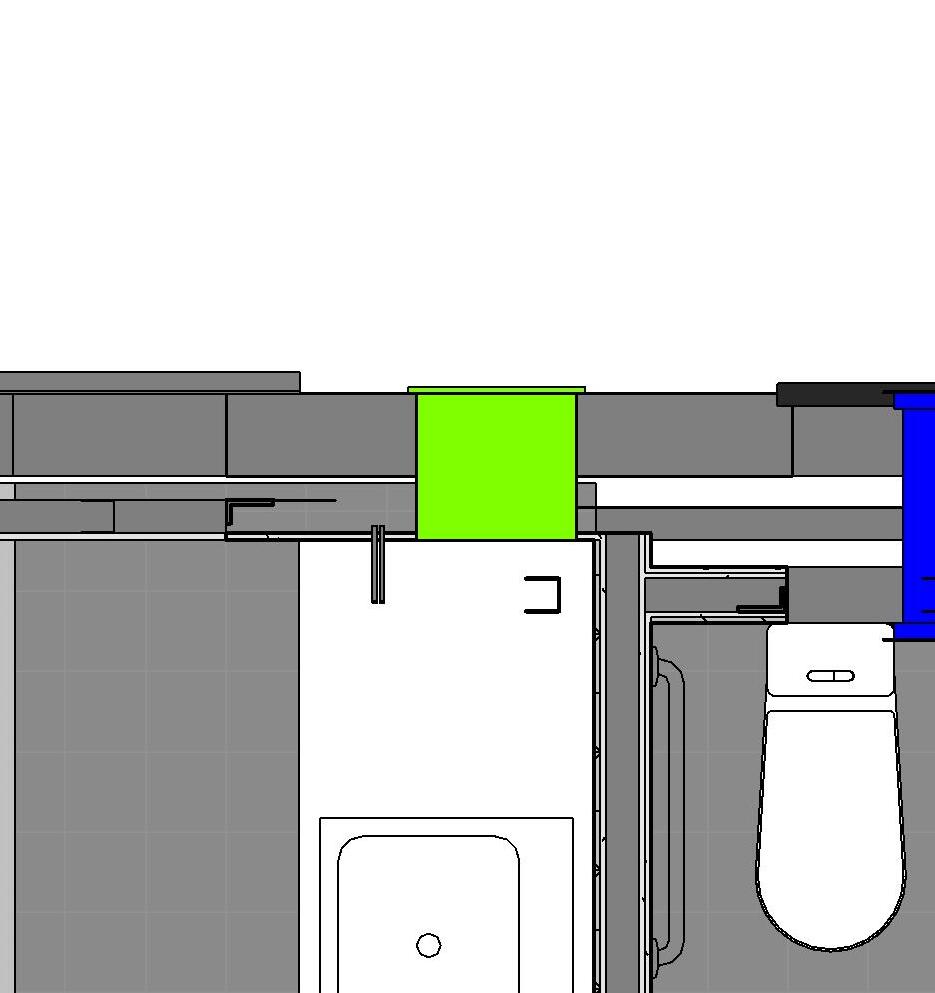

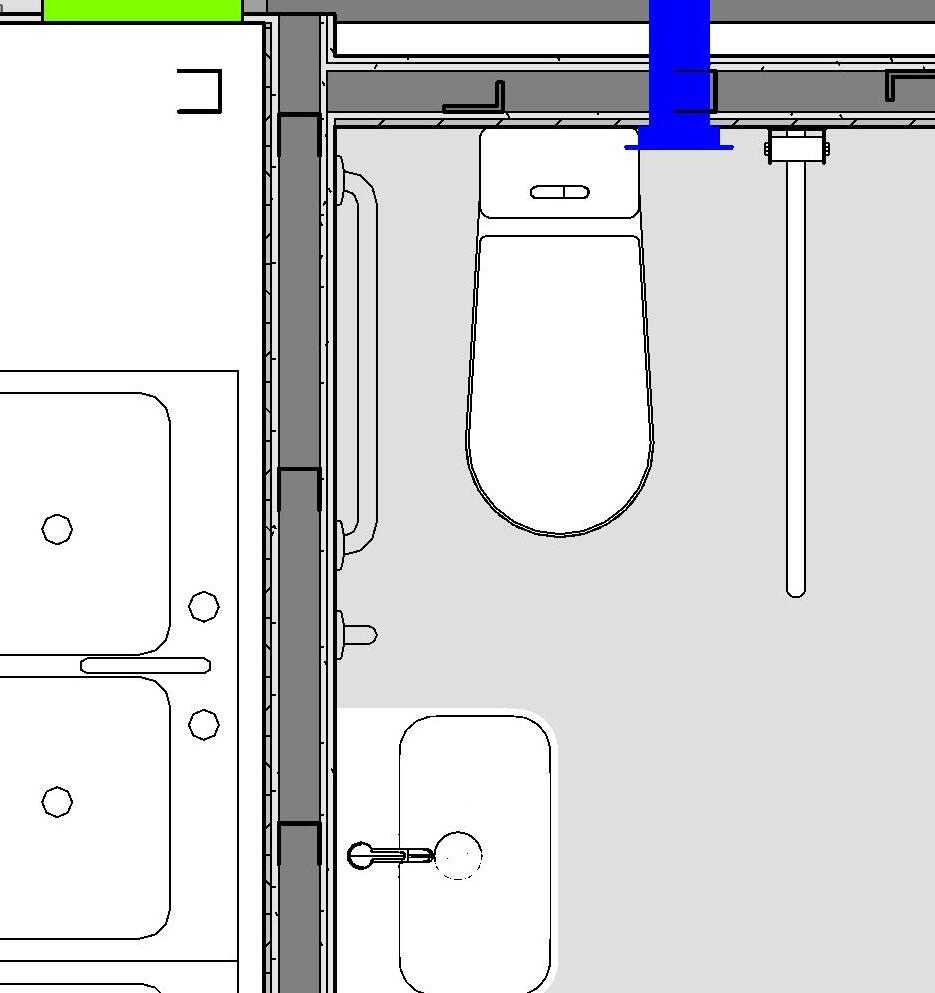

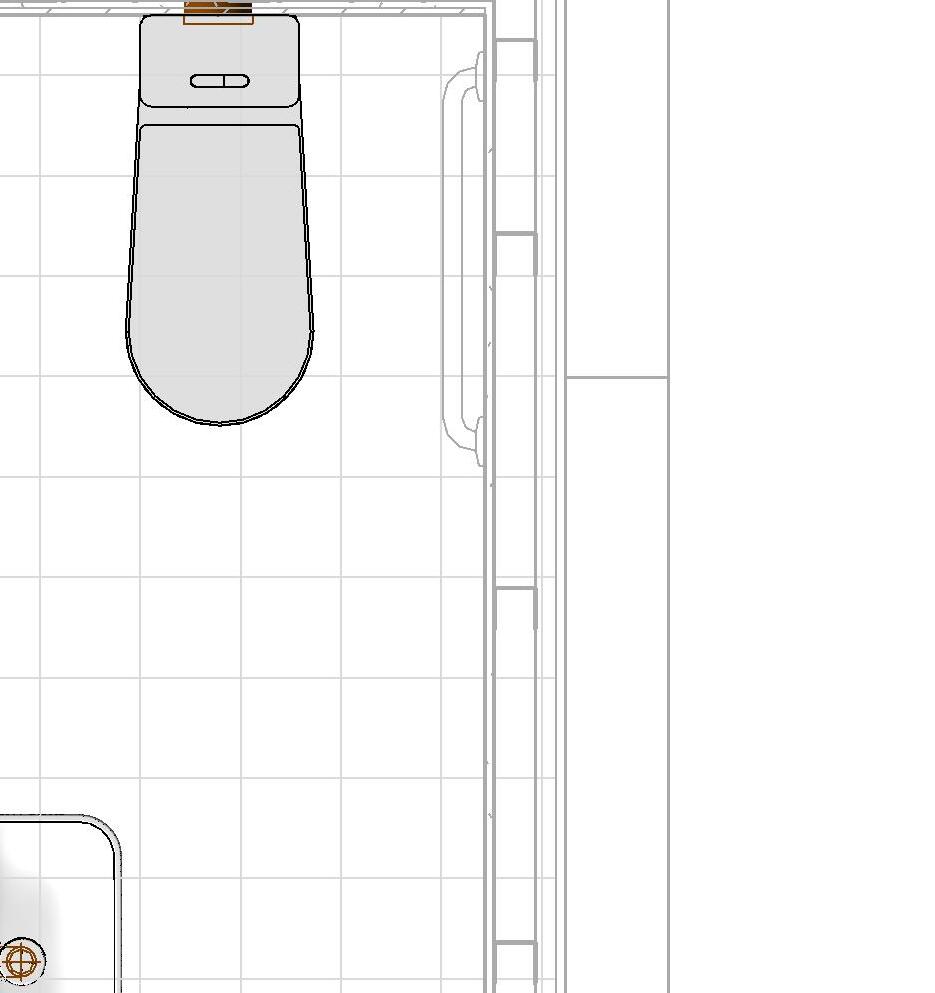

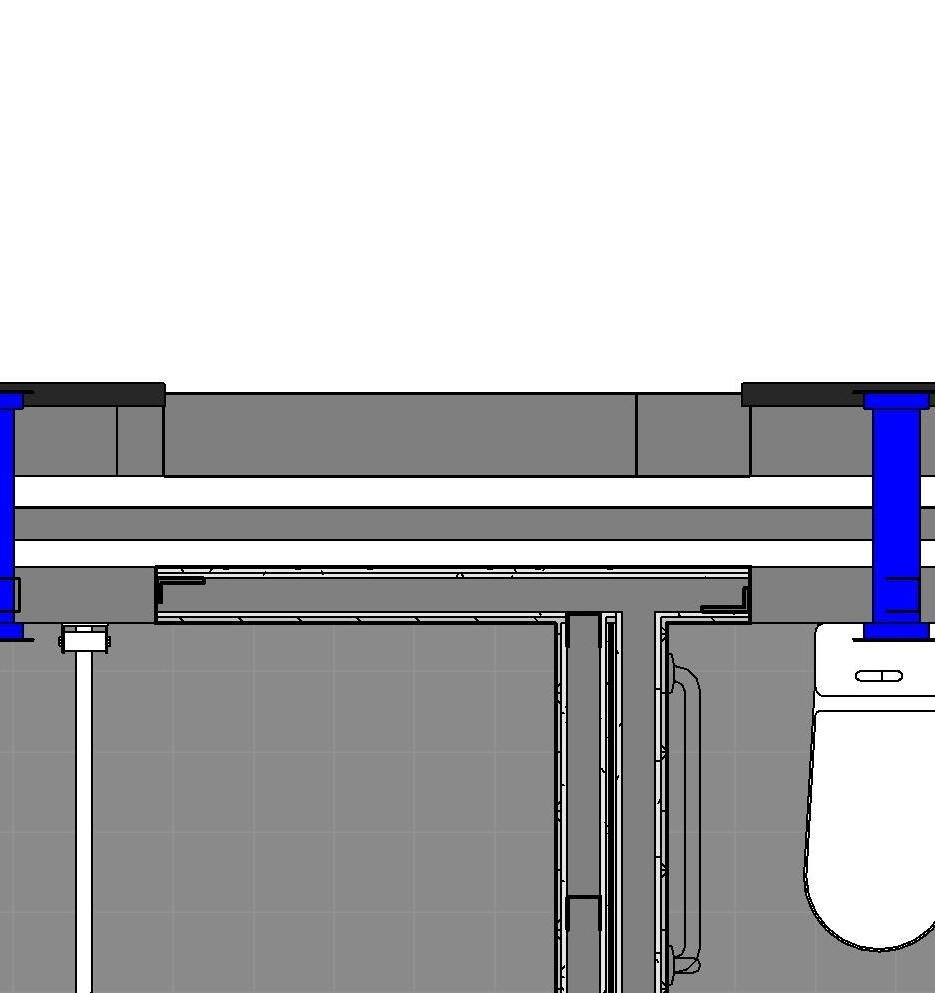

• EMERGENCY PULL CORD ONLY REQUIRED IN ACCESSIBLE WC.
