BUILDINGTYPE:RESIDENTIAL
DGTRA
SCOPEOFWORK:MODELLING,COORDINATION&TENDER
DRAWINGS
PROJECTUNIT:METRIC
SAMPLEPROJECTS
REGION:UK RDINATION
DOORSCHEDULE
DOORTYPEE
DOORTYPED
DOORTYPE
structuralop. 1006 (TBC) 926
800mmEffectivewidth
TYPICALAMBULENTTOILET DOOR (VIEWFROMINSIDE)
Providecoathook@1500mmoffFFL
Doornumbers:D4.
TYPICALACCESSIBLETOILETDOOR ELEVATION (VIEWFROMINSIDETOILET)
Providecoathook@1500mmoffFFL
Doornumbers:D3.
DOORSCHEDULE
TYPICALELECTRICAL CUPBOARDDOOR (VIEWFROMOUTSIDE)
Providesignstating Firedoorkeepshut.
Doornumbers:D2.
ProposedGround
Level2ElectricalCupboardSingleleafC12510062090926204010mmYesYesNoSolidCoreOakVeneer2
ProposedGround
Level3AccessibleToiletSingleleafB125110620901026204010mmNoNoNANoSolidCoreOakVeneer4
ProposedGround
Level4WCSingleleafA12510062090926204010mmNoNoNANoSolidCoreOakVeneer4a
EXTERNALWALLTYPE1
Boardfixings:GlasrocXScrewstobenotlessthan10mmfrom edges. Itisrecommendedtouseastaggerpatternofatleast20mm forfixings.Screwheadsshouldbefinishedflushwiththeboard surfacewithoutdamagetothecore. GlasrocXscrewsat300mmcrswith1stfixingofboardintostud 100mmabove/belowbaseplate/headplate. GlasrocXScrewstopenetrate25mmintotimberstudwork 6mmbeadofGlasrocXSealantalongjoints. 125x44mmC24GradeSoftwoodTimberStuds@400mmcrs, 125x44mmC24Heads&Basetracks. 15mmGyprocFireLineBoard 100mmRockwoolFlexiRWa45frameslab(orsimilarminimum density35kg/m³ GyprocDrywallScrewstobenotlessthan10mmfromedges. Itis recommendedtouseastaggerpatternofatleast20mmforthefixings. Screwheadsshouldfinishflushwiththeboardsurfacewithoutdamage tothecore. GyprocDrywallScrewstopenetrate25mmintotimberstudwork. Gyprocjointingtapetobeappliedtoalljoints,applyGyprocFiller JointingCompoundwithsandedfinish. DuPontAirGuardReflectiveEVapourBarrier 15mmGyprocFireLineBoard. withdrylinedfinish.
INTERNALWALLTYPE2
NEWEXTERNALWALLTYPE1
FireRating:60minintegrity&60mininsulation UValue0.16W/m²K -ModularSectionJointDetail
Scale-1:2
80mmthkPIRInsulation Boardwithathermal conductivityof 0.022W/mk Expanding foamjointfiller
PlastisolModuleSplit Flashing Duponttyvec structure guardlapped &taped.
WallBuild-up:
• KS1100CSQuadCoreMicroribWallPanel(Corethickness:60mm)orFalk 1170WZpanel(Corethickness:60mm),on;
• DupontTyvekStructureGuard,Air&Moisture Barrier(installation verticallyinaccordancewithmanufacturersinstructions)on;
• 12.5mmGyprocGlasrocXsheetingboard Boardfixings:GlasrocXScrewstobenotlessthan10mmfromedges. It isrecommendedtouseastaggerpatternofatleast20mmforfixings.Screw headsshouldbefinishedflushwiththeboardsurfacewithoutdamagetothe core. GlasrocXscrewsat300mmcrswith1stfixingofboardintostud100mm above/belowbaseplate/headplate. GlasrocXScrewstopenetrate25mmintotimberstudwork 6mmbeadofGlasrocXSealantalongjoints.

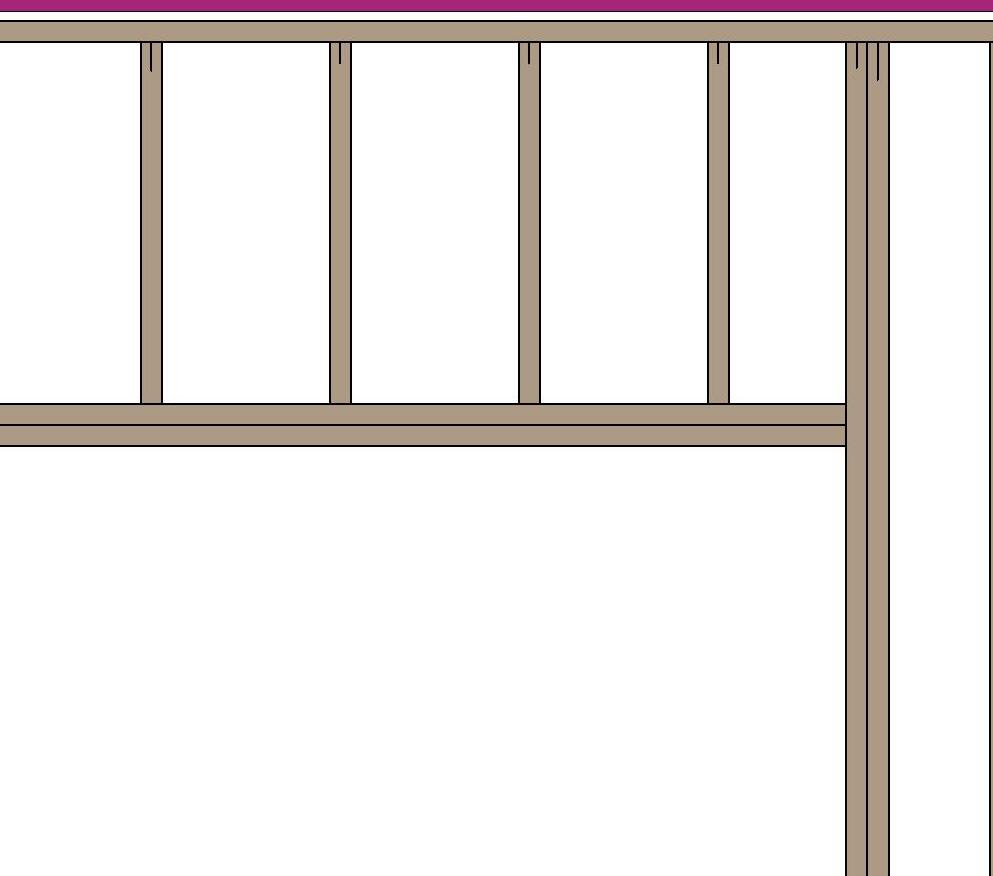

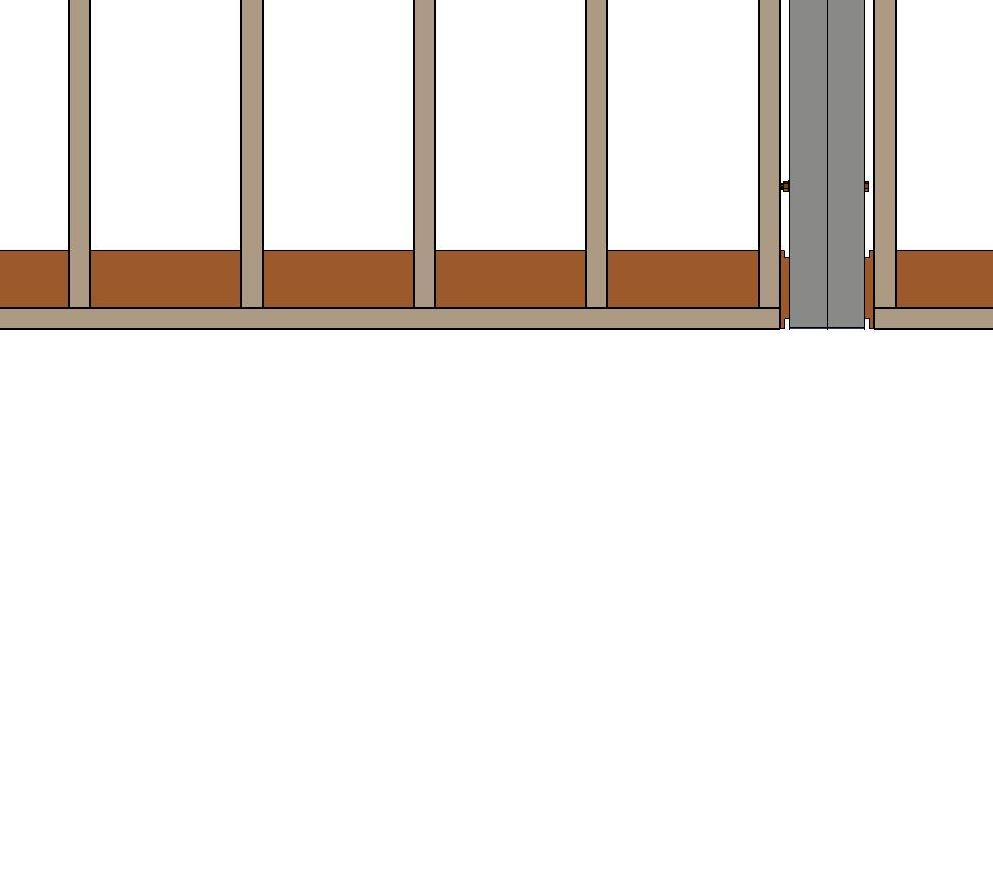

• 125x44mmC24GradeSoftwoodTimberStuds@400mmcrs,125x44mm C24Heads&Basetracks.
• 15mmGyprocFireLineBoard
• 100mmRockwoolFlexiRWa45frameslab(orsimilarminimumdensity 35kg/m³ GyprocDrywallScrewstobenotlessthan10mmfromedges. Itis recommendedtouseastaggerpatternofatleast20mmforthefixings. Screw headsshouldfinishflushwiththeboardsurfacewithoutdamagetothecore. GyprocDrywallScrewstopenetrate25mmintotimberstudwork. Gyprocjointingtapetobeappliedtoalljoints,applyGyprocFillerJointing Compoundwithsandedfinish.
• DuPontAirGuardReflectiveEVapourBarrier
• 15mmGyprocFireLineBoard. withdrylinedfinish.
INTERNALWALLTYPE3
25mmthkProckwool FlexiRWa45frameslab (orsimilarminimum thermalperformanceof 0.044W/mK)
15mmthk.Gyproc GlasrocFFireCaseboard liningallexposedsidesof SHSposts.
