L103 -HIS MASTER BATHROOM

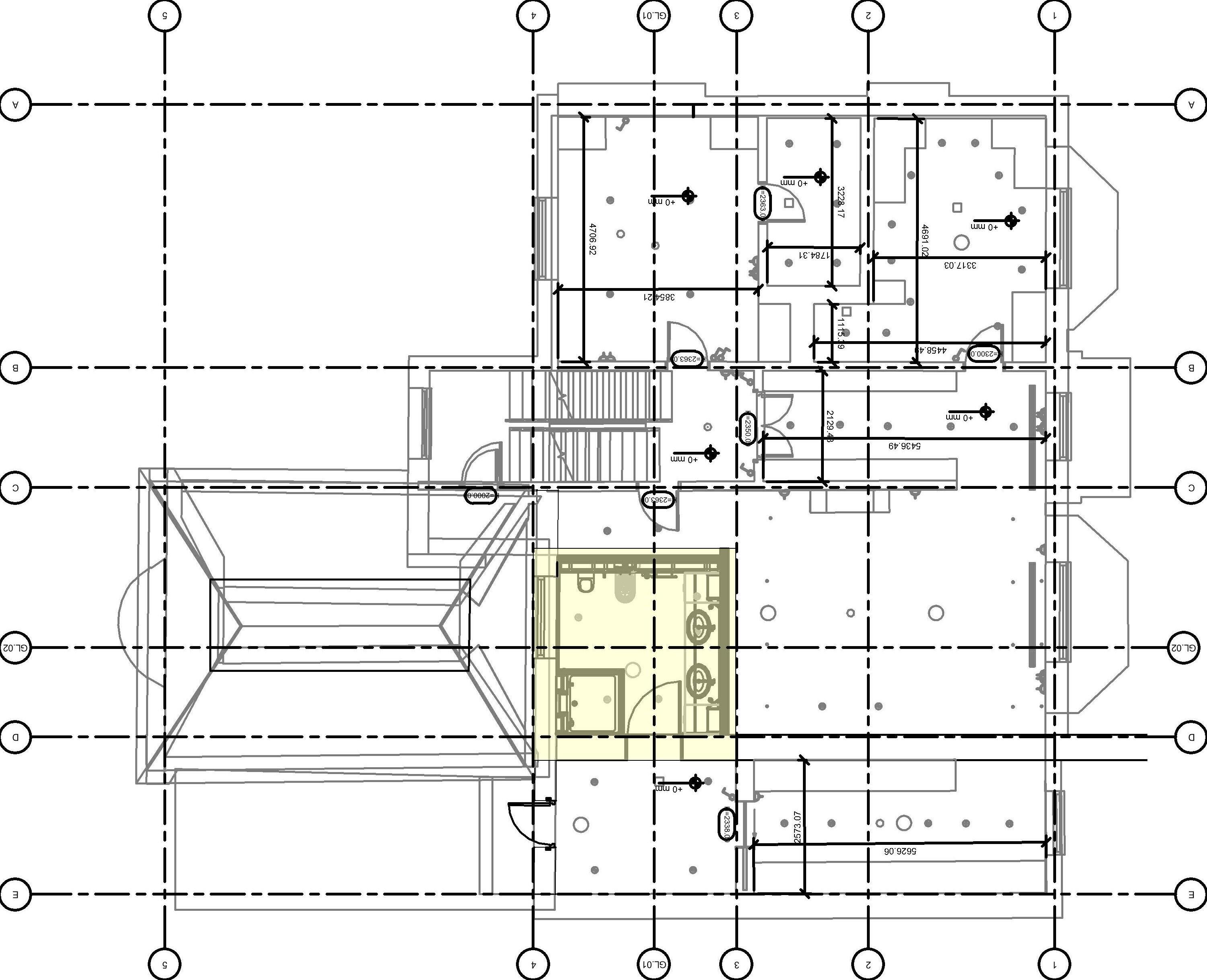

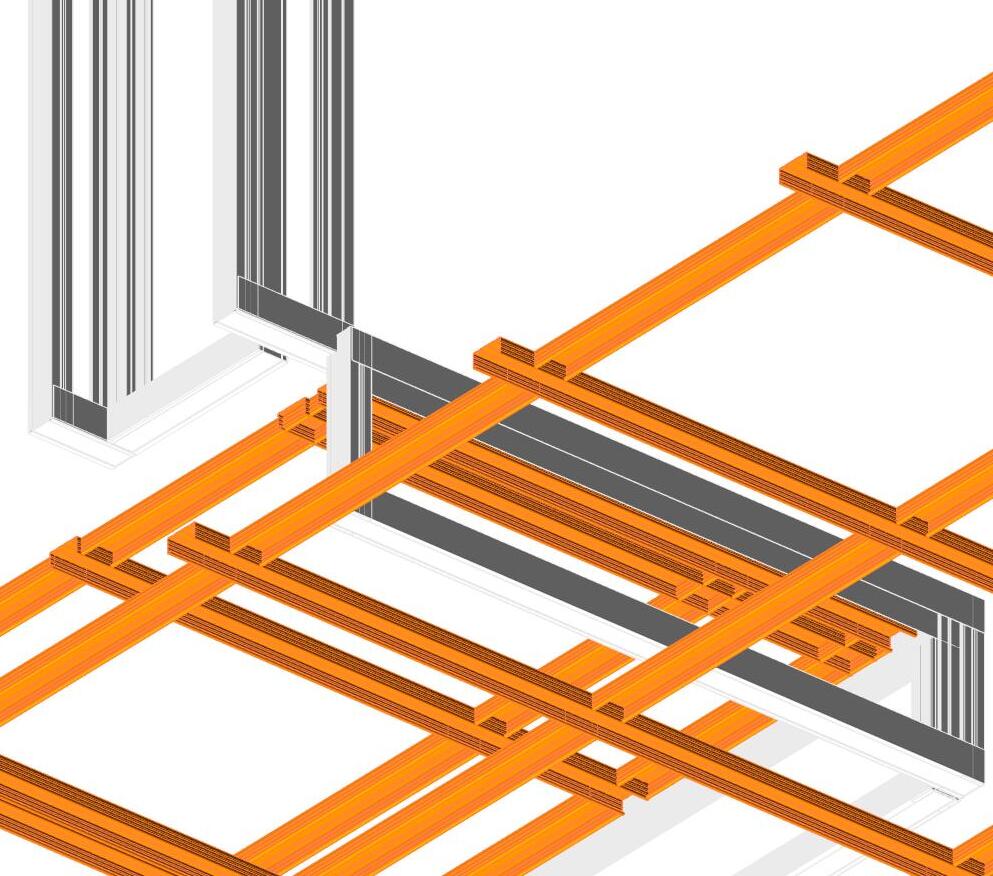

012303-CW-DWG-L103-A101STEP 01 & STEP 02GRID LINE SETUP AND MAT SETUP
022303-CW-DWG-L103-A102STEP 03SET OUT STUD WORK

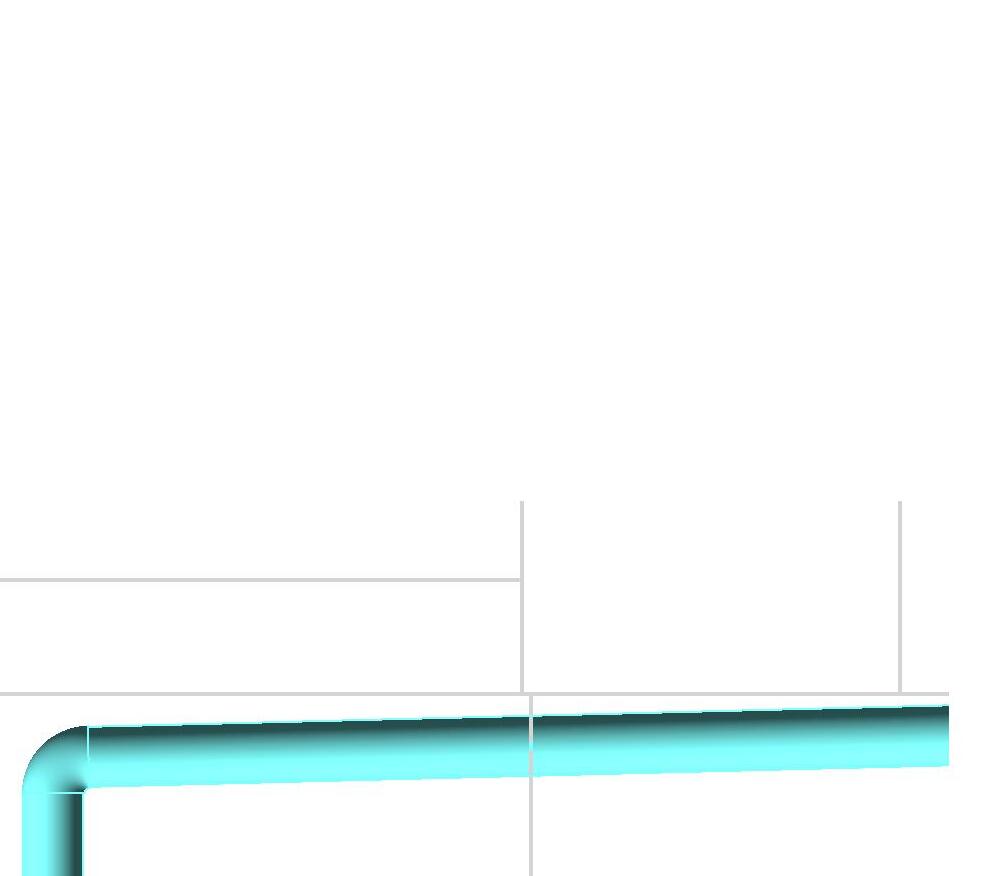

032303-CW-DWG-L103-A103STEP 04LOW LEVEL
042303-CW-DWG-L103-A104STEP 05MID
052303-CW-DWG-L103-A105STEP 06HIGH
072303-CW-DWG-L103-A106STEP 07 & 08INSULATION AND PLYWOOD SETTING OUT
082303-CW-DWG-L103-A107STEP 09WALL TYPE

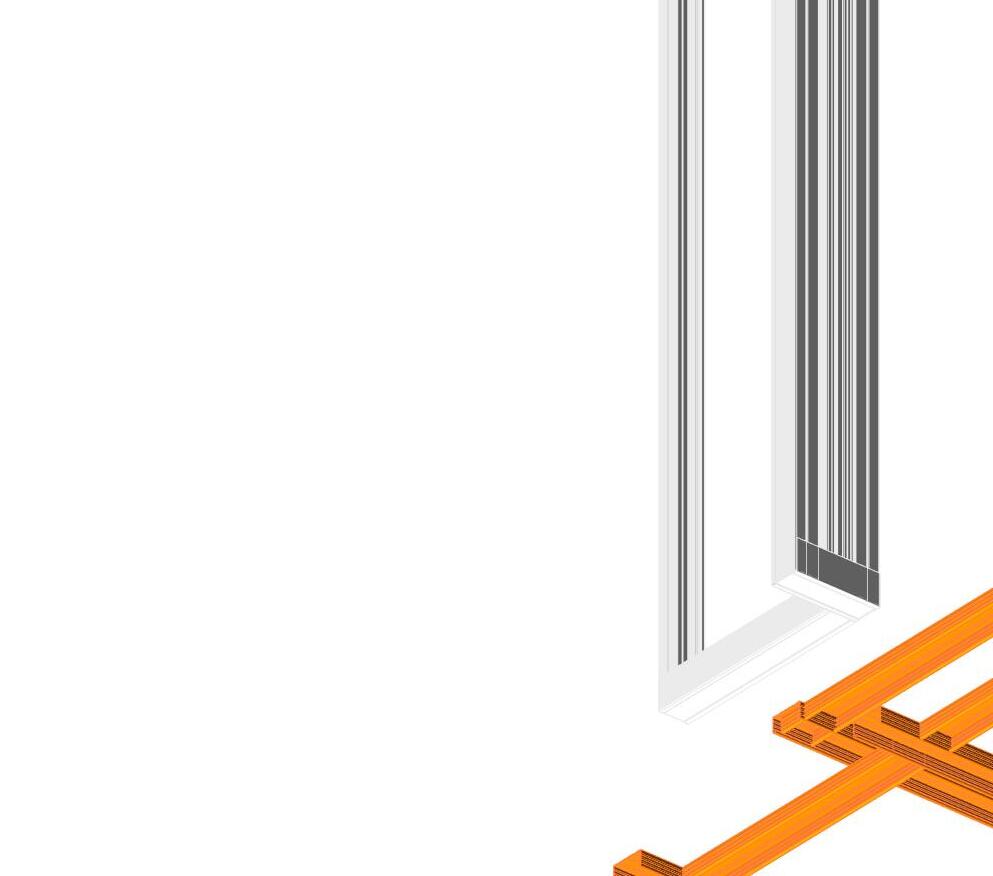

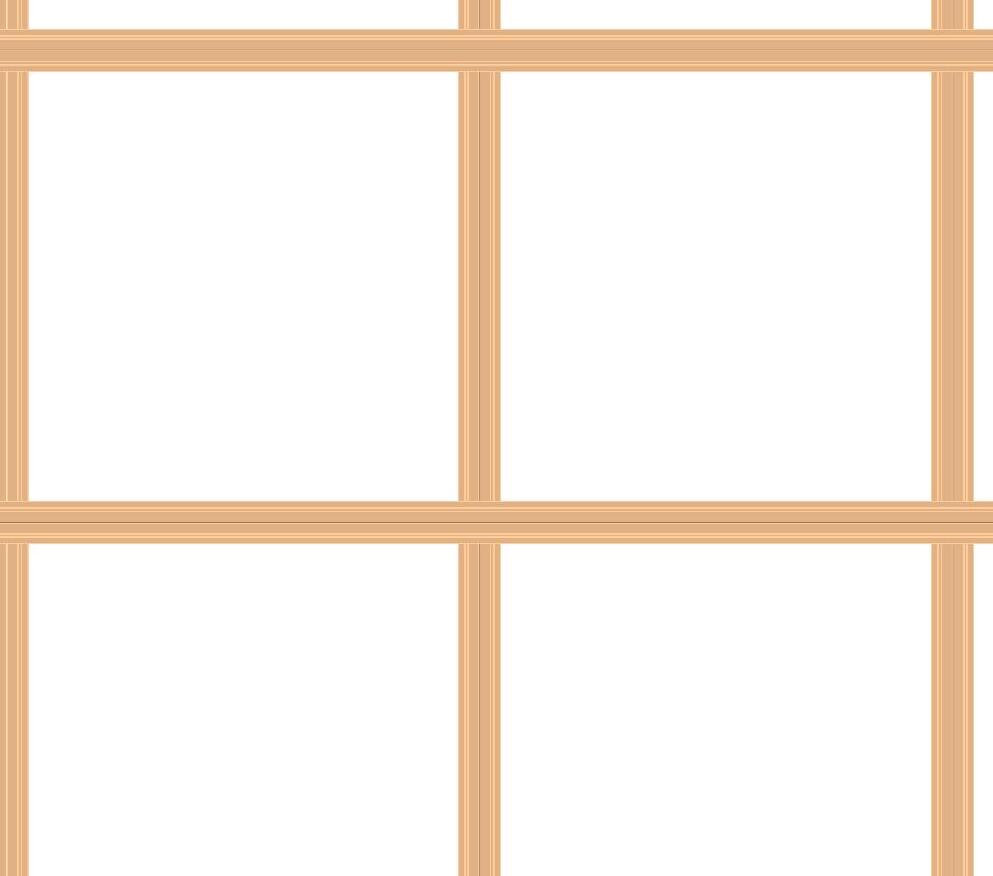

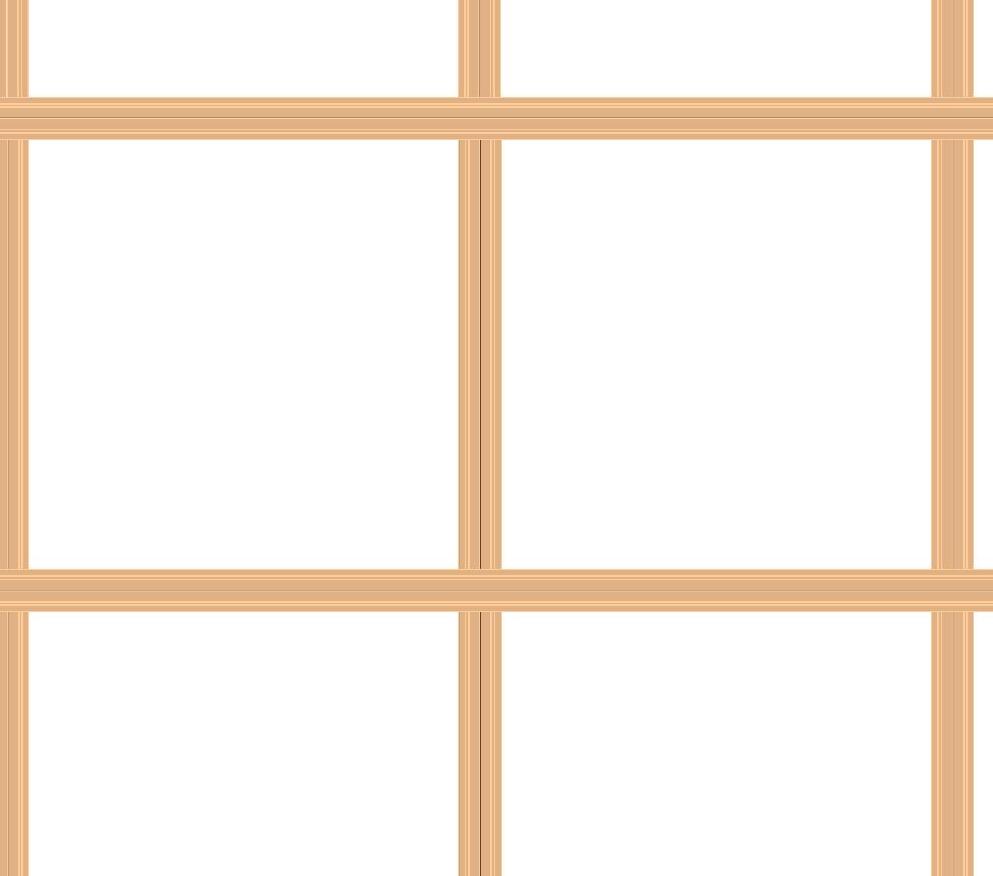

092303-CW-DWG-L103-A108STEP 10SUPPORTING WOOD FRAME STRUCTURE
062303-CW-DWG-L103-A109STEP 11CEILING STUD WORK SET OUT
102303-CW-DWG-L103-A110STEP 12MEMBRANE SETTING OUT
112303-CW-DWG-L103-A111STEP 13FLOOR BONDING AND STONE SETTING OUT

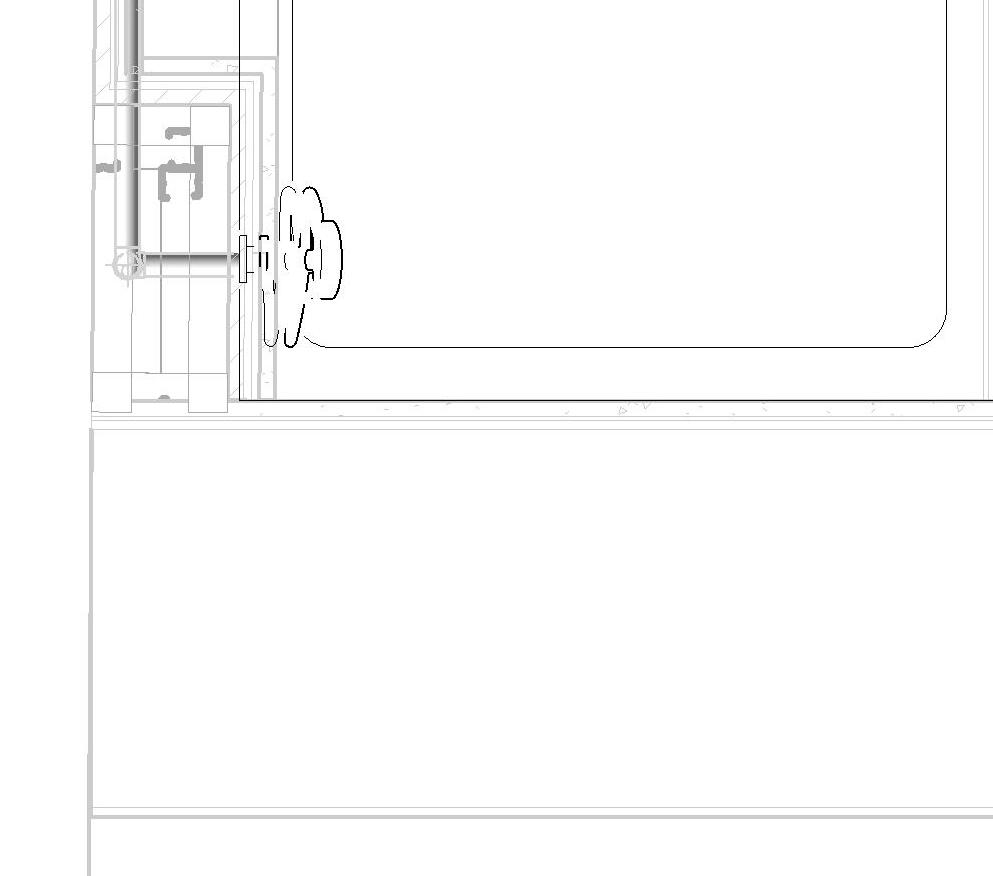

152303-CW-DWG-L103-A112NAELEVATION DETAILS - STONE SET OUT & FINISHES
122303-CW-DWG-L103-A113STEP 14LOW
16HIGH
162303-CW-DWG-L103-A116NAMEPF ELEVETION DETAILS-1A & 2B
172303-CW-DWG-L103-A117NAMEPF ELEVATION DETAILS- 3C AND 4D

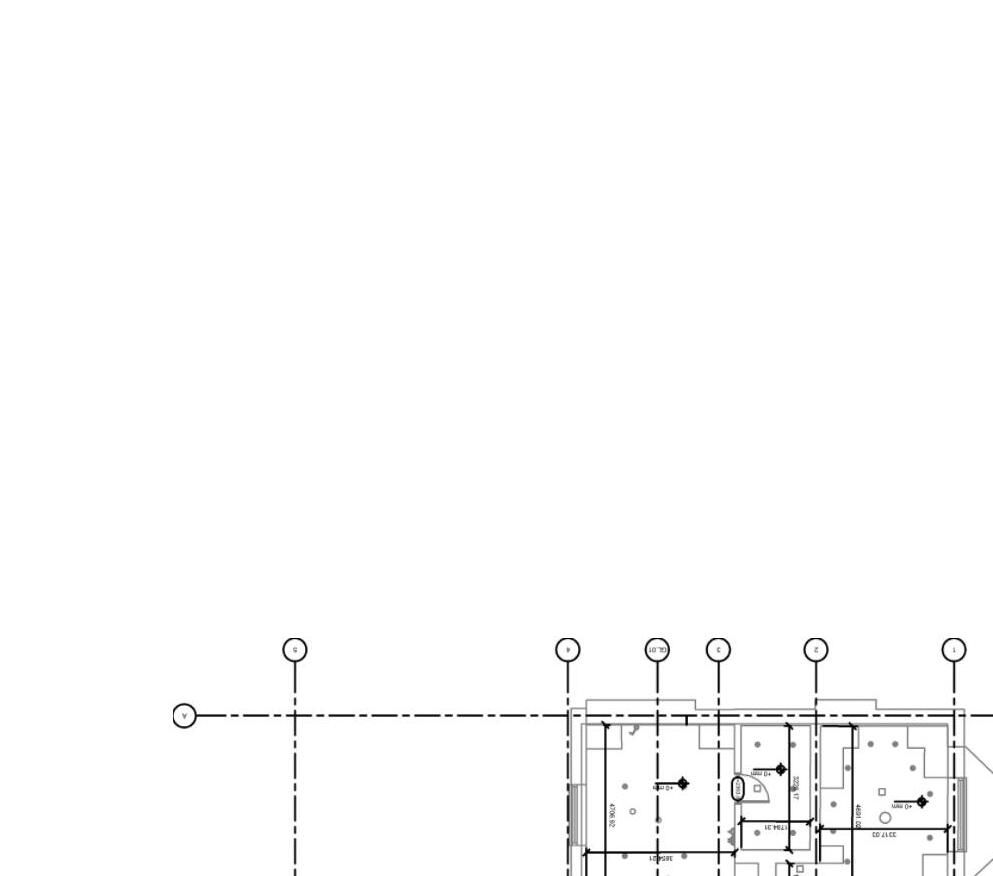

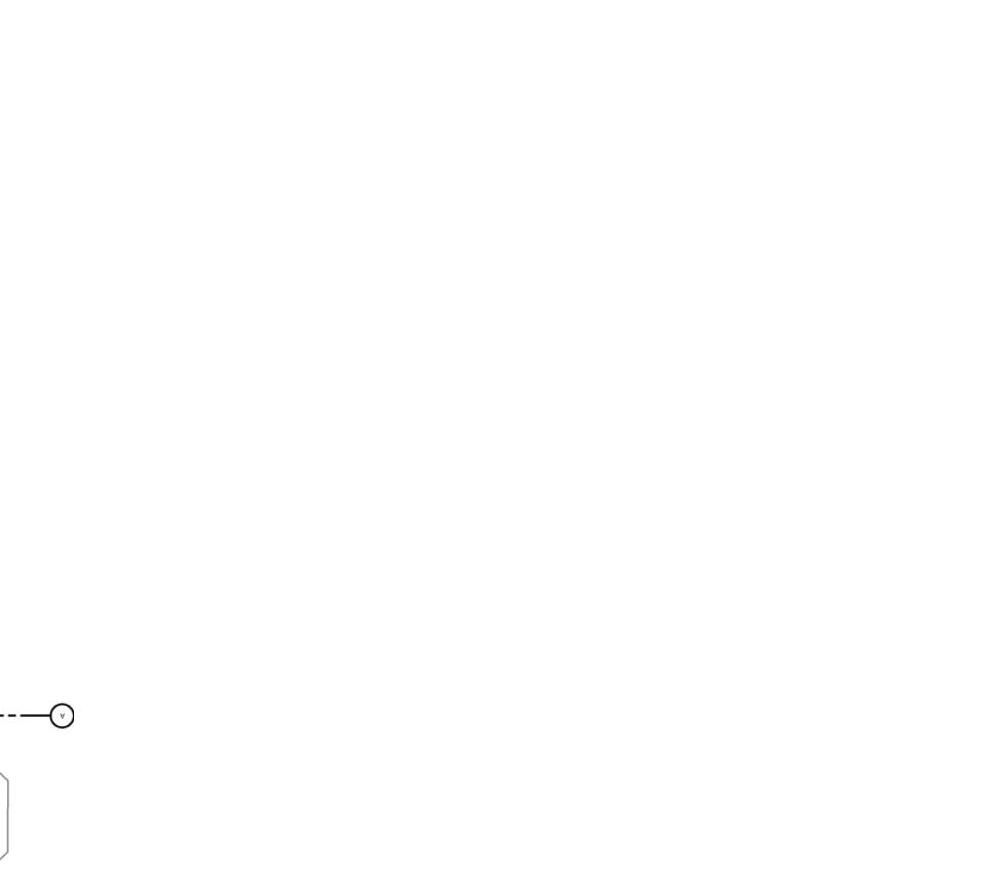

STEP 01
02

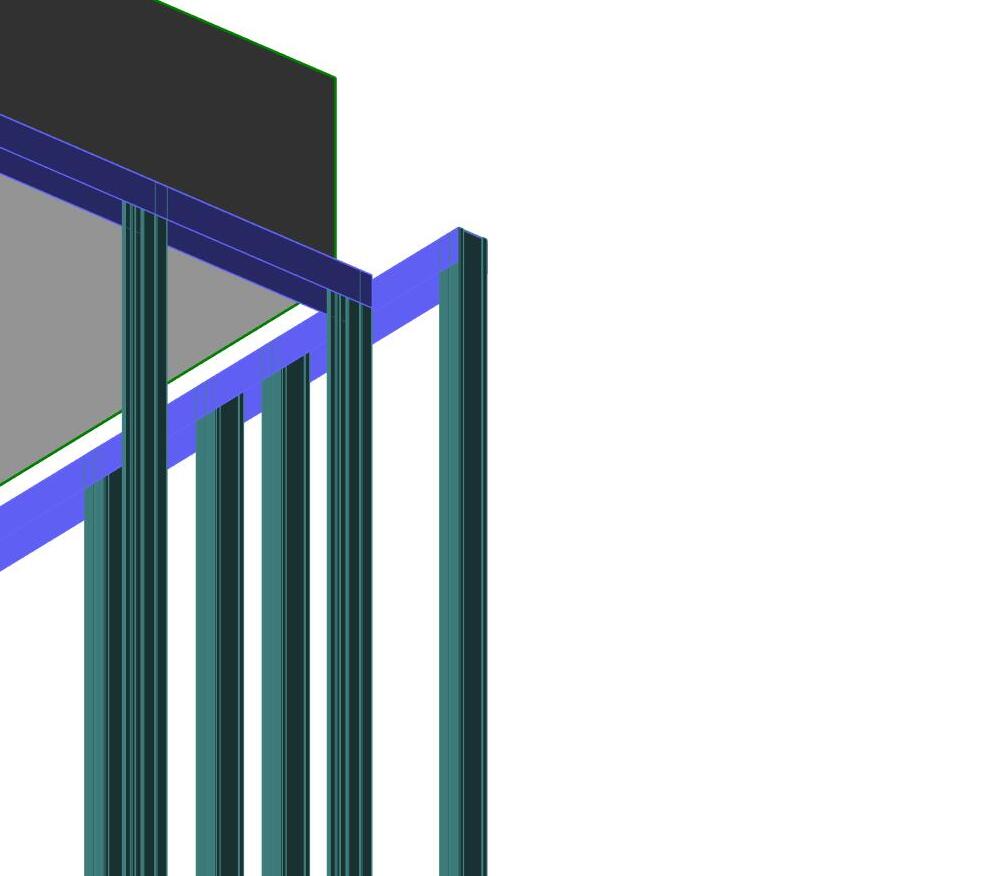

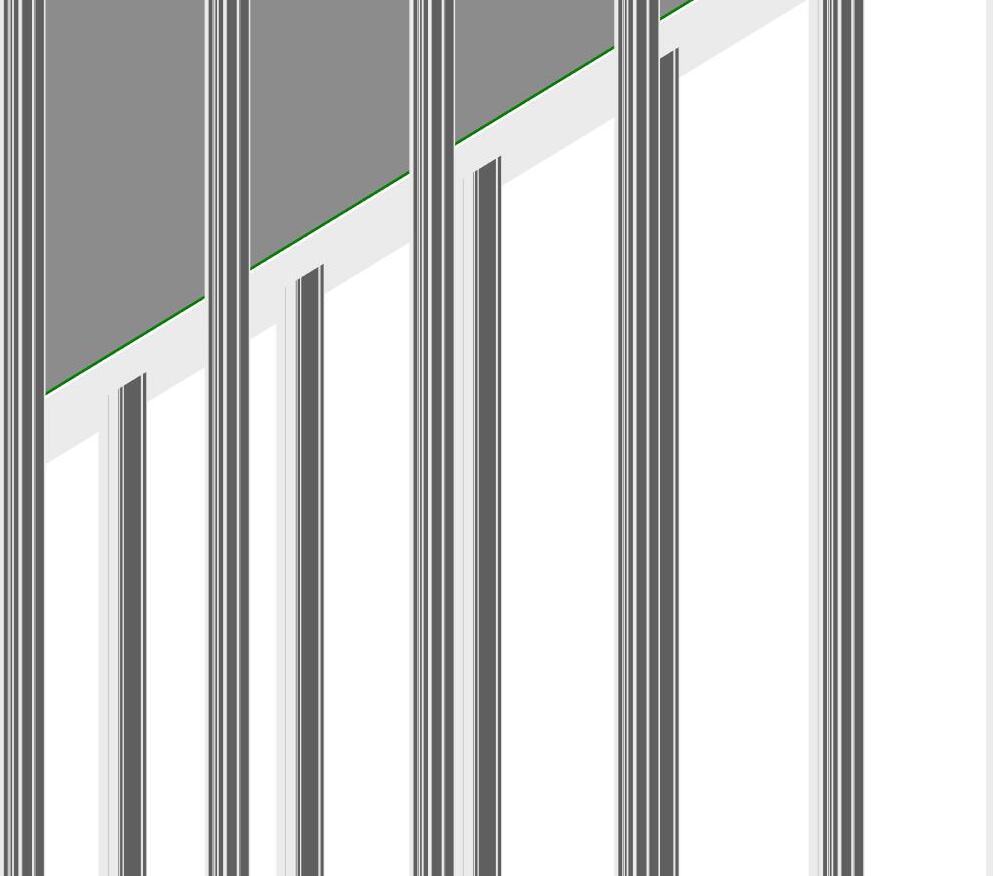

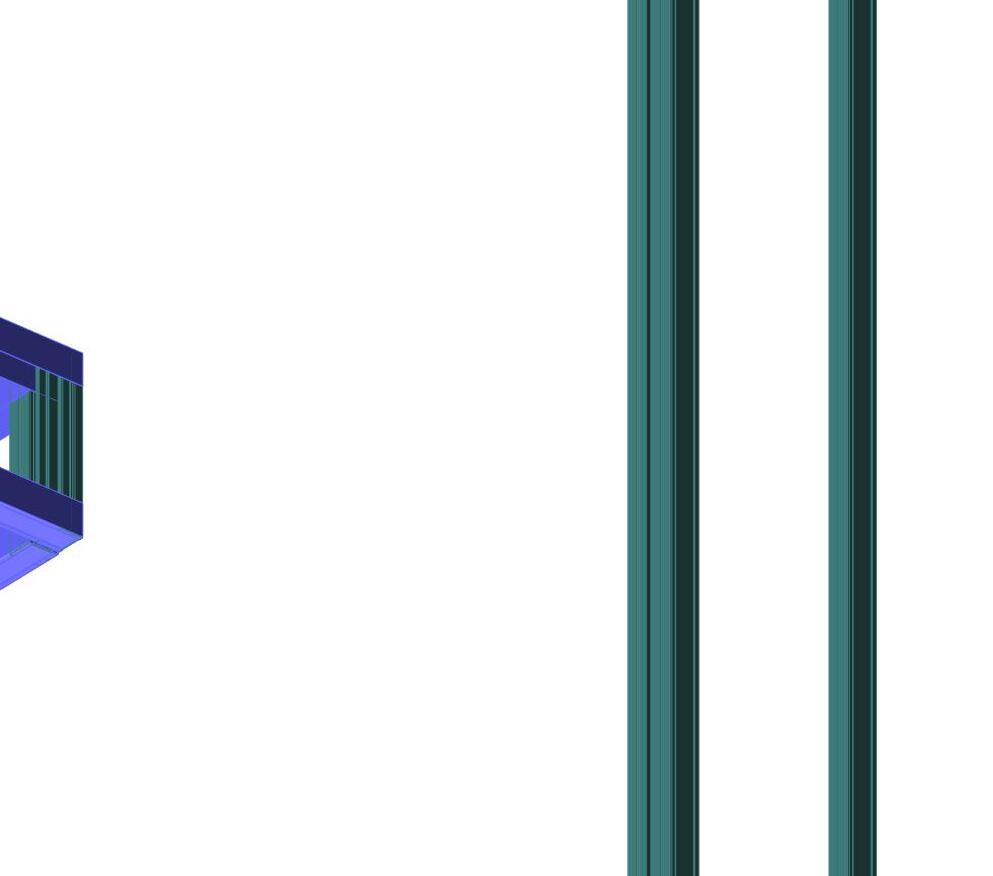

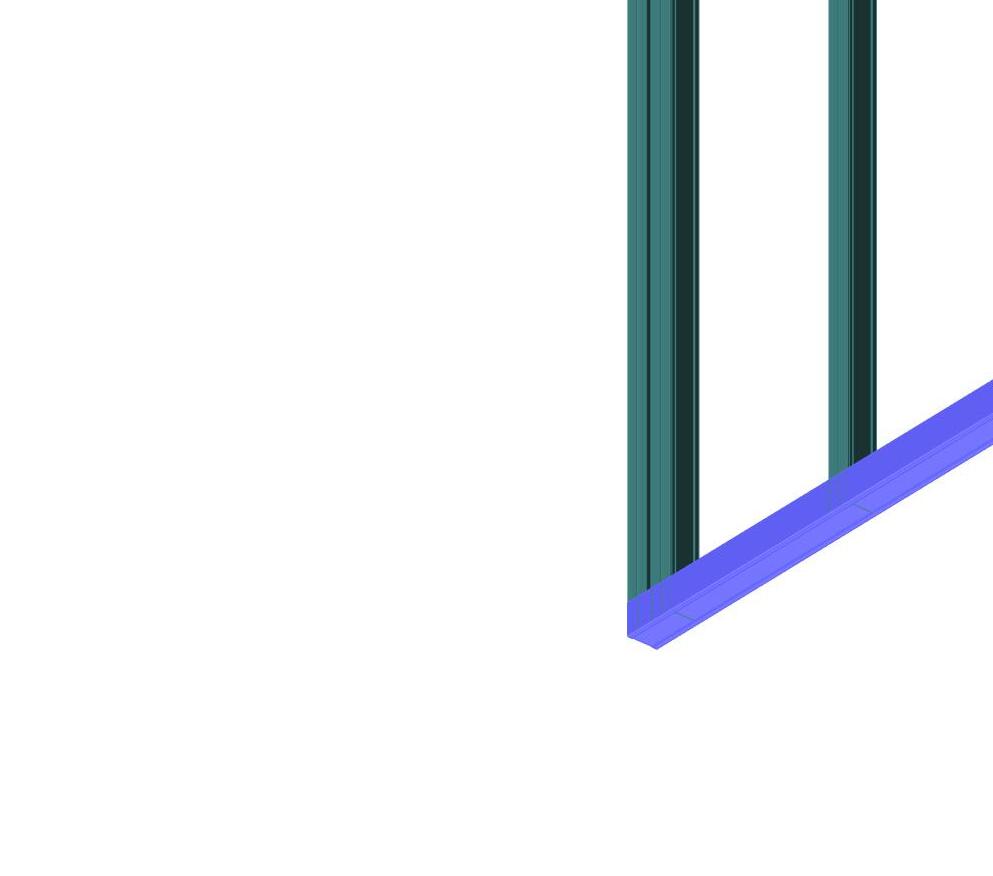

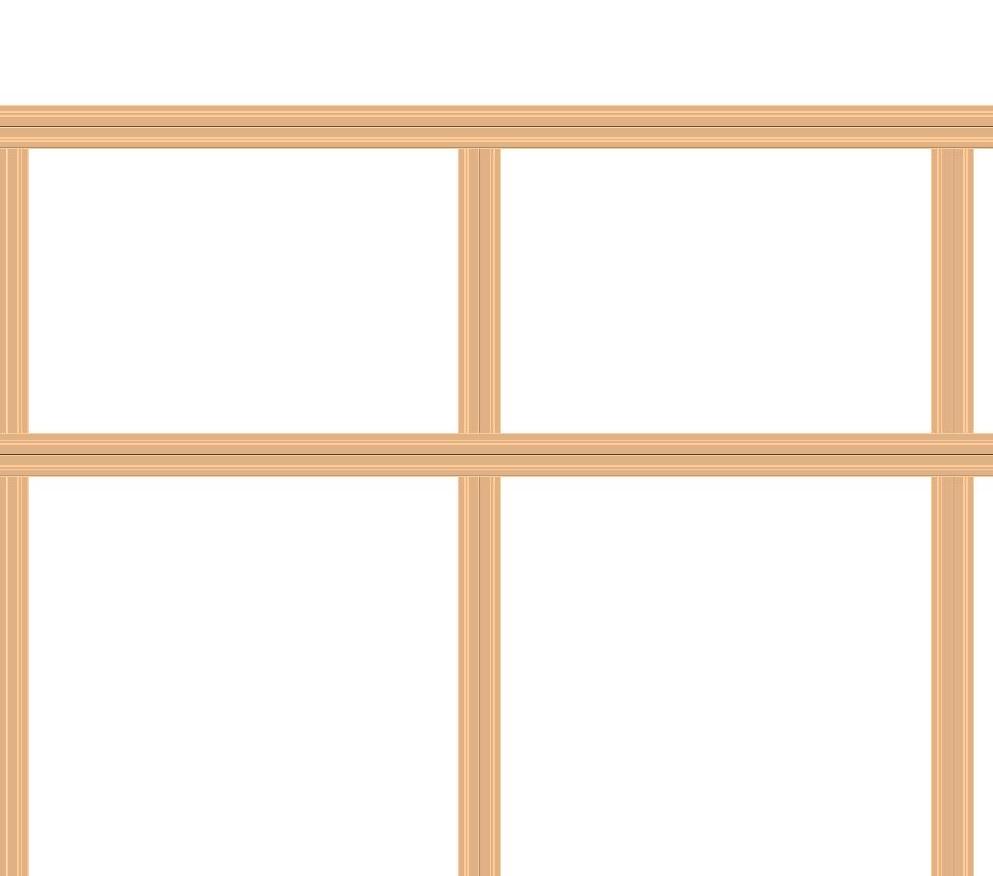

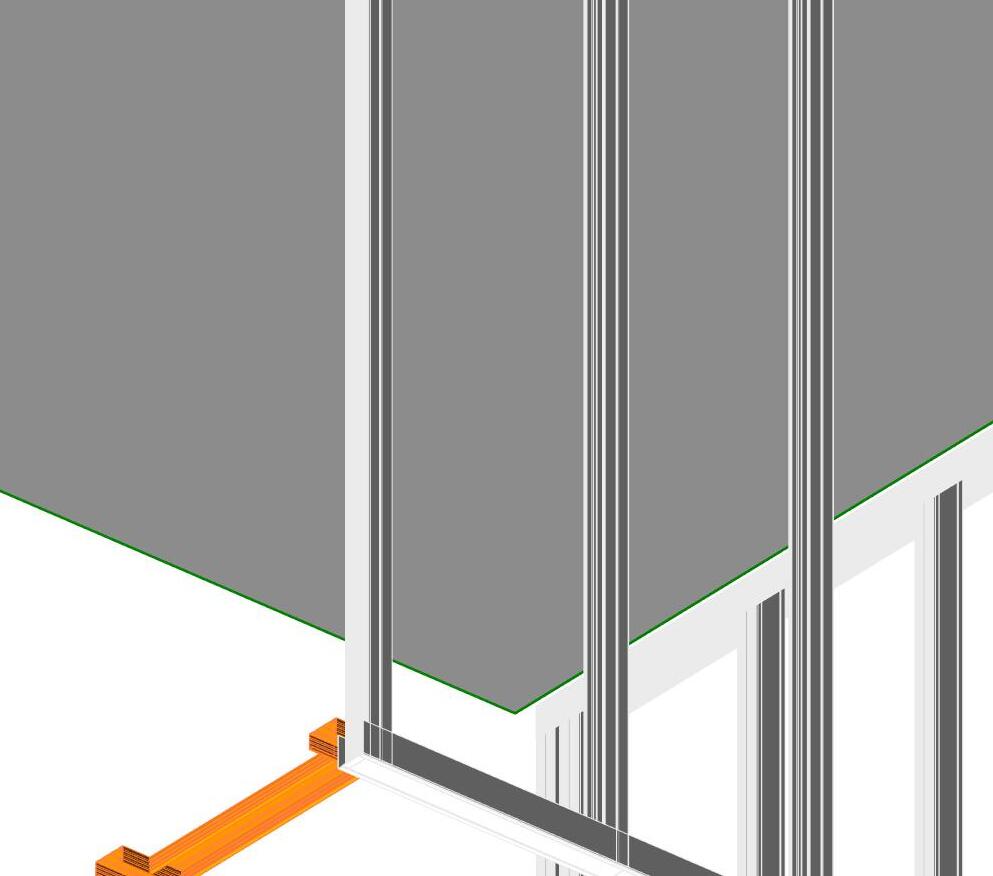

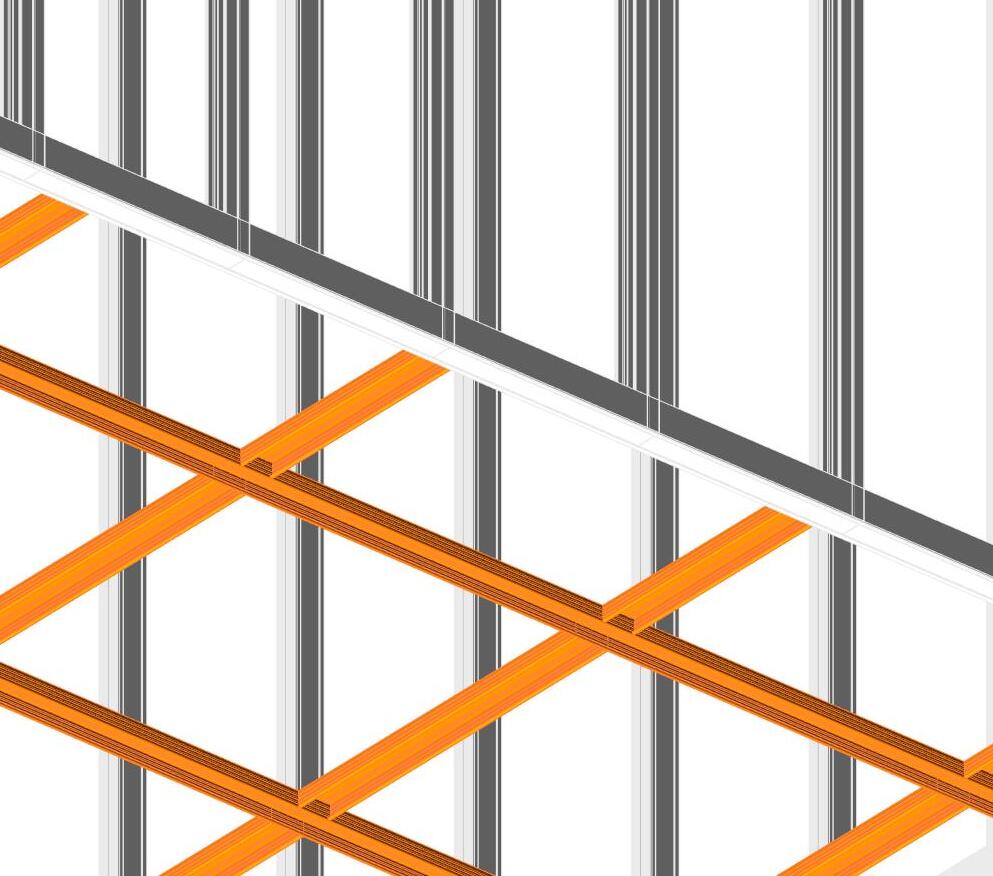

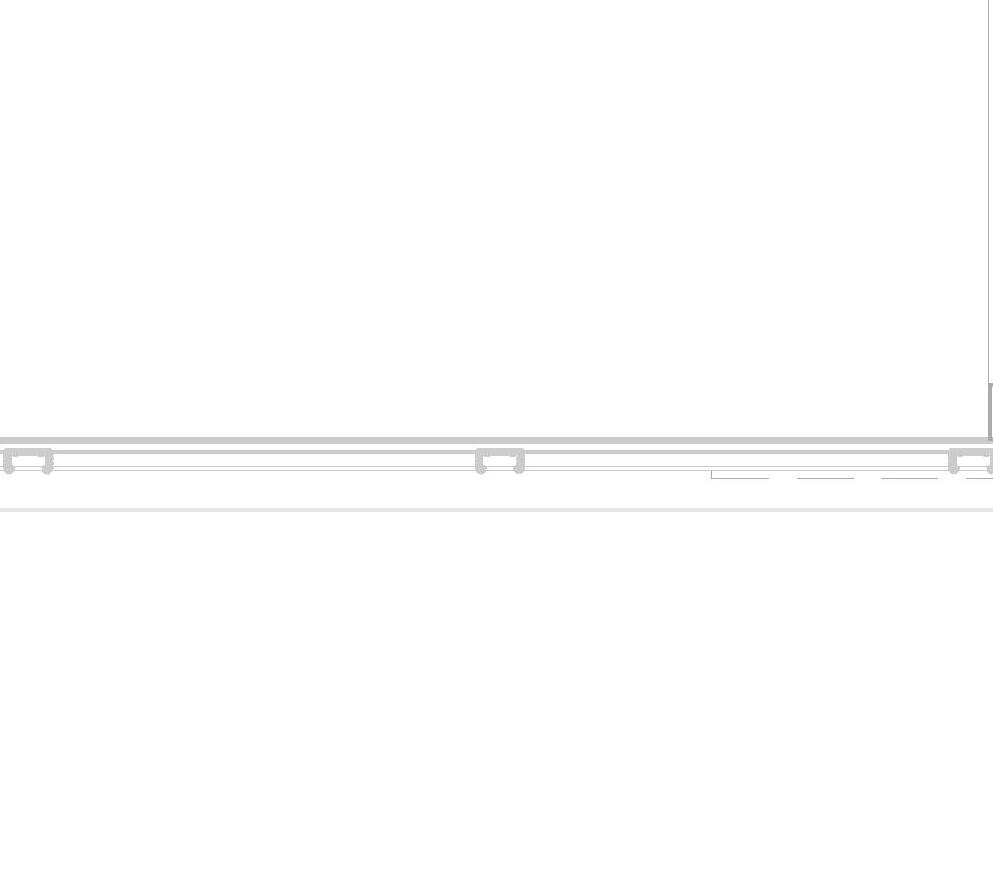

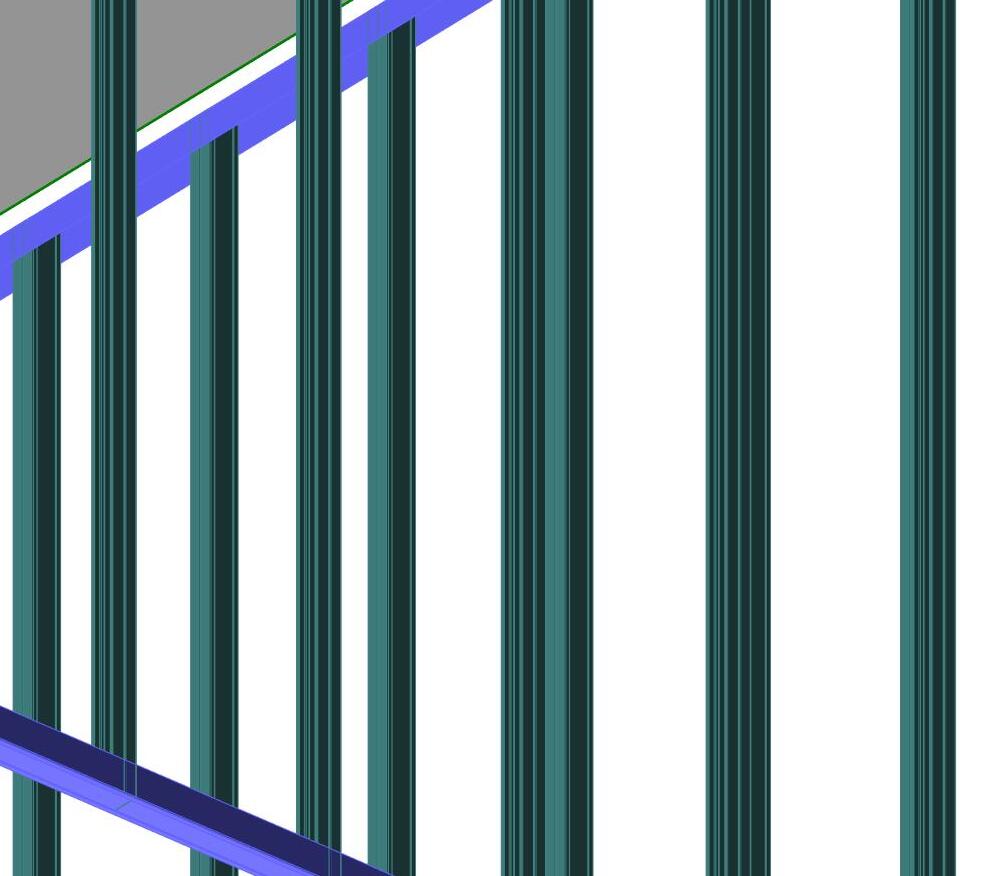

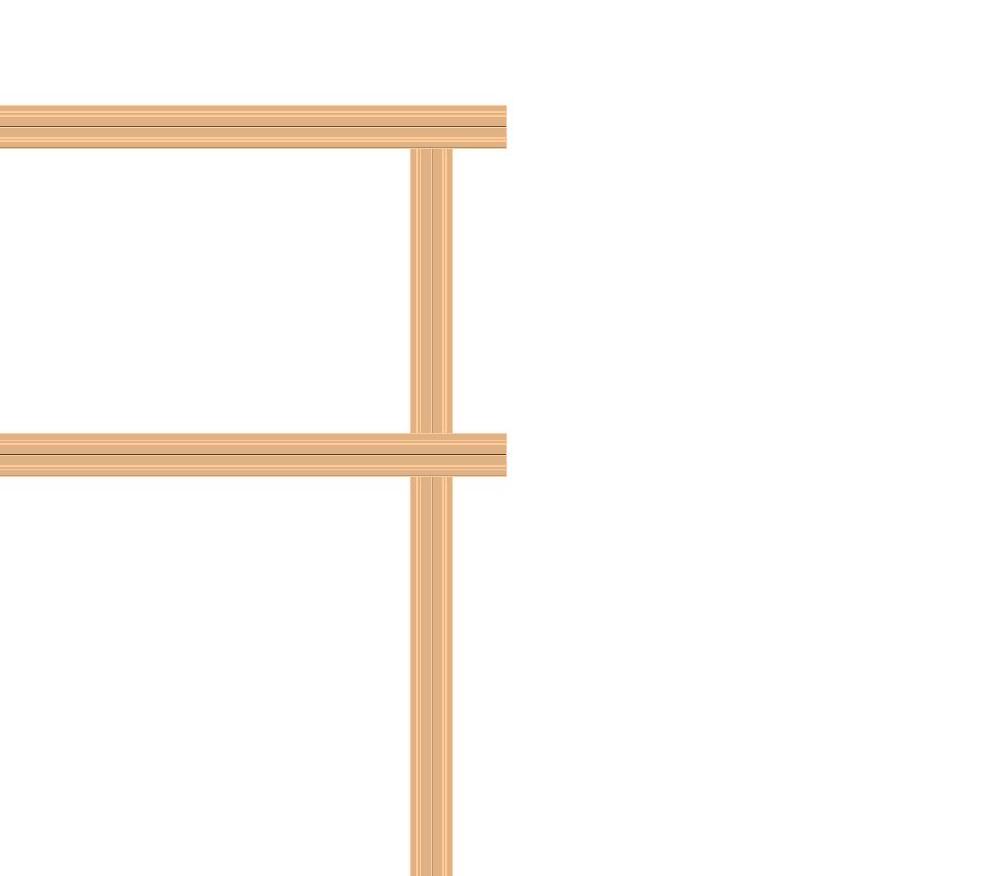

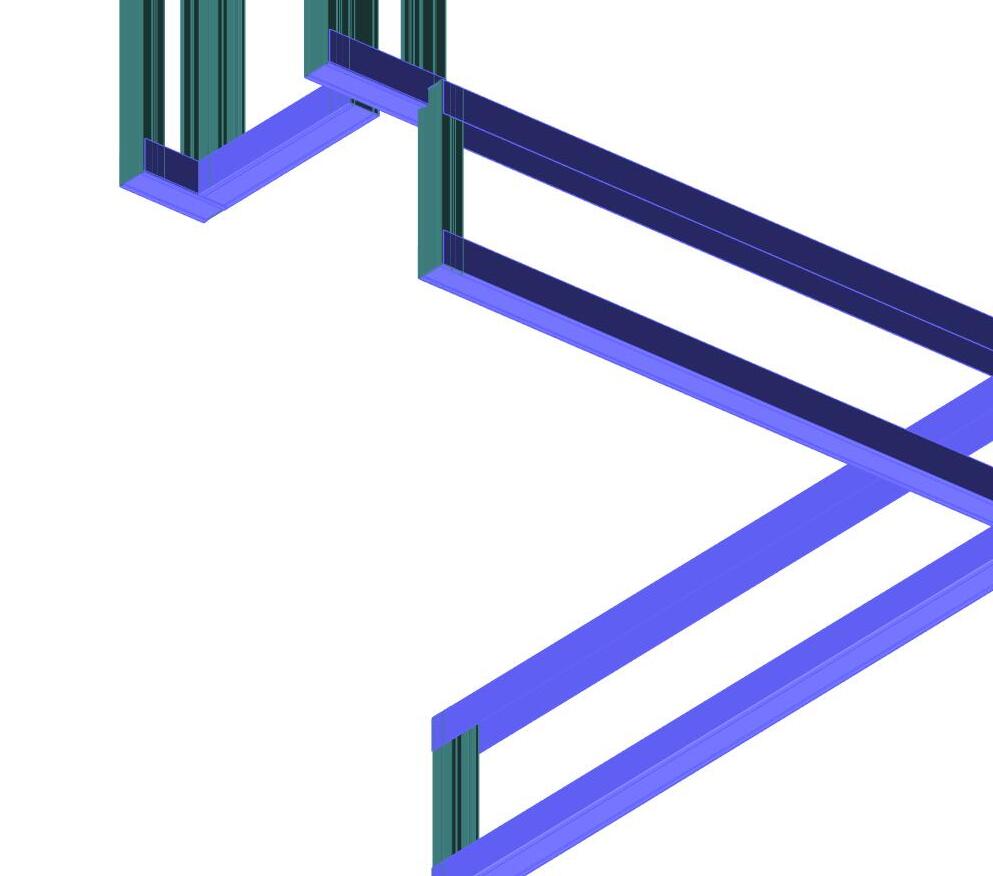

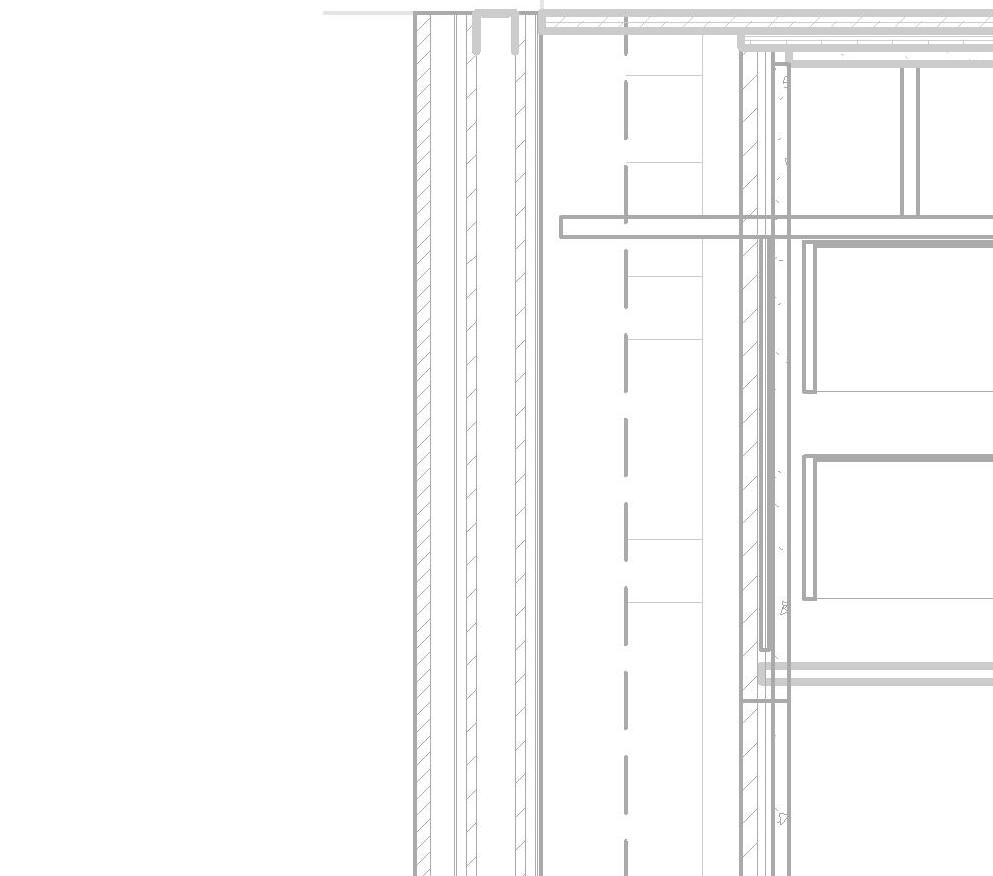

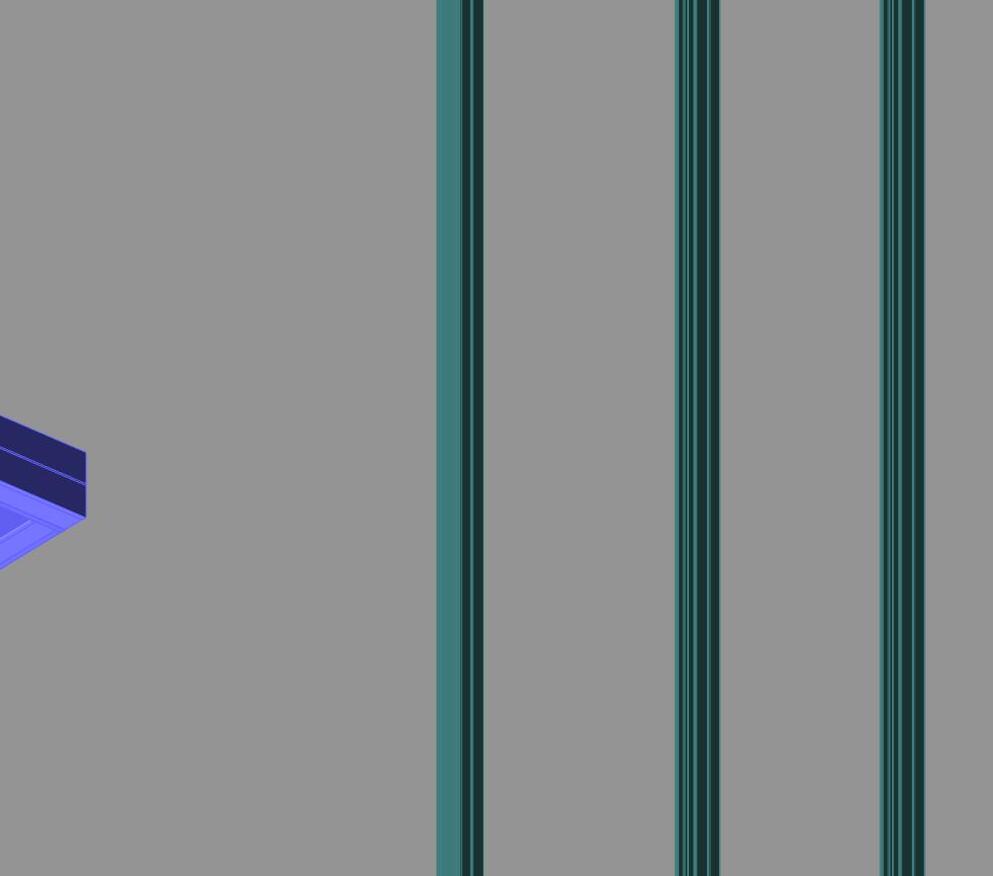

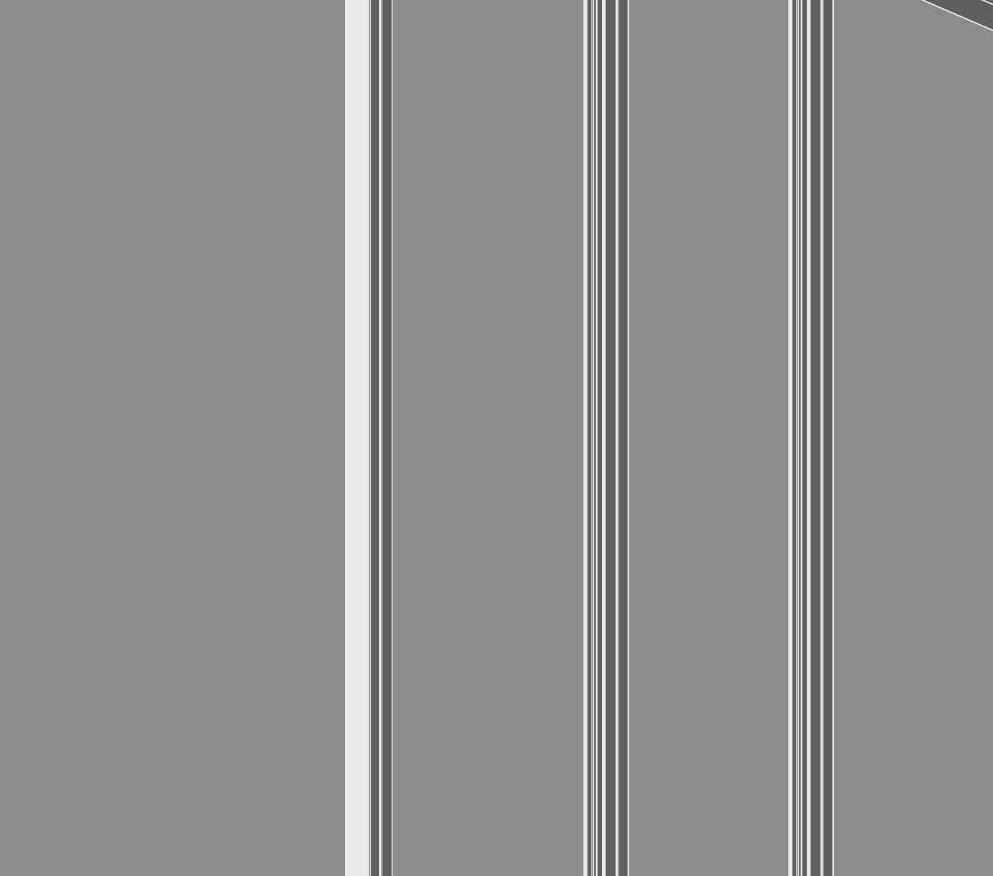

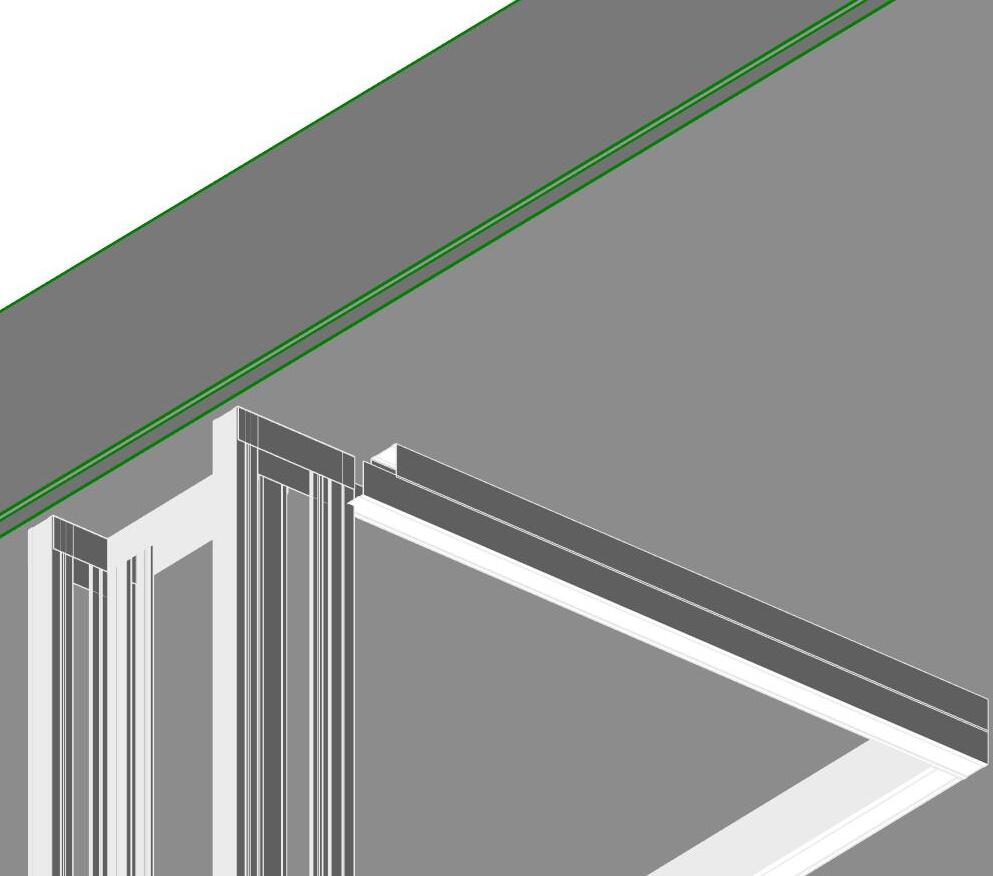

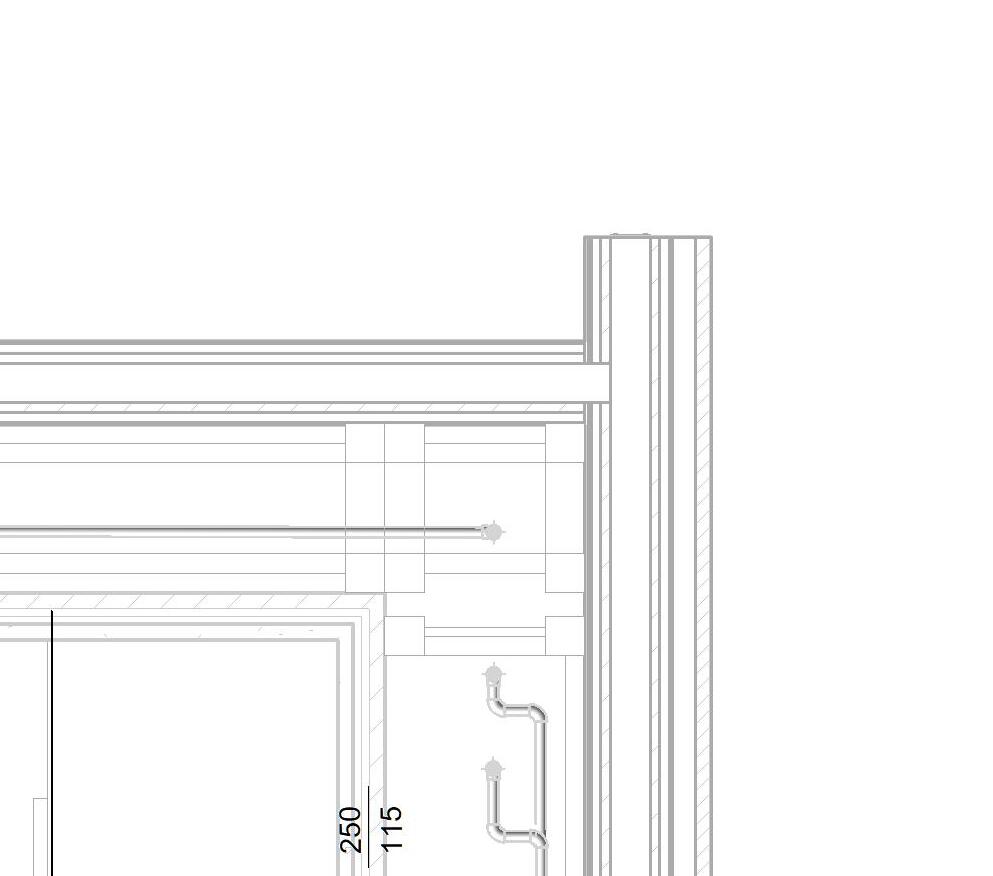

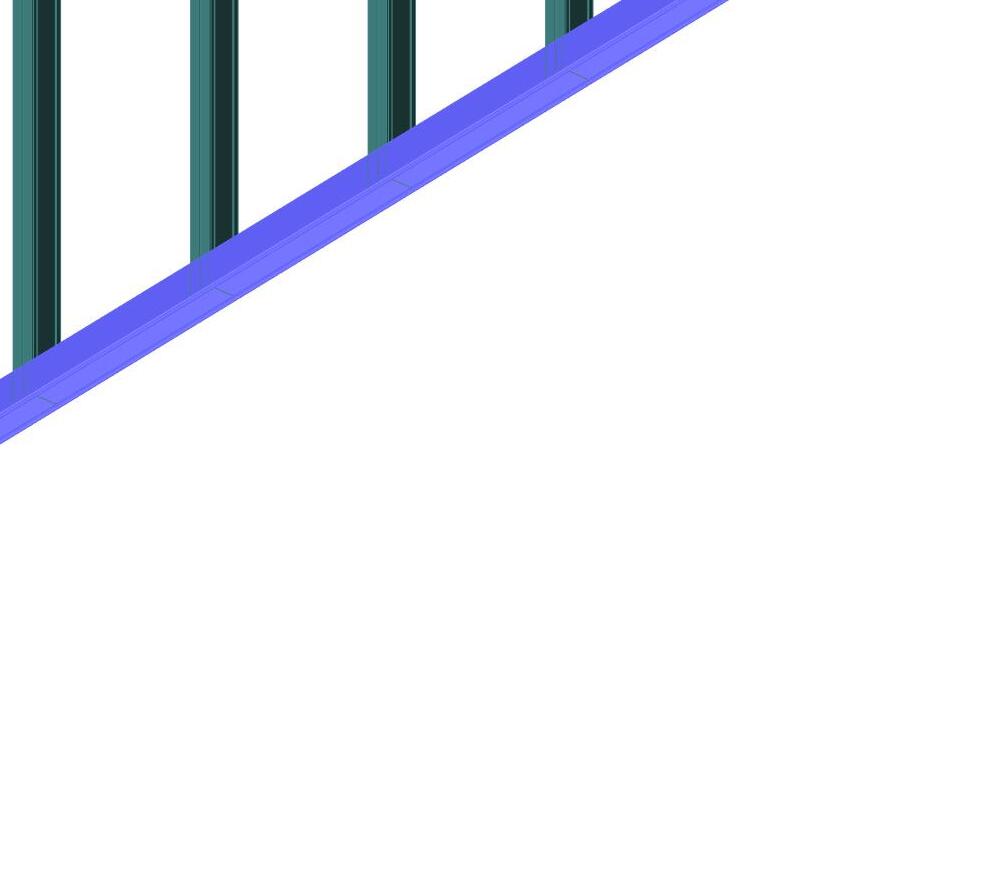

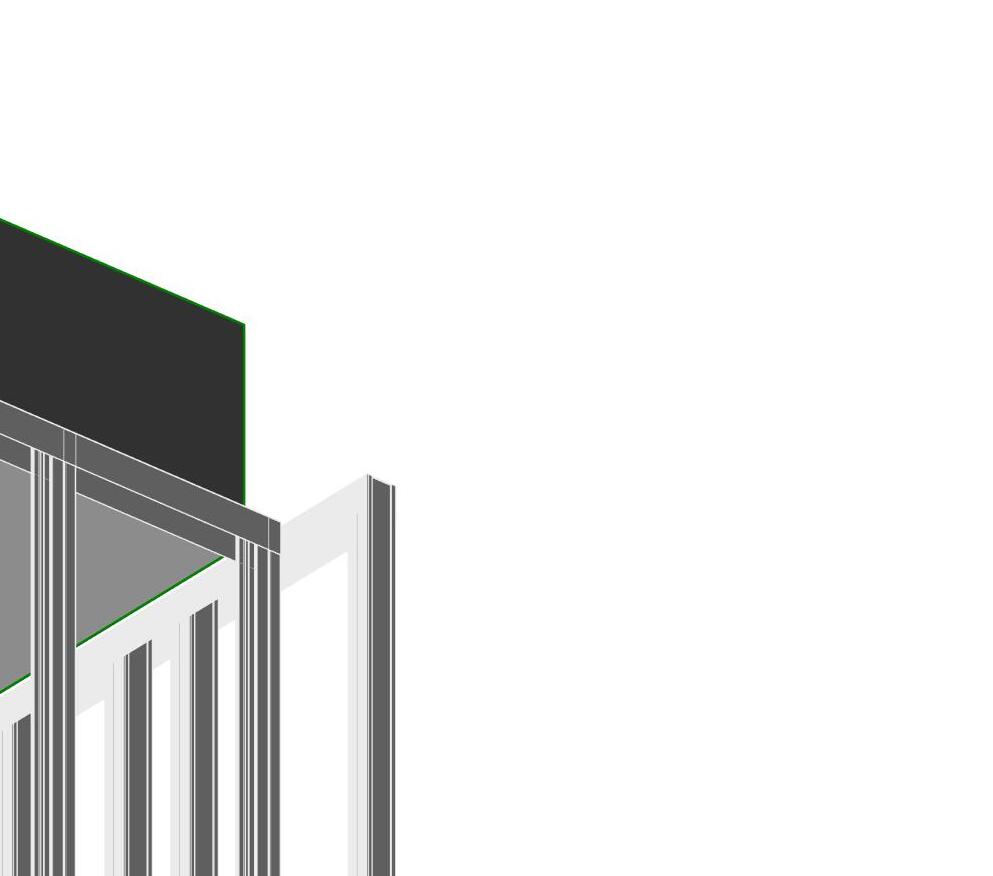

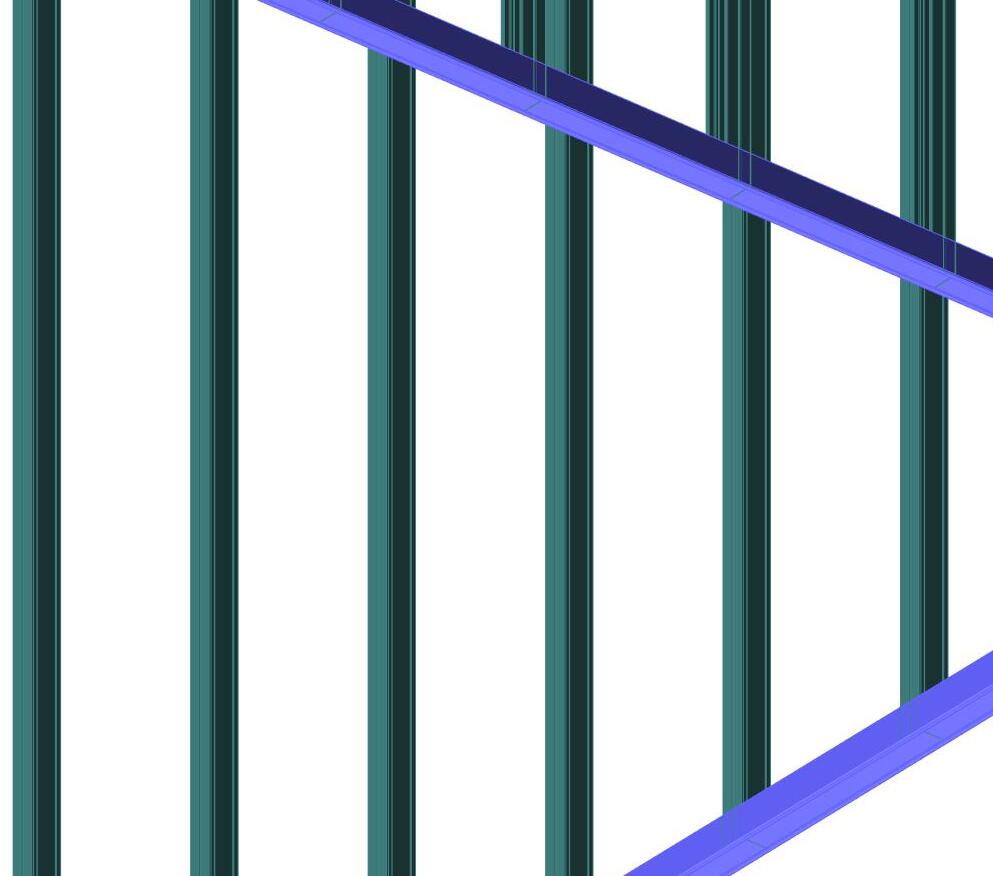

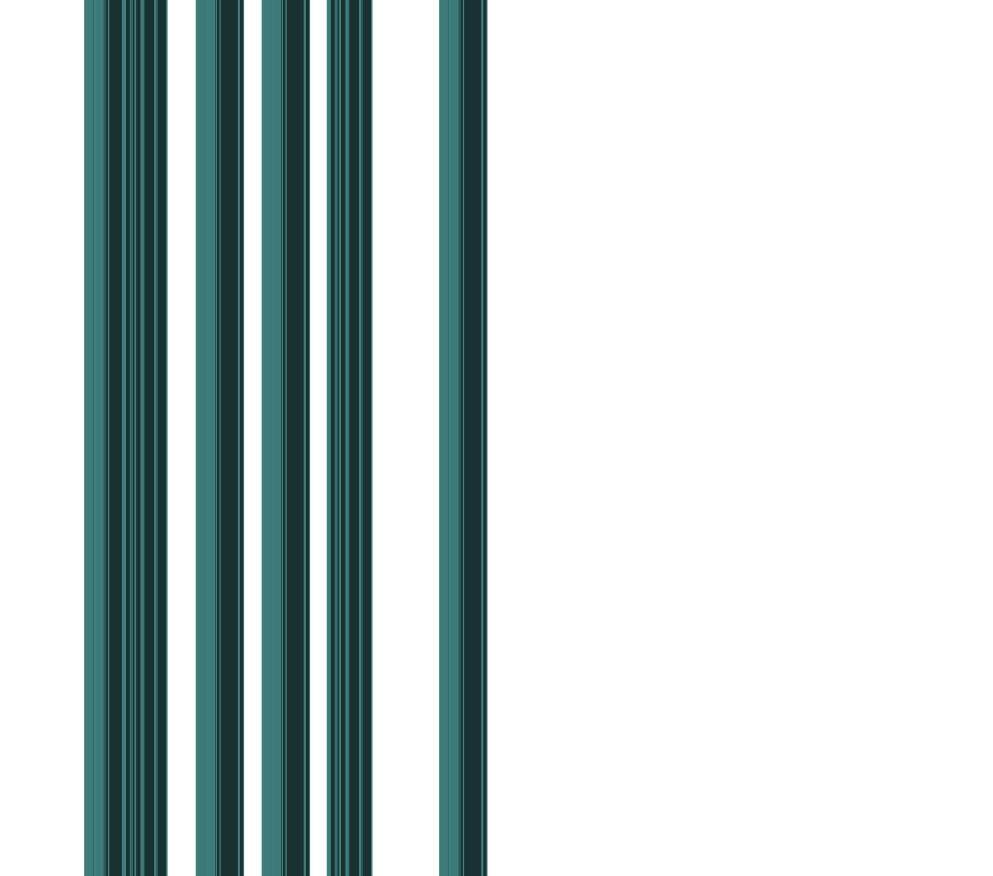

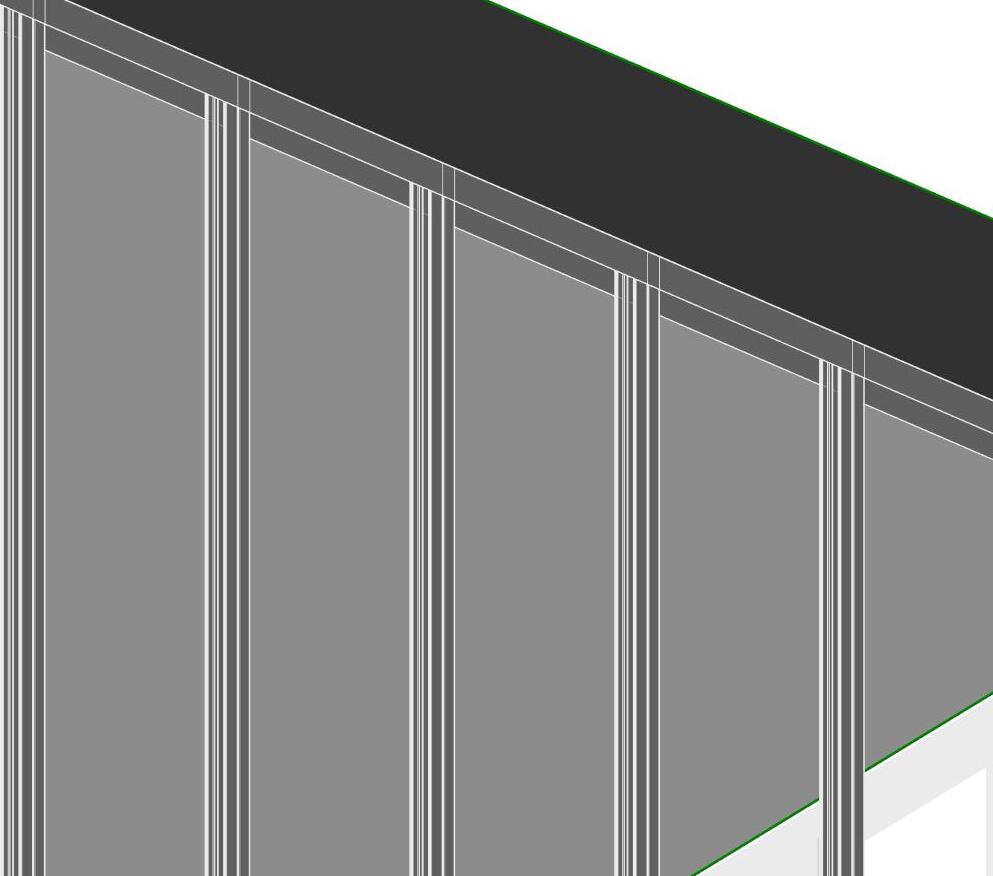

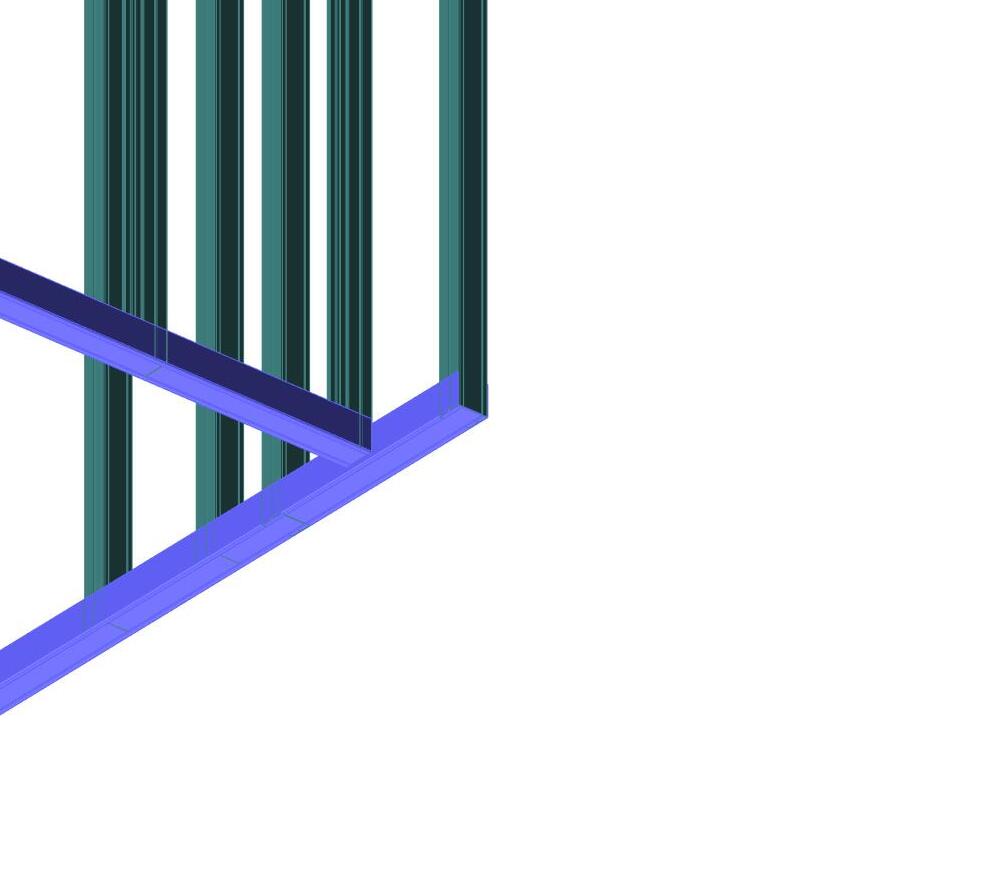

STEP 03 SET OUT STUDWORK RELATIVE TO NEW BATHROOM GRID LINE
STEP 05
STEP 06

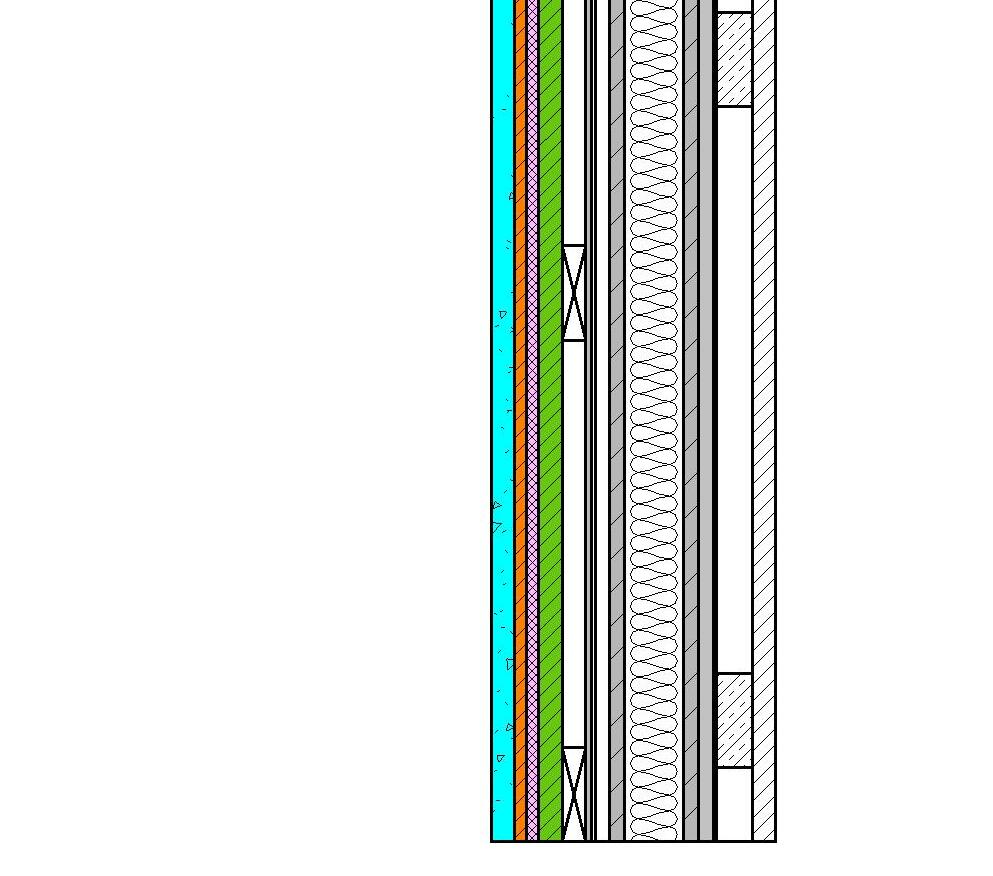

Gypframe 'C' Stud 50mm with 40mm Isover Insulation packed in between
12.5mm Plywood boards
12.5mm Wedi boards
12.5mm Wall boards 3mm Skim Coat
5mm Proprietary adhesive

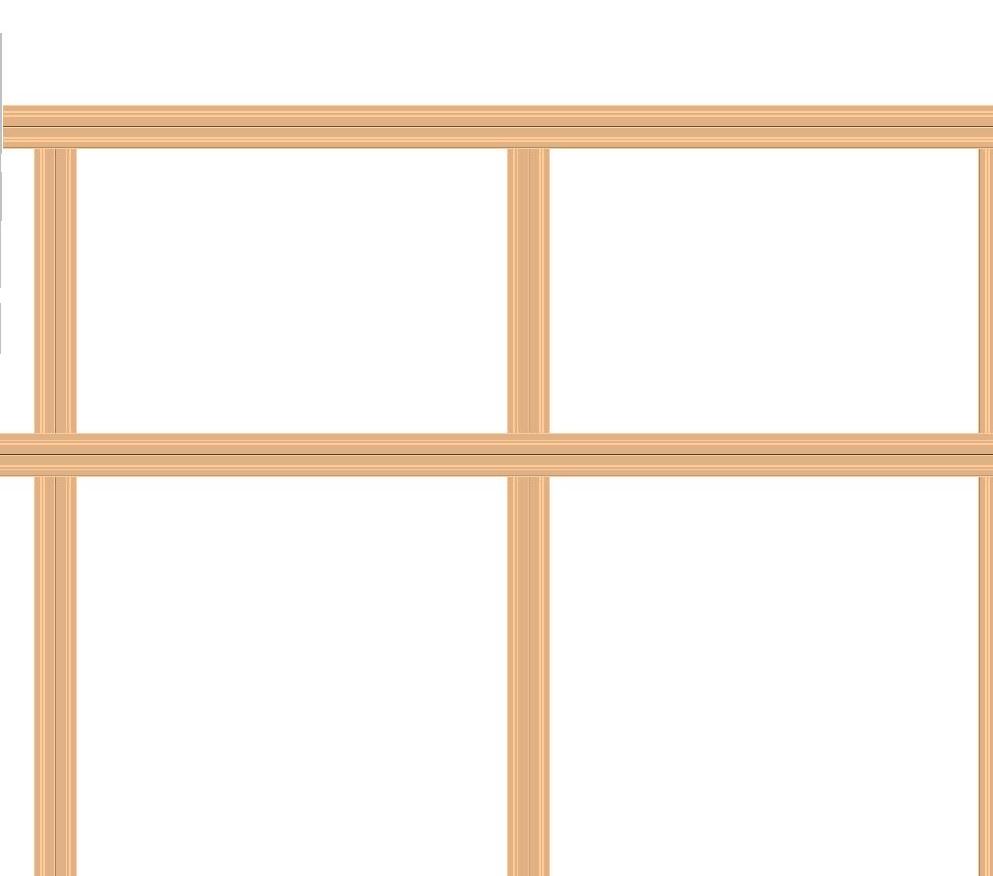

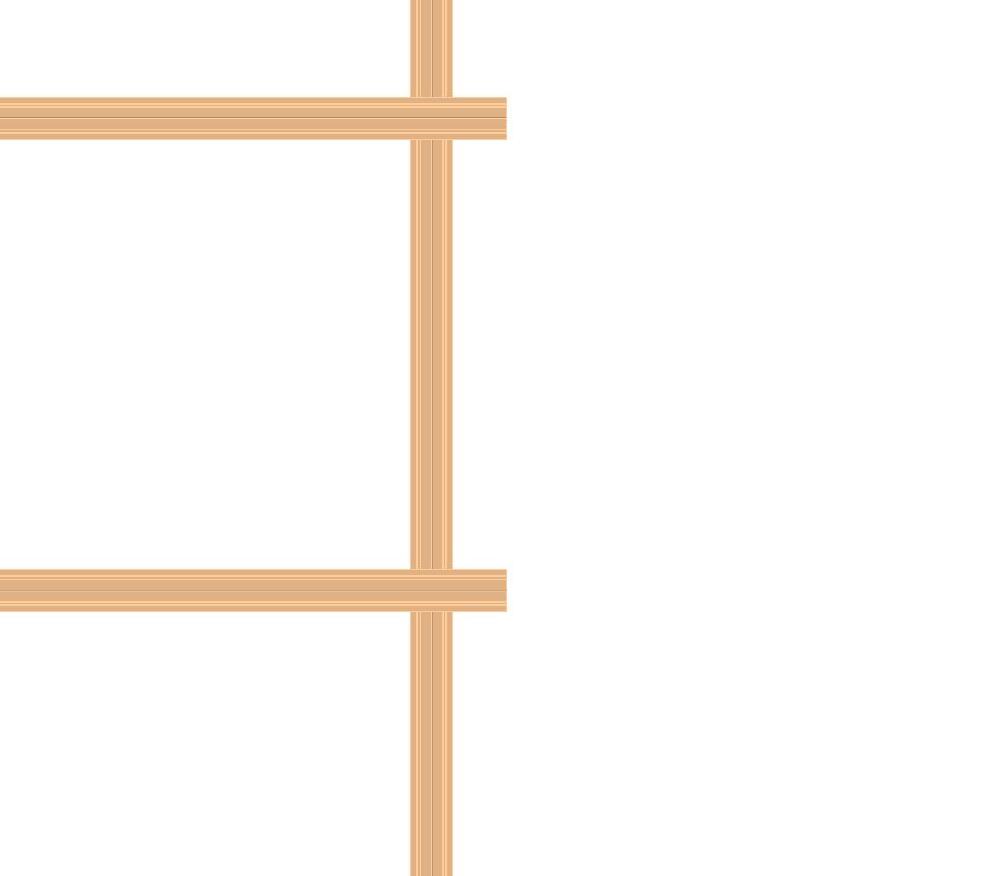

20mm Timber cladding Split batten fixing system
Gypframe 'C' Stud 50mm with 40mm Isover Insulation packed in between 12.5mm Plywood boards
12.5mm Wedi boards
2 x12.5mm Wall boards 3mm Skim Coat 5mm Proprietary adhesive

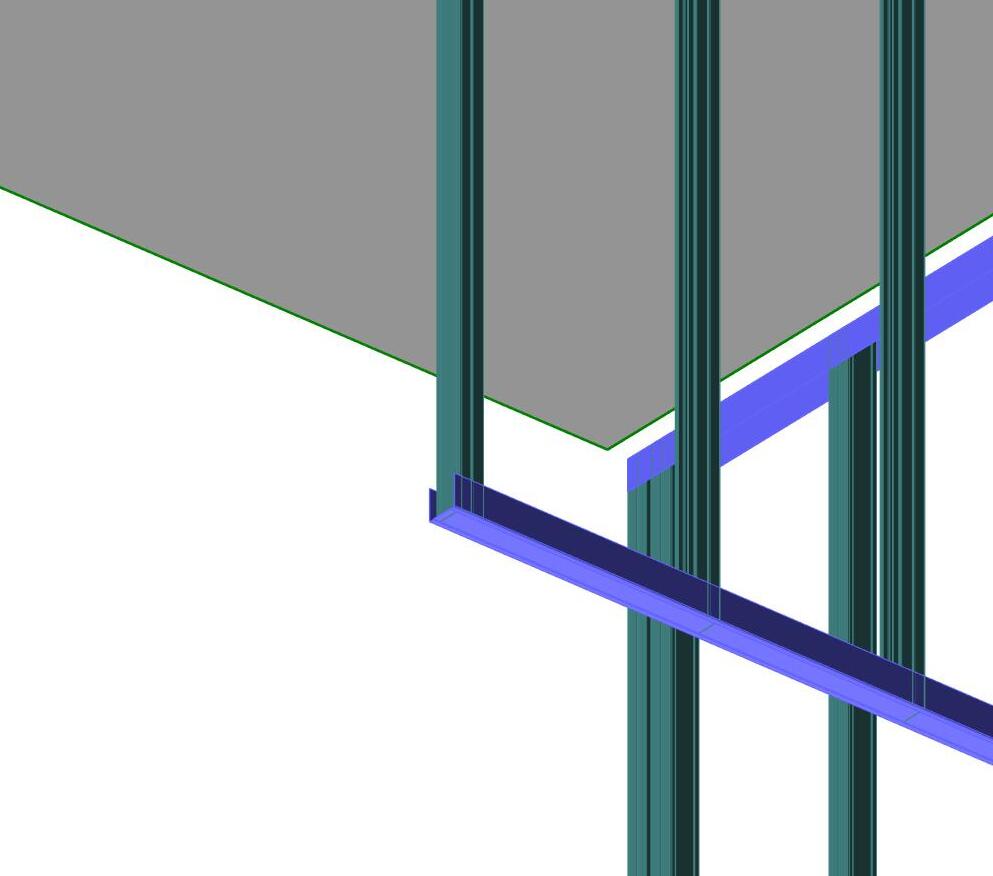

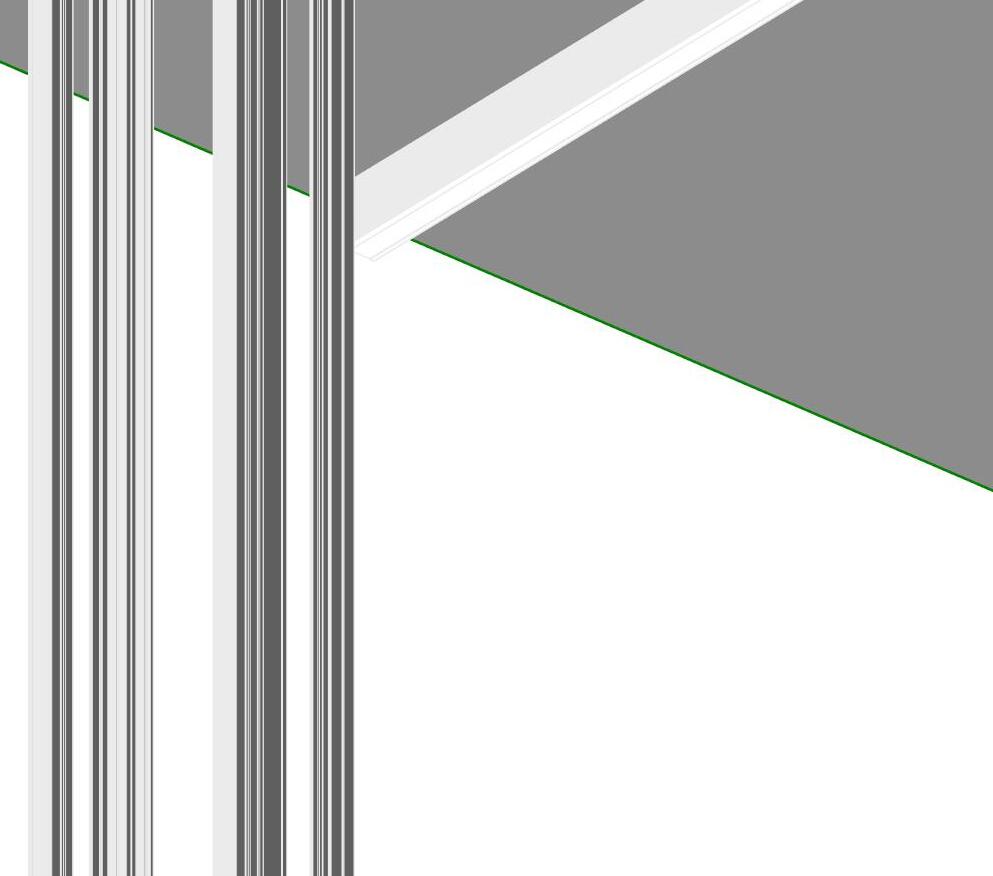

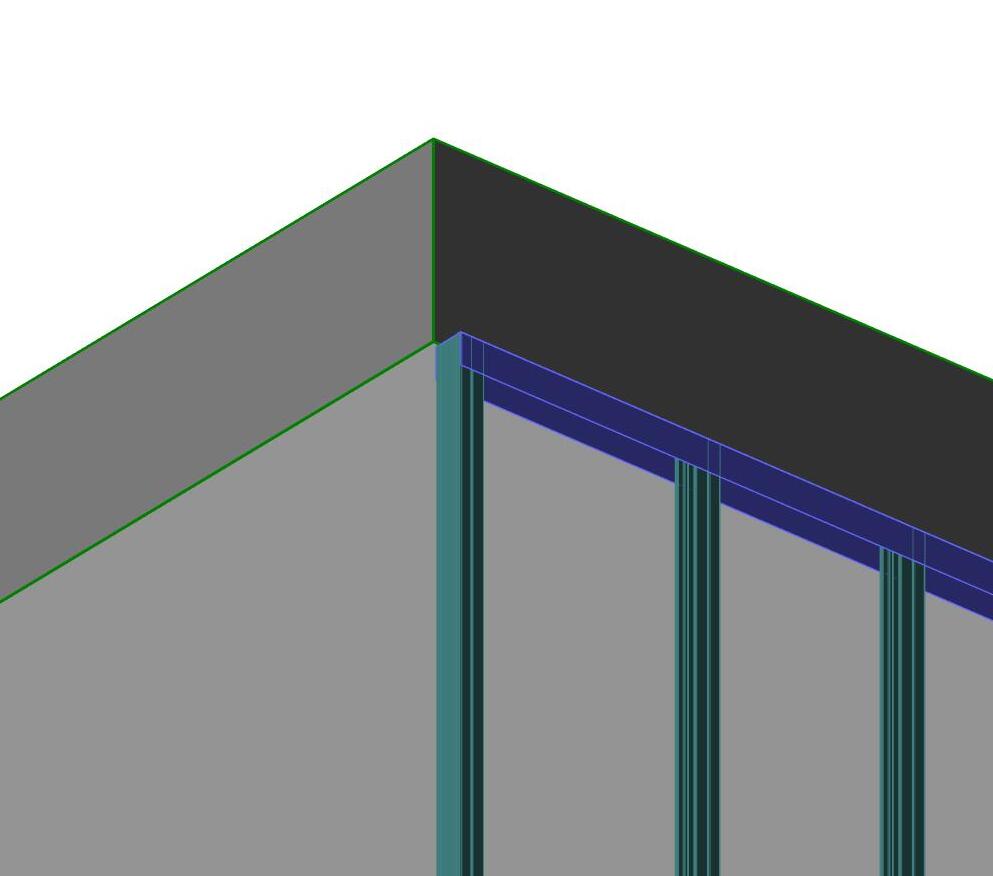

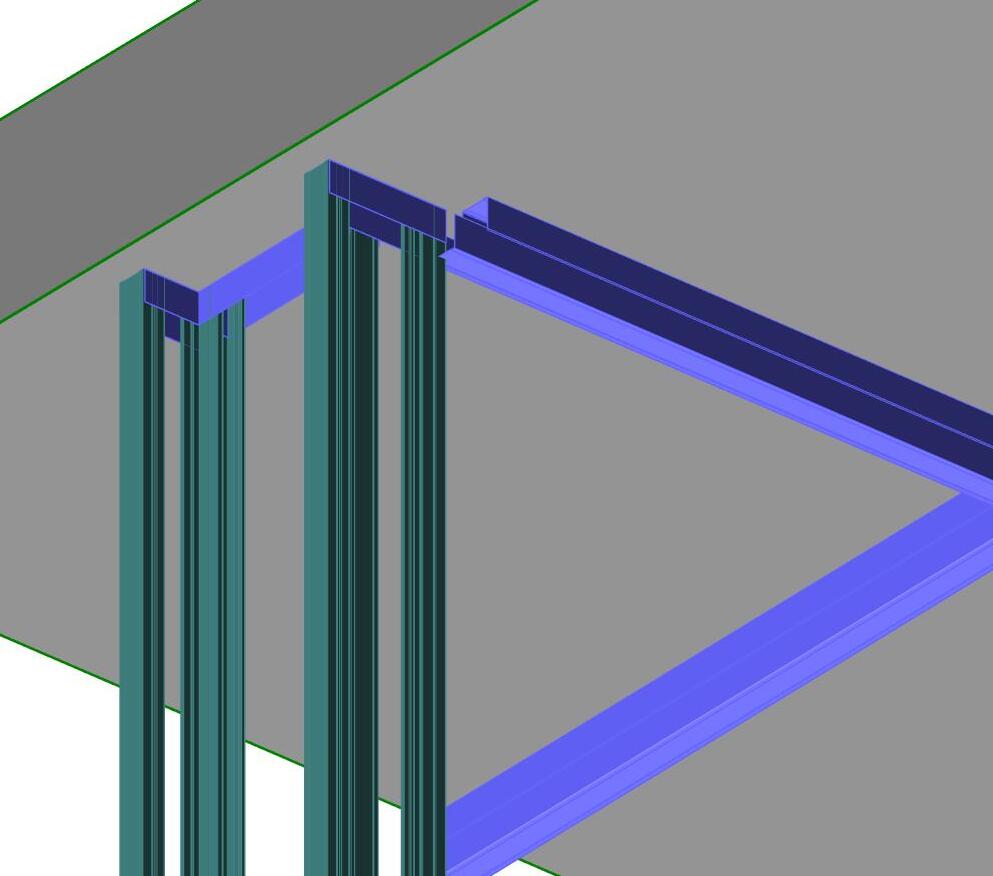

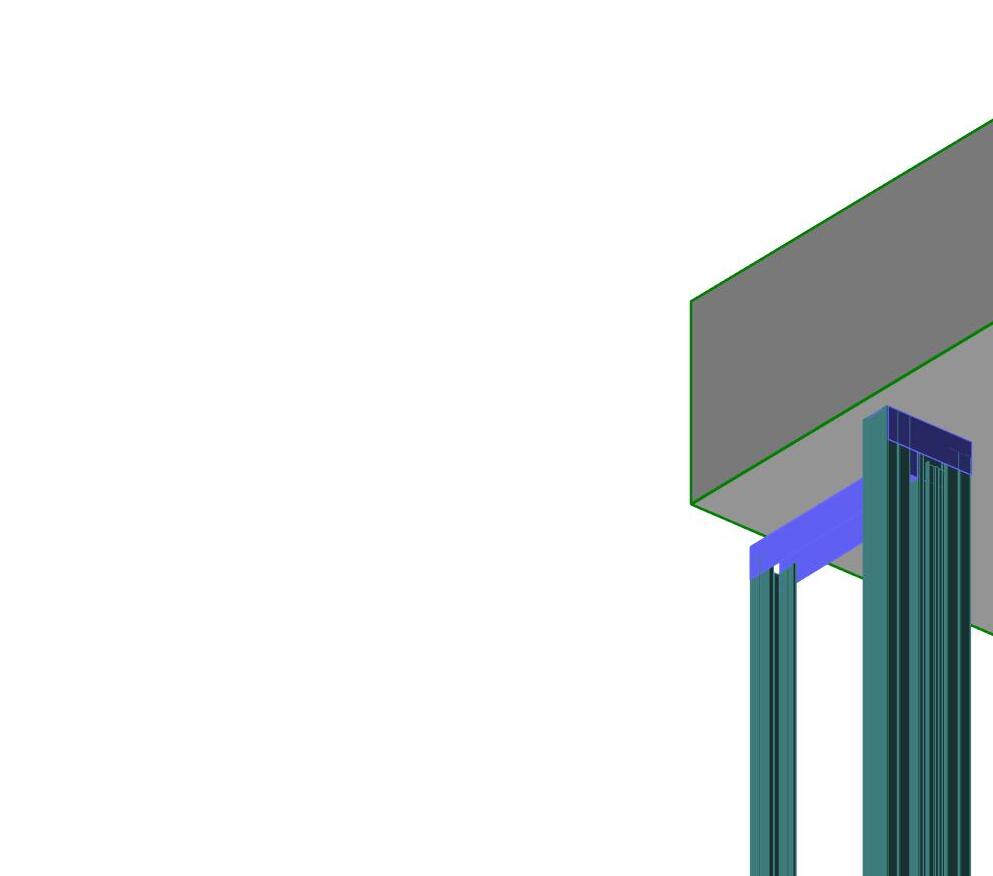

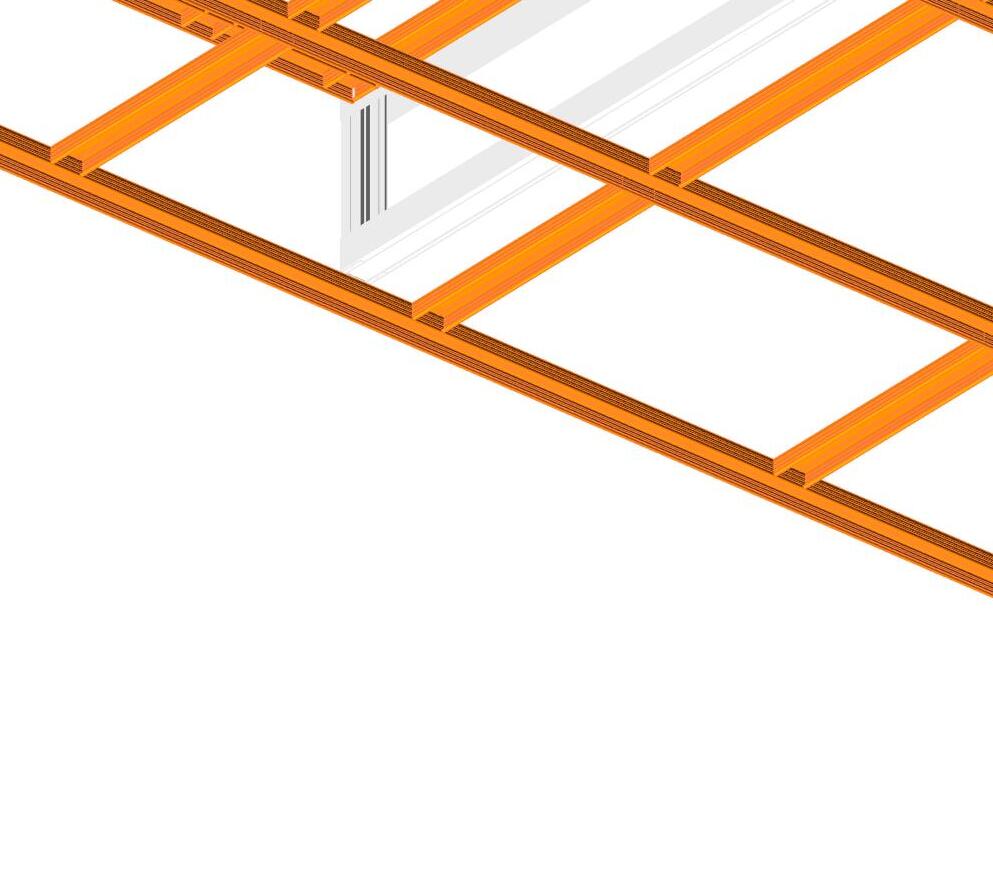

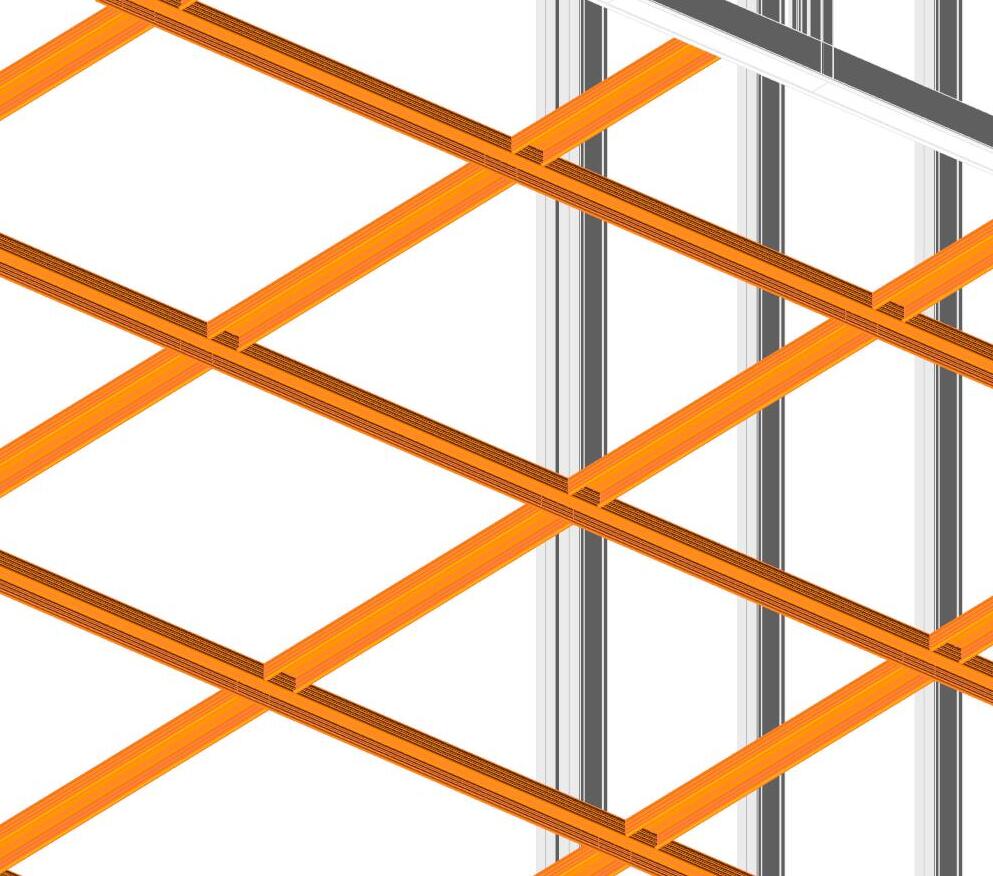

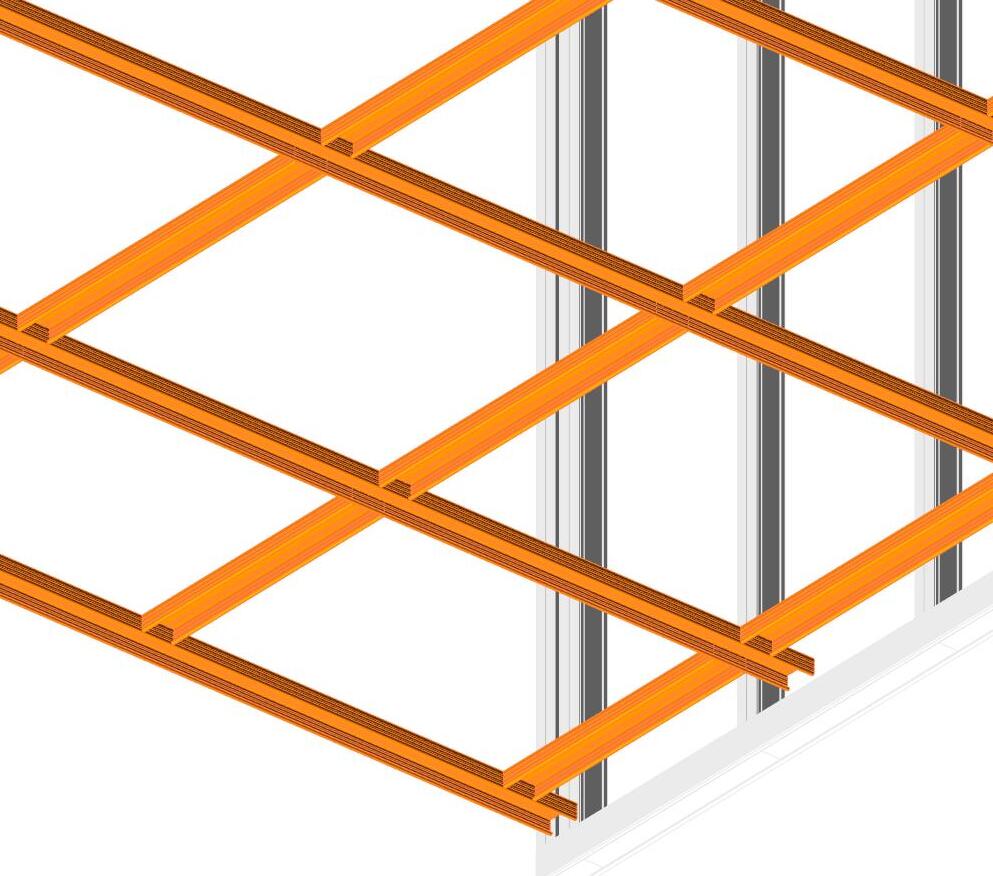

STEP 11

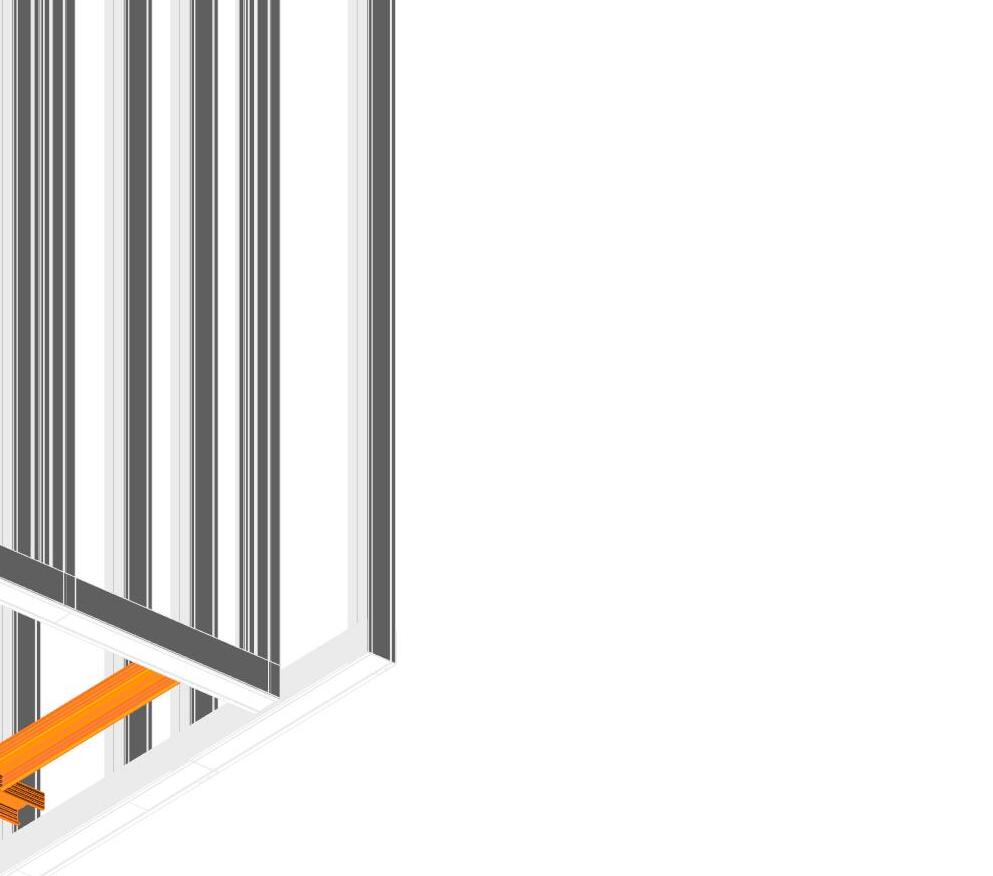

STUD WORK SET OUT
STEP 12
MEMBRANE SETTING OUT

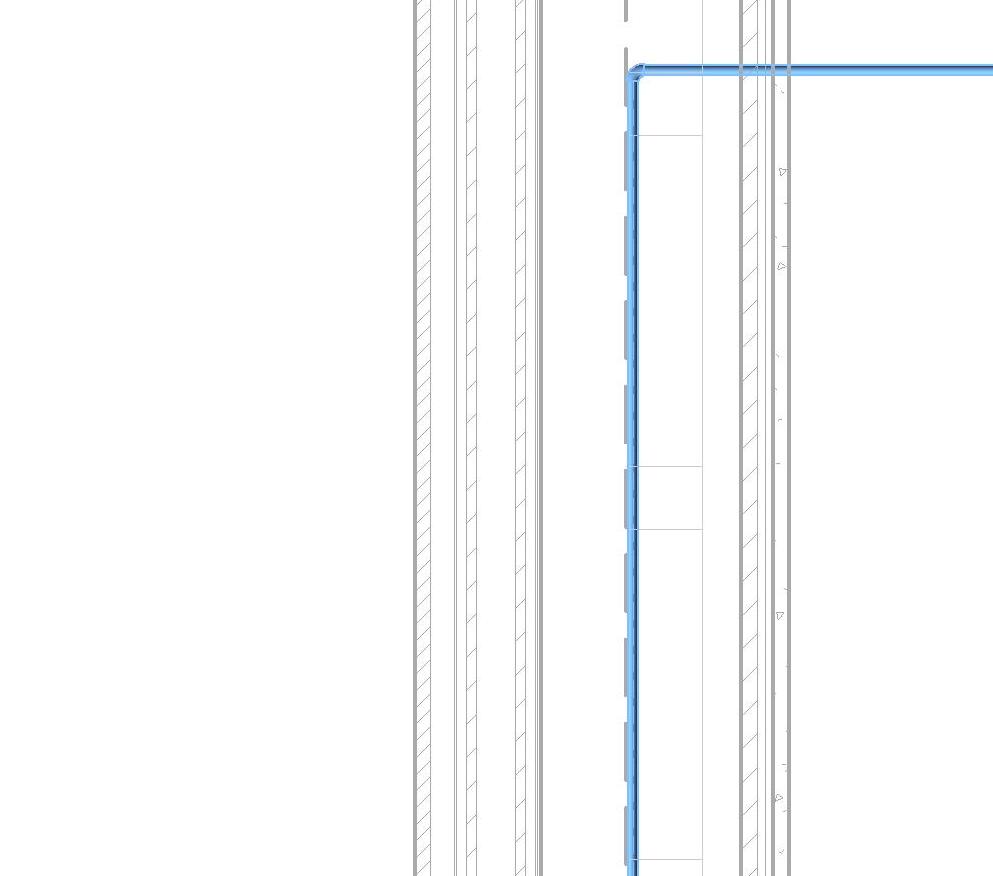

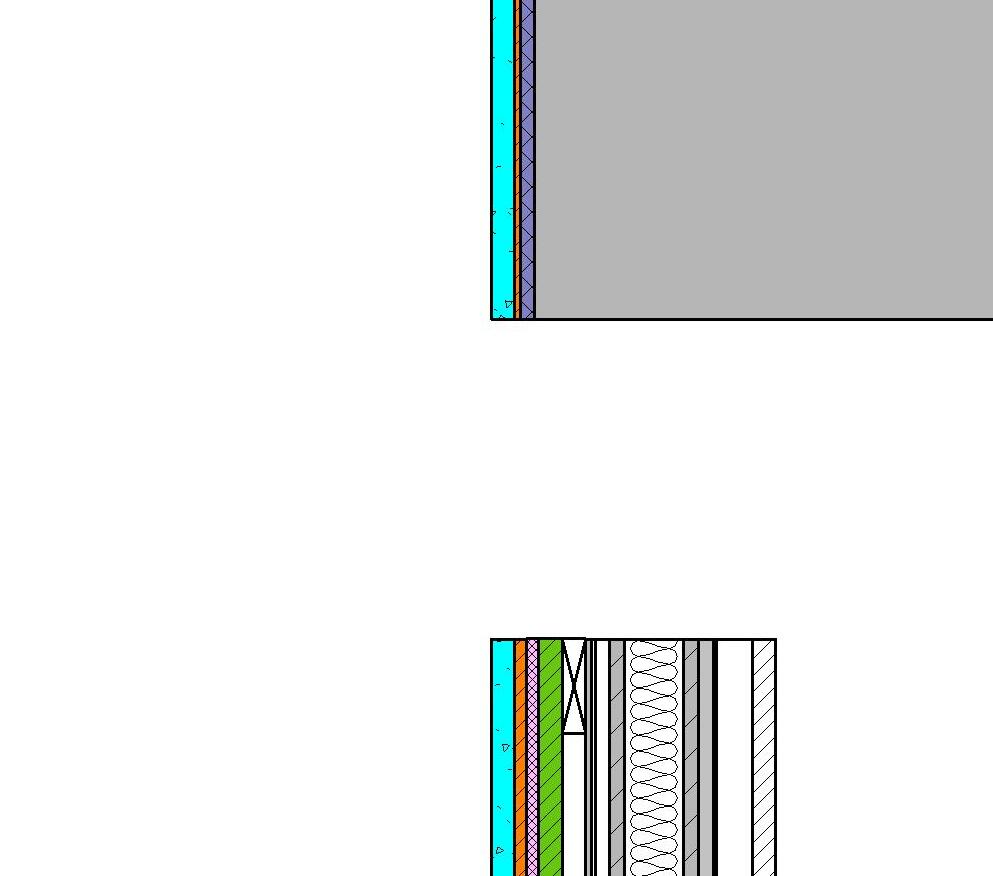

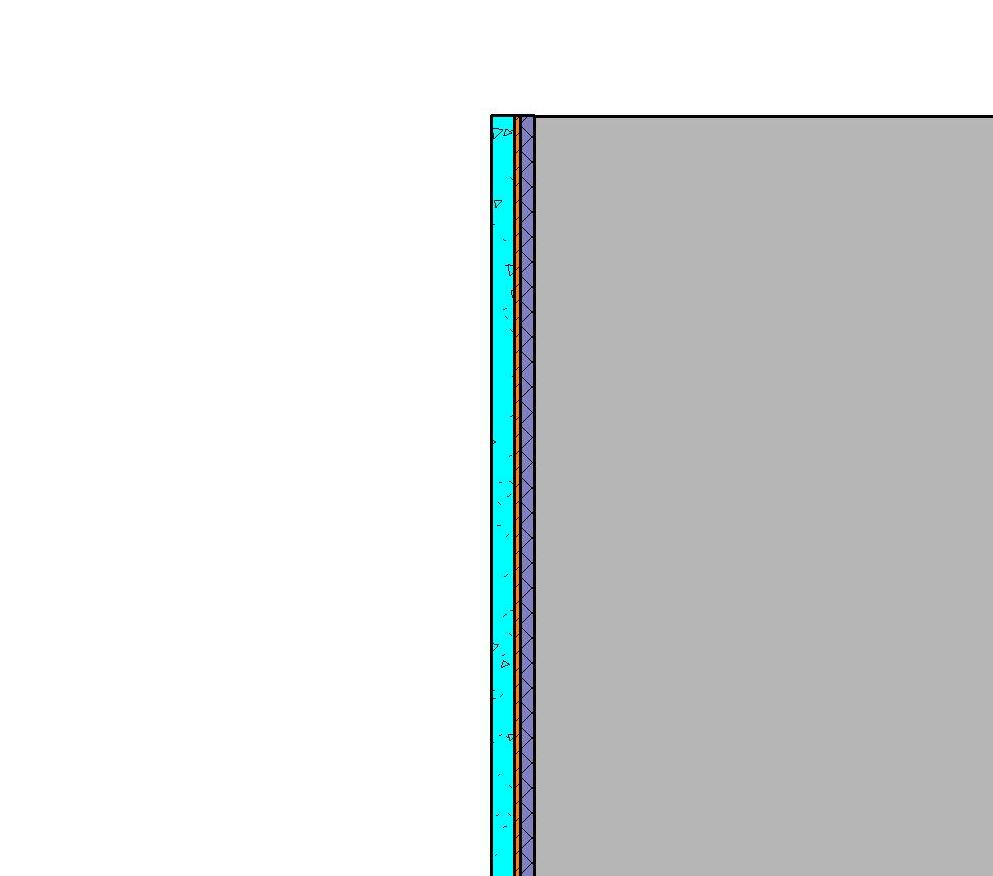

2.MEMBRENE SECTON DETAIL WALL TYPE-IWTD_02.3b
IWTD_02.4b
ST_SLN_04 ITEMOB CODE WALLS FLOORS DESCRIPTIONDESCRIPTION MARBLE -ST LAURENT NOIRPOLISHED
MARBLE -CALACATTA OYSTER -POLISHED MAIN FINISHES
ST_SLN_04 MARBLE -CALACATTA OYSTER -POLISHED SKIRTING
ST_THA_04
ST_SLN_04
MARBLE -WHITE THASSOSPOLISHED MARBLE -ST LAURENT NOIRPOLISHED

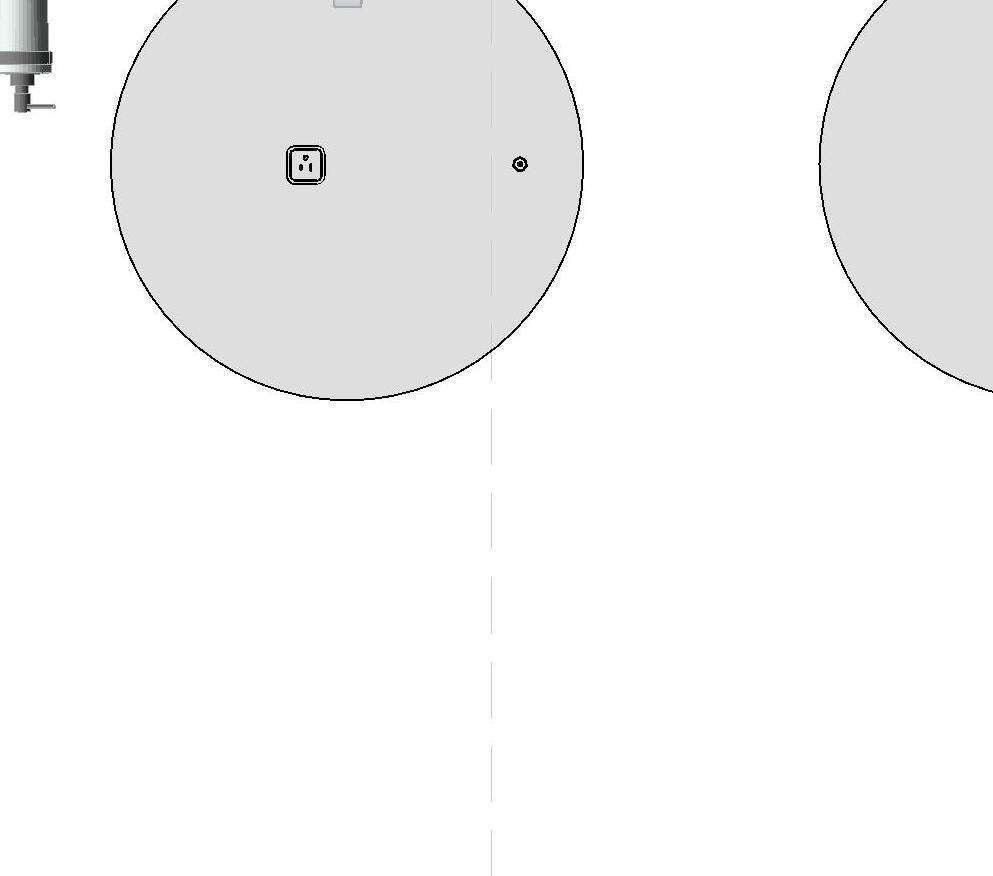

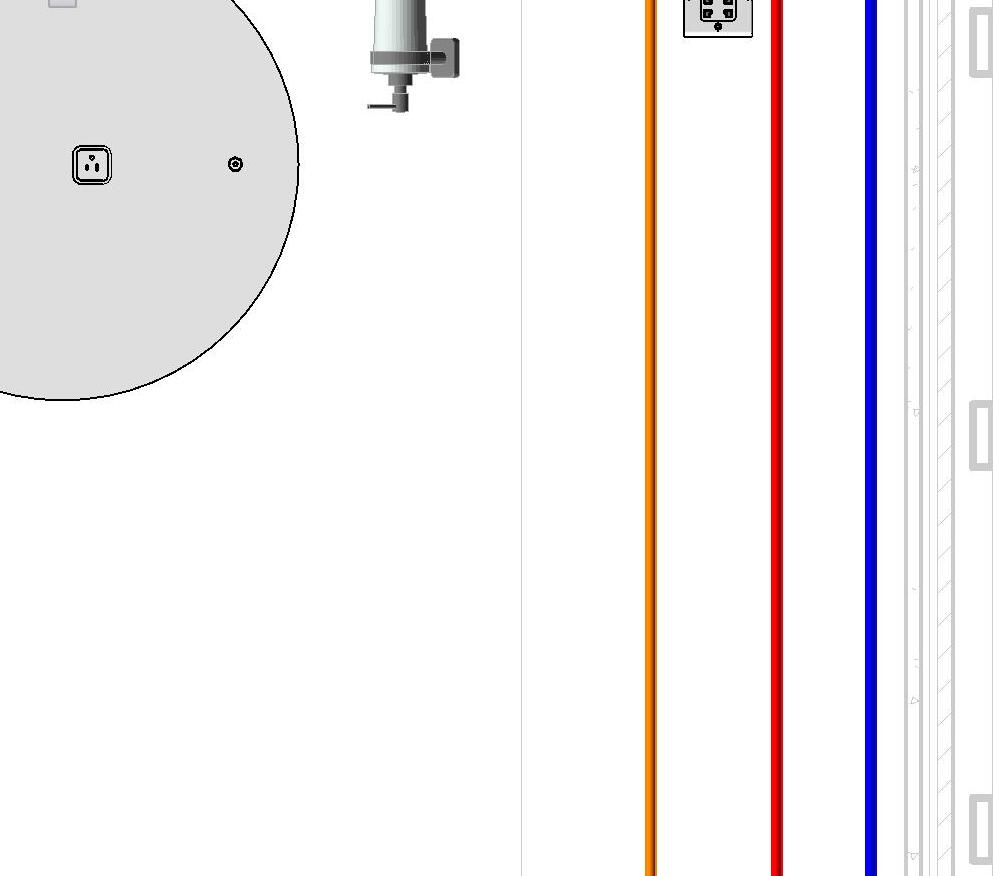

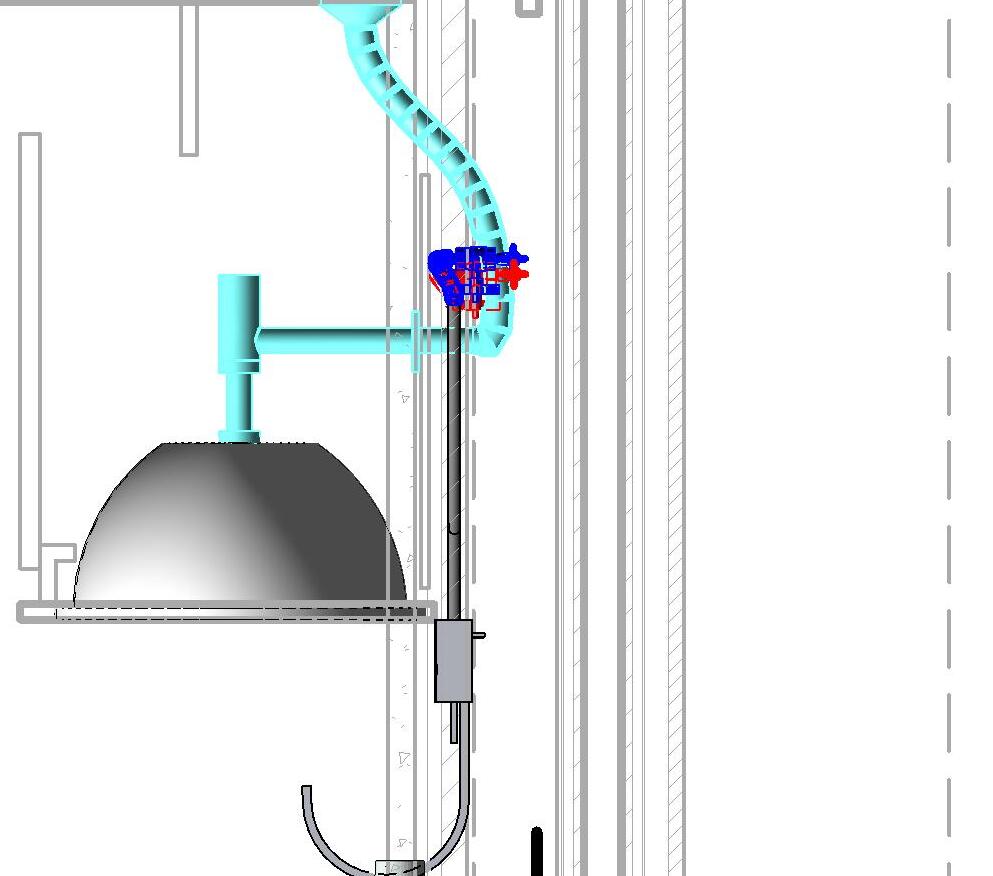

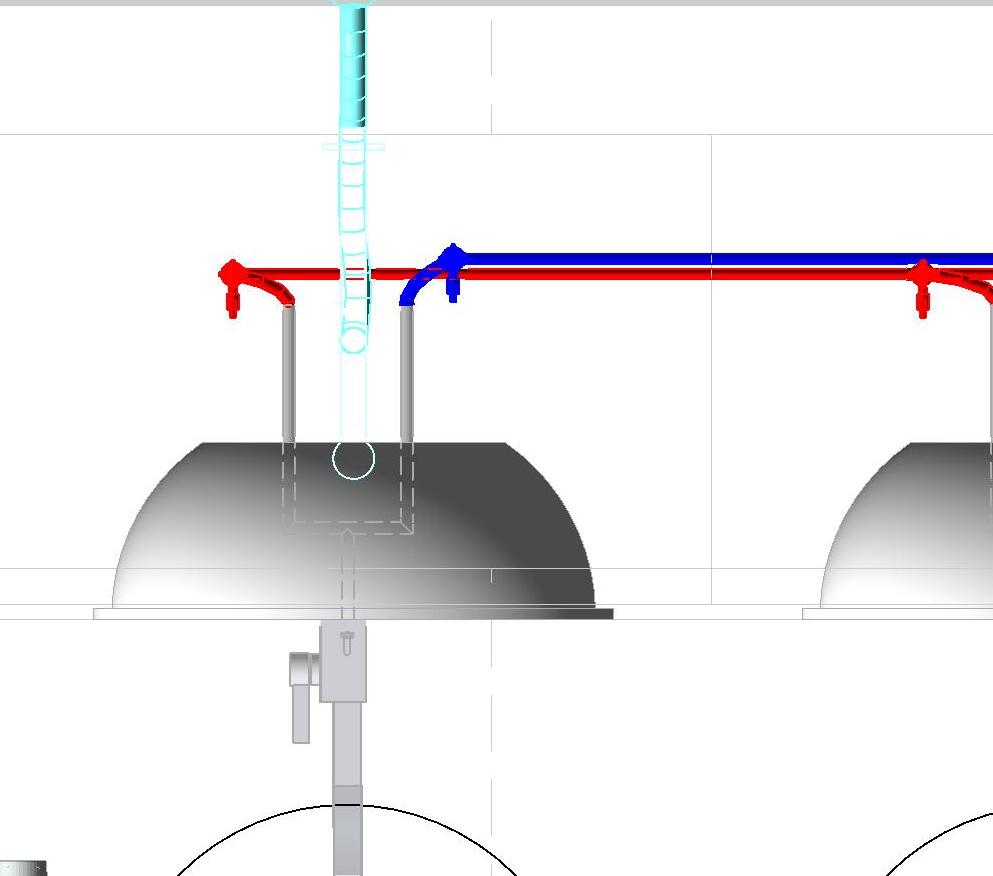

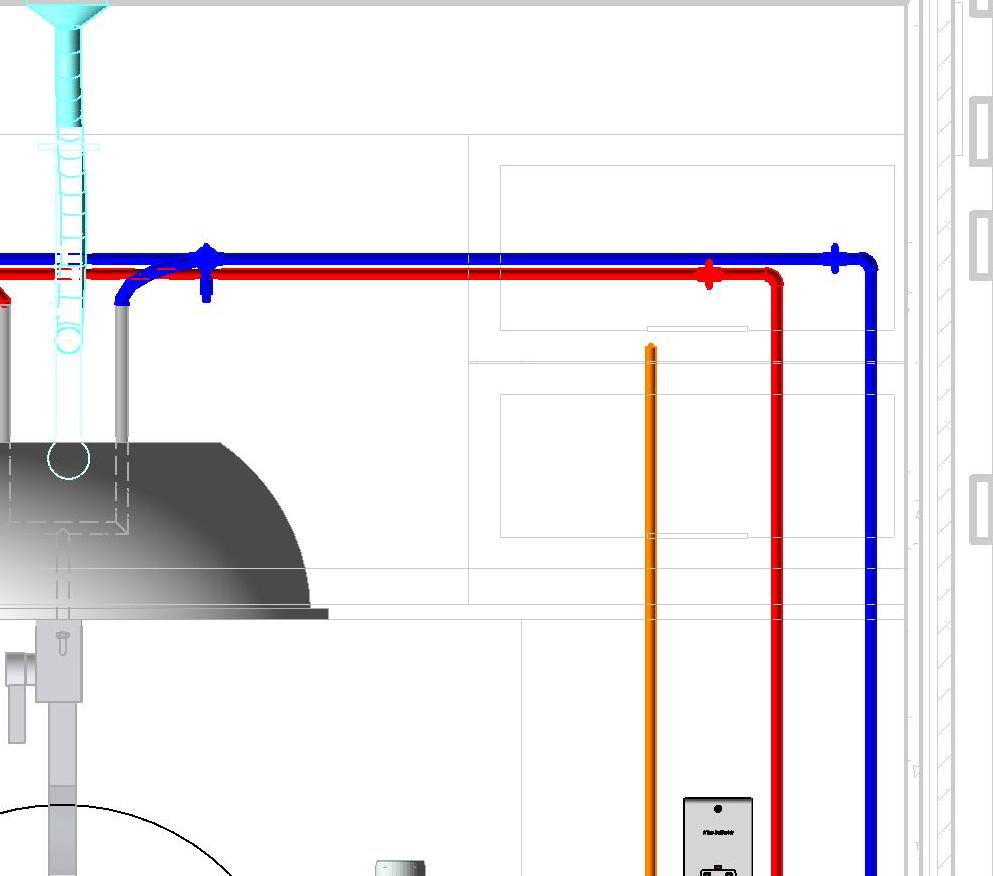

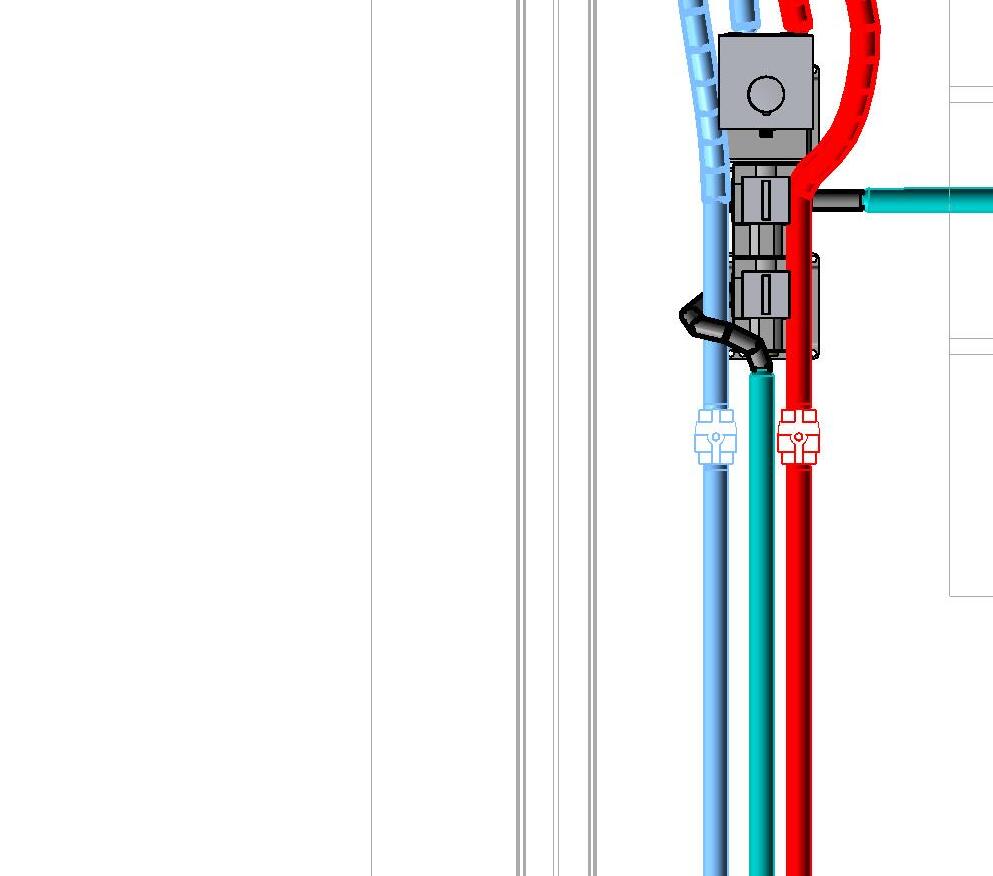

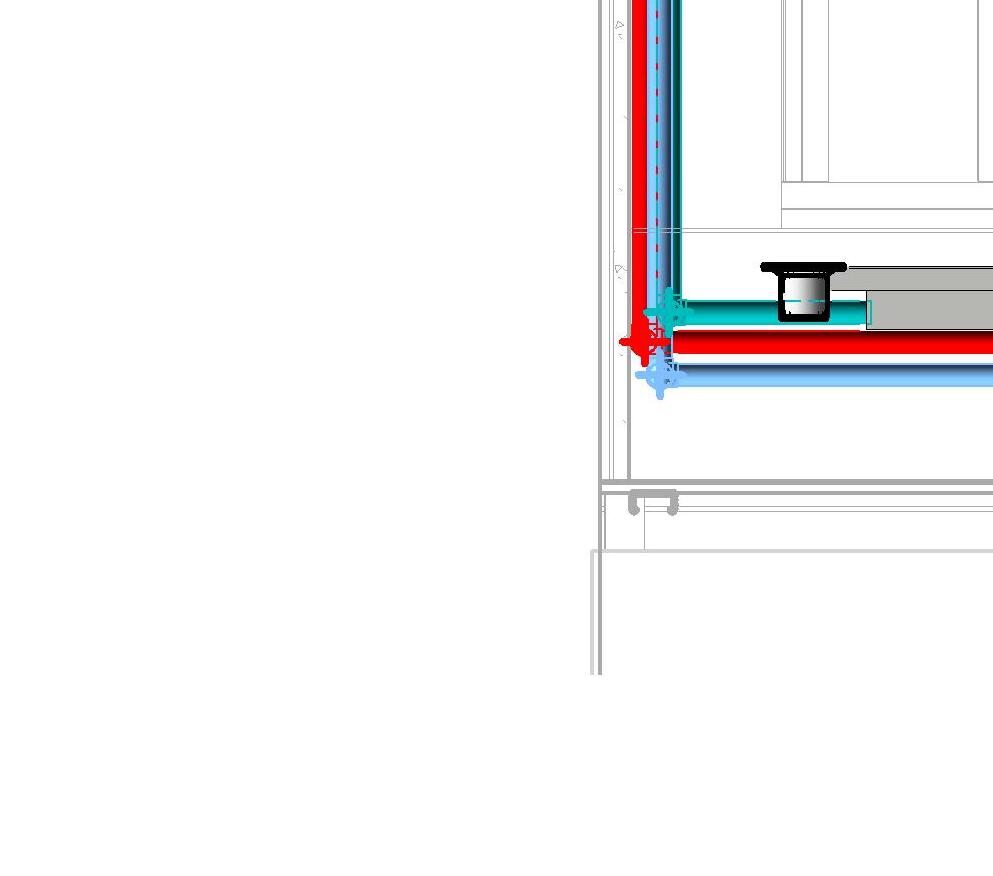

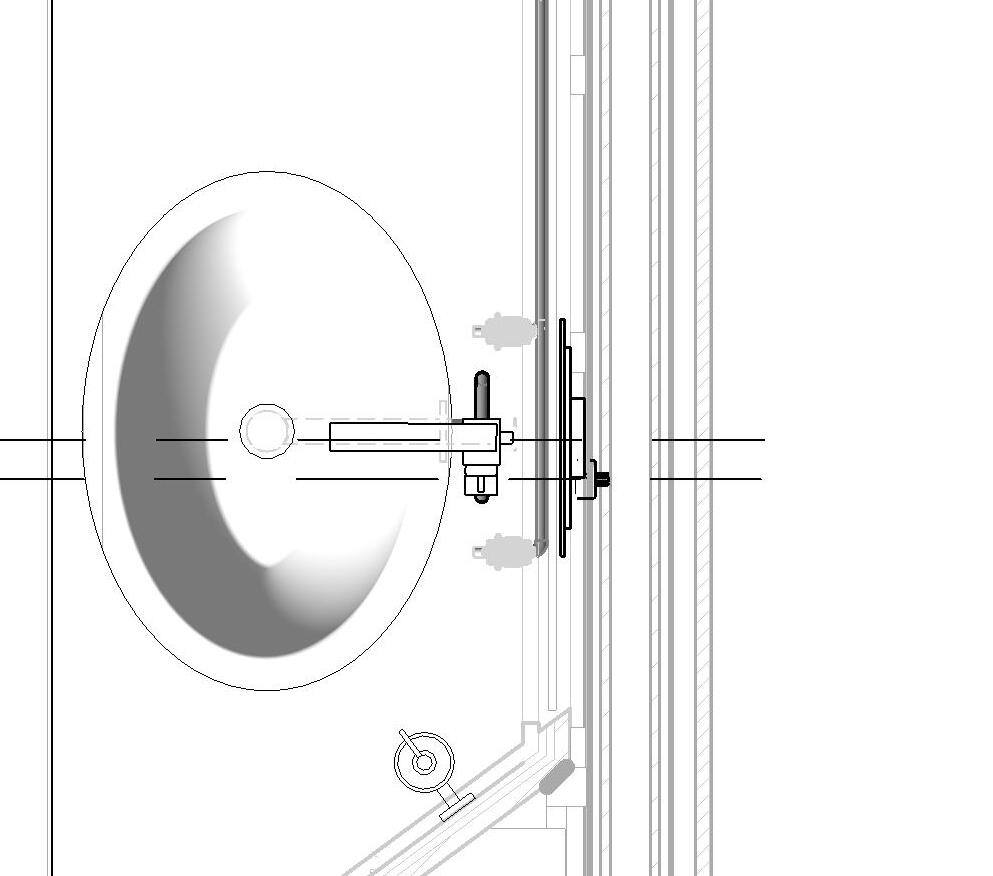

STEP 15

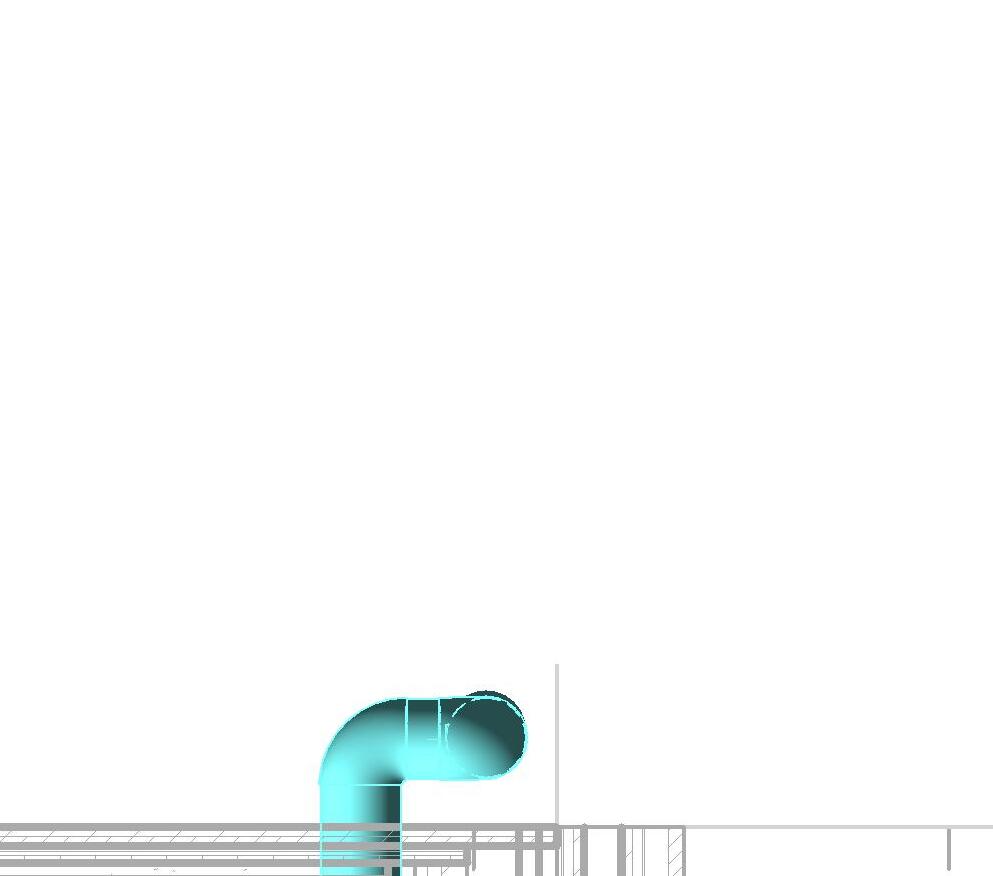

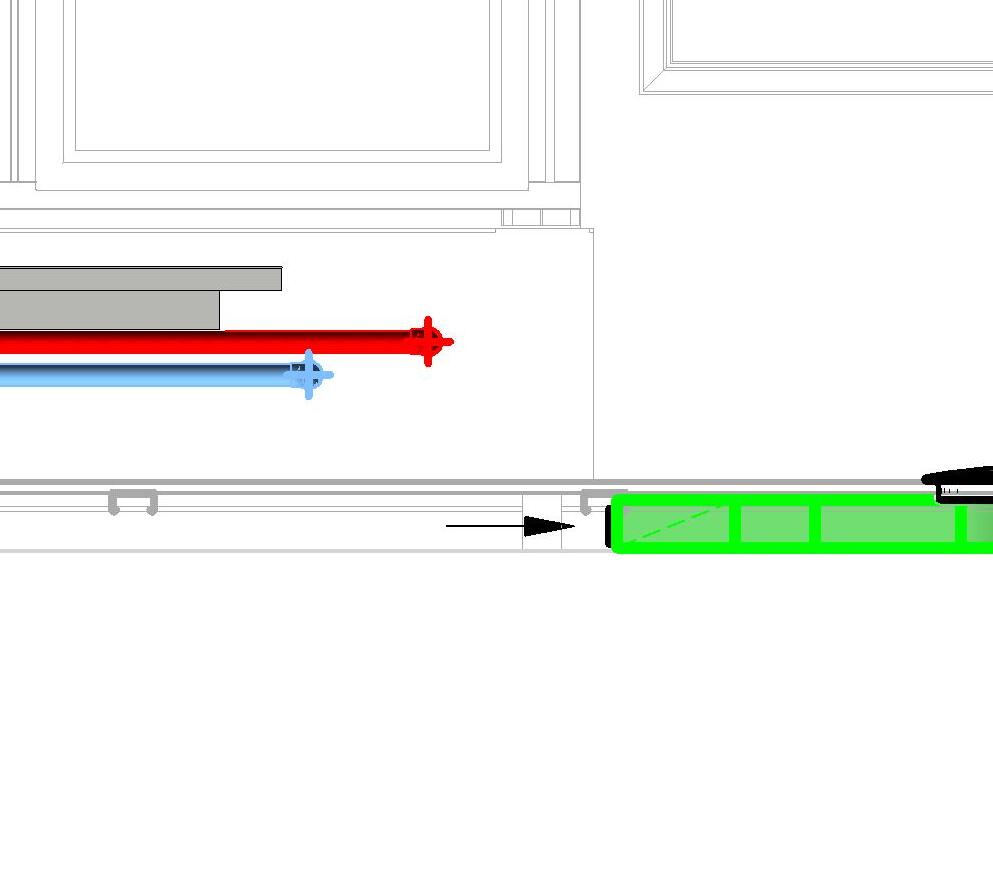

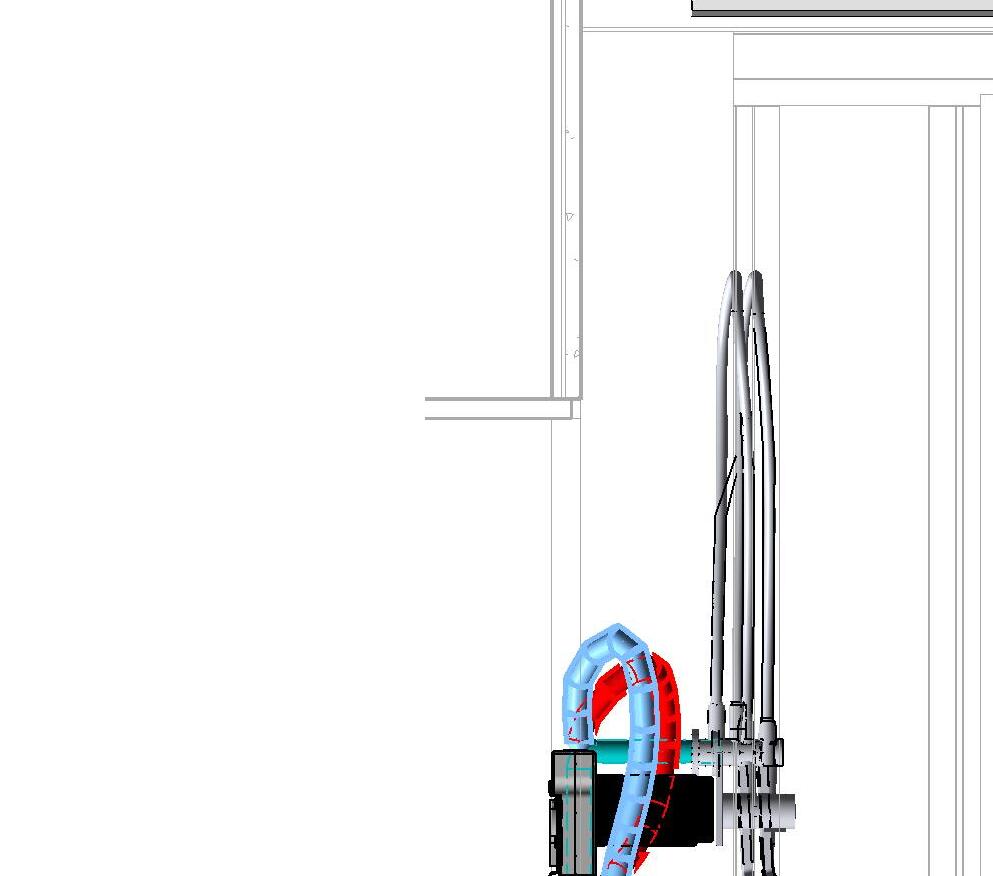

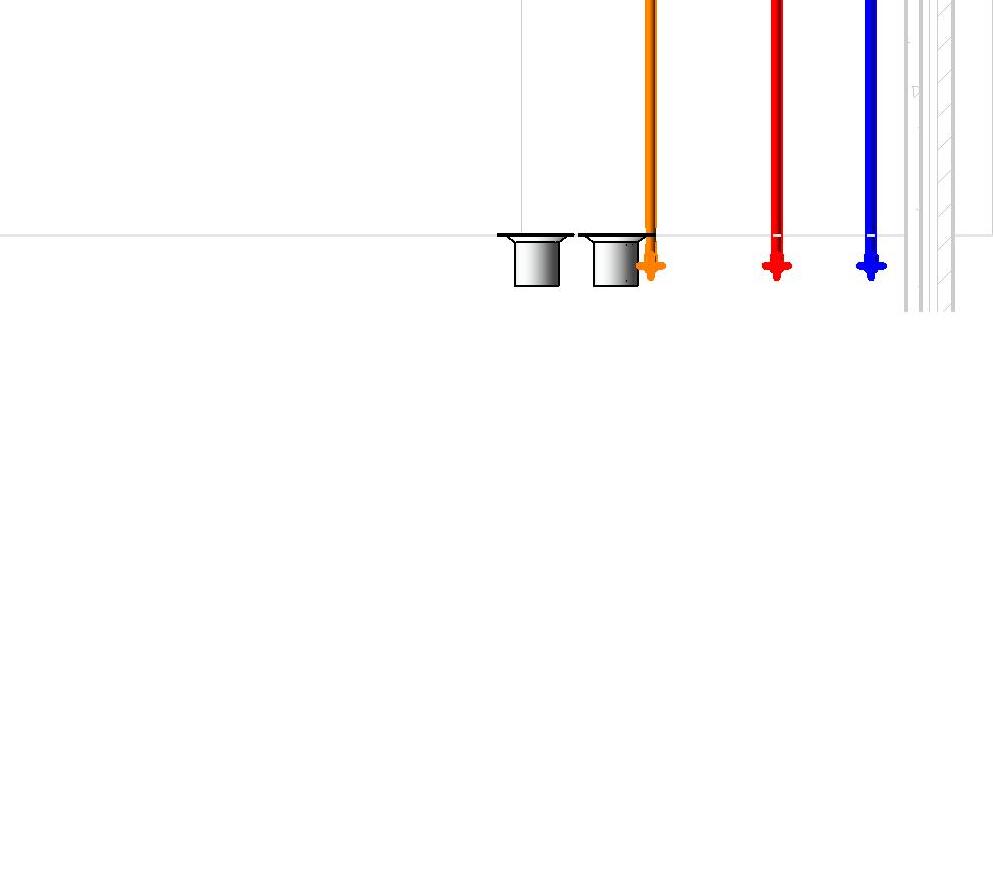

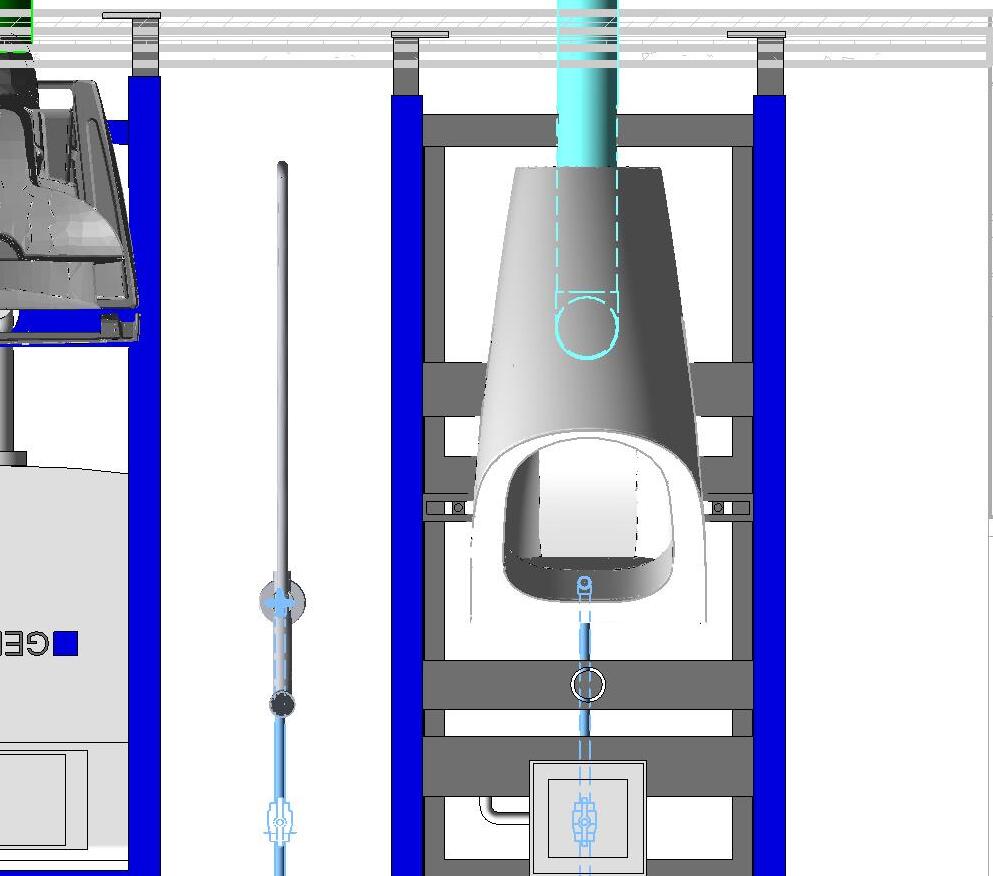

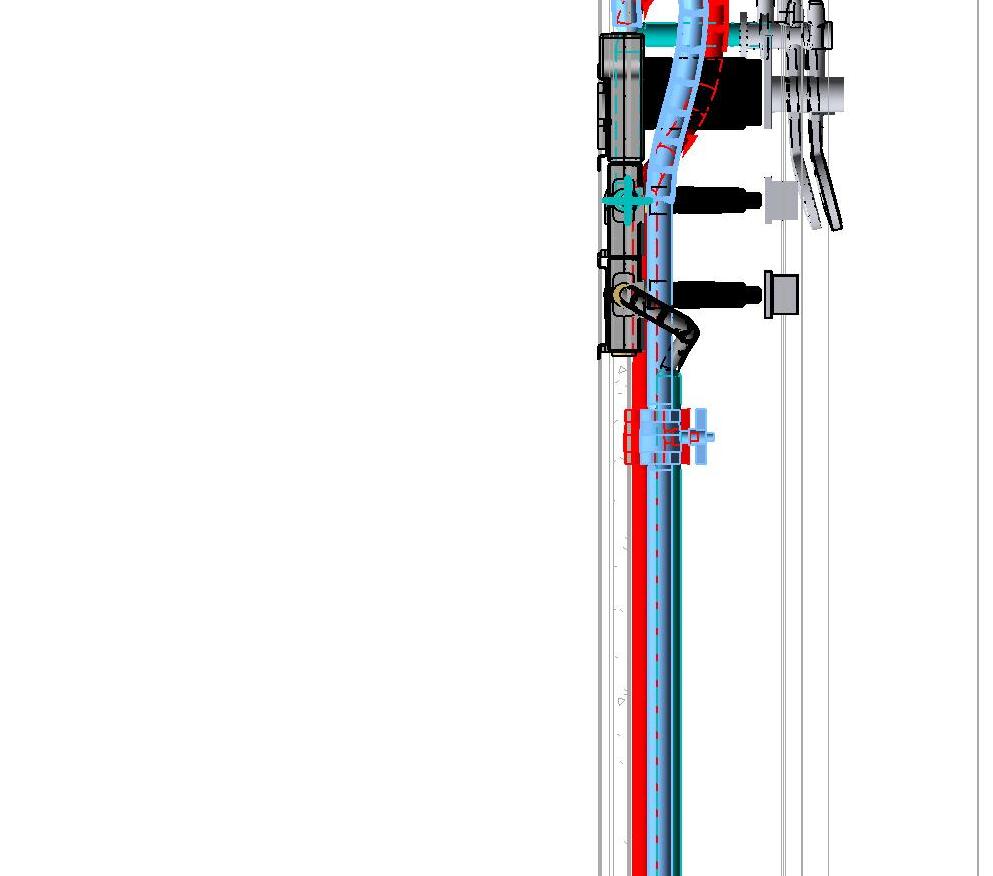

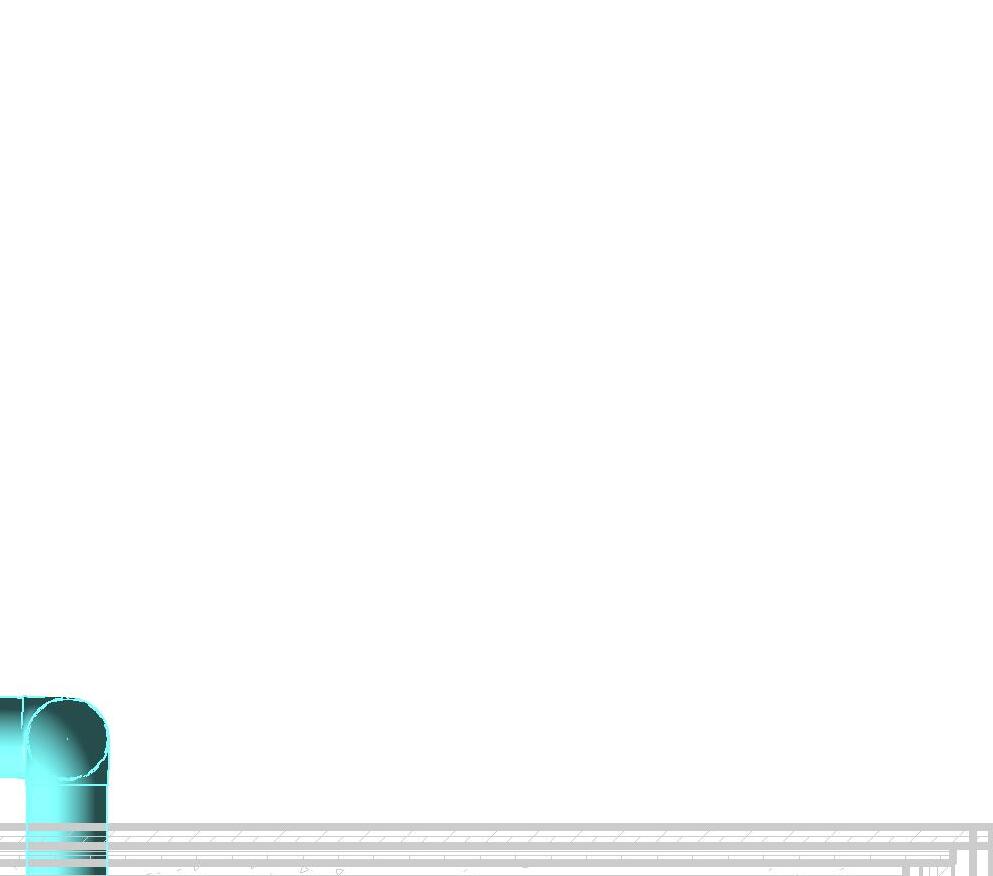

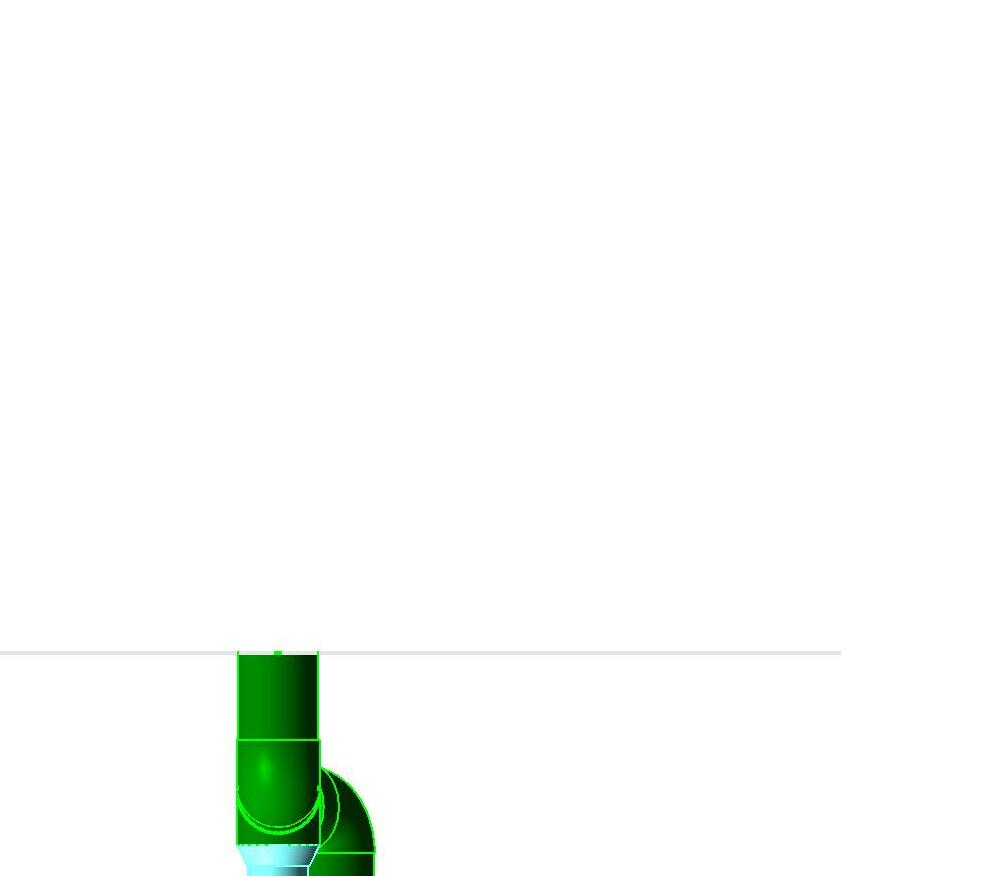

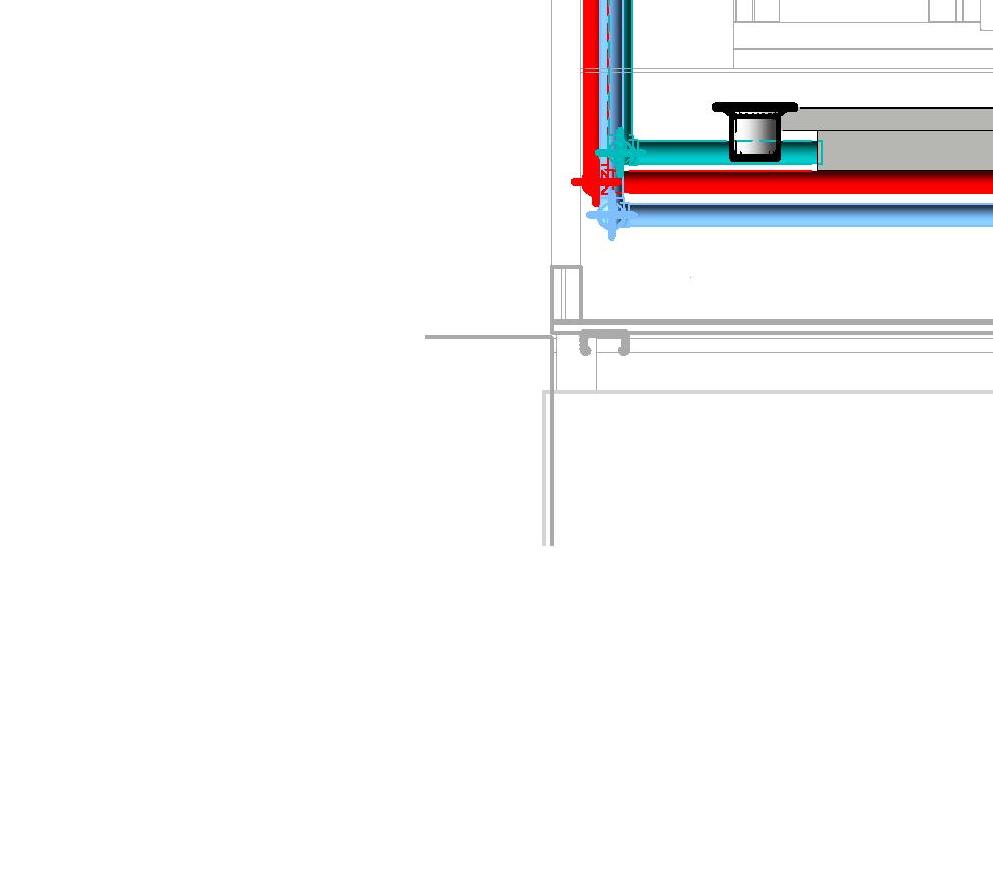

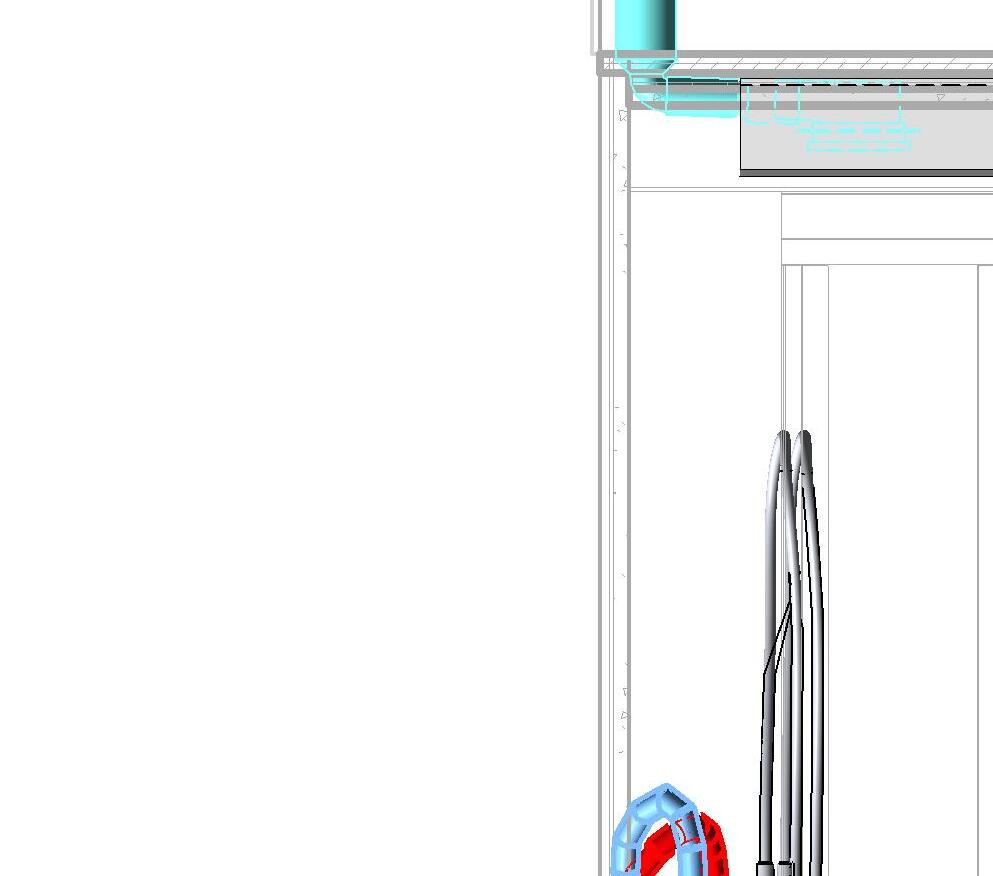

LEVEL SERVICE SETTINGOUT 2nd FIX

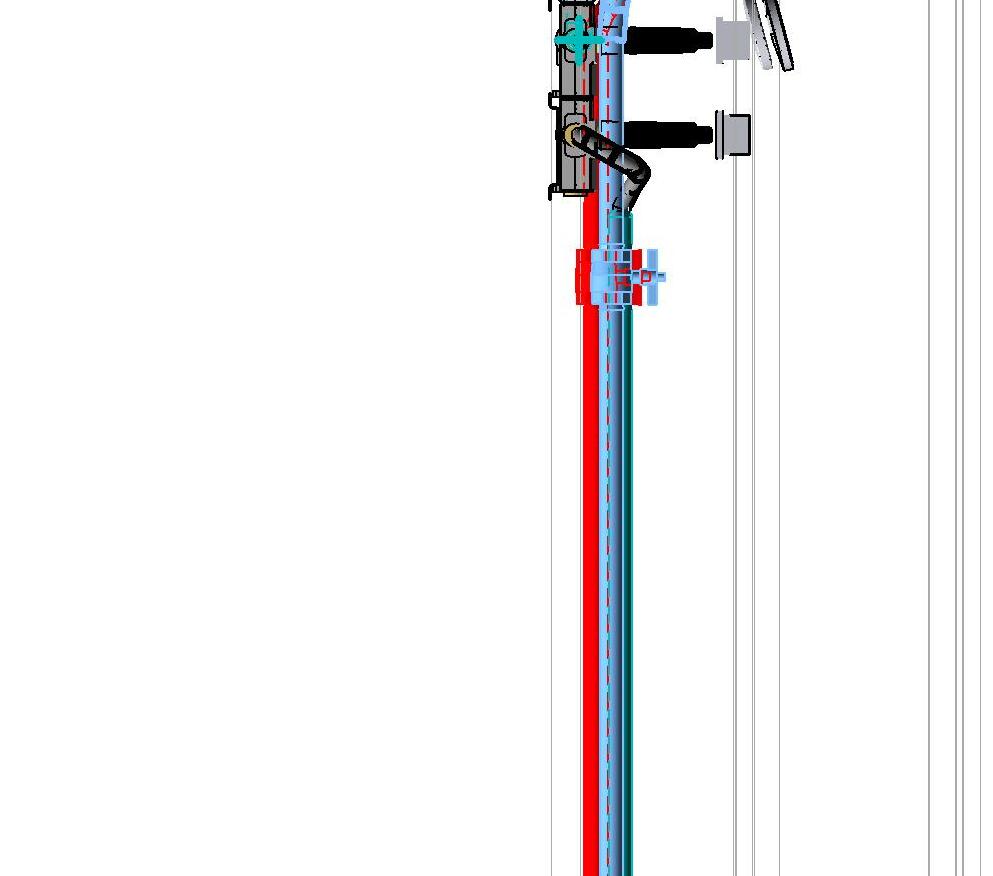

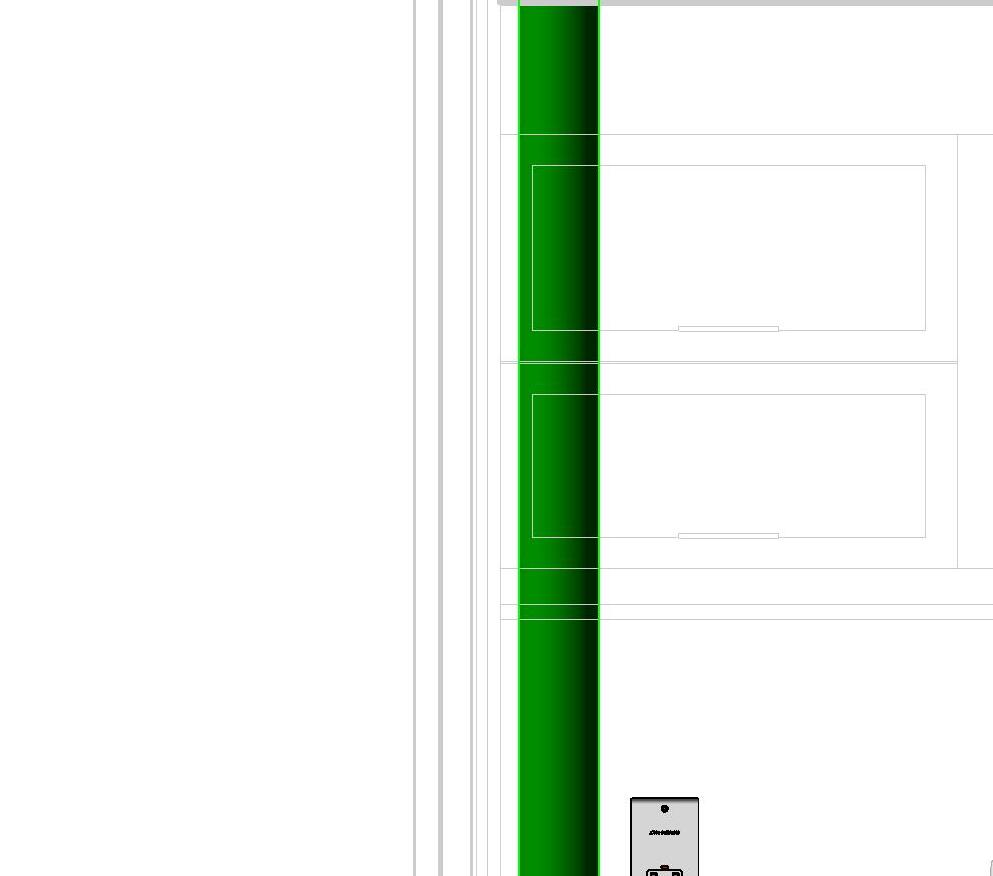

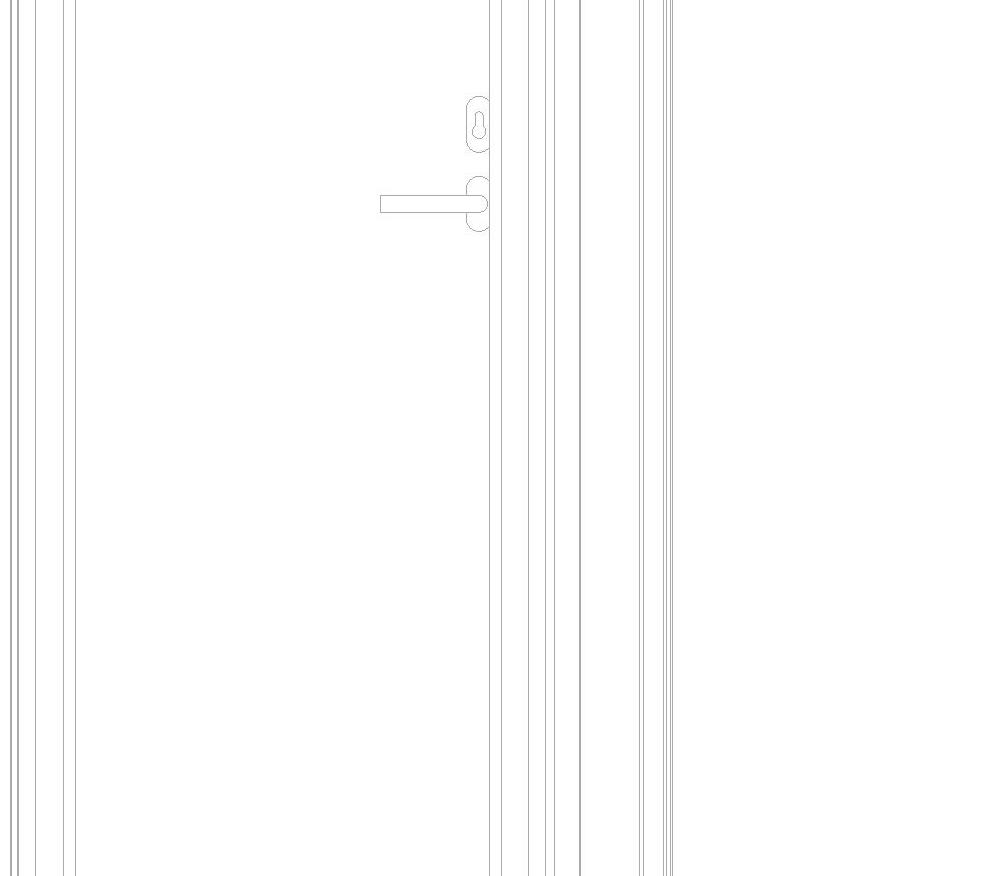

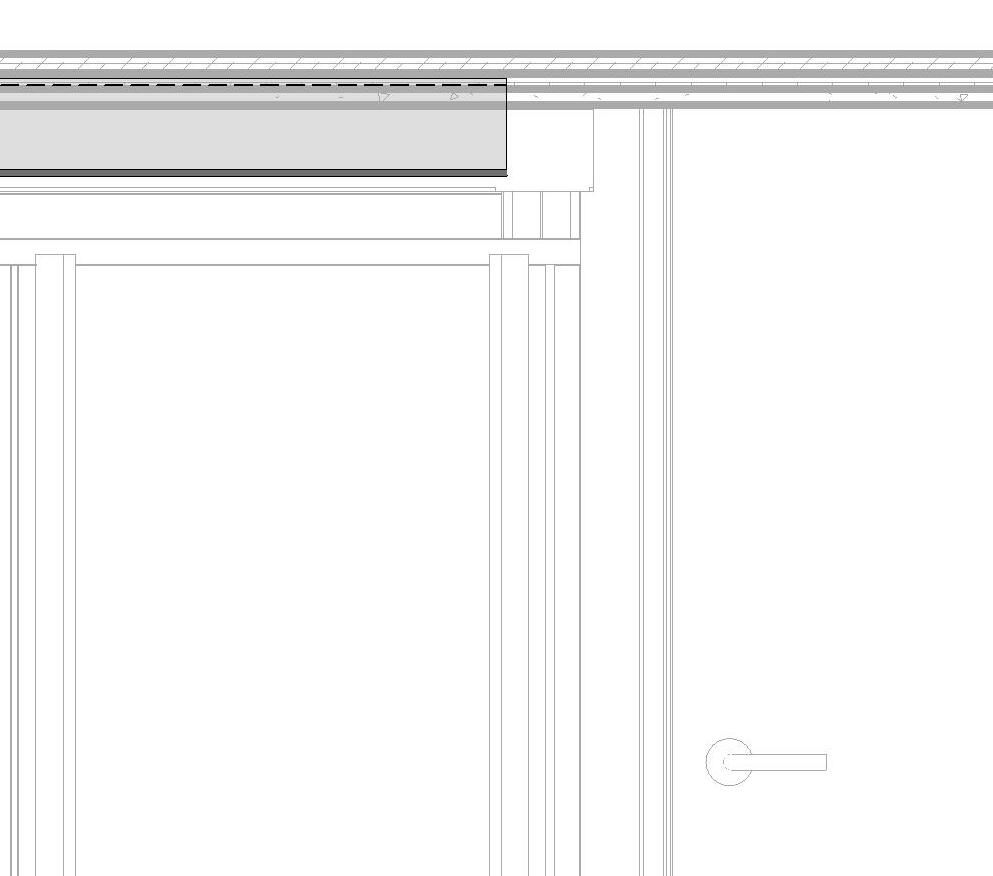

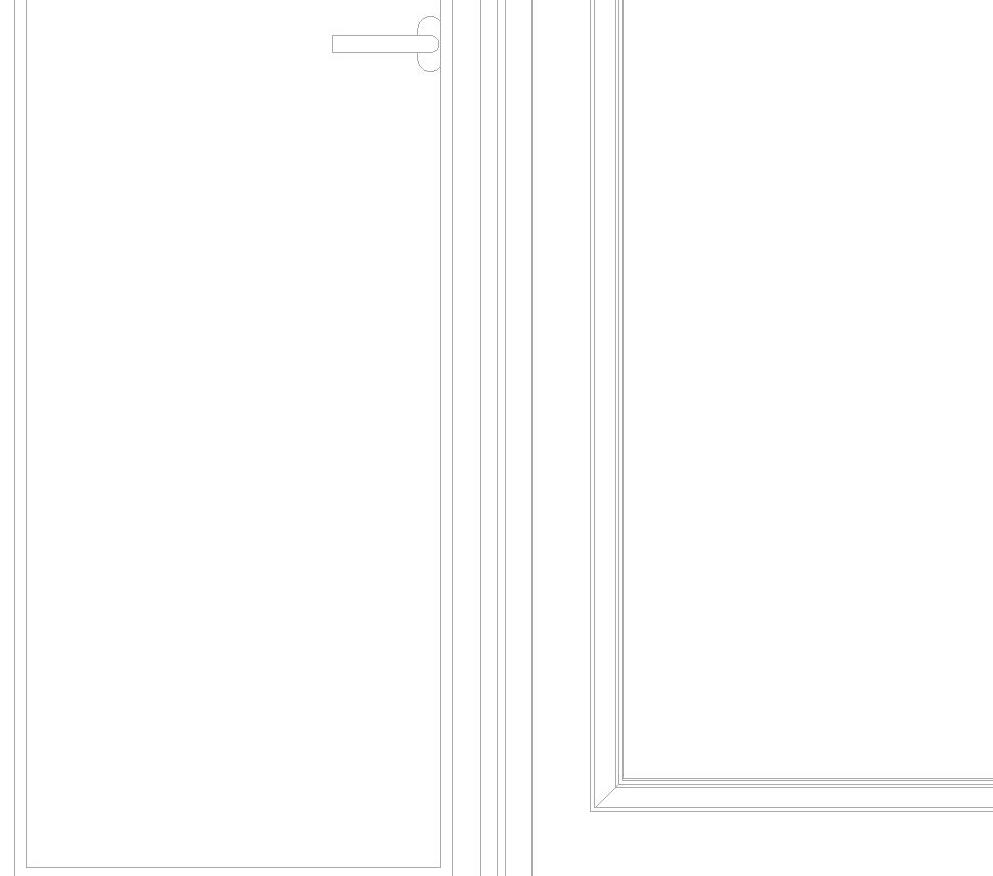

ELEVATION
ELEVATION
