SCREENPOD

Screenpod is a design and manufacture specialist of screening, recycling and dust suppression solutions for the global market. With a unique range of products from the Screenpod AirVac to the S series Dust cannons, the company provides a cost effective and practical solution to all its customer requirements.

Each product is designed to solve the customer’s problems and save money. Plus Screenpod builds its products to last. With an innovative range of optional extras, Screenpod ensures that the products are versatile and meet the customer’s specific needs on varying applications.

Screenpod makes it a priority to understand the needs and demands of the customers and we respond accordingly with innovative solutions. New concepts are being continually developed so that Screenpod can go even further to streamline the way material is handled and processed for their clients.

AIR-VAC WINDSHIFTERS

AV1200 E

Weight: 412kg Length: 1,32m Width: 1,25m Height: 1,07m Elektric driving (15kW) Adjustable suction power

AV1200 H

Weight: 398kg Length: 1,28m Width: 1,25m Height: 1,07m Hydraulic driving (15kW) Adjustable suction power

AV 1600 E

Weight: 550kg Length: 1,61m Width: 149m Height: 1,17m Elektric driving (30kW) Adjustable suction power

AV1600 D S

Weight: 1.610kg Length: 2,18m Width: 1,70m Height: 1,55m Diesel single (38kW)

AV1600 D D

Weight: 2.900kg Length: 2,36m Width: 2,36m Height: 2,22m Diesel dual (46kW)

HYDRA FS1400

FLOTATION SEPARATORS

HYDRA FS1400 (Static)

Weight: 6.500kg Length: 6,663m Width: 3,243m Height: 2,668m

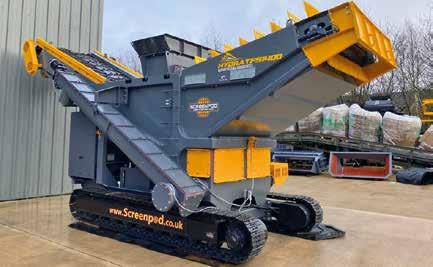

HYDRA TFS1400 (Tracks)

Weight: 16.700kg Length: 8,381m Width: 3,251m Height: 3,839m

DUST CANNONS

S35 (available on skid/ wheels/trailer)

Dry weight: 225kg Length: 0,91m Width: 0,93m Height: 2,10m Fan motor: 3kW Throw: 35 - 40m

S45 (available on skid/wheels/ tracks/trailer and telescopic)

Dry Weight: 465kg Length: 1,40m Width: 1,30m Height: 1,90m Fan motor: 7,5kW Throw: 45 - 50m

S65 (available on wheels/ tracks/trailer and telescopic)

Dry Weight: 690kg Length: 1,40m Width: 1,30m Height: 1,90m Fan motor: 11kW Throw: 65 - 80m
