TEREX ECOTEC

Terex Ecotec is an industry leader in the design and manufacture of wood processing, biomass and recycling equipment. Having developed a world class range of mobile equipment that will shape the industry for years to come, today the comprehensive product portfolio includes slow, medium and high speed shredders, trommel and recycling screens, metal separators, and conveyors. The range of innovative machines available provide efficient production, low operational costs and ease of maintenance, so end users are sure to find the correct machine for their application.

TTS 518 TTS 620T

TROMMEL SCREENS TTS

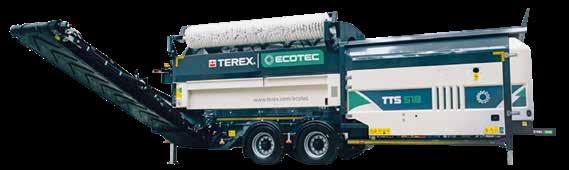

TTS 518 (Wheels)

Weight: 17.000kg Length: 11,3m Width: 2,55m Height: 4m Drum length: 4,7m Drum diameter: 1,8m Hopper capacity: 5m3

TTS 518T (Tracks)

Weight: 18.000kg Length: 9,8m Width: 2,9m Height: 3,4m Drum length: 4,7m Drum diameter: 1,8m Hopper capacity: 5m3

TTS 620 (Wheels)

Weight: 19.000kg Length: 12m Width: 2,5m Height: 4m Drum length: 5,5m Drum diameter: 2,0m Hopper capacity: 5,5m3

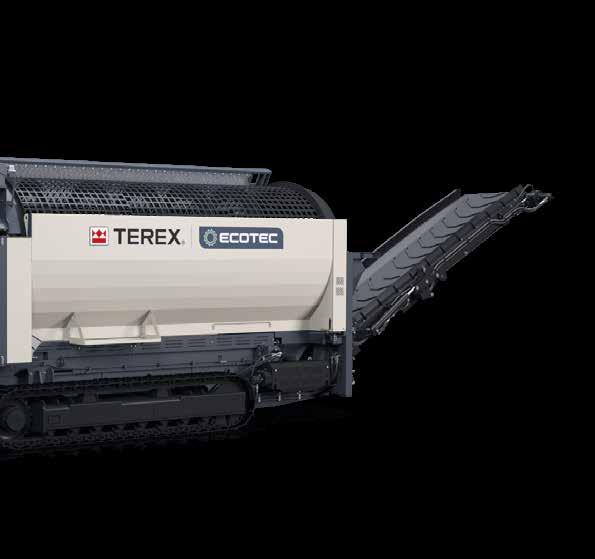

TTS 620T (Tracks)

Weight: 24.000 kg Length: 10,5m Width: 3m Height: 3,4m Drum length: 5,5m Drum diameter: 2,0m Hopper capacity: 5,5m3

PHOENIX 3300

PHOENIX 2100

TROMMEL SCREENS PHOENIX

PHOENIX 1600 (Wheels)

Weight: 18.000kg Length: 16,9m Width: 2,7m Height: 4m Drum length: 4,9m Drum diameter: 1,54m Hopper capacity: 4,3m3

PHOENIX 1600T (Tracks)

Weight: 21.100kg Length: 16,1m Width: 2,6m Height: 4,1m Drum length: 4,9m Drum diameter: 1,54m Hopper capacity: 4,3m3

PHOENIX 2100 (Wheels)

Weight: 27.500kg Length: 17,9m Width: 2,6m Height: 4m Drum length: 6,45m Drum diameter: 1,94m Hopper capacity: 5,6m3

PHOENIX 3300 (Wheels)

Weight: 37.500kg Length: 21,1m Width: 3m Height: 4,1m Drum length: 9,32m Drum diameter: 2,32m Hopper capacity: 7,8m3

RECYCLING SCREEN

TRS 550 SPALECK

Weight: 30.500kg Length: 14,8m Width: 3m Height: 3,4m Screenbox: 4,8m x 1,53m Hopper capacity: 7m3

TRS 550

TBG 630

TBG 630

SHREDDER HIGH SPEED

TBG 630 (Tracks)

Weight: 35.600kg Length: 13,58m Width: 3,00m Height: 3,35m Feed intake width: 1,7m Rotor dimensions: diameter 1,1m x 1,75m Number of hammers: 36

TDS V20

SHREDDER MEDIUM SPEED

TDS V20 (Tracks)

Weight: 37.000kg Length: 10,545m Width: 2,8m Height: 3,4m Shaft dimensions: diameter 0,63m x 2,0m

TDS 820 TDS 825

TDS 820 TDS 825

TSS 390T

SHREDDERS SLOW SPEED

TDS 820 (Tracks)

Weight: 27.500kg Length: 9,10m Width: 2,50m Height: 3,20m Shaft dimensions: diameter 0,70m x 2,0m

TDS 825 (Tracks)

Weight: 46.500kg Length: 9,7m Width: 3,00m Height: 3,40m Shaft dimensions: diameter 0,87m x 2,26m

TSS 390

TSS 390 (Wheels)

Weight: 32.000kg Length: 10,18m Width: 2,525m Height: 3,85m Shaft dimensions: diameter 0,99m x 3,0m

TSS 390T (Tracks)

Weight: 32.000kg Length: 10,18m Width: 2,525m Height: 3,40m Shaft dimensions: diameter 0,99m x 3,0m

Non-ferro separator

TMS 320 (TRACKS)

NON-FERRO SEPARATOR

TMS 320 (Tracks)

Weight: 19.500kg Length: 10m Width:3m Height: 3,3m Infeed: 1,9m x 2,4m Drum magnet Eddy current unit Wind shifter Option: static variant

Separates > ferrous metals > non-ferrous metals > plastics/lights from compost, biomass, IBA or waste

1

1,9m x 2,4m highly aggressive vibrating pan feeder with low throw and high G to maximise material spread and feed

1 2 3

Variable speed 2m wide high strength neodymium radial pole drum for optimal ferrous metal recovery 22 pole neodymium eddy current rotor surrounded with an ultra-thin carbon fibre shell to maximise non-ferrous metal recovery

2

3

4 Low noise 60kVa generator offering excellent fuel consumption and serviceability

TSC 65T

TSC 100T

TFC 75 TSC 80T

TFC 75 ORGANICS

TRC 75

TFC 75L

CONVEYORS

TSC 65T

Weight: 13.820kg Length: 19,79m Belt width: 1,05m Discharge height: 9,45m max Capacity: 500 t/h

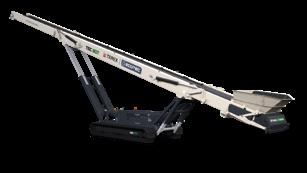

TSC 80T

Weight: 16.750kg Length: 22,8m Belt width: 1,05m Discharge height: 10,3m max Capacity: 500 t/h

TSC 100T

Weight: 21.800kg Length: 30,1m Belt width: 1,05m Discharge height: 13,38m max Capacity: 600 t/h

TRC 75

Weight: 19.800kg Length: 22,9m Belt width: 1,05m Discharge height: 10,9m max Capacity: 600 t/h

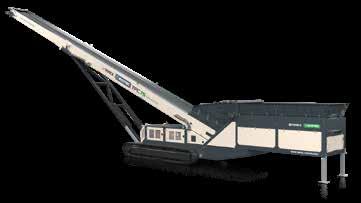

TFC 75

Weight: 23.500kg Length: 22,6m Belt width: 1,20m Discharge height: 9,8m max Capacity: 600 t/h

TFC 75L

Weight: 24.700kg Length: 22,6m Belt width: 1,20m Discharge height: 9,8m max Capacity: 600 t/h

TFC 75 ORGANICS

Weight: 24.350kg Length: 22,6m Belt width: 1,20m Discharge height: 9,8m max Capacity: 600 t/h
