SEMESTER 4 | RESIDENCE
SMRITHI IS A RESIDENCE DESIGNED FOR A YOUNG COUPLE, GARDNER AND A CHEF, ALONG WITH THEIR TWIN CHILDREN. THE PROJECT AIMS ON BRINGING SENSORIAL VALUES THAT WOULD MAKE THE CLIENTS FEEL HOME.
SITE LOCATION : NEAR INFOSYS, TRIVANDRUM SITE AREA : 21 CENTS
THE SITE IS SITUATED IN A RESIDENTIAL AREA WITH INFOSYS LOCATED AT THE REAR SIDE, A ROAD AT THE FRONT, A NEIGHBORING RESIDENCE ON ONE SIDE, AND A CANAL ALONG WITH A VACANT PLOT ON THE OTHER SIDE.
1
സ്മൃതി
A VOID IS CREATED AT THE CENTE ( COURTYARD ) WHICH ALLOWS WIND AND LIGHT TO PASS THROUGH.
A VOLUME IS ADDED AND REMOVED TO CREATE PASSAGE AND BASED ON FUNCTION.
A VOLUME IS ADDED AND REMOVED BASED ON FUNCTION.
OPEN TO SKY COURTYARD
TERRACE
GROUND FLOOR PLAN FIRST FLOOR PLAN UNIT N W E S MM W4 W3 W2 W1 D7 D6 D5 D4 D3 D2 D1 3 6 5 1 4 1 1 2 14 5 4 2100X1100 2100X1000 2100X900 2100X1200 2100X1300 2000X940 2000X6300 1200X1200 1200X1200 500X880 1200X1432 NAME NUMBER DIMENSION DOOR WINDOW SCHEDULE GLASS ELEVATION FILLED EARTH TERRACOTTA ROOF PCC RCC 23CM THK BRICK SECTION LEGENDS NOT TO SCALE 1318 2335 1139 289 951 534 880 734 880 927 1211 1530 1197 765 1417 2115 600 1930 1200 21951 905 762 962 822 997 1191 1275 1550 1405 2988 1181 863 1174 6782 1998 1200 24399 2899 230 2611 230 1985 230 2389 230 2084 230 4471 230 1302 230 2600 3198 230 6298 230 3272 230 2488 230 4027 3956 230 D2 D3 D3 W 3145 6355 DINING SPACE BEDROOM 1 LIVING ROOM KITCHEN CAFE KITCHEN O T S COURTYARD WORK AREA LIBRARY TOILET CAKE SHOP UP SWING 3493 1209 1021 1209 2082 1189 250 1209 1582 1209 1000 4013 6003 27211 1651 6369 1362 840 600 1202 1468 5860 2600 1651 6696 2343 1859 2447 2245 1929 2705 21750 ENTRY CAR PORCH SITOUT TOILET TOILET WASH AREA 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 D1 11855 230 5035 230 3559 230 5997 6000x6000 LVL O LVL +75 2000 x10000 LVL +75 2000 x 6000 3000 x4500 LVL45 2800 x2500 4500 x4000 LVL +65 LVL +75 2000 x 2000 2300 x 1700 4800 x 3000 2600 X 2000 4500 x 5000 5000 x 5000 3200 x 3500 B E3 B E2 E1 A A D3 D3 D2 D2 W 2 W 2 W 3145 6330 BEDROOM COURTYARD SEEN BELOW TERRACE GARDEN D2 BEDROOM TERRACE GARDEN WASHING AREA LIVING AREA DOWN 1700 3071 5338 880 929 1179 1618 1174 730 1532 1700 3071 18203 15419 4016 6002 6566 3545 1089 4339 3895 25490 6002 453 6369 327 2395 1807 2204 2488 2112 453 6369 11470 18246 2219 1565 1201 1464 2958 1206 867 1209 6547 2199 21436 TOILET TOILET D1 D6 W 3 B E3 B E2 E1 A A 8549 230 3254 230 2722 230 4259 2302202 4604 230 2084 230 4470 230 1532 4500 x 6000 4300 x 3200 2800 x2500 4500 x4000 1800 x2000 D1
ROOF LVL ROOF LVL FIRST FLOOR LVL GROUND FLOOR LVL GROUND LVL COURTYARD TOILET HAND WASH AREA SIT OUT LIVING ROOM BEDROOM TOILET SECTION AA 2906 1669 600 150 707 543 1600 750 600 200 5175 3000 1550 9725 PCC FLOORING 230 MM BRICK MASONRY RCC SLAB TERRACOTTA ROOF TILE 230 450 600 900 230 450 600 900 230 450 600 900 230 450 600 900 230 450 600 900 ROOF LVL ROOF LVL FIRST FLOOR LVL GROUND FLOOR LVL GROUND LVL COURTYARD KITCHEN LIBRARY TERRACE TERRACE 1355 1055 1000 1289 711 750 600200 3000 1475 2842 5253 9728 230 MM BRICK MASONRY PCC FLOORING RCC SLAB TERRACOTTA ROOF TILE 230 450 600 900 230 450 600 900 SECTION BB W4 W3 W2 W1 D7 D6 D5 D4 D3 D2 D1 3 6 5 1 4 1 1 2 14 5 4 2100X1100 2100X1000 2100X900 2100X1200 2100X1300 2000X940 2000X6300 1200X1200 1200X1200 500X880 1200X1432 NAME NUMBER DIMENSION DOOR WINDOW SCHEDULE GLASS ELEVATION FILLED EARTH TERRACOTTA ROOF PCC RCC 23CM THK BRICK SECTION LEGENDS
ROOF LVL ROOF LVL
TERRACOTTA ROOF TILE JALI WORK
ELEVATION 1
HAND RAIL
WOODEN COLUMN
FIRST FLOOR LVL GROUND FLOOR LVL GROUND LVL
WOODEN FRAME GLAZED GLASS
ELEVATION 2
TERRACOTTA ROOF TILE
WOODEN COLUMN JALI WORK JALI WORK
ROOF LVL
ELEVATION
WOODEN FRAME GLAZED GLASS
TERRACOTTA ROOF TILE
FIRST FLOOR LVL GROUND FLOOR LVL GROUND LVL
ROOF LVL
FIRST FLOOR LVL GROUND FLOOR LVL GROUND LVL
3
ELEVATION PLAN D1 SECTION 1000 1140 70 70 464 464 464 70 70 1140 A B c 230 100 30 16 DETAIL A 230 MM THICK BRICK WALL 15 MM THICK CEMENT PLASTER 150 MM THICK RCC LINTEL 130 100 30 16 DETAIL B 30 100 DETAIL C SCALE 1: 20 ELEVATION W 1 ELEVATION PLAN PLAN PLAN D2 W 2 SECTION 1000 2100 1120 2120 1300 ELEVATION SECTION SECTION 880 LAYOUT PLAN ELEVATION 1 4819 3025 230 2800 230 848 451 FLOORING PLAN 20001214556 2434 2102 1768 652 230 2800 230 230 2500 230 3300 2960 230 1561 230 2960 900 880 1768 652 230 2800 230 230 2500 230 3300 2960 230 1561 230 2960 900 ELEVATION 2 ELEVATION 3 WALL TILE OF 50X 50 WALL TILE OF 300X 600 2434 230 230 230 940 1560 230 FLOOR TILE OF 300X 600 E2 E3 E1 TOILET DETAIL JOINERY DETAIL W4 W3 W2 W1 D7 D6 D5 D4 D3 D2 D1 3 6 5 1 4 1 1 2 14 5 4 2100X1100 2100X1000 2100X900 2100X1200 2100X1300 2000X940 2000X6300 1200X1200 1200X1200 500X880 1200X1432 NAME NUMBER DIMENSION DOOR WINDOW SCHEDULE GLASS ELEVATION FILLED EARTH TERRACOTTA ROOF PCC RCC 23CM THK BRICK SECTION LEGENDS NOT TO SCALE
SEMESTER 5 | AUDITORIUM
THE OBJECTIVE OF THE PROJECT IS TO DESIGN A PERFORMING ART AUDITORIUM WITH A SEATING CAPACITY OF 500 PEOPLE AND PROVIDE ADEQUATE PARKING FACILITIES. THIS INCLUDES INTEGRATING CONTOUR SOLVING TECHNIQUES TO ENSURE THE OPTIMAL USE OF THE SITE'S TOPOGRAPHY AND INCORPORATING BASEMENT PARKING TO ADDRESS THE PARKING REQUIREMENTS OF THE FACILITY.
OPAL IS A WHITE BUILDING IN THE MIDDLE OF THE VACCANT GREEN PLOT WITH COLUMN IN ITS FACADE TO MERG WITH ITS SURROUNDING.
SITE LOCATION : KOWDIAR, TRIVANDRUM
SITE AREA : 3 ACRES
THE SITE IS CONTOURED SITE SITUATED IN A PRIME SPOT WITH A ROAD AT THE FRONT AND VACANT PLOT AROUND.
2
OPAL
NOT TO SCALE SITE PLAN PLAN AT LEVEL 36 N 44.0 46.0 41.0 42.0 43.0 40.0 39.0 ENTRY EXIT ENTRY DROP OFF RAMP GREEN SPACE RAMP RETAINING WALL LVL +36M LVL +36M LVL +40M RETAINING WALL 45.0 8 10 11 12 13 14 16 17 19 21 22 23 24 34 33 31 30 29 28 27 26 WATER FEATURE BASEMENT PARKING 28 29 36 37 38 LOBBY UP BIKEPARKING LIFT LVL +36M UP LIFT FIRE STAIR 1 A J B D E F G H 9 13 L 10 12 14 6103,52 3472,98 6257,86 15226,71 4940,92 35991,99 6100 B' N 3121 EXIT 2055 3549 1670 74.41 60.21 44.0 41.0 42.0 43.0 40.0 62.50 1:8 RETAINING WALL RAMP RETAINING WALL DROP OFF WATER FEATURE TOWARDS BASEMENT PARKING GREEN SPACE PAVEMENT 25 26 LVL +36M 29 30 31 34 35 ENTRY 4 6 7 11 13 16 18 20 21 23 46.0 45.0 39.0 TO PEROORKADA 935 TO KOWDIAR 1850
14.50 NOT TO SCALE PLAN AT LEVEL 44 ELEVATION SECTION PLAN AT LEVEL 40 35991,99 A C 6103,52 3472,98 J 6257,86 K 15226,71 L 4940,92 M 15 16 TOILET GREEN ROOM GENTS GREEN ROOM LADIES RAMP WORKSHOP LVL +41M REHEARSAL ROOM 1 FIR EXIT VIP ENTRY LVL +40M STAGE MANAGER'S CABIN 2 3 4 VIP LONGUE 5 UP 6 7 8 LIFT 9 SNACK BAY EXHIBITION SPACE LVL +40M FIRE STAIR UP LIFT 11 13 12 14 10 B D E F G H N 4077,25 4427,85 7455,97 4973,73 6100 1834,95 E1 UP UP UP UP N 35991,99 C 6103,52 3472,98 J 6257,86 K 15226,71 L 4940,92 M 15 16 LVL +41M RAMP 1:8 1 2 LVL +40M 4 TOILET GENTS 5 TOILET LADIES 6 UP LVL +44M 7 LIFT 9 FIRE STAIR 11 13 LIFT CONTROL ROOM UP 12 14 10 LVL +44M 8 B D E F G H 4077,25 4427,85 4973,73 1834,95 6100 SNACK BAR EXHIBITION SPACE BASEMENT PARKING ROAD STAGE GREEN ROOM LVL +36M LVL +40M LVL +44M LVL +41M 38.12 2.47 4.30 4.00 STAGE LVL +41M BASEMENT PARKING LVL +36M LADIES TOILET LVL +44M GENTS TOILET LVL +44M VIP LONGUE LVL +41M RETAINING WALL RETAINING WALL 14.50 SECTION AA' SECTION BB' 12.50

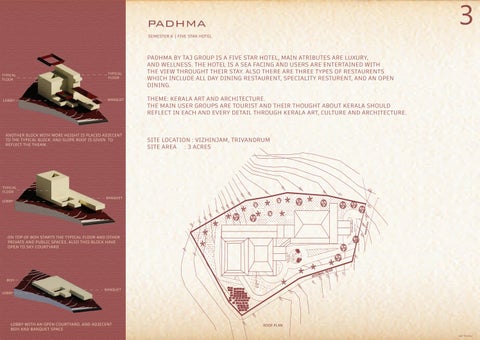

PADHMA
SEMESTER 6 | FIVE STAR HOTEL
PADHMA BY TAJ GROUP IS A FIVE STAR HOTEL, MAIN ATRIBUTES ARE LUXURY, AND WELLNESS. THE HOTEL IS A SEA FACING AND USERS ARE ENTERTAINED WITH THE VIEW THROUGHT THEIR STAY. ALSO THERE ARE THREE TYPES OF RESTAURENTS WHICH INCLUDE ALL DAY DINING RESTAURENT, SPECIALITY RESTURENT, AND AN OPEN DINING.
THEME: KERALA ART AND ARCHITECTURE. THE MAIN USER GROUPS ARE TOURIST AND THEIR THOUGHT ABOUT KERALA SHOULD REFLECT IN EACH AND EVERY DETAIL THROUGH KERALA ART, CULTURE AND ARCHITECTURE.
SITE LOCATION : VIZHINJAM, TRIVANDRUM
SITE AREA : 3 ACRES
ROOF PLAN NOT TO SCALE
LOBBY WITH AN OPEN COURTYARD. AND ADJECENT BOH AND BANQUET SPACE
ON TOP OF BOH STARTS THE TYPICAL FLOOR AND OTHER PRIVATE AND PUBLIC SPACES. ALSO THIS BLOCK HAVE OPEN TO SKY COURTYARD
LOBBY BOH BANQUET LOBBY TYPICAL FLOOR BANQUET LOBBY TYPICAL FLOOR TYPICAL FLOOR BANQUET 3 GUEST ENTRY GUEST WXIT BANQUET ENTRY HOTEL ENTRY BASEMENT PARKING ENTRY BOH SERVICE ENTRY DROP OFF DROP OFF
ANOTHER BLOCK WITH MORE HEIGHT IS PLACED ADJECENT TO THE TYPICAL BLOCK. AND SLOPE ROOF IS GIVEN TO REFLECT THE THEAM.
GROUND FLOOR PLAN TYPICAL FLOOR PLAN ALL DAY DINING FLOOR POOL LEVEL NOT TO SCALE FIRE N SERVICE STAIR SERVICE LIFT HVAC ELECTRIC ELECTRIC AHU KITCHEN DISH WASH POT WASH STORAGE GUEST LIFT SERVICE STAIR SERVICE LIFT FIRE PLUMBING FIRE ELECTRIC STAIR KEEPING ELECTRIC ROOM
FLAVOUR TRIO
THE PROJECT INVOLVES DESIGNING A RESTAURANT WITH A MINIMUM OF THREE CUISINES TO ACCOMMODATE 80 TO 100 GUESTS. THE DESIGN SHOULD BE DEVELOPED WITHIN A GIVEN FLOOR PLAN OF 600 SQUARE METERS, WHICH ALREADY INCLUDES EXISTING ELEMENTS SUCH AS A MAIN STAIR, FIRE STAIR, AND FIXED GLASS OPENINGS.
THEME: CREATE A LIVELY ATMOSPHERE BLENDING THE ESSENCE OF INDIA, ITALY, AND CHINA. USE COLORFUL INDIAN MOTIFS, ITALIAN RUSTIC CHARM, AND CHINESE-INSPIRED ACCENTS SUCH AS LANTERNS ETC. FOR A UNIQUE DINING EXPERIENCE THAT REPRESENTS DIVERSE CUISINES.
SECTION BB'
MAINSTAIRFLIGHTWIDTH= 120 CM TREAD=30RISE=15CM TANDOOR FIRE CM 264 206 UP BUFFET COUNTER DOWN 2590 30 561 30 30 482 291 30 610 30 30 30 30 1423 30 426 510 30 510 1536 113 30 30 30 30 30 610 610 610 660 2703 60 60 540 60 60 340 1460 60 340 340 60 540 1460 INDIAN CHINESE PICK UP DISH WASH AND POTWASH DRY STORE WALK FREEZER CHEF CABIN PARTITION WALL ENTRANCE DESSERT UP LIFT 155 208 DUCT GENTS TOILET LADIES TOILET RECEPTION HIGHWAY FRONTAGE DISPLAY COUNTER 610 610 610 340 60 60 LONGCHAIR CRADLE 2 4 6 8 10 12 14 16 1 3 5 7 9 11 13 15 A C E G B D F H 600.00 SQ.M 10 130 310 10 460 RECEPTION DESSERT DINING KITCHEN CHEF CABIN SECTION AA' DESSERT BUFFET COUNTER PARTITION AIR CONDITION DUCT FIRST FLOOR LVL FALSE CEILING LVL 10 130 310 10 460 FIRST FLOOR LVL FALSE CEILING LVL
NOT TO SCALE
PLAN 4
